Hasselblad aims high with new 100-megapixel aerial camera system

Hasselblad aims high with new 100-megapixel aerial camera system

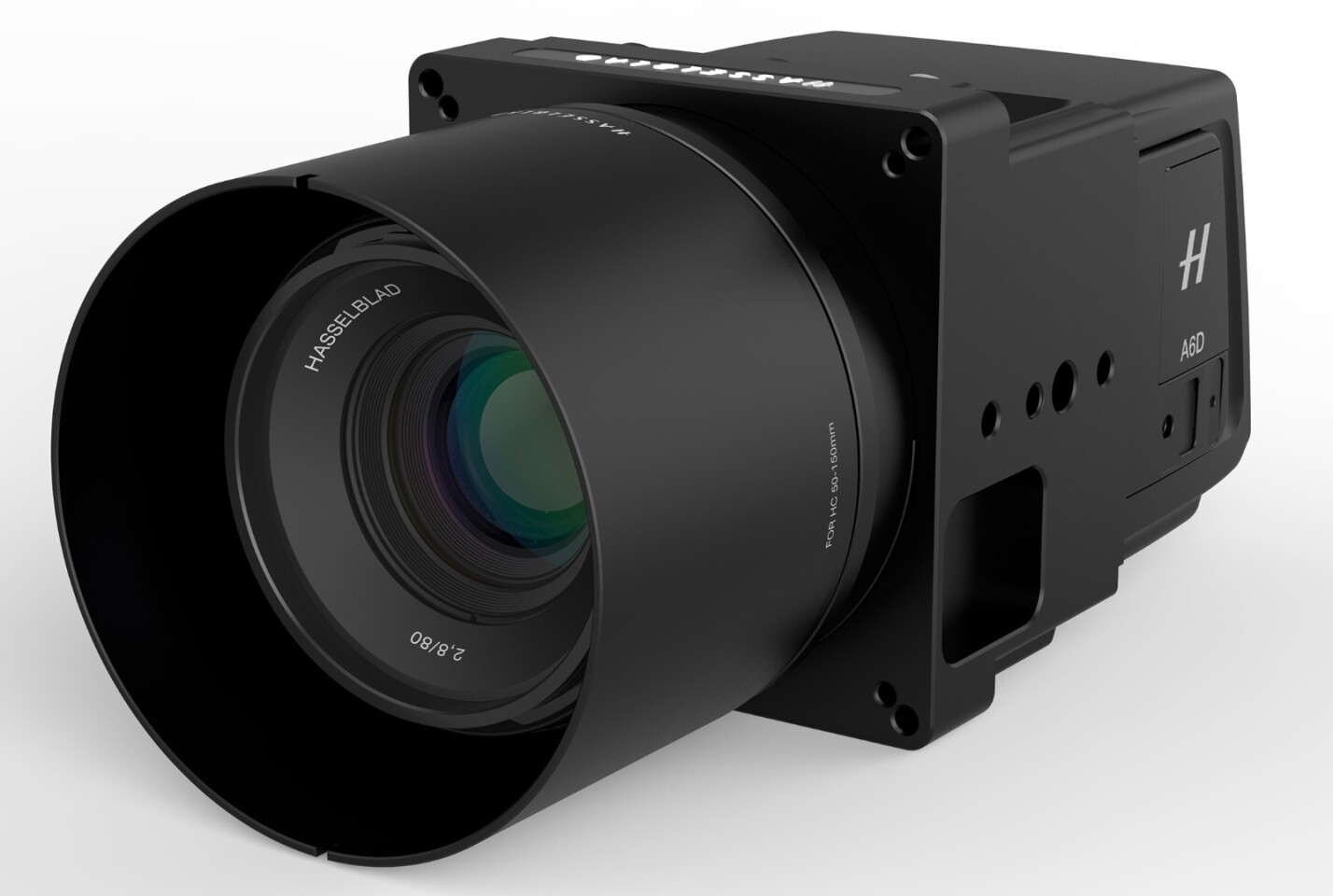

The Hasselblad A6D 100c is a 100-megapixel medium-format aerial camera
The Hasselblad A6D 100c is a 100-megapixel medium-format aerial camera
View 5 Images
The Hasselblad A6D-100c will be available with or without an infrared filter
1/5
The Hasselblad A6D-100c will be available with or without an infrared filter
The Hasselblad A6D-100c includes a feature that allows up to eight cameras to be synchronized within 20 microseconds
2/5
The Hasselblad A6D-100c includes a feature that allows up to eight cameras to be synchronized within 20 microseconds
The Hasselblad A6D 100c is compatible with H System lenses which feature locking mounts to minimize vibration and flexing
3/5
The Hasselblad A6D 100c is compatible with H System lenses which feature locking mounts to minimize vibration and flexing
The Hasselblad A6D 100c is a 100-megapixel medium-format aerial camera
4/5
The Hasselblad A6D 100c is a 100-megapixel medium-format aerial camera
The Hasselblad A6D 100c lacks the grip and dials of typical cameras and instead features LEMO connectors to control the camera remotely
5/5
The Hasselblad A6D 100c  lacks the grip and dials of typical cameras and instead features LEMO connectors to control the camera remotely
View gallery - 5 images

We're used to seeing Hasselblad cameras in high places; last month the firm launched a 100-megapixel drone, and the company isn't shy about reminding people its cameras have been used on the moon. Now Hasselblad has announced another sky-bound shooter with the A6D-100c. The updated medium-format aerial camera system sees resolution boosted up to 100-megapixels, and dynamic range increased to 15 stops.

The A6D-100c follows on from the A5D which was launched in 2015 and is again an industrial device aimed primarily at aerial surveying and mapping users. The headline attraction this time around is the jump to using a 100-MP medium-format CMOS sensor, where its predecessor was only available in resolutions up to 60-MP. This new sensor also enables a ISO range of 64 to 12800, and offers a dynamic range of 15 stops, compared to the 14 stops of the A5D.

Because it's meant to be used mounted rather than held in the hands, the compact body of the A6D-100c lacks physical features such as the grip and control buttons of cameras like the H6D-100c. It's also designed for use with aerial versions of H System lenses which feature locking mounts to minimize vibration and flexing, and keep the image plane and sensor parallel even if the camera is being bounced around.

The Hasselblad A6D 100c is compatible with H System lenses which feature locking mounts to minimize vibration and flexing
The Hasselblad A6D 100c is compatible with H System lenses which feature locking mounts to minimize vibration and flexing

Nine of these lenses are available covering a focal length range of 24 to 300mm (24-mm, 28-mm, 35-mm, 50-mm, 80-mm, 100-mm, 150-mm, 210-mm and 300-mm) which should cover most aerial applications, and Hasselblad says these units ship with their focus precisely adjusted and fixed at infinity. The exposure time for the aerial lenses has also now been improved up to 1/4000 of a second.

Because aerial cameras like this are often used in situations where more than one device is shooting at any time, there's the ability to synchronize eight A6D-100c cameras to shoot within 20 microseconds of each other using a simple bus-type cable connection. This eliminates the headache of dealing with un-synchronized exposures in post processing.

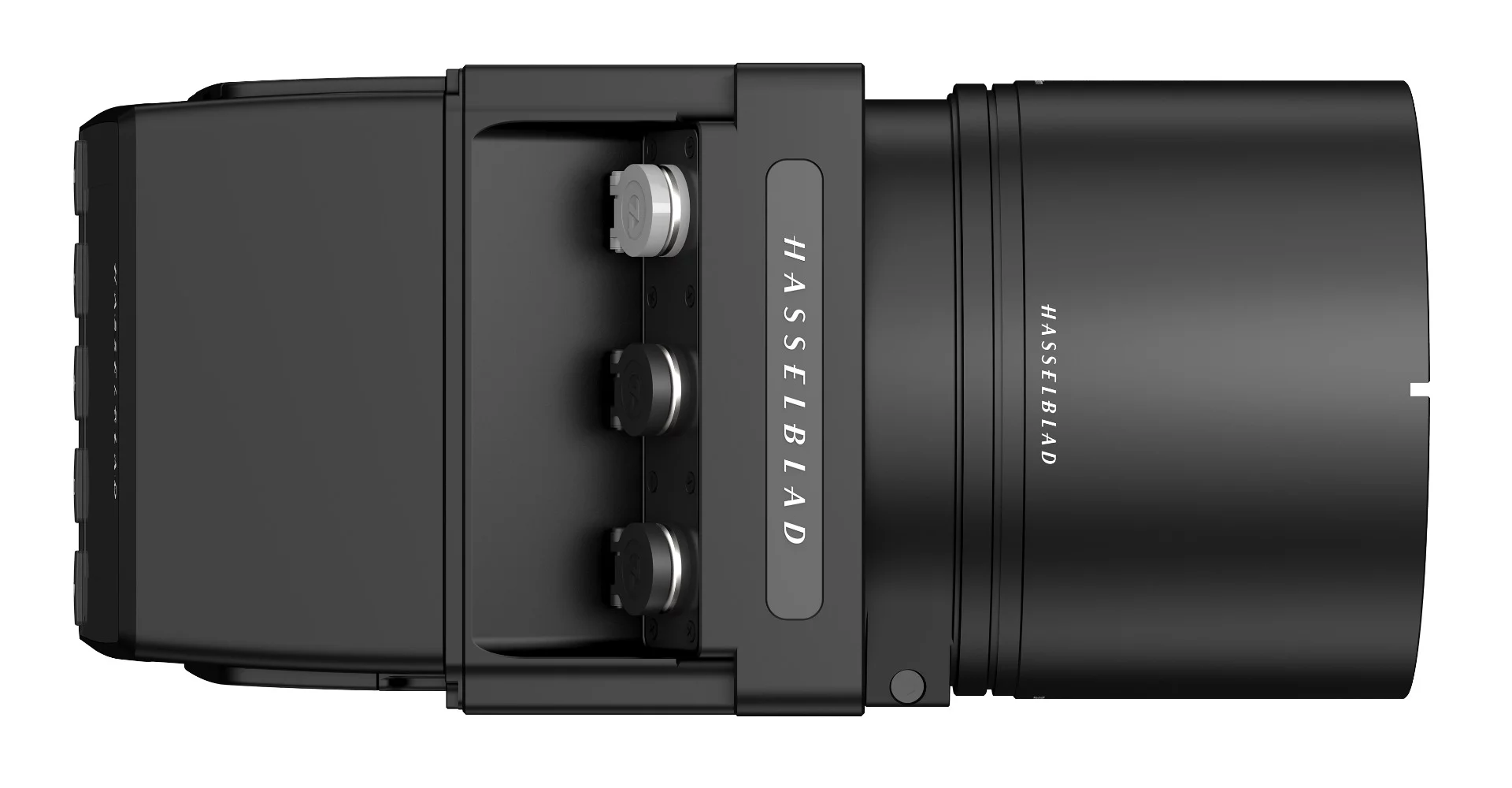

The Hasselblad A6D 100c lacks the grip and dials of typical cameras and instead features LEMO connectors to control the camera remotely
The Hasselblad A6D 100c  lacks the grip and dials of typical cameras and instead features LEMO connectors to control the camera remotely

Hasselblad says the new camera will also be available with or without a filter for infrared captures. This will be of use for aerial analysis photography such as surveying the environment and crop management.

There's no news yet on exactly how much an A6D-100c (or eight) will set you back, or when it will be available. However, users can request a demo via the Hasselblad website.

Product page: Hasselblad A6D-100c
