Honda files patents for brand new, fuel injected two-stroke engine

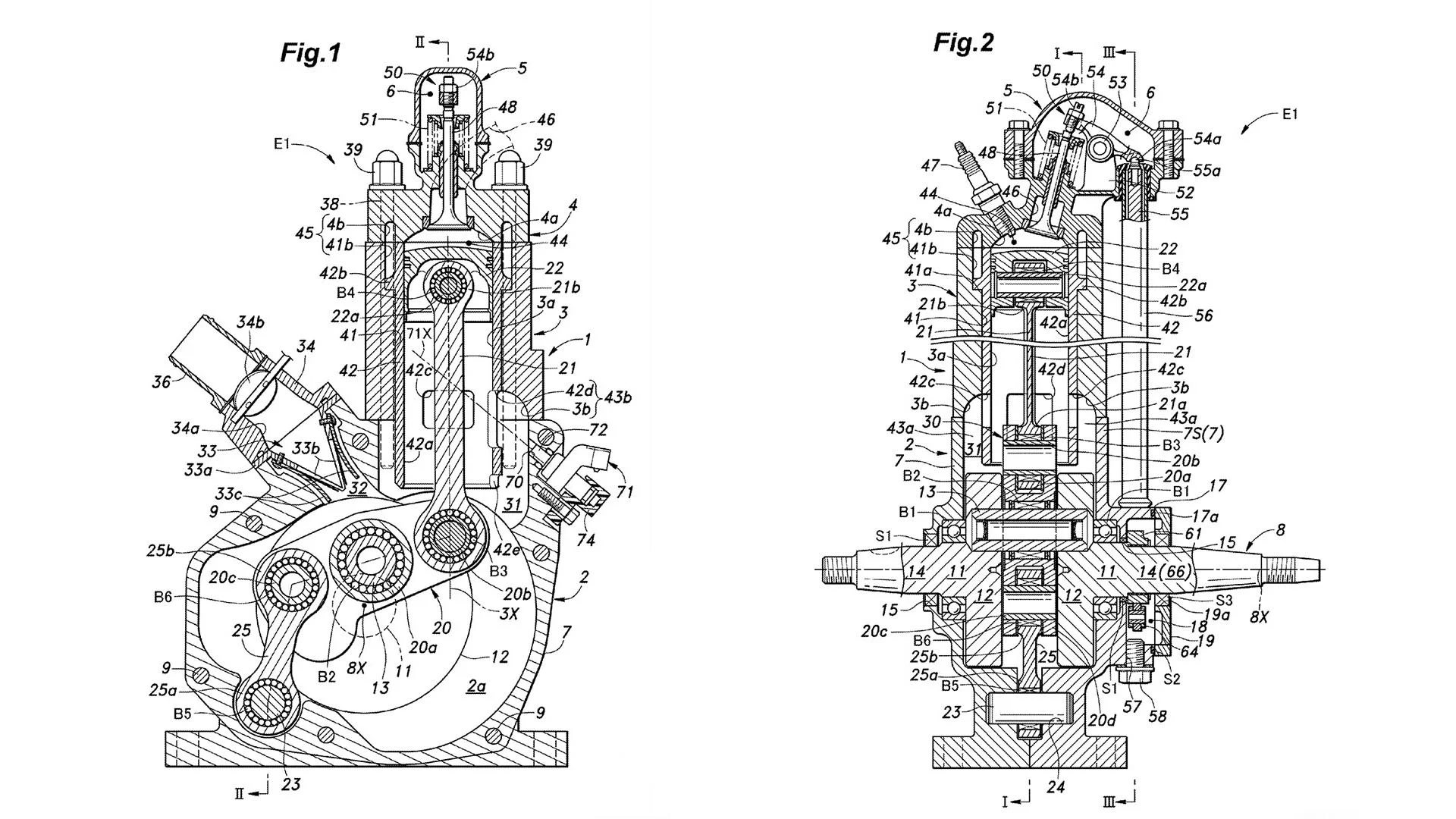

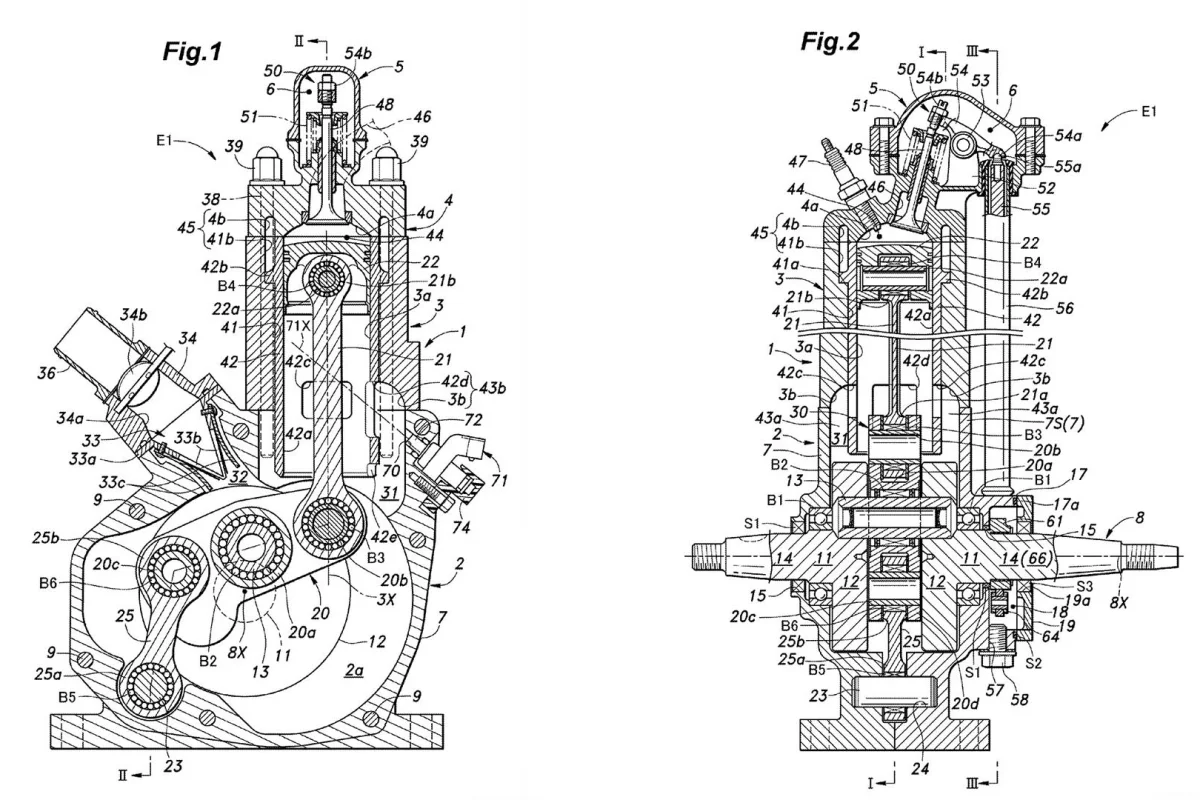

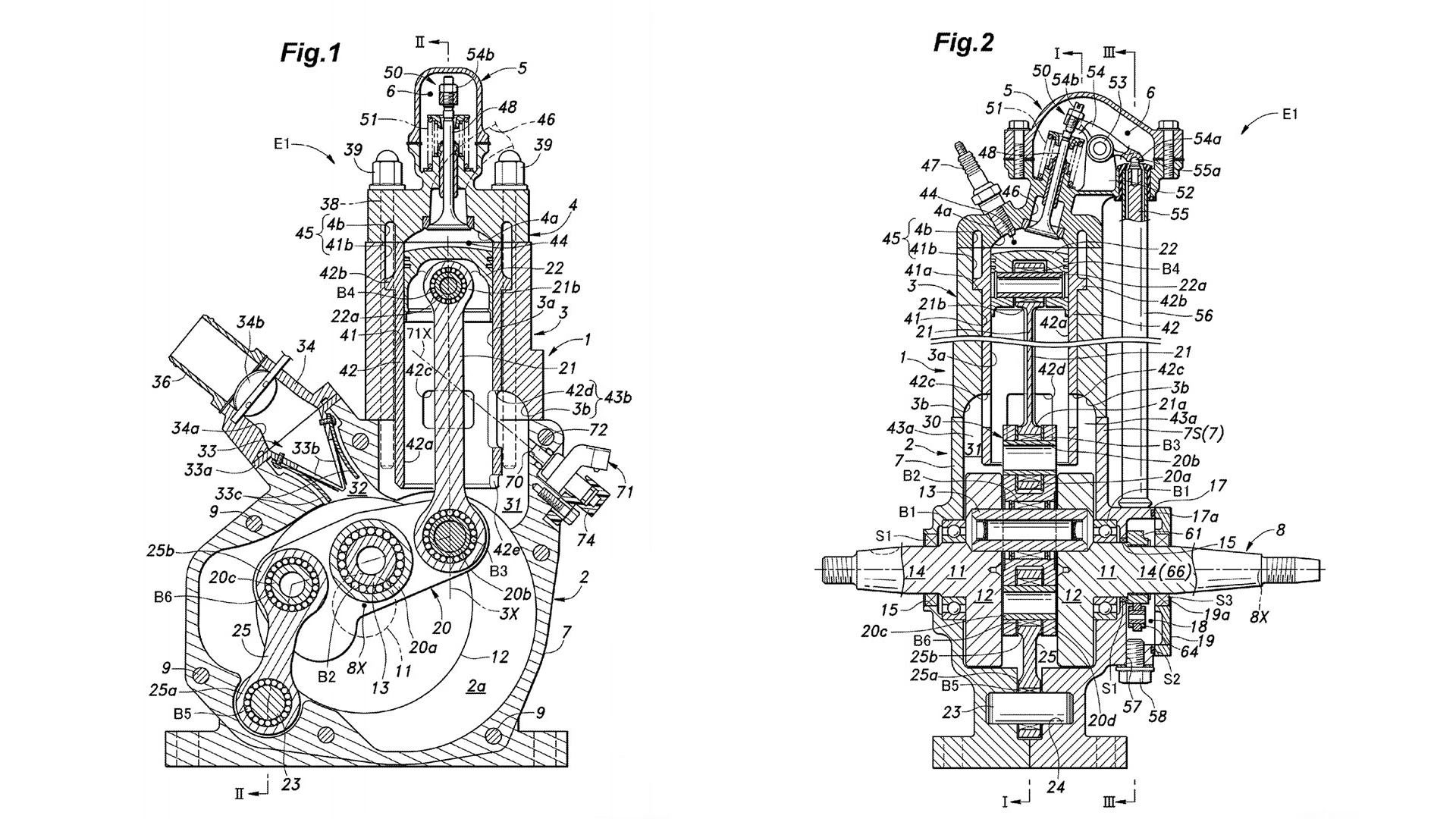

Honda plans to revive the two-stroke engine, according to patent documents lodged earlier this month
Honda plans to revive the two-stroke engine, according to patent documents lodged earlier this month
View 6 Images

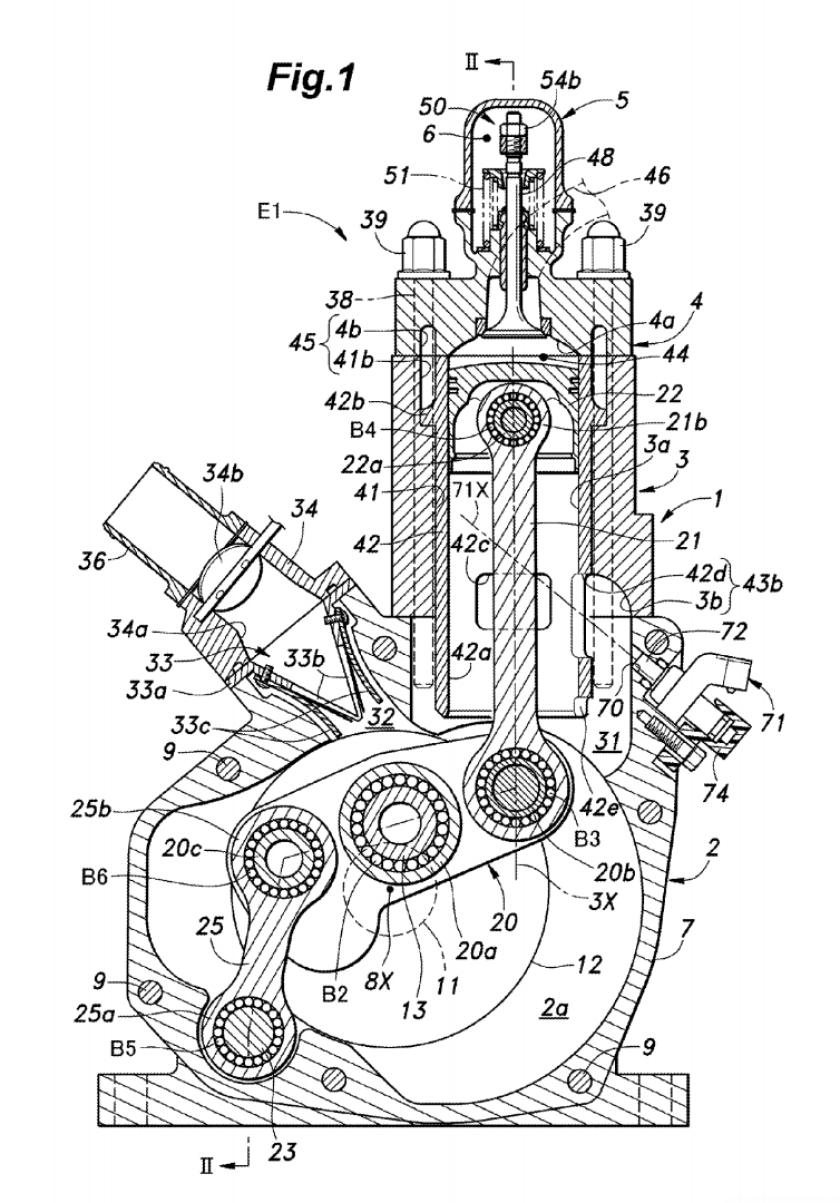

Honda's fuel-injected two-stroke engine patent, showing a lower positioning for the fuel injector (labelled #71)
1/6
Honda's fuel-injected two-stroke engine patent, showing a lower positioning for the fuel injector (labelled #71)
Engine cycle - the fuel is injected close to top dead centre, after the exhaust valve has closed, leading to higher efficiency, less unburned fuel and reduced emissions
2/6
Engine cycle - the fuel is injected close to top dead centre, after the exhaust valve has closed, leading to higher efficiency, less unburned fuel and reduced emissions

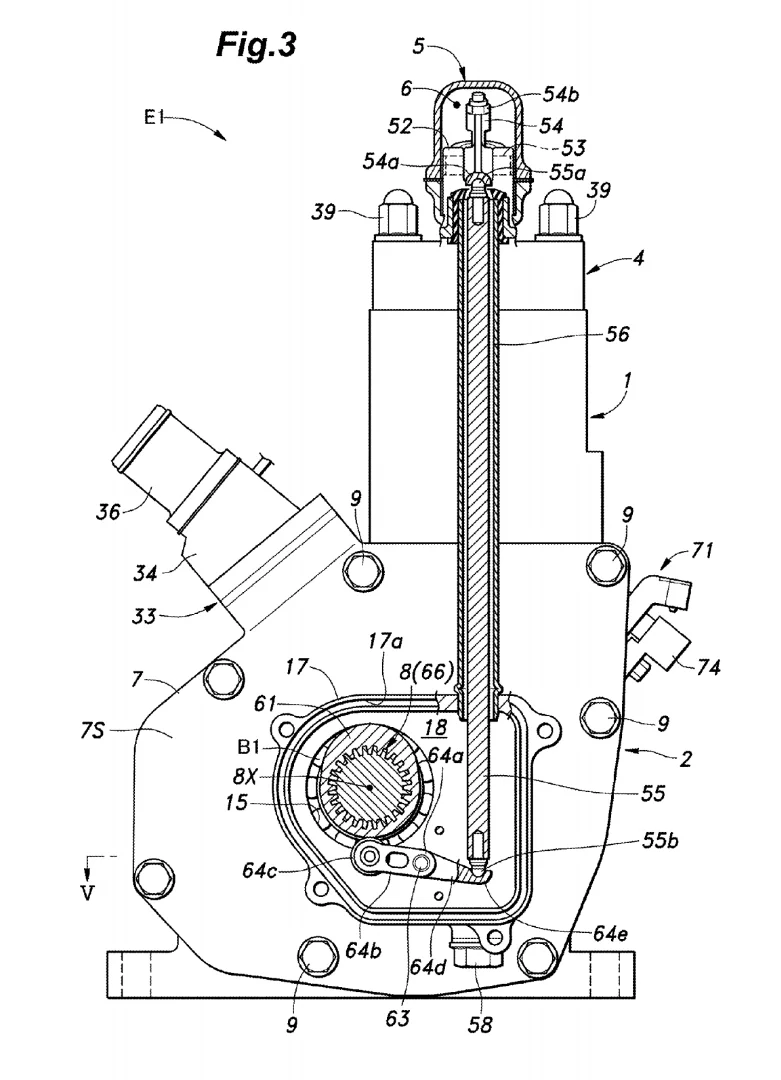

Valve actuation is by pushrod - thus, this design is unlikely to be a high performance motorcycle engine
3/6
Valve actuation is by pushrod - thus, this design is unlikely to be a high performance motorcycle engine
Front-on view of Honda's two-stroke injected engine. Note the wide platform at the bottom - this could be a mounting flange if this was to be used as a general purpose industrial engine
4/6
Front-on view of Honda's two-stroke injected engine. Note the wide platform at the bottom - this could be a mounting flange if this was to be used as a general purpose industrial engine
Honda's fuel-injected two-stroke engine patent
5/6
Honda's fuel-injected two-stroke engine patent
Honda plans to revive the two-stroke engine, according to patent documents lodged earlier this month
6/6
Honda plans to revive the two-stroke engine, according to patent documents lodged earlier this month

Two-strokes are far simpler machines than four-stroke engines. They’re also lighter, easier to work on, and downright angrier, pumping out a lot more power per cubic centimeter of displacement, which has won them a lot of fans. But they’ve had a reputation for belching out a fair bit of smoke and unburned fuel, a situation that just couldn’t fly alongside tightening emissions regulations around the world, so they’ve fallen out of favour. But now there’s a glimmer of hope. Earlier this month, Honda submitted a patent application for a brand new two stroke motor that uses direct fuel injection for a cleaner burn and better piston cooling. We may yet see a resurrection of the ring-dingers.

Uncovered by eagle-eyed patent hawks at Morebikes, the new patent describes a new two-stroke engine with a fuel injection system mounted on the back of the cylinder, pointing upwards toward the back wall of the cylinder bore. The injector is set to spray the fuel when the piston is near top dead center, so that unburned fuel won’t get swept out with the exhaust gases, and the fuel is aimed such that the cylinder and piston can both be partially cooled as the fuel evaporates against them.

Honda's fuel-injected two-stroke engine patent
Honda's fuel-injected two-stroke engine patent

Honda believes this design can help eliminate some of the complexity of other injected two-stroke designs, helping bring the production and maintenance costs down and potentially making them relevant for manufacture again.

It’s widely believed that Husqvarna and KTM, among others, are sitting on injected two-stroke motor designs and waiting on the right time to debut something. But word is, KTM expects its injected two-strokes to be so complex that they'll end up being as expensive and heavy as a four stroke engine, which could well kill demand. Perhaps with this design, Honda has managed to break down some of that complexity and find a package that can welcome the braappers back into the modern motorcycle landscape.

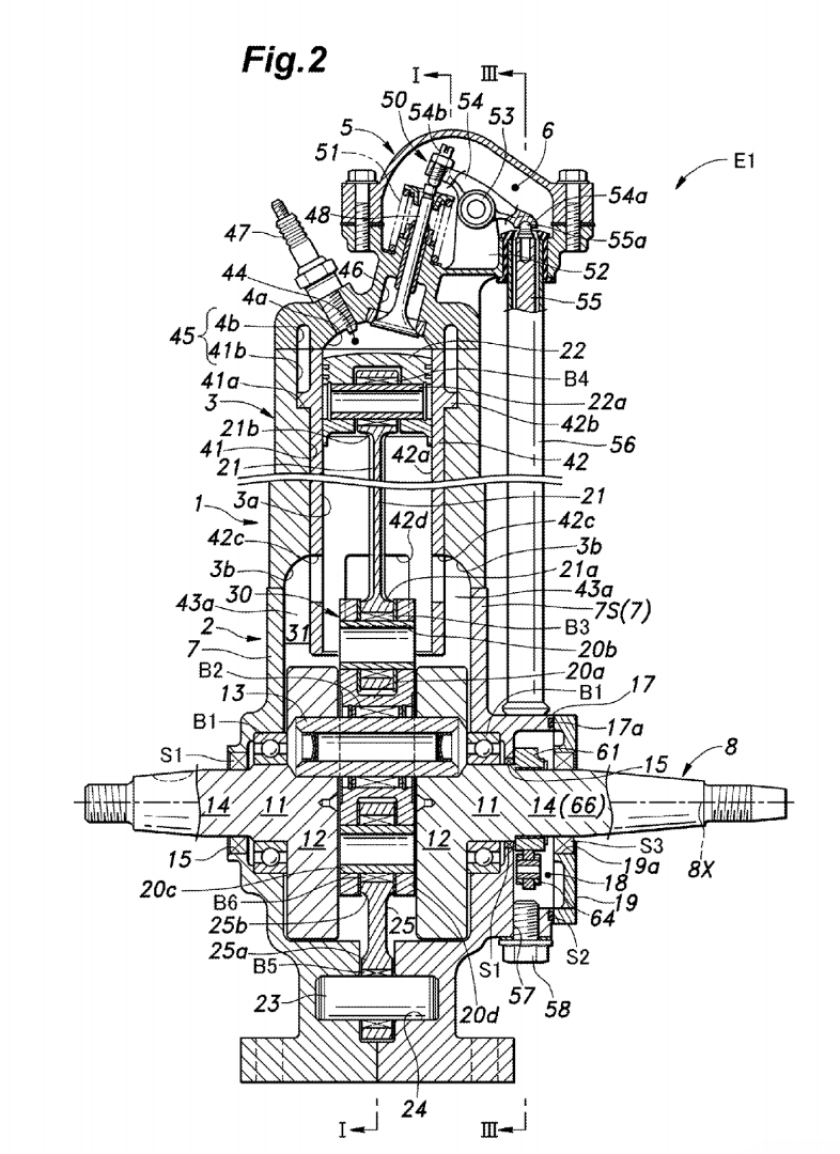

Front-on view of Honda's two-stroke injected engine. Note the wide platform at the bottom - this could be a mounting flange if this was to be used as a general purpose industrial engine
Front-on view of Honda's two-stroke injected engine. Note the wide platform at the bottom - this could be a mounting flange if this was to be used as a general purpose industrial engine

But language in this Honda patent, as well as the design drawings, suggest that this might not be conceived as a motorcycle engine at all – at least, not in its current form. In the first background paragraph of the application, Honda states that "the two-stroke engine is often preferred over the four-stroke engine in the field of general purpose engines because of the simplicity in the structure."

Furthermore, that diagram would seem to show a long-stroke engine with a pushrod valve system and a thick mounting flange at the bottom. In addition, the patent wording states that "the liquid fuel may consist of diesel oil or any other fuel that is provided with a lubricating property." All of which points toward an industrial generator-type machine rather than a high-performance motorcycle engine.

Even so, it shows Honda is still looking to innovate and develop in the two-stroke world – and there is most certainly a market (including Gizmag’s own highly emotional Mike Hanlon) that would love to see efficient, clean two-strokes come into the modern era. Stay tuned.

Source: USPTO via Fresh Patents
