Hungary's Odooproject prefab home produces twice the amount of energy it consumes

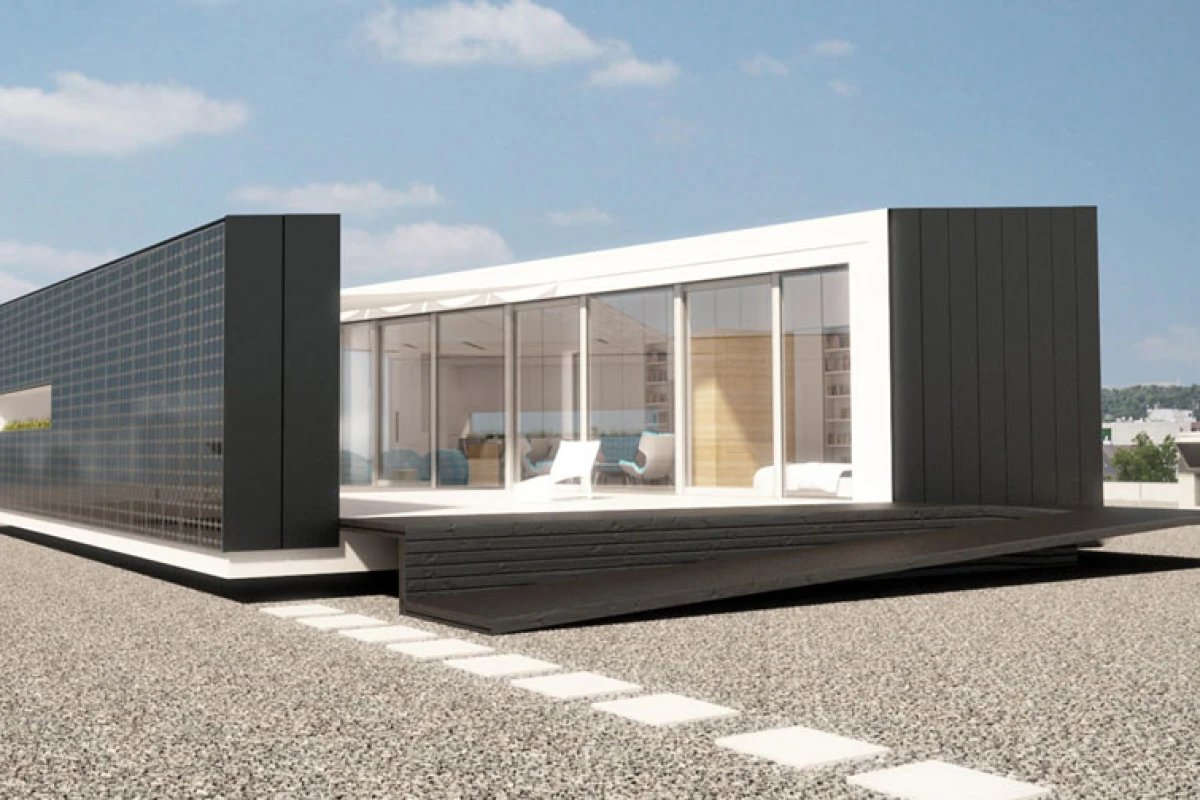

Budapest University students have created an innovative solar-powered prefab home for the 2012 European Solar Decathlon
Budapest University students have created an innovative solar-powered prefab home for the 2012 European Solar Decathlon
View 22 Images
The Solar Decathlon Europe will launch in Madrid on 13th September 2012
1/22
The Solar Decathlon Europe will launch in Madrid on 13th September 2012

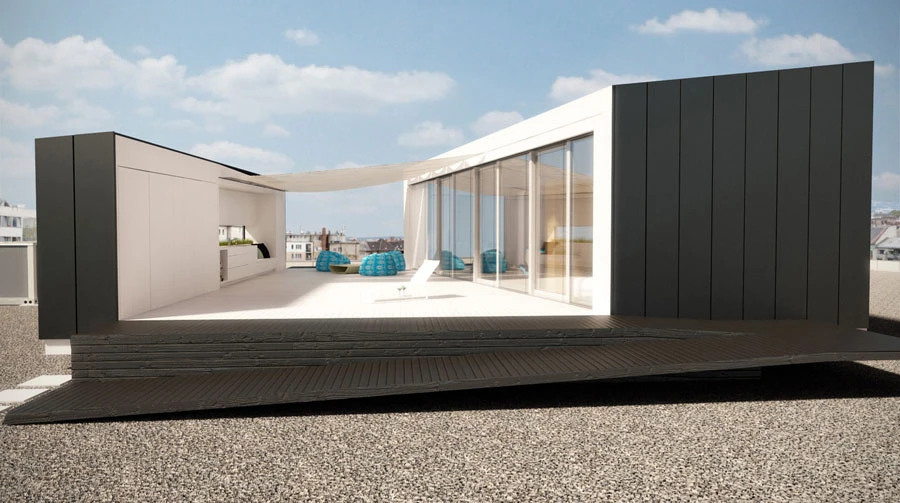

This central zone creates a private terrace that allows its occupants to spend a large amount of their time in the open air
2/22
This central zone creates a private terrace that allows its occupants to spend a large amount of their time in the open air

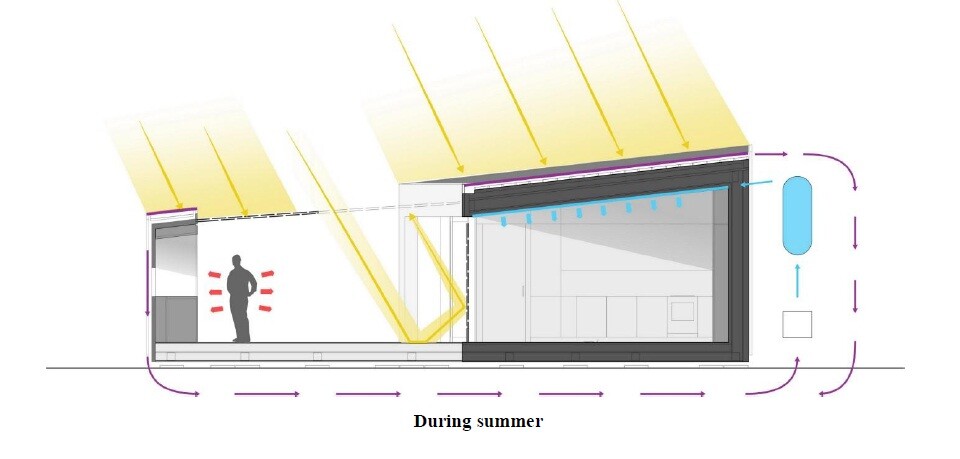

The home is kept cool during the summer
3/22
The home is kept cool during the summer
During the cooler months when the sun is lower, energy is produced by the south-facing wall
4/22
During the cooler months when the sun is lower, energy is produced by the south-facing wall
The innovative prefabricated model has been designed to enter the Hungarian marketplace
5/22
The innovative prefabricated model has been designed to enter the Hungarian marketplace
Odoo house features modern interior design
6/22
Odoo house features modern interior design
The prominent south-facing wall features a considerably large surface area that is entirely fitted with photovoltaic panels
7/22
The prominent south-facing wall features a considerably large surface area that is entirely fitted with photovoltaic panels
A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer
8/22
A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer
Odoo house features modern interior design
9/22
Odoo house features modern interior design
Odoo house features modern interior design
10/22
Odoo house features modern interior design
Dubbed Odooproject, the Hungarian team has created a modern and sophisticated home design that features an open central area
11/22
Dubbed Odooproject, the Hungarian team has created a modern and sophisticated home design that features an open central area

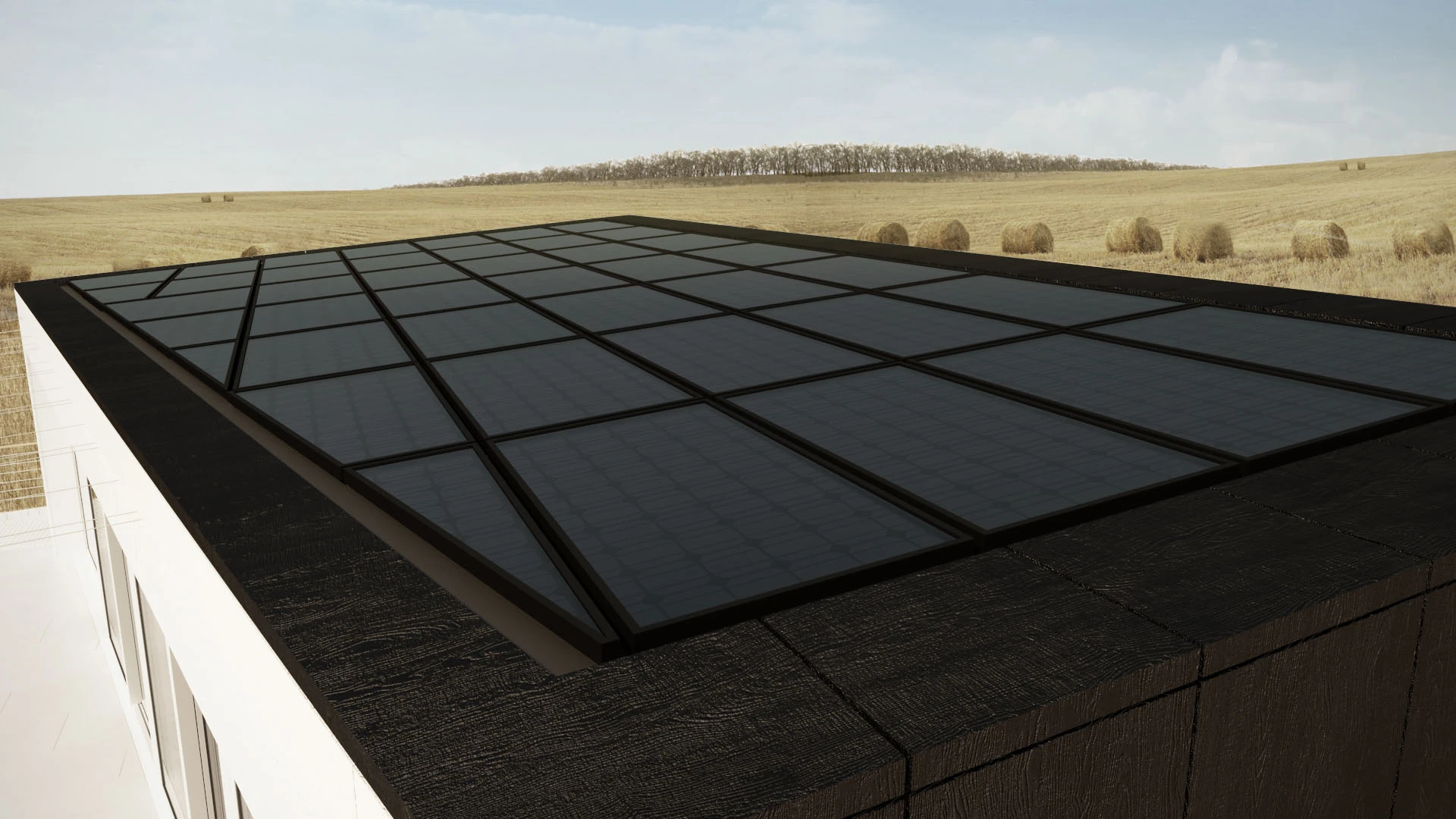

During the summer months when the sun is high, solar energy is produced by the roof panels
12/22
During the summer months when the sun is high, solar energy is produced by the roof panels

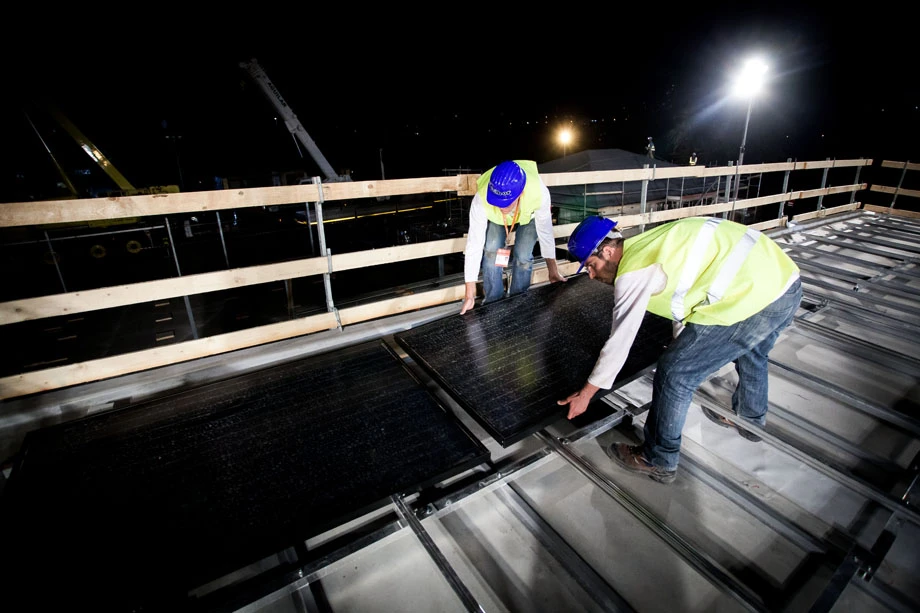

Odooproject members construct the home in Madrid
13/22
Odooproject members construct the home in Madrid
Odooproject members construct the home in Madrid
14/22
Odooproject members construct the home in Madrid

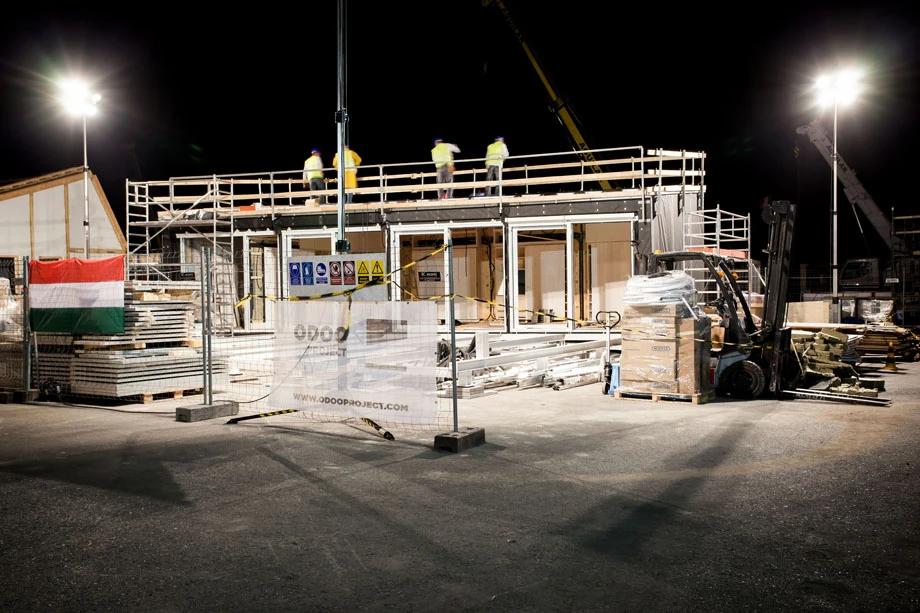

Odooproject mid construction in Madrid
15/22
Odooproject mid construction in Madrid
The Odooproject team from the Budapest University of Technology and Economics
16/22
The Odooproject team from the Budapest University of Technology and Economics

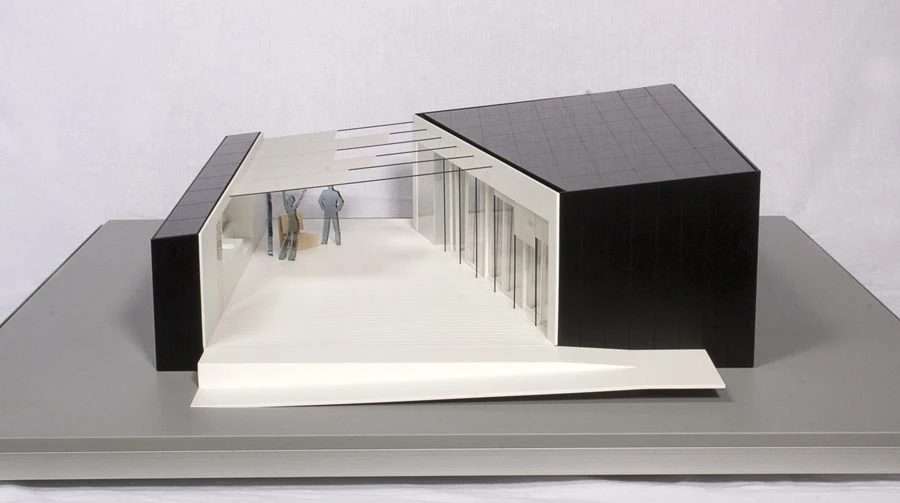

Odooproject model
17/22
Odooproject model
A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer
18/22
A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer
The sun's rays heat the interior during the winter
19/22
The sun's rays heat the interior during the winter

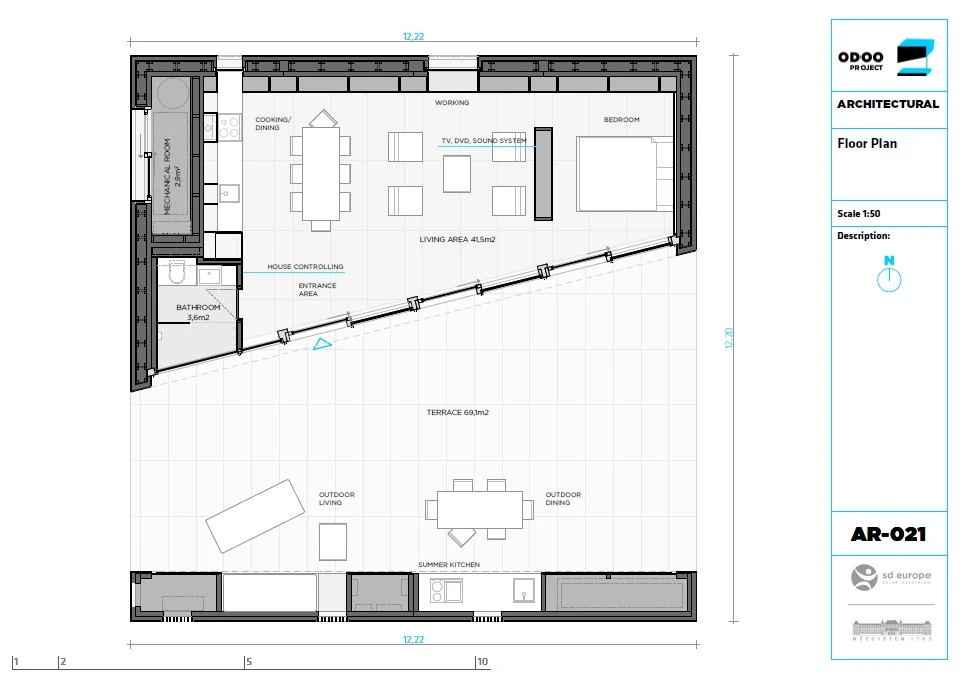

Odooproject floorplan
20/22
Odooproject floorplan
Budapest University students have created an innovative solar-powered prefab home for the 2012 European Solar Decathlon
21/22
Budapest University students have created an innovative solar-powered prefab home for the 2012 European Solar Decathlon

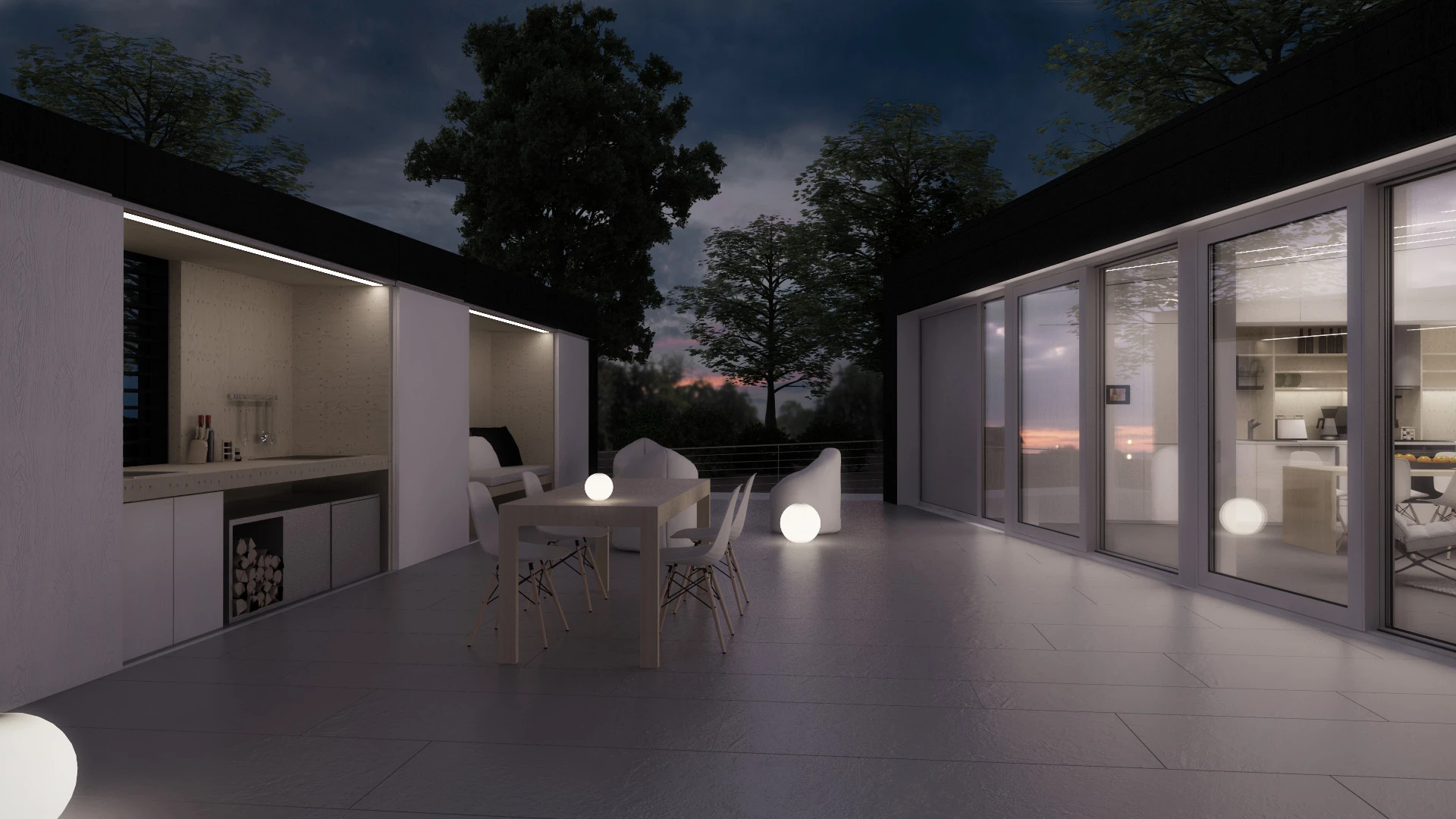

The open central area is complete with a summer kitchen
22/22
The open central area is complete with a summer kitchen

On the eve of the opening of the European Solar Decathlon, a team from the Budapest University of Technology and Economics is ready to present its innovative solar-powered prefab home, which produces twice the amount of energy than it consumes. The decathlon is an international competition among universities which promotes research in the development of energy-effective and light-structured residential buildings that only use solar energy. This year the prestigious competition is being hosted in Madrid, Spain and will see a selection of university entries from across Europe, including Germany, Denmark, Spain, France, Hungary, Italy, The Netherlands, Norway, Portugal, The United Kingdom and Romania, and four more from China, Japan, Brazil and Egypt.

The Hungarian "Odooproject" team has created a modern home design that features an open central area, complete with a summer kitchen. This central zone creates a private terrace that allows its occupants to spend a large amount of their time in the open air, while also taking advantage of the sun’s energy. Drawing inspiration from traditional Hungarian folk architecture, the house features a darker outer shell, which forms a closed building that is suitable for its climatic conditions.

The open central area is complete with a summer kitchen
The open central area is complete with a summer kitchen

The prominent south-facing wall features a considerably large surface area that is entirely fitted with photovoltaic panels. During the summer months when the sun is high, solar energy is produced by the roof panels, while during the cooler months when the sun is lower, energy is produced by the south-facing wall. “Ultimately, owing to this system, the house generates twice as much energy in Hungarian conditions and three times as much in Madrid as the house itself spends,” the Odooproject team states. “This amount is able to serve two other house’s needs, or provide a 70-kilometer (43.5-mile) long travel distance – daily – for an electric car.”

By also incorporating a ceiling-integrated water cooling system, the home can maintain cool temperatures during the summer. This system cools the living area through the ceiling and is also able to channel out extra heat from the room. Because the house produces twice as much energy as it needs on a yearly scale, its heating can be addressed with only a slight electrical boost from the municipal grid during autumn and spring. However, for heating during the winter, the home relies entirely on grid-supplied electric energy.

A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer
A ceiling-integrated water cooling system the home can maintain cool temperatures during the summer

The Hungarian team ultimately hopes that its Odooproject home is a viable and innovative prefabricated model that can be successfully sold within the marketplace. “It is our long time goal to penetrate the Hungarian market after participating at the contest with the help of supporters and sponsors,” says the team.

Source: Odooproject, Solar Decathlon Europe via Inhabitat
