Ideum sets 4th generation multitouch table

Ideum sets 4th generation mult...

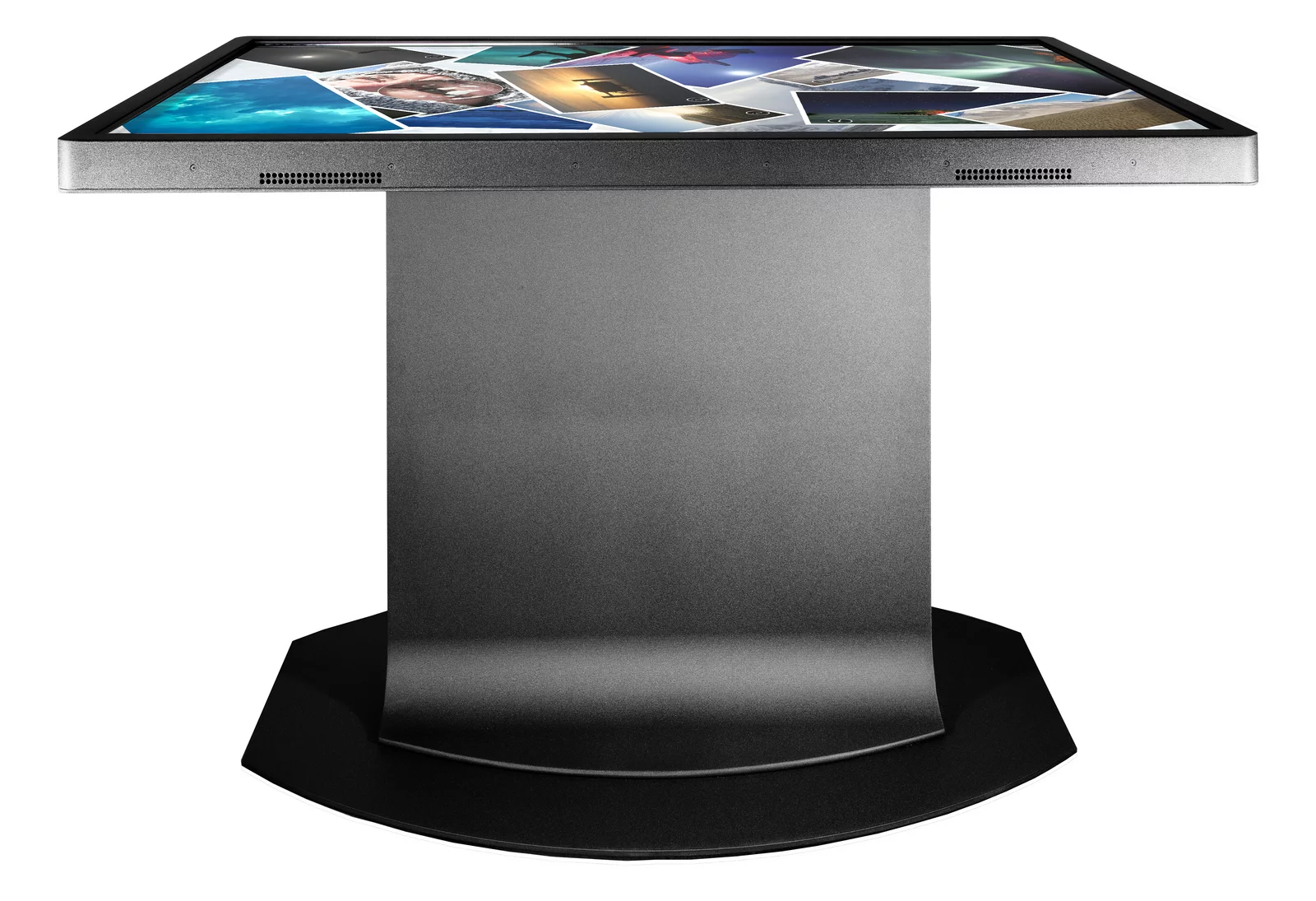

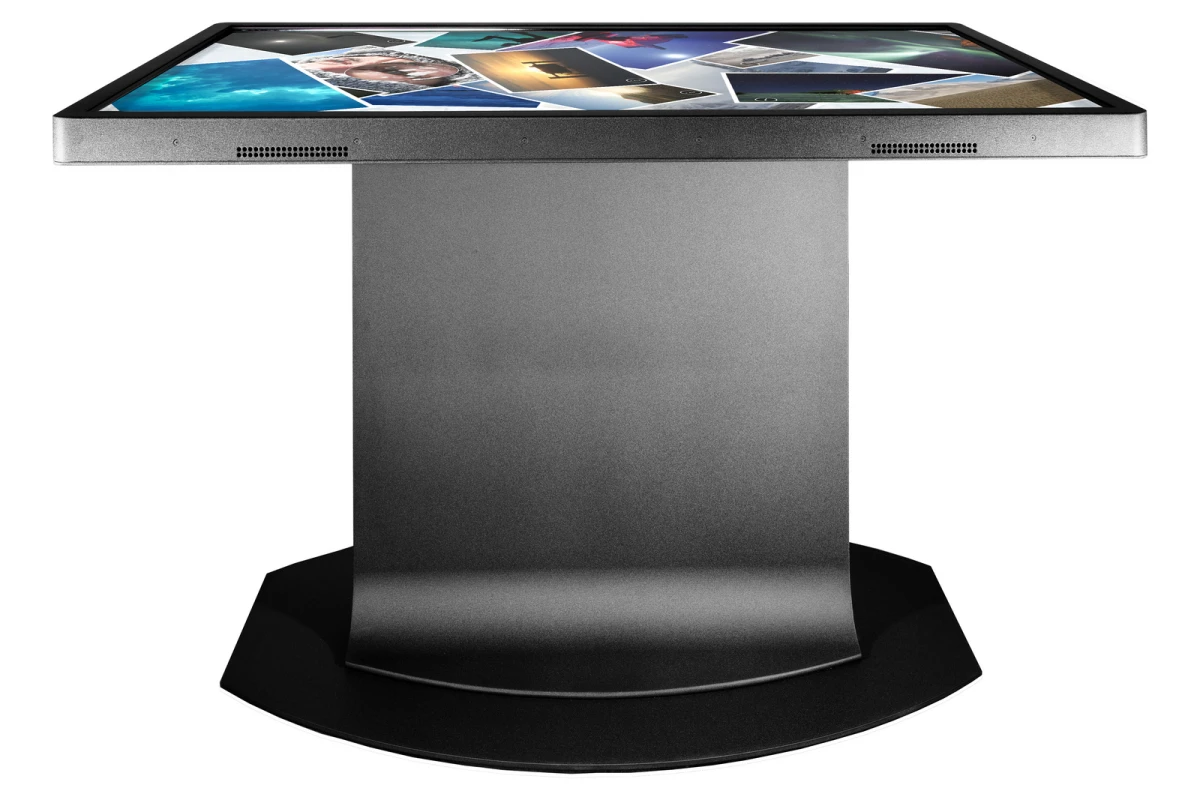

Ideum's Platform multitouch table has scratch-resistant glass
Ideum's Platform multitouch table has scratch-resistant glass
View 7 Images
Ideum's Platform multitouch table has scratch-resistant glass
1/7
Ideum's Platform multitouch table has scratch-resistant glass

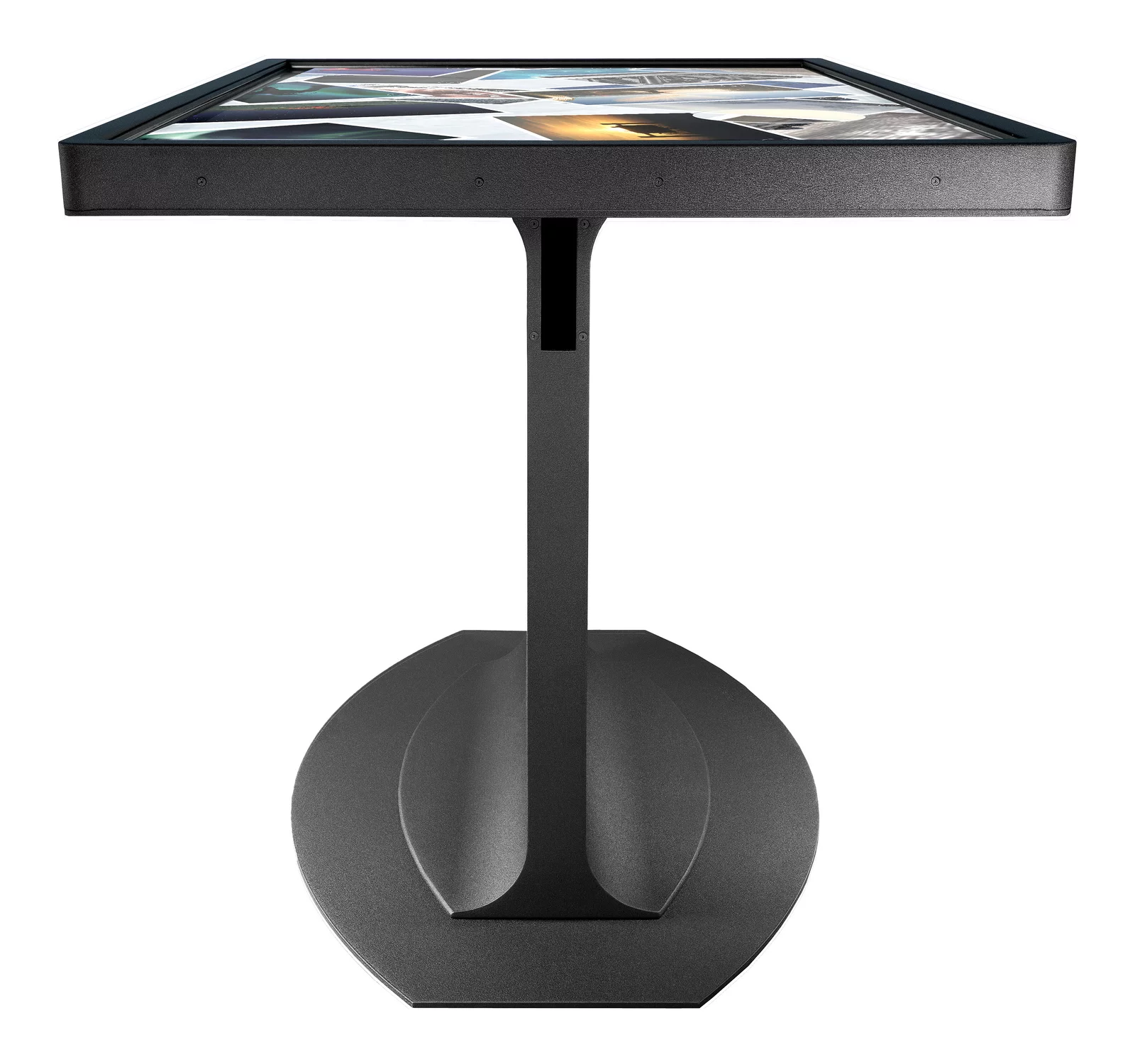

The Ideum Platform multitouch table is made from aircraft-grade aluminum
2/7
The Ideum Platform multitouch table is made from aircraft-grade aluminum

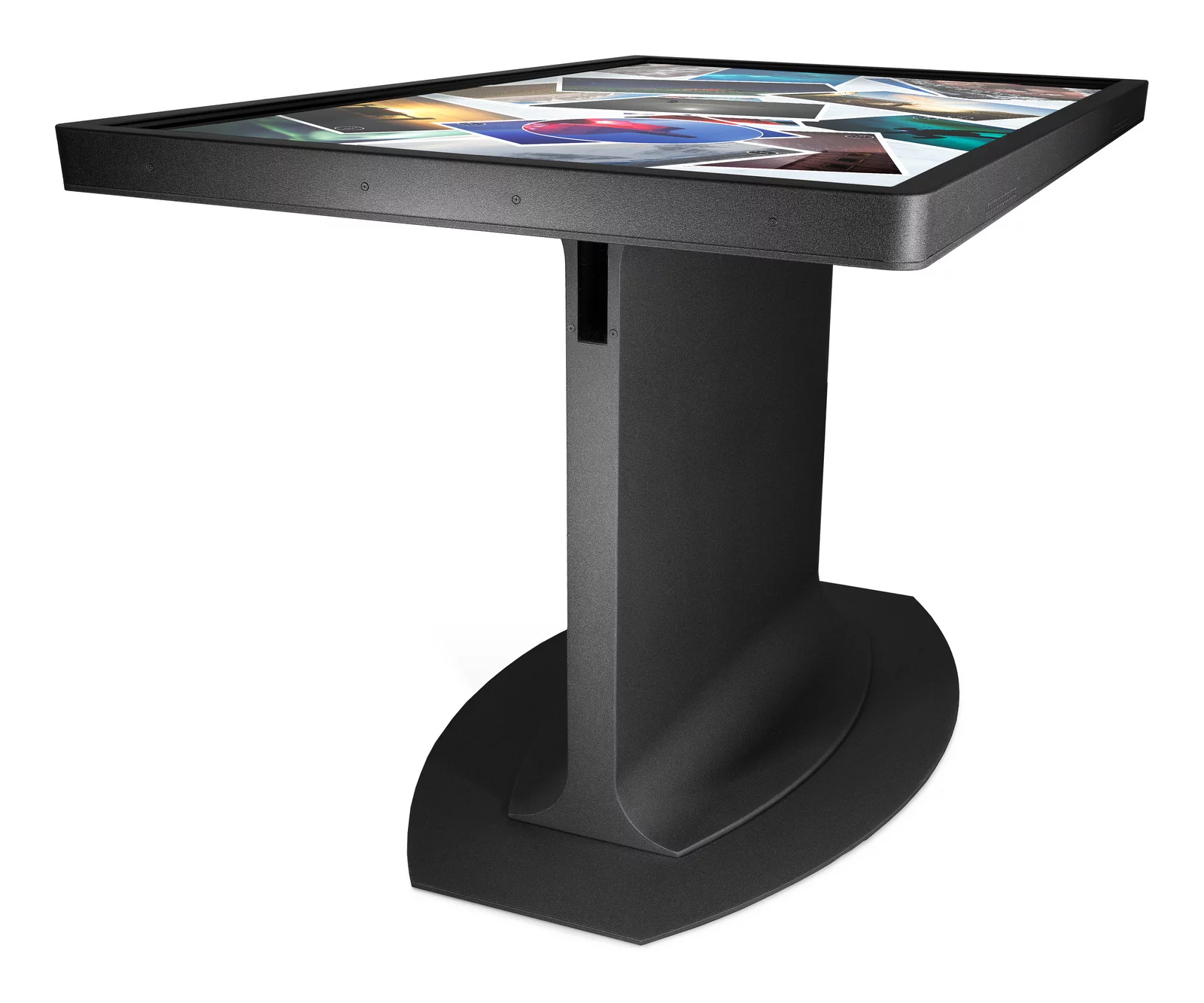

Interactive displays engage viewers on the Ideum Platform multitouch display
3/7
Interactive displays engage viewers on the Ideum Platform multitouch display

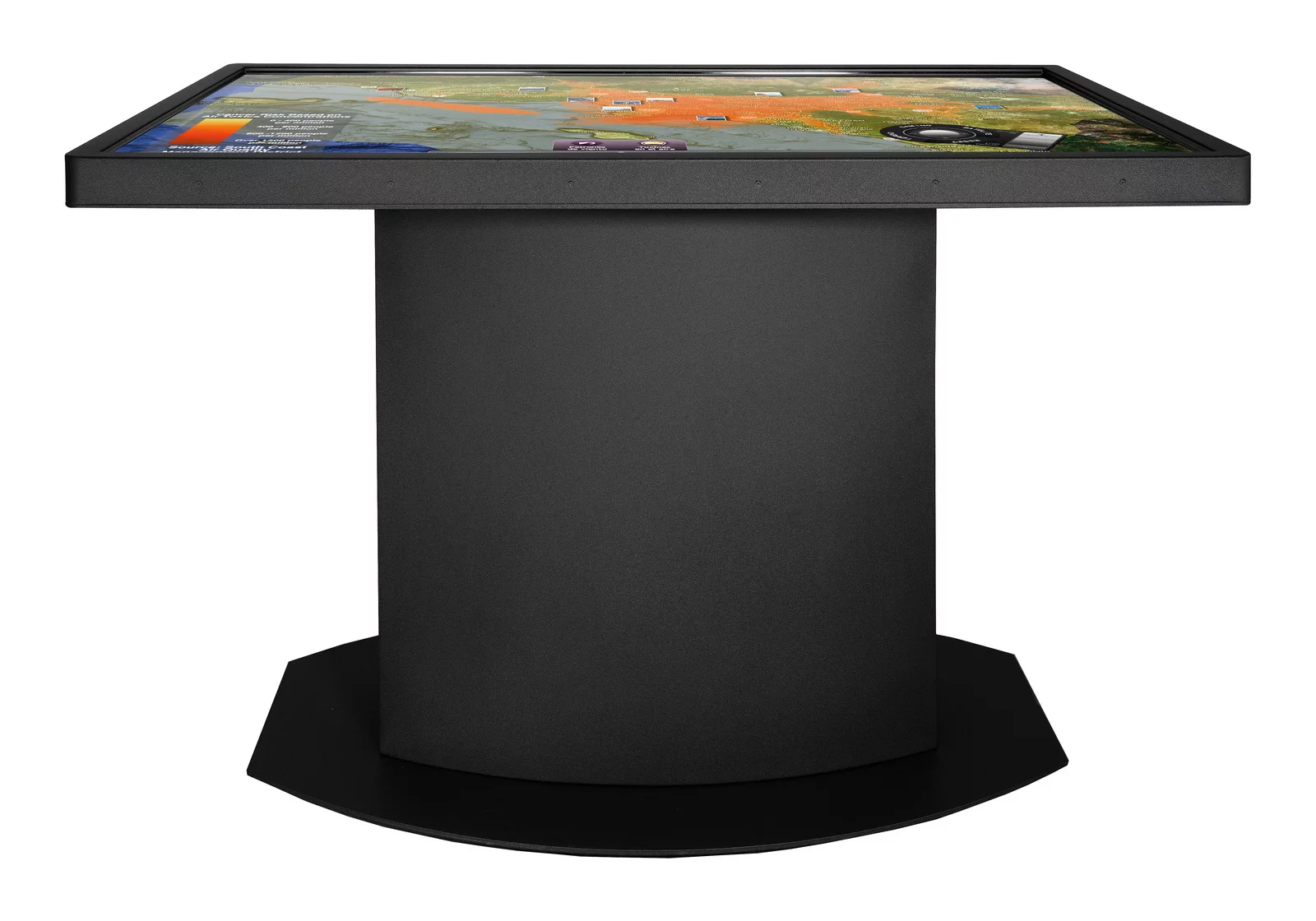

The Ideum Pro multitouch display has a bright, 3,000,000:1 dynamic contrast ratio
4/7
The Ideum Pro multitouch display has a bright, 3,000,000:1 dynamic contrast ratio

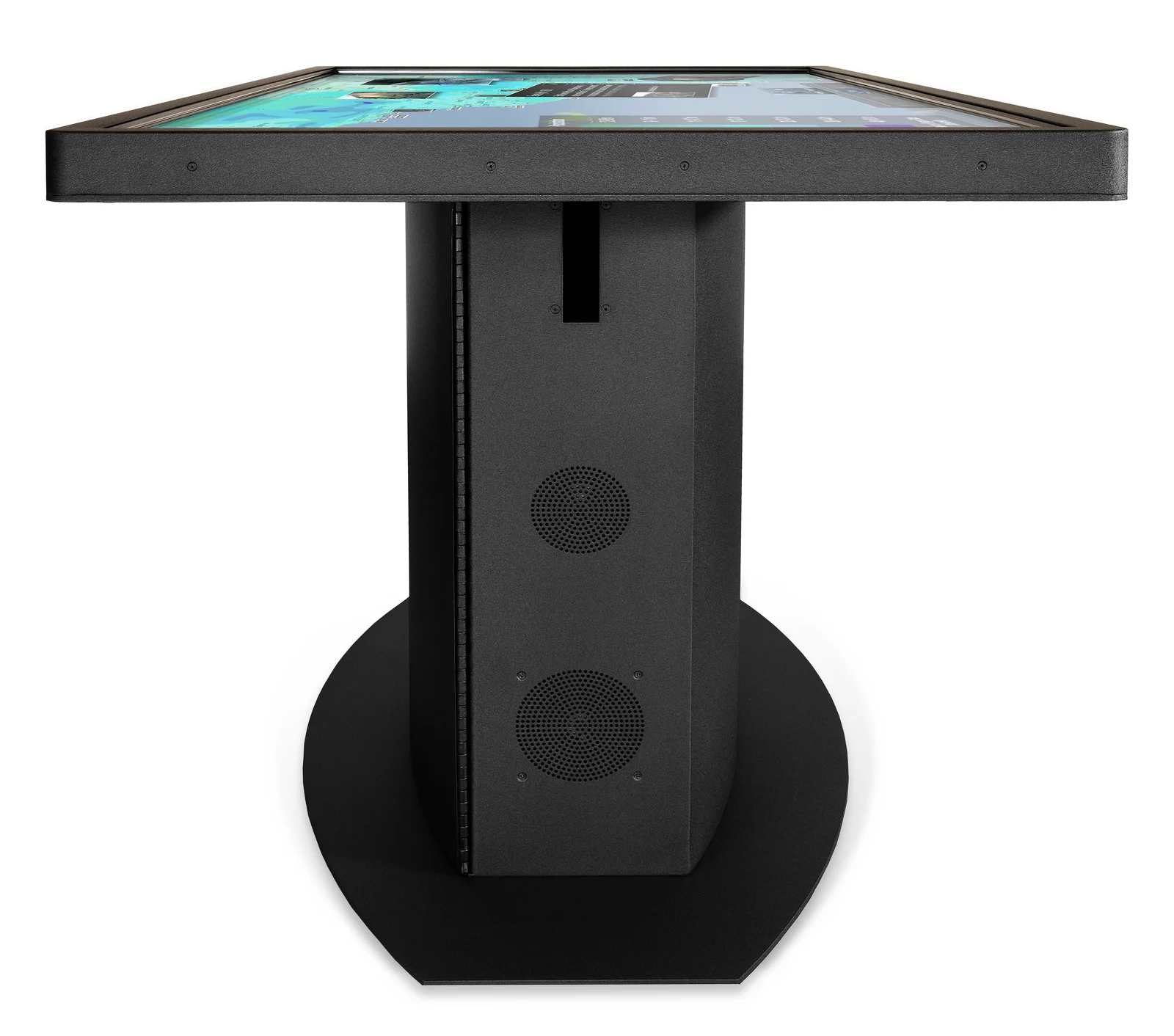

The Ideum Pro has a built-in 75-watt amplifier and Yamaha speakers to add sound to interactive displays
5/7
The Ideum Pro has a built-in 75-watt amplifier and Yamaha speakers to add sound to interactive displays
Optional haptic glass offers vibrational feedback to interactions on the Ideum Pro multitouch table
6/7
Optional haptic glass offers vibrational feedback to interactions on the Ideum Pro multitouch table
7/7
View gallery - 7 images

While this week the web is full of talk about Microsoft's Surface tablet, it's less well known that that Microsoft originally used the name "Surface" for a prototype multitouch table. Commonly used in public settings such as museums, these tables have been brought to market in recent years by developers like New Mexico-based Ideum, which is now releasing its fourth-generation multitouch table.

Ideum's two new offerings - the Pro and the Platform - are are both 55-inch LED LCD multitouch displays running Microsoft Windows 7 64-bit Professional. The tables support up to 40 simultaneous touch points and feature a 30,000,000:1 dynamic contrast ratio.

The tables are also slimmer at two-inches (50 mm) in depth. A comparable product, the Samsung SUR40 Experience, is four-inches (103 mm) deep.

Connectivity is handled via Ethernet, Wi-Fi and Bluetooth. New to the fourth-generation models is RFID, which gives administrators control to change the display applications, and also to lock the unit so only the intended display or program is accessible.

The aircraft-grade aluminum housing is designed with lockable access ports, which further boosts security, and the display itself is also quite sturdy. Ideum uses a micro-etched, low-friction surface made from a sheet of hardened, ultra-clear, low-iron tempered glass. The company also offers the option of Sevasa HapticGlas which provides tactile feedback, reduces fingerprints and increases the scratch resistance of the display.

A few features differentiate the two models. The Pro model has a 3.4 GHz Quad Core i7 2600. It has 8GB DDR-1066 RAM, dual 500 GB SATA II hard disk drives, and runs an NVIDIA Quadro 600 1GB graphics card. The Pro also comes with an expandable HP workstation with HP's three-year onsite warranty and packs a built-in 75 watt amplifier with Yamaha speakers. The Platform model has a 2.2 GHz Hyper-Threaded Dual Core i7 chip from Intel. It has 8GB DDR3-1066 RAM, and dual 256 GB solid-state SSD drives and an NVIDIA GX460 graphics card.

Custom programming and apps are created using the GestureWorks SDK, an authoring package that includes Gesture ML - a markup language for multitouch screens. The systems also come with a number of pre-built Open Exhibits multitouch components that help for quick programming of exhibits and displays.

Ideum's multitouch tables get as big as 86-inches and the company has also released a 65-inch HD 3D wall display that lets users interact with what's on the screen in 3D.

The video below demonstrates applications on the Pro and Platform multitouch tables.

Source: Ideum

The All New Pro and Platform Touch Tables From Ideum
