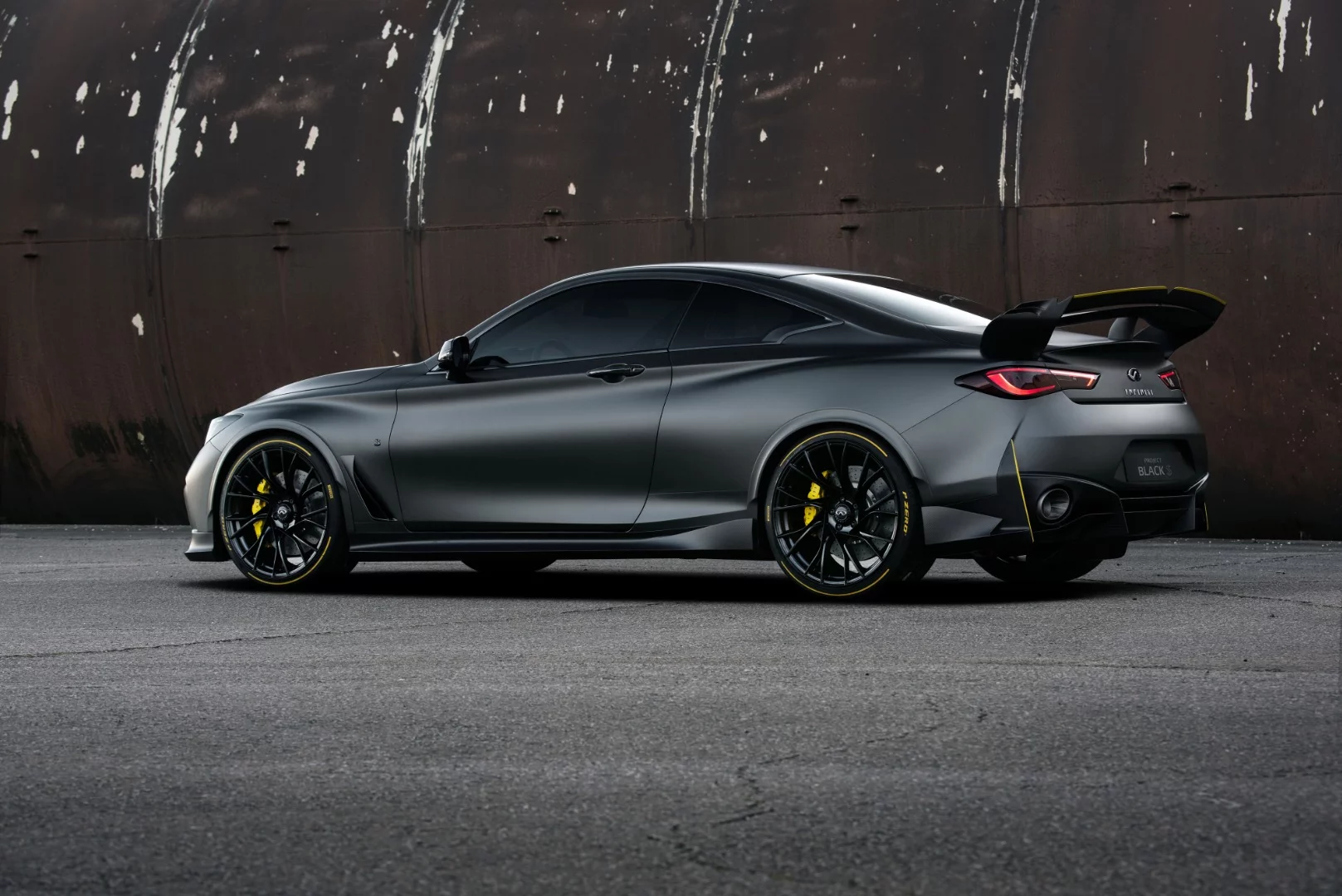

Infiniti initially showed the Project Black S as a show car at the 2017 Geneva Motor Show and has advanced it into a revised prototype
2/31
Infiniti initially showed the Project Black S as a show car at the 2017 Geneva Motor Show and has advanced it into a revised prototype

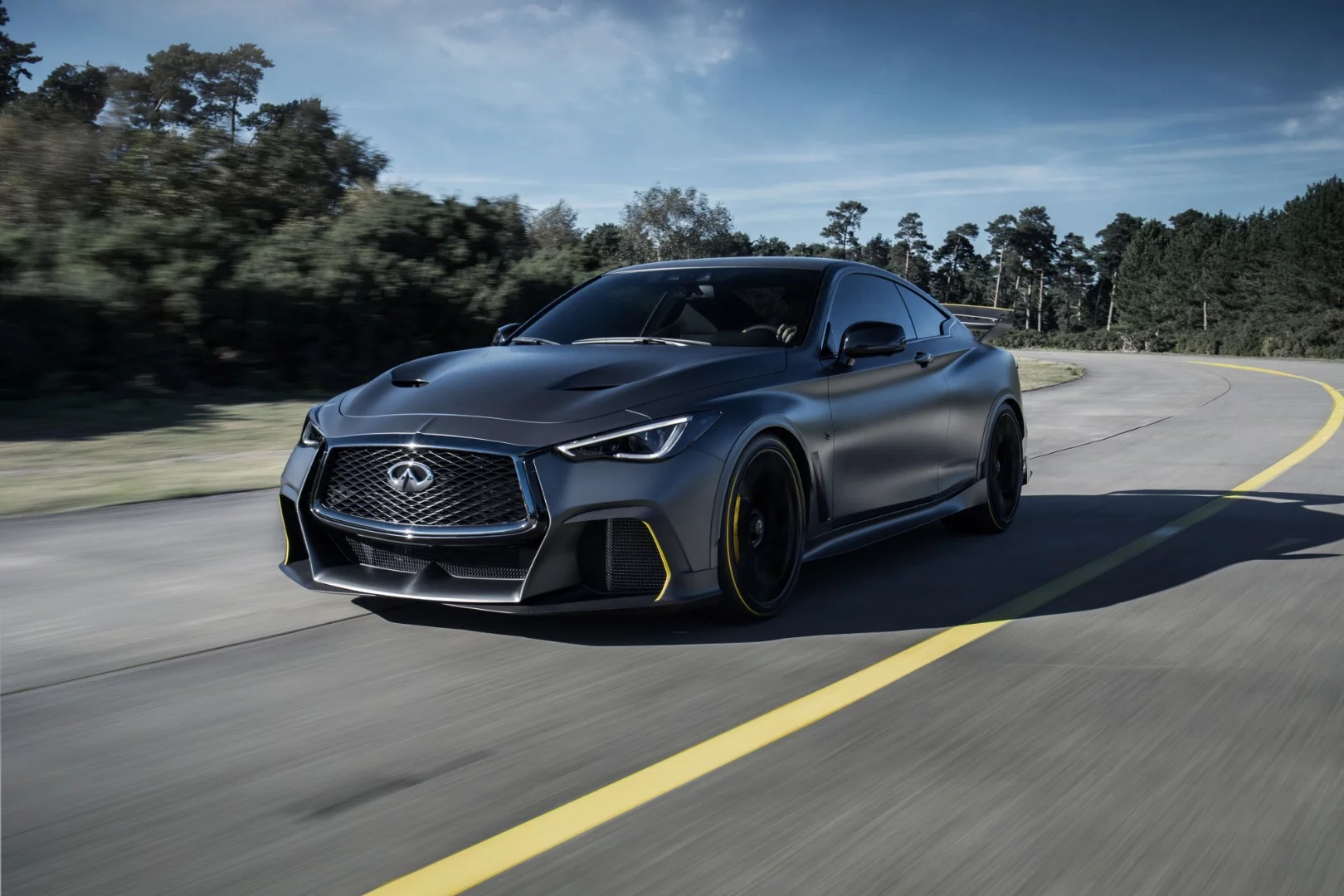

The Project Black S greets the air ahead with a front splitter and enlarged intakes
3/31
The Project Black S greets the air ahead with a front splitter and enlarged intakes
The special ingredient is a dual-hybrid powertrain layout around the twin-turbo V6
4/31
The special ingredient is a dual-hybrid powertrain layout around the twin-turbo V6
Infiniti teamed up with the Renault Sport F1 Team to create the Project Black S
5/31
Infiniti teamed up with the Renault Sport F1 Team to create the Project Black S
Infiniti and Renault Sport have added a variety of carbon fiber parts to lower weight and optimize aerodynamics
6/31
Infiniti and Renault Sport have added a variety of carbon fiber parts to lower weight and optimize aerodynamics
Infiniti and Renault Sport went through several wing iterations before choosing this one
7/31
Infiniti and Renault Sport went through several wing iterations before choosing this one
The interior has also gone through a lightweighting program
8/31
The interior has also gone through a lightweighting program
Along with the 3.0-liter twin-turbo V6, the Project Black S has three motor-generators
9/31
Along with the 3.0-liter twin-turbo V6, the Project Black S has three motor-generators
The team of engineers replaced the hood, roof, fenders and trunk lid with carbon fiber panels
10/31
The team of engineers replaced the hood, roof, fenders and trunk lid with carbon fiber panels
Sculpting out the Project Black S
11/31
Sculpting out the Project Black S
Infiniti benefits from the Renault-Nissan-Mitsubishi Alliance in relying on the expertise of the Renault Sport F1 Team
12/31
Infiniti benefits from the Renault-Nissan-Mitsubishi Alliance in relying on the expertise of the Renault Sport F1 Team

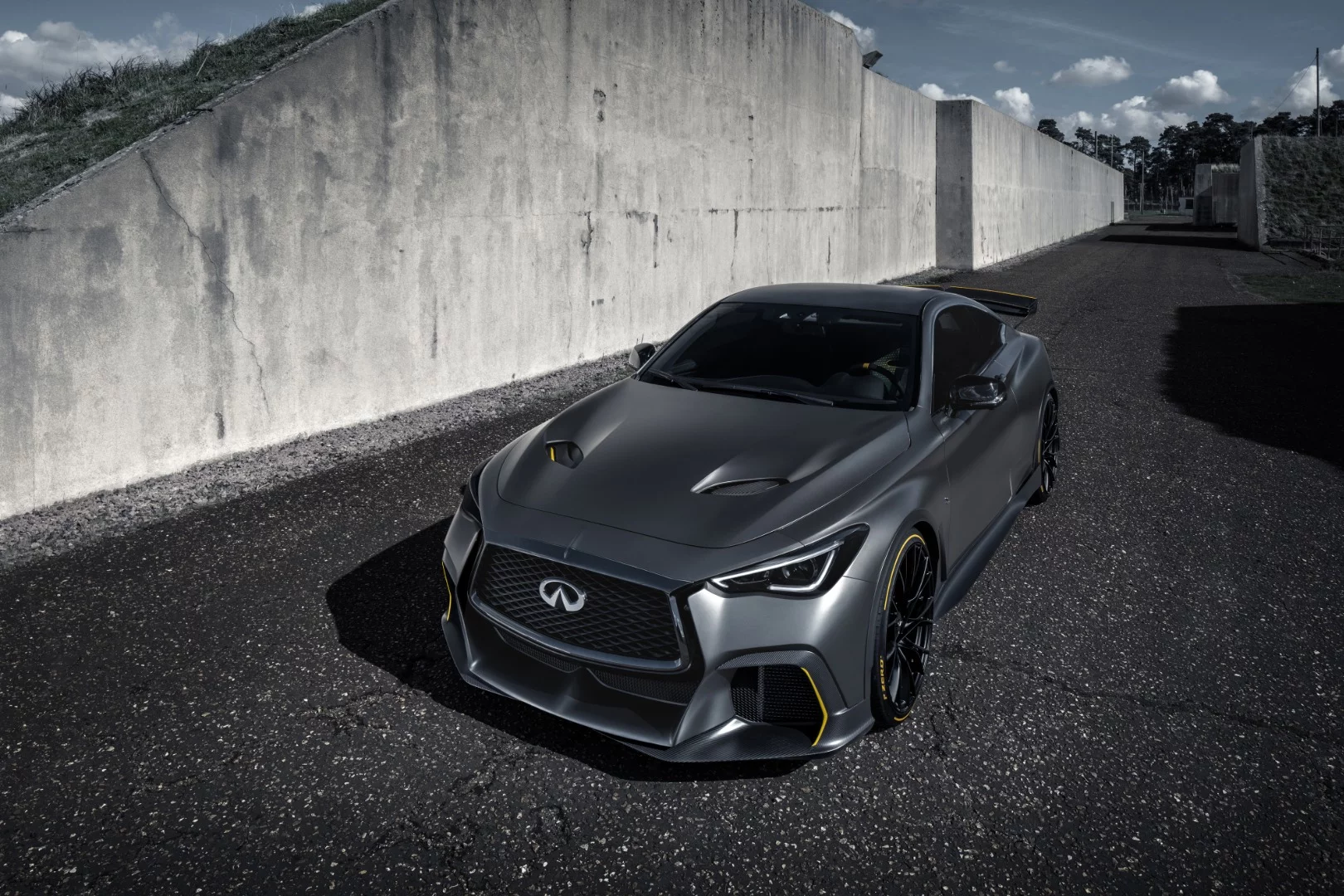

The Project Black S develops up to 563 hp
13/31
The Project Black S develops up to 563 hp

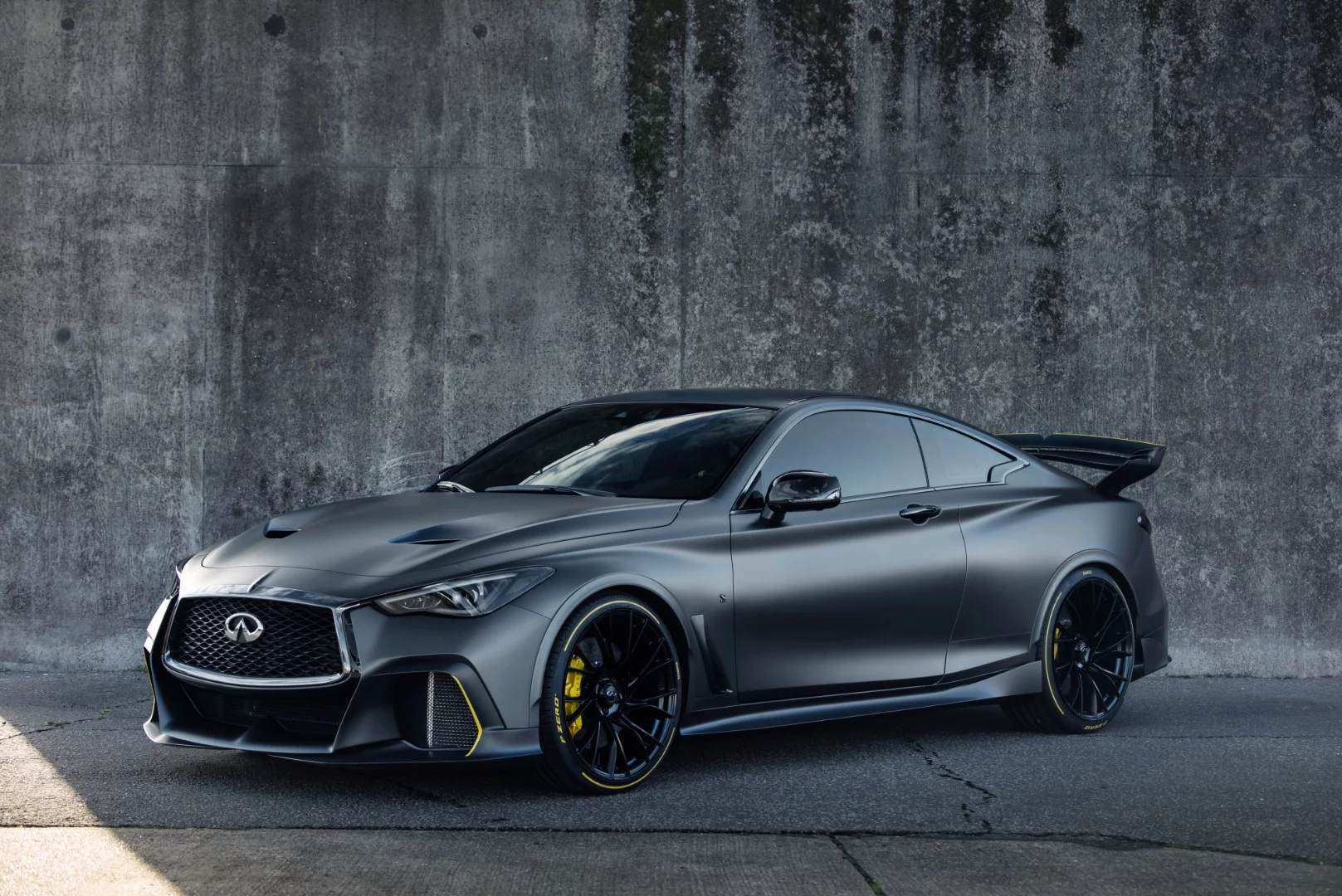

The most unique aspect of the Project Black S is the dual-hybrid layout that allows it to generate electricity from braking and turbo system heat
14/31
The most unique aspect of the Project Black S is the dual-hybrid layout that allows it to generate electricity from braking and turbo system heat
Infiniti revealed the latest Project Black S prototype just ahead of the 2018 Paris Motor Show
15/31
Infiniti revealed the latest Project Black S prototype just ahead of the 2018 Paris Motor Show
The Infiniti Project Black S runs the 0-62 mph in under 4 seconds
16/31
The Infiniti Project Black S runs the 0-62 mph in under 4 seconds
Infiniti believes the Project Black S capable of a higher top speed than the Q60 Red Sport 400 it's based on
17/31
Infiniti believes the Project Black S capable of a higher top speed than the Q60 Red Sport 400 it's based on
Infiniti Project Black S
18/31
Infiniti Project Black S
All the yellow accents tie the look with Renault Sport Formula One
19/31
All the yellow accents tie the look with Renault Sport Formula One
Yellow calipers help tie the look together
20/31
Yellow calipers help tie the look together

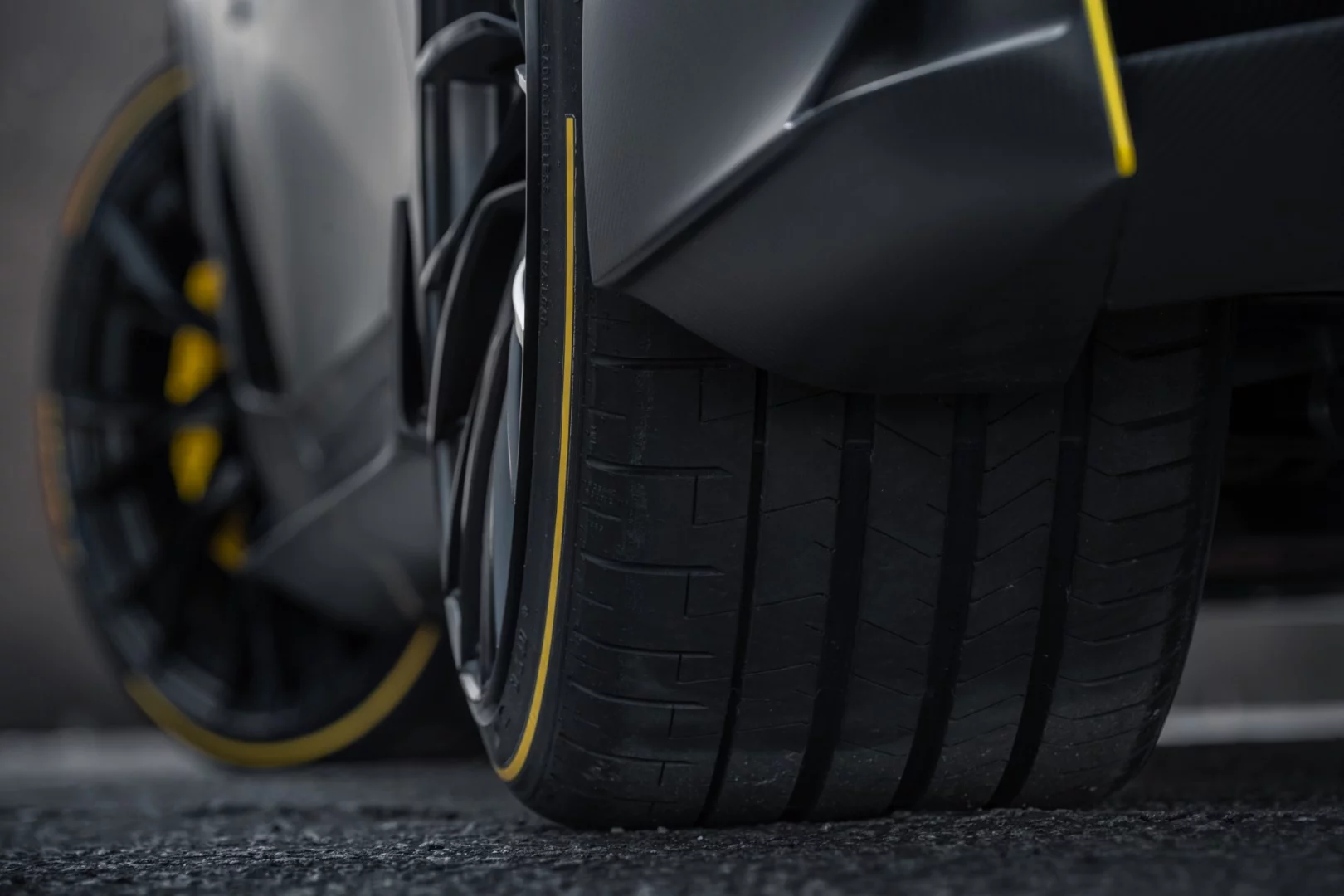

The Project Black S rides on Pirelli P Zero tires
21/31
The Project Black S rides on Pirelli P Zero tires

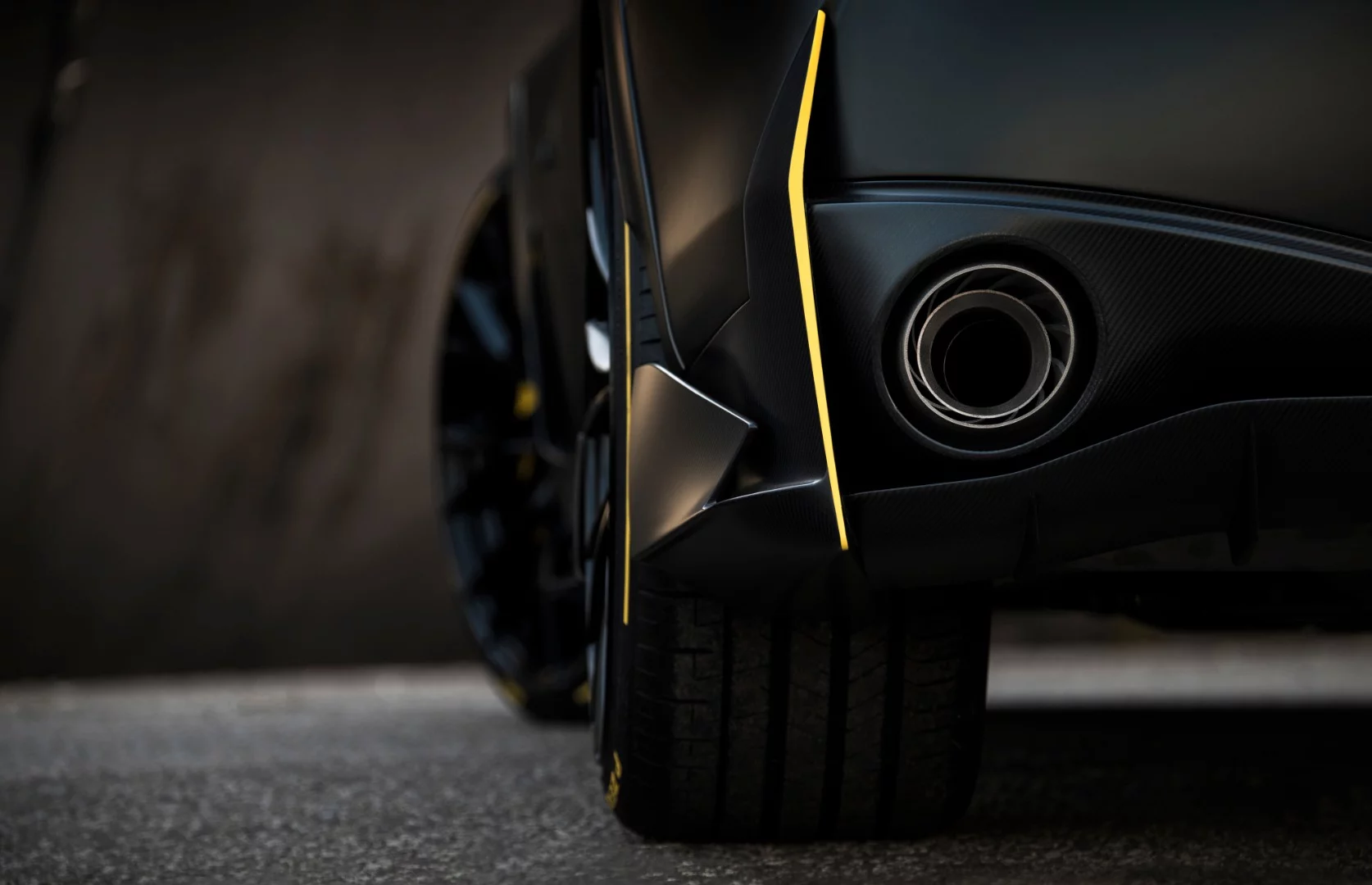

21-in forged aluminum wheels - 275/30 R21 at the front, 295/30 R21 at the rear
22/31
21-in forged aluminum wheels - 275/30 R21 at the front, 295/30 R21 at the rear

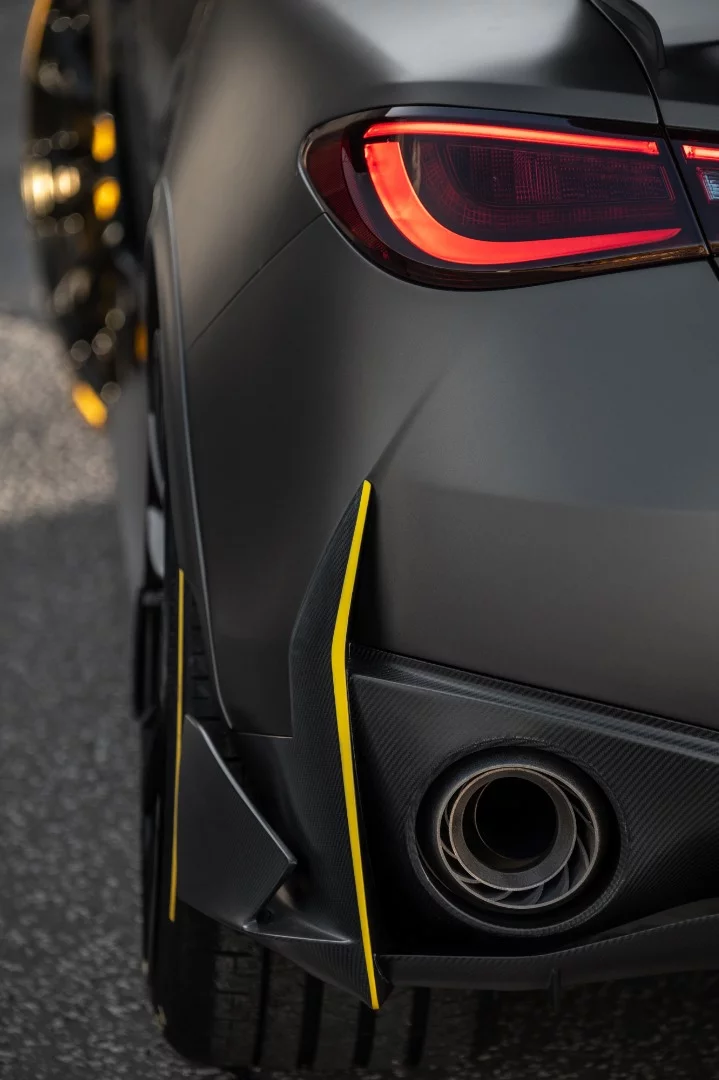

The Project Black S has a twin-tip exhaust
23/31
The Project Black S has a twin-tip exhaust
The big rear wing is among the prominent additions to the exterior
24/31
The big rear wing is among the prominent additions to the exterior

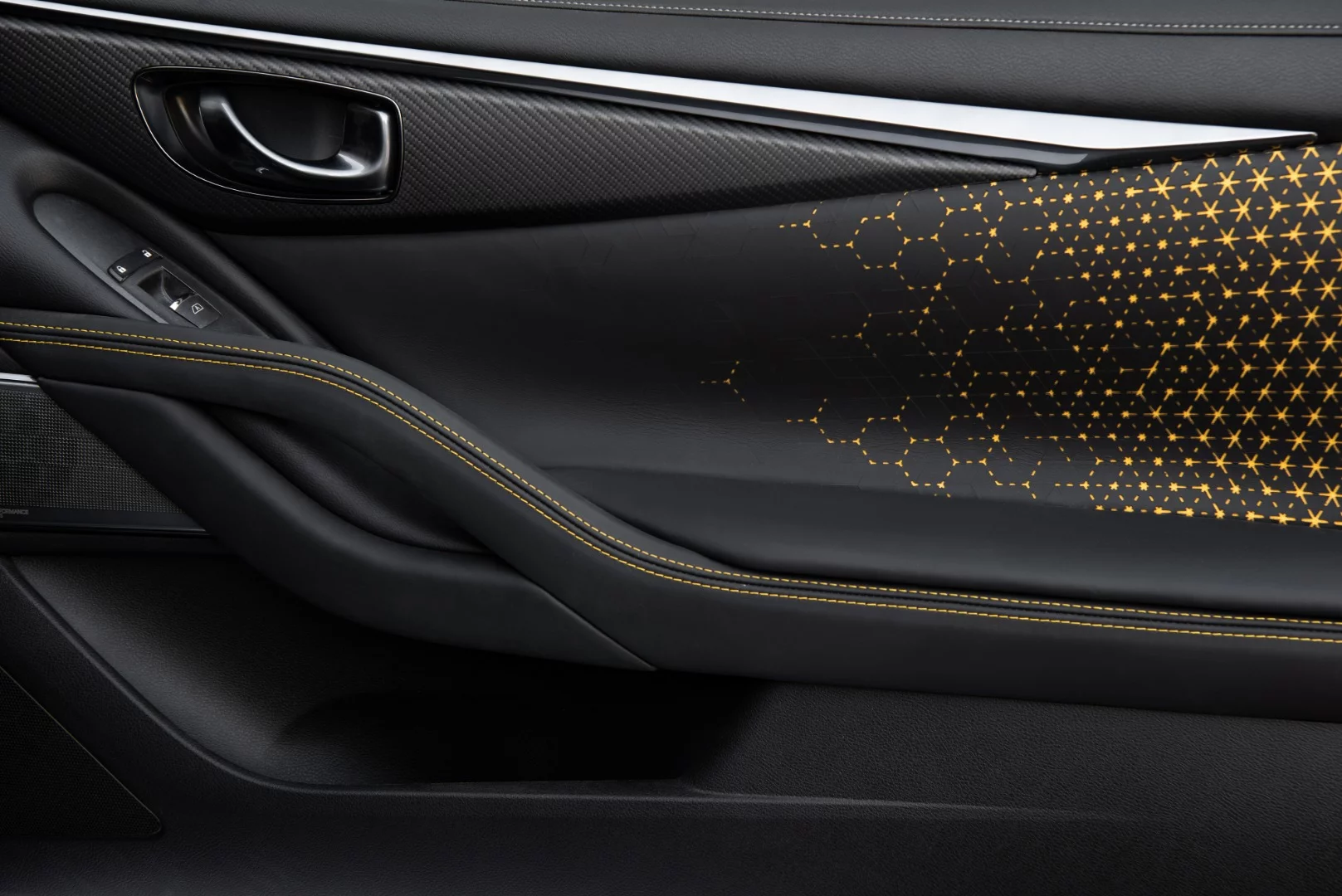

Inside the 2018 Infiniti Project Black S prototype
25/31
Inside the 2018 Infiniti Project Black S prototype
Inside the 2018 Infiniti Project Black S prototype
26/31
Inside the 2018 Infiniti Project Black S prototype
The driver can adjust systems like ABS and traction control
27/31
The driver can adjust systems like ABS and traction control

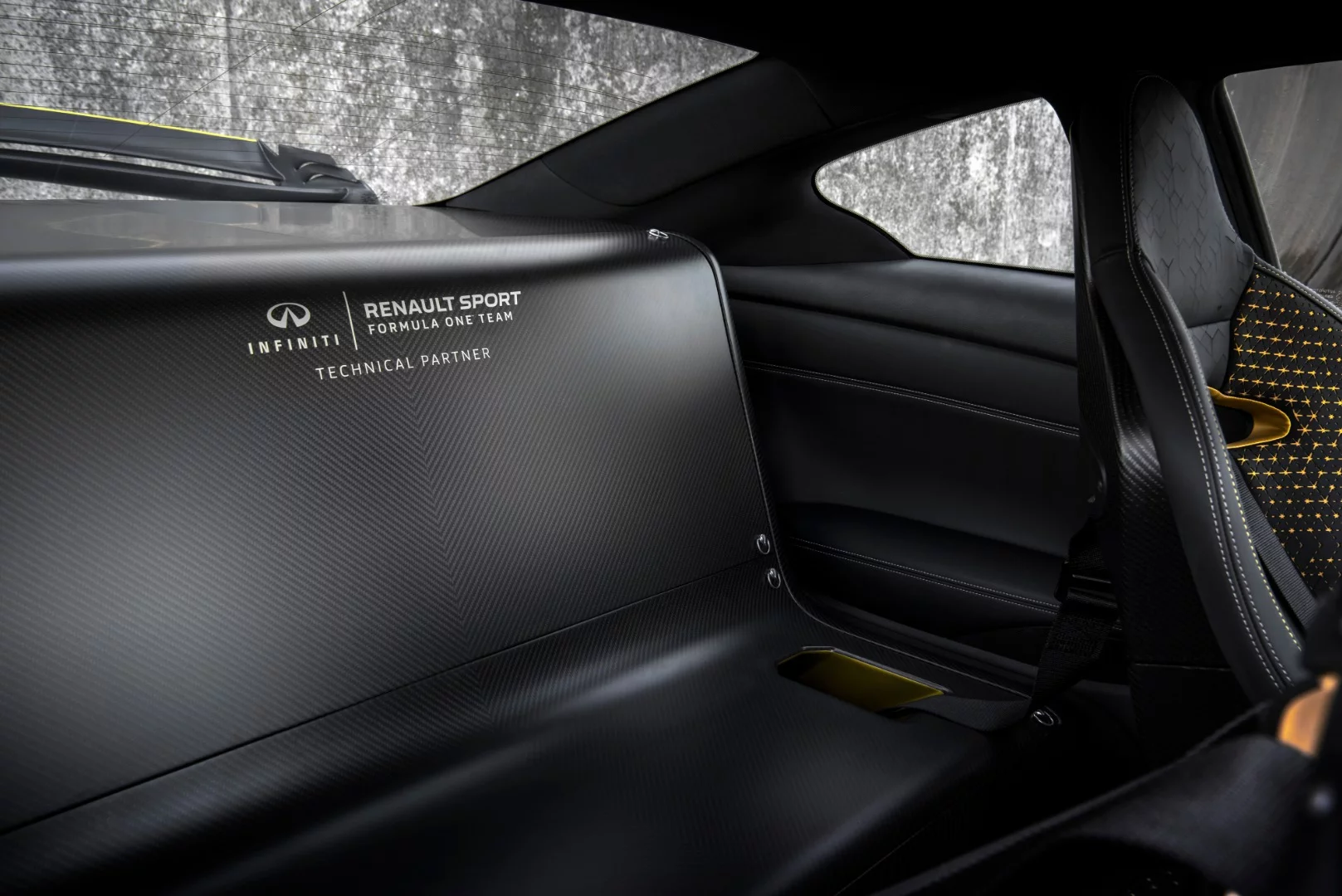

Infiniti has pulled out the rear seats to make room for the 4.4-kWh lithium battery integral to the dual-hybrid powertrain
28/31
Infiniti has pulled out the rear seats to make room for the 4.4-kWh lithium battery integral to the dual-hybrid powertrain

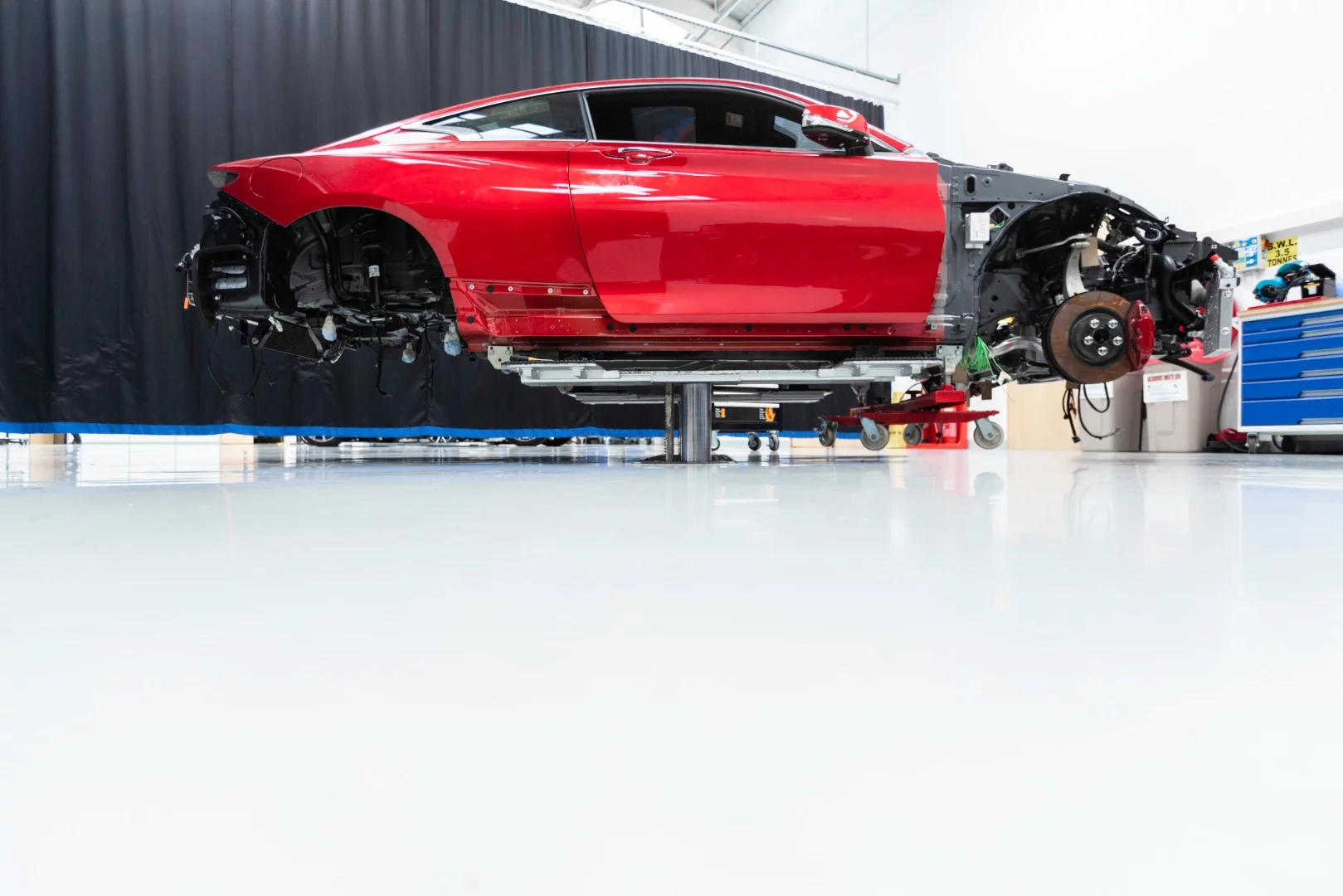

Infiniti and Renault Sport begin to transform the Q60 Red Sport 400 into the Project S Black Series
29/31
Infiniti and Renault Sport begin to transform the Q60 Red Sport 400 into the Project S Black Series
Sculpting out the Project S Black Series
30/31
Sculpting out the Project S Black Series
Sculpting out the Project S Black Series
31/31
Sculpting out the Project S Black Series

Building significantly upon the work it started ahead of Geneva 2017, Infiniti has revealed the latest iteration of its Project Black S sports coupe. Even more high-tech than before, the new prototype employs technology trickled down from the Renault Sport Formula One Team. A combination of twin-turbo V6, 3 electric motor-generators and advanced motorsport-grade energy recovery give the Project S a hybrid system quite unlike anything else on the road, allowing it to hoard energy and release it at will on the street and track.

Created by a global team within the Renault-Nissan-Mitsubishi Alliance, the Project Black S takes performance above and beyond the Q60 Red Sport 400 coupe, upon which it's based. The heavy lifting takes place around the Red Sport's 400-hp VR30 twin-turbo 3.0-liter V6 engine. Instead of simply massaging more output out of the gas engine, or securing an electric motor or two to the axles, Infiniti surrounds the already-powerful V6 with F1-based energy recovery technologies to push performance benchmarks ever higher.

Infiniti calls the design a "dual-hybrid" and declares it a world first. Derived directly from Formula One, the layout features two types of energy recovery systems, one based on heat and one based on kinetic energy. The kinetic part of the equation is familiar enough – a single motor-generator, the MGU-K (motor generator unit-kinetic), harvests kinetic energy during braking, sending it to the high-rate discharge 4.4-kWh lithium-ion battery pack stored at the rear.

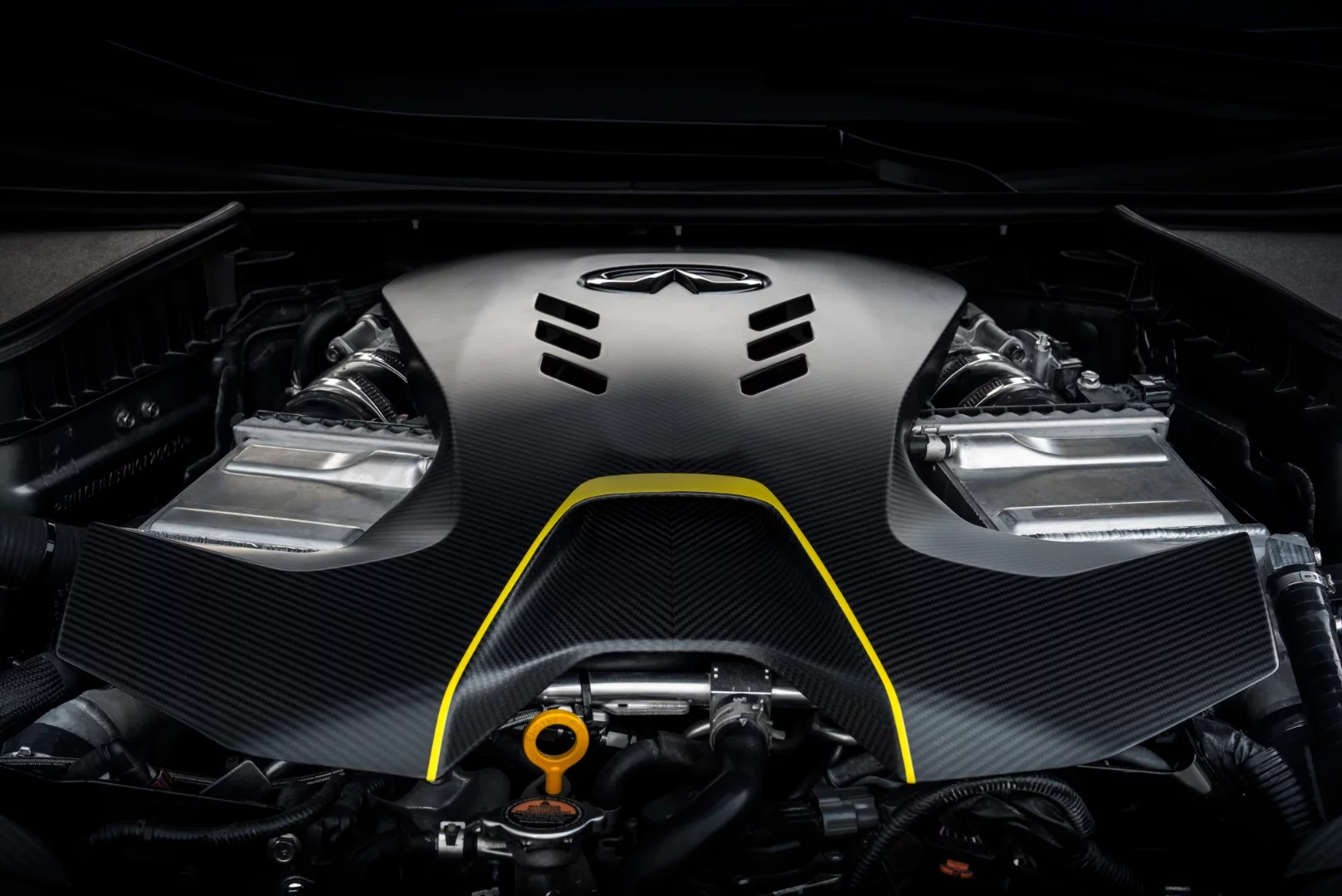

Along with the 3.0-liter twin-turbo V6, the Project Black S has three motor-generators
Along with the 3.0-liter twin-turbo V6, the Project Black S has three motor-generators

The Black S doesn't stop at brake recovery, adding a single MGU-H (motor generator unit-heat) on each of the two electrically assisted turbochargers. These units transform heat energy from the exhaust gases to usable electricity, sending it to the same lithium-ion battery. So the Project Black S charges the battery during acceleration as well as braking. Infiniti explains that F1 rules limit heat recovery to a single turbocharger, making the Black S unique in its twin-MGU-H layout.

The stored battery power is utilized in two different ways. First, it cuts turbo lag, allowing the engine to deliver its power more quickly and smoothly. Infiniti explains more specifically that it works by "spooling up the turbine blades within both e-turbos more quickly and rapidly increasing the amount of air recirculated back into the engine to boost power."

The hybrid system can also augment the V6 with up to 161 hp of electric motor power directed to the rear axle through a newly designed final drive assembly that incorporates the MGU-K. The Project Black S is now capable of putting out 563 hp, a significant 41 percent boost from the 400 hp of the Q60 Red Sport 400.

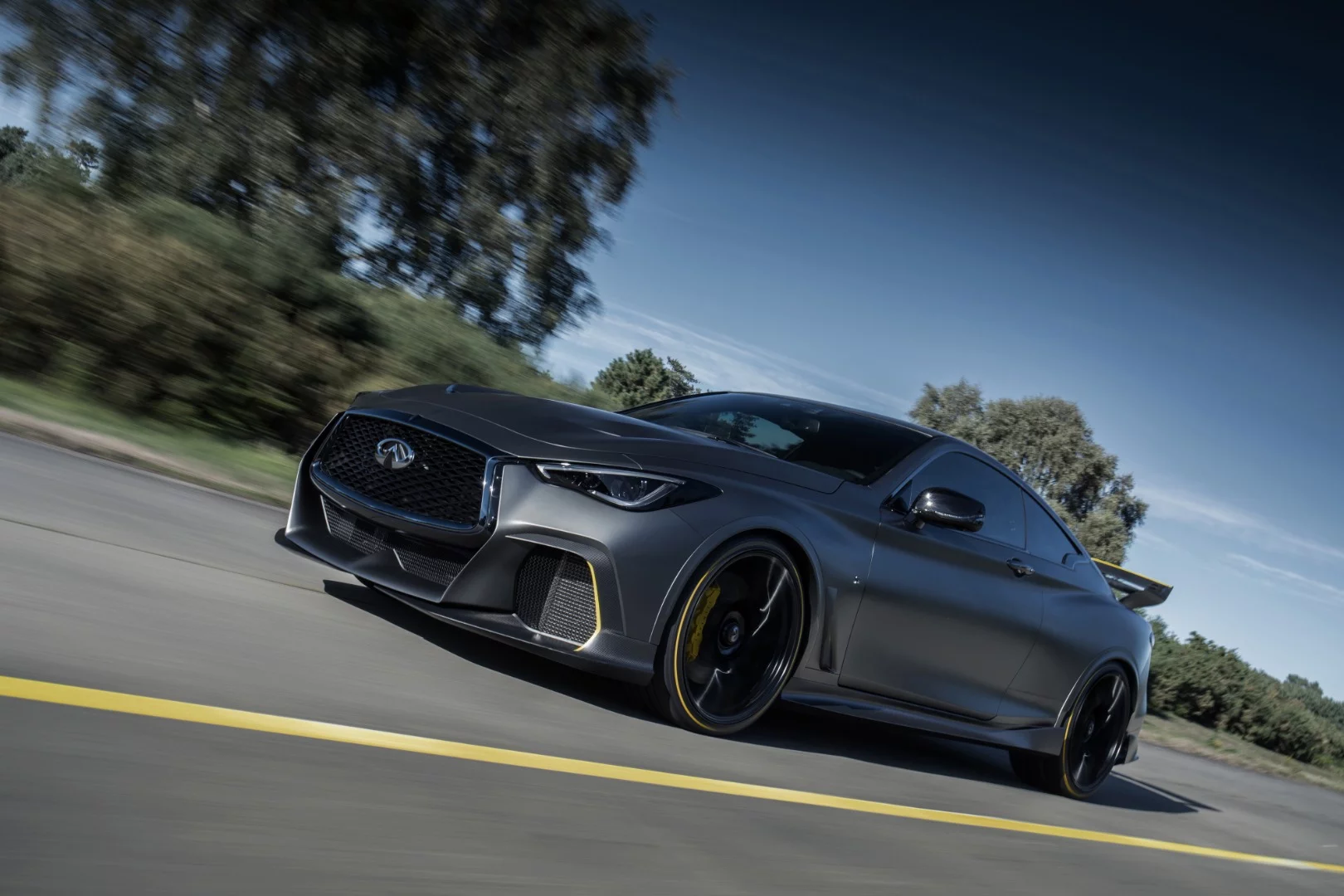

The Infiniti Project Black S runs the 0-62 mph in under 4 seconds
The Infiniti Project Black S runs the 0-62 mph in under 4 seconds

Out on the road, the dual-hybrid powertrain gives the Project Black S performance unlike any Infiniti out there. Infiniti says it's capable of running 0 to 62 mph (100 km/h) in under four seconds, helped by the low-down torque of the MGU-K and the helical gear limited-slip differential. Infiniti also says the car's superior power/weight ratio gives it the potential for a higher top speed than the Q60 Red Sport 400, though it doesn't list a specific figure.

Three F1-derived driving modes help the driver find the right blend of performance and energy management for the conditions ahead. "Road" mode involves a relaxed, non-invasive energy recovery that doesn't hinder smooth, seamless roadway commuting, utilizing battery power to help increase the powertrain's overall efficiency and deliver accelerative bursts during common maneuvers like highway entry and overtaking.

"Quali" mode cranks it up full blast, releasing large amounts of energy throughout the ride to help in all-out performance. It assists in maximum acceleration and keeps speed building during long straightaways. To help prevent the battery from depleting, it increases energy recovery efforts during heavy braking through corners, in turn using that energy to help the car exit the corner more quickly.

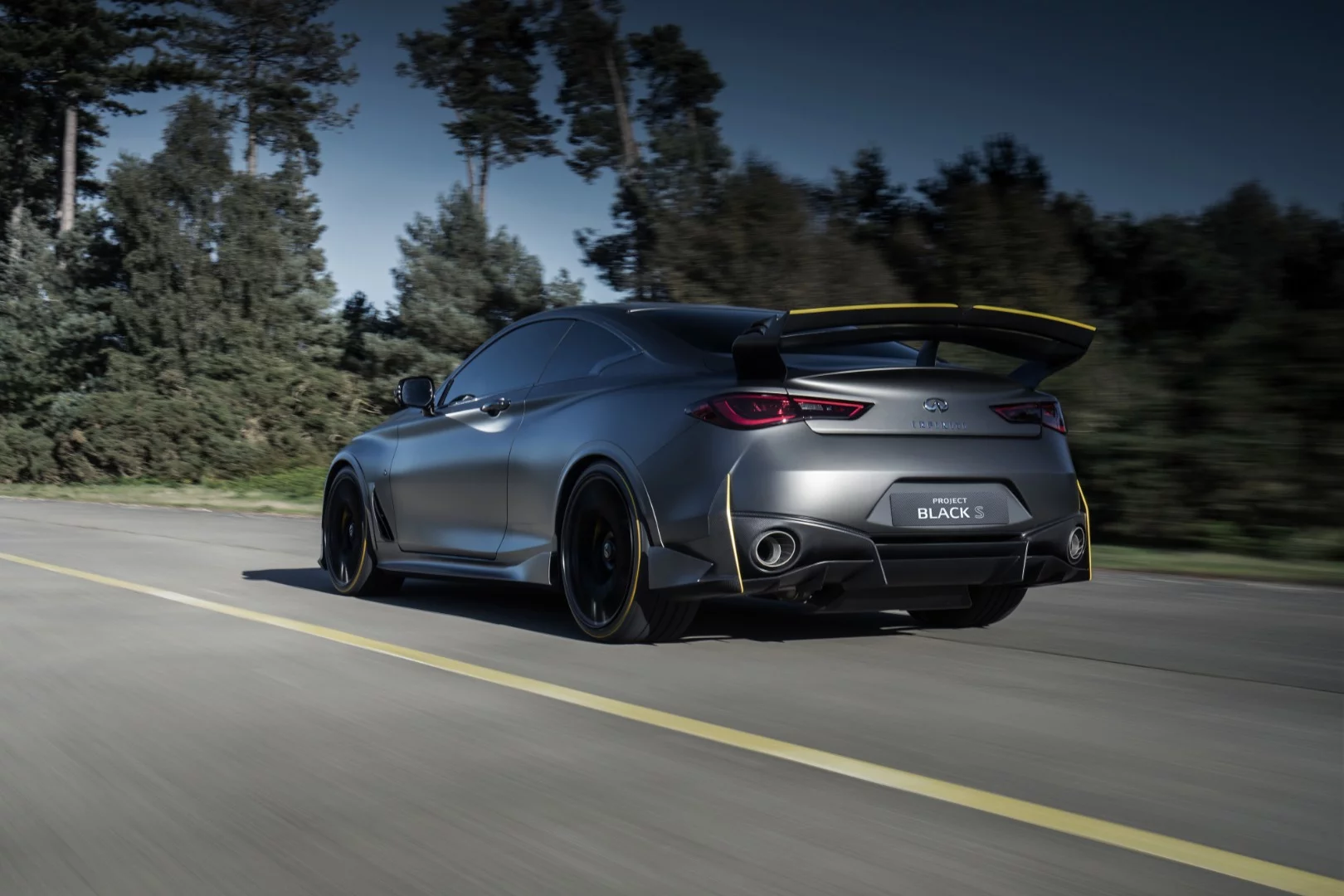

All the yellow accents tie the look with Renault Sport Formula One
All the yellow accents tie the look with Renault Sport Formula One

"Race" mode is more a mid-level mode designed to stretch available energy out while advancing overall lap performance. Infiniti says it most closely resembles the mode utilized by the Renault Sport F1 Team. Based upon a mathematical formula, energy is effectively deployed when improved acceleration can cut lap time but reserved during stretches when the advantages of boosted output are lesser. Real-world race mode operation varies according to track layout.

The dual-hybrid powertrain is the highlight and beating heart of Infiniti's ongoing Project Black S work, but it's by no means the only piece of the puzzle. Infiniti and Renault Sport collaborated closely on the car's aerodynamics, using computational fluid dynamics software. The team has stepped the aero kit up from the 2017 Geneva show car, ensuring effective powertrain cooling and added downforce.

The carbon fiber-finished rear wing is the most visible part of the new aero package and was selected from a number of different iterations that the team worked up. Infiniti admits that further change is possible, but the current wing was inspired by the Renault Sport's Monza wing to deliver a careful balance of improved cornering traction and high-speed stability.

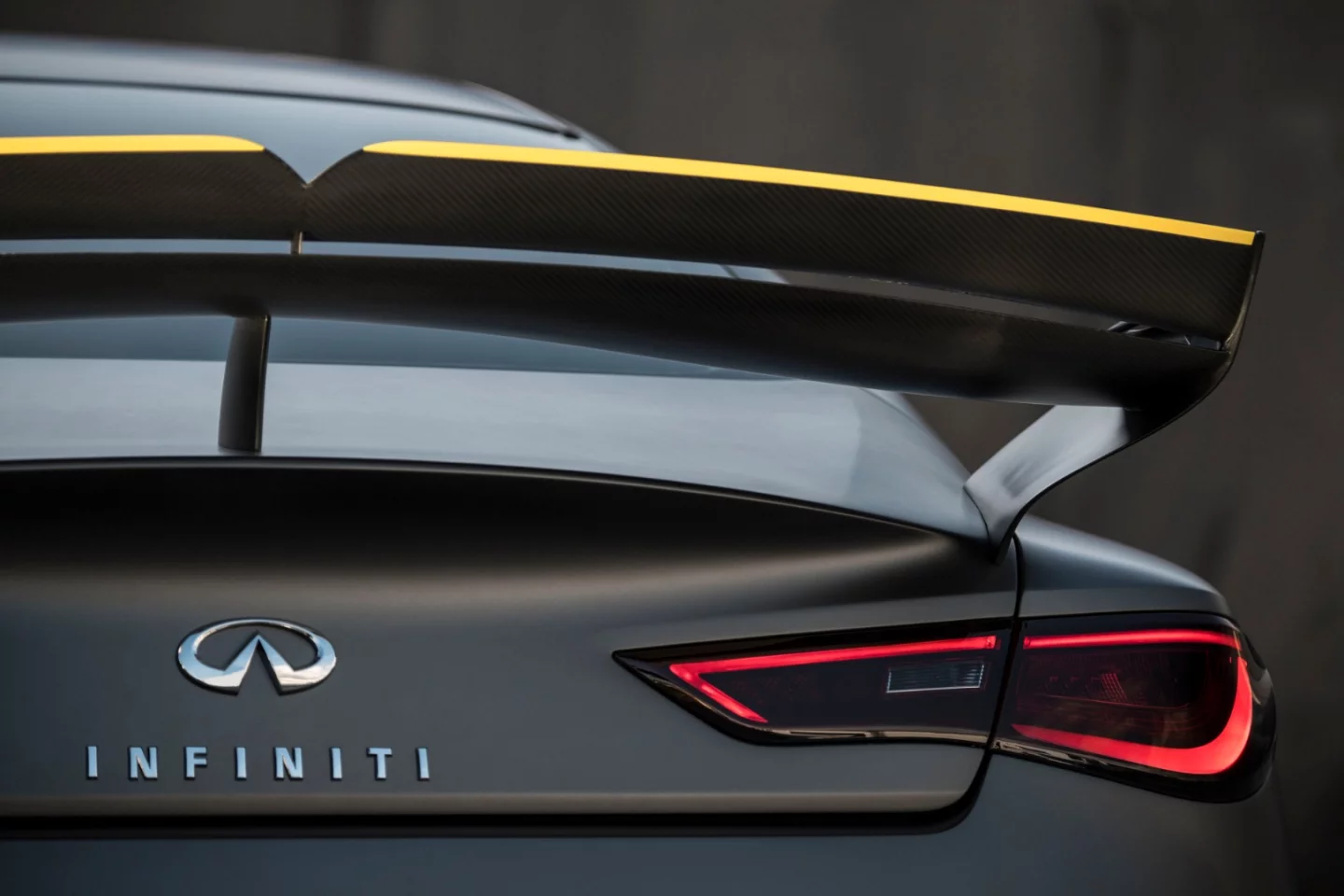

Infiniti and Renault Sport went through several wing iterations before choosing this one
Infiniti and Renault Sport went through several wing iterations before choosing this one

Other aerodynamic additions include a front splitter, enlarged air intakes, hood vents, front aero blades, rear aero foils and a rear diffuser.

Infiniti has replaced major body panels – the hood, roof, trunk lid and fenders – with new aero-optimized carbon fiber panels, saving significant weight over the production steel panels. In fact, despite adding roughly 441 lb (200 kg) worth of dual-hybrid powertrain and cooling hardware, Infiniti keeps weight down to 3,915 lb (1,776 kg) – just 53 lb (24 kg) more than the production Q60 Red Sport 400.

Other weight savings come from the removal of the rear seats to accommodate the lithium-ion battery pack, swap-in of carbon fiber front seat shells and trim, and addition of by-wire carbon-ceramic braking. Through all its reworked components and redistributed weight, the Project Black S gains a near-perfect 50:50 front-rear weight distribution (Red Sport - 58:42).

In addition to the new brake-by-wire system, the Project Black S has drive-by-wire acceleration and gear shifts and steer-by-wire Direct Adaptive Steering. It's the first Infiniti to offer this complete by-wire set-up.

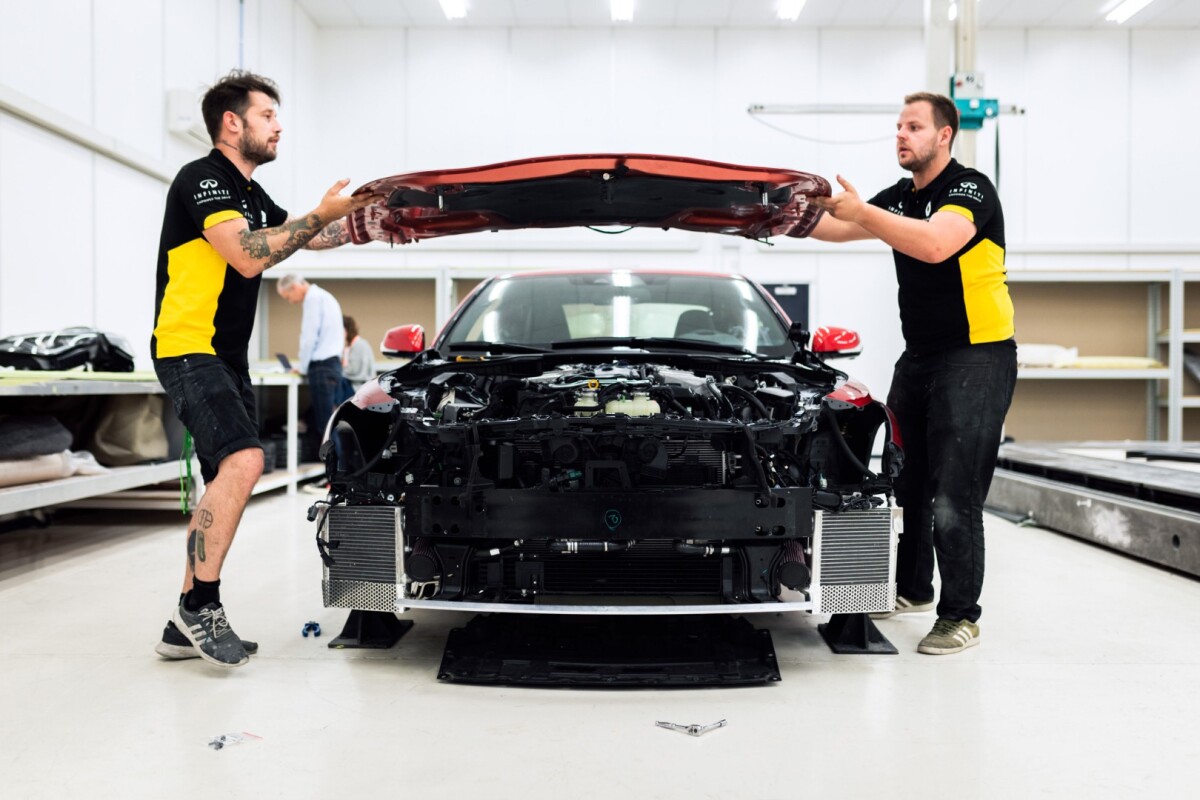

The team of engineers replaced the hood, roof, fenders and trunk lid with carbon fiber panels
The team of engineers replaced the hood, roof, fenders and trunk lid with carbon fiber panels

The Project Black S is still a work in progress and Infiniti intends to conduct real-world track testing throughout 2019. The company hints at the possibility of a production variant, saying it sees room for a model level above the Red Sport 400, offering maximum power and performance, an uprated suspension and unique design elements. The technologies tested on the Black S could also find their way to Infiniti's expanding lineup of electrified models – by 2021, it plans for every new model to incorporate electrified powertrain technology.

Even more potentially wide-reaching, Infiniti's work with Renault Sport Formula One is laying the way for more rapid prototyping and production car development. Infiniti engineers are learning from the Renault Sport team's experience in developing complete cars in less than a year and making rapid, on-the-fly changes as needed. In fact, Infiniti says that the 18 months it's taken to build the Project Black S to its current state makes it the fastest-developed vehicle in company history. It believes that it can apply some of its learnings from the project toward cutting the time it takes to bring production cars to market.

The Project Black S prototype was revealed just ahead of the start of the 2018 Paris Motor Show, which opens up to the press on Tuesday. We'll have more coverage of the show throughout the week.
