Jawa plots four-stroke future for its iconic 350

Jawa plots four-stroke future ...
The 350 OHC ushers a legendary Jawa model family into a new era
The 350 OHC ushers a legendary Jawa model family into a new era
View 22 Images
The 350 OHC ushers a legendary Jawa model family into a new era
1/22
The 350 OHC ushers a legendary Jawa model family into a new era
The Jawa 350 OHC is a Euro4-compliant four-stroke roadster
2/22
The Jawa 350 OHC is a Euro4-compliant four-stroke roadster
The Jawa 350 OHC sports a very thin silhouette
3/22
The Jawa 350 OHC sports a very thin silhouette
The classic looks of the Jawa 350 OHC seem like an ideal base for customizing
4/22
The classic looks of the Jawa 350 OHC seem like an ideal base for customizing
The Jawa 350 OHC in black color
5/22
The Jawa 350 OHC in black color
The chromed fuel tank and side-cover striping are styled after the bike that originally inspired the Jawa 350 OHC
6/22
The chromed fuel tank and side-cover striping are styled after the bike that originally inspired the Jawa 350 OHC
Simple, classic, elegant - the clocks of the Jawa 350 OHC
7/22
Simple, classic, elegant - the clocks of the Jawa 350 OHC
Shineray lent the XY400 motor and frame to Jawa for the 350 OHC
8/22
Shineray lent the XY400 motor and frame to Jawa for the 350 OHC
A 280 mm front disc with two-piston caliper and ABS will handle stopping the Jawa 350 OHC
9/22
A 280 mm front disc with two-piston caliper and ABS will handle stopping the Jawa 350 OHC
The Jawa 660 Vintage is another tribute to the 350 Type 634, this time built around a 660 cc Minarelli motor
10/22
The Jawa 660 Vintage is another tribute to the 350 Type 634, this time built around a 660 cc Minarelli motor
The Jawa 660 Vintage in the red color we suspect will prove to be the most popular
11/22
The Jawa 660 Vintage in the red color we suspect will prove to be the most popular
The radiator of the Minarelli motor dominates the frontal view of the Jawa 660 Vintage
12/22
The radiator of the Minarelli motor dominates the frontal view of the Jawa 660 Vintage
Every application of this 660 motor is complemented with twin exhaust cans, including the Jawa 660 Vintage
13/22
Every application of this 660 motor is complemented with twin exhaust cans, including the Jawa 660 Vintage
The Jawa 660 Vintage tips the scales at 198 kg (436.5 lb) dry
14/22
The Jawa 660 Vintage tips the scales at 198 kg (436.5 lb) dry
The Jawa 660 Vintage holds 15 l (4 gal) in its shiny fuel tank
15/22
The Jawa 660 Vintage holds 15 l (4 gal) in its shiny fuel tank
This Italian-made Minarelli engine became famous when Yamaha employed it in the latest XT and Ténéré 660 tralies, before finding its way into the heart of Jawa's 660 Vintage
16/22
This Italian-made Minarelli engine became famous when Yamaha employed it in the latest XT and Ténéré 660 tralies, before finding its way into the heart of Jawa's 660 Vintage
The modern clocks of the Jawa 660 Vintage
17/22
The modern clocks of the Jawa 660 Vintage
The two-stroke 350 Style is still part of Jawa's lineup, despite going practically unchanged since 1991
18/22
The two-stroke 350 Style is still part of Jawa's lineup, despite going practically unchanged since 1991
The Jawa 350/634 Retro is the current two-stroke model that pays direct tribute to the Type 634 of the past
19/22
The Jawa 350/634 Retro is the current two-stroke model that pays direct tribute to the Type 634 of the past
The 350 two-strokes – like this 1950 Type 18 – have played a very important role in Jawa's history, remaining in production continuously since the mid-1940s
20/22
The 350 two-strokes – like this 1950 Type 18 – have played a very important role in Jawa's history, remaining in production continuously since the mid-1940s
The Jawa 350 Type 634 was produced in vast numbers throughout the 1970s and 80s. This 1973 example illustrates the inspiration for the styling of the 350 OHC
21/22
The Jawa 350 Type 634 was produced in vast numbers throughout the 1970s and 80s. This 1973 example illustrates the inspiration for the styling of the 350 OHC
The Jawa 660 Vintage joins a family led by the 660 Sportard. This model family was first introduced in 2011 as a replacement of the previous generation of four-stroke Jawas, that ran on the Rotax 650 motor that BMW also uses in its single-cylinder G650 (formerly F650) models
22/22
The Jawa 660 Vintage joins a family led by the 660 Sportard. This model family was first introduced in 2011 as a replacement of the previous generation of four-stroke Jawas, that ran on the Rotax 650 motor that BMW also uses in its single-cylinder G650 (formerly F650) models

Once a mighty European powerhouse, Czech Republic's Jawa never stopped producing motorcycles throughout its 88-year history. As times change along with emission rules, Jawa introduces the 350 OHC as a four-stroke tribute to one of its most popular historic two-stroke models, the 350 Type 634.

Although Jawa might not ring many bells to younger motorcycle aficionados, older riders should promptly identify one of the biggest motorcycle manufacturers to operate behind the iron curtain in then Czechoslovakia. The company left its mark in the 250 and 350 cc Grand Prix classes during the 1950s and 60s, as well as celebrating in 1987 a landmark three million motorcycles produced.

The 1990s proved to be anything other than favorable for the company, but Jawa never ceased producing modernized variants of the affordable and reliable two-stroke 350. Actually, the company's facility in Týnec nad Sázavou, Czech Republic, still produces the 350 Type 640. Pretty much unchanged since 1991, it uses the most modern version of a twin cylinder engine that draws its roots all the way back to the mid-40s, when it was first introduced as the fruit of a co-operation with Ogar.

Today's emissions rules have practically banned Jawa's two-strokes from Western markets, but the 350 still enjoys some popularity in Russia and Central America. In the meantime, a new model has been introduced, the 350 OHC. As the name suggests – with OHC unsurprisingly standing for OverHead Camshaft – this is a four-stroke engine, and it has been outsourced from China together with the steel frame.

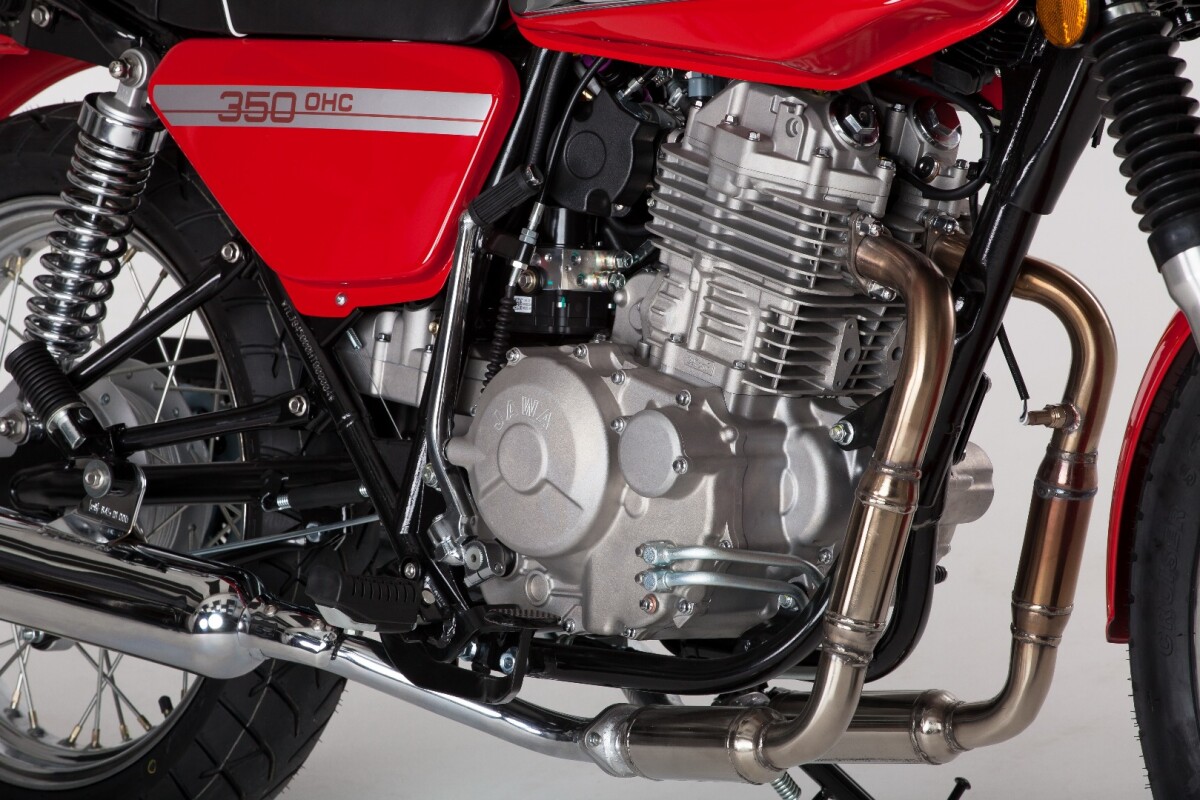

Shineray lent the XY400 motor and frame to Jawa for the 350 OHC
Shineray lent the XY400 motor and frame to Jawa for the 350 OHC

The single-cylinder, air-cooled unit comes from Shineray (also behind the recent resurrection of SWM), who in turn copied it from Honda's XR400 motor with minor changes and a Delphi injection system. This motor is quite famous in several countries, powering successful Shineray export models like the X5 adventure bike, and this is one of its biggest assets: It is already compliant with strict European norms.

In the case of Jawa's 350 OHC, the 397 cc single produces 20.4 kW (27.4 hp) at 6,500 rpm and 30.6 Nm (22.6 lb-ft) at 5,000 rpm – a bit lower on power compared to the XR400, probably because of the Chinese version's lower compression ratio.

The motorcycle is styled after the original 1970s 350 Type 634, adopting a classic British roadster look with a 19-inch wheel at the front and 18 at the rear, the unmistakably shiny 12-l (3.3-gal) fuel tank and clean, retro lines.

According to the little information that Jawa reveals, its dry weight is 160 kg (353 lb), it is equipped with an ABS system, and is fully compliant with the latest European emission norms, retailing in its home country for CZK99,930 (around US$4,000).

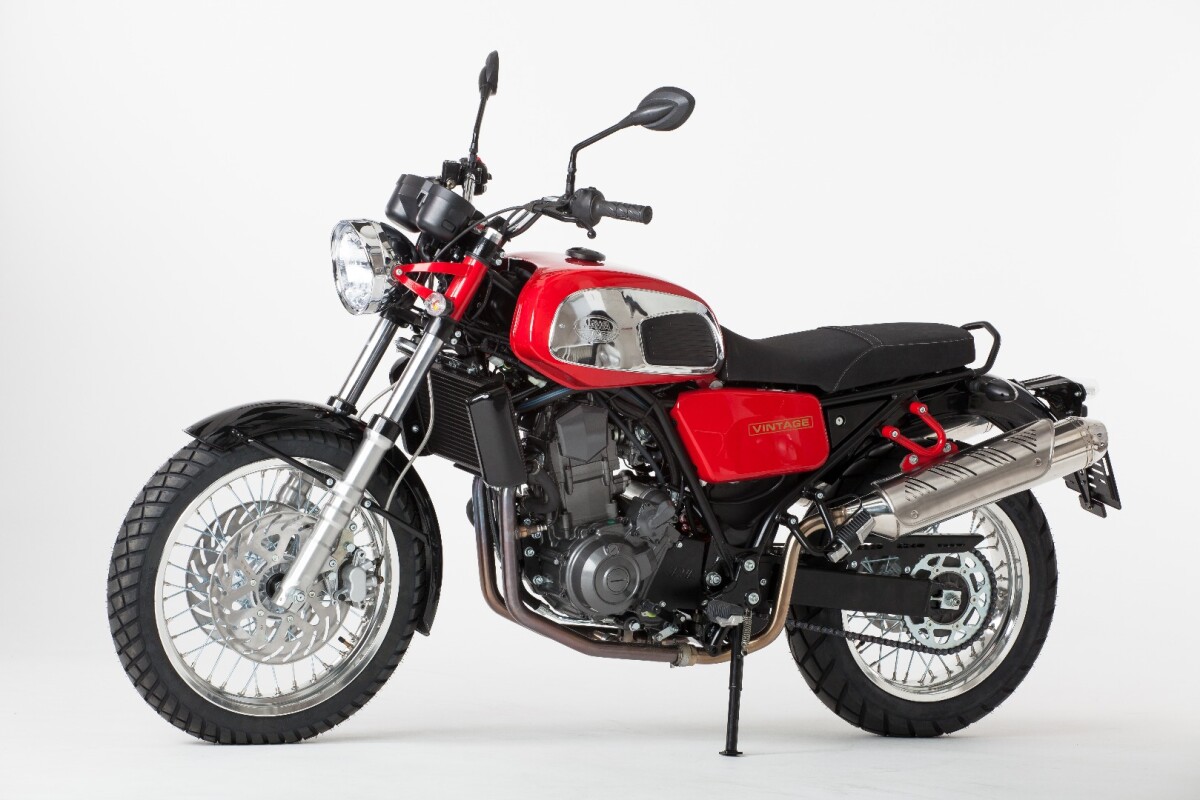

The Jawa 660 Vintage holds 15 l (4 gal) in its shiny fuel tank
The Jawa 660 Vintage holds 15 l (4 gal) in its shiny fuel tank

Next to the new 350, Jawa also introduced another tribute to the Type 634 classic, the 660 Vintage. It is a new member of a model family that was first introduced in 2011 with the 660 Sportard, employing the Italian-made Minarelli single-cylinder engine that powers motorcycles like Yamaha's XT660 and Ténéré 660, as well as the last generation Aprilia Pegaso.

The 660 Vintage relies on the same 36 kW (48.3 hp) powertrain, and also adopts the same retro looks of the 350 OHC. In the Czech Republic it retails for CZK179,830 (about $7,300) and, just like the smaller model, it is Euro4-compliant, therefore eligible for export to most western markets.

Source: Jawa
