Jessi Combs breaks 48-year old land speed record

Jessi Combs breaks 48-year old...

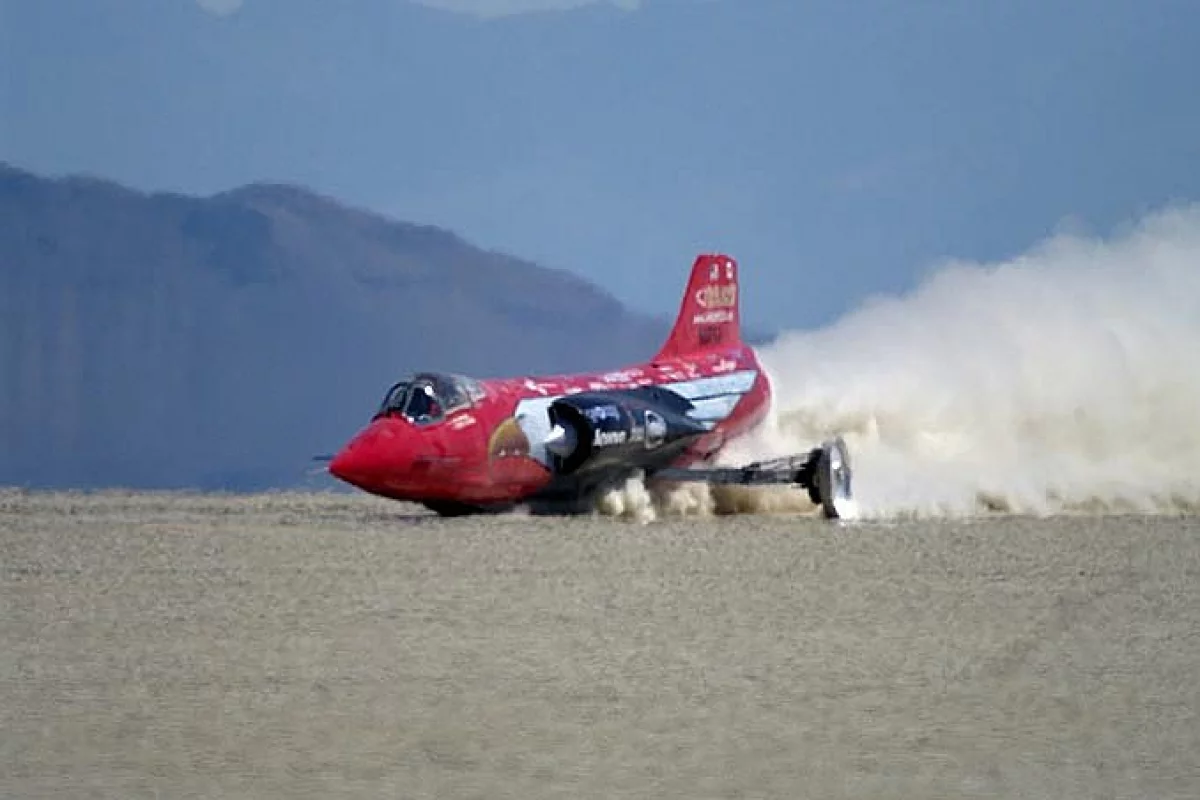

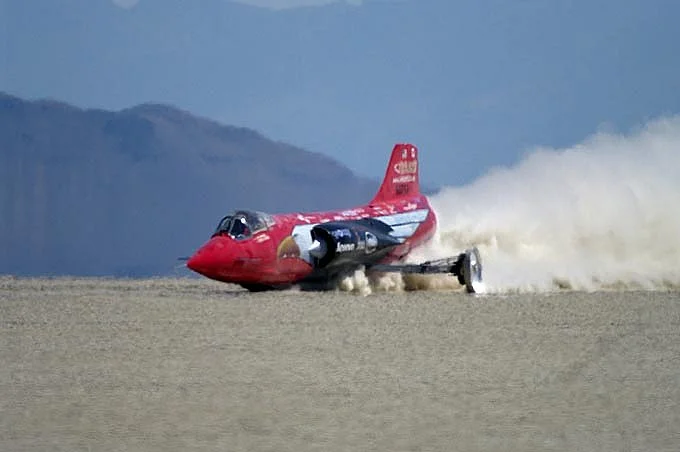

Jessi Combs this week became the world's fastest woman on four wheels in the 52,000 hp North American Eagle Supersonic Speed Challenger with a speed of 392.954 mph (632.39 km/h)
Jessi Combs this week became the world's fastest woman on four wheels in the 52,000 hp North American Eagle Supersonic Speed Challenger with a speed of 392.954 mph (632.39 km/h)
View 26 Images
Jessi Combs this week became the world's fastest woman on four wheels in the 52,000 hp North American Eagle Supersonic Speed Challenger with a speed of 392.954 mph (632.39 km/h)
1/26
Jessi Combs this week became the world's fastest woman on four wheels in the 52,000 hp North American Eagle Supersonic Speed Challenger with a speed of 392.954 mph (632.39 km/h)

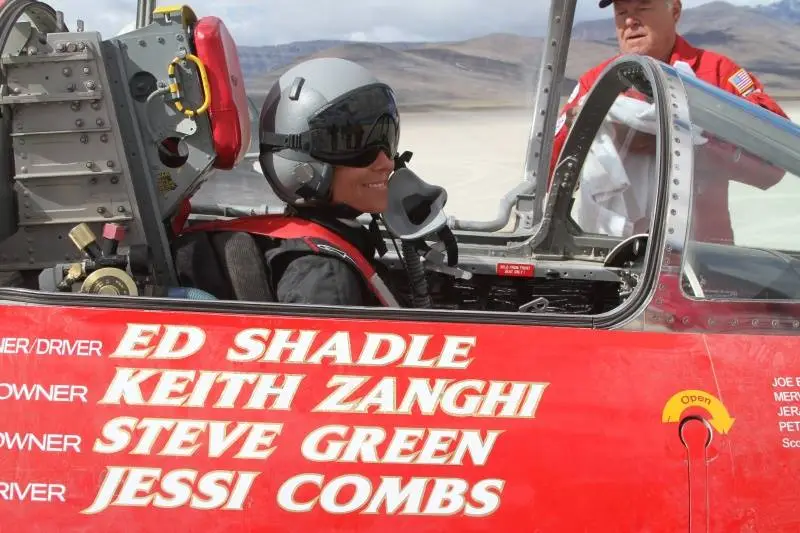

Unlike traditional fighter jets where a more complex oxygen system is used, Jessi received her compressed air via a simpler scuba diving tank configuration
2/26
Unlike traditional fighter jets where a more complex oxygen system is used, Jessi received her compressed air via a simpler scuba diving tank configuration

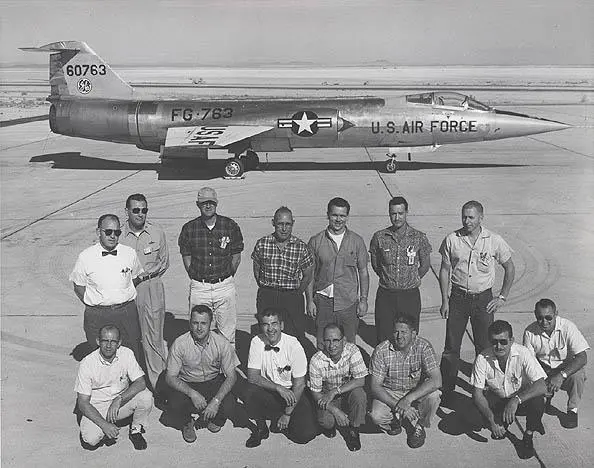

The landspeed vehicle's former life was that of an F-104 Lockheed Starfighter used as a chase plane to monitor the US Air Force's X-15 experimental jet and SR-71 Blackbird
3/26
The landspeed vehicle's former life was that of an F-104 Lockheed Starfighter used as a chase plane to monitor the US Air Force's X-15 experimental jet and SR-71 Blackbird
The North American Eagle is made possible by a beat down US Airforce F-104 Starfighter
4/26
The North American Eagle is made possible by a beat down US Airforce F-104 Starfighter

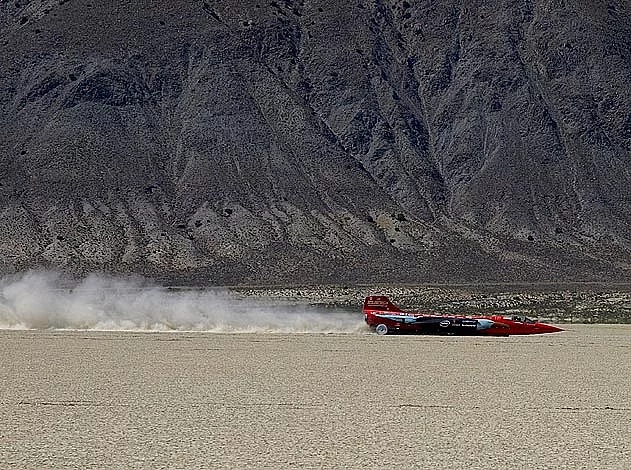

The Eagle uses a tweaked out 52,000 hp General Electric LM-1500 Turbojet engine, with power output upped by 10,000 hp from a stock 42,000 hp
5/26
The Eagle uses a tweaked out 52,000 hp General Electric LM-1500 Turbojet engine, with power output upped by 10,000 hp from a stock 42,000 hp

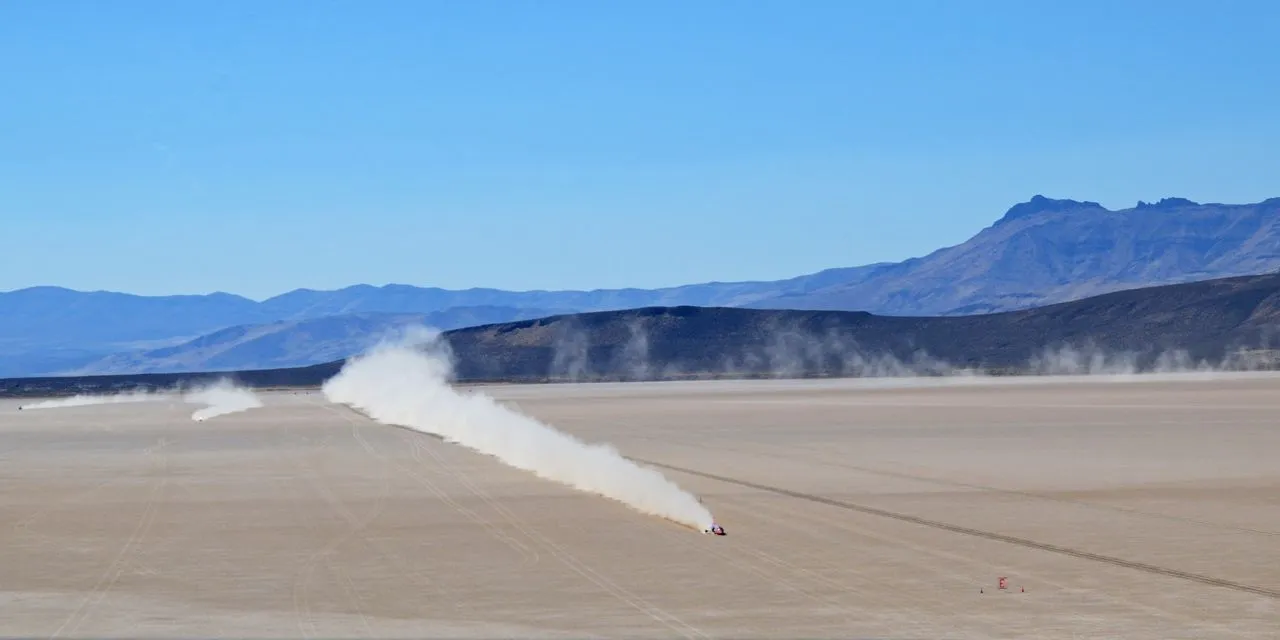

Comb's record breaking run took place at a carefully manicured section built on Oregon’s 13 mile (20.92 km) Alvord Desert this past week
6/26
Comb's record breaking run took place at a carefully manicured section built on Oregon’s 13 mile (20.92 km) Alvord Desert this past week

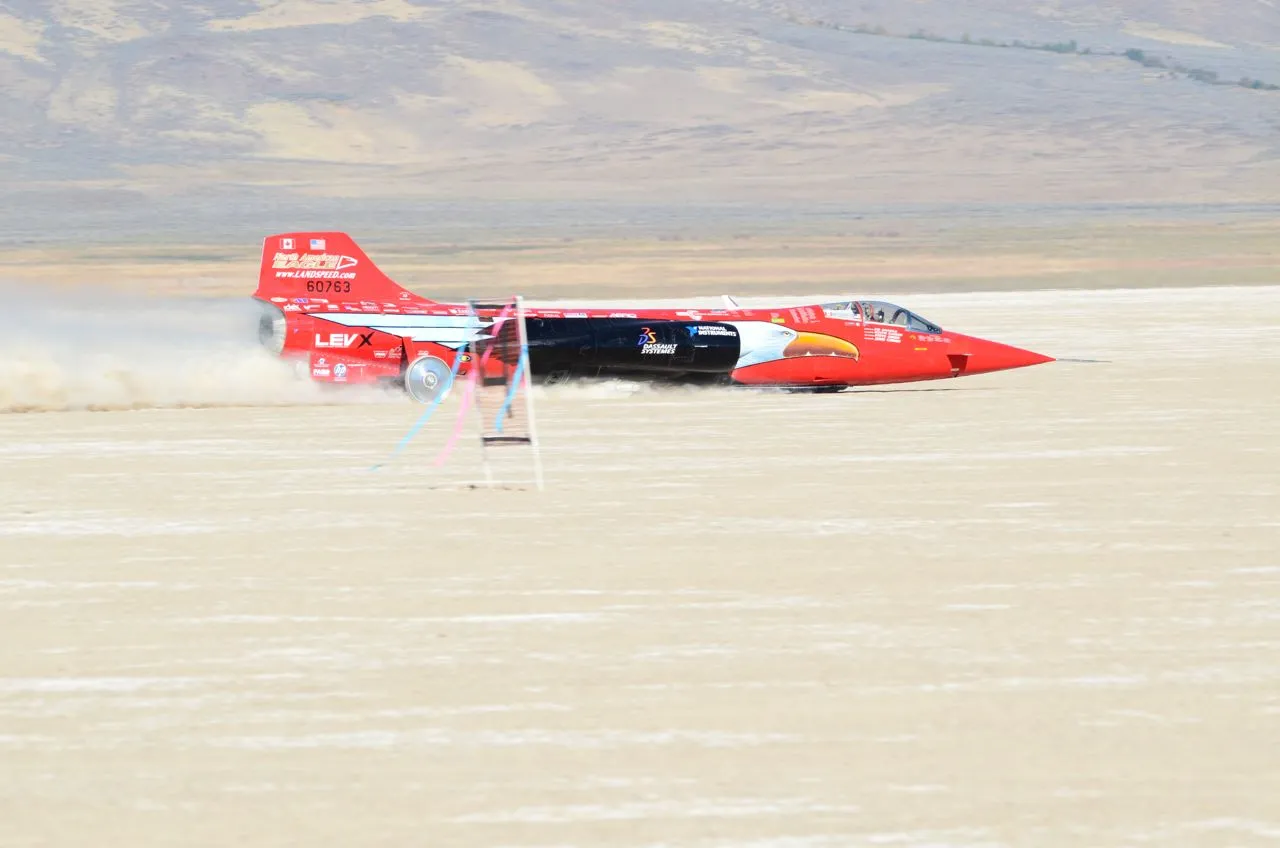

The NAE racer weighs 13,000 lb (5,896 kg), measures 56 ft from nose to tail and just over 7 ft across at the widest point of the engine intakes
7/26
The NAE racer weighs 13,000 lb (5,896 kg), measures 56 ft from nose to tail and just over 7 ft across at the widest point of the engine intakes

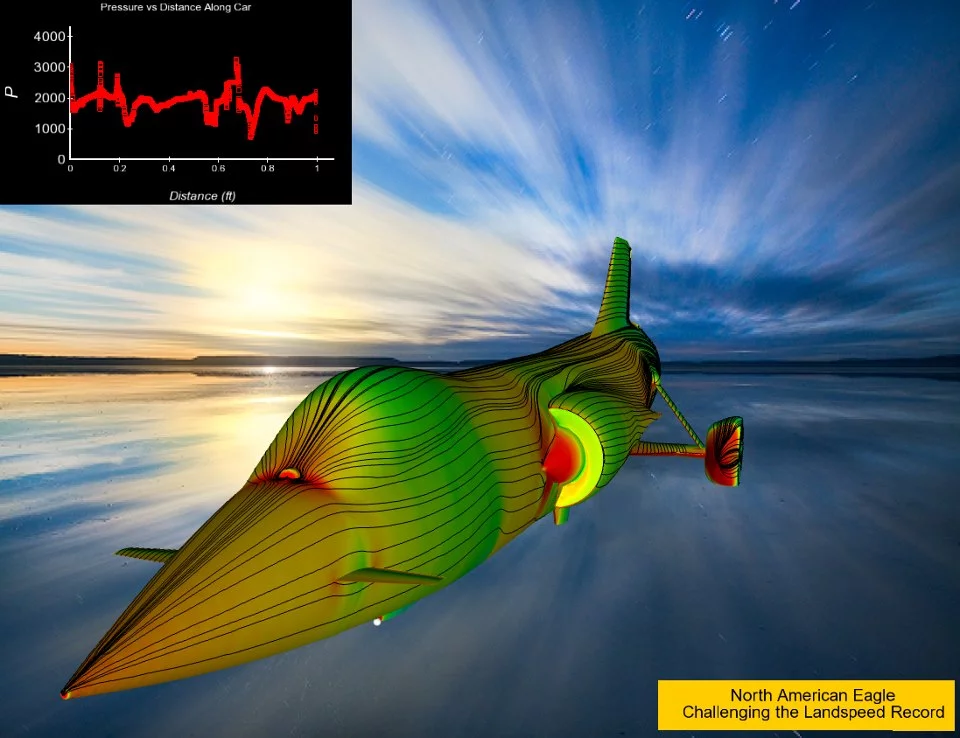

A computer generated model shows critical air pressure and flow areas across the surface of the Eagle at various mileage markers
8/26
A computer generated model shows critical air pressure and flow areas across the surface of the Eagle at various mileage markers

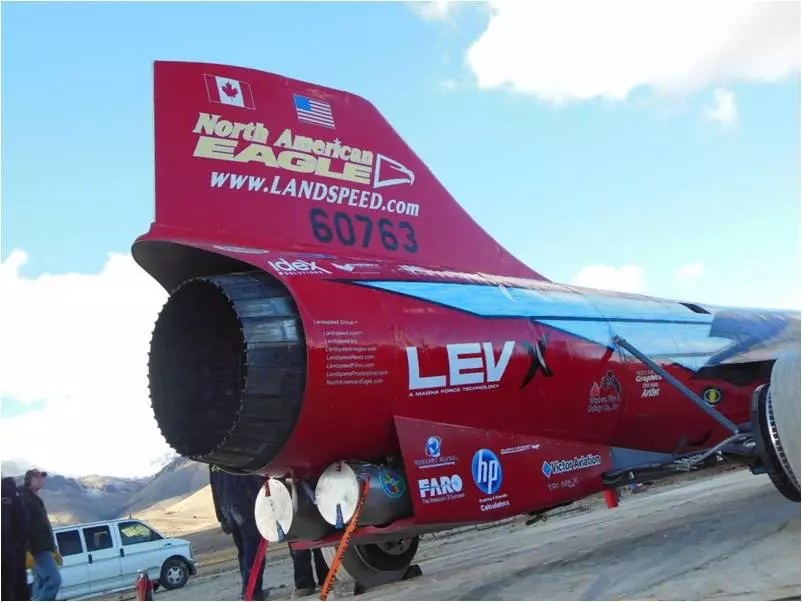

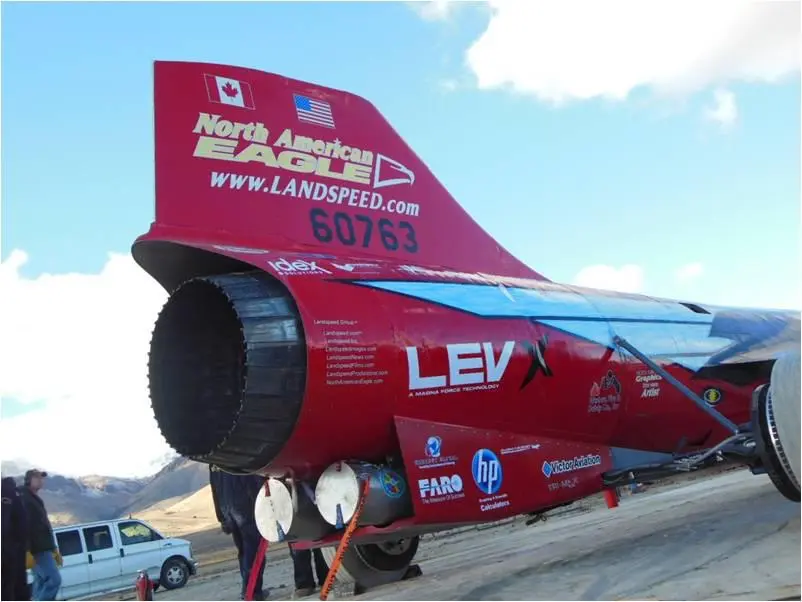

The Eagle drinks 40 gallons/minute (151 L/min) at idle and 80 gallons/minute (302.83 L/min) under full throttle
9/26
The Eagle drinks 40 gallons/minute (151 L/min) at idle and 80 gallons/minute (302.83 L/min) under full throttle

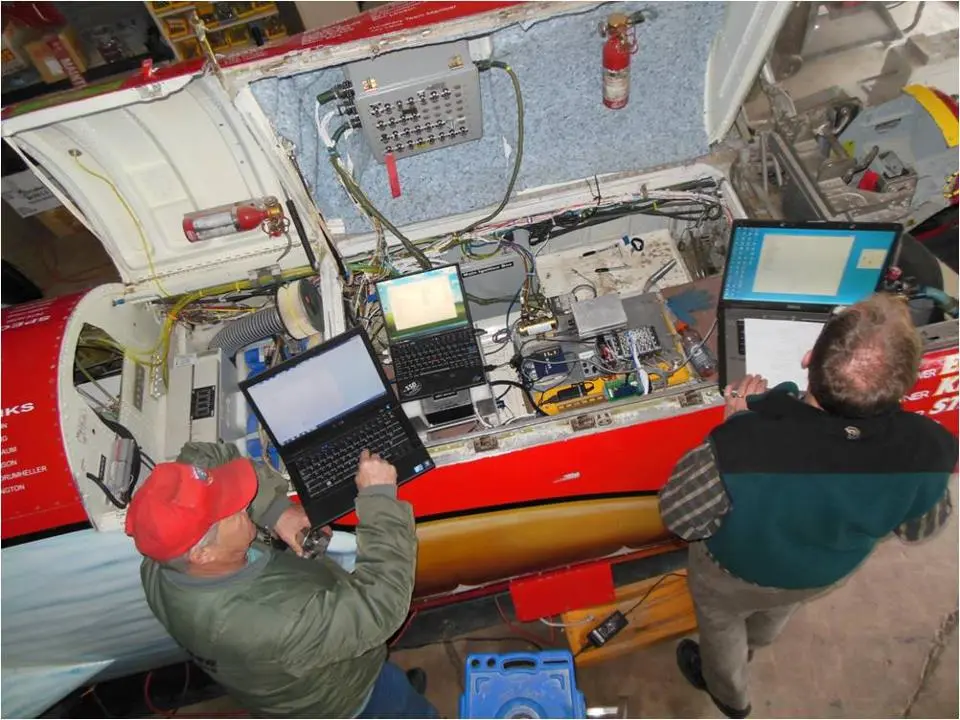

Instrumentation is minimal with only engine temperature gauges, fuel and oil pressure gauges and an air speed indicator and mach meter
10/26
Instrumentation is minimal with only engine temperature gauges, fuel and oil pressure gauges and an air speed indicator and mach meter

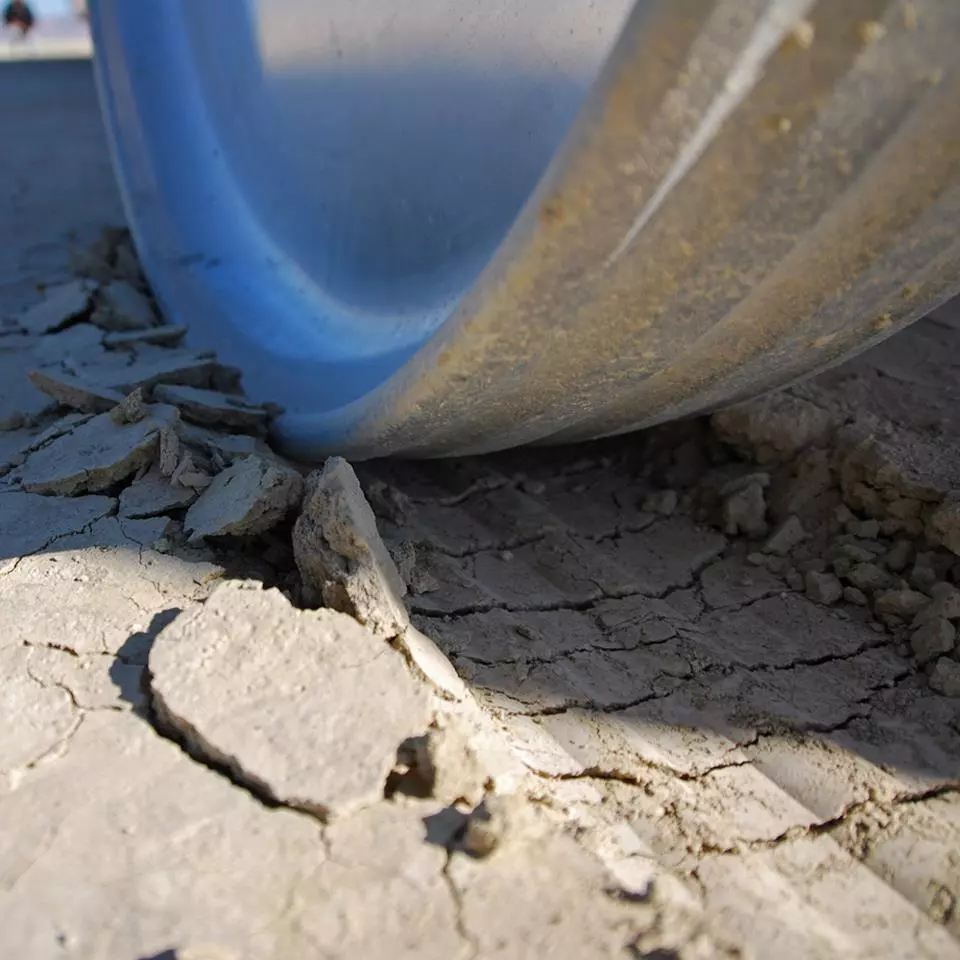

The Eagle runs on solid billet aluminum wheels
11/26
The Eagle runs on solid billet aluminum wheels

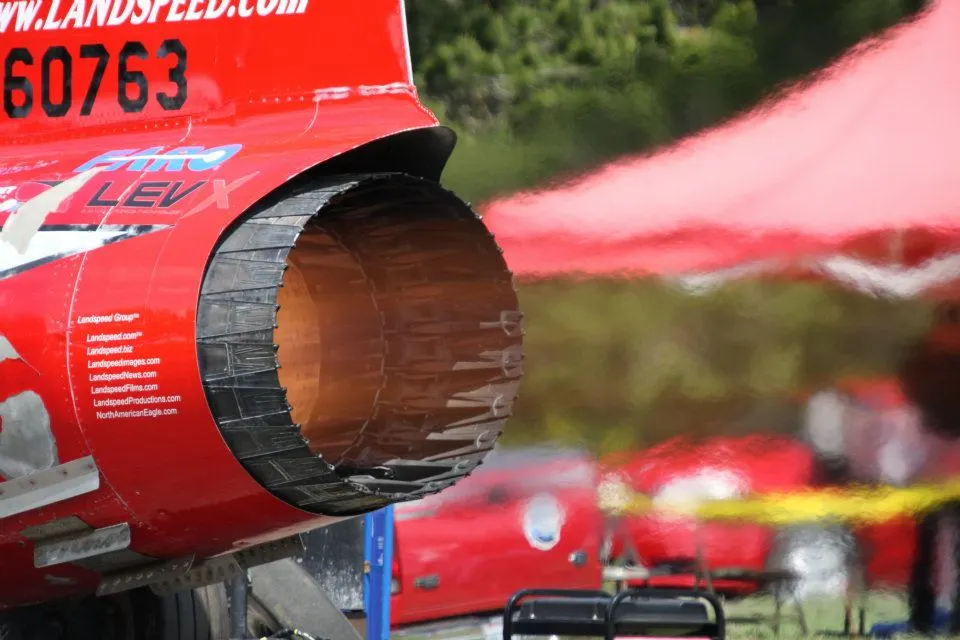

The North American Eagle's afterburner effectively doubles power output from an already impressive 52,000 hp
12/26
The North American Eagle's afterburner effectively doubles power output from an already impressive 52,000 hp

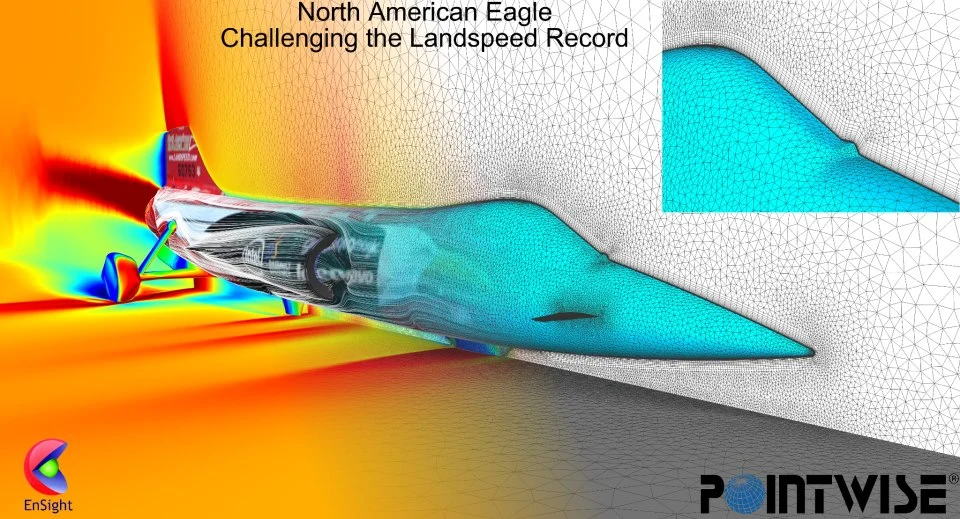

One of the many challenges the team faced is how the craft's aerodynamics will react at zero altitude and mach speeds
13/26
One of the many challenges the team faced is how the craft's aerodynamics will react at zero altitude and mach speeds

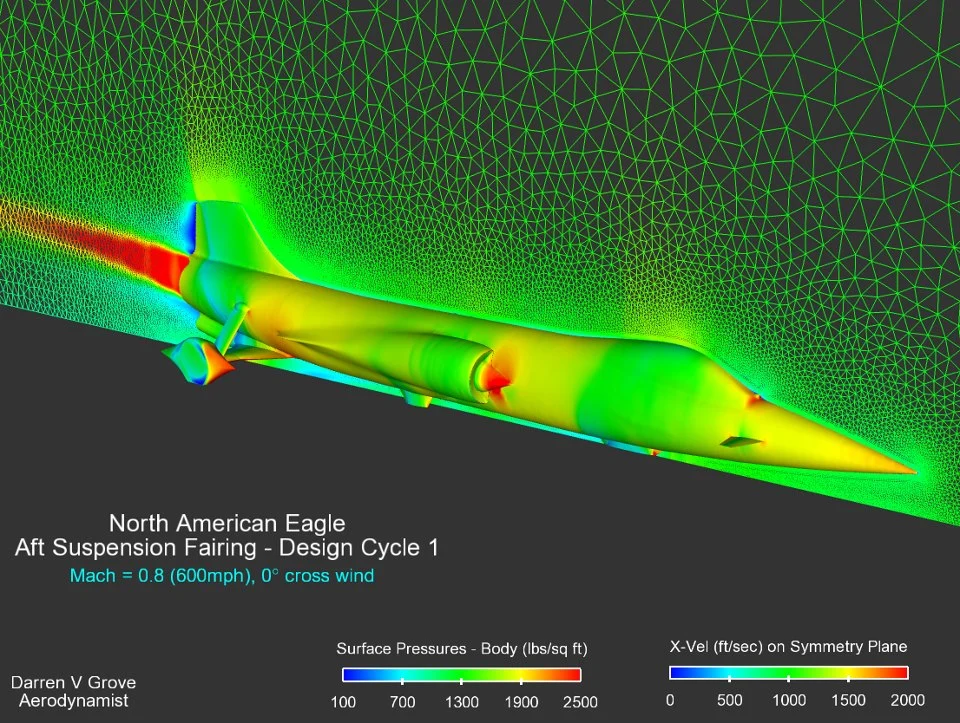

Computer rendered model showing high pressure zones across the Eagle's various surface areas
14/26
Computer rendered model showing high pressure zones across the Eagle's various surface areas
Under FIA rules Jessi Combs qualifies as the "fastest woman in the world" in a four wheel car
15/26
Under FIA rules Jessi Combs qualifies as the "fastest woman in the world" in a four wheel car

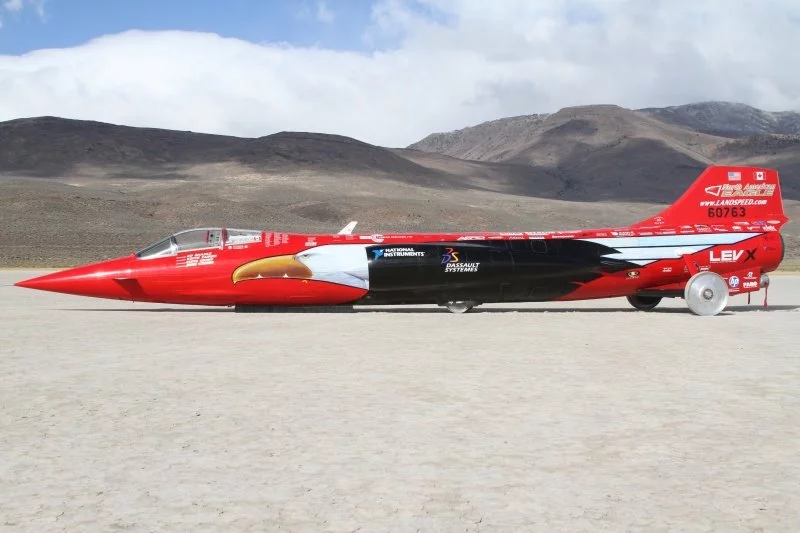

The NAE delivered a top speed of 371 mph (597 km/h) on the first run, and 440.7 mph (709.25 km/h) on the second, producing a record breaking average speed of 392.954 mph (632.39 km/h)
16/26
The NAE delivered a top speed of 371 mph (597 km/h) on the first run, and 440.7 mph (709.25 km/h) on the second, producing a record breaking average speed of 392.954 mph (632.39 km/h)

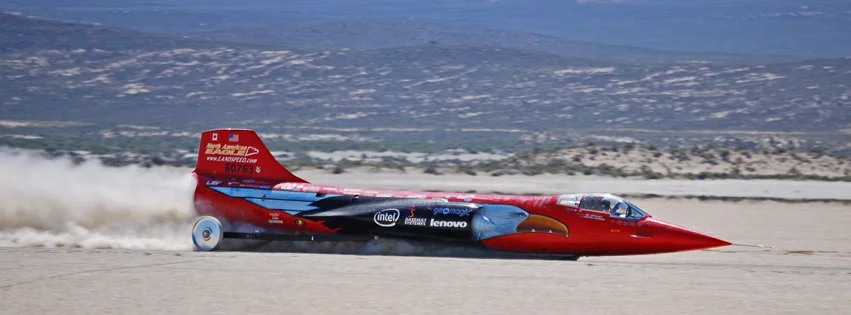

The NAE crew plans to chase down and break the existing land speed record of 761 mph (1,225 km/h) in 2014 with team owner Ed Shadle at the stick
17/26
The NAE crew plans to chase down and break the existing land speed record of 761 mph (1,225 km/h) in 2014 with team owner Ed Shadle at the stick

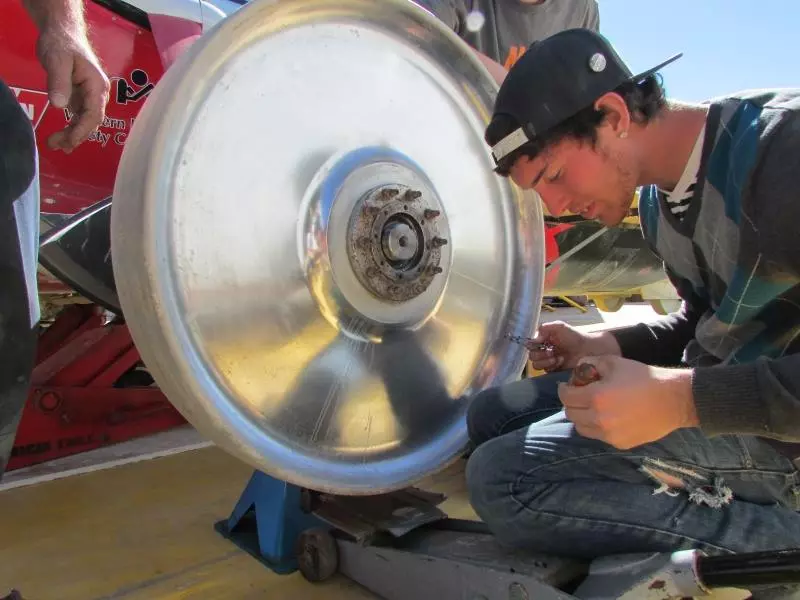

The Eagle runs on solid billet aluminum wheels that reduce rolling weight but also negate concerns with rubber tires and associated centrifugal forces at mach speeds
18/26
The Eagle runs on solid billet aluminum wheels that reduce rolling weight but also negate concerns with rubber tires and associated centrifugal forces at mach speeds
Aluminum wheels on custom designed outriggers replace the Starfighter's wings and rear control surfaces
19/26
Aluminum wheels on custom designed outriggers replace the Starfighter's wings and rear control surfaces

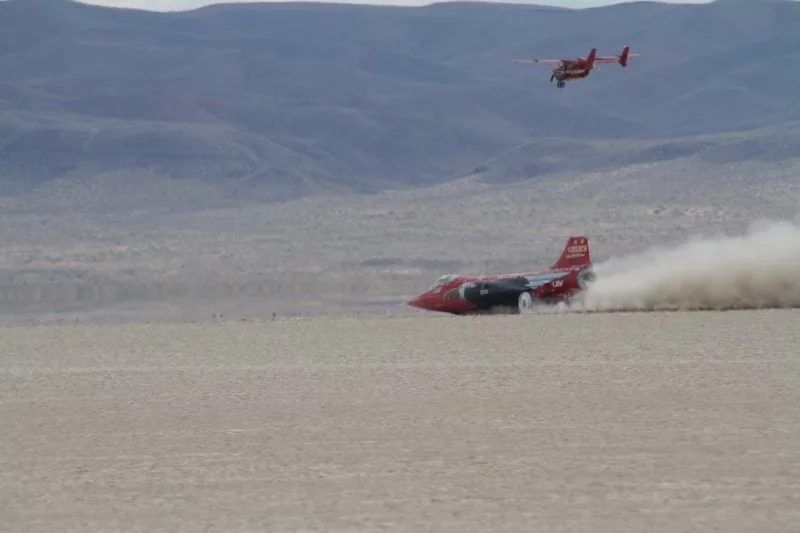

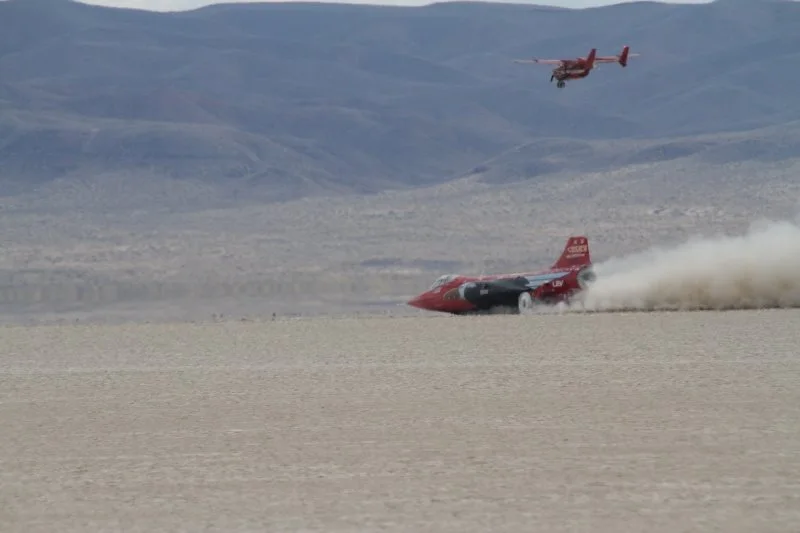

The Eagle is controlled by a joystick, providing tail and rudder control at speeds similar to its airborne brethren
20/26
The Eagle is controlled by a joystick, providing tail and rudder control at speeds similar to its airborne brethren

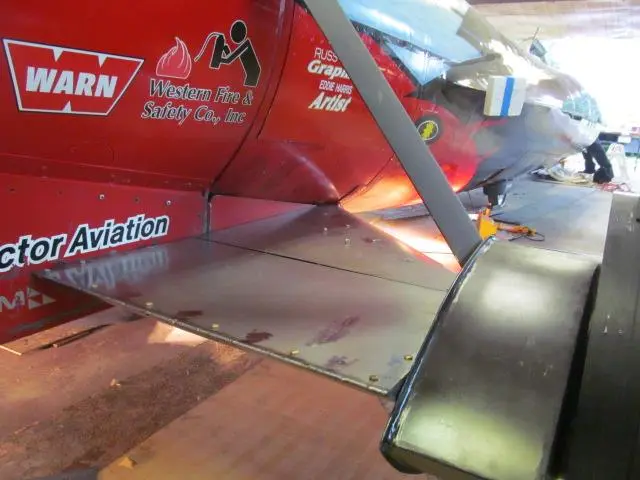

Eagle outrigger with diagonal struts features custom designed horizontal wing surface and aluminum wheels
21/26
Eagle outrigger with diagonal struts features custom designed horizontal wing surface and aluminum wheels

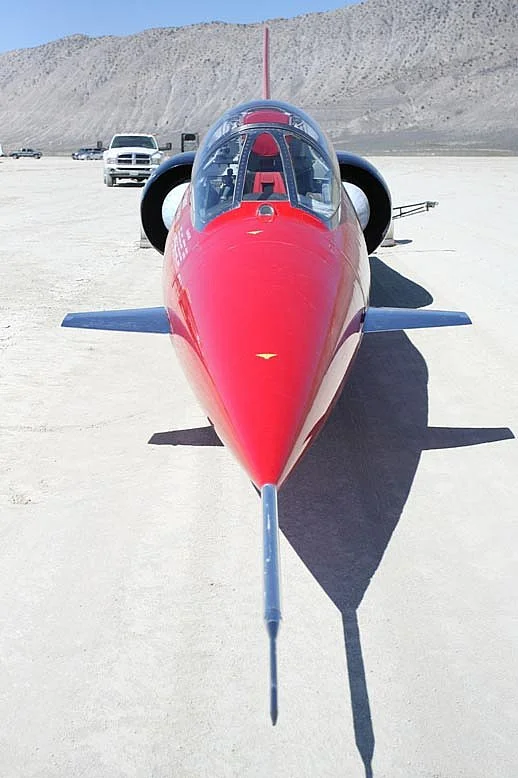

Landspeed's Eagle has lost most all of its original aircraft requirements, including wings, and rear tail stabilizers a,though small forward winglets remain for improved stability and airflow
22/26
Landspeed's Eagle has lost most all of its original aircraft requirements, including wings, and rear tail stabilizers a,though small forward winglets remain for improved stability and airflow

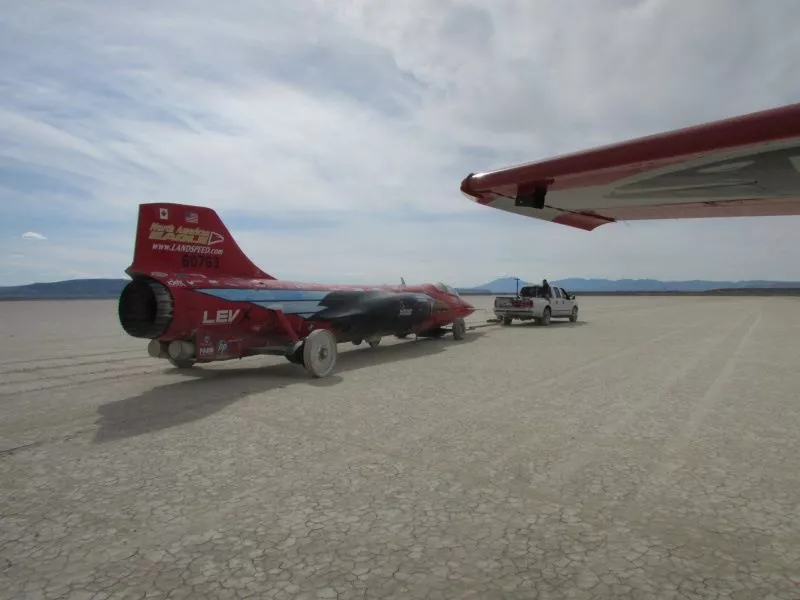

The Eagle being towed out for its second record breaking run
23/26
The Eagle being towed out for its second record breaking run

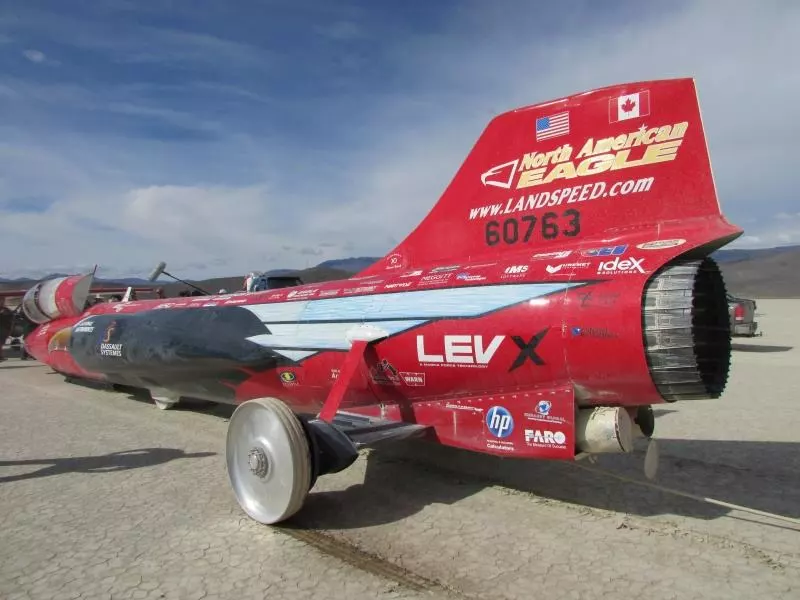

The Eagle's rear section, with parachute tubes, highlights the jet's many aerodynamic and functional changes
24/26
The Eagle's rear section, with parachute tubes, highlights the jet's many aerodynamic and functional changes

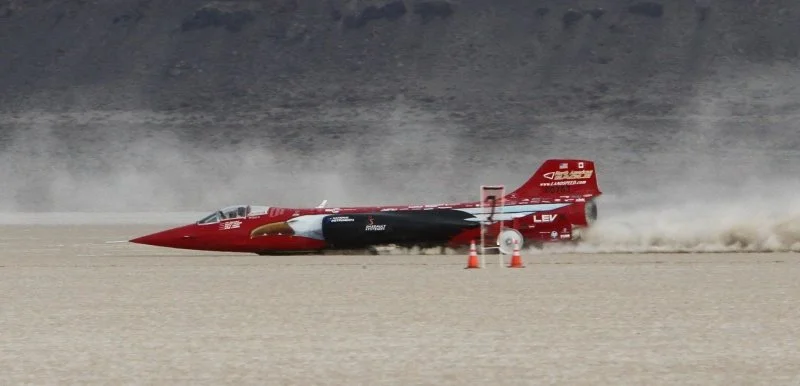

Comb's plans on chasing the current 512 mph (824 km/h) female speed record (3-wheels) as soon as possible
25/26
Comb's plans on chasing the current 512 mph (824 km/h) female speed record (3-wheels) as soon as possible

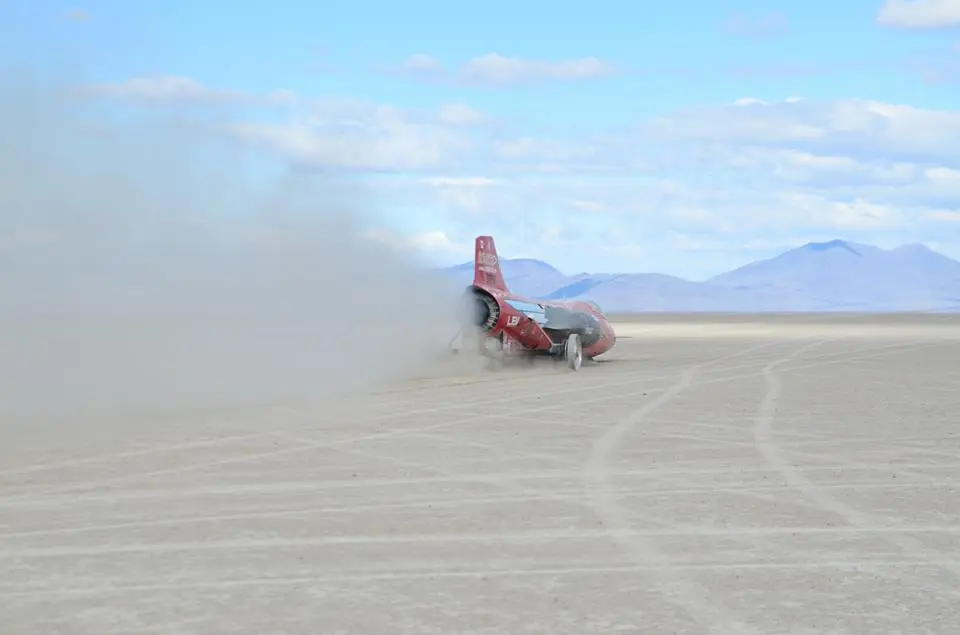

According to its creators, the Eagle is capable of contesting the existing world land speed record of 761 mph (1,225 km/h)
26/26
According to its creators, the Eagle is capable of contesting the existing world land speed record of 761 mph (1,225 km/h)

Back in 1965, Lee Breedlove set the women's land speed record on Utah’s Salt Lake Flats with an average speed of 308.51 mph (496.49 km/h) over four runs. That record stood for 48 years until this month, when Jessi Combs smashed it in her 52,000 hp North American Eagle Supersonic Speed Challenger with a speed of 392.954 mph (632.39 km/h).

On October 9, running out on Oregon’s 13 mile (20.9 km) Alvord Desert course, which is essentially a dried out lake bed, TV celeb Jessi Combs' first pass in the North American Eagle (NAE) Supersonic Speed Challenger delivered a top speed of 371 mph (597 km/h). Rules require racers to complete two passes within a one hour time frame and on the second run using the Eagle’s afterburner to full effect, Combs hit a speed of 440.7 mph (709.25 km/h), producing a record breaking average speed of 392.954 mph (632.39 km/h). The Eagle’s afterburner does provide the pilot a short burst of instant power, essentially doubling output from an already impressive 52,000 hp.

The converted F-104 Lockheed Starfighter that Combs pilots once actually served as a chase plane for both the record breaking X-15 experimental jet and the SR-71 Blackbird. Retaining its original intake ducts but sporting smaller wings to retain speed stability, the NAE racer now weighs in at 13,000 lb (5,896 kg) and measures 56 ft (17.07 m) from nose to tail and just over 7 ft (2.1 m) across at the widest point on the engine intakes.

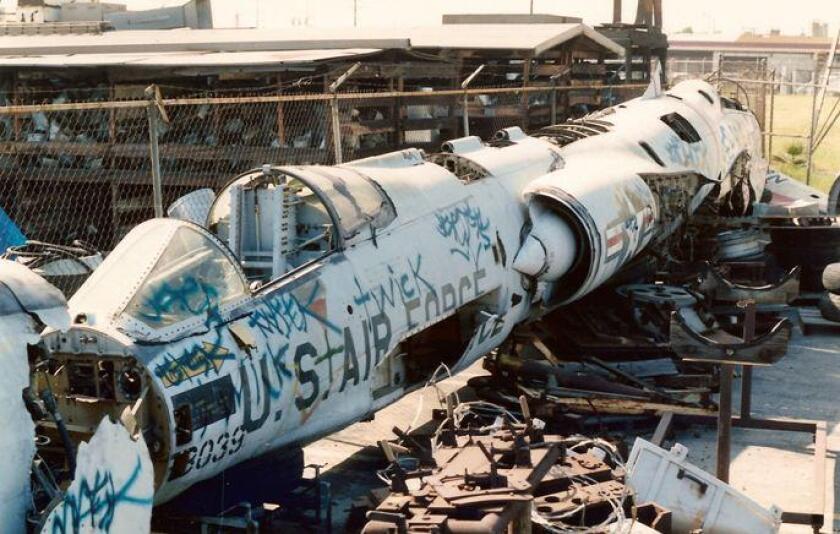

The North American Eagle is made possible by a beat down US Airforce F-104 Starfighter
The North American Eagle is made possible by a beat down US Airforce F-104 Starfighter

Propelled by a General Electric LM-1500 Turbojet engine, the NAE crew increased the engine’s stock output by 10,000 hp from the leisurely 42,000 hp used for low speed test runs, up to the current 52,000 hp. But with great power comes great mileage degradation. North American Eagle reports the jet's appetite for fuel at idle to be in the 40 gallons/minute (151 L/min) range, but when under full throttle the Eagle vaporizes out 80 gallons/minute (302.8 L/min). Kick in the afterburner and another 10 gallons (37.8 L) disappears out the Eagle’s oversized, military grade tailpipe every minute.

As the Federation International de Automobile (FIA) is the governing body for land speed records, strict rules regarding engines and wheel configurations had to be followed in order to properly qualify. The FIA rules require the vehicle to be considered a “car” sporting four wheels. So in order for the Eagle to blast across at the lake bed at subsonic speeds, solid billet aluminum wheels were chosen. Solid aluminum wheels not only reduce rolling weight but remove traditional concerns regarding centrifugal forces associated with rubber tires. The solid wheel system also allows the driver to focus on “piloting” the ground based fighter rather than having to drive it.

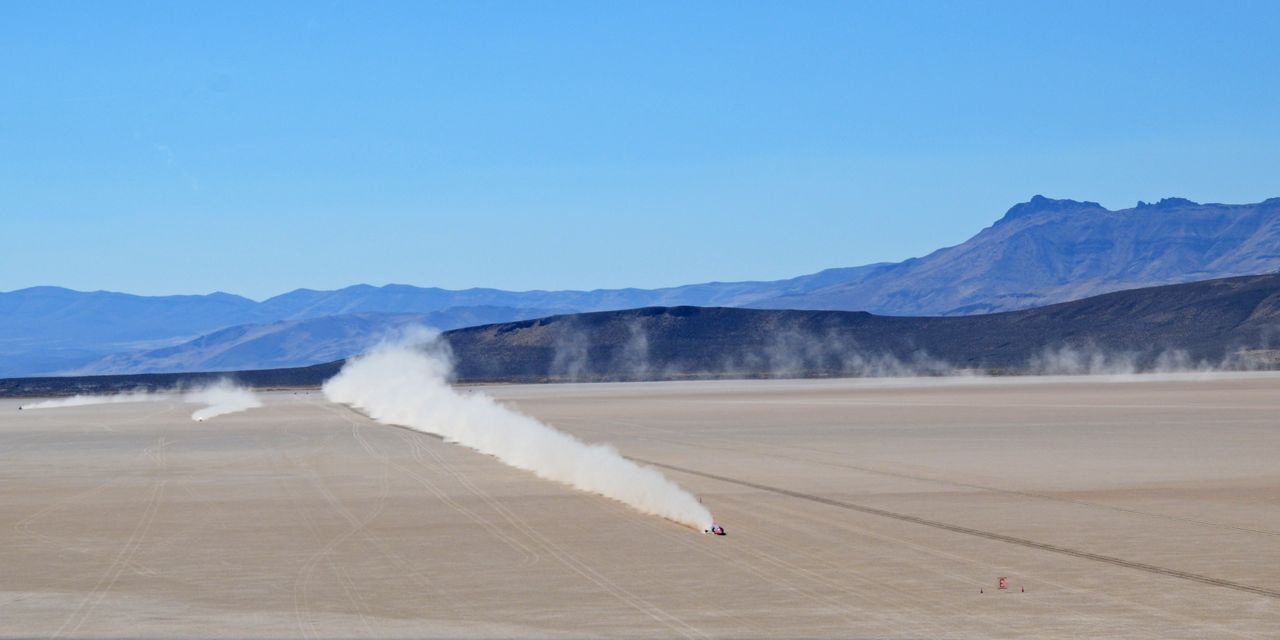

Comb's record breaking run took place at a carefully manicured section built on Oregon’s 13 mile (20.92 km) Alvord Desert this past week
Comb's record breaking run took place at a carefully manicured section built on Oregon’s 13 mile (20.92 km) Alvord Desert this past week

Inside the cockpit, Comb’s surroundings, like most race cars, are sparse and minimalistic. Instrumentation is limited to engine temperature gauges, fuel and oil pressure gauges and the all important air speed indicator and mach meter. The steering wheel is a joystick, providing tail and rudder control at speeds similar to its airborne brethren. Unlike traditional fighter jets where oxygen is supplied to the pilot, the NAE team went with a simpler system using a scuba diving tank to provide compressed air.

The NAE crew hopes to break the existing land speed record of 761 mph (1,225 km/h) in the Eagle in 2014, this time with team owner Ed Shadle at the stick. In the meantime, Jessi Combs next plans to chase down the existing female speed record of 512 mph (824 km/h) achieved in 1976 by stunt woman Kitty O’Neil in a three-wheeled racer.

Watch Jessi's 440 mph run via the vid link.

Source: Land Speed
