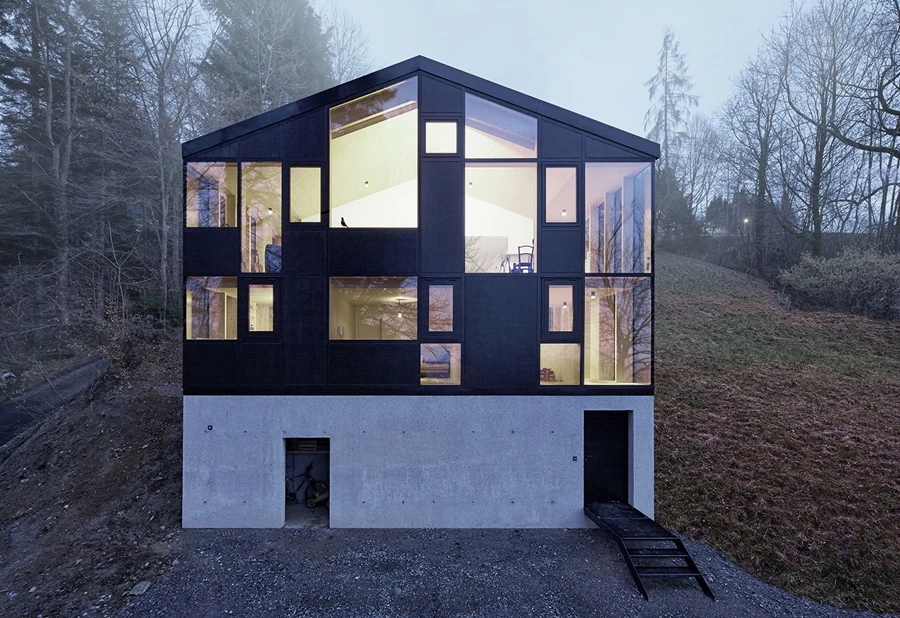

After being gutted, the original structure of Haus Hohlen was then enclosed by a new exterior
3/20
After being gutted, the original structure of Haus Hohlen was then enclosed by a new exterior

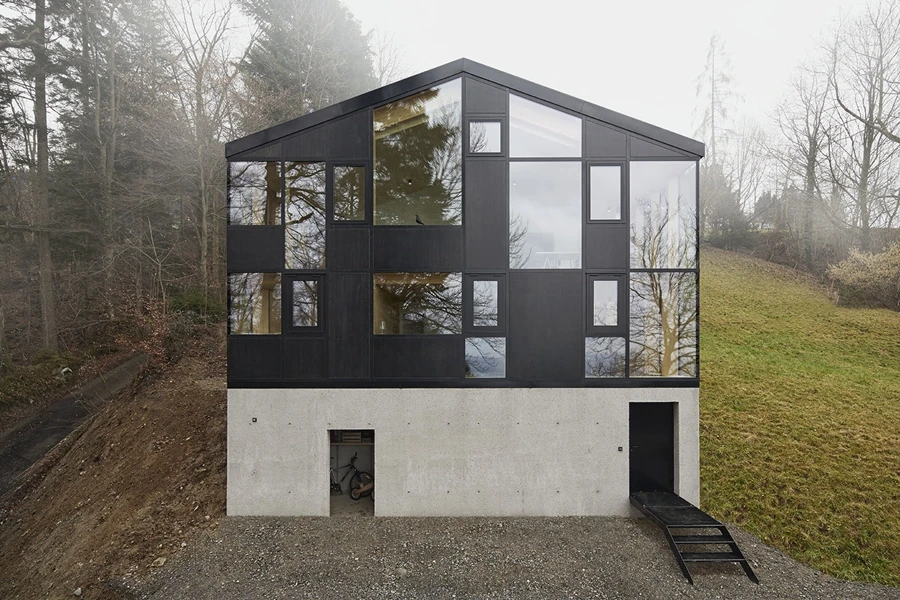

Haus Hohlen was extended by 4 m (13 ft) at the gable end and 1.5 m (5 ft) at the sides
4/20
Haus Hohlen was extended by 4 m (13 ft) at the gable end and 1.5 m (5 ft) at the sides

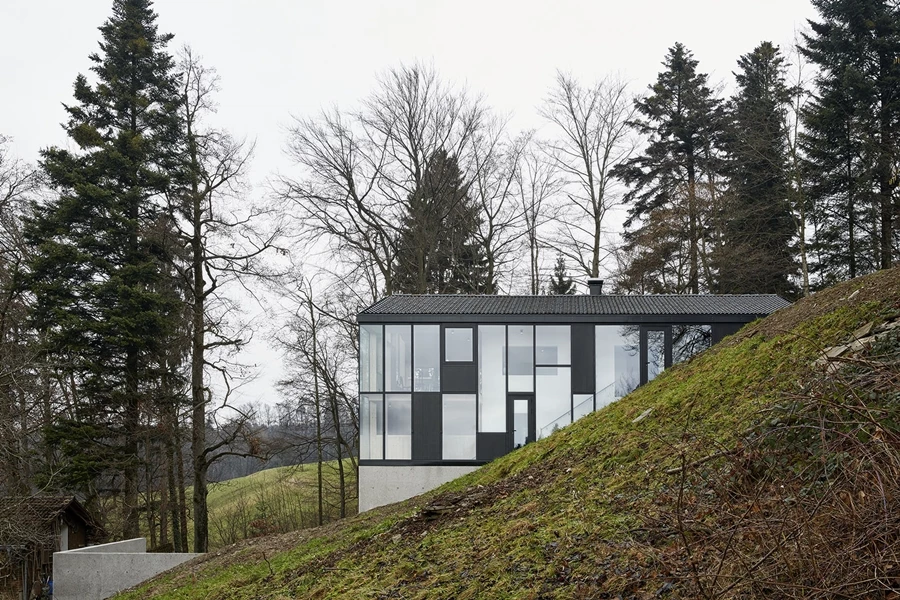

Haus Hohlen is located on a hillside above Dornbirn, Austria
5/20
Haus Hohlen is located on a hillside above Dornbirn, Austria
A lot of glazing is now used in Haus Hohlen to take advantage of the surrounding views
6/20
A lot of glazing is now used in Haus Hohlen to take advantage of the surrounding views
The original structure of Haus Hohlen is now visible as part of the building's interior
7/20
The original structure of Haus Hohlen is now visible as part of the building's interior

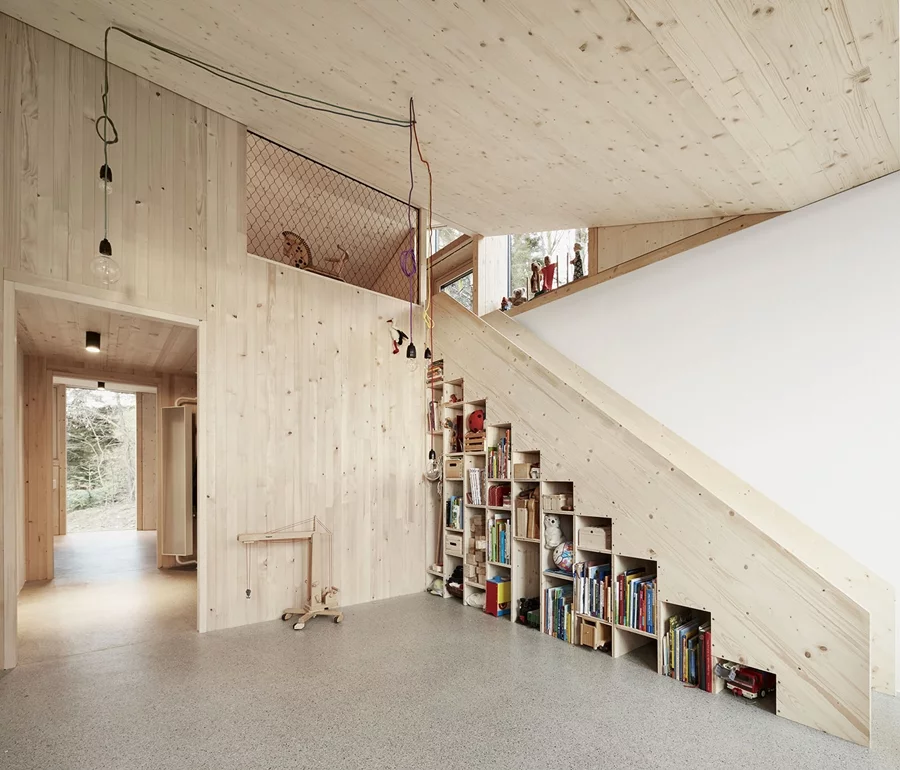

The new exterior of Haus Hohlen was built out of lightweight timber
8/20
The new exterior of Haus Hohlen was built out of lightweight timber

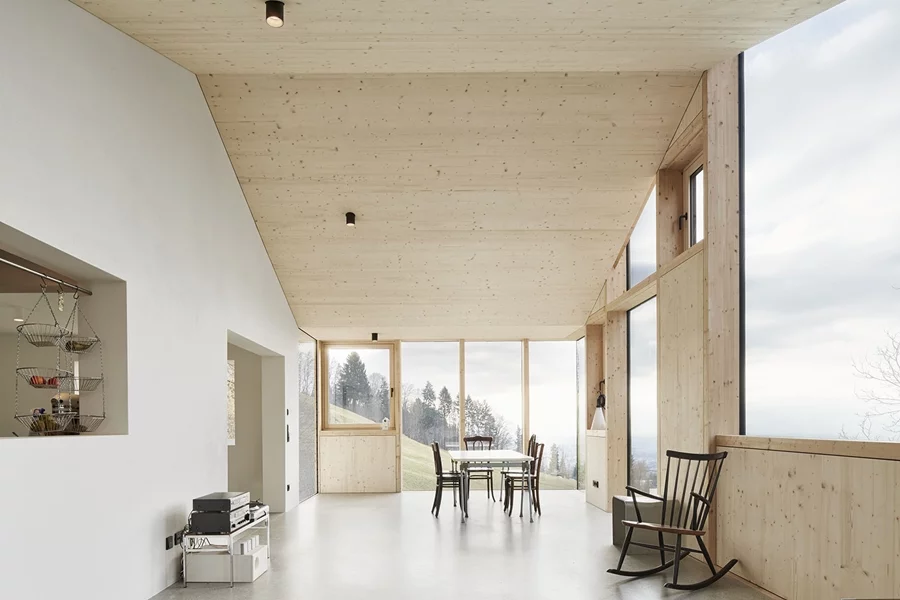

All glass is triple glazed to help insulate Haus Hohlen
9/20
All glass is triple glazed to help insulate Haus Hohlen

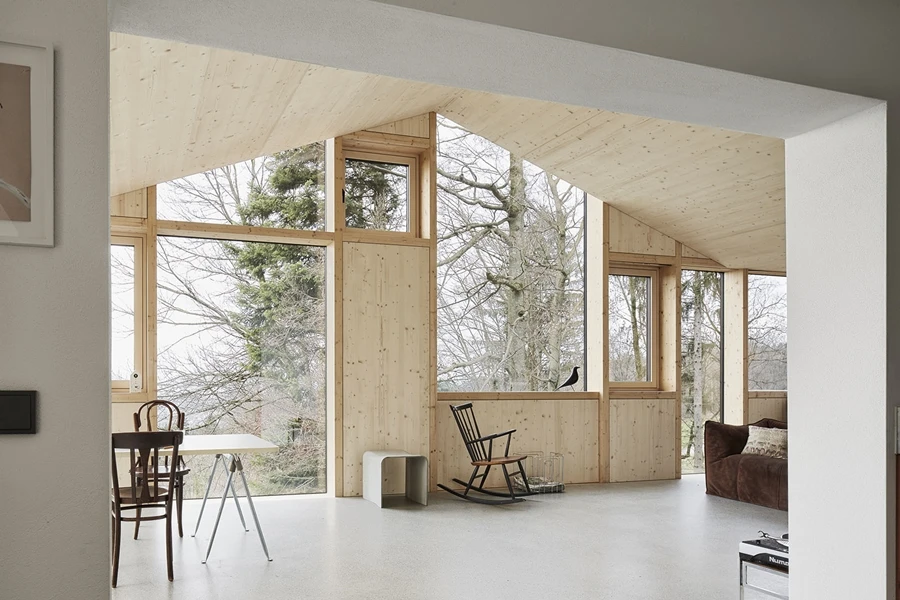

Inside, the original structure of Haus Hohlen remains recognizable, but features have been reappropriated in places
10/20
Inside, the original structure of Haus Hohlen remains recognizable, but features have been reappropriated in places
A view between the original and new exteriors of Haus Hohlen
11/20
A view between the original and new exteriors of Haus Hohlen
Orignal exterior doorways are now used, in places, as internal passageways
12/20
Orignal exterior doorways are now used, in places, as internal passageways
The new wooden construction helps to insulate Haus Hohlen
13/20
The new wooden construction helps to insulate Haus Hohlen
A view along the side of Haus Hohlen
14/20
A view along the side of Haus Hohlen

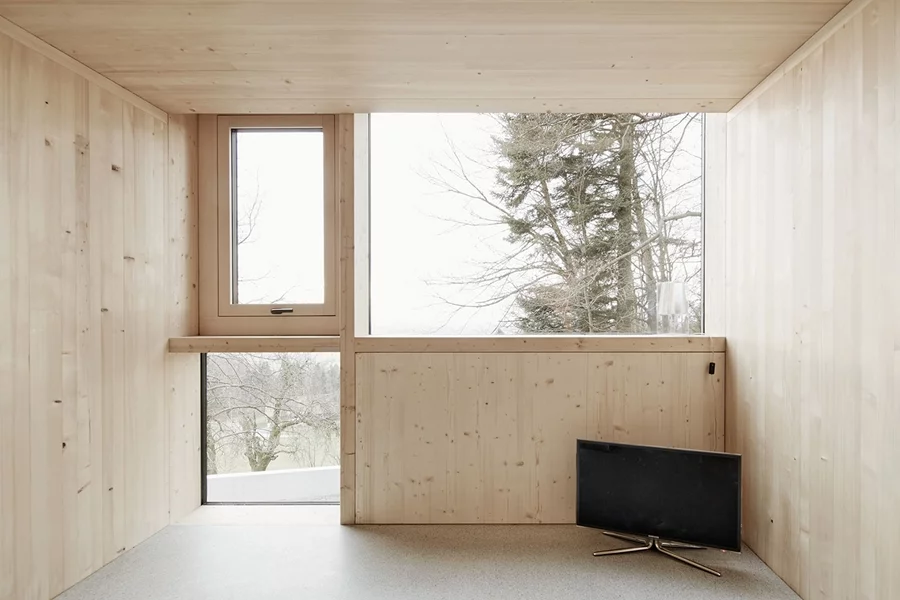

One of the newly created spaces within Haus Hohlen
15/20
One of the newly created spaces within Haus Hohlen
A bedroom inside Haus Hohlen
16/20
A bedroom inside Haus Hohlen
The kitchen inside Haus Hohlen
17/20
The kitchen inside Haus Hohlen
A stairwell between the original and new exteriors of Haus Hohlen
18/20
A stairwell between the original and new exteriors of Haus Hohlen

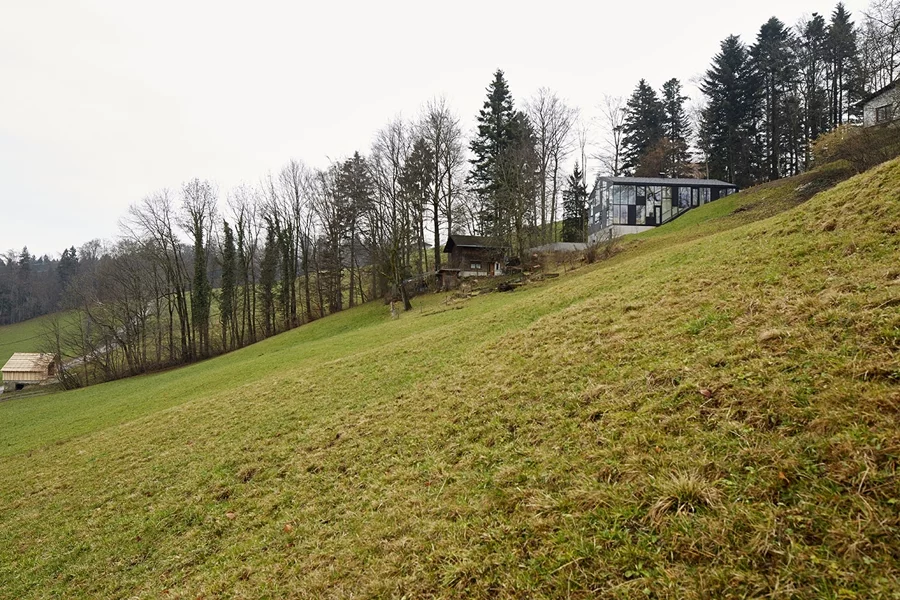

The hillside on which Haus Hohlen sits
19/20
The hillside on which Haus Hohlen sits
The dark new exterior of Haus Hohlen
20/20
The dark new exterior of Haus Hohlen
View gallery - 20 images

When houses are extended, it's generally the case that an additional section is simply added on to one part of the building. A house in Austria, however, has had an entirely new exterior built around it. The existing building of Haus Hohlen is now part of the house's interior.

Haus Hohlen is located on a hill above Dornbirn, Austria, and was originally built in 1961. In 2012, it was decided that the 85 sq m (915 sq ft) building was too small for the four residents, and an approach for renovating and extending it was formulated.

The only part of the building deemed worth preserving was the existing stonework. Other than that, the house was gutted and unwanted fixtures removed. The original structure was then enclosed by a new building "envelope" or exterior. Inside, the structure remains recognizable, but features have been reappropriated in places. Some windows, for example, have become passageways, a pass-through and a niche for a basin.

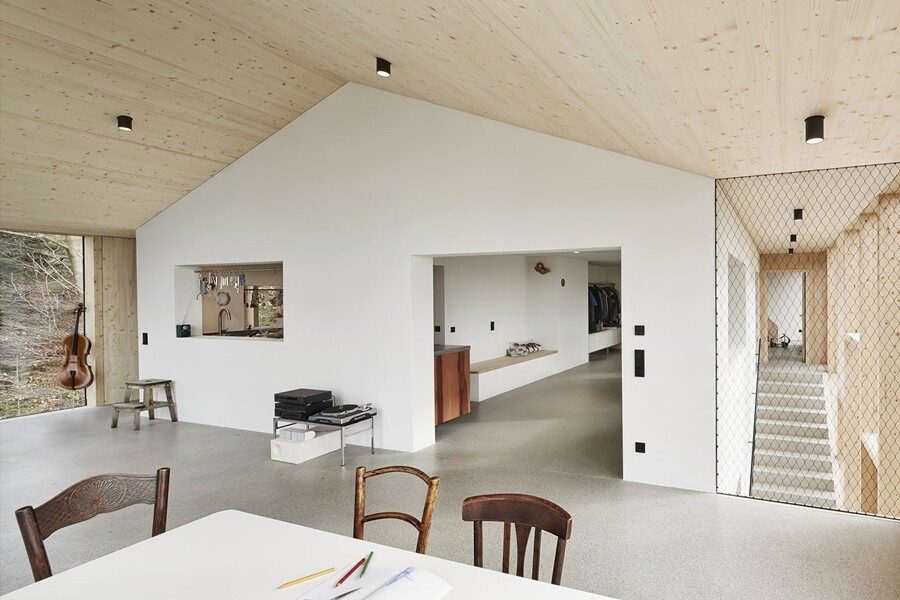

The original structure of Haus Hohlen is now visible as part of the building's interior
The original structure of Haus Hohlen is now visible as part of the building's interior

The new exterior was constructed out of lightweight timber, so as to take advantage of the potential for prefabrication, quick construction, the use of an environmentally-sound material and internal temperature benefits once the building was completed. The building was extended by 4 m (13 ft) at the gable end and 1.5 m (5 ft) at the sides, with a new roof being built immediately above the existing roof.

"We used the old house's tiles and mixed them with new ones," explains project architect Jochen Specht to Gizmag. "This is a traditional technique, when stables or other buildings are expanded."

The new wooden construction helps to insulate Haus Hohlen
The new wooden construction helps to insulate Haus Hohlen

As well as adding a lot of windows to take advantage of Haus Hohlen's surrounding views, the heating and insulation of the building were also improved. All glass is now triple-glazed, the existing oil heating system has been replaced by a heat pump with geothermal probes, and underfloor heating has been installed. New wood fiber and foam-glass insulation has also been used. These factors have reduced Haus Hohlen's heating energy use to 45 kWh/sq-m (4.2 kWh/sq-ft) a year.

Haus Hohlen was completed earlier this year. The video below is a time-lapse of the building's transformation.

Source: Jochen Specht
