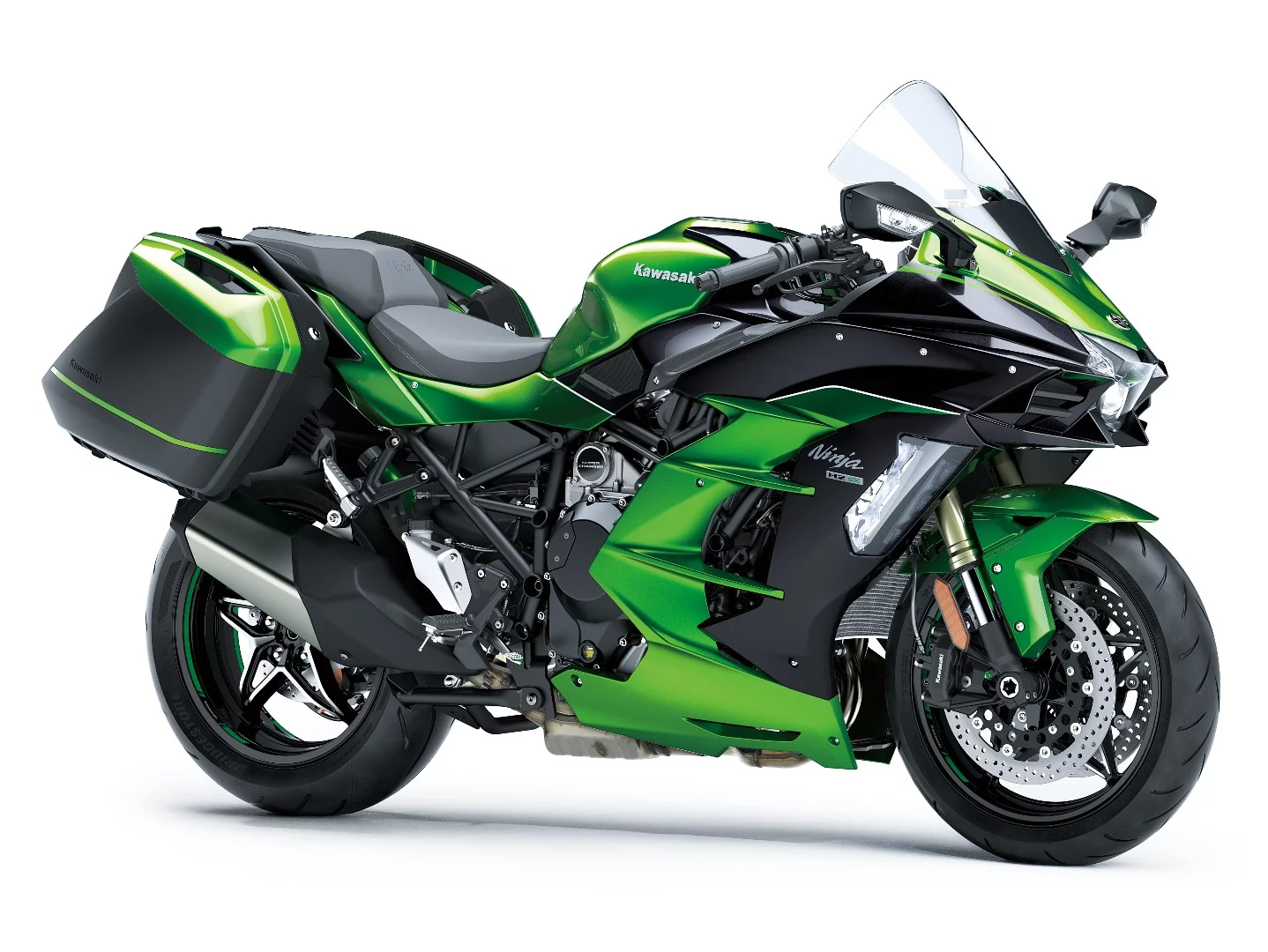

The 2018 Kawasaki H2 SX can be optionally equipped with 28 l (7.4 gal) panniers in matching color
8/25
The 2018 Kawasaki H2 SX can be optionally equipped with 28 l (7.4 gal) panniers in matching color

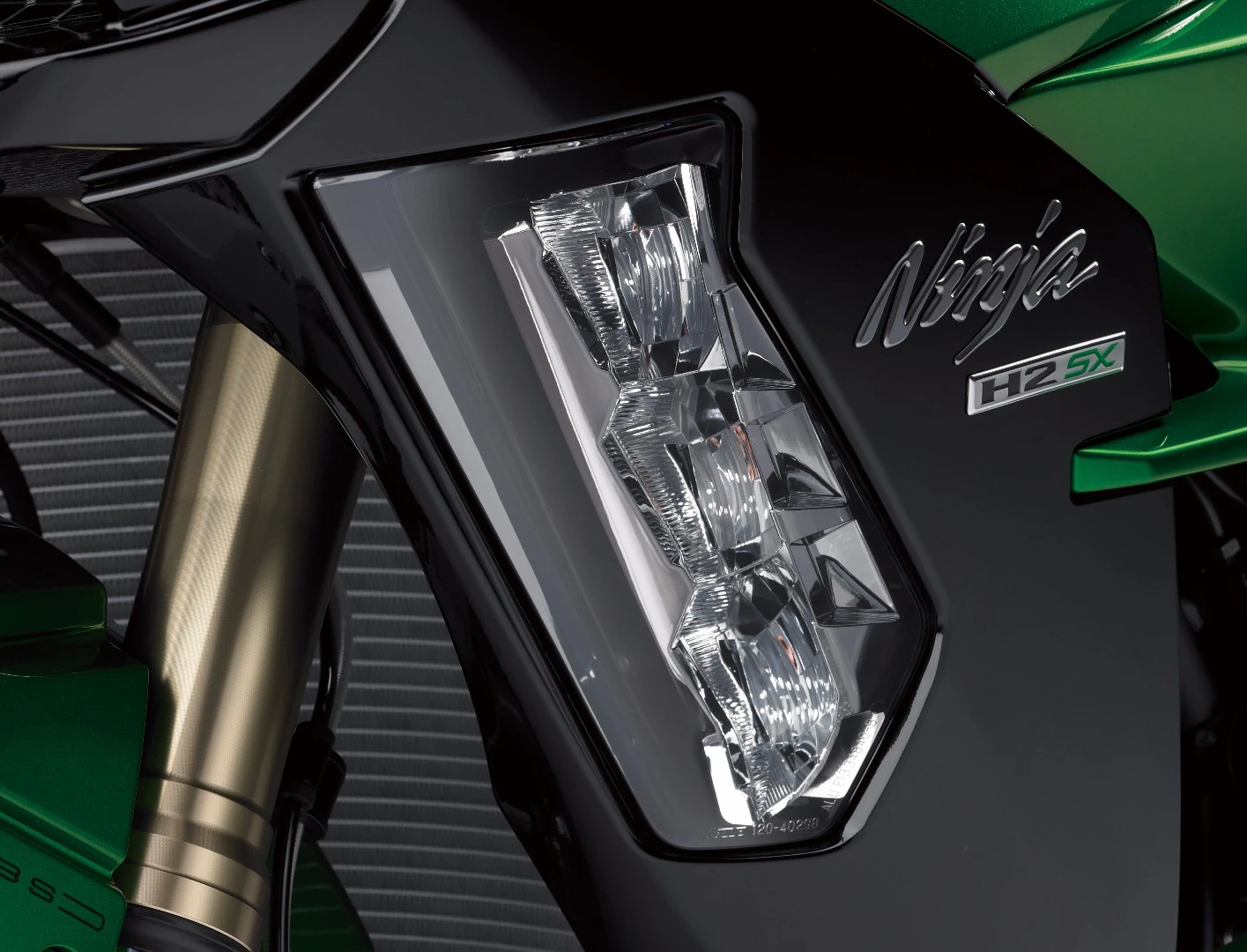

The 2018 Kawasaki H2 SX SE features these cornering LED lights on the side fairings
9/25
The 2018 Kawasaki H2 SX SE features these cornering LED lights on the side fairings

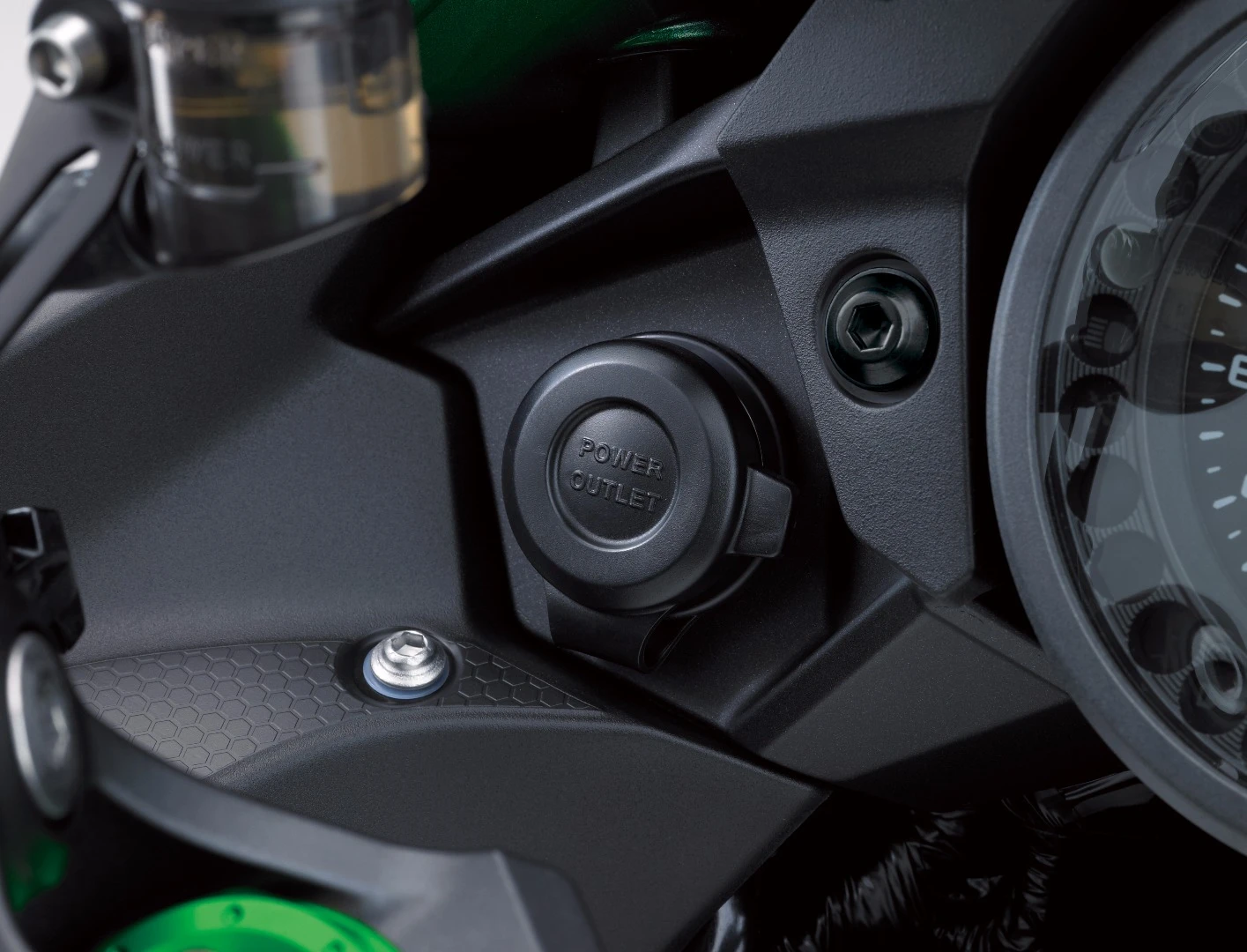

The 12 V DC outlet is standard feature on the 2018 Kawasaki H2 SX SE and can be optionally ordered for the basic model
10/25
The 12 V DC outlet is standard feature on the 2018 Kawasaki H2 SX SE and can be optionally ordered for the basic model
Kawasaki reworked the Balanced Supercharged Engine for what sounds on paper as an astonishing result for the 2018 Kawasaki H2 SX
11/25
Kawasaki reworked the Balanced Supercharged Engine for what sounds on paper as an astonishing result for the 2018 Kawasaki H2 SX

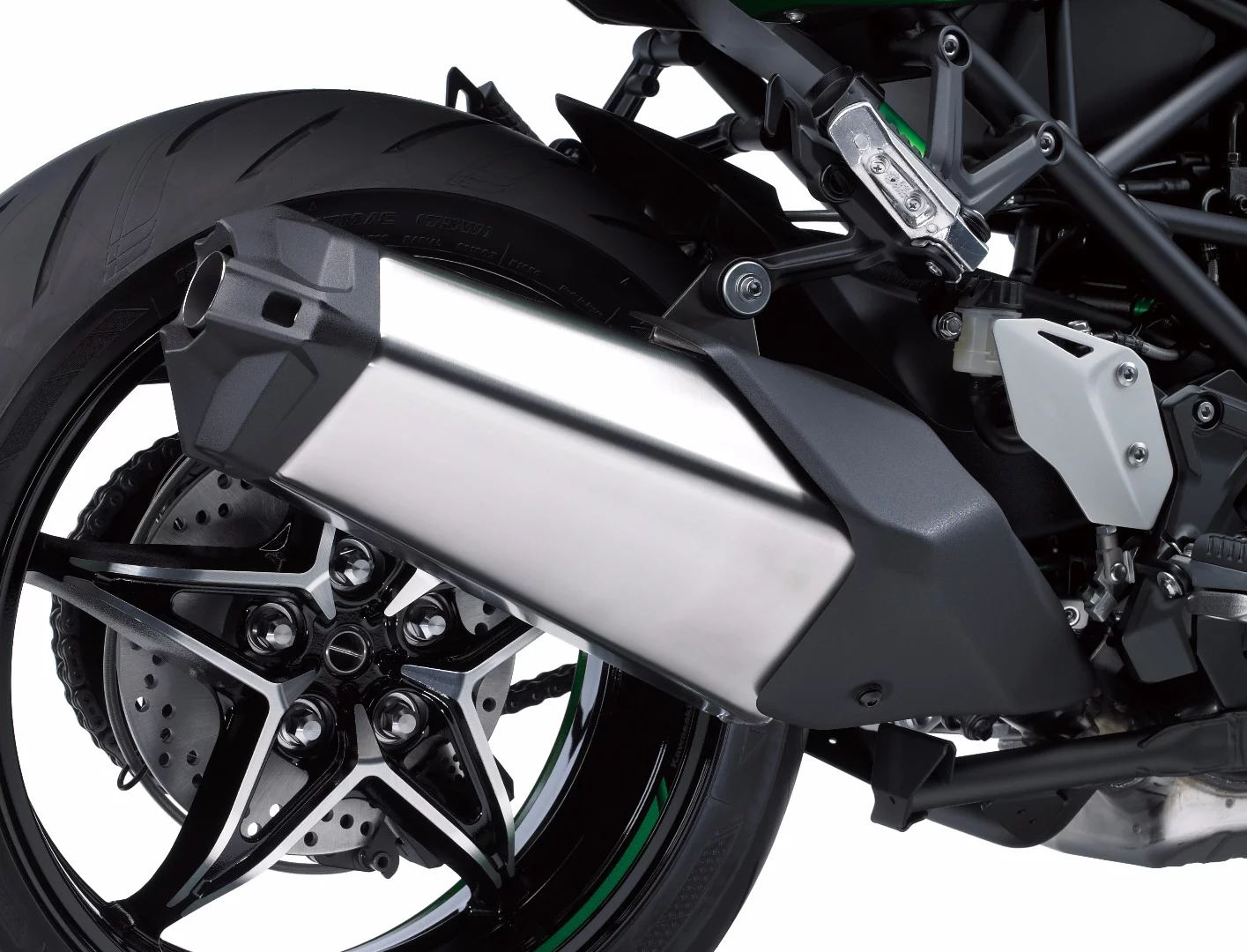

The exhaust of the 2018 Kawasaki H2 SX is smaller than the one of the H2, as it has to handle less thermal loads
12/25
The exhaust of the 2018 Kawasaki H2 SX is smaller than the one of the H2, as it has to handle less thermal loads
The tank of the 2018 Kawasaki H2 SX holds 19 l (5 gal) of fuel
13/25
The tank of the 2018 Kawasaki H2 SX holds 19 l (5 gal) of fuel
The front suspension and brake system of the 2018 Kawasaki H2 SX could hold its own in any sportbike
14/25
The front suspension and brake system of the 2018 Kawasaki H2 SX could hold its own in any sportbike
The left side of the 2018 Kawasaki H2 SX handlebars hosts the buttons that control the display screen and the cruise control
15/25
The left side of the 2018 Kawasaki H2 SX handlebars hosts the buttons that control the display screen and the cruise control

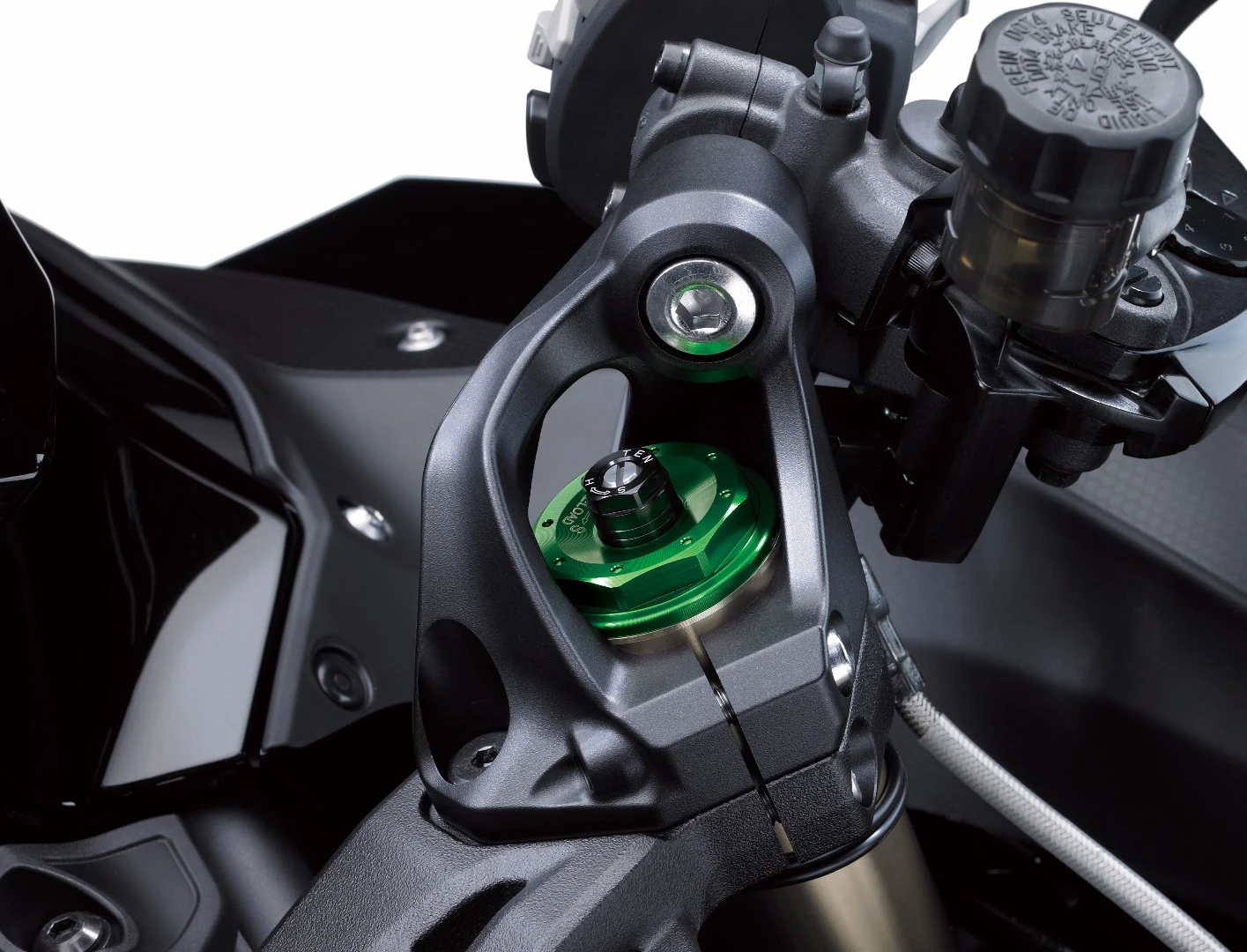

The front forks of the 2018 Kawasaki H2 SX are fully adjustable
16/25
The front forks of the 2018 Kawasaki H2 SX are fully adjustable

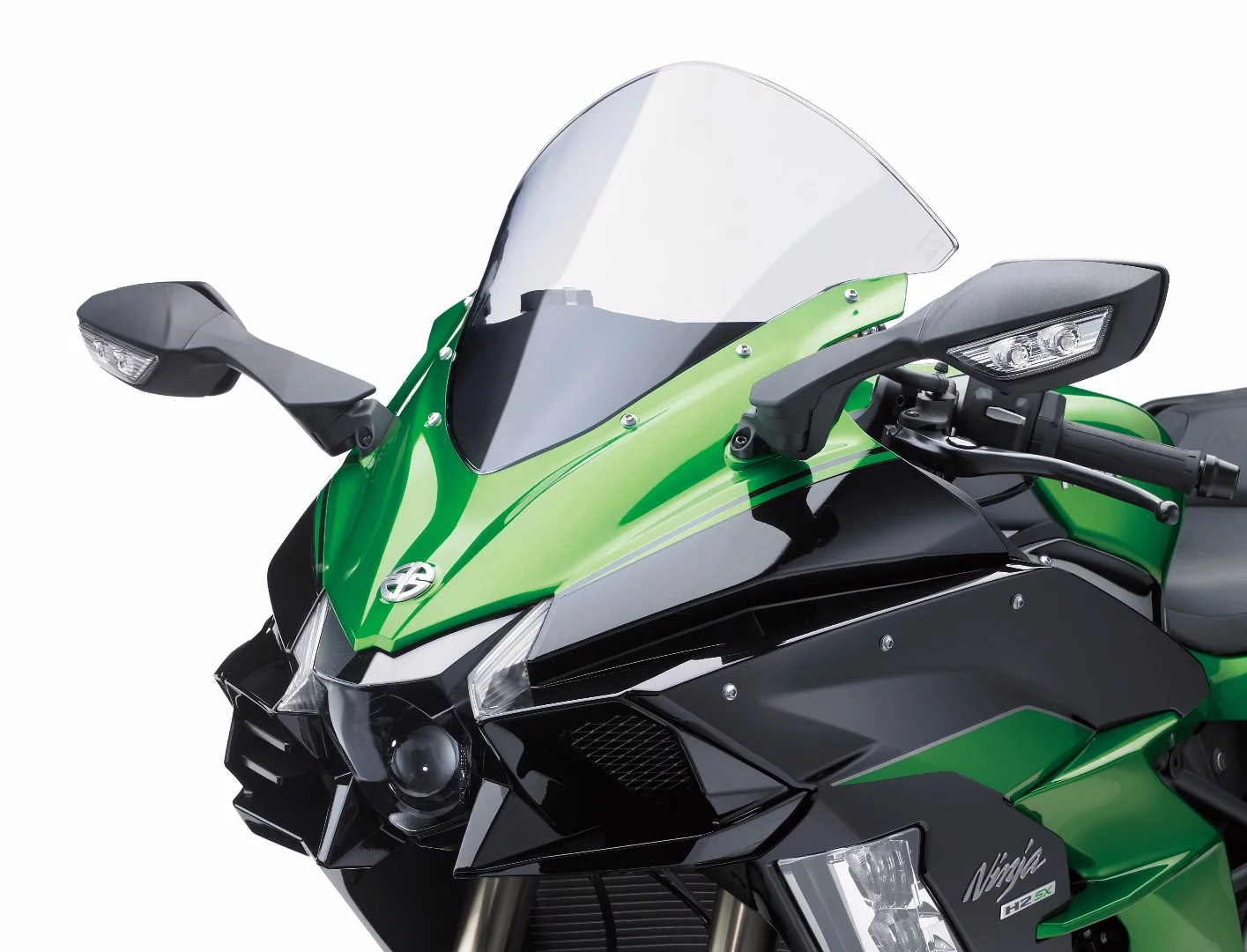

The styling of the 2018 Kawasaki H2 SX is understandably following closely that of the H2
17/25
The styling of the 2018 Kawasaki H2 SX is understandably following closely that of the H2
The electronic quickshifter is an exclusive feature of the 2018 Kawasaki H2 SX SE
18/25
The electronic quickshifter is an exclusive feature of the 2018 Kawasaki H2 SX SE
The color screen of the 2018 Kawasaki H2 SX SE can be configured to display specific information
19/25
The color screen of the 2018 Kawasaki H2 SX SE can be configured to display specific information

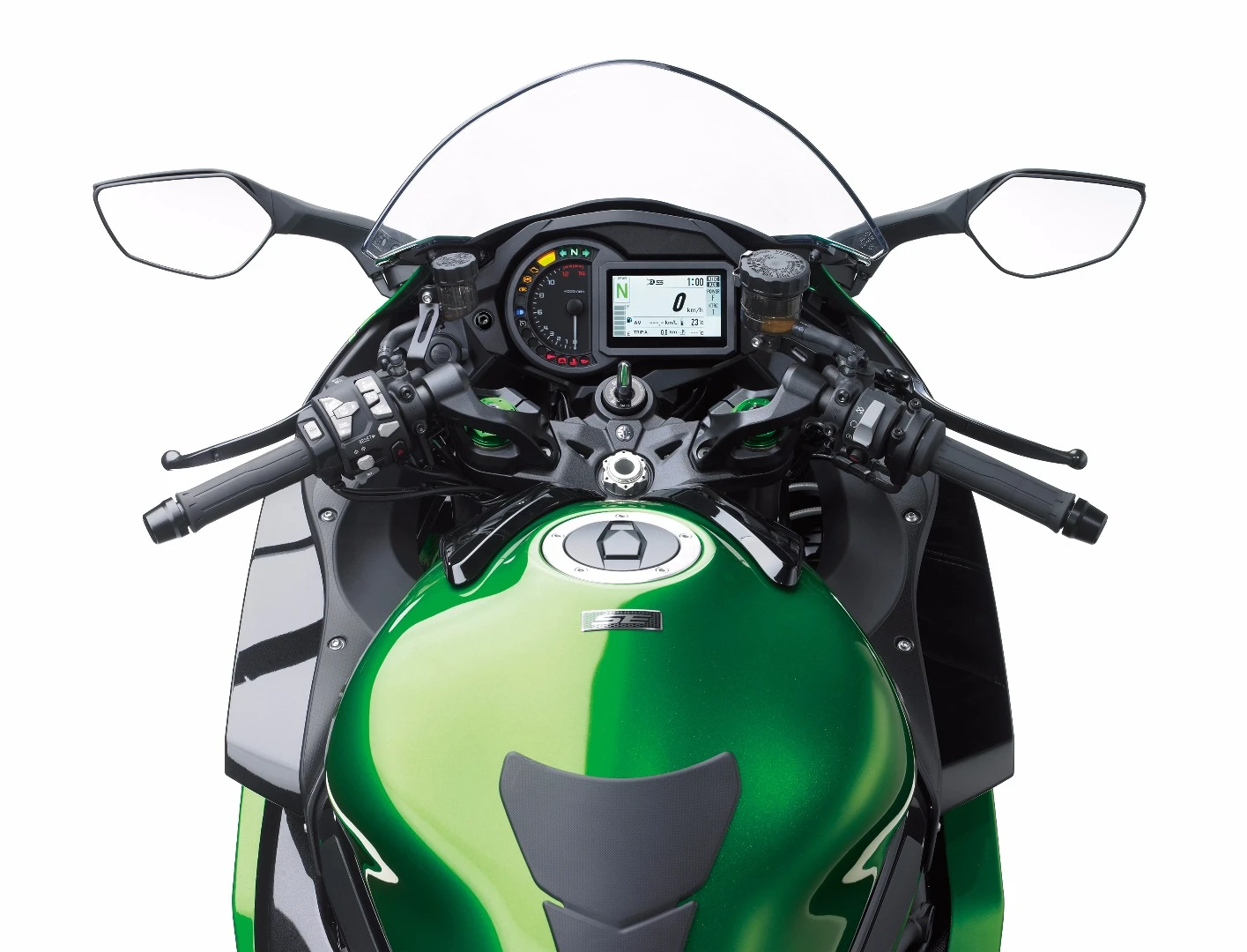

Office view of the 2018 Kawasaki H2 SX SE
20/25
Office view of the 2018 Kawasaki H2 SX SE

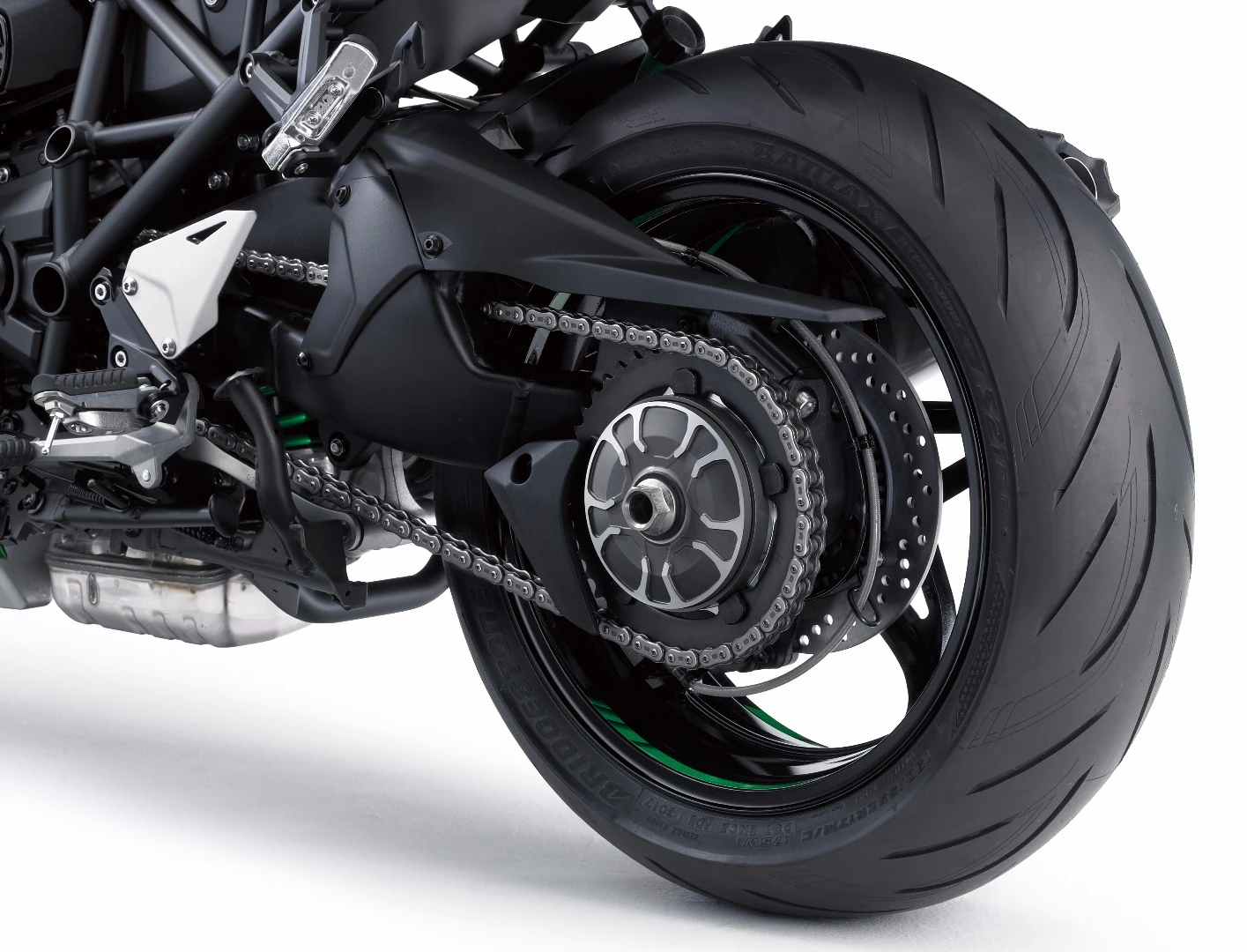

The 2018 Kawasaki H2 SX retains the single-sided swingarm of the H2, although in this case it is 15 mm (0.6 in) longer
21/25
The 2018 Kawasaki H2 SX retains the single-sided swingarm of the H2, although in this case it is 15 mm (0.6 in) longer
The 2018 Kawasaki H2 SX features a new, fully adjustable Uni-Trak monoshock at the rear
22/25
The 2018 Kawasaki H2 SX features a new, fully adjustable Uni-Trak monoshock at the rear

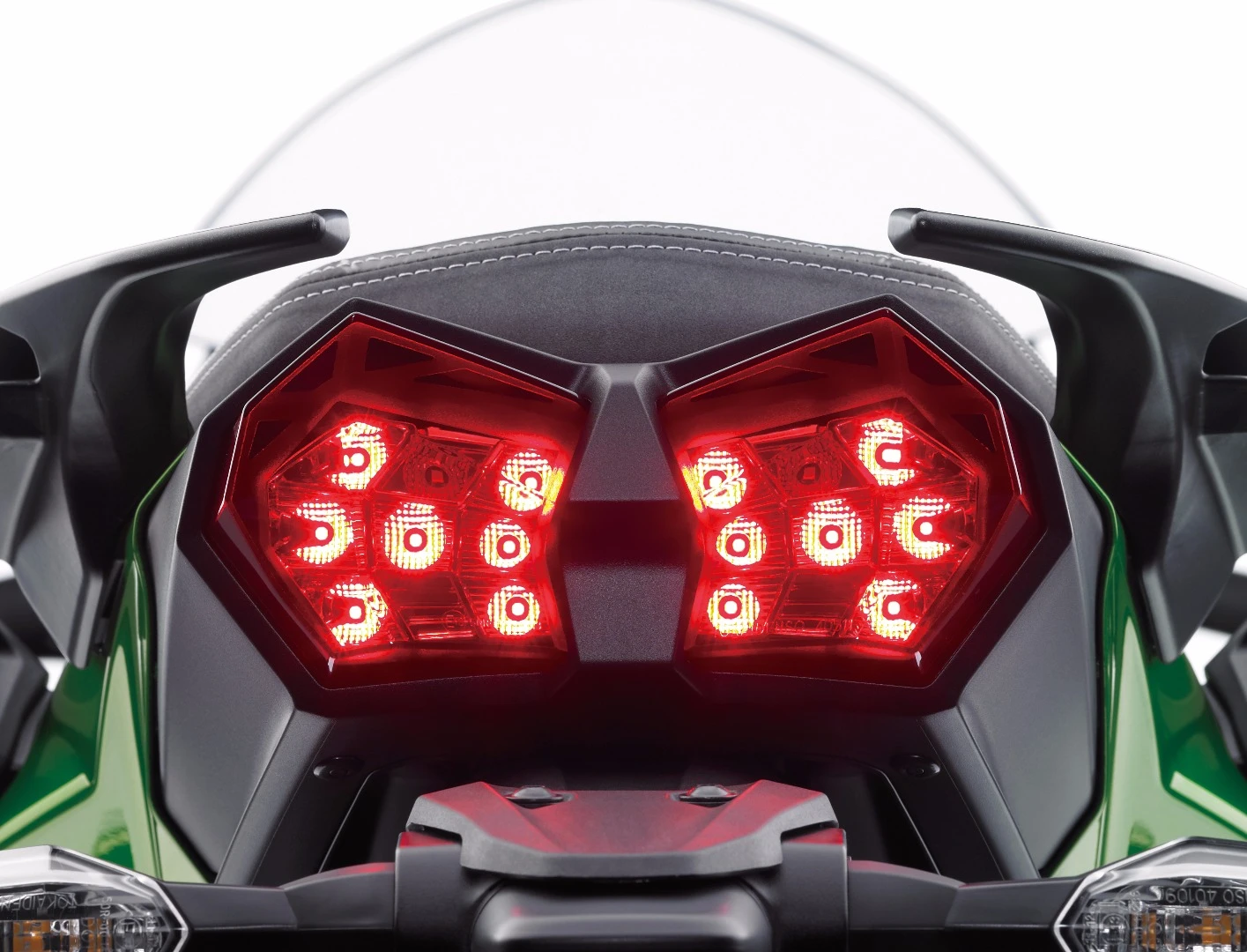

The LED tail lights of the 2018 Kawasaki H2 SX
23/25
The LED tail lights of the 2018 Kawasaki H2 SX
The 2018 Kawasaki H2 SX SE in Emerald Blazed Green / Metallic Diablo Black  color
24/25
The 2018 Kawasaki H2 SX SE in Emerald Blazed Green / Metallic Diablo Black  color
The frame of the H2 has been redesigned and strengthened to fit the requirements of the 2018 Kawasaki H2 SX
25/25
The frame of the H2 has been redesigned and strengthened to fit the requirements of the 2018 Kawasaki H2 SX

If you thought that the supercharged H2 and H2R duo were a bit too much, at least they were sportbikes. How about a sport tourer version of the H2, complete with the supercharger and a stampede of 210 horses going two-up touring? Well, that's exactly what Kawasaki has unveiled at EICMA 2017 in the form of the Ninja H2 SX.

We knew it was coming, and yet the new Kawasaki did take many by surprise. The short teaser video of something carving its path along a twisty mountain road that was released about a month ago clearly linked a supercharger with the sound of a four-cylinder engine.

Judging from that video, it could have been a streetfighter, or perhaps a Versys-styled playbike taking the fight to Ducati's Hypermotard. Someone could even be forgiven for thinking that Kawasaki has decided to extend the supercharged concept to smaller engines. But no, it was the Ninja H2 SX.

To put it simply, Kawasaki has taken the road-legal H2, redesigned the engine enough to make it less hysterical and more practical, and thrown in an impressive collection of electronic and mechanical gear, all designed to change the way we see long distance hauling.

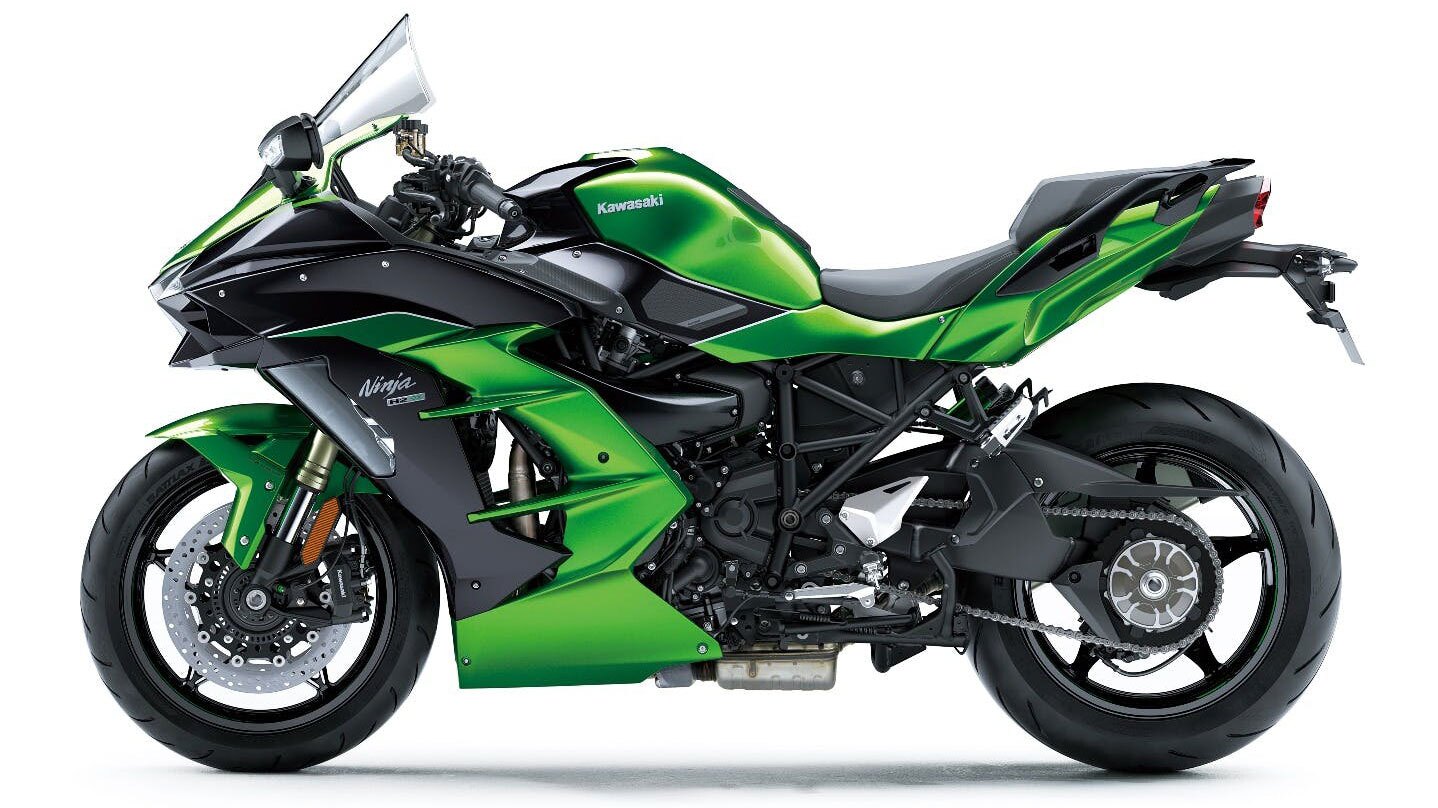

The 2018 Kawasaki H2 SX SE in Emerald Blazed Green / Metallic Diablo Black  color
The 2018 Kawasaki H2 SX SE in Emerald Blazed Green / Metallic Diablo Black  color

When we're talking about Kawasaki "redesigning" the engine, think of a new impeller and intake system for the supercharger, new pistons, cylinder head, cylinder, crankshaft, camshafts, throttle bodies, exhaust system, and revised gear ratios. At least it gets to keep the H2's slipper clutch.

From the outside, judging by capacity, cylinder dimensions and power output, it seems that nothing has changed. Yet the whole idea is to tune the 998 cc Balanced Supercharged Engine for low- and mid-level grunt, combined with fuel efficiency – all the while producing 200 hp (149 kW) at 11,000 rpm without ram-air, and 210 hp (157 kW) under its effect. The maximum torque of 137.3 Nm (101.3 lb-ft) is equally impressive, produced at 9,500 rpm.

According to Kawasaki, in this guise the four-cylinder powerplant excels at delivering fuel-efficient and relaxed low-speed rides on any road, from the city to the highway, but is still able to turn into a hooligan in a (supercharged) twist of the wrist.

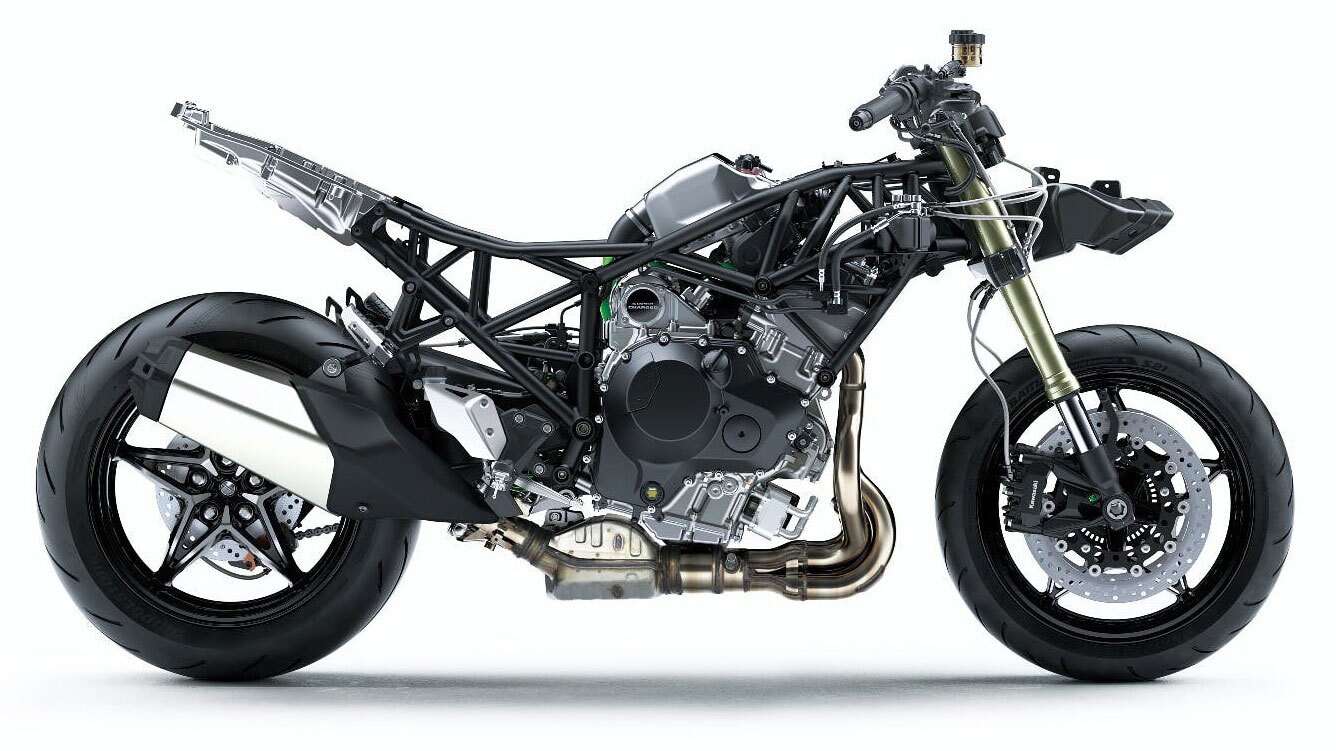

The frame of the H2 has been redesigned and strengthened to fit the requirements of the 2018 Kawasaki H2 SX
The frame of the H2 has been redesigned and strengthened to fit the requirements of the 2018 Kawasaki H2 SX

The frame is also revised, offering a longer wheelbase for more open road stability and a wider, 30-degree steering angle to facilitate slow maneuvering. It is also strengthened enough to support a payload of 195 kg (430 lb), as any touring bike should.

The Ninja H2 SX rolls on fully adjustable suspensions that could easily hone any sport motorcycle, with inverted 43 mm forks and a new Uni-Trak monoshock at the rear. Stopping is handled by a pair of radially-mounted, four-piston calipers on 320 mm discs – typical stuff.

What's not typical, is the electronic arsenal employed by Kawasaki. Very few touring motorcycles can take pride in a Bosch six-axis inertial measurement unit (IMU) assisting the central electronic control of the motor in orchestrating a long list of supporting systems. Kawasaki simply calls it the Cornering Management Function (KCMF).

Starting with the absolute basics, the three-level selectable engine power modes range from full, to middle (75 percent of full), down to low (50 percent of full) output. The KCMF oversees the engine braking in two levels, Kawasaki's intelligent braking system (a.k.a. cornering ABS), the three-level adjustable traction control, the launch control, the electronic quickshifter and, finally, the only system that seems really fitting in a touring bike, the cruise control.

However, the above systems are not all part of the standard equipment. Kawasaki will offer the SX in two variants, with the more lavish SE having exclusive access to the launch control and quickshifter.

The 2018 Kawasaki H2 SX SE features these cornering LED lights on the side fairings
The 2018 Kawasaki H2 SX SE features these cornering LED lights on the side fairings

The Ninja H2 SX SE also features a very interesting set of cornering LED lights that are incorporated in the side fairings, its brakes sport steel-braided lines, and the instrument cluster includes a color TFT screen that can be configured in either touring or sport mode.

The basic dash has a negative display of the same size, but with an abundance of information that includes just about everything we can possibly think of and, on top, bank angle display and max bank angle recording (courtesy of the Bosch IMU), boost indicator, boost temperature (as in intake air temperature) and economical riding indicator.

The SE version also sports as standard a series of goodies that can be optionally fitted to the basic model, such as taller screen, 12 V DC socket, heated grips, center stand, tank pad, knee pads and wheel rim tape.

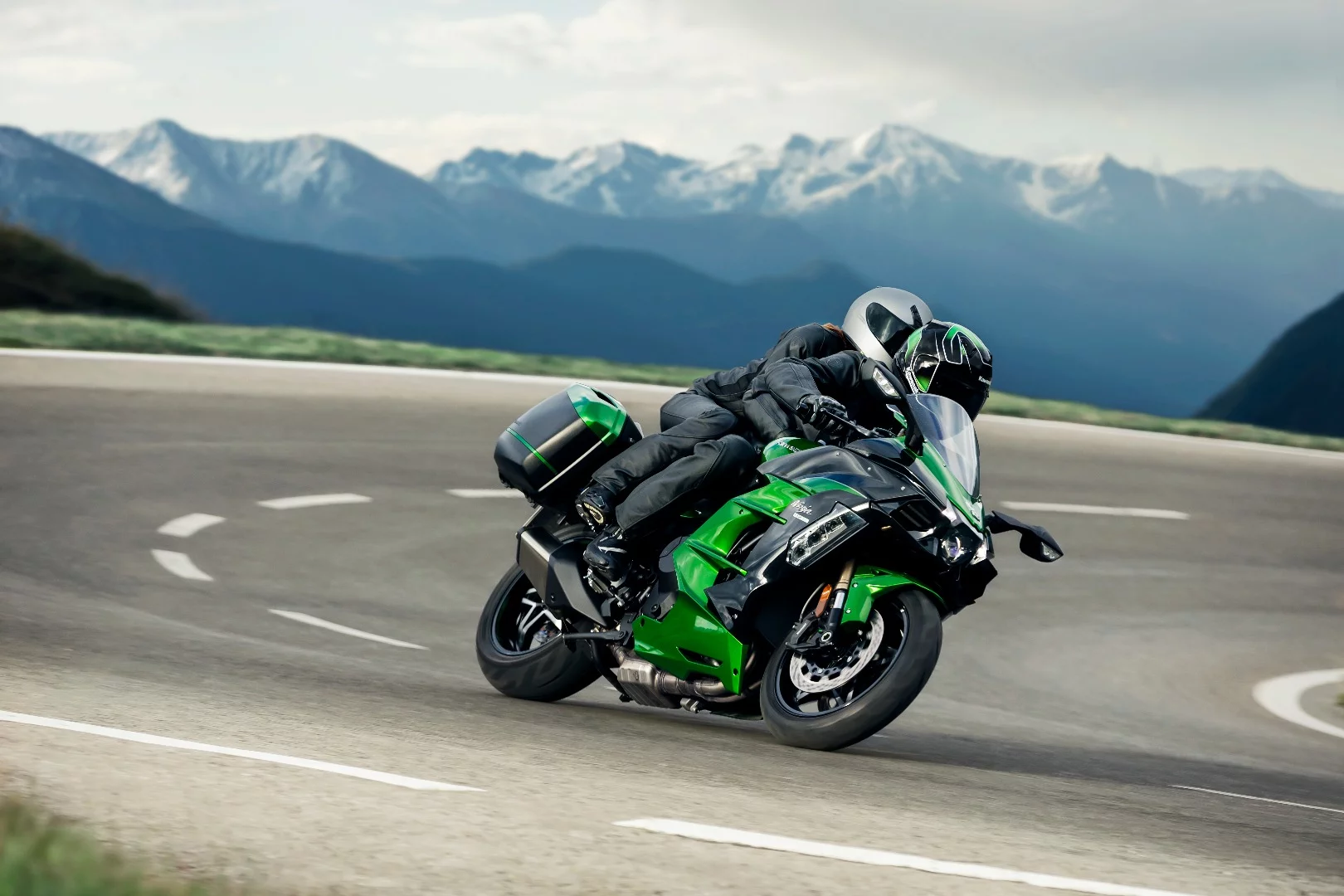

The  2018 Kawasaki H2 SX in two-up cornering action
The  2018 Kawasaki H2 SX in two-up cornering action

In all, the supercharged Ninja tips the scales wet at 256 kg (564 lb), and the SE at 260 kg (573 lb). These numbers see eye to eye with a sport touring competition that includes motorcycles like the Kawasaki ZZR1400 (or Ninja ZX-14), Suzuki Hayabusa and Yamaha FJR1300 – but only the H2 SX has a supercharger.

In a world where fuel efficiency is gradually shifting from a nice attribute to a critical requirement, forced induction systems are expected to make a comeback. Rumors have it that Suzuki is planning a turbo kit for mid-sized engines and Kawasaki will expand supercharging towards lower capacities – i.e. in classes that fetch big sales numbers.

In this sense, it seems rather logical that Kawasaki introduced the H2 SX now. The H2 and H2R were primarily destined for headlines and impressions, but the SX introduces a real-world component to the game. Appealing to the everyday rider was the next logical step, before replicating this tactic to more affordable bikes. In the meantime, Kawasaki already had the head start when the 300+ hp H2R became the talk of the town, and is now just extending it.

Source: Kawasaki
