Blind cave fish inspires sensing system for autonomous underwater vehicles

A blind cave fish, that gets around underwater just fine (Photo: Frank Vassen)
A blind cave fish, that gets around underwater just fine (Photo: Frank Vassen)
View 3 Images
A blind cave fish, that gets around underwater just fine (Photo: Frank Vassen)
1/3
A blind cave fish, that gets around underwater just fine (Photo: Frank Vassen)
(From Left) PhD student Kottapalli Ajay Giri Prakash, Assoc. Prof. Miao Jianmin, and Research Associate Mohsen Asadniaye Fard Jahromi
2/3
(From Left) PhD student Kottapalli Ajay Giri Prakash, Assoc. Prof. Miao Jianmin, and Research Associate Mohsen Asadniaye Fard Jahromi
An array of the sensors
3/3
An array of the sensors

Ever wonder how fish can find their way around so easily in murky water? Well, most of them use something called their lateral line – a row of hair cells down either side of their body that detect changes in water pressure caused by movement, or by water flowing around objects. Now, scientists from Singapore’s Nanyang Technological University and MIT have copied the lateral lines of the blind cave fish, in a man-made system designed to allow autonomous underwater vehicles (AUVs) to navigate more accurately and efficiently.

Ordinarily, AUVs use cameras, sonar, or an underwater acoustic positioning system. Cameras aren’t much use in murky water, however – and a lot of the world’s water bodies are murky. Sonar and acoustics are better in such situations, but the hardware can be expensive, and taxing on the AUV’s batteries.

By contrast, the blind cave fish-inspired sensors can reportedly be made for under US$100 per array, and use little power. Additionally, they don’t produce audible sonar “pings” that can be harmful to aquatic animals.

An array of the sensors
An array of the sensors

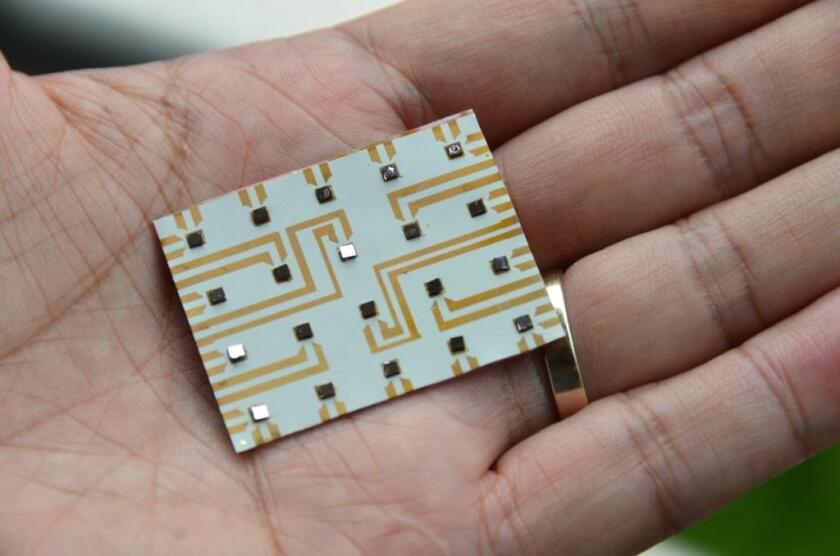

Instead, the system utilizes an array consisting of two rows of five sensors (yes, we know there are four rows in the picture – it's presumably two joined arrays). Each sensor measures just 1.8 x 1.8 mm and consists of a microscopic sensory pillar surrounded by hydrogel, that bends with changes in the water pressure. Combined with a computer vision system, the arrays reportedly allow Nanyang’s AUVs to create 3D images of nearby objects, and to map their surroundings.

Besides their use in AUVs it has also been suggested that the sensors could find use on military submarines, that don’t wish to announce their presence to enemies via sonar pings.

The scientists have already created two versions of the sensor array. One is a piezoelectric version that generates its own voltage via the flow of the water over the sensors, while the other is a piezo-resistive version that can detect submerged objects even when the water flowing around them is barely moving.

Another lateral line-inspired underwater sensing system is being developed by scientists from the University of Illinois and Northwestern University.

Source: Nanyang Technological University
