3D Printing

Loop 3D keeps printing until the job's done

The Loop 3D printer can automatically clear models from its build plate, without operator involvement
The Loop 3D printer can automatically clear models from its build plate, without operator involvement
View 2 Images
The Loop 3D printer can automatically clear models from its build plate, without operator involvement
1/2
The Loop 3D printer can automatically clear models from its build plate, without operator involvement

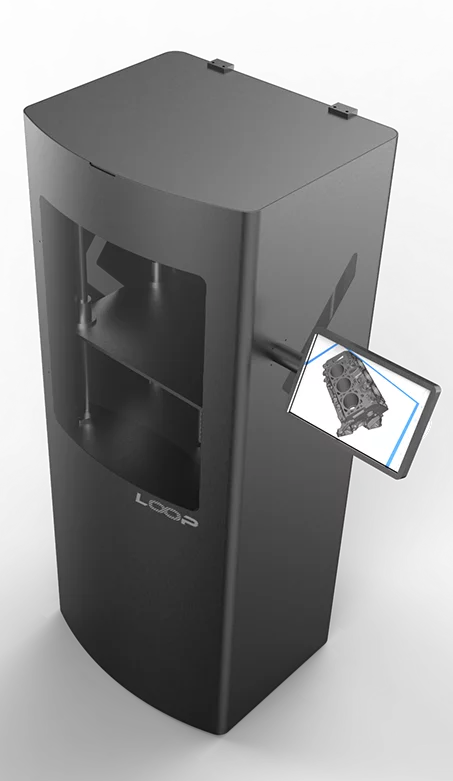

The Loop 3D printer has a built-in computer with touchscreen display for setting up and slicing print jobs
2/2
The Loop 3D printer has a built-in computer with touchscreen display for setting up and slicing print jobs

Earlier this year, new 3D printers that could continuously output models thanks to a conveyor belt platform or constantly refreshed build plates came to light. The Loop 3D printer from Turkey's Teknodizayn Ltd is similarly capable, but is being pitched as the only industrial grade 3D printer able to produce batch after batch after batch without needing an operator.

The Loop 3D printer continuous model is able to automatically clear objects from the build plate upon completion, move them to a built-in storage bin and then start on the next batch. And as it doesn't need a user to recalibrate between prints, it can keep going until the job's done.

Operators can set up the print run from STL or OBJ files using an integrated 10.1-inch touchscreen computer. The build are is a generous 25 x 35 x 50 cm (9.8 x 13.7 x 19.6 in) and the Loop 3D is able to print anywhere between 10 to 400 micron layer heights.

Thanks to a hardened steel nozzle and dual-gear extruder, the machine can handle a range of filament source materials, with the company boasting that "there are literally no filaments you can not use on Loop as long as the melting degree is under 300° C (572° F)."

Linear guide rails and mechanical parts made from CNC machined aluminum are said to help the Loop 3D achieve 12.5 micron X/Y positioning accuracy, while the Z-axis mechanism is accurate to 0.3 microns.

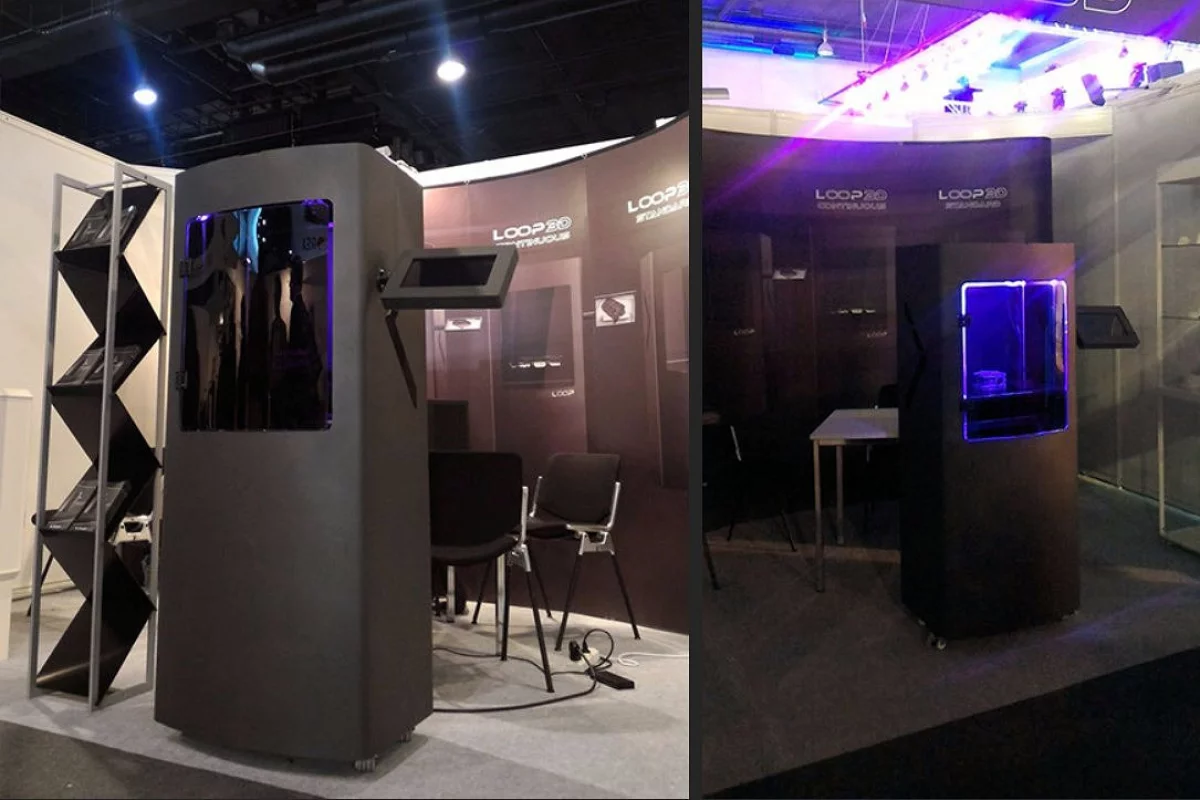

The Loop 3D made its debut at the recent formnext 2017 trade exhibition in Frankfurt, Germany, and though it will be made available in both continuous and non-continuous printing configurations, we've no word on when that might be or at what price.

Source: Loop 3D

1 comment
BanisterJH
So, do I correctly understand that the (minimum 10 micron) layer height is measured along the Z axis (with the 0.3 micron positioning accuracy - helping that layer be on top of what's beneath it) ?
