Flatpack M.A.Di house pops up in a matter of hours

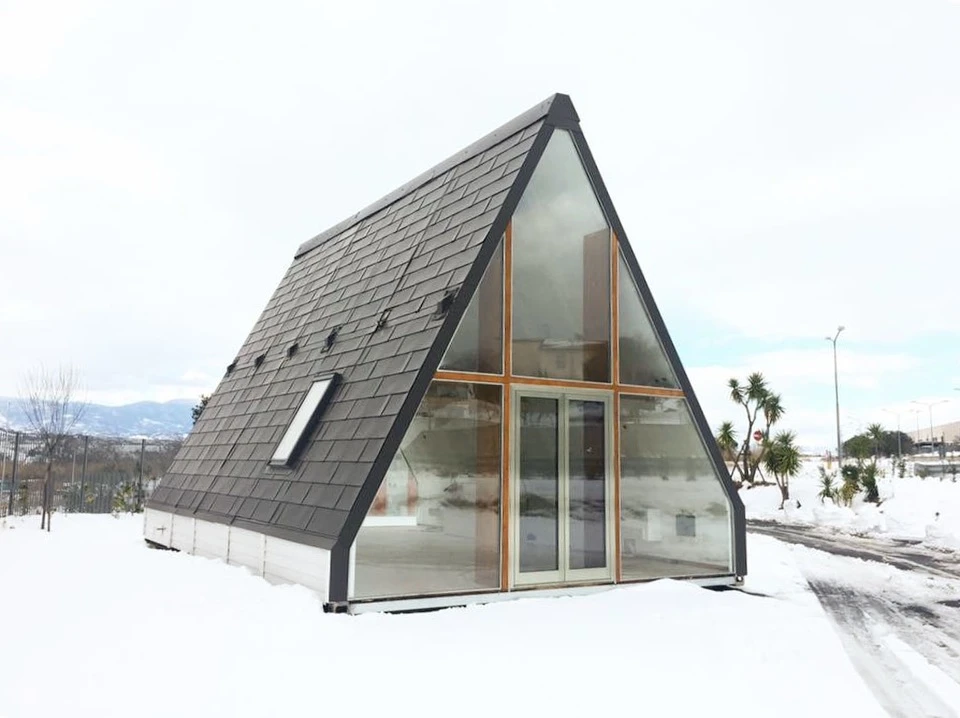

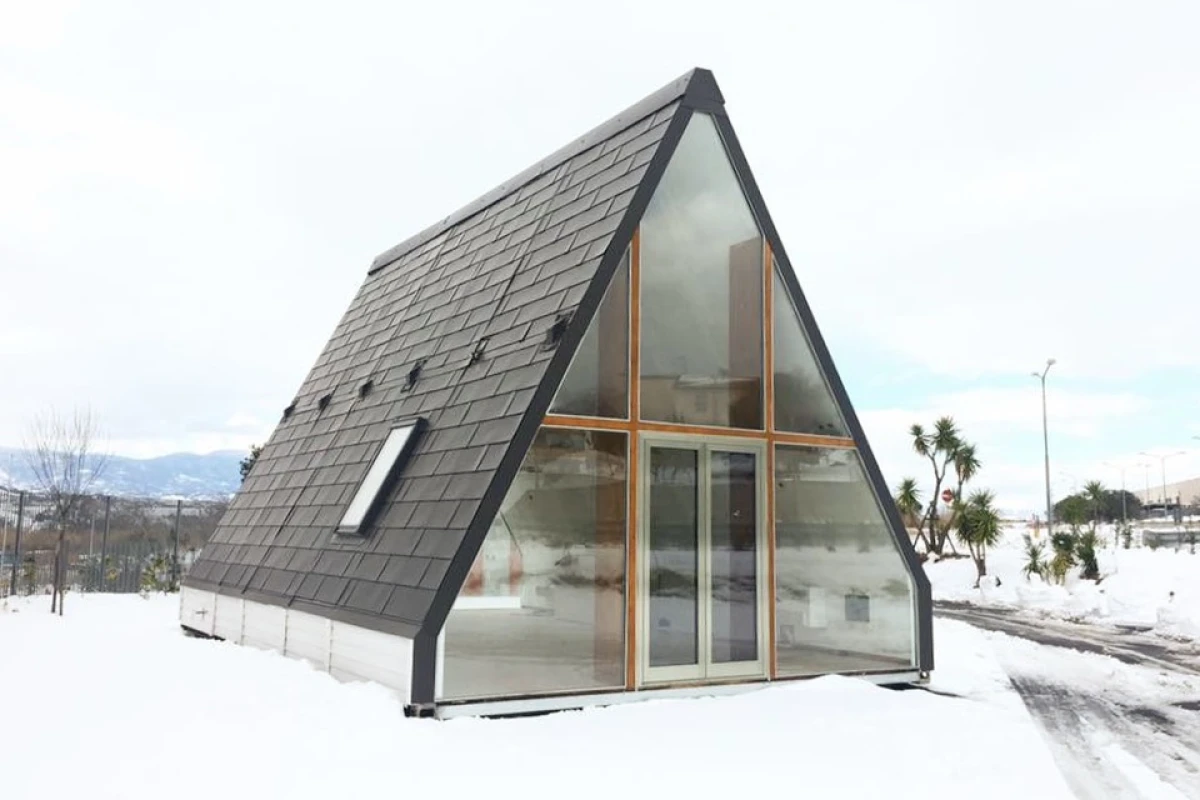

The prefabricated foldable M.A.Di house by Italian architect Renato Vidal takes less than a day to install
The prefabricated foldable M.A.Di house by Italian architect Renato Vidal takes less than a day to install
View 33 Images
Thanks to the home's steel profile and steel hinges, the M.A.Di home can open and close with ease
1/33
Thanks to the home's steel profile and steel hinges, the M.A.Di home can open and close with ease

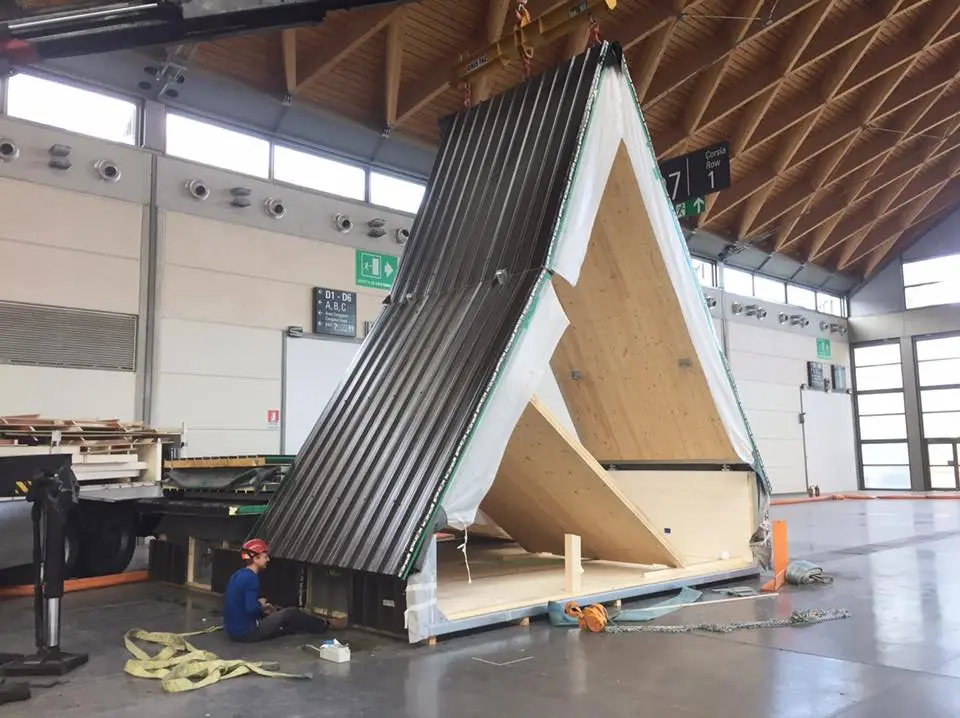

 The building's A frame structure and unique folding ability, allows the home to be prefabricated off site, flat-packed and transported via truck or container to its designated site
2/33
 The building's A frame structure and unique folding ability, allows the home to be prefabricated off site, flat-packed and transported via truck or container to its designated site
The M.A.Di homeis an economic flat-packed housing solution that is not only sustainable but designed to last and withstand earthquakes
3/33
The M.A.Di homeis an economic flat-packed housing solution that is not only sustainable but designed to last and withstand earthquakes

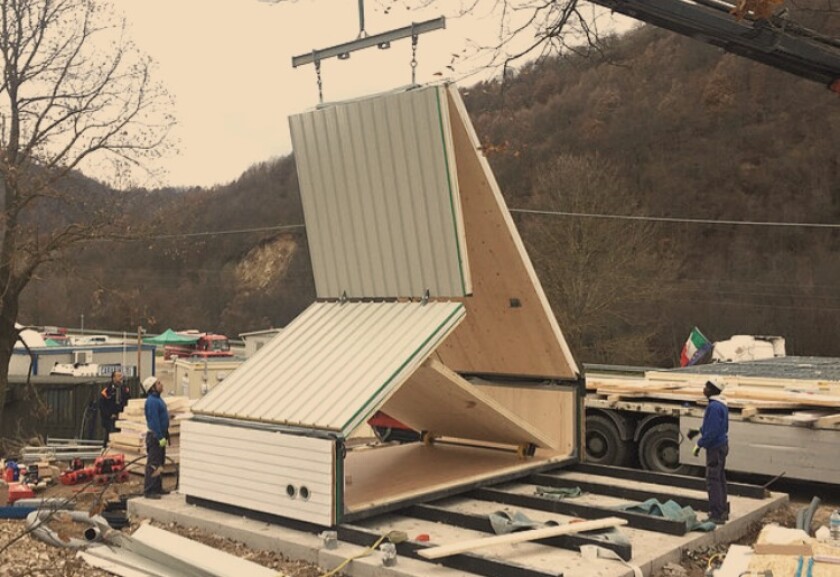

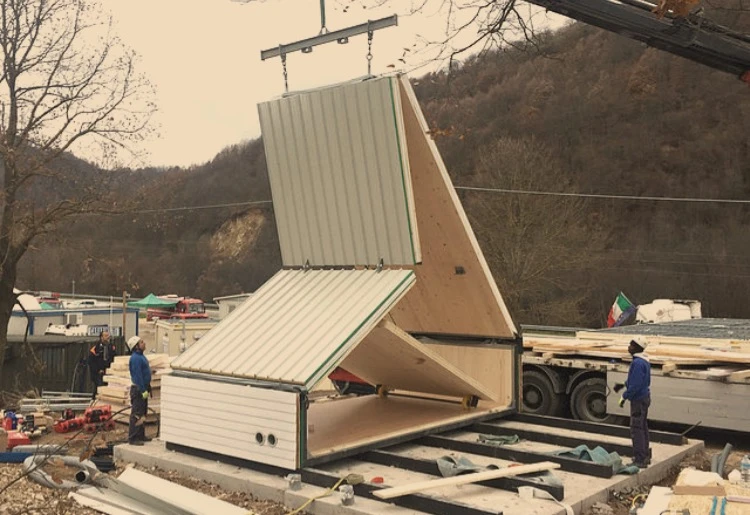

Onceon site the installation of the home is relatively simple, as eachmodule unfolds up and out
4/33
Onceon site the installation of the home is relatively simple, as eachmodule unfolds up and out

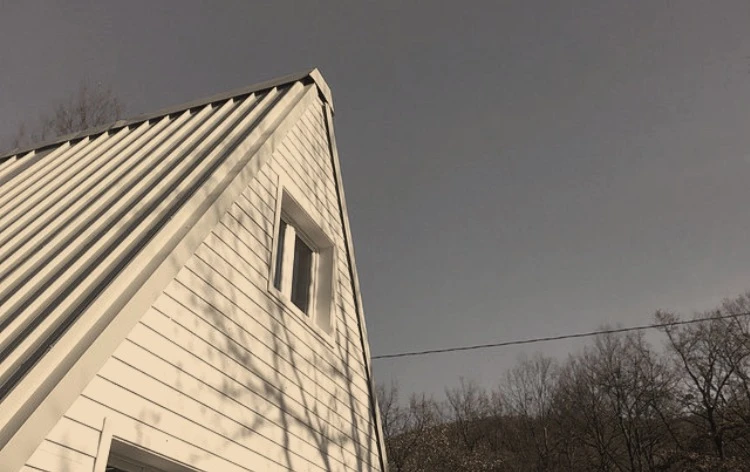

TheM.A.Di home can be installed as a temporary or permanent structure
5/33
TheM.A.Di home can be installed as a temporary or permanent structure

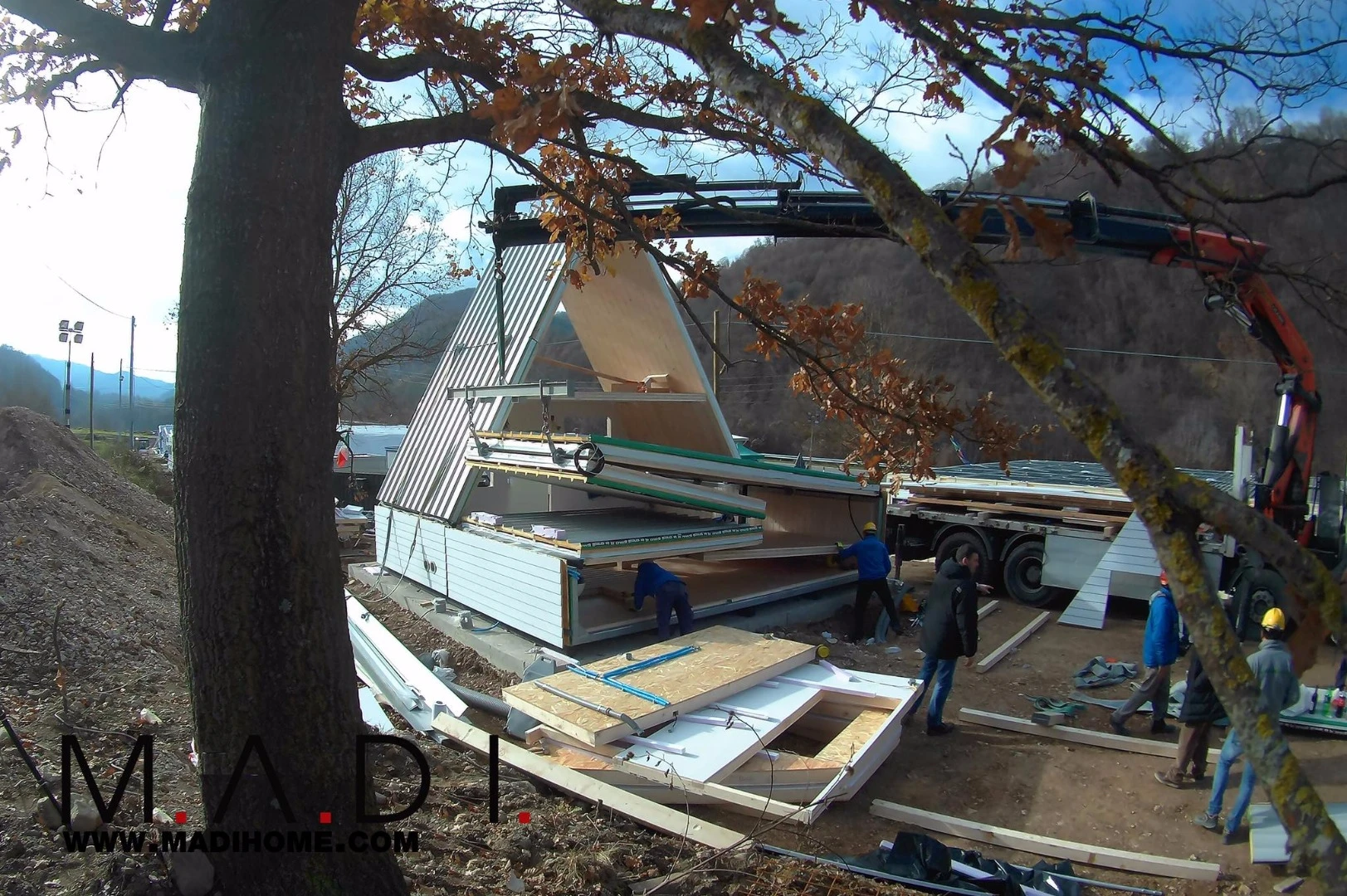

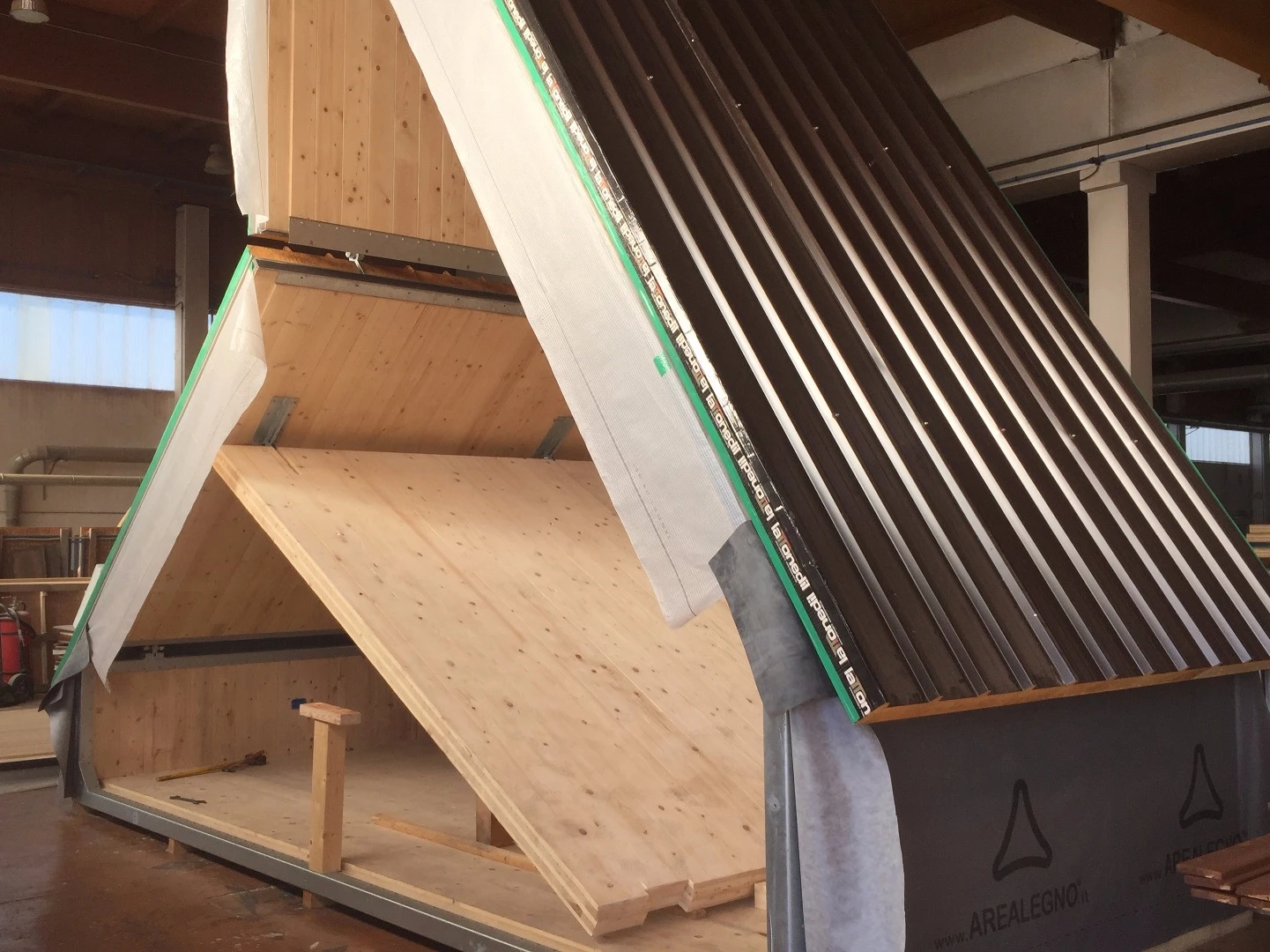

EachM.A.Di module features galvanized steel frames, suitably proportionedto support the home's opening and closing movement
6/33
EachM.A.Di module features galvanized steel frames, suitably proportionedto support the home's opening and closing movement

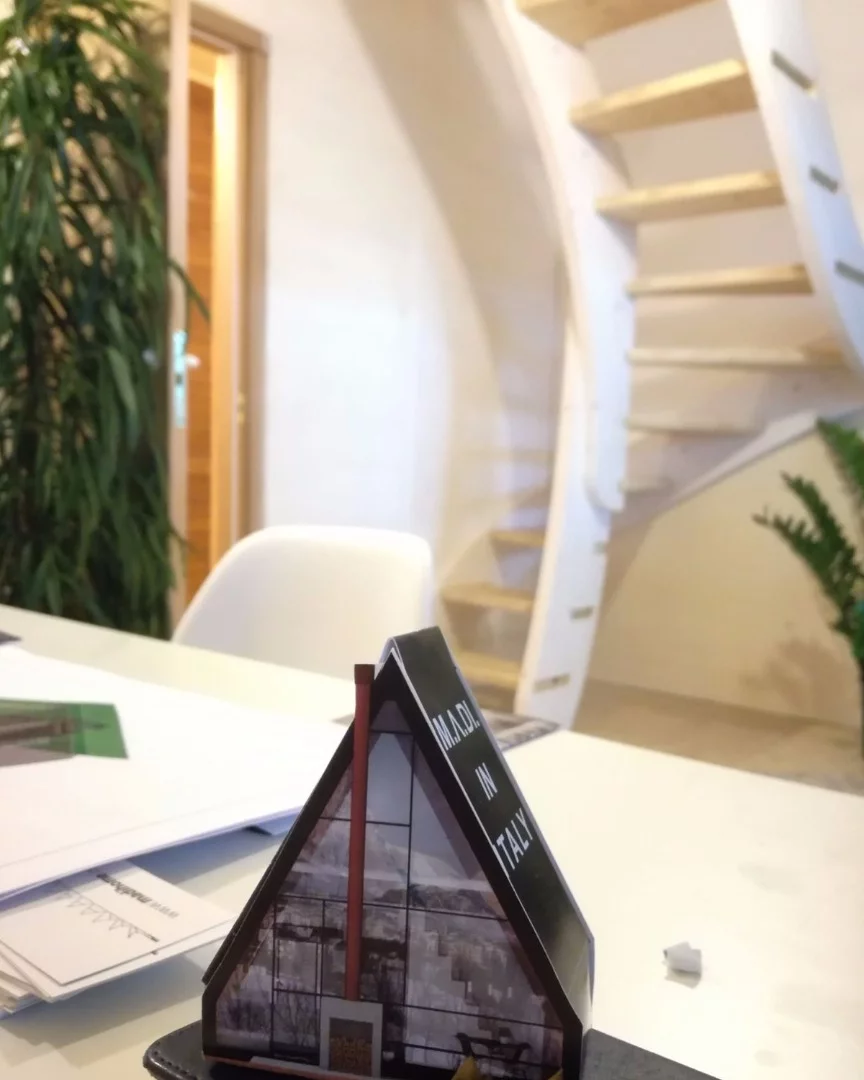

Model of the foldable M.A.Di home
7/33
Model of the foldable M.A.Di home

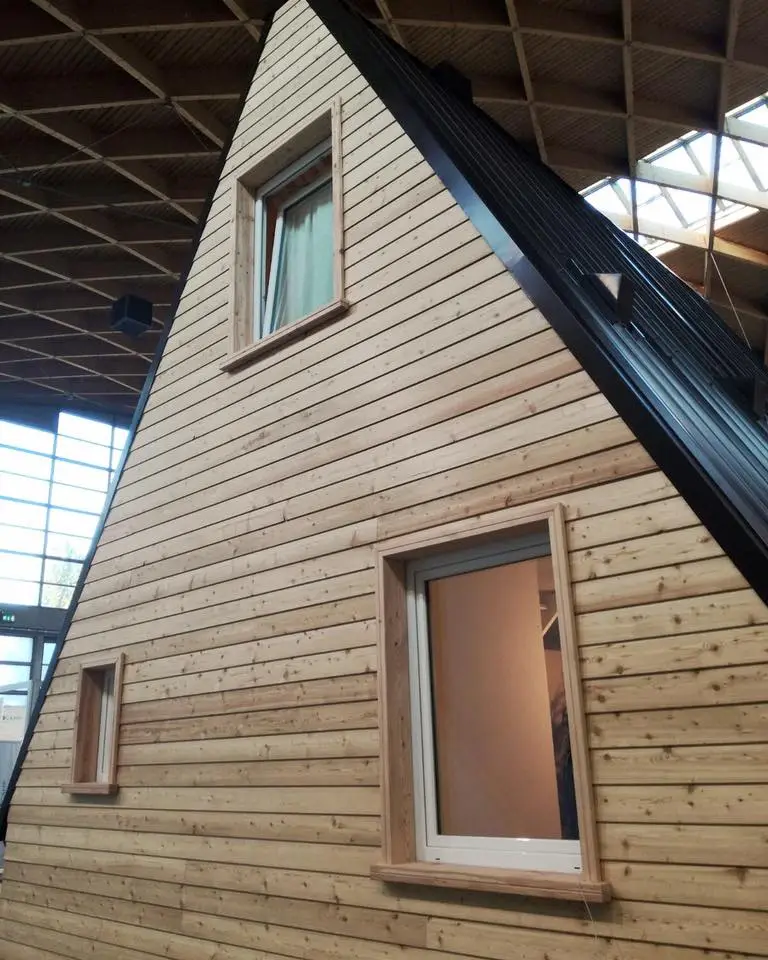

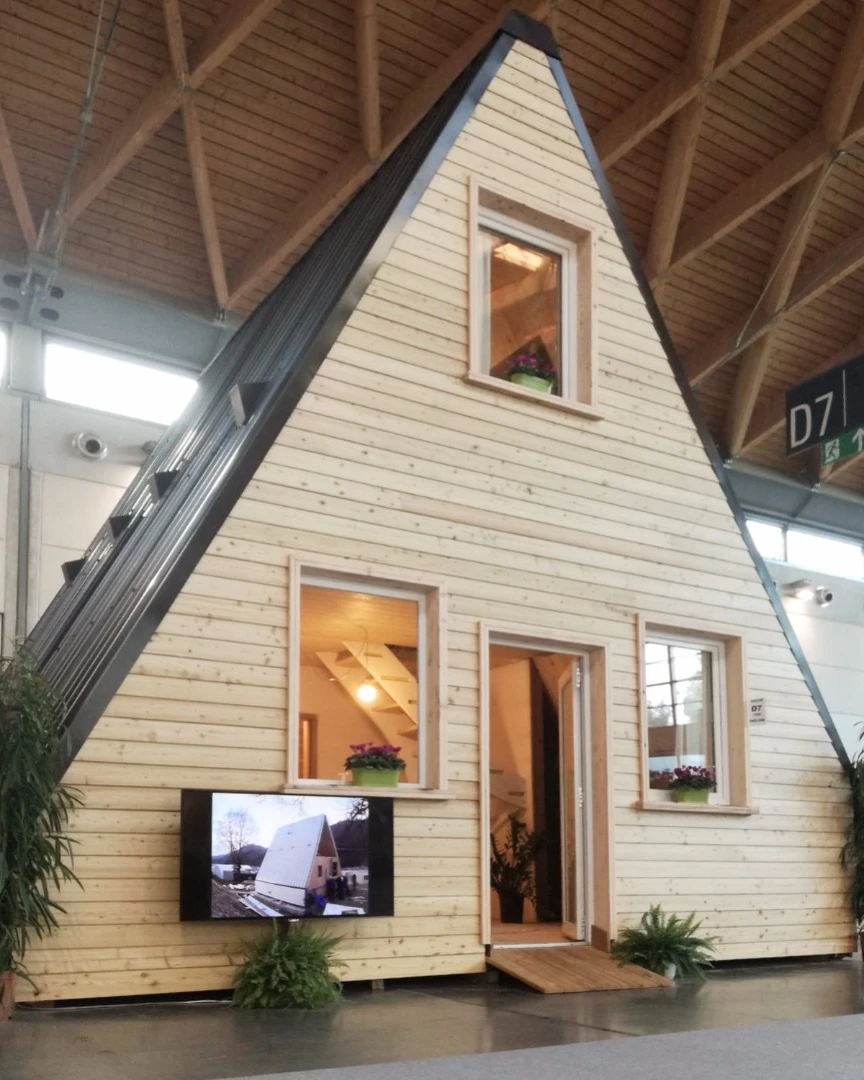

Manufactured by wood specialist Area Legno in Italy, the M.A.Di home is built using CLT (cross laminated timber) to create a modular and multi-functional anti-seismic family home
8/33
Manufactured by wood specialist Area Legno in Italy, the M.A.Di home is built using CLT (cross laminated timber) to create a modular and multi-functional anti-seismic family home
The prefabricated foldable M.A.Di house by Italian architect Renato Vidal takes less than a day to install
9/33
The prefabricated foldable M.A.Di house by Italian architect Renato Vidal takes less than a day to install
Living area of the M.A.Di home
10/33
Living area of the M.A.Di home

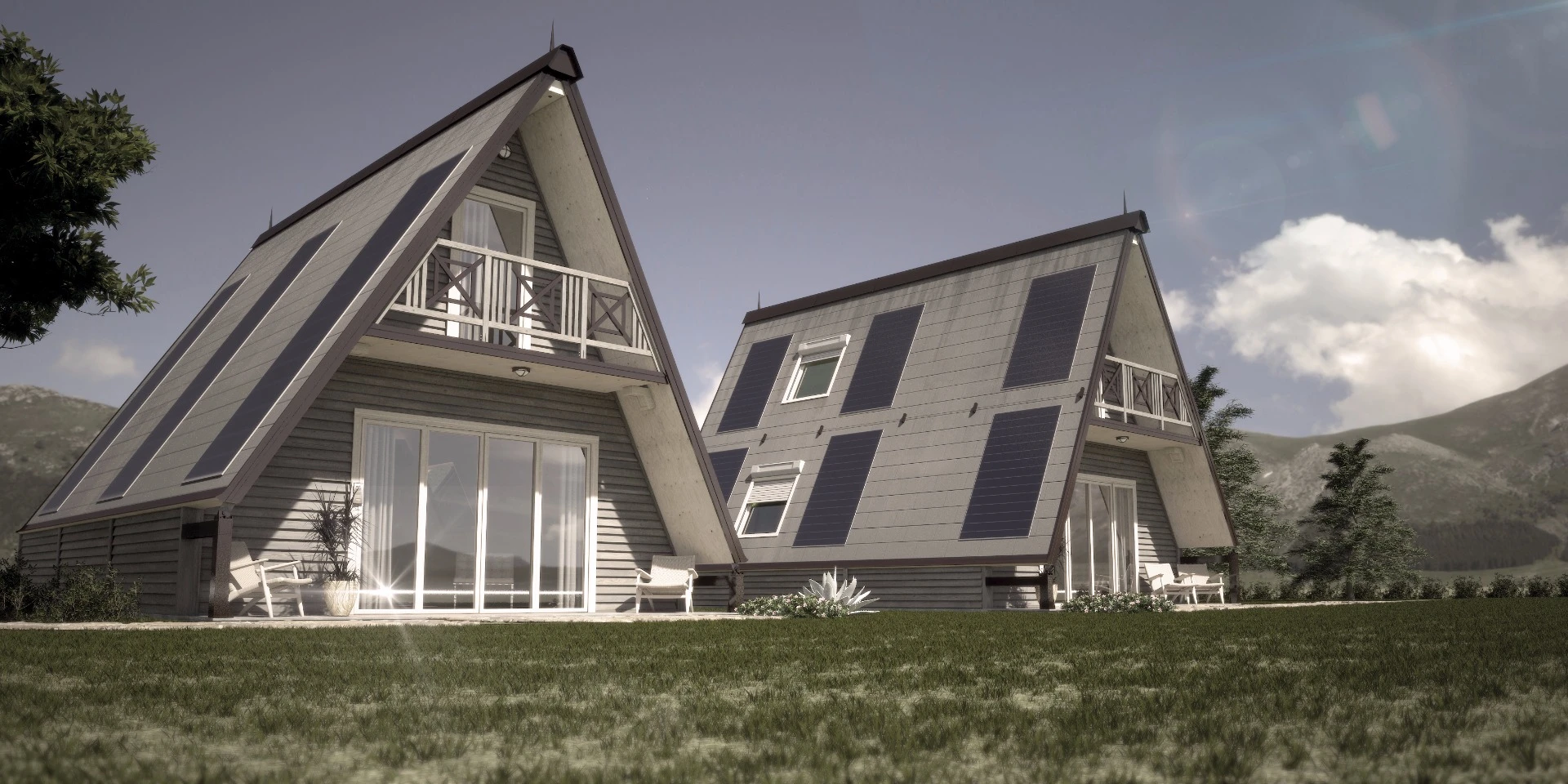

 As the M.A.Di home is built using modules, ownershave the option to extend in the future by adjoining additionalmodules to their existing home
11/33
 As the M.A.Di home is built using modules, ownershave the option to extend in the future by adjoining additionalmodules to their existing home
Example of a M.A.Di home living  interior
12/33
Example of a M.A.Di home living  interior

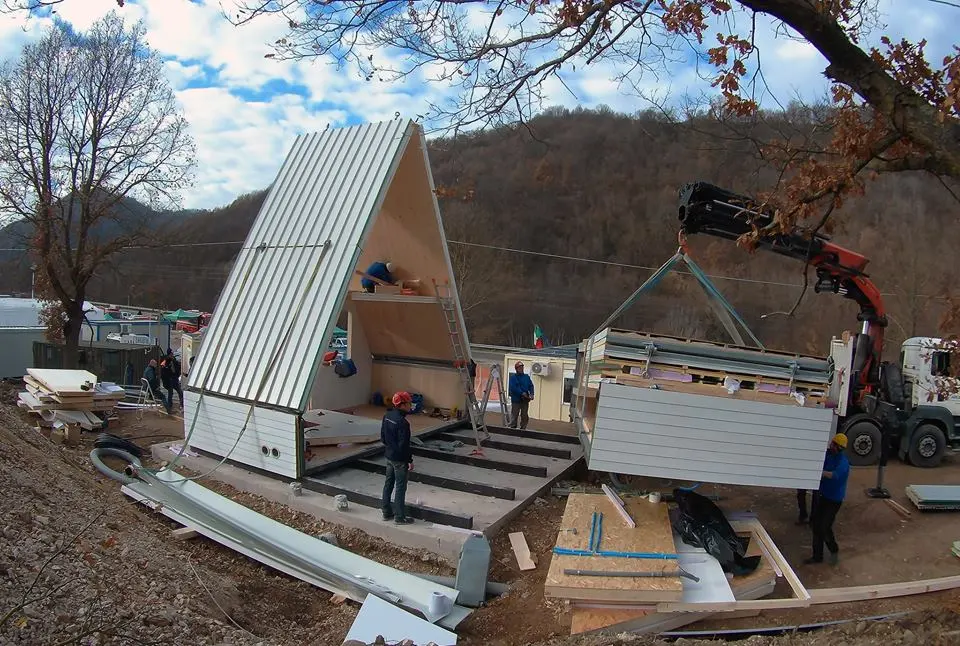

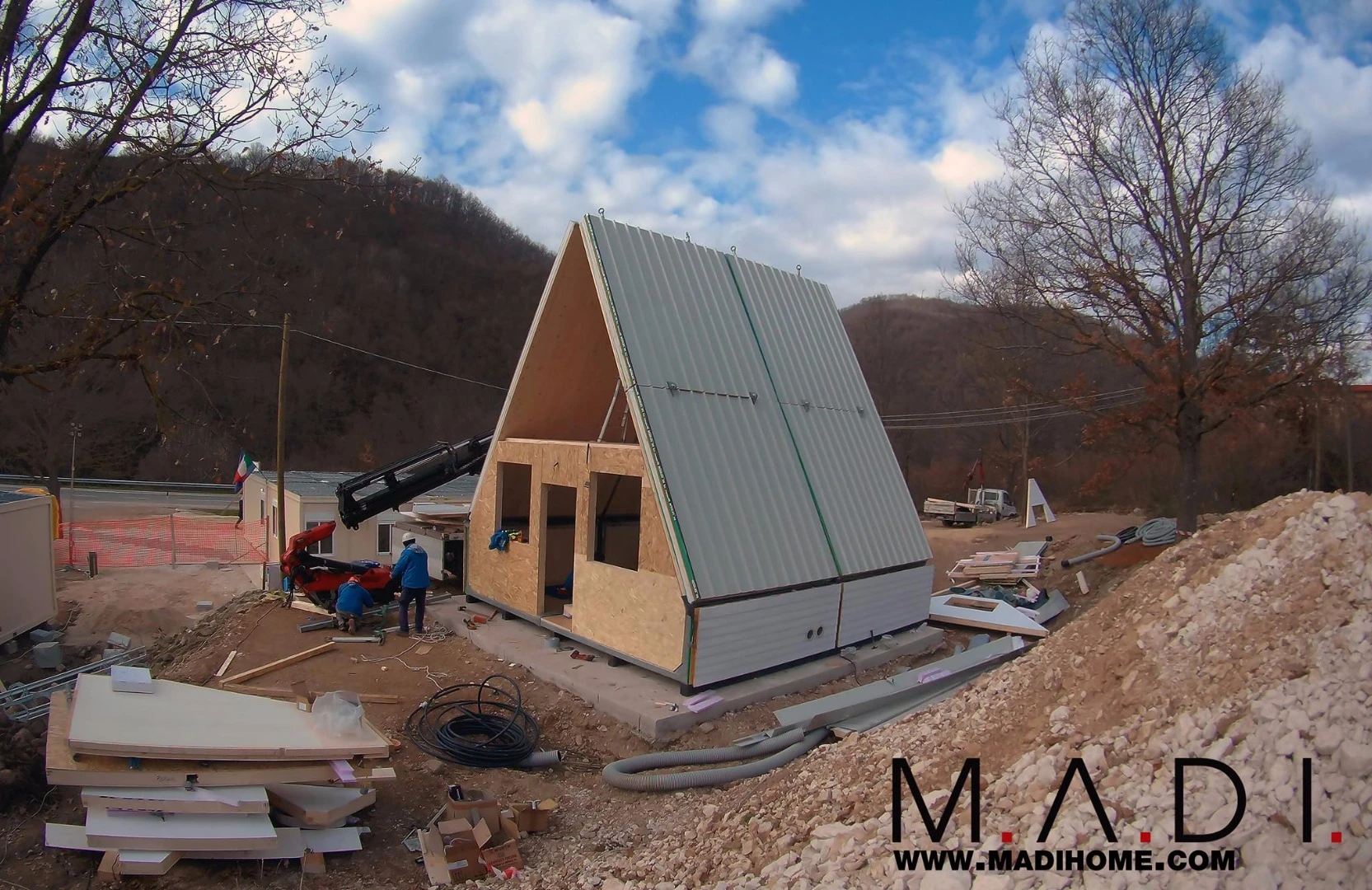

Finishes such as roof pitches, interiorflooring, internal and exterior walls come on mounting boards forsimple assembly
13/33
Finishes such as roof pitches, interiorflooring, internal and exterior walls come on mounting boards forsimple assembly

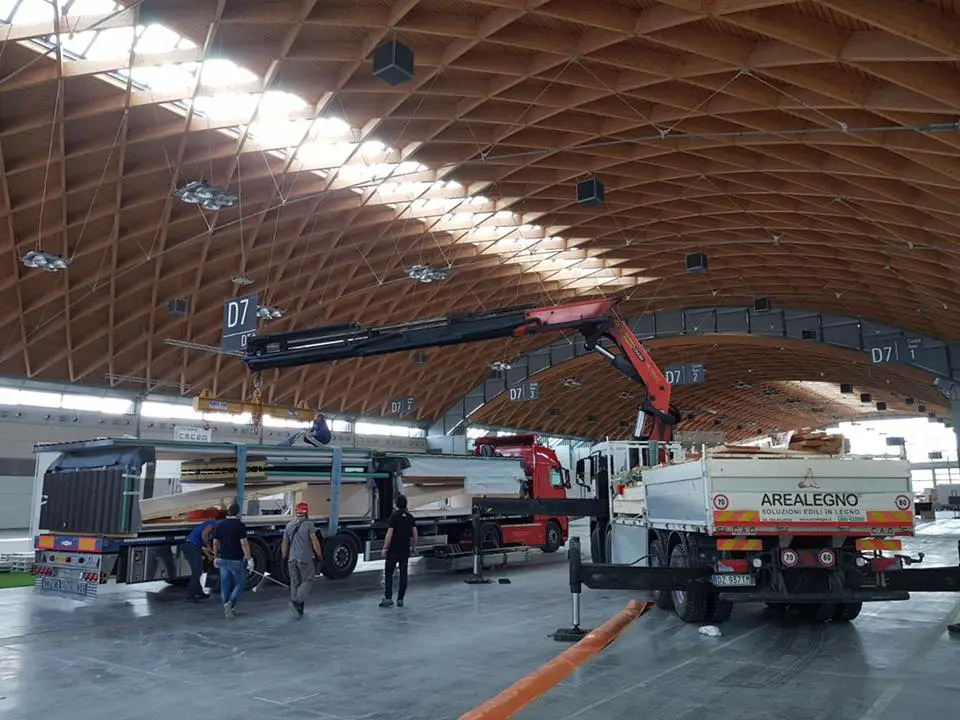

When the module is closed and folded for transportation thepacked height measures 1.5 meters
14/33
When the module is closed and folded for transportation thepacked height measures 1.5 meters

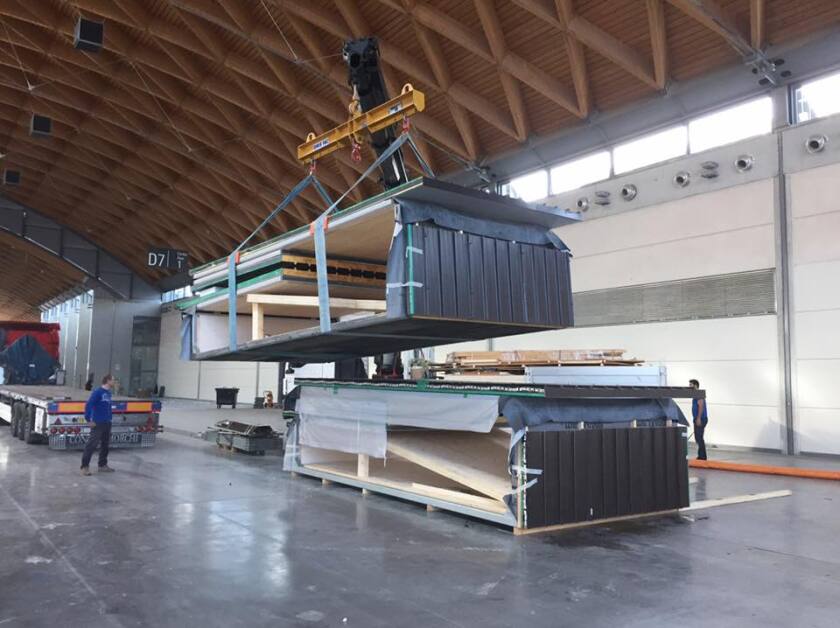

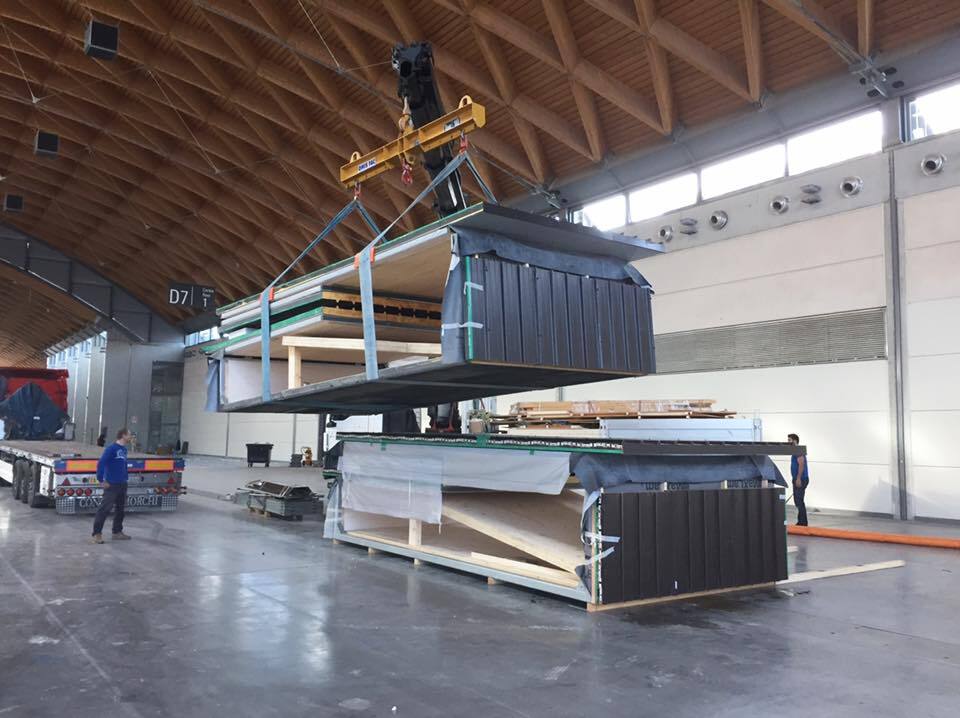

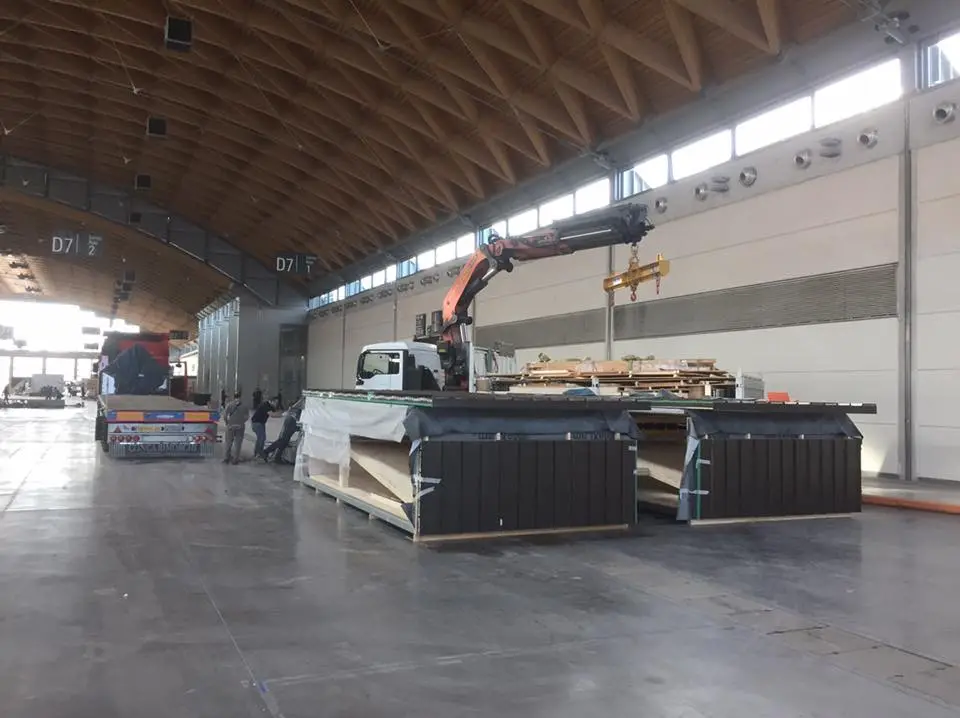

Two M.A.Di modules get ready to be packed for transportation via truck
15/33
Two M.A.Di modules get ready to be packed for transportation via truck

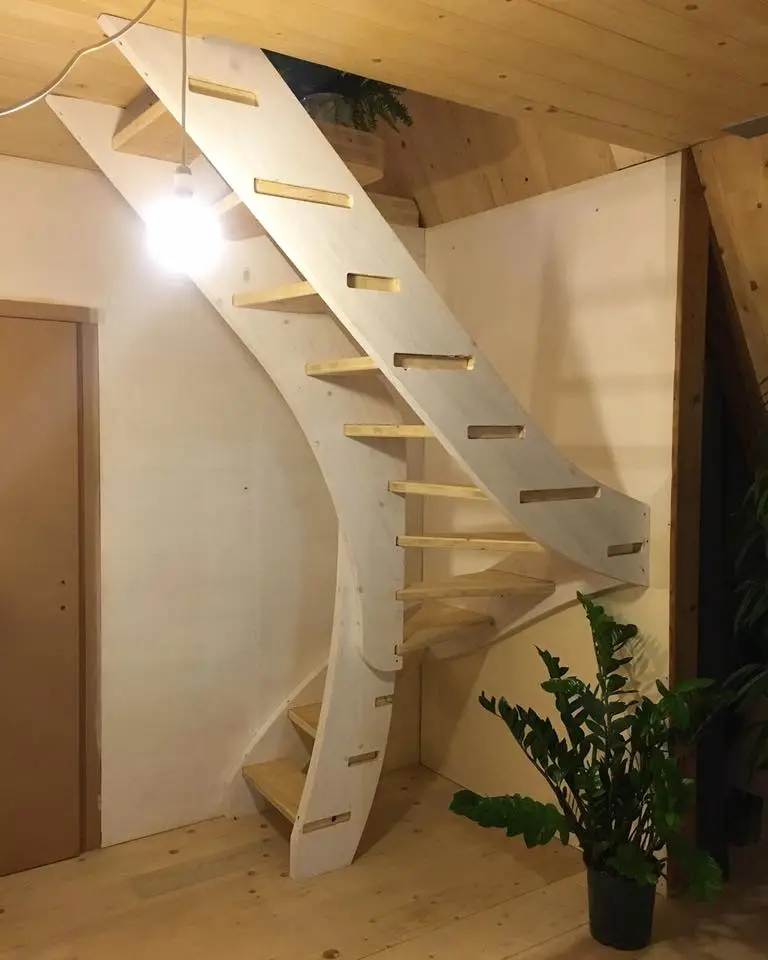

M.A.Di interior staircase
16/33
M.A.Di interior staircase
Manufactured by wood specialist Area Legno in Italy, the M.A.Di home is built using CLT (cross laminated timber) to create a modular and multi-functional anti-seismic family home
17/33
Manufactured by wood specialist Area Legno in Italy, the M.A.Di home is built using CLT (cross laminated timber) to create a modular and multi-functional anti-seismic family home

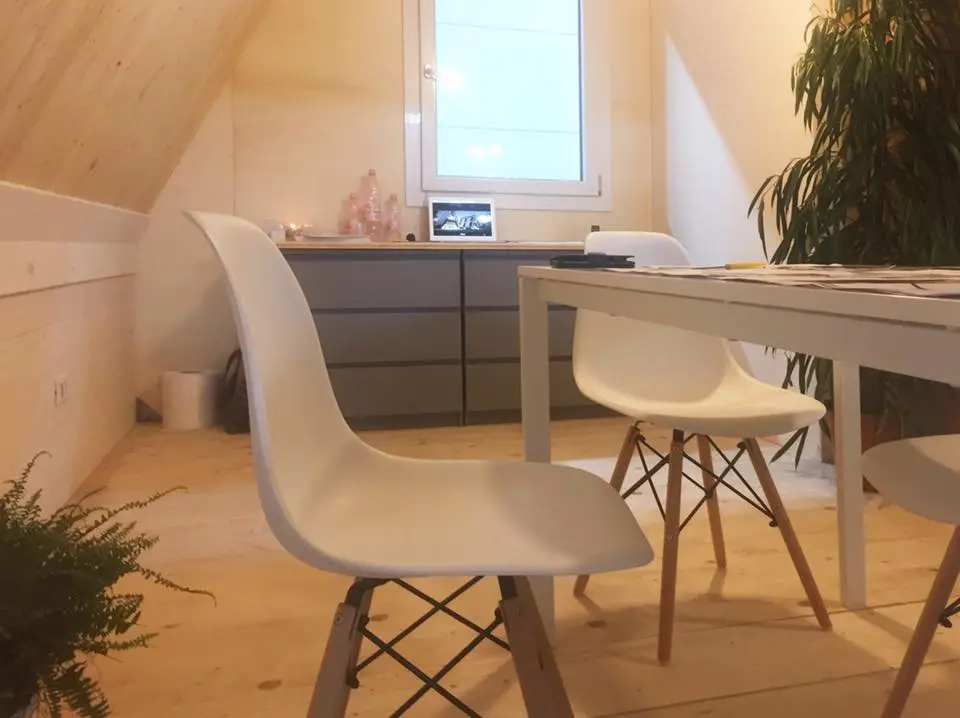

Inside the upstairs bedroom
18/33
Inside the upstairs bedroom

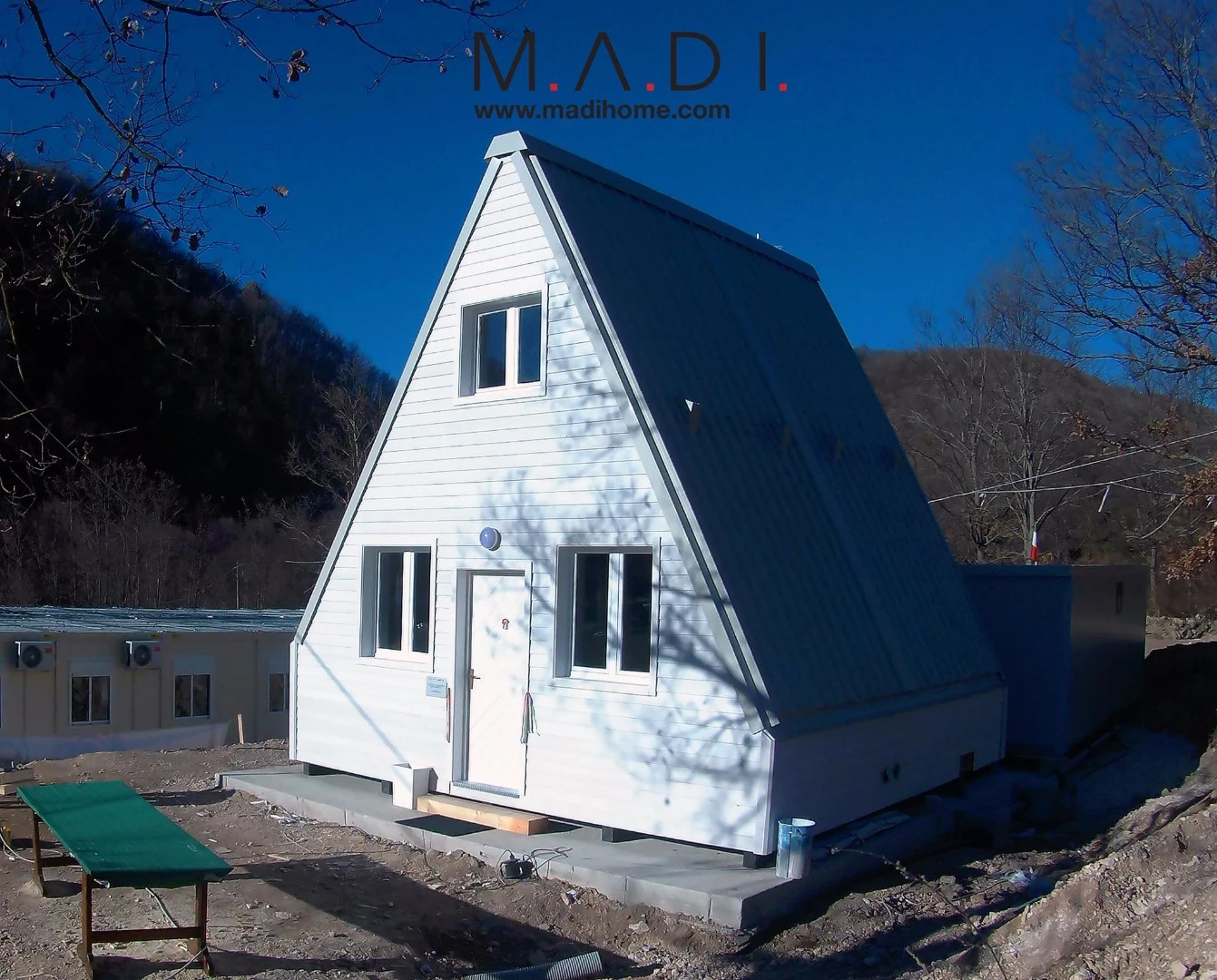

The homeis anchored down using an innovative screw pile system, which has noimpact on the soil and can leave the land without a footprint
19/33
The homeis anchored down using an innovative screw pile system, which has noimpact on the soil and can leave the land without a footprint

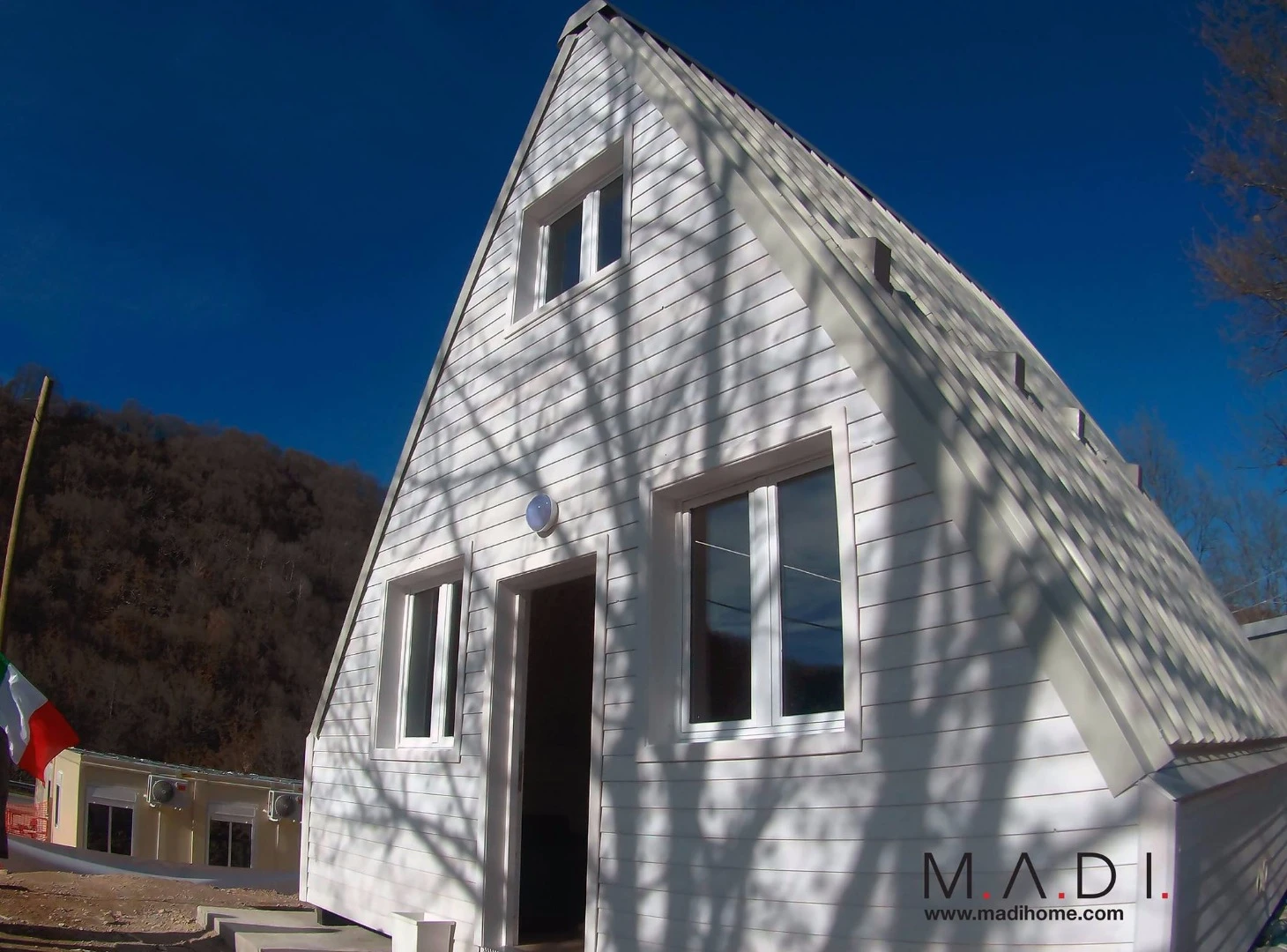

Eachhome stretches over two levels and comes equipped with a kitchen,dining area and bathroom located on the ground floor, and bedroom/slocated on the upper floor
20/33
Eachhome stretches over two levels and comes equipped with a kitchen,dining area and bathroom located on the ground floor, and bedroom/slocated on the upper floor
EachM.A.Di module features galvanized steel frames, suitably proportionedto support the home's opening and closing movement
21/33
EachM.A.Di module features galvanized steel frames, suitably proportionedto support the home's opening and closing movement

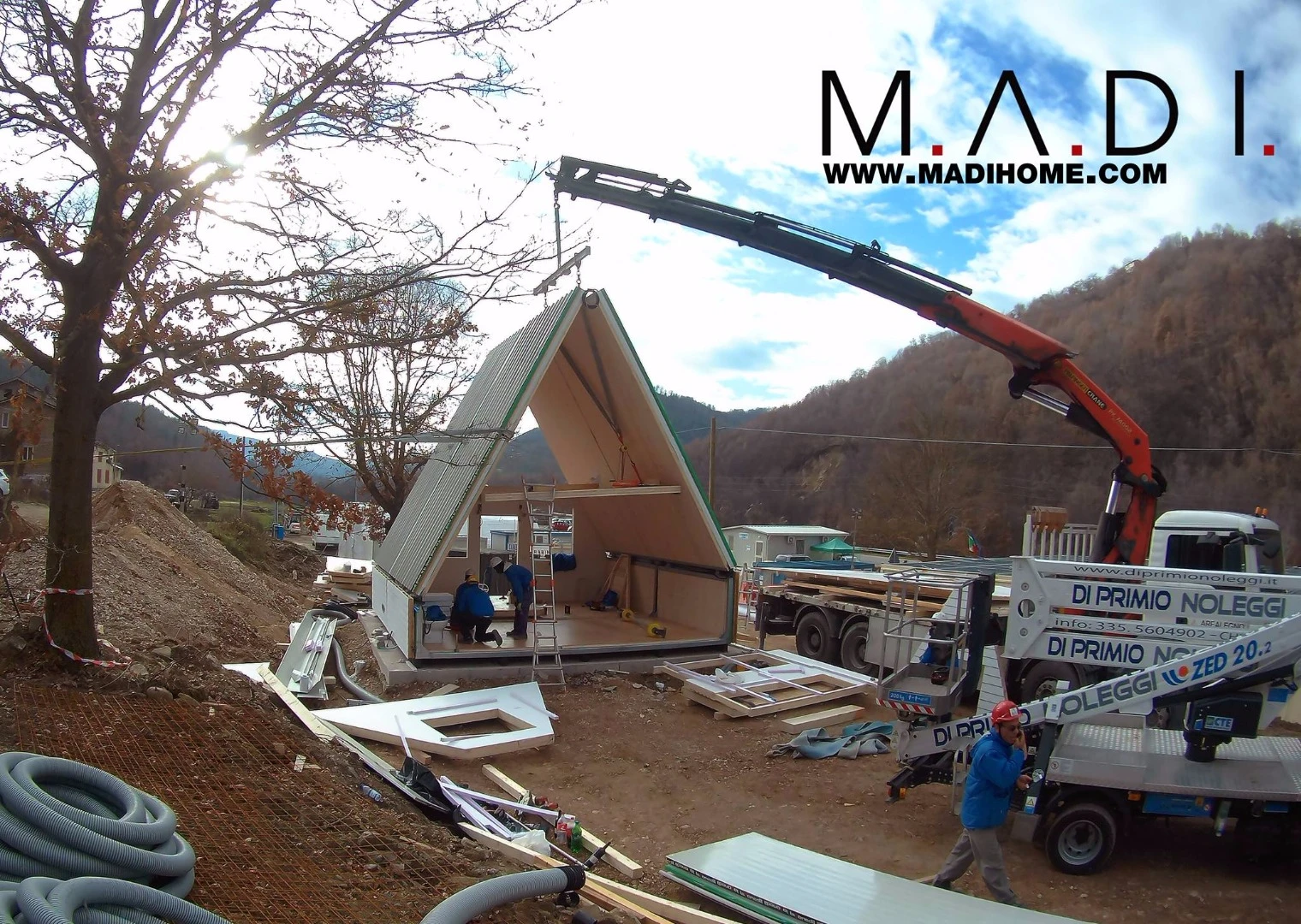

The entire installation process should take three workers six toseven hours to complete
22/33
The entire installation process should take three workers six toseven hours to complete

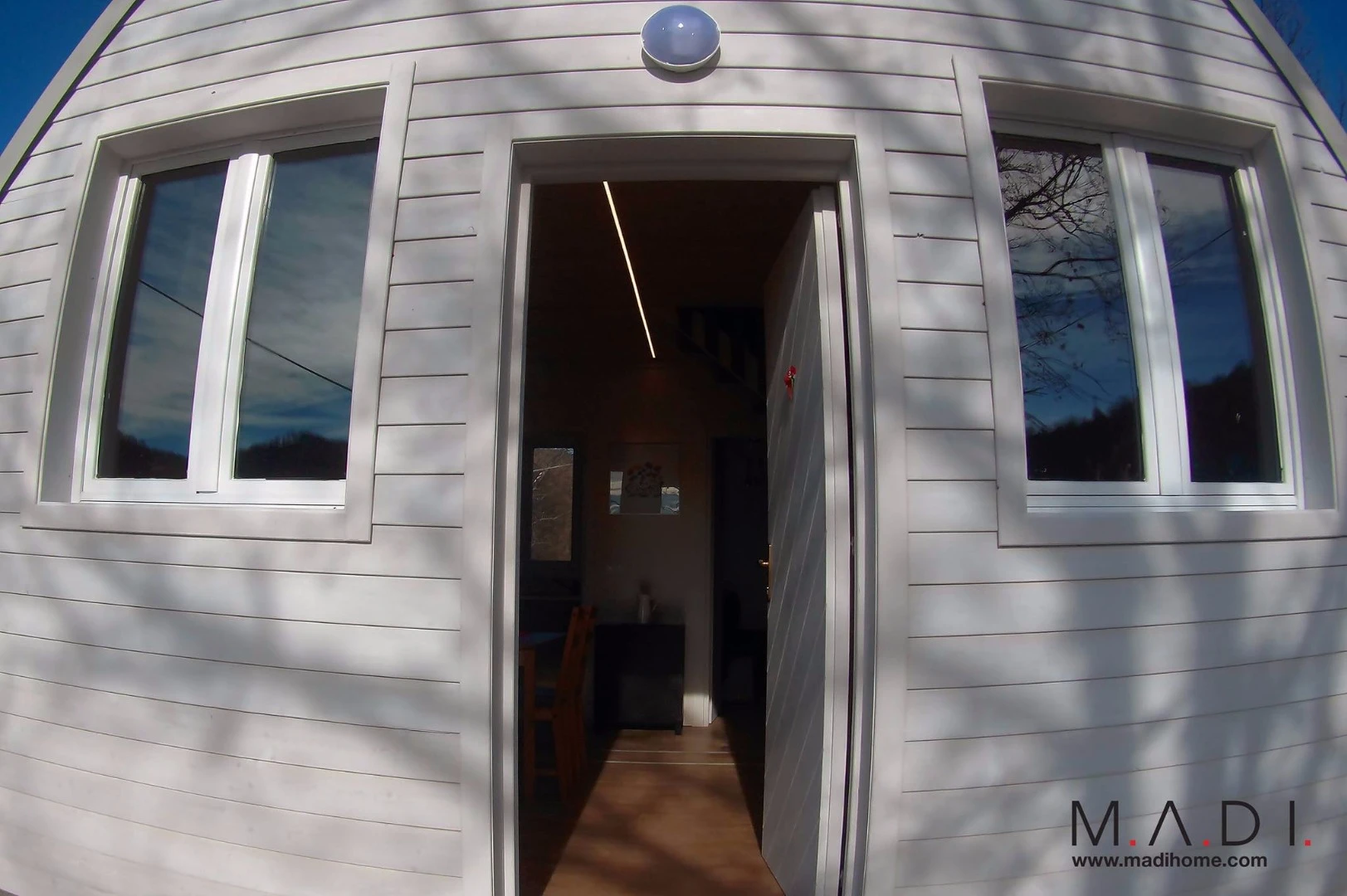

AM.A.Di home will take approximately 30-40 days to complete from dateof order
23/33
AM.A.Di home will take approximately 30-40 days to complete from dateof order
Finishes such as roof pitches, interiorflooring, internal and exterior walls come on mounting boards forsimple assembly
24/33
Finishes such as roof pitches, interiorflooring, internal and exterior walls come on mounting boards forsimple assembly

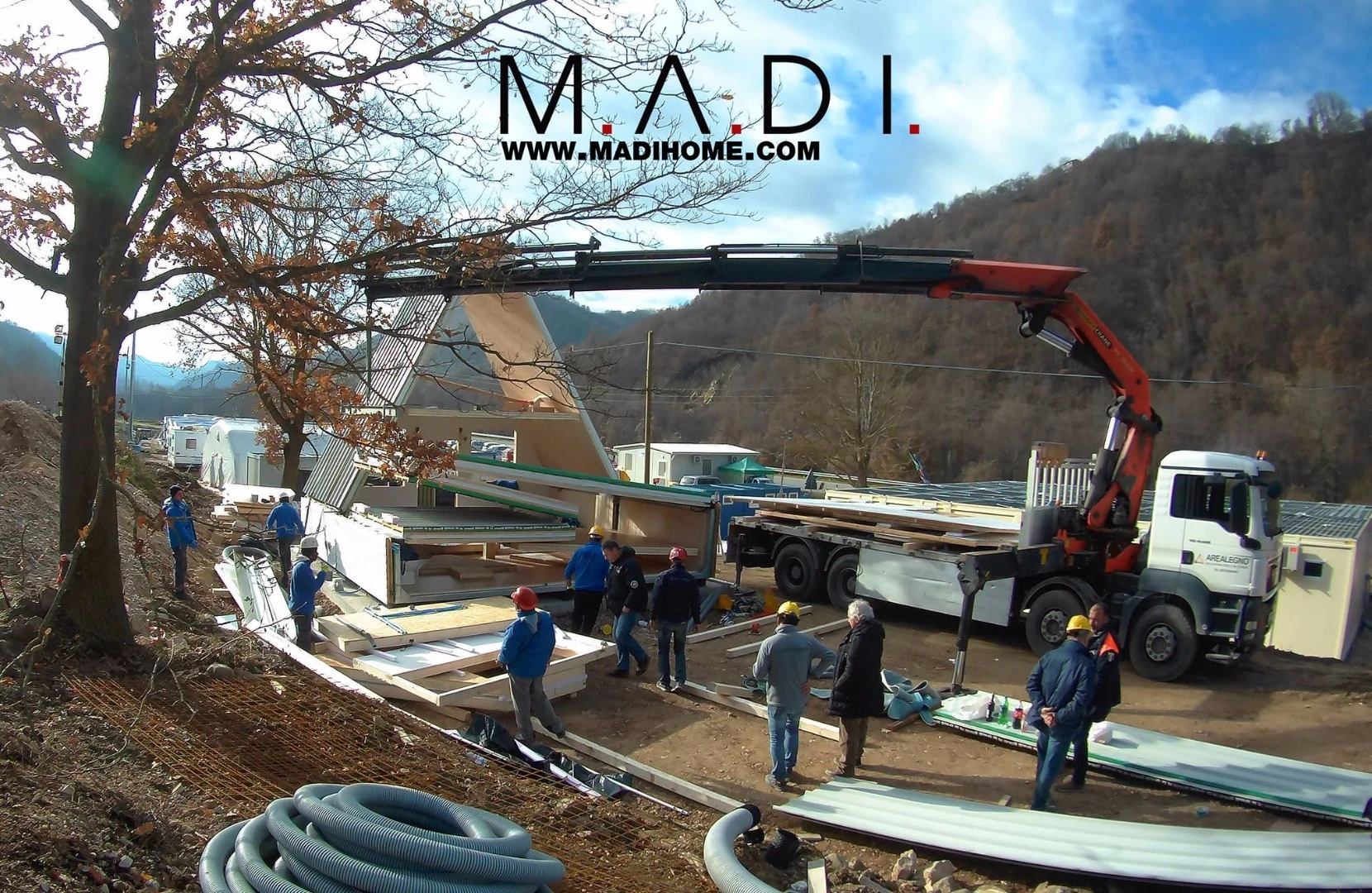

TheM.A.Di home does not necessarily need any foundations at ground level,allowing the structure to have zero impact on the landscape
25/33
TheM.A.Di home does not necessarily need any foundations at ground level,allowing the structure to have zero impact on the landscape
Upstairs interior view of the M.A.Di home
26/33
Upstairs interior view of the M.A.Di home

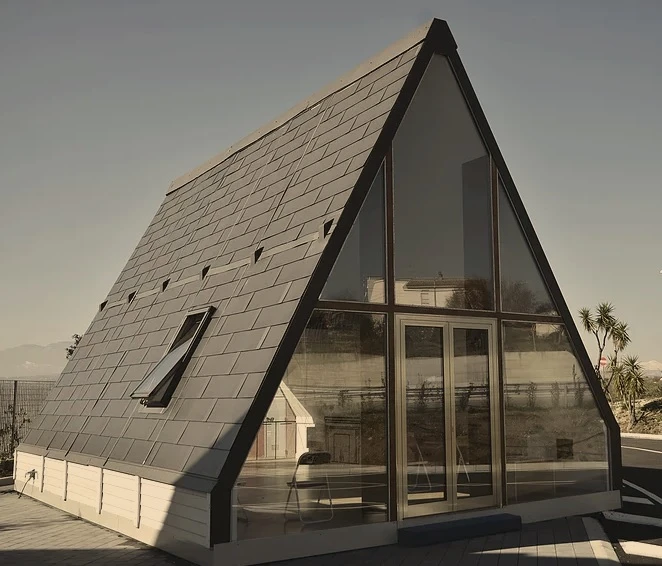

Italian architect Renato Vidal has created a prefabricated foldable house that takes less than a day to install once on site
27/33
Italian architect Renato Vidal has created a prefabricated foldable house that takes less than a day to install once on site

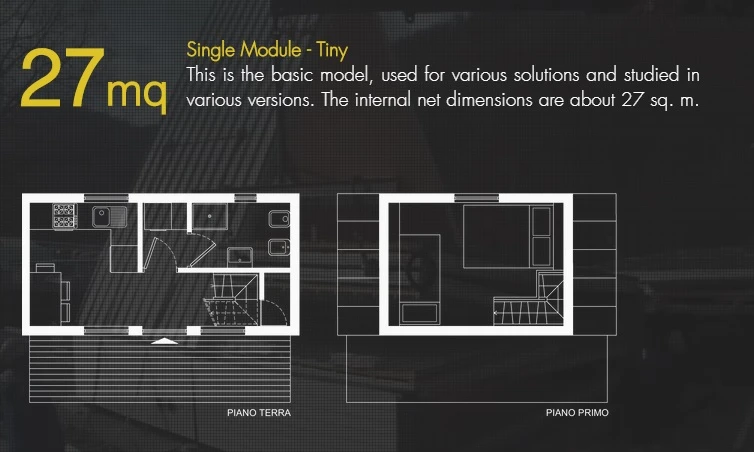

M.A.Di tiny house floor plan
28/33
M.A.Di tiny house floor plan

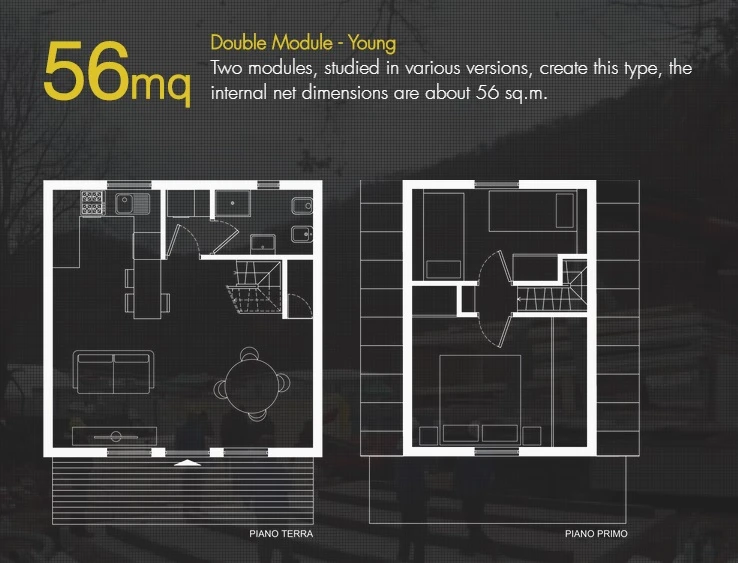

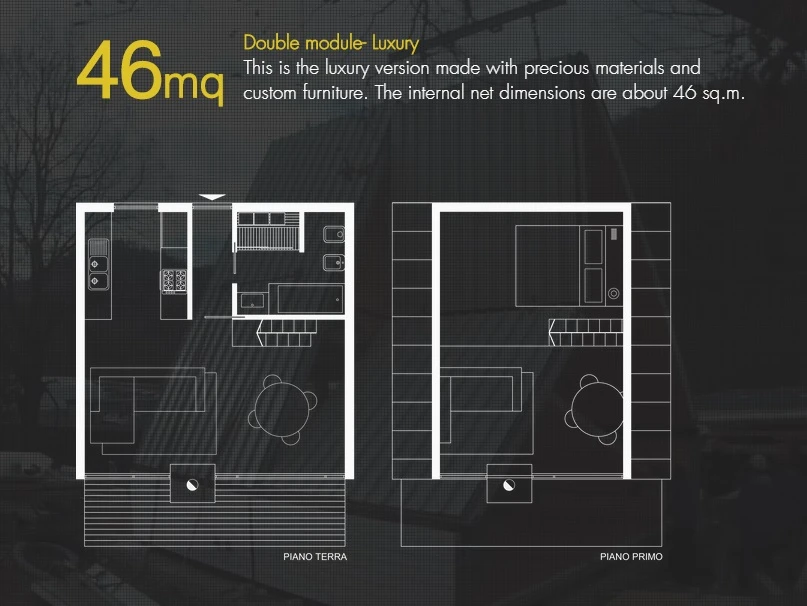

M.A.Di double house floor plan
29/33
M.A.Di double house floor plan
M.A.Di double  house floor plan
30/33
M.A.Di double  house floor plan

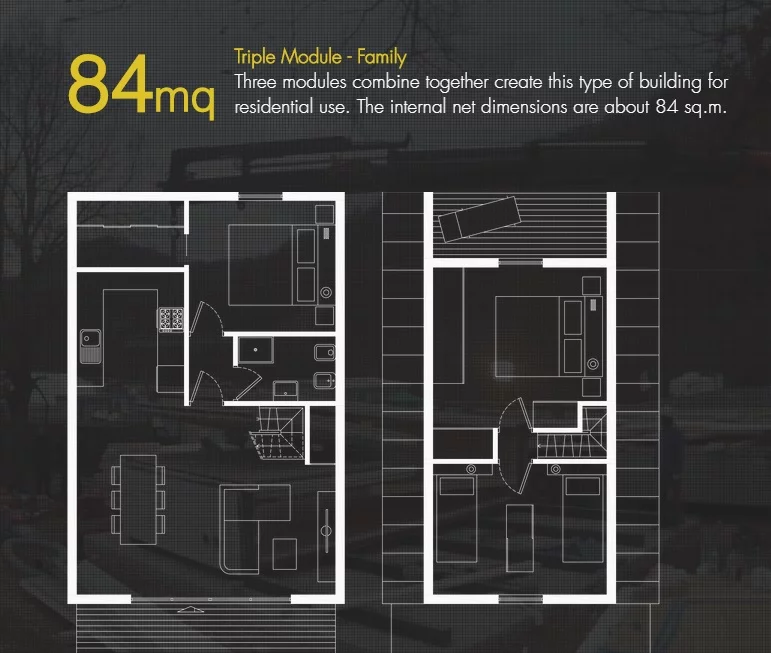

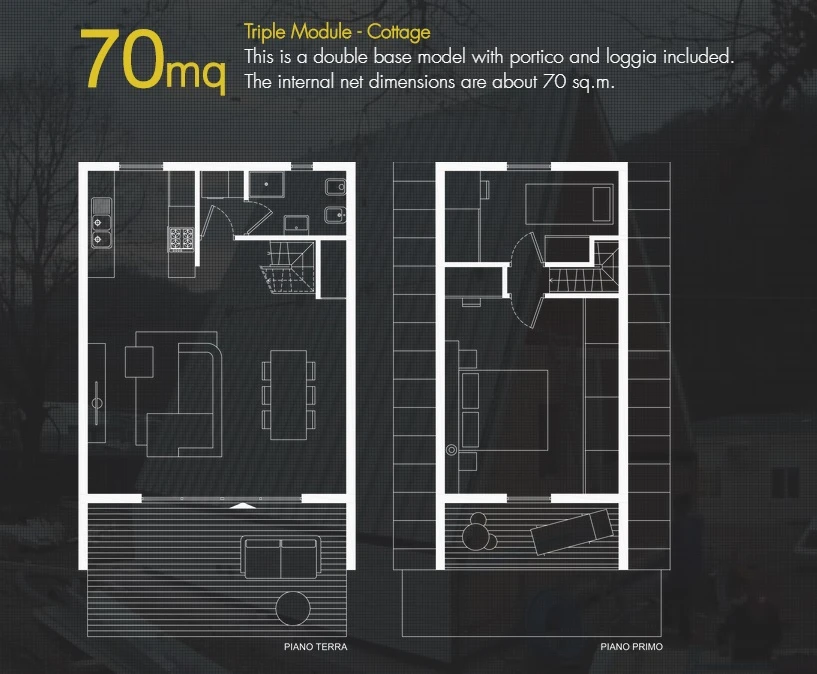

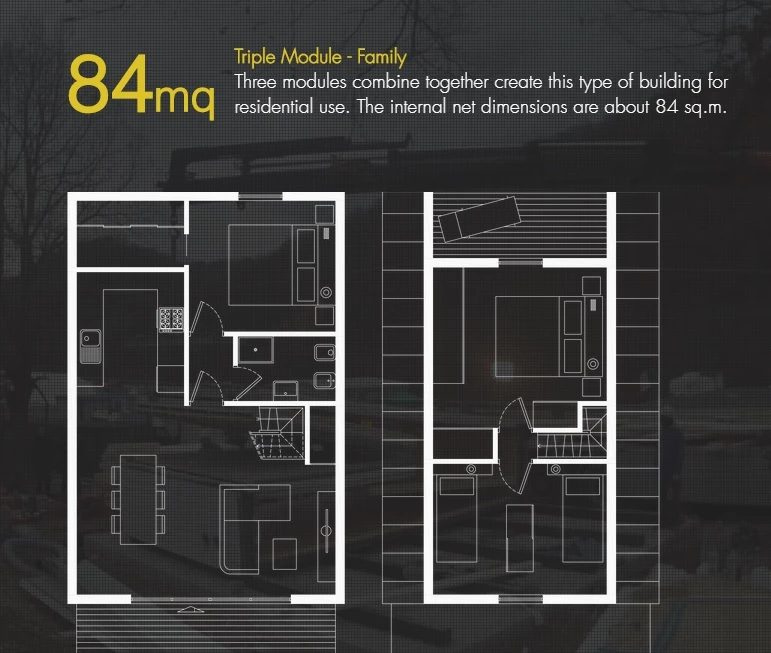

M.A.Di triple house floor plan
31/33
M.A.Di triple house floor plan
M.A.Di triple house floor plan
32/33
M.A.Di triple house floor plan

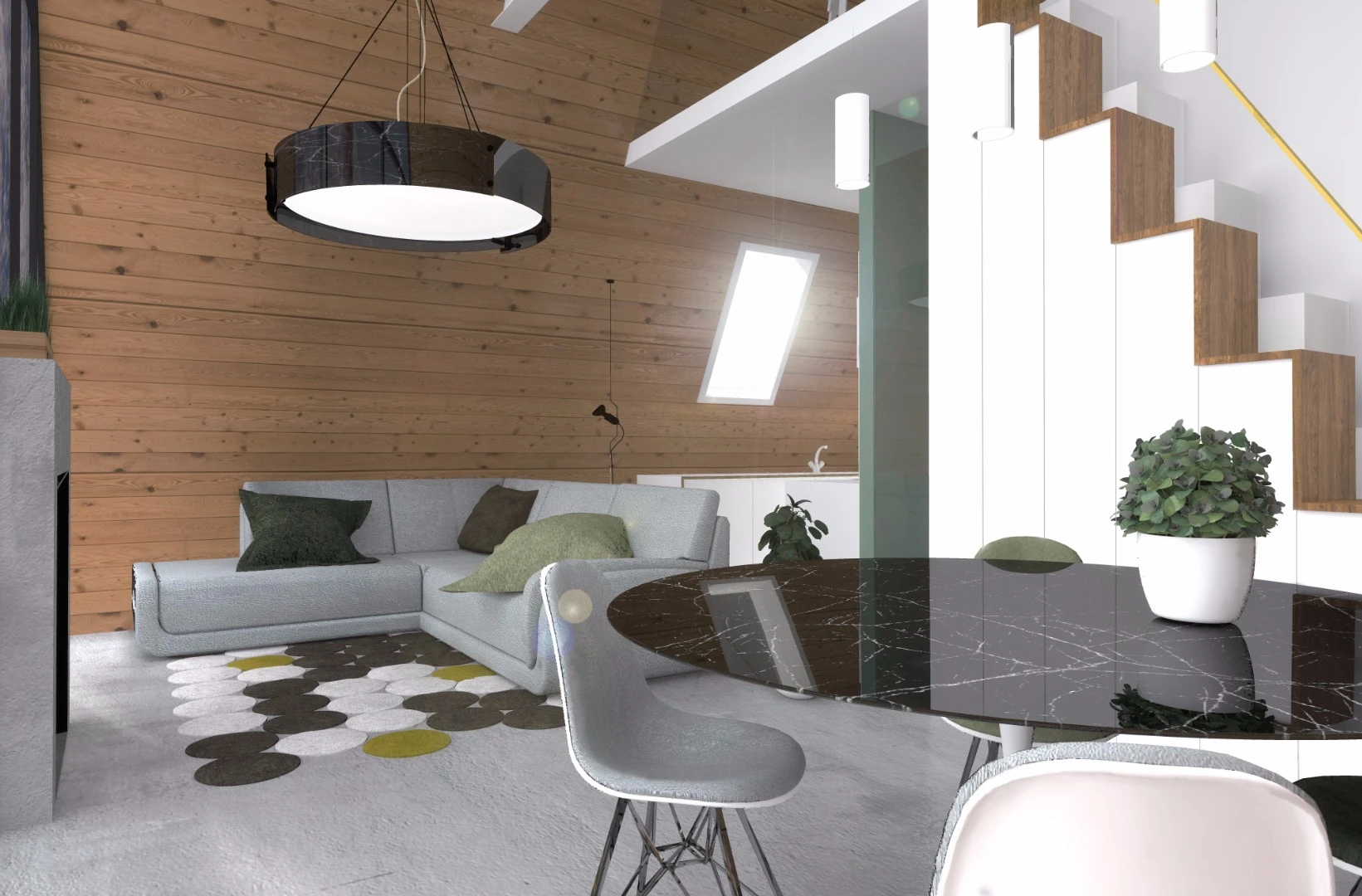

Interior deign on the ground level of a M.A.Di home
33/33
Interior deign on the ground level of a M.A.Di home

Italianarchitect Renato Vidal has created a prefabricated foldable housethat takes less than a day to install once on site. The M.A.Di homeis an economic flat-packed housing solution that is not onlysustainable, but designed to last and withstandearthquakes. Manufactured by wood specialist Area Legno in Italy, theM.A.Di home is built using CLT (crosslaminated timber) to create a modular and multi-functionalanti-seismic family home.

TheM.A.Di home comes in several sizes, including a 27-sq m (290-sq ft) tinyhouse; 46-sq m (495-sq ft) or 56-sq m (603-sq ft) double home and a 70-sq m(753-sq ft) or 84-sq m (904-sq ft) triple family house. Each homestretches over two levels and comes equipped with a kitchen, diningarea and bathroom located on the ground floor, while the bedroom/s are locatedon the upper floor. The building's A frame structure and uniquefolding ability allows the home to be prefabricated off site,flat-packed and transported via truck or container to its designated build site.

"Thanksto the home's steel profile and steel hinges we can open and closethis module with ease," Domenico Antonuccifrom Area Legno tells New Atlas."When the module is closed and folded for transportation thepacked height measures 1.5 m (4.9 ft), and then when it is opened onsite, it has a height of 6.5 m (21.3 ft)."

Thanks to the home's steel profile and steel hinges, the M.A.Di home can open and close with ease
Thanks to the home's steel profile and steel hinges, the M.A.Di home can open and close with ease

EachM.A.Di module features galvanized steel frames suitably proportionedto support the home's opening and closing movement. Polyurethane foamis used to waterproof the home while also contributing to its thermalinsulation. The walls are also insulated with high-density rockwool andthe window frames can be installed in PVC or aluminum.

Once on sitethe installation of the home is relatively simple, as each moduleunfolds up and out. Finishes such as roof pitches, interior flooring,internal and exterior walls come on mounting boards for simpleassembly. The entire process should take three workers six to sevenhours to complete.

Onceon site the installation of the home is relatively simple, as eachmodule unfolds up and out
Onceon site the installation of the home is relatively simple, as eachmodule unfolds up and out

TheM.A.Di home can be installed as a temporary or permanent structureand does not necessarily need any foundations at ground level,allowing the structure to have zero impact on the landscape. The homeis anchored down using an innovative screw pile system, which has noimpact on the soil and can leave the land without a footprint.Alternatively, the home can be built on top of a reinforced concretefoundation.

If desired, the home can be packed away and stored in awarehouse for future uses. As the home is built using modules, ownershave the option to extend in the future by adjoining additionalmodules to their existing M.A.Di home.

"M.A.DI.gives you the opportunity to have a temporary house wherever you wantor a permanent house in a building area," says M.A.Di. "Moreover, according to your need and your financialavailability you can customize it in dimensions and materials. AM.A.Di construction is ready to live in and is delivered withelectrical system, plumbing and sanitary water system,heating/cooling system (air conditioning) and PVC frames."

Thestandard M.A.Di structure is considered class B (European standard)for energy consumption, but can be customized to meet class A and A++.This includes the possibility of making it a passive house. The homecan easily be installed with rooftop solar panels, LED lighting,water tanks and a gray water system.

 As the M.A.Di home is built using modules, ownershave the option to extend in the future by adjoining additionalmodules to their existing home
 As the M.A.Di home is built using modules, ownershave the option to extend in the future by adjoining additionalmodules to their existing home

AM.A.Di home will take approximately 30-40 days to complete from dateof order, with an all inclusive unit price around €800(US$933) per square meter. Therefore, the basic M.A.Di homes are priced approximately between €21,600 (US$25,195) for the tiny module and €67,200(US$73,385) for the biggest module. The home is then flat-packed andtransported by truck or container, and can be delivered outside ofItaly.

"Wehave a patent registered all over the world and we will start tosell the M.A.Di house in about two months," says Antonucci. "Wewould like to export out of Italy and we are looking forpartnerships, investor and buyers. I hope to sell it out of Italy,North Europe, USA and Australia."
