Mantis – a two ton turbo diesel hexapod you can drive

Mantis – a two ton turbo diese...

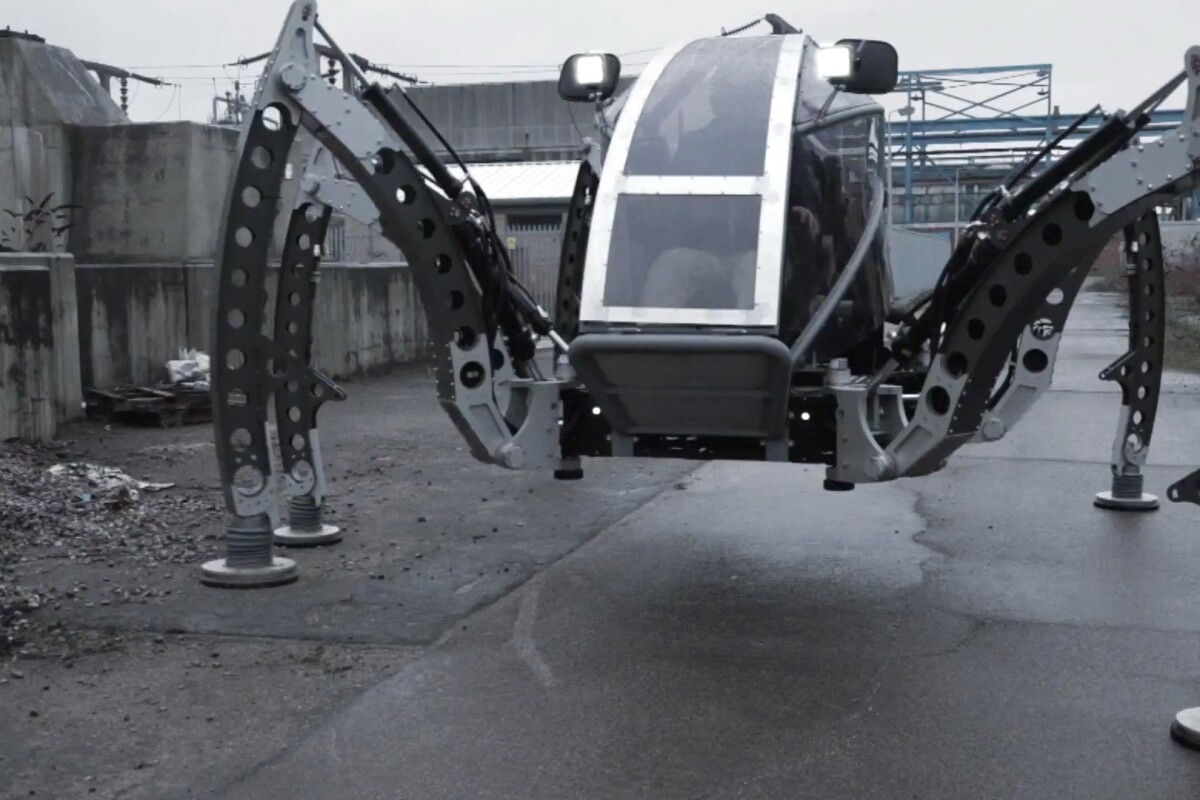

Mantis, built by Matt Denton of Micromagic Systems, is the largest operational hexapod in the world
Mantis, built by Matt Denton of Micromagic Systems, is the largest operational hexapod in the world
View 18 Images
Matt Denton, chief designer and founder of Micromagic Systems, sits in the cockpit of his giant hexapod robot Mantis
1/18
Matt Denton, chief designer and founder of Micromagic Systems, sits in the cockpit of his giant hexapod robot Mantis

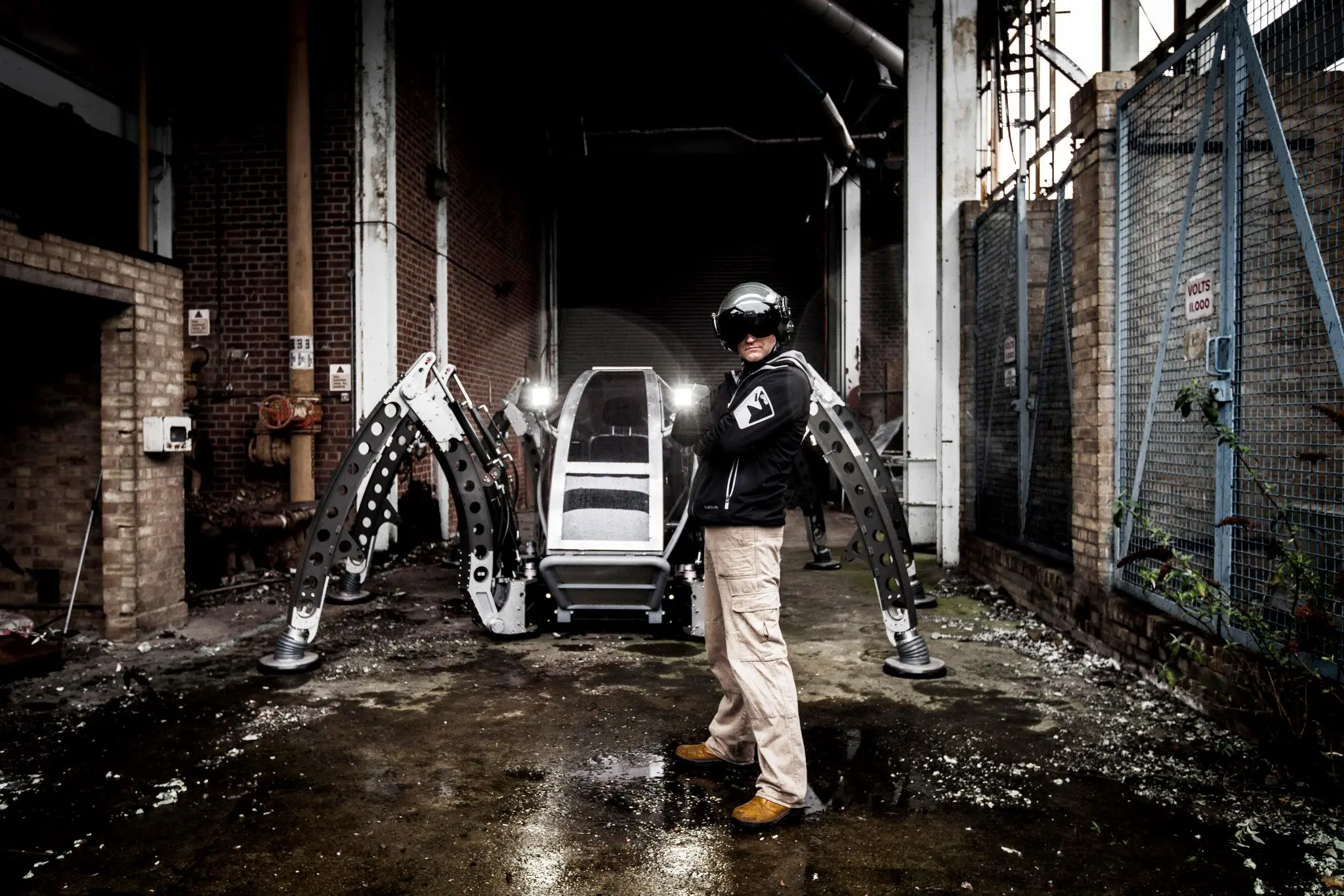

Chief designer Matt Denton stands proudly by his passion project, an enormous hexapod robot named Mantis
2/18
Chief designer Matt Denton stands proudly by his passion project, an enormous hexapod robot named Mantis

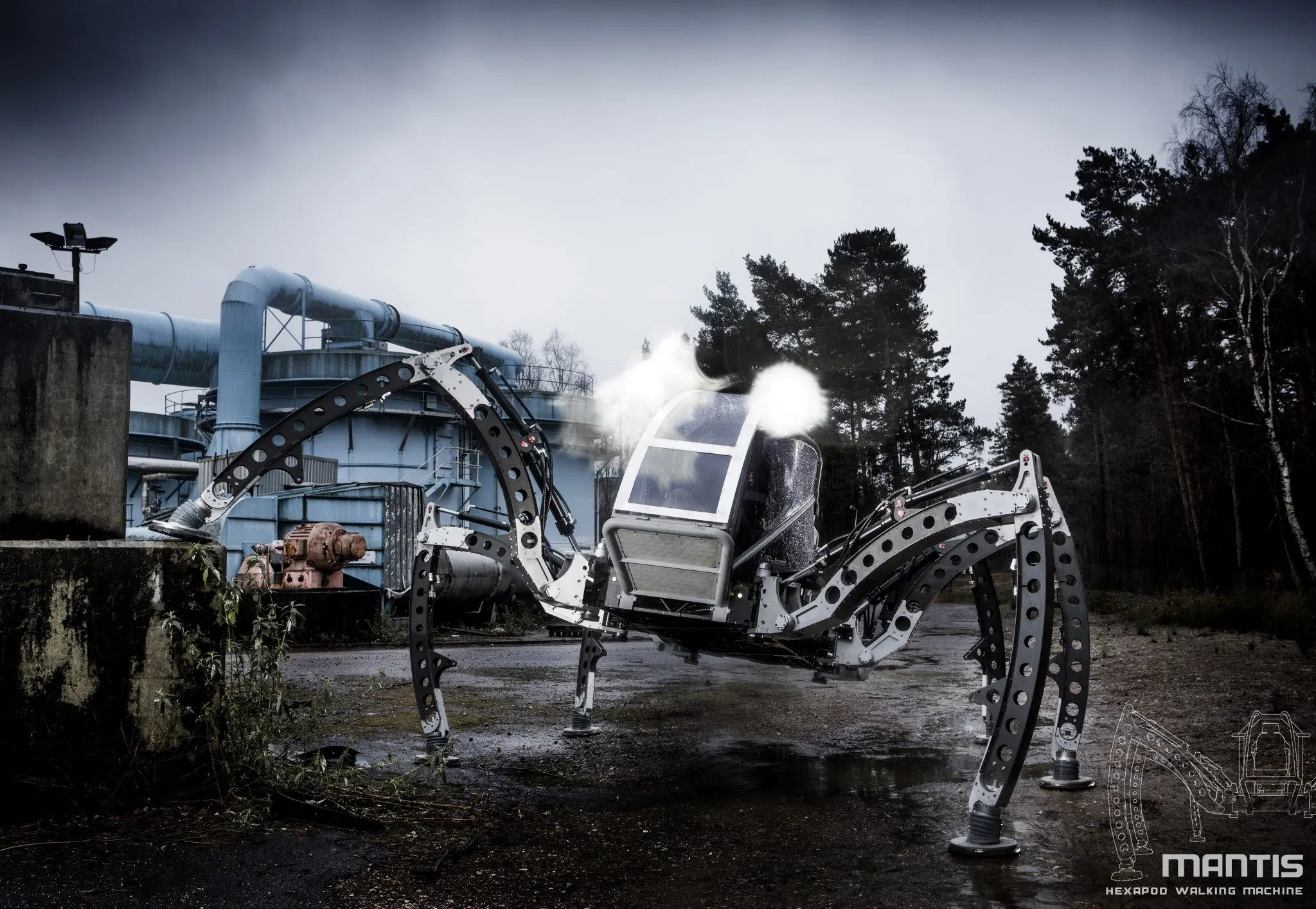

Mantis' six legs are powered by a turbo diesel engine and 18 hydraulic actuators
3/18
Mantis' six legs are powered by a turbo diesel engine and 18 hydraulic actuators

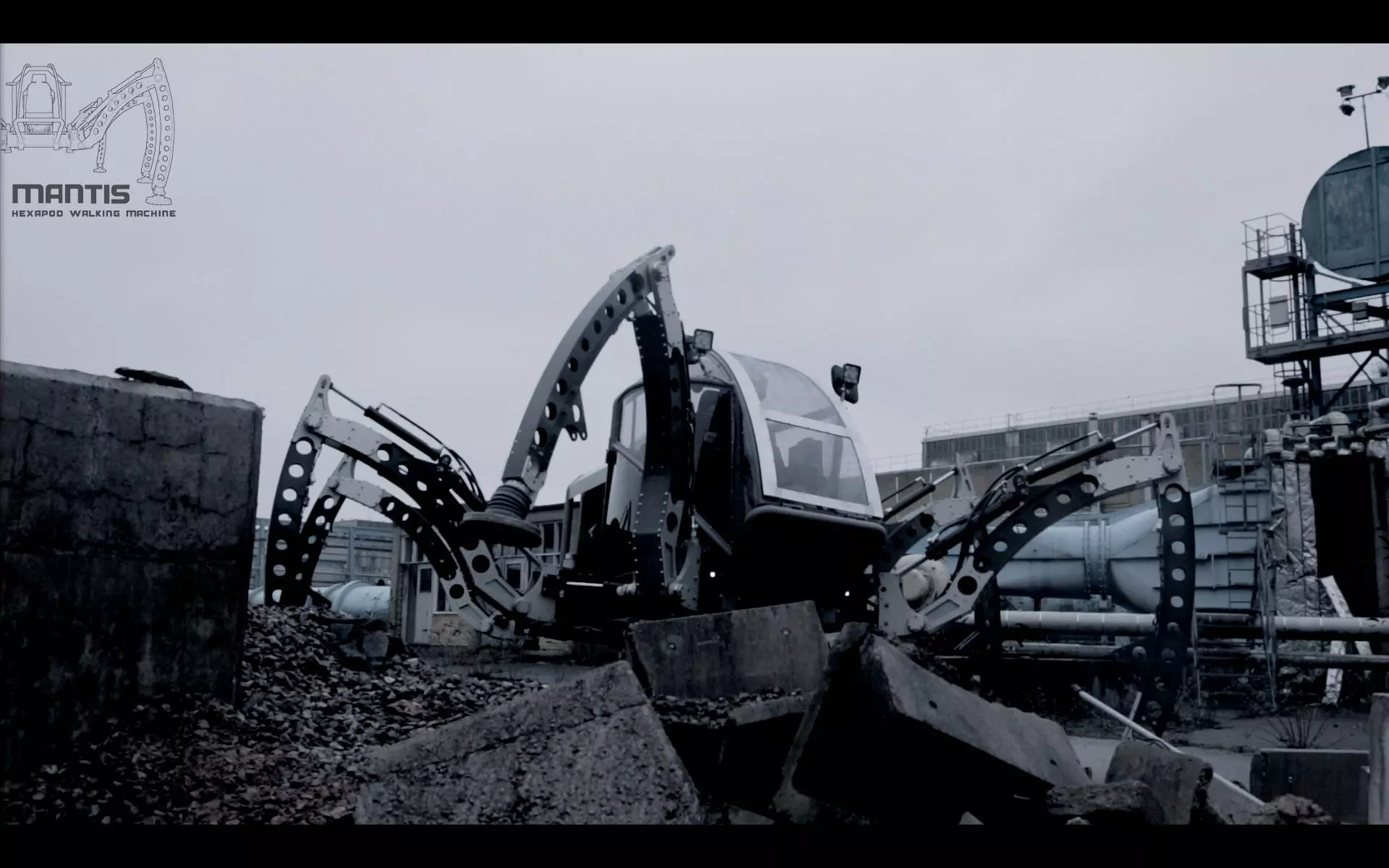

Mantis is described as the world's biggest operational all-terrain hexapod robot
4/18
Mantis is described as the world's biggest operational all-terrain hexapod robot

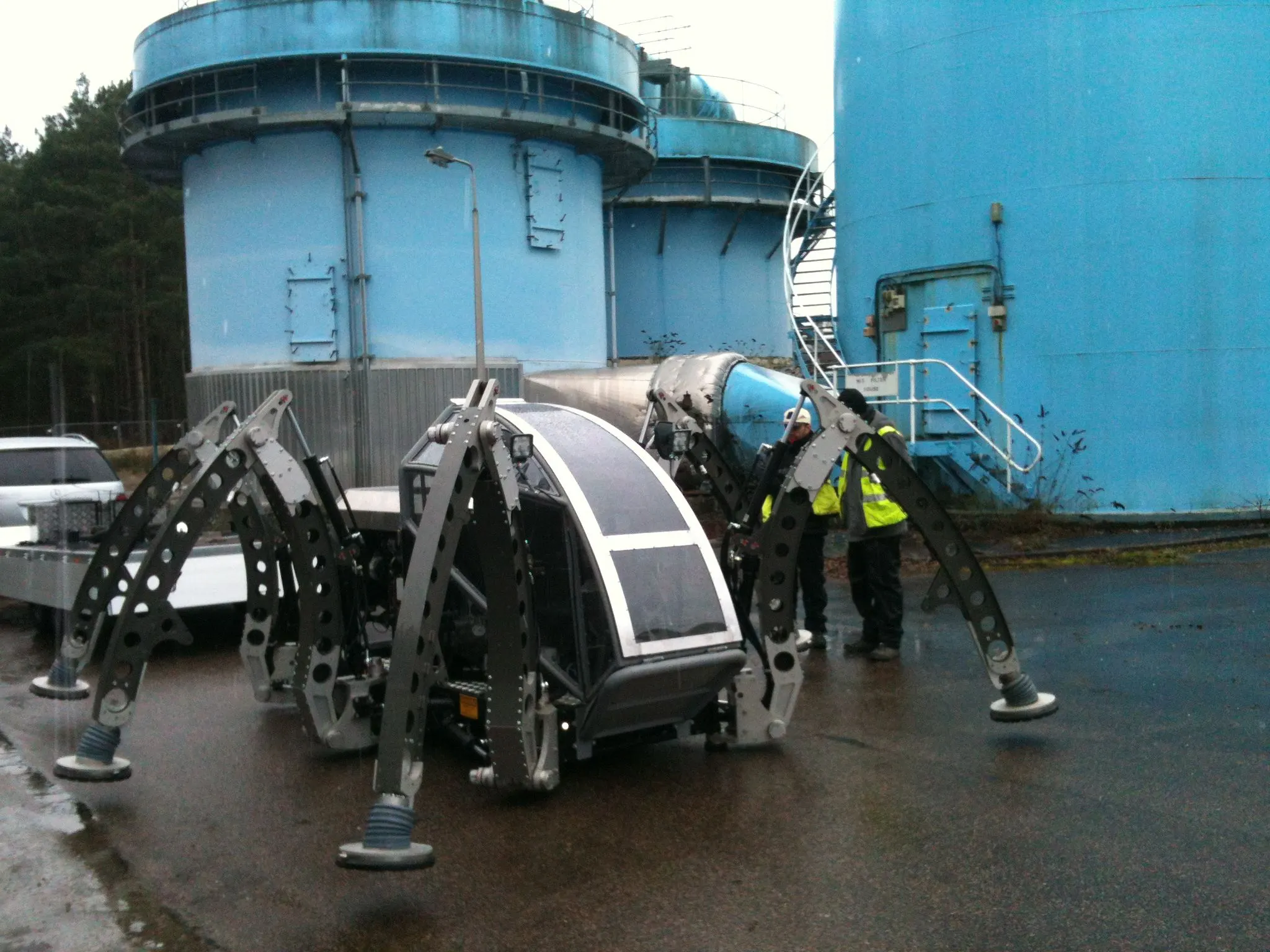

Mantis takes a break during the filming of its promotional video
5/18
Mantis takes a break during the filming of its promotional video

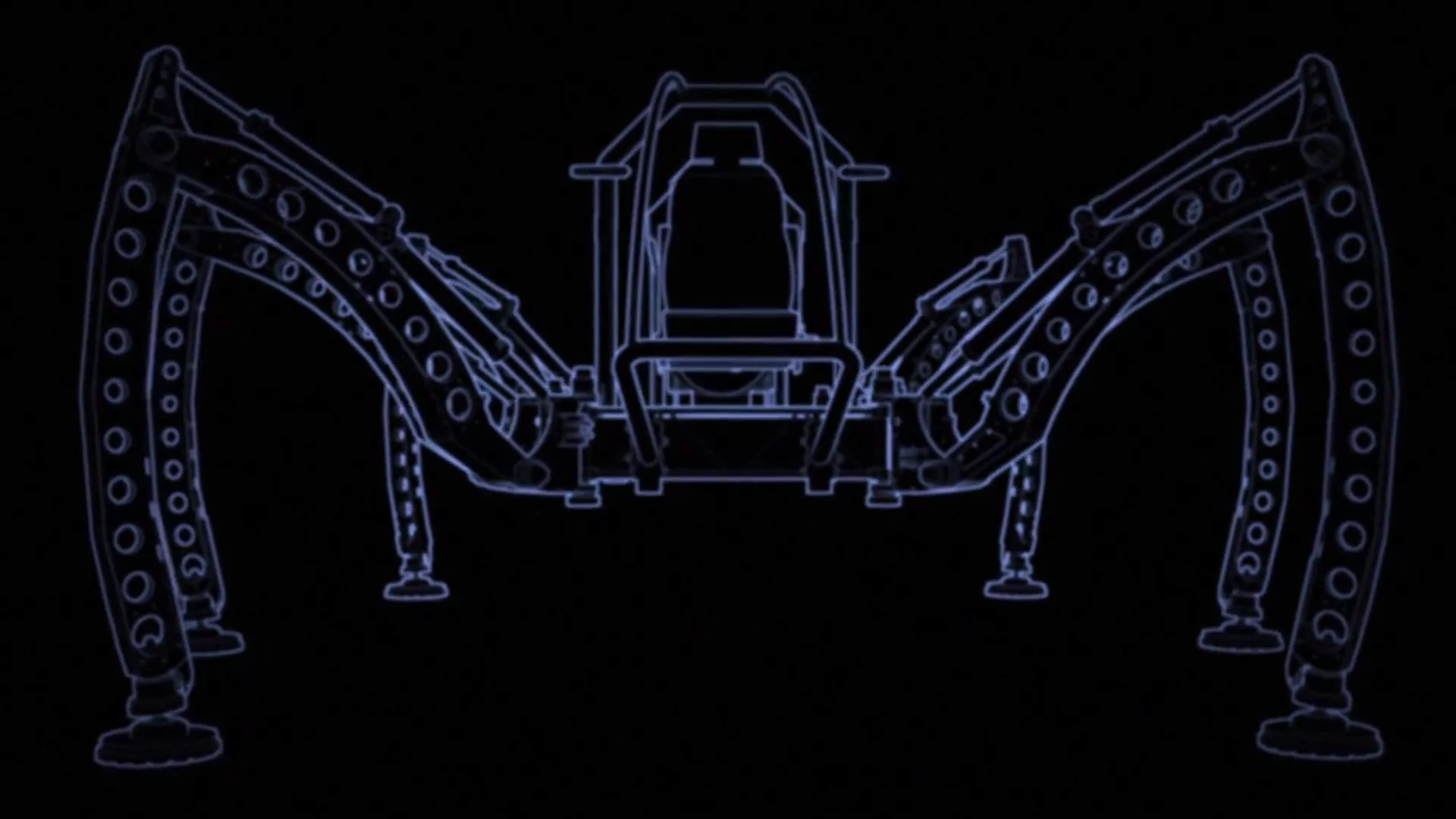

CAD rendering of Mantis, the world's largest hexapod robot
6/18
CAD rendering of Mantis, the world's largest hexapod robot

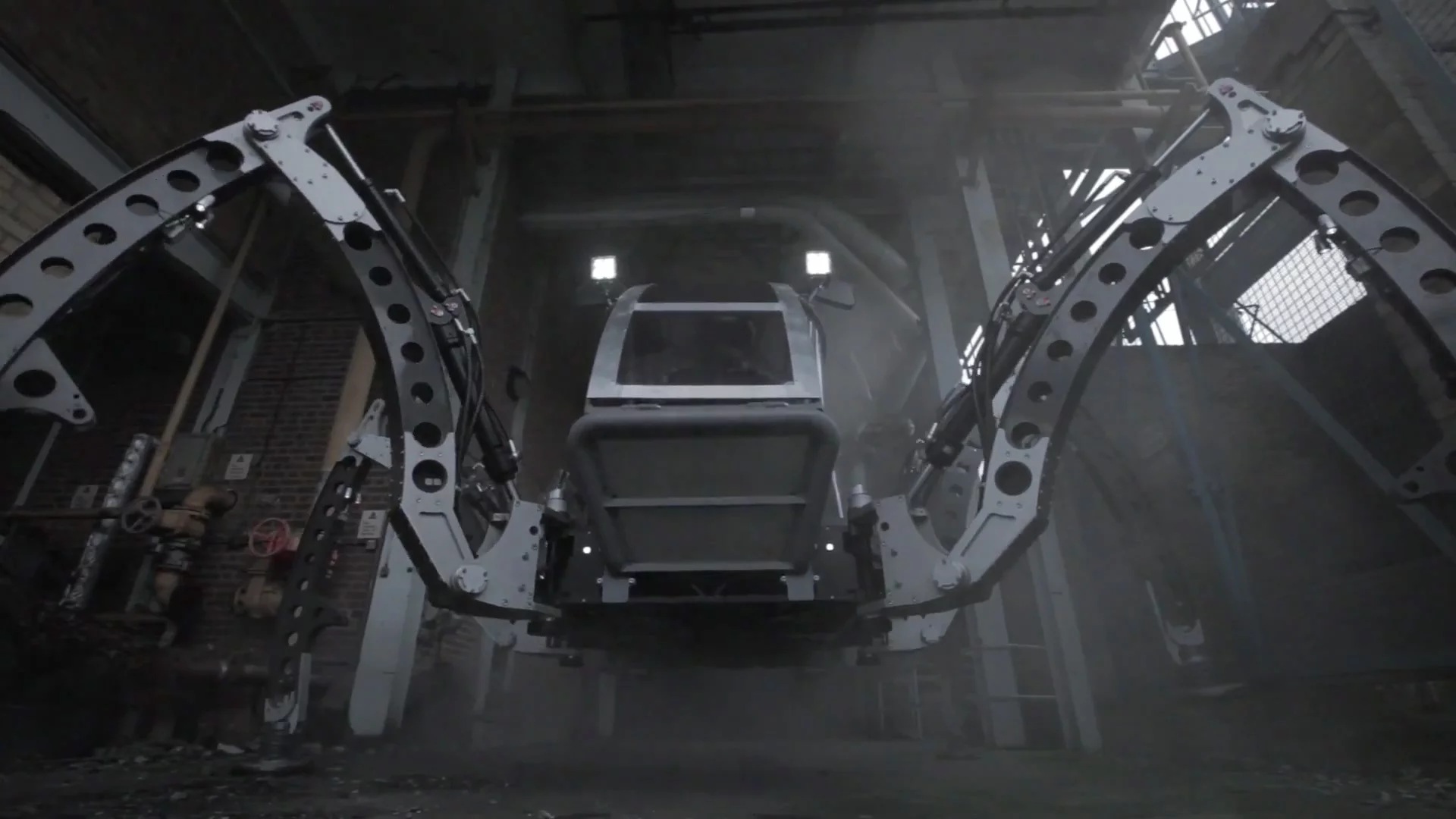

Mantis makes its debut
7/18
Mantis makes its debut

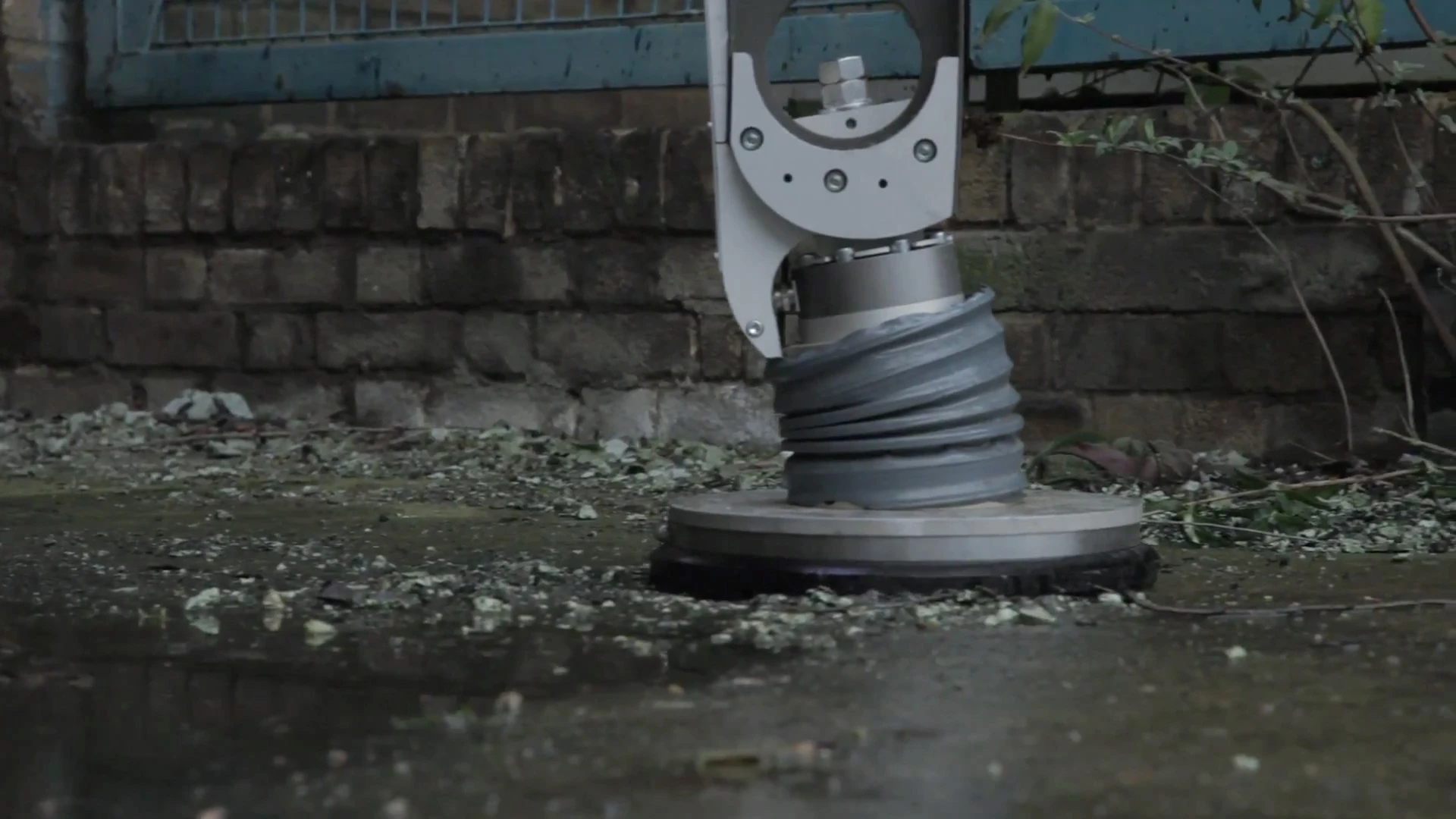

Close-up: Mantis takes its first step
8/18
Close-up: Mantis takes its first step

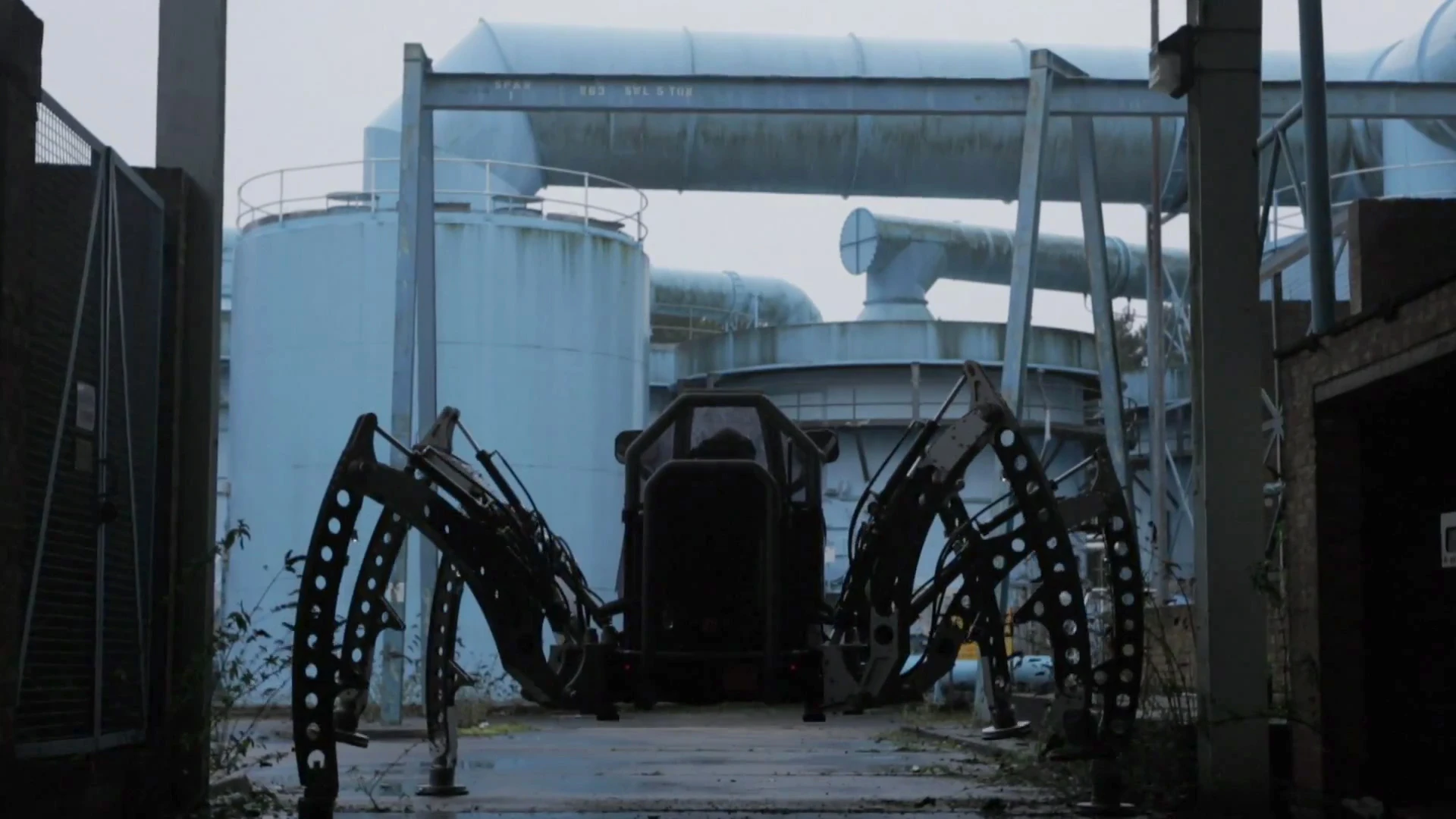

Mantis stomps around an abandoned factory site
9/18
Mantis stomps around an abandoned factory site

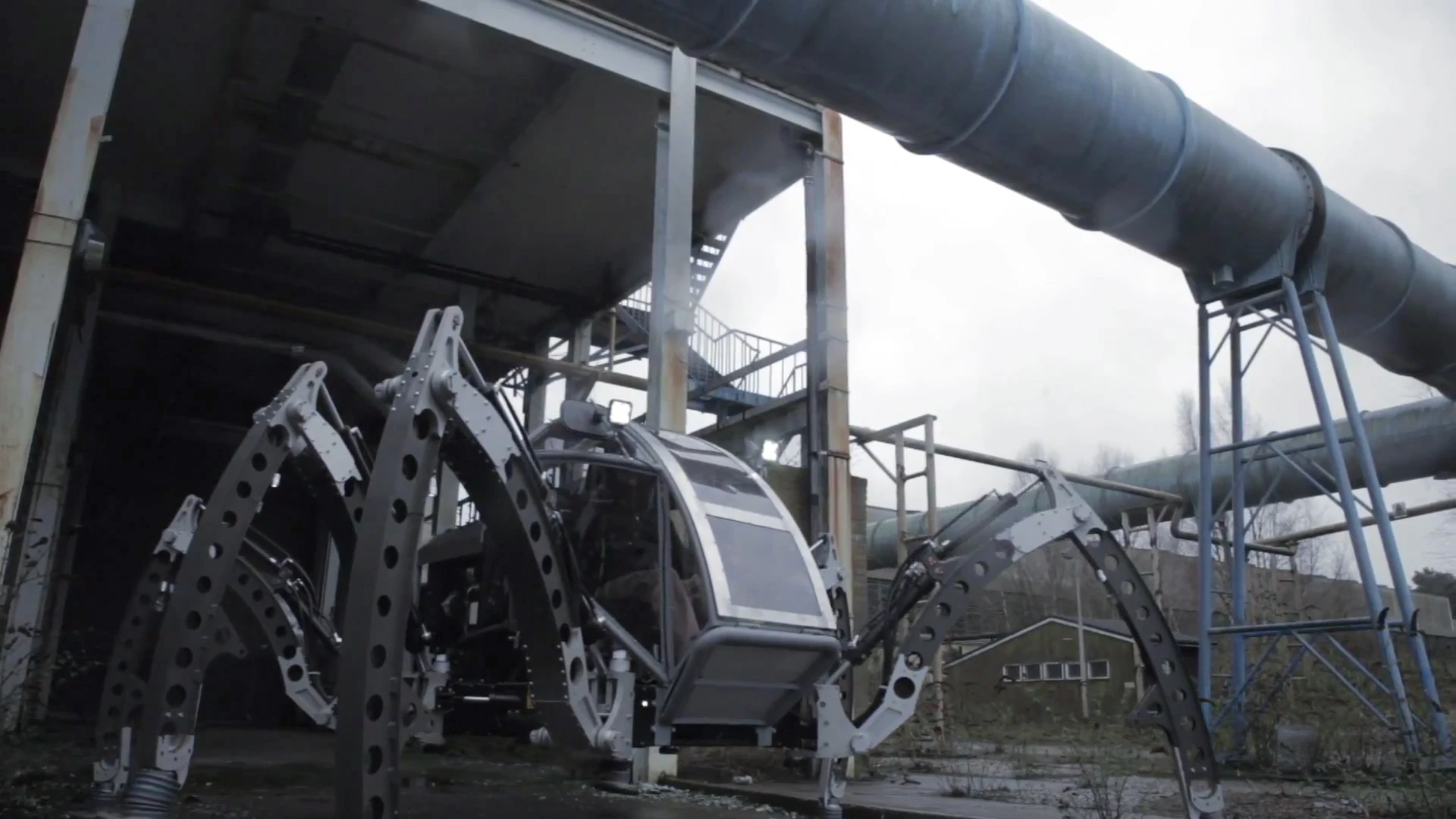

Mantis was built over the course of four years
10/18
Mantis was built over the course of four years

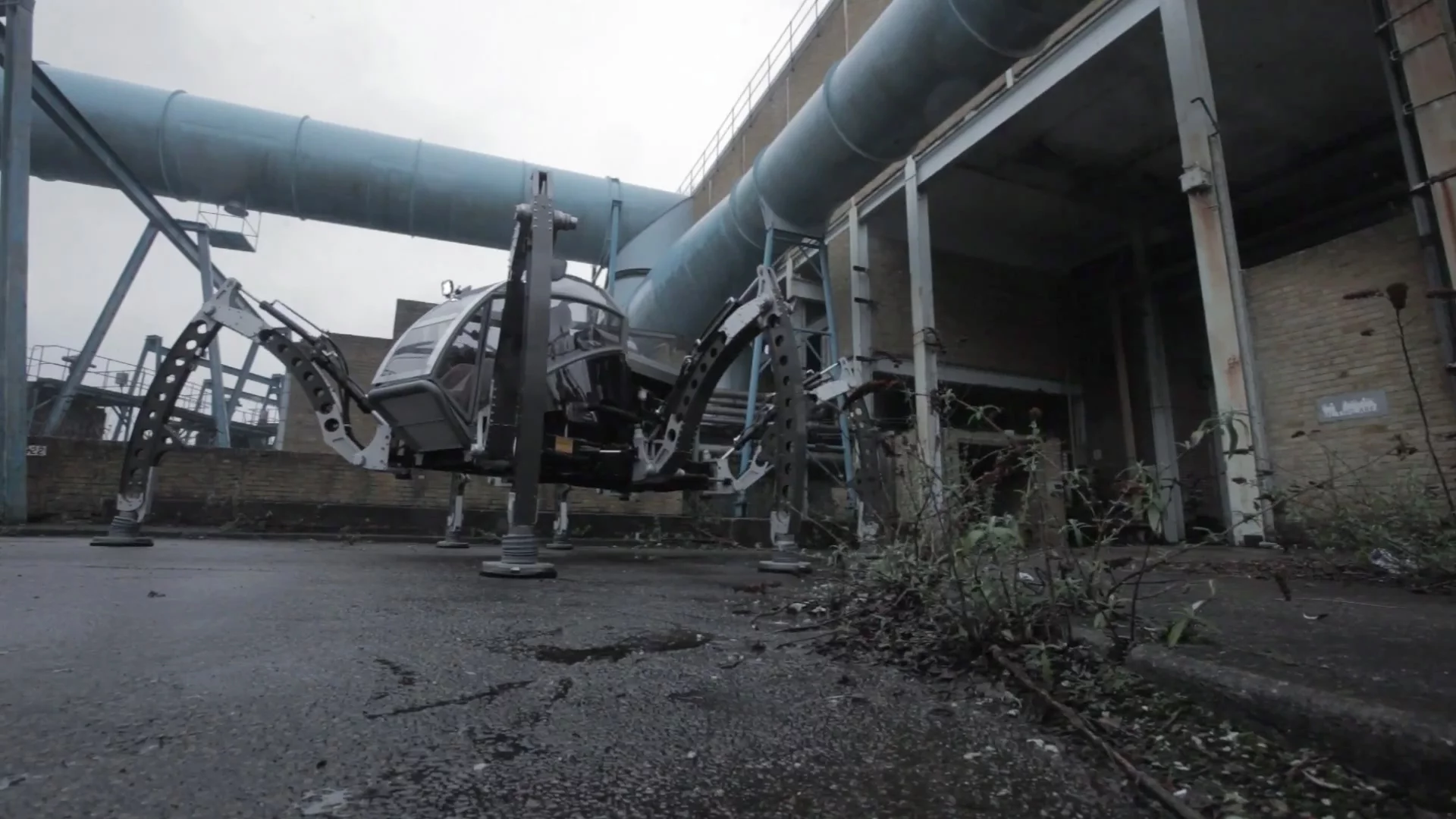

The Mantis hexapod project was privately funded
11/18
The Mantis hexapod project was privately funded

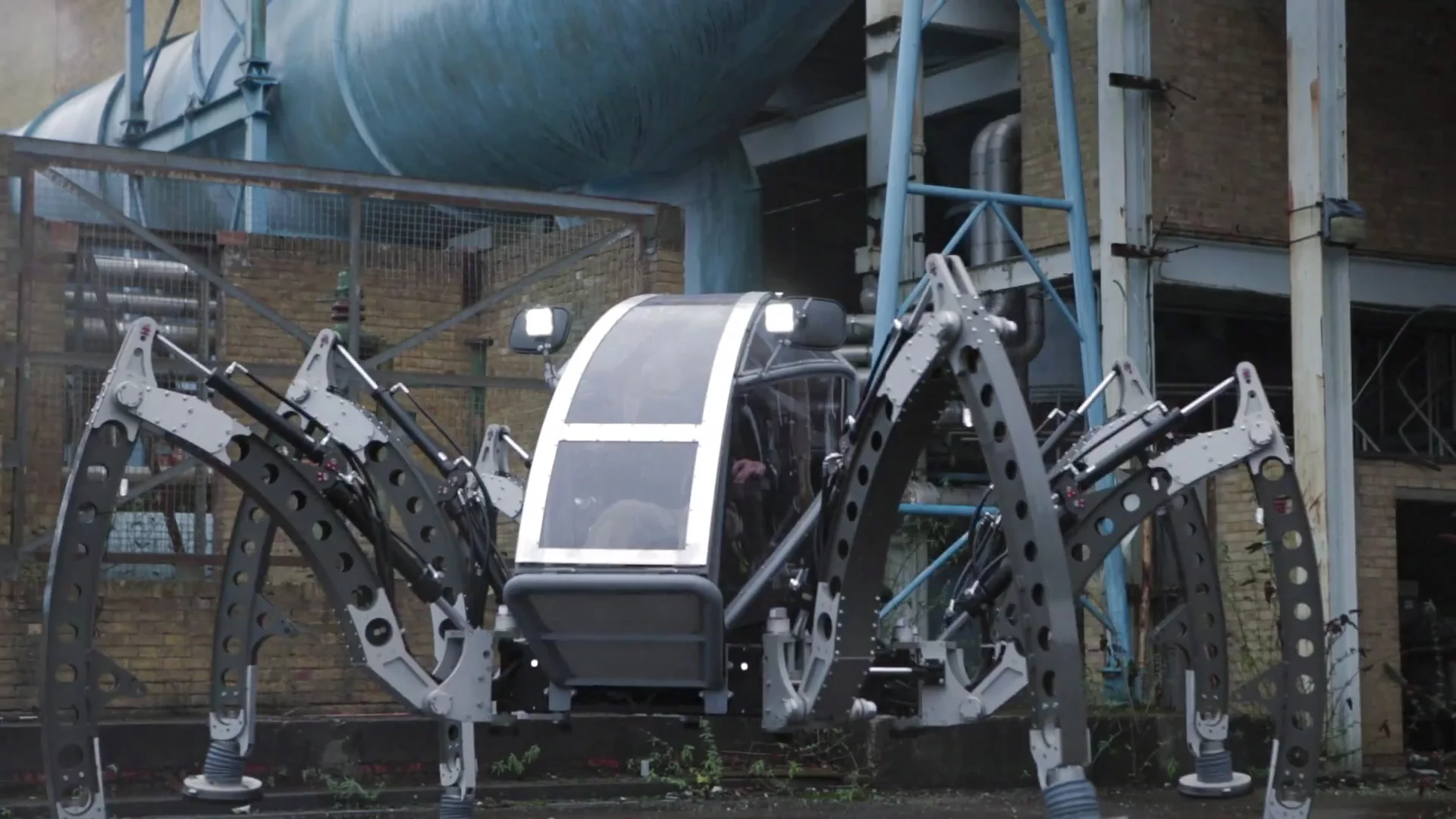

Mantis is actually a Mark II, an earlier version was tested in 2011
12/18
Mantis is actually a Mark II, an earlier version was tested in 2011
Matt Denton, the chief designer of Mantis, drives it around an abandoned factory site
13/18
Matt Denton, the chief designer of Mantis, drives it around an abandoned factory site

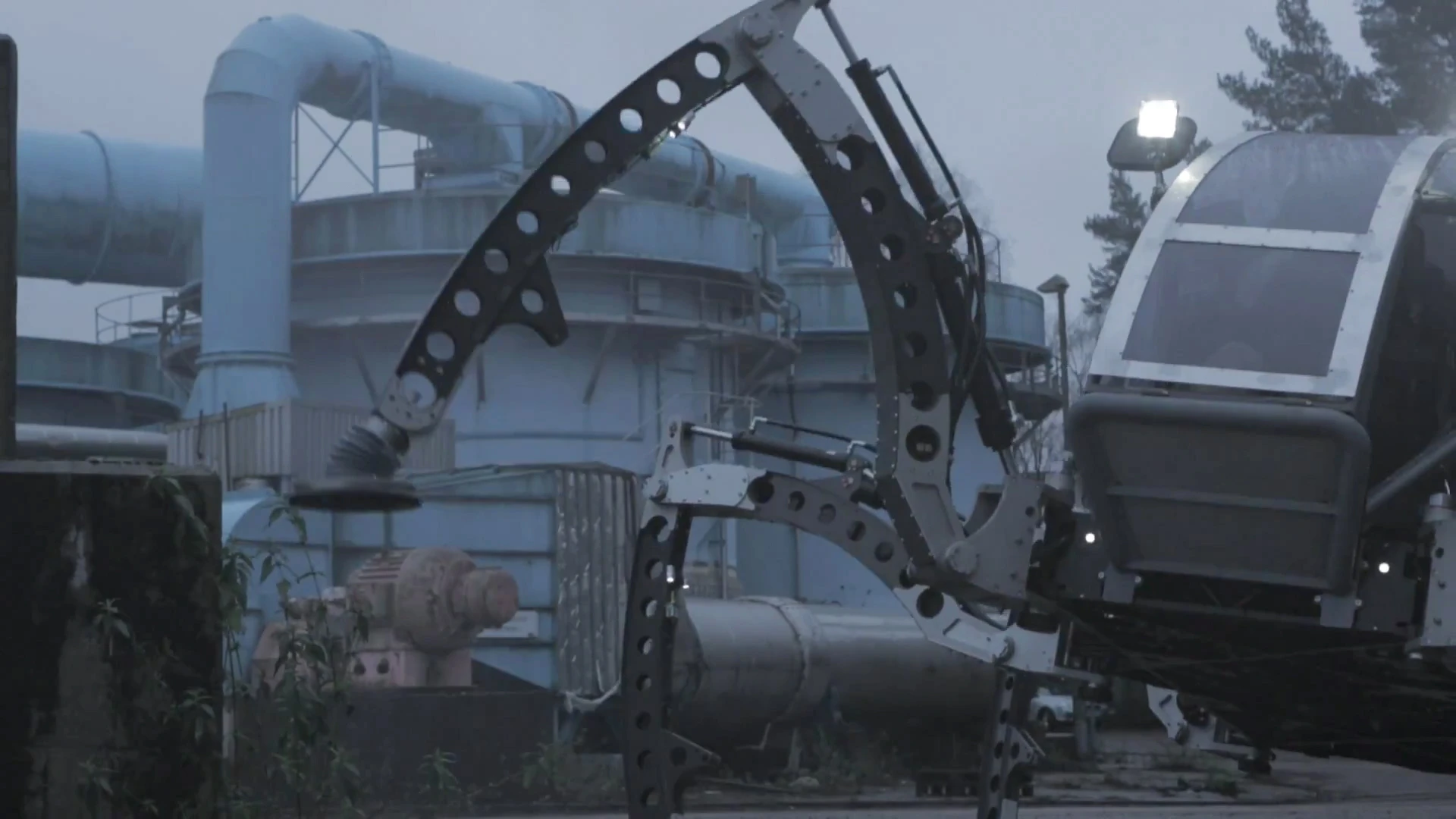

Mantis' legs are quite flexible but a bit slow
14/18
Mantis' legs are quite flexible but a bit slow

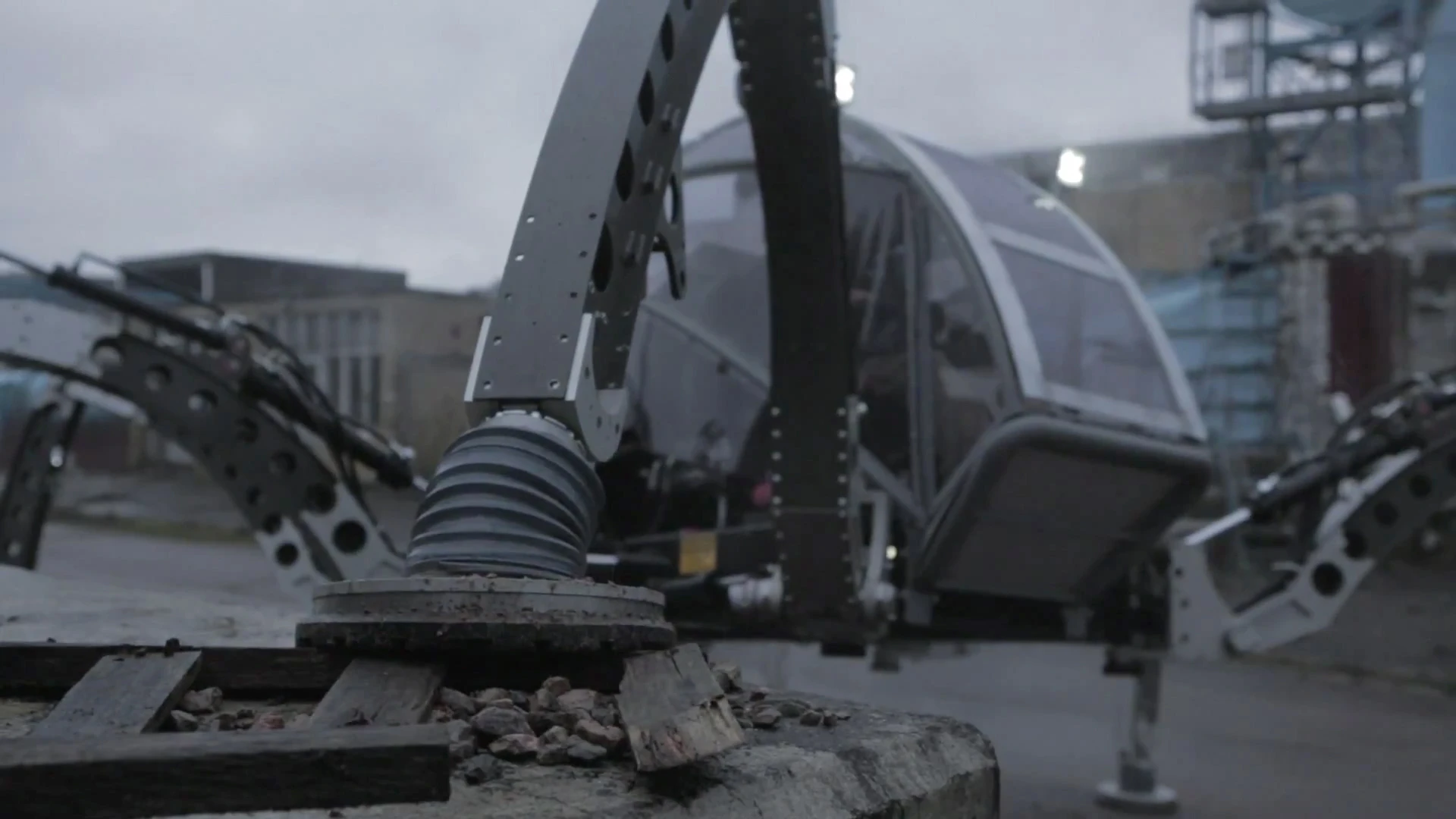

Mantis' legs contain a number of sensors and are controlled by HexEngine software, which works on smaller hexapod robots
15/18
Mantis' legs contain a number of sensors and are controlled by HexEngine software, which works on smaller hexapod robots

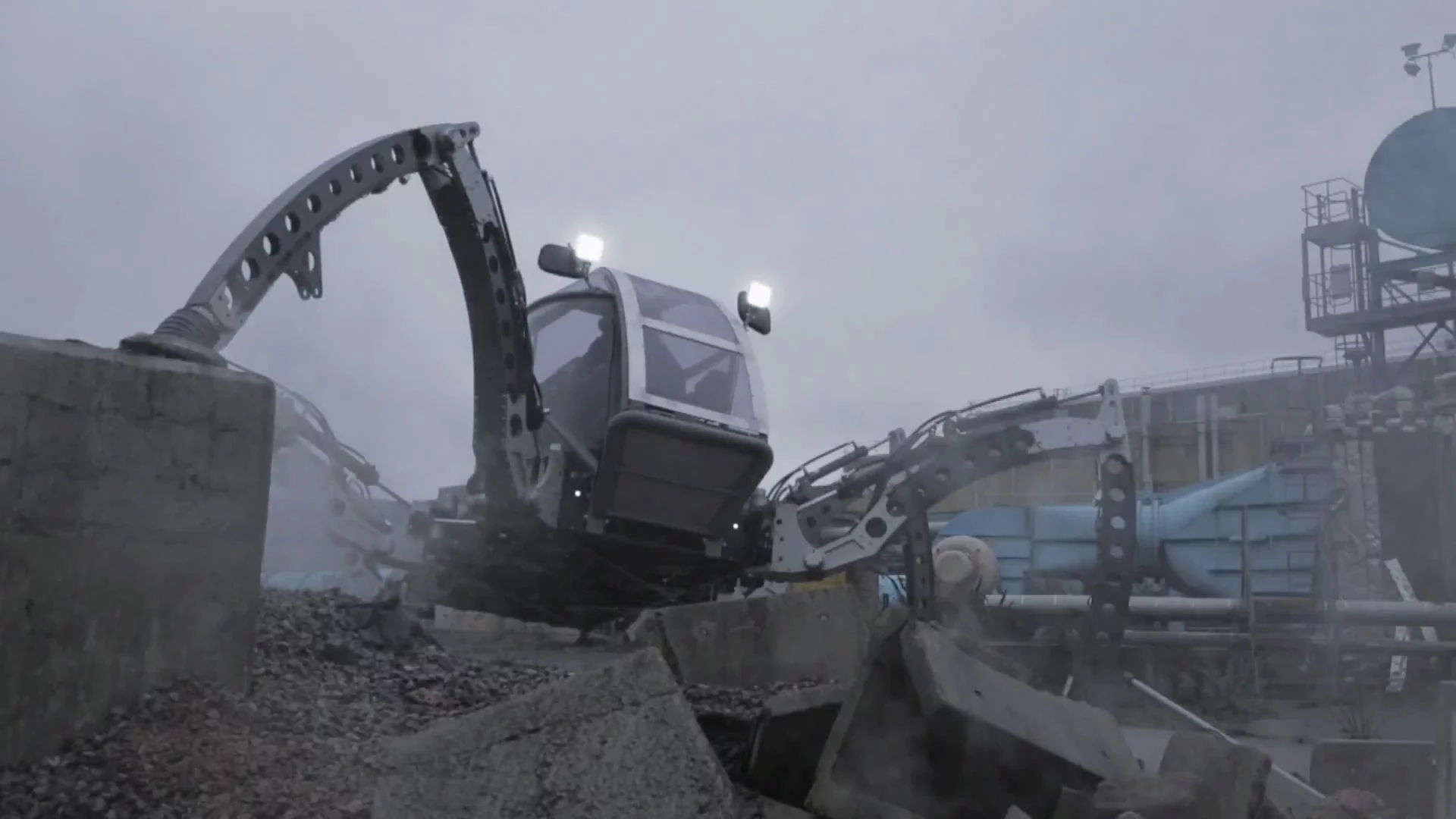

Mantis overcomes hazardous terrain
16/18
Mantis overcomes hazardous terrain

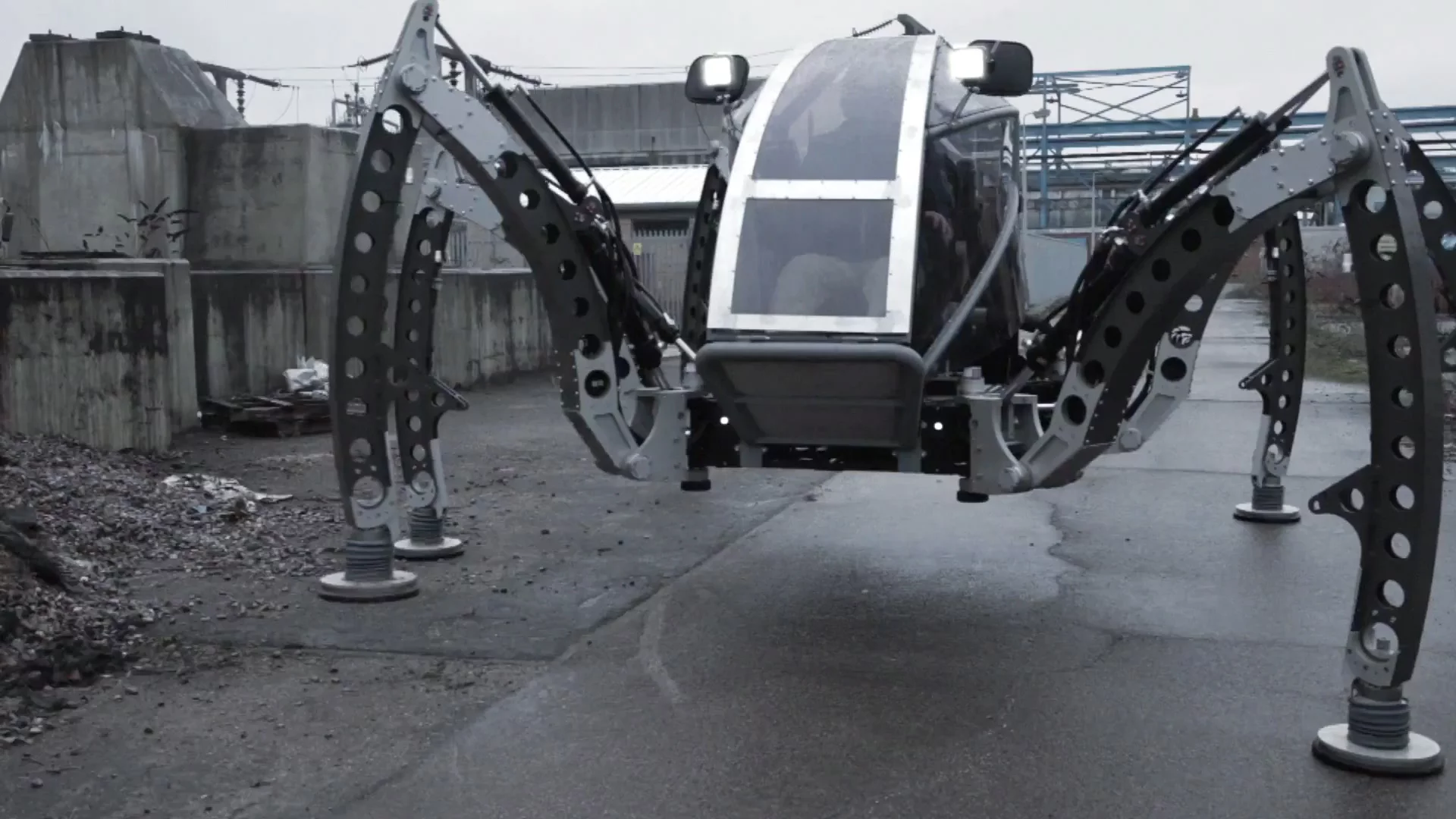

Mantis, built by Matt Denton of Micromagic Systems, is the largest operational hexapod in the world
17/18
Mantis, built by Matt Denton of Micromagic Systems, is the largest operational hexapod in the world

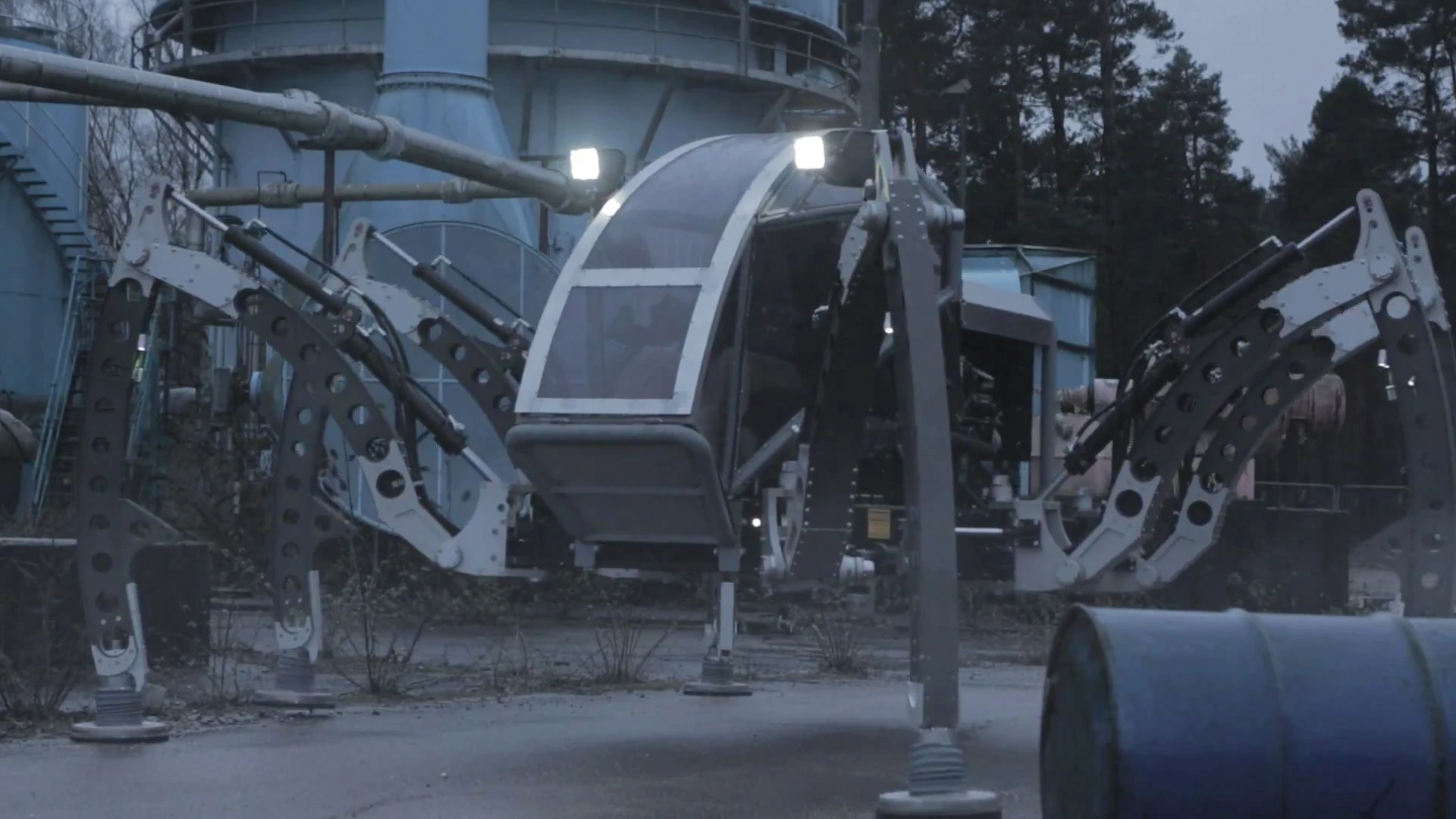

Mantis stands 2.8 meters tall
18/18
Mantis stands 2.8 meters tall
View gallery - 18 images

The term mad scientist gets thrown around quite a bit, but in the case of one Matt Denton it most certainly applies. His company, Micromagic Systems, has been working steadily over the past four years to design and build a walking robot that's big enough to carry a human passenger. The resulting beast is described as "the biggest, all-terrain operational hexapod robot in the world."

The robot weighs a massive 1,900 kg (4,188 pounds), stands 2.8 meters (9.18 ft) tall, and is powered by a Perkins 2.2 liter turbo diesel engine and hydraulics. It's outfitted with a variety of sensors (including force transducers, angle sensors, and an inclinometer) that help it walk. A Linux PC running HexEngine – software designed to control hexapod locomotion – takes care of the 18 hydraulic actuators in its legs, while a panel PC puts you in the driver's seat.

"This is definitely the largest hexapod we have built so far," says Micromagic founder and Mantis' chief designer Matt Denton. His company, which produces animatronics for the film and television industry, has worked on hexapods before – including one that appeared as a six-legged turtle in the Harry Potter films. Mantis, however, was a passion project that is now being rented for events.

Matt Denton, chief designer and founder of Micromagic Systems, sits in the cockpit of his giant hexapod robot Mantis
Matt Denton, chief designer and founder of Micromagic Systems, sits in the cockpit of his giant hexapod robot Mantis

This isn't the only ginormous hexapod robot being built. A team from Massachusetts is working on one of a similar size called Stompy, following a successful Kickstarter campaign last year. However, Matt and his team beat them to the punch with Mantis, which you can see in action in the video below.

Source: Mantis Robot, Mantis Facebook page
