Keyboard and violin spawn O-Bow offspring

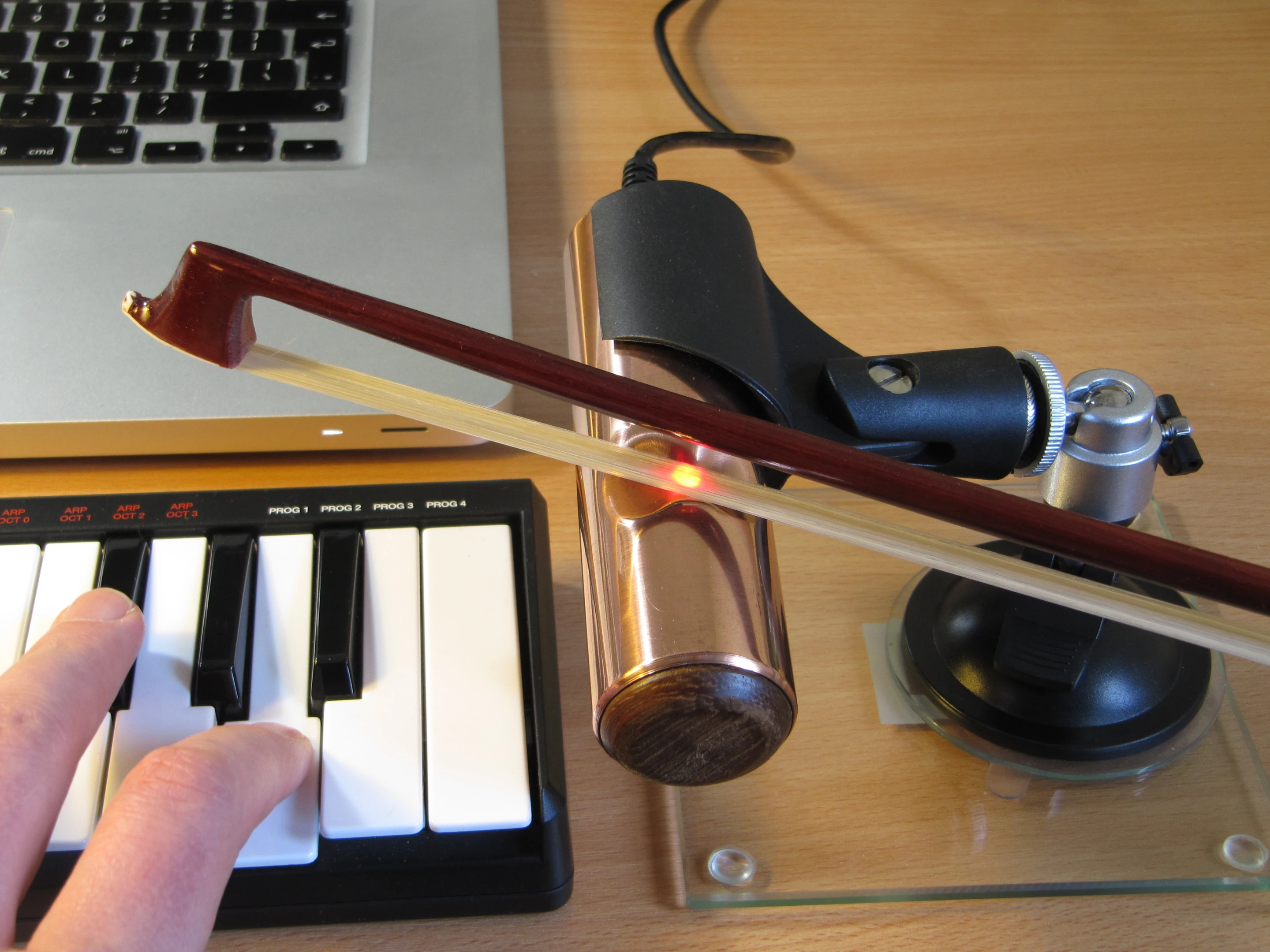

The O-Bow from Dr Dylan Menzies
The O-Bow from Dr Dylan Menzies
View 8 Images
The O-Bow from Dr Dylan Menzies
1/8
The O-Bow from Dr Dylan Menzies
The optical sensor sits at the bottom of a saddle-shaped guide in polished copper tube stopped with wooden ends
2/8
The optical sensor sits at the bottom of a saddle-shaped guide in polished copper tube stopped with wooden ends

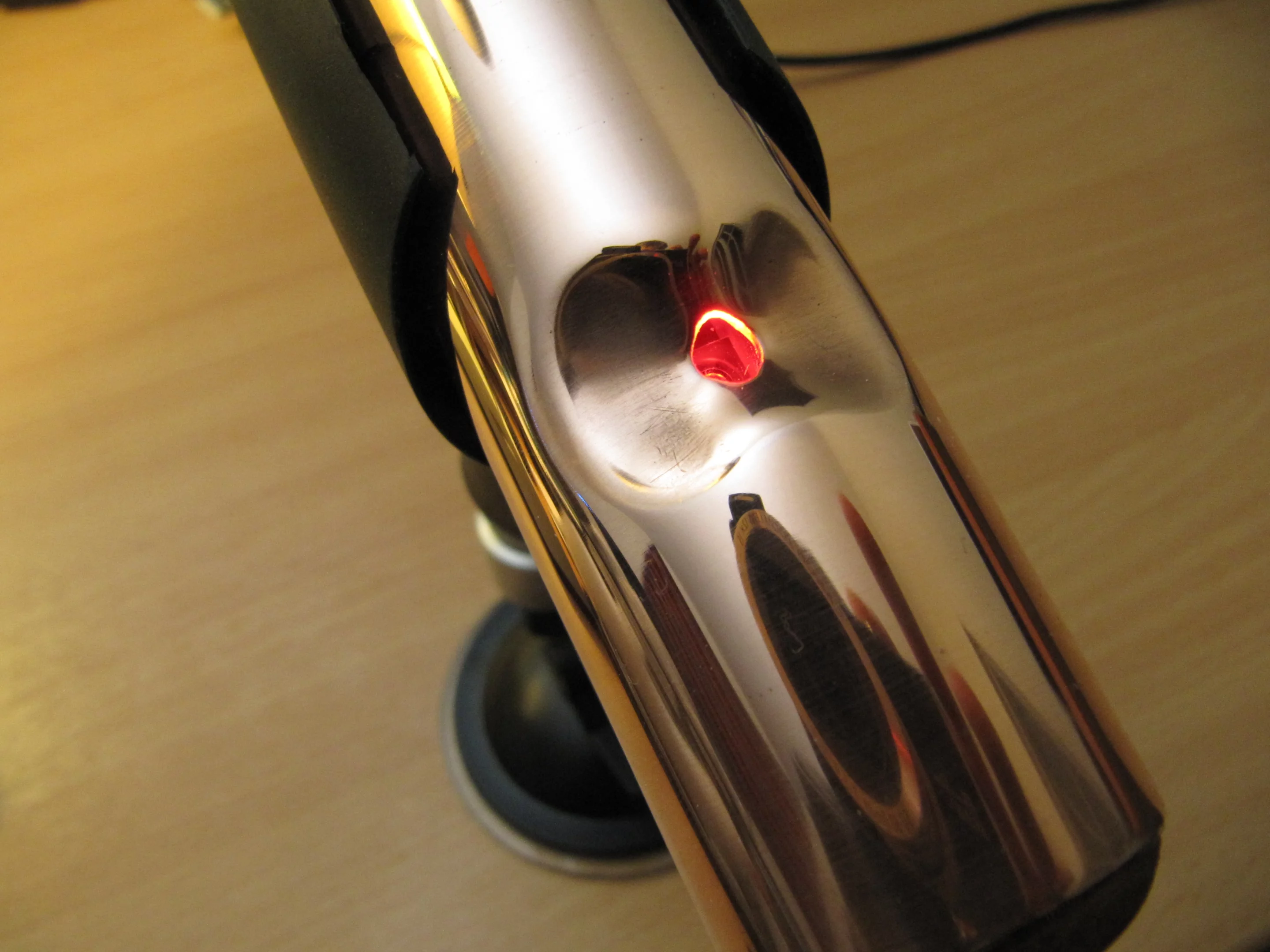

The copper tubing was designed using CAD software to help maintain the bow in an optimum position for tracking
3/8
The copper tubing was designed using CAD software to help maintain the bow in an optimum position for tracking
The housing can be attached to a standard microphone grip
4/8
The housing can be attached to a standard microphone grip
The sensor is capable of tracking different types of bows, from classic violin bows to simple wooden sticks
5/8
The sensor is capable of tracking different types of bows, from classic violin bows to simple wooden sticks
In addition to tracking horizontal movement, the high resolution sensor is able to approximately measure the distance of the bow above the saddle-shaped guide
6/8
In addition to tracking horizontal movement, the high resolution sensor is able to approximately measure the distance of the bow above the saddle-shaped guide
The first prototype used an adapted optical mouse sensor to track the movement of the bow and add some expressive power to an otherwise rather dry and emotionless source sound
7/8
The first prototype used an adapted optical mouse sensor to track the movement of the bow and add some expressive power to an otherwise rather dry and emotionless source sound
A version of the system was transposed onto an Eigenlabs Eigenharp Alpha
8/8
A version of the system was transposed onto an Eigenlabs Eigenharp Alpha

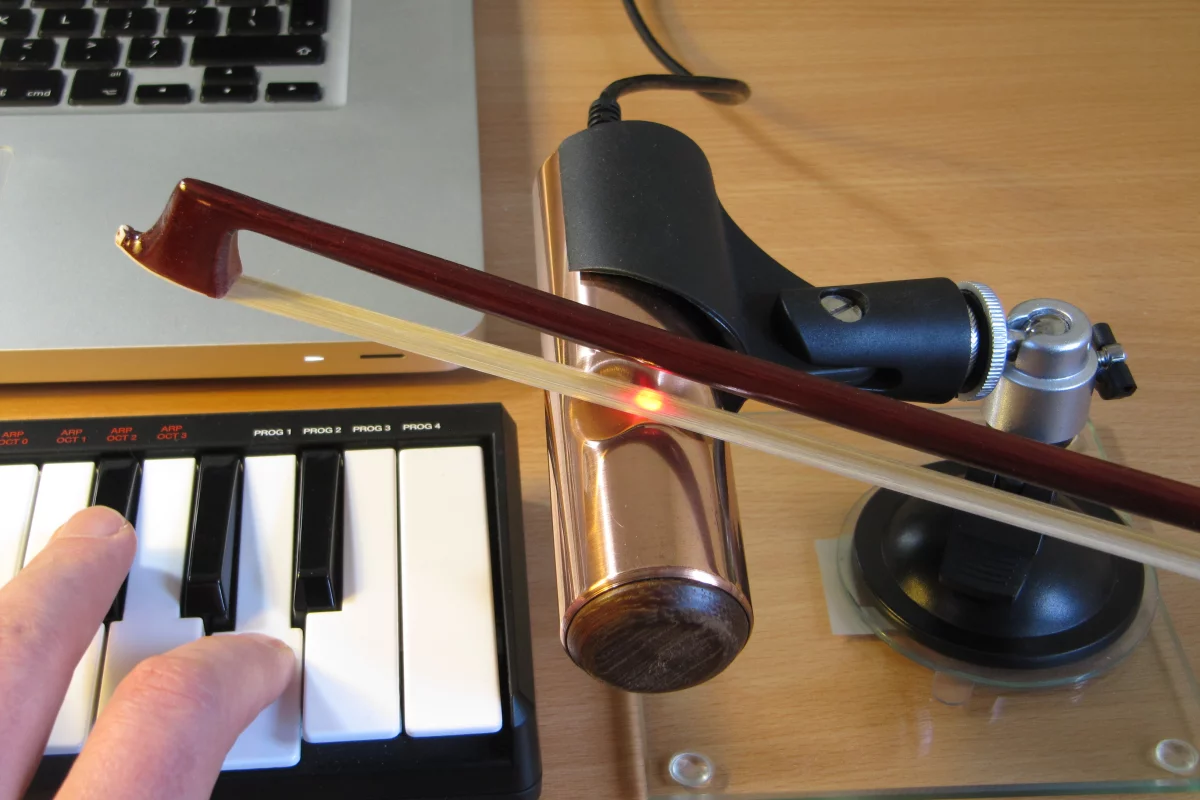

Have you ever yearned to play a violin like Leila Josefowicz or Paul Zukofsky but can't get beyond annoying scratchy squeals? Dr Dylan Menzies of the De Montfort University in Leicester, U.K., says that his O-Bow musical bow controller is much easier to master. A player selects notes from a bank of recorded violin sounds using a keyboard while the bowing hand strokes a traditional violin bow over an optical sensor. The result is pleasantly realistic.

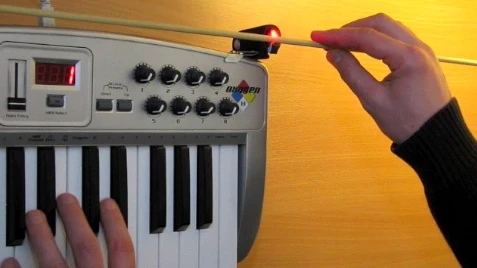

Menzies actually set out to digitally emulate expressive bowed string sounds a few years back, and by December 2009 had built his first prototype. Based around the modification and playback of a single violin sample using synthesis script developed in Max/MSP, the system used an adapted optical mouse sensor to track the movement of the bow and add some expressive power to an otherwise rather dry and emotionless source sound. Unfortunately, as you can see (and hear) in the following video, the output is less than convincing.

O-Bow 1st prototype

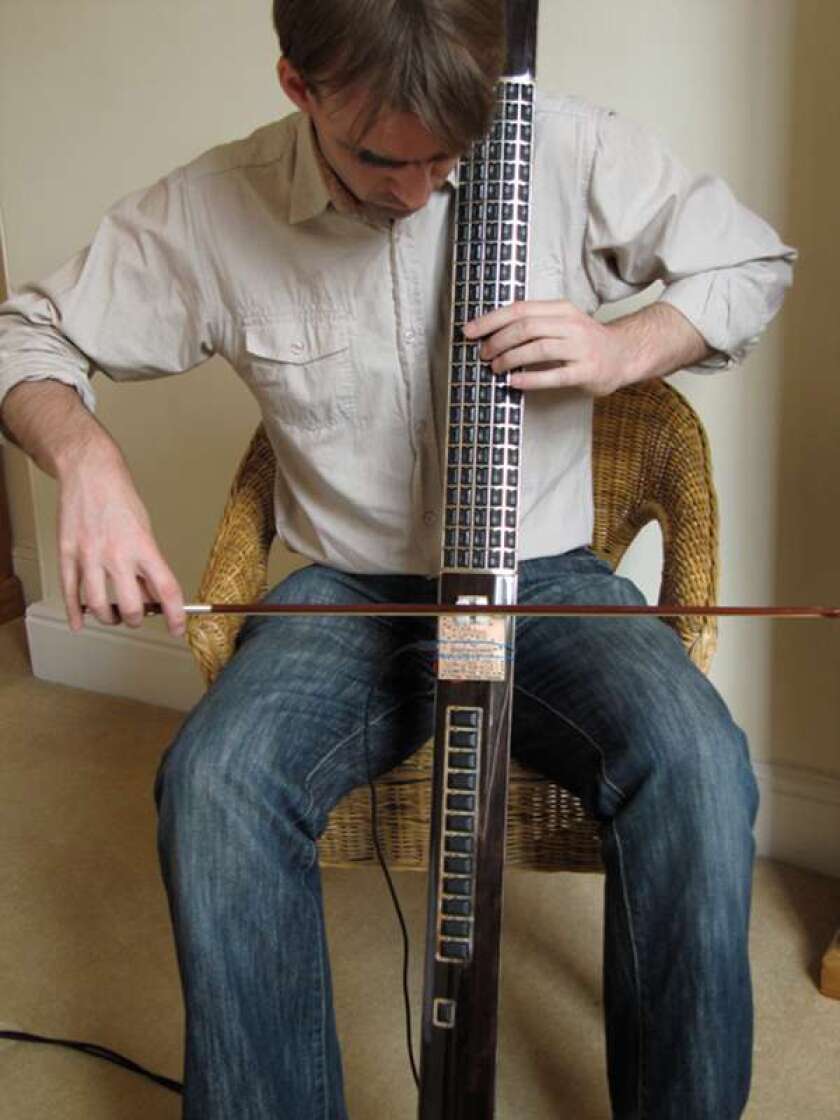

A version of the system was transposed onto an Eigenlabs Eigenharp Alpha in July 2011, which moved keyboard control to a series of buttons/keys on the neck and placed a bowing sensor across the middle of the cello-like setup.

A version of the system was transposed onto an Eigenlabs Eigenharp Alpha
A version of the system was transposed onto an Eigenlabs Eigenharp Alpha

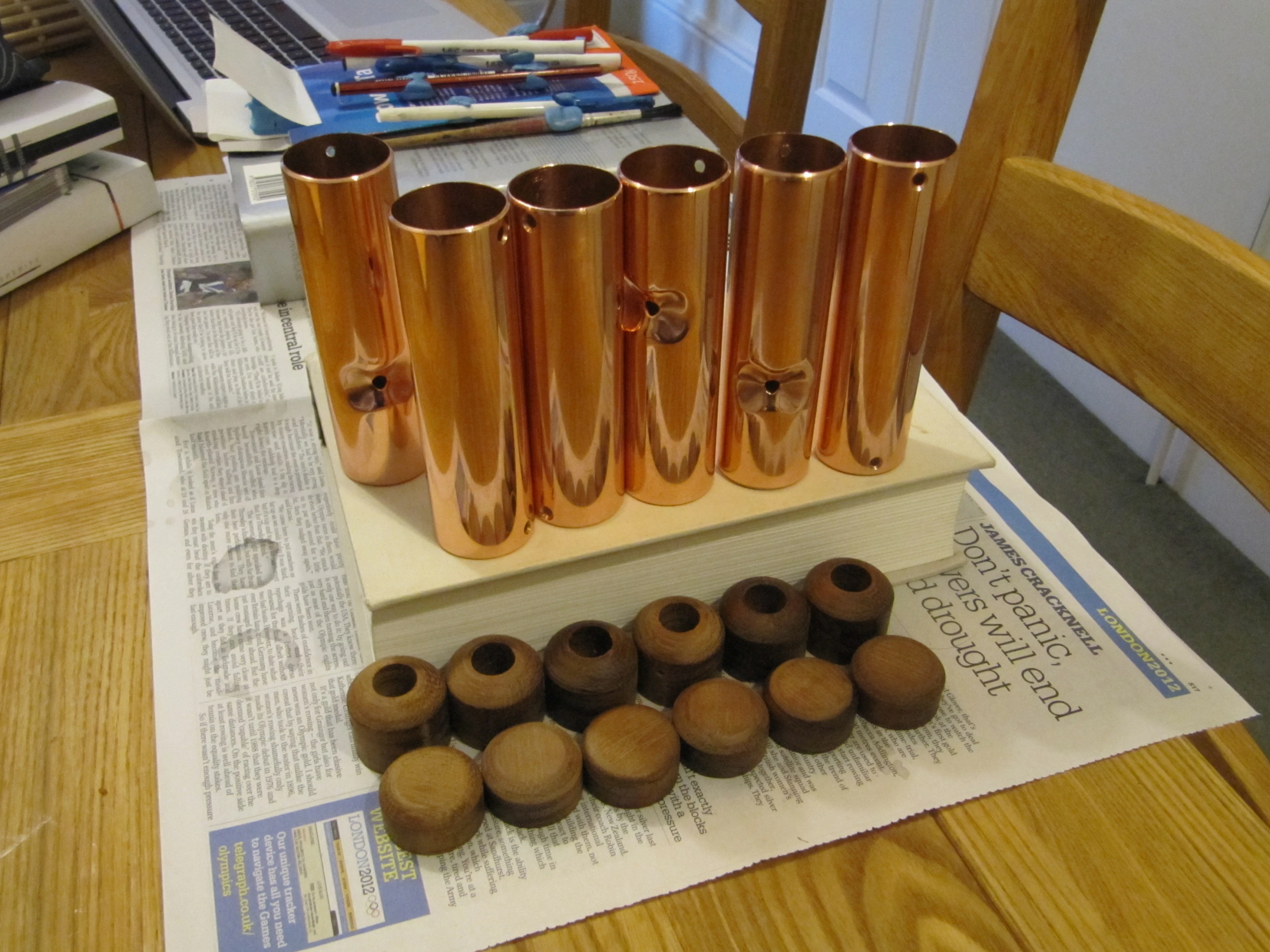

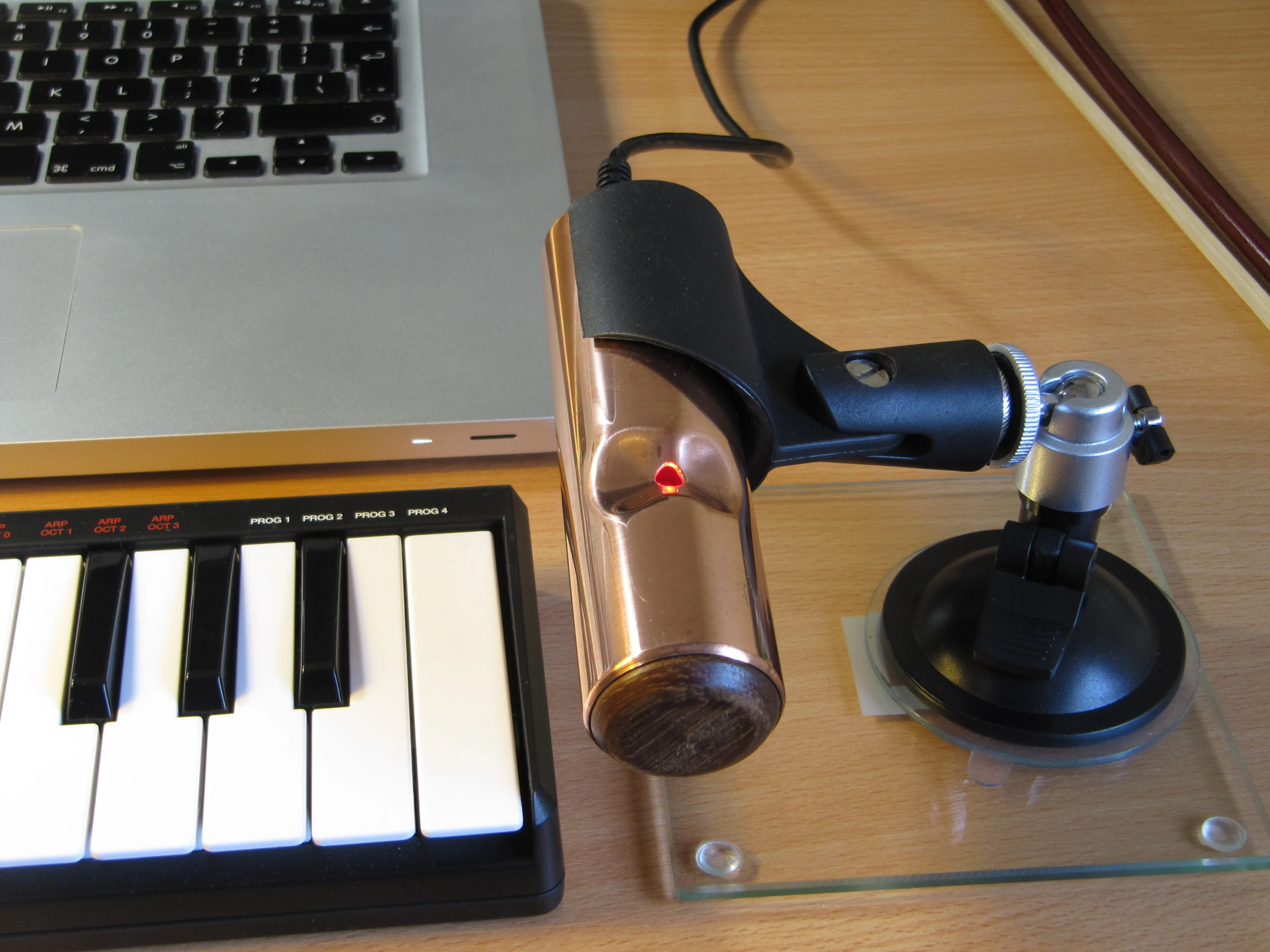

Now at the fifth prototype stage, and returning to the sensor/keyboard arrangement, Menzies seems to have ironed out many of the kinks. The sensor electronics and firmware has been completely reworked, the former now sitting at the bottom of a groove in polished copper tube stopped with wooden ends that lends itself to simple attachment to a microphone grip.

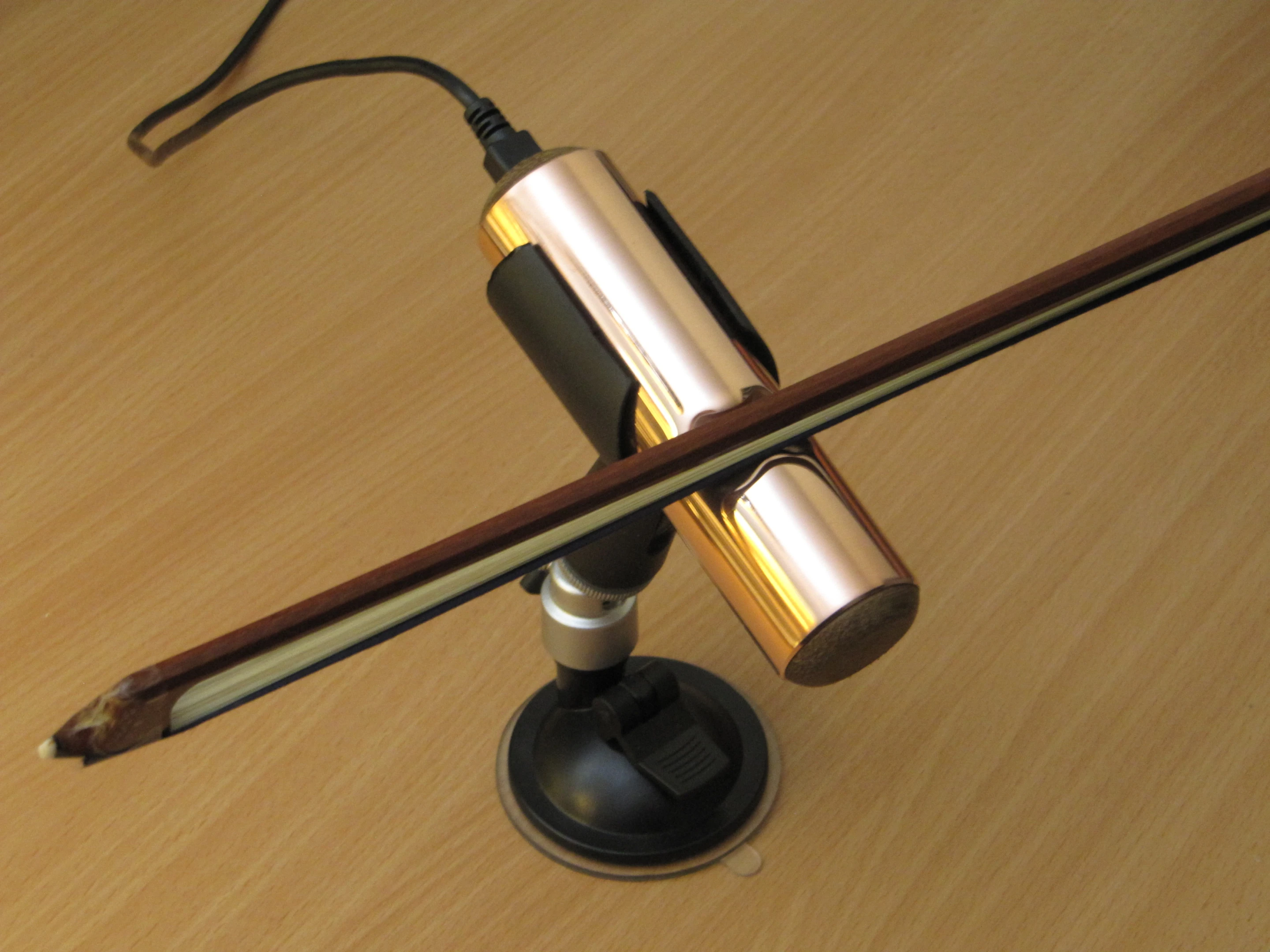

In addition to tracking horizontal movement, the sensor is able to approximately measure the distance of the bow above the saddle-shaped guide. At the moment, down force doesn't influence output, but the design could be extended to include this in the future – allowing the system to be adapted for different levels of ability.

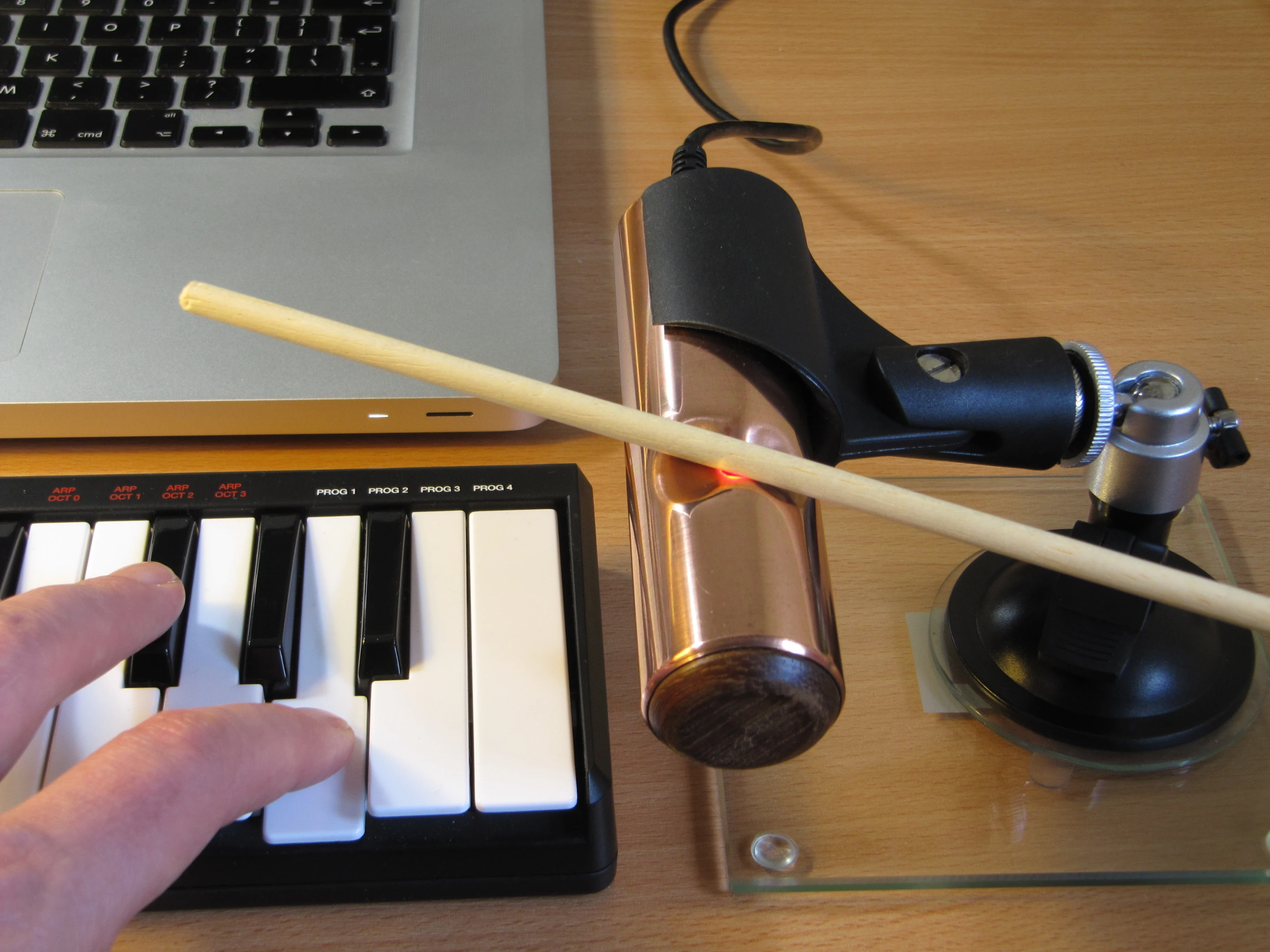

Like the first version, the sensor is capable of tracking different types of bows, from classic violin bows to simple wooden sticks, and the angle of bowing affects the intensity of vibrato. The new setup is also capable of detecting the contact state and the rate of change to the bow distance above the saddle, which caters for more realistic bow release sounds.

In addition to tracking horizontal movement, the high resolution sensor is able to approximately measure the distance of the bow above the saddle-shaped guide
In addition to tracking horizontal movement, the high resolution sensor is able to approximately measure the distance of the bow above the saddle-shaped guide

Communication between the sensor and computer running the software is via USB-MIDI. The custom synthesis software has now moved away from its original Max/MSP home and been implemented using Kontakt script language from Native Instruments, allowing for more flexible and effective handling of a greater number of samples. Of course, players need not necessarily stay with the emulation of a violin. Since the system generates synthesized sound, the possibilities are limitless.

There's a short burst of the latest prototype in action below, which shows a distinct improvement in the sound produced by the system. The "feel" of the O-Bow has been improved, it's smoother and more responsive and can now keep up with rapid bowing.

O-Bow 5th prototype

Menzies reports that the O-Bow has attracted interest from a wide range of people including professional live musicians, studio producers, amateur musicians, educators, and disabled musicians. He told us that he's currently in the process of trying to bring the device to market. Meanwhile, more violin and cello sequences can be heard via the source link below.

Source: Dylan Menzies via Wired UK
