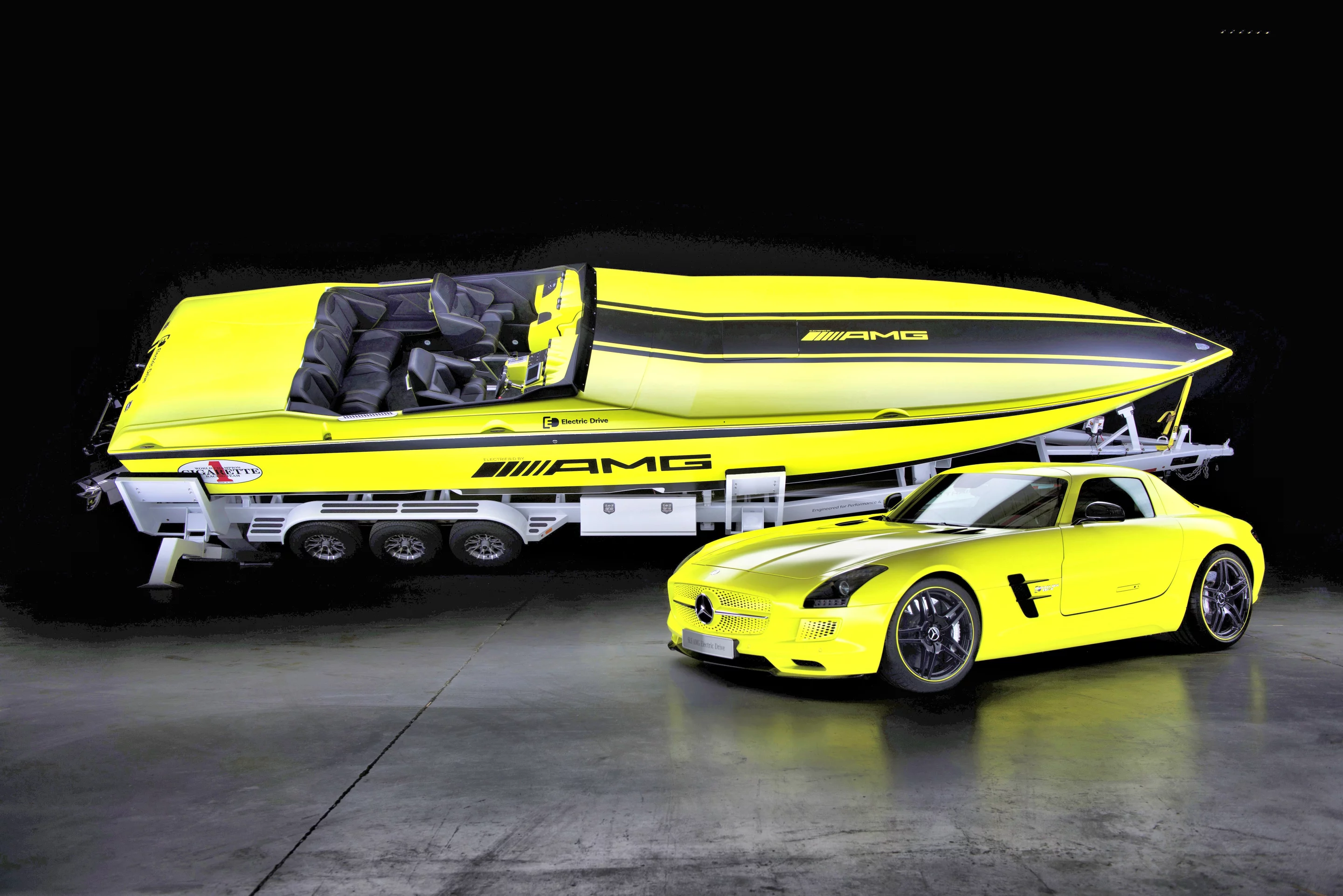

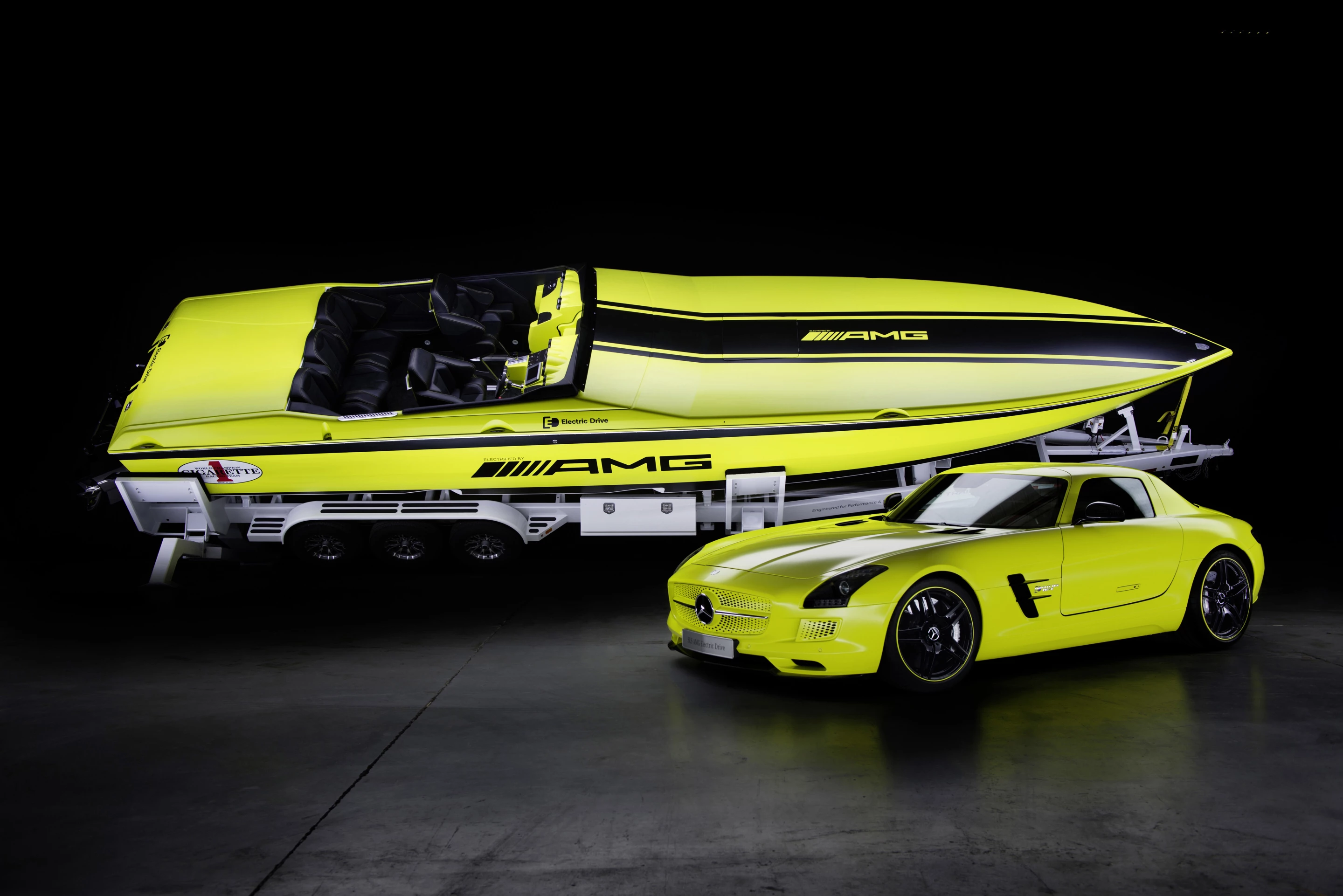

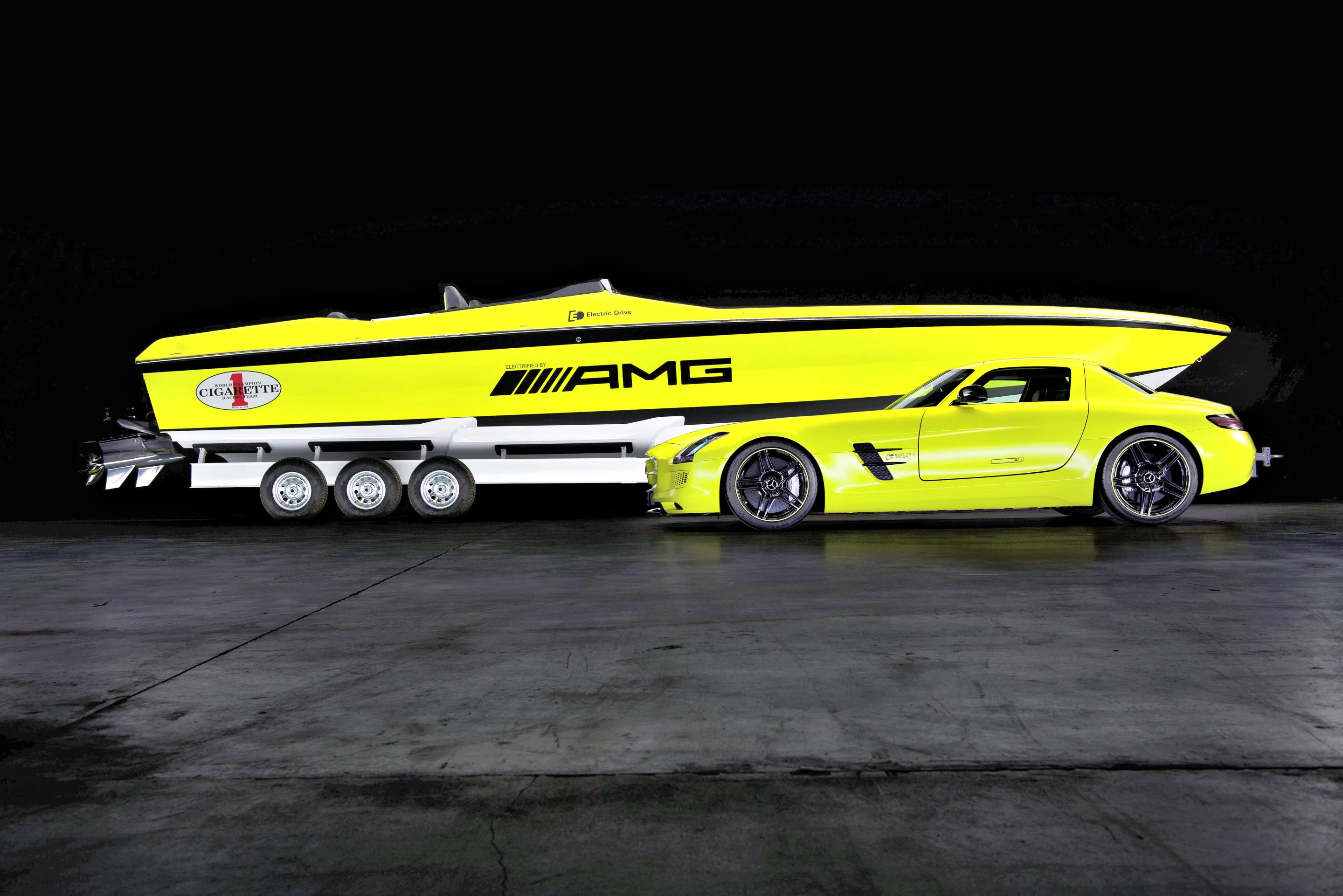

AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes
View 40 Images

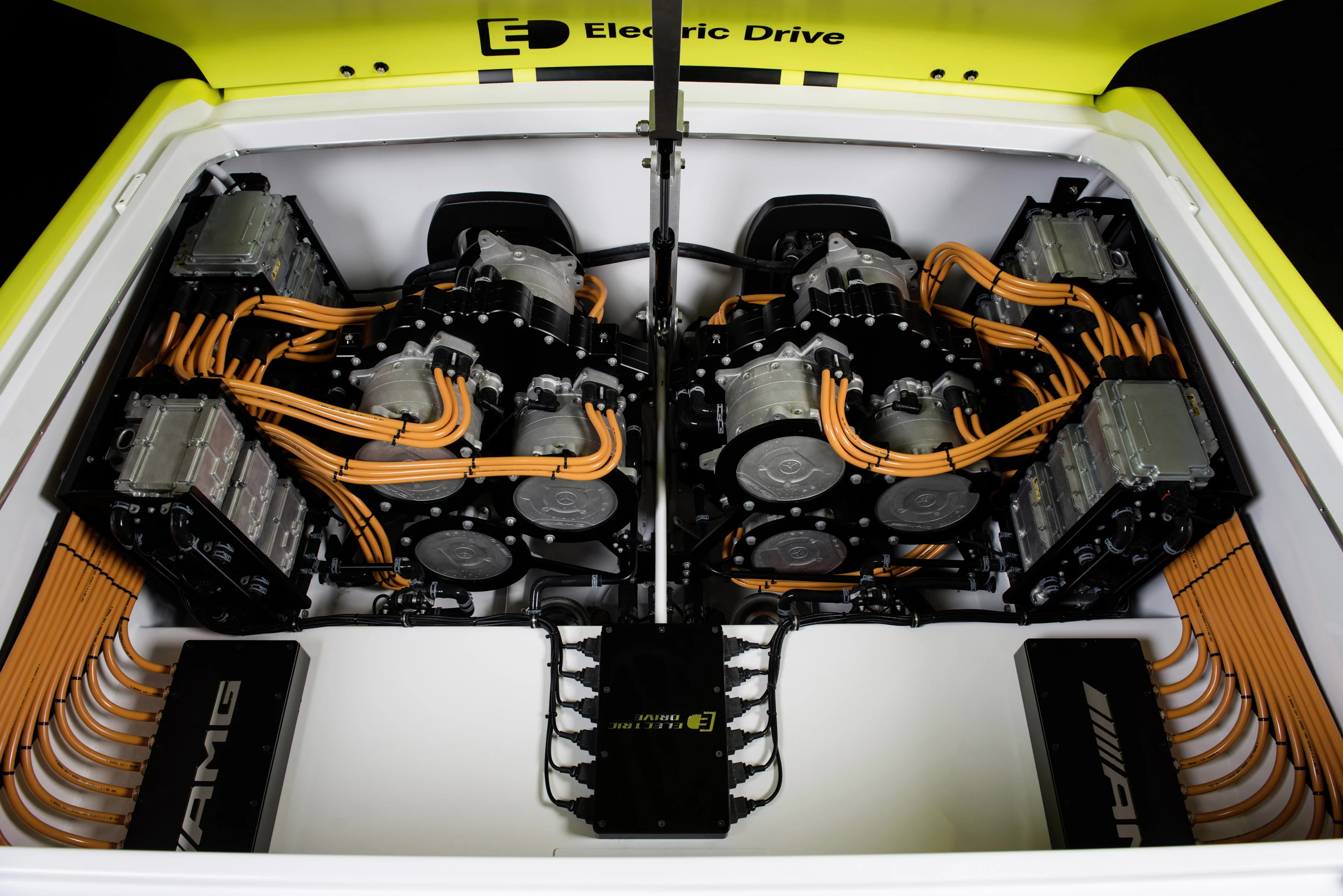

Engine compartment of the AMGCR Electric Top Gun
1/40
Engine compartment of the AMGCR Electric Top Gun

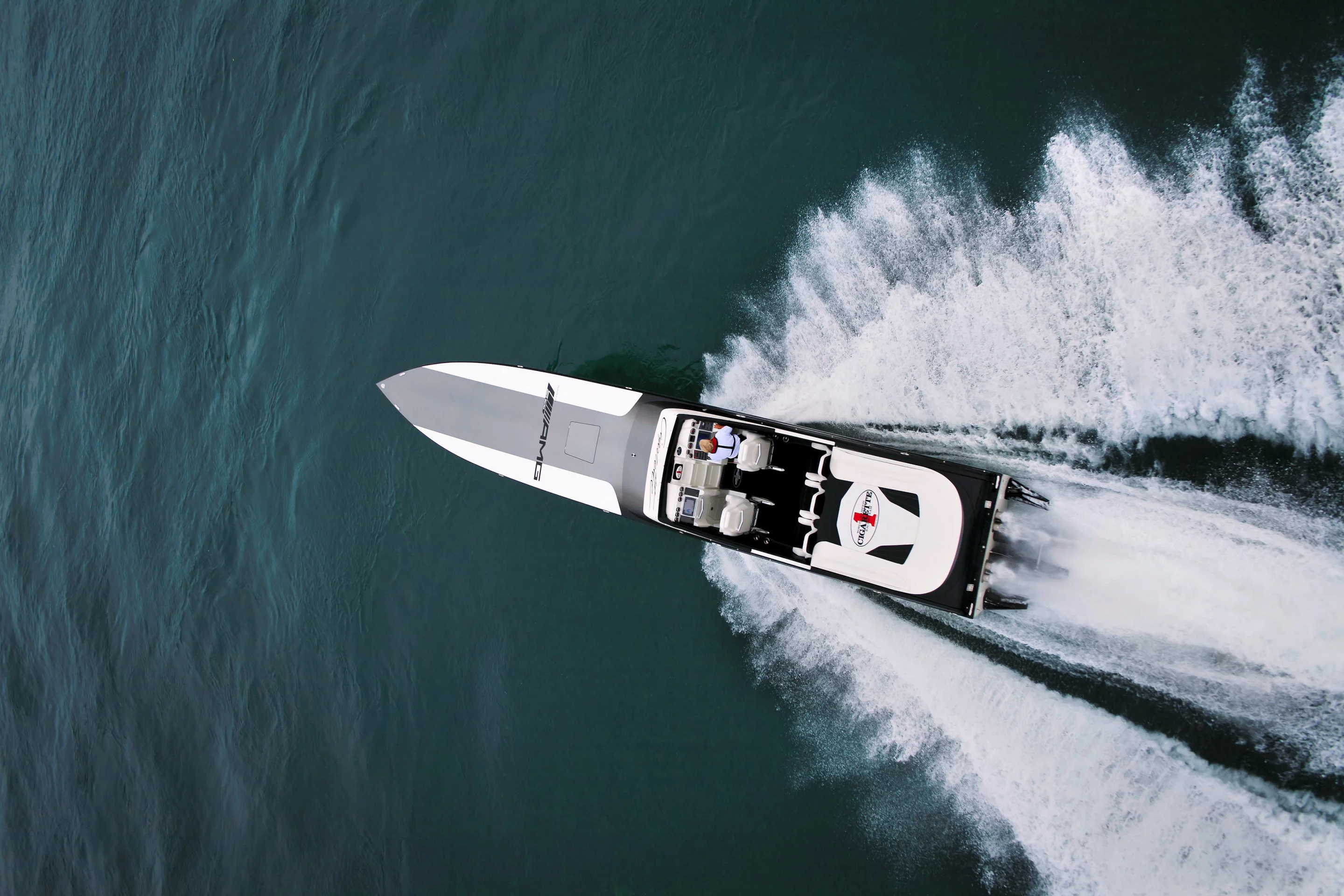

The AMGCR Electric Top Gun from above – all 38 feet of her
2/40
The AMGCR Electric Top Gun from above – all 38 feet of her

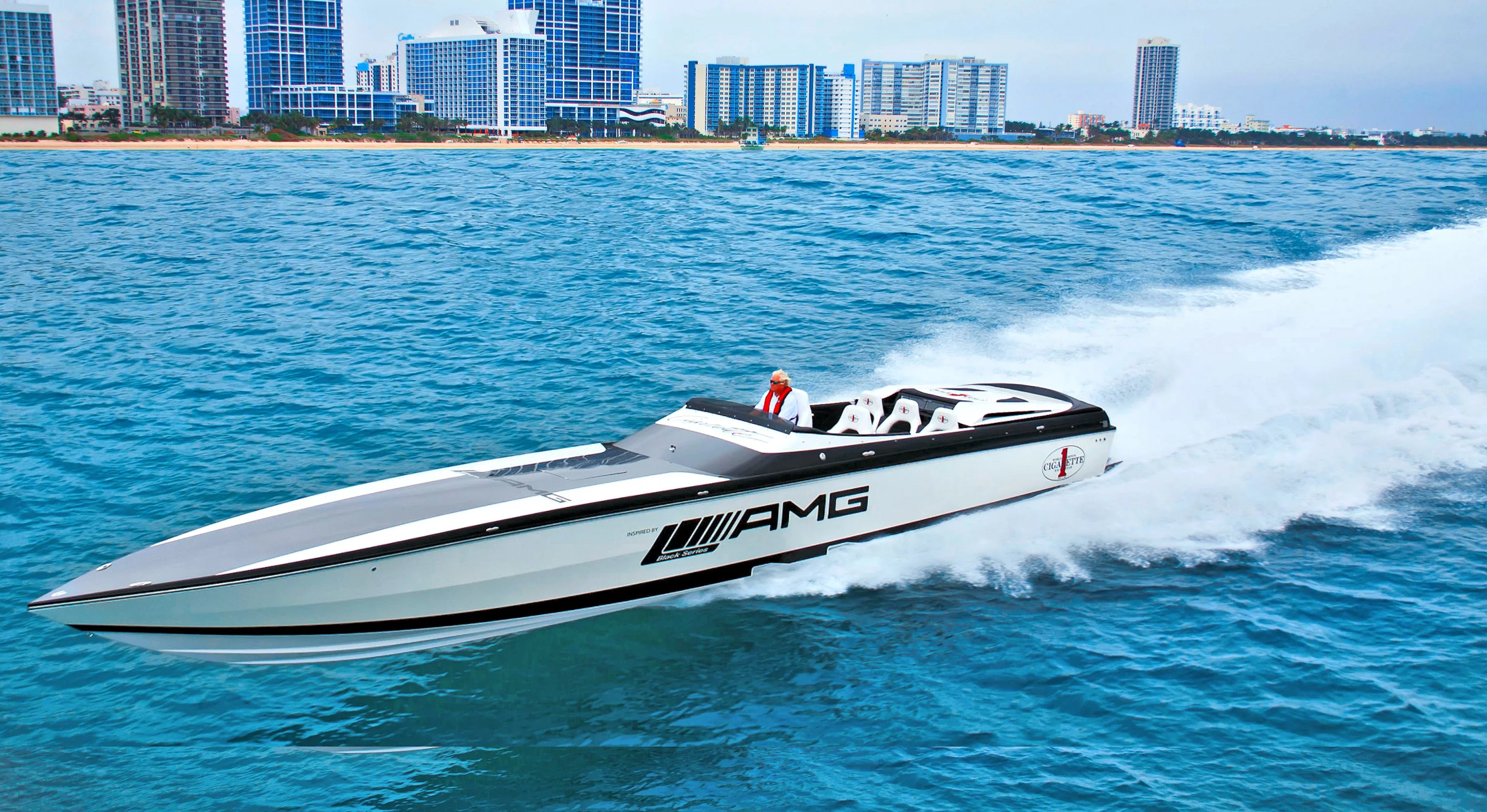

AMG and Cigarette Racing join forces to produce the world's fastest and most powerful electric boat
3/40
AMG and Cigarette Racing join forces to produce the world's fastest and most powerful electric boat

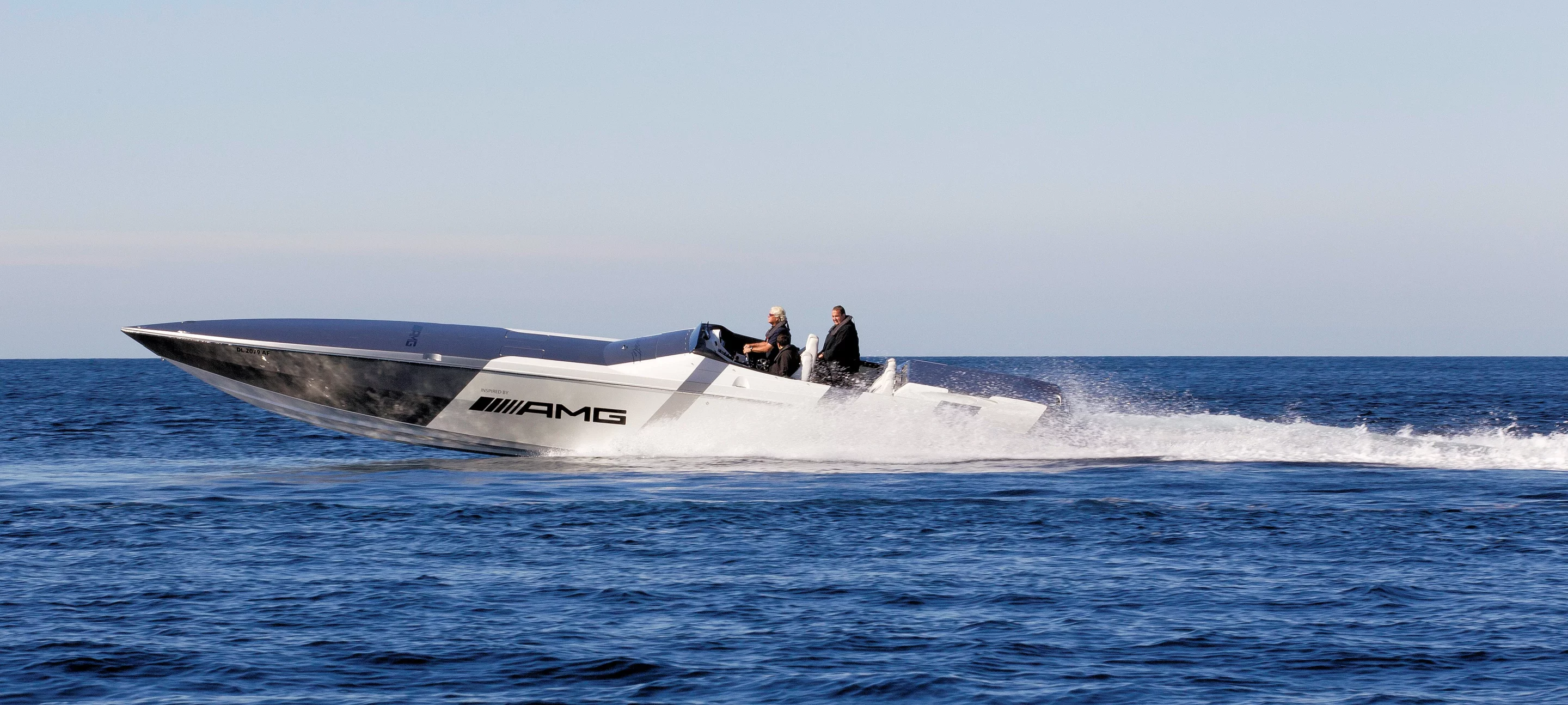

Cruising slowly in the AMGCR Electric Top Gun cigarette boat
4/40
Cruising slowly in the AMGCR Electric Top Gun cigarette boat

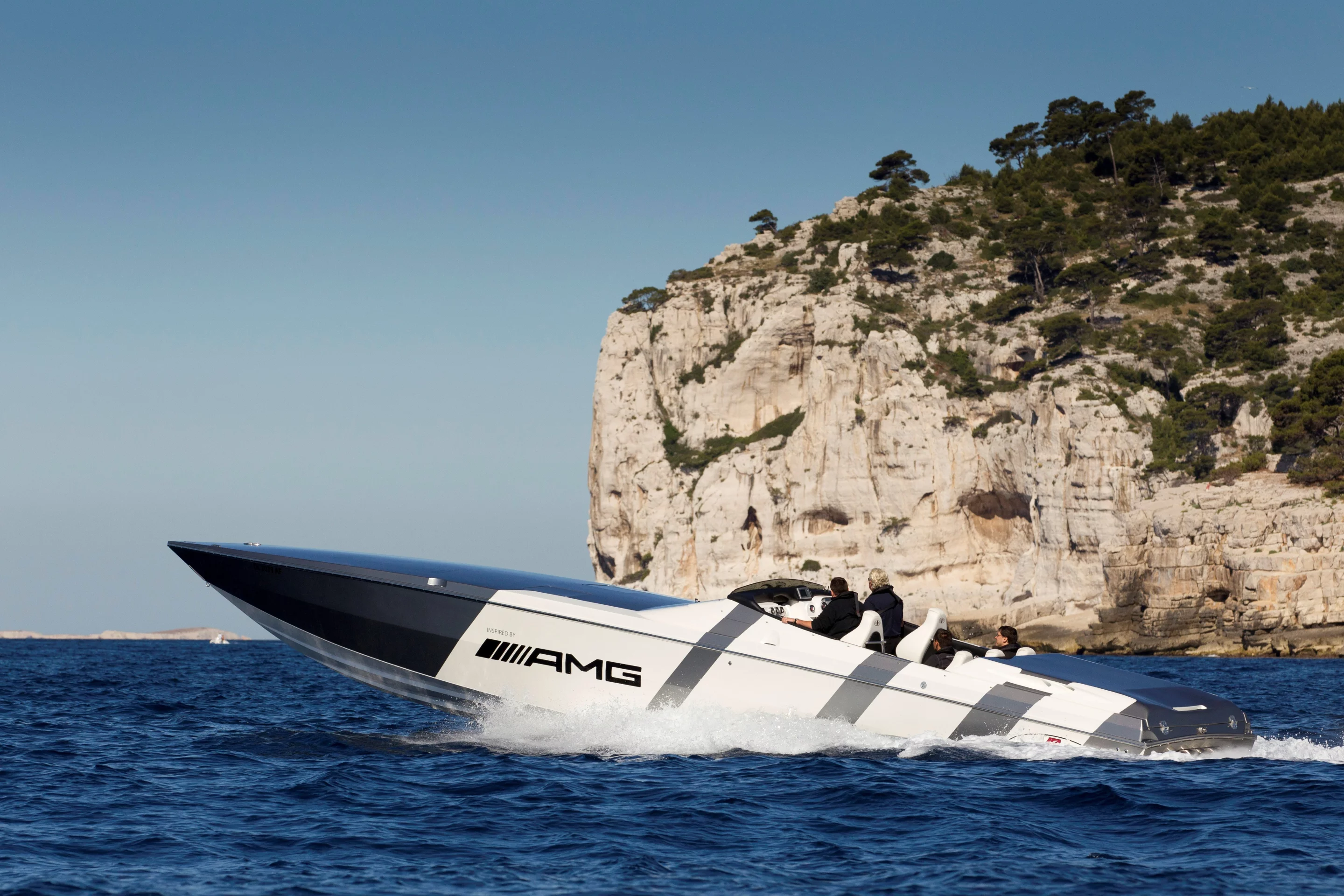

Slowly cruising around a point in the AMCGR Electric Top Gun
5/40
Slowly cruising around a point in the AMCGR Electric Top Gun

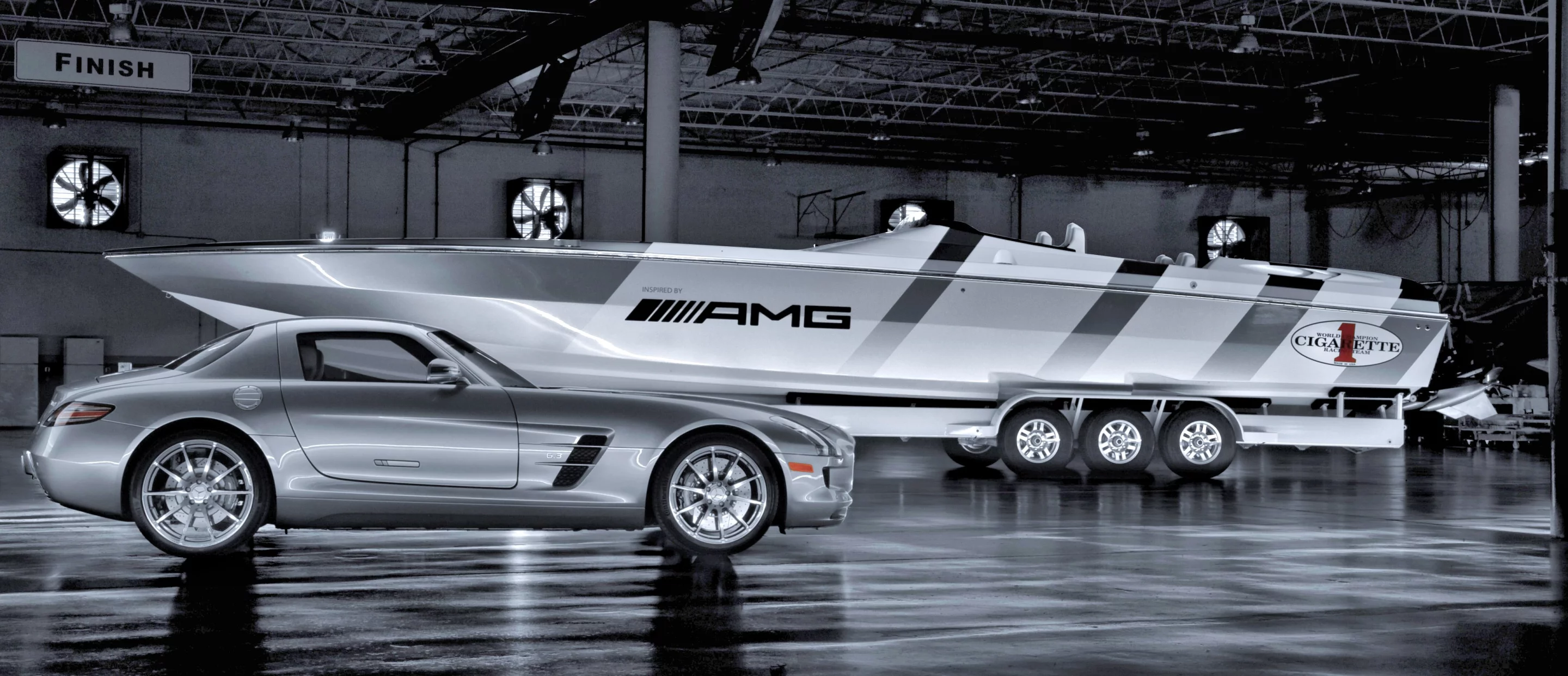

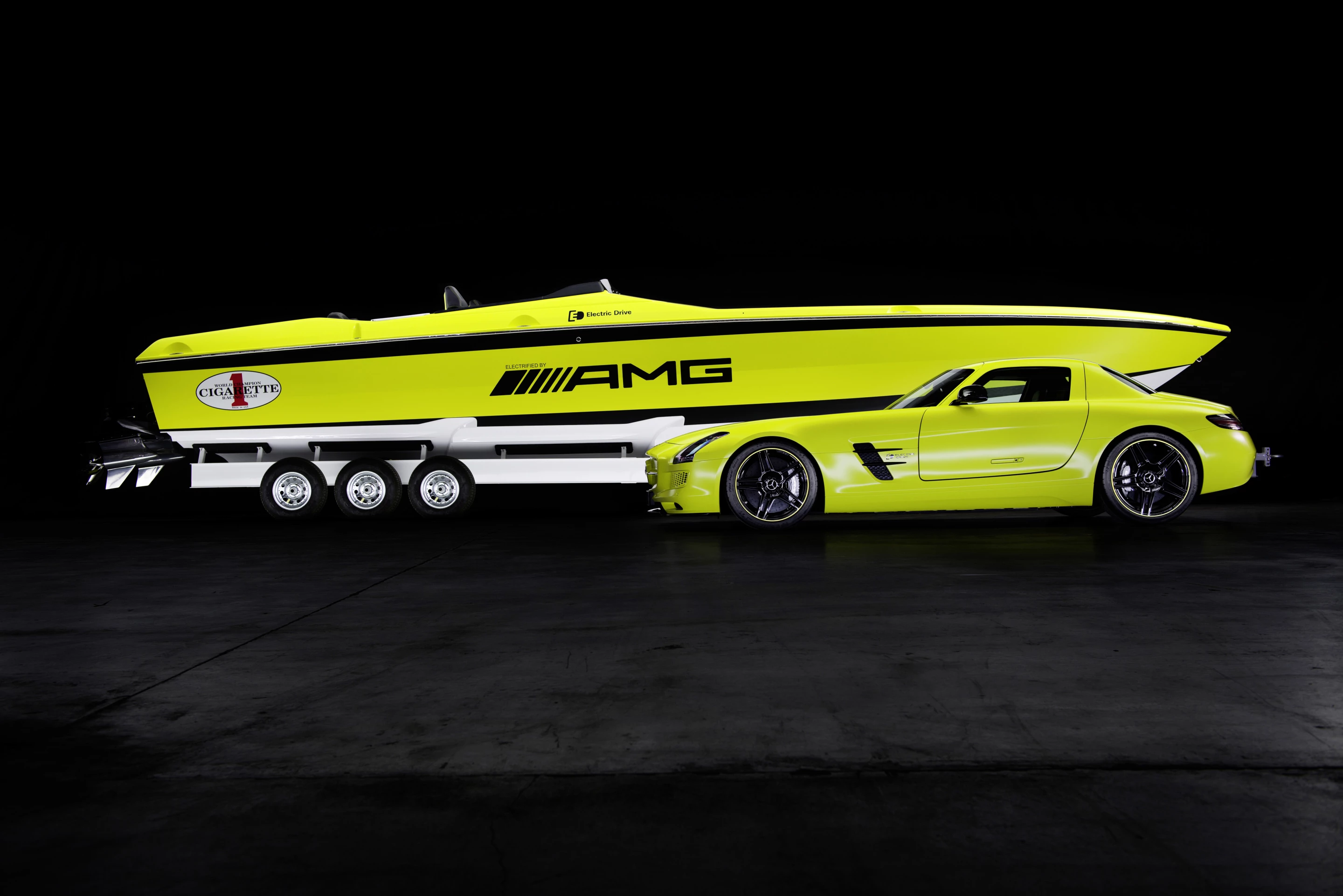

AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupé Electric Drive which was its inspiration
6/40
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupé Electric Drive which was its inspiration
Illuminated top edges of the AMGCR Electric Top Gun and the Mercedes-Benz SLS AMG Coupe Electric Drive suggest their common streamlining
7/40
Illuminated top edges of the AMGCR Electric Top Gun and the Mercedes-Benz SLS AMG Coupe Electric Drive suggest their common streamlining
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes
8/40
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes
9/40
AMGCR Electric Top Gun together with the Mercedes-Benz SLS AMG Coupe Electric Drive in yellow AMG electricbeam magno finishes

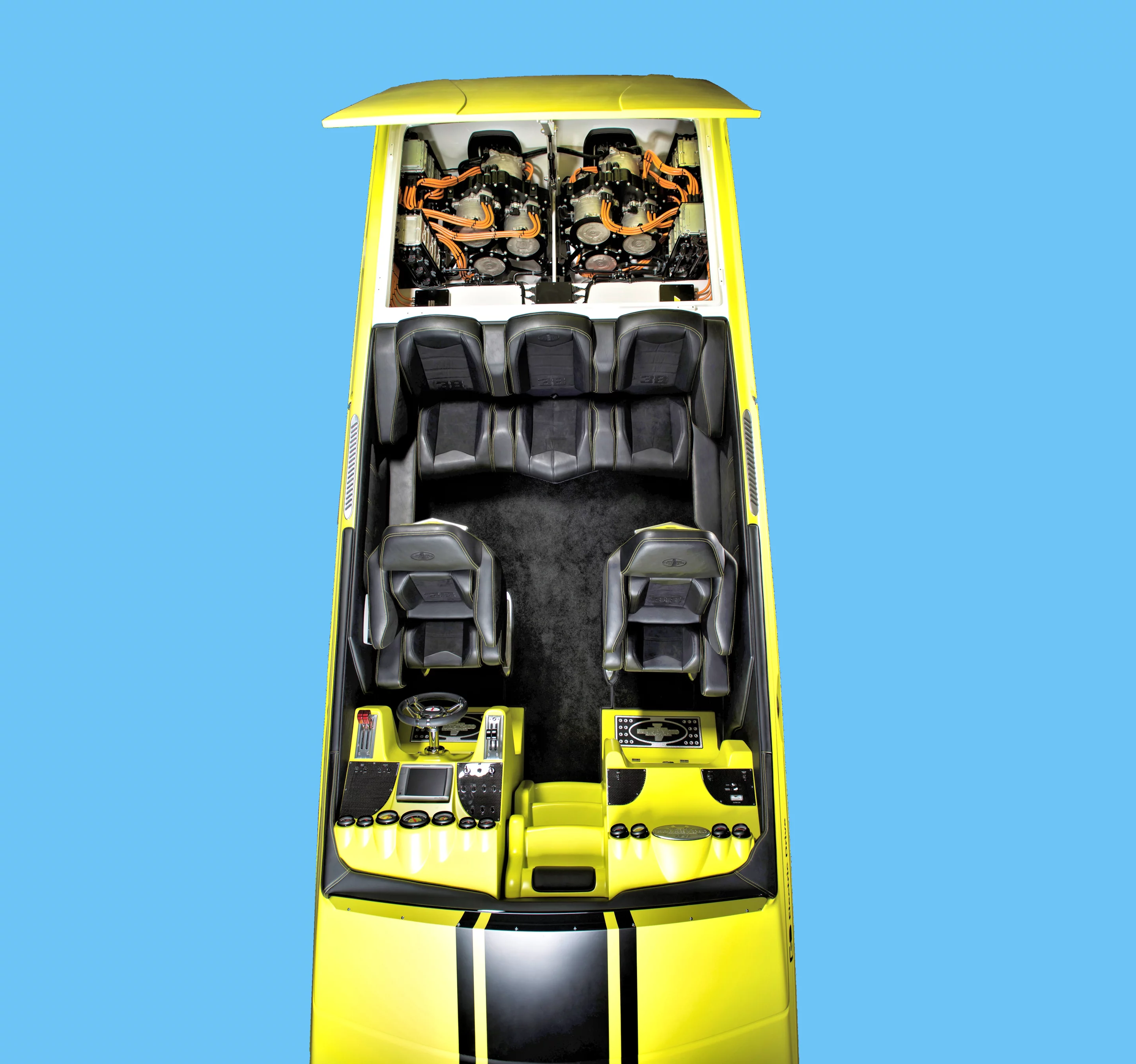

Controls and engine compartment of the AMGCR Electric Top Gun
10/40
Controls and engine compartment of the AMGCR Electric Top Gun

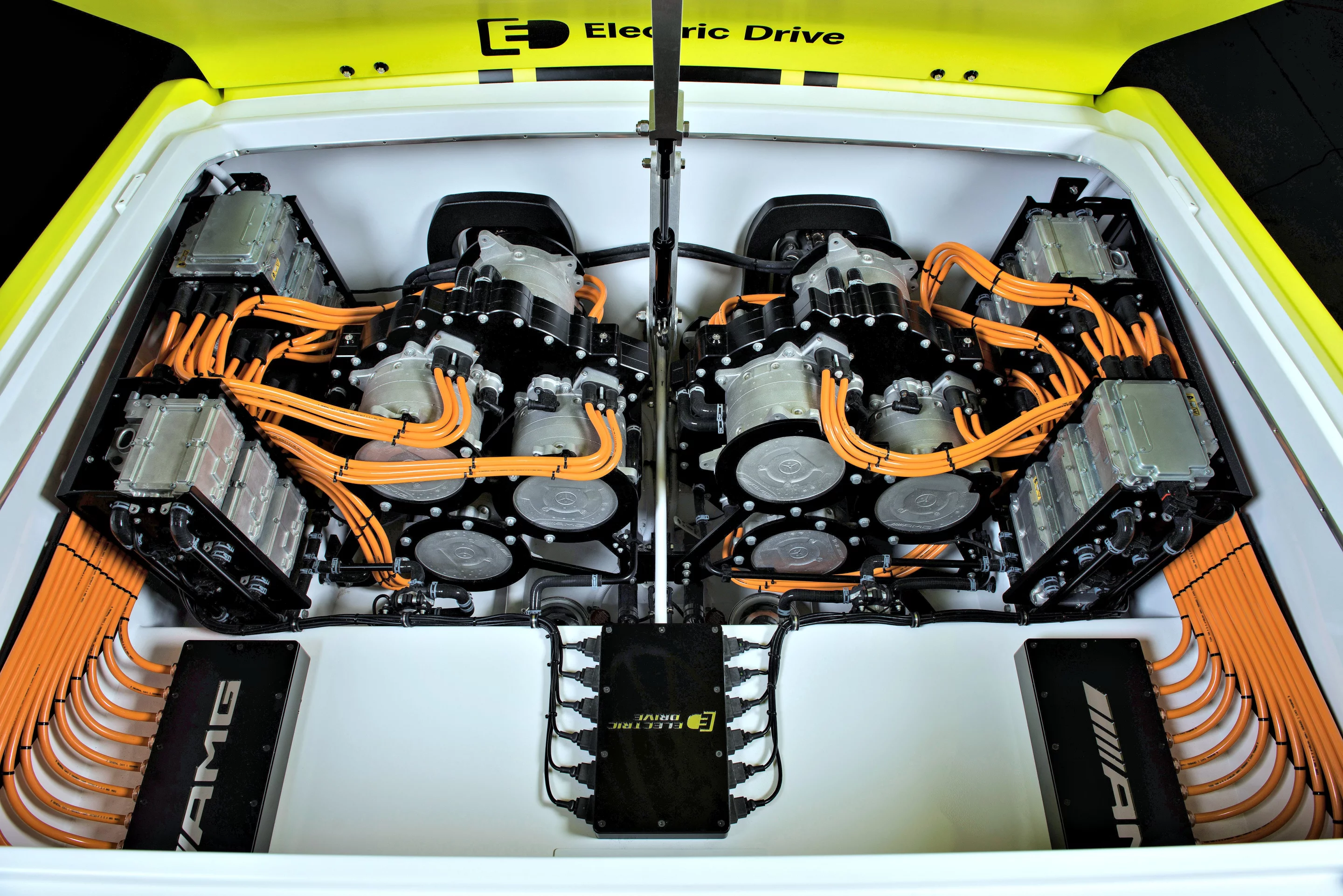

Dual six-motor clusters in the AMGCD Electric Top Gun engine compartment
11/40
Dual six-motor clusters in the AMGCD Electric Top Gun engine compartment
12/40
Control console of the AMGCR Electric Top Gun
13/40
Control console of the AMGCR Electric Top Gun
The 240 kWh lithium-ion battery packs tip the scales at 4,840 lbs
14/40
The 240 kWh lithium-ion battery packs tip the scales at 4,840 lbs

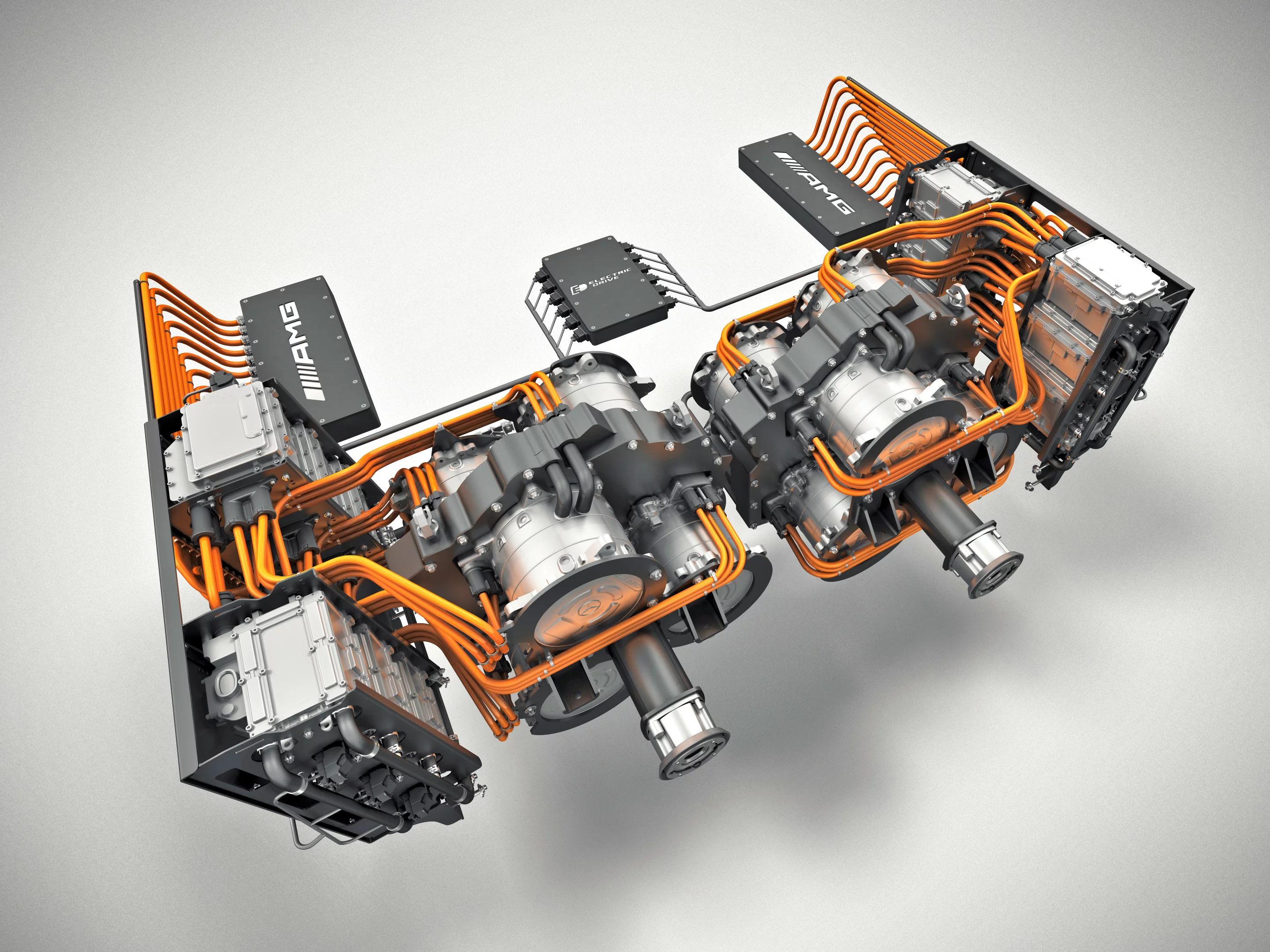

Dual clusters of six electric motors that power the Electric Top Gun
15/40
Dual clusters of six electric motors that power the Electric Top Gun

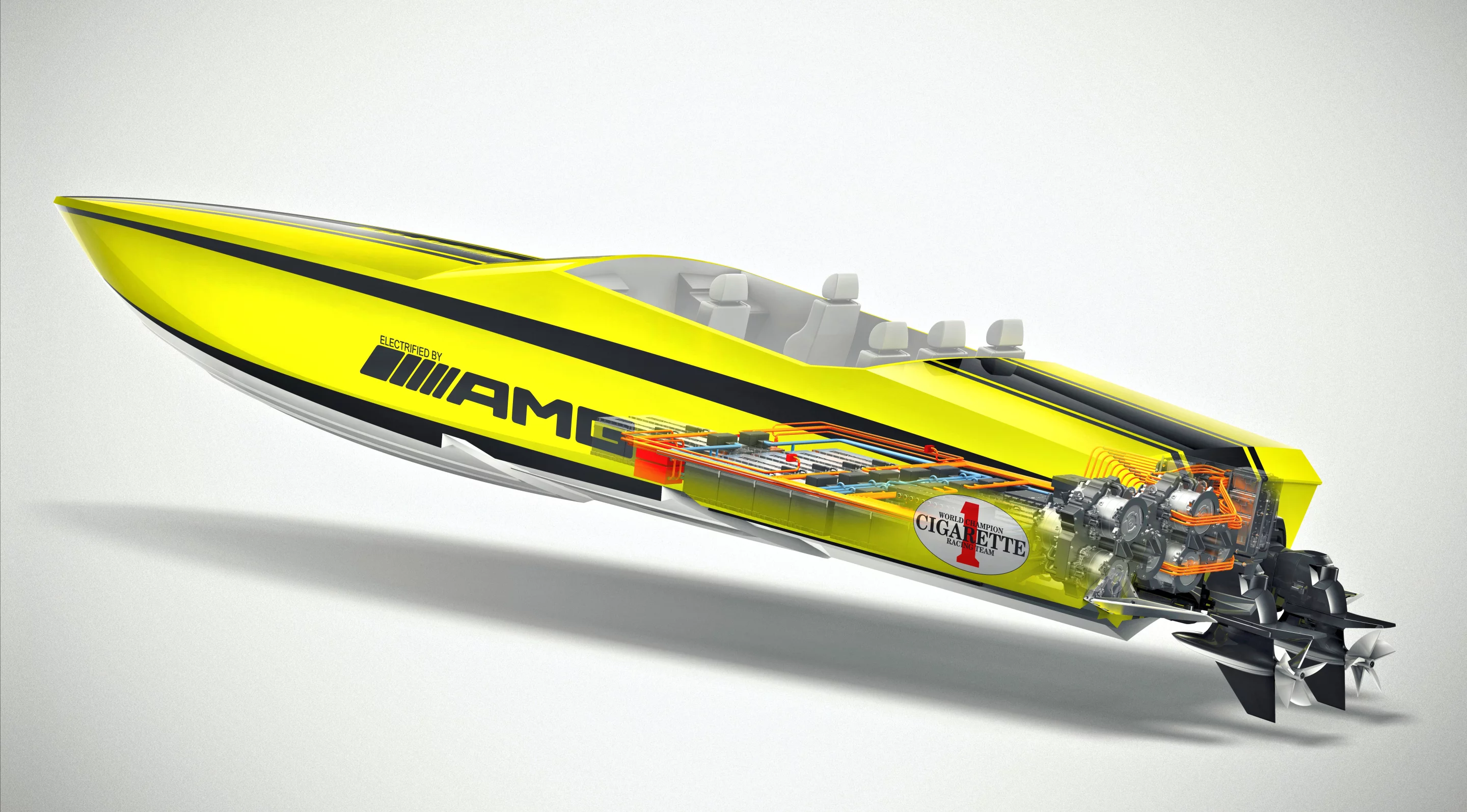

See-through engine compartment of the AMGCR Electric Top Gun
16/40
See-through engine compartment of the AMGCR Electric Top Gun

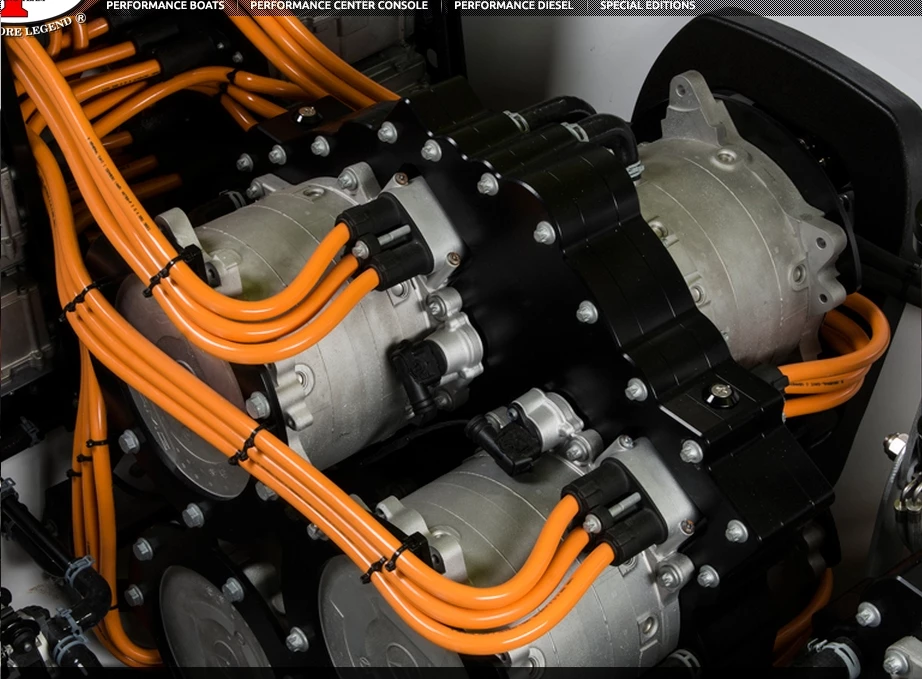

Closeup of the AMCGR Electric Top Gun's six-electric motor cluster
17/40
Closeup of the AMCGR Electric Top Gun's six-electric motor cluster
The boat's drive is organized around a pair of prop shafts, so AMGCR tied the motors into two clusters of six motors each
18/40
The boat's drive is organized around a pair of prop shafts, so AMGCR tied the motors into two clusters of six motors each
The Mercedes-Benz SLS AMG Coupe Electric Drive was the inspiration for the Electric Top Gun
19/40
The Mercedes-Benz SLS AMG Coupe Electric Drive was the inspiration for the Electric Top Gun
20/40
21/40
22/40
23/40
24/40
25/40
26/40
27/40
28/40
29/40
30/40
31/40
32/40
33/40
34/40
35/40
36/40
37/40
38/40
39/40
40/40

Mercedes-AMG and Cigarette Racing (AMGCR) have launched their latest collaboration at the Miami International Boat Show. The 38-foot Top Gun Cigarette Racing hull is powered by an AMG electric drive pumping out 2,220 horsepower (1,656 kW) and 2,210 ft-lb (3,000 Nm) of torque for a top speed in excess of 100 mph (160 km/h or over 86 knots). The electrics are taken nearly whole from the SLS AMG Coupé Electric Drive – the world's fastest and most powerful production electric car.

The Mercedes-Benz SLS AMG Coupé Electric Drive was introduced last September at the Paris Motor Show. This gullwing coupé is pushed along by a set of four electric motors, one at each wheel, together providing a total of 740 hp (552 kW) and 727 ft-lb (985 Nm) of torque. Despite hauling along an extra 1,208 lbs (548 kg) of lithium-ion batteries, the Coupé Electric Drive does 0 to 62 mph (100 km/h) in under four seconds and can reach a top speed of 155 mph (250 km/h).

Having chosen the Coupé Electric Drive as the inspiration for the AMGCR collaborative project, the design team selected the Cigarette Racing Top Gun as the platform upon which to build an insane electric racing boat – the Cigarette AMG Electric Drive Concept. The Top Gun is a classic cigarette boat that's been a staple of the Cigarette Racing Team for over 25 years. With a length of 37.5-feet, an 8-foot beam, and a static draft of 27-inches, your classic Top Gun is available with a pair of Mercury Racing 600 SCi inboard engines providing a total of 1,200 hp (894 kW) of pure power, easily pushing the boat into triple-digit speed.

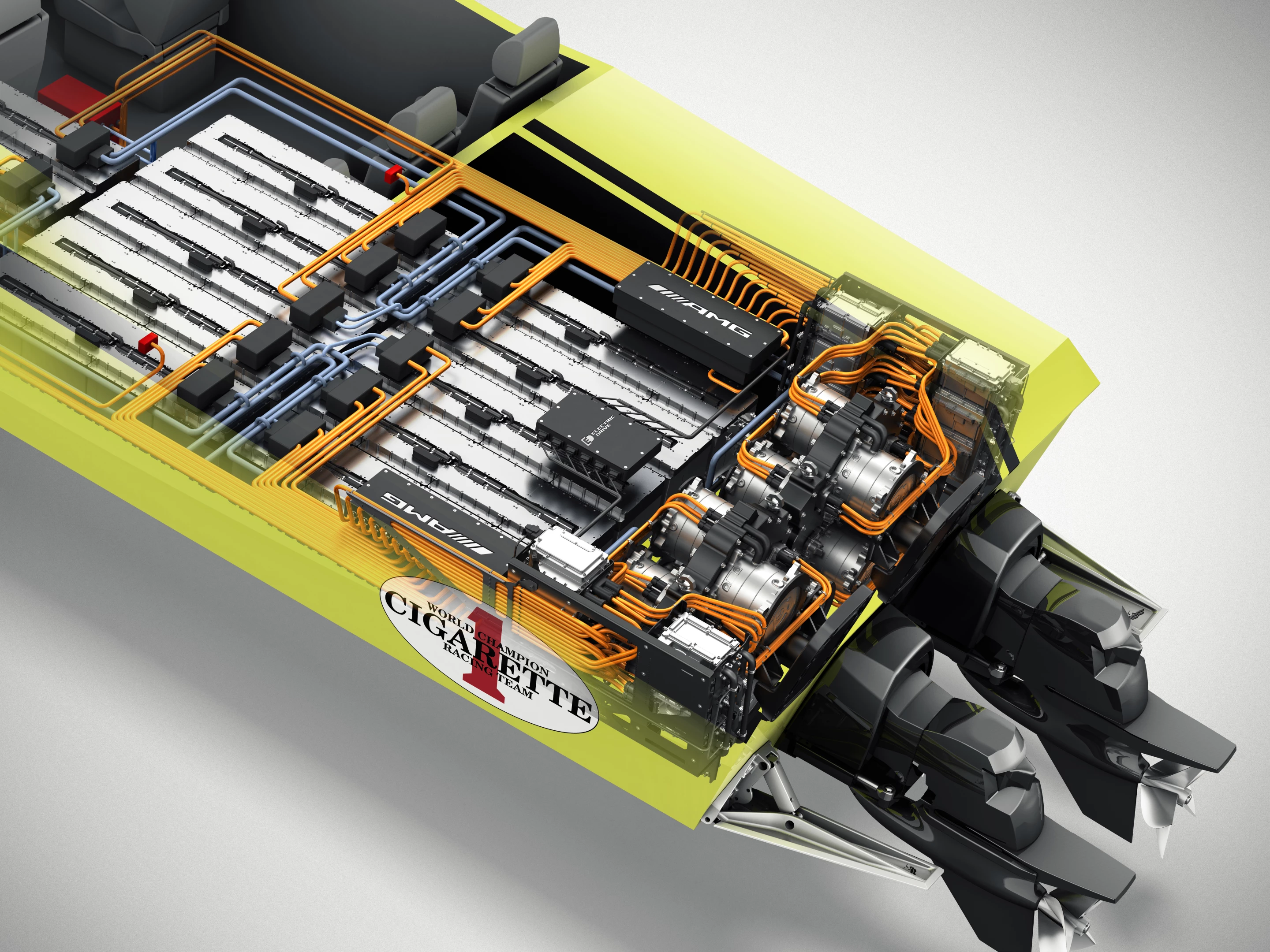

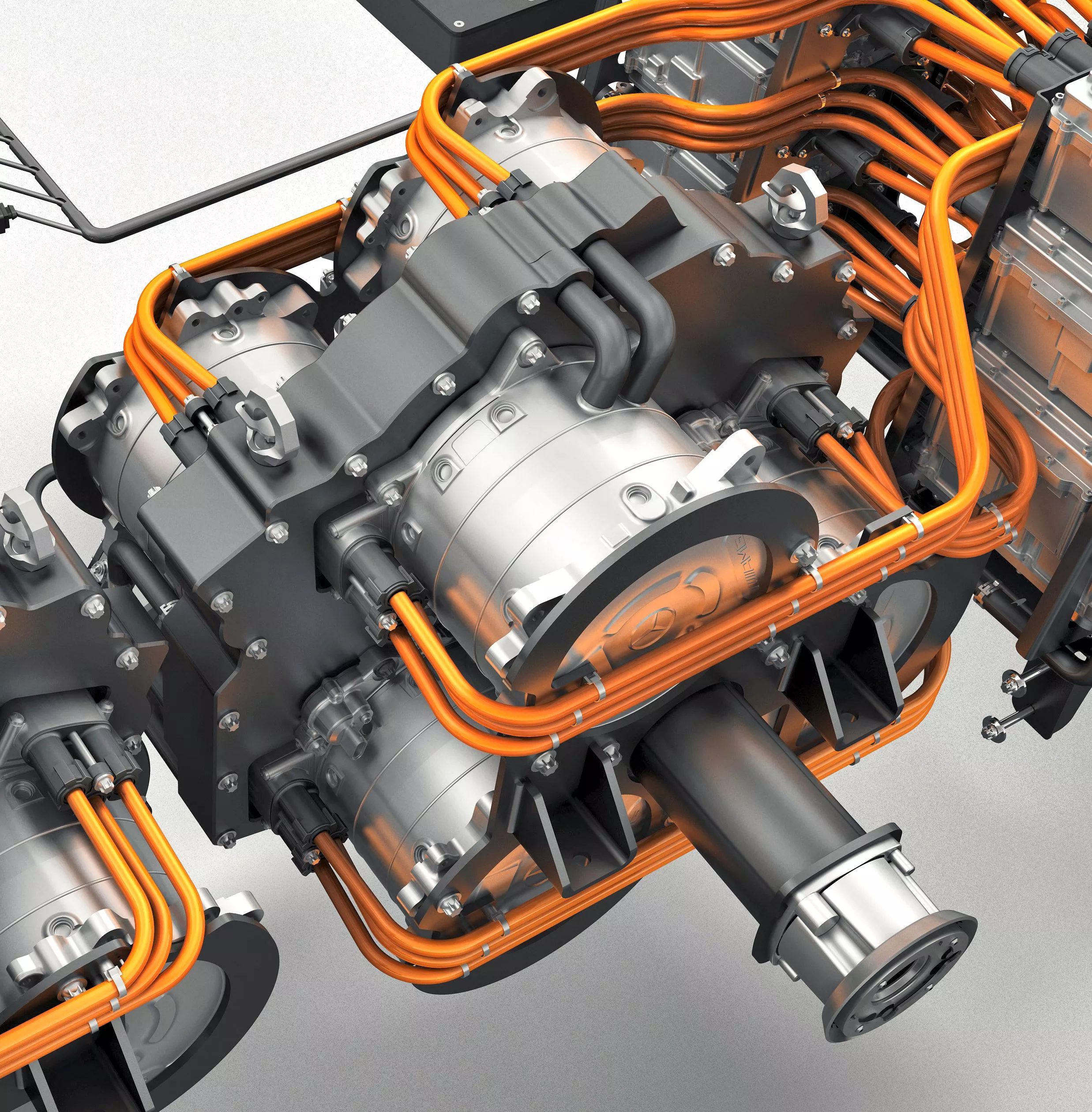

The boat's drive is organized around a pair of prop shafts, so AMGCR tied the motors into two clusters of six motors each
The boat's drive is organized around a pair of prop shafts, so AMGCR tied the motors into two clusters of six motors each

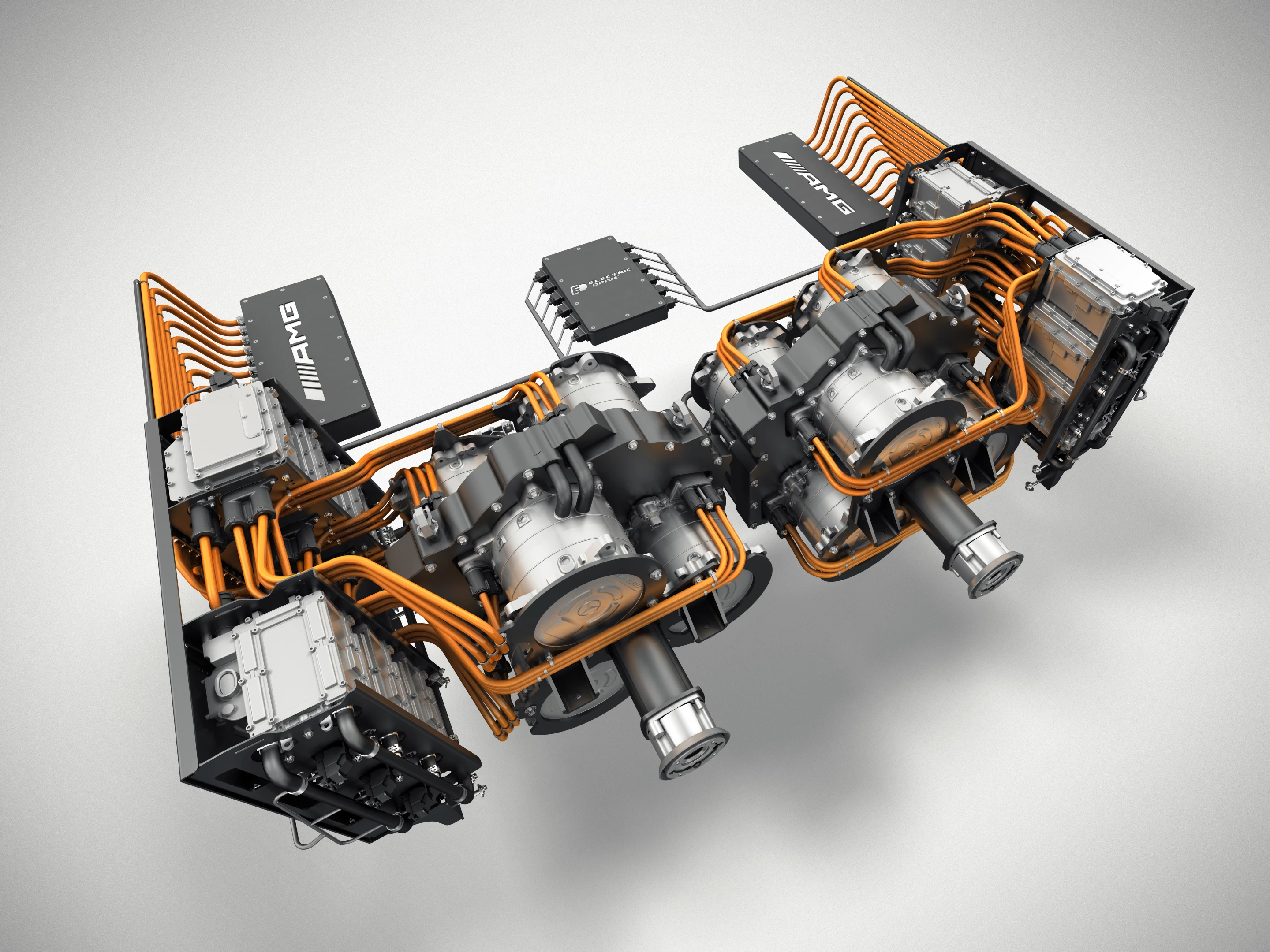

Apparently deciding that anything worth doing is worth overdoing, AMGCR put not four, not eight, but twelve of the AMG electric motors into the new Top Gun. The boat's drive is organized around a pair of prop shafts, so AMGCR tied the motors into two clusters of six motors each, as shown above. Each cluster weighs some 600 lbs (272 kg), which saves some weight by replacing a gasoline engine weighing 1,267 lbs (575 kg). Each of the two electric motor clusters generates 1,110 hp (828 kW), putting the gasoline-powered Top Gun to shame.

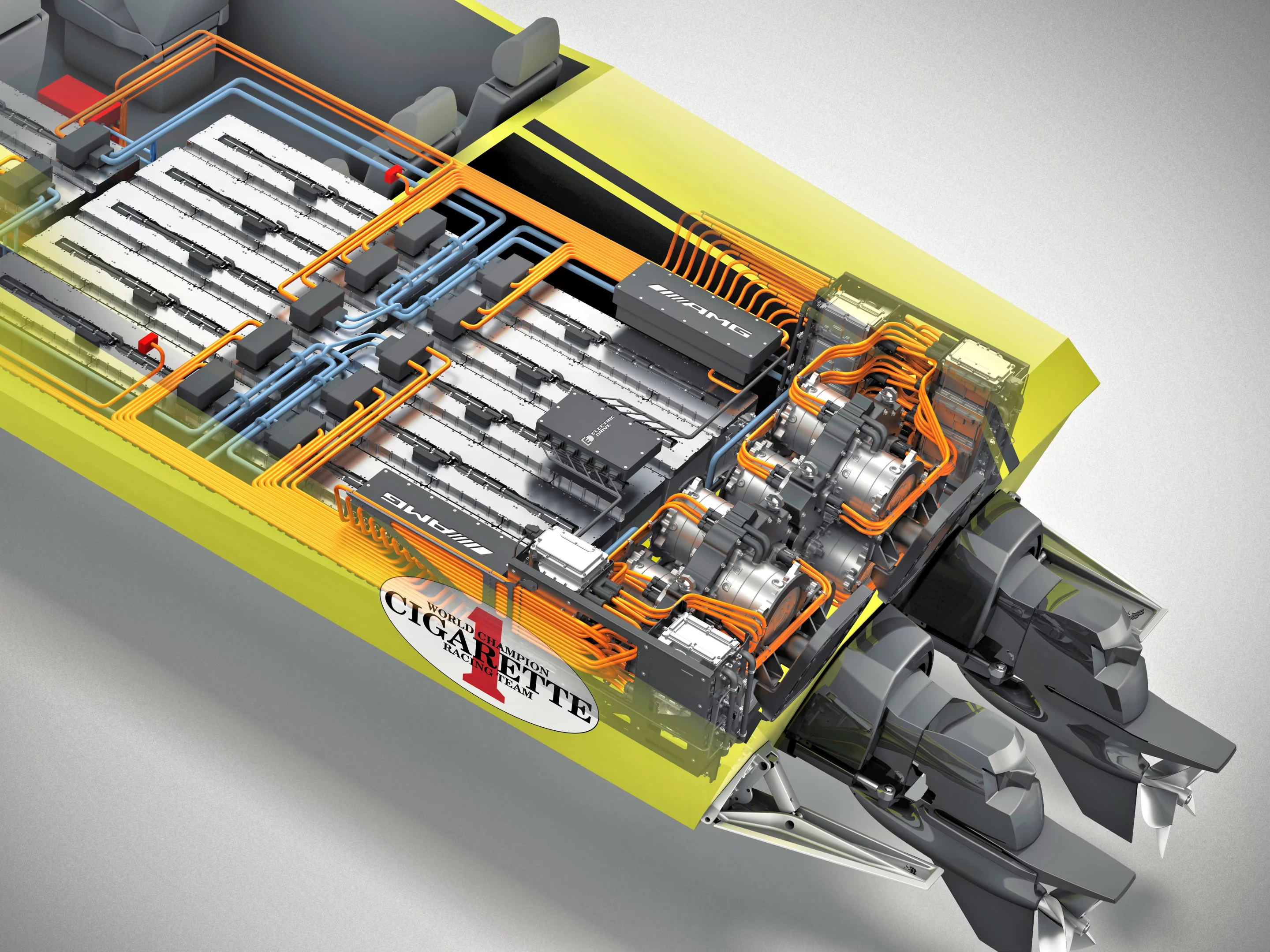

The 240 kWh lithium-ion battery packs tip the scales at 4,840 lbs
The 240 kWh lithium-ion battery packs tip the scales at 4,840 lbs

This saving of weight, however, is quickly overridden by the 240 kWh lithium-ion battery packs that tip the scales at 4,840 lbs (2,200 kg). Containing a total of 3,456 lithium-ion cells, the packs store power at 400 volts so that, given normal efficiency for an electric motor, the maximum driving current is about 6,000 amperes. The boat has two chargers providing a total charging rate of 44 kW, taking about seven hours for a full charge.

The mounting of the motors and battery packs lowers the center of gravity of the Electric Top Gun, which results in a very well-behaved go-fast boat.

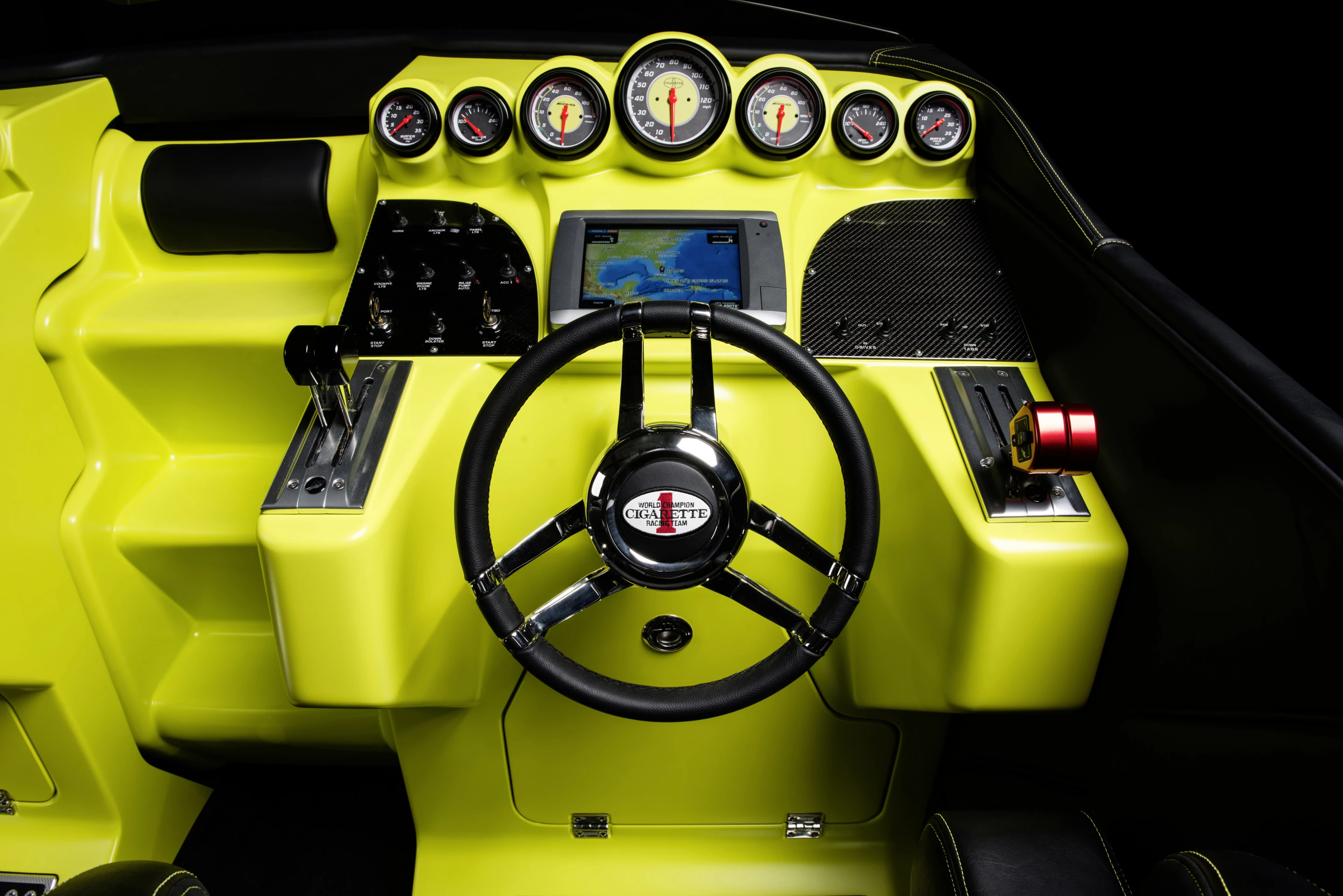

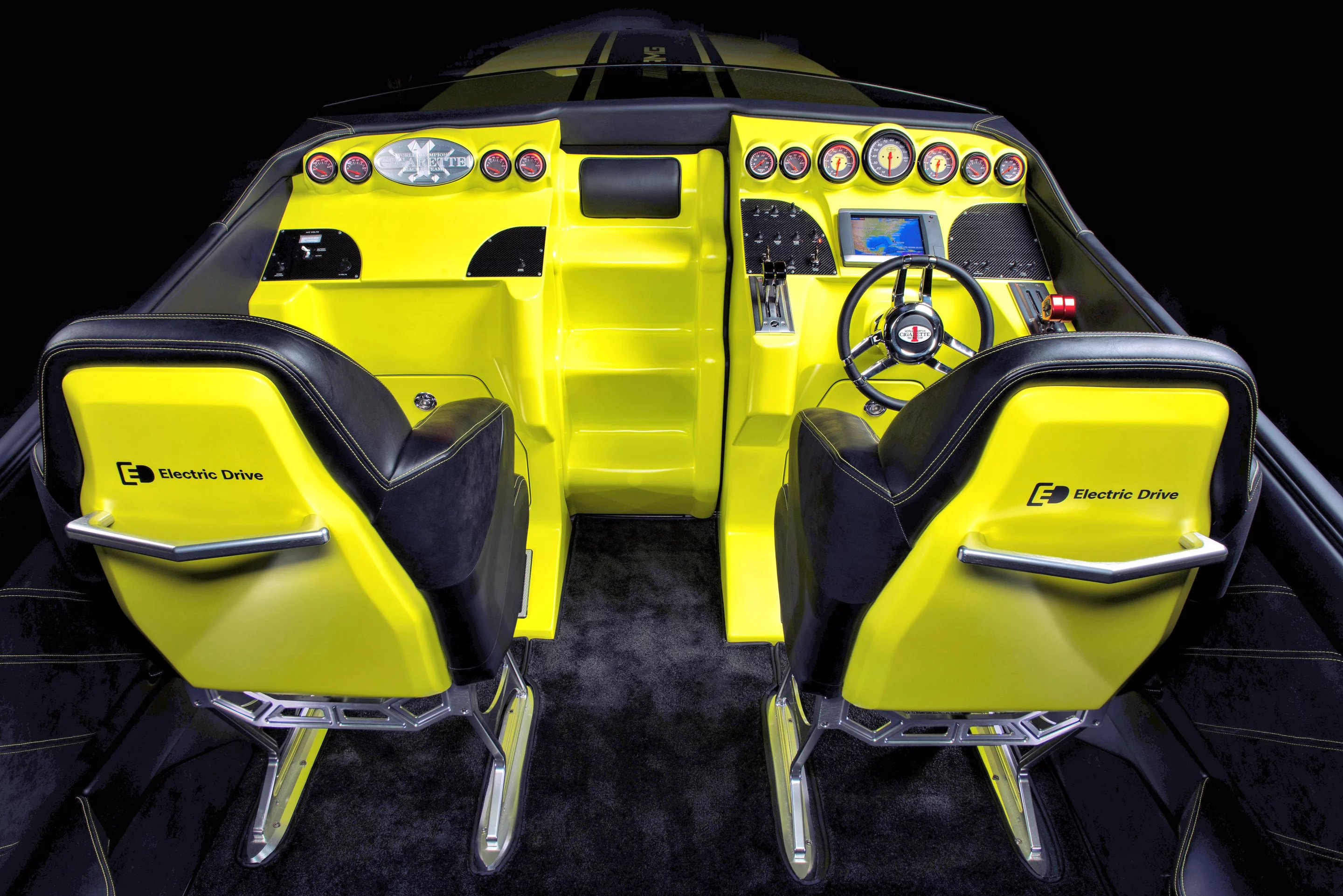

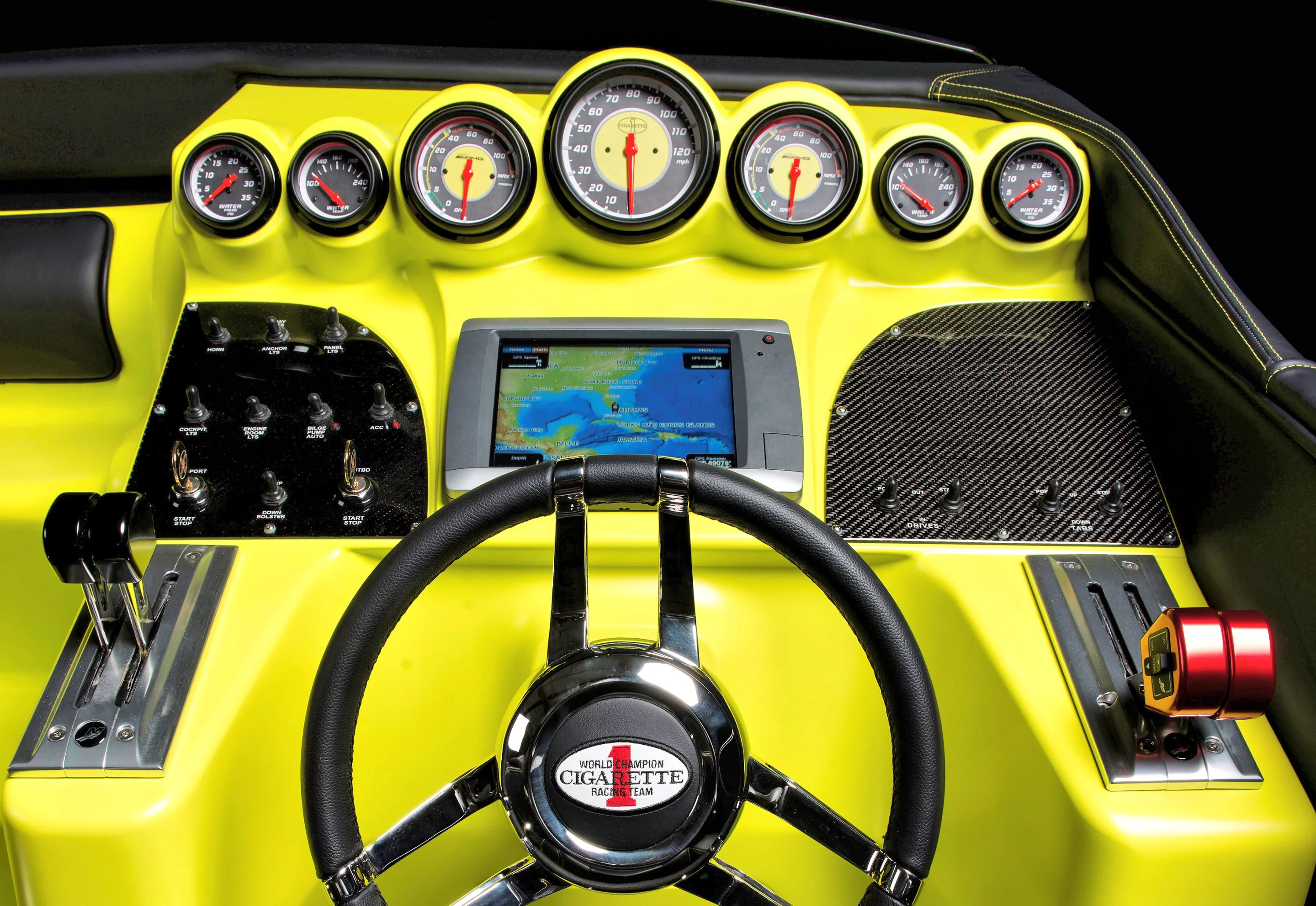

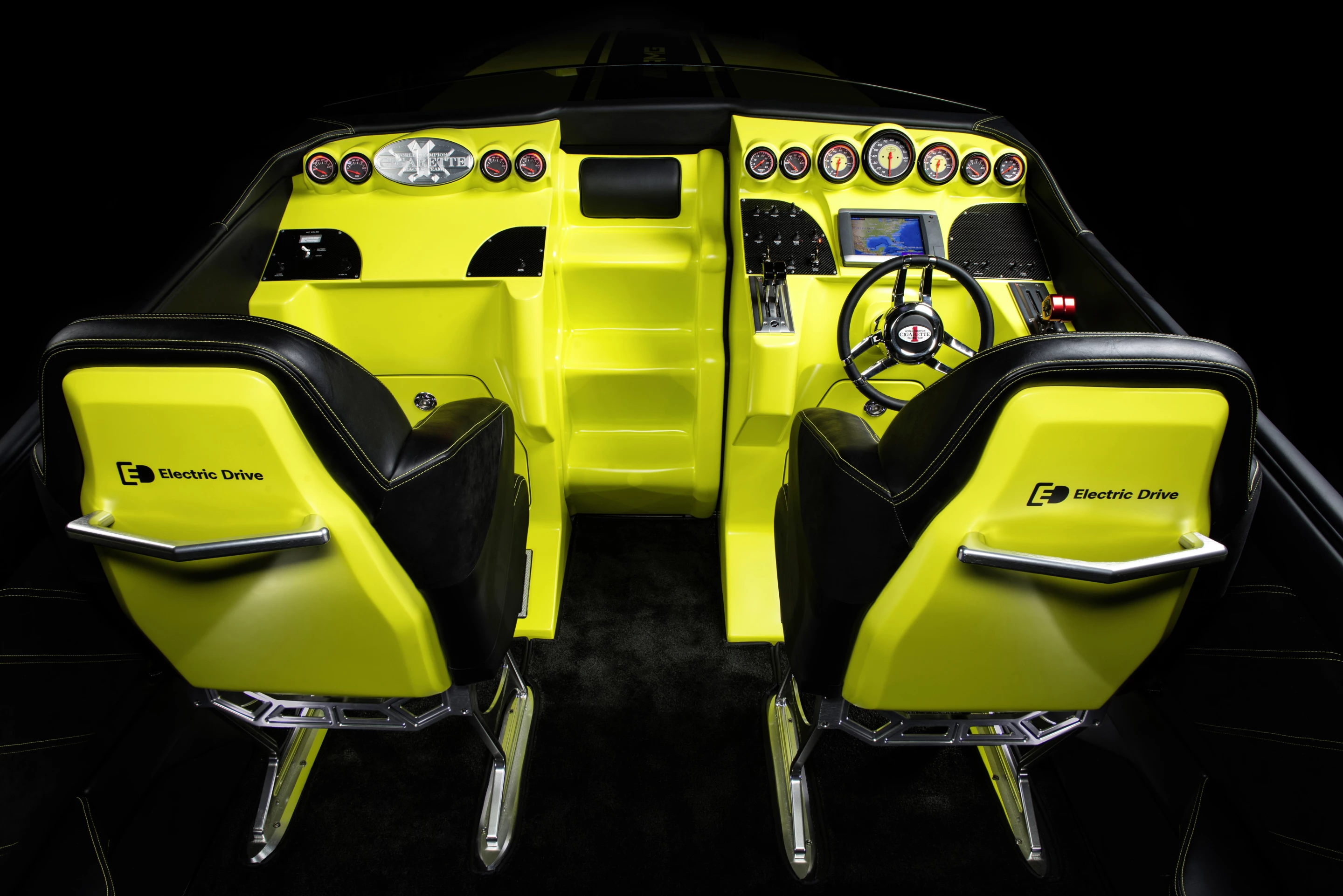

Control console of the AMGCR Electric Top Gun
Control console of the AMGCR Electric Top Gun

When running full-tilt, the two electric motor clusters eat a prodigious 2.4 megawatts of electric power – roughly the power requirements of a small town. This means that the batteries can only provide full power for about ten minutes. When corrected for the energy efficiency difference between electric motors and gasoline engines, the full energy capacity of the Electric Top Gun's battery pack is equivalent to about 15 gallons (56 l) of gasoline.

The AMGCR Top Gun Electric Drive is a remarkably successful design effort, which is perhaps as impressive a technology demonstrator as has appeared in boating in recent years. Ultimately, however, the design shatters on the hard rocks of inadequate batteries.

Source: Cigarette Racing Team
