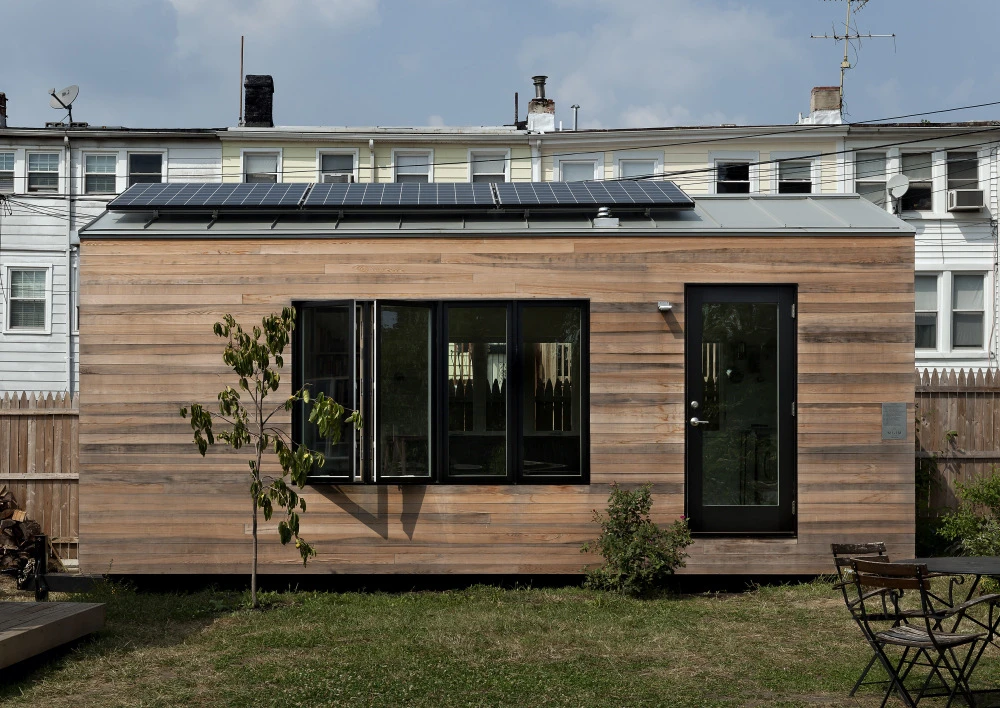

The Minim House (Photo: Paul Burk Photography)
The Minim House (Photo: Paul Burk Photography)
View 47 Images

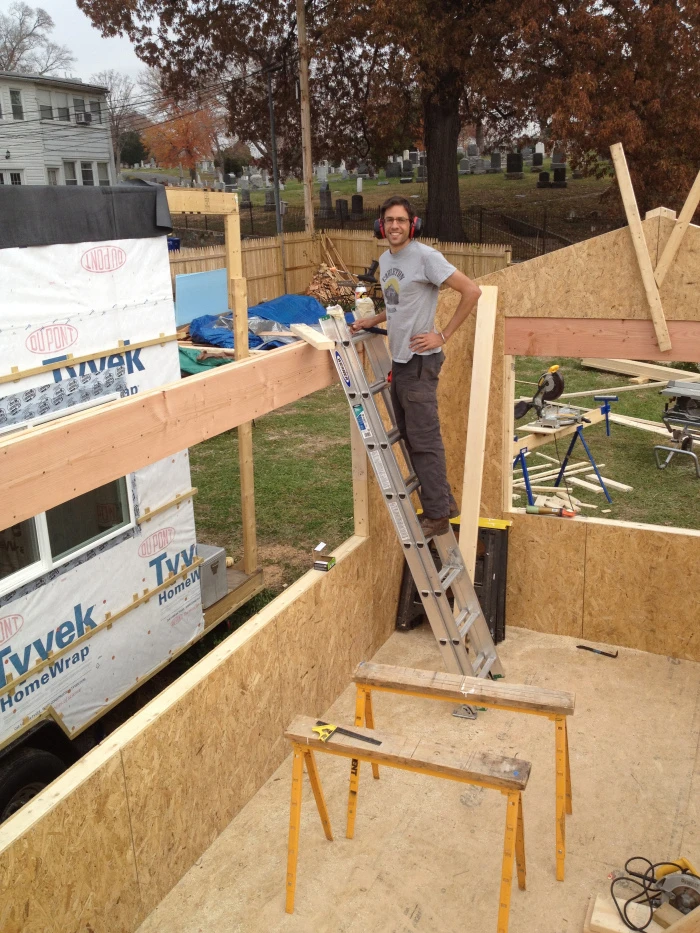

Construction process – installing top plate (Photo: Paul Burk Photography)
1/47
Construction process – installing top plate (Photo: Paul Burk Photography)

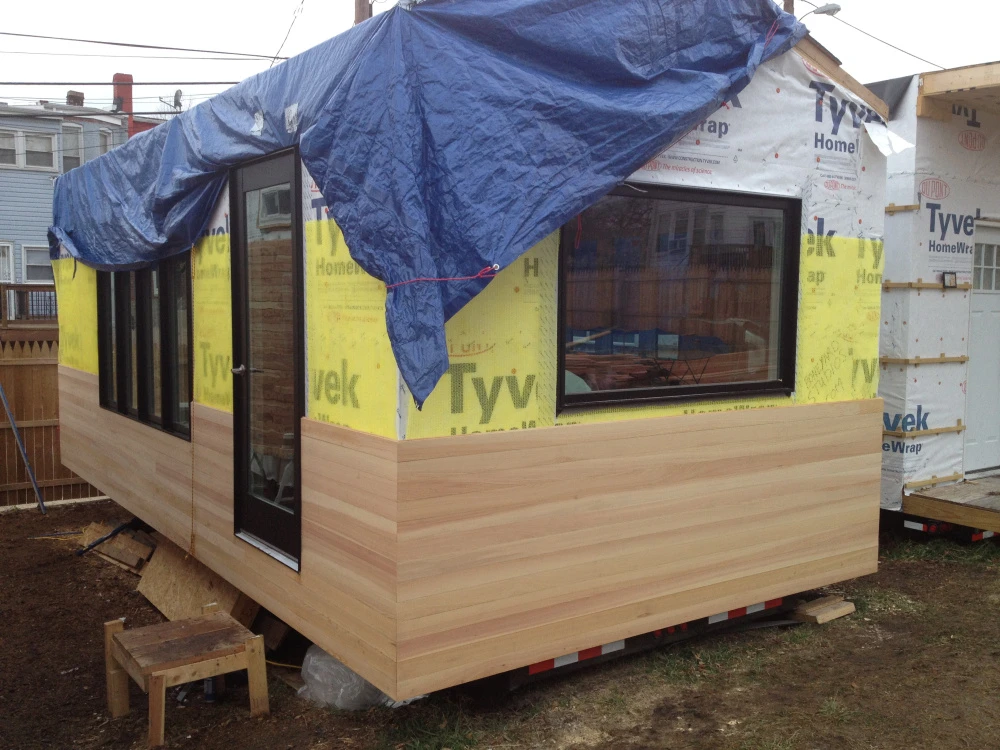

Construction process – cypress siding installed (Photo: Paul Burk Photography)
2/47
Construction process – cypress siding installed (Photo: Paul Burk Photography)

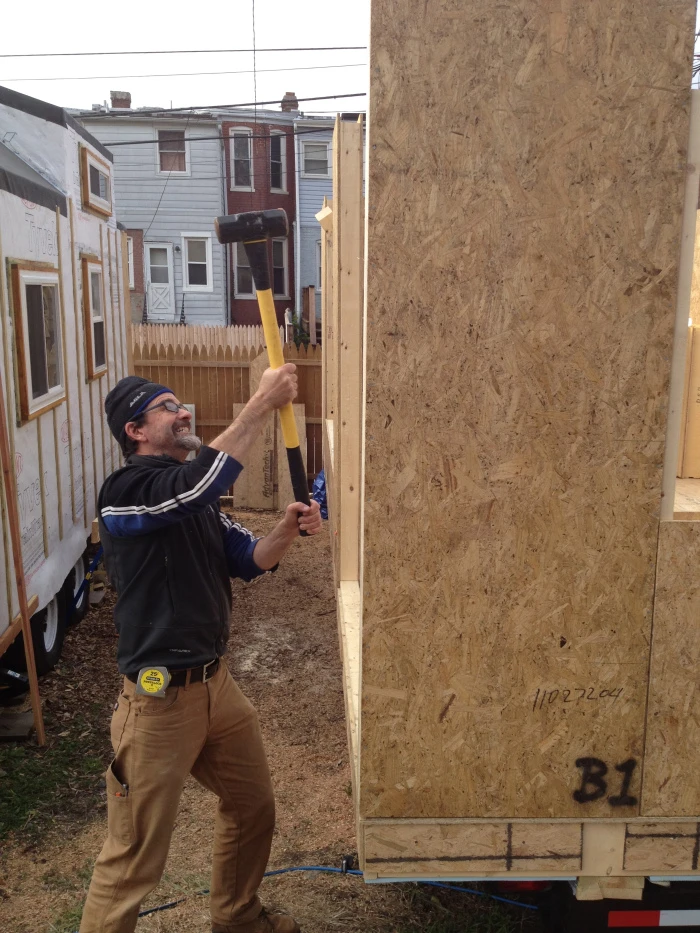

Construction process – final wall panel going up (Photo: Paul Burk Photography)
3/47
Construction process – final wall panel going up (Photo: Paul Burk Photography)

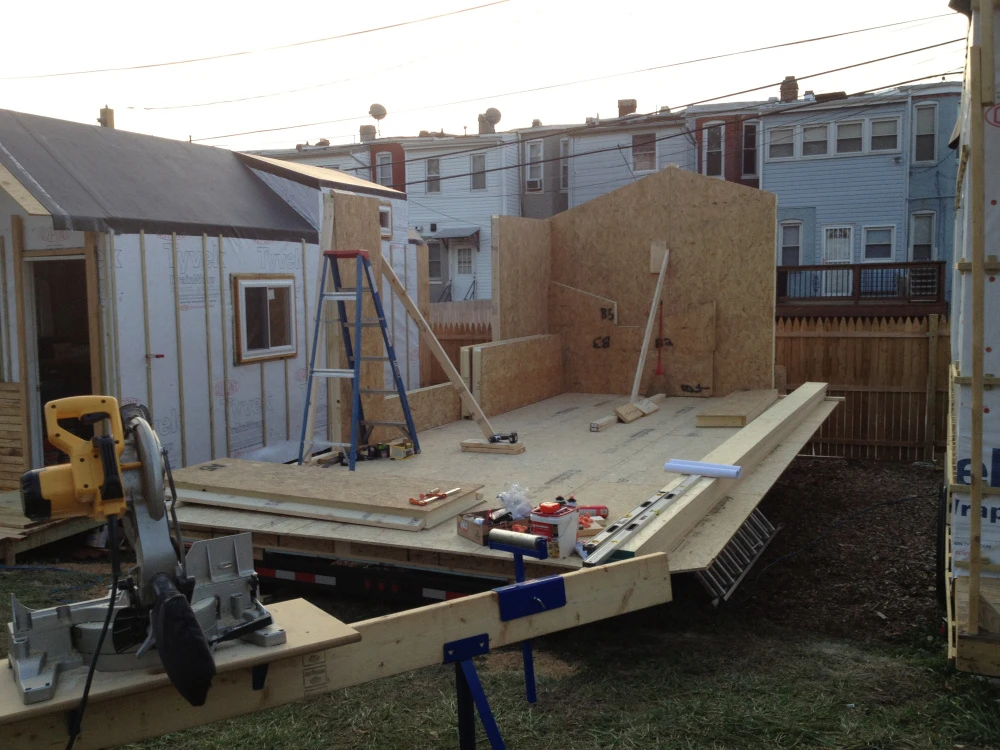

Construction process – SIPs panels going up, day 1 (Photo: Paul Burk Photography)
4/47
Construction process – SIPs panels going up, day 1 (Photo: Paul Burk Photography)

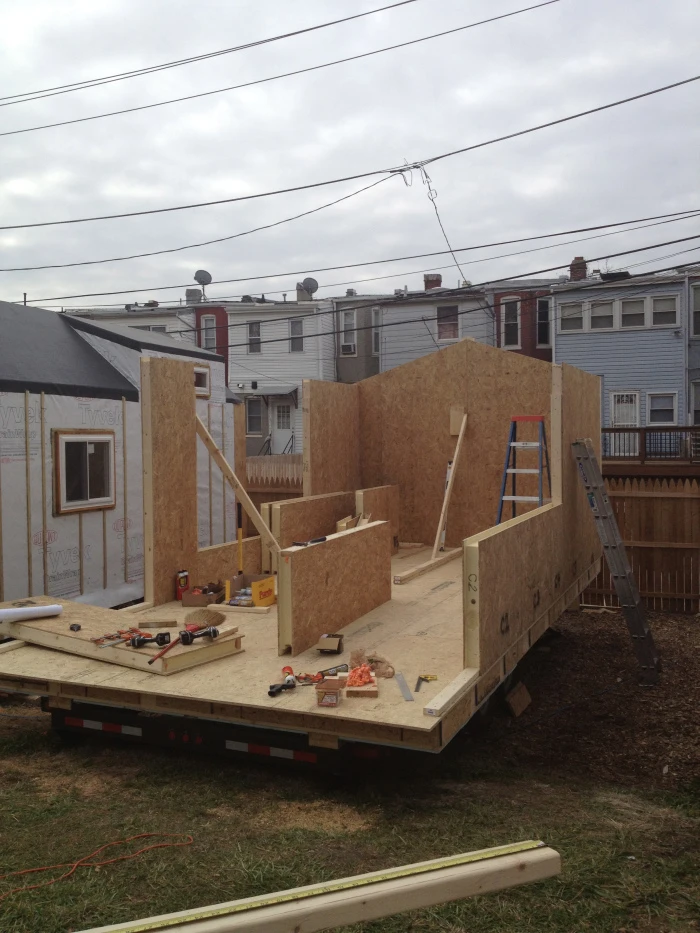

Construction process – SIPs panels going up, day 2/3 (Photo: Paul Burk Photography)
5/47
Construction process – SIPs panels going up, day 2/3 (Photo: Paul Burk Photography)

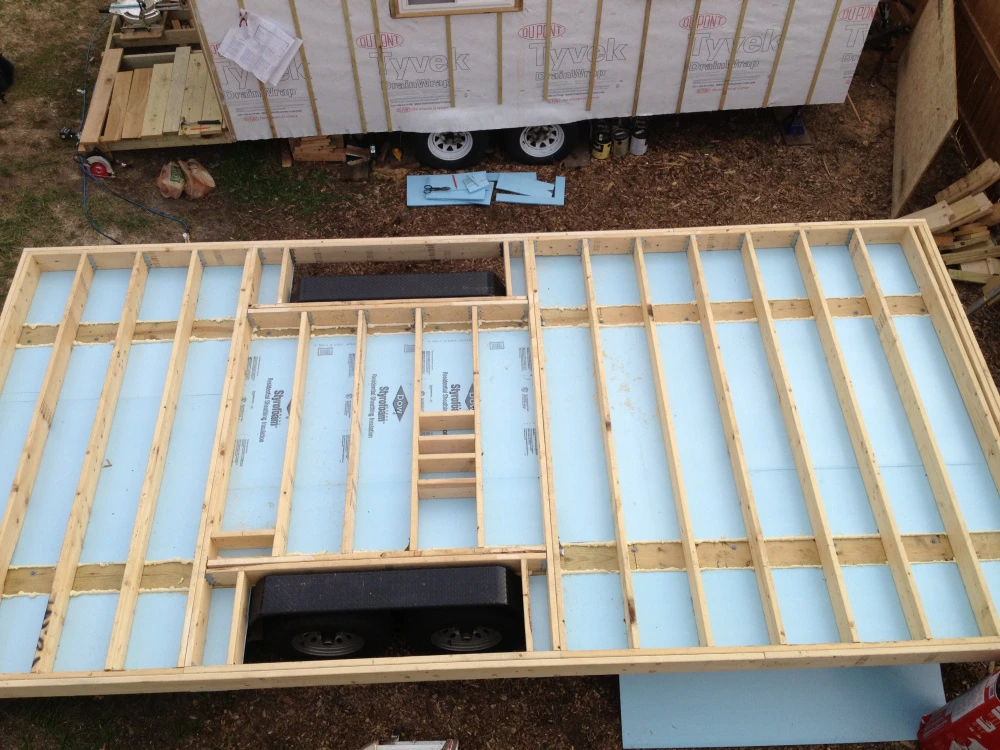

Construction process – framing foundation (Photo: Paul Burk Photography)
6/47
Construction process – framing foundation (Photo: Paul Burk Photography)

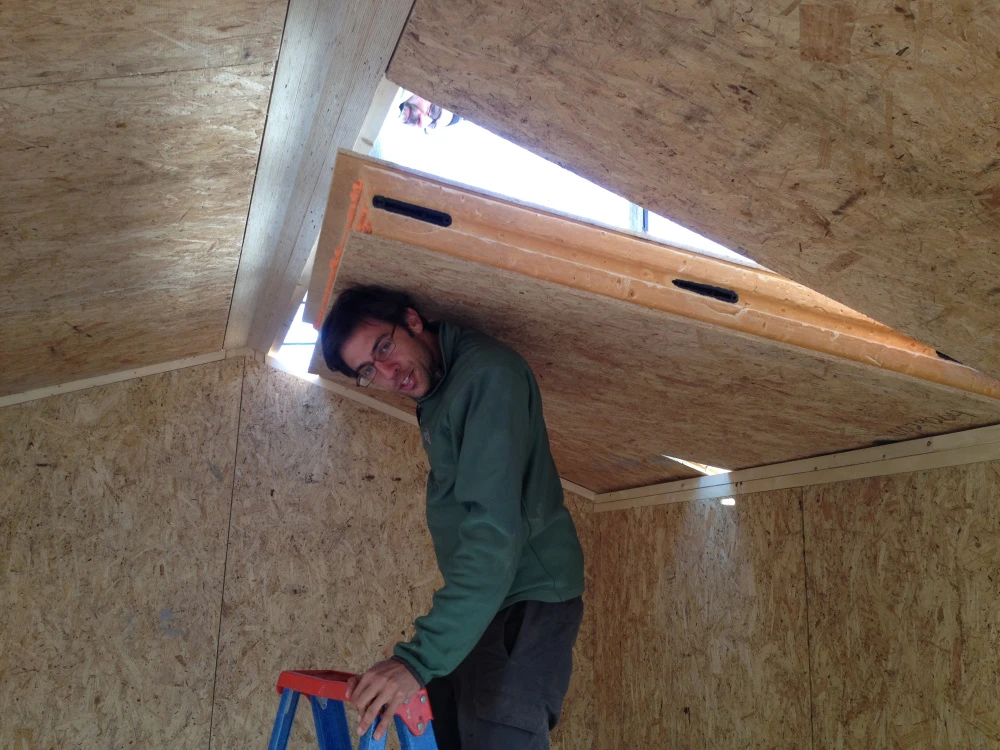

Construction process – last SIPs panels being installed (Photo: Paul Burk Photography)
7/47
Construction process – last SIPs panels being installed (Photo: Paul Burk Photography)

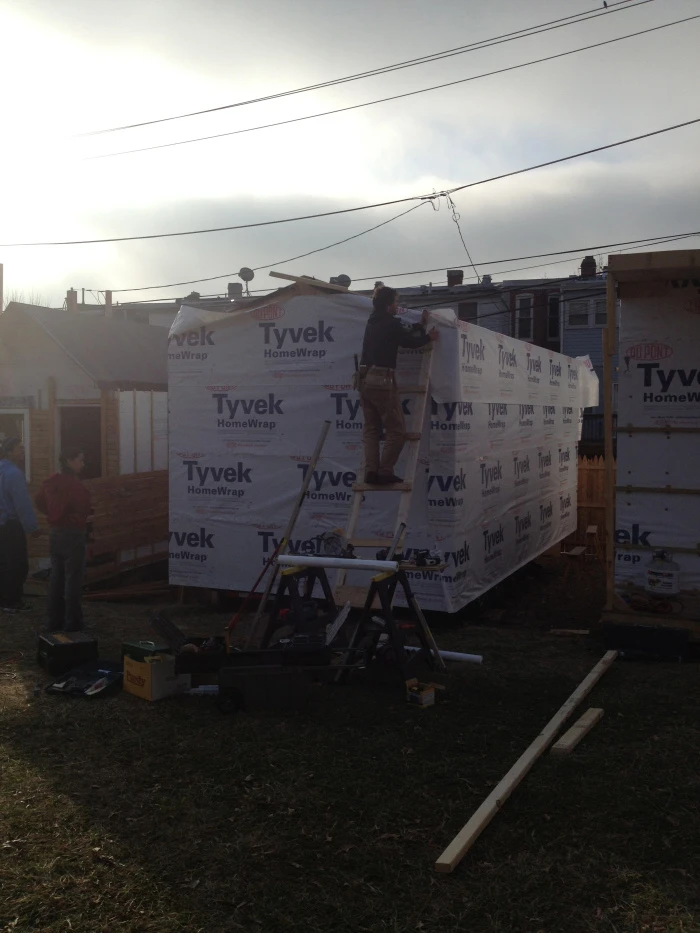

Construction process – house wrapped in tyvek (Photo: Paul Burk Photography)
8/47
Construction process – house wrapped in tyvek (Photo: Paul Burk Photography)

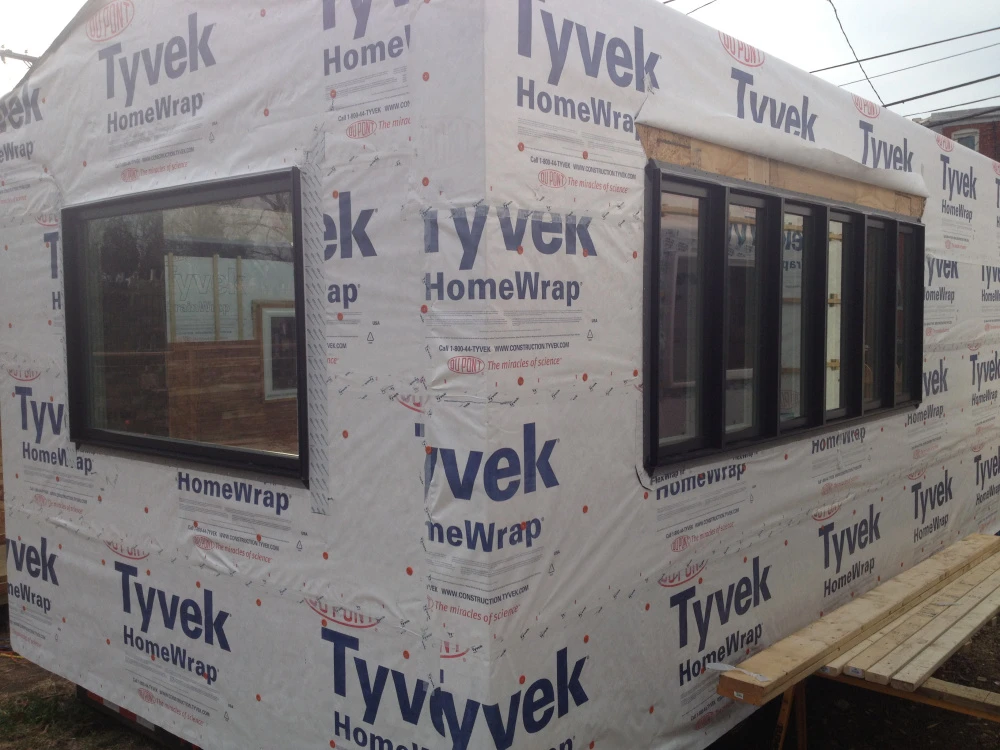

Construction process – windows installed (Photo: Paul Burk Photography)
9/47
Construction process – windows installed (Photo: Paul Burk Photography)
Construction process – installing the widows and door (Photo: Paul Burk Photography)
10/47
Construction process – installing the widows and door (Photo: Paul Burk Photography)

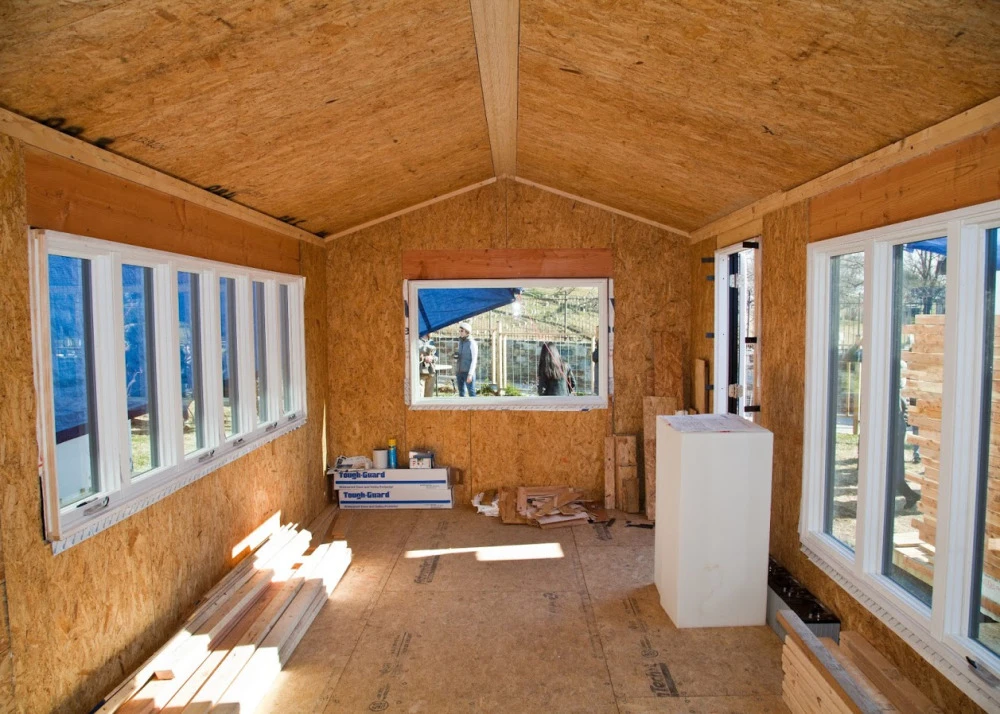

Construction process – inside the bare Minim House (Photo: Paul Burk Photography)
11/47
Construction process – inside the bare Minim House (Photo: Paul Burk Photography)

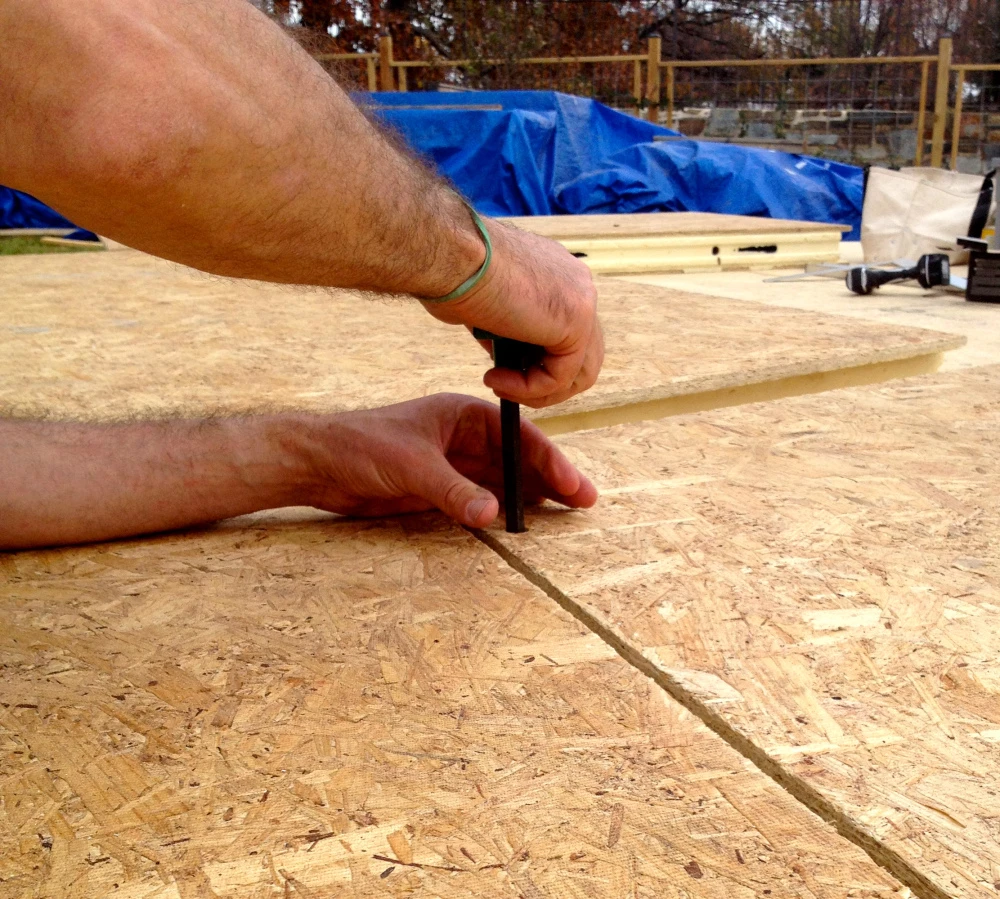

Construction process – joining the SIPs panels (Photo: Paul Burk Photography)
12/47
Construction process – joining the SIPs panels (Photo: Paul Burk Photography)

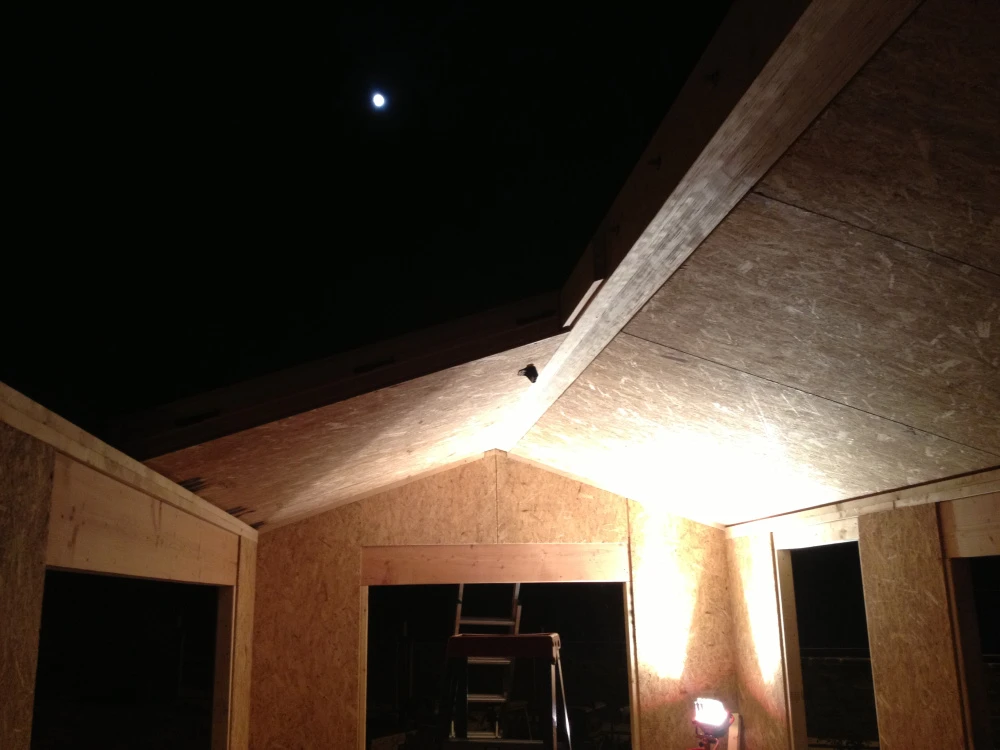

Construction process – half-built roof (Photo: Paul Burk Photography)
13/47
Construction process – half-built roof (Photo: Paul Burk Photography)

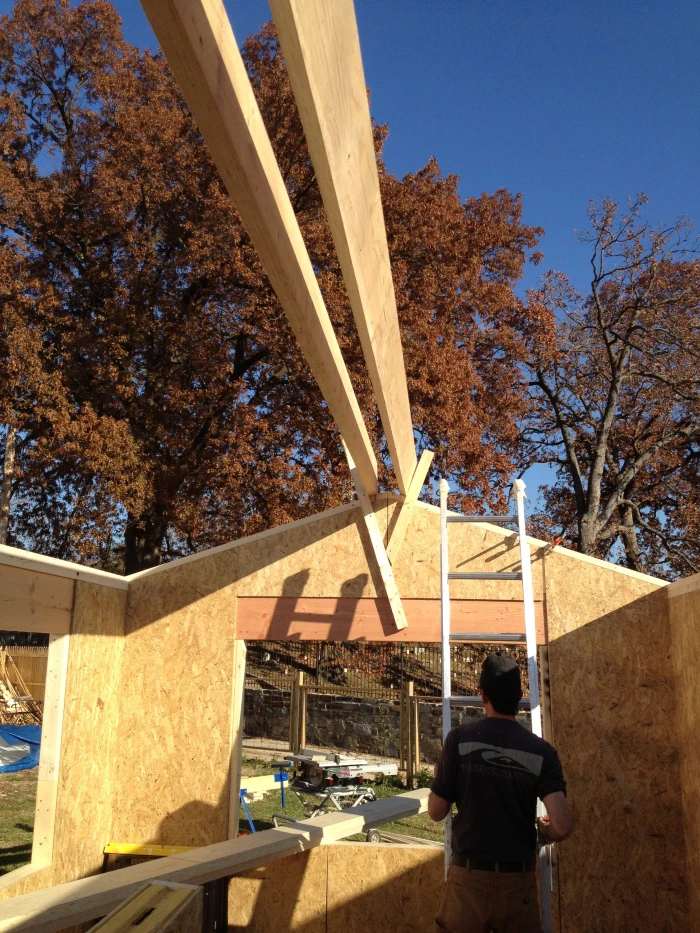

Construction process - ridge beam constructed (Photo: Paul Burk Photography)
14/47
Construction process - ridge beam constructed (Photo: Paul Burk Photography)

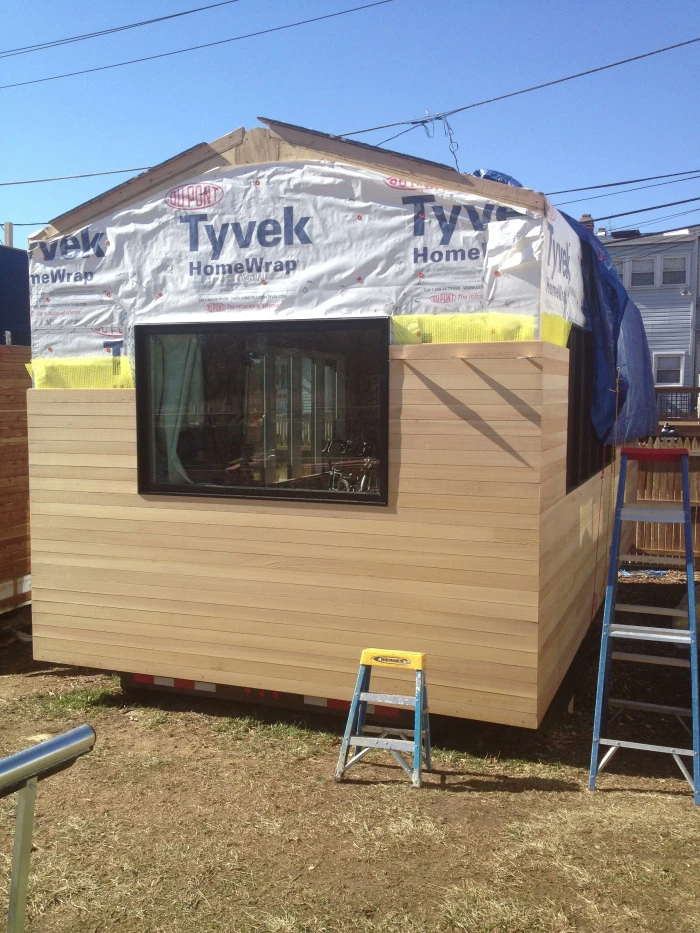

Construction process – siding almost complete (Photo: Paul Burk Photography)
15/47
Construction process – siding almost complete (Photo: Paul Burk Photography)

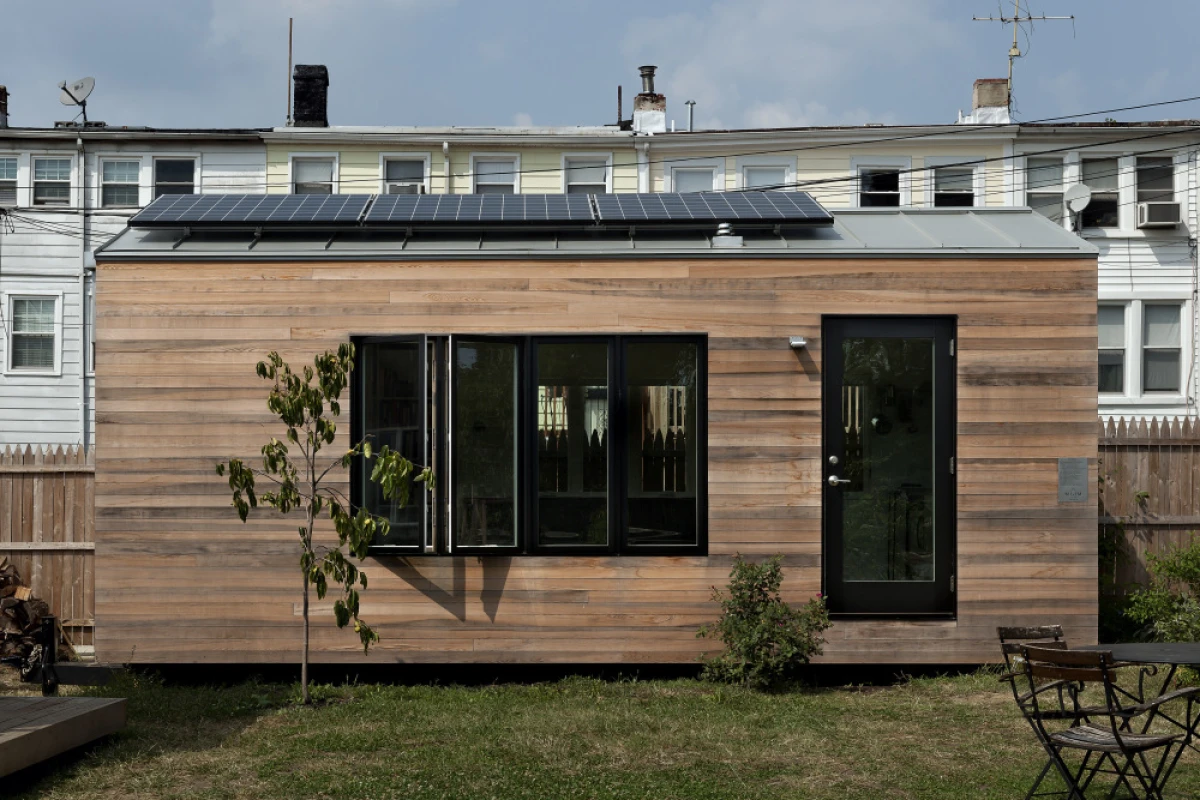

The Minim House (Photo: Paul Burk Photography)
16/47
The Minim House (Photo: Paul Burk Photography)

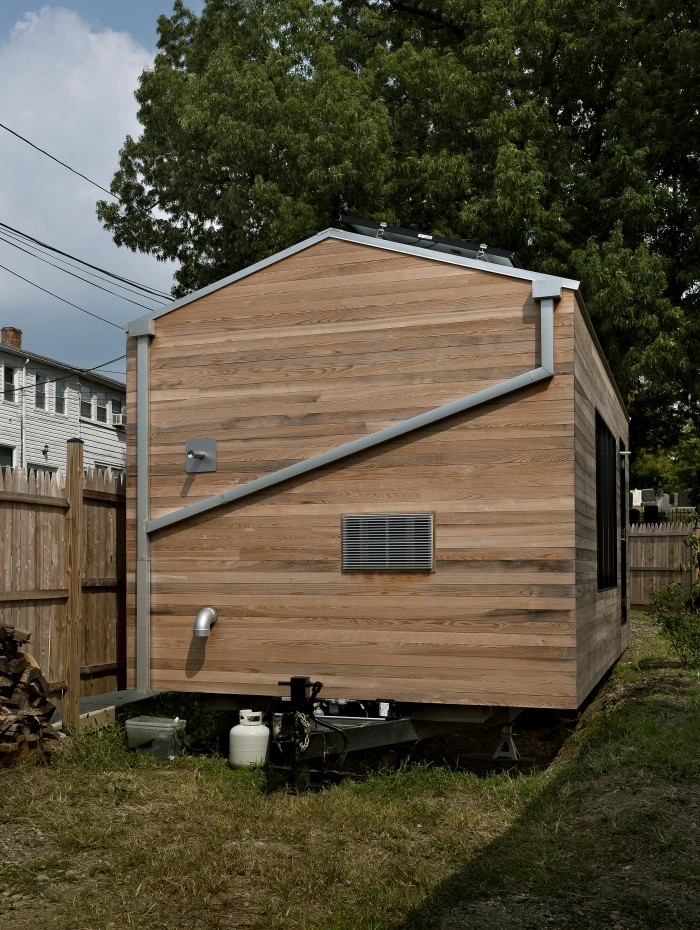

The house features rainwater collection and filtration system (Photo: Paul Burk Photography)
17/47
The house features rainwater collection and filtration system (Photo: Paul Burk Photography)

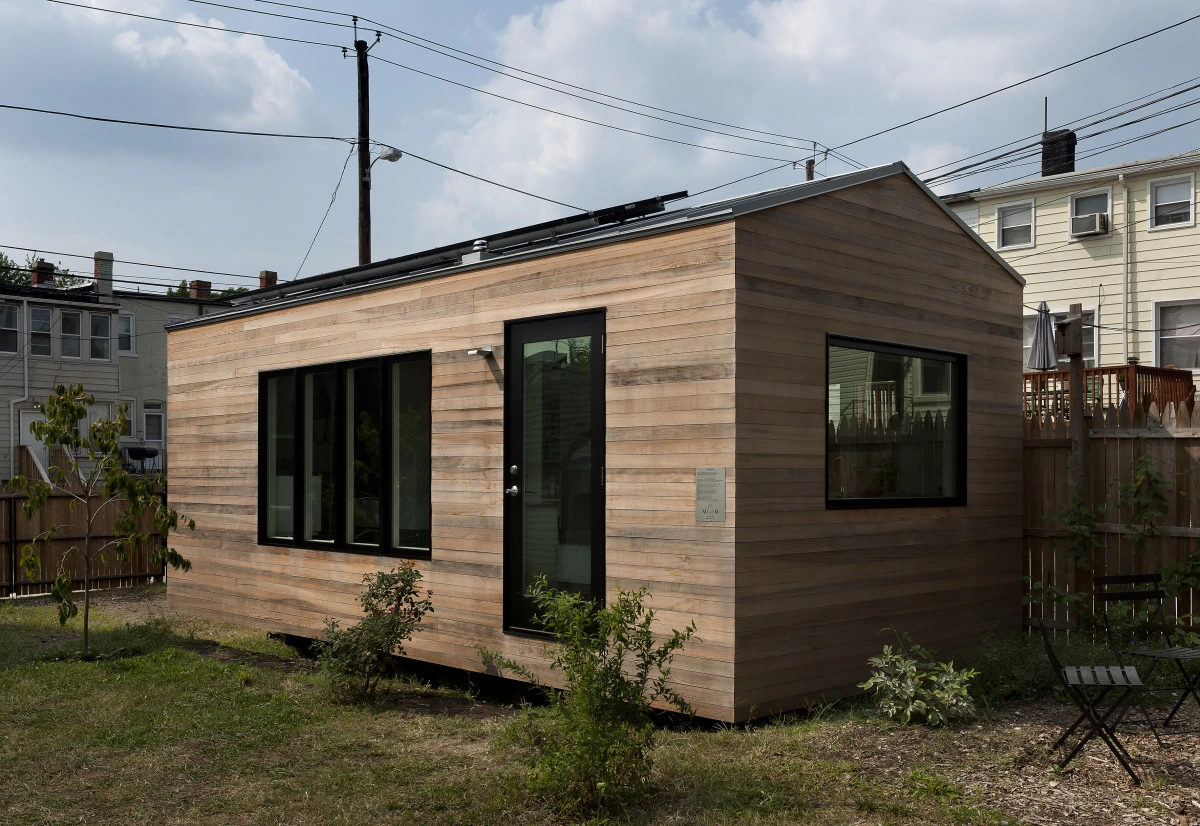

The house is clad in untreated cypress (Photo: Paul Burk Photography)
18/47
The house is clad in untreated cypress (Photo: Paul Burk Photography)

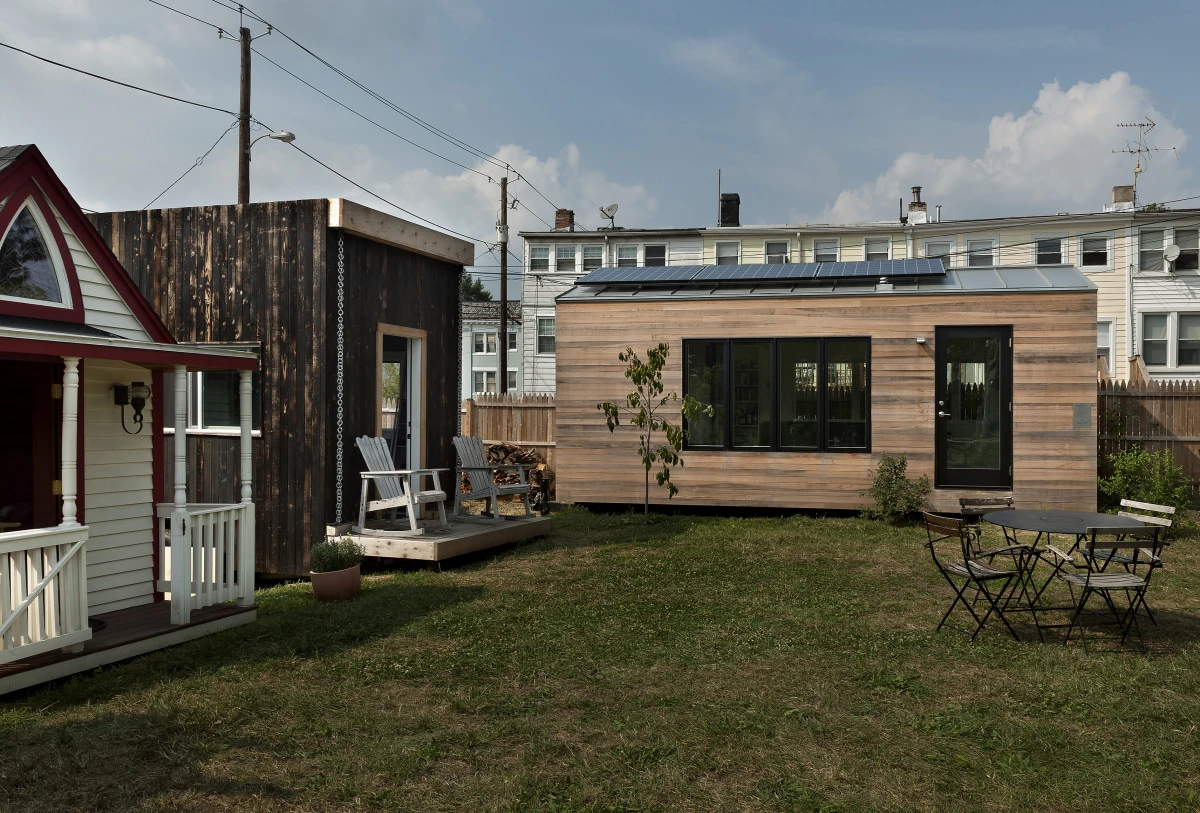

The house has a 960 watt solar array on the roof, complete with battery storage system (Photo: Paul Burk Photography)
19/47
The house has a 960 watt solar array on the roof, complete with battery storage system (Photo: Paul Burk Photography)

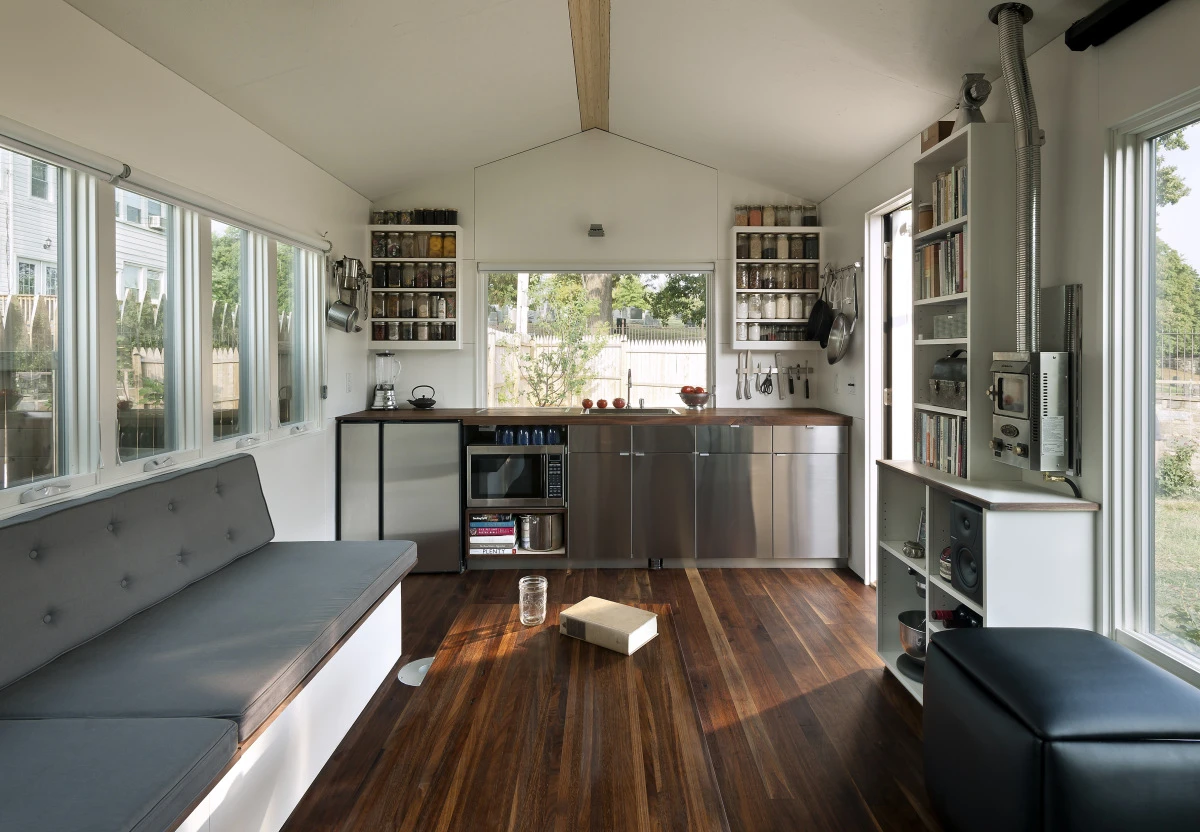

The house contains a kitchen galley wide enough for two (Photo: Paul Burk Photography)
20/47
The house contains a kitchen galley wide enough for two (Photo: Paul Burk Photography)

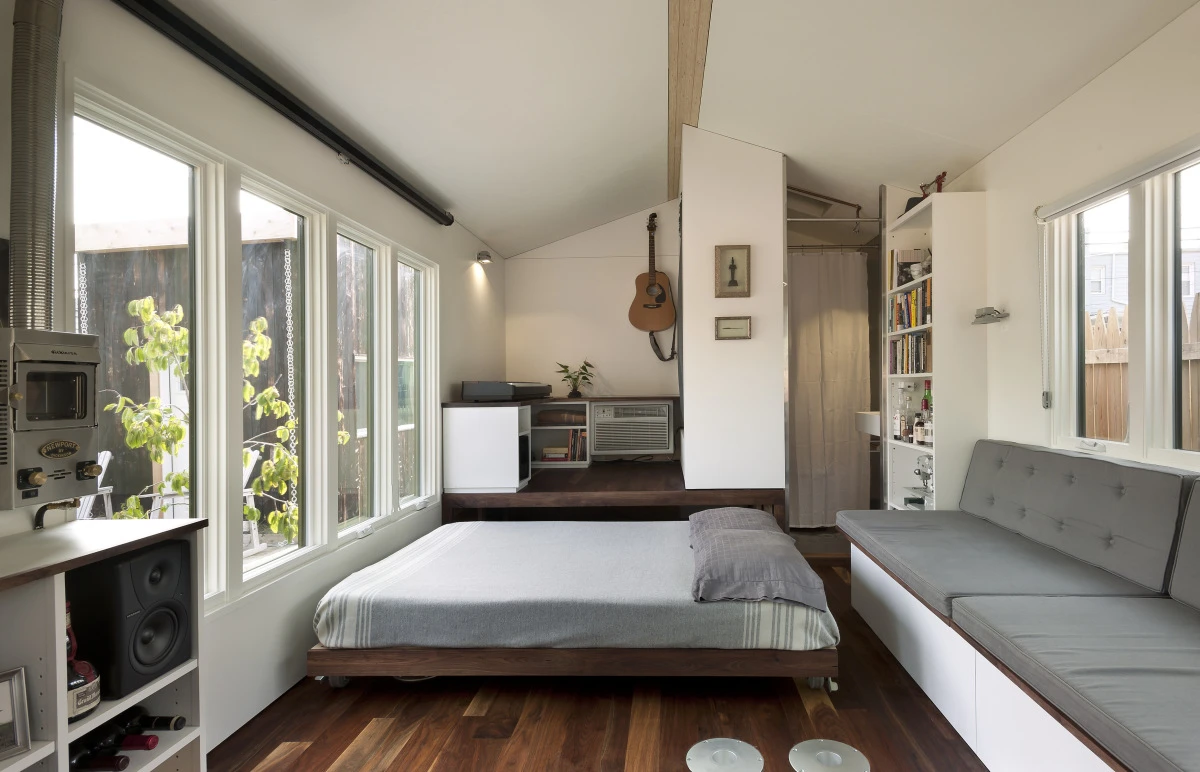

The office and storage area, shown at the end of the room, sits on a small platform (Photo: Paul Burk Photography)
21/47
The office and storage area, shown at the end of the room, sits on a small platform (Photo: Paul Burk Photography)
The table is solid walnut (Photo: Paul Burk Photography)
22/47
The table is solid walnut (Photo: Paul Burk Photography)
A 5-in-1 Cubista ottoman from Resource Furniture adds up to five seats (Photo: Paul Burk Photography)
23/47
A 5-in-1 Cubista ottoman from Resource Furniture adds up to five seats (Photo: Paul Burk Photography)
The table may also be positioned in front of the window as a ‘winter desk’ (Photo: Paul Burk Photography)
24/47
The table may also be positioned in front of the window as a ‘winter desk’ (Photo: Paul Burk Photography)

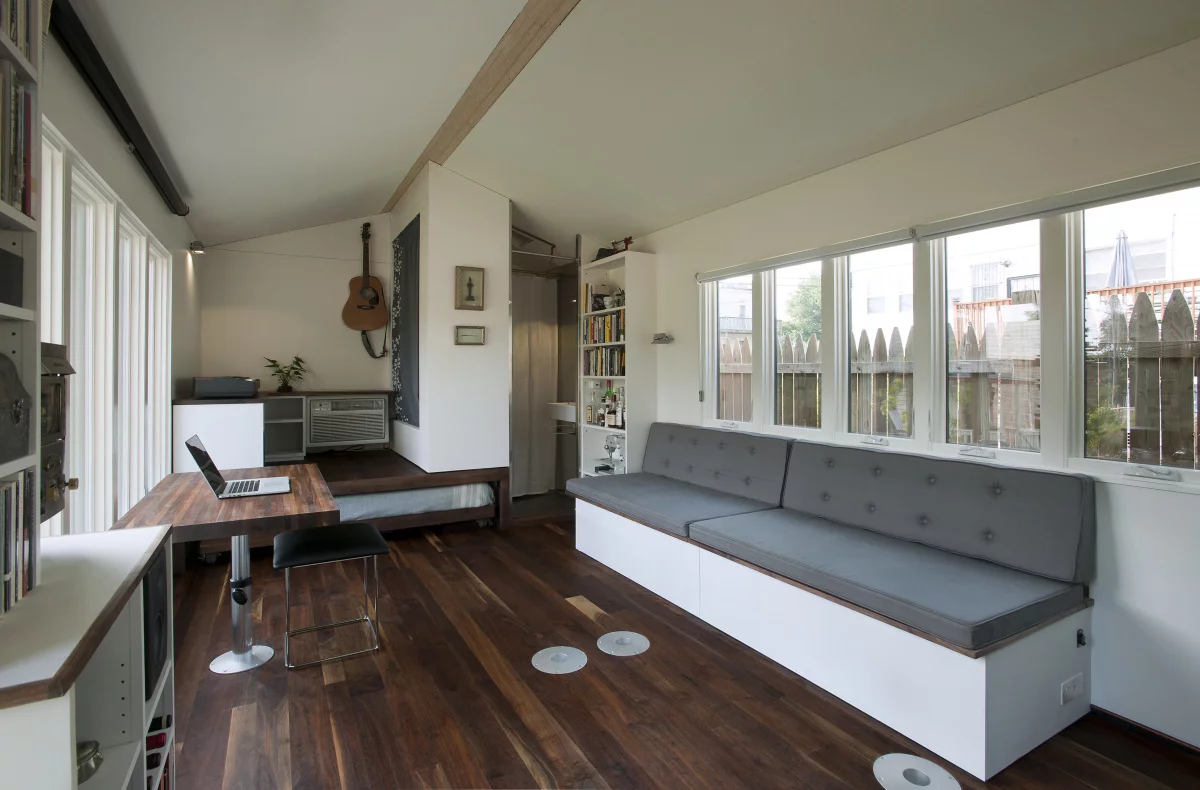

The walnut table may be lowered on a gas-assisted post to become the coffee table (Photo: Paul Burk Photography)
25/47
The walnut table may be lowered on a gas-assisted post to become the coffee table (Photo: Paul Burk Photography)
The bathroom consists of a snug but perfectly functional wet room and toilet (Photo: Paul Burk Photography)
26/47
The bathroom consists of a snug but perfectly functional wet room and toilet (Photo: Paul Burk Photography)

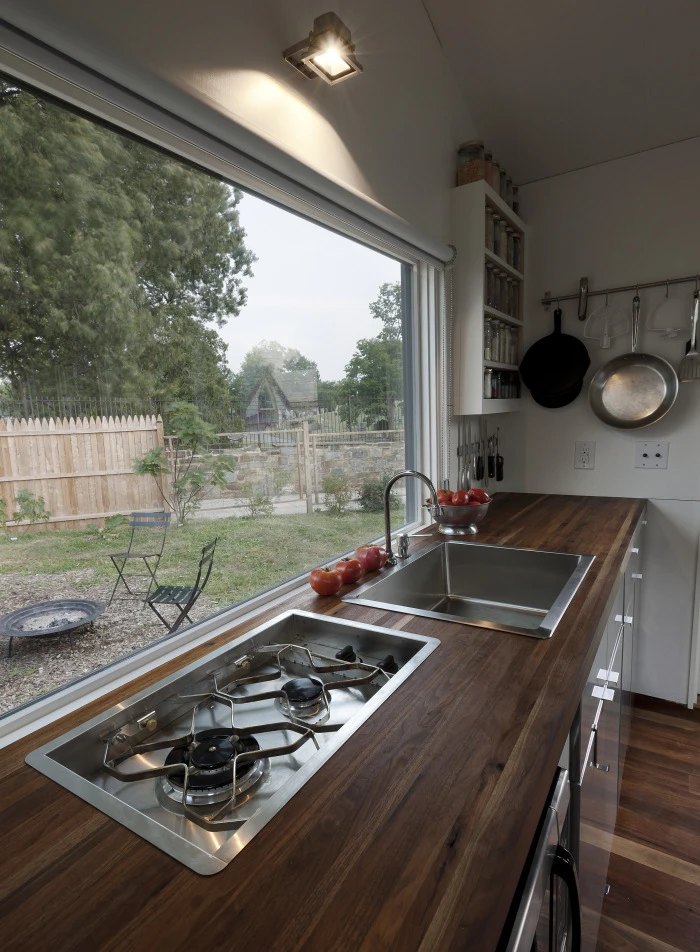

Stovetop without cutting board in place (Photo: Paul Burk Photography)
27/47
Stovetop without cutting board in place (Photo: Paul Burk Photography)

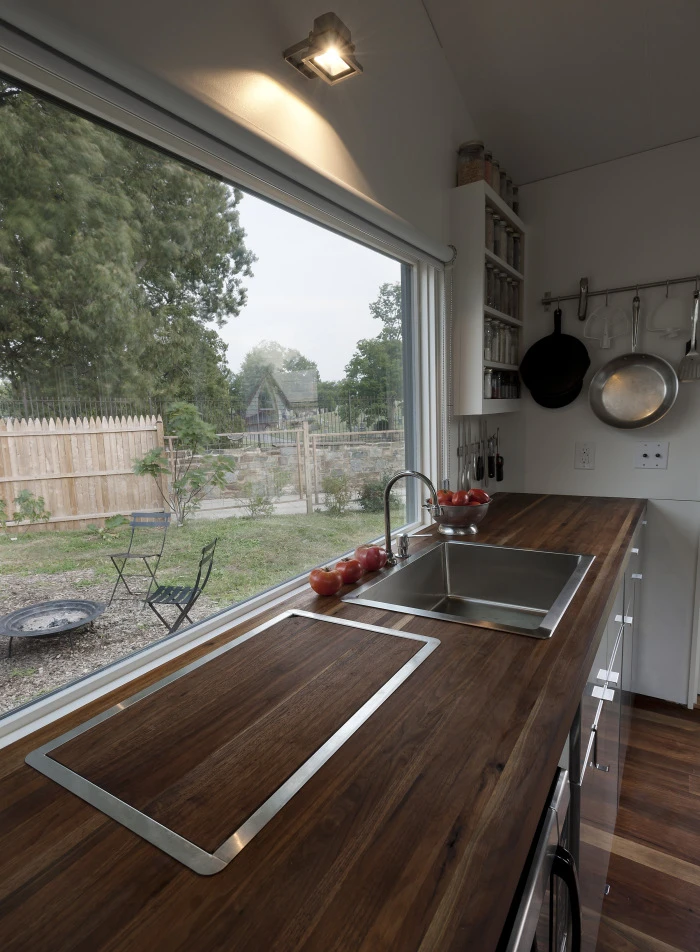

Stovetop with cutting board in place (Photo: Paul Burk Photography)
28/47
Stovetop with cutting board in place (Photo: Paul Burk Photography)
The couch/guest bed opens up to reveal storage, water tank, and water filter (Photo: Paul Burk Photography)
29/47
The couch/guest bed opens up to reveal storage, water tank, and water filter (Photo: Paul Burk Photography)
A projector screen and LED projector (Photo: Paul Burk Photography)
30/47
A projector screen and LED projector (Photo: Paul Burk Photography)

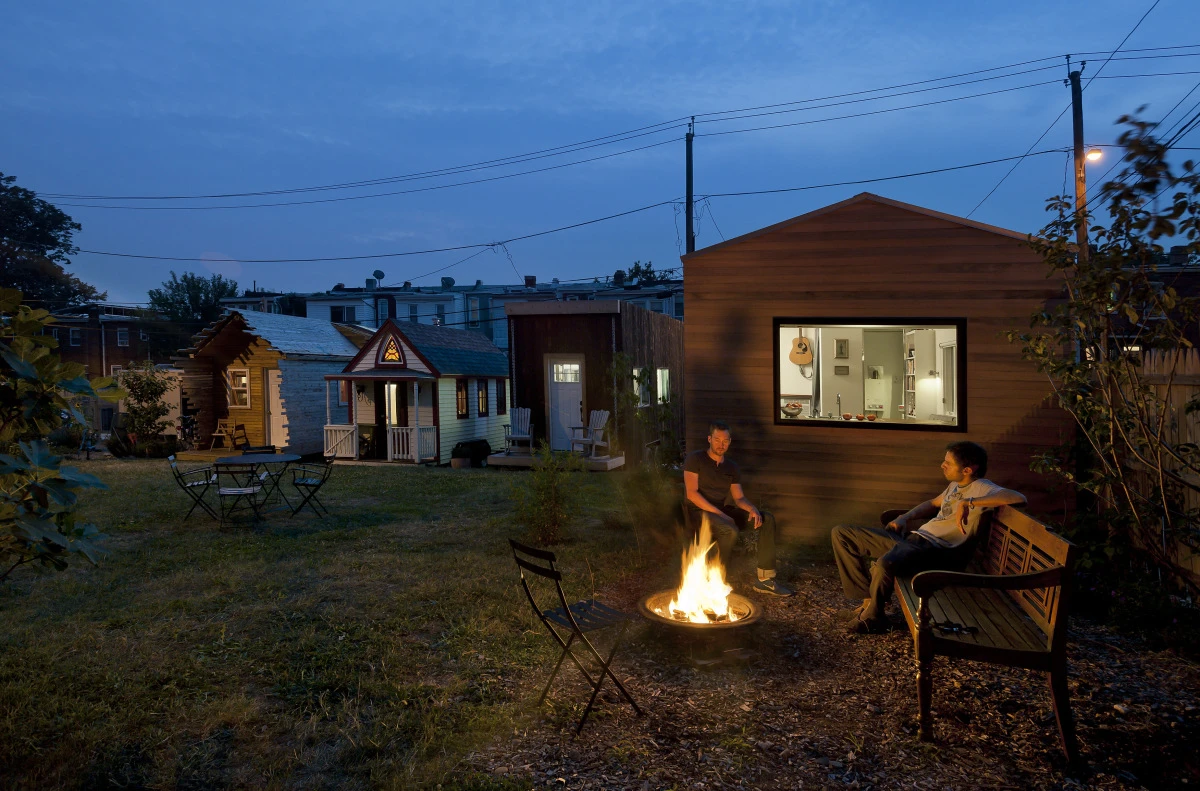

Minim House was constructed by Element Design + Build and installed at Washington DC's Boneyard Studios (Photo: Paul Burk Photography)
31/47
Minim House was constructed by Element Design + Build and installed at Washington DC's Boneyard Studios (Photo: Paul Burk Photography)

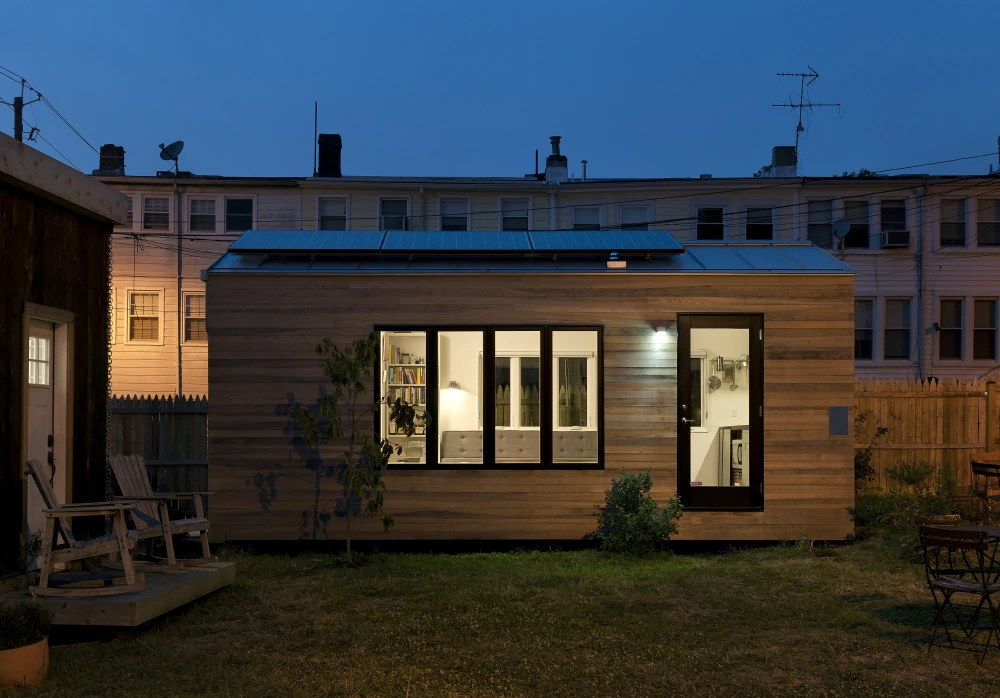

The house was designed by Foundry Architects and Brian Levy, (Photo: Paul Burk Photography)
32/47
The house was designed by Foundry Architects and Brian Levy, (Photo: Paul Burk Photography)

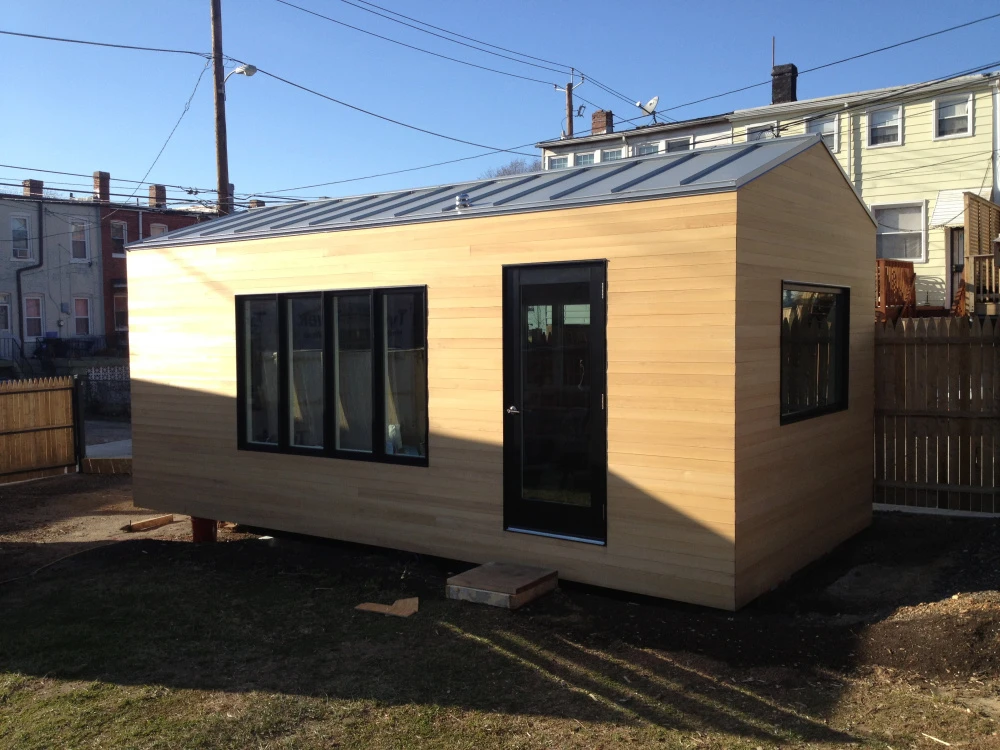

Construction process - roofing completed (Photo: Paul Burk Photography)
33/47
Construction process - roofing completed (Photo: Paul Burk Photography)
The walnut desk (Photo: Paul Burk Photography)
34/47
The walnut desk (Photo: Paul Burk Photography)

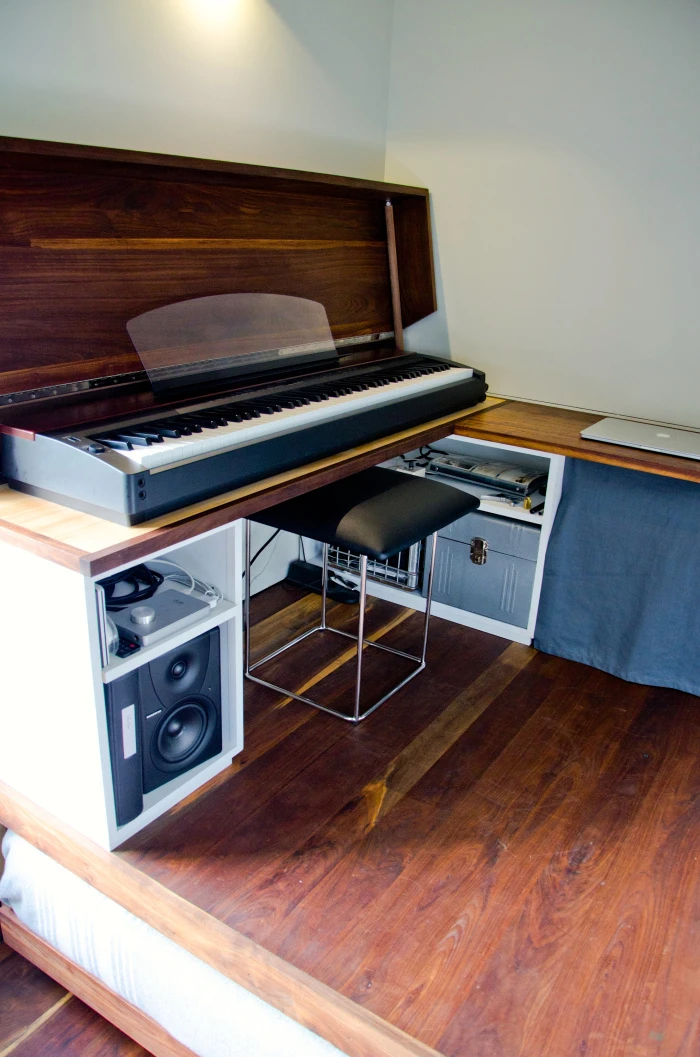

The Minim House desk opens up to reveal a full sized keyboard (Photo: Paul Burk Photography)
35/47
The Minim House desk opens up to reveal a full sized keyboard (Photo: Paul Burk Photography)

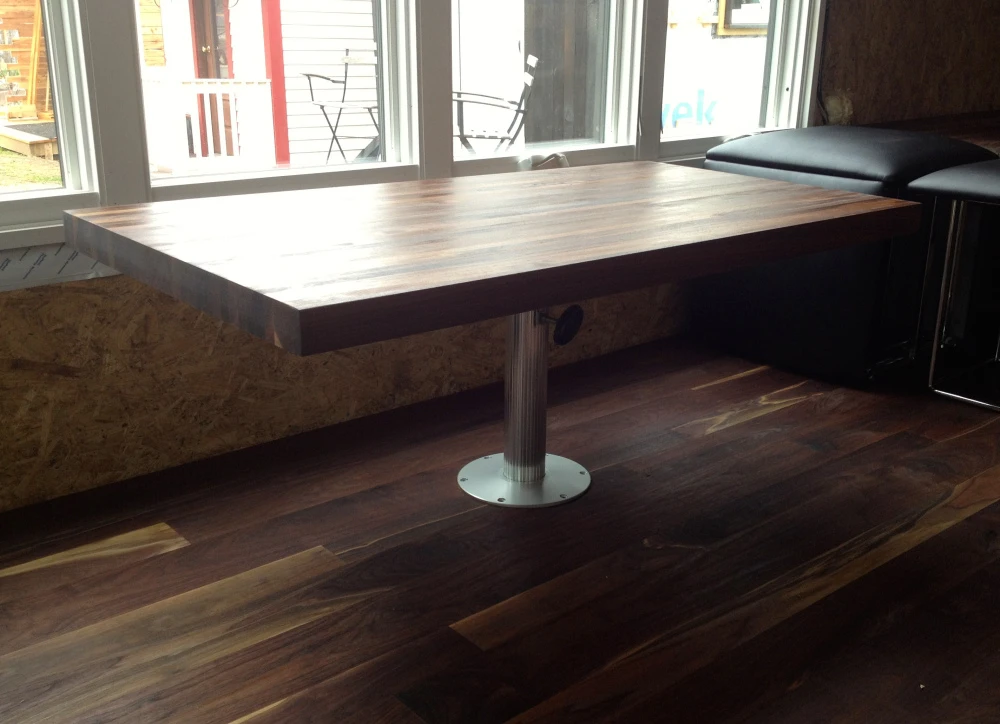

Marine table, compressed (Photo: Paul Burk Photography)
36/47
Marine table, compressed (Photo: Paul Burk Photography)

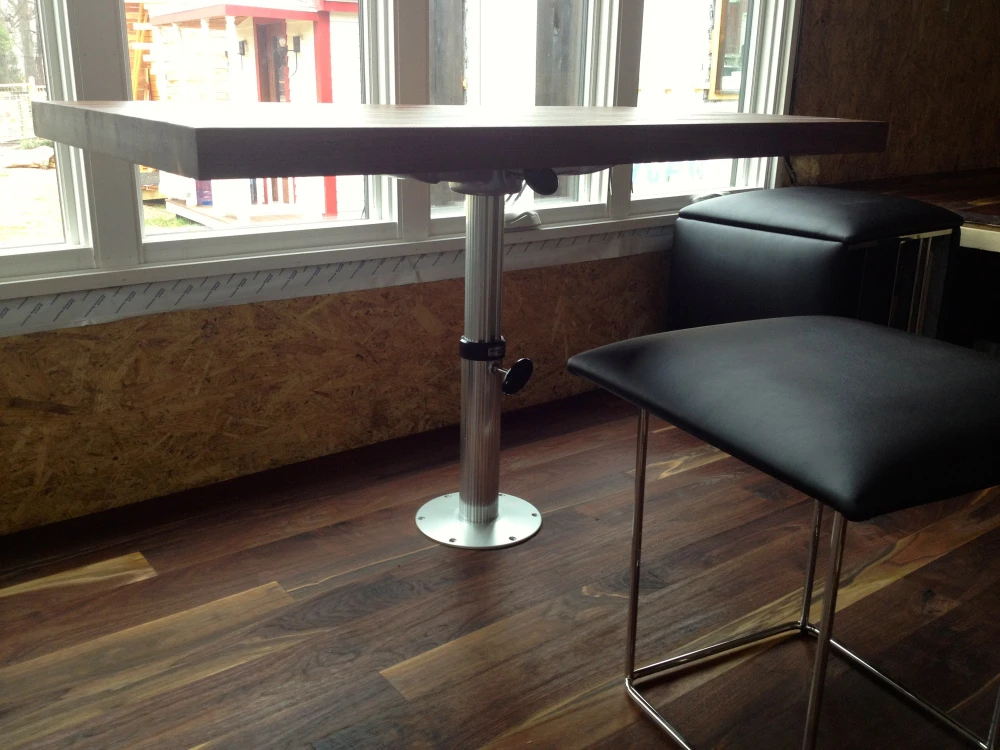

Marine table, fully extended (Photo: Paul Burk Photography)
37/47
Marine table, fully extended (Photo: Paul Burk Photography)
The house was designed by Foundry Architects and Brian Levy, (Photo: Paul Burk Photography)
38/47
The house was designed by Foundry Architects and Brian Levy, (Photo: Paul Burk Photography)

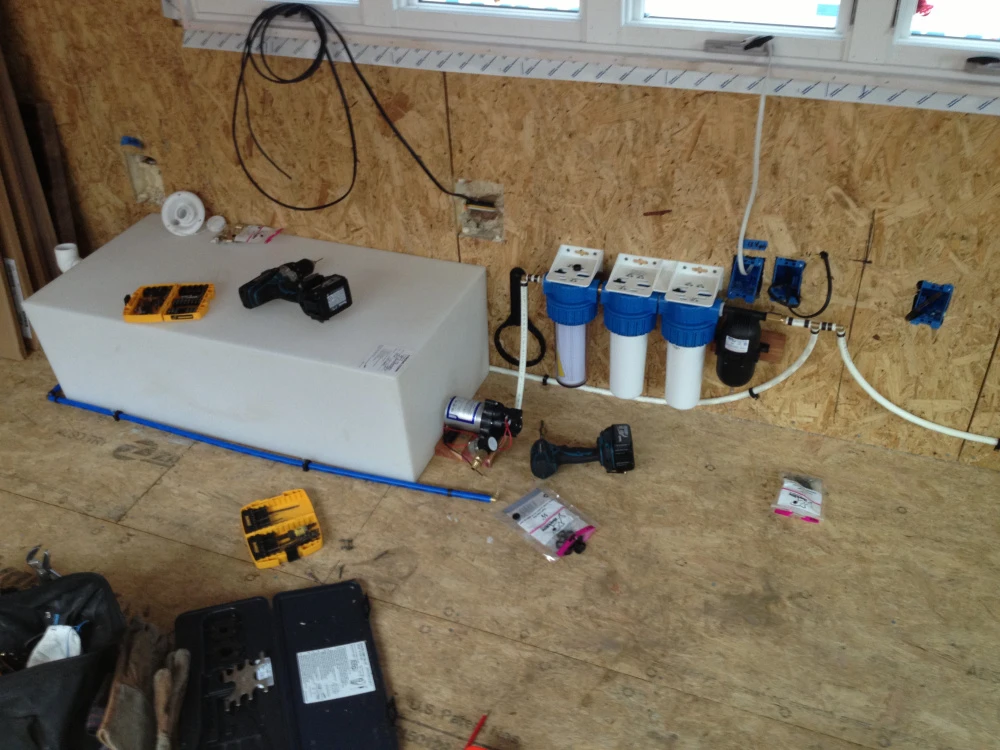

The rainwater tank and filtration system (Photo: Paul Burk Photography)
39/47
The rainwater tank and filtration system (Photo: Paul Burk Photography)
The house has walnut floors (Photo: Paul Burk Photography)
40/47
The house has walnut floors (Photo: Paul Burk Photography)

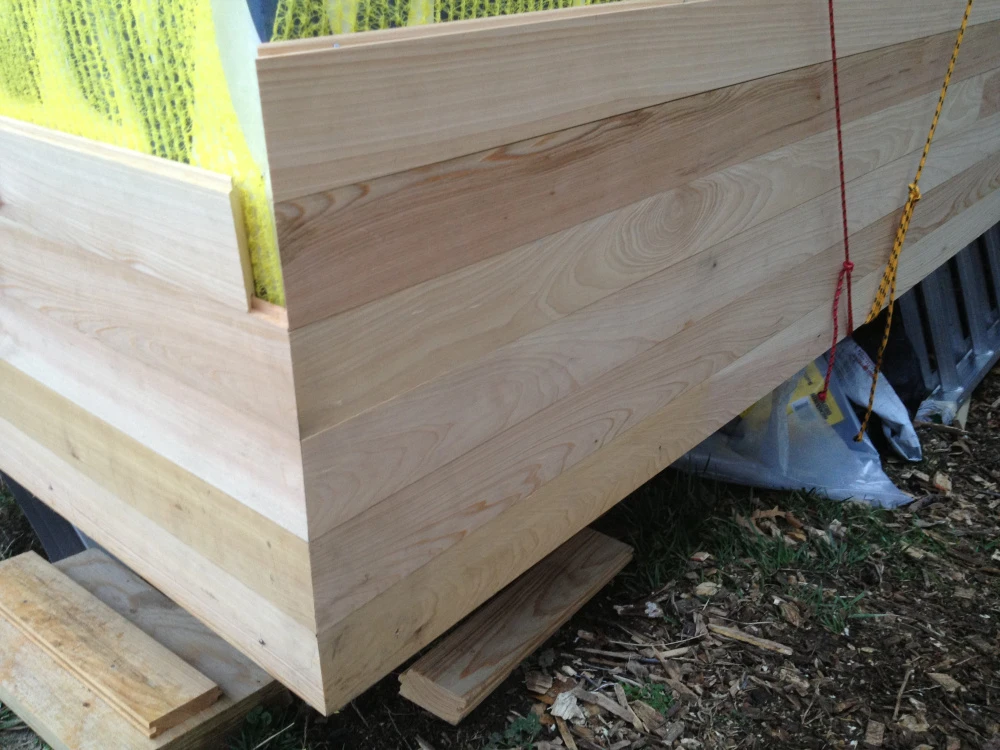

The house has mitred corners (Photo: Paul Burk Photography)
41/47
The house has mitred corners (Photo: Paul Burk Photography)

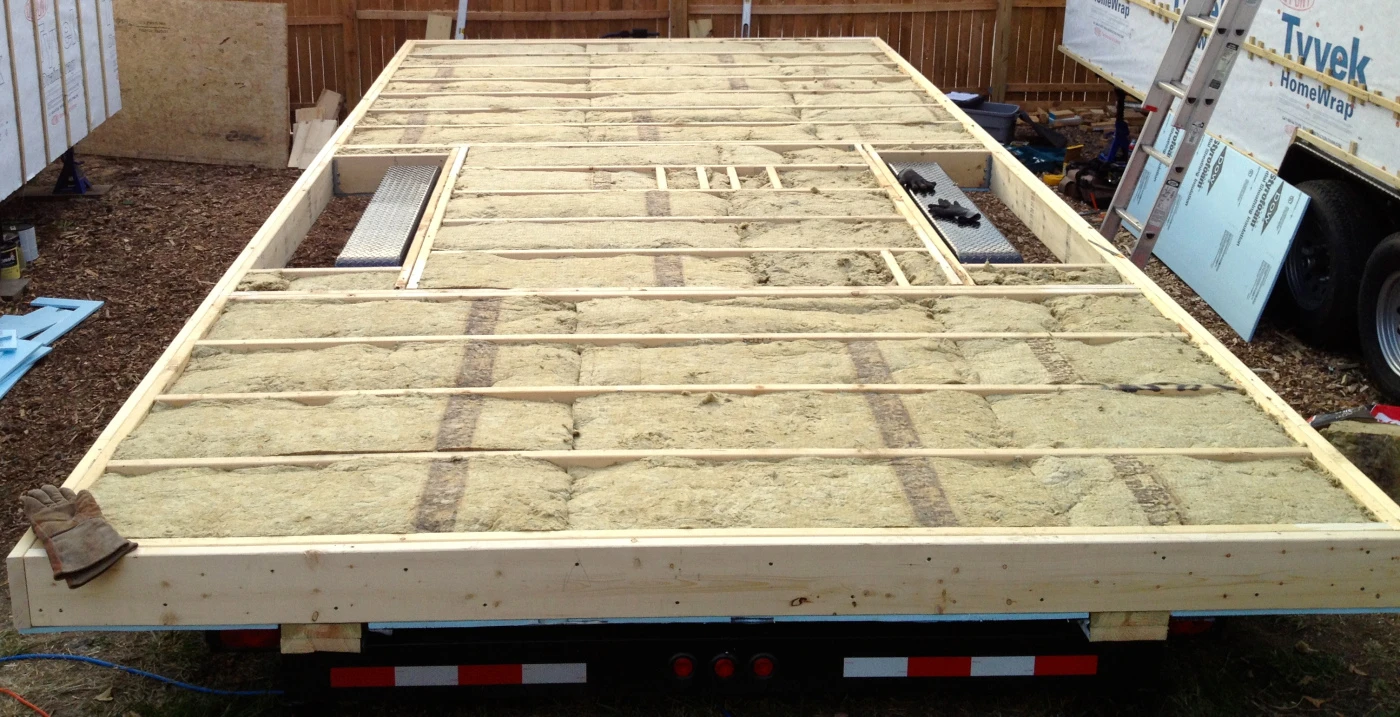

Construction process - installing the foundation (Photo: Paul Burk Photography)
42/47
Construction process - installing the foundation (Photo: Paul Burk Photography)
Construction process - showing the SIPs roof panels (Photo: Paul Burk Photography)
43/47
Construction process - showing the SIPs roof panels (Photo: Paul Burk Photography)
Construction process - siding almost completed (Photo: Paul Burk Photography)
44/47
Construction process - siding almost completed (Photo: Paul Burk Photography)

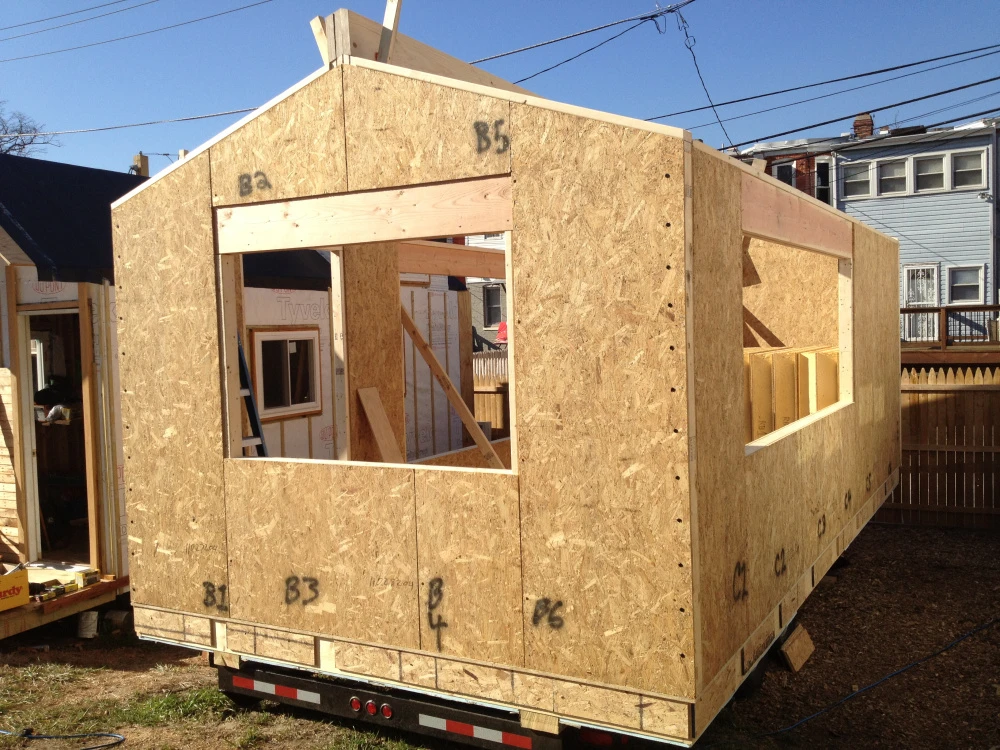

Construction process - all SIPs panels complete (Photo: Paul Burk Photography)
45/47
Construction process - all SIPs panels complete (Photo: Paul Burk Photography)
Construction process - the SIPs panels used (Photo: Paul Burk Photography)
46/47
Construction process - the SIPs panels used (Photo: Paul Burk Photography)

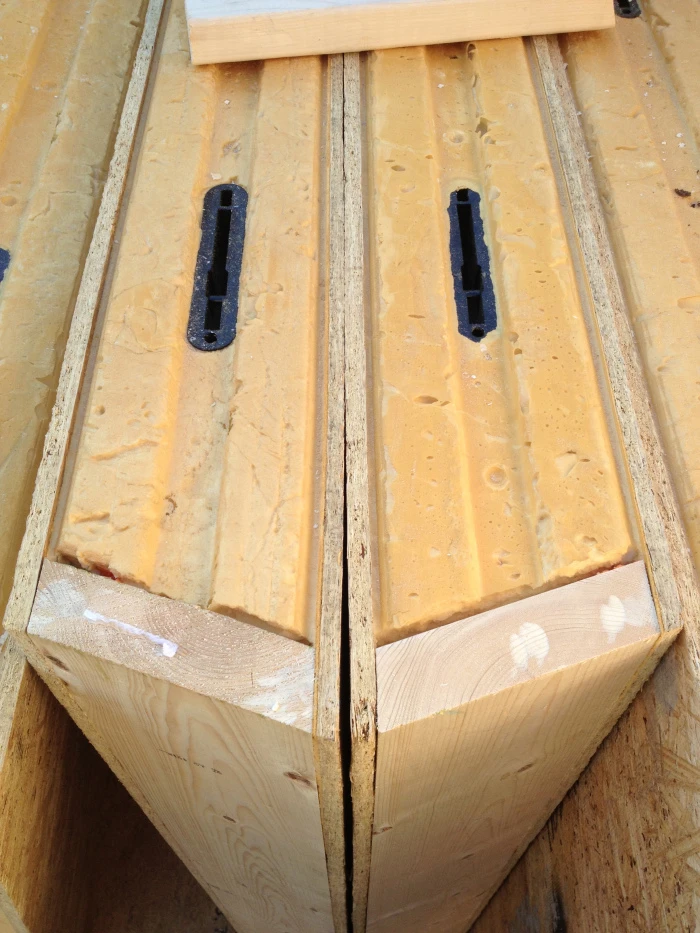

Construction process - SIPs roof panels ready for installation (Photo: Paul Burk Photography)
47/47
Construction process - SIPs roof panels ready for installation (Photo: Paul Burk Photography)

The tiny house movement continues to build momentum, and the latest small home to catch our eye with a clever space-maximizing design is the Minim House. The trailer-based mobile micro-home is capable of operating on or off grid, and boasts some comforts often associated with a larger home.

The product of a collaboration between Foundry Architects and Brian Levy, Minim House was recently constructed by Element Design + Build, and is currently installed at Washington DC's Boneyard Studios, a burgeoning tiny home community established in 2012.

Inside the 19.5 sq m (210 sq ft) home, an open-plan interior offers a generous 3 m (10 ft) wide kitchen area, with multi-use surfaces, refrigerator, and ample storage space. Owing to this layout, the main lounge area is on the larger side for a self-styled "micro-home," and Levy reports that the couch will seat five adults, with room for several more guests on seats placed around the home.

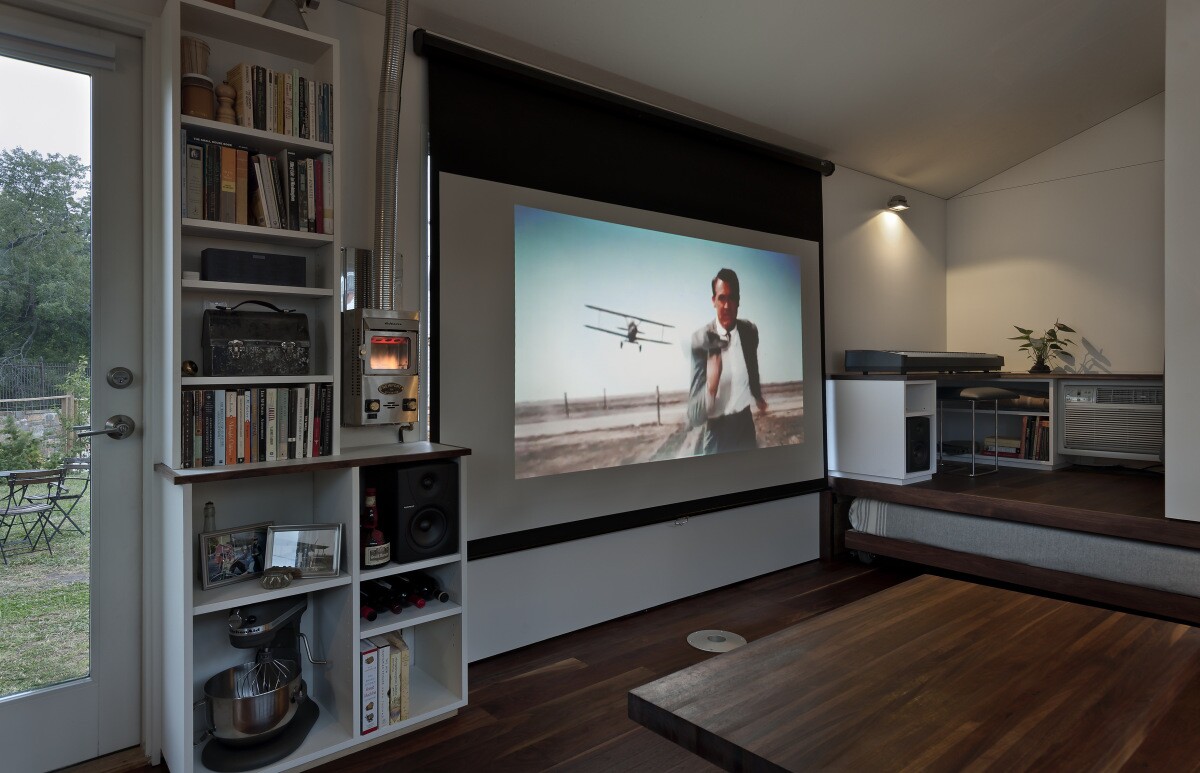

A projector screen and LED projector (Photo: Paul Burk Photography)
A projector screen and LED projector (Photo: Paul Burk Photography)

Entertainment facilities include a window that becomes a cinema screen once a shade is pulled down from above and a small LED projector put into operation. There's also a small raised office space with desk that lifts to reveal a musical keyboard.

A full-size bed slides out from underneath the raised platform office to serve as a sleeping area, and the bathroom is a snug wet room and toilet, the latter screened with a shower curtain when the water is spraying.

The usual range of off-grid technology makes an appearance in the home, including an optional compostable toilet and 960 W roof solar array with integrated battery storage system. LED lighting, and rainwater collection and filtration are also on-board, and the house mostly uses the kind of low-power appliances often seen in small boats, but also has a hookup for full mains.

Minim House was constructed using standard SIPs (structural insulated panels), with a cypress facade that will eventually age to a light grey color. According to Levy, the simple construction and standardized materials allow a crew of two people to construct the house within just five days.

The price tag for this particular build came to US$30,966 in materials, though that figure did not include any labor costs. Those interested can purchase the plans for the home via the source link below.

Source: Minim Homes
