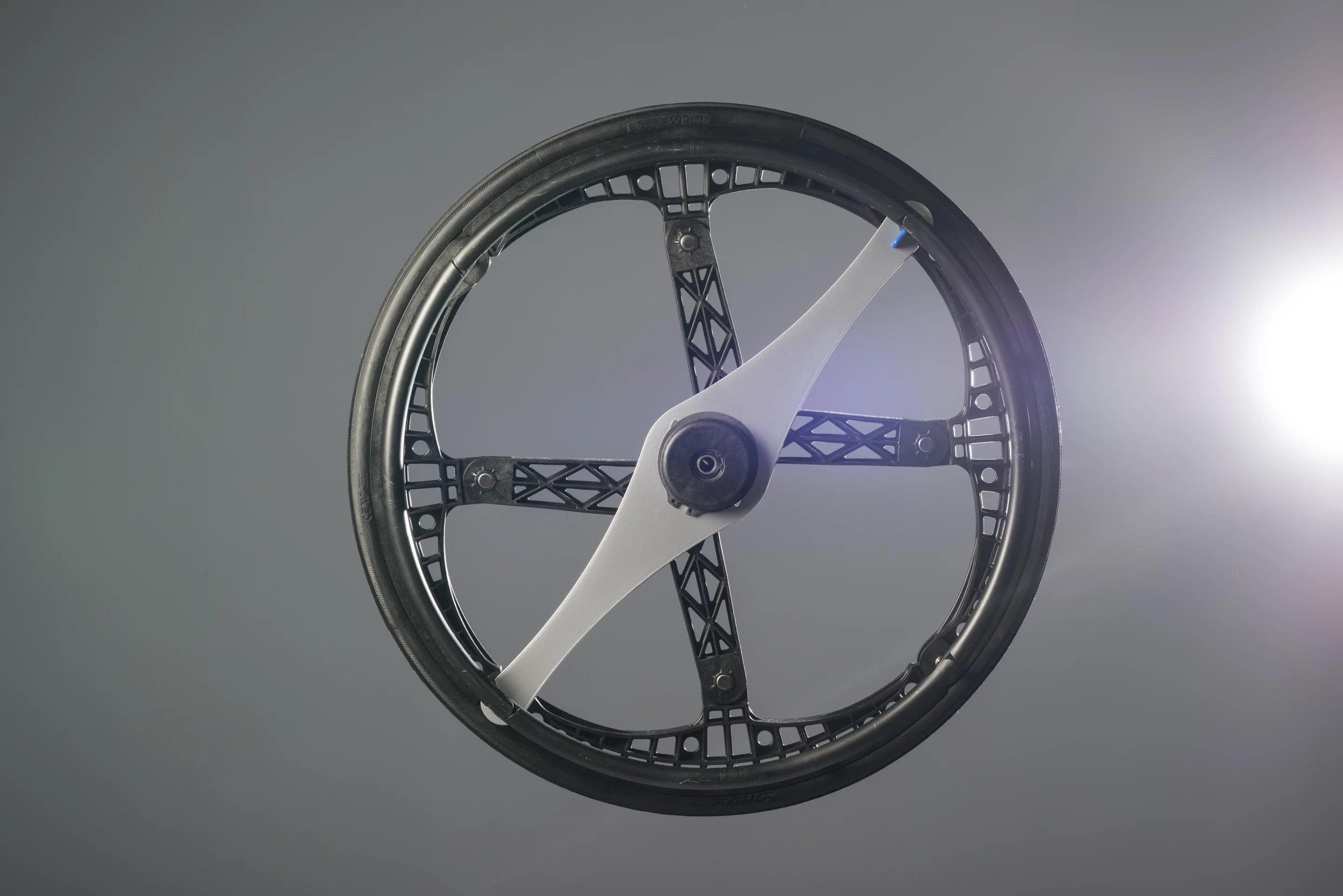

The Morph Wheel was originally designed for use with a bicycle
1/13
The Morph Wheel was originally designed for use with a bicycle

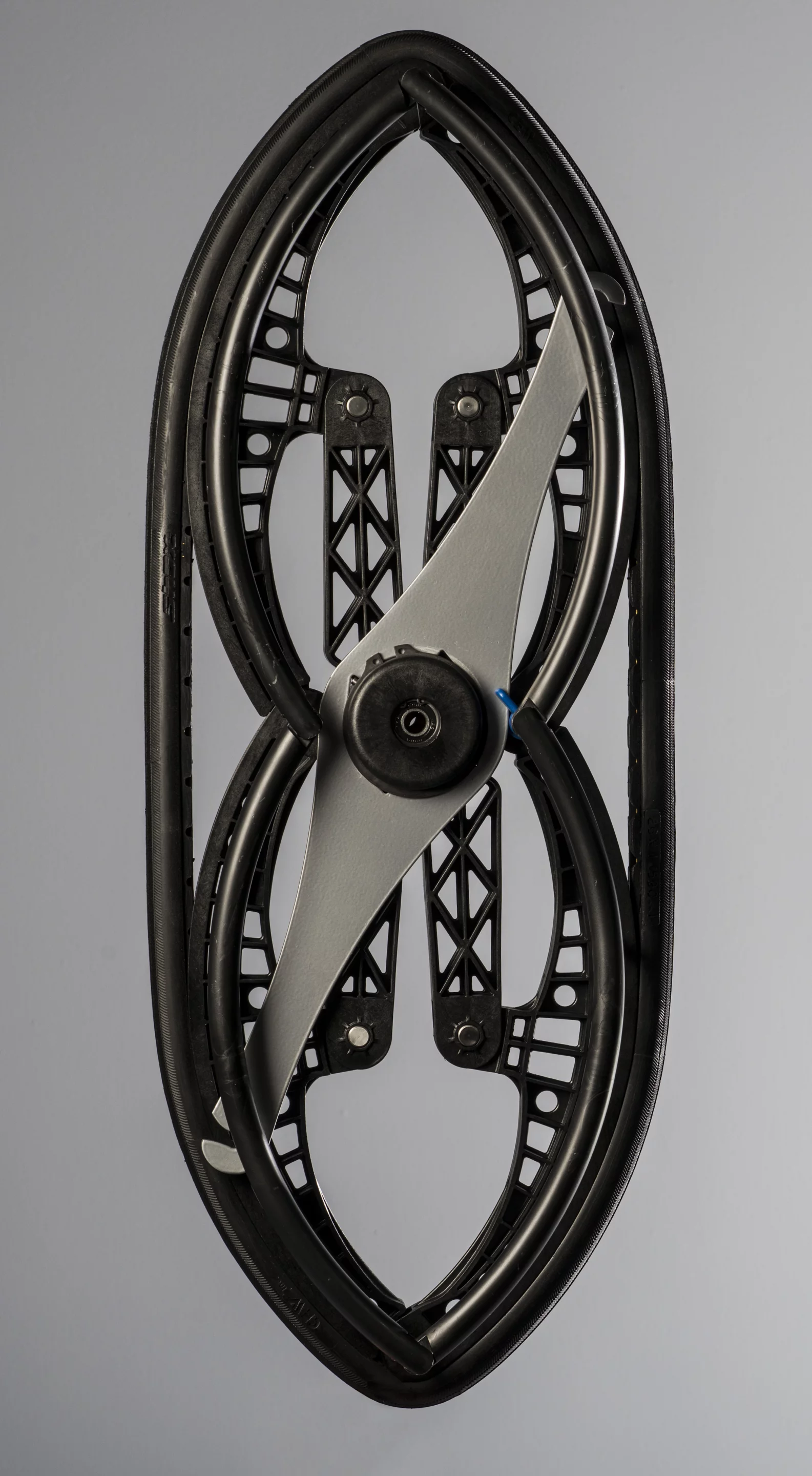

The Morph Wheel sports a quick-release axle which prevents it from folding unless desired by the user
2/13
The Morph Wheel sports a quick-release axle which prevents it from folding unless desired by the user
The wheel size is reduced from 24 inches in diameter, to 32 x 12.5 inches when folded
3/13
The wheel size is reduced from 24 inches in diameter, to 32 x 12.5 inches when folded

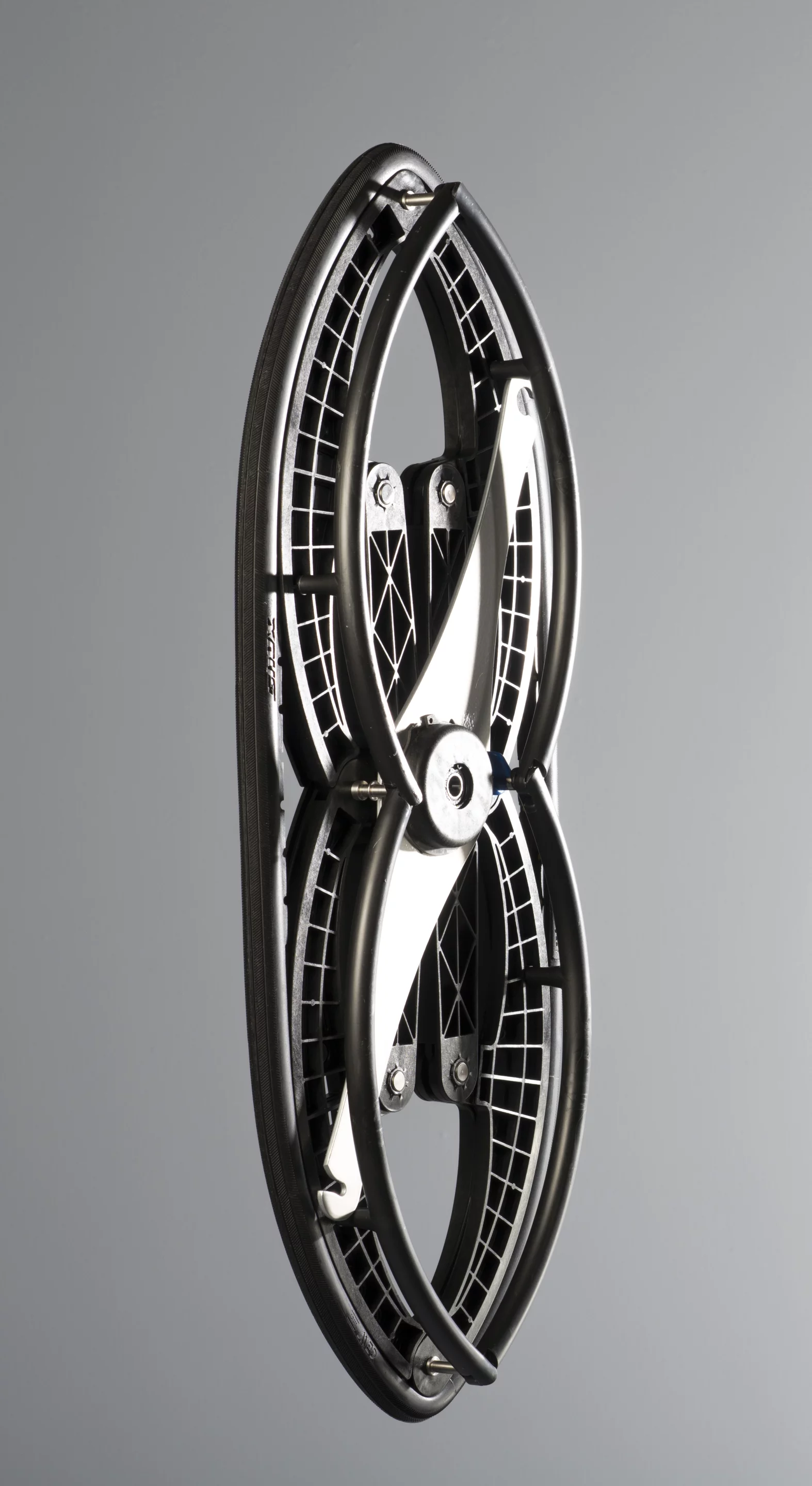

Morph states that the Morph Wheel is small enough to fit under an airplane seat during flights
4/13
Morph states that the Morph Wheel is small enough to fit under an airplane seat during flights

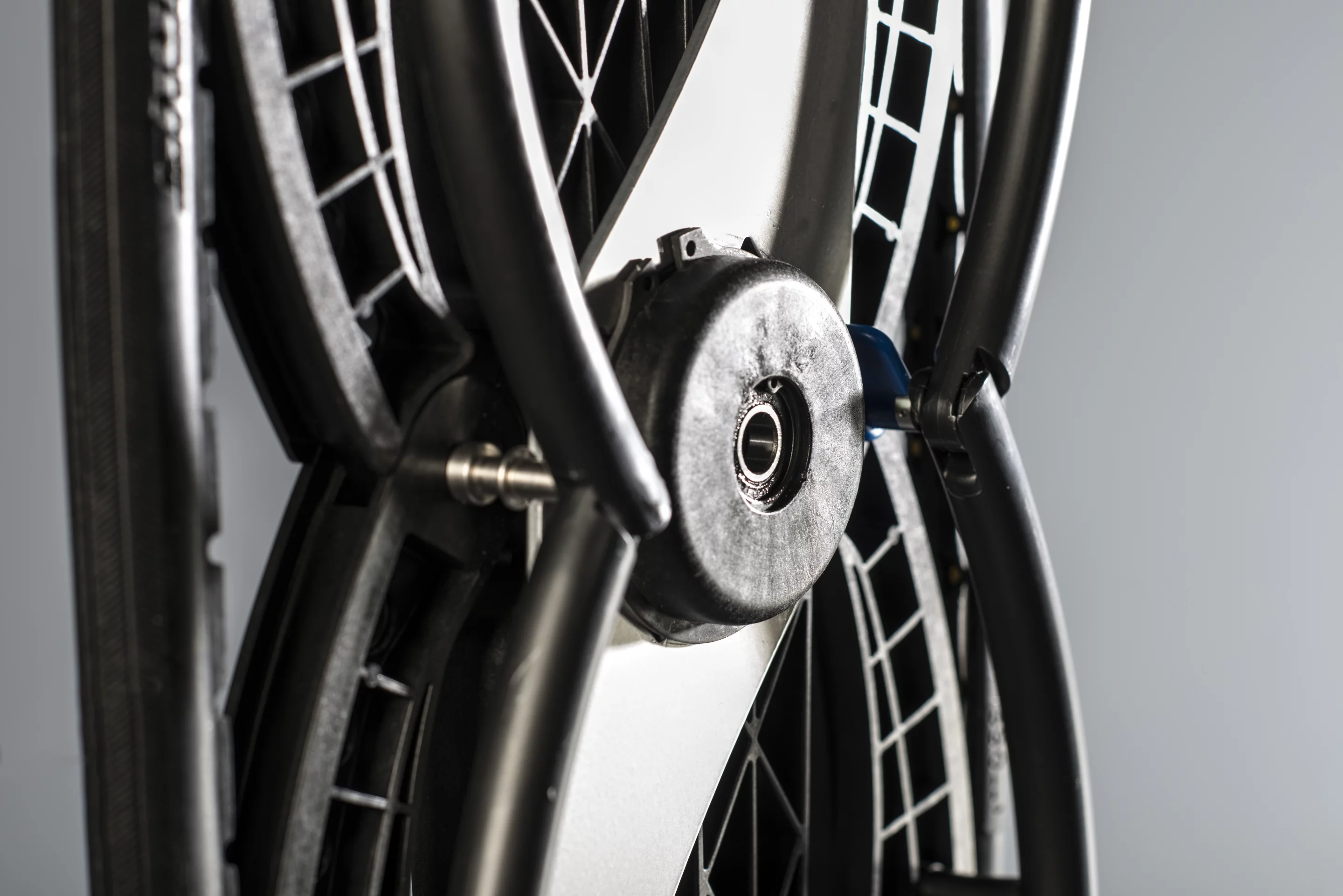

A Morph Wheel will fit to any existing wheelchair able to accommodate a wheel with a quick release axle
5/13
A Morph Wheel will fit to any existing wheelchair able to accommodate a wheel with a quick release axle

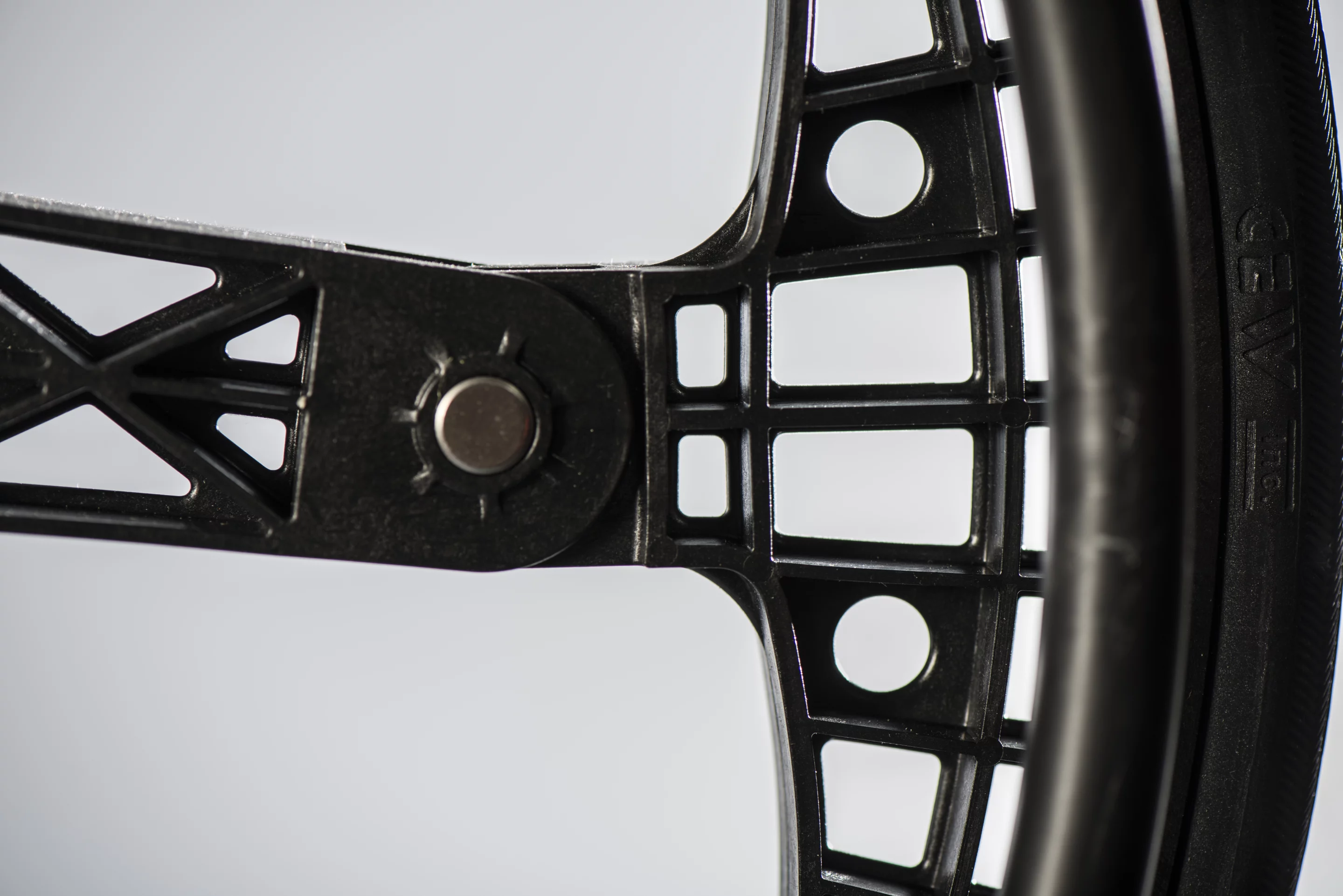

The wheel is 24 inches (61 cm) in diameter
6/13
The wheel is 24 inches (61 cm) in diameter

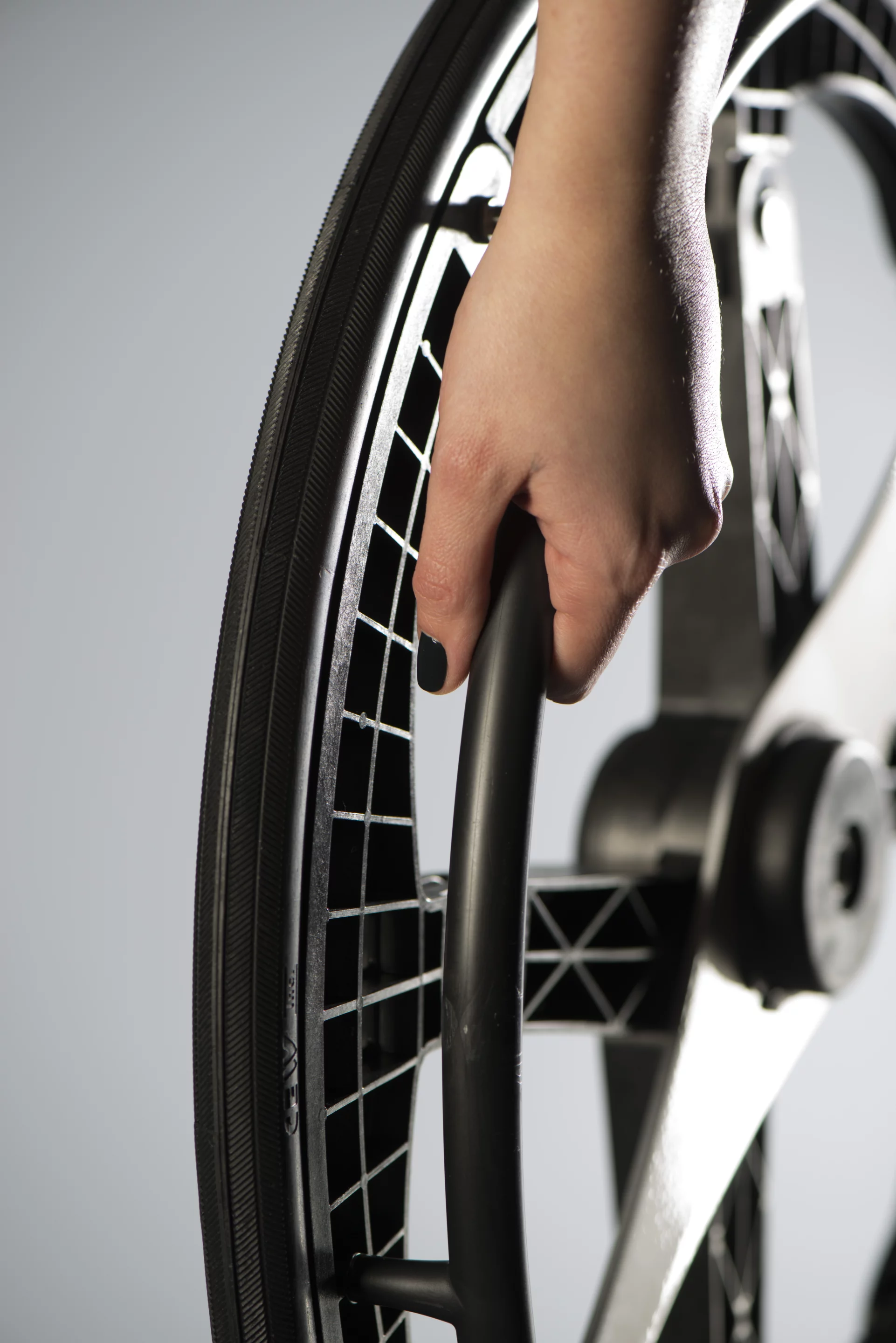

Each wheel is constructed from glass filled nylon, with a polypropylene hand rim, and solid tire
7/13
Each wheel is constructed from glass filled nylon, with a polypropylene hand rim, and solid tire

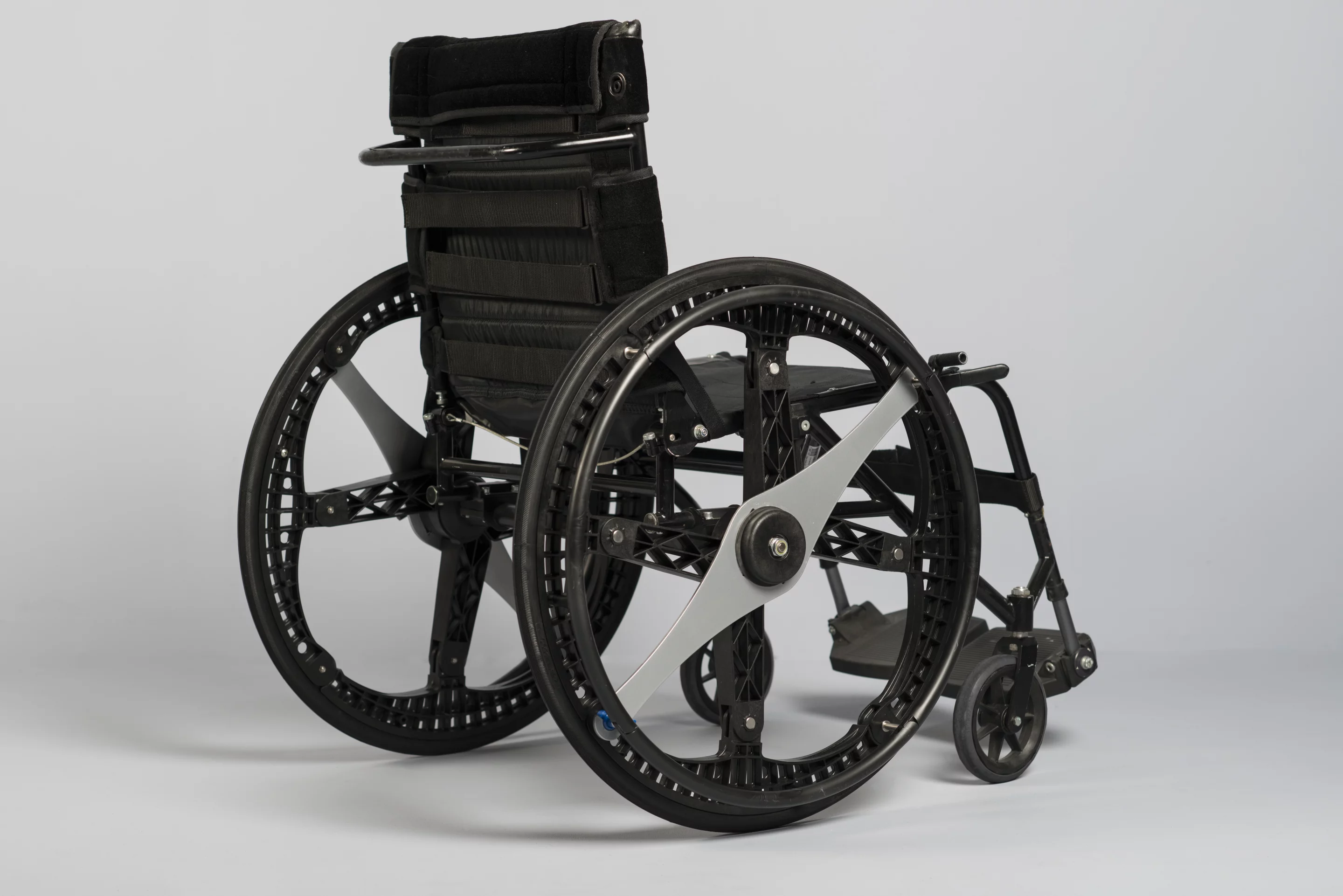

Originally created for use with folding bicycles, the designers changed focus in response to requests from the disabled community
8/13
Originally created for use with folding bicycles, the designers changed focus in response to requests from the disabled community
The Morph Wheel was originally designed for use with a bicycle
9/13
The Morph Wheel was originally designed for use with a bicycle

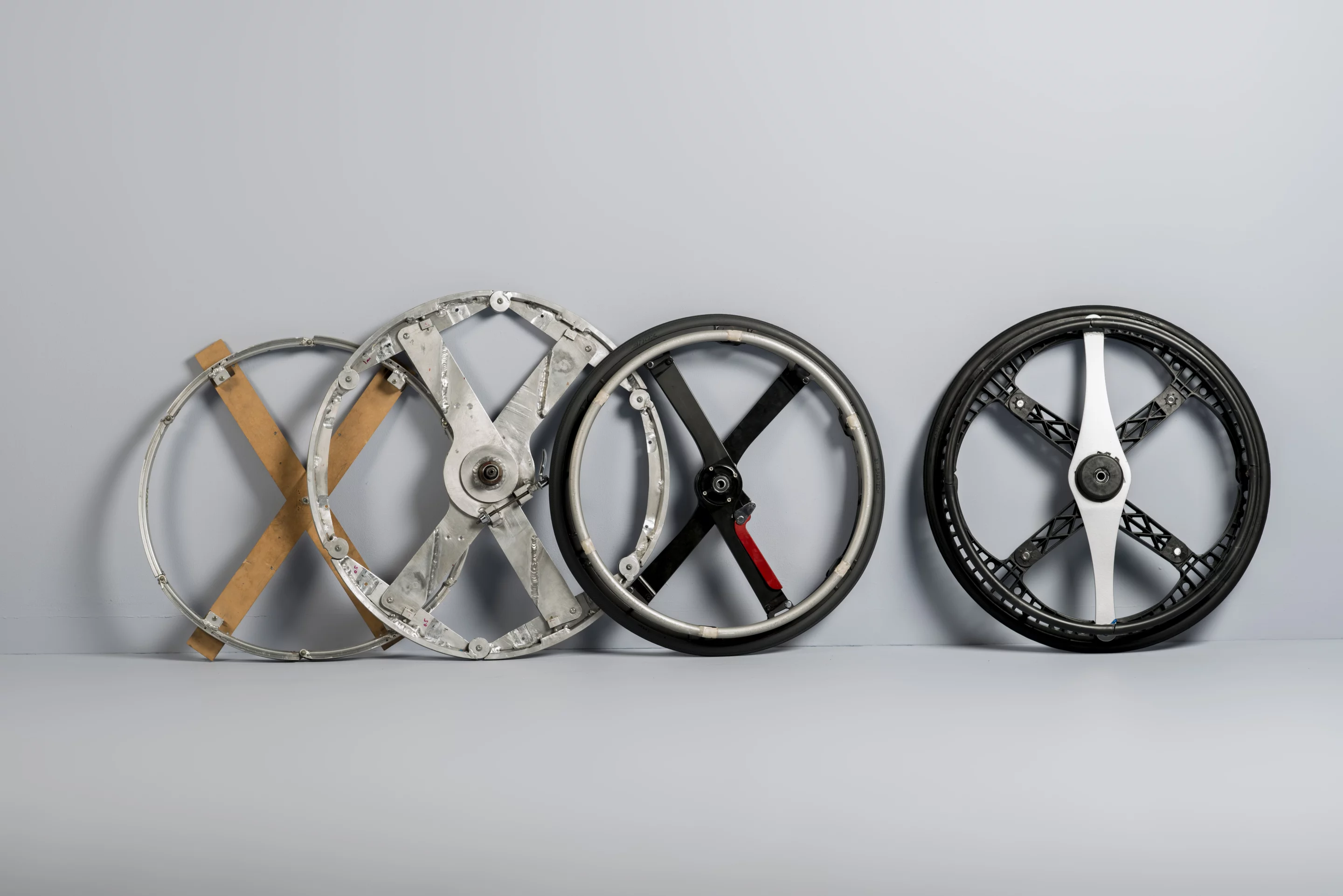

The Morph Wheel is constructed from glass filled nylon, with a polypropylene hand rim, and solid tire
10/13
The Morph Wheel is constructed from glass filled nylon, with a polypropylene hand rim, and solid tire

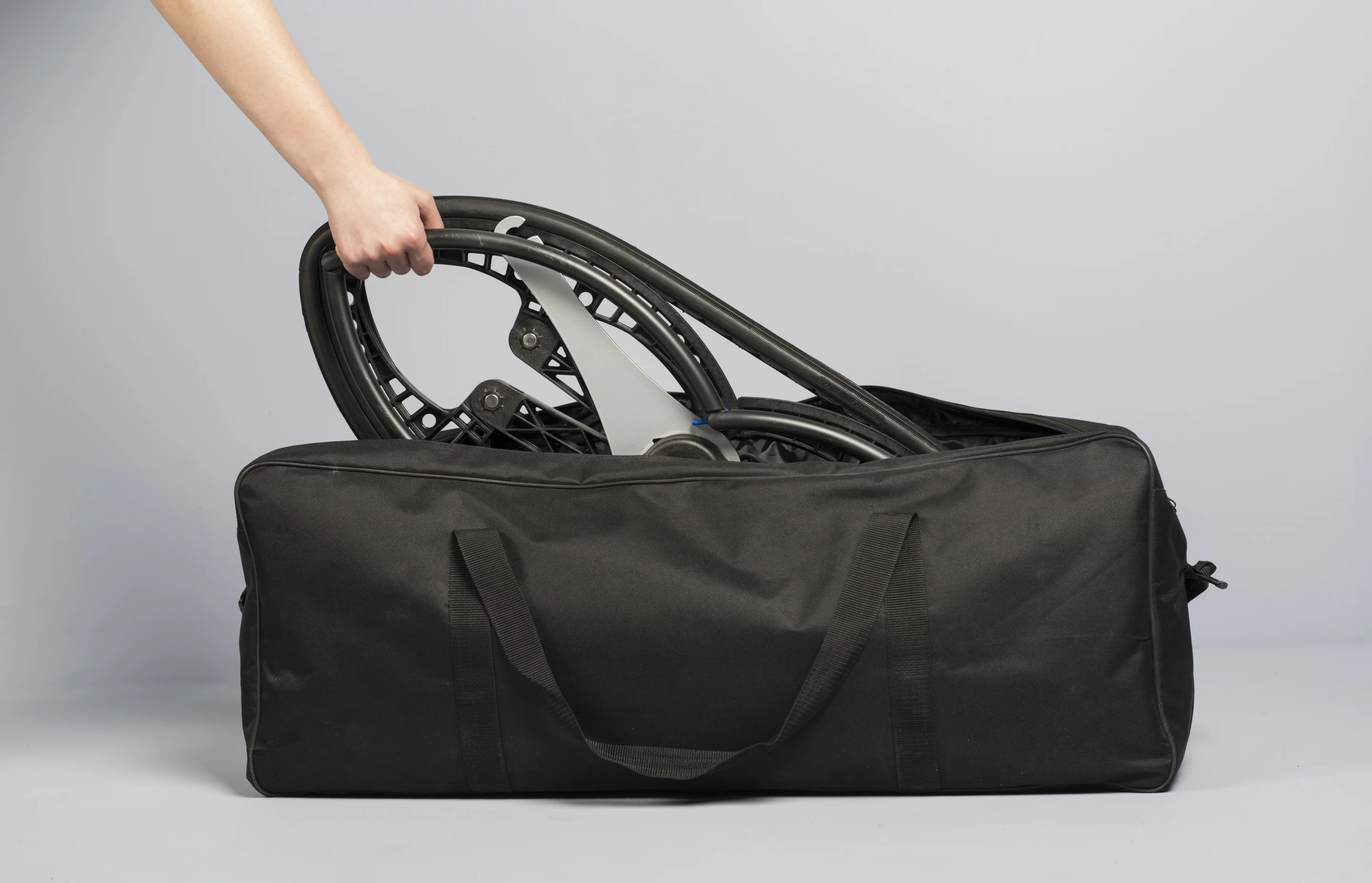

A wheelchair which sports Morph Folding Wheels could easily fit into a bag
11/13
A wheelchair which sports Morph Folding Wheels could easily fit into a bag

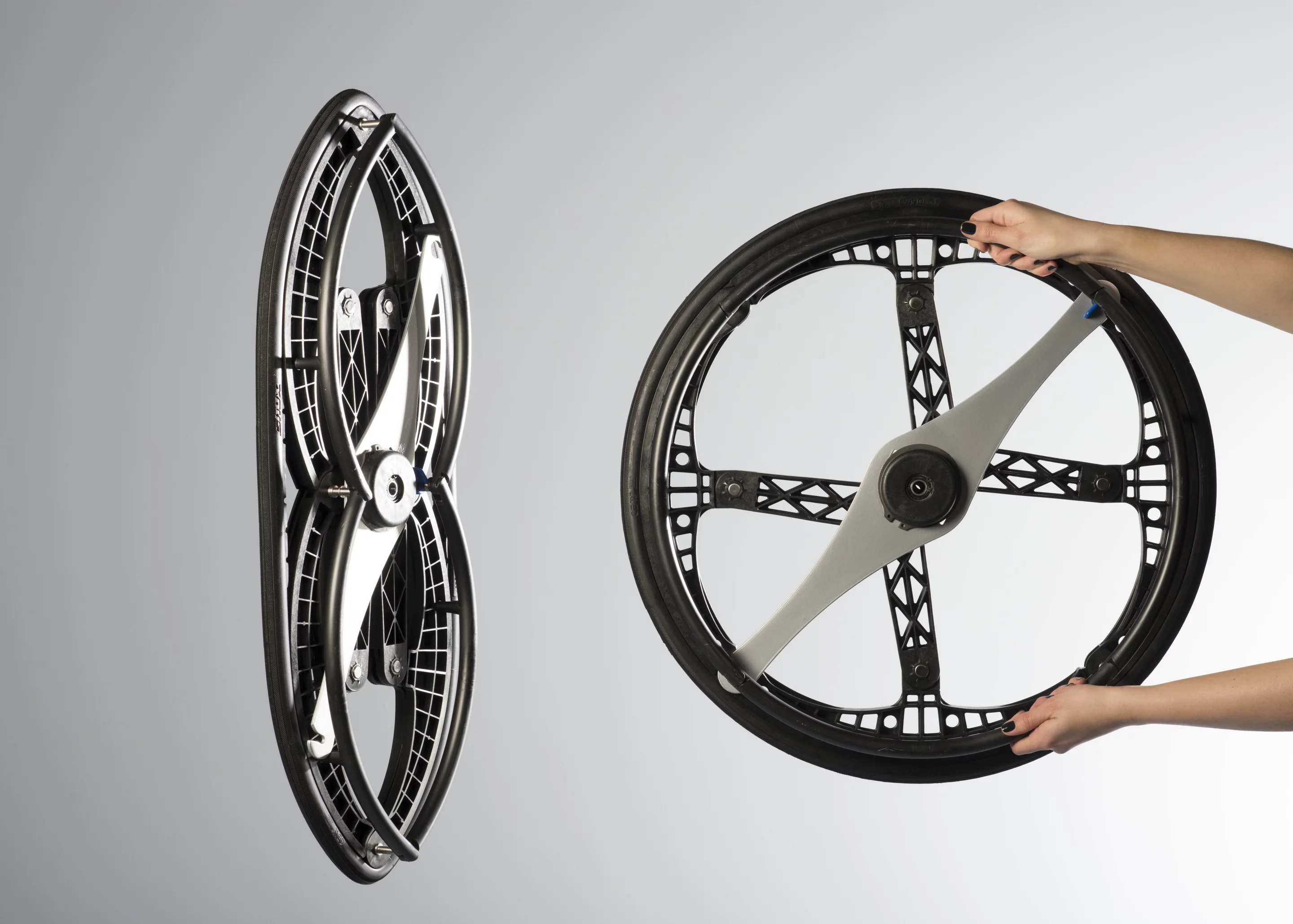

The wheel folding mechanism is said to be easy to master, requiring no special tools
12/13
The wheel folding mechanism is said to be easy to master, requiring no special tools

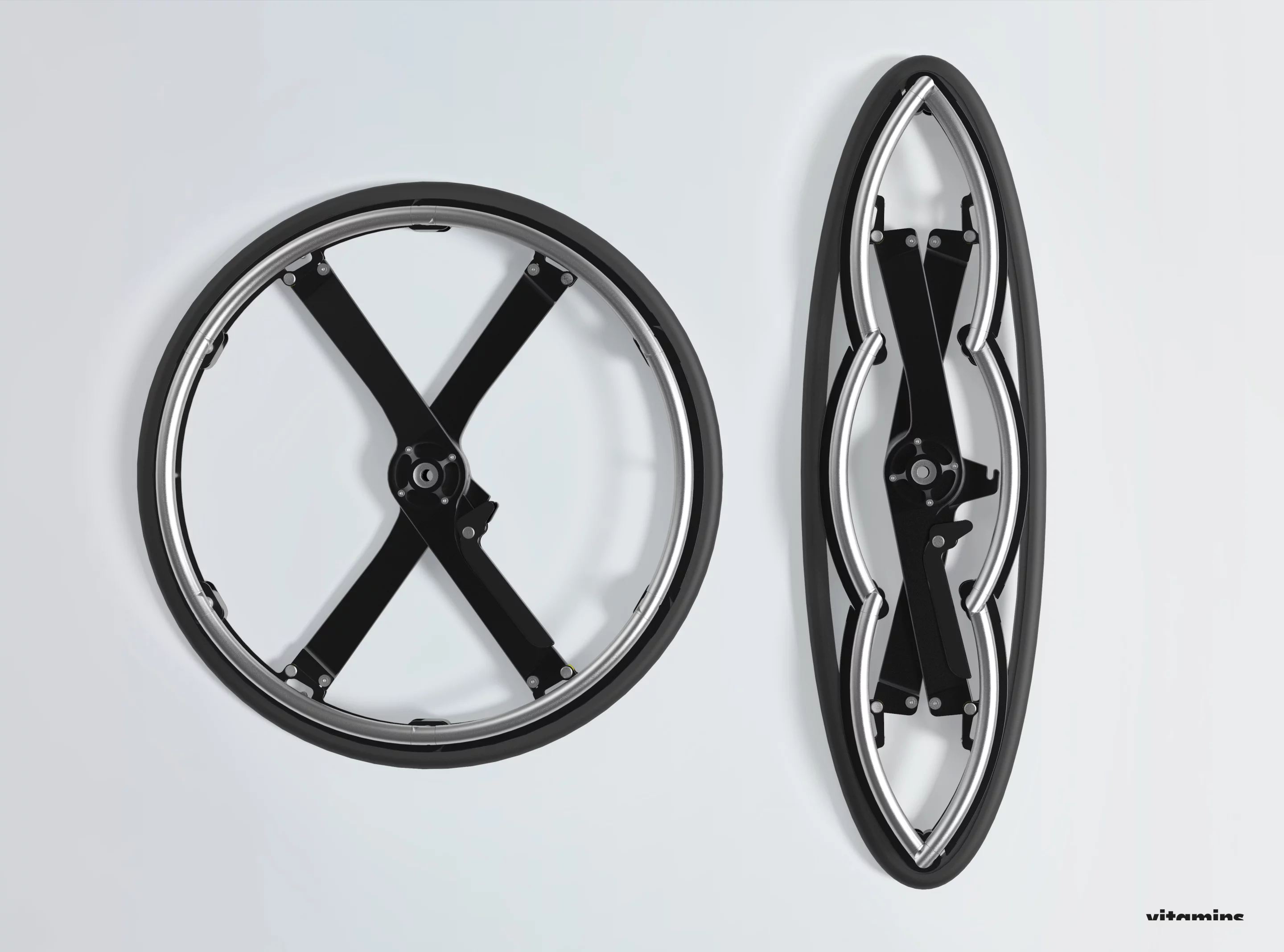

Each wheel features a quick release axle which prevents folding unless desired by the user
13/13
Each wheel features a quick release axle which prevents folding unless desired by the user
View gallery - 13 images

Getting from A to B in a wheelchair is enough of a challenge in itself, without considering the hassle of stowing the chair away each time its user wishes to travel by car, plane, or train. The Morph Wheel aims to make life a little easier in this regard, by providing a wheelchair wheel which folds into almost half its original size.

The Morph Wheel was initially created by Vitamins Designed under the moniker "The Folding Wheel," and conceived for use with folding bicycles. However, the firm received such a vocal response from the disabled community that it felt compelled to channel its efforts to providing wheelchair wheels instead. The concept has thus been taken up and manufactured in this guise by U.S. company Maddak.

Originally created for use with folding bicycles, the designers changed focus in response to requests from the disabled community
Originally created for use with folding bicycles, the designers changed focus in response to requests from the disabled community

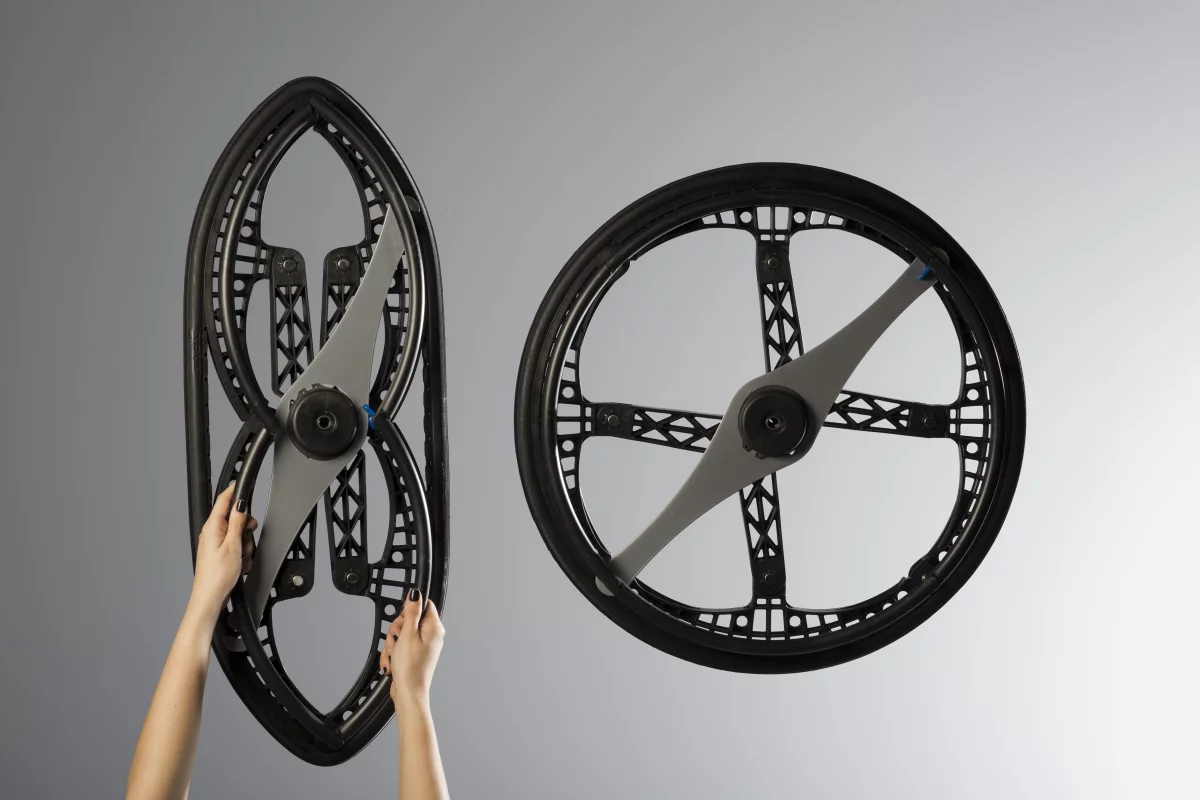

When folded, the wheel takes up a total of 12 liters (0.4 cubic feet) of space, compared with the 22 liters (0.7 cubic feet) it would usually fill when fully circular – a saving of almost half the volume. Put another way, this enables its size to be reduced from 24 inches (61 cm) in diameter, to the more manageable dimensions of 32 x 12.5 inches (81 x 32 cm).

Each Morph Wheel tips the scales at 7.5 pounds (3.4 kg), and when used in a pair can support up to 300 pounds (136 kg). It's constructed from glass filled nylon, with a polypropylene hand rim, and solid tire.

Maddak states that the Morph Wheel can fit into overhead bins, closets, car trunks, and even under an airplane seat during flights. It features a safety mechanism which prevents folding unless desired by the user, and will fit to any existing wheelchair able to accommodate a wheel with a quick release axle. The folding mechanism is said to be easy to master, not requiring any special tools.

The Morph Wheel is available now, and sold as a pair from US$950.
