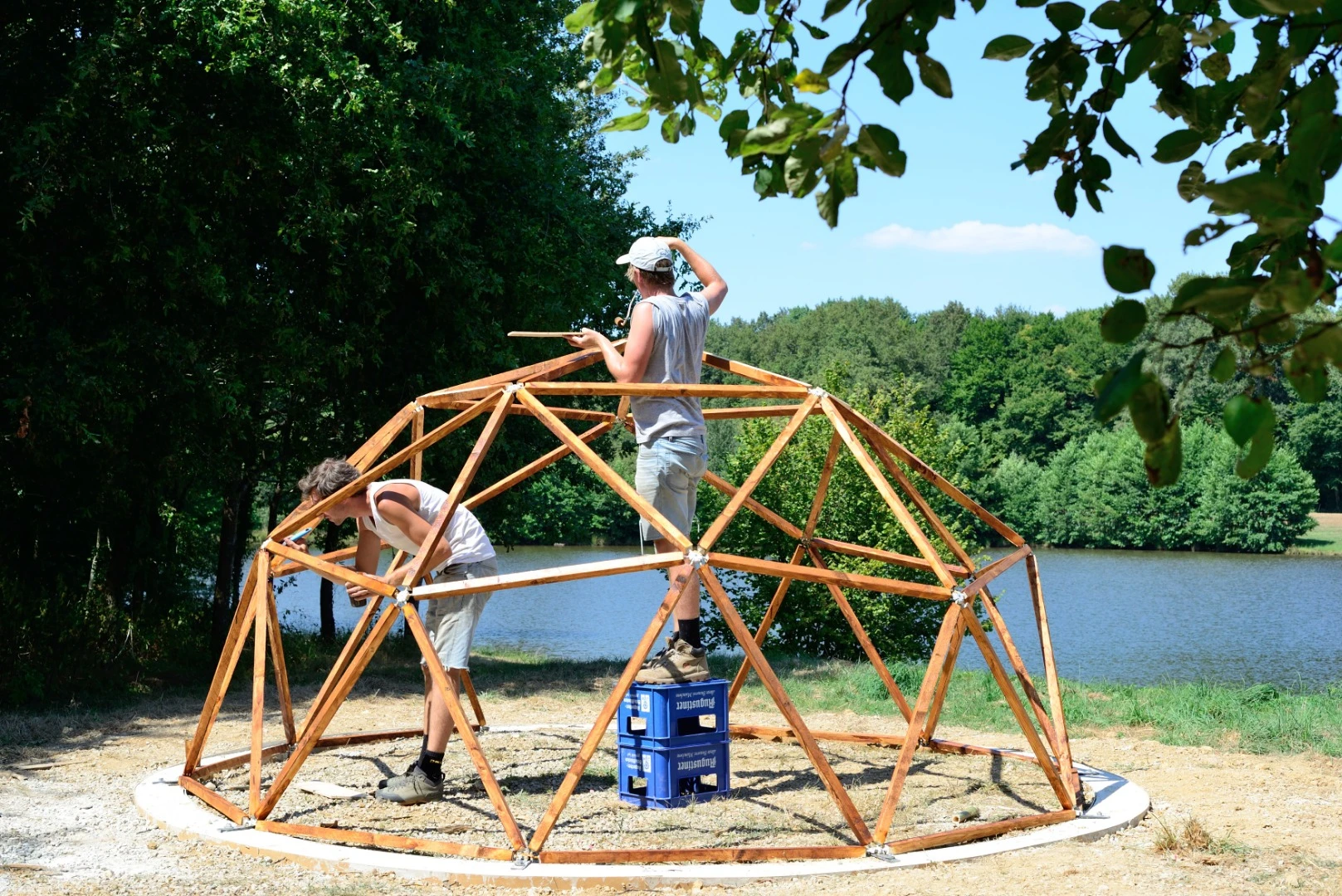

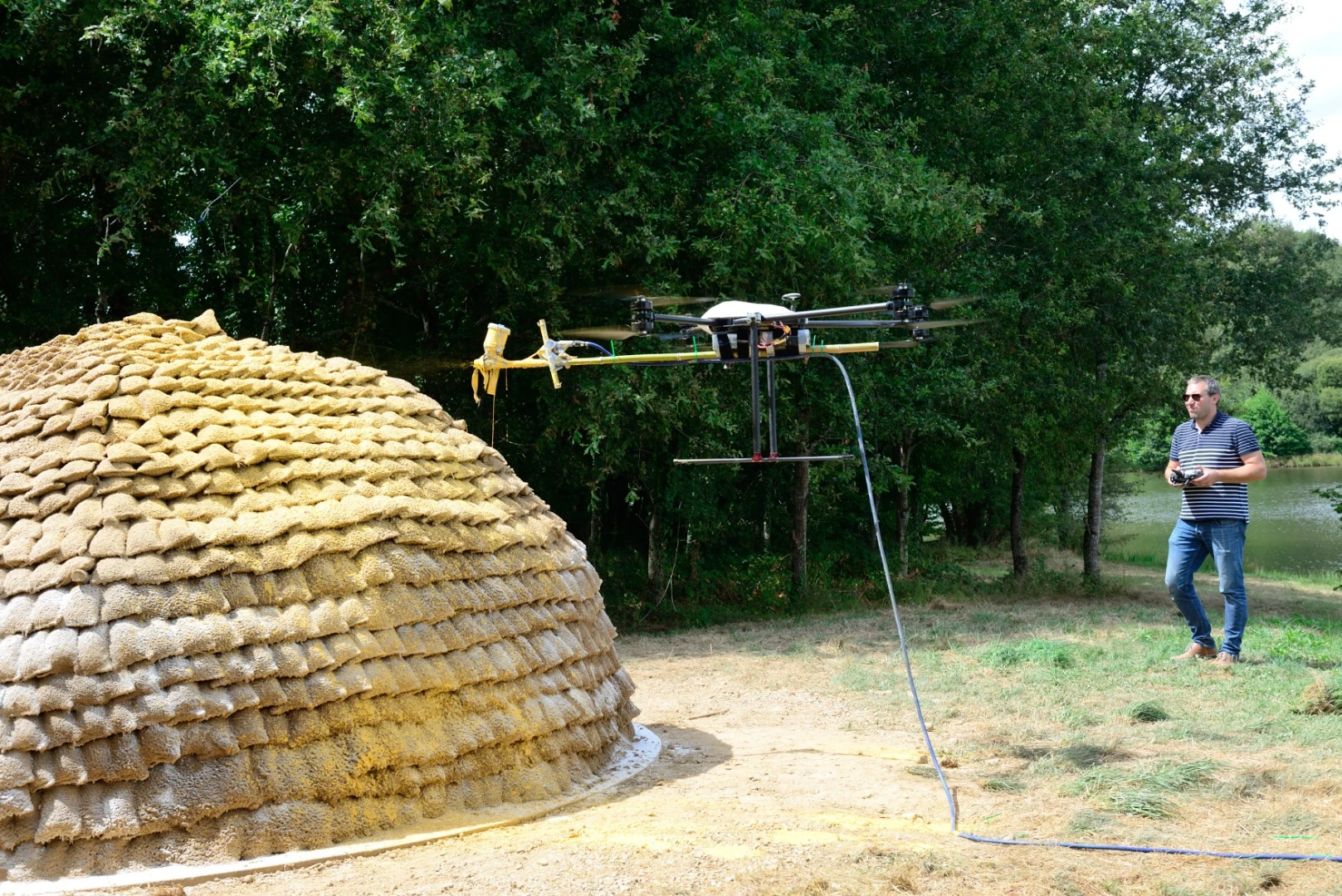

Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
View 66 Images
In addition to the new aerial perspectives they offer, we are beginning to see how drones can play active roles in experimental construction techniques
1/66
In addition to the new aerial perspectives they offer, we are beginning to see how drones can play active roles in experimental construction techniques
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
2/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet

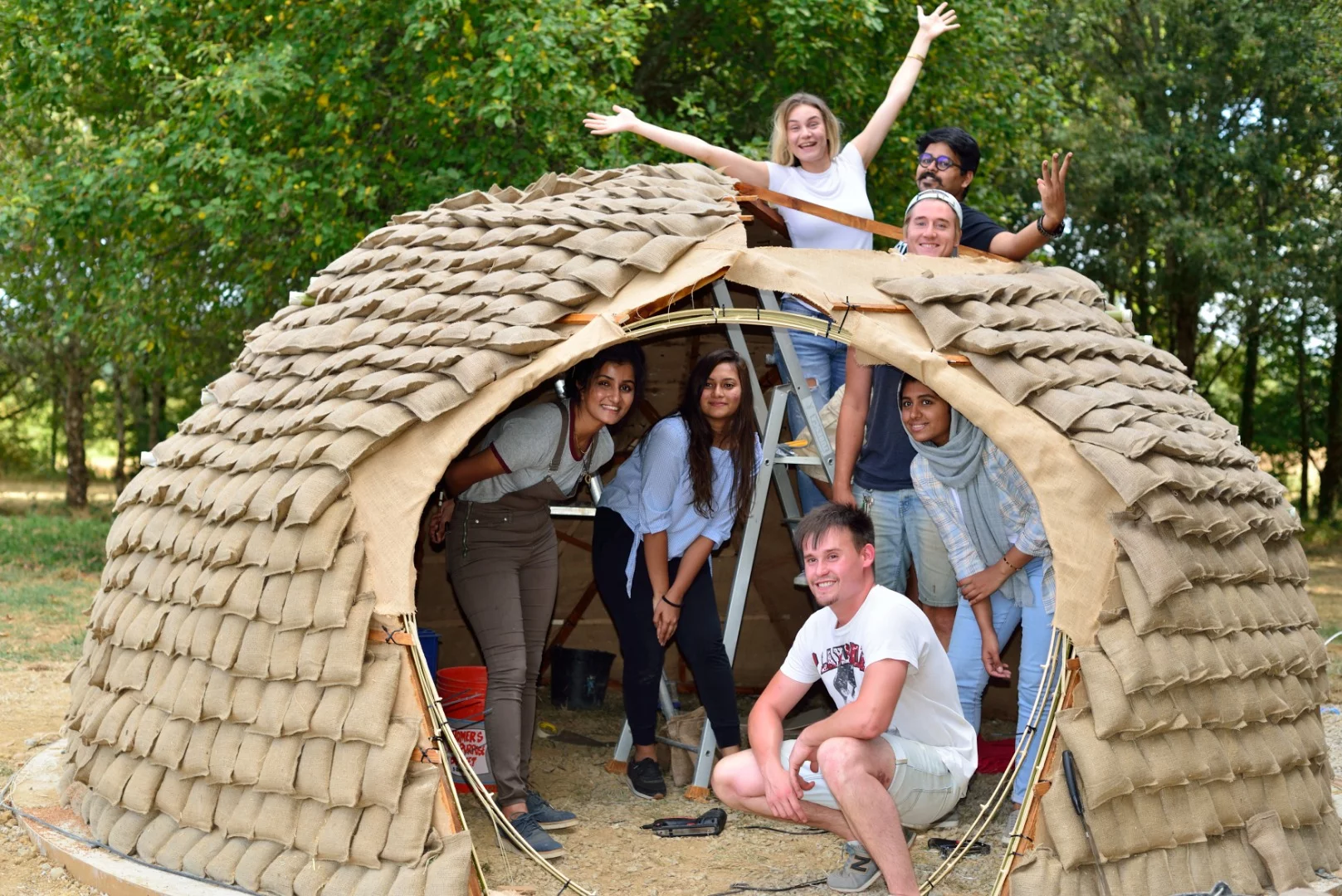

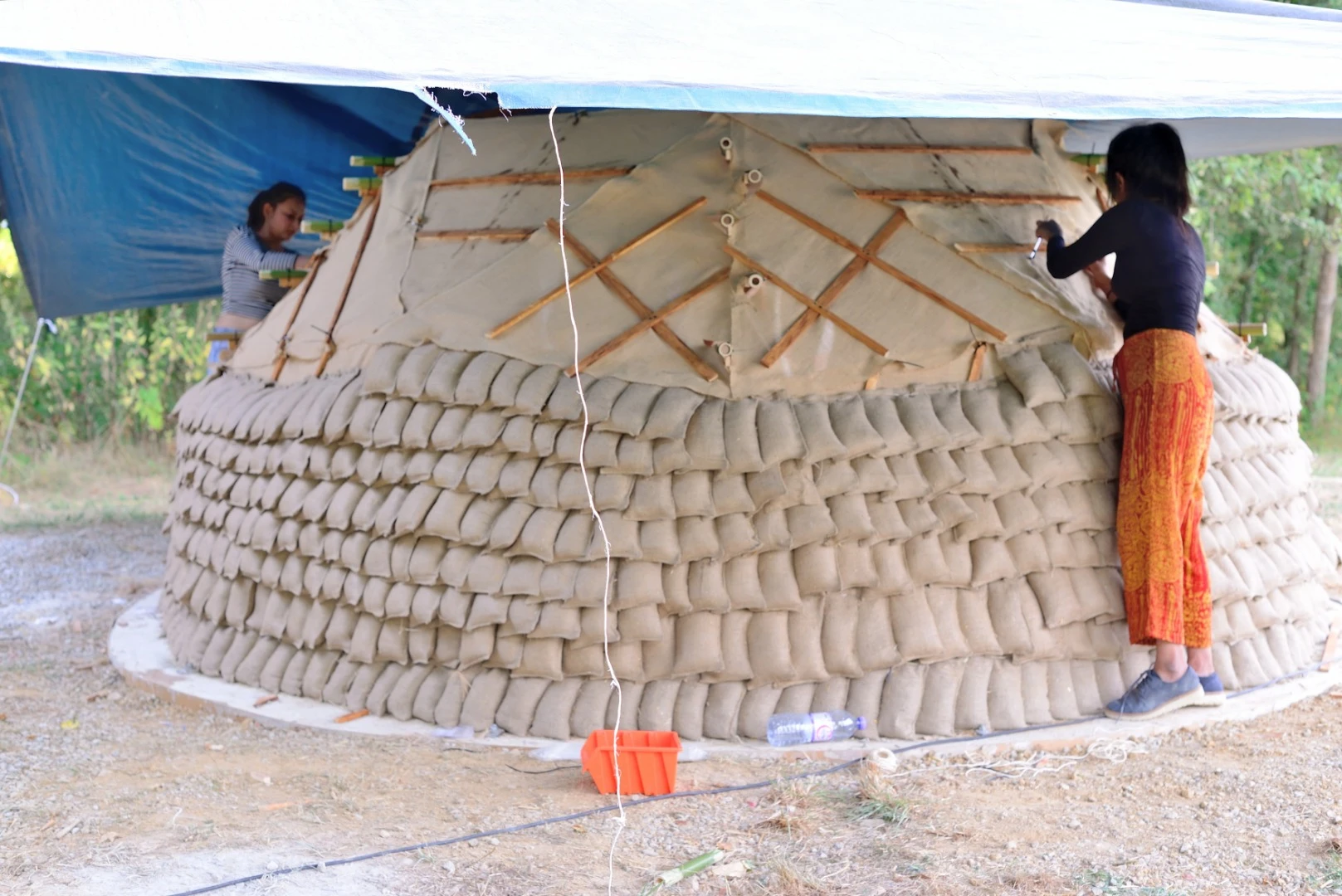

Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
3/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics

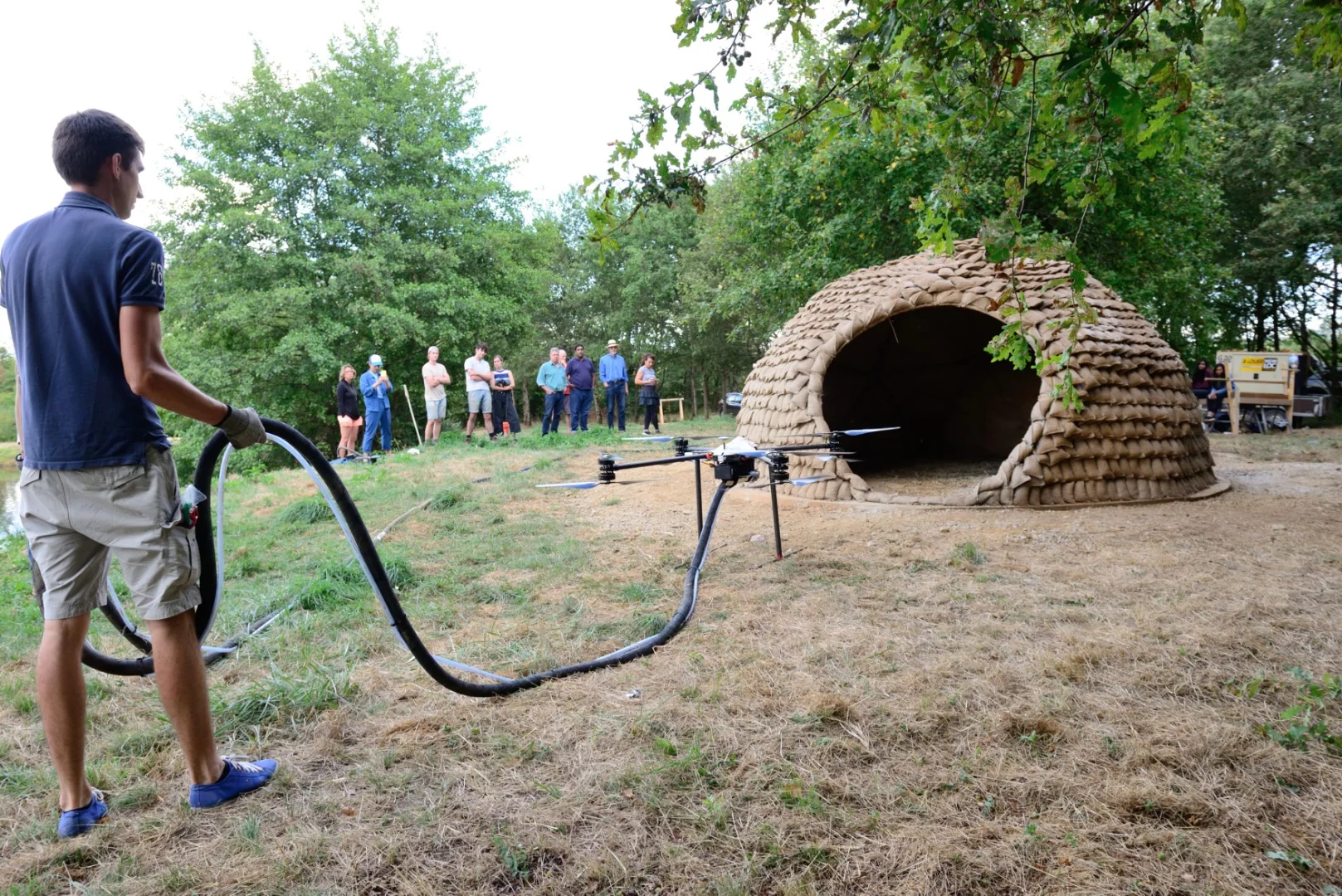

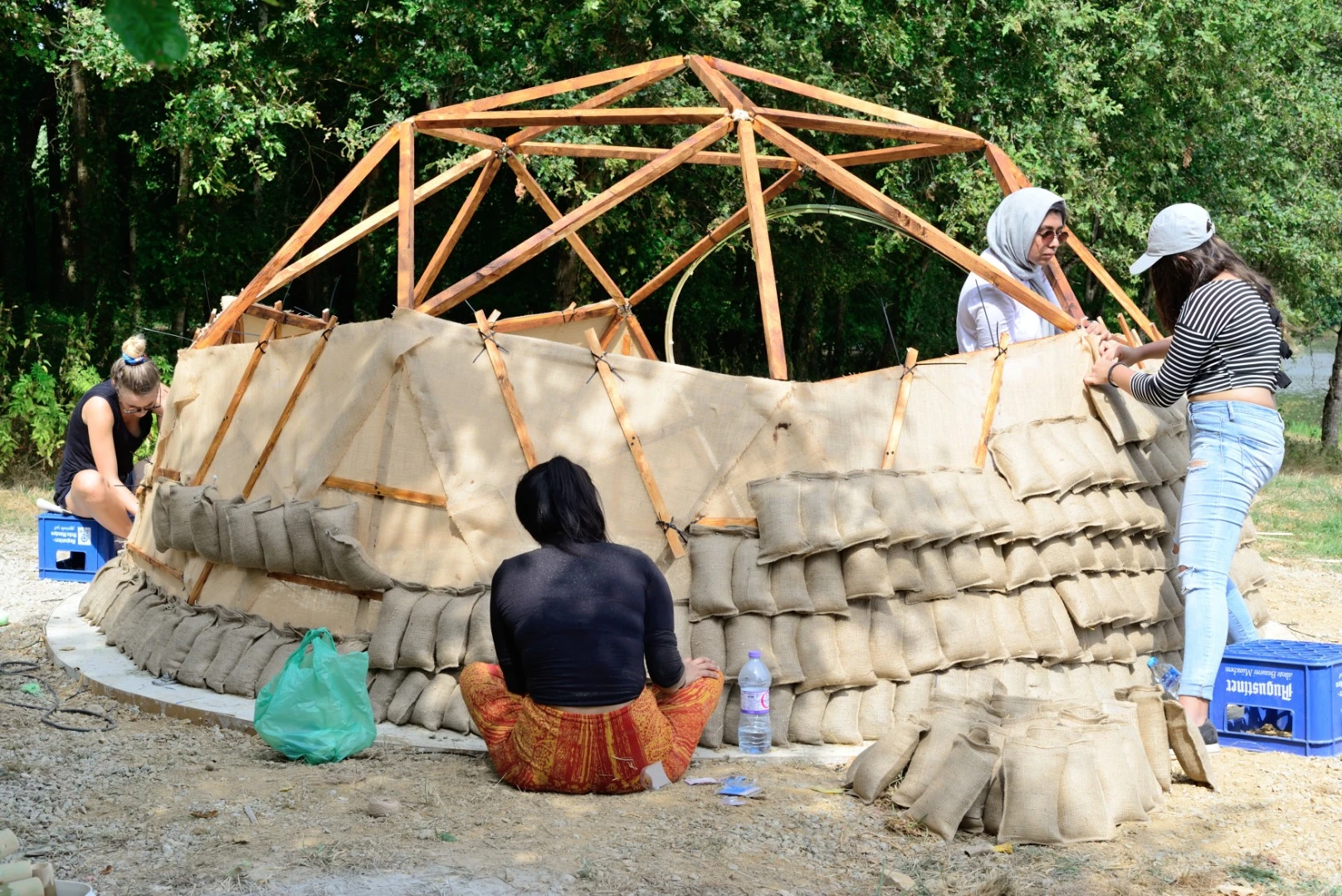

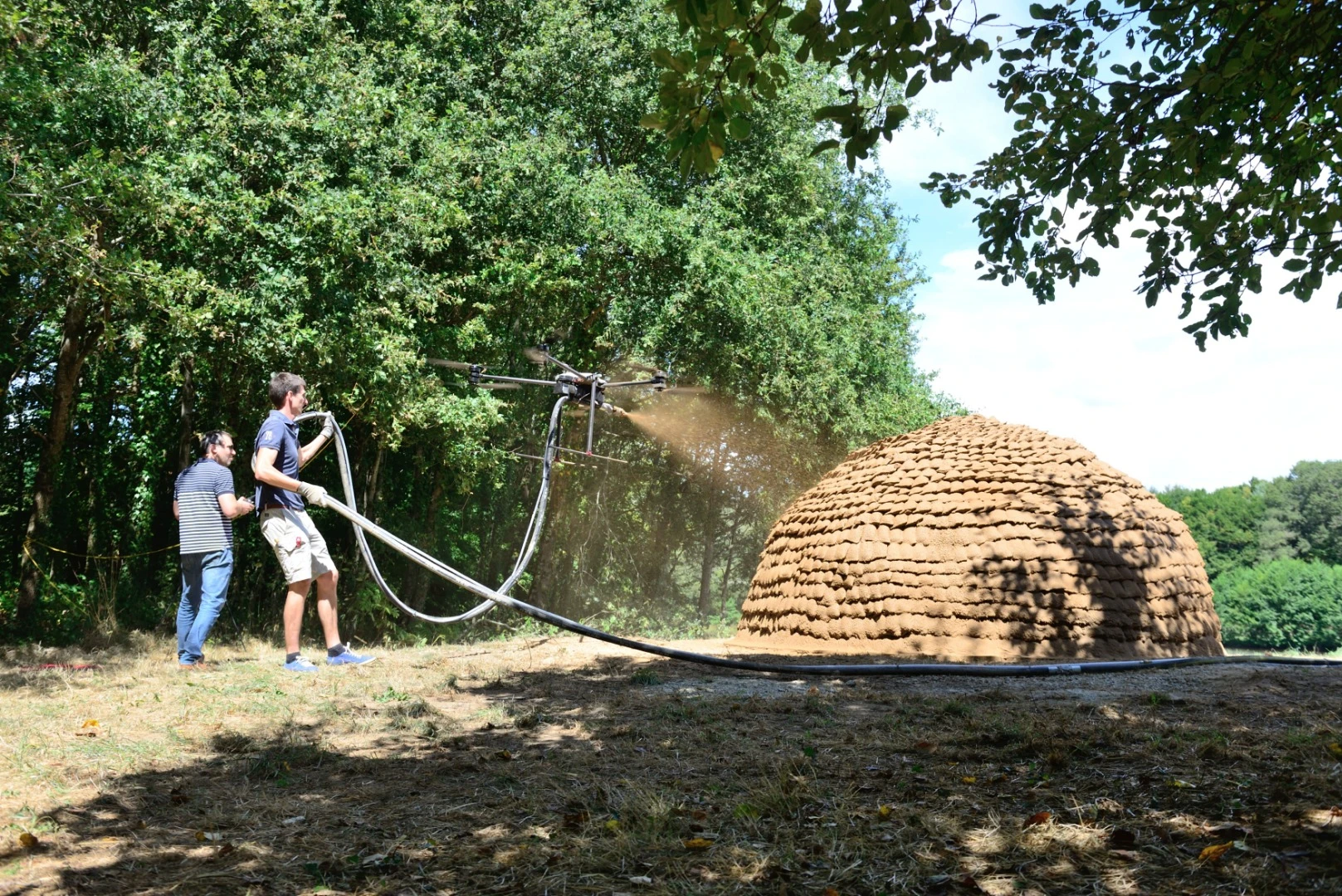

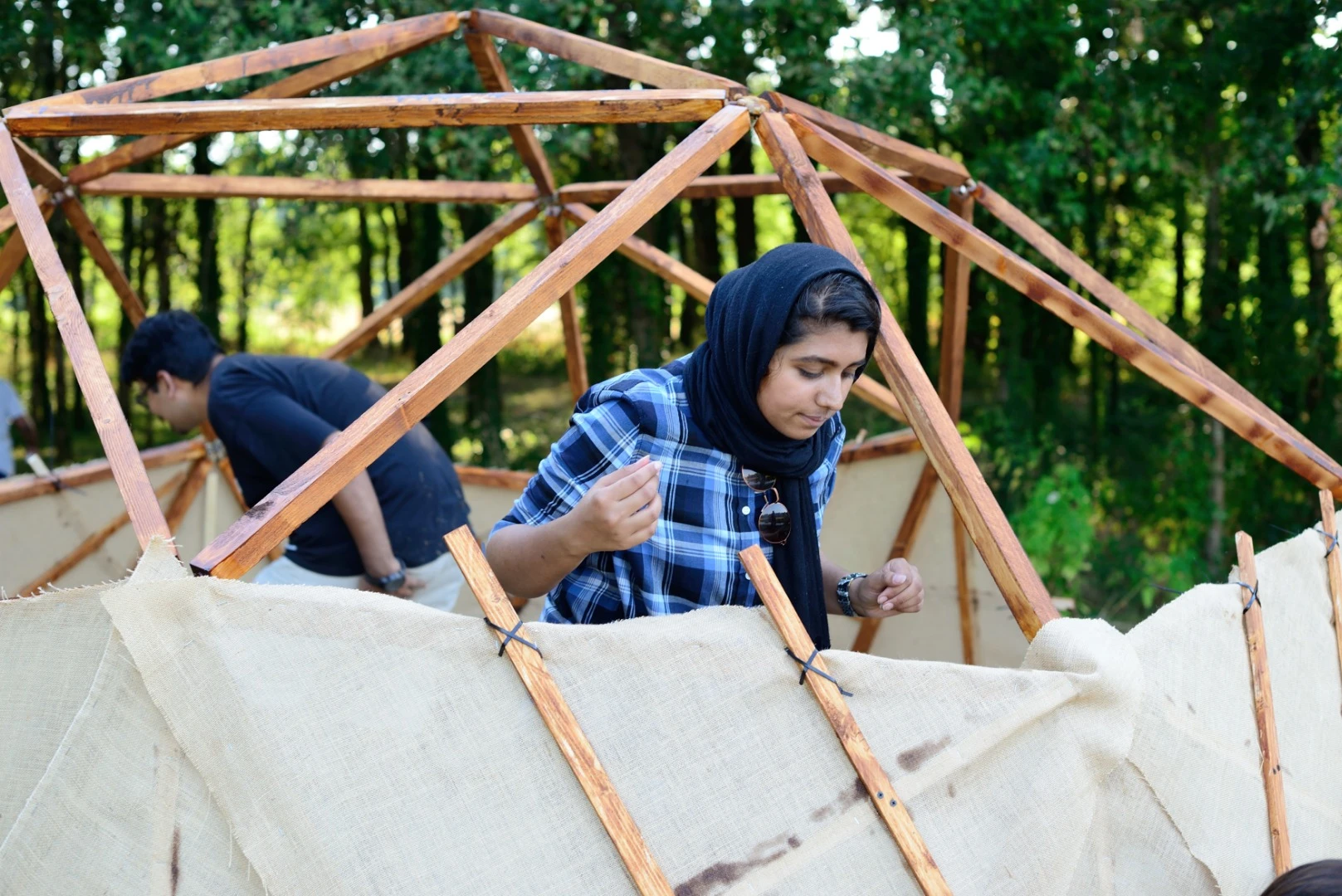

Chaltiel's team constructs its shelter at Domaine de Boisbuchet
4/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet

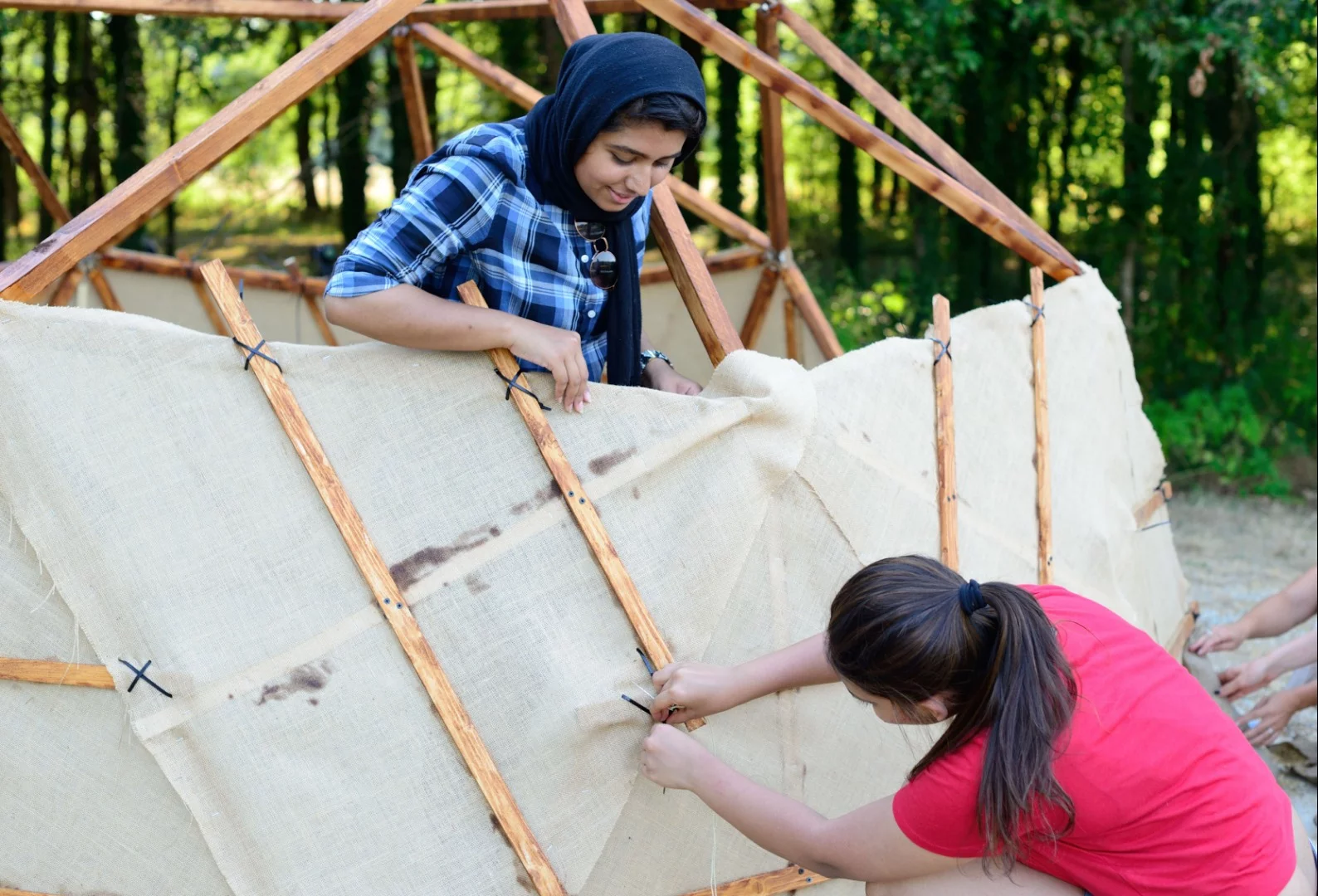

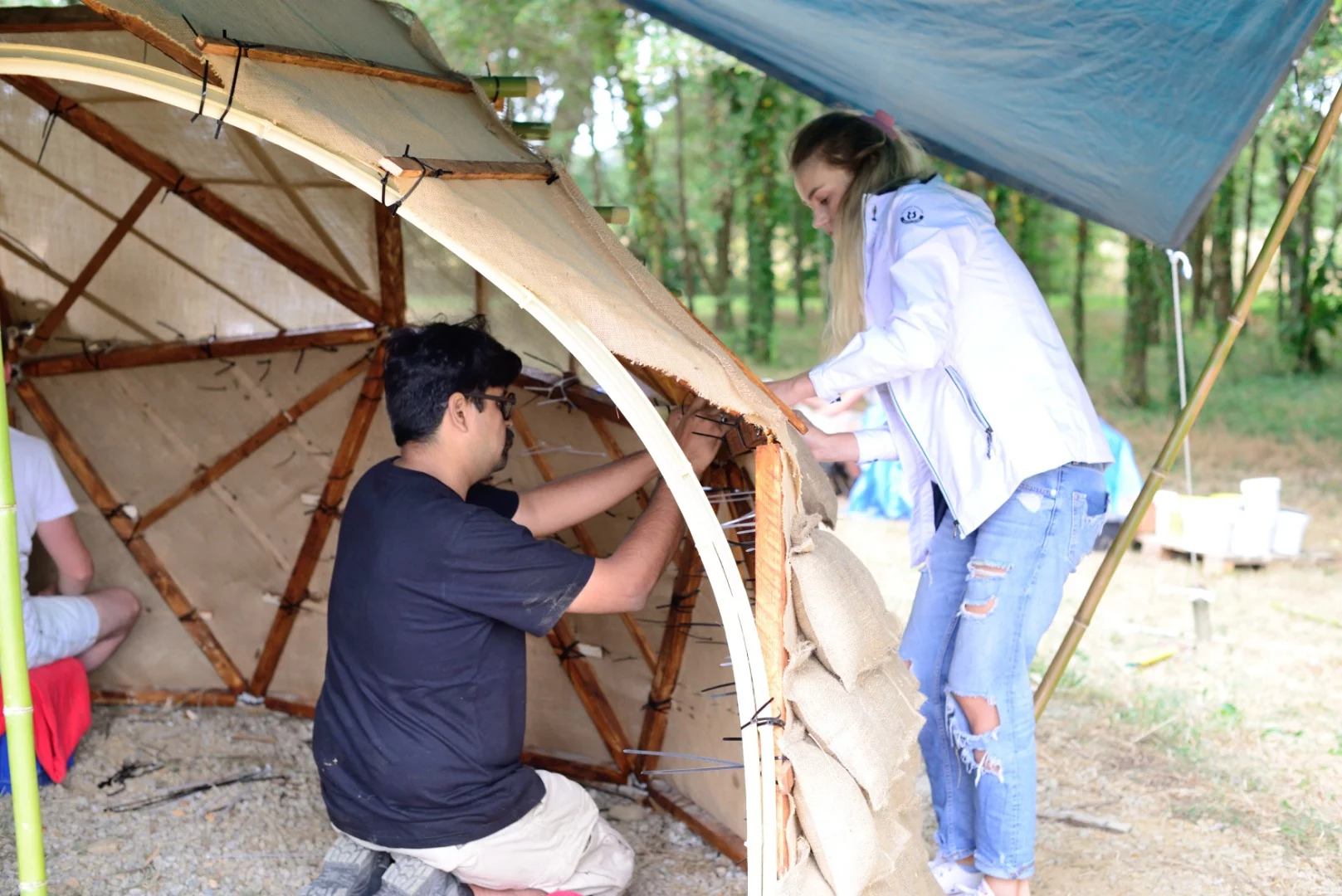

Workers toil away at Domaine de Boisbuchet
5/66
Workers toil away at Domaine de Boisbuchet

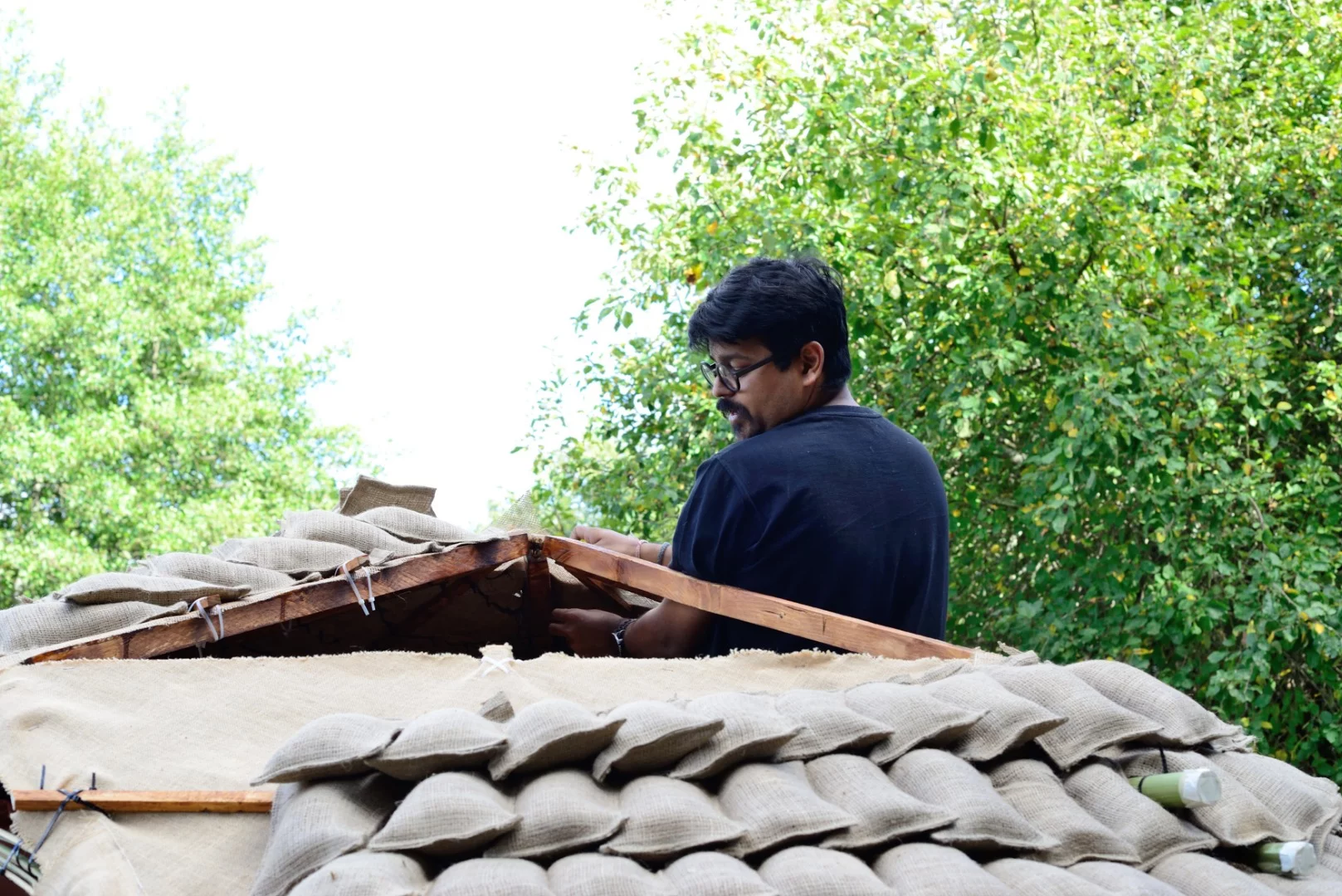

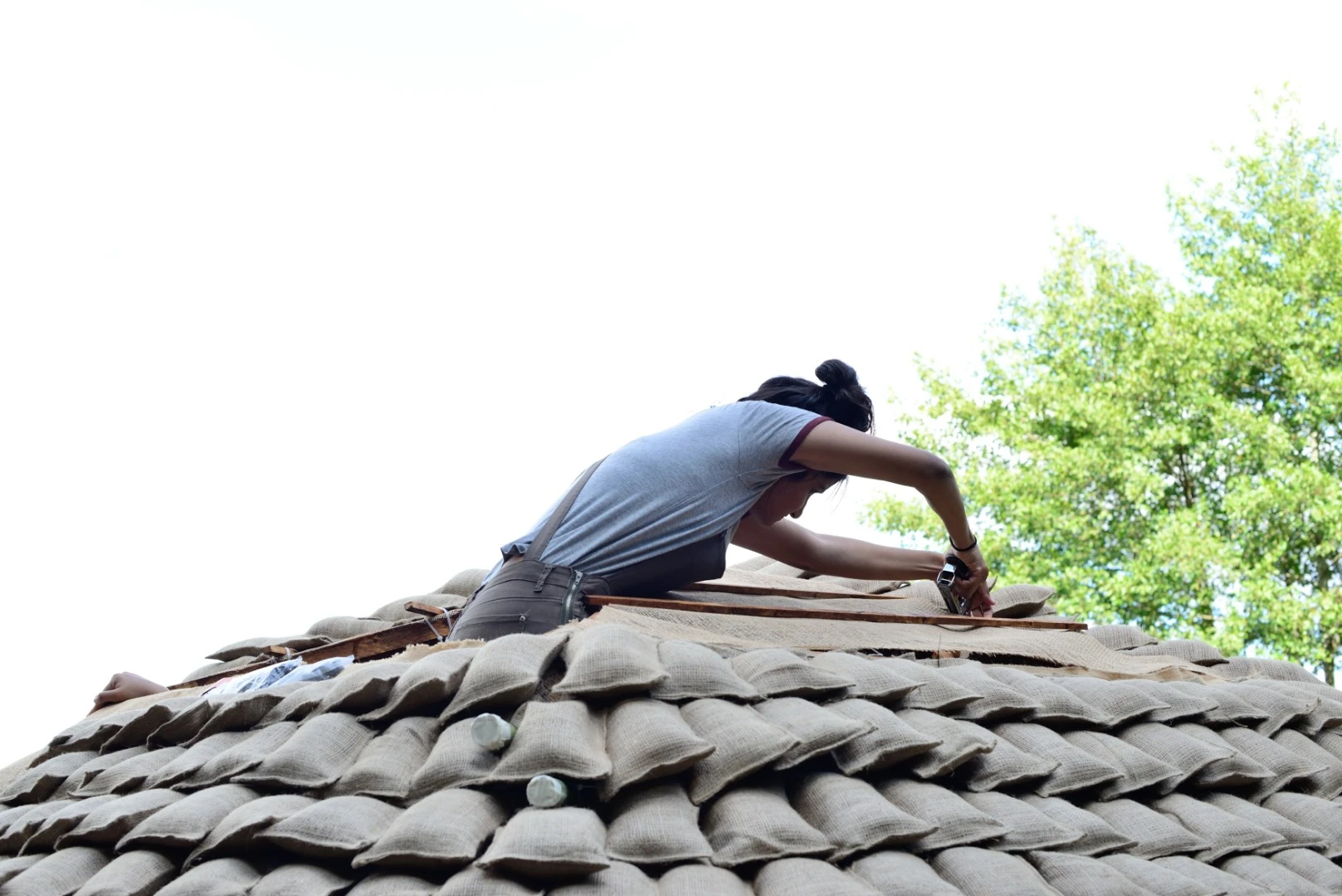

A worker toils away at Domaine de Boisbuchet
6/66
A worker toils away at Domaine de Boisbuchet

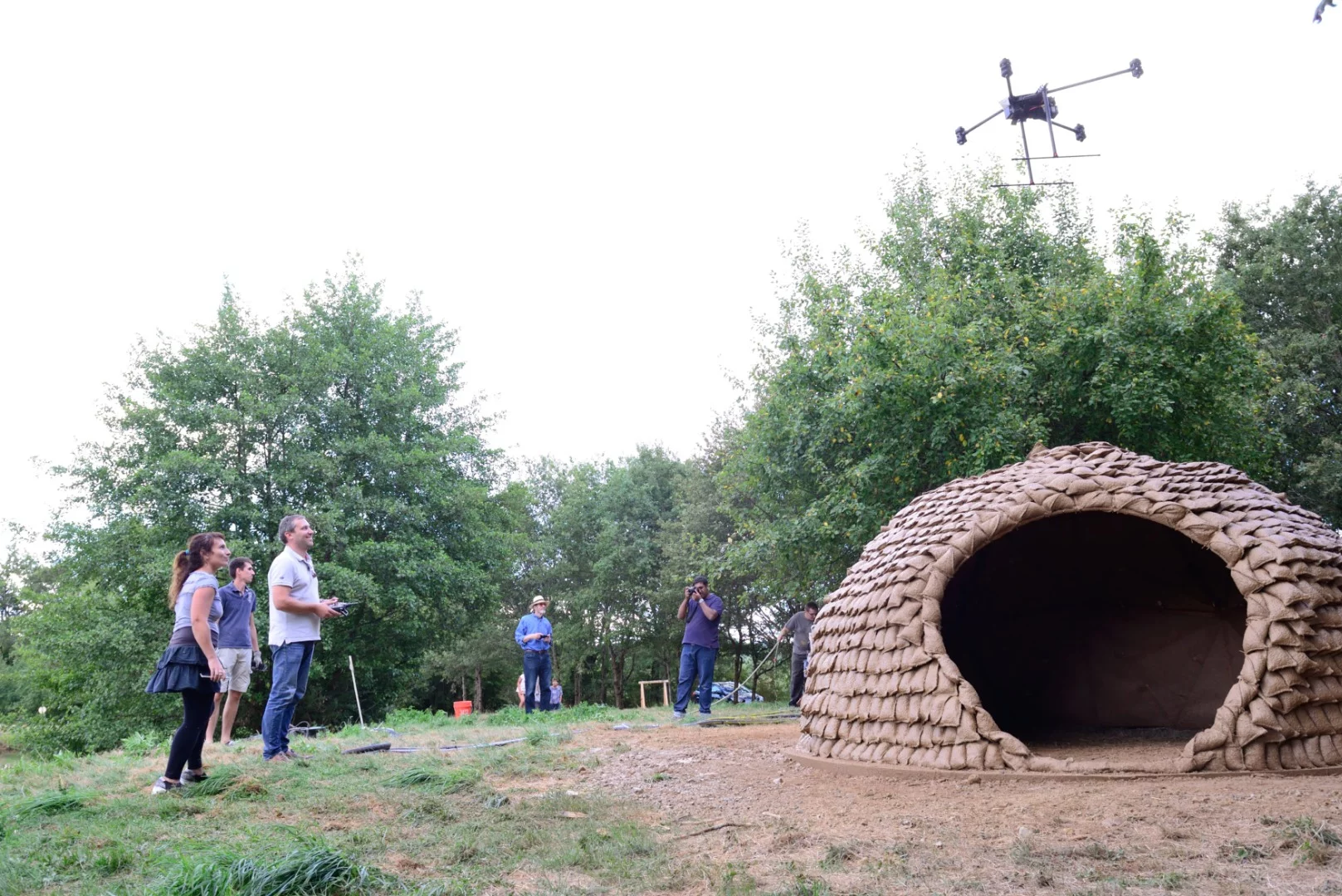

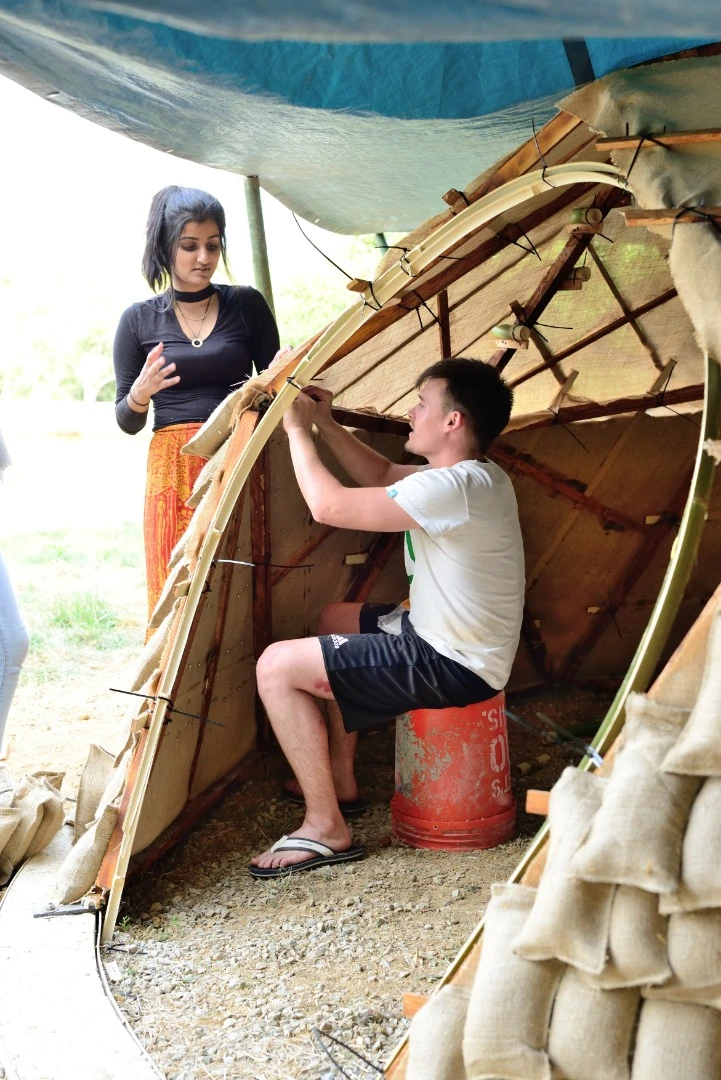

Chaltiel's team constructs its shelter at Domaine de Boisbuchet
7/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet

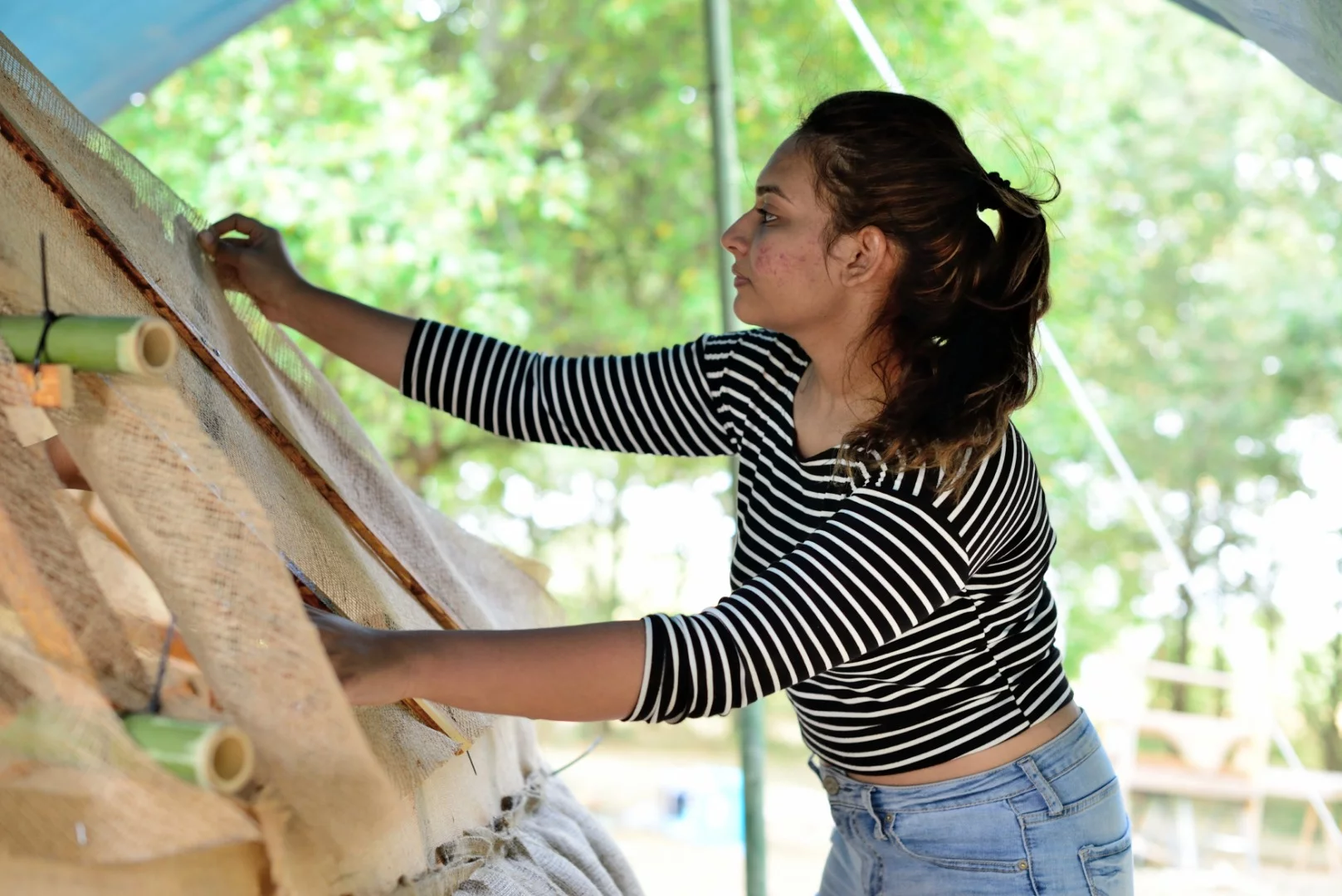

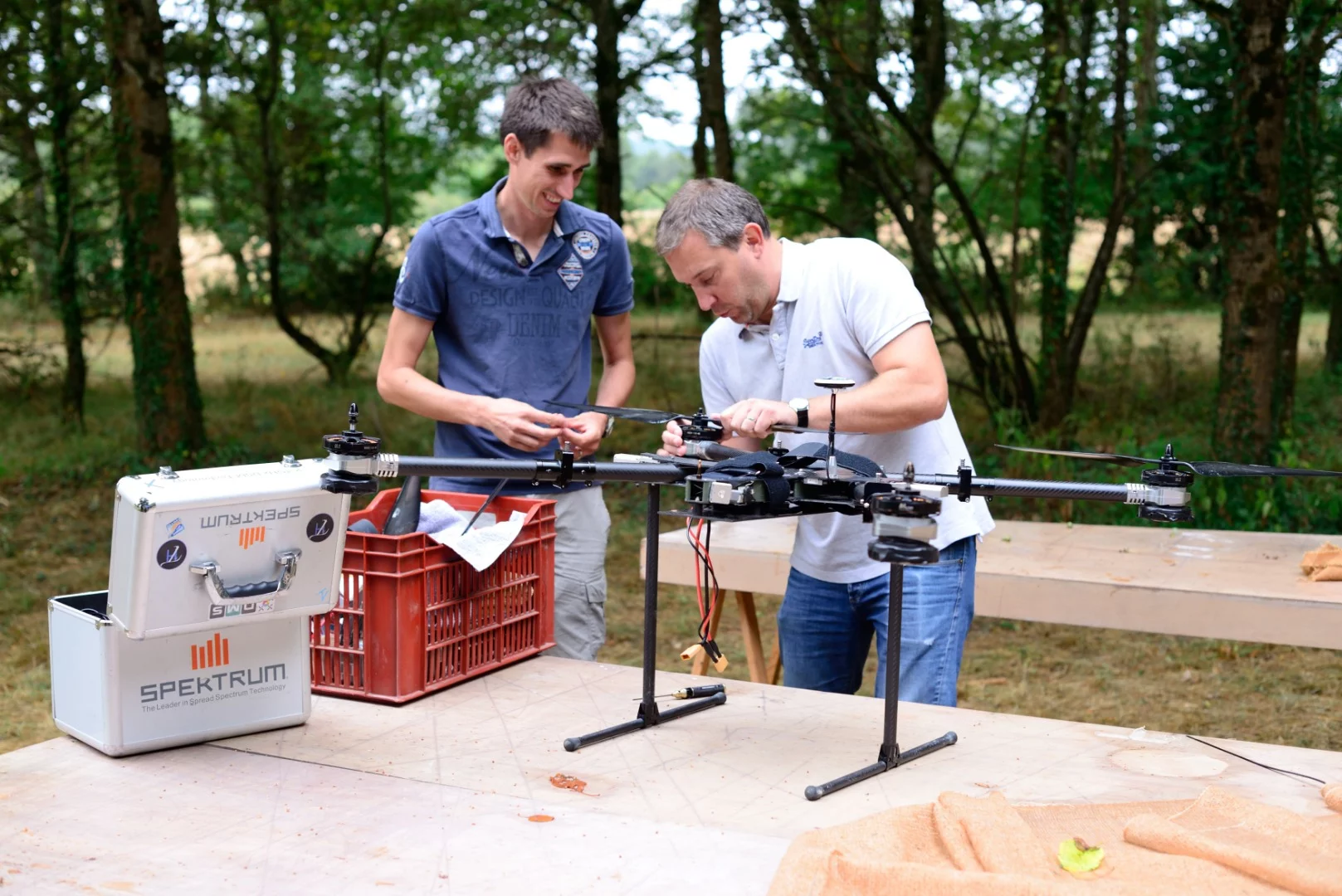

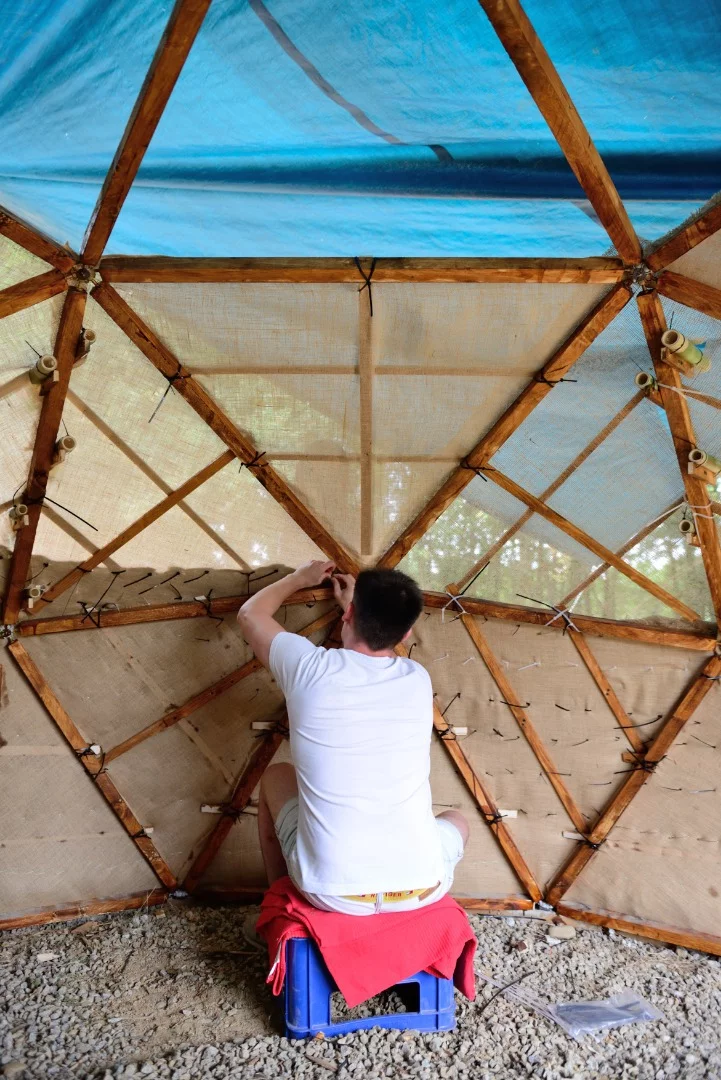

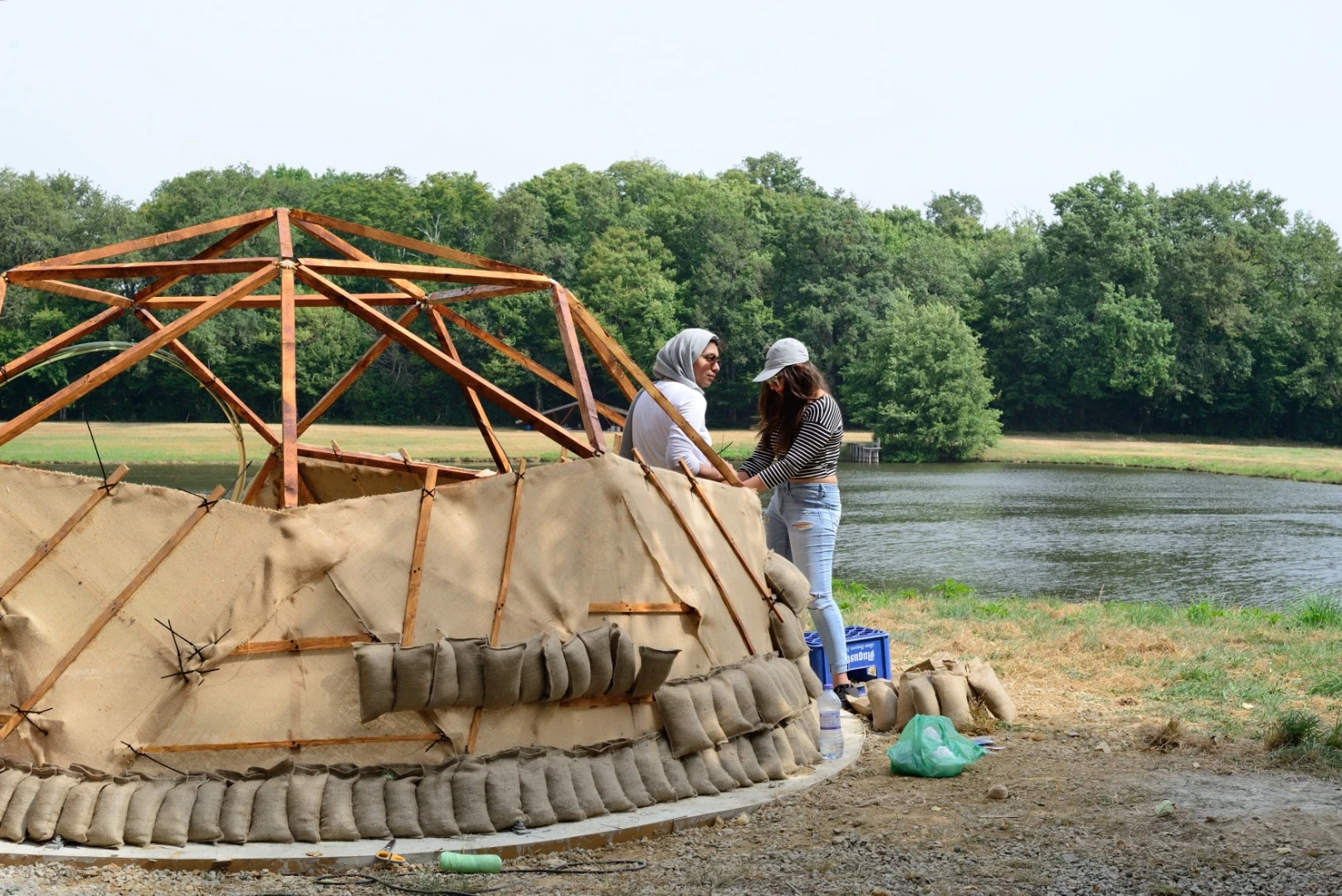

Can drones lighten the load for the construction workers in remote areas?
8/66
Can drones lighten the load for the construction workers in remote areas?

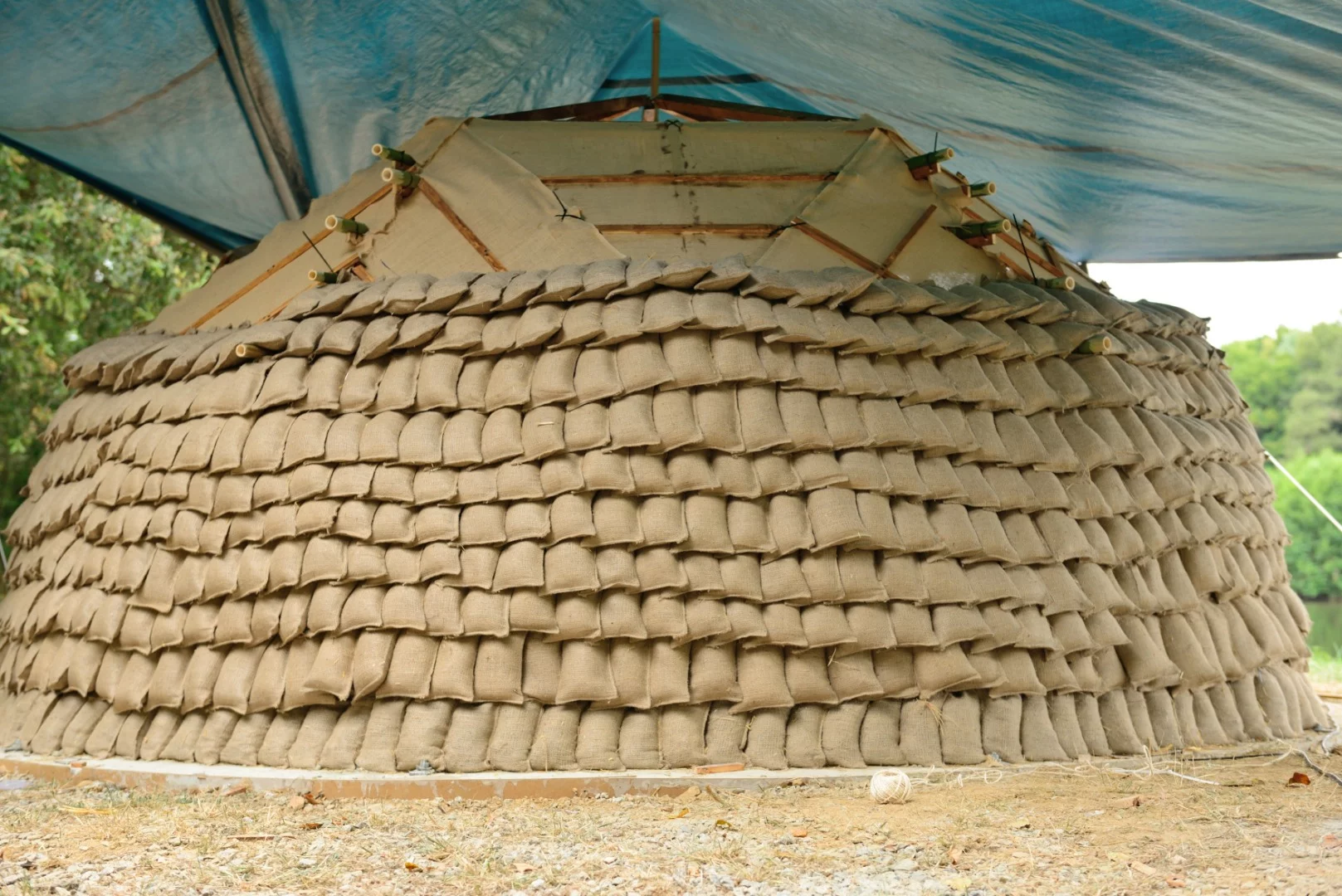

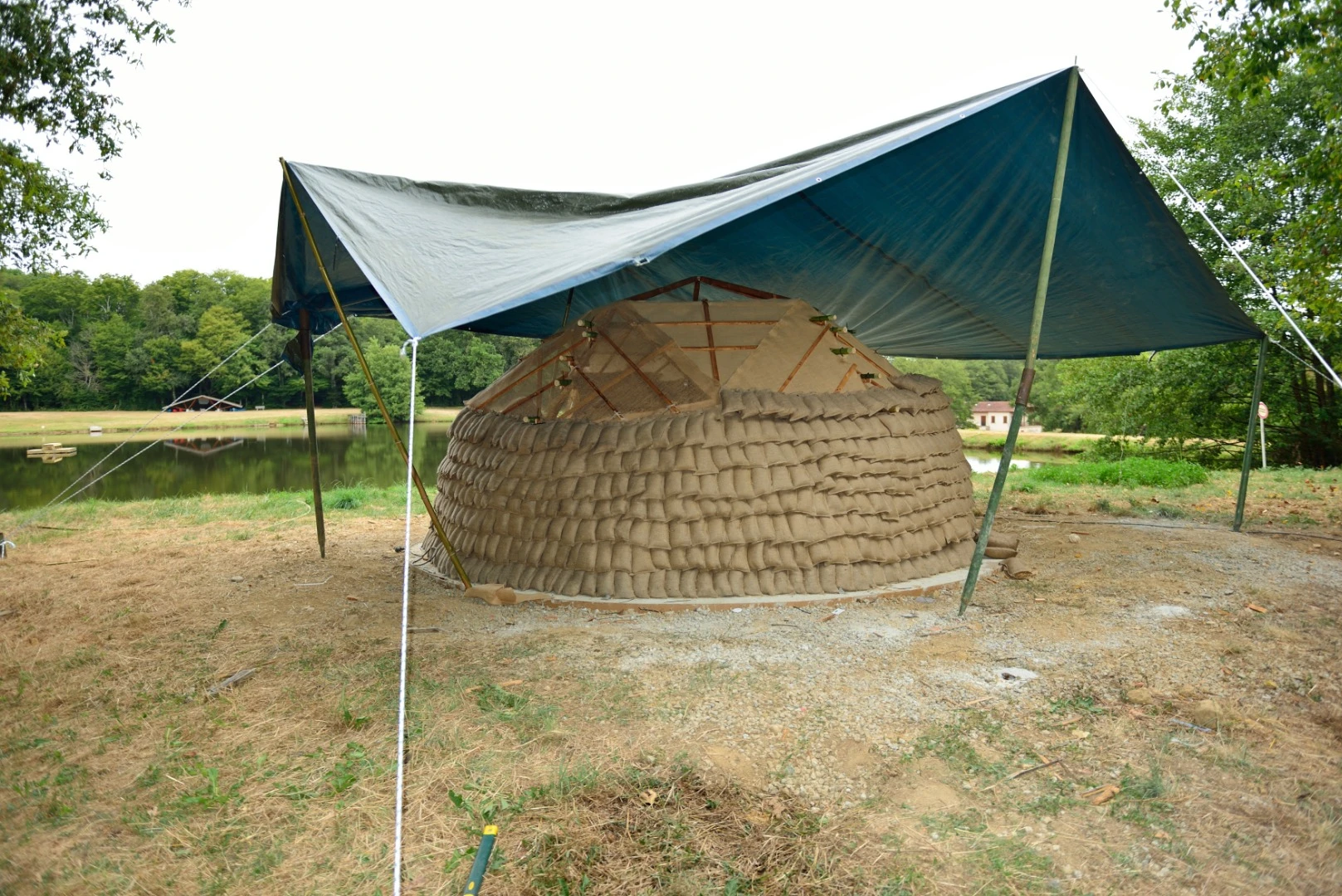

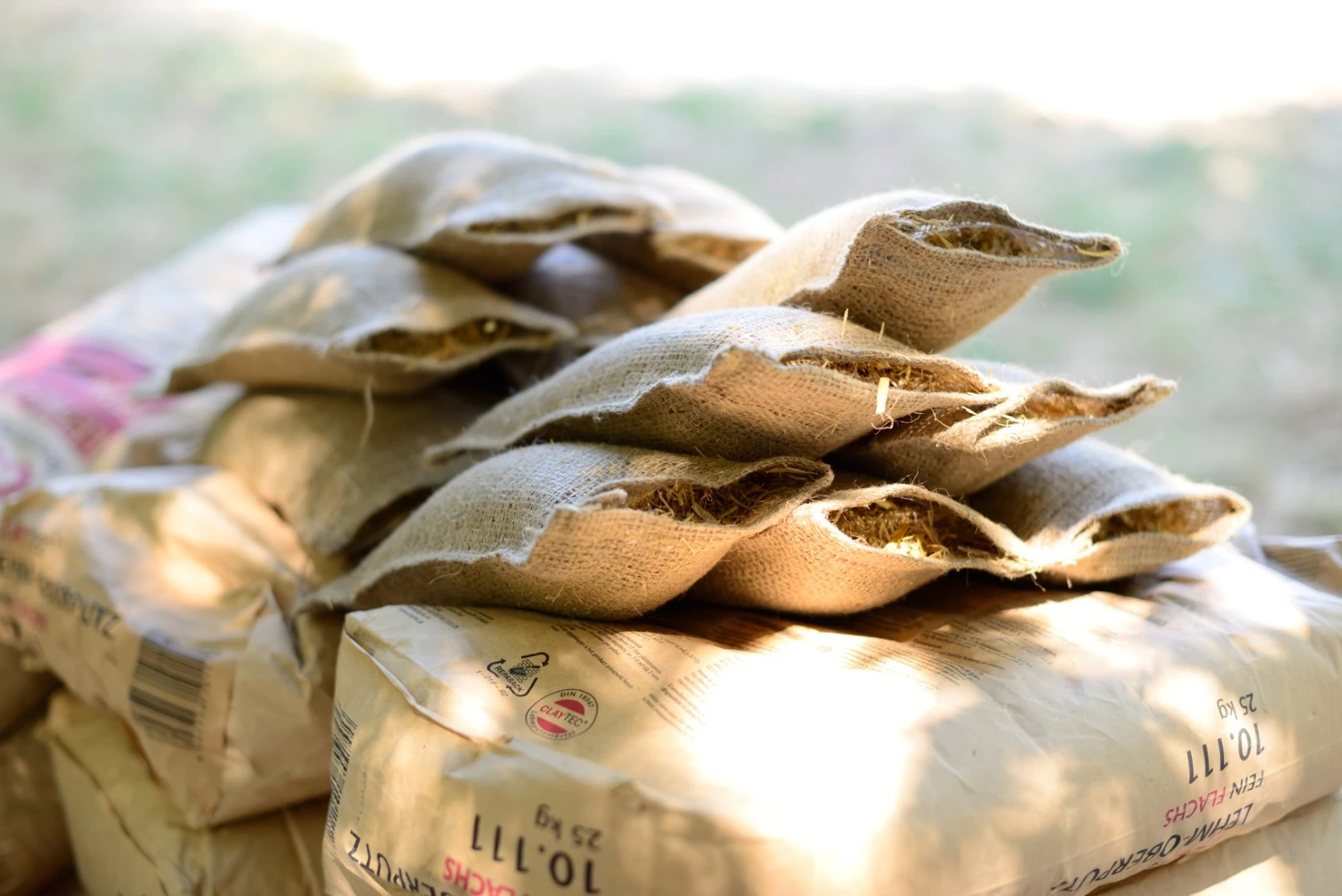

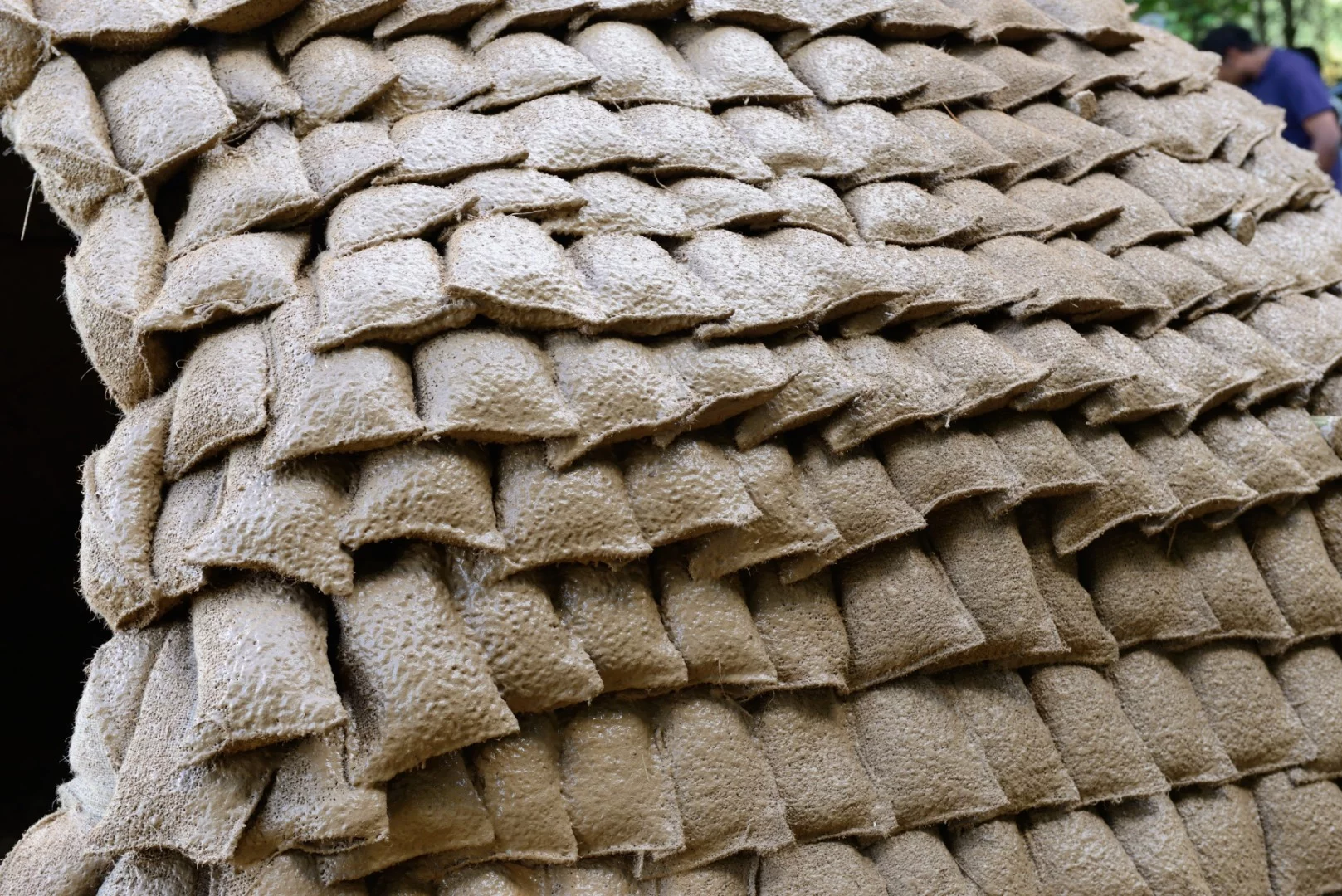

Jute bags filled with hay formed part of the structure of Chaltiel's dome
9/66
Jute bags filled with hay formed part of the structure of Chaltiel's dome

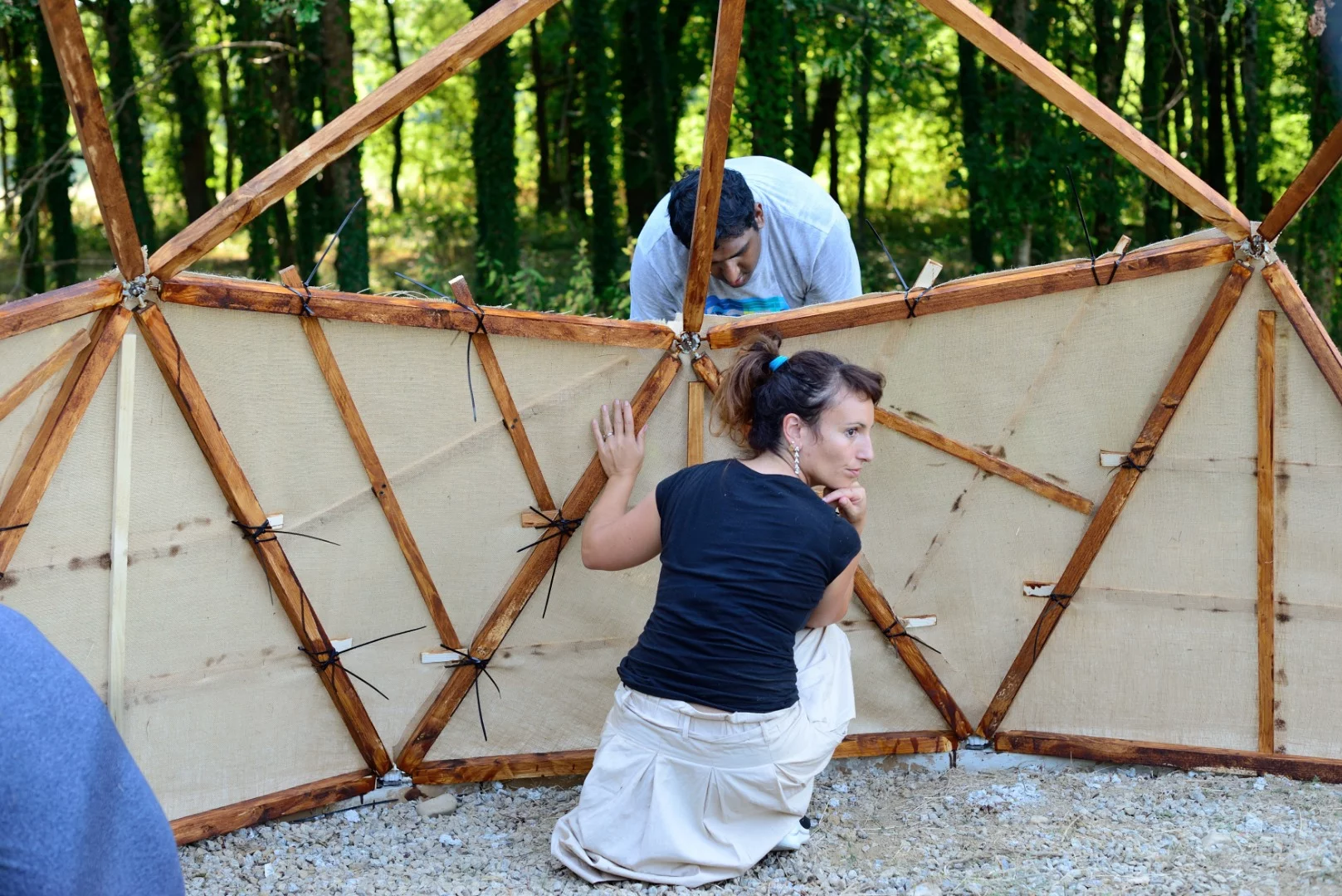

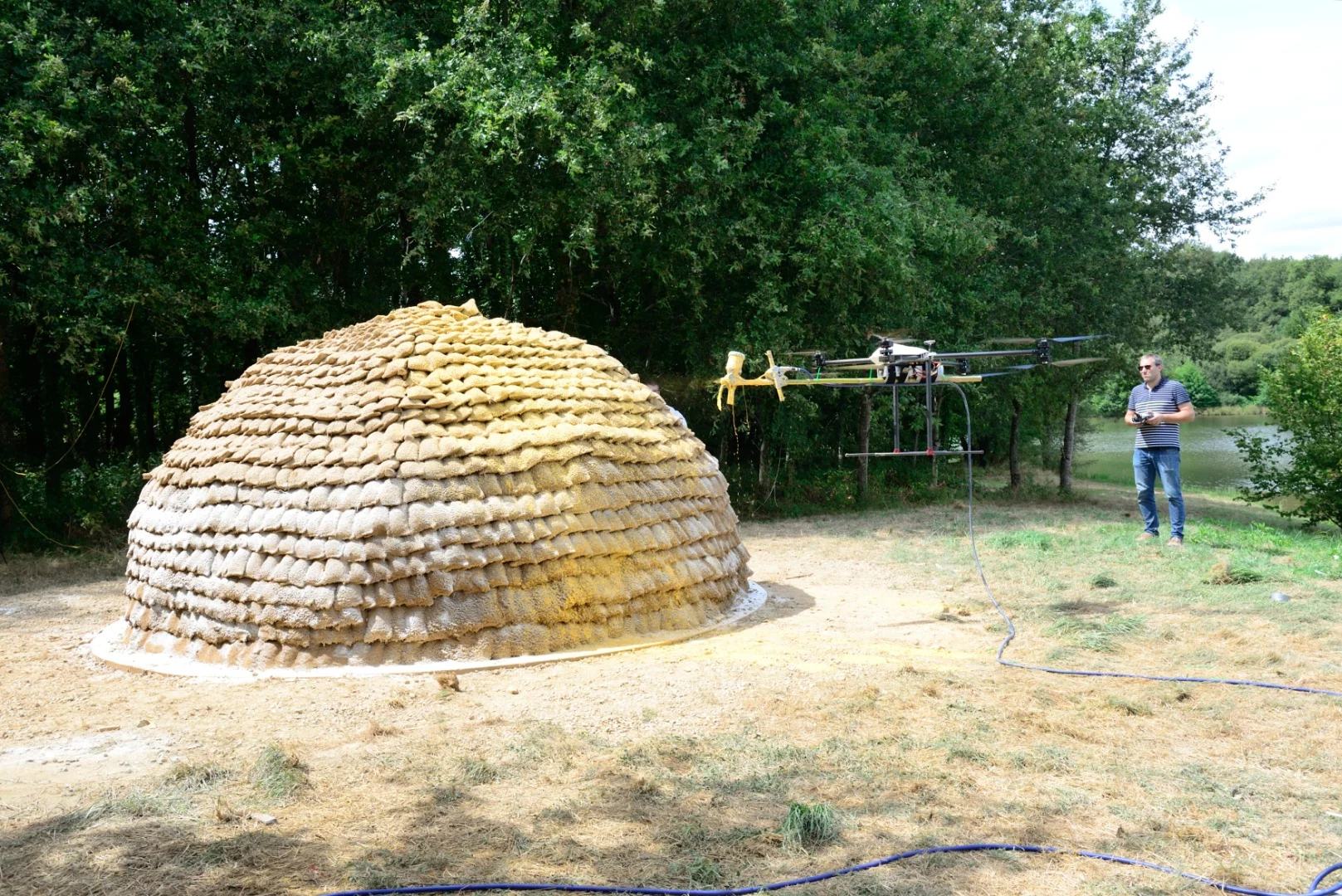

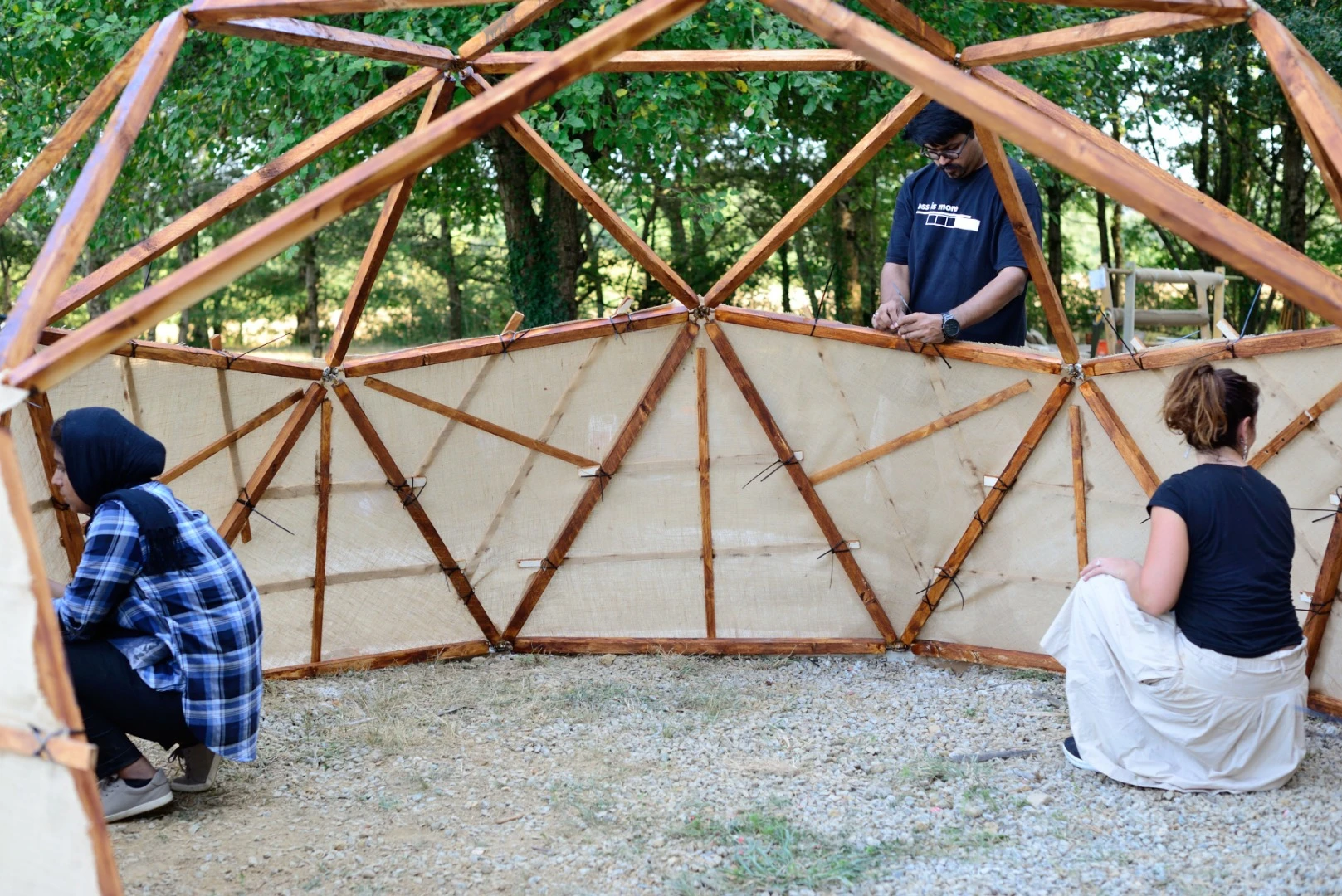

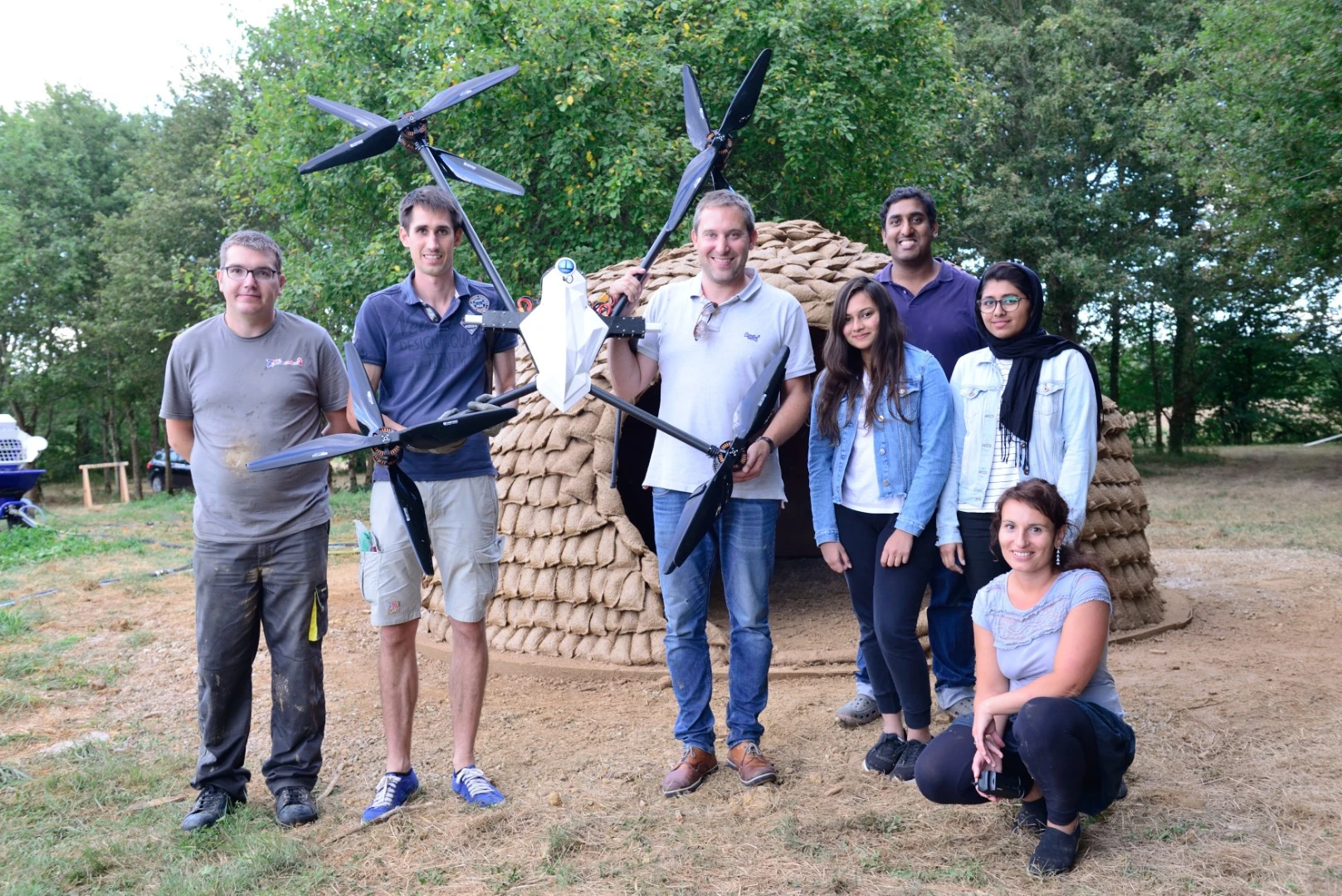

Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
10/66
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones

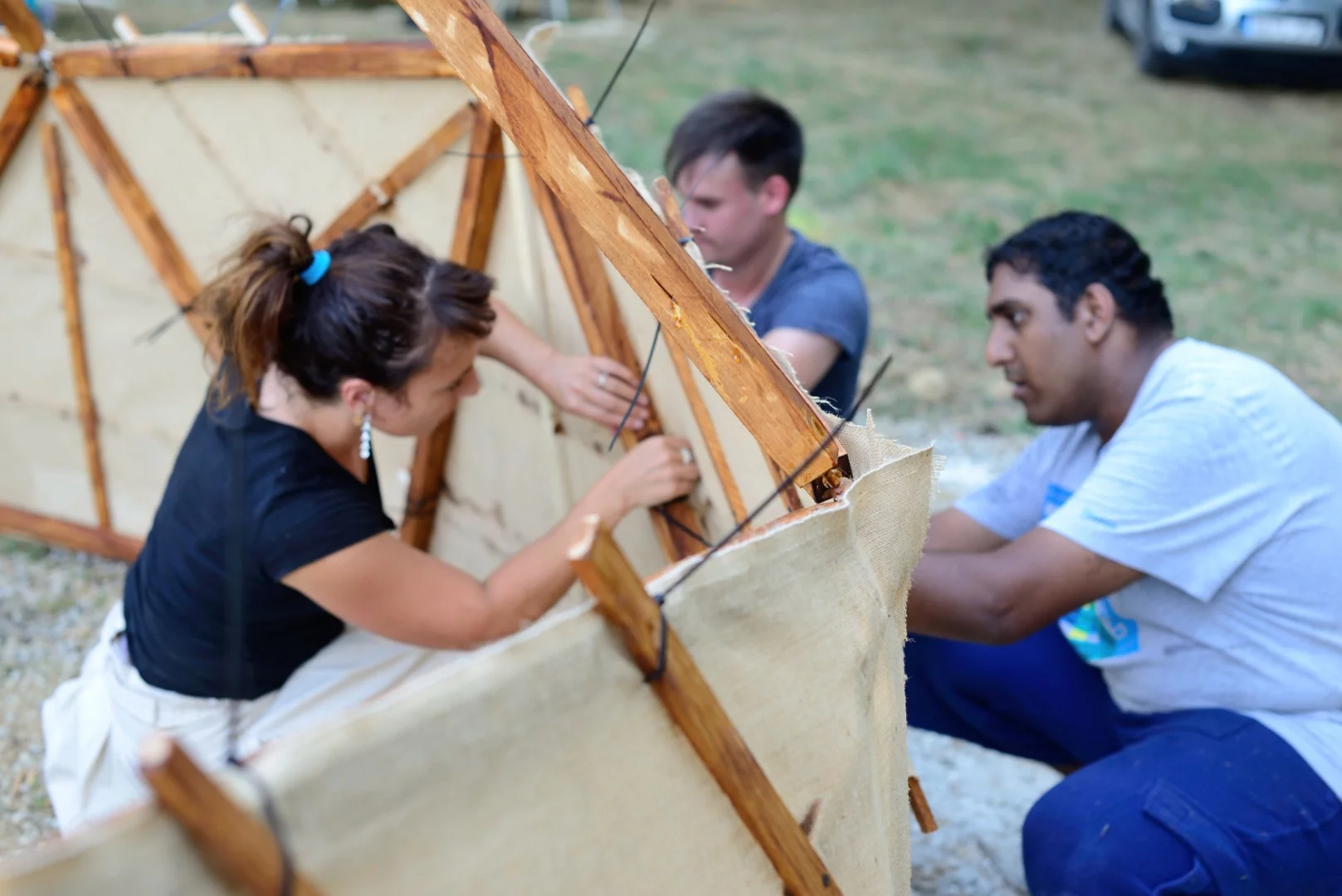

Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
11/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
12/66
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones

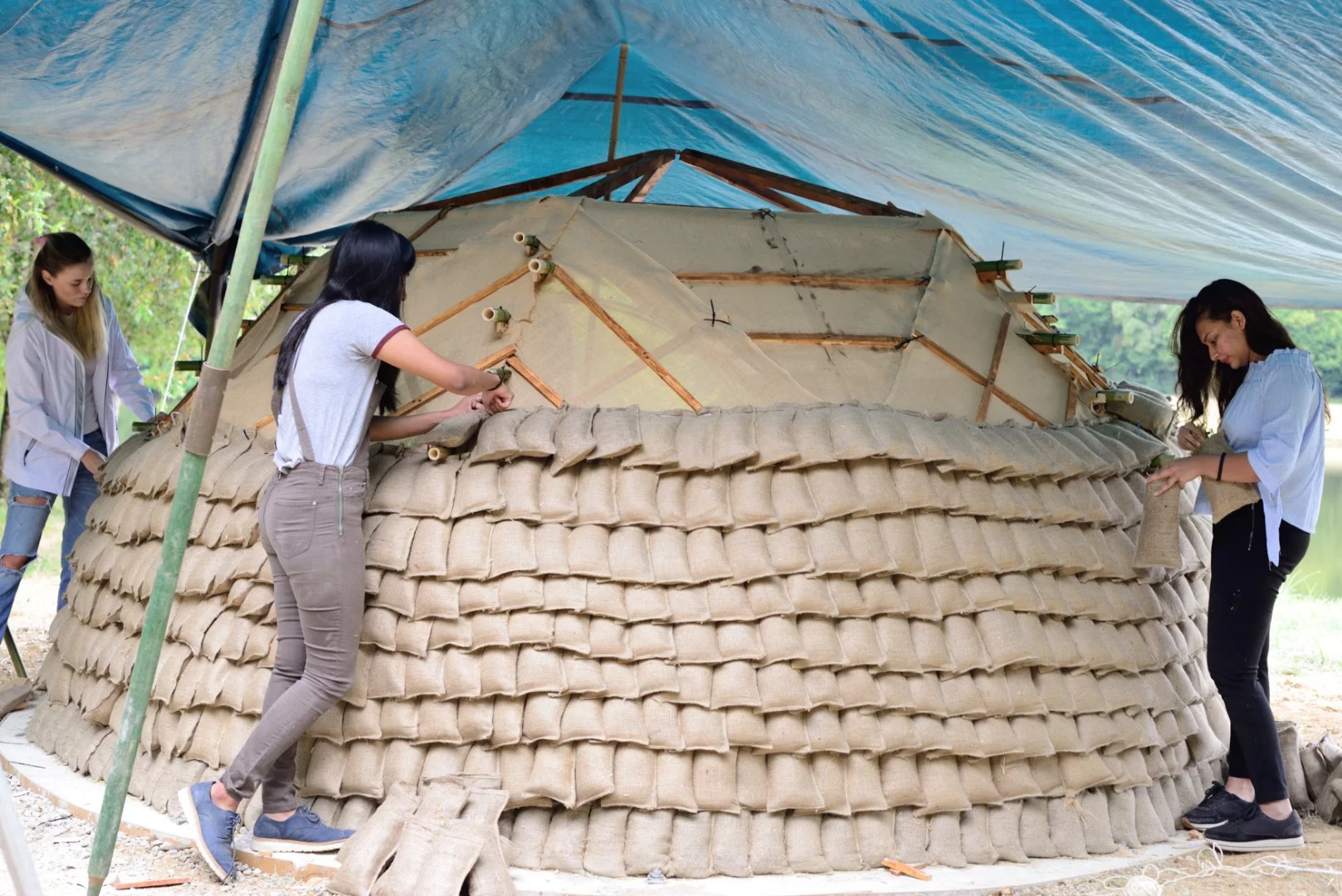

Chaltiel's team constructs its shelter at Domaine de Boisbuchet
13/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
Workers toil away at Domaine de Boisbuchet
14/66
Workers toil away at Domaine de Boisbuchet
Workers toil away at Domaine de Boisbuchet
15/66
Workers toil away at Domaine de Boisbuchet

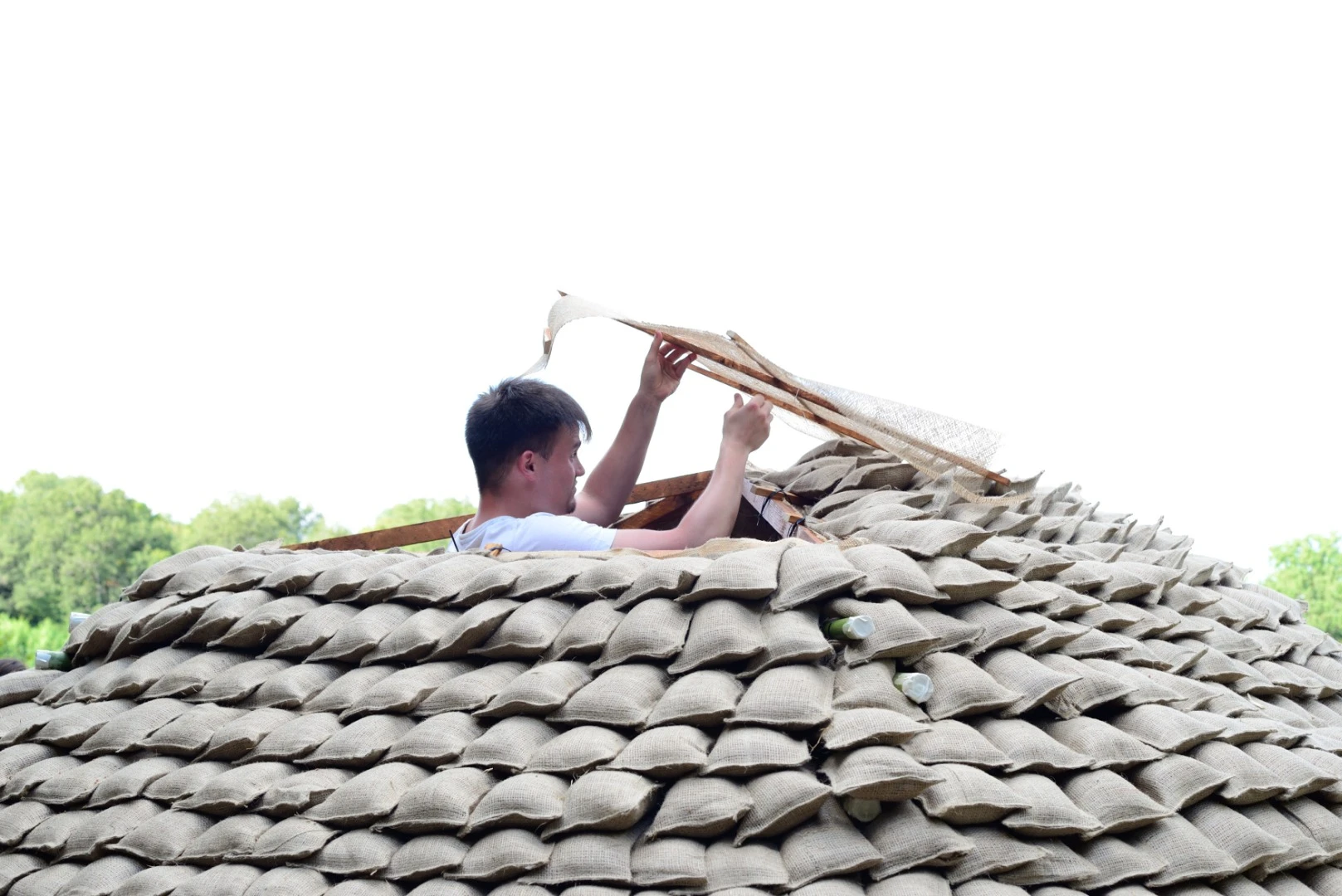

Can drones lighten the load for the construction workers in remote areas?
16/66
Can drones lighten the load for the construction workers in remote areas?
Workers toil away at Domaine de Boisbuchet
17/66
Workers toil away at Domaine de Boisbuchet

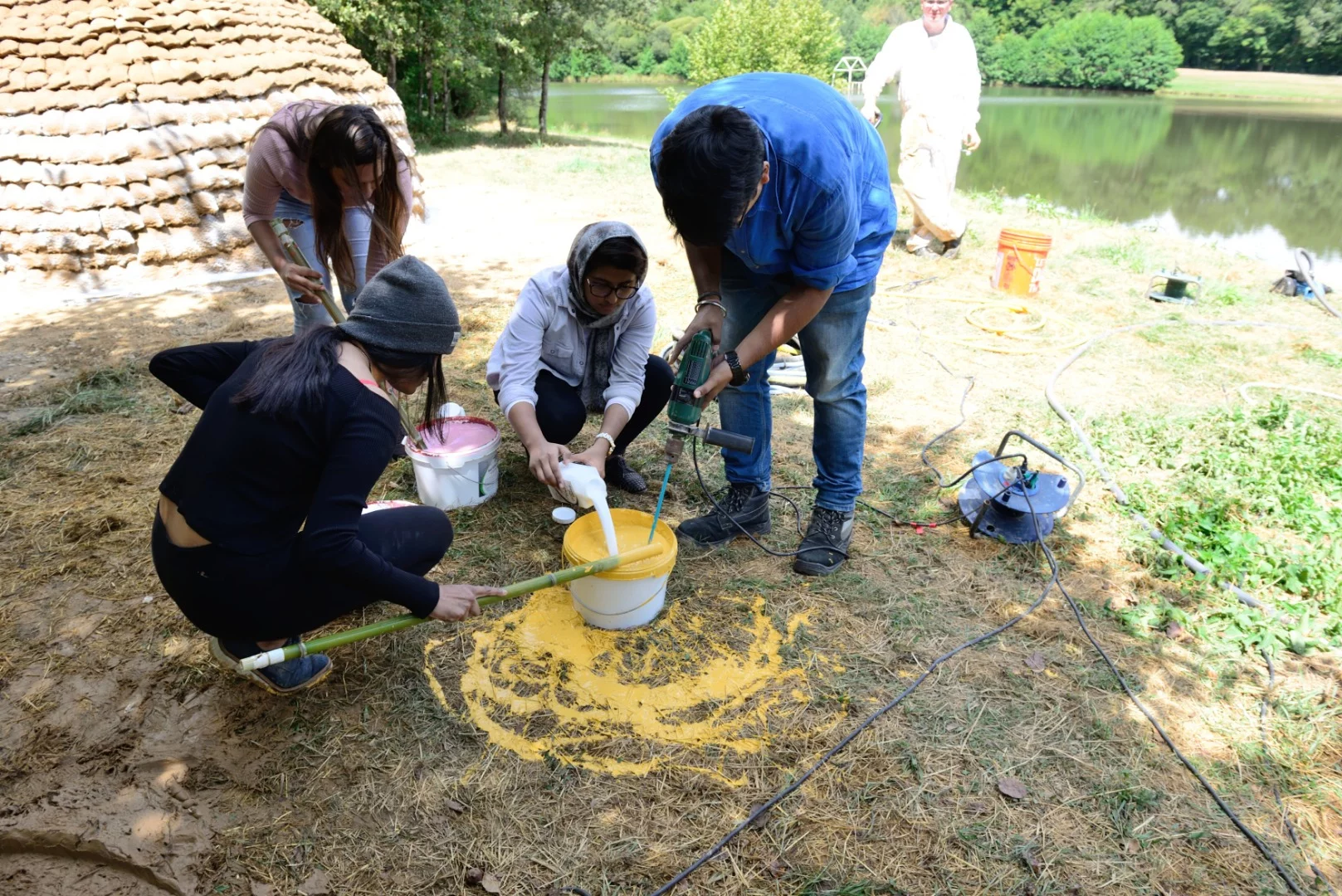

Chaltiel's team constructs its shelter at Domaine de Boisbuchet
18/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
19/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
20/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Can drones lighten the load for the construction workers in remote areas?
21/66
Can drones lighten the load for the construction workers in remote areas?
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
22/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
Workers toil away at Domaine de Boisbuchet
23/66
Workers toil away at Domaine de Boisbuchet
Can drones lighten the load for the construction workers in remote areas?
24/66
Can drones lighten the load for the construction workers in remote areas?
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
25/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
Workers toil away at Domaine de Boisbuchet
26/66
Workers toil away at Domaine de Boisbuchet
Can drones lighten the load for the construction workers in remote areas?
27/66
Can drones lighten the load for the construction workers in remote areas?
Jute bags filled with hay formed part of the structure of Chaltiel's dome
28/66
Jute bags filled with hay formed part of the structure of Chaltiel's dome
Jute bags filled with hay formed part of the structure of Chaltiel's dome
29/66
Jute bags filled with hay formed part of the structure of Chaltiel's dome
A worker toils away at Domaine de Boisbuchet
30/66
A worker toils away at Domaine de Boisbuchet
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
31/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Can drones lighten the load for the construction workers in remote areas?
32/66
Can drones lighten the load for the construction workers in remote areas?
A worker toils away at Domaine de Boisbuchet
33/66
A worker toils away at Domaine de Boisbuchet
Can drones lighten the load for the construction workers in remote areas?
34/66
Can drones lighten the load for the construction workers in remote areas?

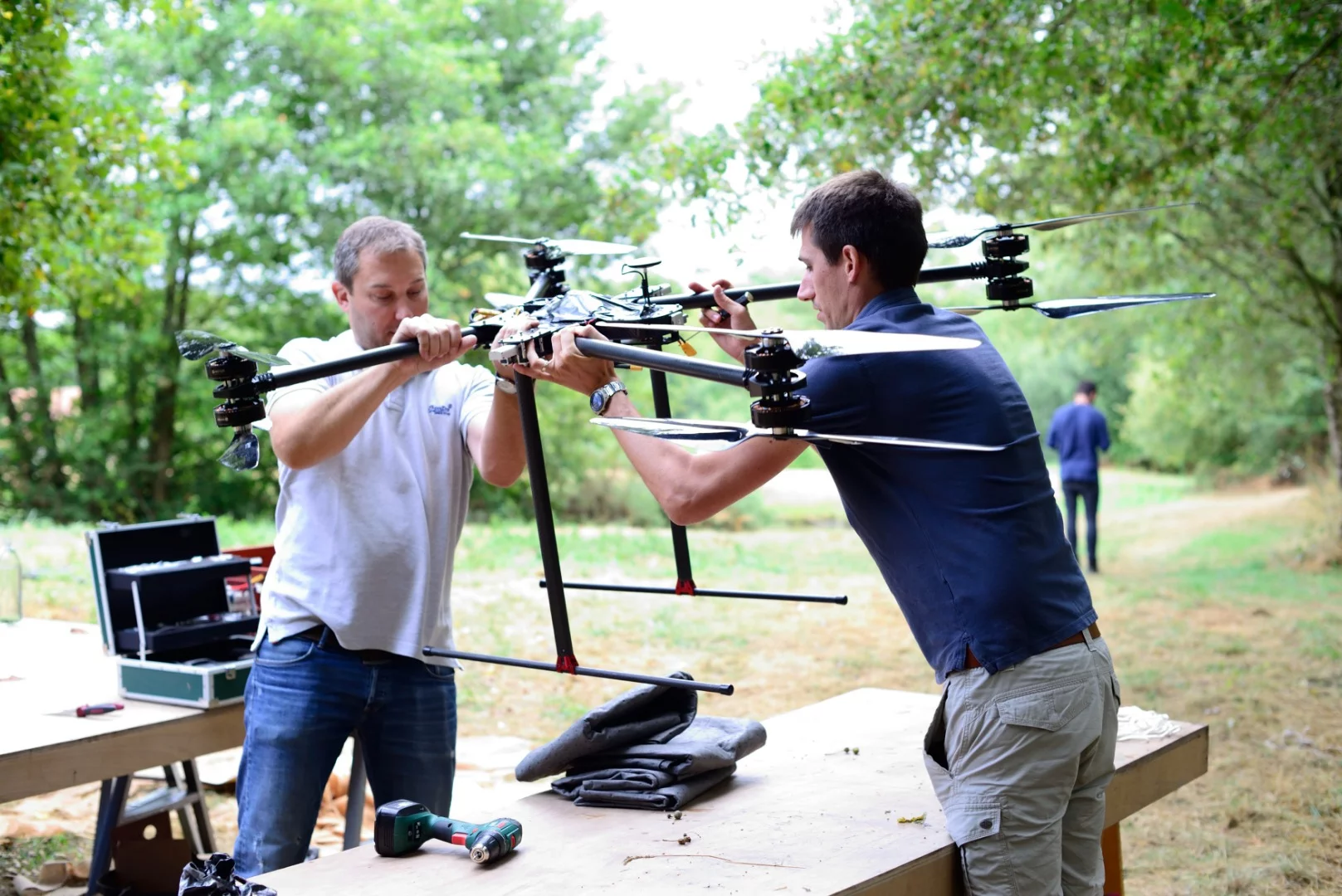

A mud-spraying drone is prepped for work
35/66
A mud-spraying drone is prepped for work
A mud-spraying drone is prepped for work
36/66
A mud-spraying drone is prepped for work
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
37/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
38/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics

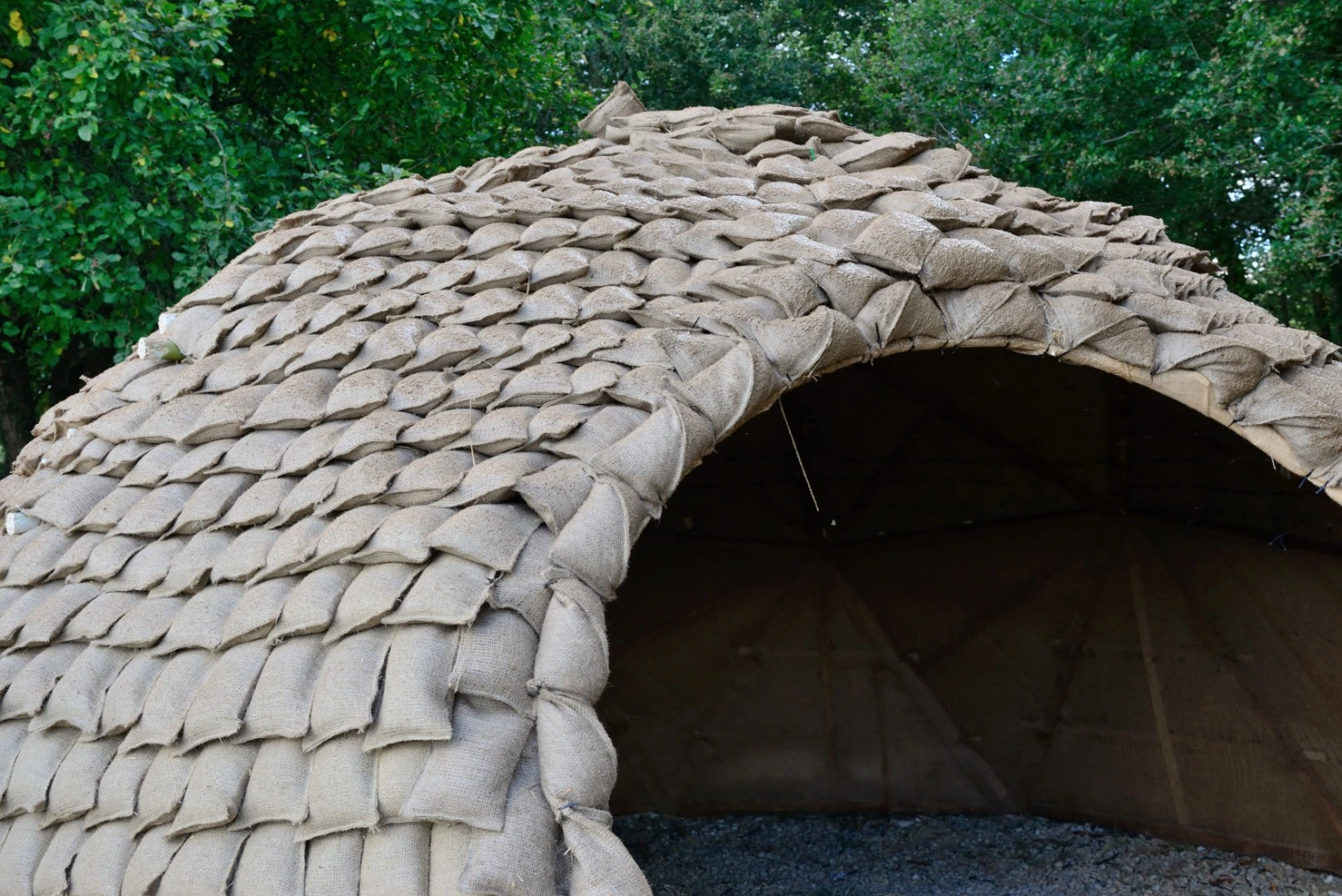

Can drones lighten the load of construction for shelters such as this?
39/66
Can drones lighten the load of construction for shelters such as this?
Jute bags filled with hay formed part of the structure of Chaltiel's dome
40/66
Jute bags filled with hay formed part of the structure of Chaltiel's dome

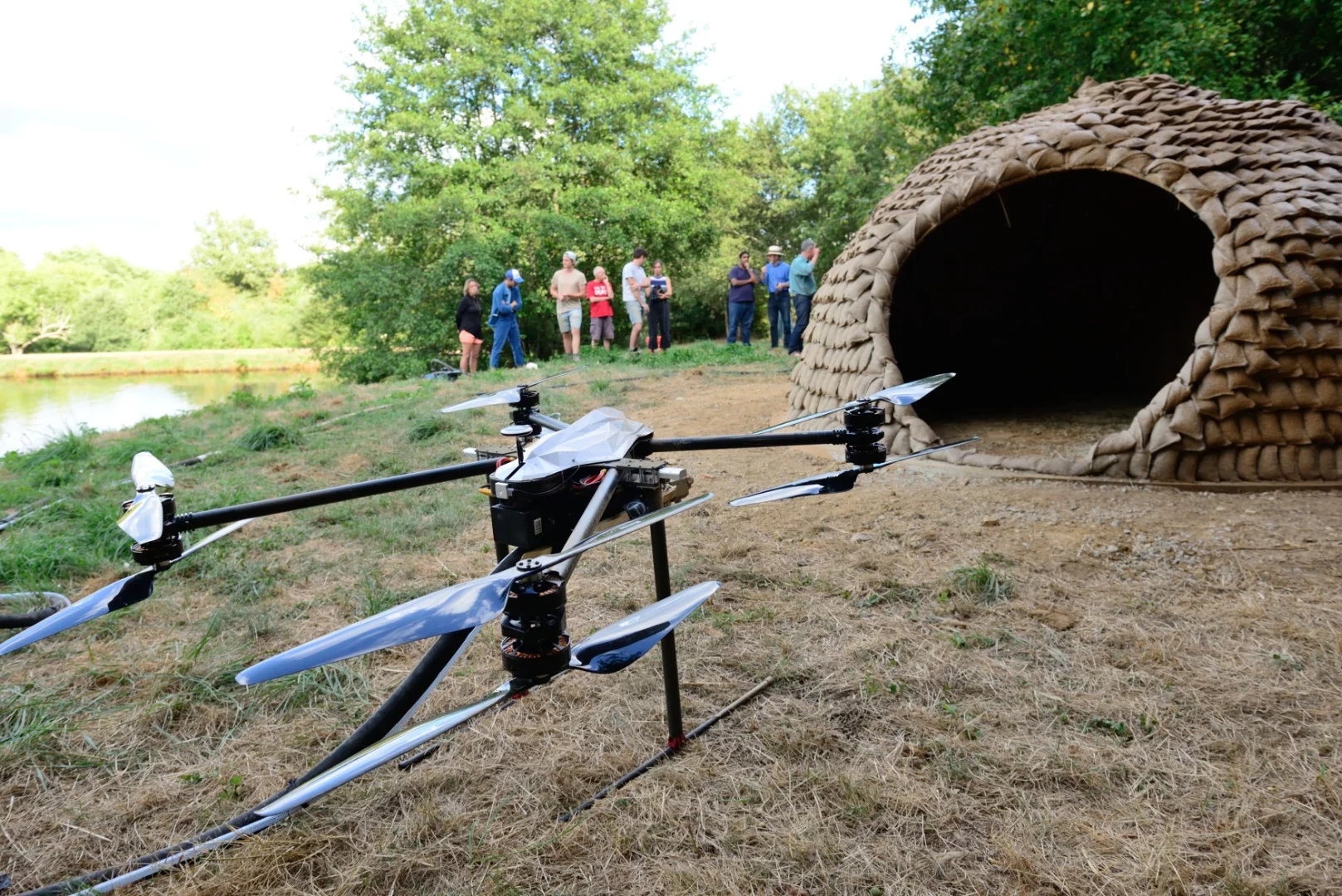

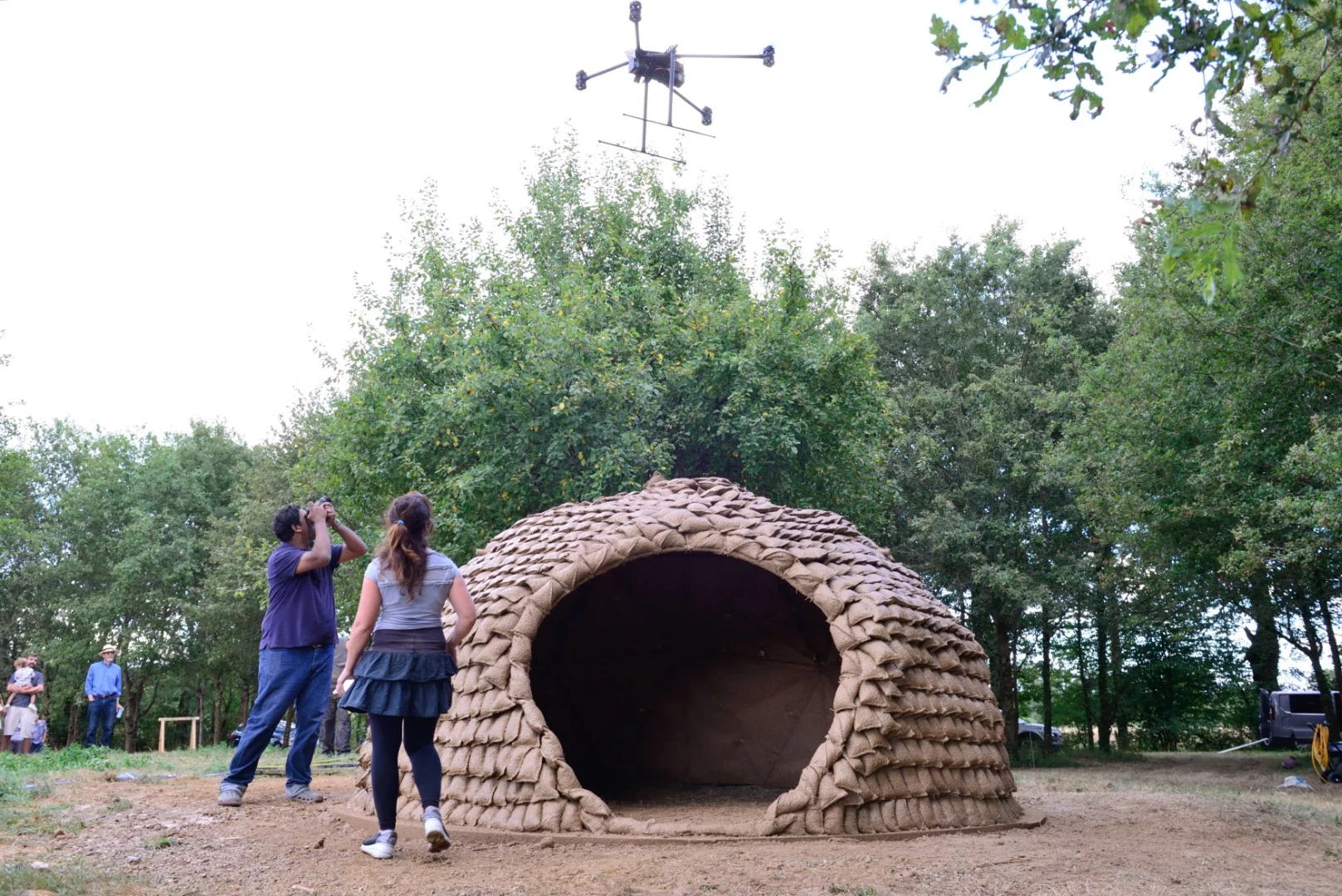

A mud-spraying drone goes to work
41/66
A mud-spraying drone goes to work
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
42/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet

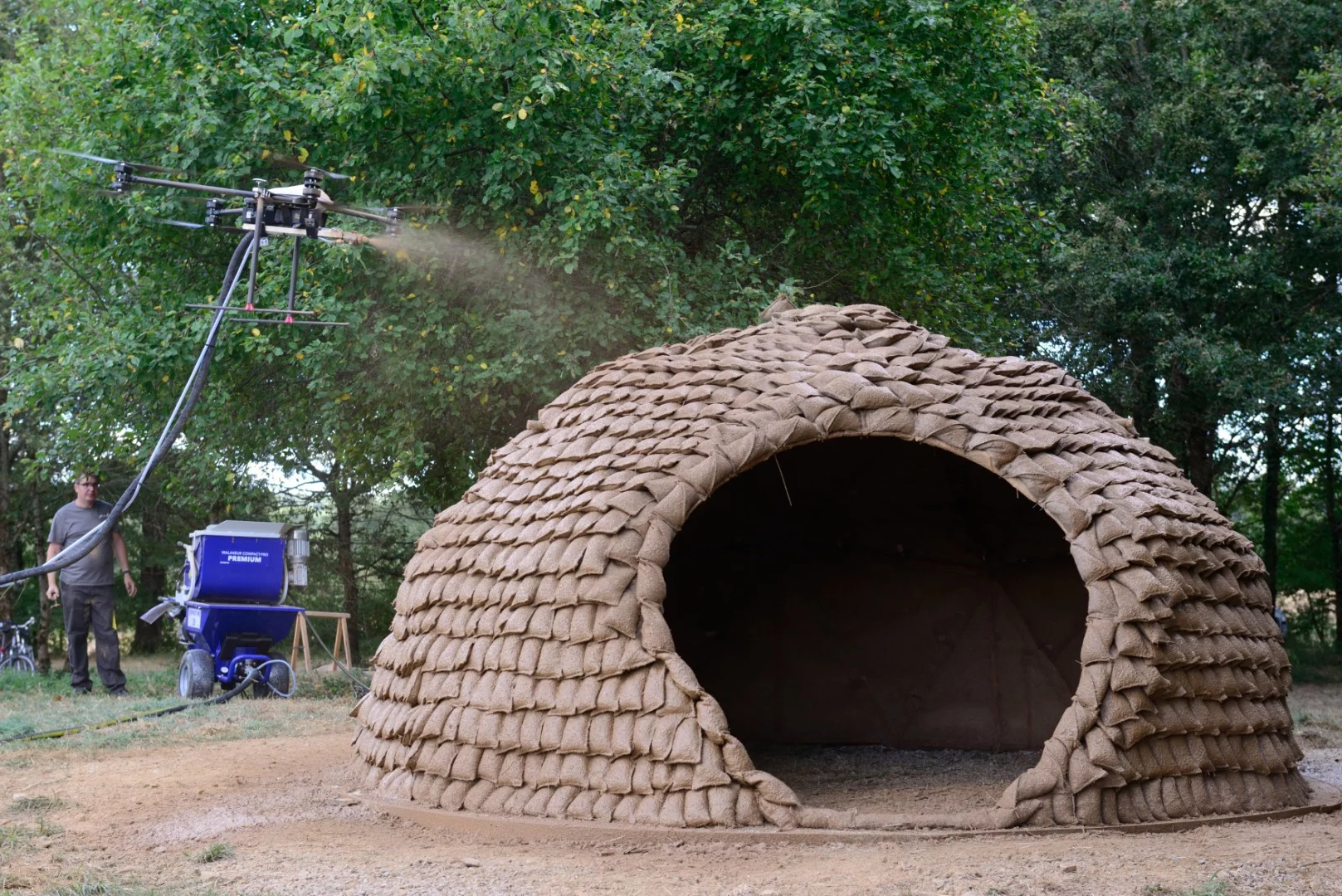

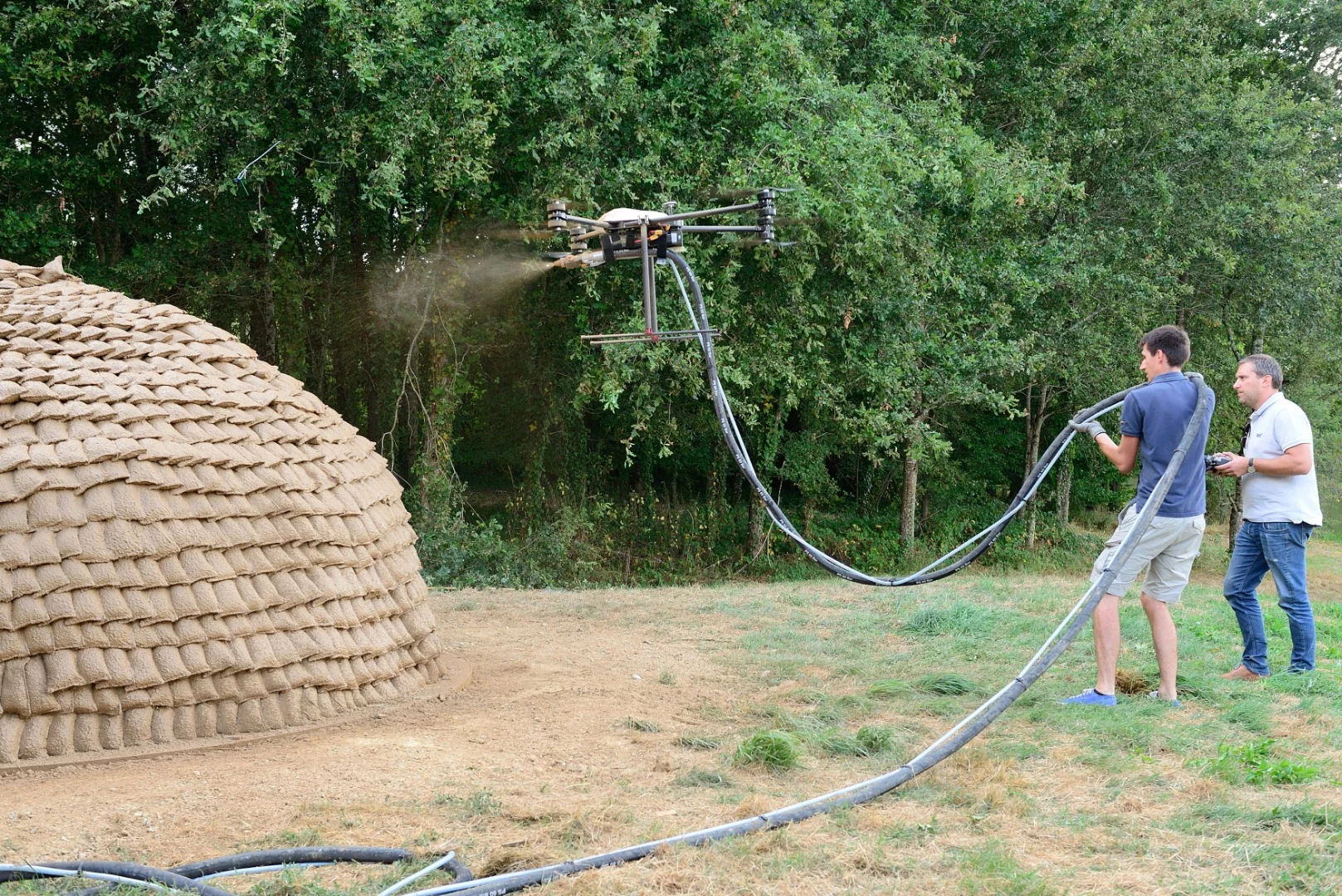

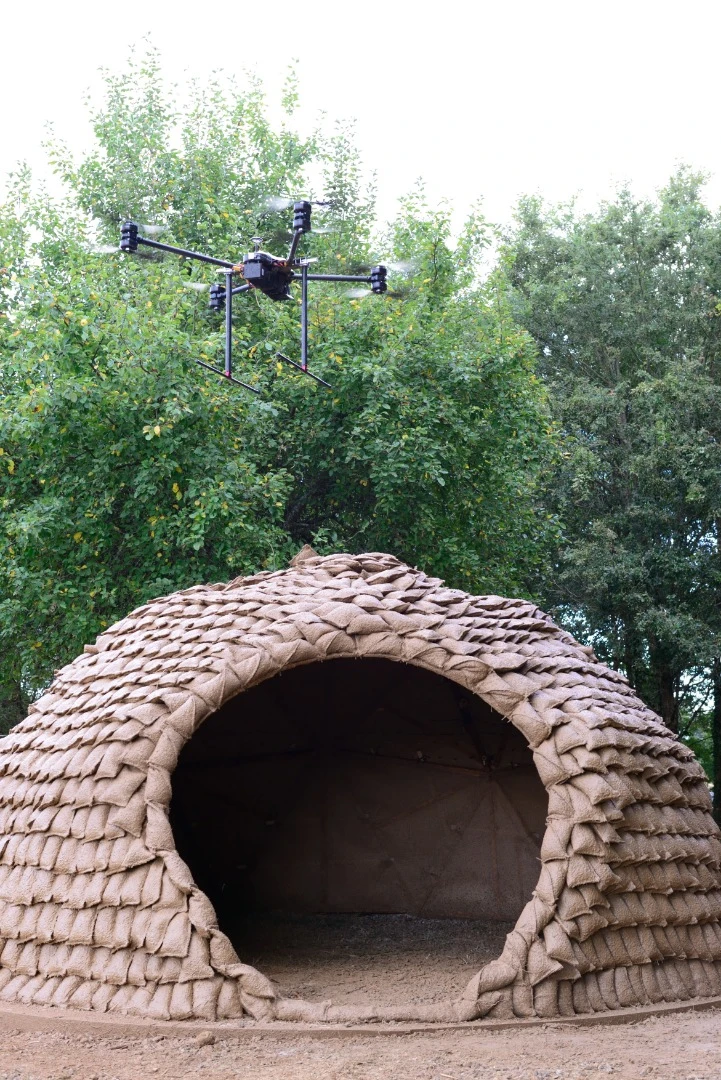

A mud-spraying drone hovers above Chaltiel's dome
43/66
A mud-spraying drone hovers above Chaltiel's dome
Can drones lighten the load of construction for shelters such as this?
44/66
Can drones lighten the load of construction for shelters such as this?
A mud-spraying drone hovers above Chaltiel's dome
45/66
A mud-spraying drone hovers above Chaltiel's dome
A mud-spraying drone hovers above Chaltiel's dome
46/66
A mud-spraying drone hovers above Chaltiel's dome
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
47/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
A mud-spraying drone goes to work
48/66
A mud-spraying drone goes to work
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
49/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
50/66
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
51/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
52/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
53/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet

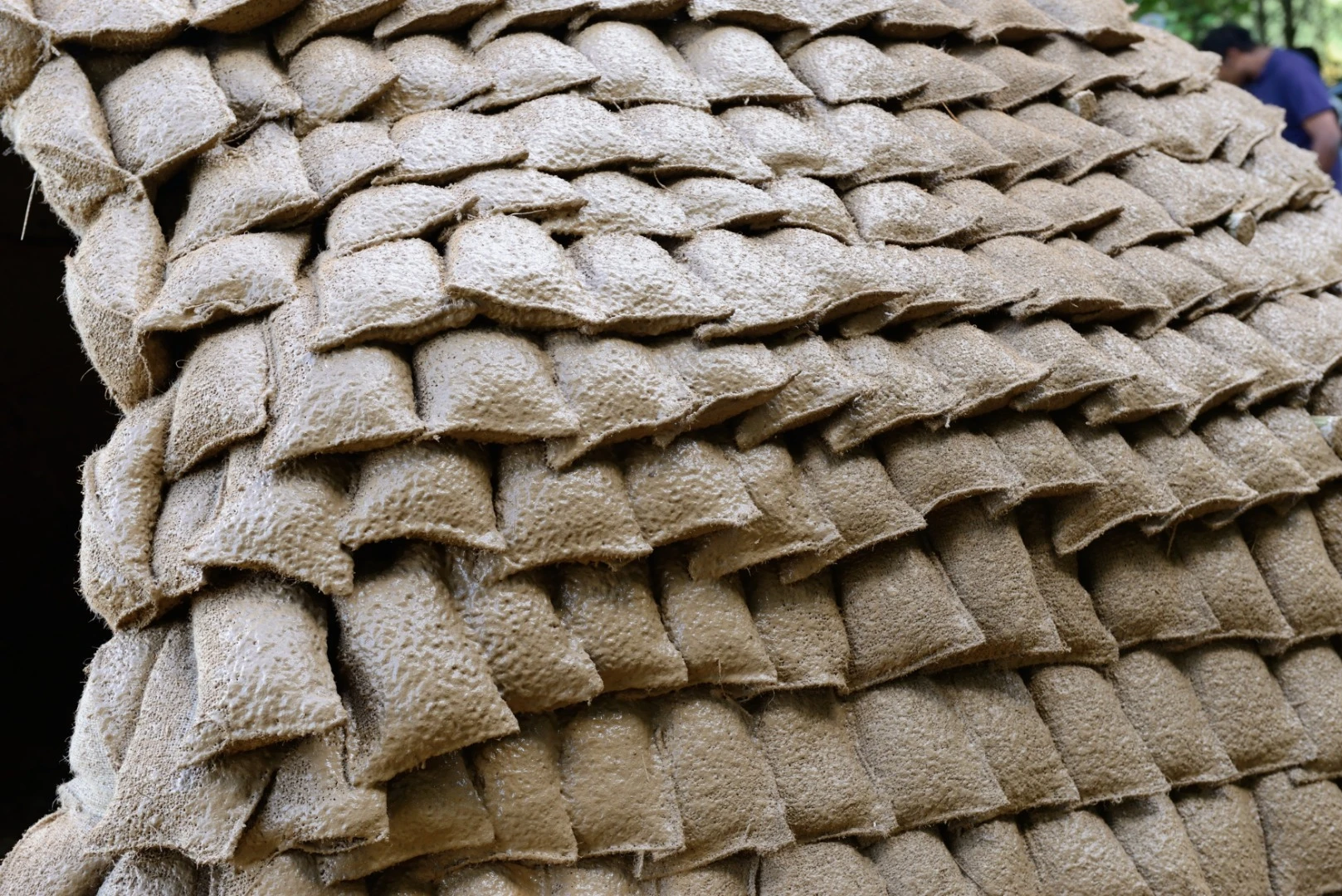

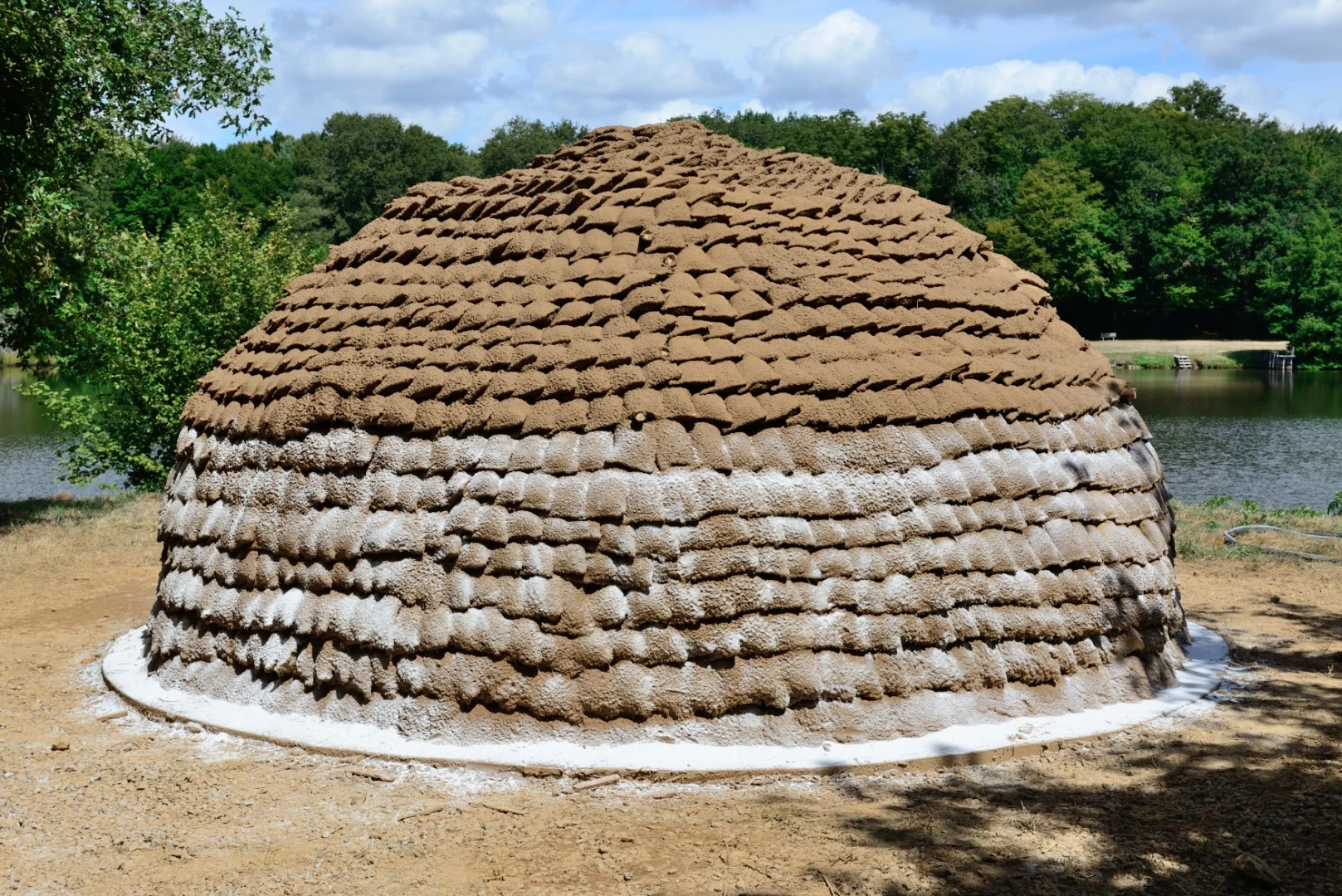

Chaltiel's dome structure incorporates 2,000 jute bags filled with hay
54/66
Chaltiel's dome structure incorporates 2,000 jute bags filled with hay
Chaltiel's team constructs its shelter at Domaine de Boisbuchet
55/66
Chaltiel's team constructs its shelter at Domaine de Boisbuchet

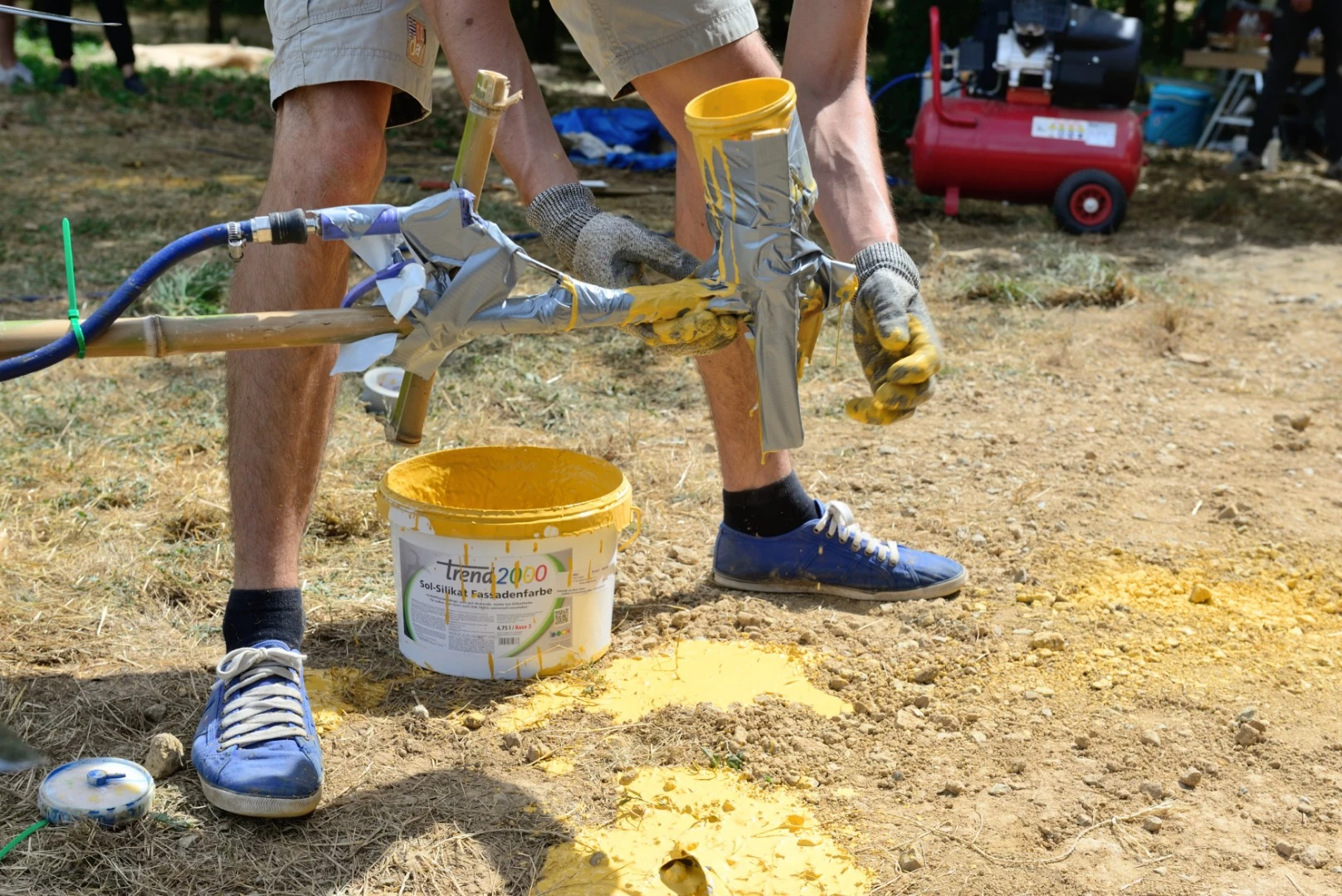

A spray nozzle used by Chaltiel's team
56/66
A spray nozzle used by Chaltiel's team

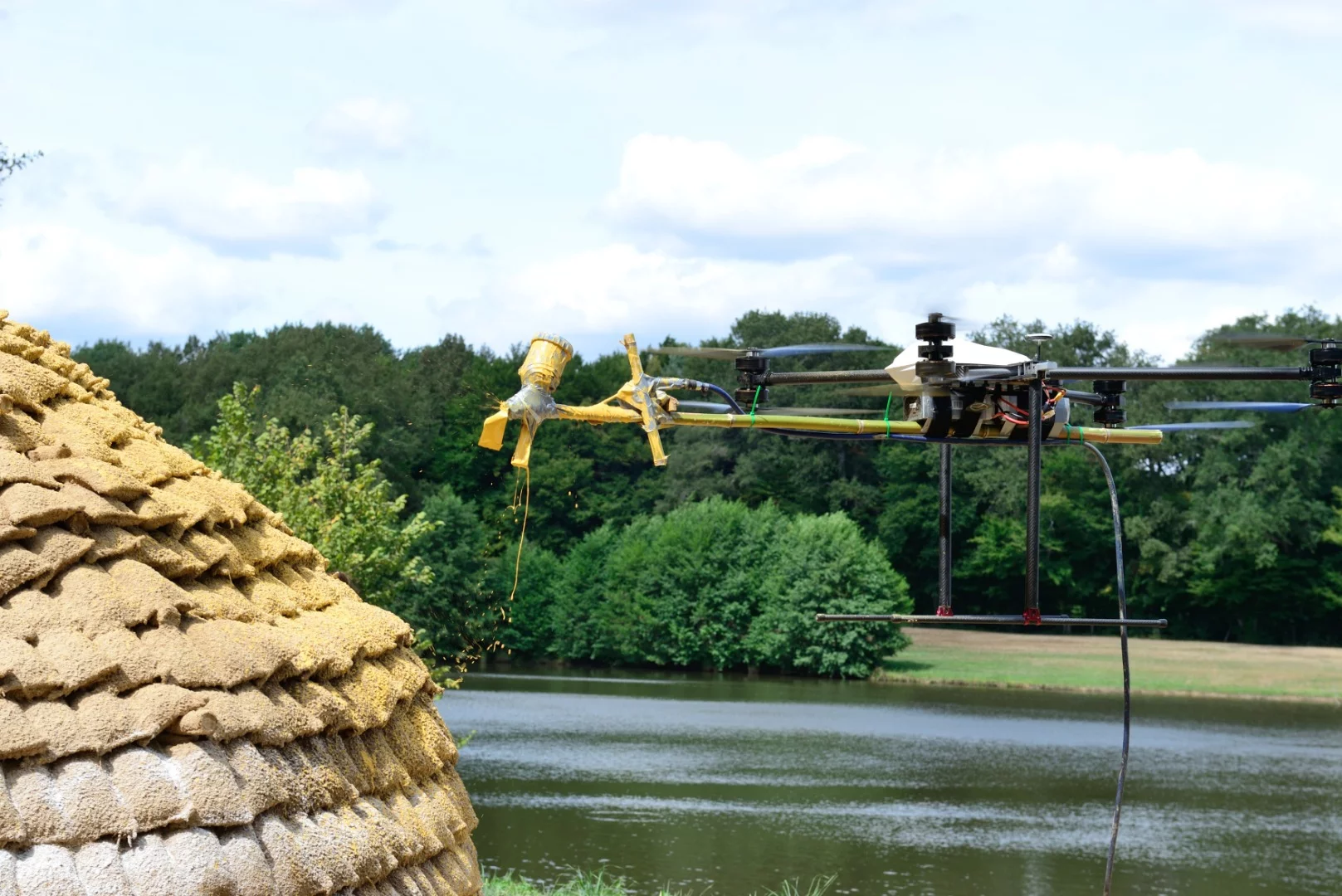

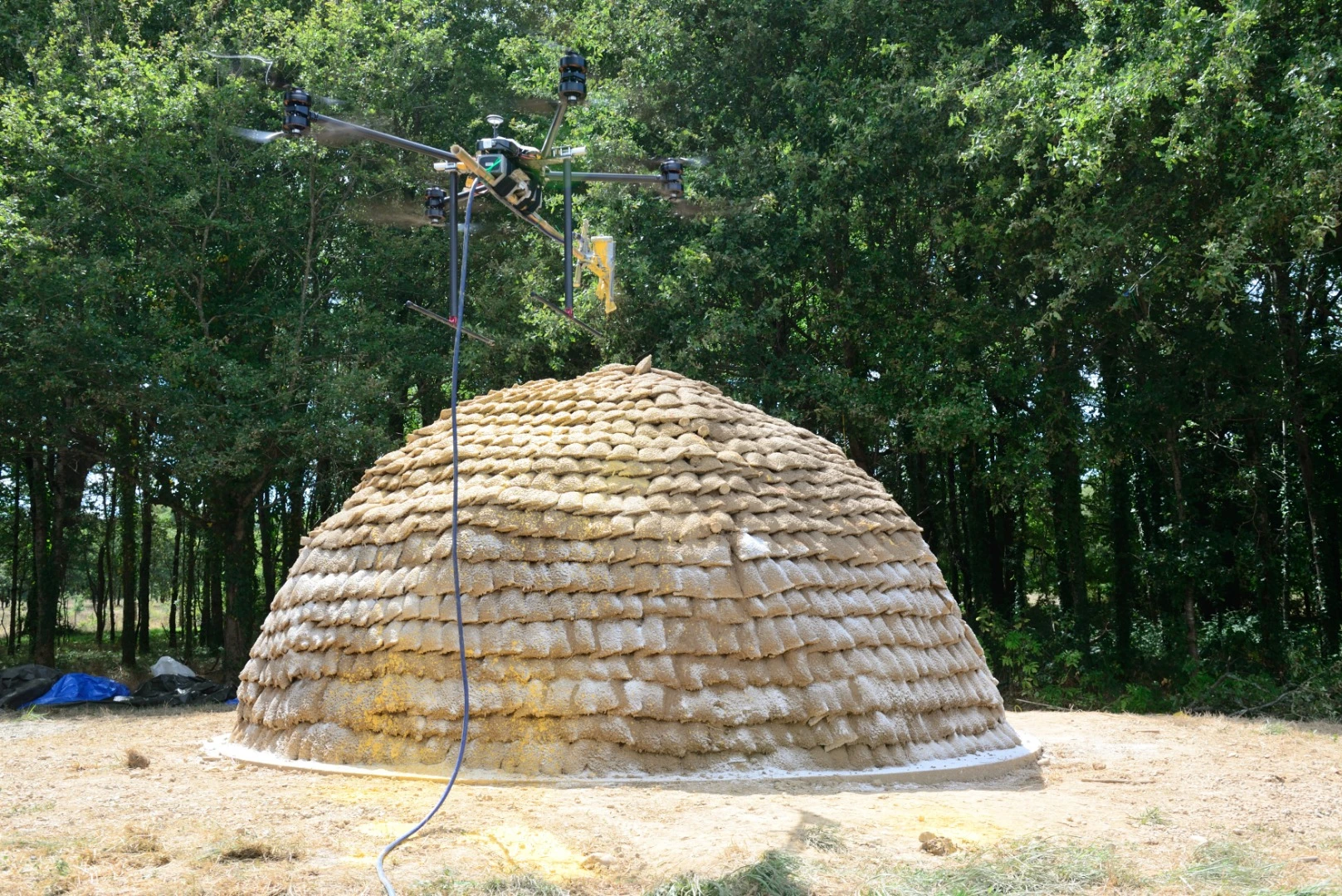

A drone applies the exterior finishing to dome shelter
57/66
A drone applies the exterior finishing to dome shelter
A drone applies the exterior finishing to dome shelter
58/66
A drone applies the exterior finishing to dome shelter
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
59/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
60/66
Stephanie Chaltiel has spent years researching how certain parts of certain building methods could be automated to open up new possibilities, in particular through the use of drones
A drone applies the exterior finishing to dome shelter
61/66
A drone applies the exterior finishing to dome shelter

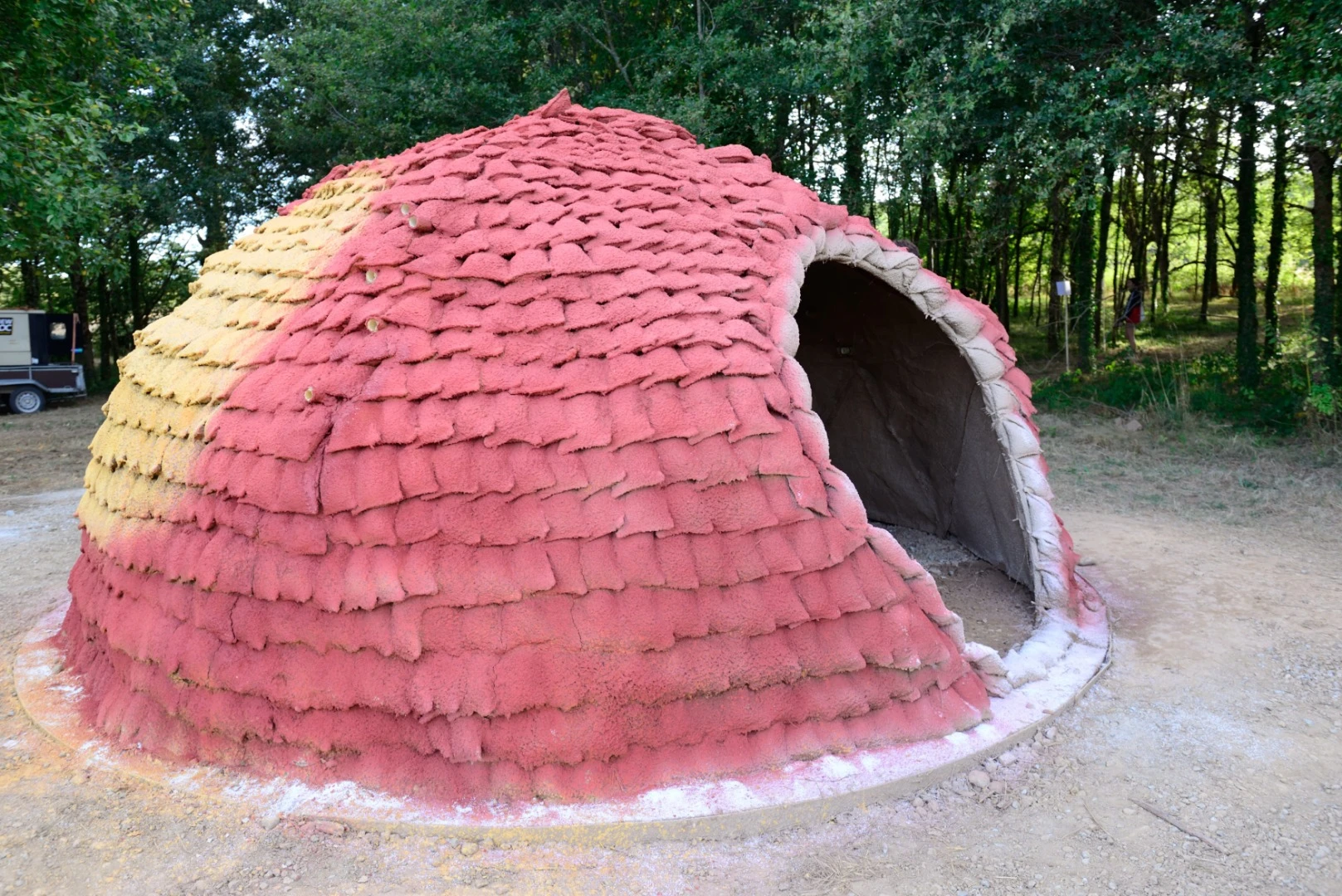

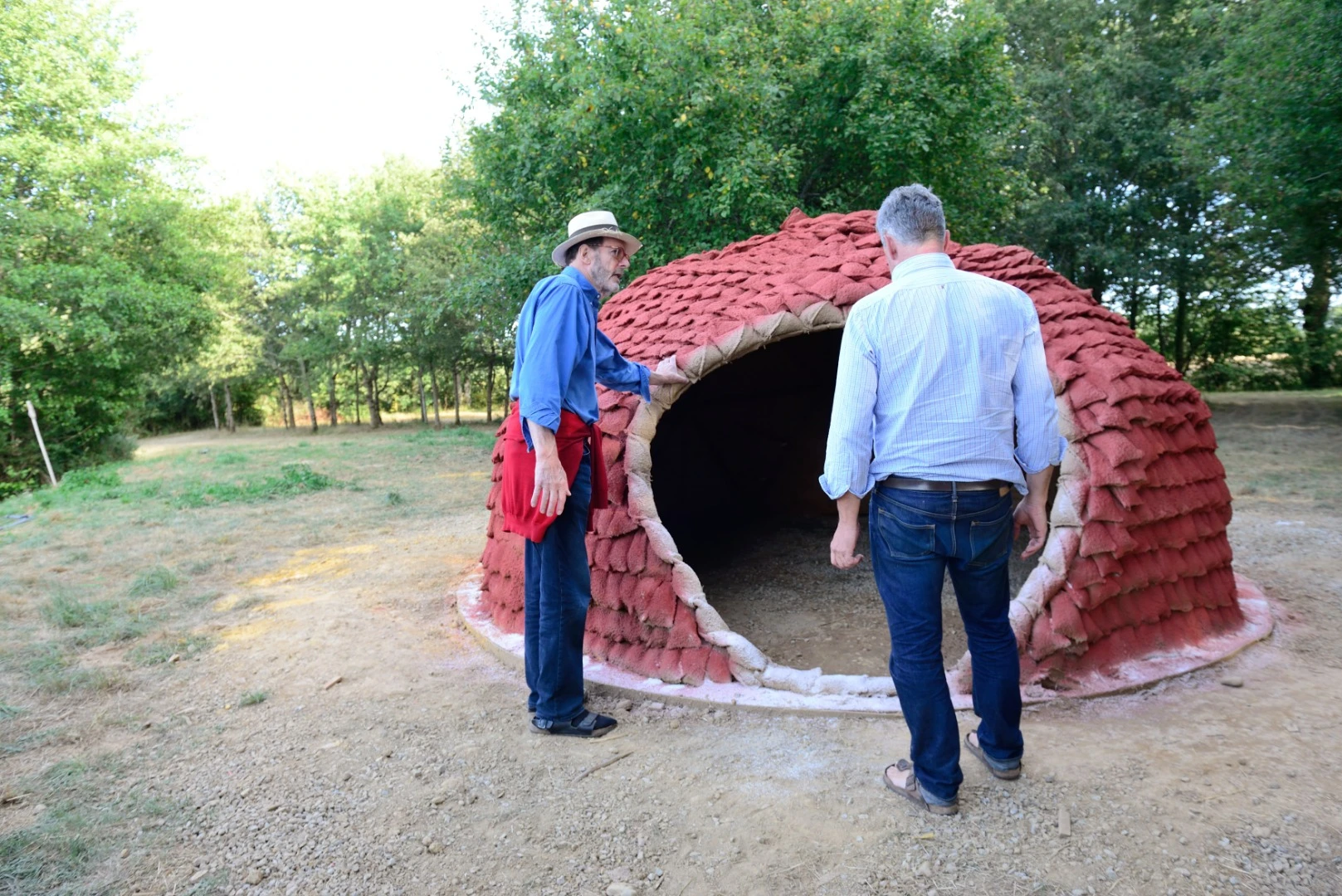

A dome shelter finished in biomaterials, applied by a drone
62/66
A dome shelter finished in biomaterials, applied by a drone
A dome shelter finished in biomaterials, applied by a drone
63/66
A dome shelter finished in biomaterials, applied by a drone
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
64/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
65/66
Researchers hope to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
66/66
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet

Further to opening our eyes to new perspectives on our environment, we are beginning to see how drones can also play very active roles in its construction. Walkable rope bridges and shapeshifting sun shelters are just a couple of manmade objects to lean on these flying robots recently, and now there's an enterprising team of researchers hoping to use them to craft low-cost housing made from natural materials.

The work is headed up by Stephanie Chaltiel, a researcher at Barcelona's Institute for Advanced Architecture of Catalonia. Chaltiel has spent years researching how elements of certain building methods could be automated to open up new possibilities, in particular through the use of drones.

"We're trying to test how drones can be embedded in the construction chain to ease some of the most laborious tasks, to be able to introduce much more sustainable techniques for innovative housing," she says.

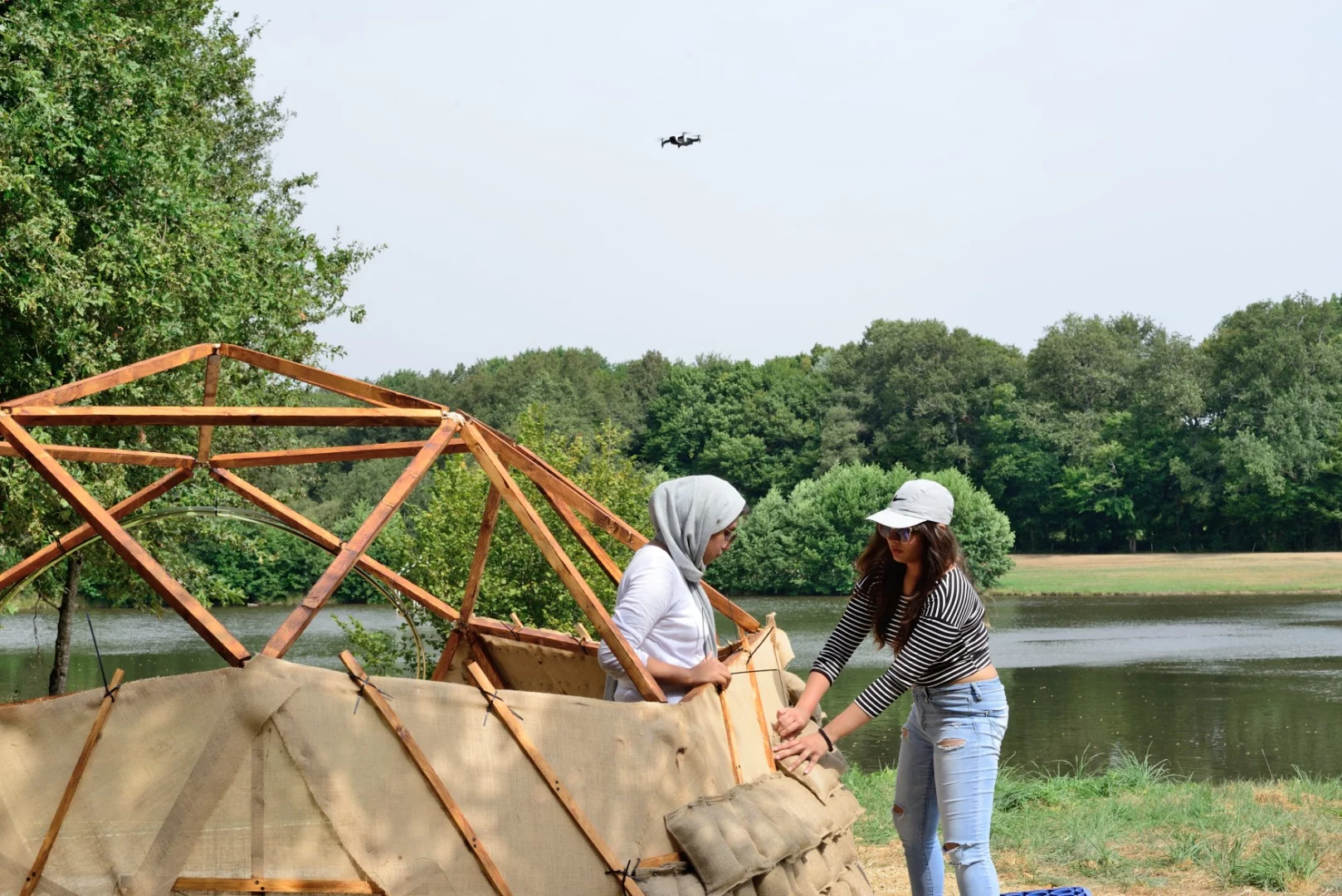

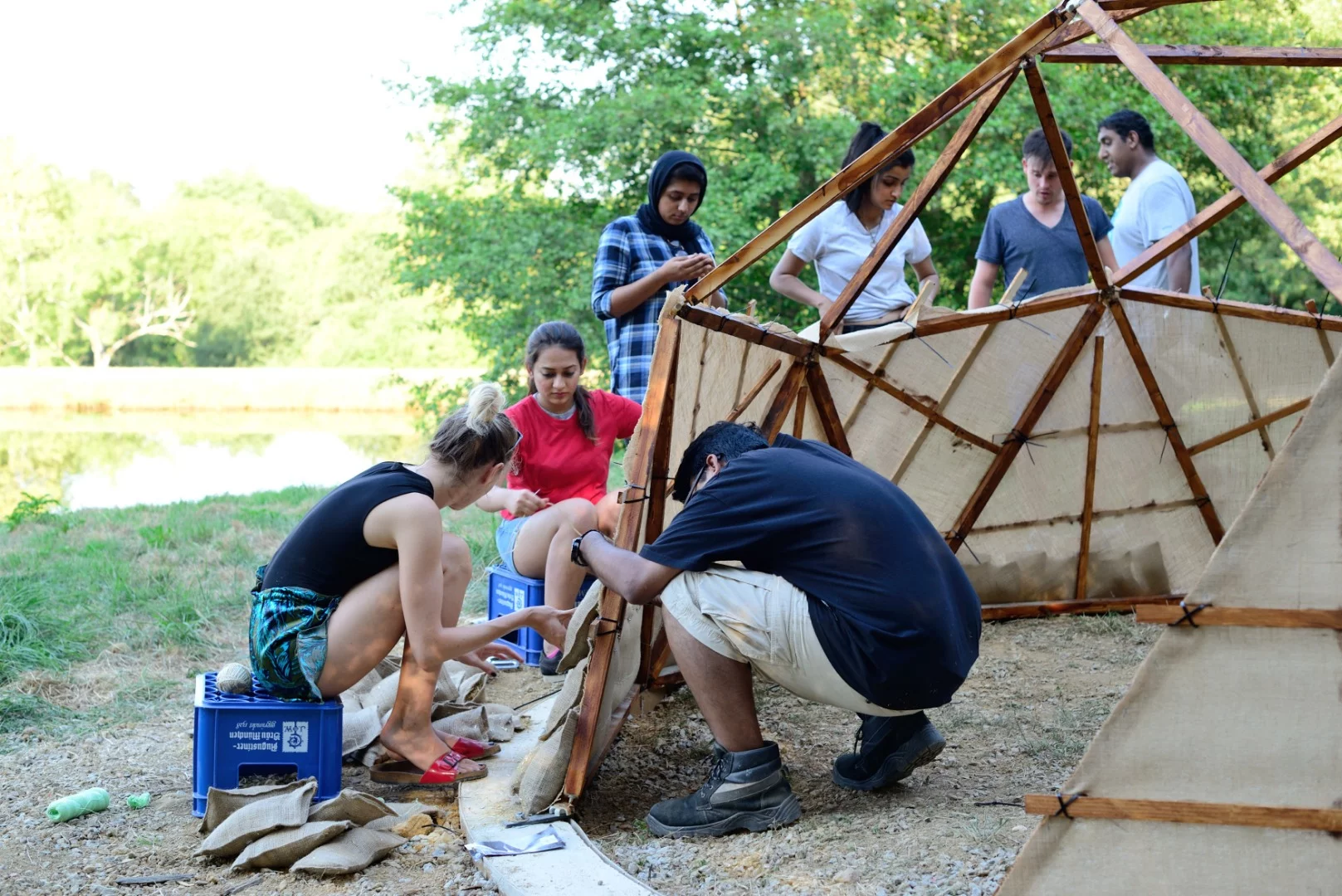

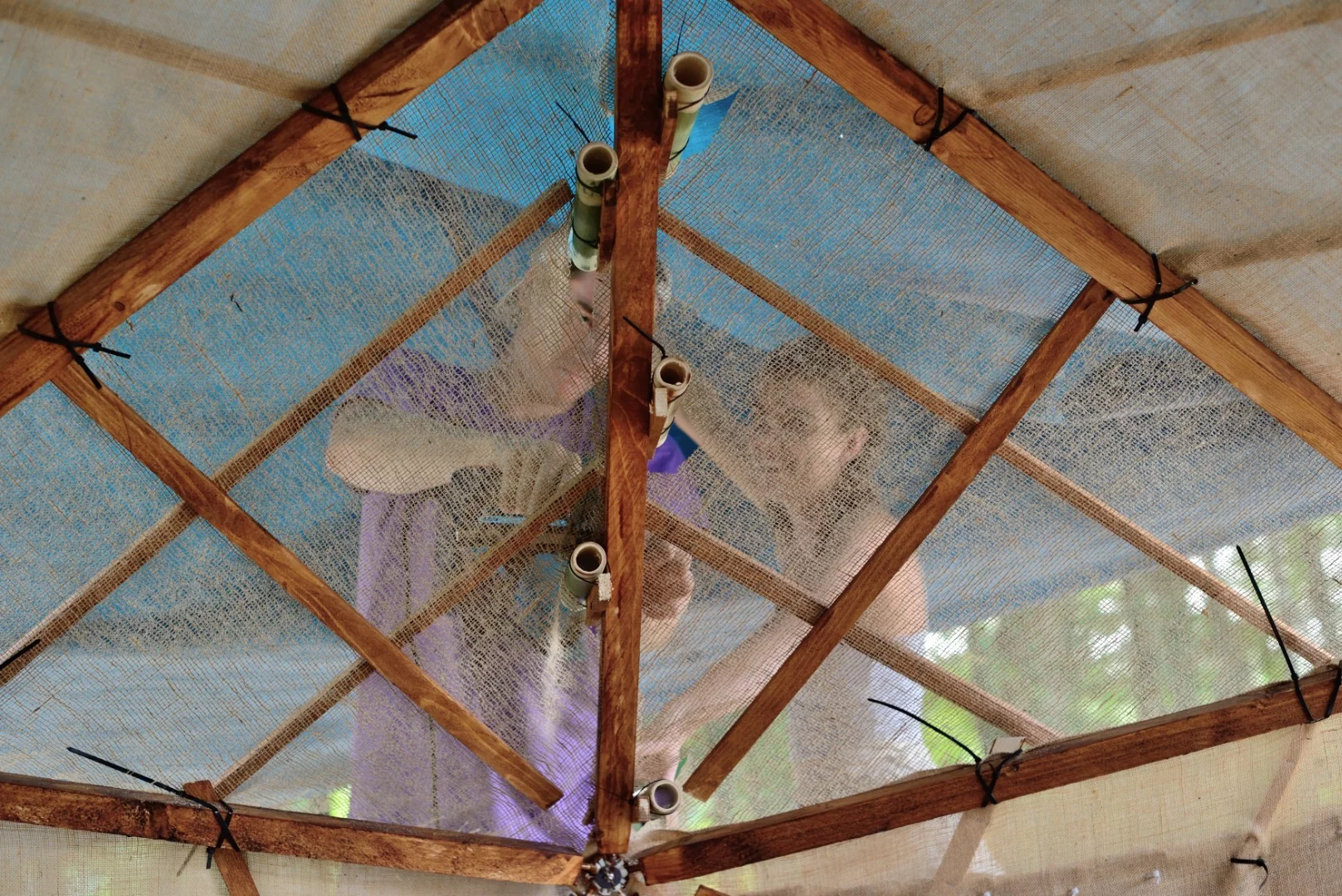

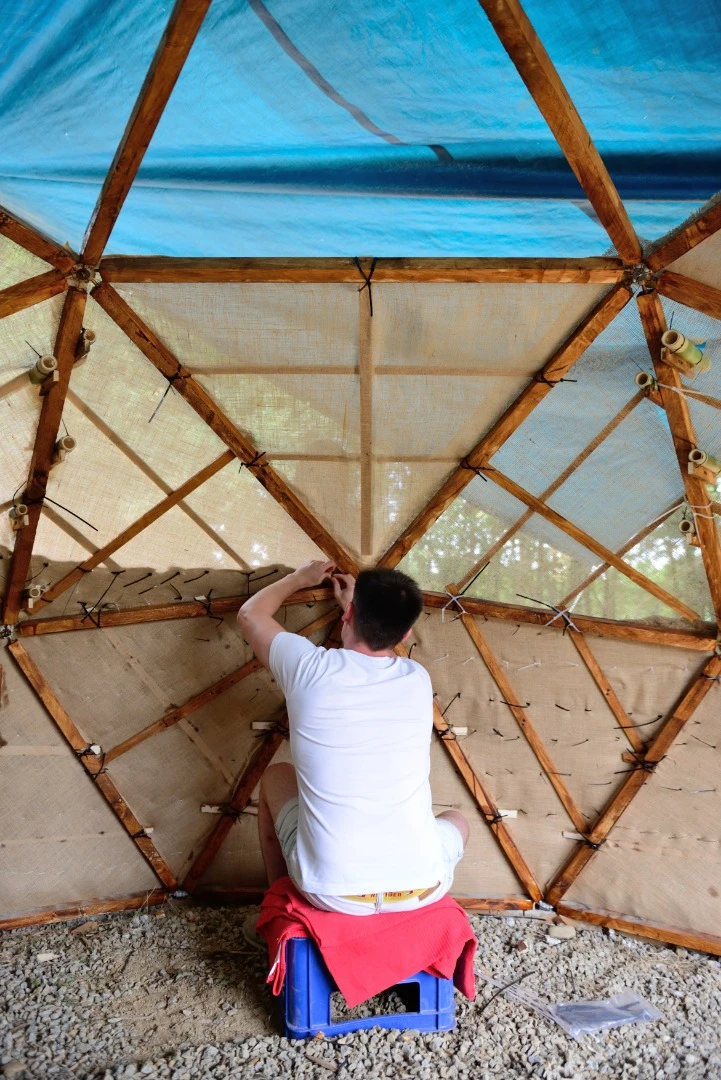

Workers toil away at Domaine de Boisbuchet
Workers toil away at Domaine de Boisbuchet

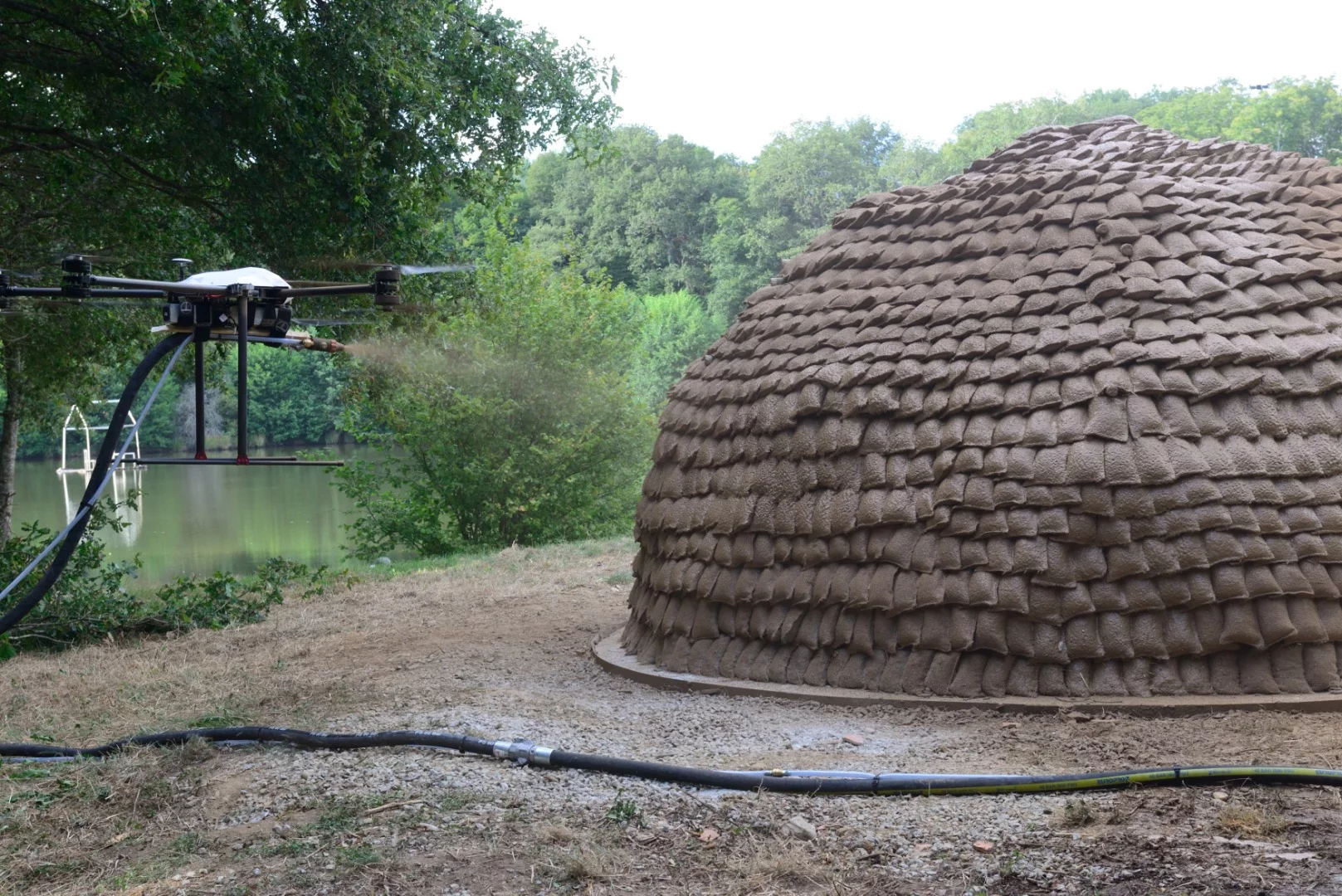

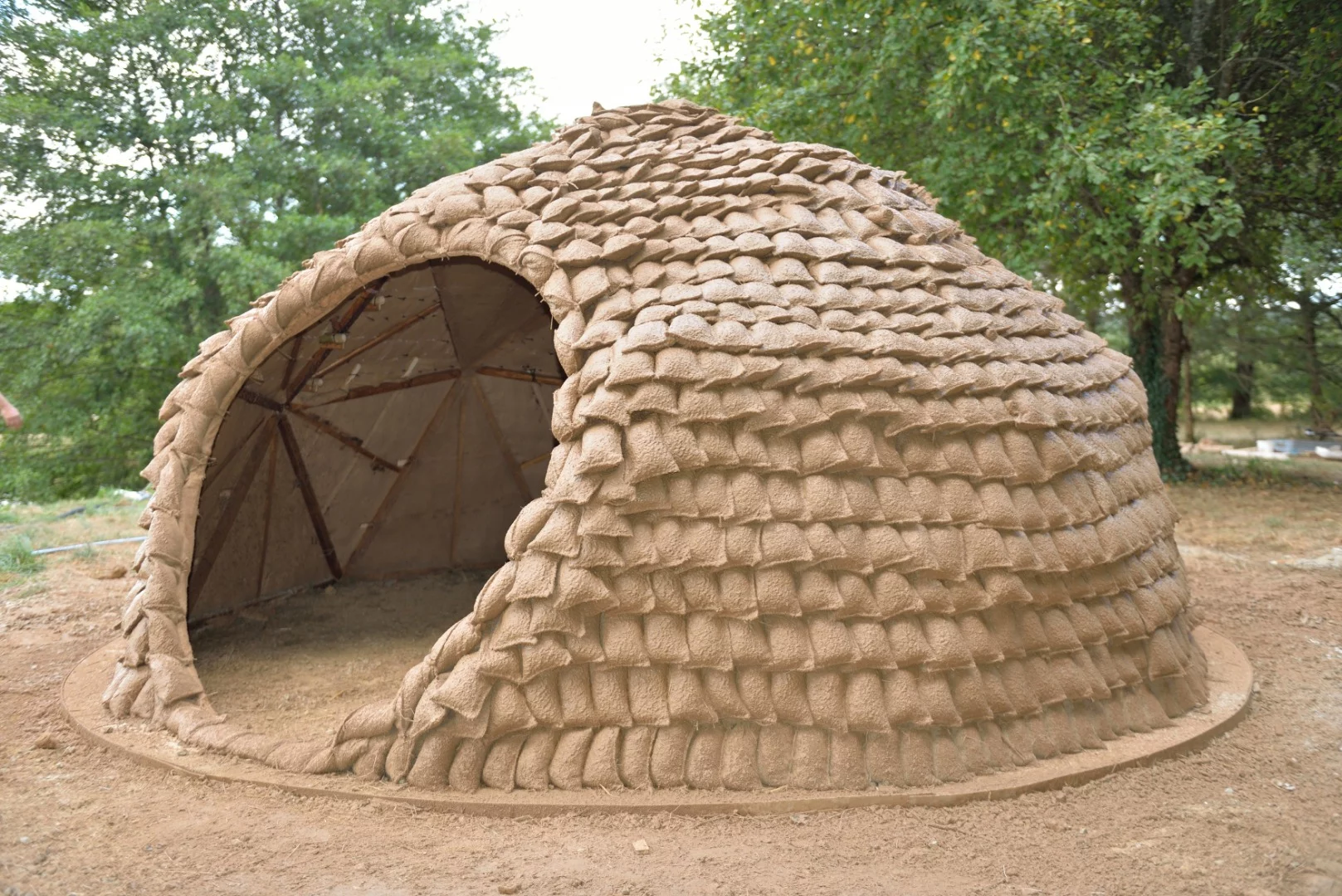

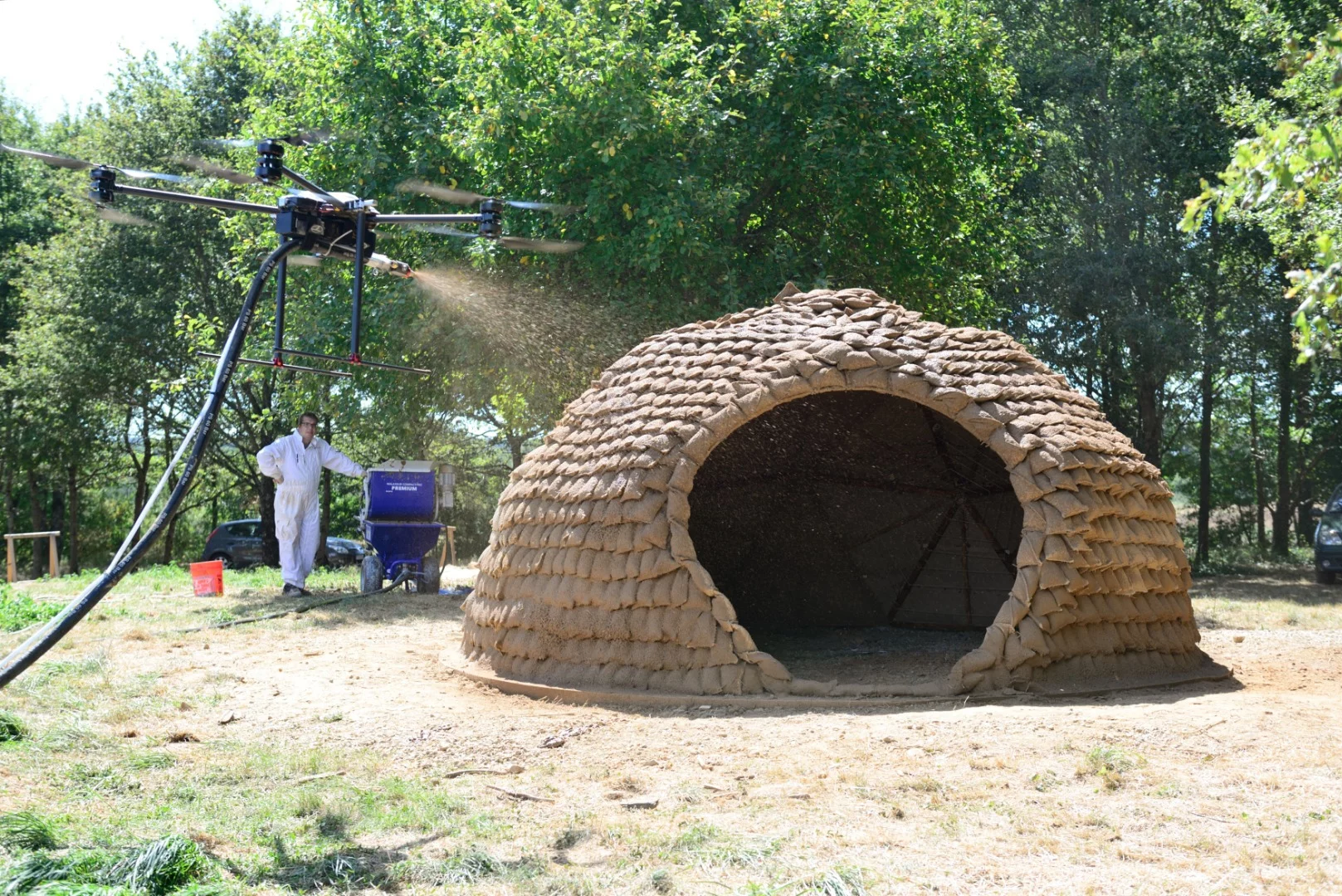

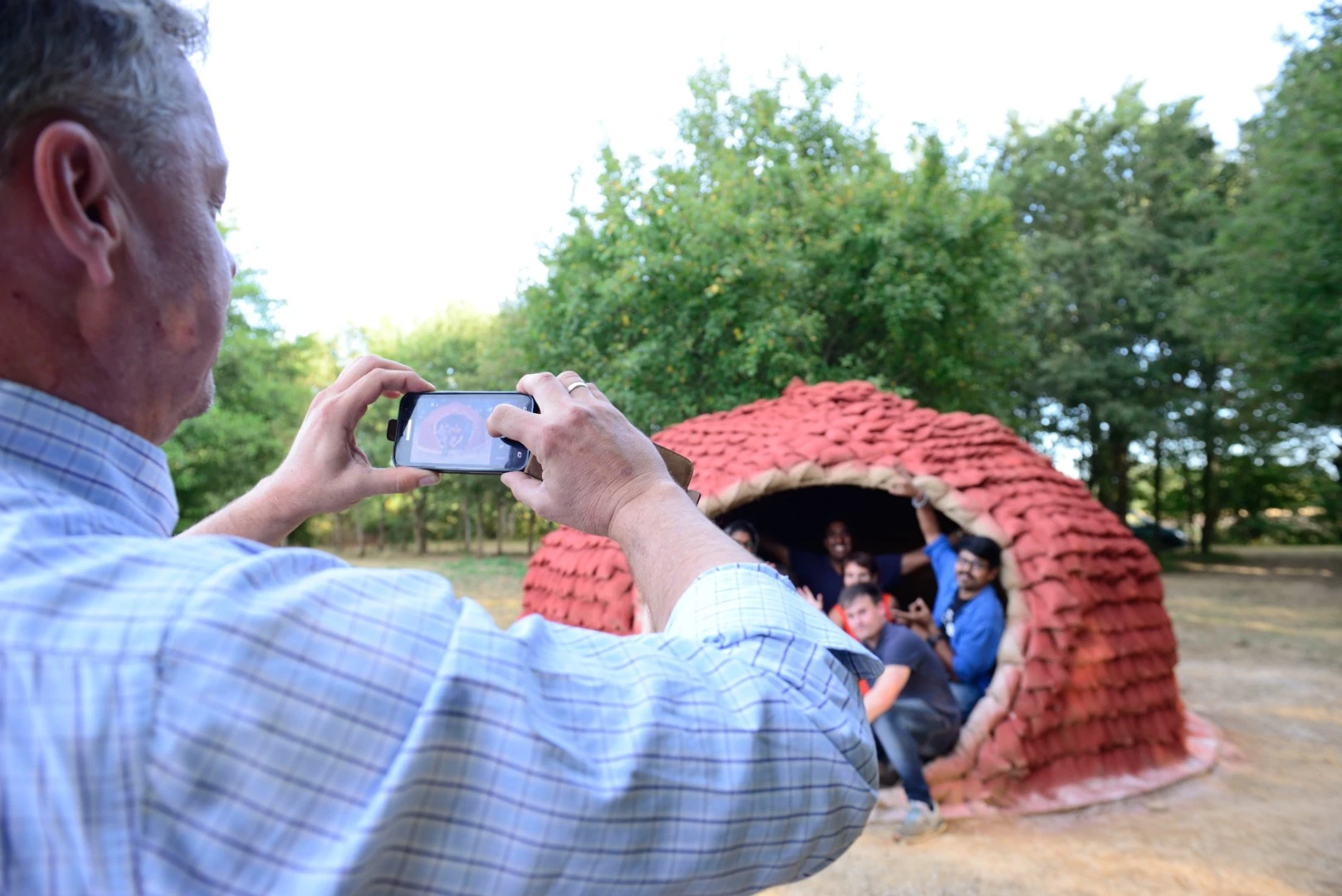

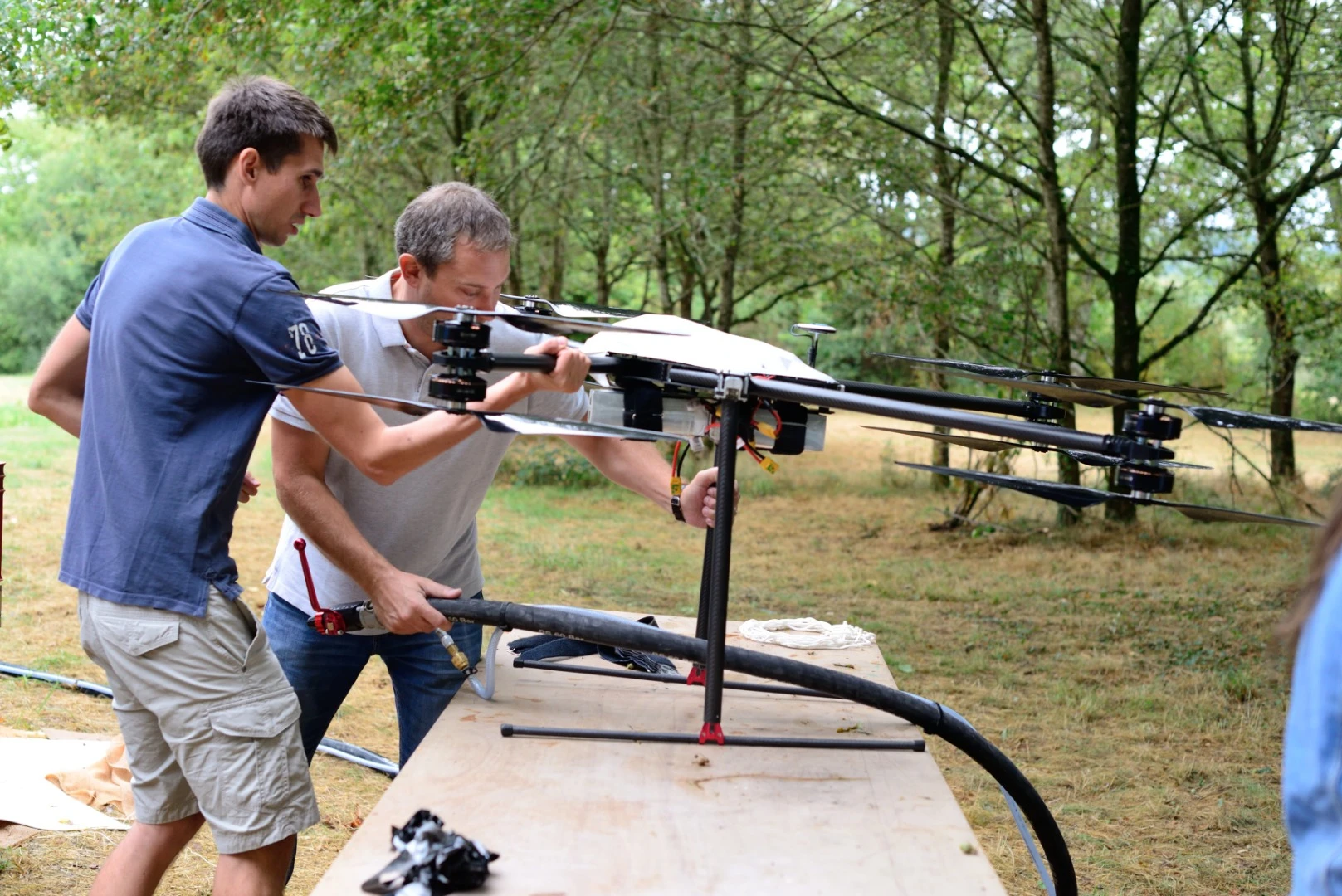

The idea is to fit drones with spraying hoses to apply layers of biomaterials onto light structures, such as geodesic dome frames or grid shells covered in tensile fabrics. These frames can be put up easily and quickly, with minimal tools and skills, and the use of drones negates the need for scaffolds and heavy machinery to finish the job, a real advantage in remote areas without road access.

The drones can be packed into luggage cases and the spraying pumps can transported on wheels, Chaltiel tells Italian design magazine Domus. When they arrive at the site they can be loaded up with cocktails of different natural ingredients, such as mud, clay, lime sands and oils to form "bioshotcrete." Different mixtures can be layered onto the structure in layers to offer different drying times and different textures, ultimately coming together to form stable exterior facades that hold everything together.

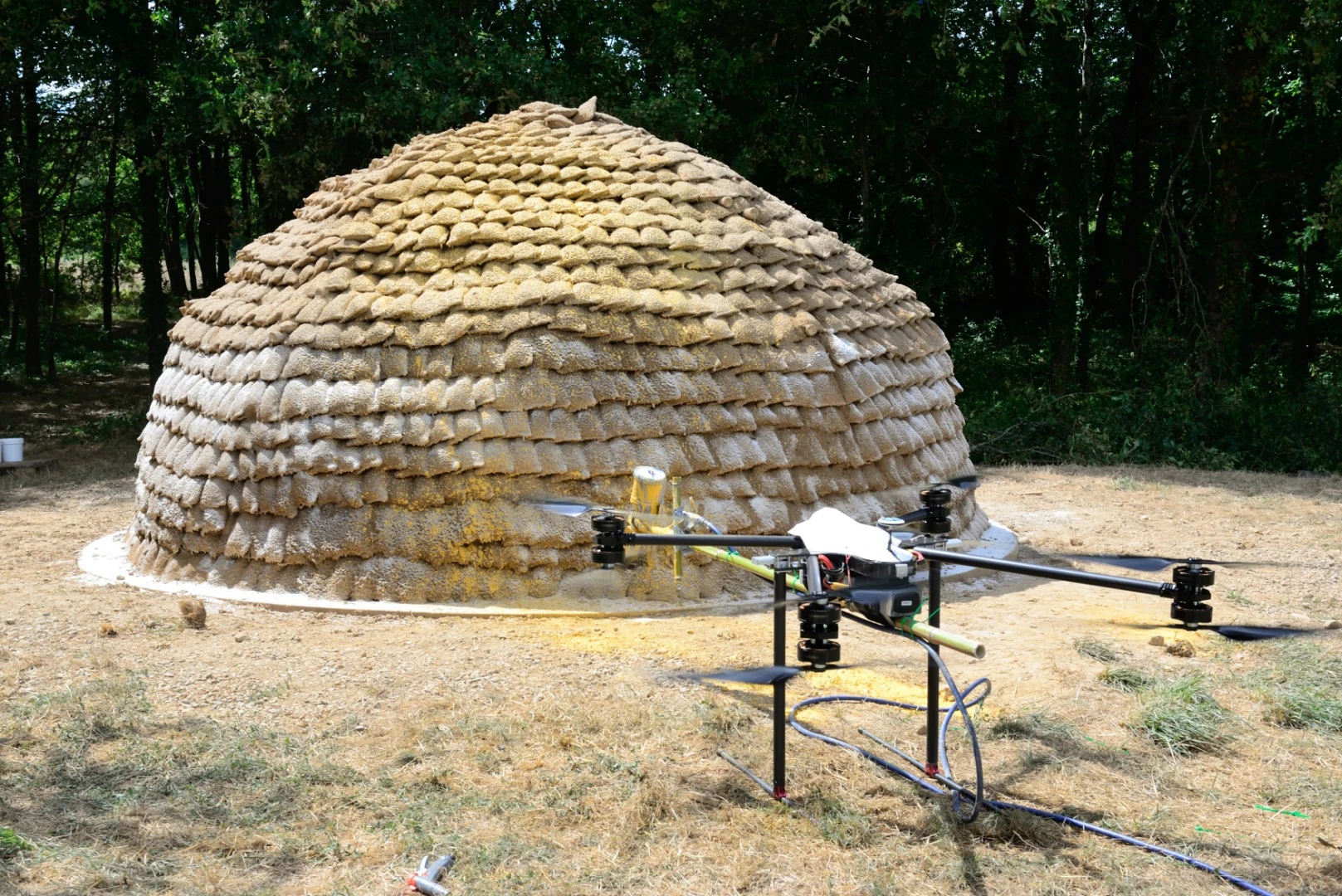

A drone applies the exterior finishing to dome shelter
A drone applies the exterior finishing to dome shelter

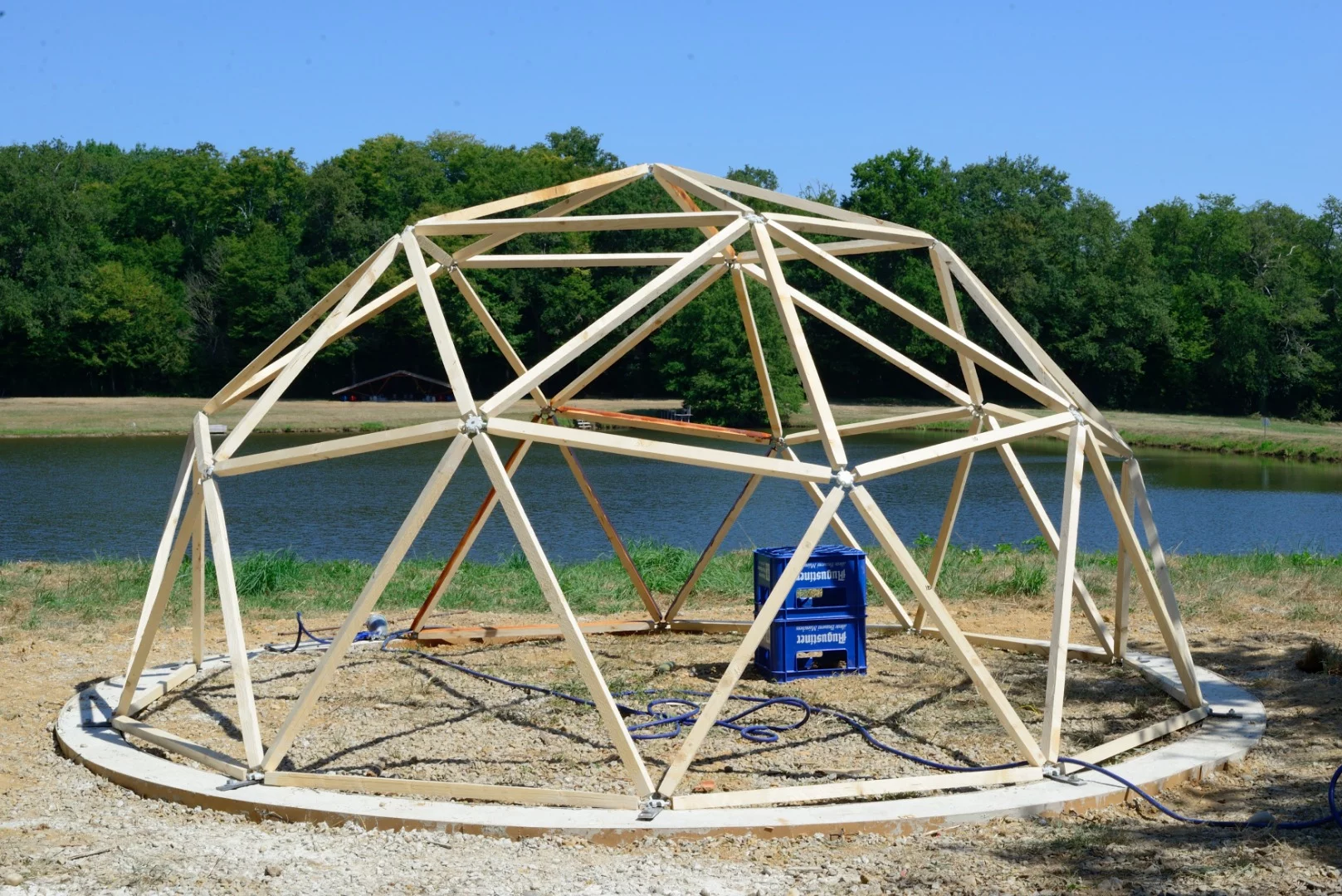

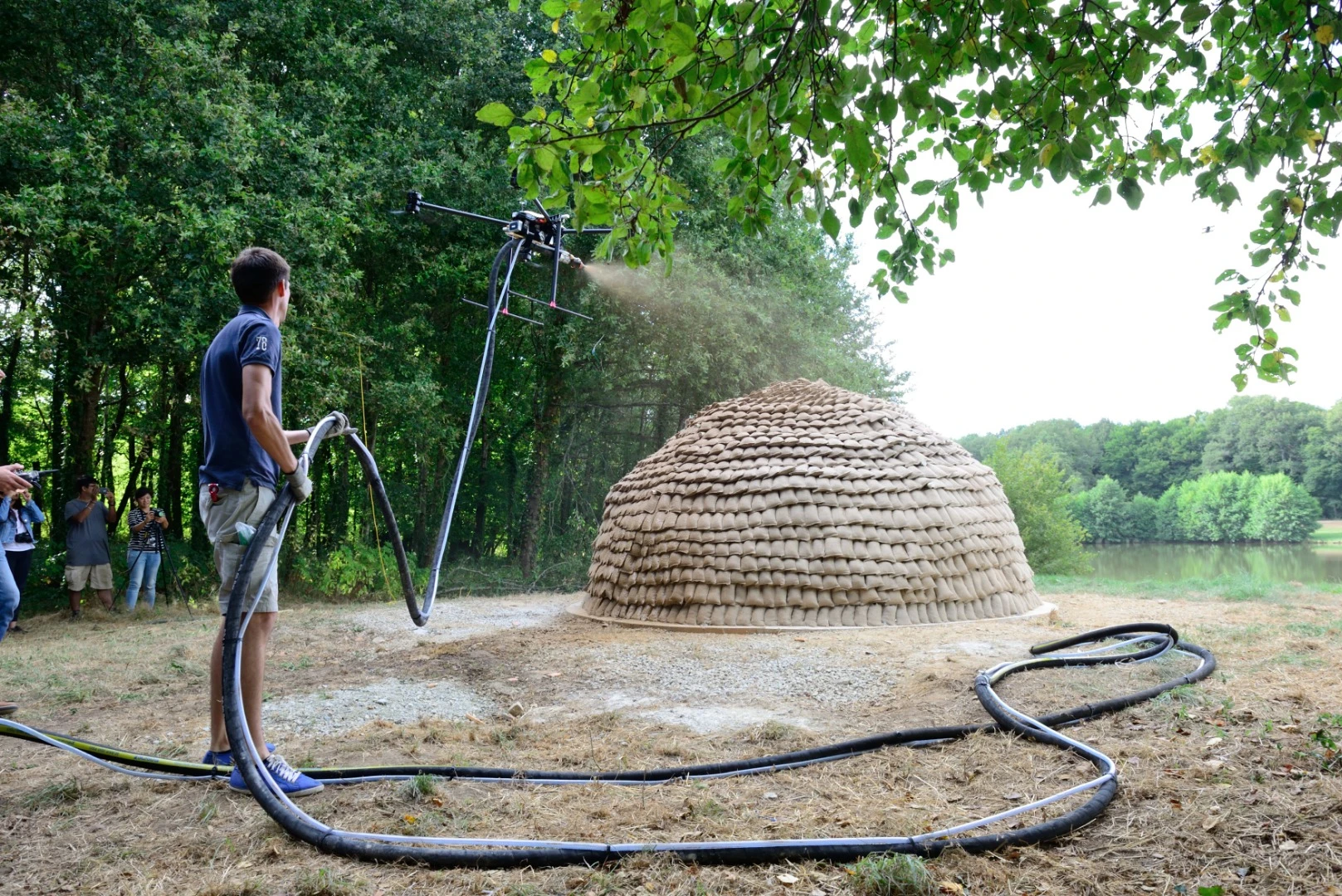

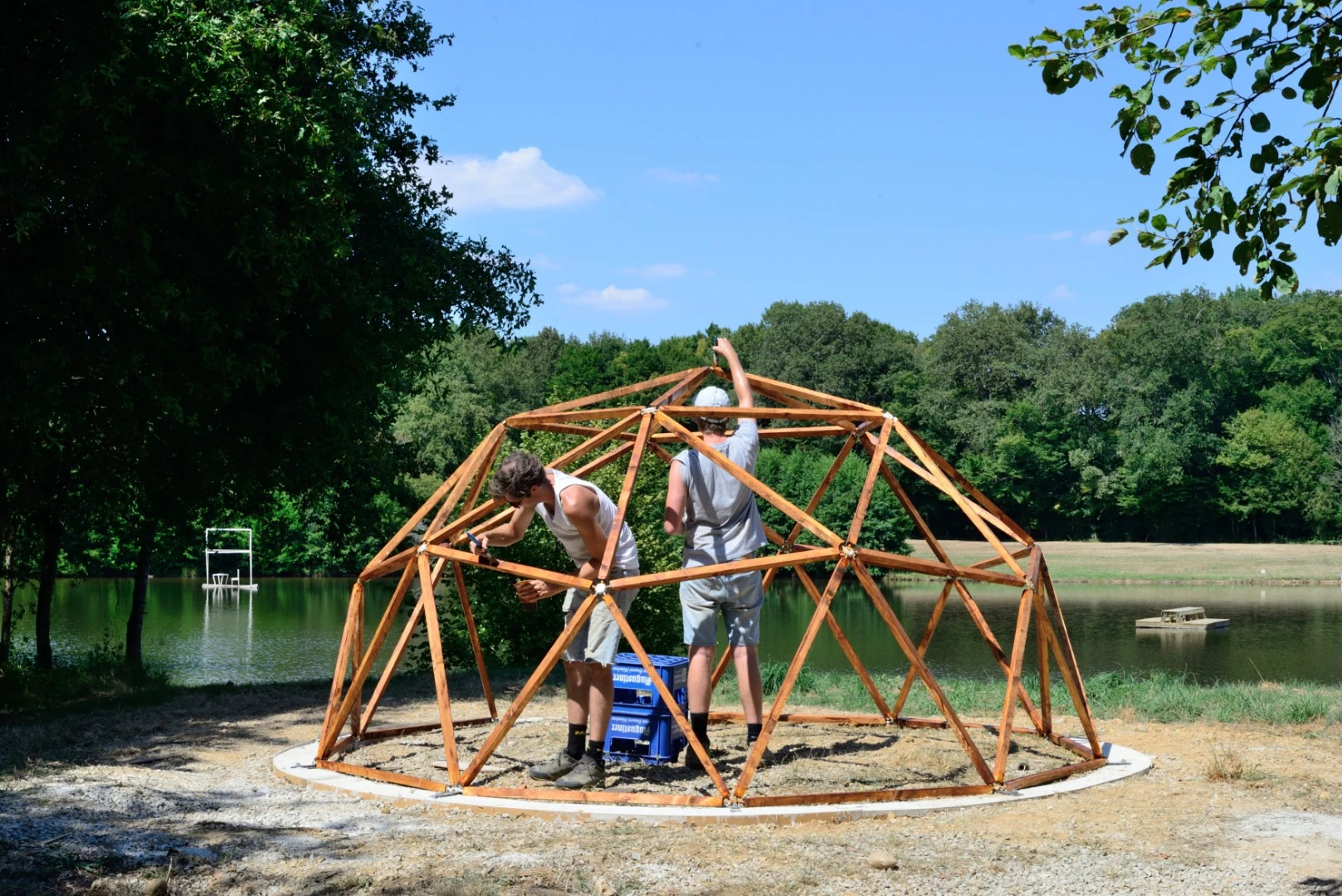

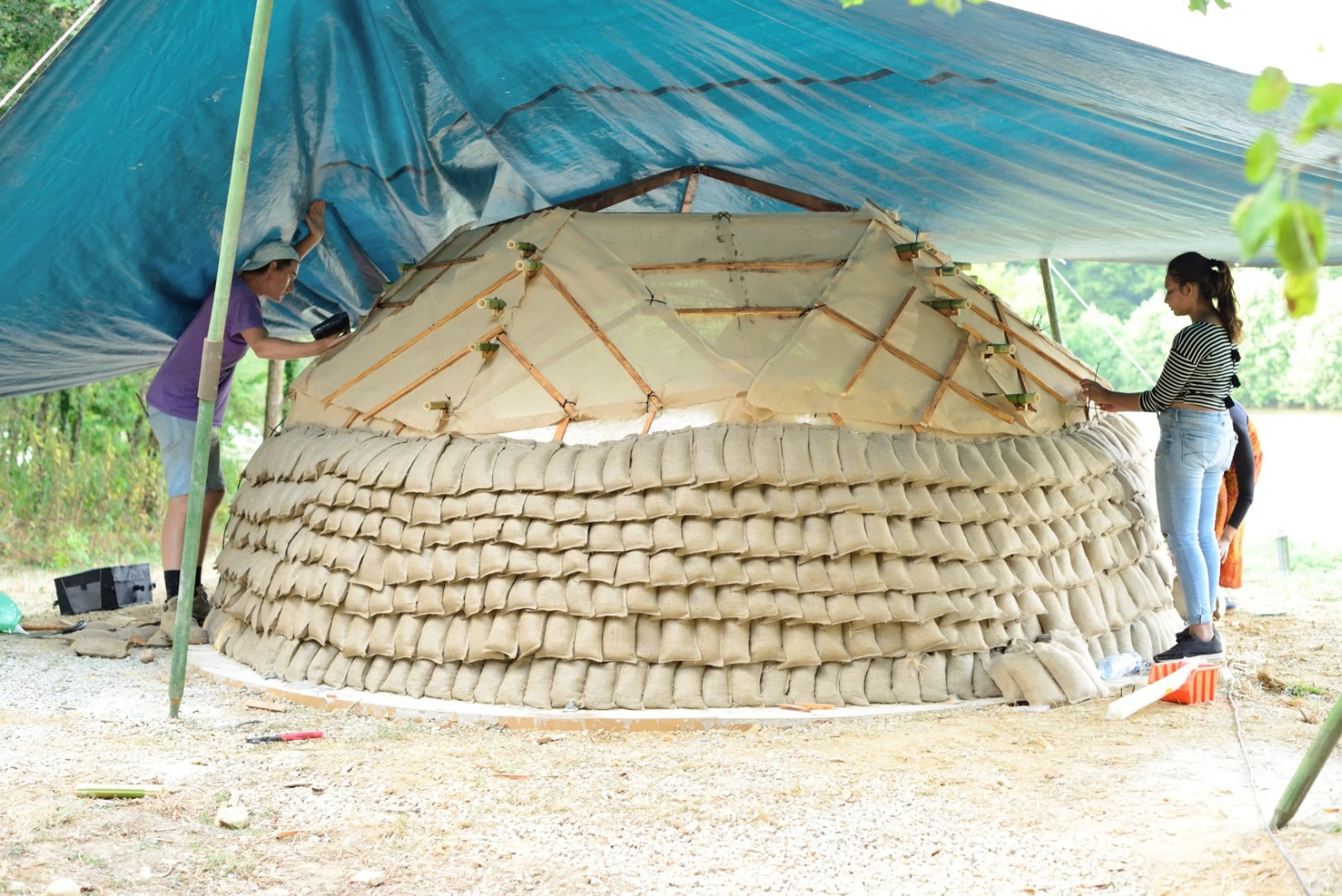

Chaltiel recently put these ideas to work at an annual summer workshop at Domaine de Boisbuchet, which looks to unearth new approaches to design problems. There, Chaltiel and her team built a geodesic skeleton in one hour and fitted it with 2,000 jute bags packed with hay. A professional pilot then took flight with the drone and wrapped it all together, forming a facade made from the so-called bioshotcrete.

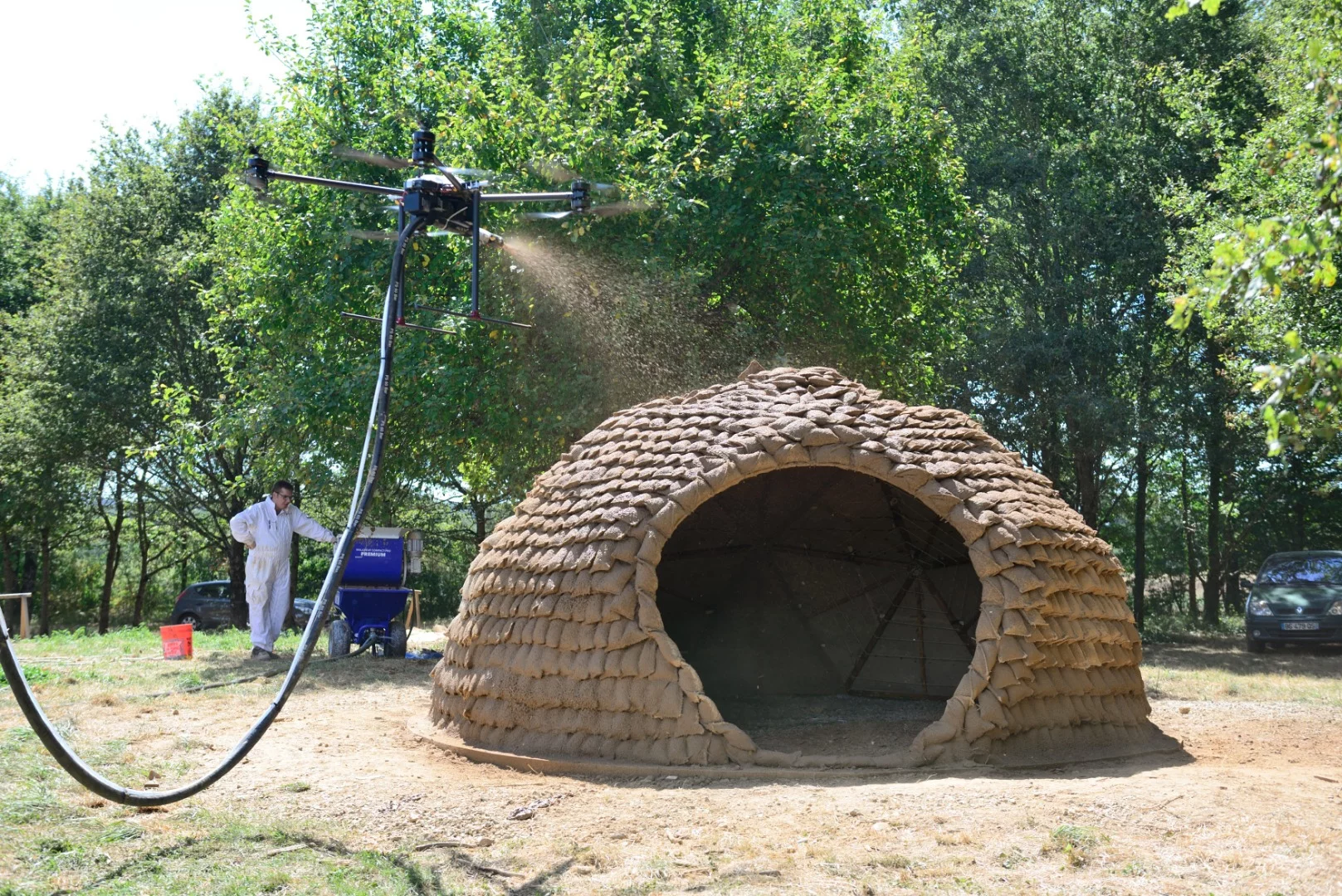

Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet
Stephanie Chaltiel recently put her research into mud-spraying drones to work at an annual summer workshop at Domaine de Boisbuchet

Unfortunately, that particular dome collapsed a week later. Chaltiel tells Domus that it really needed a full week of drone-spraying to gain enough thickness to be permanently viable. But the lessons learned there helped the team make tweaks to their approach ahead of another workshop at London Design Festival, where it put together a shelter that endured.

With further work, Chaltiel hopes to work sensors into the drones so they can control thickness of the material on the fly. Eventually, she imagines developing the artificial intelligence onboard the drones so they can train themselves to identify cracks in structures as they emerge and patch them up in a timely manner.

The video below shows the team constructing their shelter at Domaine de Boisbuchet, while there are plenty of progress shots in the gallery that show how it all went down.
