World's largest neutrino observatory completed in Antarctica

World's largest neutrino observatory completed in Antarctica
The IceCube team poses in front of the deployment tower following completion of the IceCube Neutrino Detector
The IceCube team poses in front of the deployment tower following completion of the IceCube Neutrino Detector
View 13 Images
Each season includes a cable pull to connect the under-ice sensors to servers inside the IceCube Lab
1/13
Each season includes a cable pull to connect the under-ice sensors to servers inside the IceCube Lab
Freija Descamps and Perry Sandstrom prepare a radio detector for deployment on an IceCube string
2/13
Freija Descamps and Perry Sandstrom prepare a radio detector for deployment on an IceCube string
IceCube team members pose with an optical sensor during deployment
3/13
IceCube team members pose with an optical sensor during deployment
Taking calibrations before a Digital Optical Module descends into the ice
4/13
Taking calibrations before a Digital Optical Module descends into the ice
An IceCuber poses in front of one of the hose reels that is used in the drilling process
5/13
An IceCuber poses in front of one of the hose reels that is used in the drilling process
The IceCube Lab at the South Pole, Antarctica
6/13
The IceCube Lab at the South Pole, Antarctica
The last Digital Optical Moduel in the IceCube array descends into the ice just before 6pm on the 18th of December, South Pole time
7/13
The last Digital Optical Moduel in the IceCube array descends into the ice just before 6pm on the 18th of December, South Pole time
The South Pole team pose for a photo with the last optical sensor
8/13
The South Pole team pose for a photo with the last optical sensor
The last Digital Optical Module (DOM) deployed in the IceCube array
9/13
The last Digital Optical Module (DOM) deployed in the IceCube array
A diagram of the IceCube Neutrino Observatory
10/13
A diagram of the IceCube Neutrino Observatory
The IceCube team poses in front of the deployment tower following completion of the IceCube Neutrino Detector
11/13
The IceCube team poses in front of the deployment tower following completion of the IceCube Neutrino Detector
The deployment team lowers an optical sensor into an IceCube hole in the ice
12/13
The deployment team lowers an optical sensor into an IceCube hole in the ice
A sensor descends down a hole in the ice as part of the final season of IceCube
13/13
A sensor descends down a hole in the ice as part of the final season of IceCube
View gallery - 13 images

After five years of construction, an international team has put the finishing touches on the University of Wisconsin’s IceCube Neutrino Observatory. Located in Antarctica, the observatory is looking specifically for high-energy neutrinos, which are created in violent cosmic events such as super novae and gamma ray bursts. As neutrinos collide with water molecules in the pitch black, ultra-clear ice, a blue flash of light results, which is detected by the sensors. Ever since neutrinos were discovered in 1956, scientists have hoped to decipher the information these astronomical messengers carry about distant cosmic events and the completion of the observatory marks an important step towards tracing their origins.

The business end of the observatory consists of 5,160 optical sensors that have been joined together in groups of 60 on a total of 86 “strings.” Each string has been lowered into an individual vertical bore hole in the Antarctic ice cap, the holes arranged in a grid. Now that all the strings are frozen in place, the sensors on them make up a one-square-kilometer cube-shaped matrix, the top of which sits 1.24 miles (2 km) below the surface of the ice.

To get the project finished on time and on budget, crews worked around the clock, as construction was limited to the summer months of November through February. Even then, all personnel and supplies had to first be flown into the McMurdo research station, then transported 800 miles (1,287 km) by C-130 cargo aircraft to the National Science Foundation's Amundsen-Scott South Pole Station. The observatory is located in the ice beneath that facility.

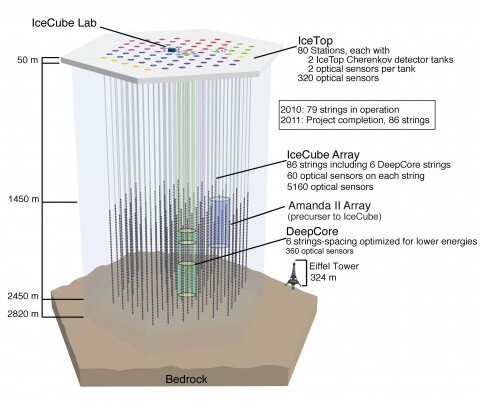

A diagram of the IceCube Neutrino Observatory
A diagram of the IceCube Neutrino Observatory

In order to bore the holes in the ice, U Wisconsin scientists created a 4.8-megawatt Enhanced Hot Water Drill. By focusing a jet of hot water into the ice, the device was able to bore over 1.24 miles (2 km) down per day. Although it was completed only last week, IceCube has been gathering data since construction began in 2005. As more strings of sensors were added, the amount of data that could be gathered increased.

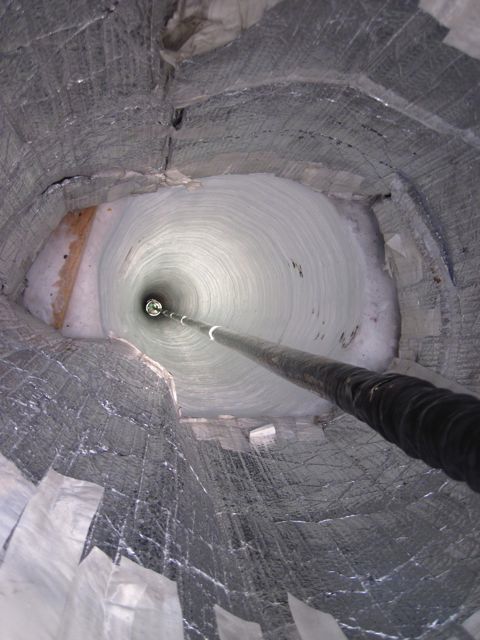

A sensor descends down a hole in the ice as part of the final season of IceCube
A sensor descends down a hole in the ice as part of the final season of IceCube

“Even in this challenging phase of the project, we published results on the search for dark matter and found an intriguing pattern in the arrival directions of cosmic rays,” said principal investigator Prof. Francis Halzen. “With the completion of IceCube, we are on our way to reaching a level of sensitivity that may allow us to see neutrinos from sources beyond the sun.”

All images courtesy University of Wisconsin
