NV01 modular bookcase fits together like a giant jigsaw

NV01 modular bookcase fits tog...

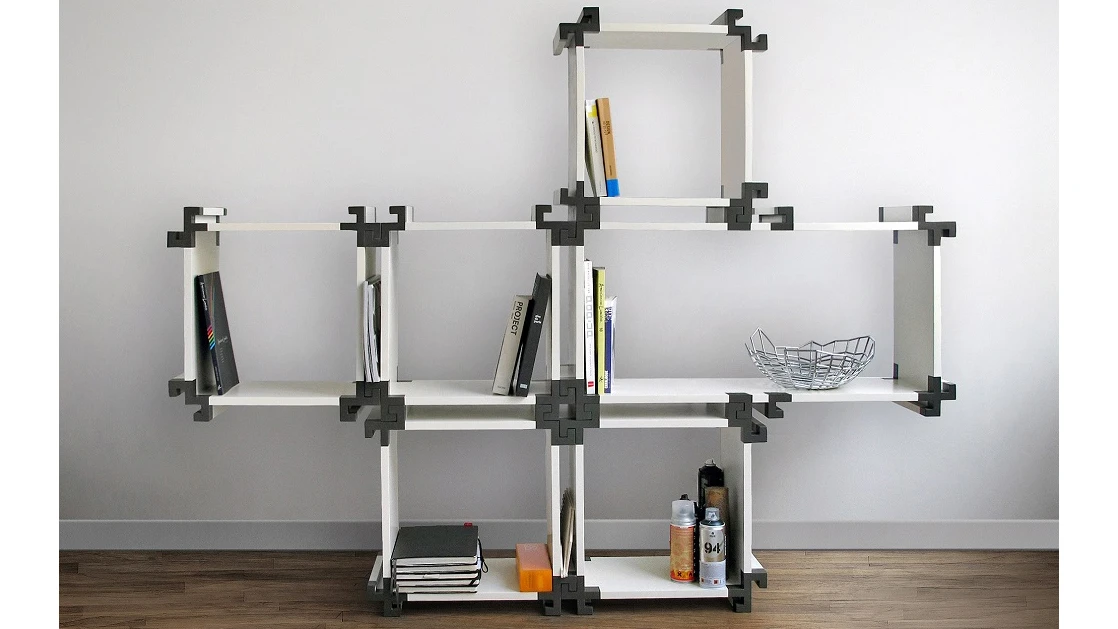

The NV01 modular bookcase by Noir Vif can be configured to suit individual needs
The NV01 modular bookcase by Noir Vif can be configured to suit individual needs
View 10 Images

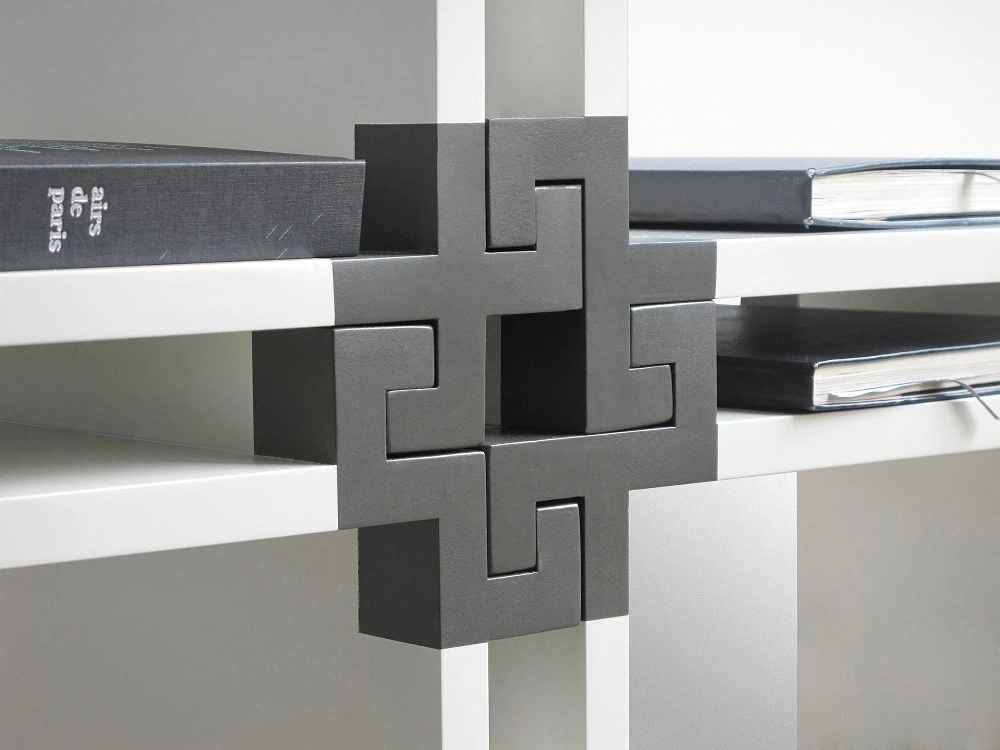

A close-up view of the joints each module
1/10
A close-up view of the joints each module
A close-up view of the joints each module possesses, and how they connect with one another
2/10
A close-up view of the joints each module possesses, and how they connect with one another
A close-up view of the bottom-left joint on one of the modules
3/10
A close-up view of the bottom-left joint on one of the modules
A close-up view of the joints each module
4/10
A close-up view of the joints each module

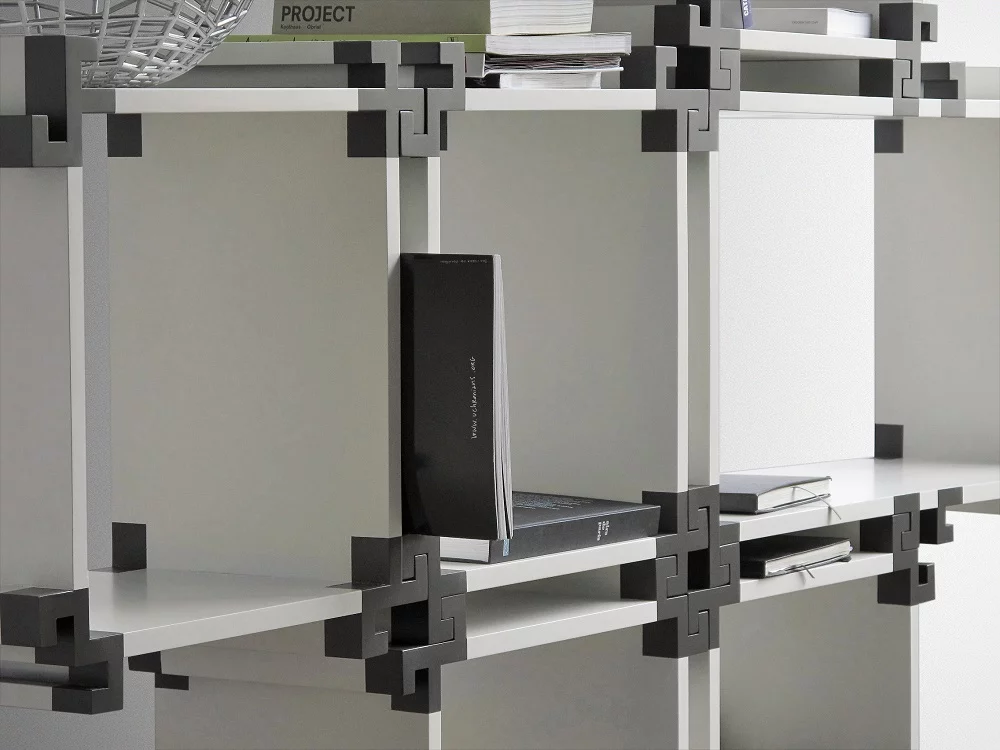

The NV01 bookcase provides space for objects of varying sizes, some of which can sit upright in between the modules
5/10
The NV01 bookcase provides space for objects of varying sizes, some of which can sit upright in between the modules

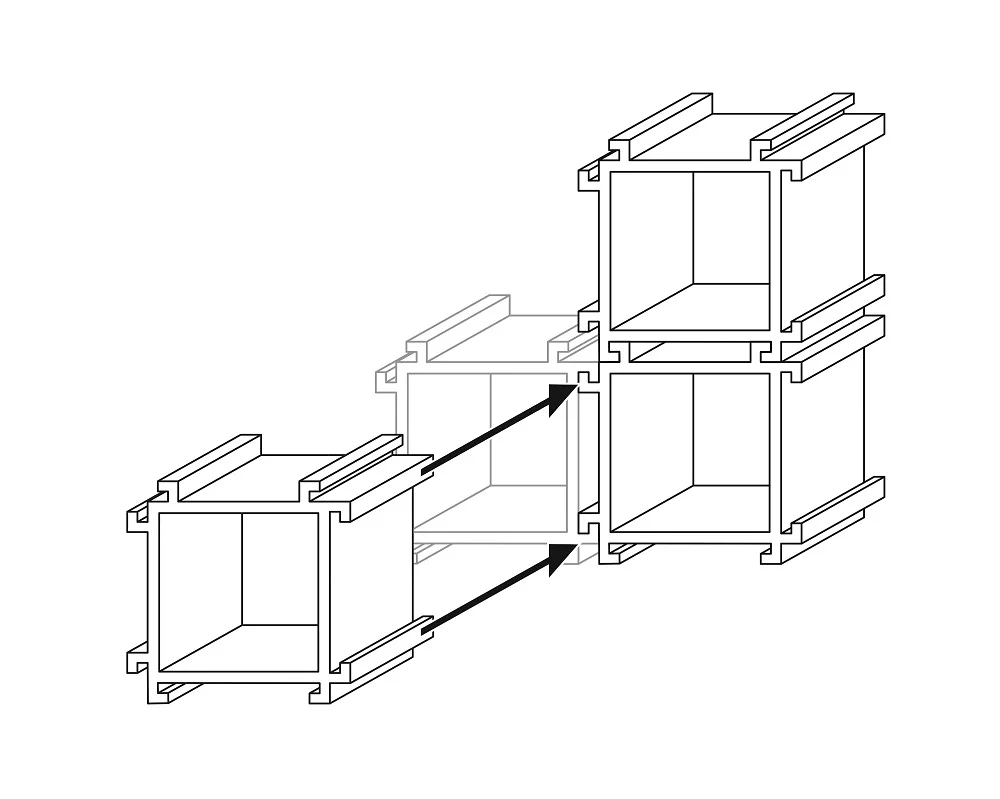

A diagram showing how the NV01 module piece together
6/10
A diagram showing how the NV01 module piece together
A diagram showing how the double-sized modules can be slotted in to change the layout and offer room for larger objects
7/10
A diagram showing how the double-sized modules can be slotted in to change the layout and offer room for larger objects
A diagram showing some of the different layouts possible with the NV01 modular bookcase
8/10
A diagram showing some of the different layouts possible with the NV01 modular bookcase
A diagram showing how the various assembly configurations produce interesting graphical contrasts
9/10
A diagram showing how the various assembly configurations produce interesting graphical contrasts

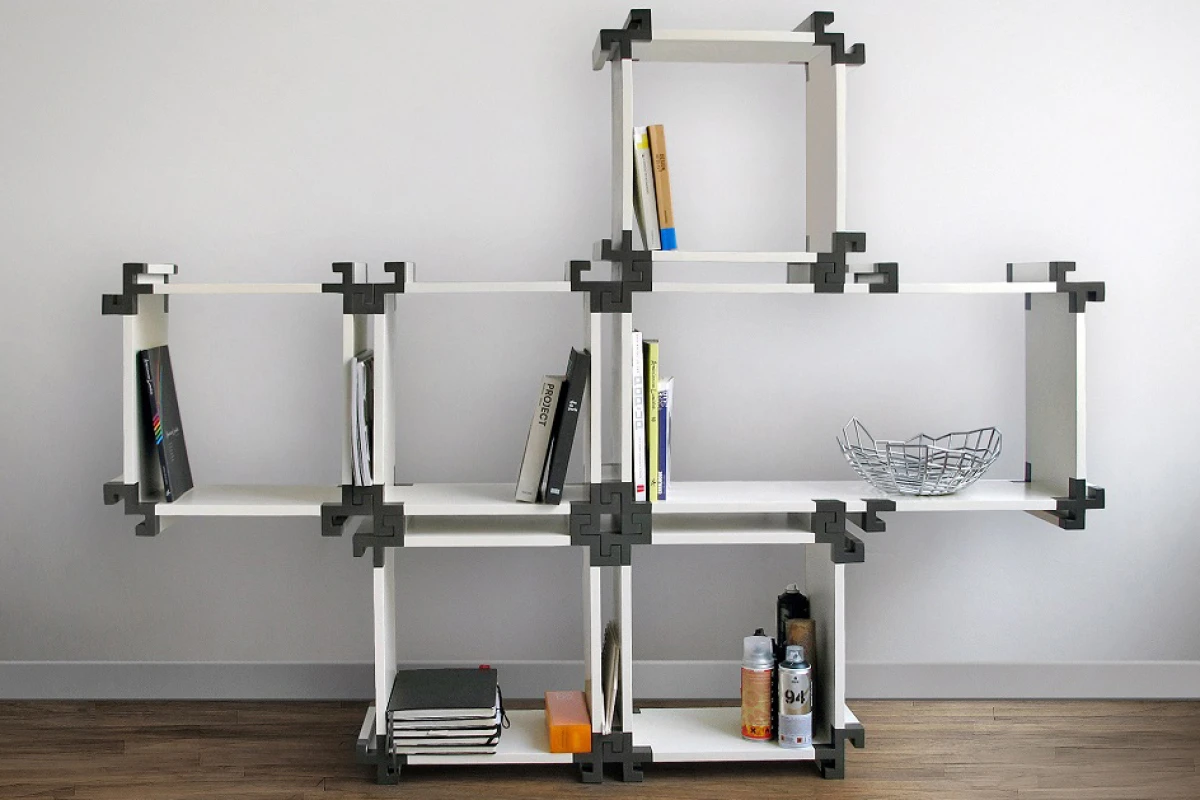

The NV01 modular bookcase by Noir Vif can be configured to suit individual needs
10/10
The NV01 modular bookcase by Noir Vif can be configured to suit individual needs
View gallery - 10 images

NV01 is a prototype shelving system that can be extended and adapted to fit the available space in any room – in terms of both width and height – by assembling the identical modules in different configurations.

The NV01 system is the work of Paris-based Noir Vif, a design studio founded by André Fontes and Guillaume Lehoux. The corner joints of each module, which allow each to be slotted into place like a jigsaw, are the key to the design.

A close-up view of the joints each module
A close-up view of the joints each module

Lehoux explained in an interview with Gizmag that the concept emerged from the wish to make furniture that can fit almost any kind of housing, is simple and cheap to manufacture, and provides playful and creative options for the user. The number of possible combinations is very high. "You can make a small bookcase by piling two or three modules or cover a whole wall with modules to suit your needs," says Lehoux. "There are also 'double' modules that can be integrated vertically or horizontally [to] extend the storage possibilities and disrupt the overall look of the 'grid'."

NV01 is at present just a prototype hand-crafted from wood, but Noir Vif is keen to bring the system to market and is actively seeking a manufacturer to produce the modules.

The final cost of NV01 will depend on the materials and manufacturing processes employed. Lehoux suggested that the relatively simple shape of each NV01 module means an extruded polymer could be used in order to keep costs low.

Source: Noir Vif via Designboom

View gallery - 10 images
