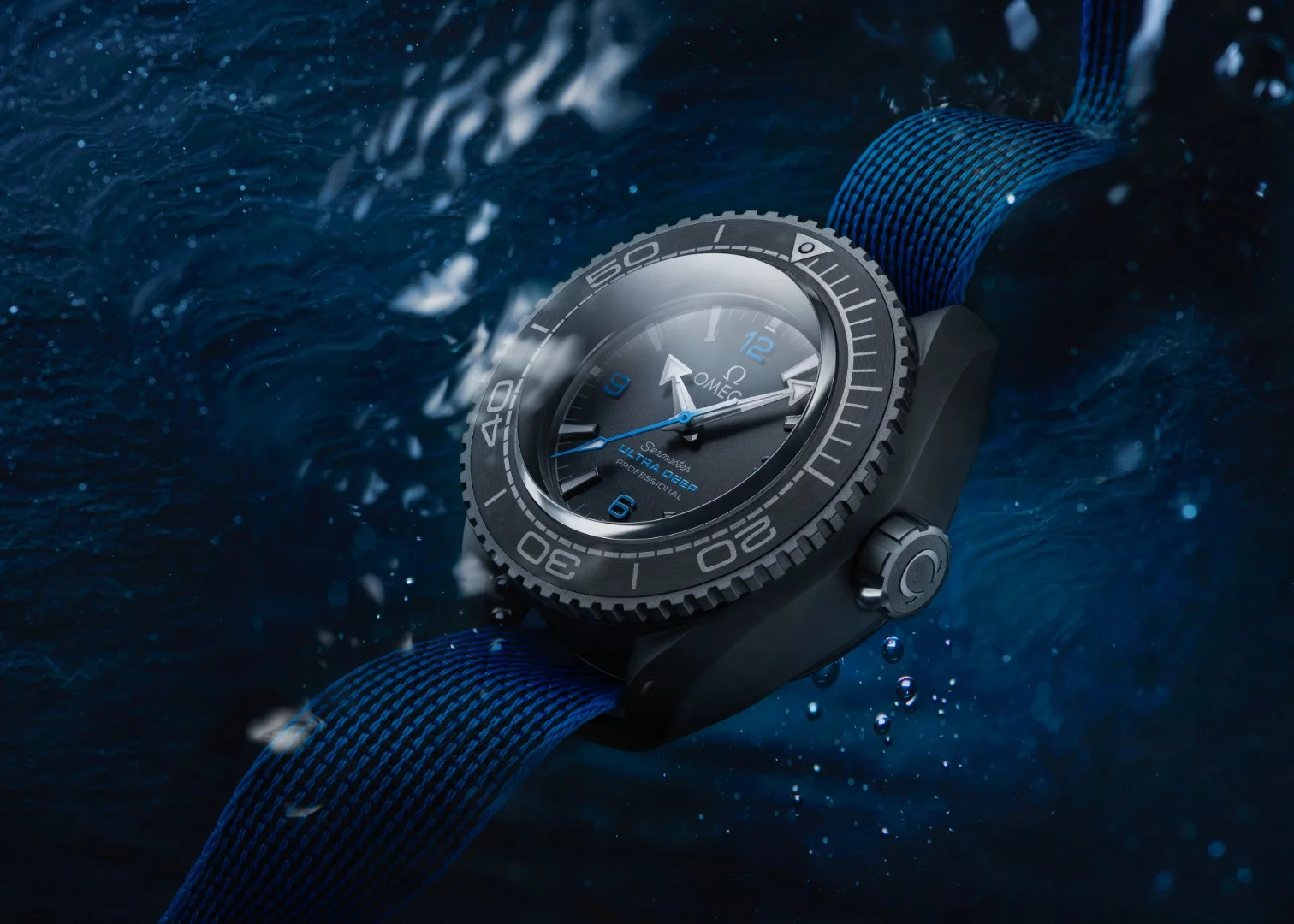

Three of the Omega Seamaster Planet Ocean Ultra Deep Professional watches were used in the record dives
Three of the Omega Seamaster Planet Ocean Ultra Deep Professional watches were used in the record dives
View 38 Images
DSV Limiting Factor
1/38
DSV Limiting Factor

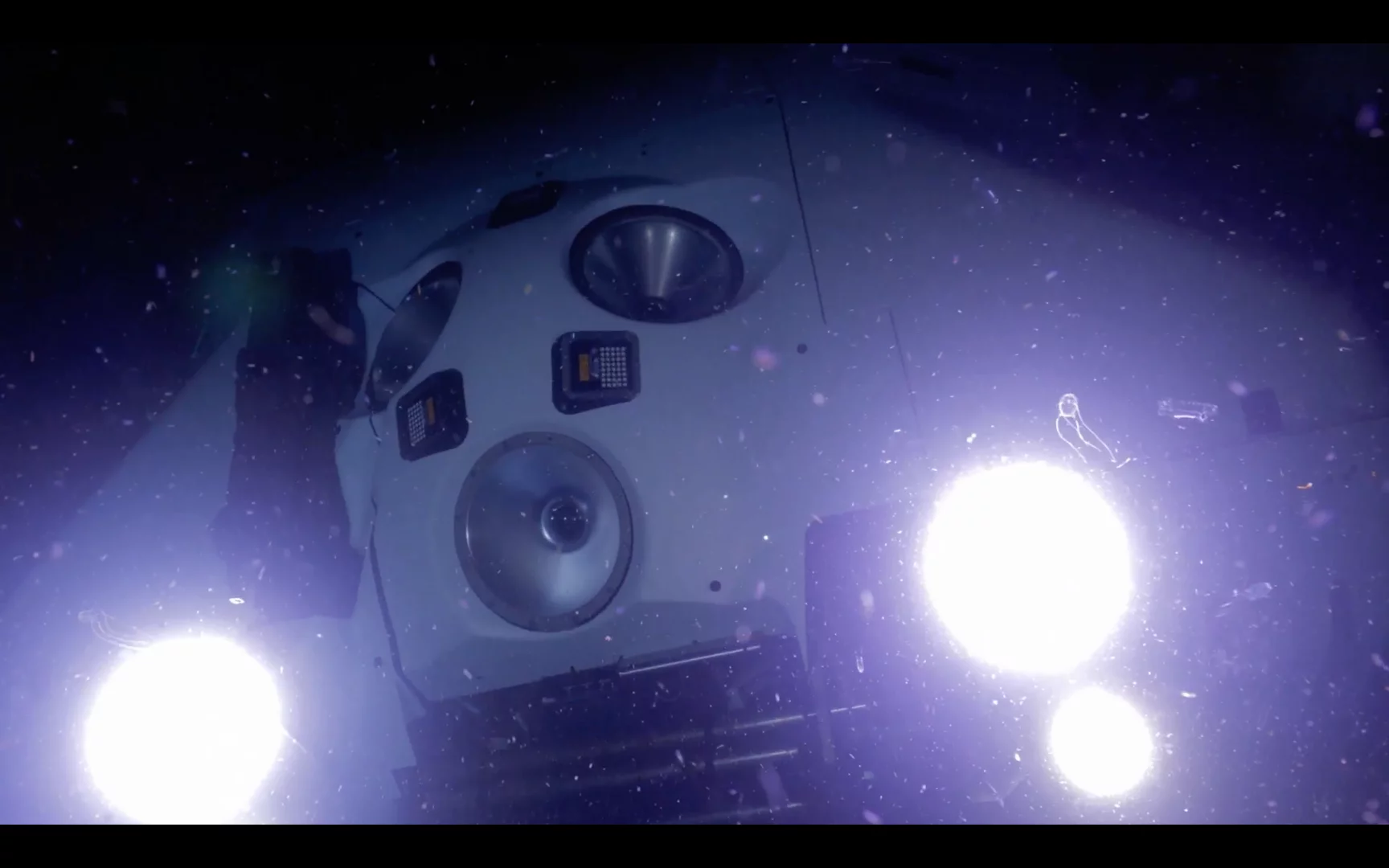

The Limiting Factor on its way to the depths
2/38
The Limiting Factor on its way to the depths
American explorer Victor Vescovo
3/38
American explorer Victor Vescovo

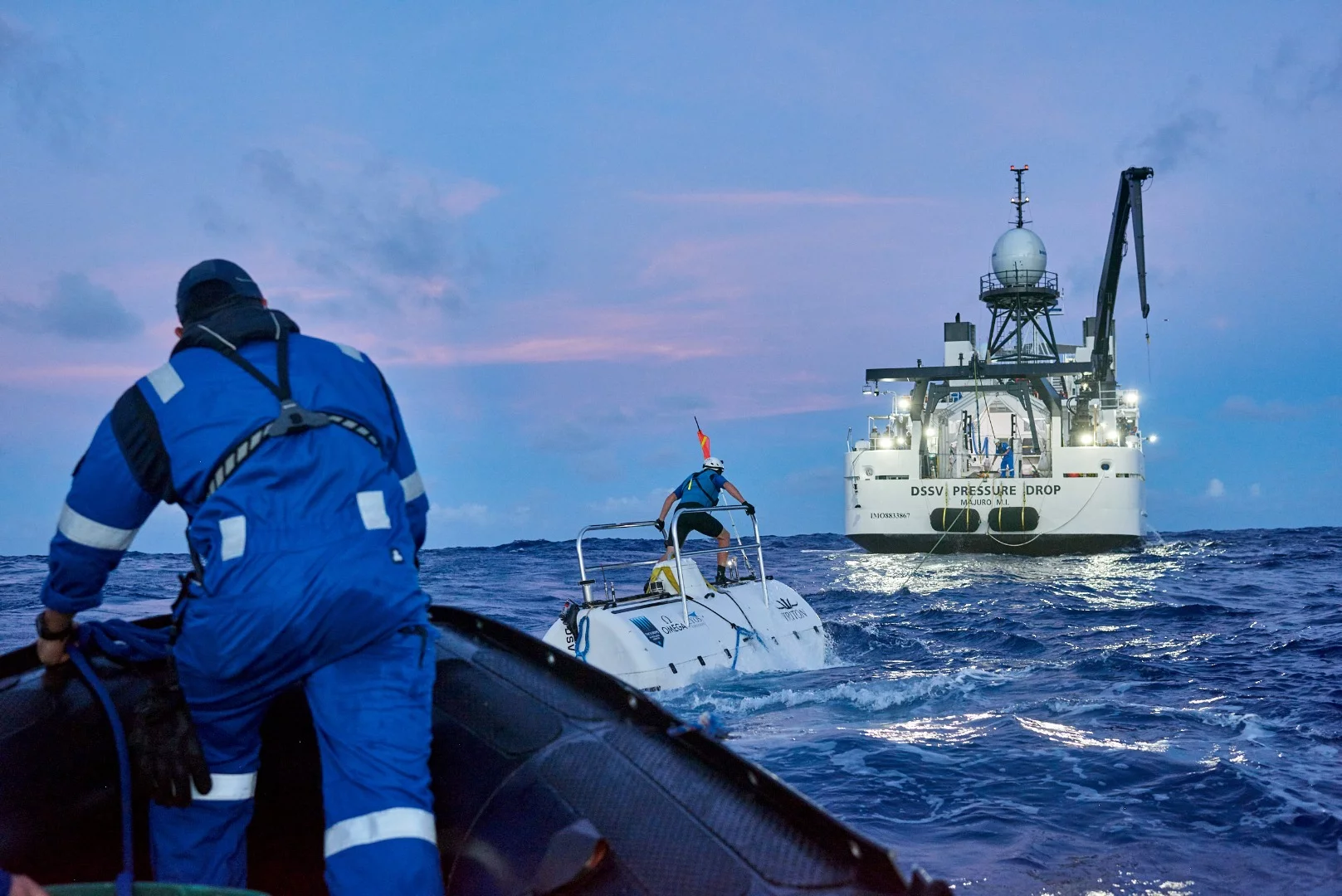

Deploying Limiting Factor from its tender
4/38
Deploying Limiting Factor from its tender

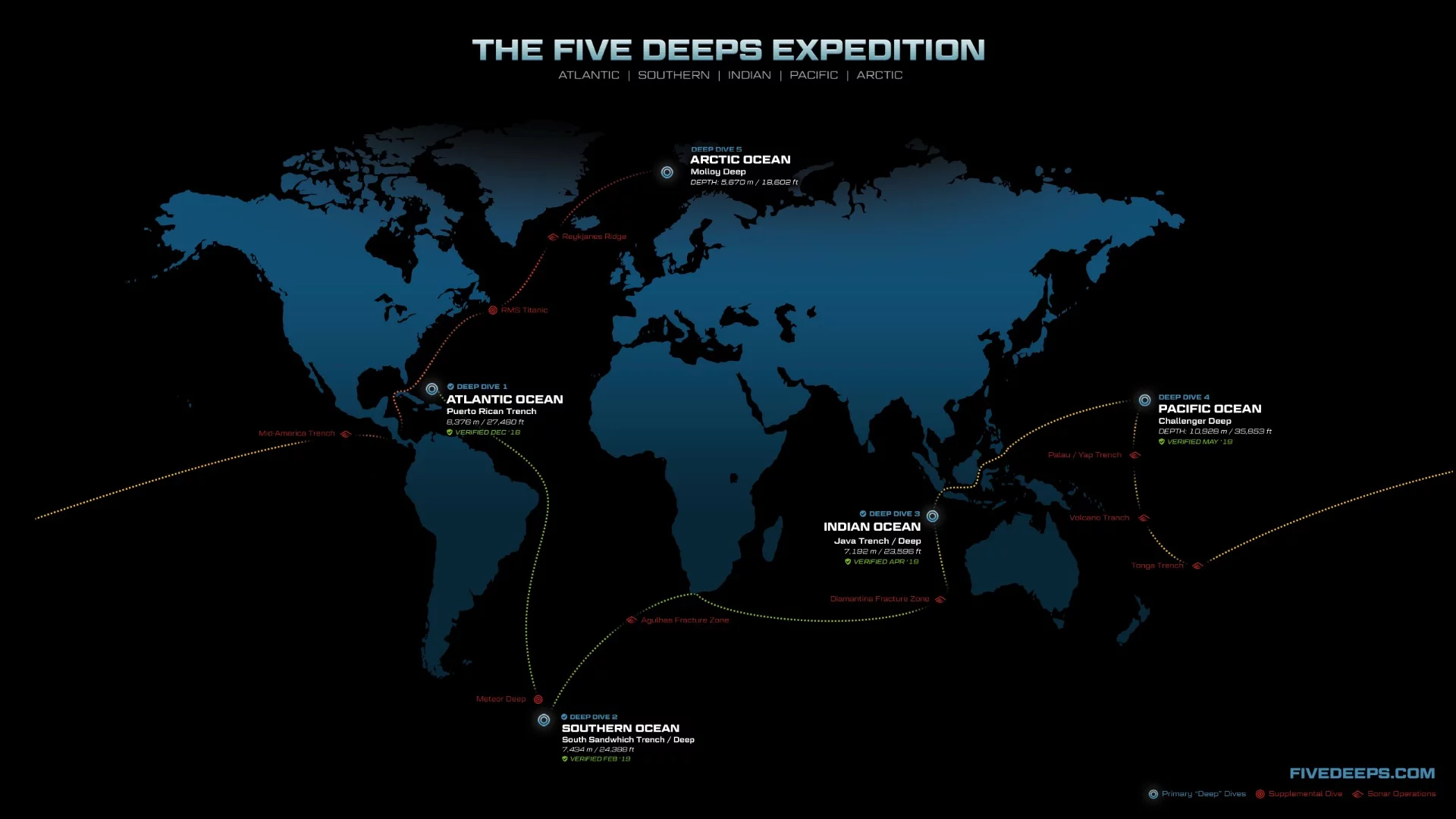

Map of the Five Deeps Expedition
5/38
Map of the Five Deeps Expedition
6/38

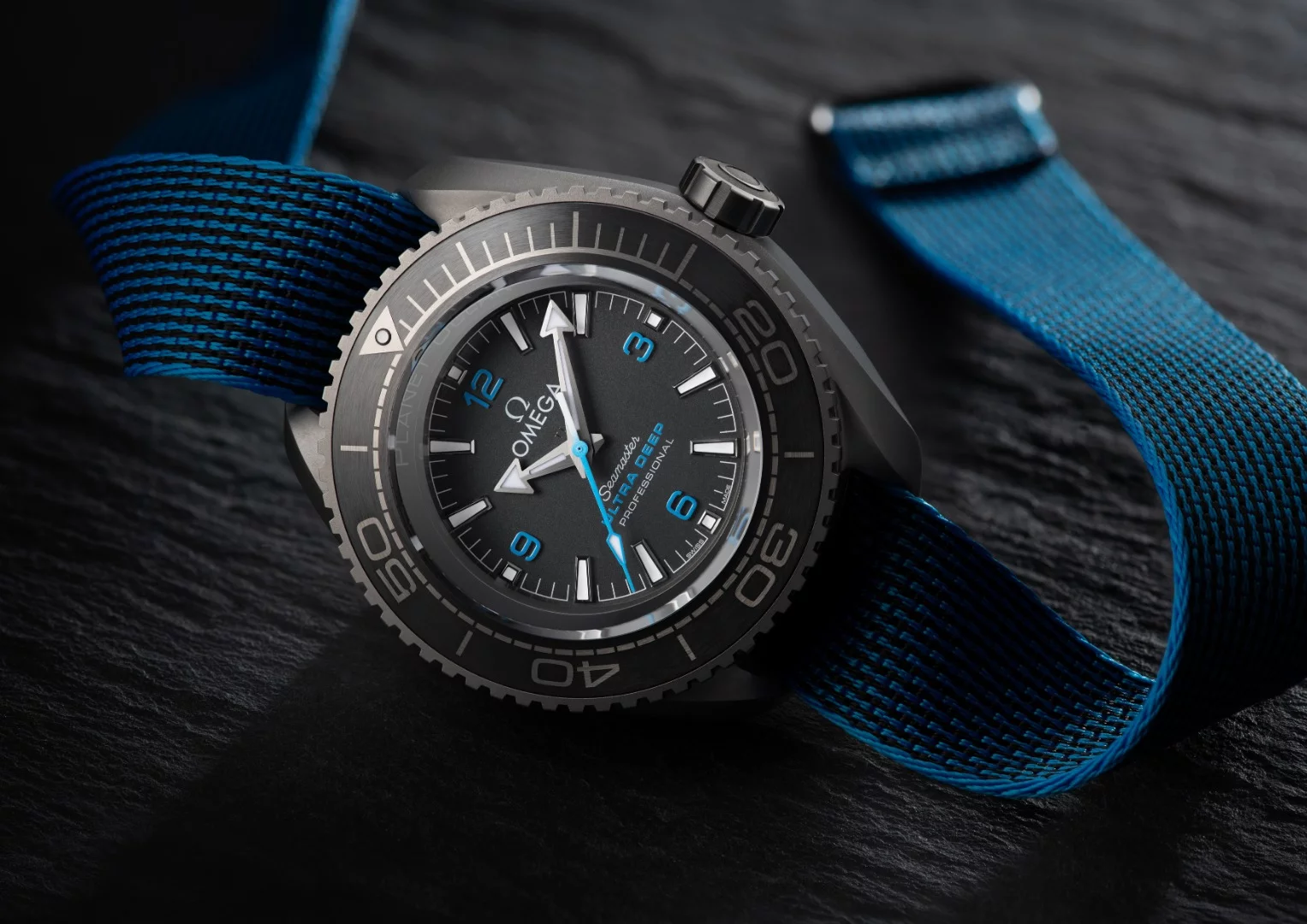

The Omega Seamaster Planet Ocean Ultra Deep Professional was made to be as slim as possible
7/38
The Omega Seamaster Planet Ocean Ultra Deep Professional was made to be as slim as possible

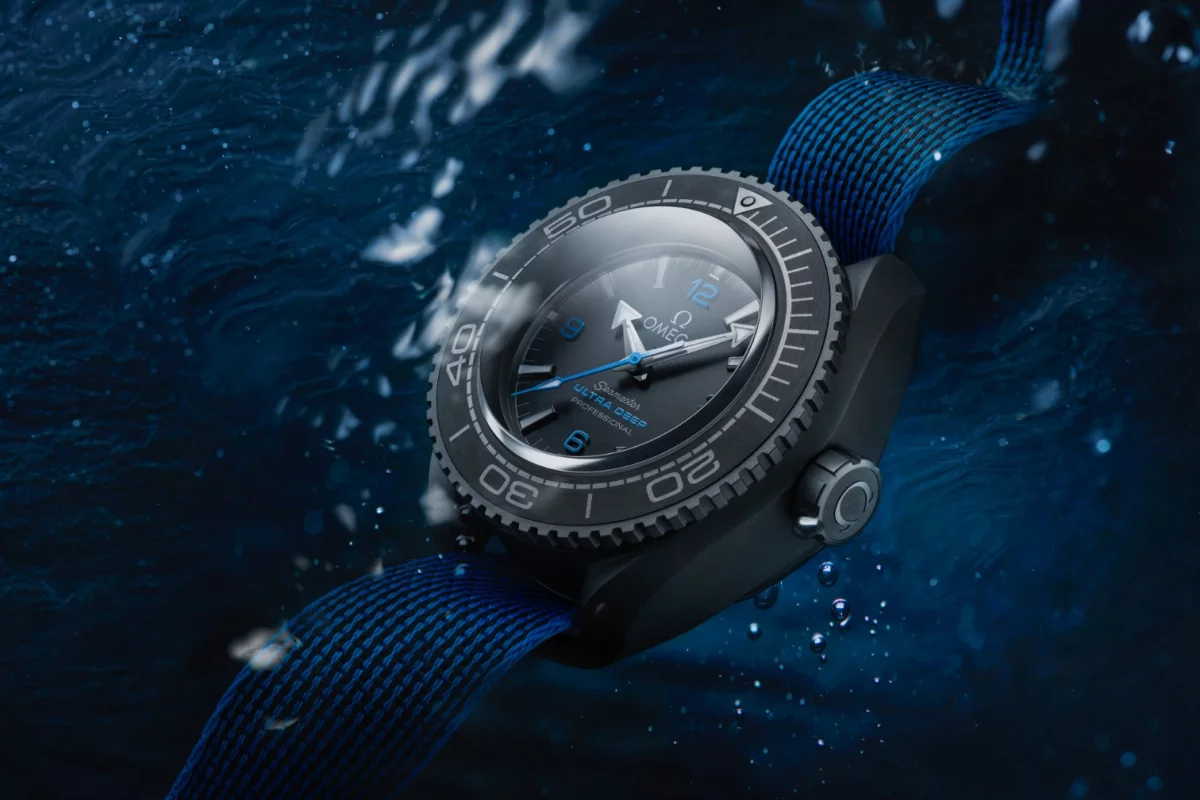

Three of the Omega Seamaster Planet Ocean Ultra Deep Professional watches were used in the record dives
8/38
Three of the Omega Seamaster Planet Ocean Ultra Deep Professional watches were used in the record dives
The Omega Seamaster Planet Ocean Ultra Deep Professional is rated to 15,000 m
9/38
The Omega Seamaster Planet Ocean Ultra Deep Professional  is rated to 15,000 m
The Omega Seamaster Planet Ocean Ultra Deep Professional titanium bezel
10/38
The Omega Seamaster Planet Ocean Ultra Deep Professional titanium bezel
The manta lugs on the Omega Seamaster Planet Ocean Ultra Deep Professional
11/38
The manta lugs on the Omega Seamaster Planet Ocean Ultra Deep Professional

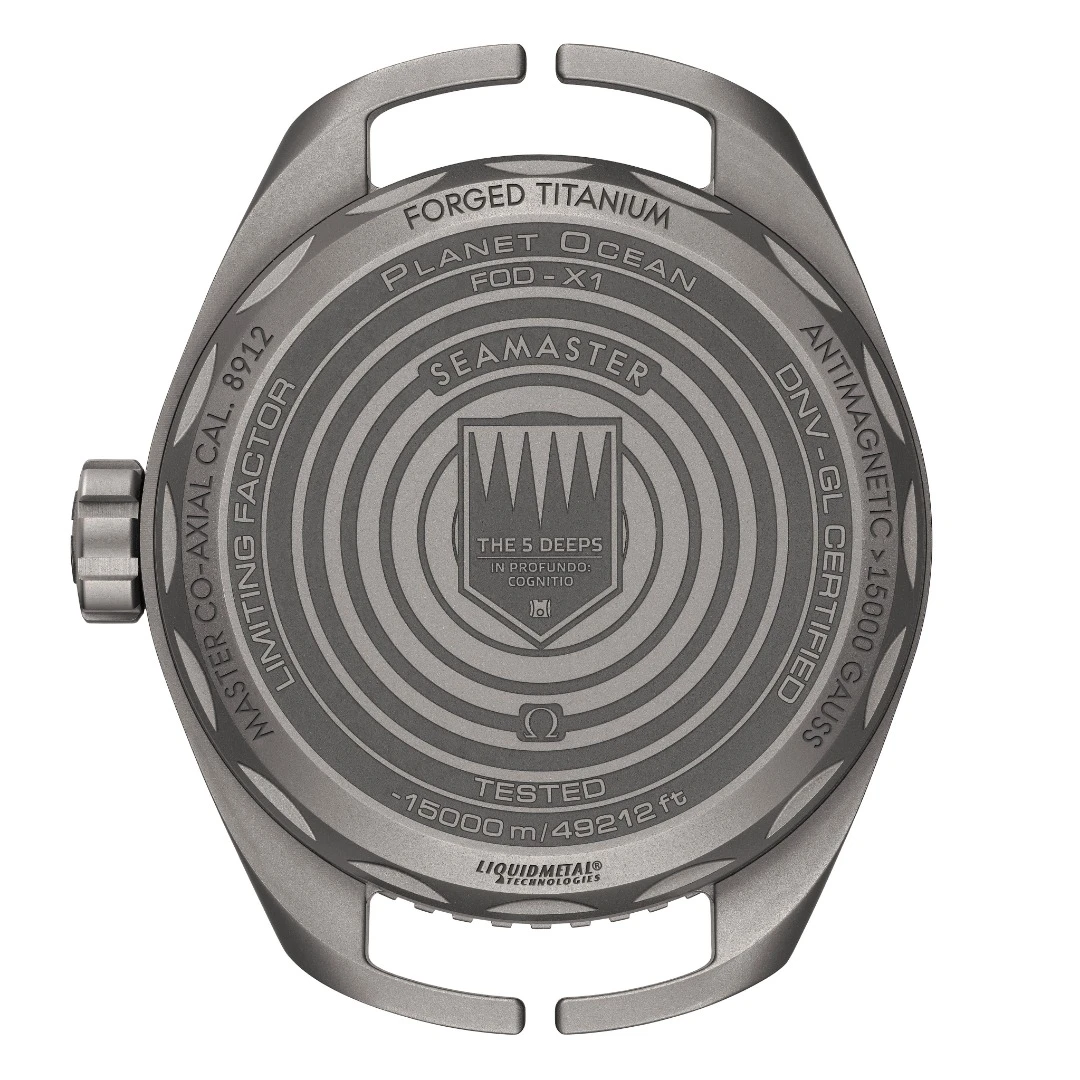

The Omega Seamaster Planet Ocean Ultra Deep Professional reverse
12/38
The Omega Seamaster Planet Ocean Ultra Deep Professional reverse

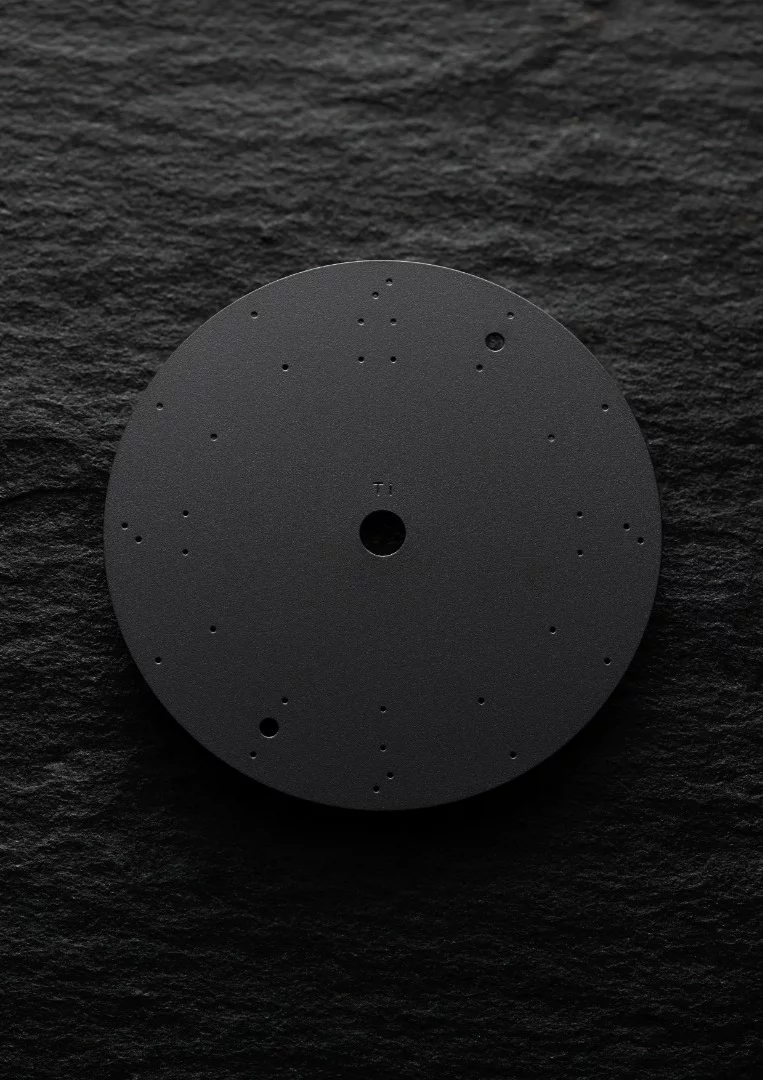

First stage of dial fabrication
13/38
First stage of dial fabrication

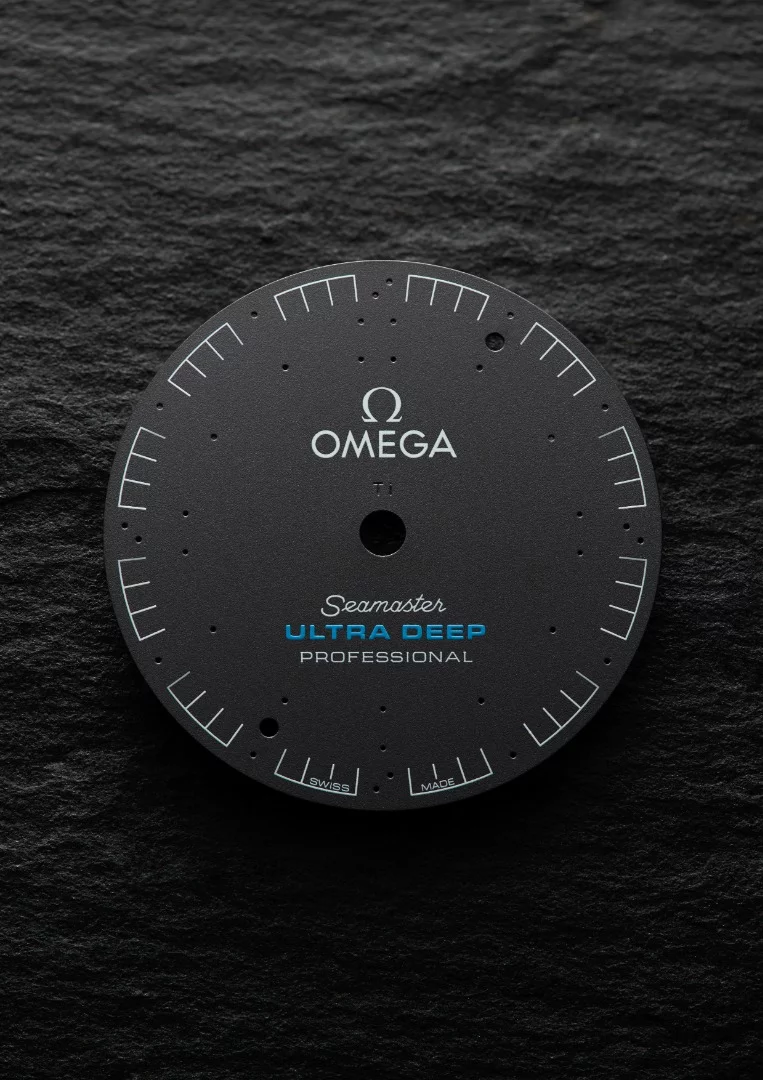

Second stage of dial fabrication
14/38
Second stage of dial fabrication

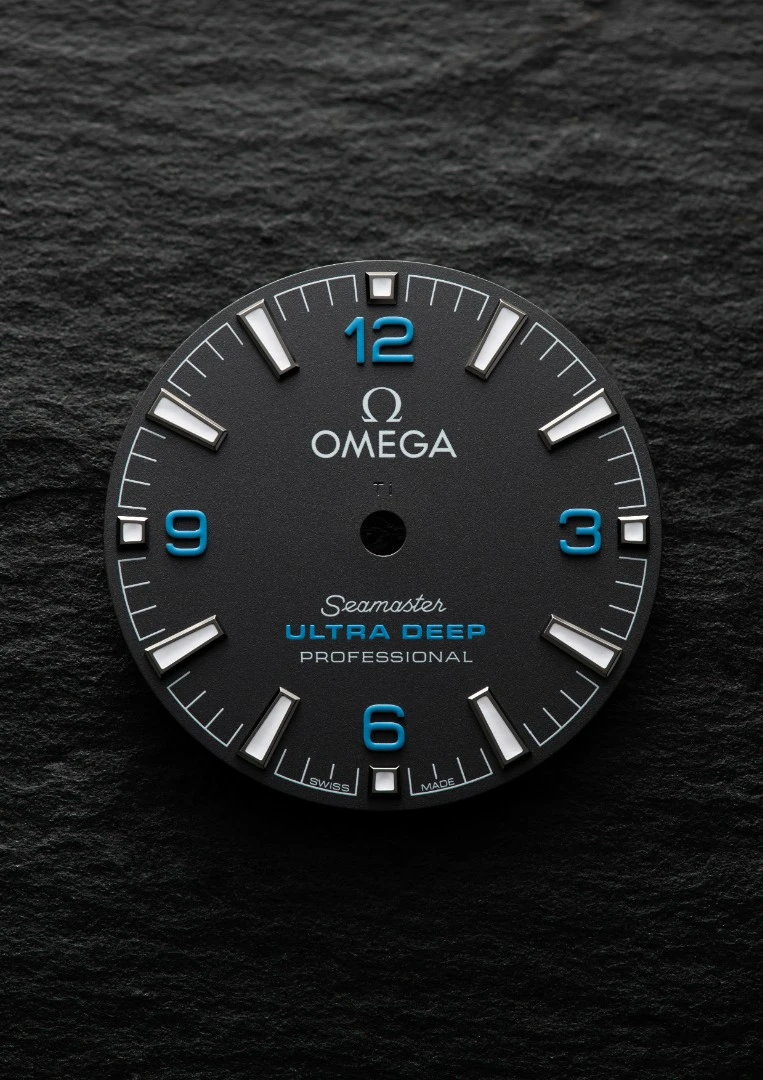

Third stage of dial fabrication
15/38
Third stage of dial fabrication

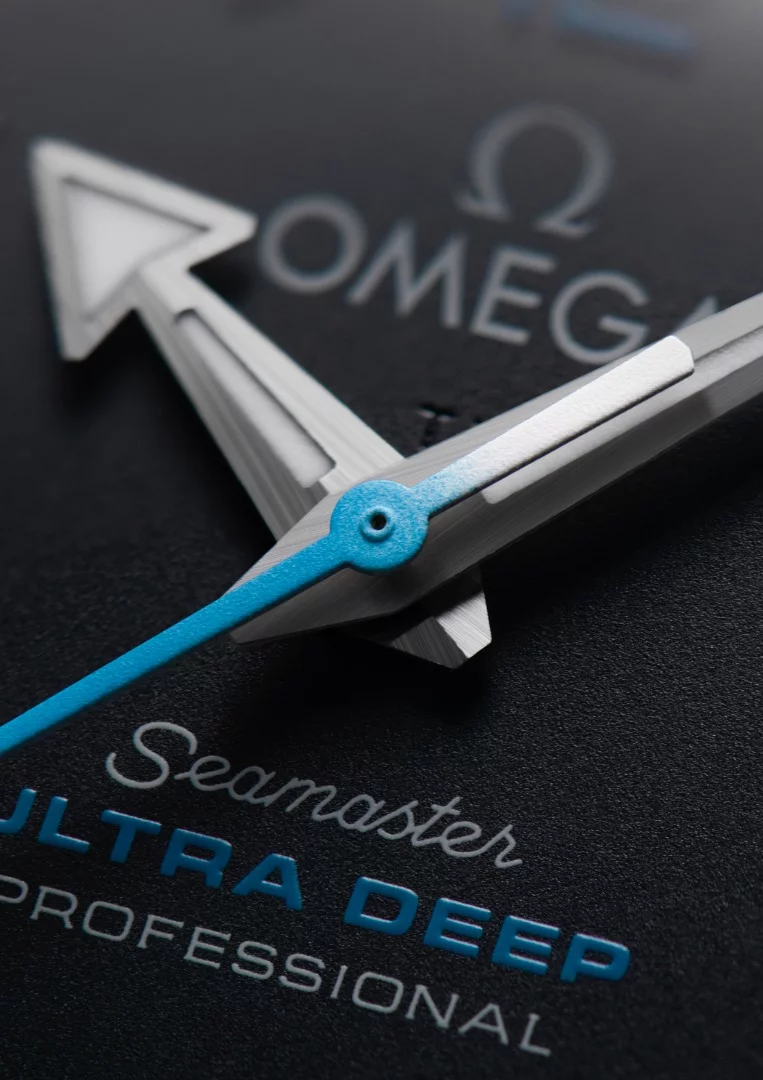

Hand details of the Omega Seamaster Planet Ocean Ultra Deep Professional
16/38
Hand details of the Omega Seamaster Planet Ocean Ultra Deep Professional

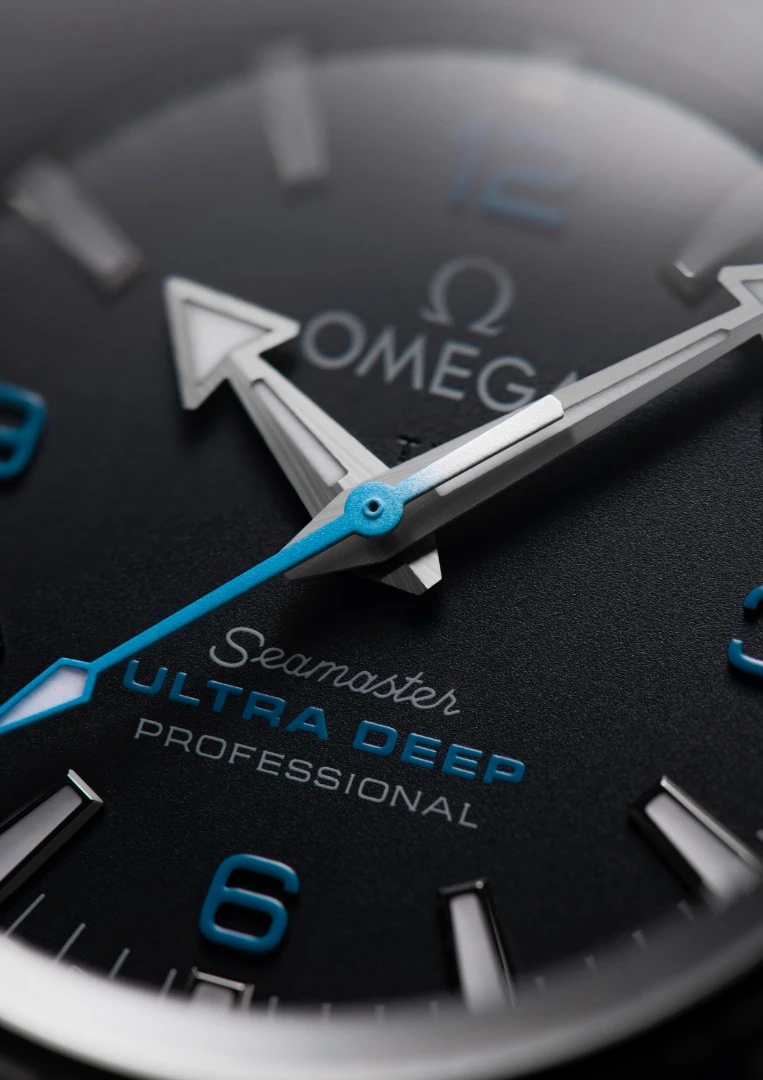

The Omega Seamaster Planet Ocean Ultra Deep Professional is the most advanced Omega dive watch
17/38
The Omega Seamaster Planet Ocean Ultra Deep Professional is the most advanced Omega dive watch

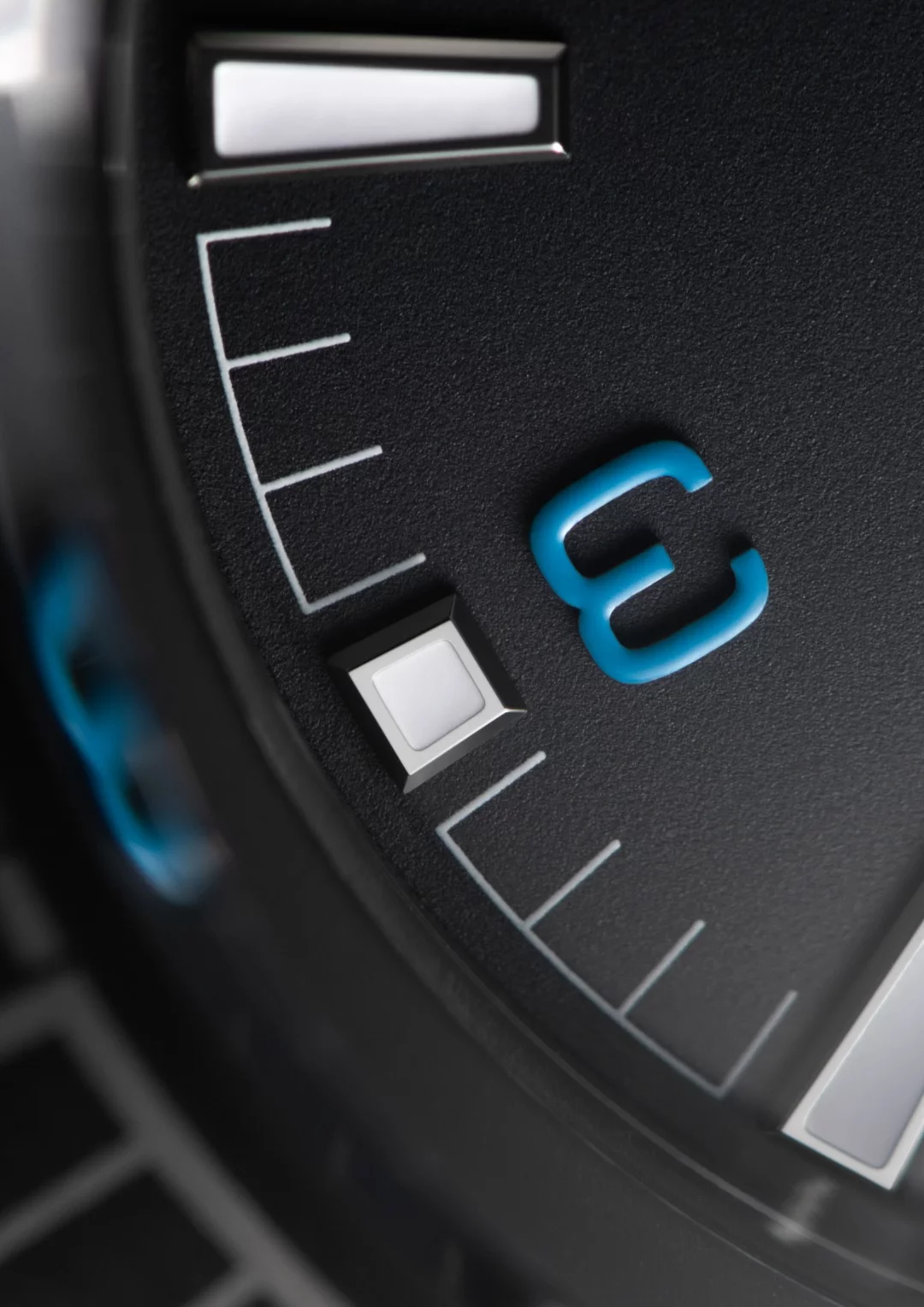

Dial detail
18/38
Dial detail

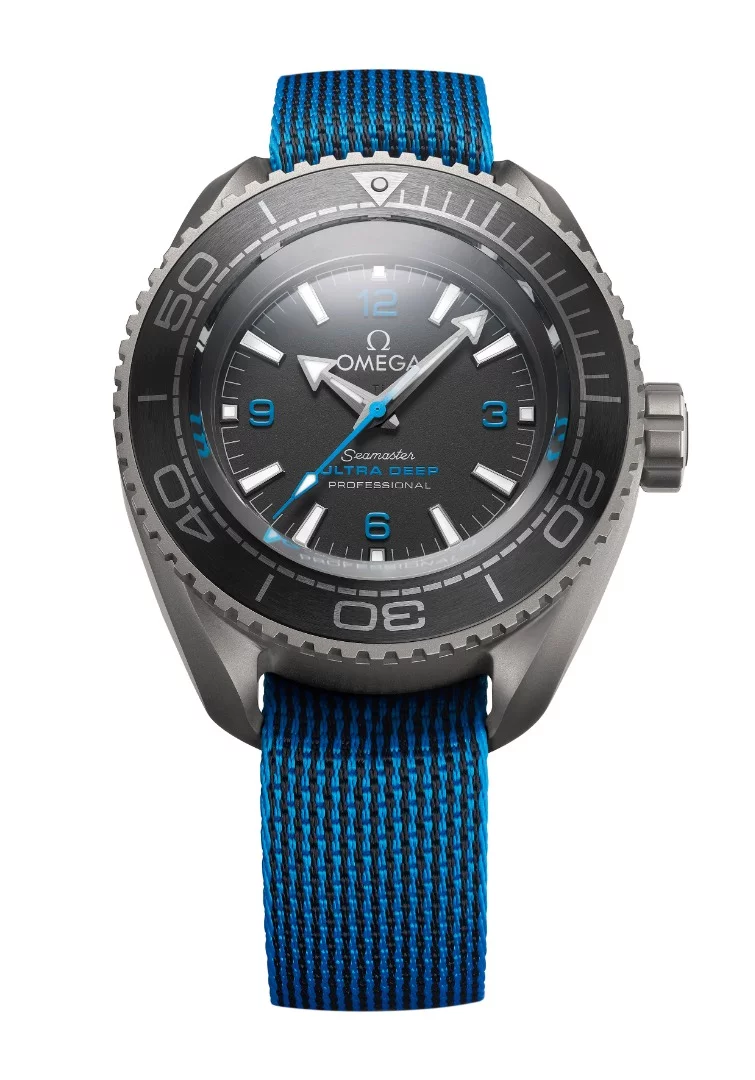

The Omega Seamaster Planet Ocean Ultra Deep Professional has a case made of forged and milled titanium
19/38
The Omega Seamaster Planet Ocean Ultra Deep Professional  has a case made of forged and milled titanium

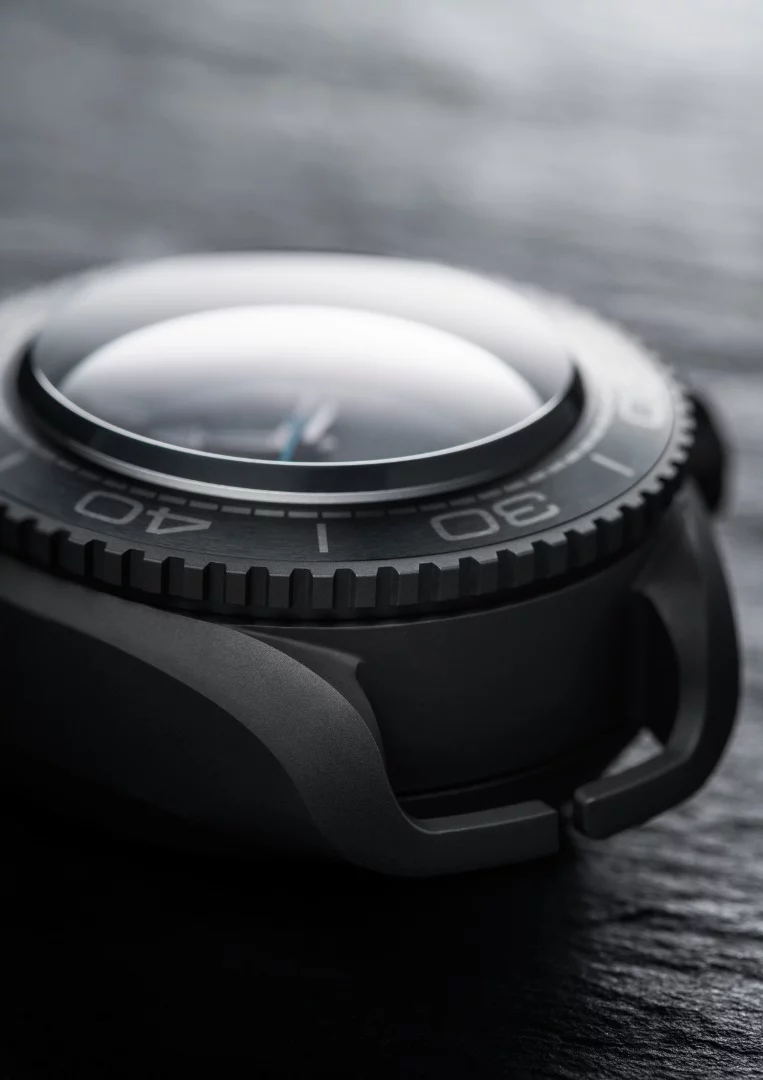

The Omega Seamaster Planet Ocean Ultra Deep Professional was made from cast off from submersible construction
20/38
The Omega Seamaster Planet Ocean Ultra Deep Professional was made from cast off from submersible construction

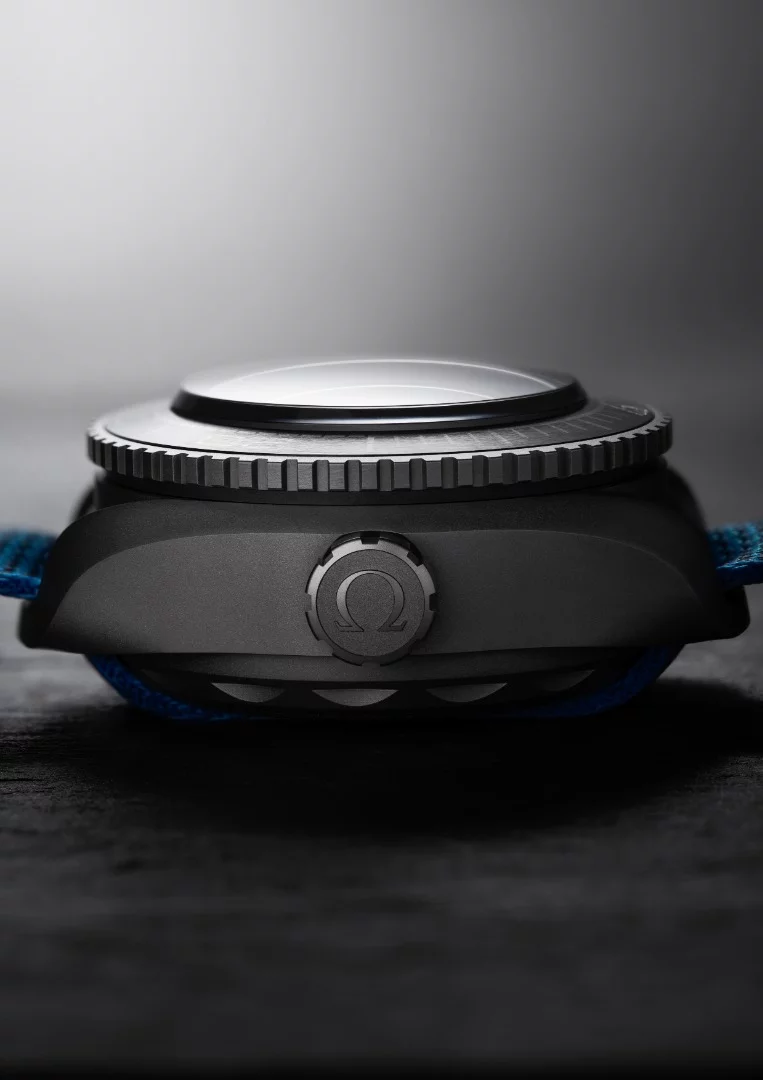

The Omega Seamaster Planet Ocean Ultra Deep Professional showing its thickness
21/38
The Omega Seamaster Planet Ocean Ultra Deep Professional showing its thickness

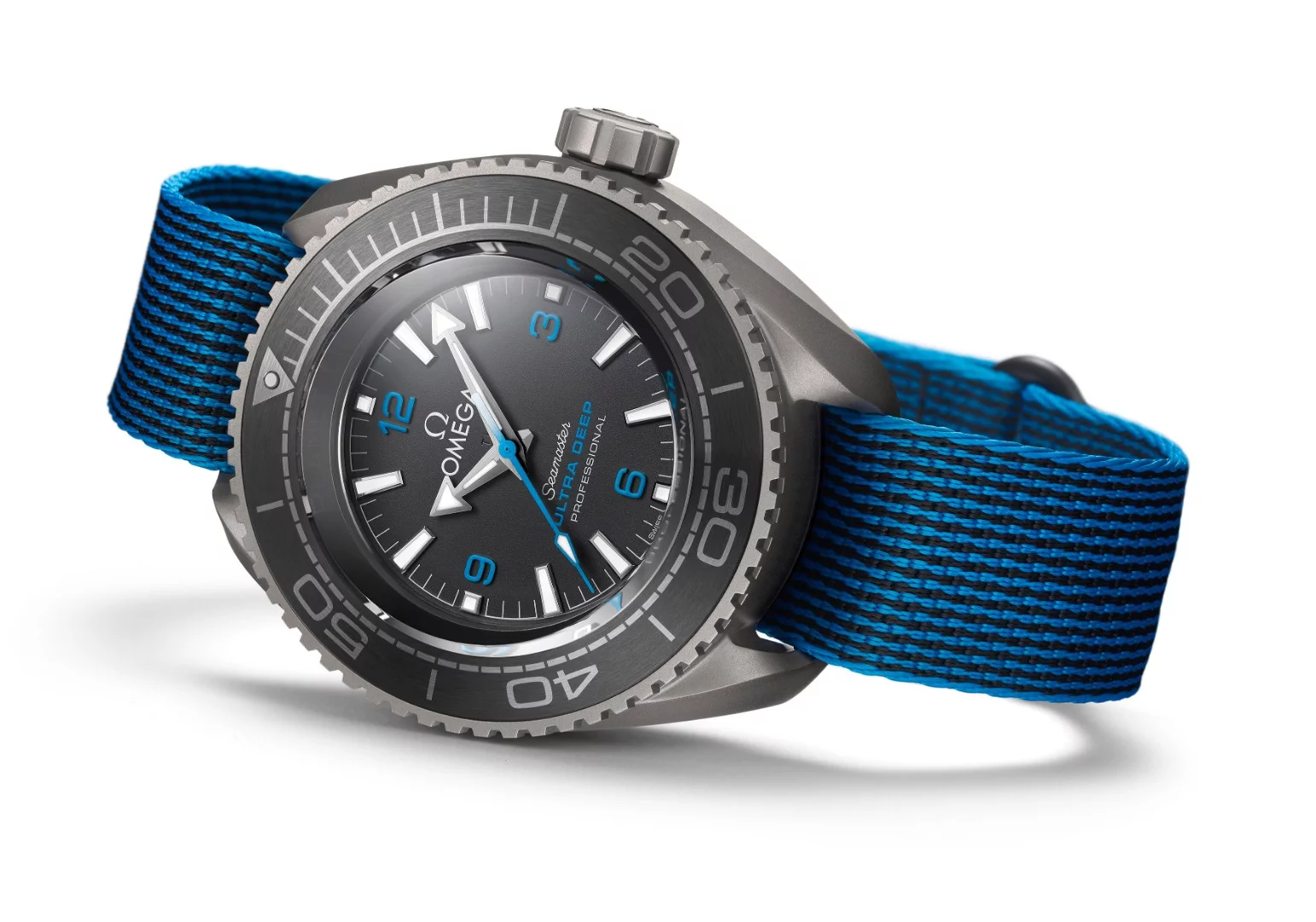

The Omega Seamaster Planet Ocean Ultra Deep Professional is chronometer certified
22/38
The Omega Seamaster Planet Ocean Ultra Deep Professional is chronometer certified

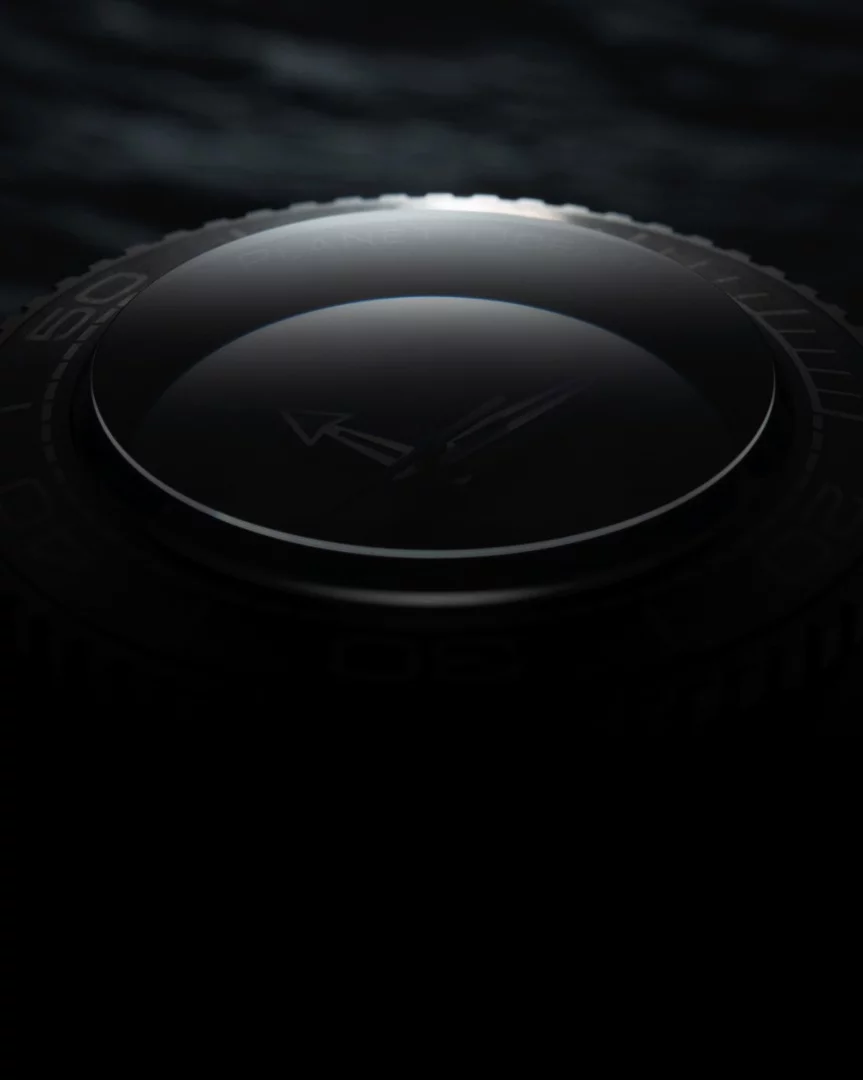

The Omega Seamaster Planet Ocean Ultra Deep Professional viewport crystal
23/38
The Omega Seamaster Planet Ocean Ultra Deep Professional viewport crystal

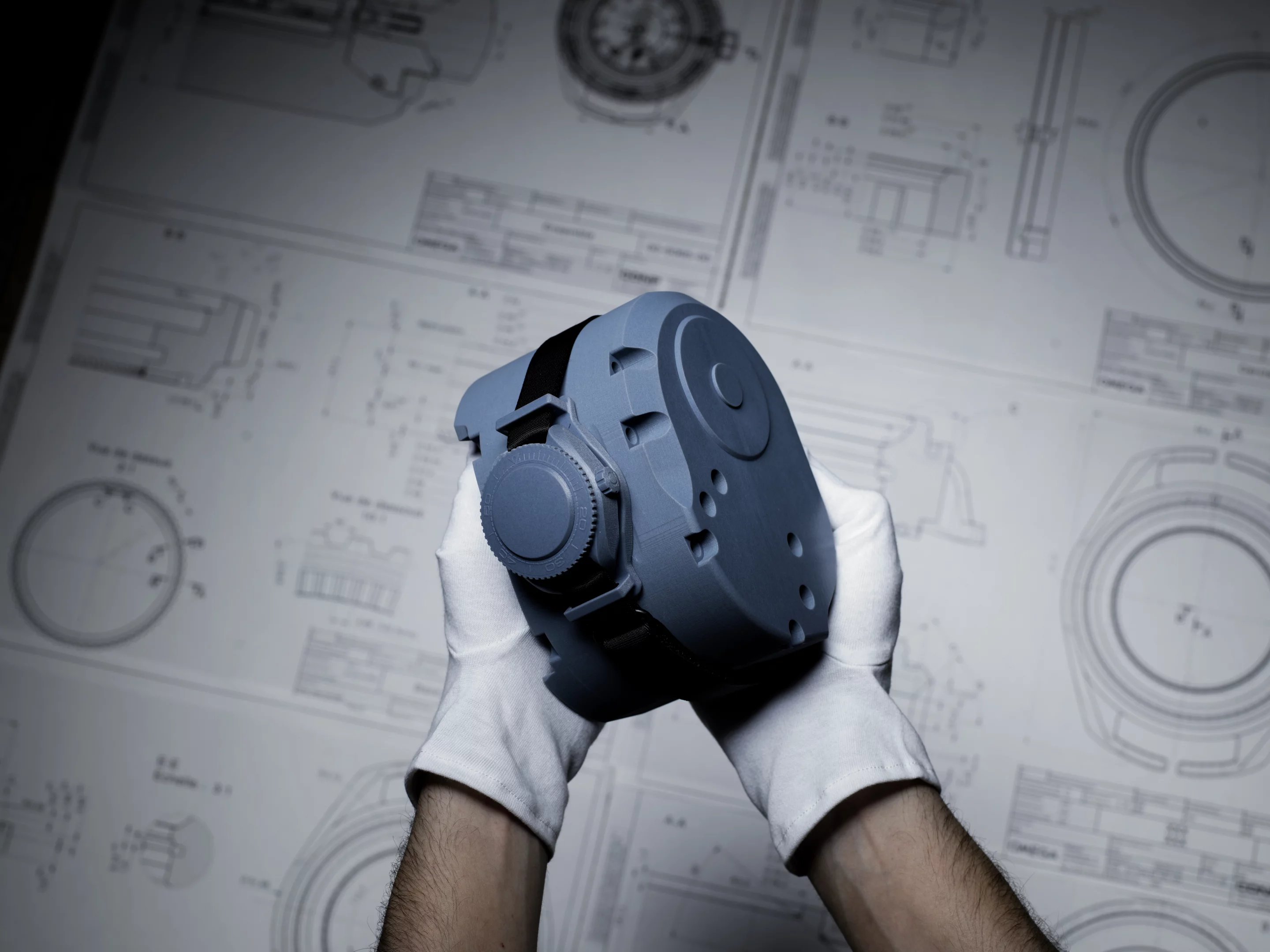

The Omega Seamaster Planet Ocean Ultra Deep Professional design
24/38
The Omega Seamaster Planet Ocean Ultra Deep Professional design
Cast off used to make the cases
25/38
Cast off used to make the cases

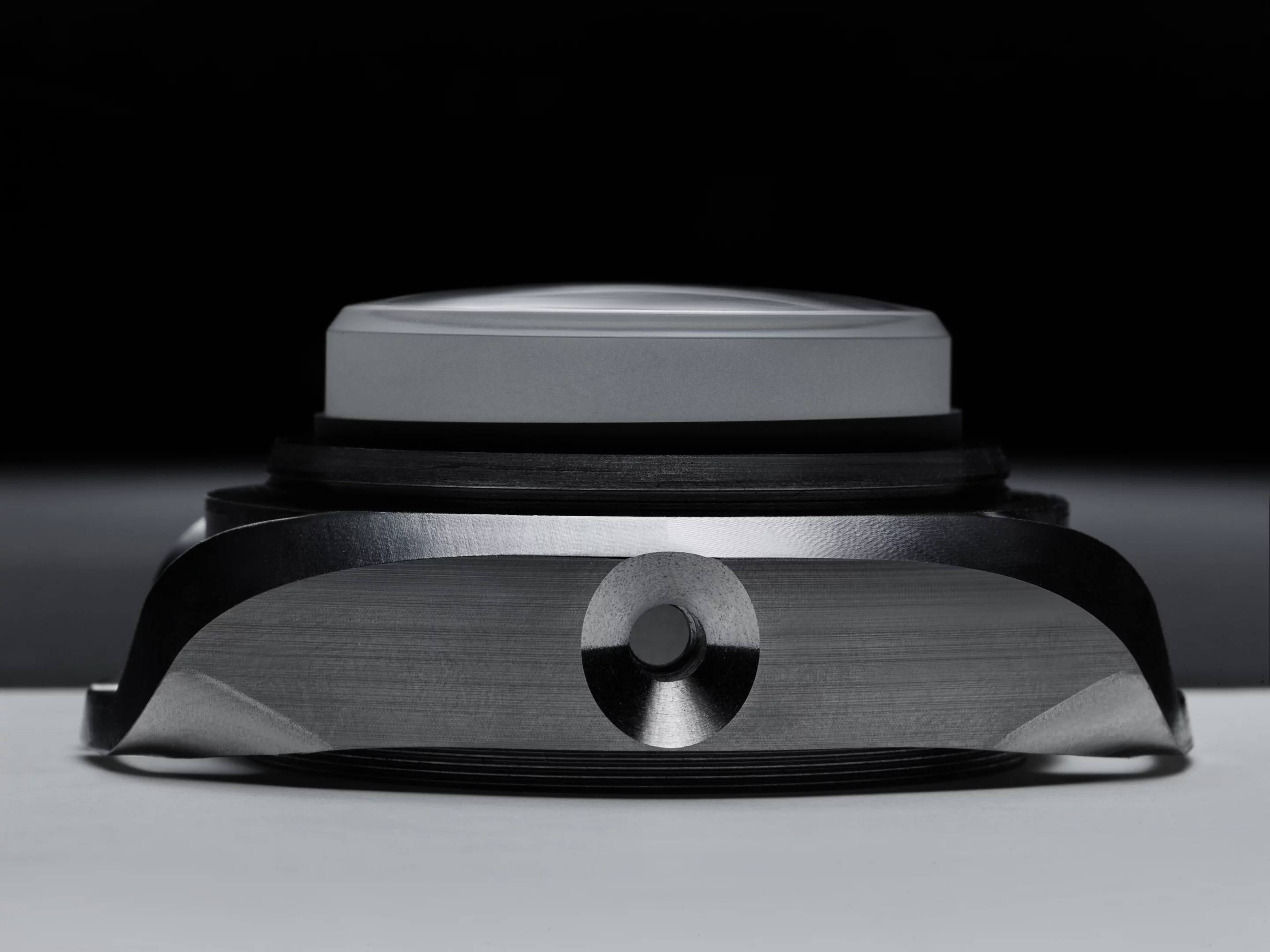

The Omega Seamaster Planet Ocean Ultra Deep Professional crown detail
26/38
The Omega Seamaster Planet Ocean Ultra Deep Professional crown detail

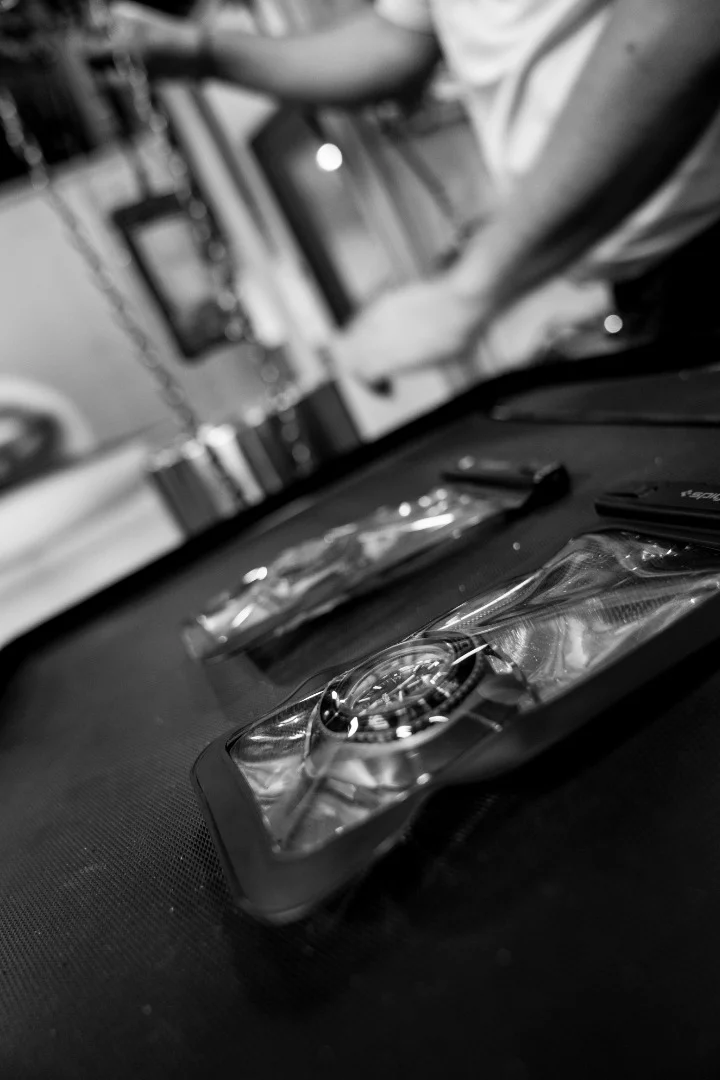

The Omega Seamaster Planet Ocean Ultra Deep Professional prepared for pressure tests
27/38
The Omega Seamaster Planet Ocean Ultra Deep Professional prepared for pressure tests

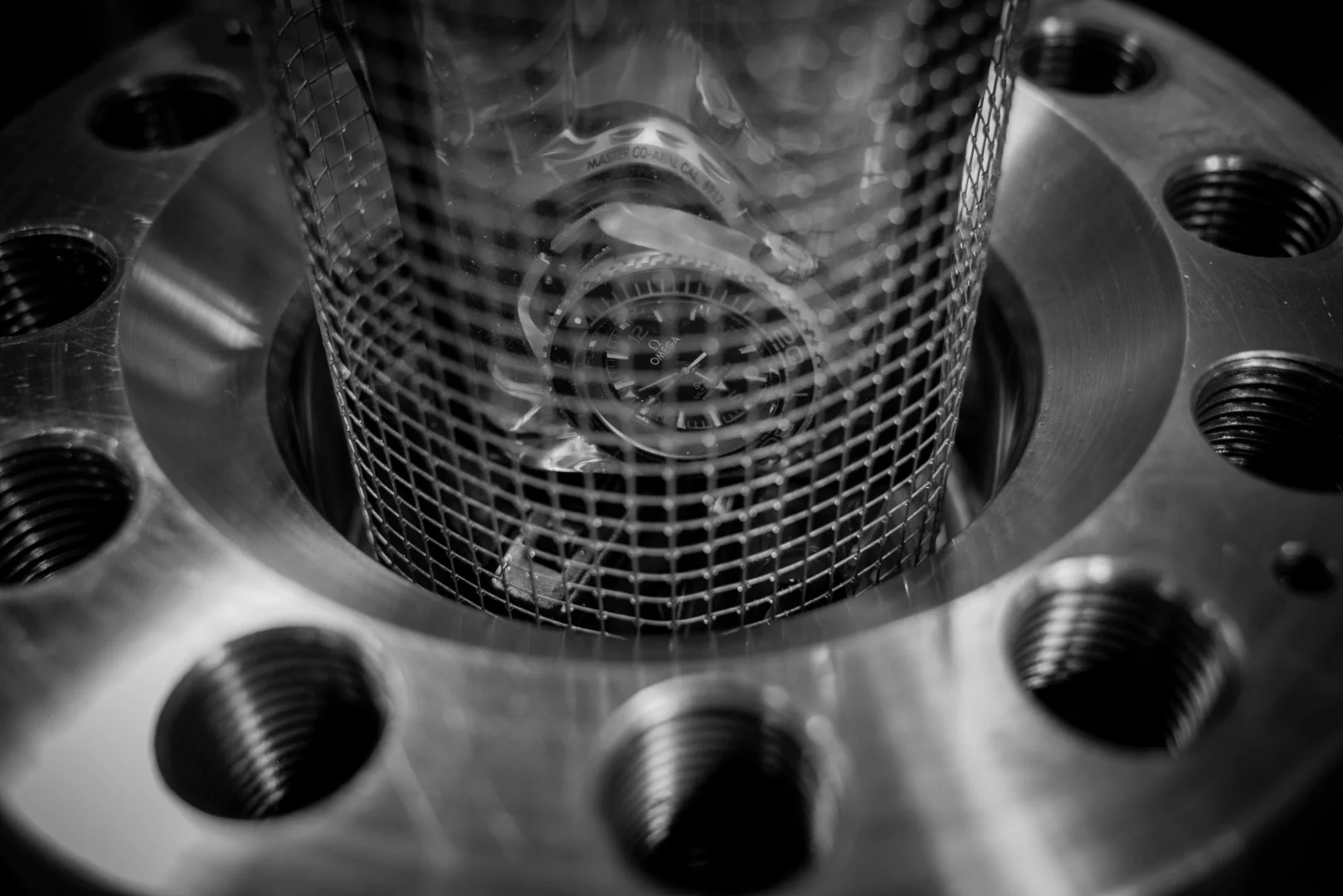

The Omega Seamaster Planet Ocean Ultra Deep Professional undergoing pressure tests
28/38
The Omega Seamaster Planet Ocean Ultra Deep Professional undergoing pressure tests
The Omega Seamaster Planet Ocean Ultra Deep Professional was made with a 25 percent safety margin
29/38
The Omega Seamaster Planet Ocean Ultra Deep Professional was made with a 25 percent safety margin

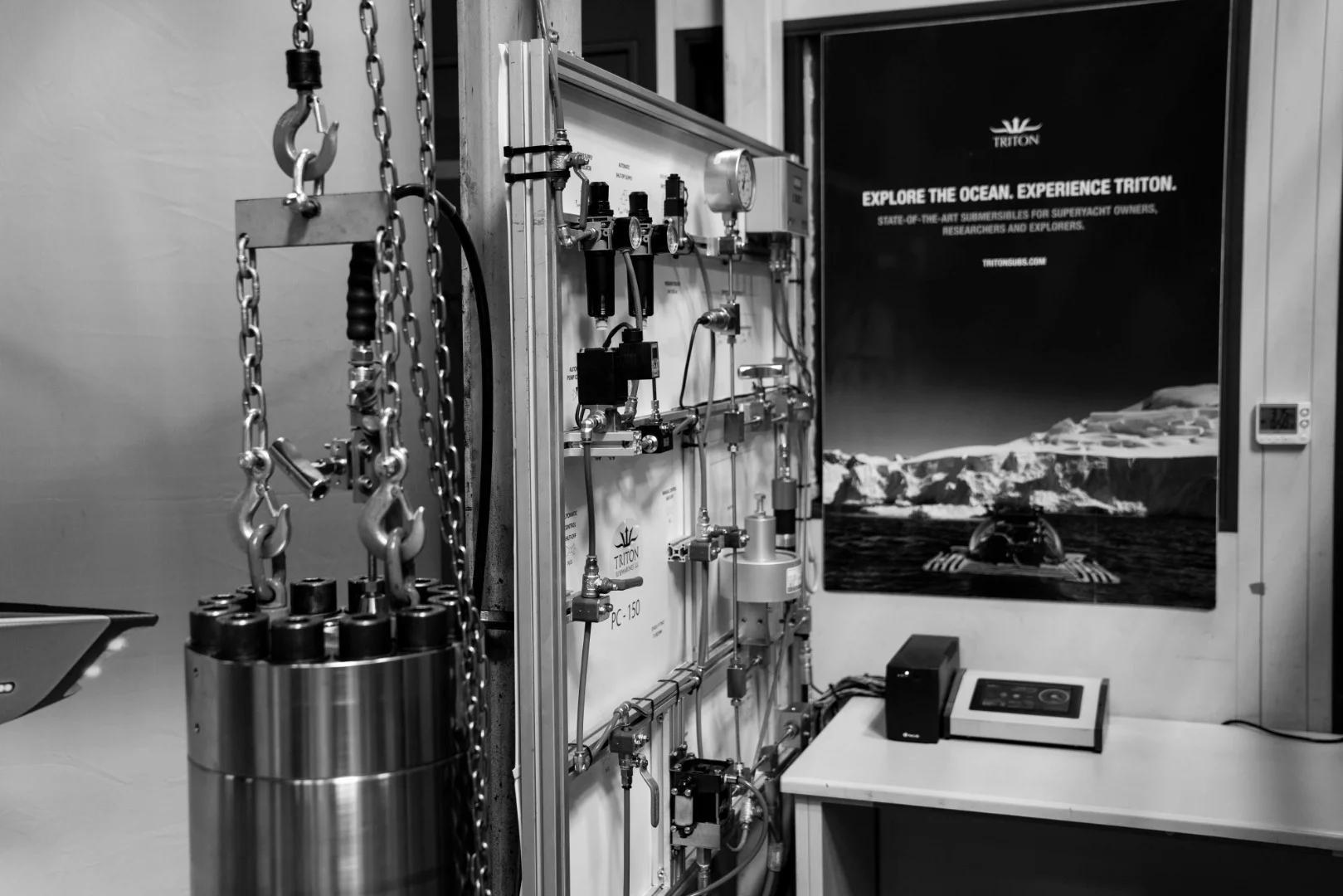

The testing chamber
30/38
The testing chamber

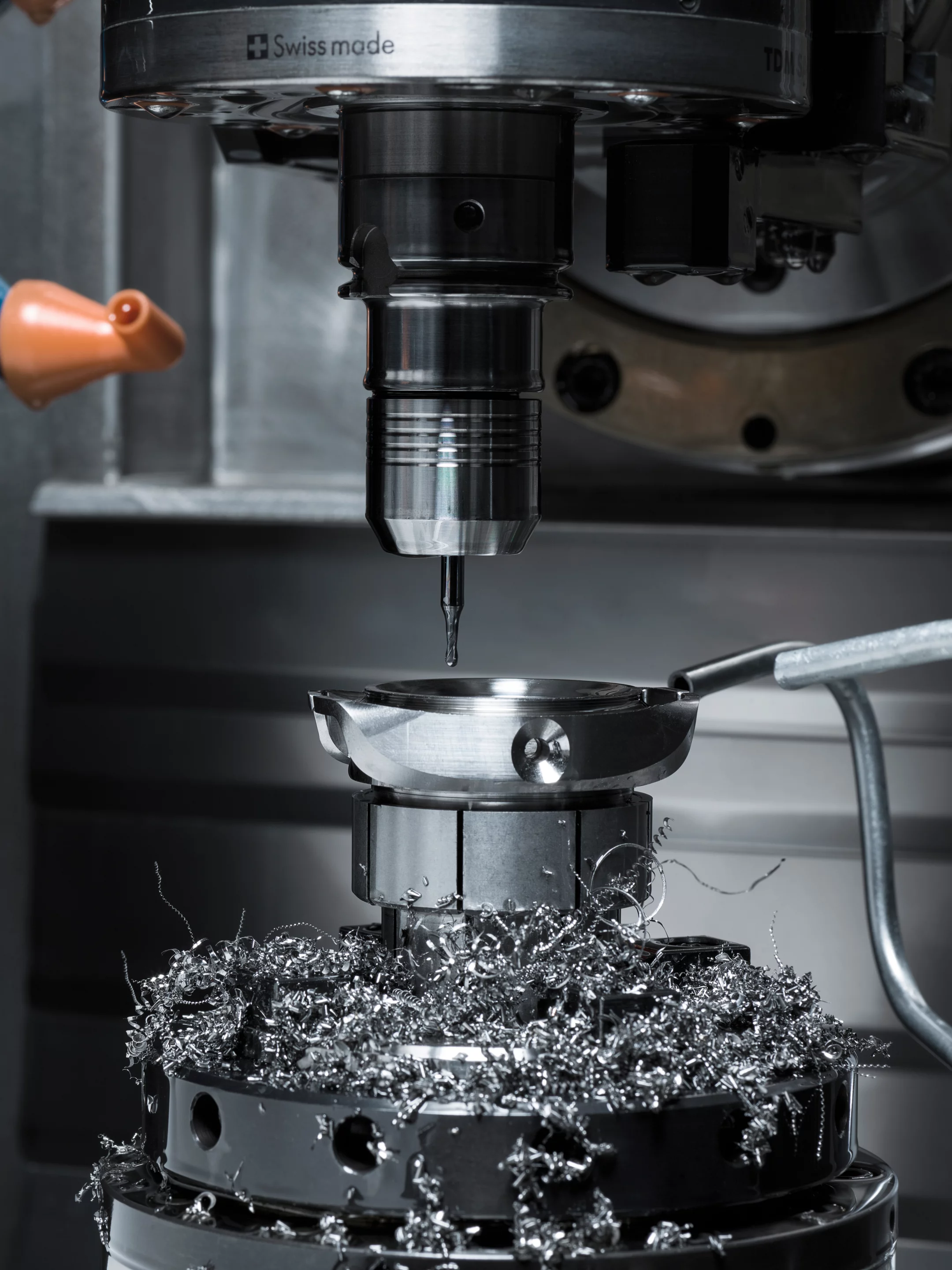

Milling the case
31/38
Milling the case
Cast offs used to make the Omega Seamaster Planet Ocean Ultra Deep Professional
32/38
Cast offs used to make the Omega Seamaster Planet Ocean Ultra Deep Professional
The Omega Seamaster Planet Ocean Ultra Deep Professional exploded view
33/38
The Omega Seamaster Planet Ocean Ultra Deep Professional exploded view
Steps in case fabrication
34/38
Steps in case fabrication

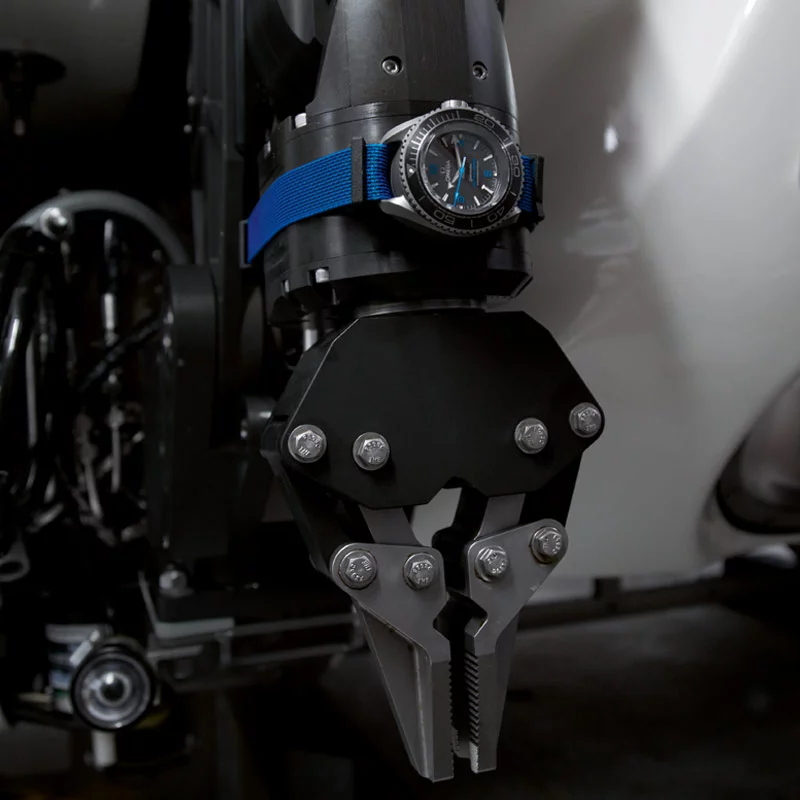

The Omega Seamaster Planet Ocean Ultra Deep Professional installed on the submersible's robotic arm
35/38
The Omega Seamaster Planet Ocean Ultra Deep Professional installed on the submersible's robotic arm

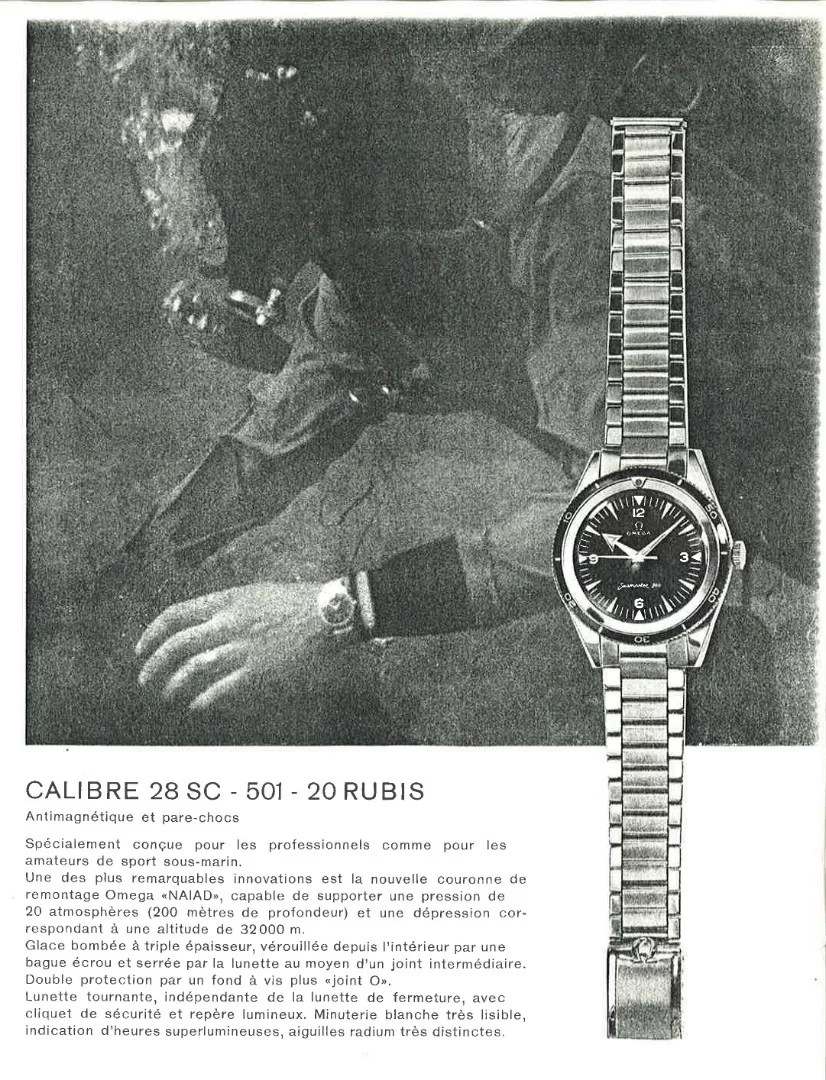

An Omega dive watch of 1957
36/38
An Omega dive watch of 1957

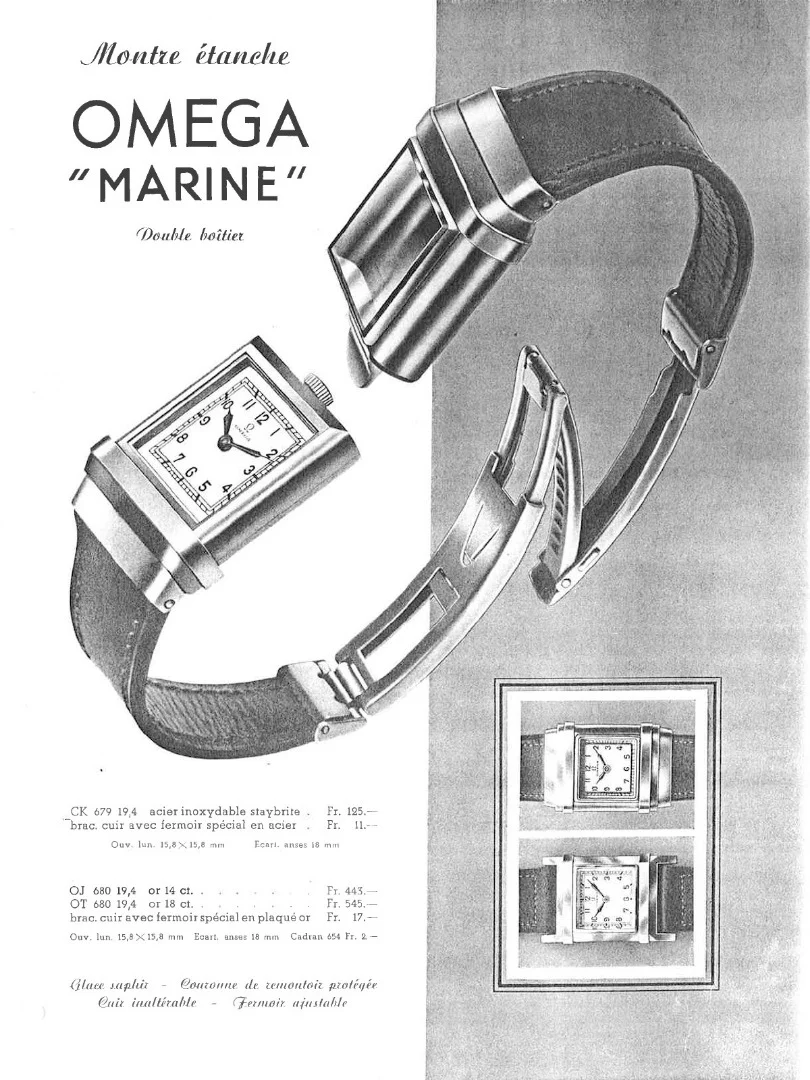

Omega's first dive watch of 1932
37/38
Omega's first dive watch of 1932
38/38
View gallery - 38 images

When American explorer Victor Vescovo made it to the bottom of the Mariana Trench last month, the record for the world's deepest manned submersible dive wasn't the only one to fall. His craft also had three Omega Seamaster Planet Ocean Ultra Deep Professional wrist watches strapped to the outside, and these specially made timepieces were subjected to a pressure of 1,085.10 ATM (15,946.5 psi) as they reached a depth of 10,928 m (35,853 ft), making them the deepest diving watches in history.

The dive watch holds a special place for enthusiasts, because the deep sea is the most difficult environment to protect against. Outer space, Mount Everest, Antarctica, the Sahara, and the powerful magnet fields of the Cern Supercollider all pose their challenges to the watchmaker's art, but it is at the bottom of the ocean that the ultimate foe is found.

Heat, cold, dust, shocks, and even magnetism are relatively easy for the designer to overcome, but water pressure that can squeeze a watch case apart or press the movement into immobility is the ultimate. Small wonder that the major Swiss watch companies have become so attached to diving, with their most advanced timepieces riding along on submersibles as they have plunged deeper and deeper into the ocean depths.

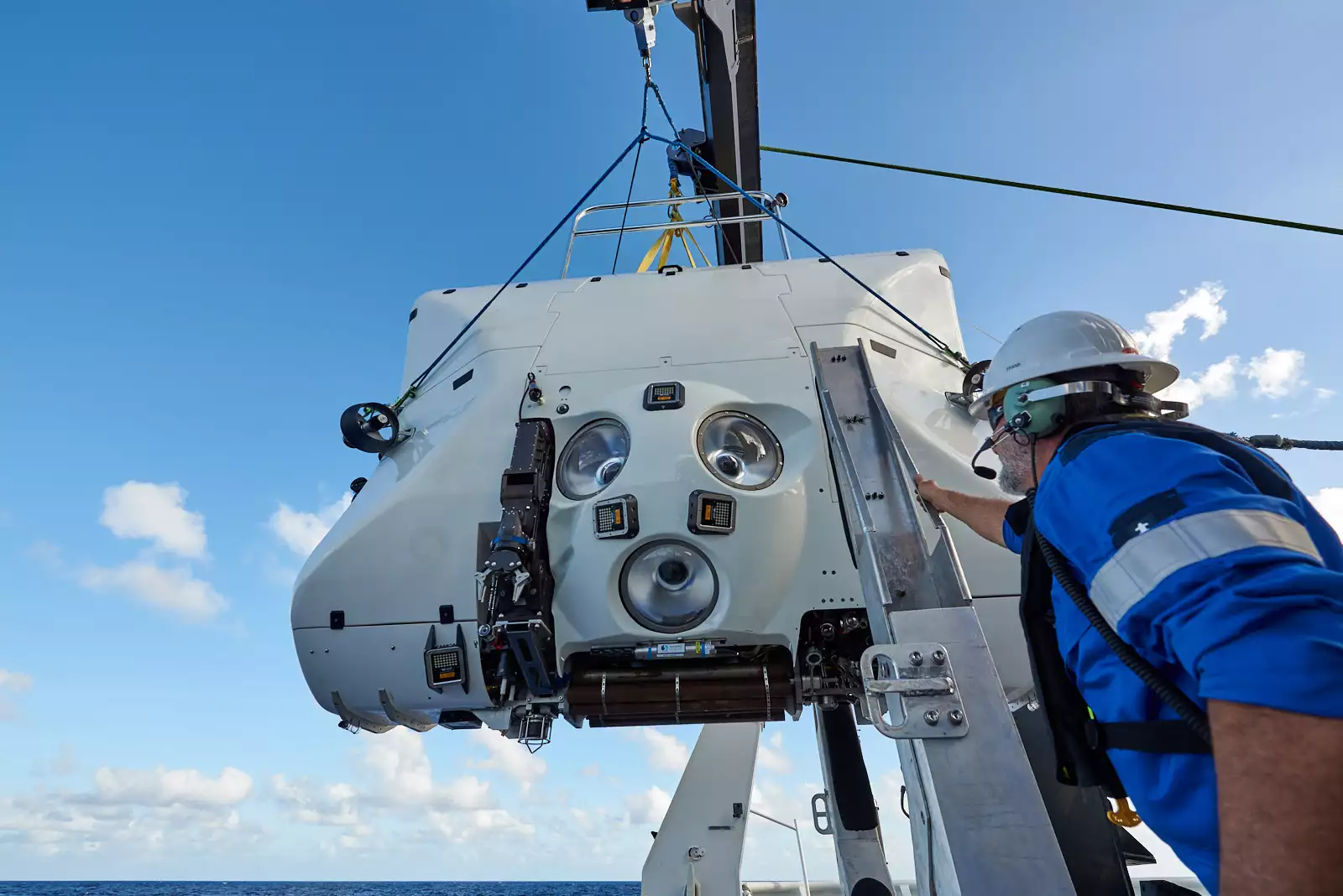

DSV Limiting Factor
DSV Limiting Factor

Perhaps the most famous example is from Rolex in 1960, when its specially made Deep Sea watch was installed on the outside of Jacques Piccard and Don Walsh's "Bathyscaphe Trieste" as it descended into the Challenger Deep in the Mariana Trench to reach a record dive depth for a manned craft of 10,916 m (35,800 ft).

Now Omega is claiming the crown of the deepest diving watch with its Seamaster Planet Ocean Ultra Deep Professional, which kept on functioning at a record depth of 10,928 m (35,853 ft) where it was was subjected to a pressure of 1,085.10 ATM (15,946.5 psi). Part of the Five Deeps Expedition, it was carried by Vescovo's DSV Limiting Factor – a titanium-hulled Triton submersible tended by the surface ship DSSV Pressure Drop as it dove in the five deepest regions of the world's oceans.

According to Omega, creating the Ultra Deep required a blank-sheet approach to the design. The idea was not only to produce a handful of watches for the record attempt, but also to have a design that would later be adapted to a commercial line of wrist watches. This meant that the Ultra Deep not only needed to be exceptionally strong, but also kept down to a practical thickness of under 28 mm.

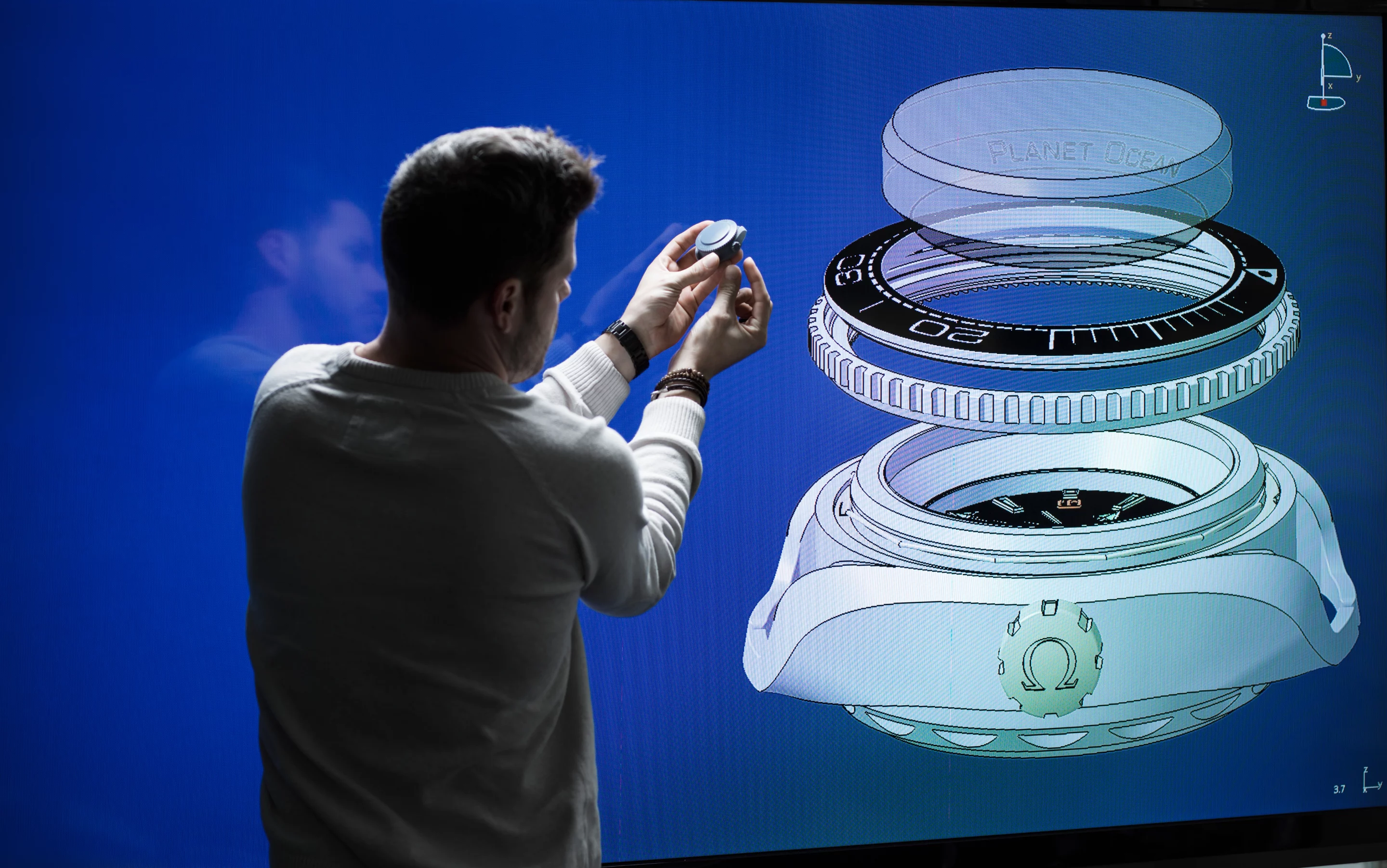

The Omega Seamaster Planet Ocean Ultra Deep Professional exploded view
The Omega Seamaster Planet Ocean Ultra Deep Professional exploded view

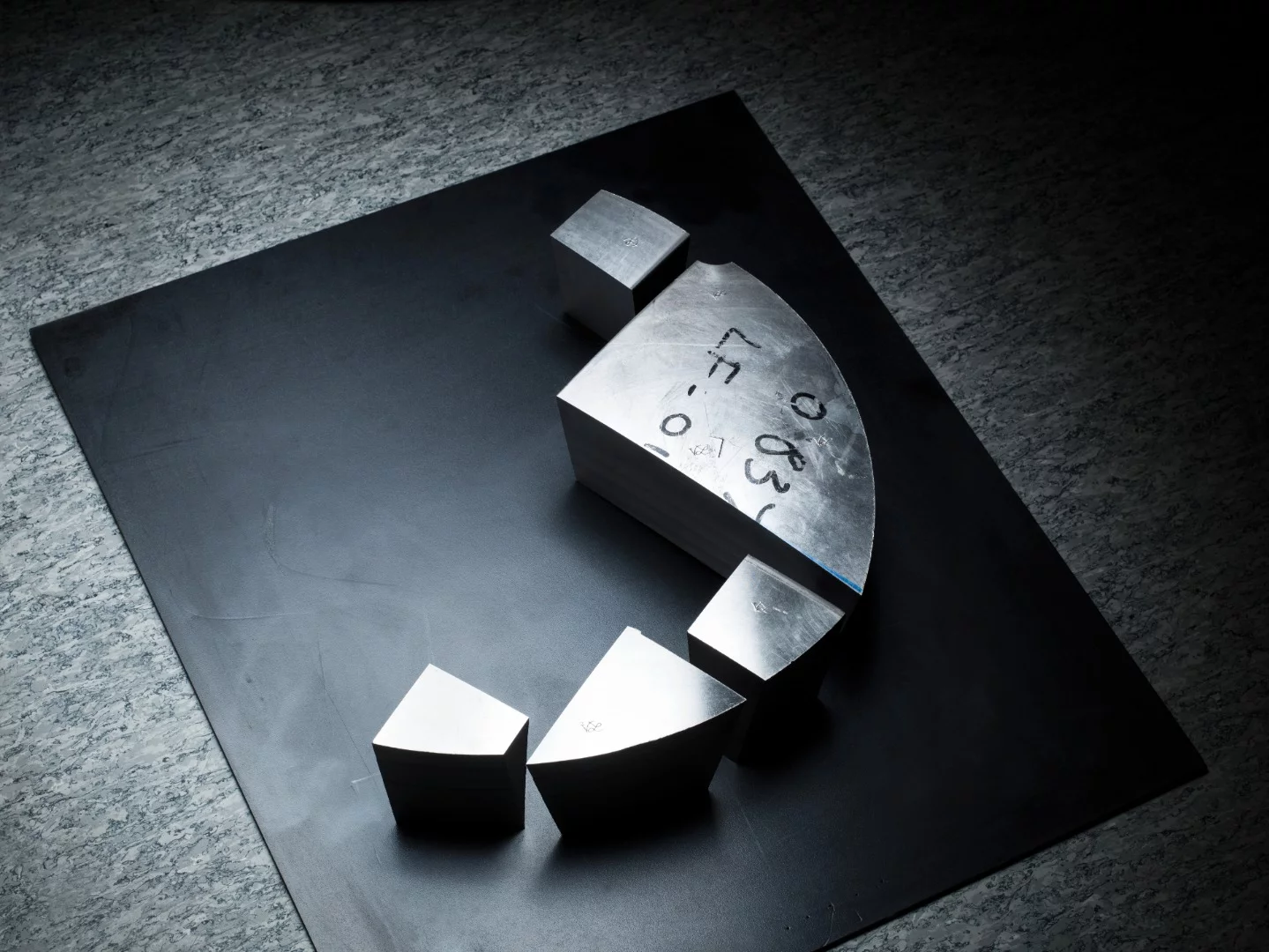

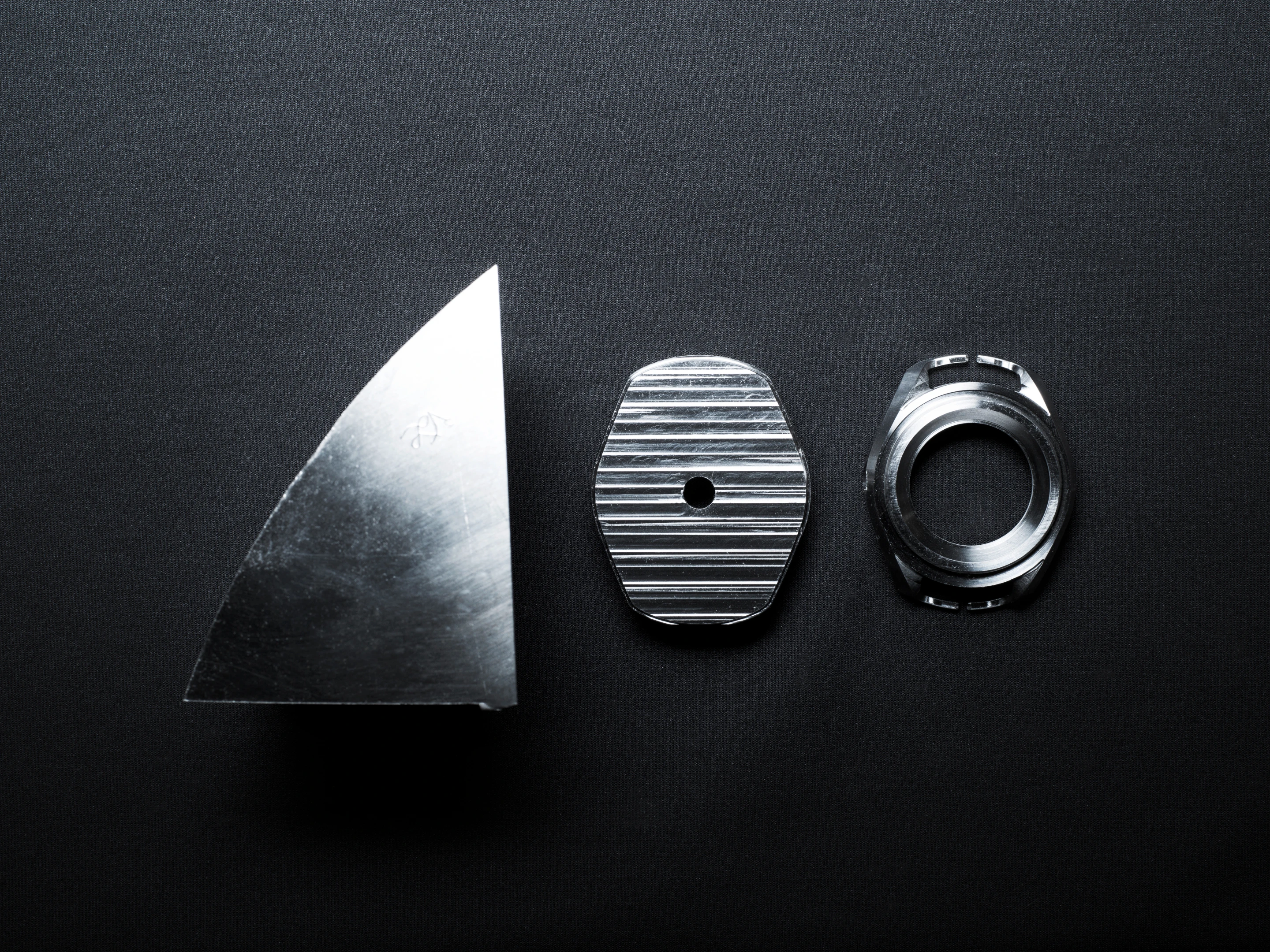

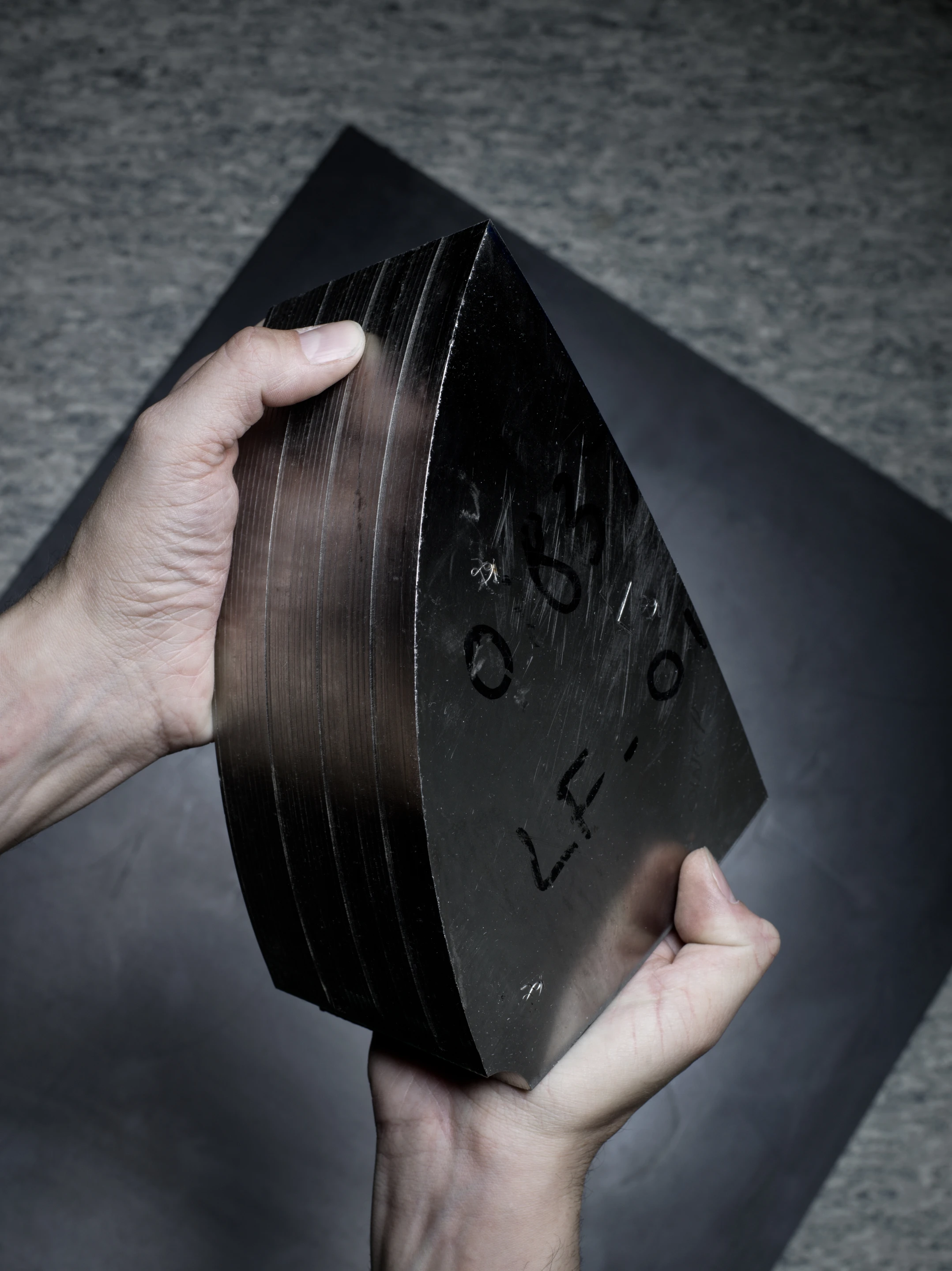

To do this, Omega made the Ultra Deep watches out of scraps of grade 5 titanium plating left over from fabricating DSV Limiting Factor. Using advanced forging techniques and a weld-free design, these cast-offs were machined into the watch bezel, case, case back, and crown.

Meanwhile, the load-bearing surfaces of the thick sapphire crystal "viewport" were tooled to handle the pressure of the deep ocean and the cross section was tapered to minimize stresses. In between the sapphire and case was a layer of LiquidMetal – a commercial amorphous metal alloy developed by Caltech that has high tensile strength, corrosion resistance, very high coefficient of restitution, and high anti-wearing characteristics. This allowed the makers to dispense with a polymer seal and reduce the thickness of the crystal.

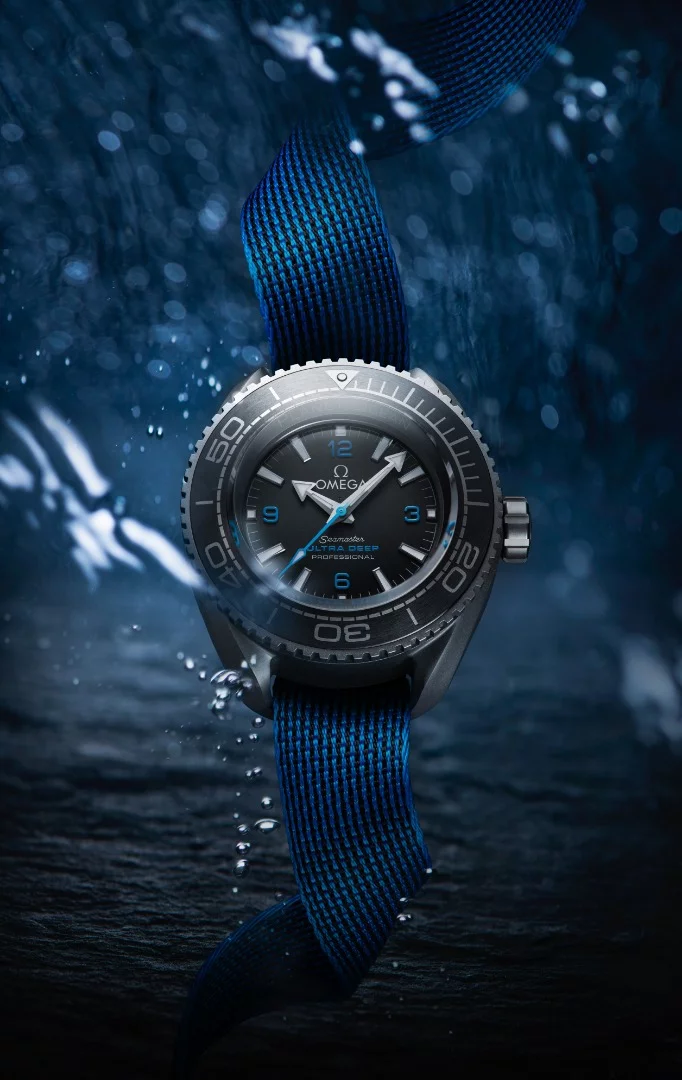

The end result is a forged titanium case rated to 15,000 m (49.212 ft) where the pressure is 1,489.06 ATM (21,883.1 psi) – well beyond that encountered by Limiting Factor.

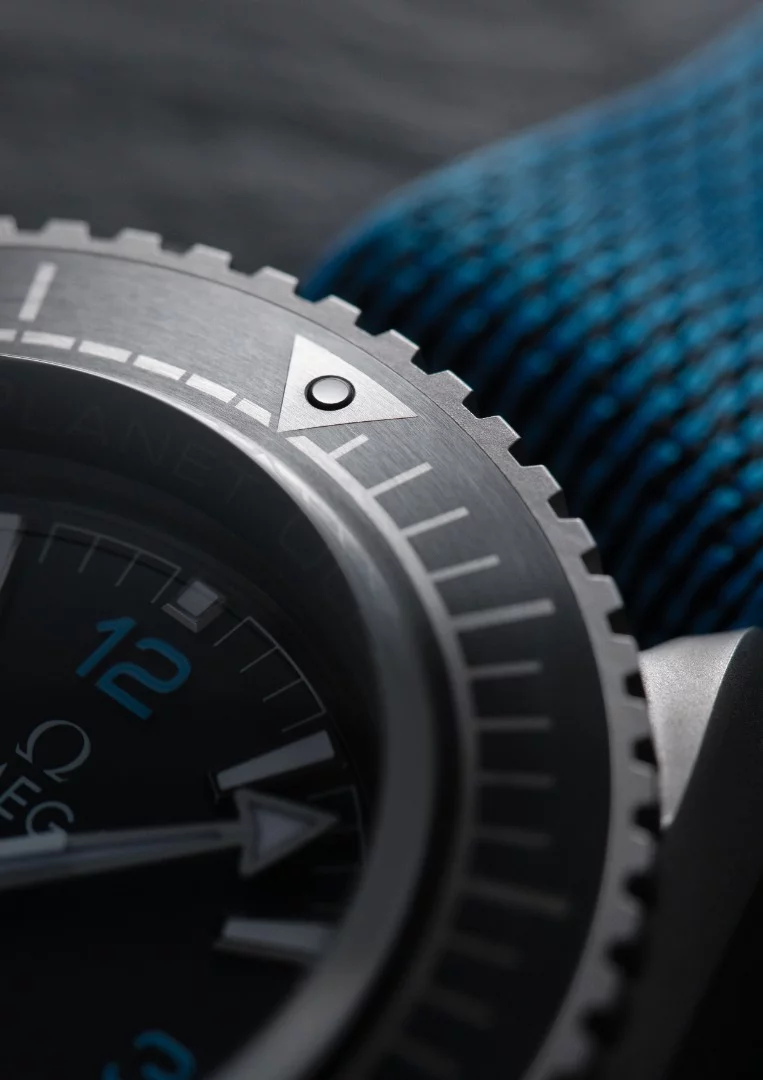

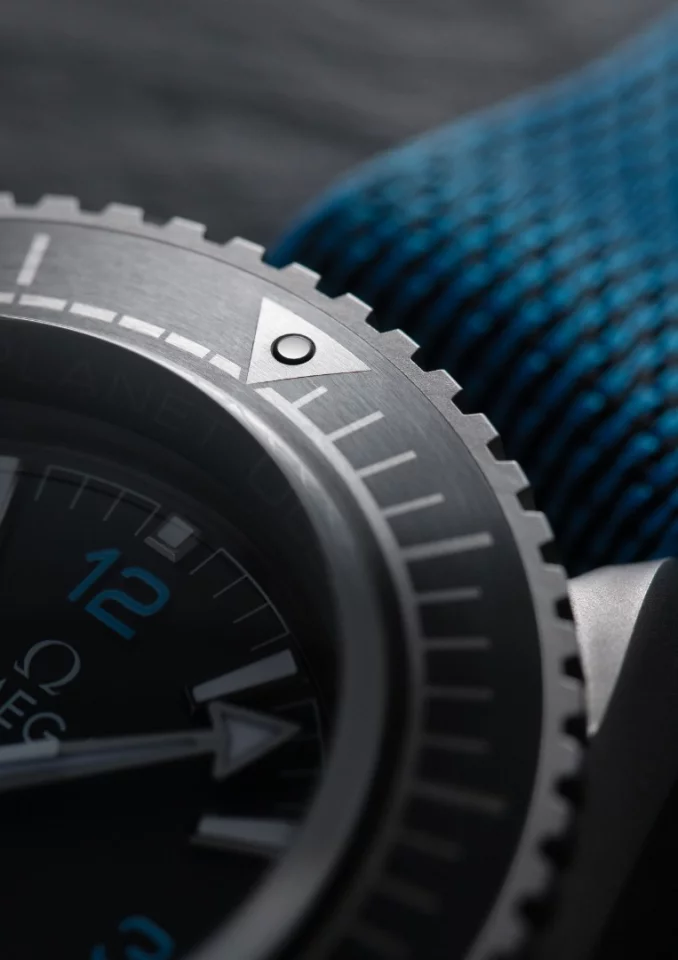

The Omega Seamaster Planet Ocean Ultra Deep Professional titanium bezel
The Omega Seamaster Planet Ocean Ultra Deep Professional titanium bezel

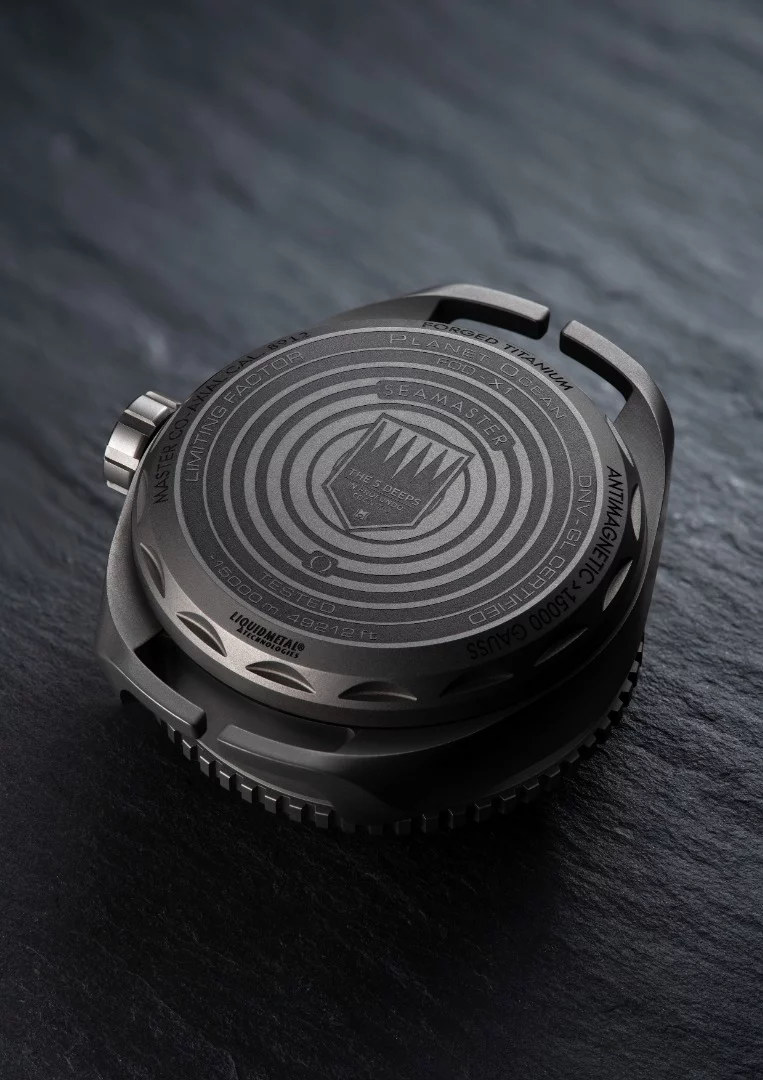

The Ultra Deep design also boasts "manta" lugs that have been left open to reduce the risk of damage as the case deforms under pressure. These lugs secured the three Seamaster Planet Ocean Ultra Deep timepieces to the craft using polyamide straps and Velcro closures similar to those used on Omega watches supplied for NASA space missions. Two of the watches were installed on the submersible's arm and a third was strapped to a Lander – a small autonomous, recoverable sensor package used on the diving missions.

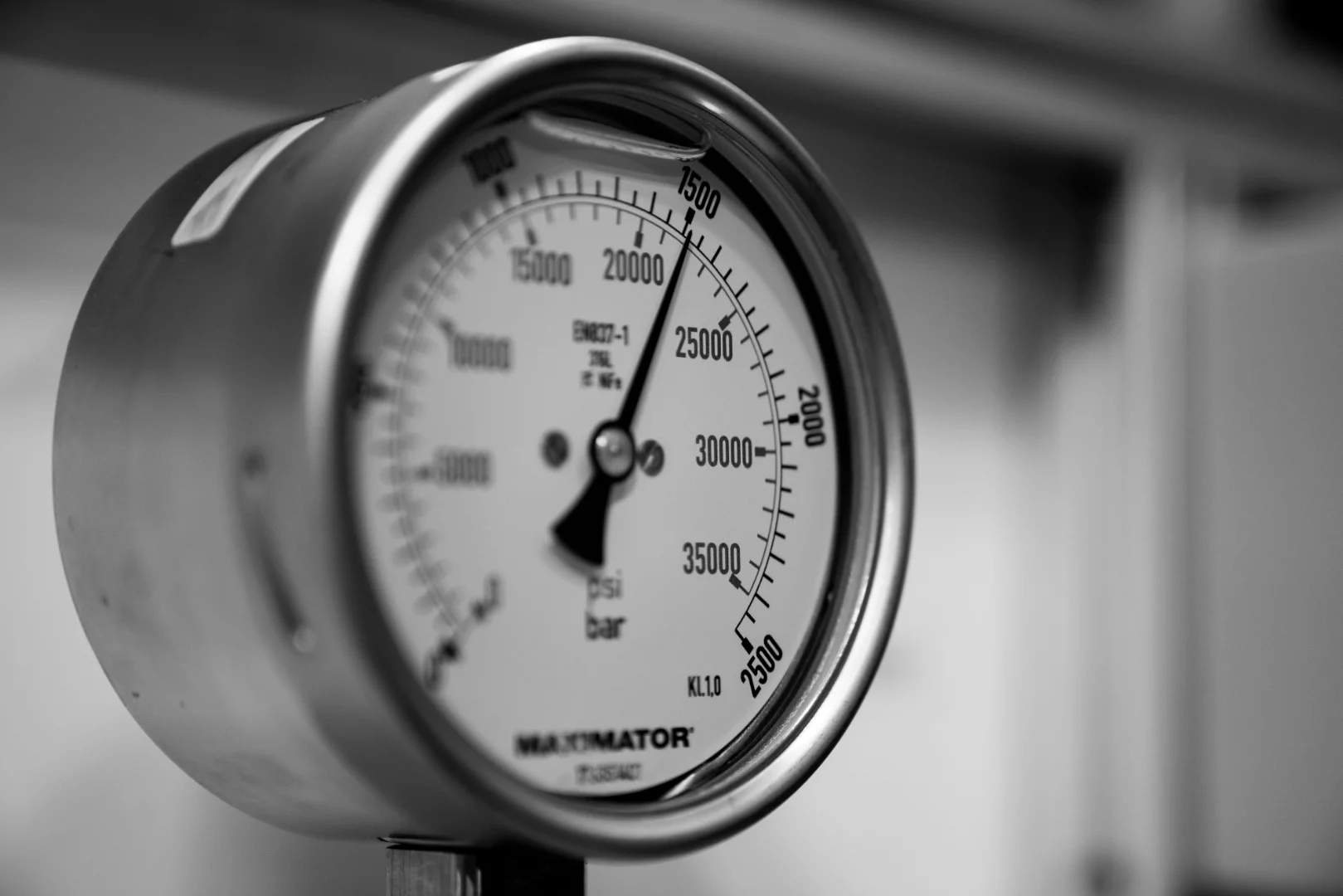

Omega says that the watches were pretested with a 25 percent safety margin. In addition, post-dive tests demonstrated the Ultra Deeps still met the standard of the Master Chronometer certification.
