Oppo announces N1 smartphone with rotating camera module

Oppo announces N1 smartphone w...

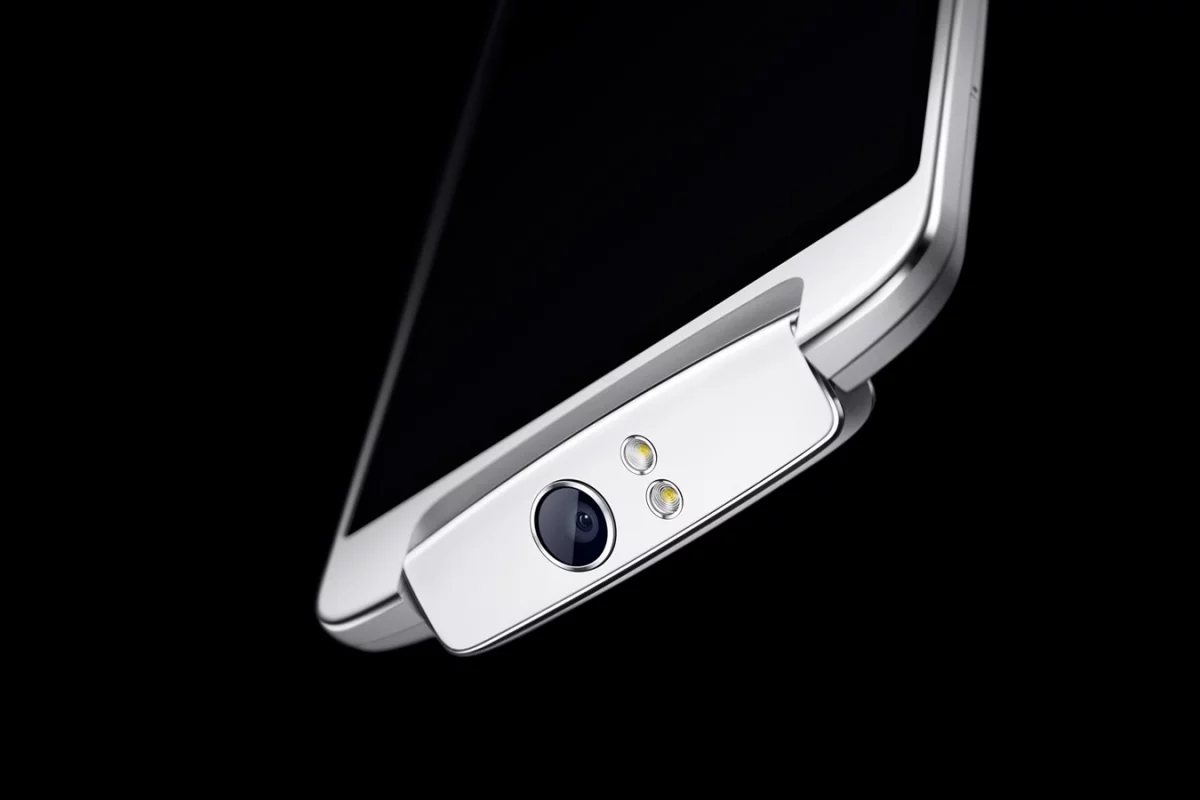

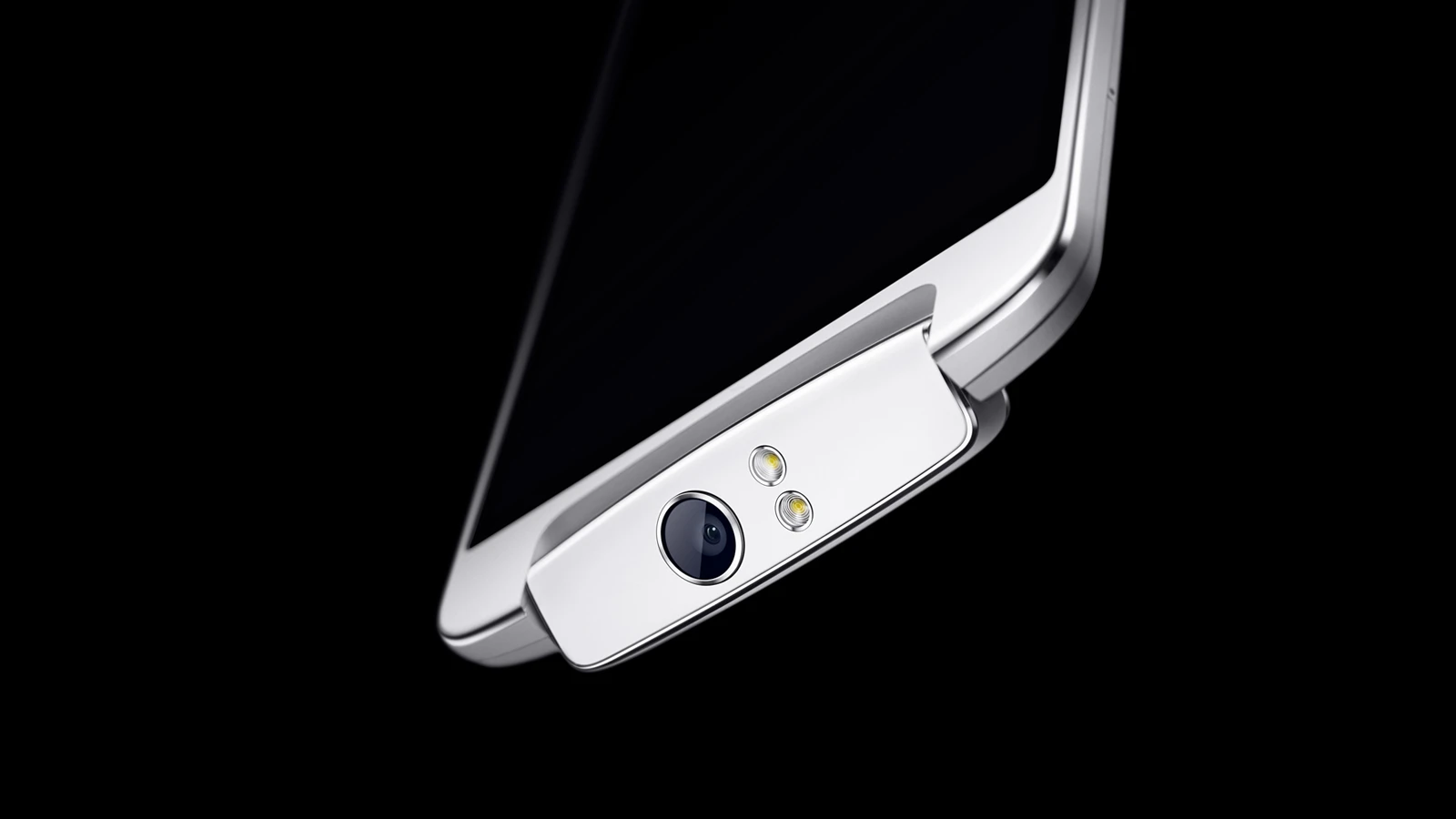

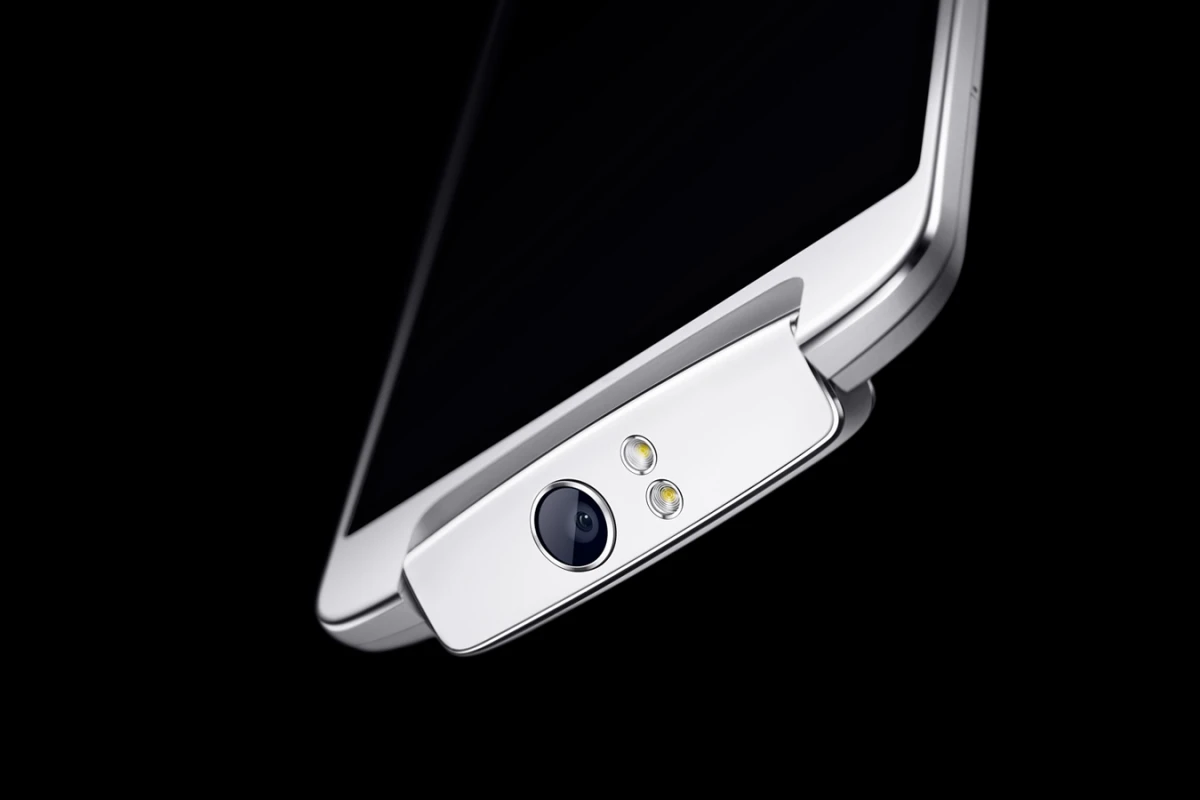

The Oppo N1, featuring a rotating camera module
The Oppo N1, featuring a rotating camera module
View 13 Images
There's a 12 sq cm touch surface at the rear to help keep grubby fingers off the display at the front
1/13
There's a 12 sq cm touch surface at the rear to help keep grubby fingers off the display at the front

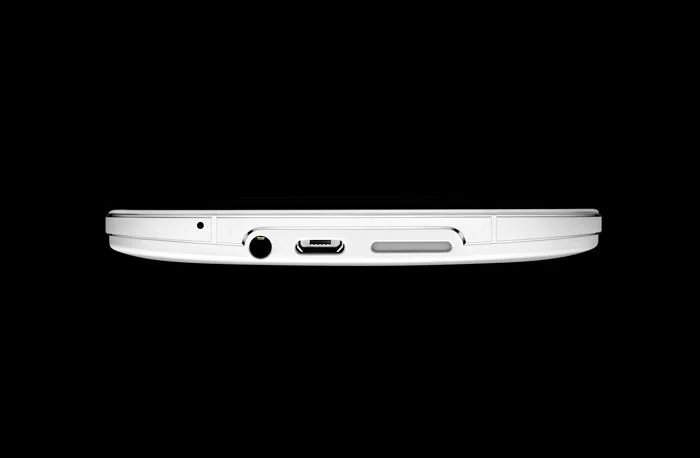

The Oppo N1 sports 802.11ac Wi-Fi, Bluetooth 4.0, GPS, and USB OTG
2/13
The Oppo N1 sports 802.11ac Wi-Fi, Bluetooth 4.0, GPS, and USB OTG

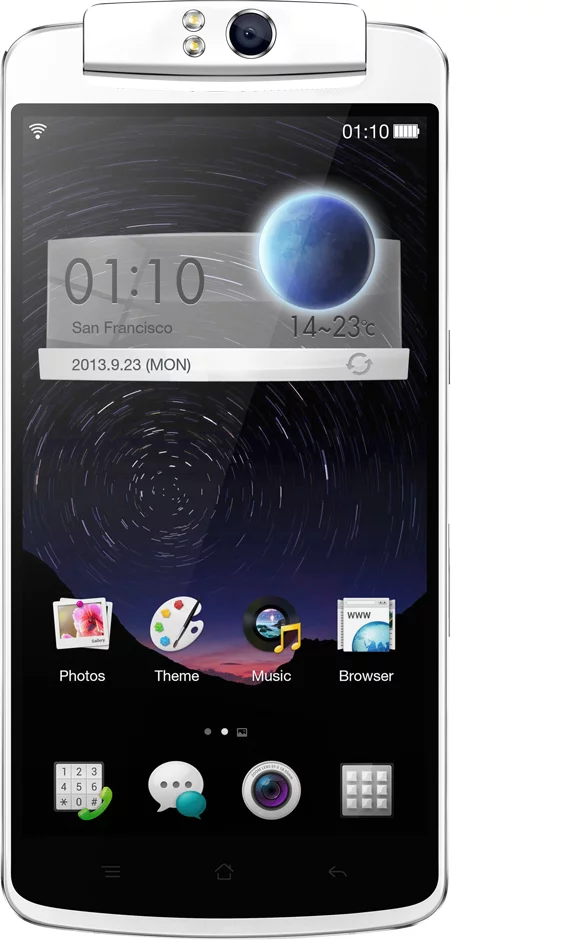

The N1 comes pre-installed with an Android-based operating platform named Color, which boasts over 400 unique features and enhancements over stock Android 4.2
3/13
The N1 comes pre-installed with an Android-based operating platform named Color, which boasts over 400 unique features and enhancements over stock Android 4.2

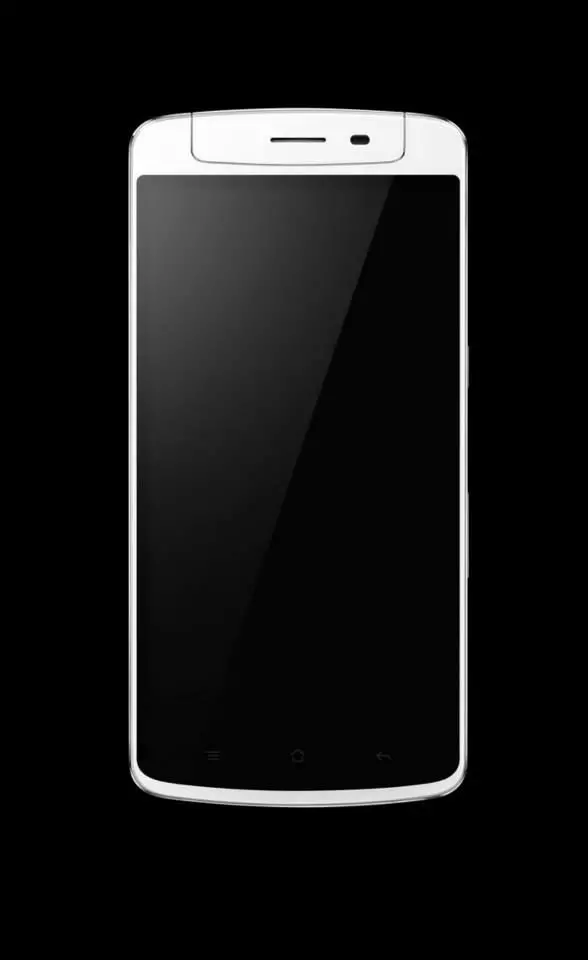

The Oppo N1 features a 5.9-inch, 1920 x 1080 resolution IPS capacitive touchscreen display
4/13
The Oppo N1 features a 5.9-inch, 1920 x 1080 resolution IPS capacitive touchscreen display
Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click
5/13
Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click

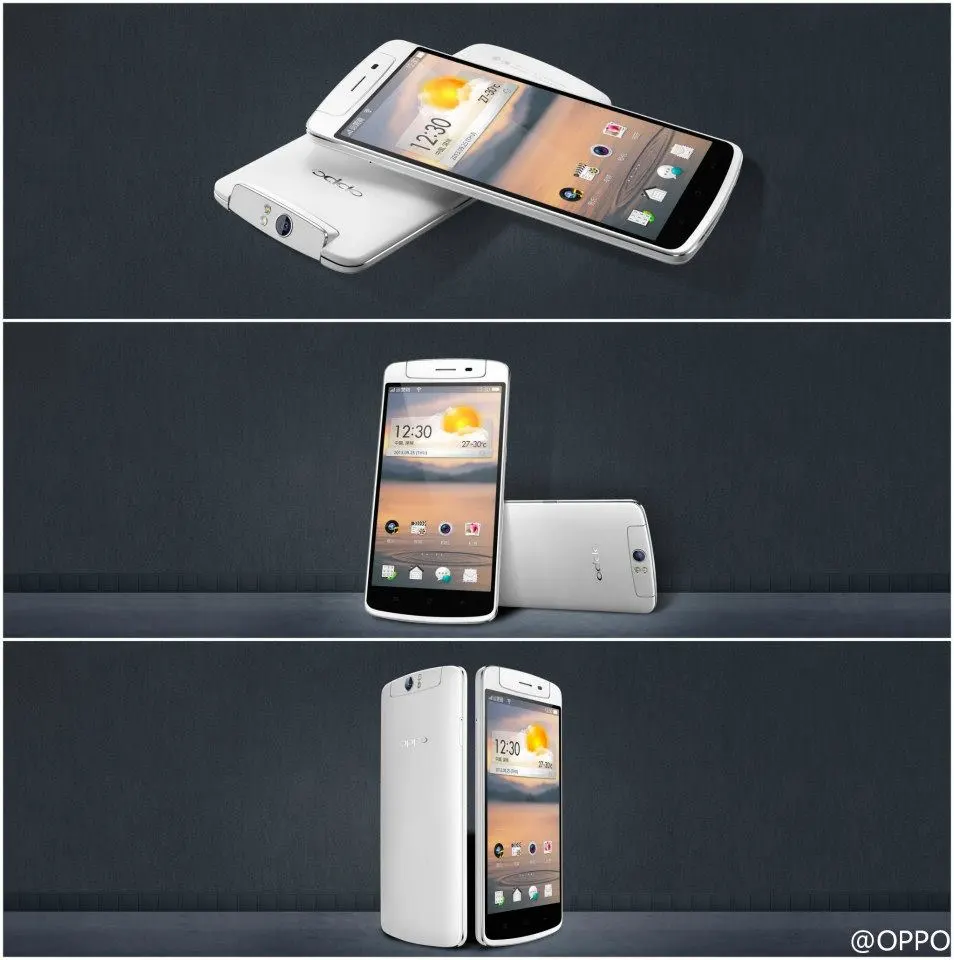

The N1 has an an aluminum alloy frame covered by a "ceramic-like" plastic material designed to help keep greasy finger marks at bay
6/13
The N1 has an an aluminum alloy frame covered by a "ceramic-like" plastic material designed to help keep greasy finger marks at bay

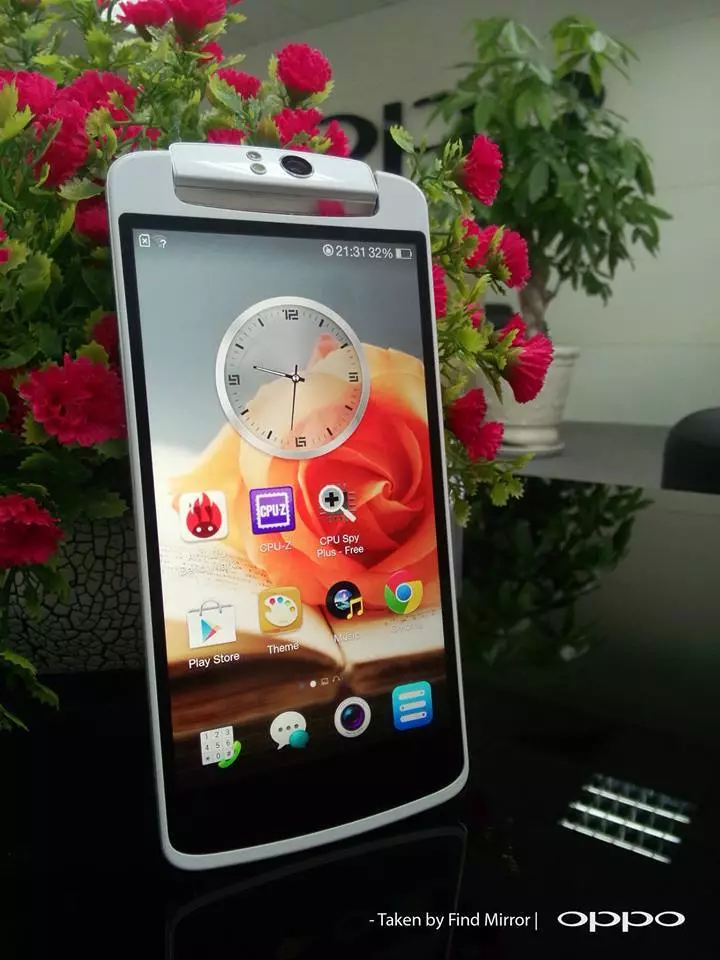

The N1 comes pre-installed with an Android-based operating platform named Color, which boasts over 400 unique features and enhancements over stock Android 4.2
7/13
The N1 comes pre-installed with an Android-based operating platform named Color, which boasts over 400 unique features and enhancements over stock Android 4.2
The rotating camera is constructed using 67 different components, 50 cables and over 10 modules
8/13
The rotating camera is constructed using 67 different components, 50 cables and over 10 modules

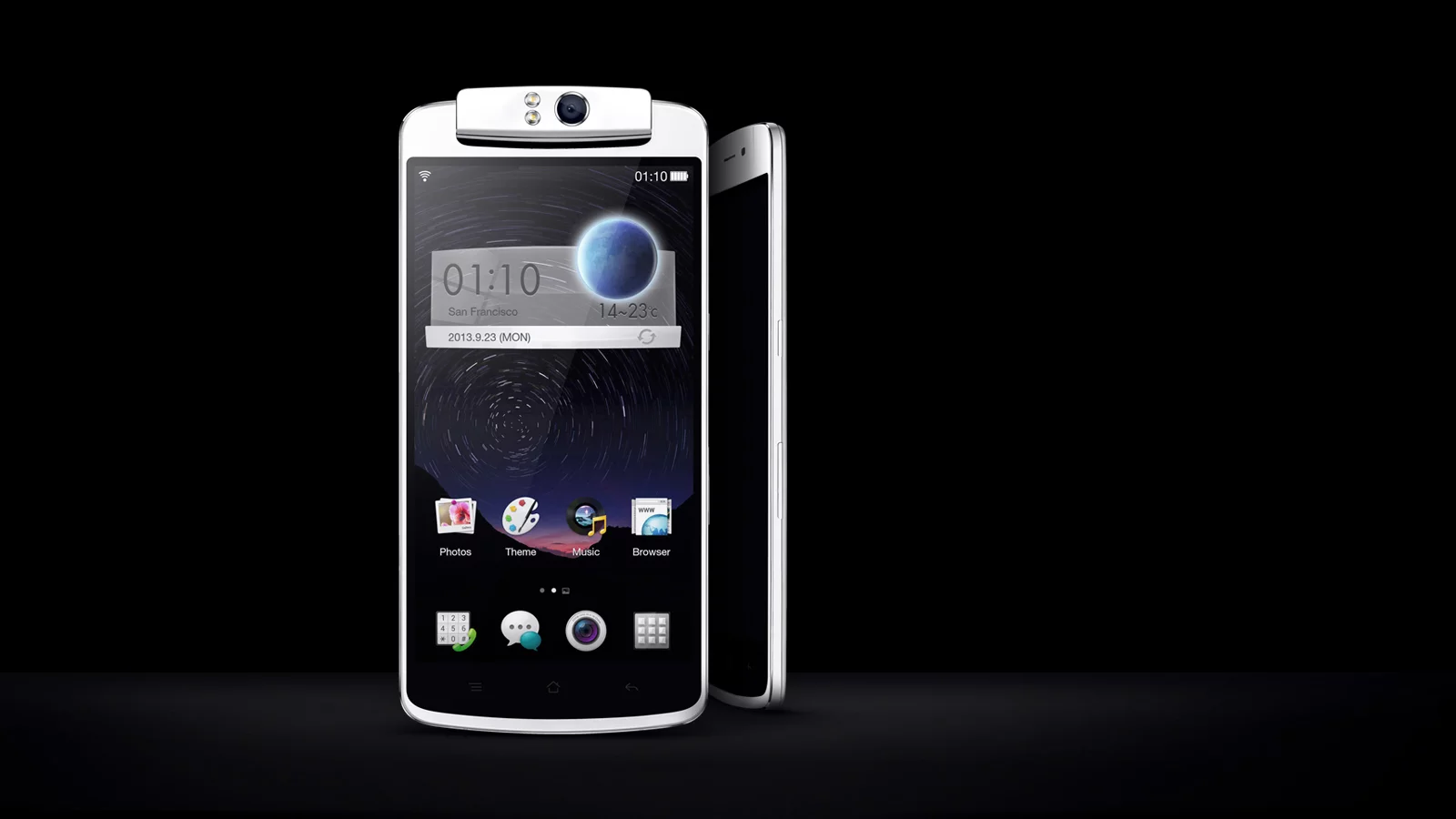

The 5.9 inch, Full HD IPS touchscreen display is topped with Gorilla Glass 2
9/13
The 5.9 inch, Full HD IPS touchscreen display is topped with Gorilla Glass 2
The Oppo N1, featuring a rotating camera module
10/13
The Oppo N1, featuring a rotating camera module

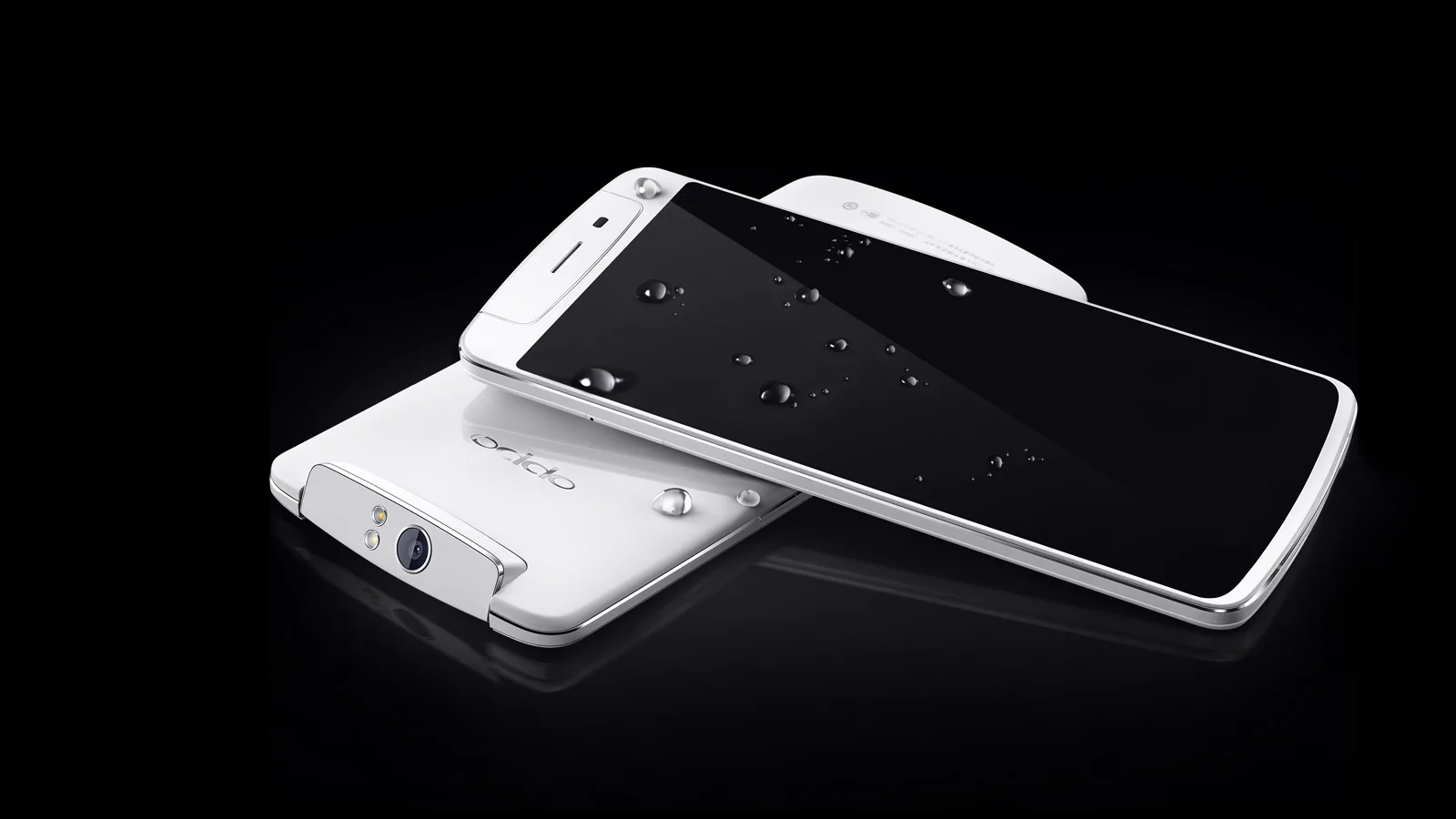

The N1's 13 MP camera module can be rotated 206 degrees
11/13
The N1's 13 MP camera module can be rotated 206 degrees

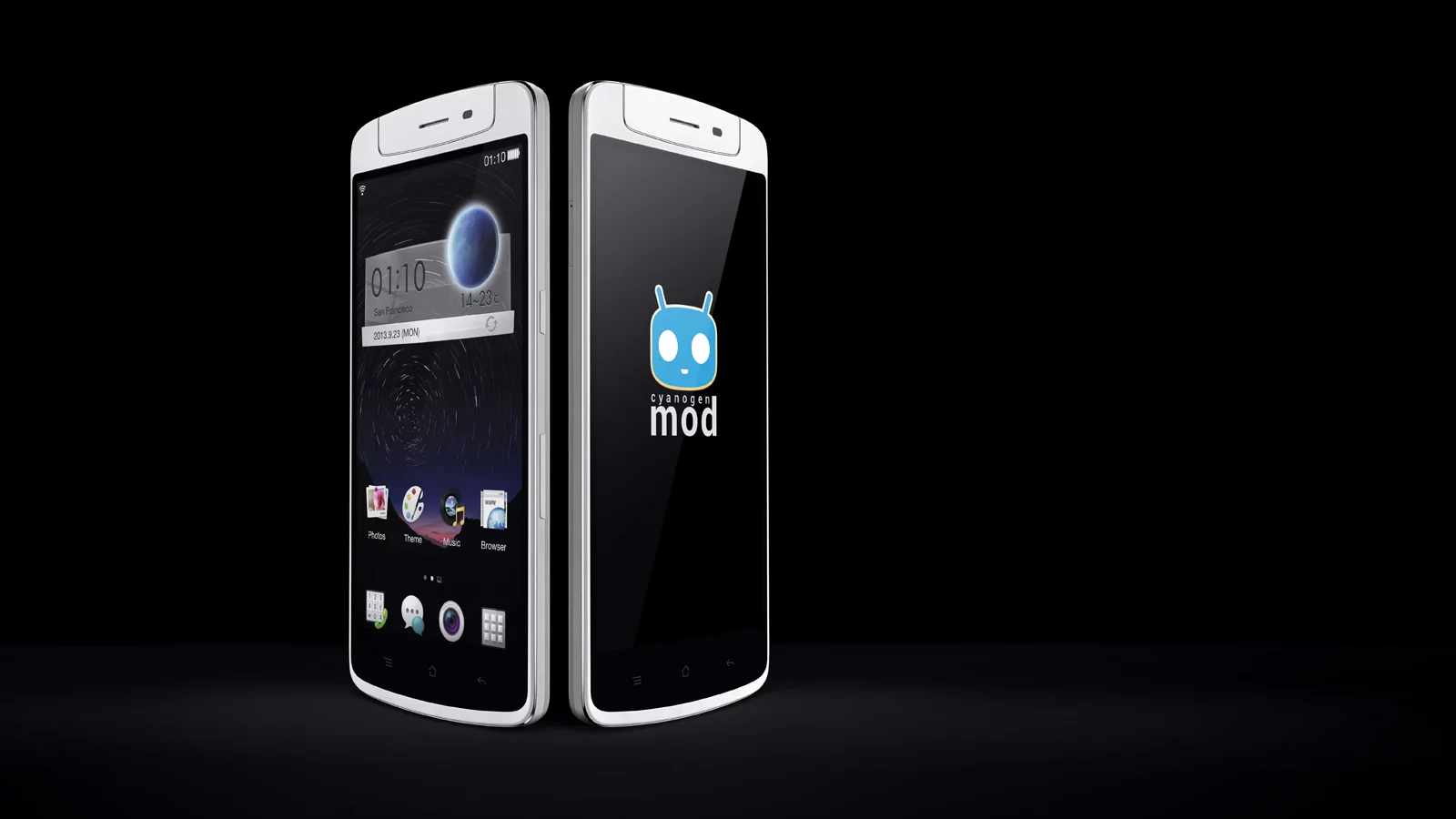

A limited CyanogenMod edition of the N1 has also been announced
12/13
A limited CyanogenMod edition of the N1 has also been announced
Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click
13/13
Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click

Many of today's smartphones sport very capable cameras, but unless you add funky lens attachments like the HiLO or a helpful device like the Spinpod, the recorded image is probably going to be either front or back. Chinese manufacturer Oppo revealed a new smartphone at a press conference in Beijing on Monday that kind of combines both ideas on the device itself. The N1 features a hinged camera module capable of rotating 206 degrees for front, back, top or angled photography.

The hinged camera module of the Oppo N1 smartphone has spent over a year on the design bench, and gone through 20 different versions. The production unit is constructed using 67 different components, 50 cables and over 10 modules. It features a 13 megapixel stacked CMOS sensor with a dedicated image signal processor, and a six element lens with an f/2.0 aperture. Users can also choose to keep the shutter open for as long as eight seconds for creative long exposure shots.

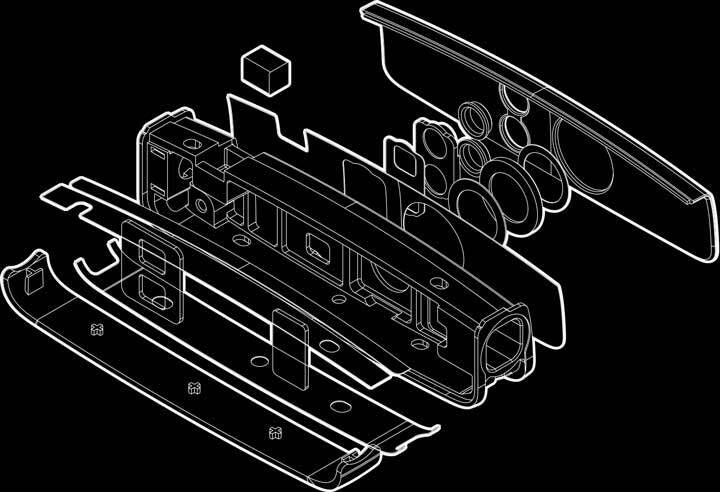

The rotating camera is constructed using 67 different components, 50 cables and over 10 modules
The rotating camera is constructed using 67 different components, 50 cables and over 10 modules

The integrated flash has two modes of operation. When pointing to the back of the smartphone, the LED flash works pretty much like any other, but it becomes a light-diffusing flash for front-facing snaps, with brightness that can be adjusted by the user through the N1's camera software. The company says that the camera can be woken up from sleep in 0.6 seconds by rotating the camera module by 120 degrees.

The first of the company's new N-Lens range boasts a 5.9-inch, 1920 x 1080 resolution IPS capacitive touchscreen display with a pixel density of 377 ppi. Oppo has also made it easier for users to keep the Gorilla Glass 2-topped HD display clear of icon-blocking fingers and thumbs by including a 12 sq cm (2 sq in) touch surface called the O-Touch Panel on the back of the phone, for slide and tap menu navigation and command confirmation.

Beating away inside an aluminum alloy frame covered by a "ceramic-like" plastic material designed to help keep greasy finger marks at bay is a 1.7 GHz Snapdragon 600 quad-core processor. The supporting players include an Adreno 320 graphics engine, 2 GB of RAM, and either 16 or 32 GB of solid state storage (though, unusually, there doesn't appear to be a microSD slot).

Elsewhere, the 170.7 x 82.6 x 9 mm (6.72 x 3.25 x 0.35 in), 213 g (7.5 oz) N1 has been given a 3,610 mAh battery, and features 802.11ac Wi-Fi, Bluetooth 4.0, GPS, and USB OTG.

The smartphone comes pre-installed with an Android 4.2-based operating platform named Color, which boasts over 400 unique features and enhancements over stock Android. Users of international versions of the N1 will be able to choose popular aftermarket Android firmware distribution CyanogenMod rather than Color by flashing the phone. The company also intends to release a limited CyanogenMod edition of the N1.

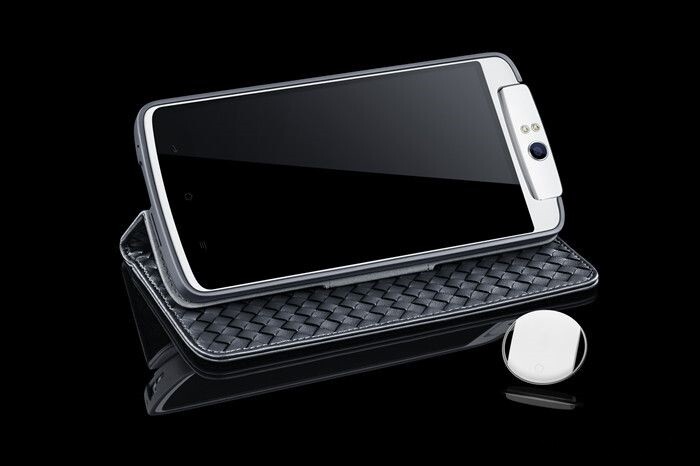

Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click
Users can operate the camera remotely, or set off an alarm that makes a misplaced phone easier to find, with the help of the O-Click

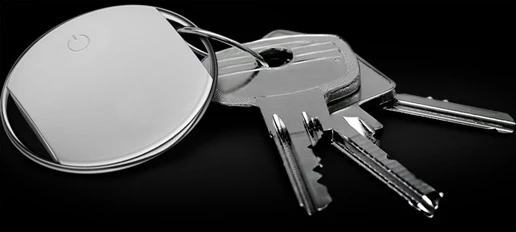

A keychain-friendly O-Click remote caters for off-device operation and control, for things like remote camera operation or announcing incoming calls. It connects wirelessly to the smartphone via Bluetooth, and can even set off an alarm sound on the phone to help you find a misplaced N1.

The Oppo N1 is set for international availability in December, and will come supplied with in-ear phones, micro-USB cable and SIM ejector tool. Pricing for Chinese consumers has been set at 3,498 CNY (about US$570).

Have a look at the short demonstration video below.
