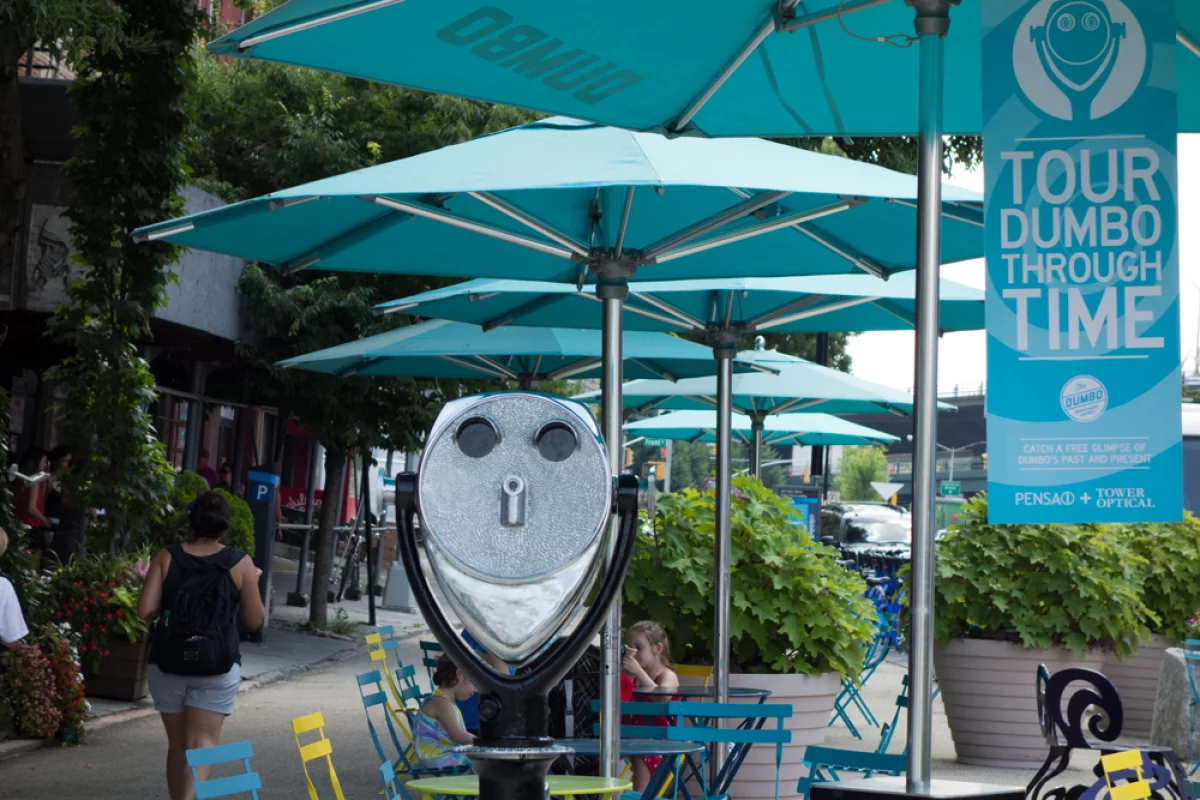

The Tower Optical Digital Viewer on the DUMBO waterfront
The Tower Optical Digital Viewer on the DUMBO waterfront
View 15 Images

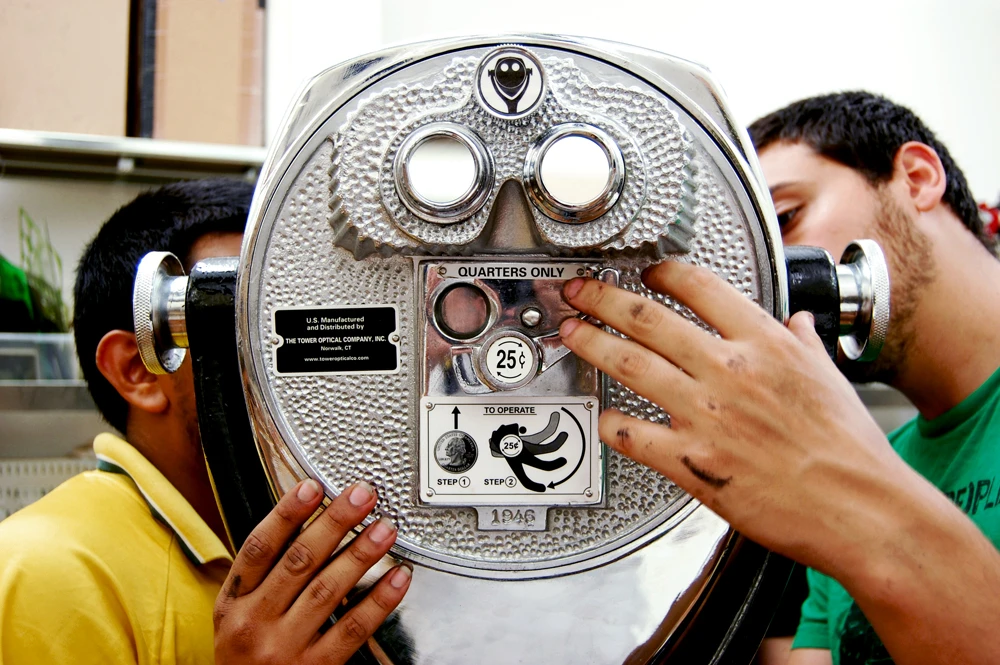

Work begins on the digital conversion of the Tower Optical Viewer
1/15
Work begins on the digital conversion of the Tower Optical Viewer

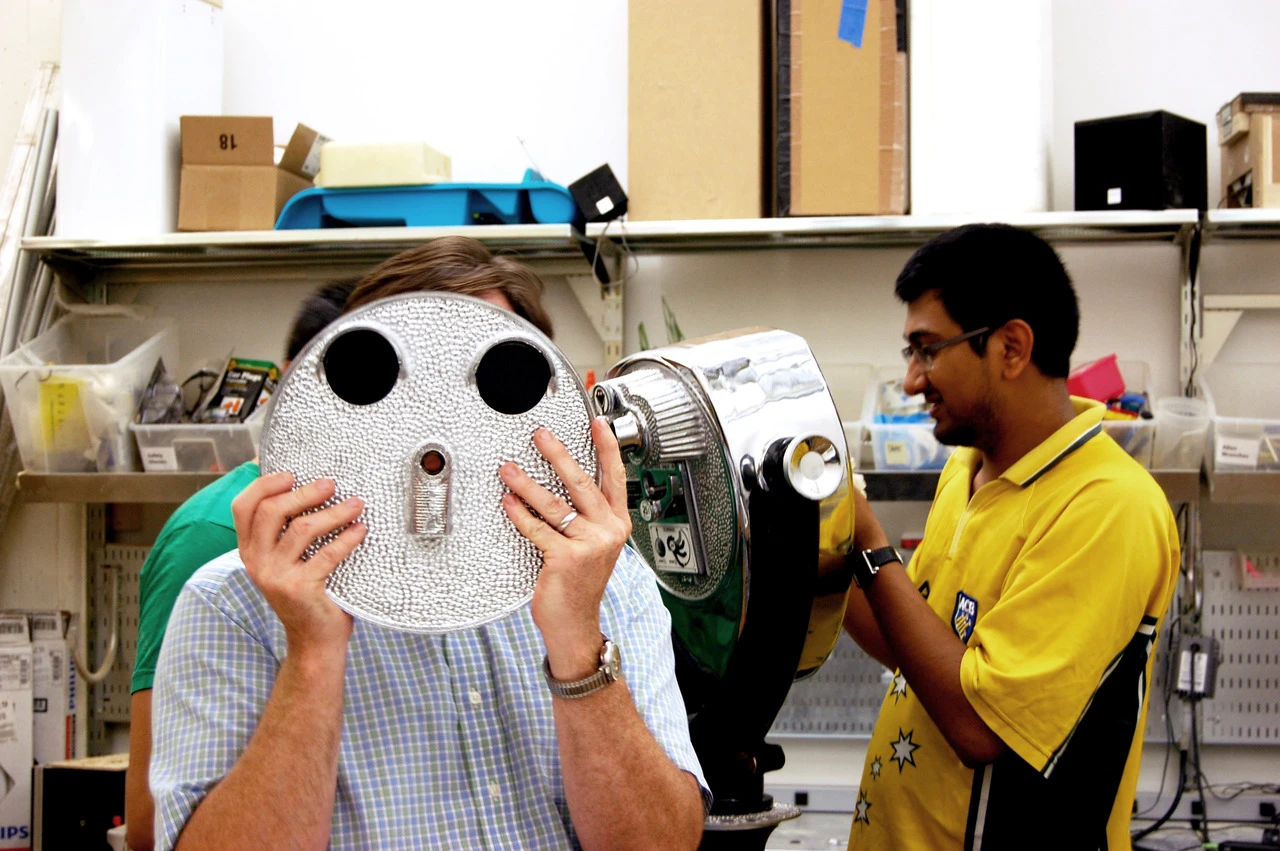

The Pensa team modifying a Tower Optical Viewer
2/15
The Pensa team modifying a Tower Optical Viewer

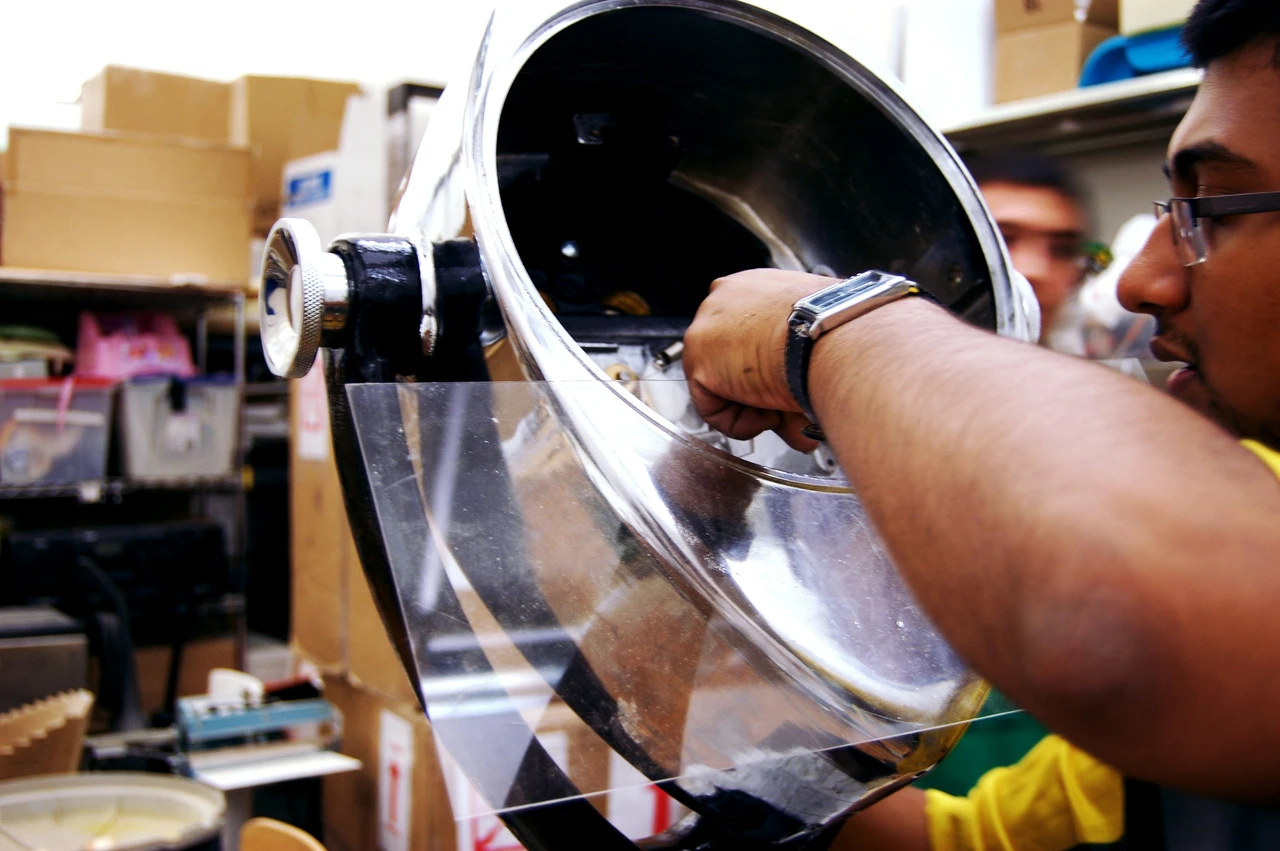

The original optics and mechanisms were removed to make room for the electronics
3/15
The original optics and mechanisms were removed to make room for the electronics

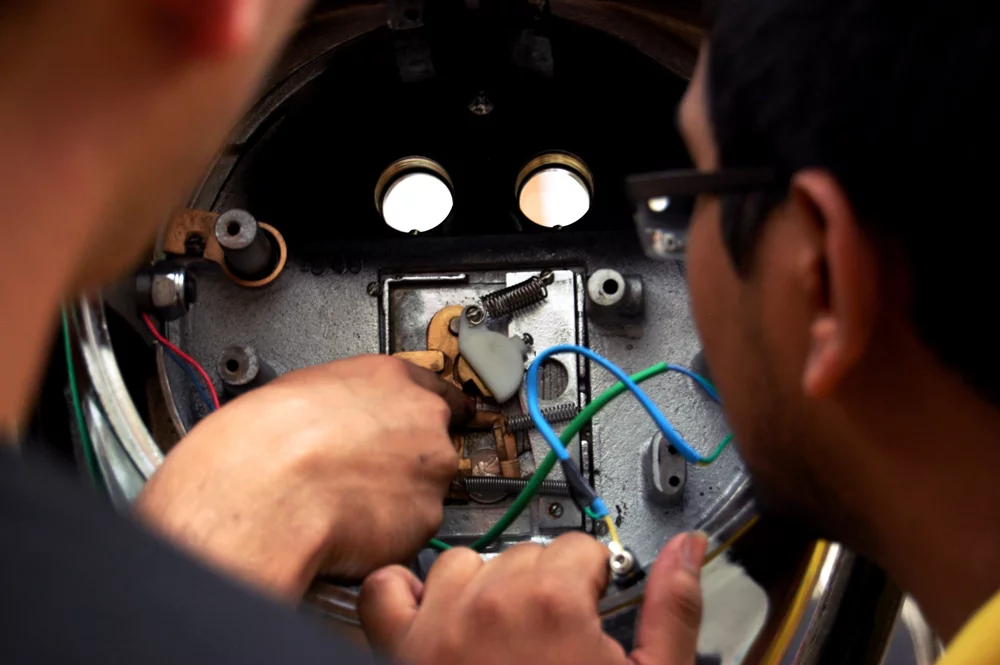

Installing the digital content system
4/15
Installing the digital content system

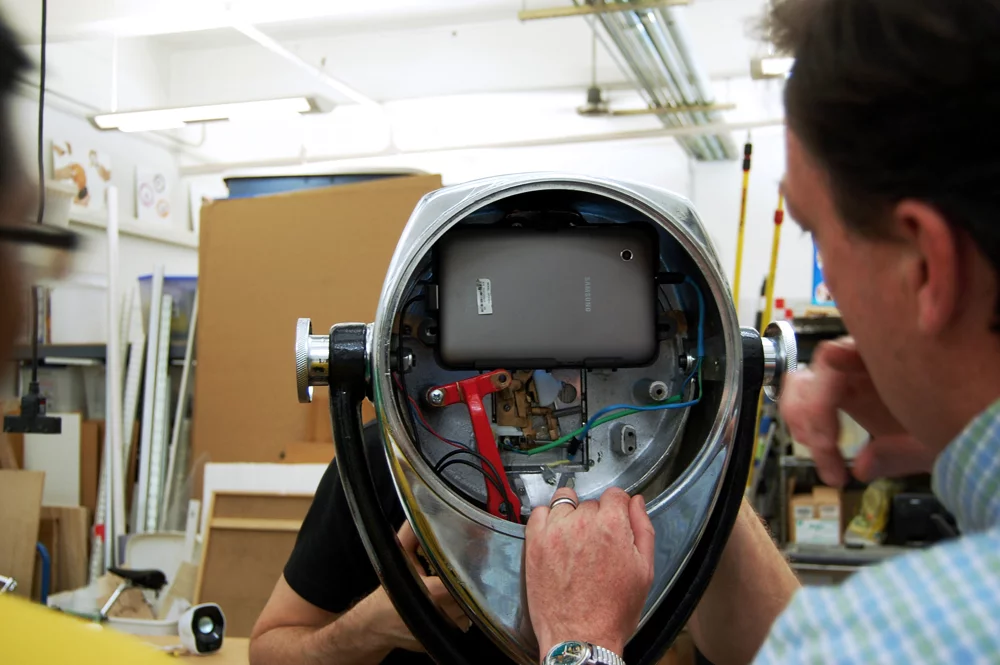

Almost ready to offer users enhanced digital content
5/15
Almost ready to offer users enhanced digital content

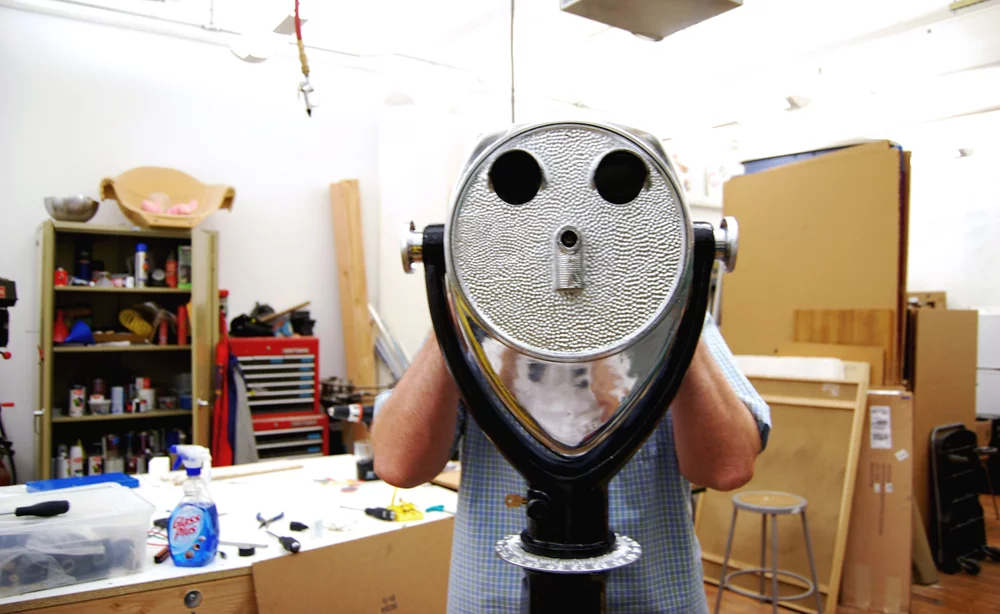

Instead of viewing clifftop or seafront scenery, users of the new Digital Viewer are offered enhanced digital content, such as videos, interactive images and even games
6/15
Instead of viewing clifftop or seafront scenery, users of the new Digital Viewer are offered enhanced digital content, such as videos, interactive images and even games

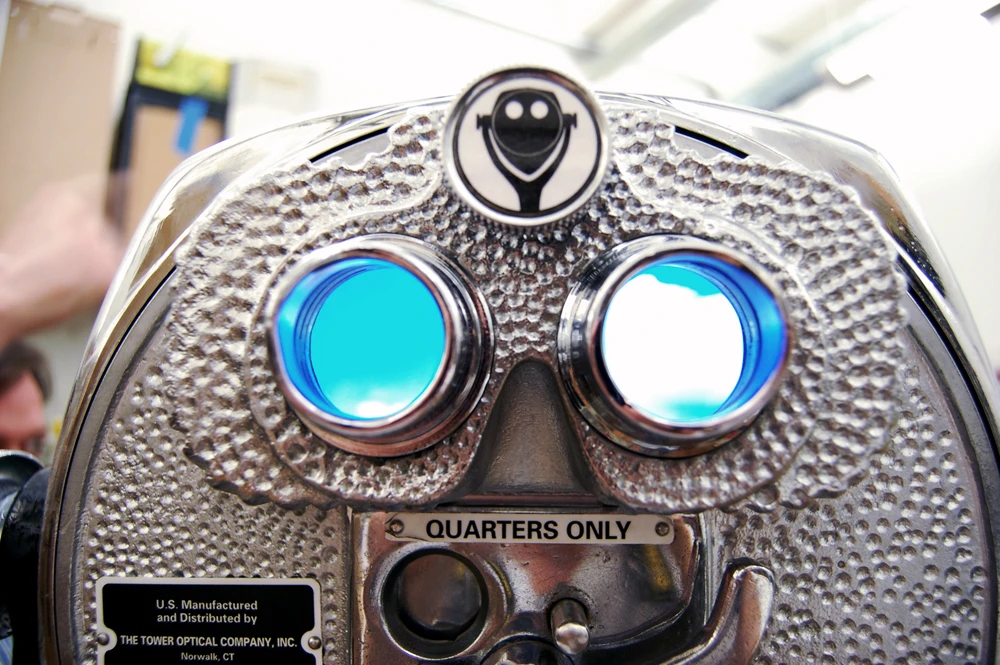

The chrome plated bronze housing sits atop a cast iron base, and can be rotated 360° on the horizontal axis, and tilted up by 45° and down by 22°
7/15
The chrome plated bronze housing sits atop a cast iron base, and can be rotated 360° on the horizontal axis, and tilted up by 45° and down by 22°

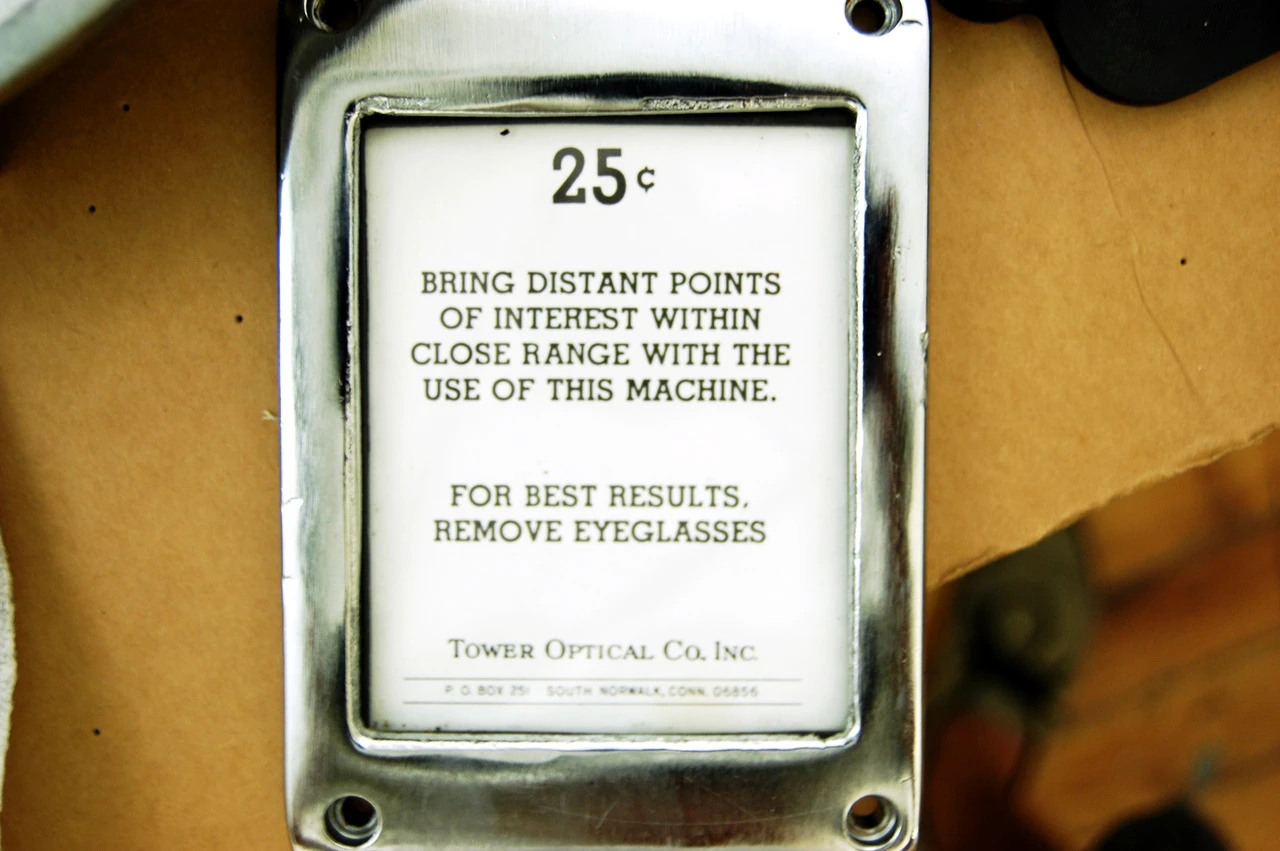

There's a slot underneath the eye pieces for receiving 25 or 50 cent coins, and a lever next door feeds the beast to offer the user a few minutes of viewing pleasure before everything blacks out
8/15
There's a slot underneath the eye pieces for receiving 25 or 50 cent coins, and a lever next door feeds the beast to offer the user a few minutes of viewing pleasure before everything blacks out

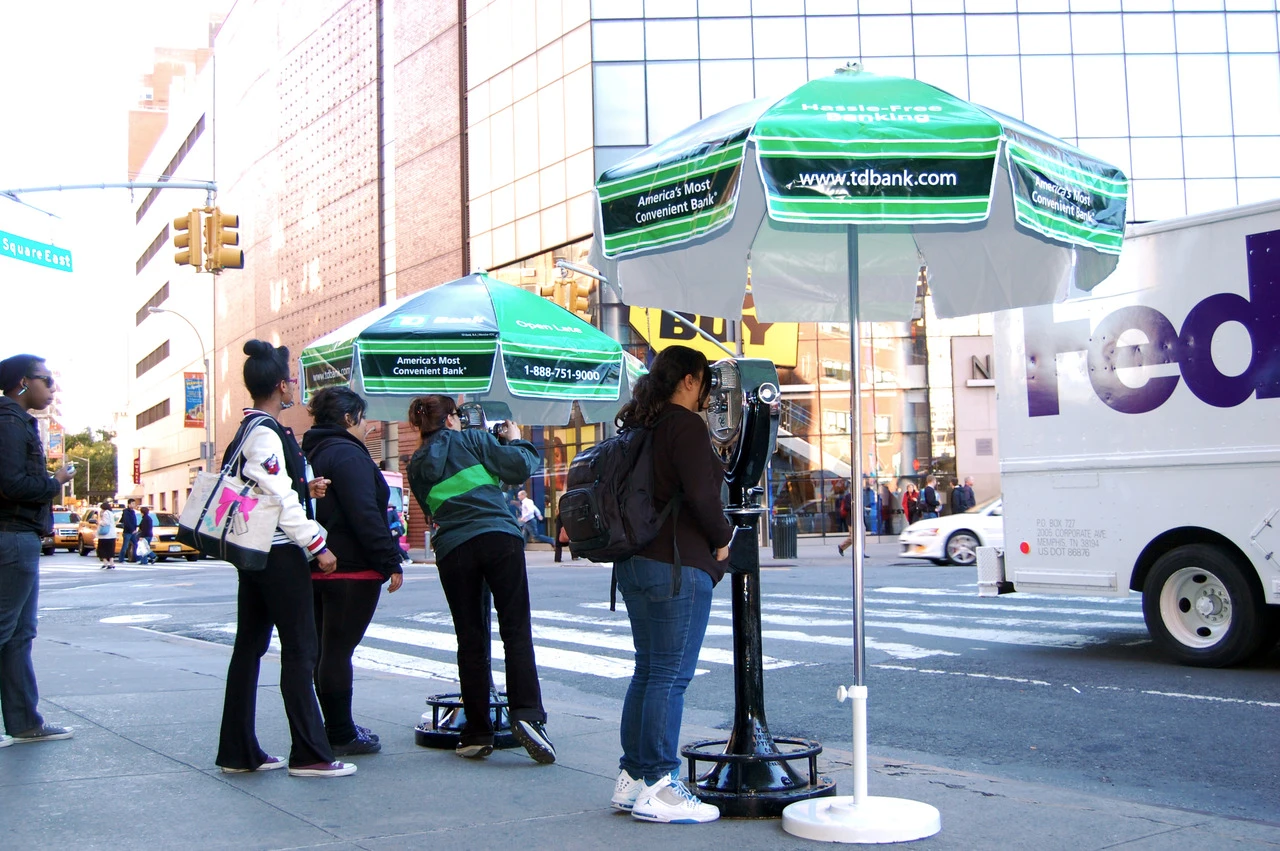

The TD Bank in New York installed the Digital Viewers in Union Street late last year
9/15
The TD Bank in New York installed the Digital Viewers in Union Street late last year

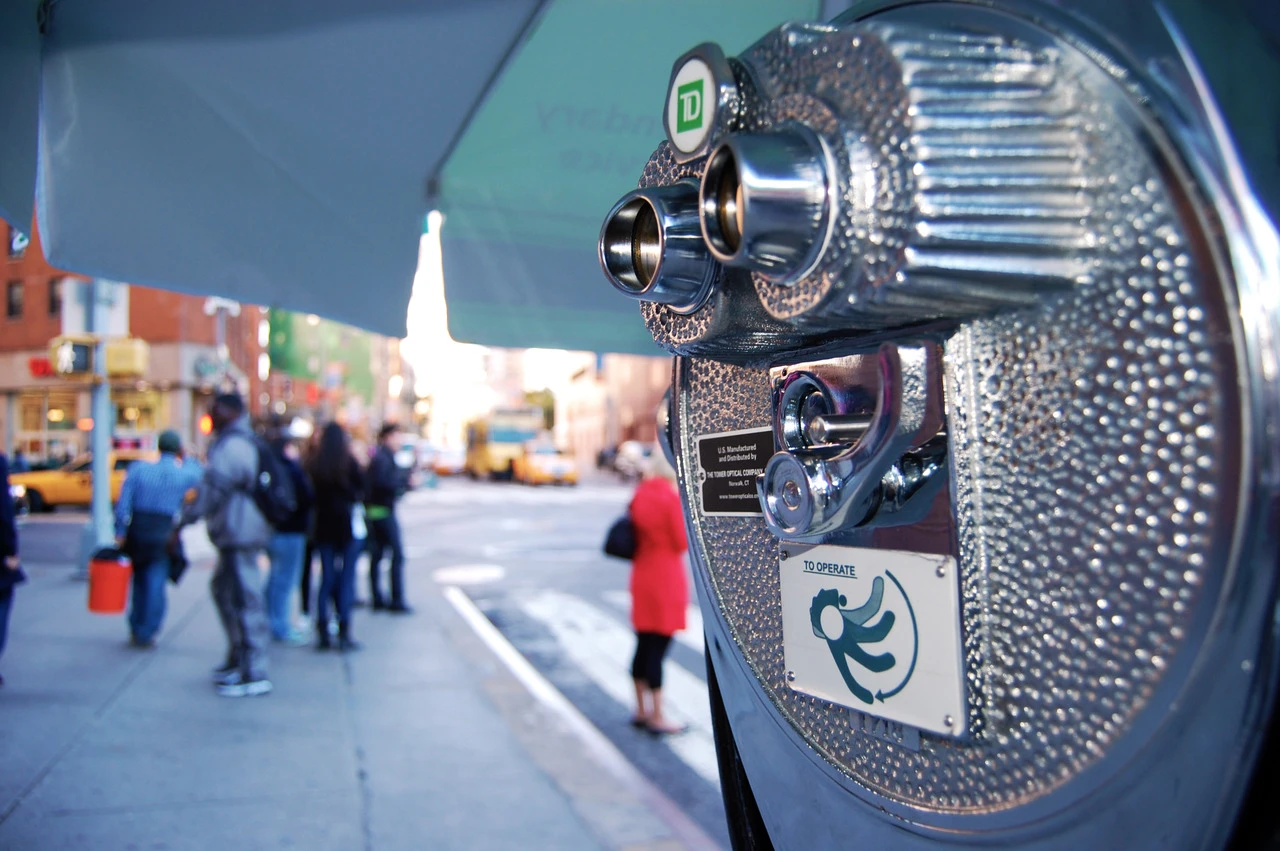

TD Bank created some special content for visitors to Union Street in New York
10/15
TD Bank created some special content for visitors to Union Street in New York

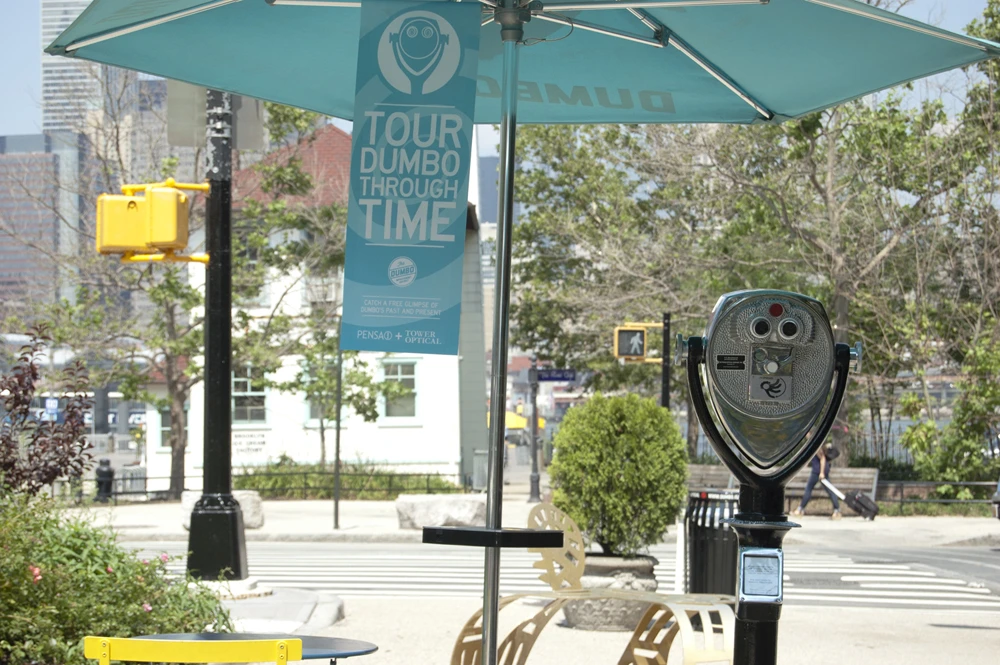

The latest version of the Digital Viewer has been set up on Old Fulton Street and Water Street in the DUMBO are of Brooklyn
11/15
The latest version of the Digital Viewer has been set up on Old Fulton Street and Water Street in the DUMBO are of Brooklyn

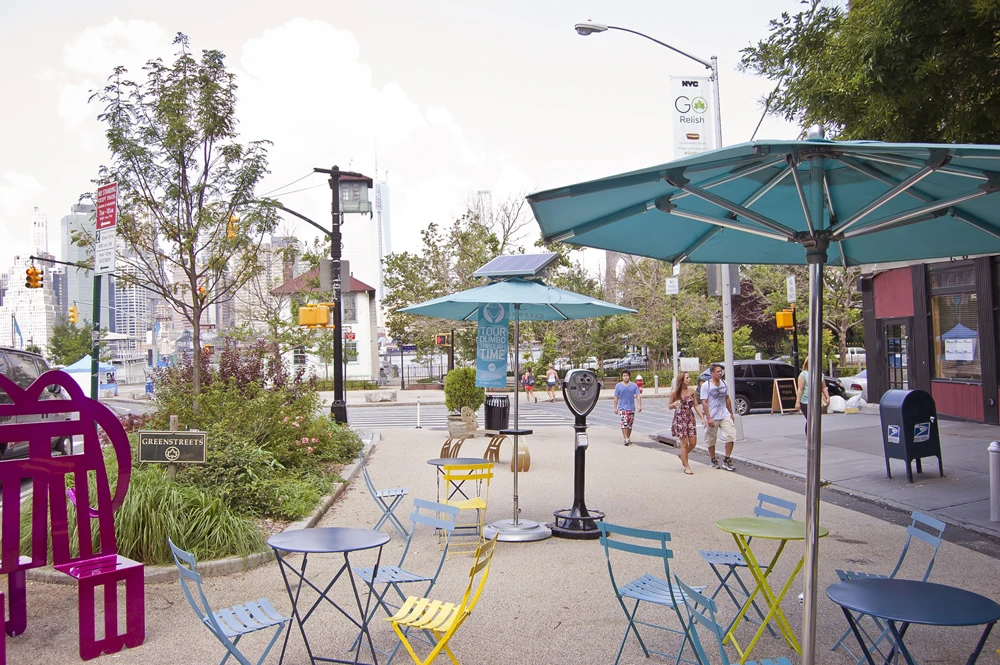

This version of the Digital Viewer gets its power needs from a cafe umbrella standing nearby
12/15
This version of the Digital Viewer gets its power needs from a cafe umbrella standing nearby

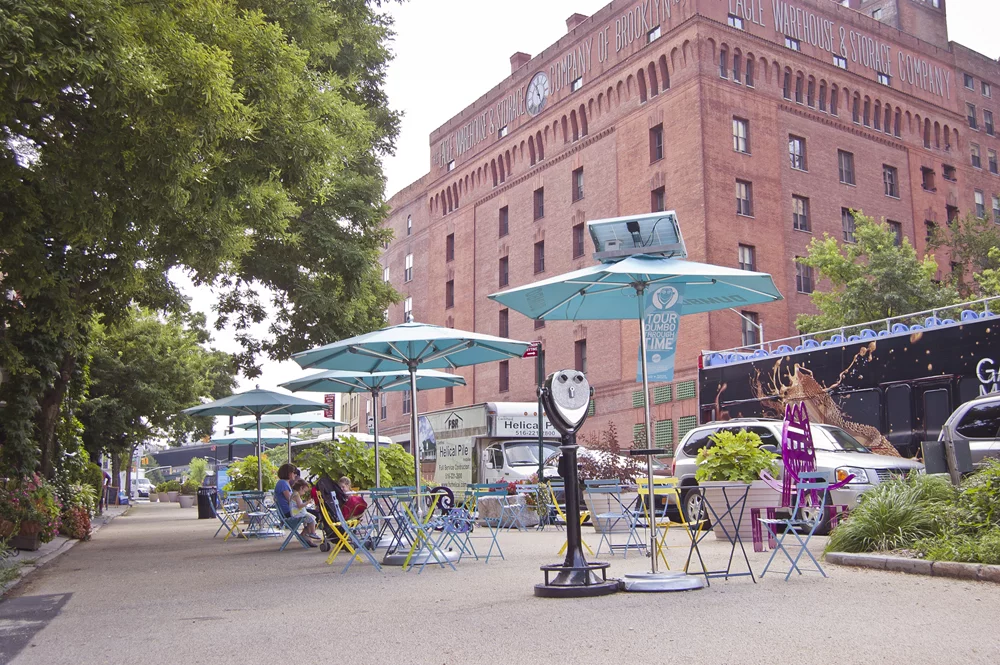

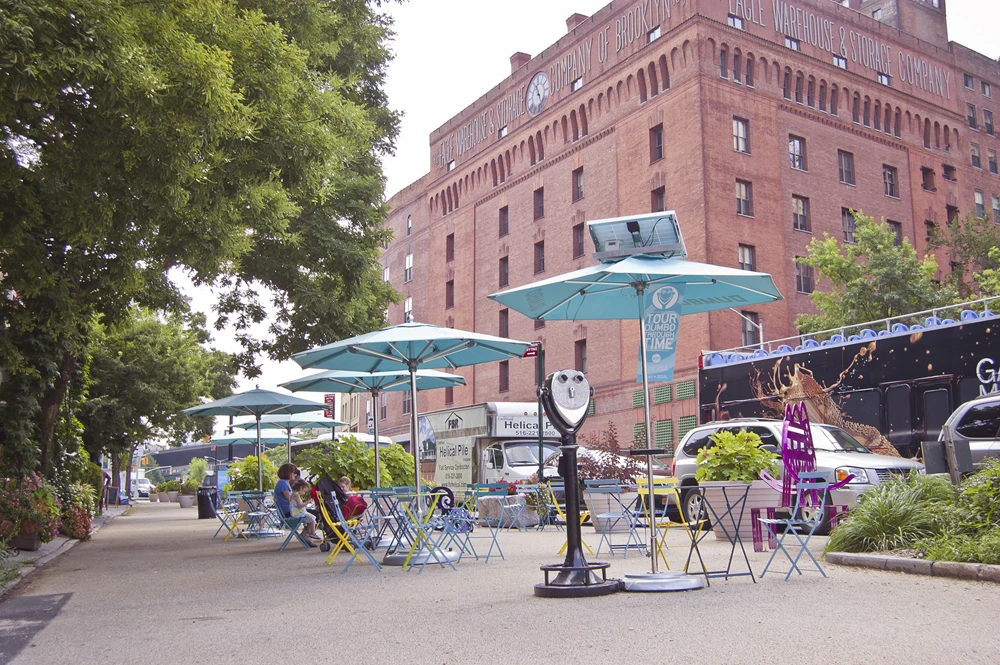

The cafe umbrella has its own battery pack that's charged via PV panels up top
13/15
The cafe umbrella has its own battery pack that's charged via PV panels up top

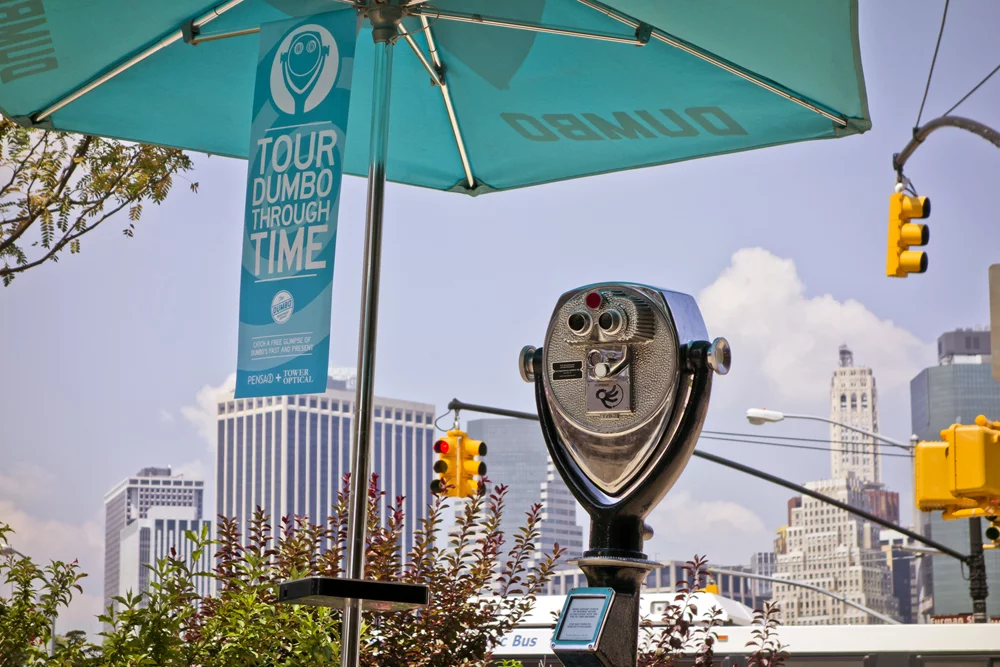

Visitors to DUMBO can look through the eye pieces to embark on a virtual journey through its recent history
14/15
Visitors to DUMBO can look through the eye pieces to embark on a virtual journey through its recent history
The Tower Optical Digital Viewer on the DUMBO waterfront
15/15
The Tower Optical Digital Viewer on the DUMBO waterfront

If you've exchanged a small coin for the chance to briefly gaze at stunning views throughout the US and Canada, there's a good chance that you've used a Tower Optical Viewer to do so. Design consultancy Pensa has ripped out the internals of this iconic tourist spot mainstay and brought it into the digital age. Thanks to the inclusion of special video and image content, visitors to a New York neighborhood are now being given the opportunity to travel through time and learn about DUMBO's past and present.

Tower Optical has been manufacturing its iconic binocular viewers for over 80 years now. The chrome plated bronze housing sits atop a cast iron base, and can be rotated 360° on the horizontal axis, and tilted up by 45° and down by 22°. There's a slot underneath the eye pieces for receiving 25 cent coins, and a lever next door feeds the beast to offer the user a few minutes of viewing pleasure before everything blacks out.

Late last year, the Pensa design consultancy partnered with the family-owned business to modify the internals of a pair of its classic viewers to create the Tower Optical Digital Viewer. Instead of viewing clifftop or seafront scenery, users who push down the original coin lever and look through the eye pieces are offered enhanced digital content, such as videos, interactive images and even games.

The units can also be programmed with augmented reality content, like the modified telescope at the Messel Pit in Germany. TD Bank in New York subsequently loaded up some special content and plonked the units in Union Square.

Pensa has now made some reliability improvements and given the Viewer a bit of a video and slideshow refresh. It's been installed on Old Fulton Street and Water Street in the DUMBO (District Under the Manhattan Bridge Overpass) area of Brooklyn, and allows users to embark on a virtual journey through the neighborhood's recent history.

This version of the Digital Viewer gets its power needs from a cafe umbrella standing nearby, which has its own battery pack that's charged via PV panels up top.

Have a look at the short project overview below.

Source: Pensa
