Dragon Runner 10 joins QinetiQ’s micro unmanned robot family

Dragon Runner 10 joins QinetiQ...
QinetiQ's DR10 is intended for military and first responder duties
QinetiQ's DR10 is intended for military and first responder duties
View 10 Images

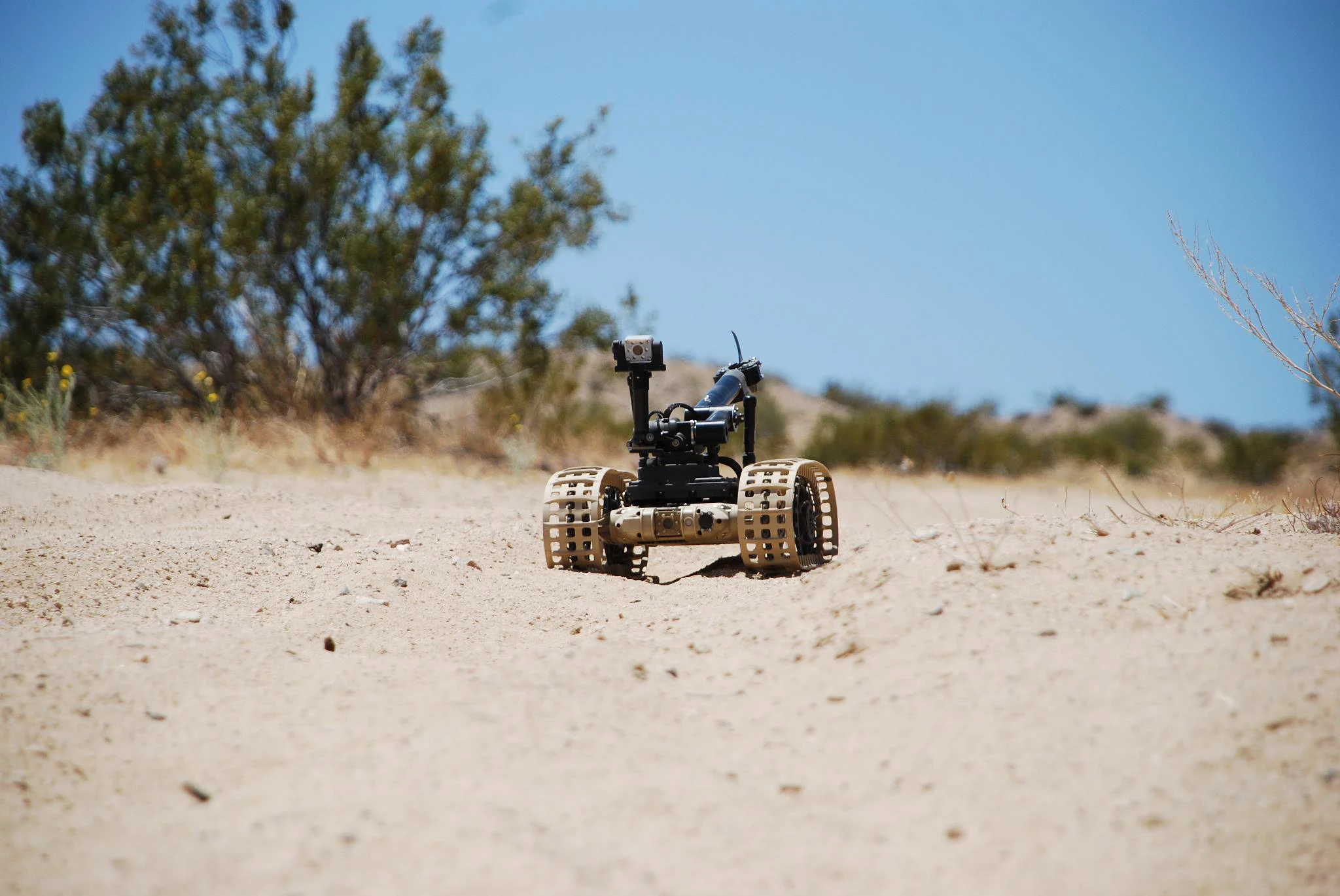

The Dragon Runner 10 can be fitted with tracks or wheels dependent on terrain
1/10
The Dragon Runner 10 can be fitted with tracks or wheels dependent on terrain

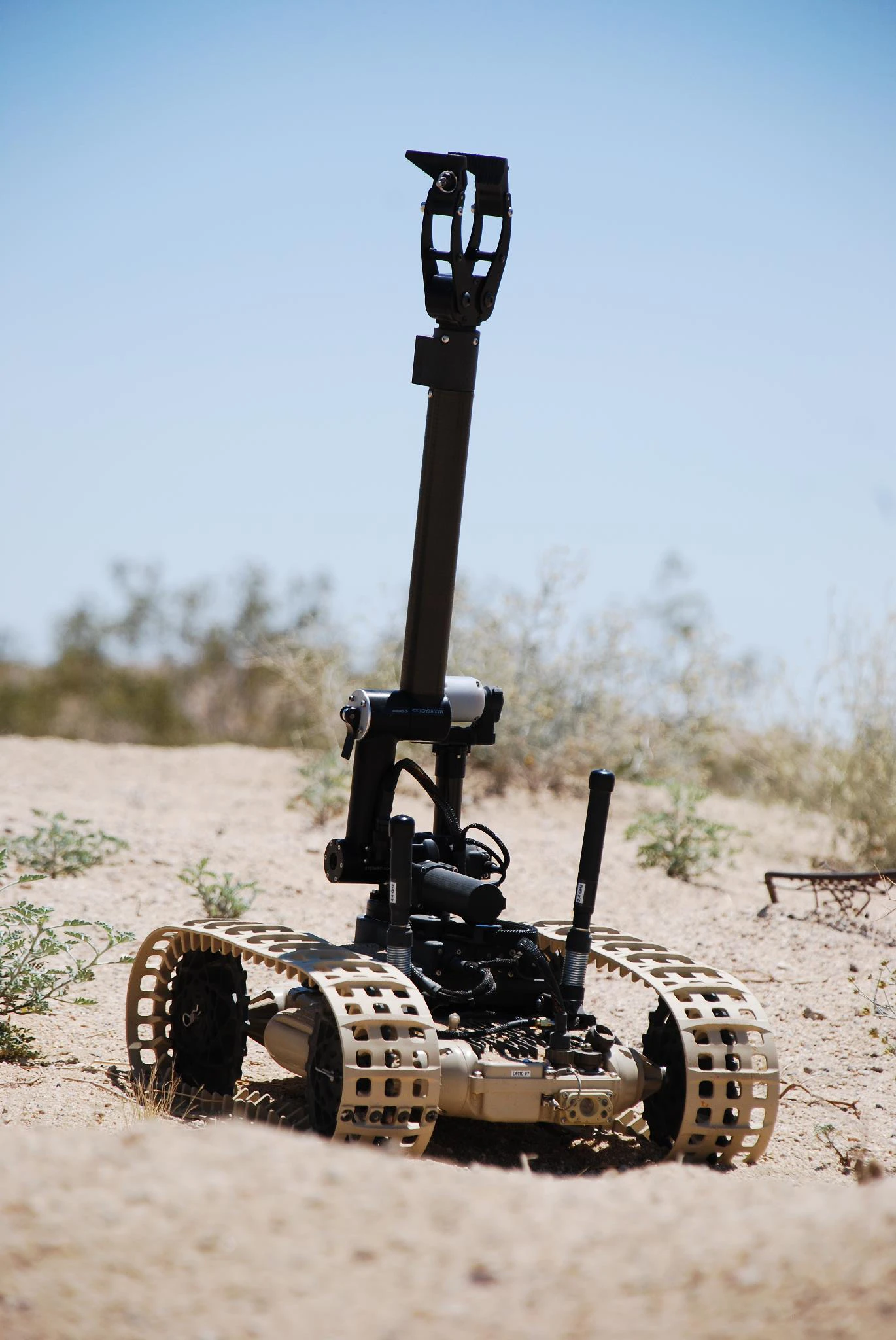

The DR10 can be fitted with a robotic arm
2/10
The DR10 can be fitted with a robotic arm

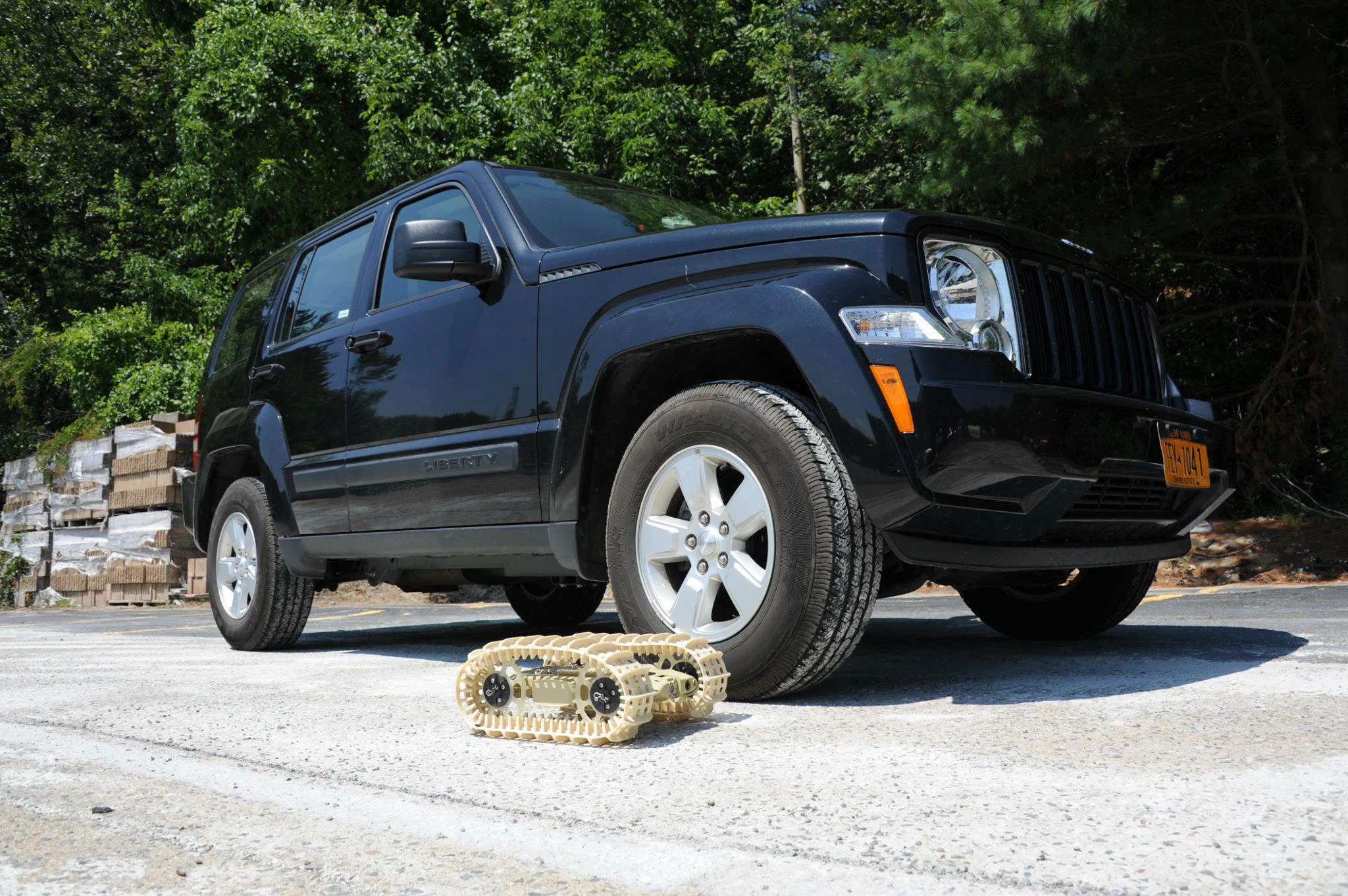

The DR10 is small and light enough to be carried in a backpack
3/10
The DR10 is small and light enough to be carried in a backpack

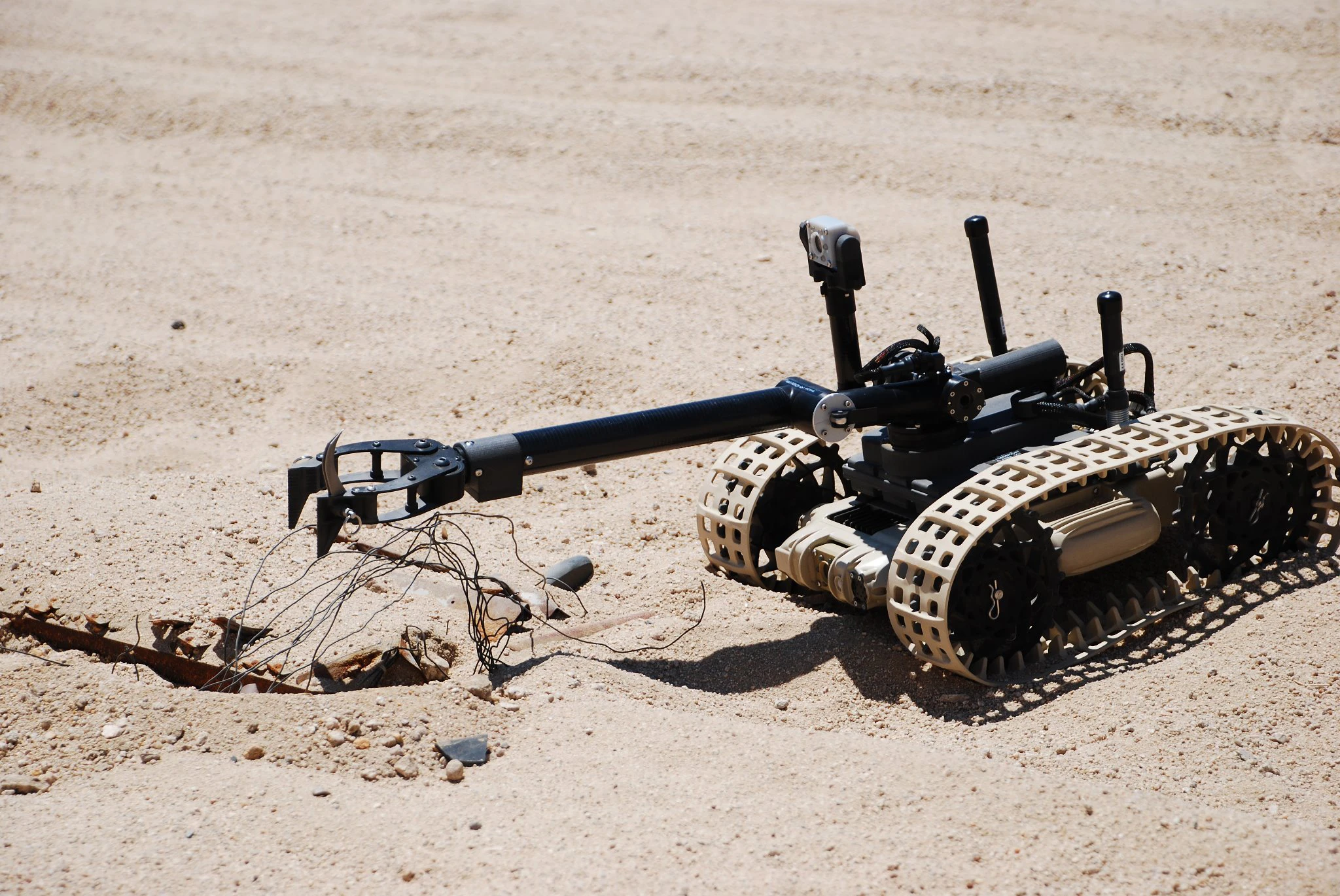

The DR10 can be used to remotely set counter-IED charges
4/10
The DR10 can be used to remotely set counter-IED charges

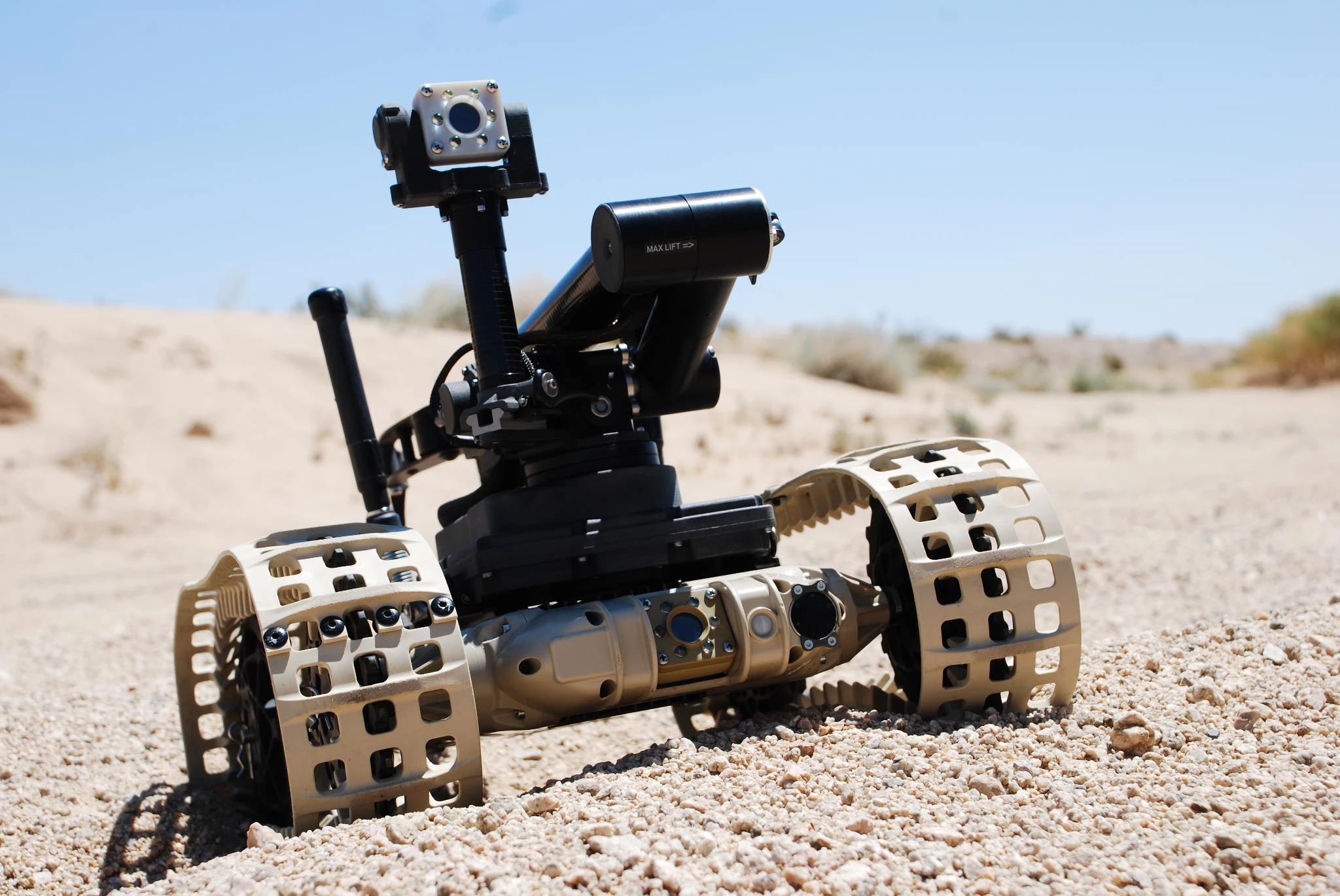

QinetiQ's DR10 is intended for military and first responder duties
5/10
QinetiQ's DR10 is intended for military and first responder duties

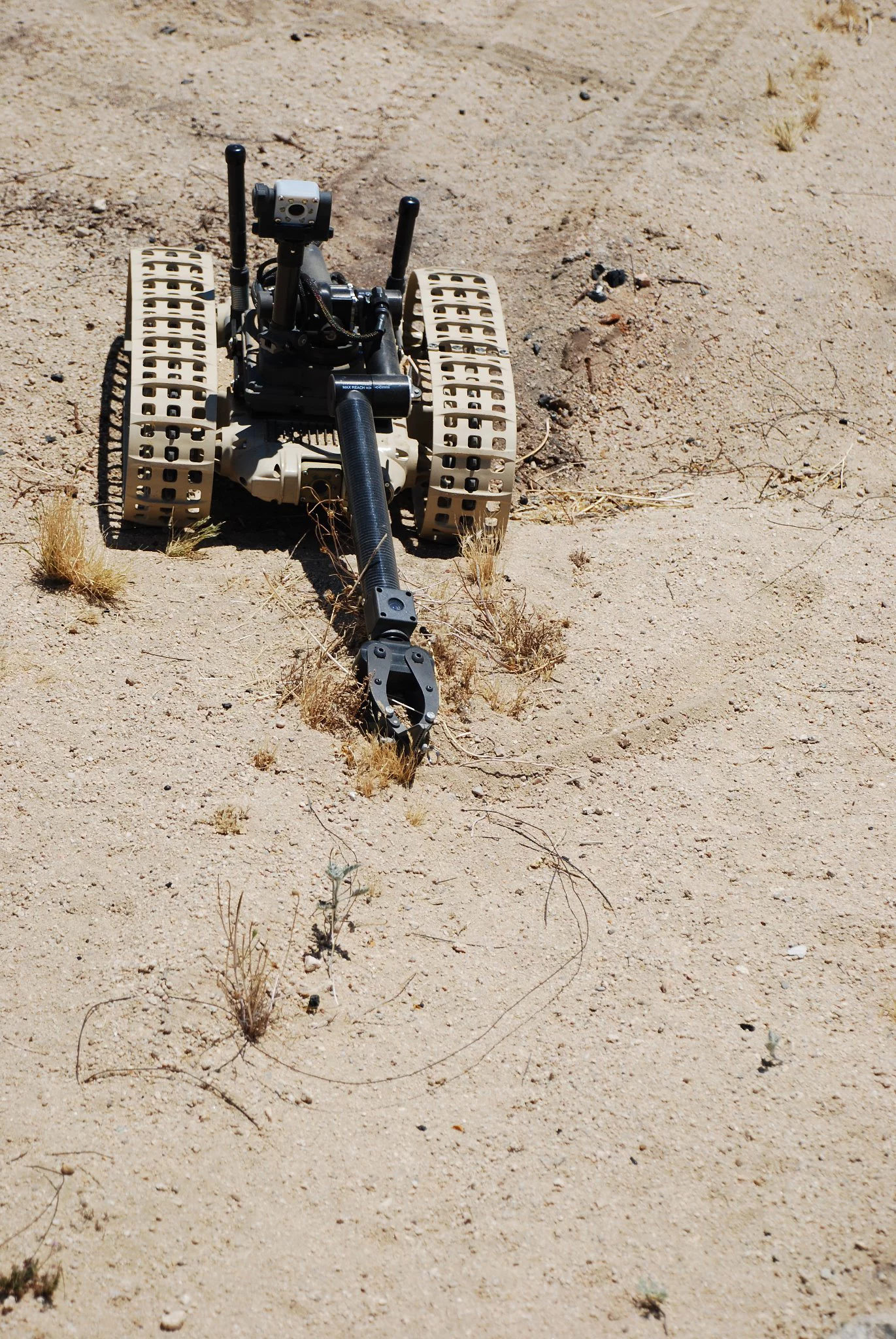

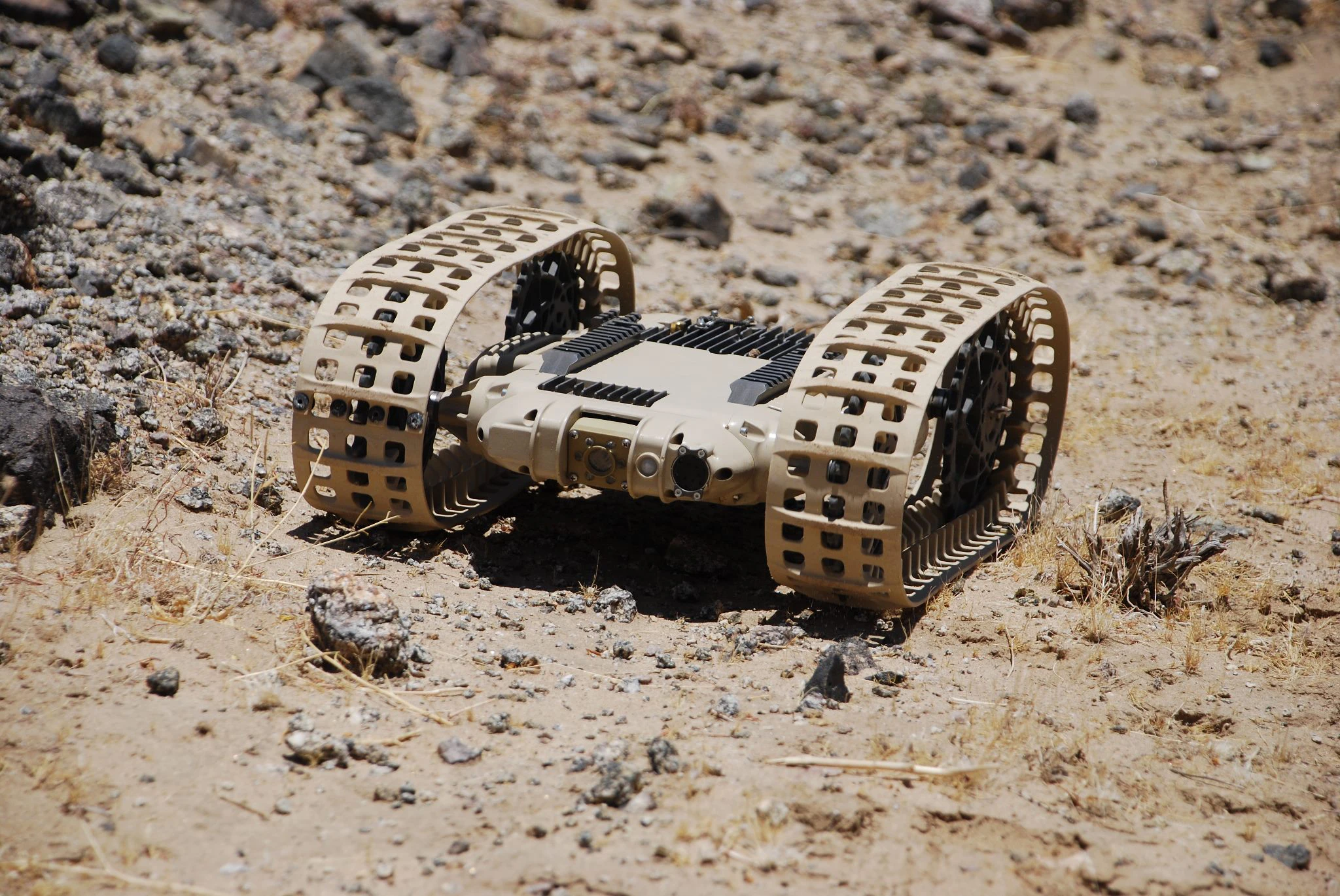

QinetiQ's new DR10 MUGV
6/10
QinetiQ's new DR10 MUGV
QinetiQ's new DR10 MUGV
7/10
QinetiQ's new DR10 MUGV

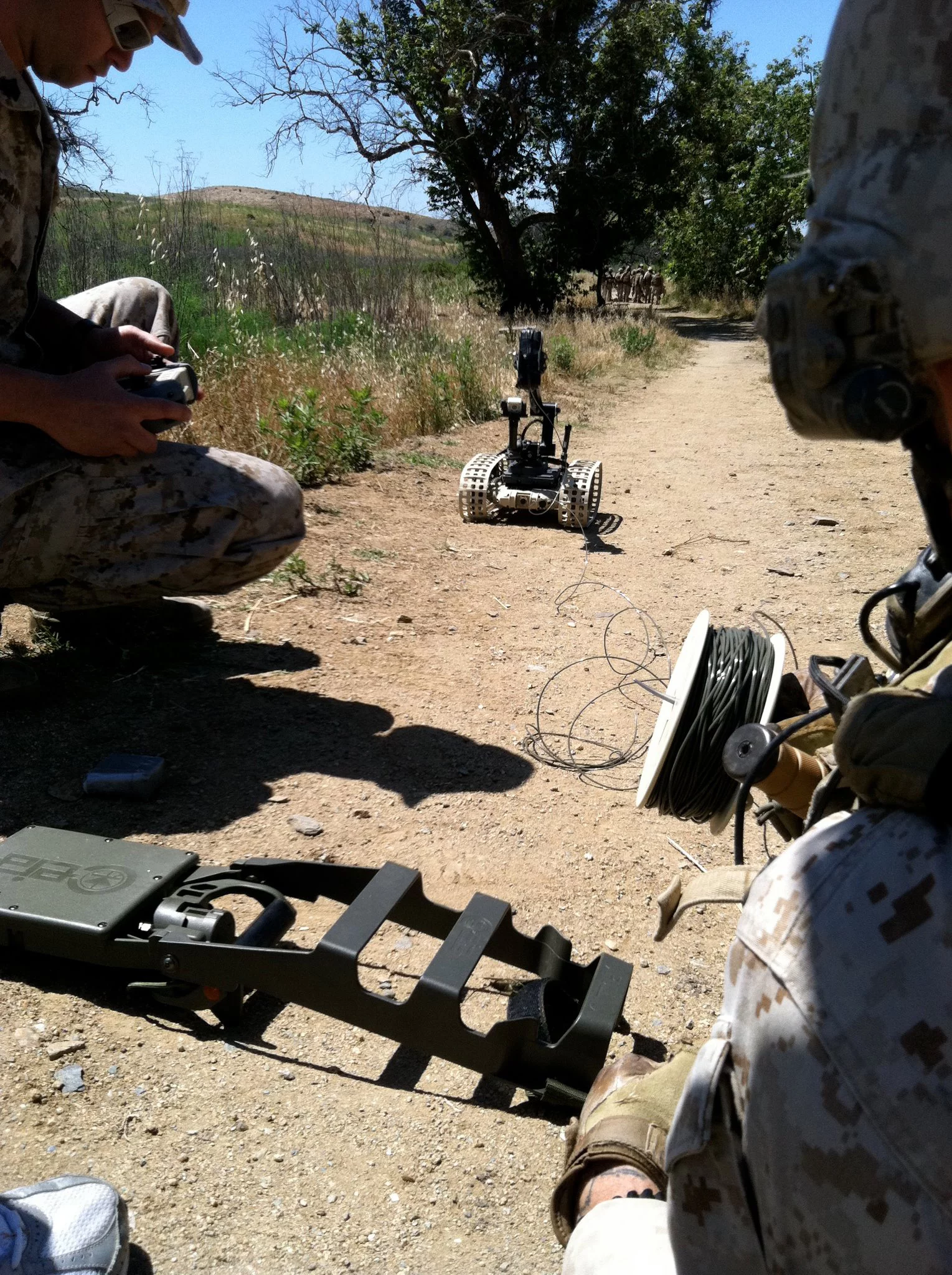

QinetiQ's new DR10 can support small military units and patrols
8/10
QinetiQ's new DR10 can support small military units and patrols
QinetiQ's new DR10 MUGV
9/10
QinetiQ's new DR10 MUGV
QinetiQ's new DR10 MUGV
10/10
QinetiQ's new DR10 MUGV

QinetiQ North America has unveiled its latest Micro Unmanned Ground Vehicle (MUGV) based on its Dragon Runner platform. The new Dragon Runner 10 (DR10) is built around the basic Dragon Runner design and is intended for military and first responder duties. At just 15 inches (38 cm) long, 13.5 inches (34 cm) wide and 5.8 inches (15 cm) tall, and weighing just under 10 pounds (4.5 kg), the DR10 is small and light enough to be carried in a standard-issue pack and be thrown into buildings and hostile environments for reconnaissance and surveillance missions.

With the ability to carry payloads of up to five pounds (2.3 kg), the DR10 is compatible with DR20 payloads and can be fitted with a variety of sensors, radios, cameras and a robotic arm. Its day and night sensors allow it serve as a team's forward eyes and ears, while also delivering remote sensors, setting counter-IED charges, gathering intelligence and conducting surveillance. It is controlled by a wearable controller at distances of up to 2,130 feet (650 m) and can be fitted with tracks or wheels dependent on the terrain to be covered.

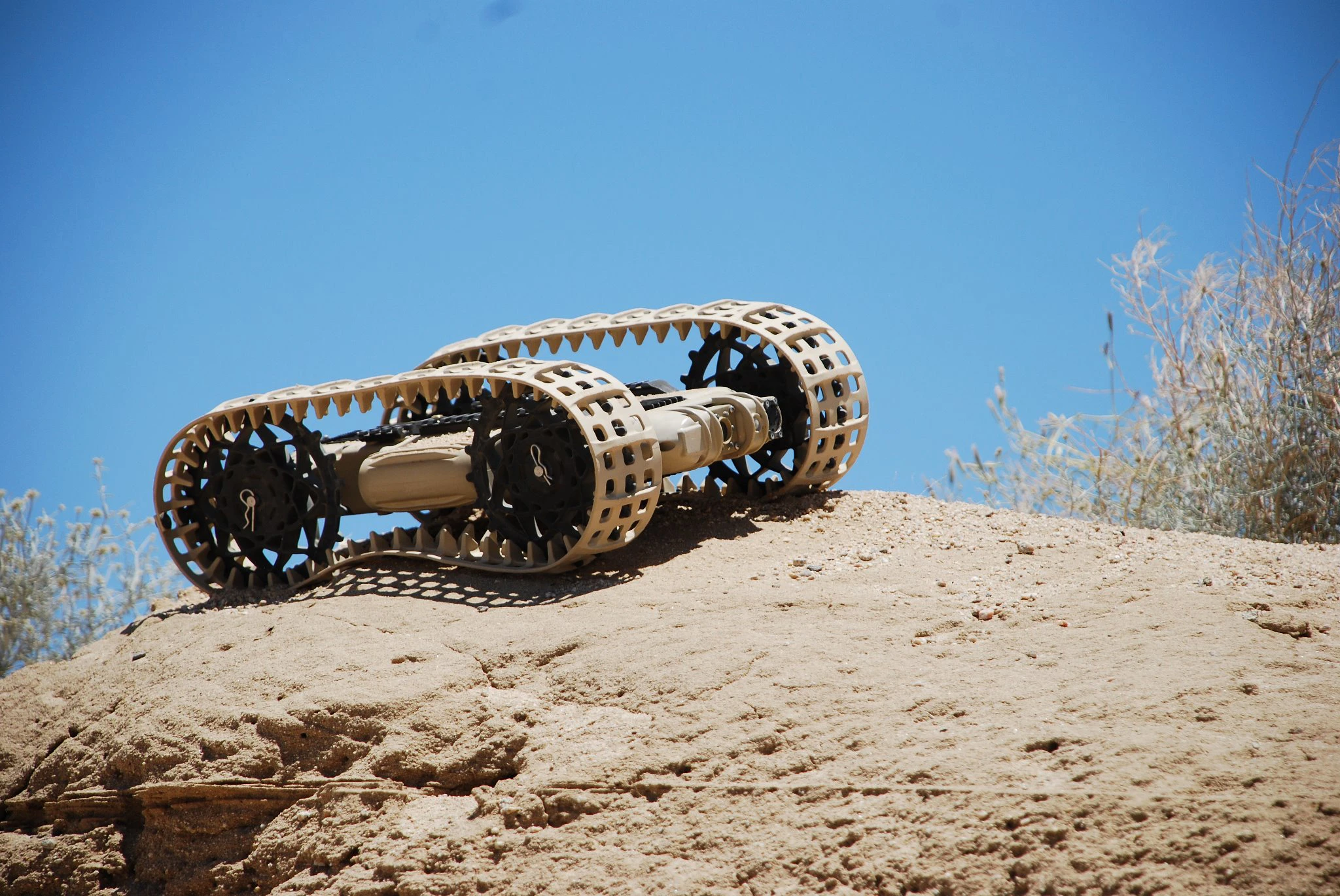

QinetiQ's new DR10 MUGV

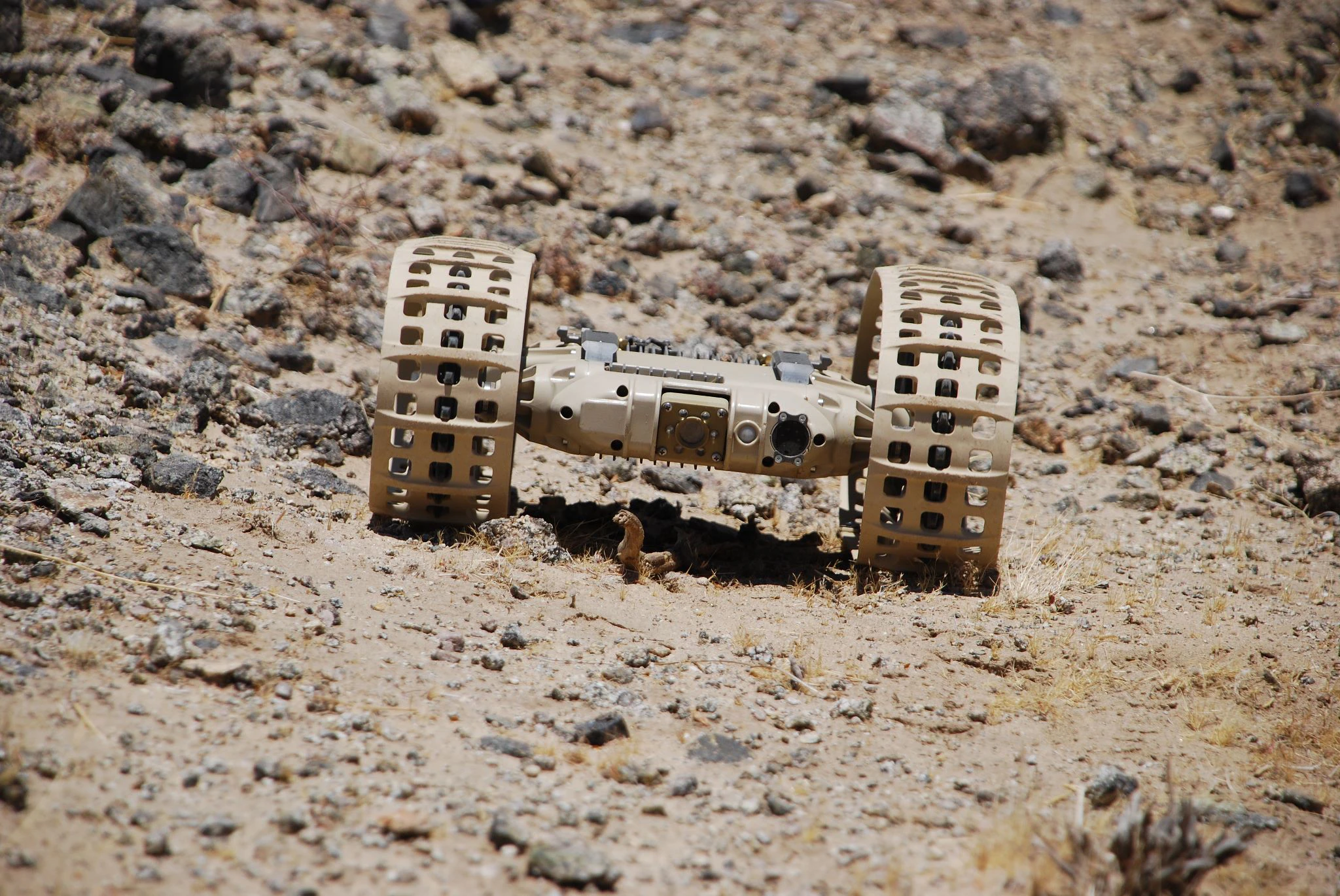

QinetiQ's new DR10 MUGV

When thrown, the DR10 has the ability to automatically flip video images, antennae and controls upon landing and it will travel at speeds of 4 mph (6.4 km/h) on slopes of up to 45°. Its standard battery will provide up to two hours of power, which can be supplemented by an external battery pack to provide over six hours of operation and a quick in-service recharge capability.

QinetiQ says the DR10 is suited for supporting small military units and patrols, as well as assisting first responder teams.
