The R2B2 pedal-powered kitchen appliance concept

The R2B2 pedal-powered kitchen...

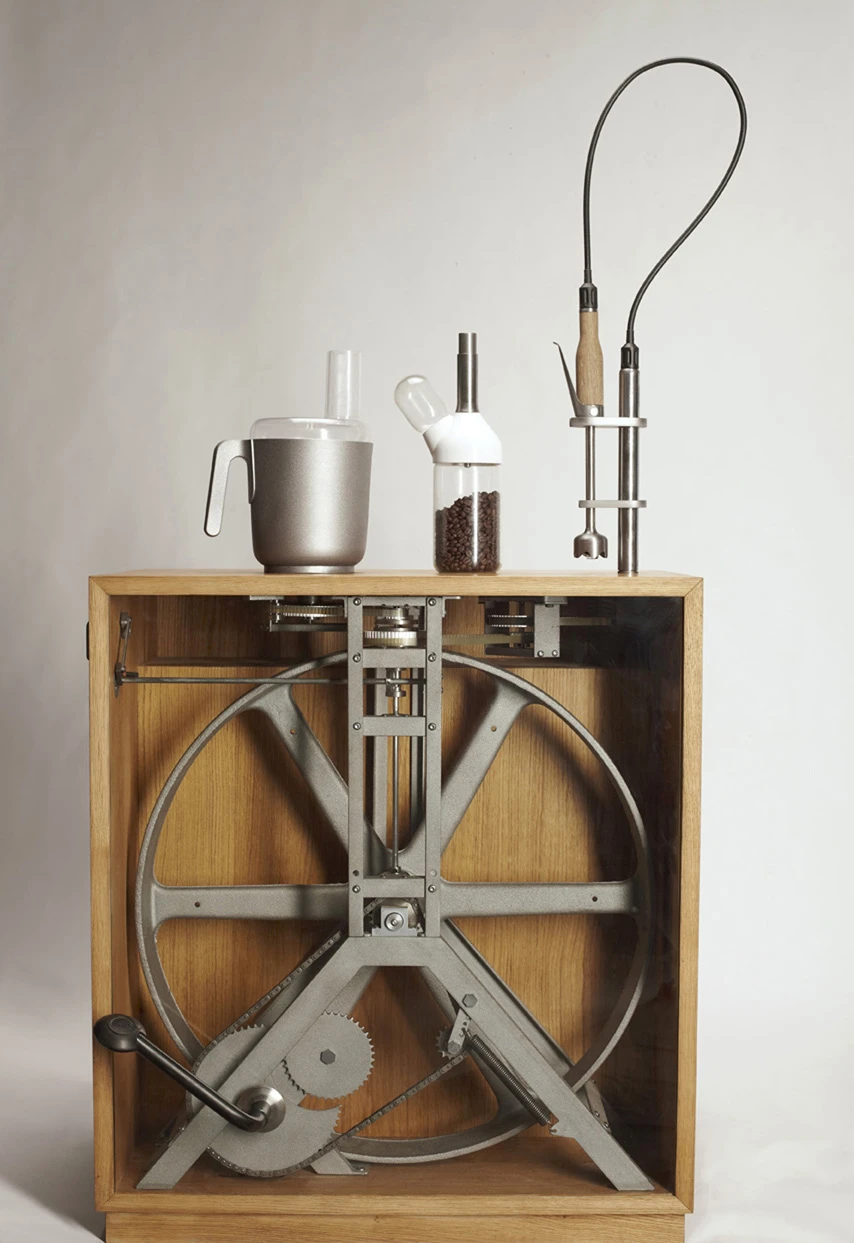

Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances
View 22 Images

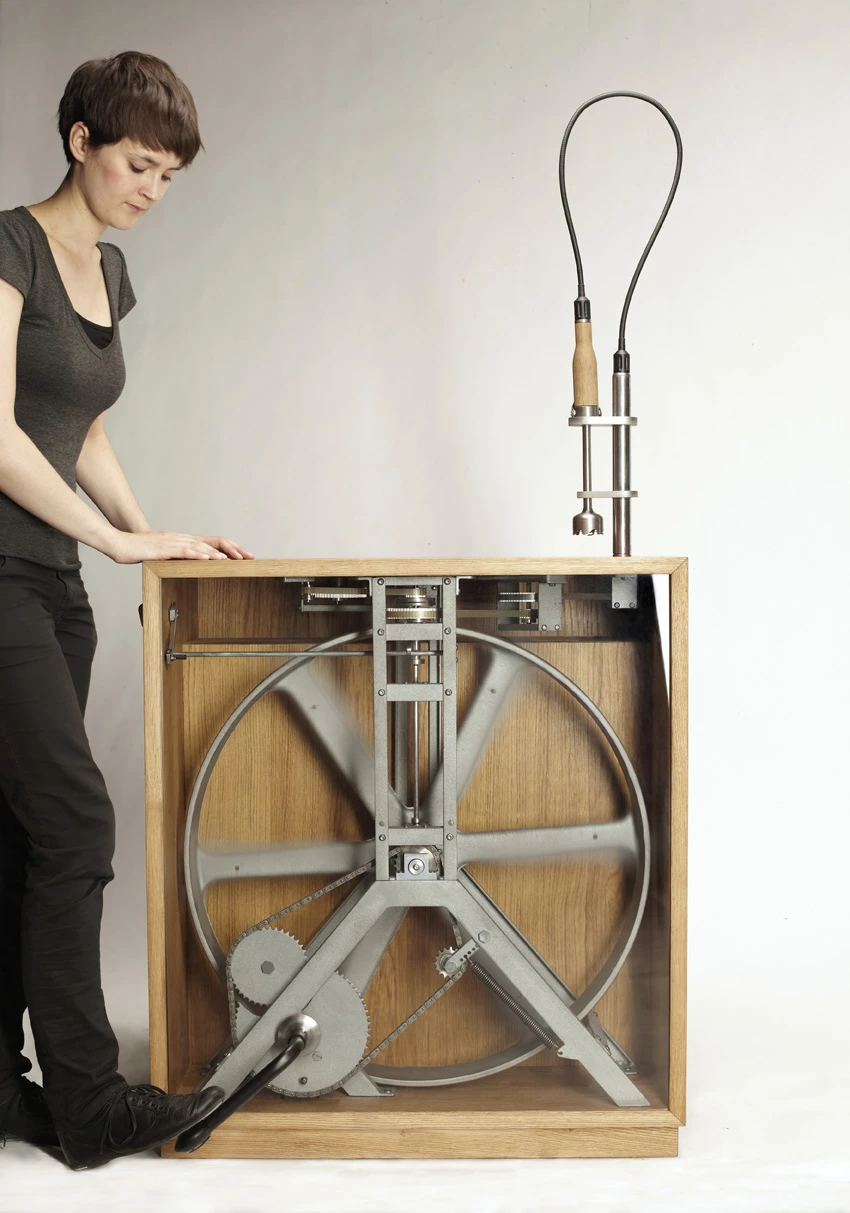

Pumping the pedal drives the flywheel which in turn provides power to the appliances
1/22
Pumping the pedal drives the flywheel which in turn provides power to the appliances

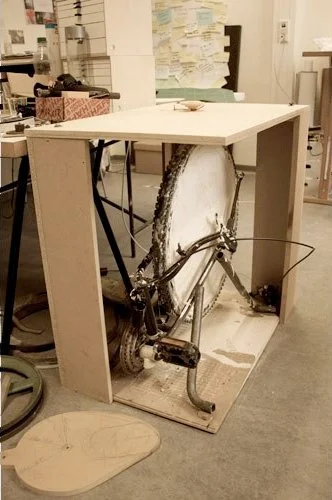

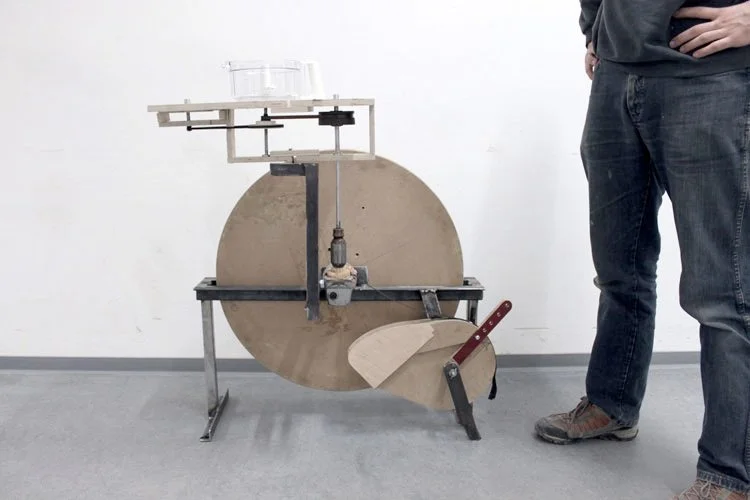

An earlier prototype
2/22
An earlier prototype

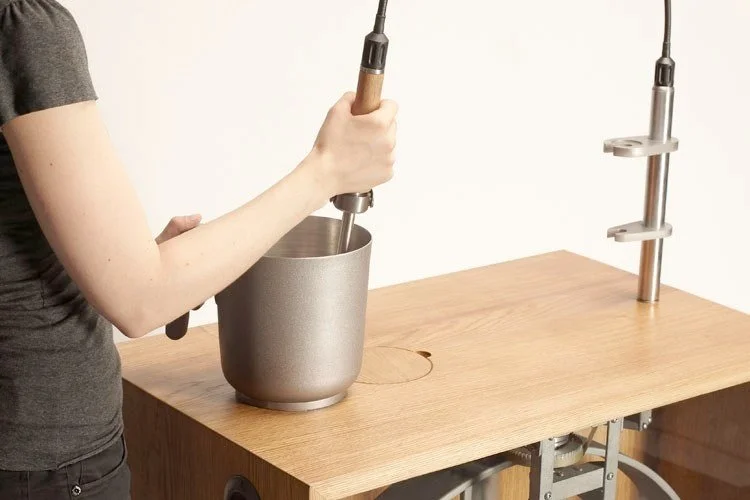

Using the hand blender without electricity
3/22
Using the hand blender without electricity

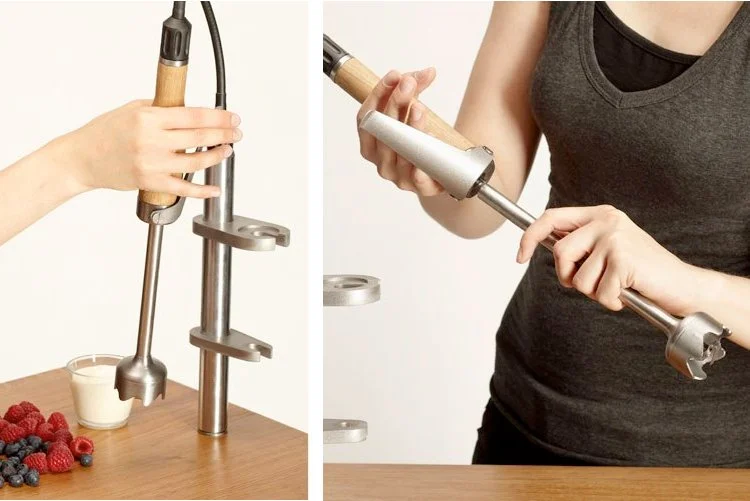

The hand blender tool end can be detached for cleaning or to swap functionality
4/22
The hand blender tool end can be detached for cleaning or to swap functionality

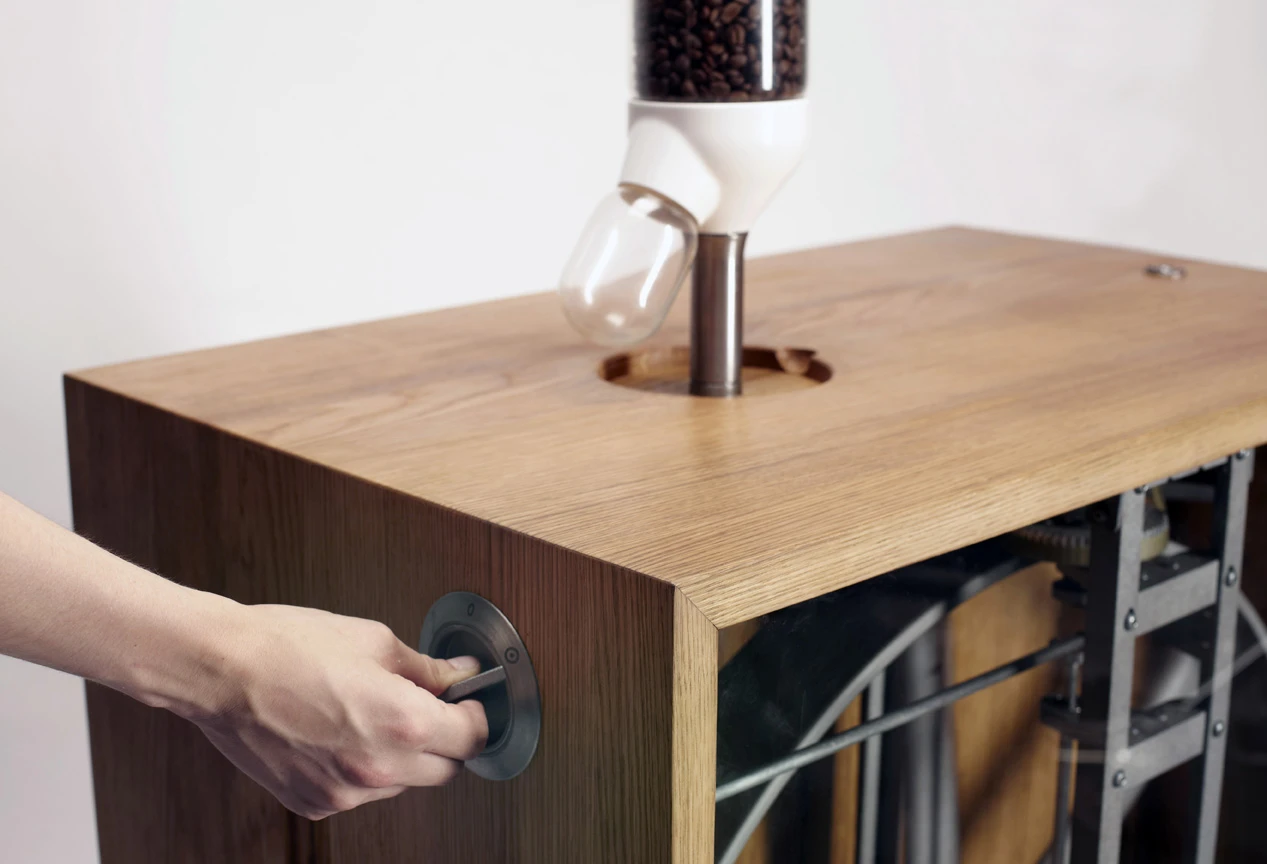

A switch dial on the front of R2B2 allows the user to choose fast, slow or neutral gearing
5/22
A switch dial on the front of R2B2 allows the user to choose fast, slow or neutral gearing

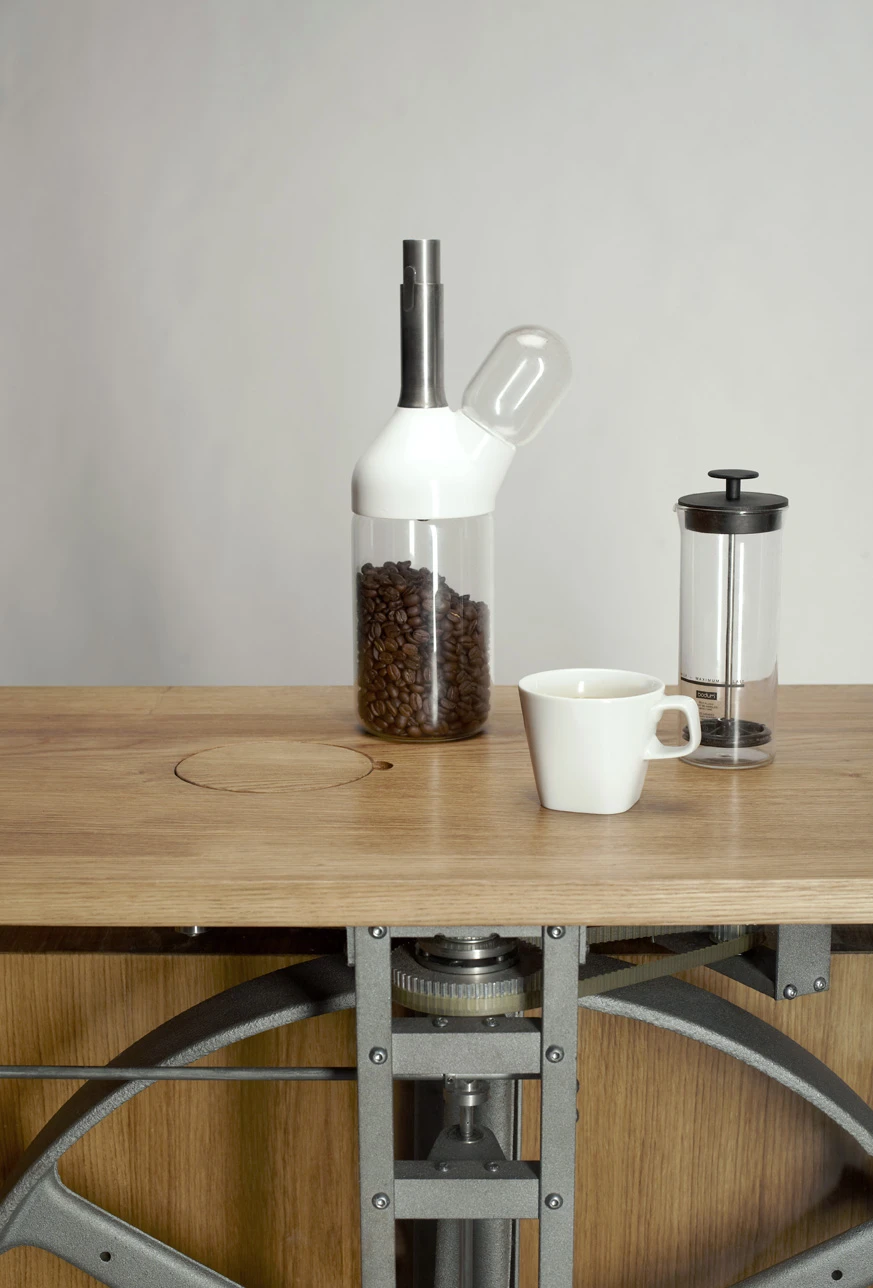

The R2B2's coffee grinder: with two glass chambers - one for beans and another one for ground coffee, joined to the mill by a porcelain shell
6/22
The R2B2's coffee grinder: with two glass chambers - one for beans and another one for ground coffee, joined to the mill by a porcelain shell

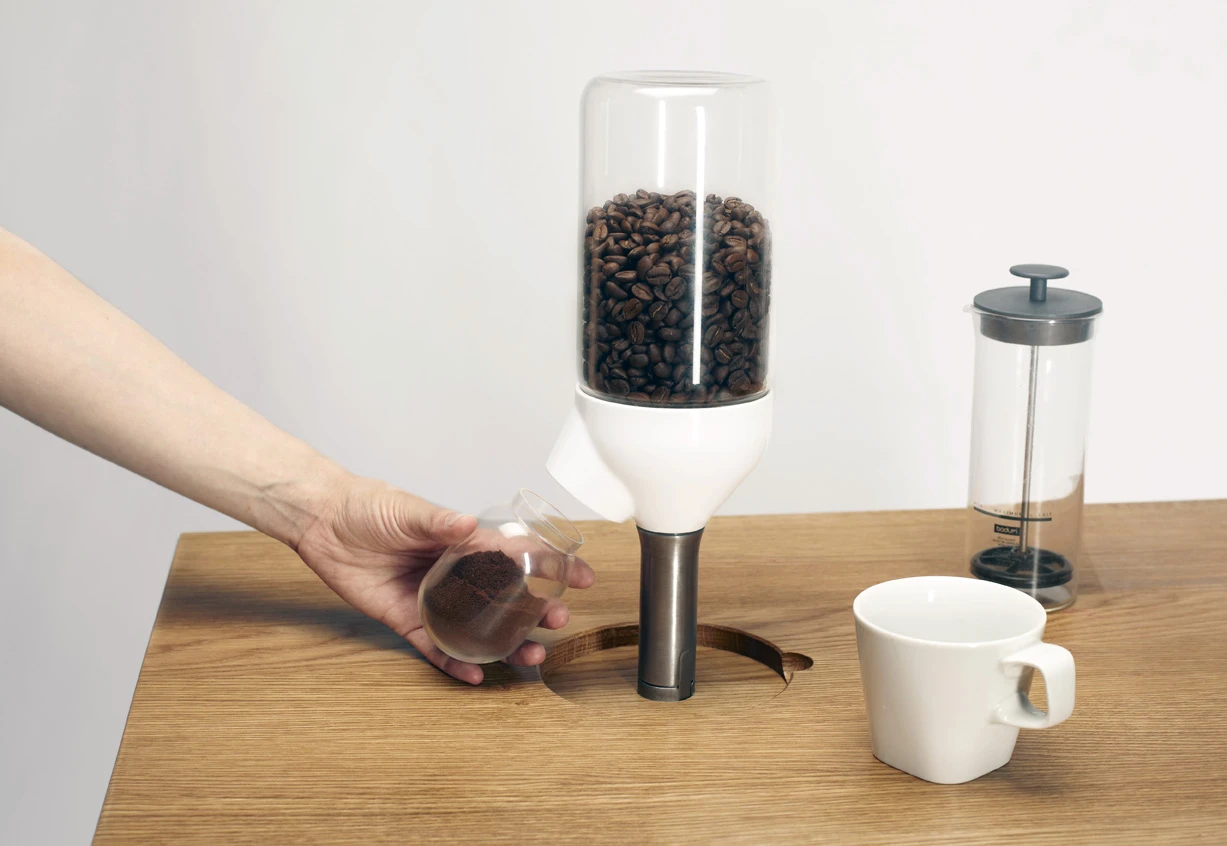

R2B2's coffee grinder in use
7/22
R2B2's coffee grinder in use

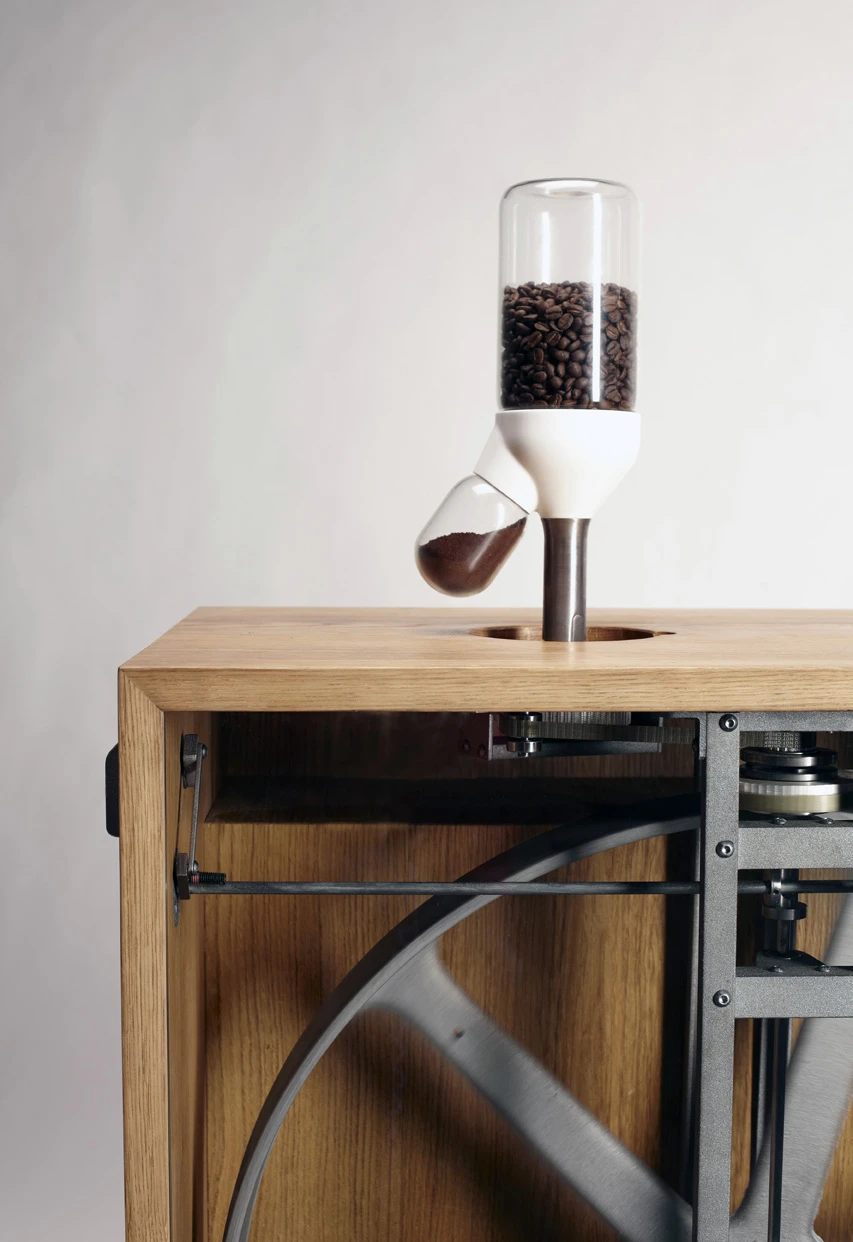

The coffee grinder driven by flywheel power
8/22
The coffee grinder driven by flywheel power

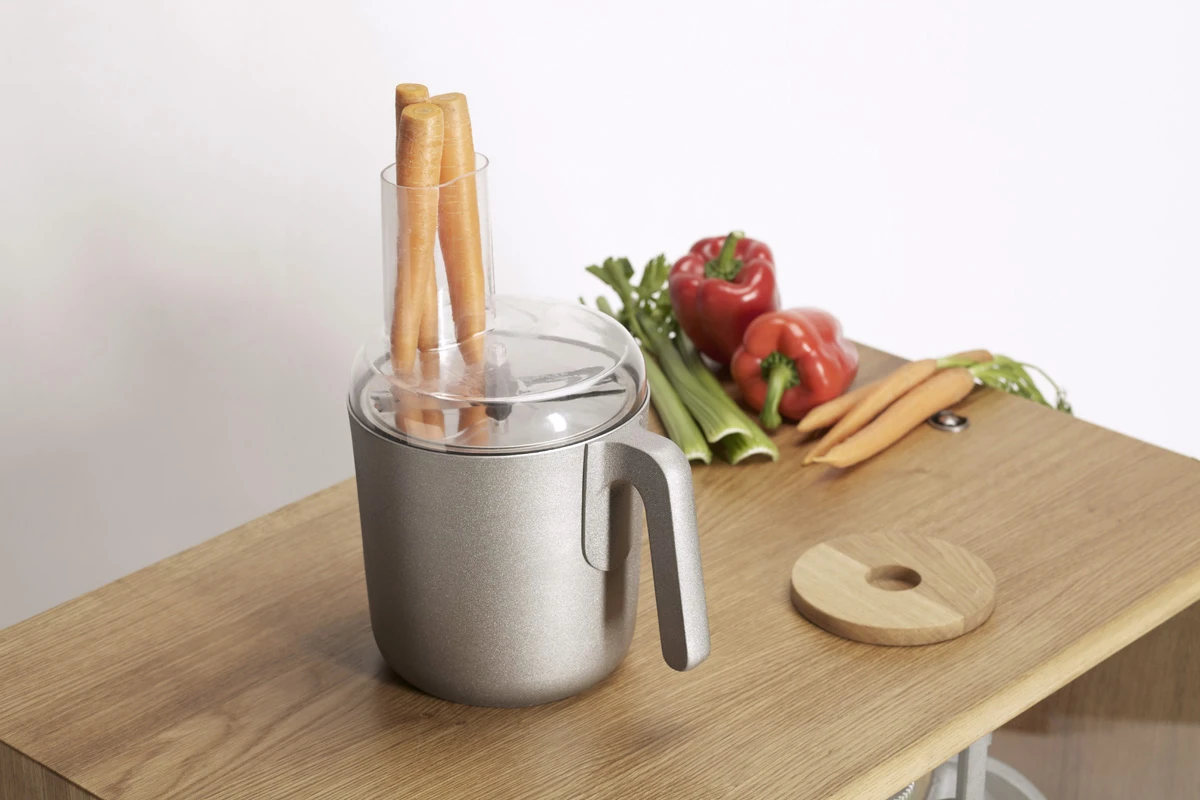

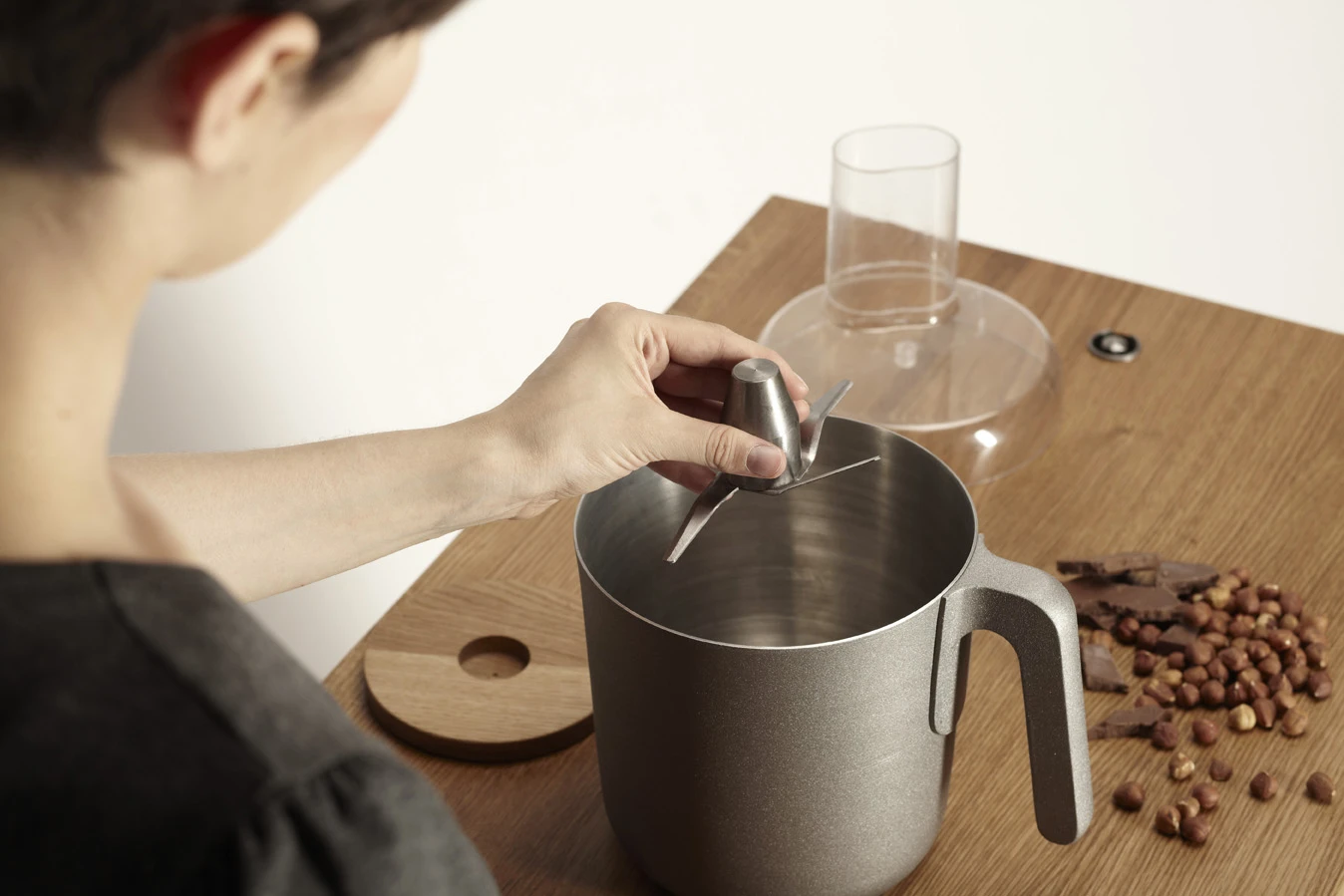

The multi-functional kitchen machine, with various blades, chopping discs and attachments
9/22
The multi-functional kitchen machine, with various blades, chopping discs and attachments

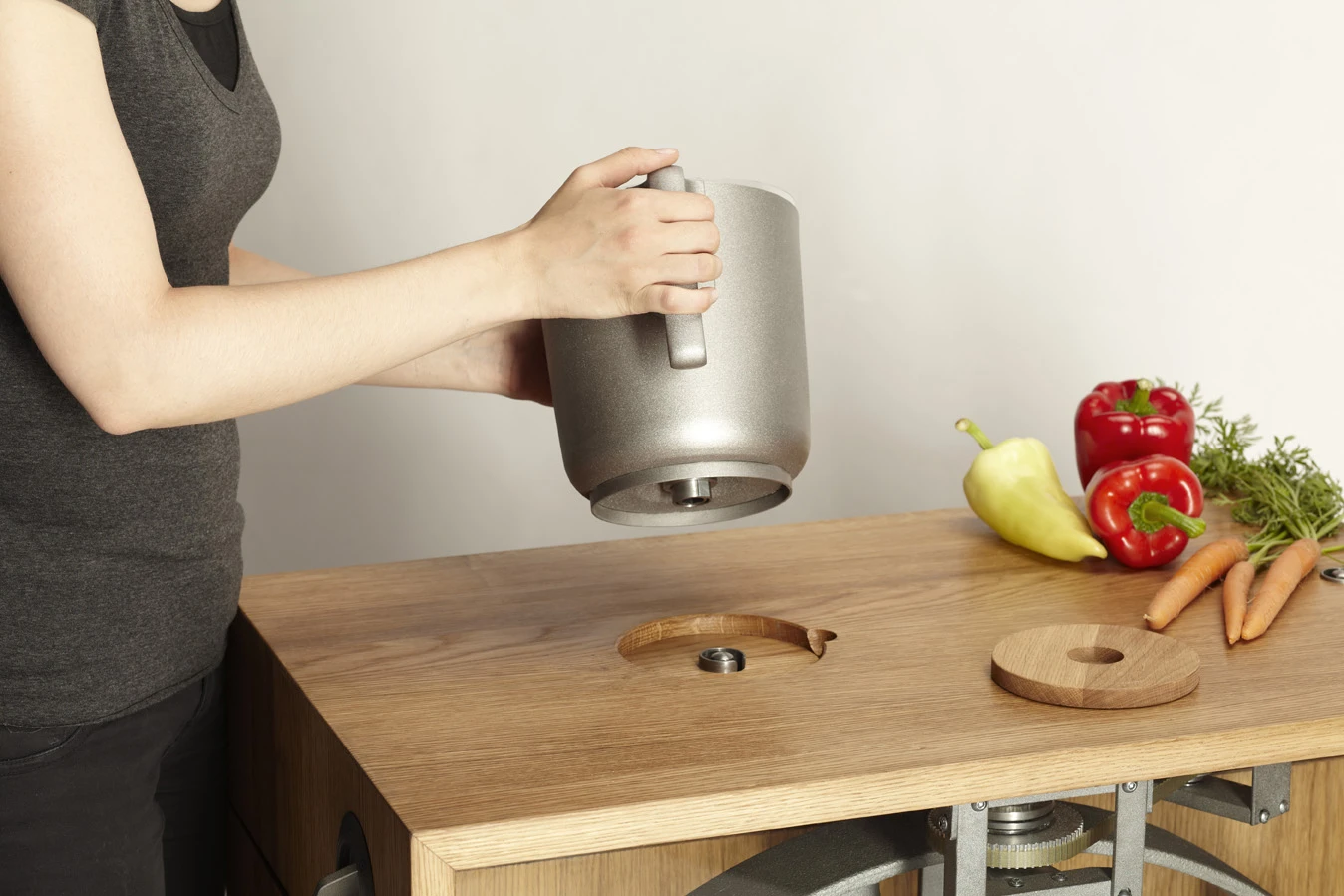

The multi-functional kitchen machine
10/22
The multi-functional kitchen machine
The multi-functional kitchen machine, with various blades, chopping discs and attachments
11/22
The multi-functional kitchen machine, with various blades, chopping discs and attachments

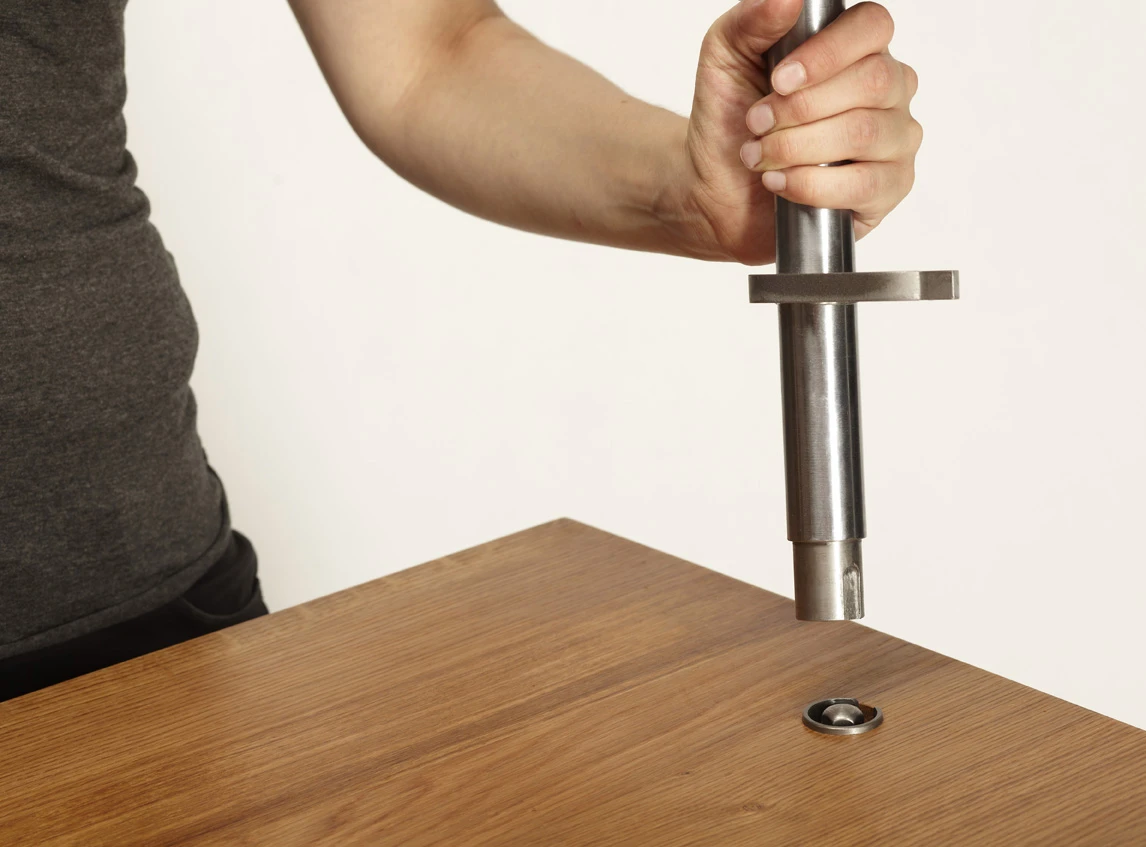

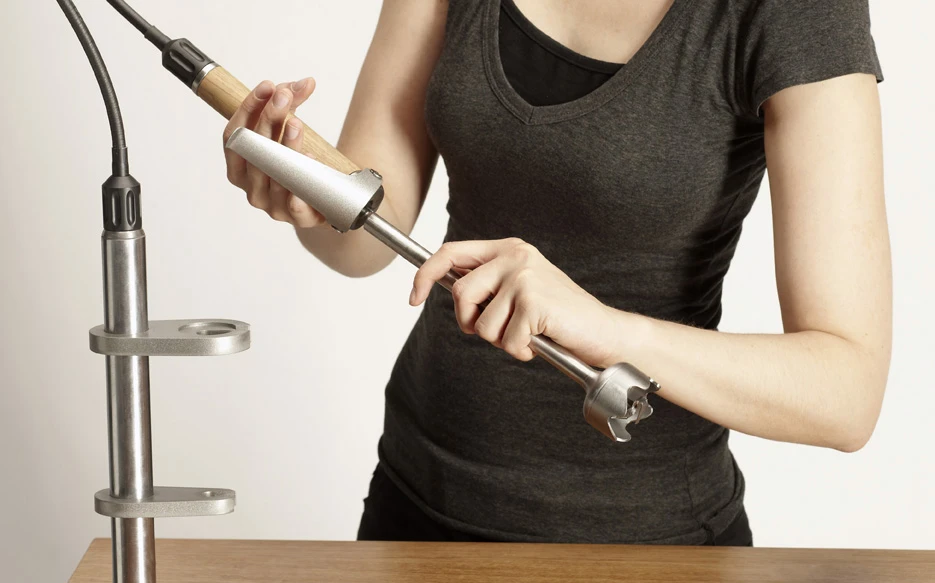

The hand blender components can be detached for cleaning or storage
12/22
The hand blender components can be detached for cleaning or storage
The hand blender components can be detached for cleaning or storage
13/22
The hand blender components can be detached for cleaning or storage

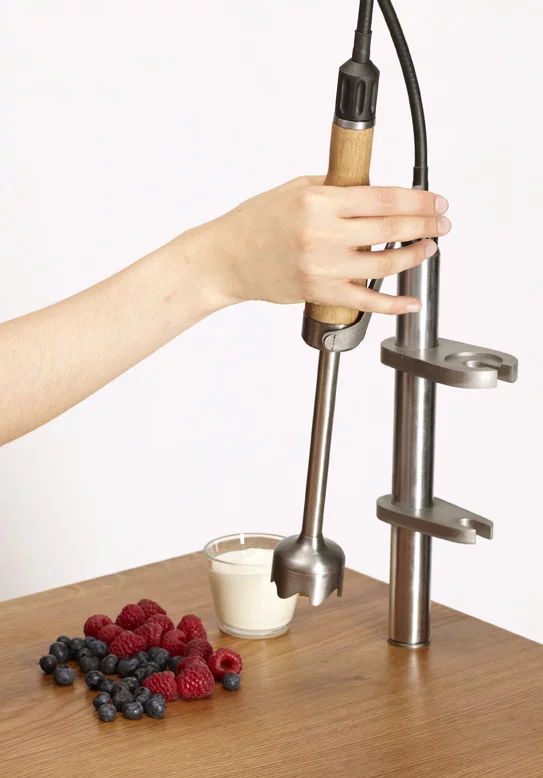

The R2B2's transmission can give the hand blender 10,000 rpm
14/22
The R2B2's transmission can give the hand blender 10,000 rpm
Pumping the pedal drives the flywheel which in turn provides power to the appliances
15/22
Pumping the pedal drives the flywheel which in turn provides power to the appliances
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances
16/22
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances

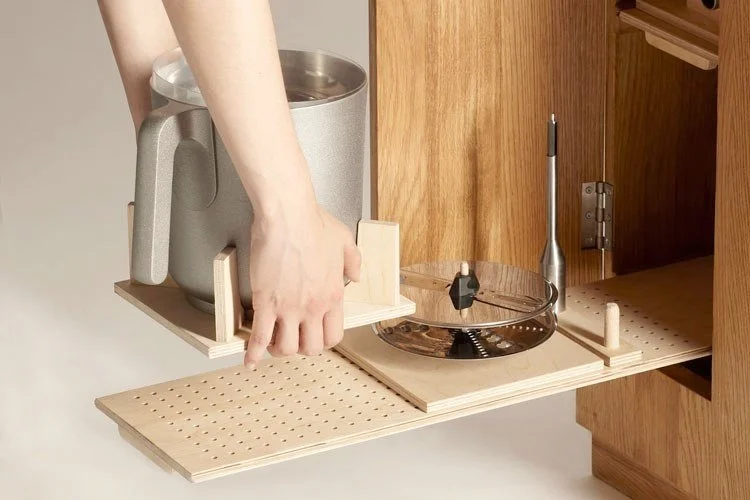

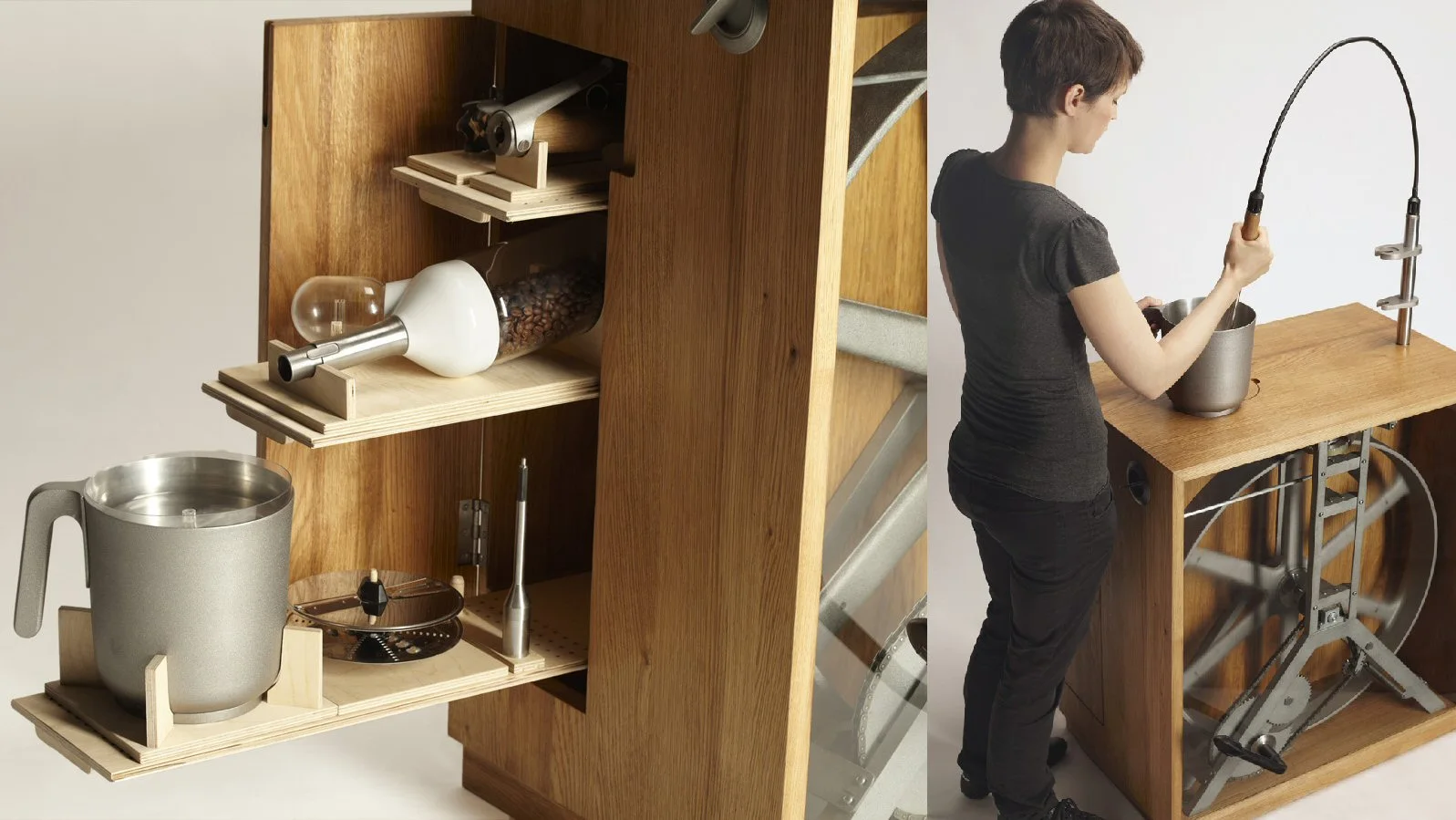

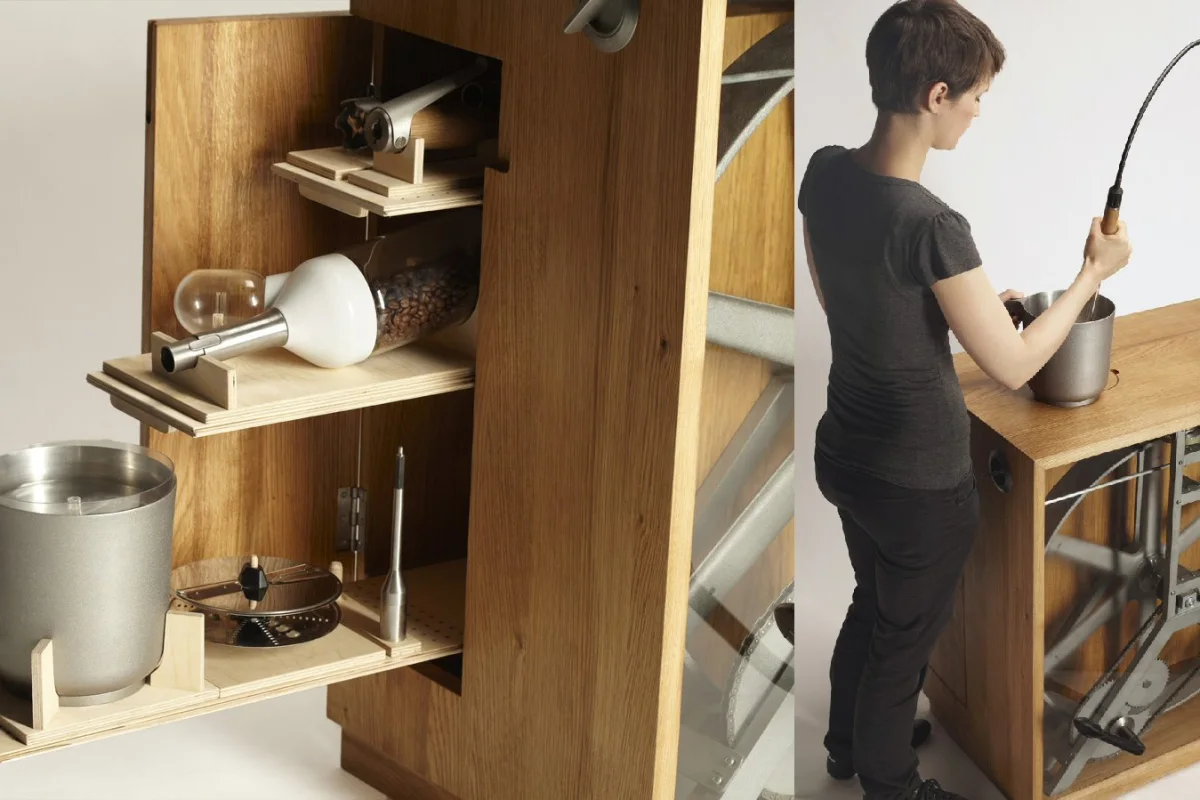

Attachments can be stored inside R2B2's frame when not in use
17/22
Attachments can be stored inside R2B2's frame when not in use

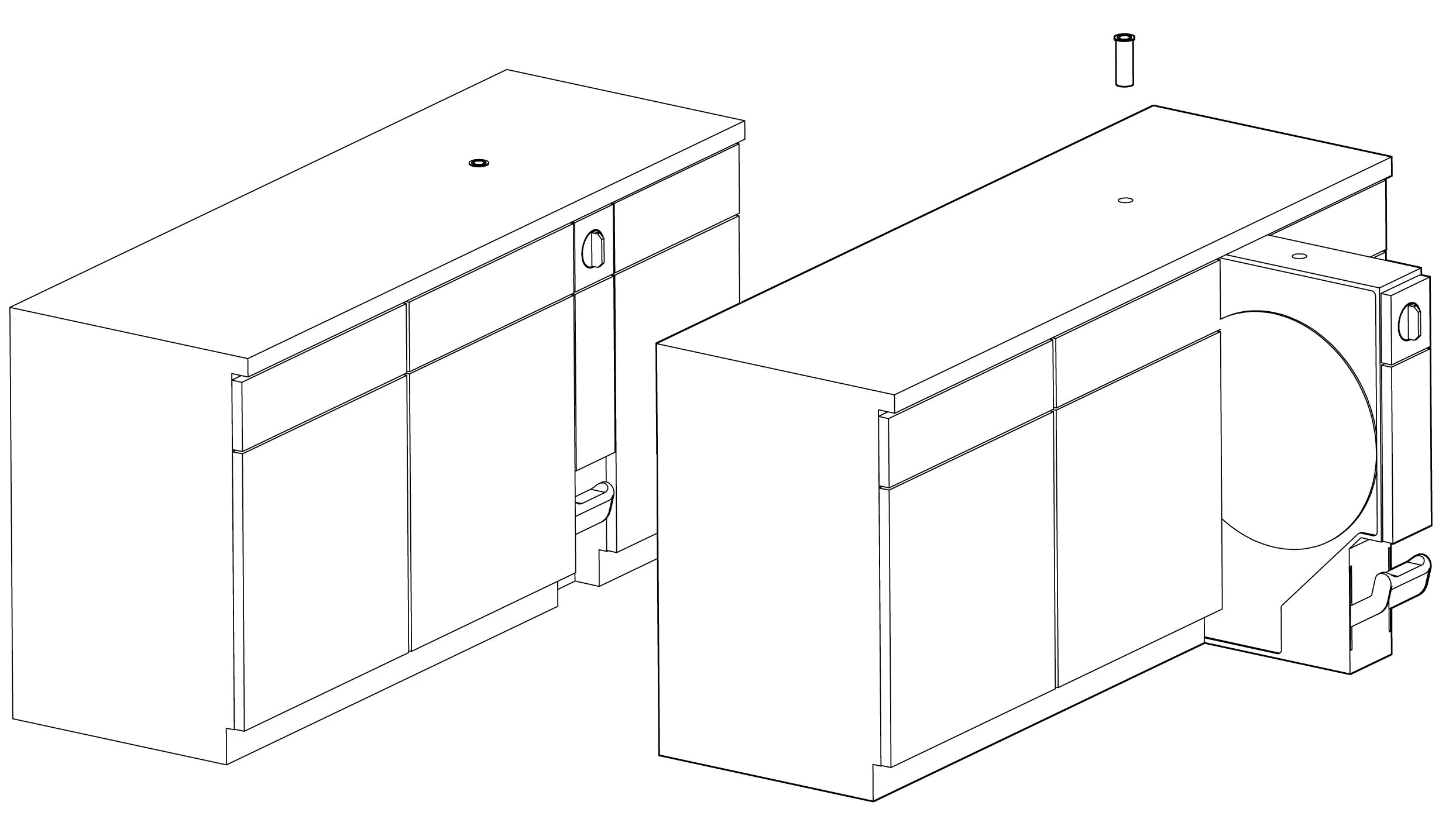

Christoph Thetard sees future designs being available for kitchens of all shapes and sizes
18/22
Christoph Thetard sees future designs being available for kitchens of all shapes and sizes

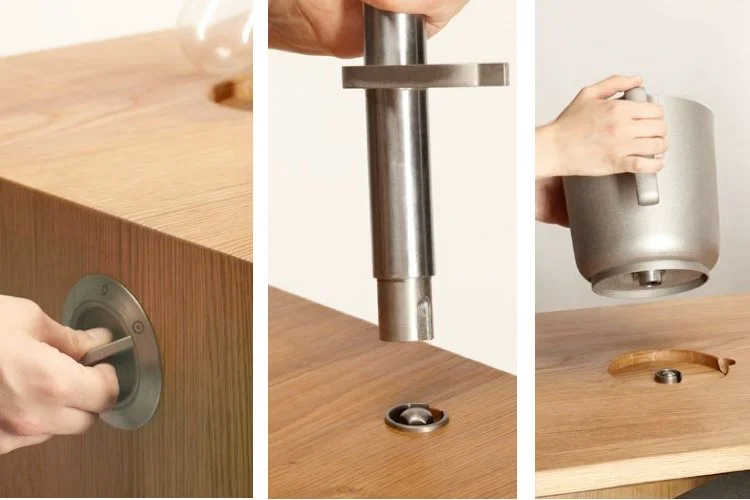

Left - the speed control dial;Middle - components can be detached for easy storage;Right - the kitchen machine bowl can also be used with the hand blender
19/22
Left - the speed control dial;
Middle - components can be detached for easy storage;
Right - the kitchen machine bowl can also be used with the hand blender
An earlier prototype
20/22
An earlier prototype

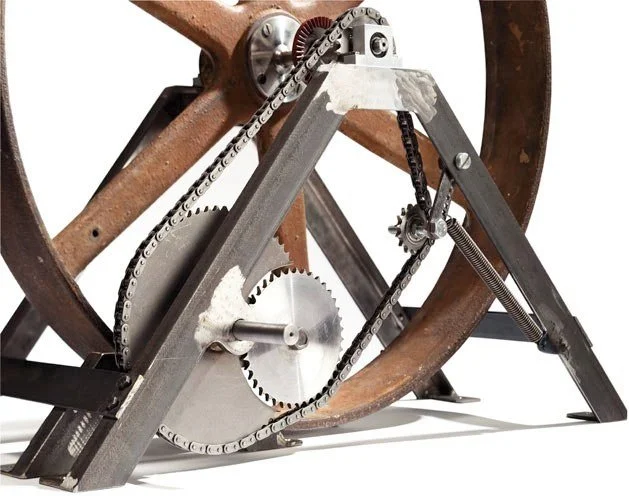

The final design
21/22
The final design
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances
22/22
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances

Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances for his Diploma in Product Design at Bauhaus University in Weimar, Germany. The kitchen machine, coffee grinder and hand blender chosen for this device would under normal circumstances need to be plugged into an electrical wall socket, but there's no electricity needed for R2B2. Pumping the pedal spins the flywheel, which in turn provides the energy needed to operate the three cooking aids.

The target of the project was to create a set of kitchen appliances that could be powered without using electricity. R2B2 consists of three appliances considered to be amongst the most frequently-used in a kitchen – a multi-functional kitchen machine, a glass and ceramic coffee grinder and a hand blender – and a central drive unit mounted in a wooden frame. The open construction was deliberate so that observers can see what's going on and how it works.

Pumping the pedal drives the flywheel which in turn provides power to the appliances
Pumping the pedal drives the flywheel which in turn provides power to the appliances

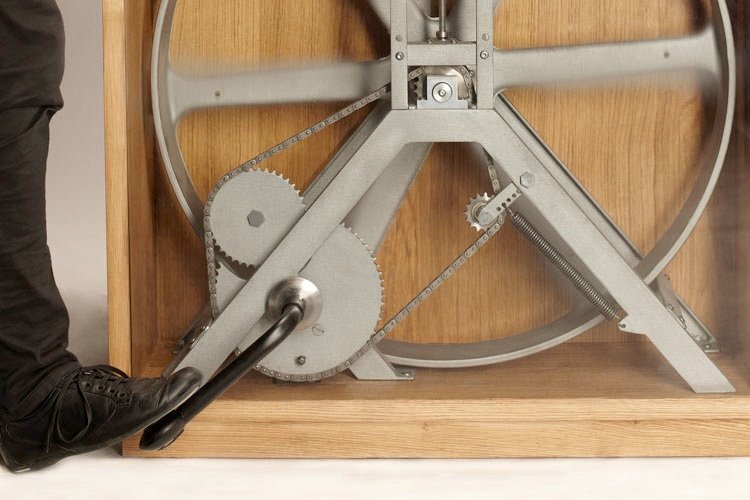

At the heart of the drive unit is the pedal-driven flywheel. Pumping the pedal can power the flywheel up to 400 rpm, generating the equivalent of 350W of energy to power the appliances by direct mechanical rotation. The flywheel is capable of retaining energy to continue providing power for a short while, before needing to be topped up with pedal-action again. A switch dial to the front of the unit controls the speed of the gears, with fast, slow or neutral being available.

All of the components are made from polished or sandblasted stainless steel, oiled wood, glass and ceramics, and the belts made from silicon. It's been designed for extended life – even the drive chain turning the flywheel shouldn't require oil lubrication.

The hand blender can take various attached ends for different tasks and the transmission gives the device up to 10,000 rpm. The multi-function kitchen machine includes different blades, a slicing disc and whip, and was designed to do as many different jobs as possible with the least possible parts. The coffee grinder features a glass chamber for the beans and one for the ground powder, and a porcelain outer shell which joins them both to the mill. Shelving within the main body of R2B2 can be used to store the various attachments.

Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances
Christoph Thetard has developed a mechanical flywheel drive to power a set of kitchen appliances

Thetard admits that any future production model would benefit from some efficiency modifications. "I am a designer, not an engineer. I want to say I built it as good as I could and it works," he told Gizmag. "But for production, there is a lot of engineering to do till everything works 100 percent. And I am sure it is possible to optimize its speed to store more energy."

Although the proof of concept prototype was designed for a specific kitchen setup, Thetard told us that it should be possible to modify the outer design and install it into any kitchen. He also sees the flywheel drive being used as the starting point for numerous grid-less energy solutions, such as providing power to shavers in the bathroom or a washing machine in the basement.

R2B2 can be seen at Frankfurt's Ambiente Talents show in February next year and at SaloneSatellite in Milan in April.
