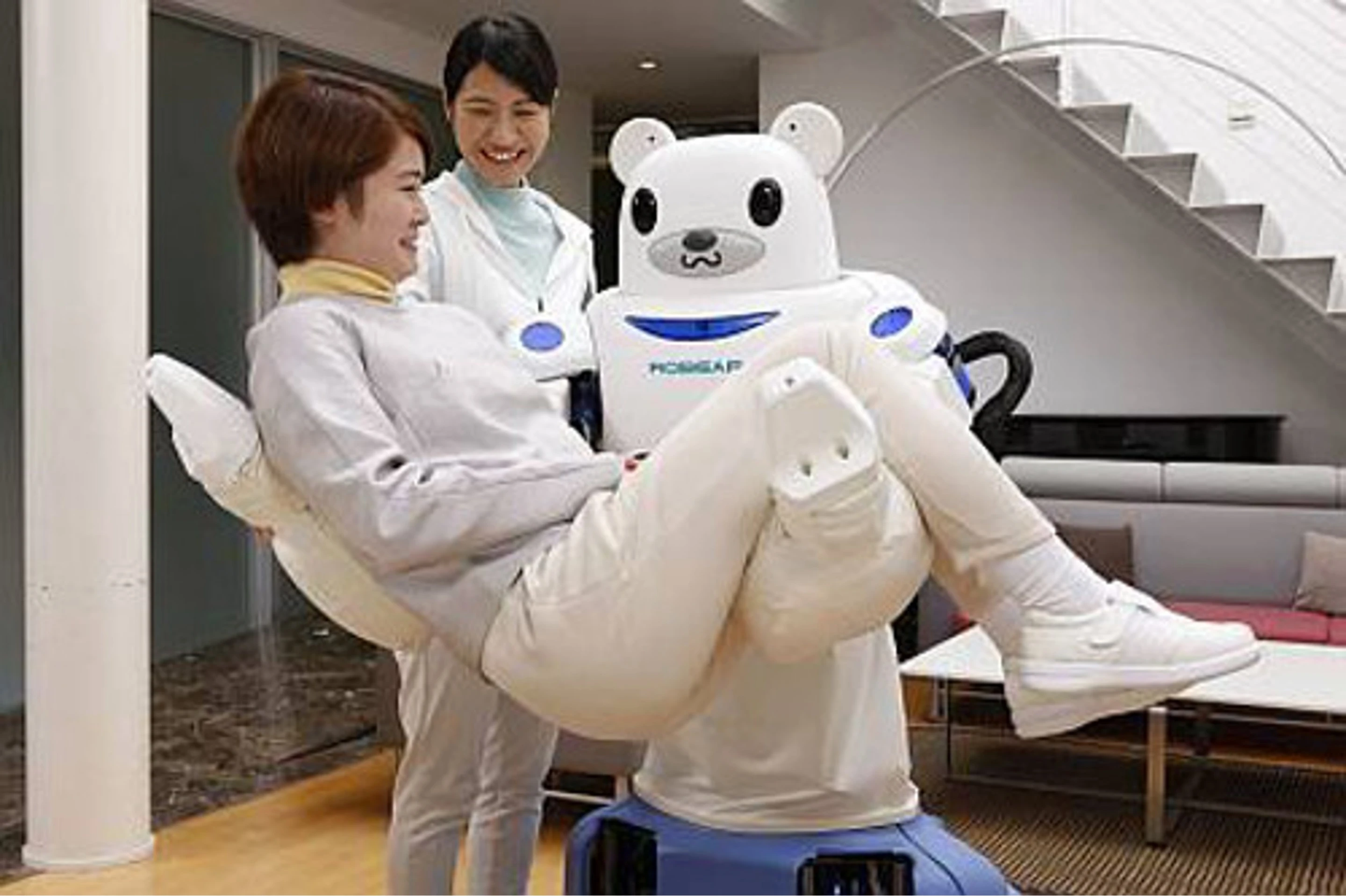

Robear is designed to safely lift patients out of bed
Robear is designed to safely lift patients out of bed
View 3 Images

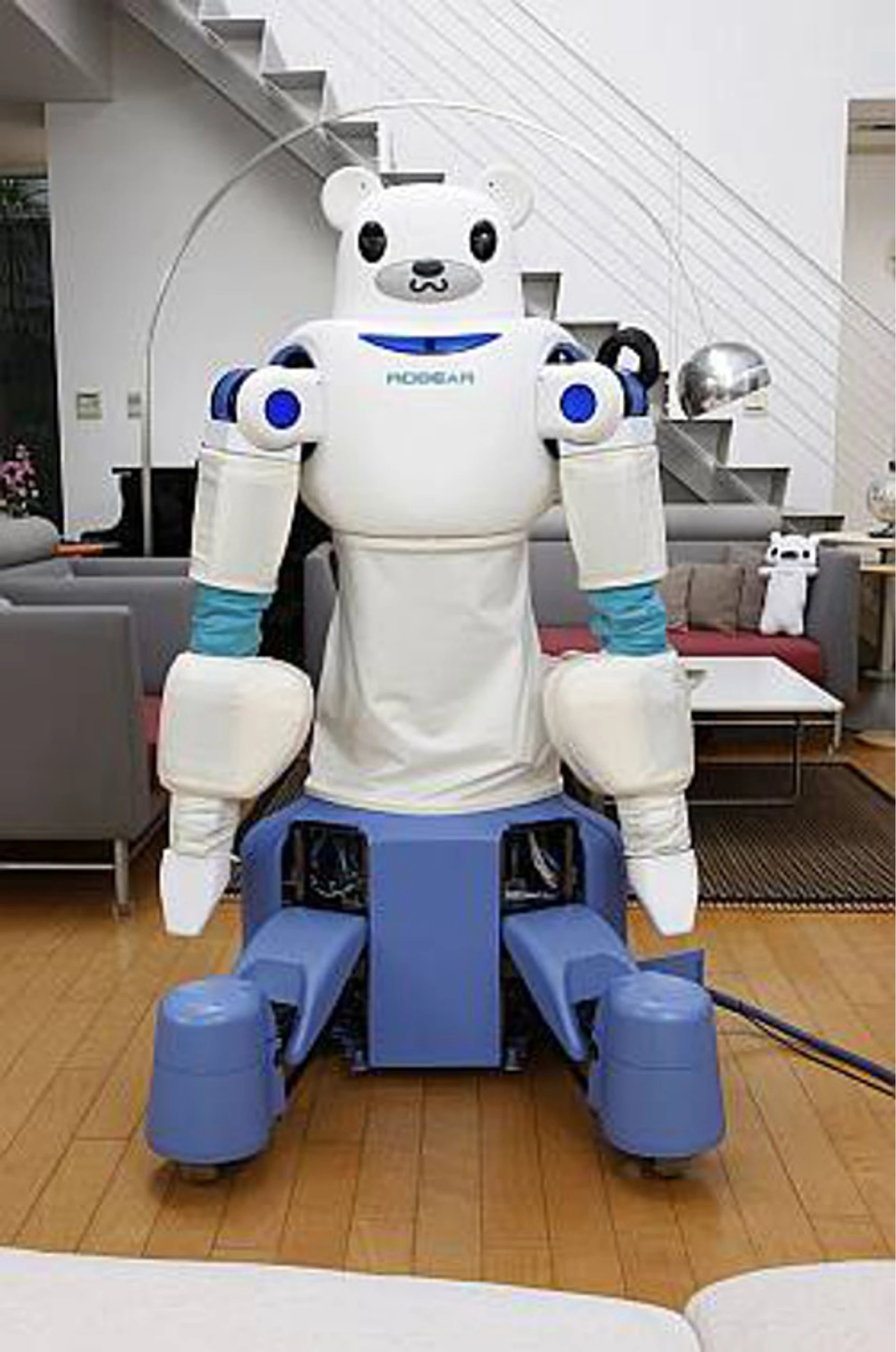

Robear uses extendible legs for greater stability
1/3
Robear uses extendible legs for greater stability

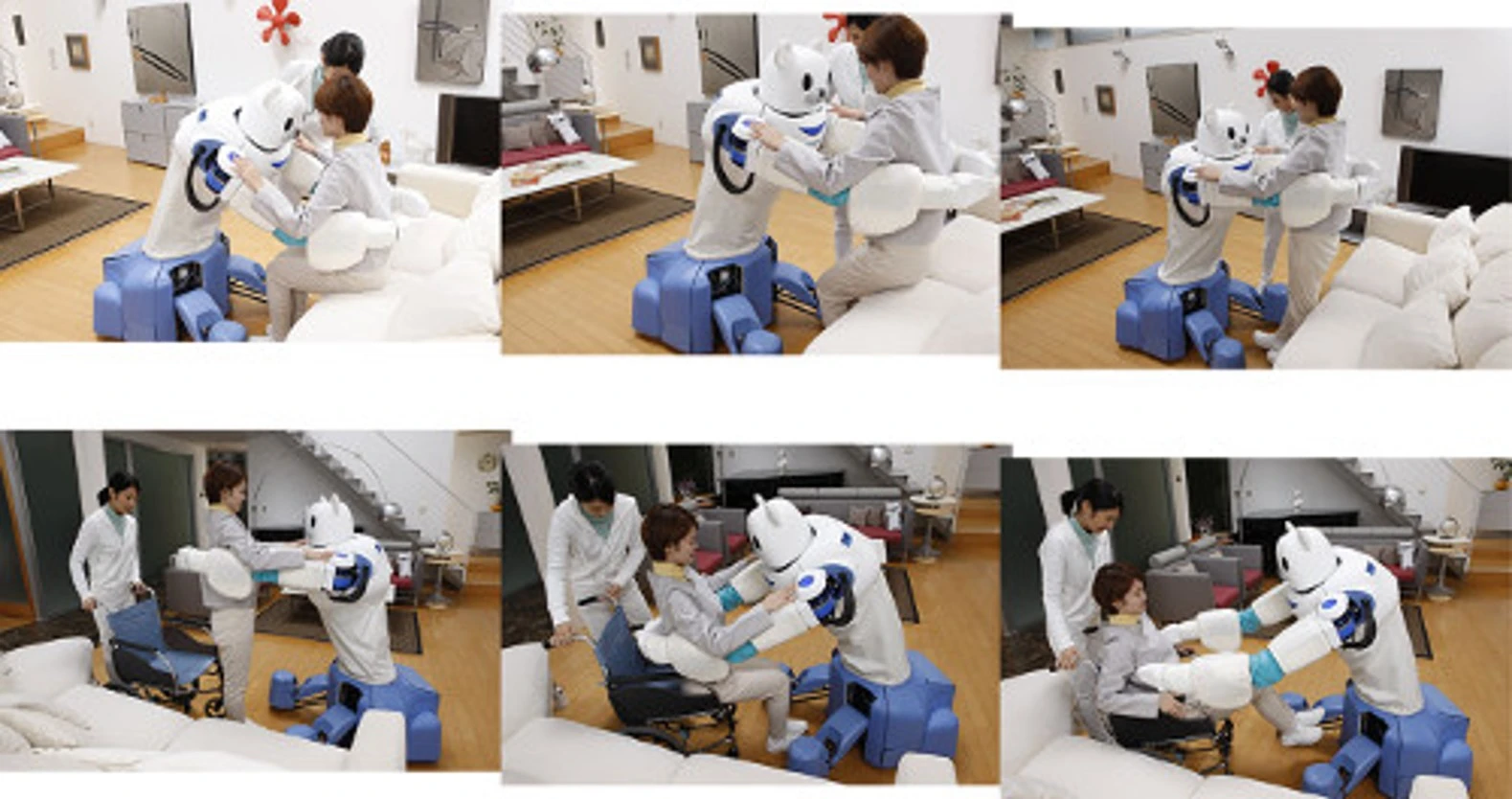

Sequence images showing Robear helping patients
2/3
Sequence images showing Robear helping patients
Robear is designed to safely lift patients out of bed
3/3
Robear is designed to safely lift patients out of bed
View gallery - 3 images

Japan is facing an aging population in the coming decades and that means more people requiring care, and less people to provide it. In an effort to meet the shortfall, RIKEN and Sumitomo Riko Company Limited have developed Robear, an experimental nursing care robot that combines advanced robotics and a non-threatening design.

Robear is based on Riken's Robot for Interactive Body Assistance (RIBA) and RIBA II assistance robots that were unveiled in 2009 and 2011, respectively. It was developed by the RIKEN-SRK Collaboration Center for Human-Interactive Robot Research in Nagoya, and is designed to be strong, yet gentle, with a cartoonish head and a soft design that is intended to be as un-Transformer-like as possible.

Robear uses extendible legs for greater stability
Robear uses extendible legs for greater stability

Robots not only promise to make up for the shortage of carers, but to save human personnel from having to carry out strenuous tasks, such as lifting patients out of bed 40 times a day. To this end, like RIBA-II, Robobear can lift a patient out of bed and into a wheelchair, help patients to stand, and to turn them to prevent bed sores, but it weighs only 140 kg (308 lb) to RIBA-II's 230 kg (507 lb). Paradoxically, it also has a smaller base than the previous model, yet is more stable. This is due to a set of deployable legs that it can use to steady itself as needed, yet tuck away when moving.

According to RIKEN, Robear has improved, very low gear ratio actuators that make its joints fast and responsive. They also have backdrivability – a feedback mechanism that makes for softer movements. In addition, there are torque sensors and Smart Rubber capacitance-type tactile sensors for gentle movements that allows Robear to lift and assist patients safely and comfortably.

Sequence images showing Robear helping patients
Sequence images showing Robear helping patients

"We really hope that this robot will lead to advances in nursing care, relieving the burden on caregivers today," says Toshiharu Mukai, leader of the Robot Sensor Systems Research Team. "We intend to continue with research toward more practical robots capable of providing powerful yet gentle care to elderly people."

Source: RIKEN
