Scorpion Hexapod has a sting in its tail

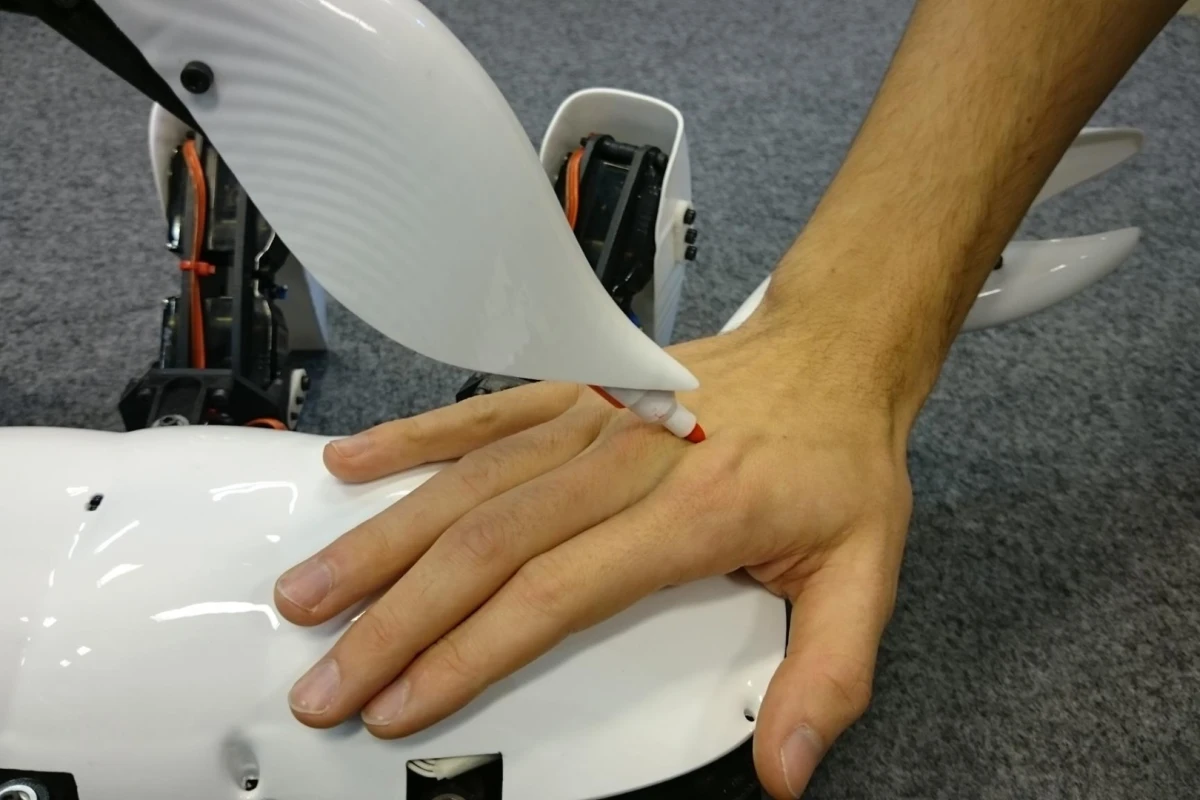

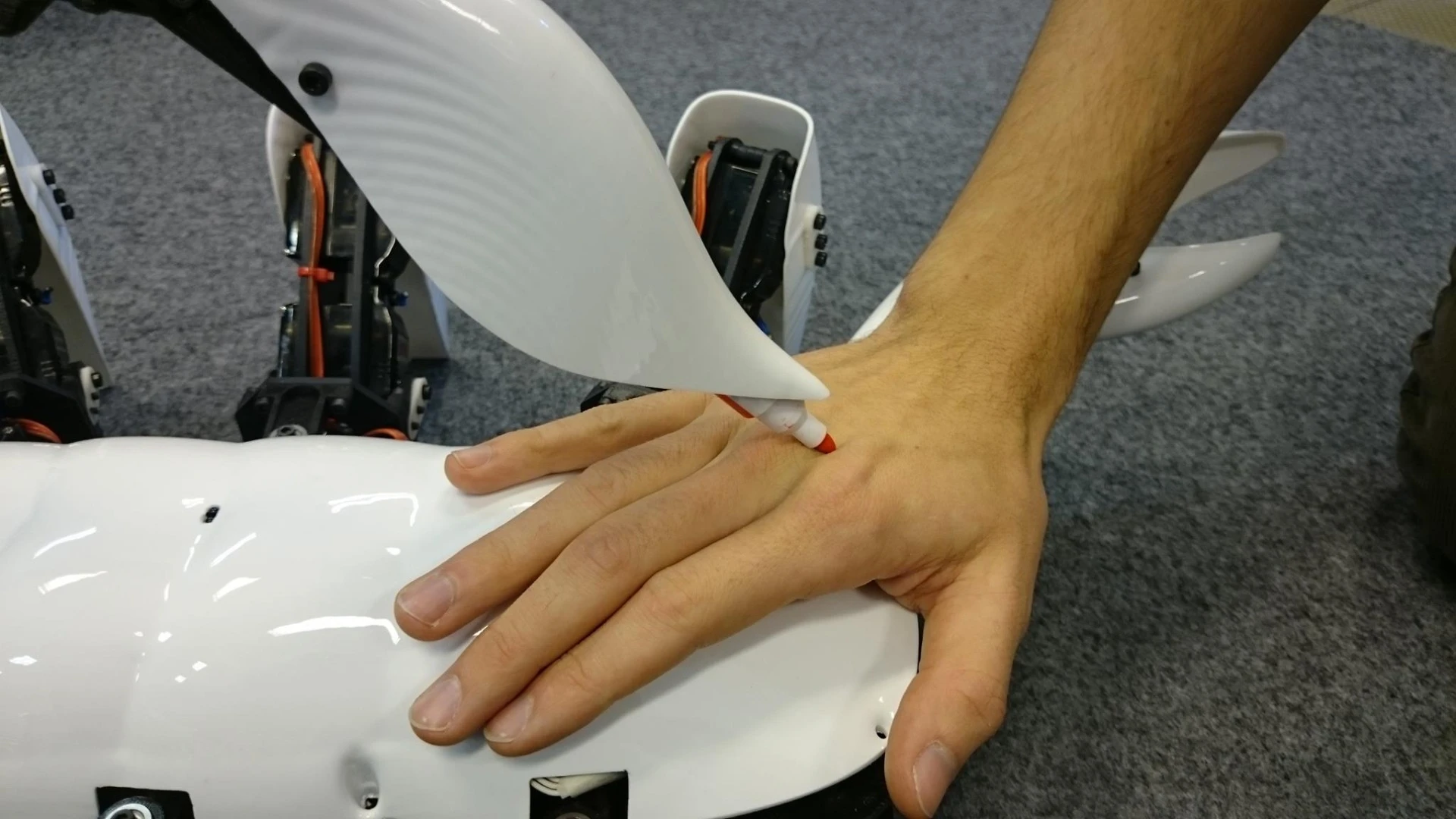

Get too close and the Scorpion Hexapod will stab you
Get too close and the Scorpion Hexapod will stab you
View 12 Images

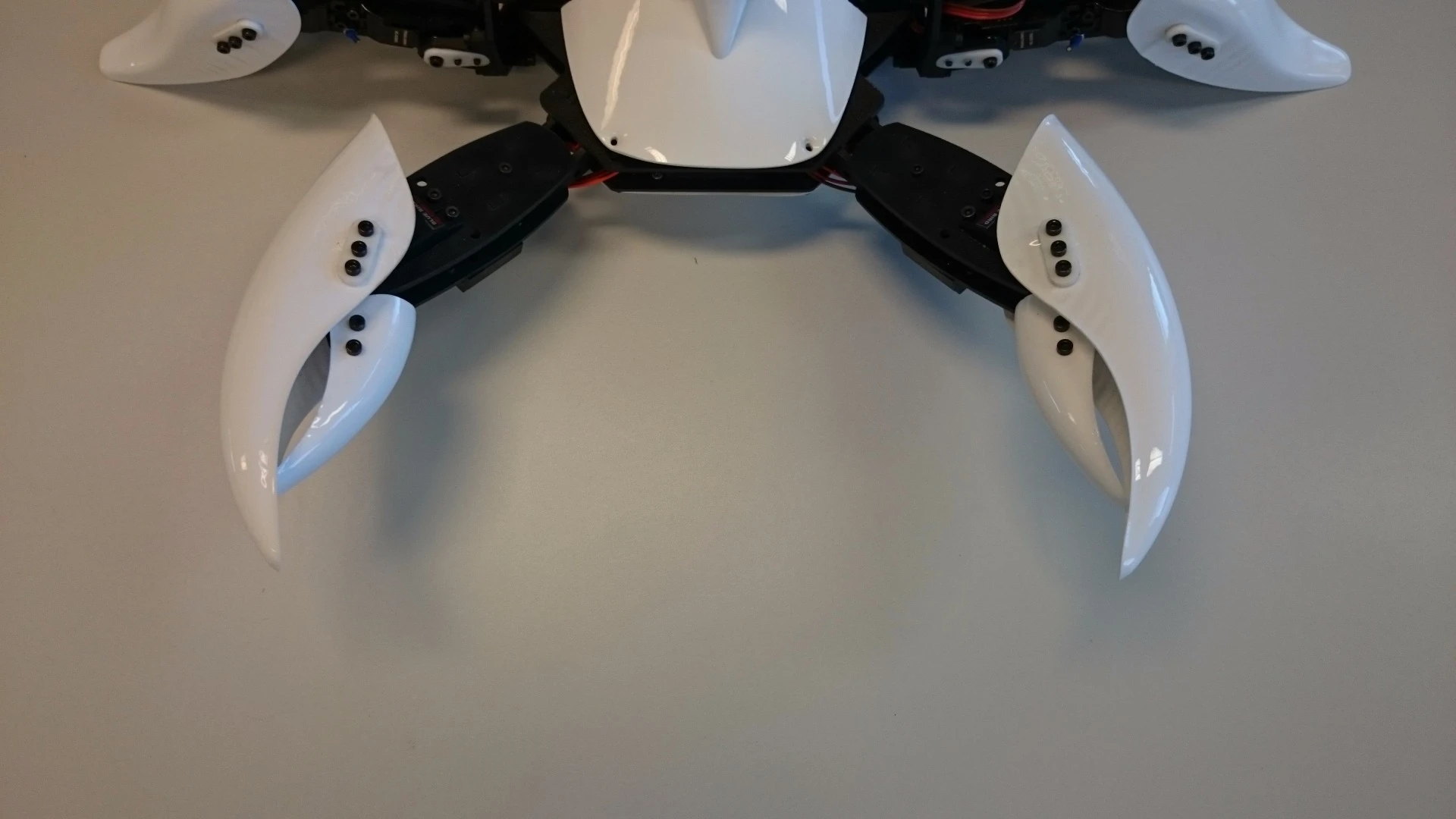

Those moving claws look dangerous, but won't leave a mark on victims like the stinger
1/12
Those moving claws look dangerous, but won't leave a mark on victims like the stinger

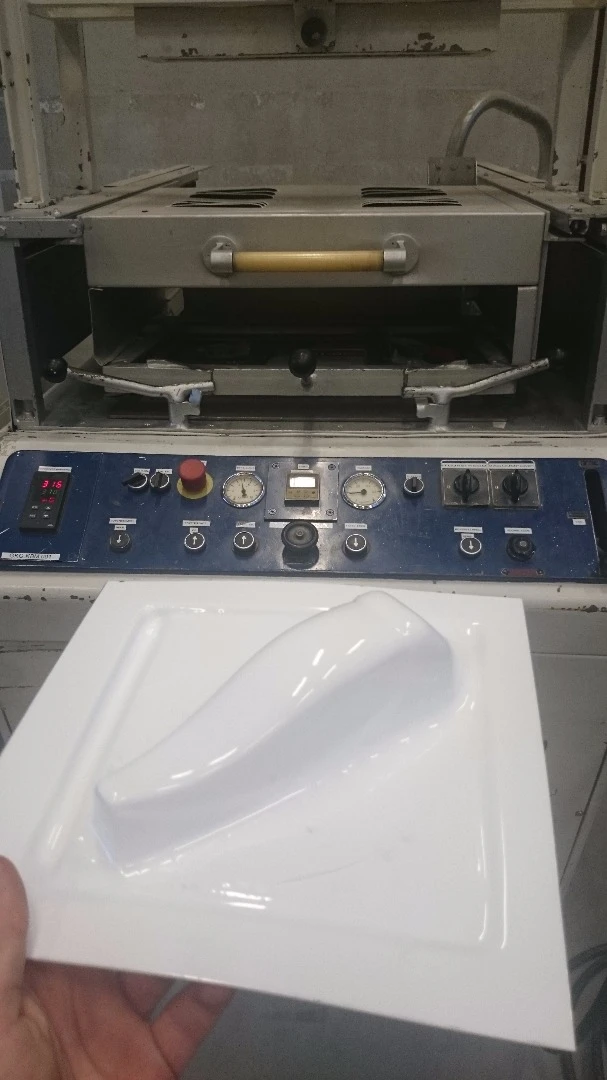

The shell, claws, leg ends and tail stinger are fashioned from thermoformed polystyrene
2/12
The shell, claws, leg ends and tail stinger are fashioned from thermoformed polystyrene

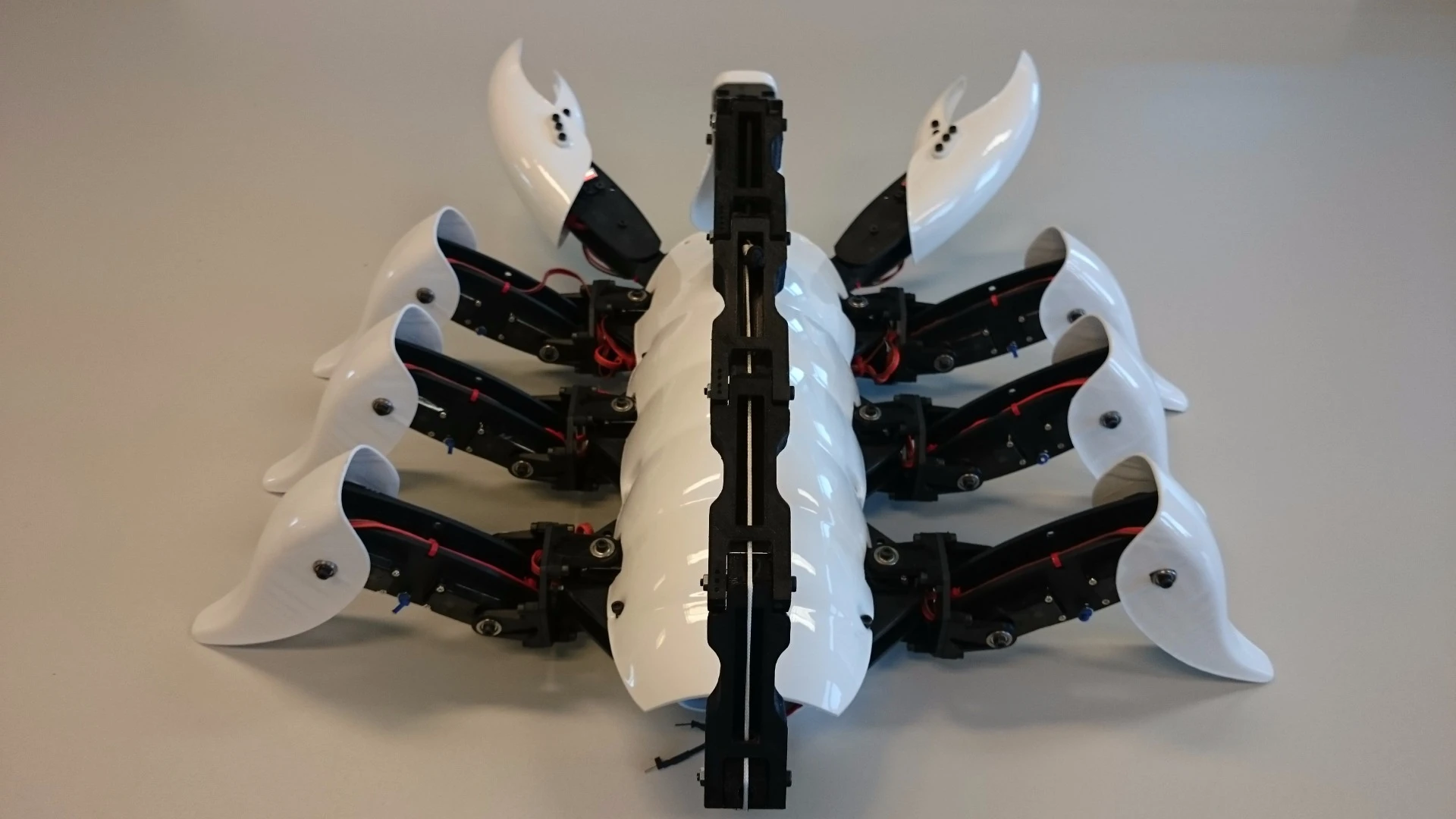

The modules that make up the legs and tail were 3D-printed
3/12
The modules that make up the legs and tail were 3D-printed

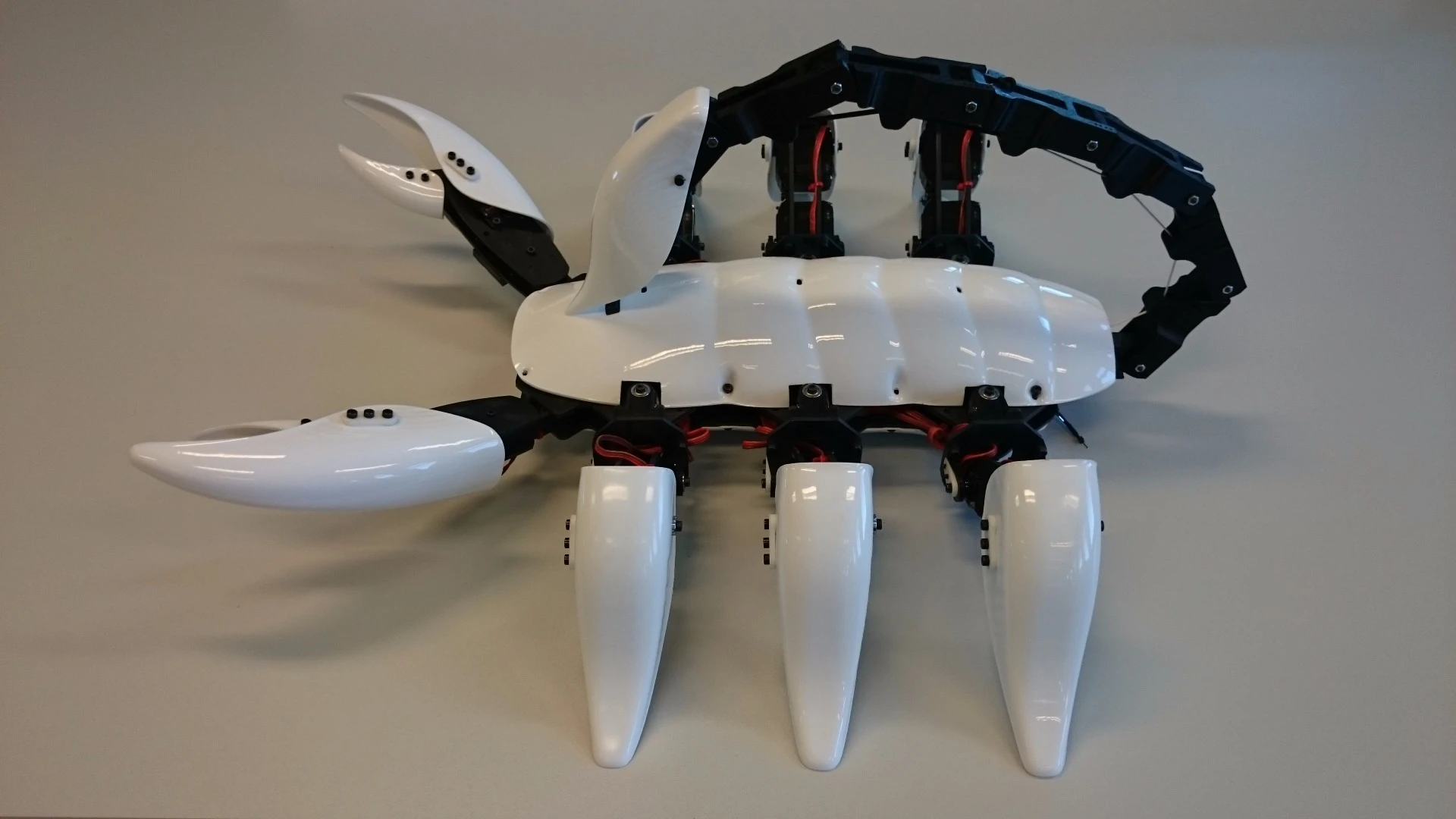

The robot has been programmed with numerous moves and some auto responses to interactions
4/12
The robot has been programmed with numerous moves and some auto responses to interactions

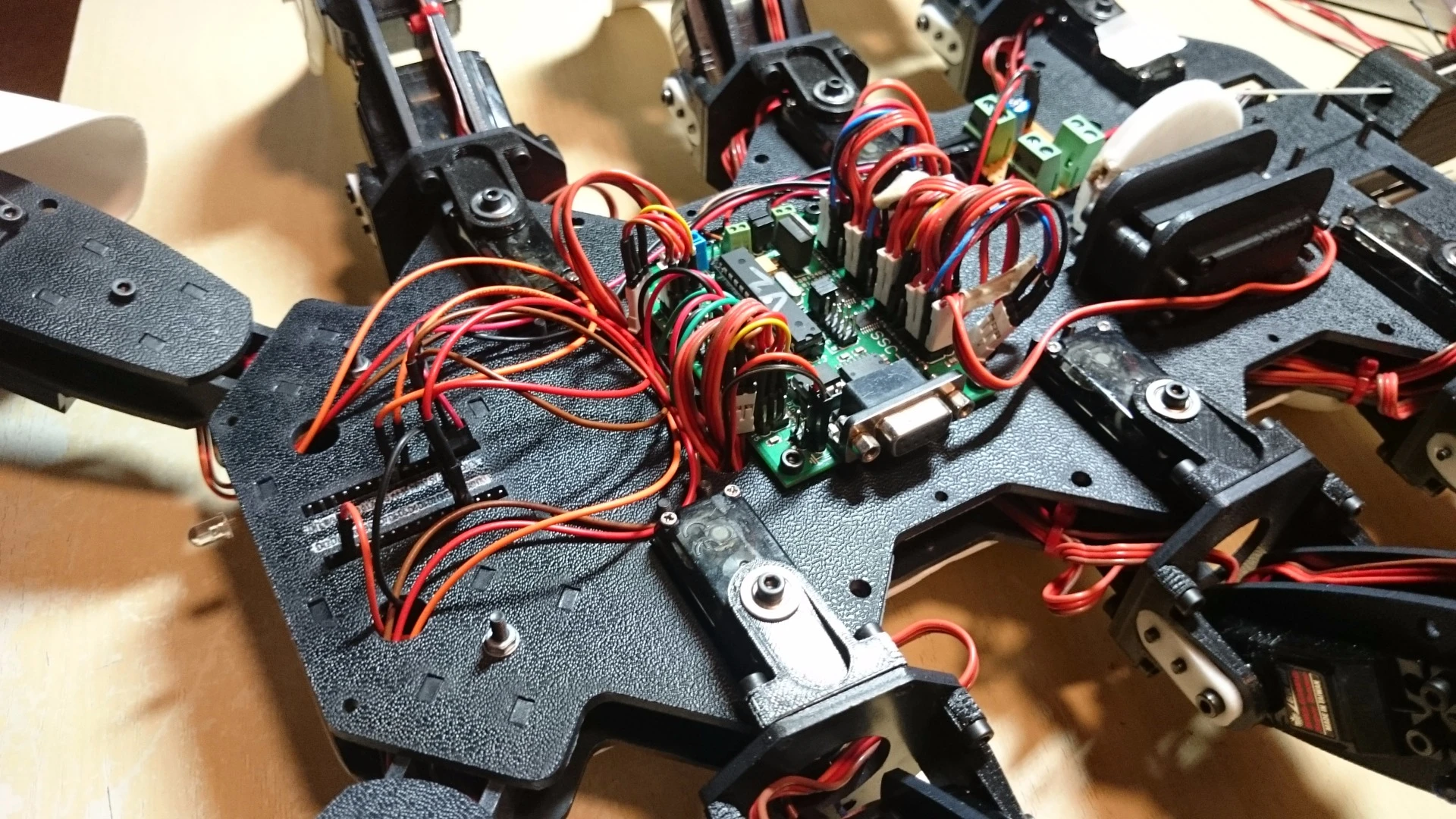

The Scorpion Hexabot has an Arduino Nano brain
5/12
The Scorpion Hexabot has an Arduino Nano brain

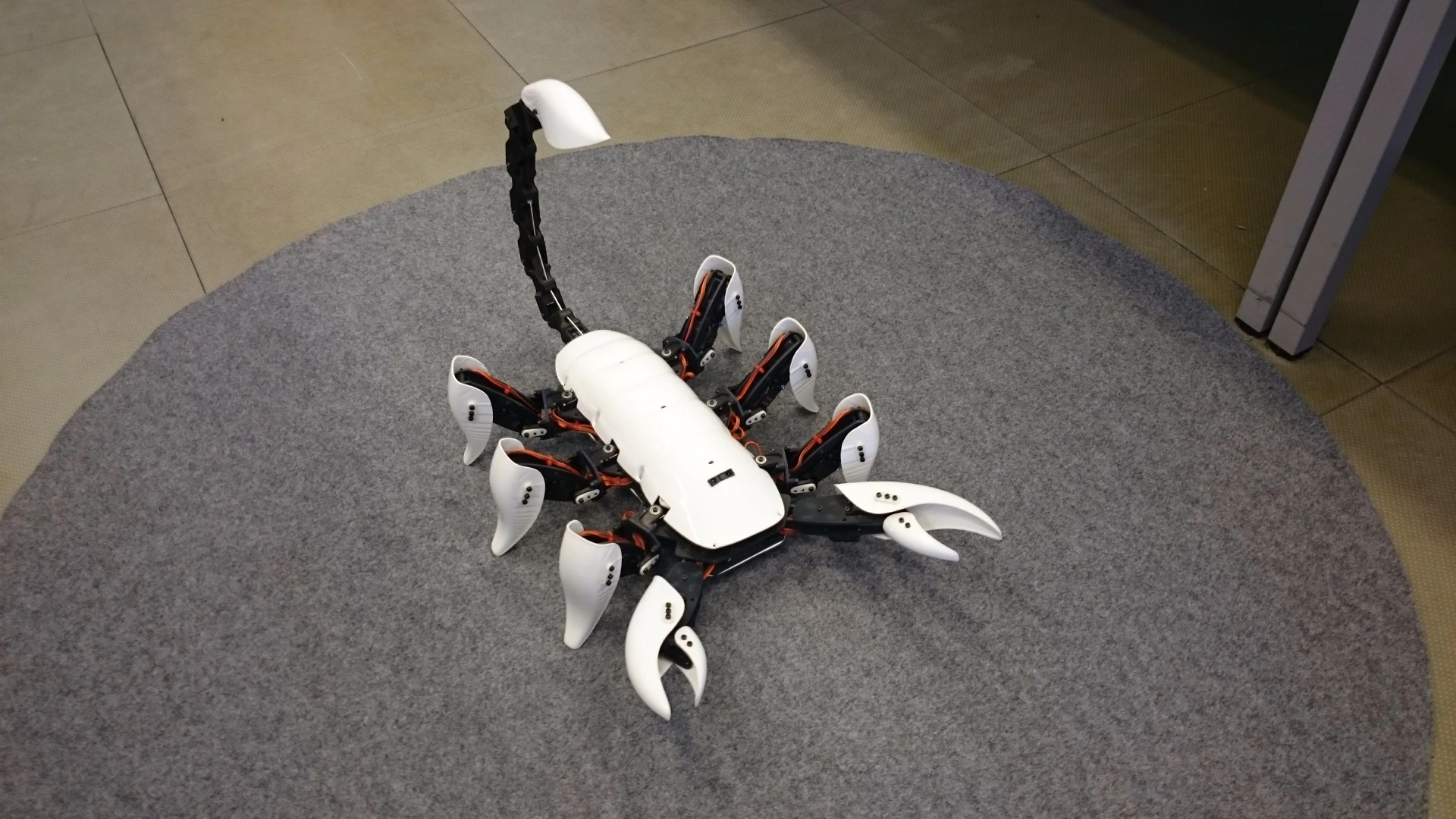

The Scorpion Hexabot moves better on carpet than smooth floor
6/12
The Scorpion Hexabot moves better on carpet than smooth floor

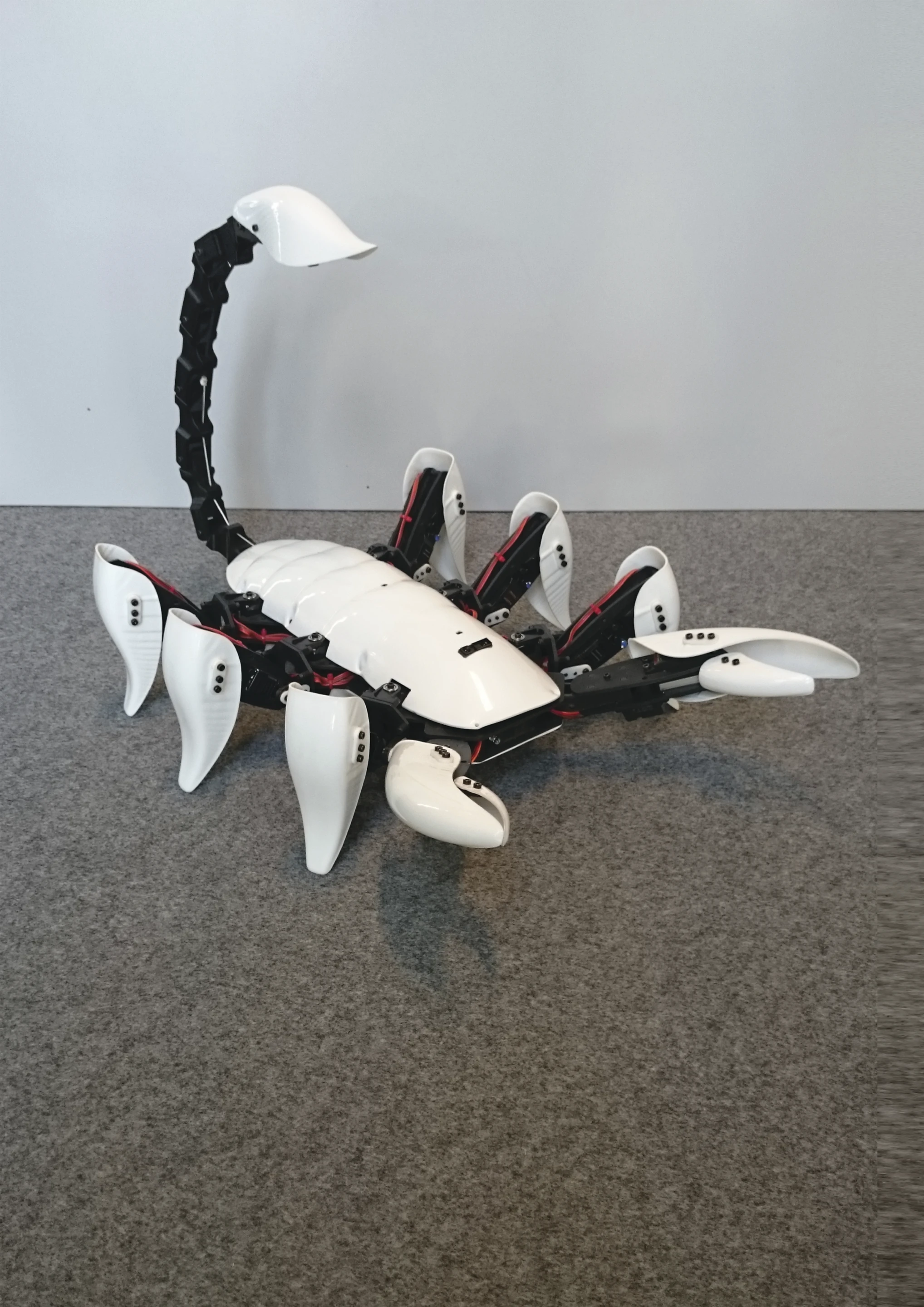

Ready to strike, the Scorpion Hexapod moves in a similar way to the real thing and stabs anyone who dares to get too close
7/12
Ready to strike, the Scorpion Hexapod moves in a similar way to the real thing and stabs anyone who dares to get too close
Get too close and the Scorpion Hexapod will stab you
8/12
Get too close and the Scorpion Hexapod will stab you

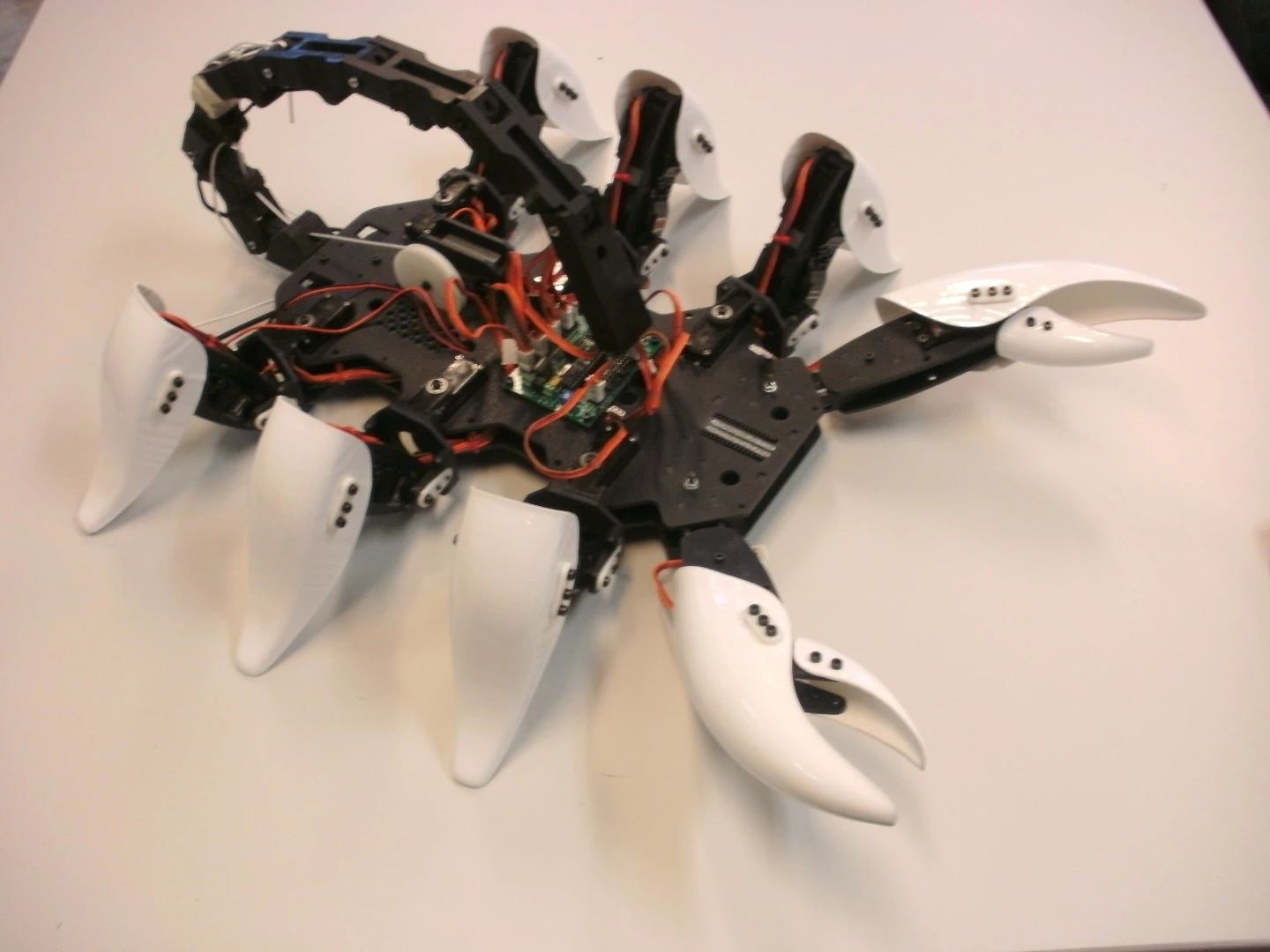

Build photo showing the lasercut ABs body, 3D-printed leg and tail modules and thermoformed polystyrene feet and claws
9/12
Build photo showing the lasercut ABs body, 3D-printed leg and tail modules and thermoformed polystyrene feet and claws

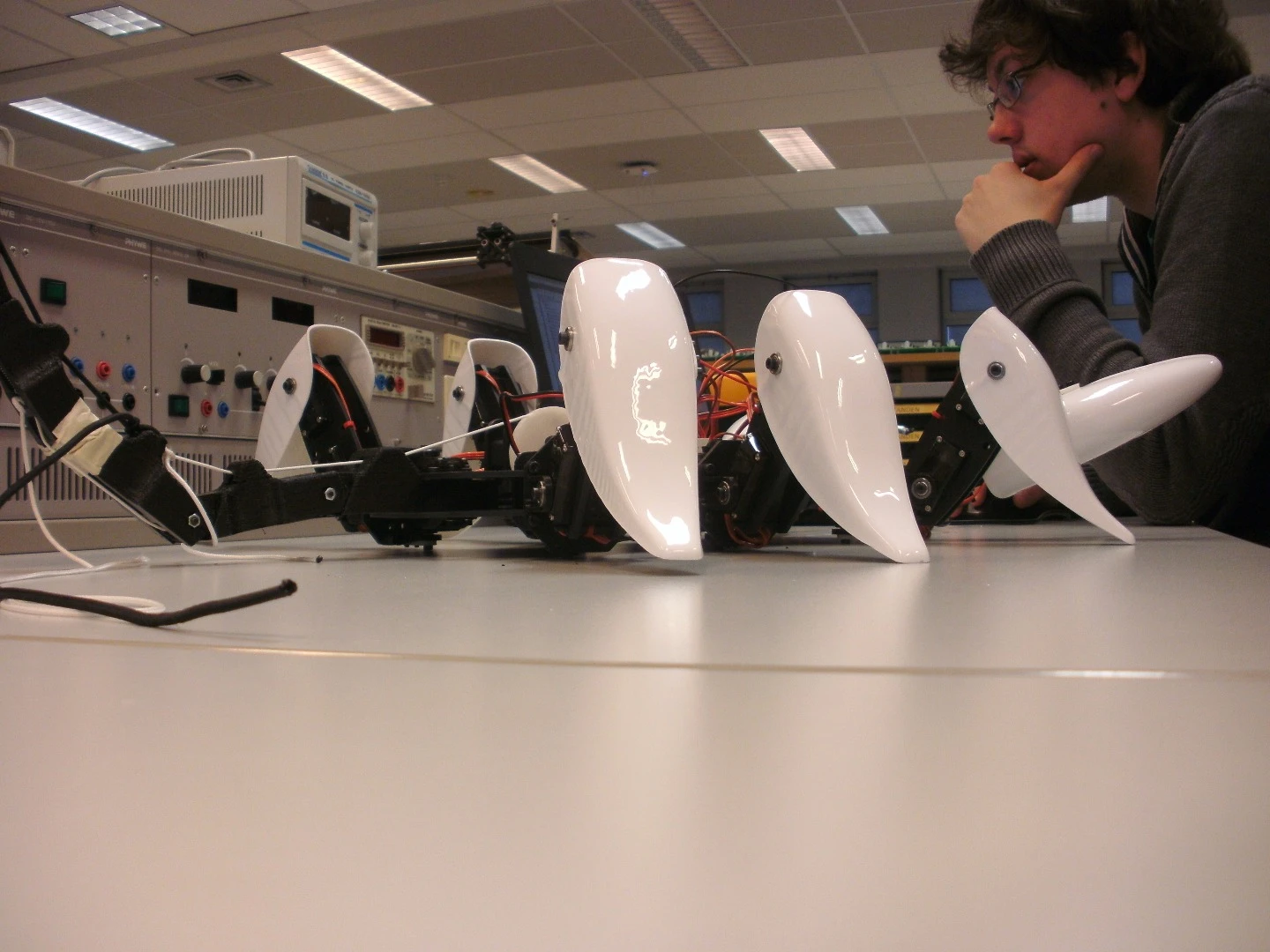

Live control via a computer is possible
10/12
Live control via a computer is possible

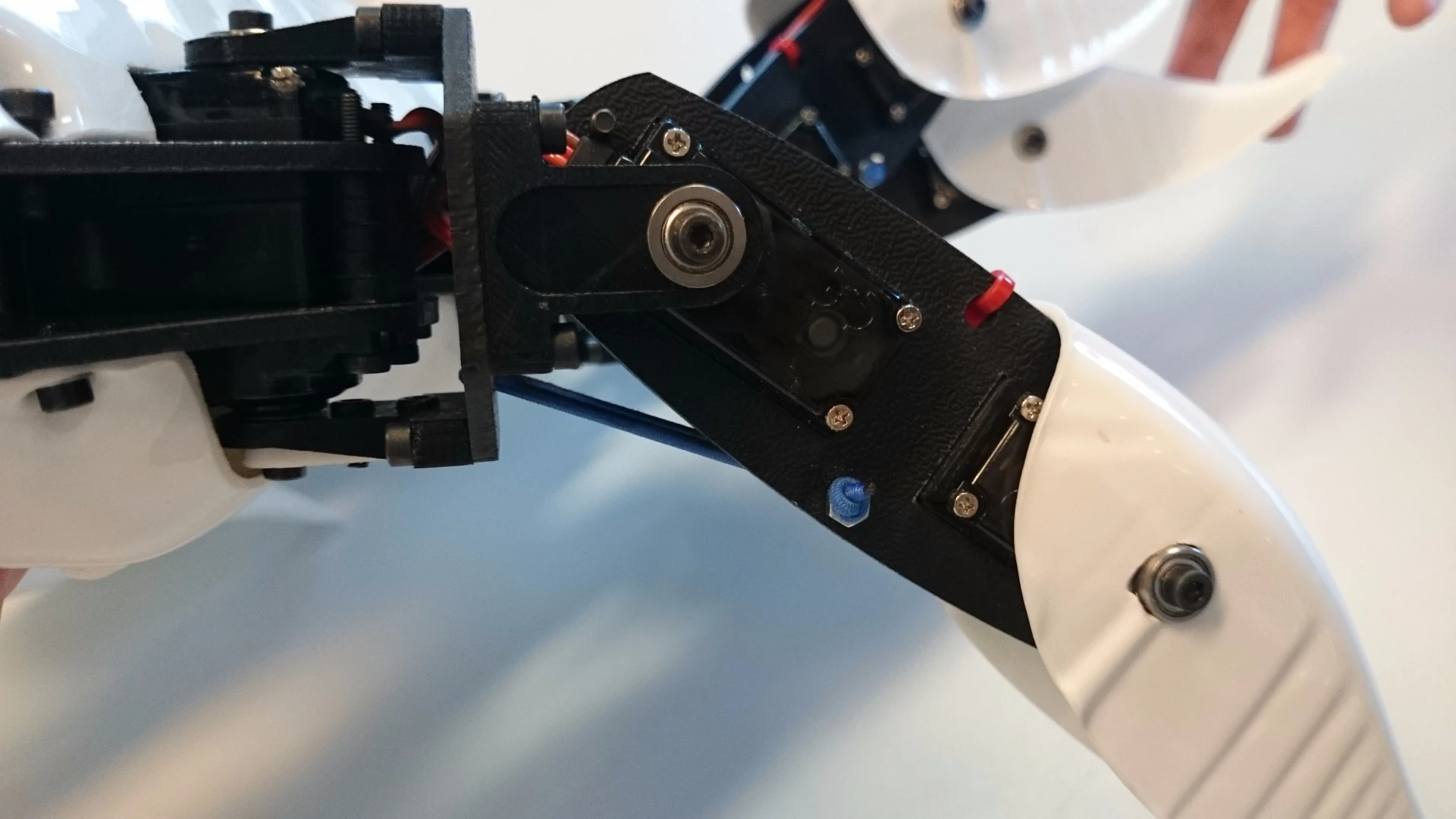

The modules that make up the legs were 3D-printed
11/12
The modules that make up the legs were 3D-printed

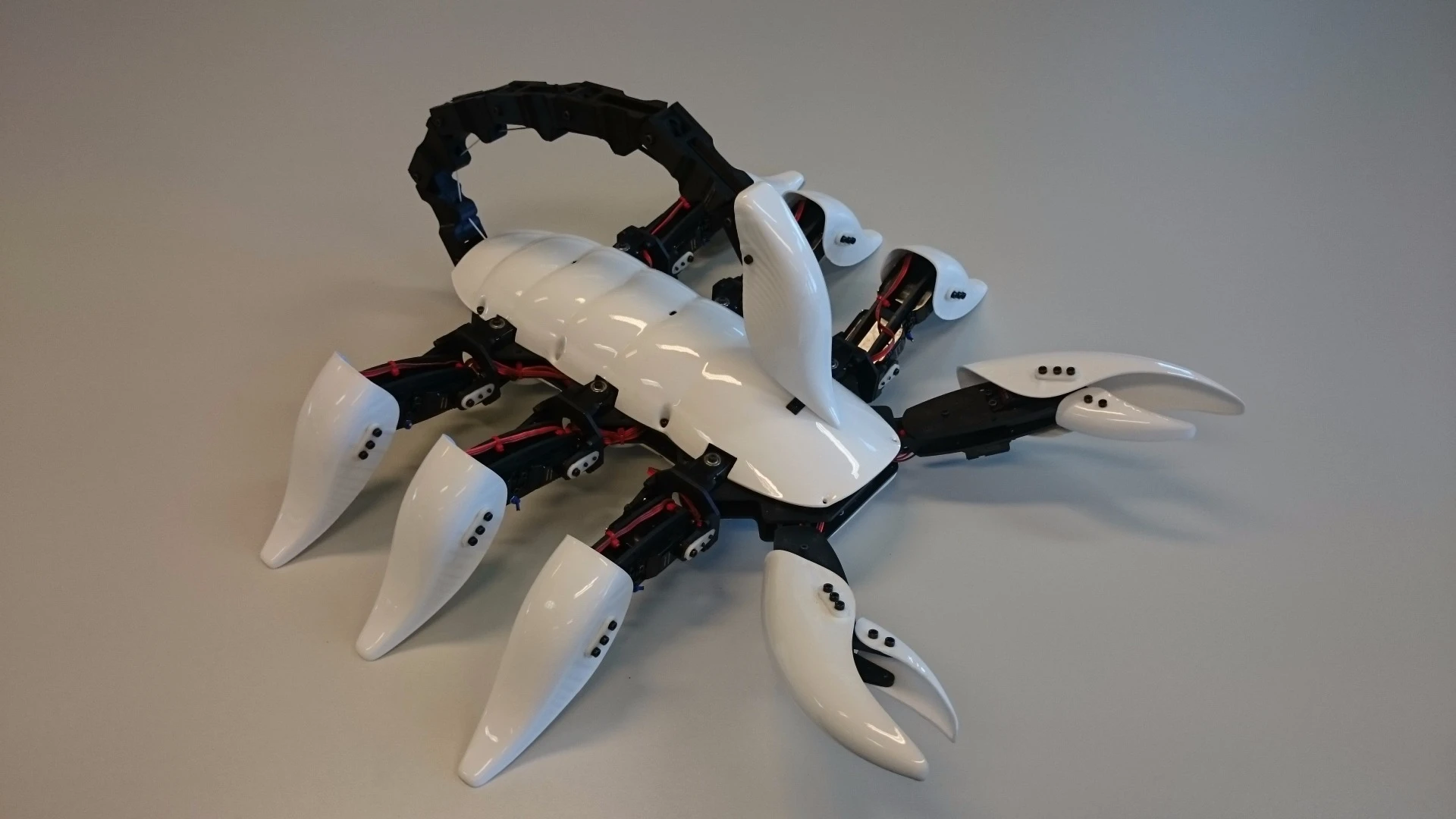

The shell, claws, leg ends and tail stinger are fashioned from thermoformed polystyrene
12/12
The shell, claws, leg ends and tail stinger are fashioned from thermoformed polystyrene

Students from Ghent University in Belgium have developed a six-legged floor crawler that's sure to leave its mark on those it comes into contact with. The Scorpion Hexapod, which wouldn't look too out of place in the robotic menagerie of German automation technology company Festo, fires its stinger at the hand of anyone covering its eyes, leaving a red mark as a reminder of the encounter.

The Master Year project design brief of students Stephan Flamand, Robbe Terryn and Pieterjan Deconinck was to redesign a robotic ant created as the mascot for the university's Industrial Design Center in 2011/2012. The team identified a number of problems with the Stigmergic ant, including motors that were quick to burn out, batteries that didn't last long and a lack of autonomy. Improvements were discussed, but by the end of October last year, the decision was made to change direction slightly, and aim to build a "rubber stamping" scorpion instead.

Electronics from the original ant-bot were, for the most part, re-used for the scorpion robot, though an Arduino Nano replaced a Mega board and a more powerful battery pack selected. The modules that make up the legs and tail were 3D-printed, the two sheet ABS body was lasercut, and the shell, claws, leg ends and tail stinger fashioned from thermoformed polystyrene. A marker pen was used to leave a stamp on the scorpion's victims.

Ready to strike, the Scorpion Hexapod moves in a similar way to the real thing and stabs anyone who dares to get too close
Ready to strike, the Scorpion Hexapod moves in a similar way to the real thing and stabs anyone who dares to get too close

The robot has been programmed with numerous moves and some auto responses to interactions, though live control via a computer is also possible. A long range IR sensor and three short range sensors positioned in the upper shell are used to detect user proximity and there's a front-facing camera.

As you can see in the video below, the Scorpion Hexapod moves in a similar way to the real thing (though it could maybe do with another pair of legs for extra realism) and stabs anyone who dares to get too close. The bot will now be used to promote courses at the Industrial Design Center.

Sources: Stephan Flamand, Robbe Terryn and Pieterjan Deconinck

Scorpion Hexapod
