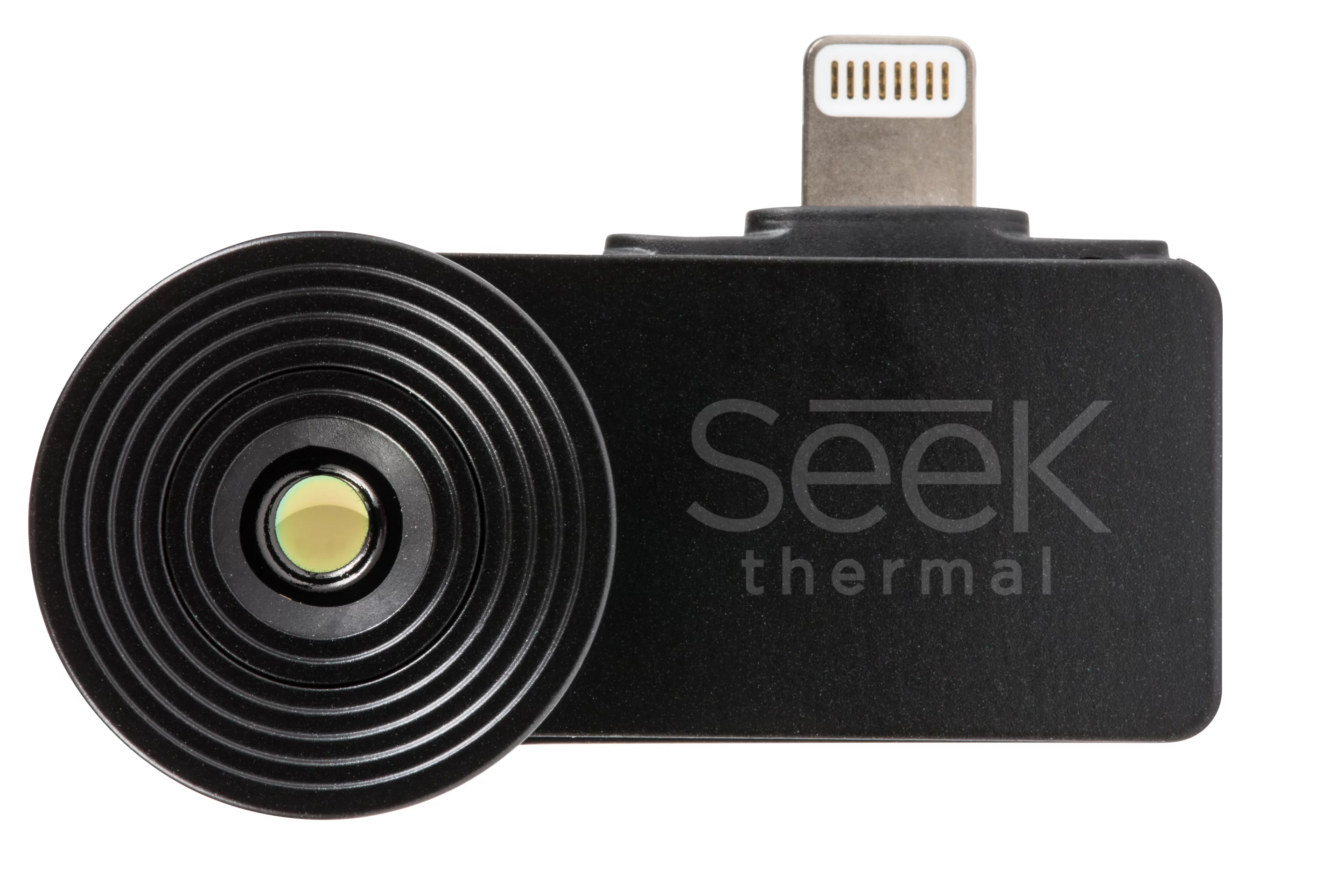

Seek Thermal for iOS
Seek Thermal for iOS
View 33 Images

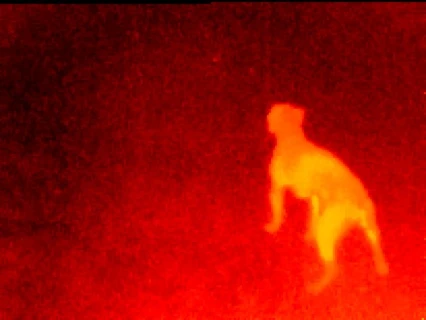

Seek Thermal detecting an animal in the dark
1/33
Seek Thermal detecting an animal in the dark
Seek Thermal imaging game by their heat signature
2/33
Seek Thermal imaging game by their heat signature
Seek Thermal can detect how even a barbeque is heating
3/33
Seek Thermal can detect how even a barbeque is heating
Seek Thermal looking at a a recently run motor bike
4/33
Seek Thermal looking at a a recently run motor bike
The Seek Thermal app
5/33
The Seek Thermal app
Seek Thermal app
6/33
Seek Thermal app

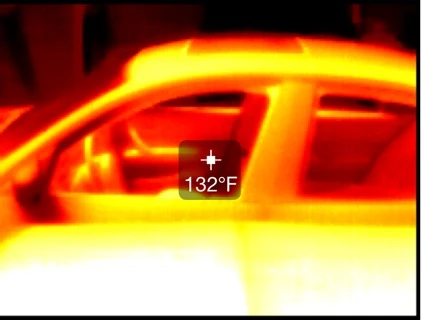

Seek Thermal showing a car's temperature profile
7/33
Seek Thermal showing a car's temperature profile

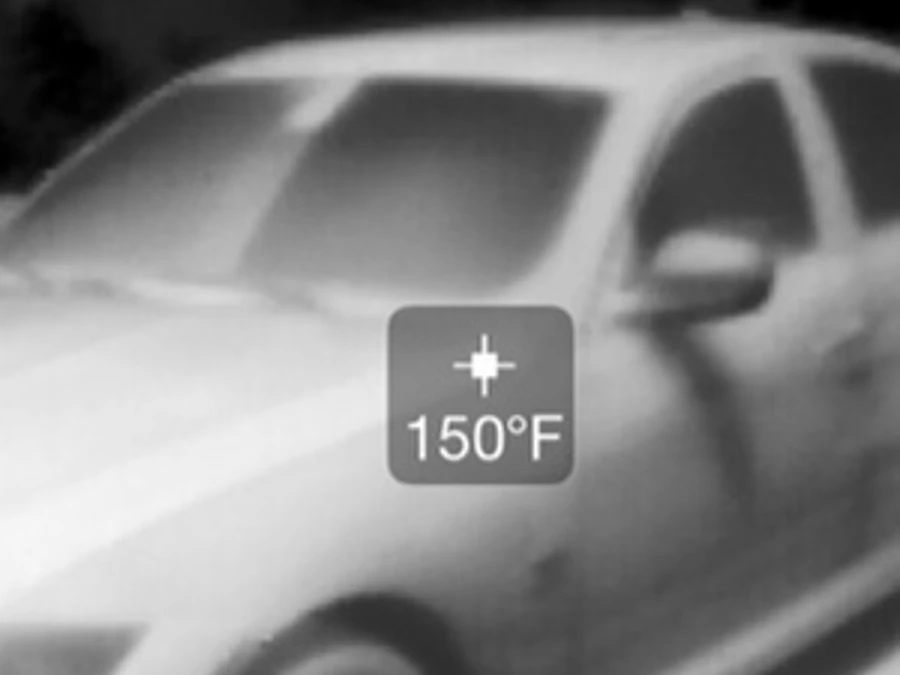

Seek Thermal showing a car's temperature as a numerical readout
8/33
Seek Thermal showing a car's temperature as a numerical readout
9/33

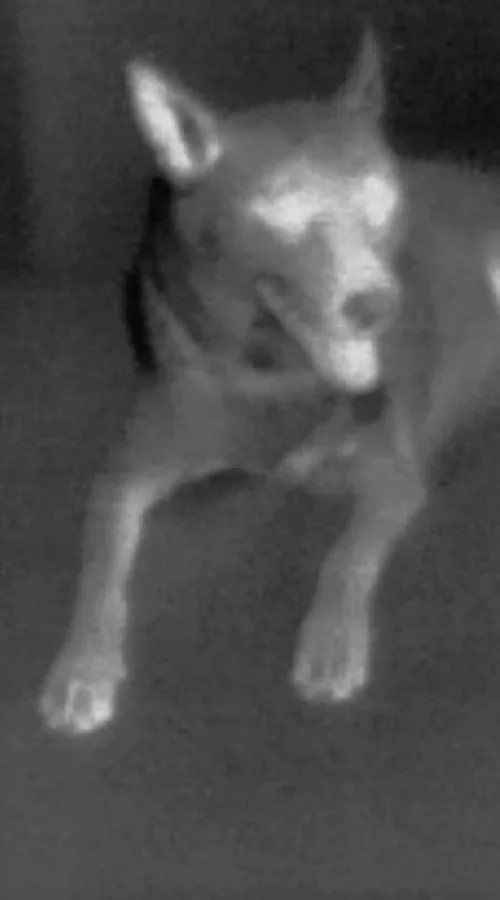

Seek Thermal showing a dog's heat signature
10/33
Seek Thermal showing a dog's heat signature

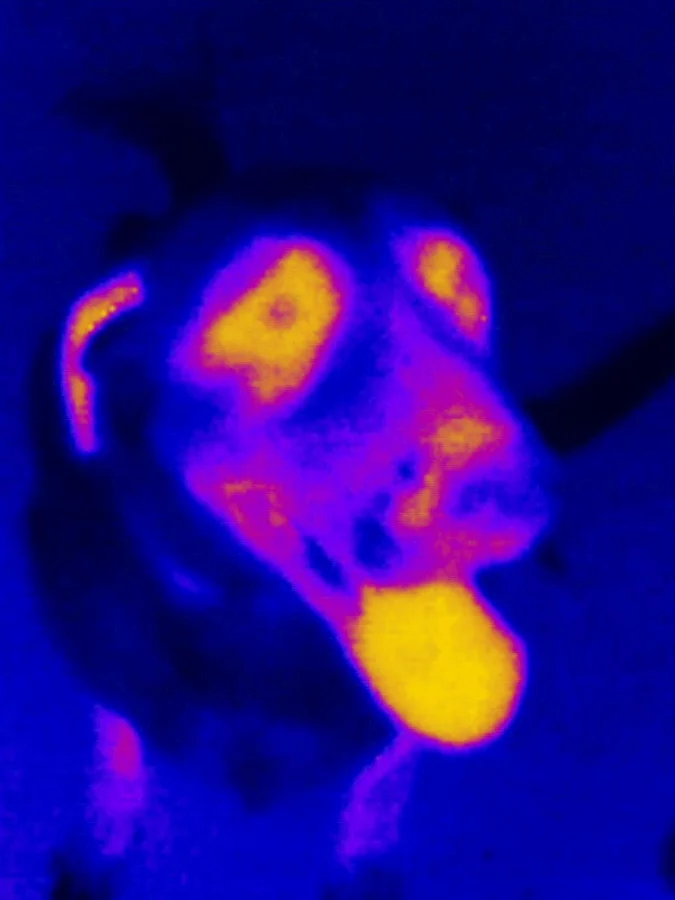

Seek Thermal comes with a choice of color palletes
11/33
Seek Thermal comes with a choice of color palletes
Seek Thermal swipes between normal and thermal view
12/33
Seek Thermal swipes between normal and thermal view

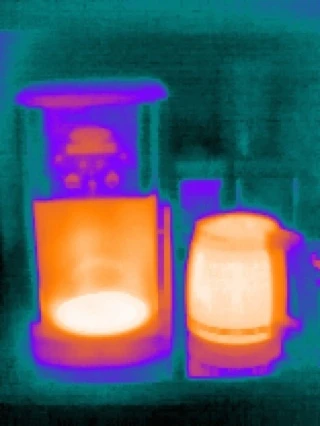

Seek Thermal image of a coffee service
13/33
Seek Thermal image of a coffee service
Seek Thermal showing a barbeque with numerical readout
14/33
Seek Thermal showing a barbeque with numerical readout
Seek Thermal heat image of a person
15/33
Seek Thermal heat image of a person
Seek Thermal image of a building
16/33
Seek Thermal image of a building
Seek Thermal can detect people in the dark
17/33
Seek Thermal can detect people in the dark
Seek Thermal image of a stove top
18/33
Seek Thermal image of a stove top
Seek Thermal app showing a door leaking heat
19/33
Seek Thermal app showing a door leaking heat
Seek Thermal has security applications
20/33
Seek Thermal has security applications

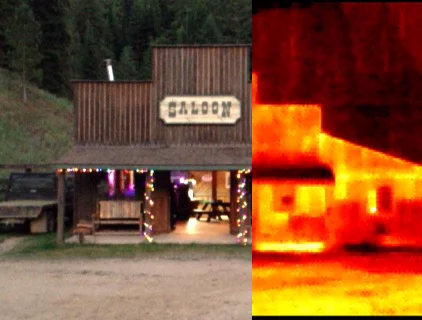

Seek Thermal comparing normal and thermal views
21/33
Seek Thermal comparing normal and thermal views
Seek Thermal showing a crowd
22/33
Seek Thermal showing a crowd

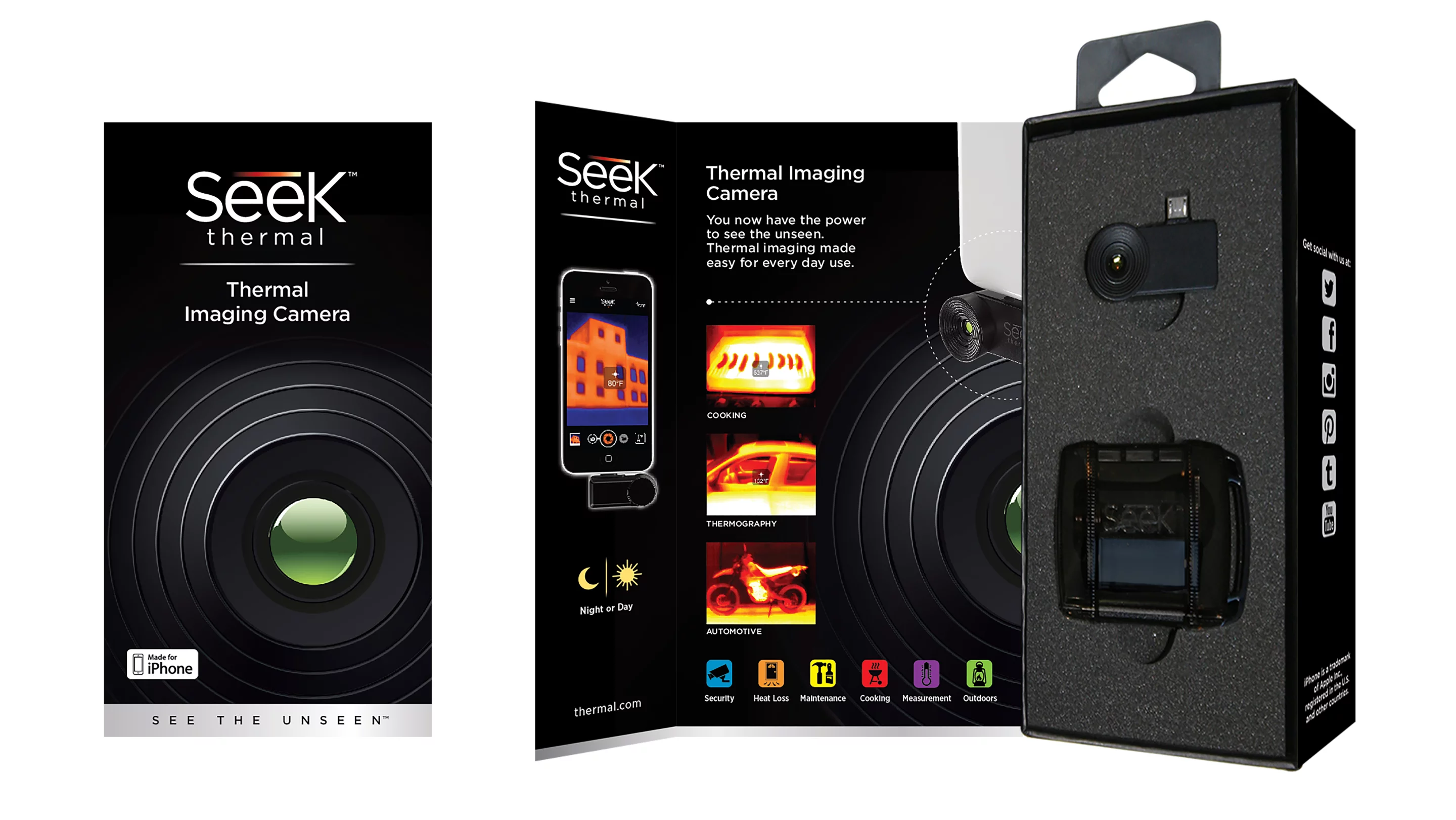

The Seek Thermal system
23/33
The Seek Thermal system

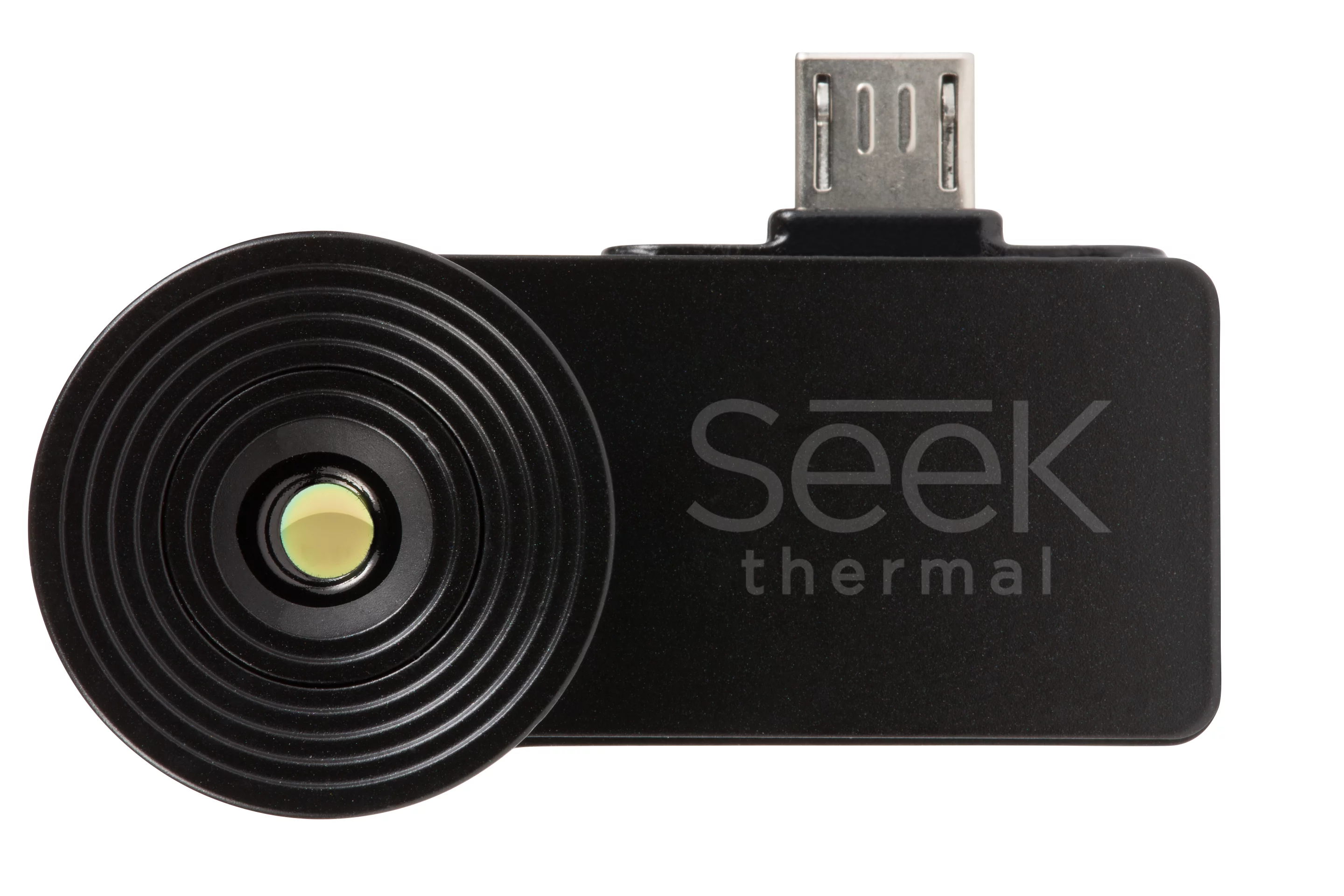

Seek Thermal for Android
24/33
Seek Thermal for Android
Seek Thermal for iOS
25/33
Seek Thermal for iOS

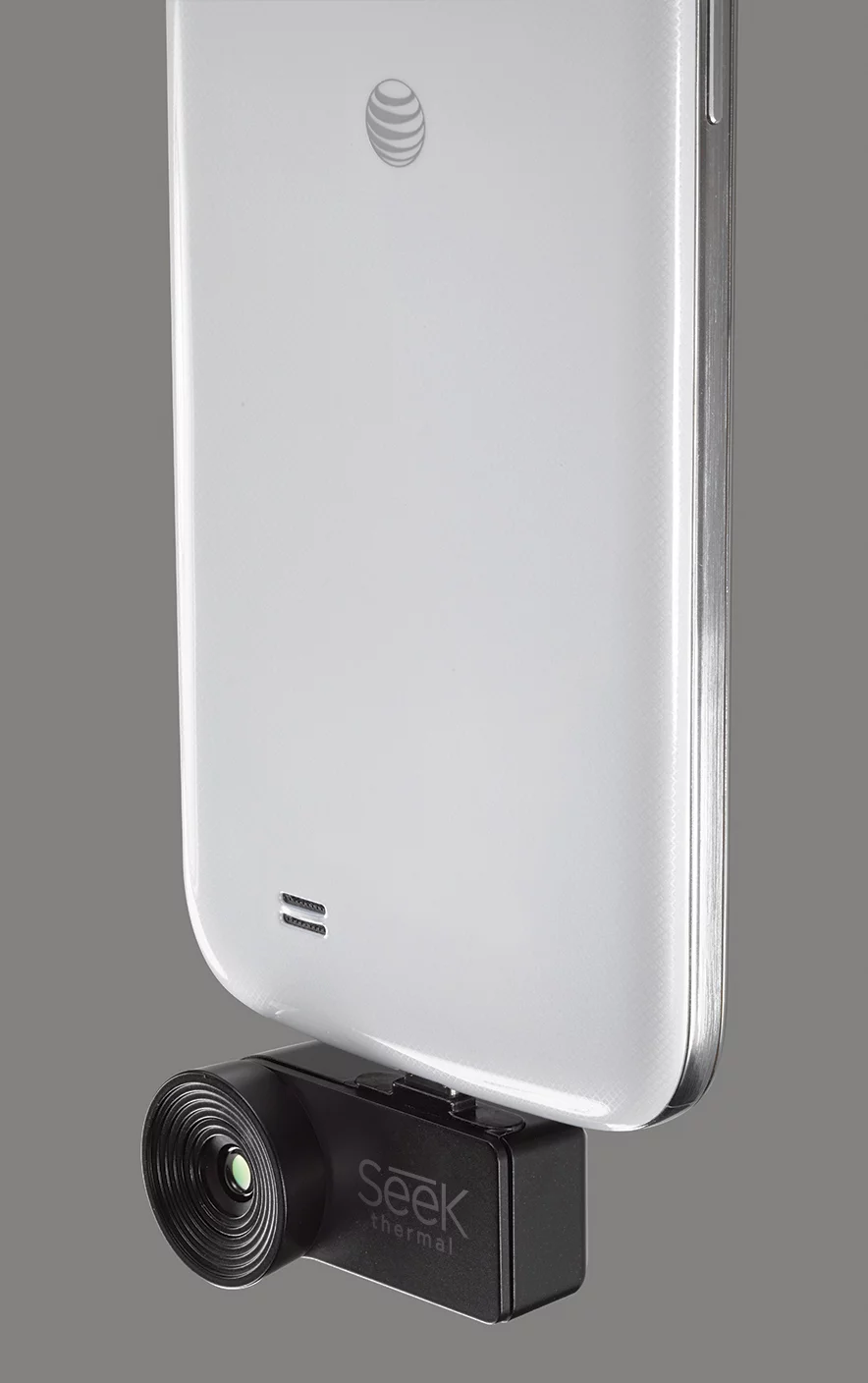

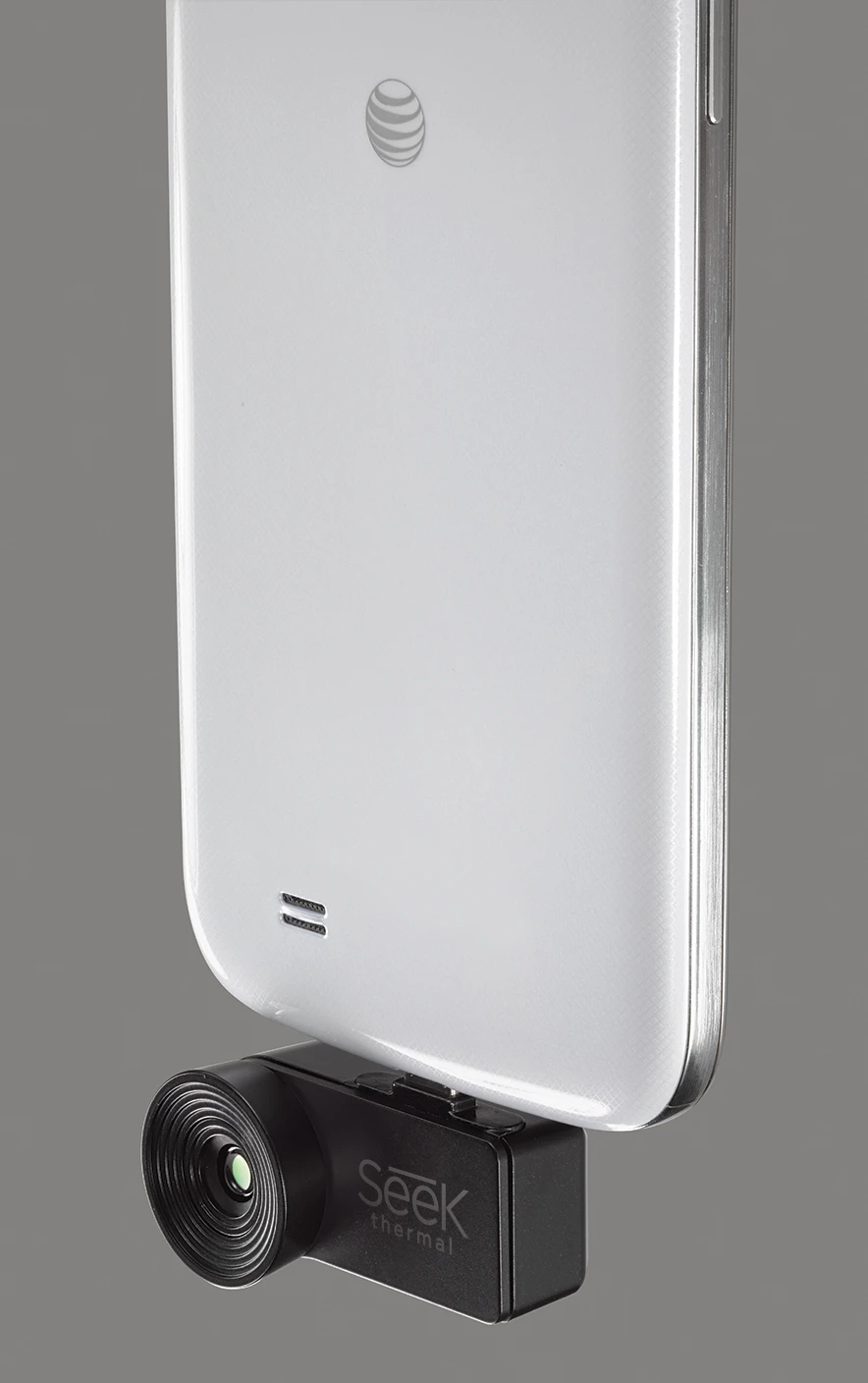

Seek Thermal for Android case
26/33
Seek Thermal for Android case

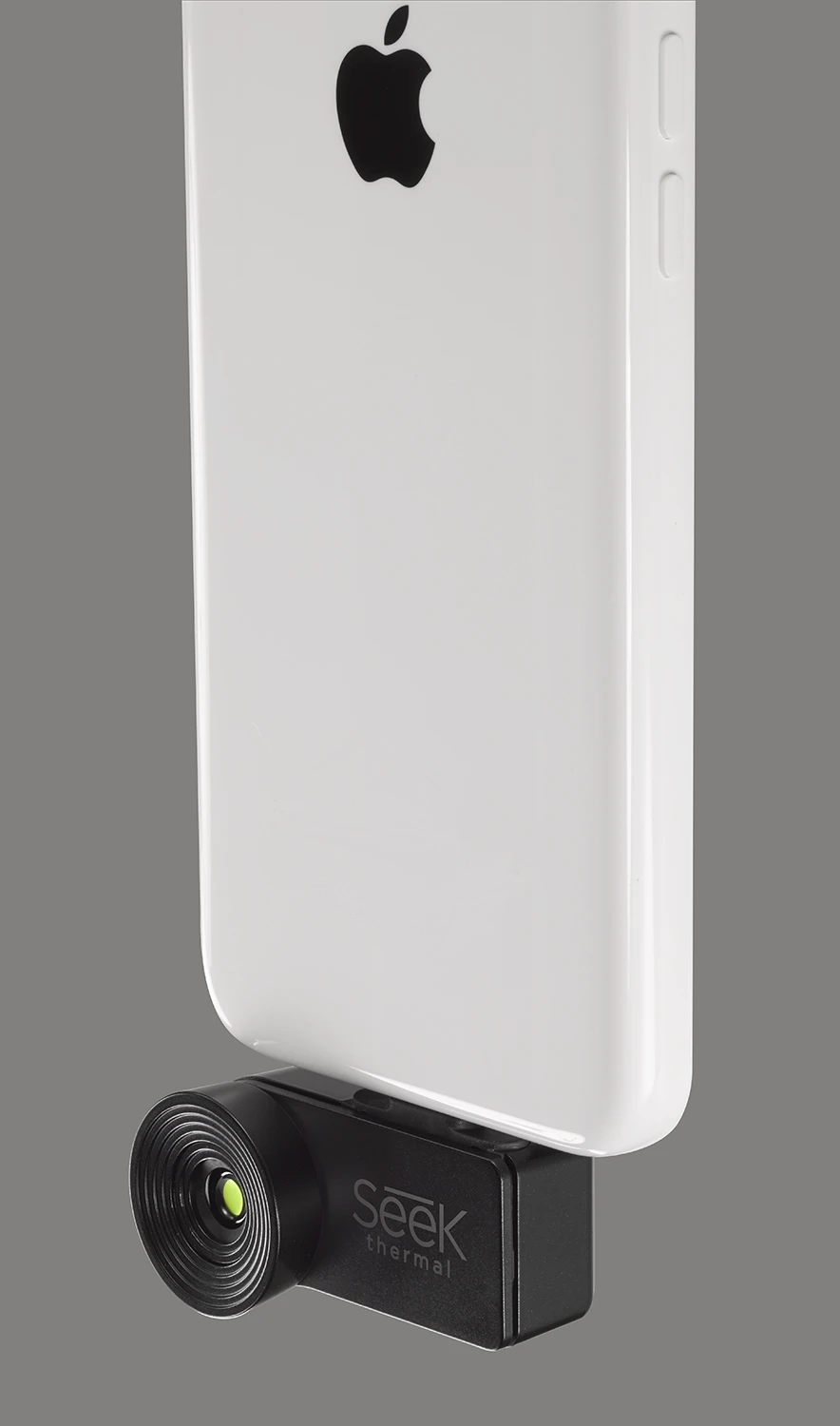

Seek Thermal for iOS case
27/33
Seek Thermal for iOS case

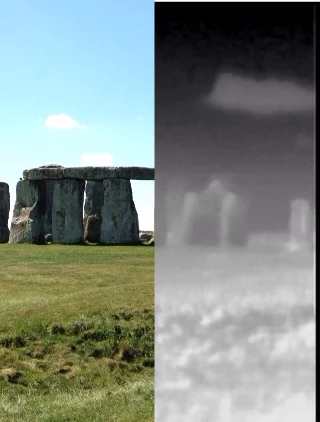

Seek Thermal showing Stonehenge
28/33
Seek Thermal showing Stonehenge
Seek Thermal showing stove top with numerical readout
29/33
Seek Thermal showing stove top with numerical readout
Timeline of thermal imaging
30/33
Timeline of thermal imaging

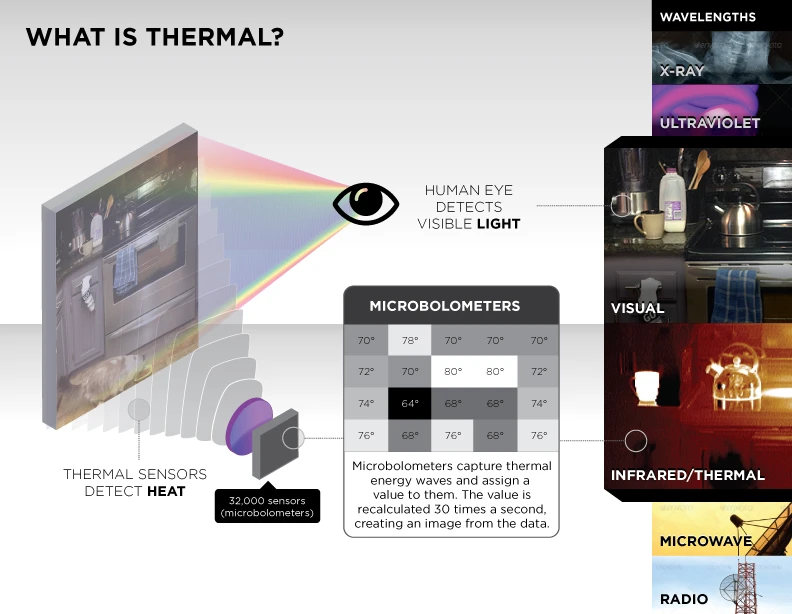

Seek Thermal infographic
31/33
Seek Thermal infographic

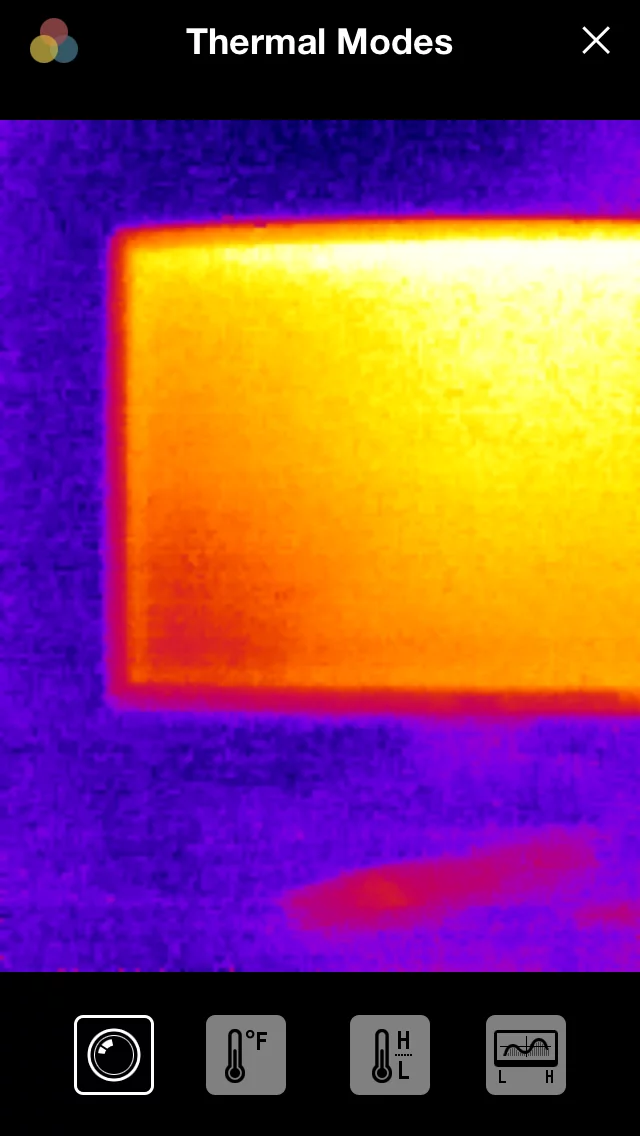

Seek Thermal thermal modes
32/33
Seek Thermal thermal modes

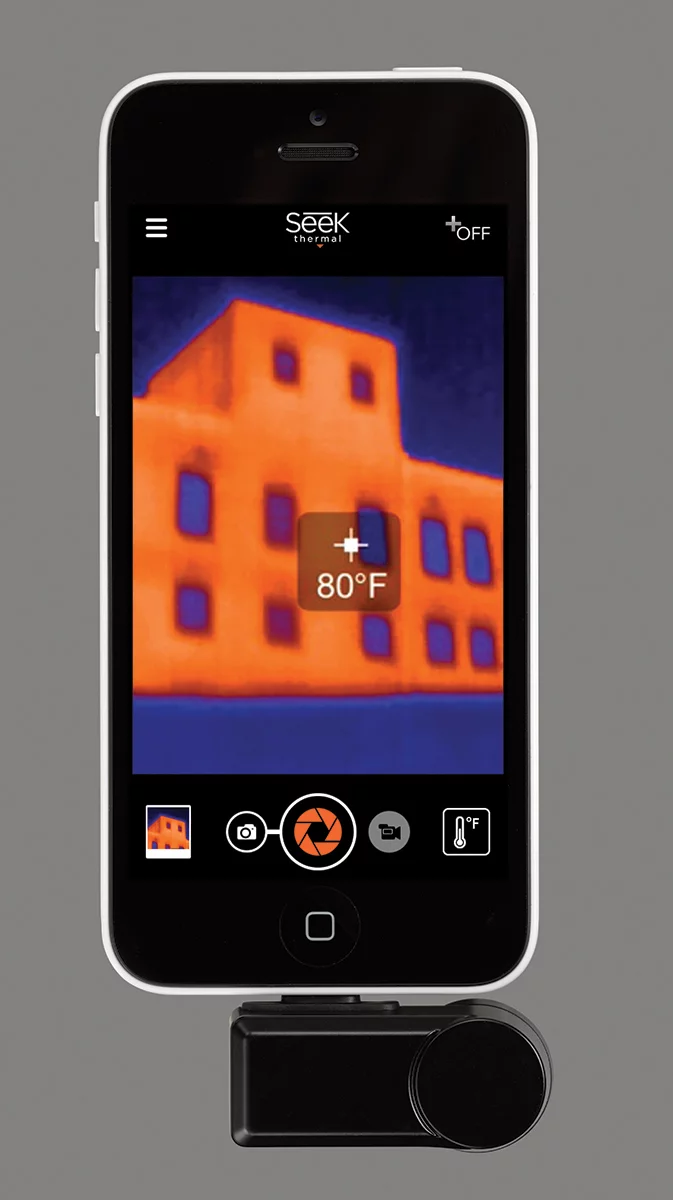

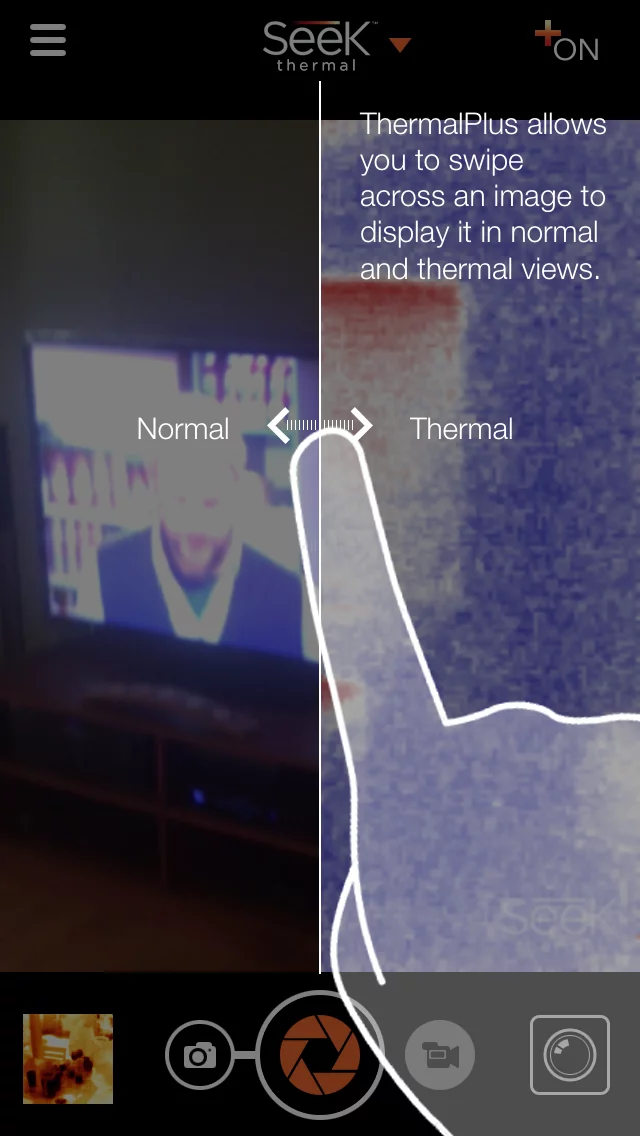

The Seek Thermal app
33/33
The Seek Thermal app

Ever wonder if there’s something hiding in the bushes at night or if your door seals are leaking heat in the winter? A thermal imaging camera is one way of answering these questions, but they tend to be bulky and very pricey. California-based Seek Thermal is aiming to bring thermal imaging into the consumer realm with its small, relatively affordable thermal camera smartphone accessory.

Compatible with iOS and Android phones, the Seek Thermal is a 0.5 oz (14 gm) camera in a magnesium case, which attaches to the USB dock on a smartphone. Inside is a bespoke 206 x 156 array vanadium oxide microbolometer with a chalcogenide lens providing a 36º field of view. According to the company, Seek Thermal operates in the 7.2 to 13 micron long-wave infrared range and can detect heat in a temperature range from -40º C to 330º C (-40º F to 626º F).

The Seek Thermal works in conjunction with an app that allows the user to switch between normal and thermal imaging mode with a swipe. It offers four different temperature measurement modes, can automatically highlight objects in an image within a predefined temperature range, and has a choice of nine different color palettes.

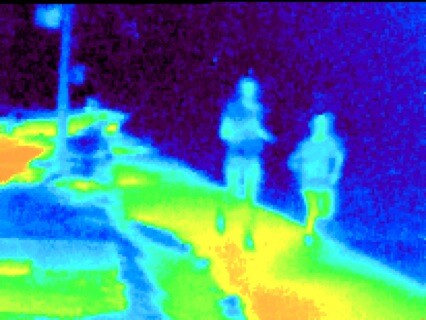

Seek Thermal can detect people in the dark
Seek Thermal can detect people in the dark

Unlike night vision systems, the camera operates by turning heat signatures into visible images rather than enhancing low-light conditions. Seek Thermal sees a number of applications for the camera such as improving security by detecting people and animals in the dark; helping around the house by locating leaky doors and windows, poor insulation, wall studs, and pipes; and enhancing recreation by seeing game at night or objects on the water in the dark while boating. It can even help at the bbq by making sure that the charcoal bed is heating evenly or checking the surface temperature of food.

The company plans to release a developer’s kit next year to allow third parties to create apps for the Seek Thermal. The camera is now available for US$199.

The video below introduces the Seek Thermal.

Product page: Seek Thermal
