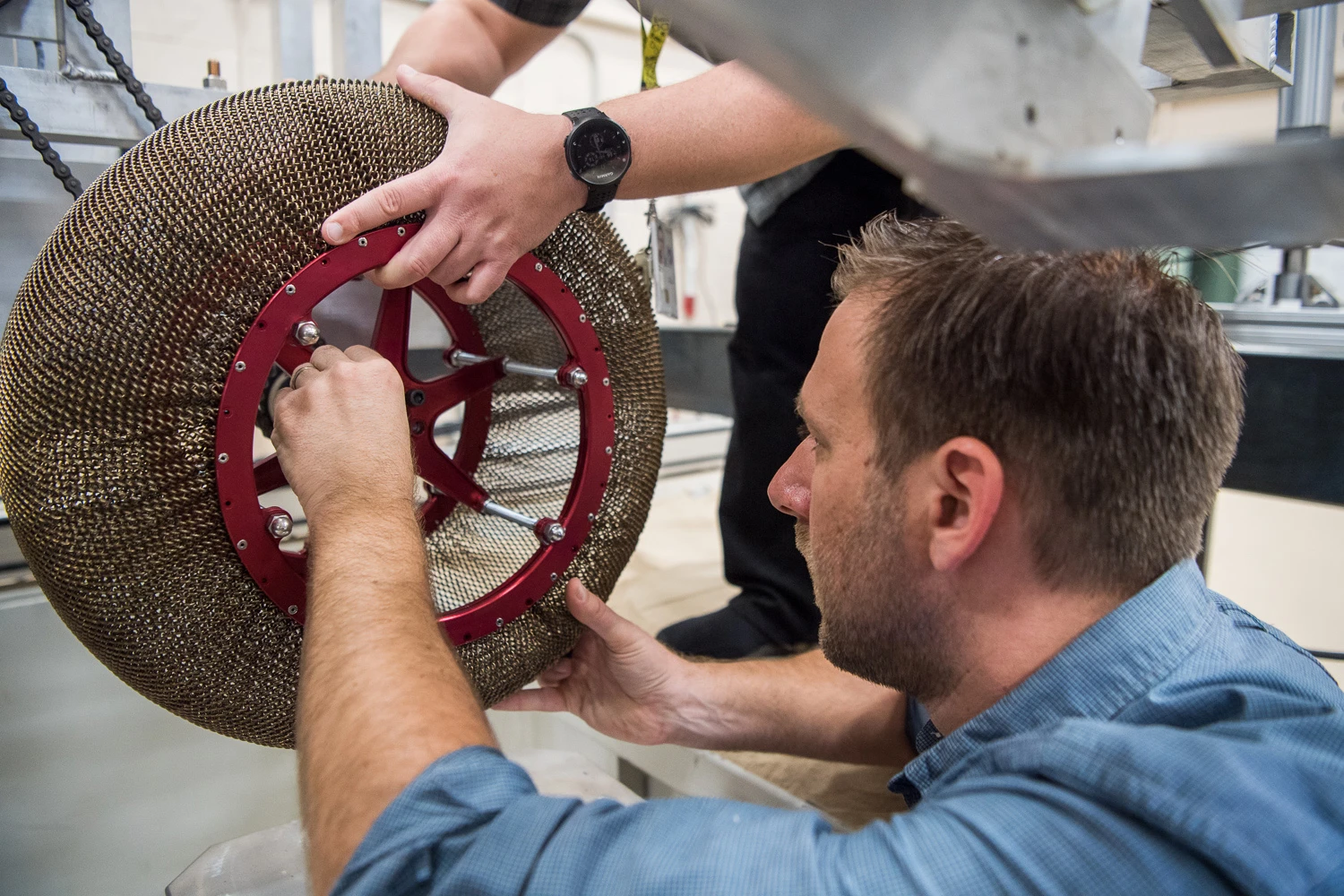

Constructing a test mesh tire
Constructing a test mesh tire
View 15 Images

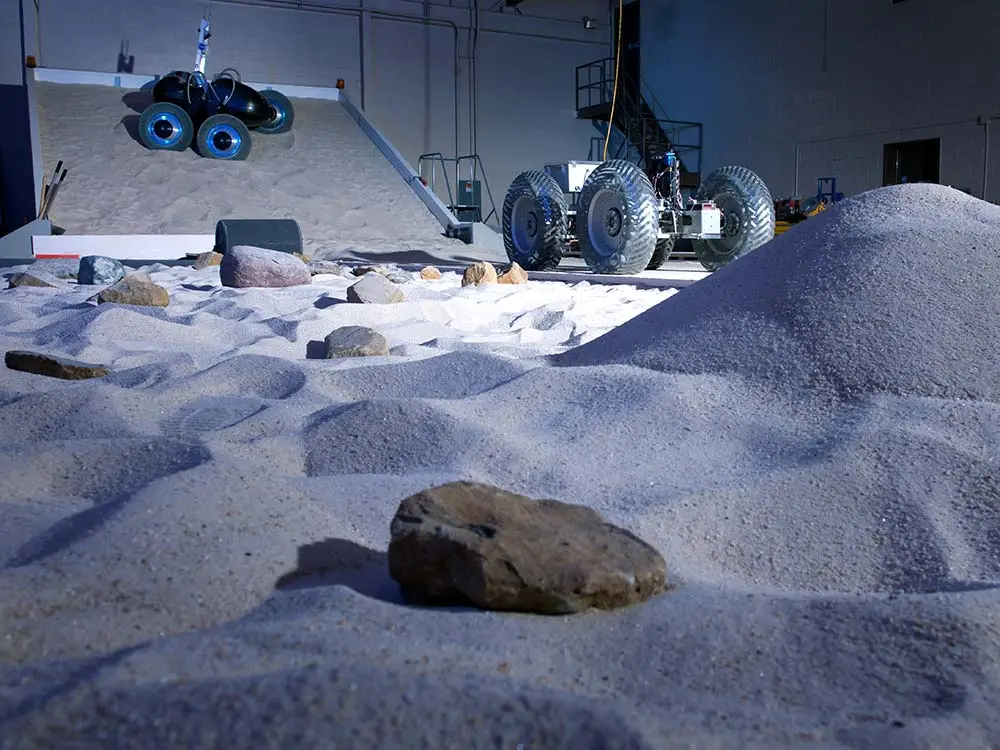

A simulated Mars test track
1/15
A simulated Mars test track
Constructing a test mesh tire
2/15
Constructing a test mesh tire

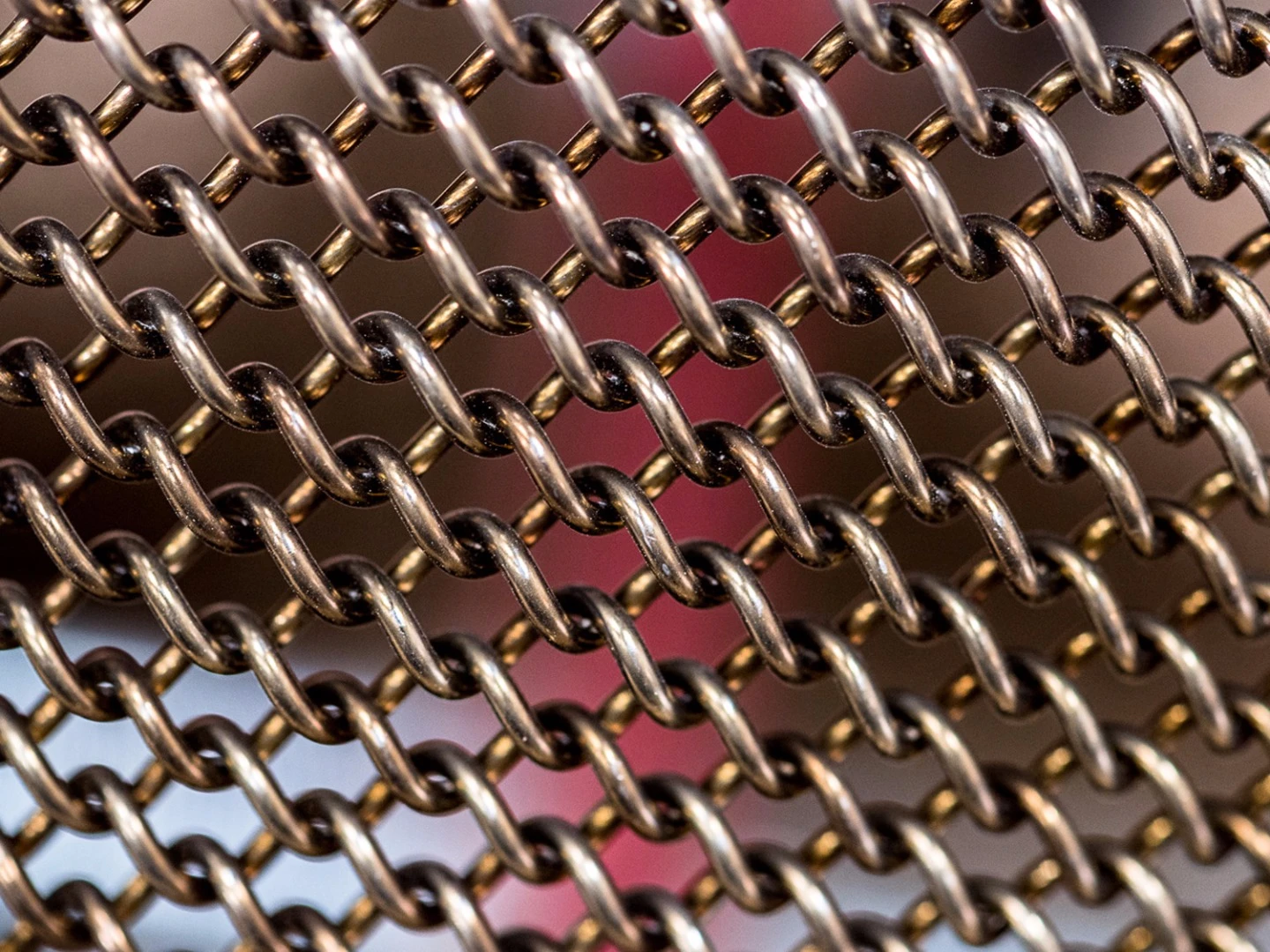

Close up of a tire's steel mesh
3/15
Close up of a tire's steel mesh

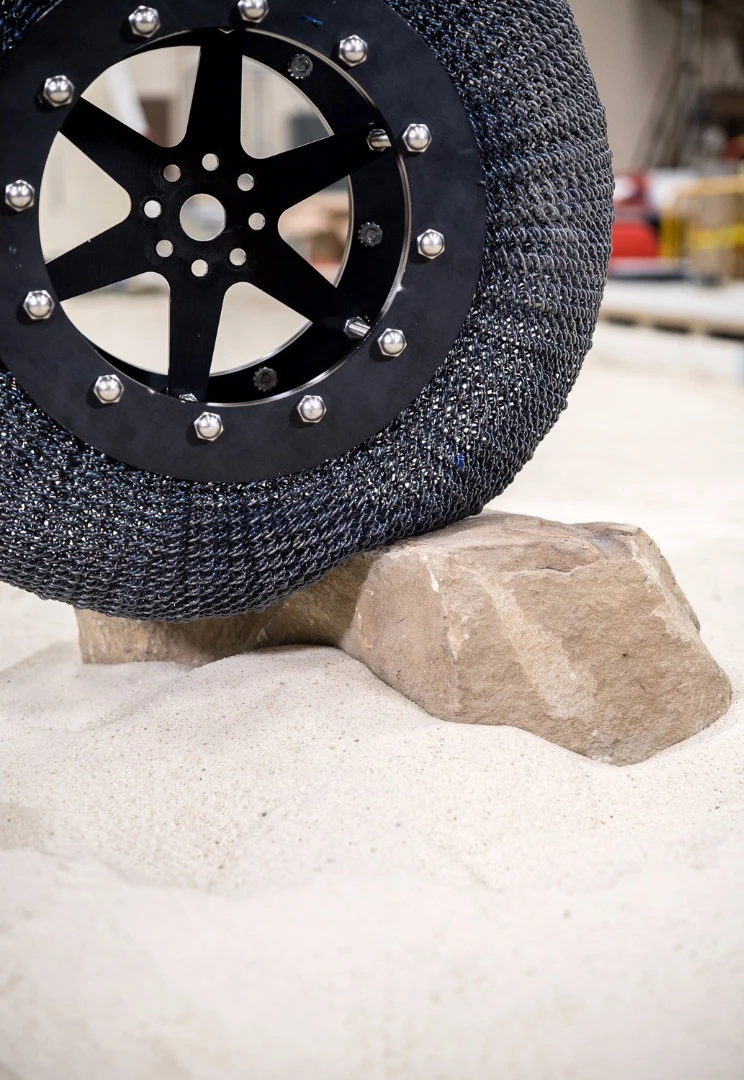

The new tire weighs about 20 lbs and can handle 165 lbs of load
4/15
The new tire weighs about 20 lbs and can handle 165 lbs of load
Curiosity's wheels have worn faster than expected
5/15
Curiosity's wheels have worn faster than expected

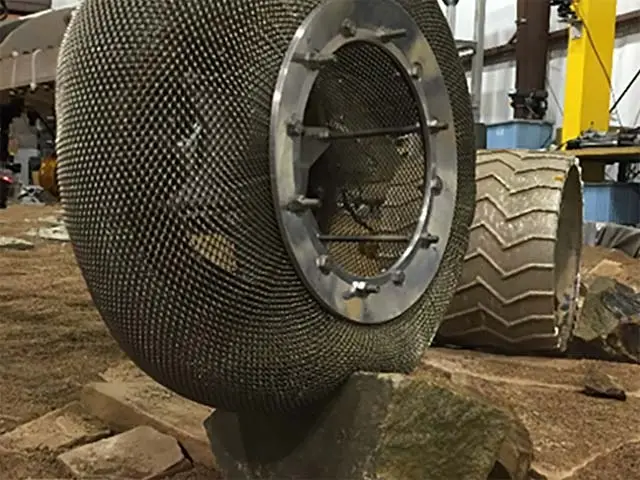

Steel mesh tires have problems with deformation
6/15
Steel mesh tires have problems with deformation

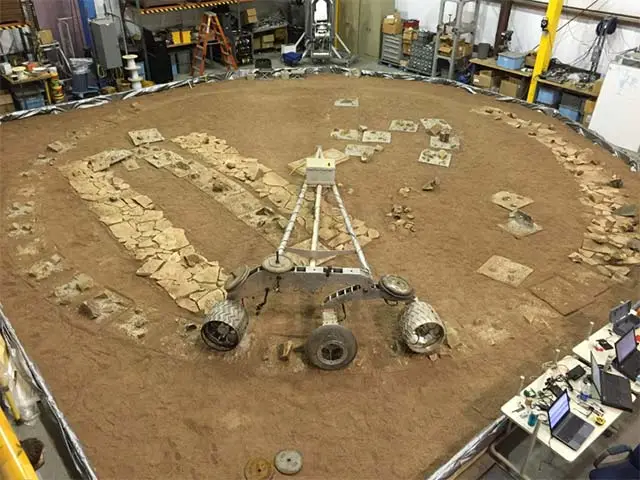

Testing Mars wheels
7/15
Testing Mars wheels
The Apollo Lunar Rover
8/15
The Apollo Lunar Rover

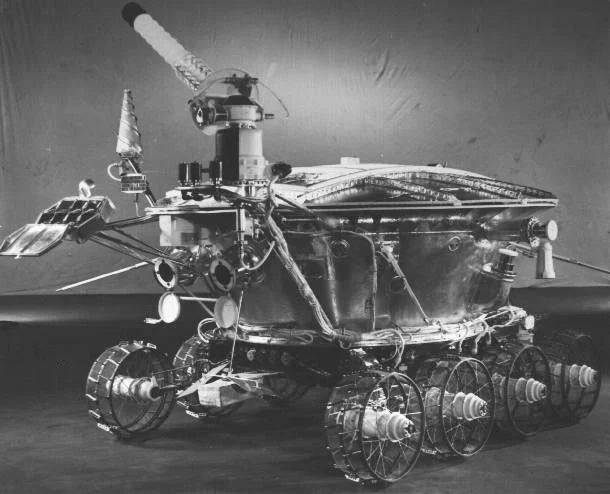

The Soviet Lunokhod  rover first wheeled device on the Moon
9/15
The Soviet Lunokhod  rover first wheeled device on the Moon

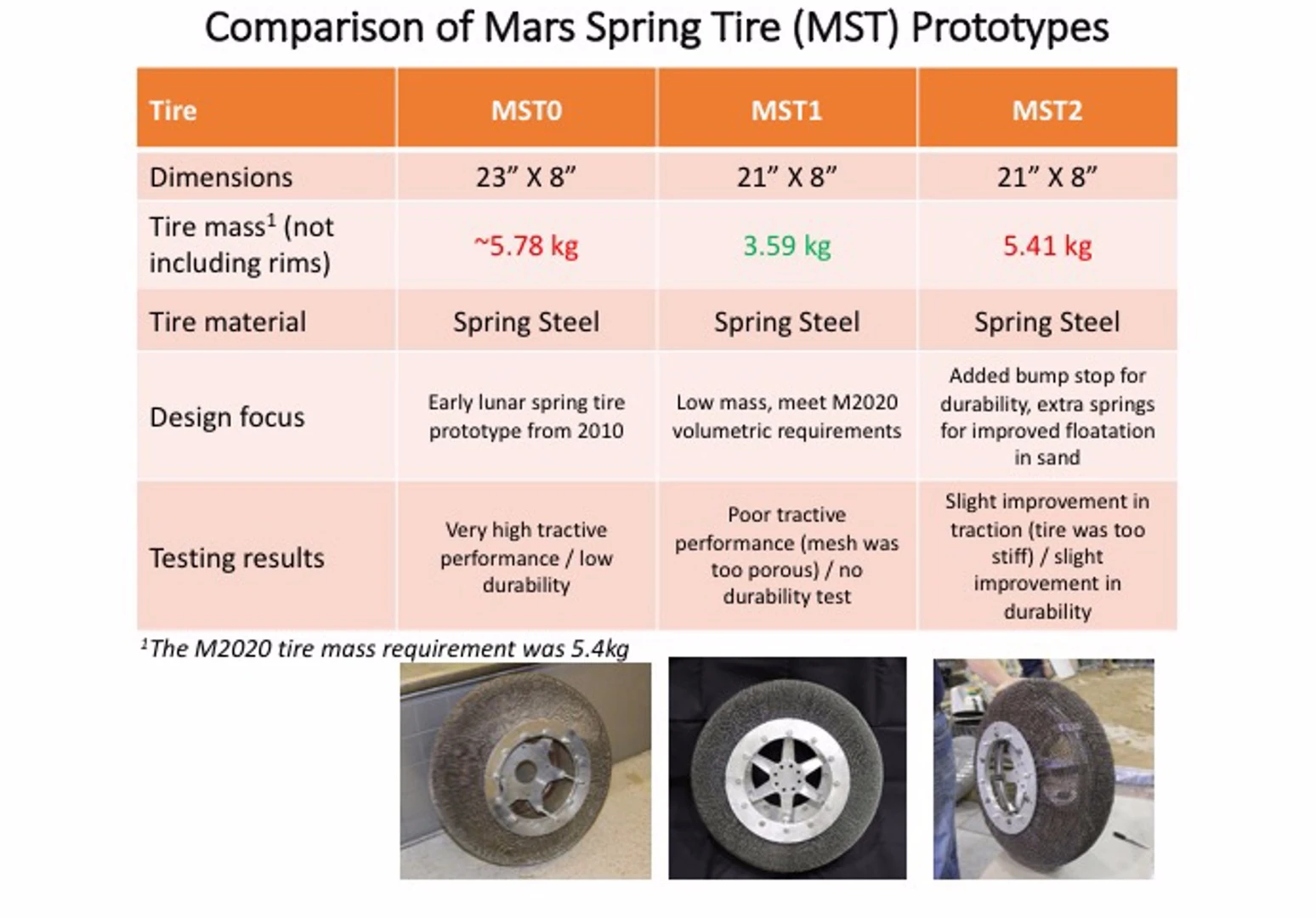

Comparison of experimental mesh tires
10/15
Comparison of experimental mesh tires

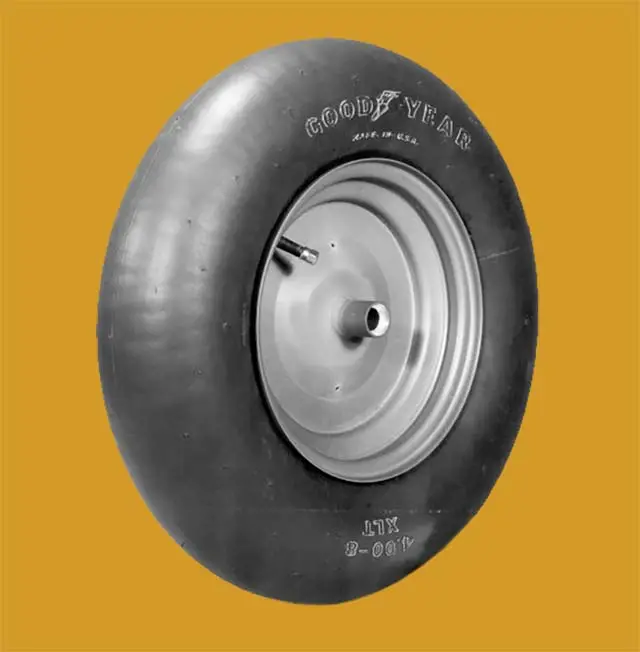

MET wheel, which is the only pneumatic tire to be used on the Moon
11/15
MET wheel, which is the only pneumatic tire to be used on the Moon

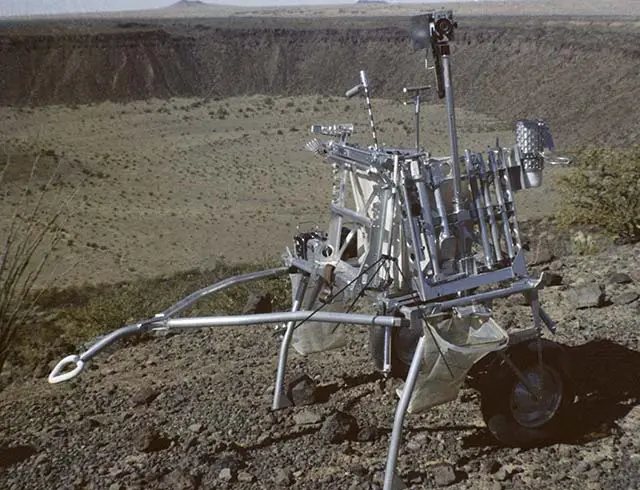

Modularized Equipment Transporter (MET) used on Apollo 14 to carry astronaut gear
12/15
Modularized Equipment Transporter (MET) used on Apollo 14 to carry astronaut gear

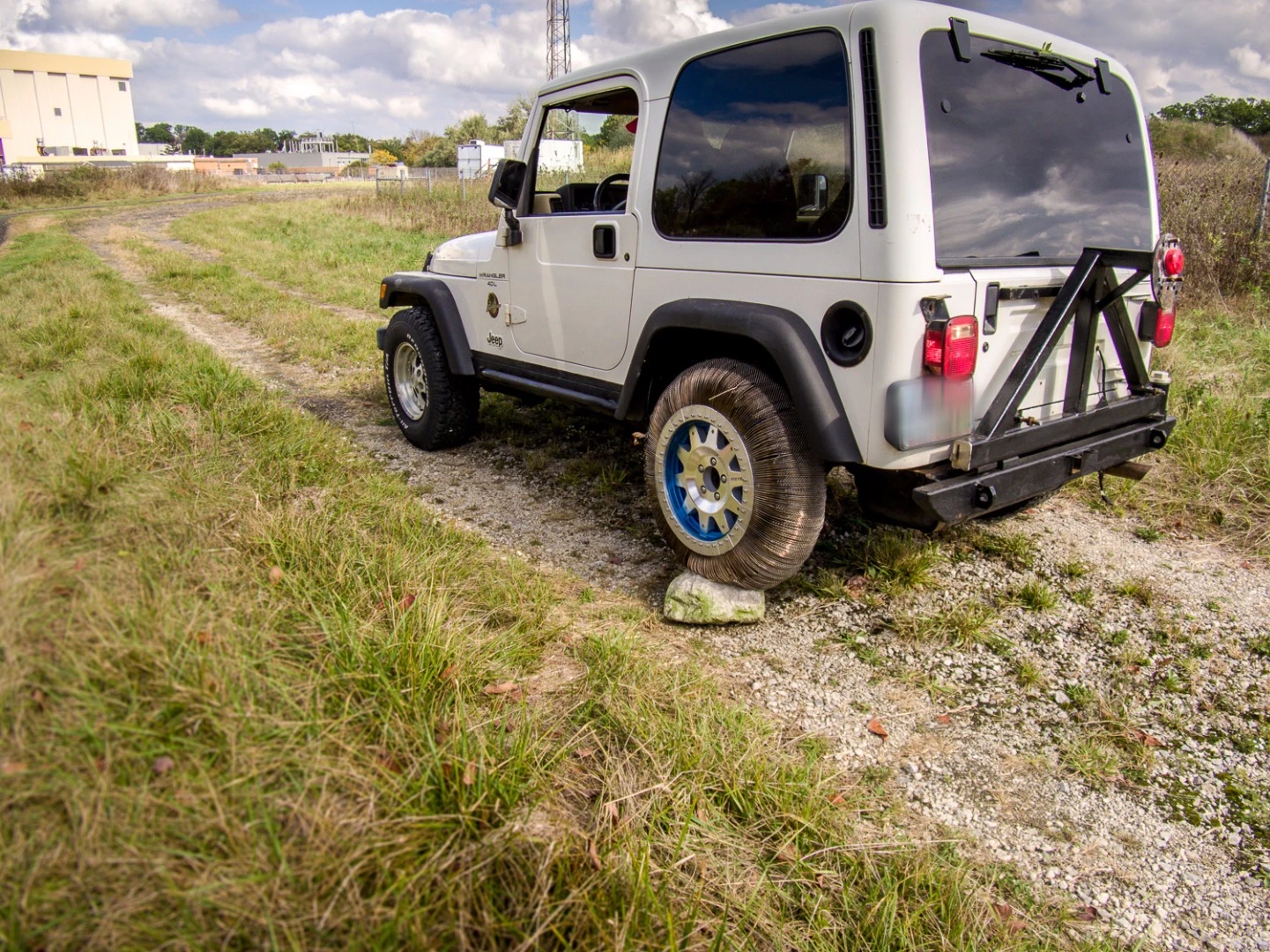

Memory alloy tire on a 4x4
13/15
Memory alloy tire on a 4x4

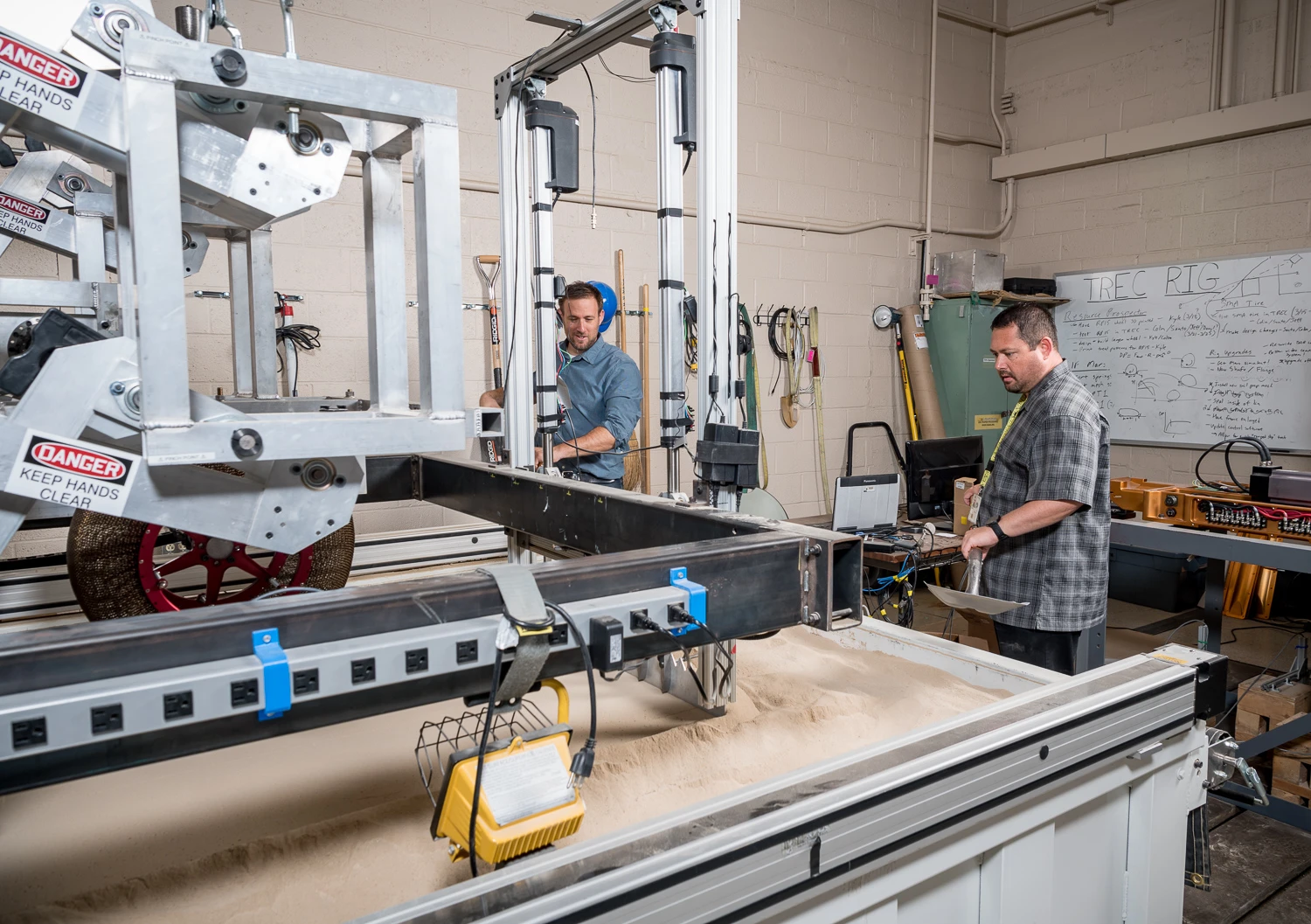

Testing a wheel on sand
14/15
Testing a wheel on sand

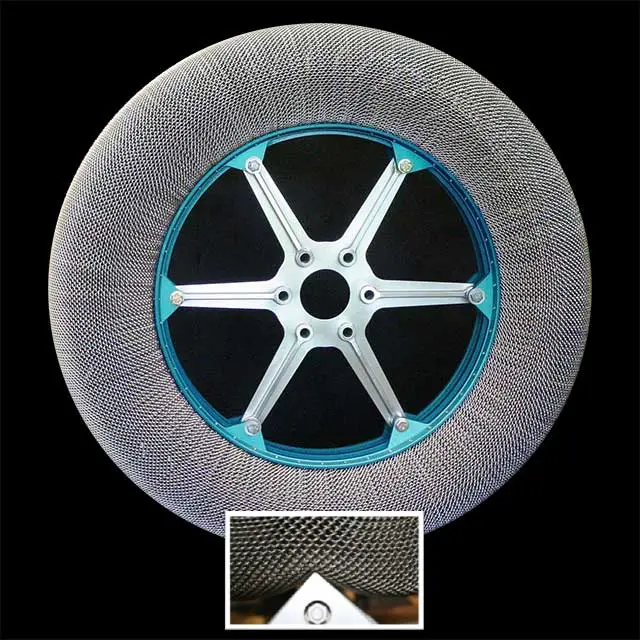

The Spring tire
15/15
The Spring tire

The Curiosity Mars rover has been a remarkable success except in one area – its wheels are falling apart faster than expected. To prevent this from happening to future rover missions, NASA's Glenn Research Laboratory is developing a new wire mesh tire made out of special memory alloy that is much tougher than previous designs, and may pave the way for larger, more robust rovers and vehicles.

A common criticism leveled at NASA is that it has a tendency to reinvent the wheel, and there was some justification for this charge. The space agency was notorious in its early years for completely redesigning every new series of satellites from a blank sheet rather than exploiting a proven design. And then there was the notorious story of developing a complex gas-charged pen that would write in zero gravity, rather than trying off-the-shelf mechanical pencils or ink sticks.

But one area where NASA has spent half a century literally trying to reinvent the wheel has been with, well, wheels. On Earth, wheels with pneumatic tires have proven very effective and efficient, but the Moon and Mars are different and not very friendly to the average steel-belted radial with tiger paw grip. Worse, the engineers were faced with the problem of how to design a wheel for someplace where no one knew what the surface was like.

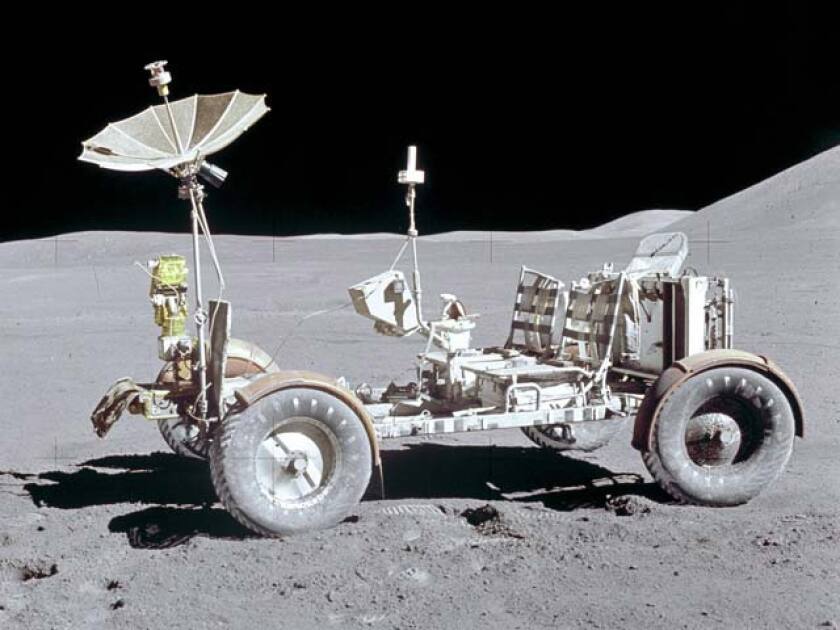

The Apollo Lunar Rover
The Apollo Lunar Rover

From the 1960s on, NASA came up with all sorts of wheels, tires, and things that did what a wheel and tire do. There were weird, screw-like things for plowing through lunar dust as fine as talcum powder, vehicles that were one large caterpillar track, and others dominated by giant donut wheels like something off a sand and snow cruiser.

When the first manned Lunar Rover set out during the Apollo 15 mission in 1971, it had large, flexible wire mesh wheels with soft inner frames and titanium strips to handle the soft lunar soil. So successful was this design that Glenn engineers used it as the model for similar mesh wheels for future lunar rovers that would be the size of an RV, which resulted in the award-winning Spring tire.

But when the Mars rovers touched down beginning with Sojourner in the 1990s, they had solid aluminum wheels instead of mesh. These worked fine for Sojourner and the later Opportunity and Spirit rovers, but things changed when Curiosity set down in 2012. Curiosity is the size of a 4x4 and the surface of Mars turned out to be much rougher than expected. Within a year, the soft metal alloy of the unmanned explorer's wheels was showing obvious signs of wear as treads came loose and holes started to appear.

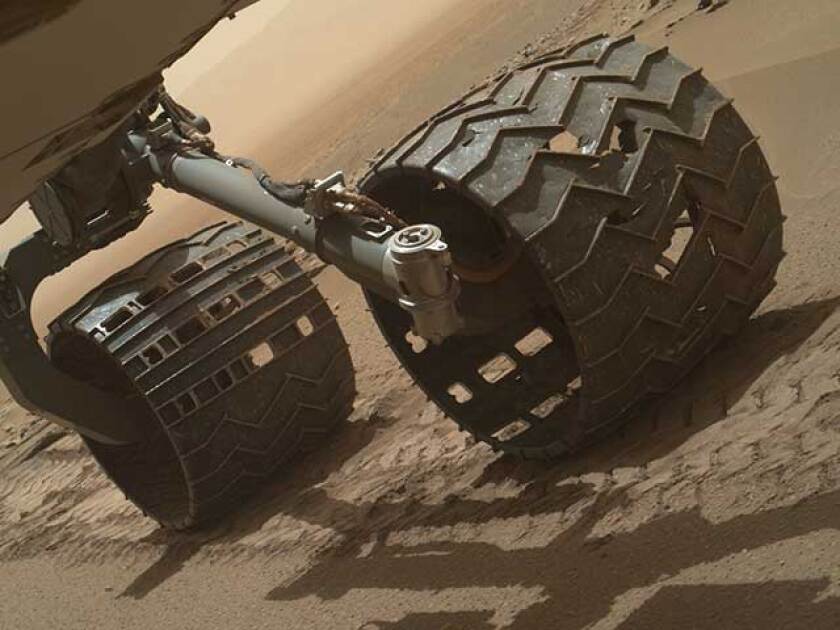

Curiosity's wheels have worn faster than expected
Curiosity's wheels have worn faster than expected

According to NASA, the Glenn engineers considered using an advanced form of the Spring tire for future Mars missions to provide better traction and durability, but the tight spring steel mesh couldn't handle the rough terrain of a simulated Mars. In going over sharp rocks and other obstacles, the mesh would deform under pressure and lose its shape.

Then a chance meeting between Engineer Colin Creager and Materials Scientist Santo Padula provided a solution. On hearing of the problem, Padula suggested using a shape memory alloy, which is a special alloy with crystals that deform and snap back at an atomic level. When new wheels were fabricated from nickel titanium alloy, they could deform right down to the axle and then return to their original shape.

Though still under development, NASA sees great promise for the new alloy mesh tires. They are not only more durable, but they conform to the terrain without sinking and they can carry heavier payloads at moderate to high speeds. The hope is that one day they will not only improve the lifespan of unmanned rovers, but will be used on manned vehicles as well. See them in action below.

Source: NASA


NASA Glenn's Shape Memory Allow Tires: Part 2

6 comments
christopher
It should not even be a wheel at all. Legs make heaps more sense.
Imran Sheikh
if only one link gets damaged in this wheel design it will create a chain reaction which will eventually damage the whole tire in a period of few months. instead you should use replaceable teeth on wheels the way we use in heavy tunnel drills. not giving you a clear cut spoonfed answer you need to think about it..
philippe
for firefighters
Kristianna Thomas
I would love to know why NASA is so hung up on wheels, and have they even thought about other things than wheels? A millipede? A centipede? Or something with a million legs that can traverse the uneven, rocky terrain of other planets? Has there been any research to determine what is the right configuration for planetary robotics. Legs or wheels. Should I have wheels or should I have legs? How long would legs last than Wheels. Are they less prone to damage if it is sets of legs, rather than a wheel?
Bob
How long before these mesh wheels get packed full of Martian dirt?
Username
Hard to trust an expert who doesn't know the difference between a rim and an axle.
