Japanese researchers develop six-legged "Asterisk" robot that can pick up objects

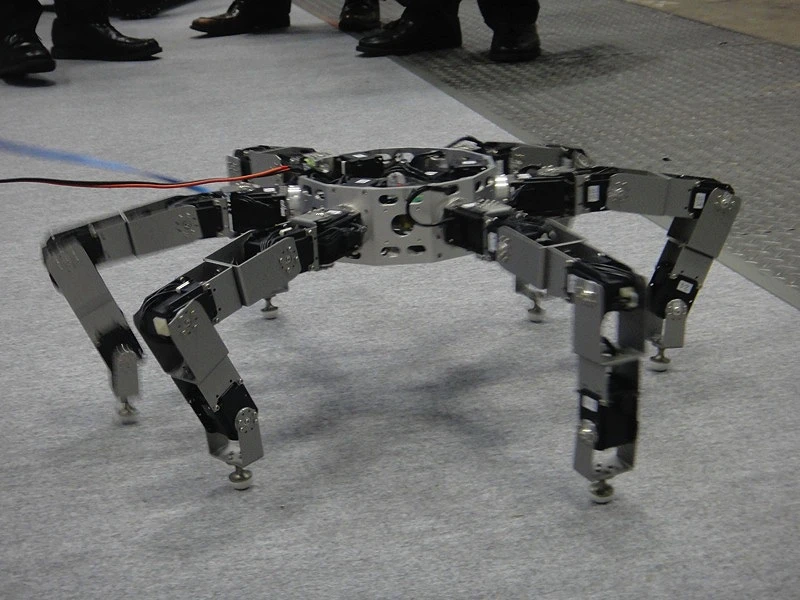

The six limbs, symmetrically spaced at 60-degree intervals around its body, give the Asterisk robot its name
The six limbs, symmetrically spaced at 60-degree intervals around its body, give the Asterisk robot its name
View 13 Images

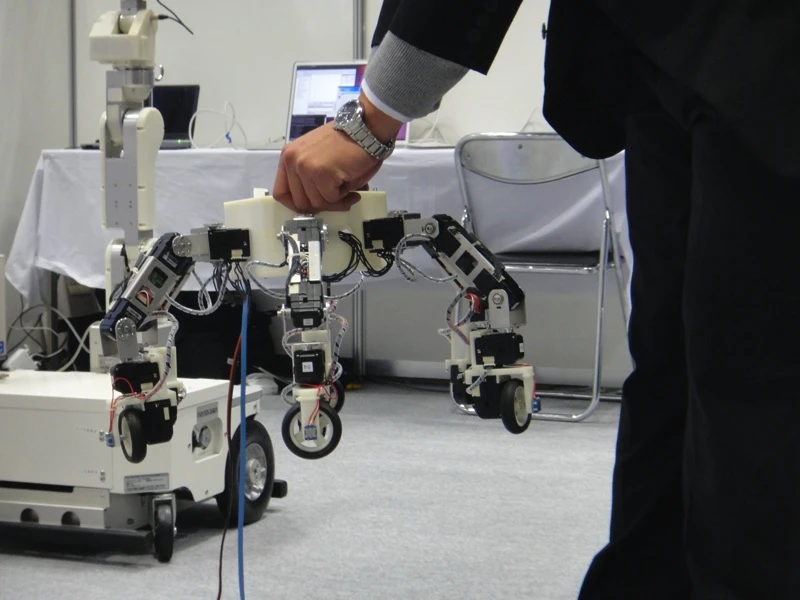

The Asterisk six-legged robot
1/13
The Asterisk six-legged robot
The Asterisk six-legged robot
2/13
The Asterisk six-legged robot

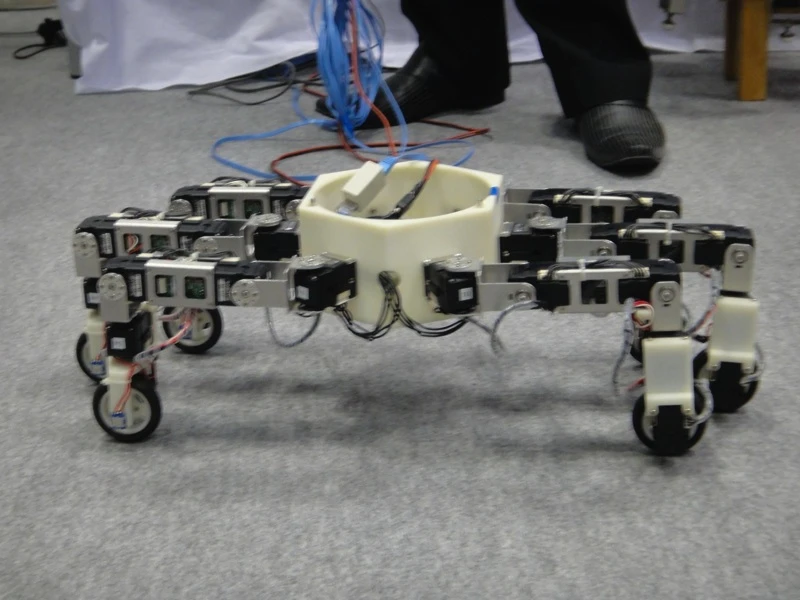

The Asterisk six-legged robot
3/13
The Asterisk six-legged robot

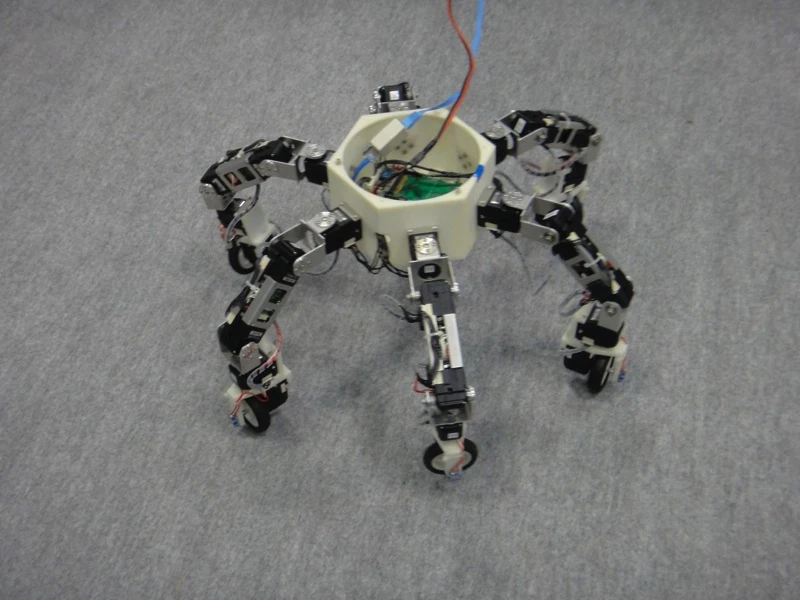

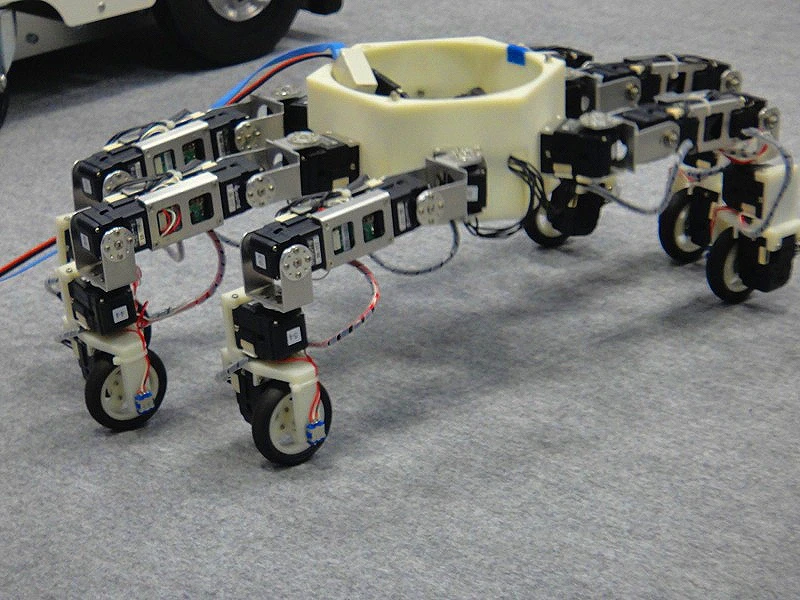

Asterisk with wheeled legs
4/13
Asterisk with wheeled legs

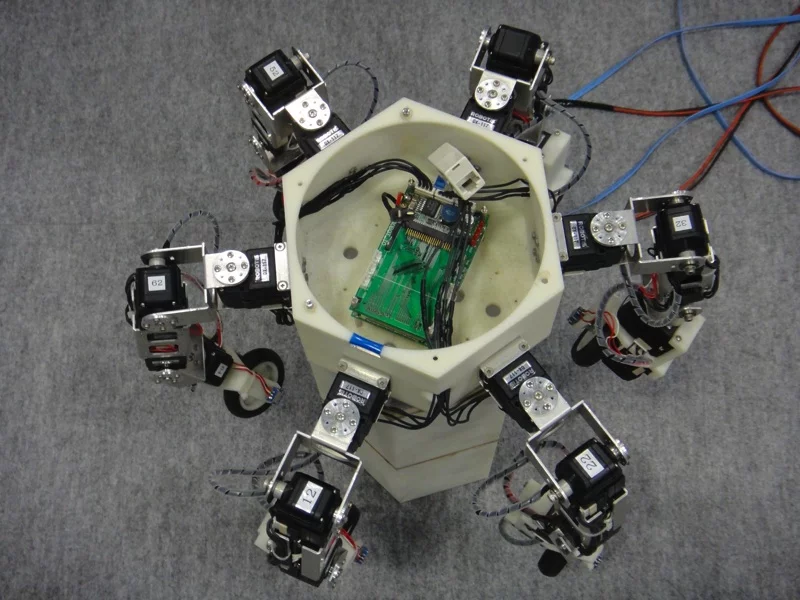

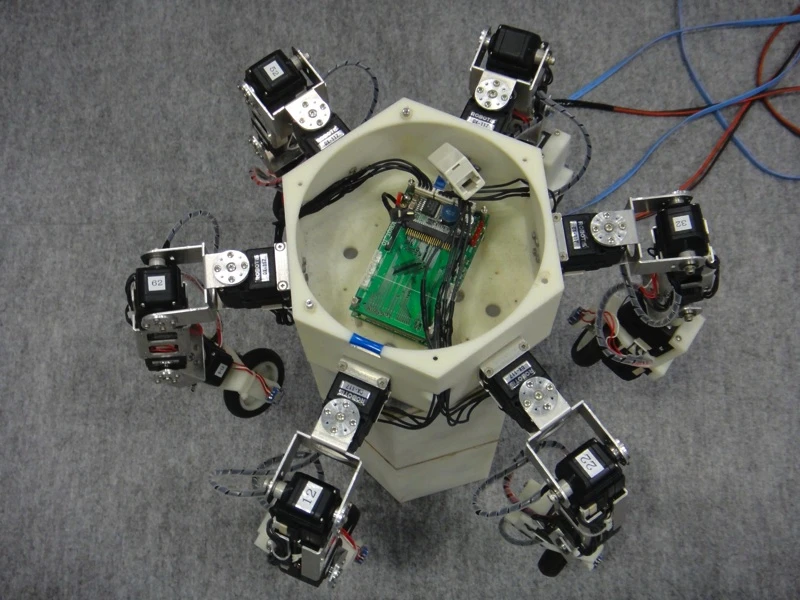

Top-down view of Asterisk
5/13
Top-down view of Asterisk

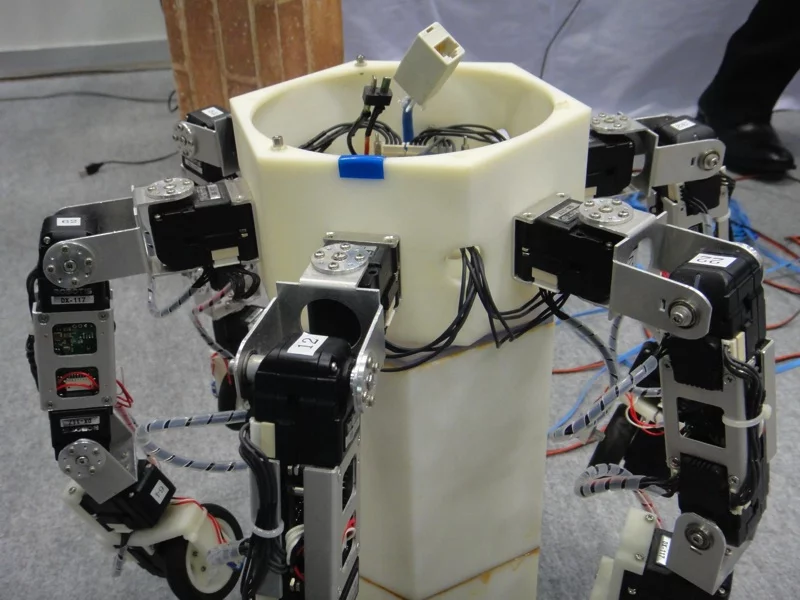

Detail of Asterisk's legs
6/13
Detail of Asterisk's legs

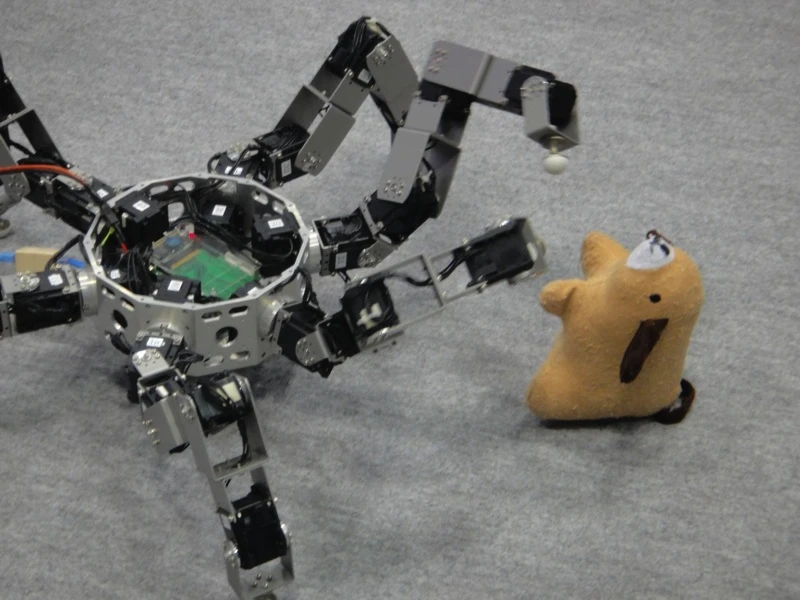

Asterisk prepares to pick up an object
7/13
Asterisk prepares to pick up an object

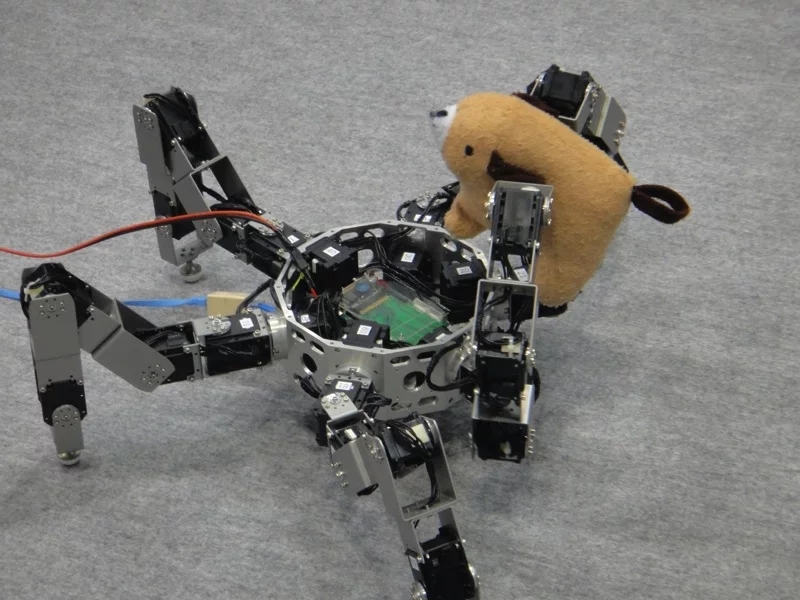

Asterisk picks up an object
8/13
Asterisk picks up an object

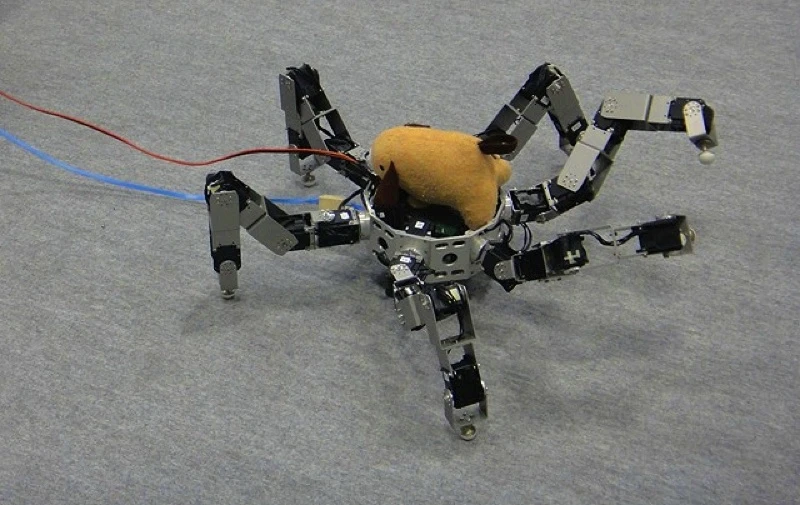

Asterisk carries an object
9/13
Asterisk carries an object

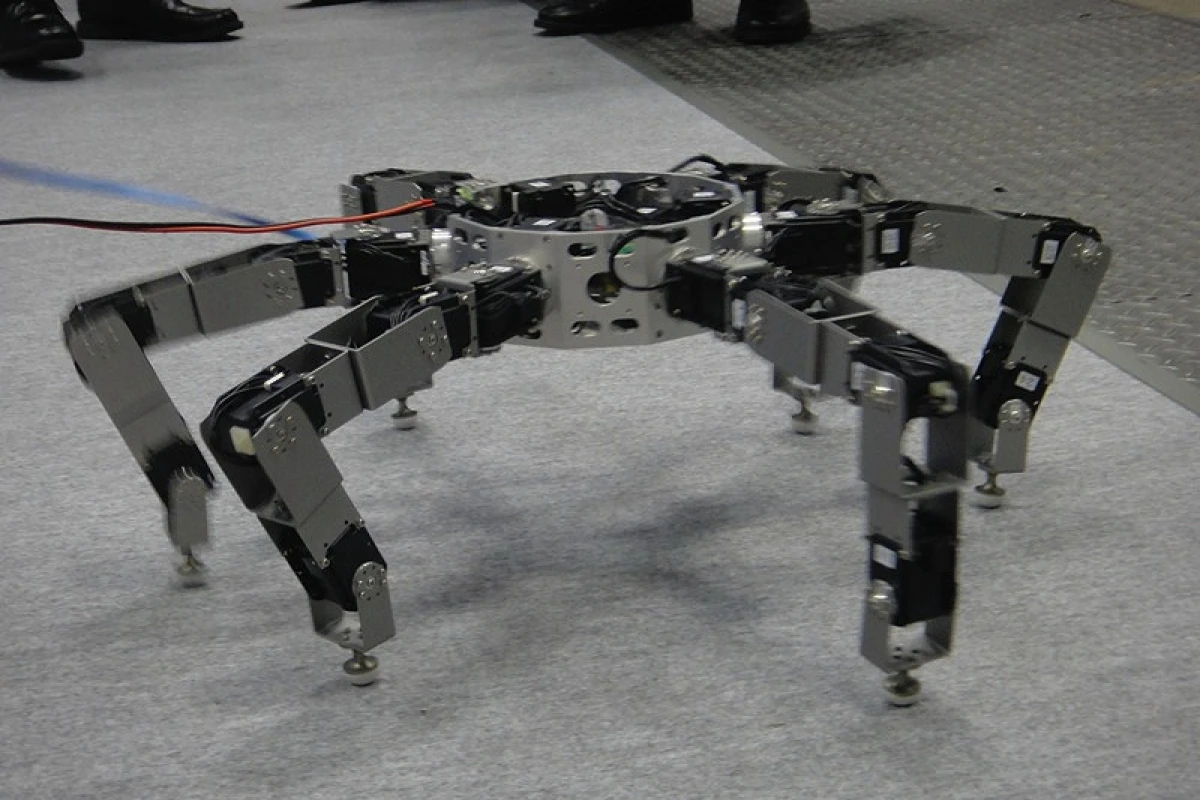

The six limbs, symmetrically spaced at 60-degree intervals around its body, give the Asterisk robot its name
10/13
The six limbs, symmetrically spaced at 60-degree intervals around its body, give the Asterisk robot its name

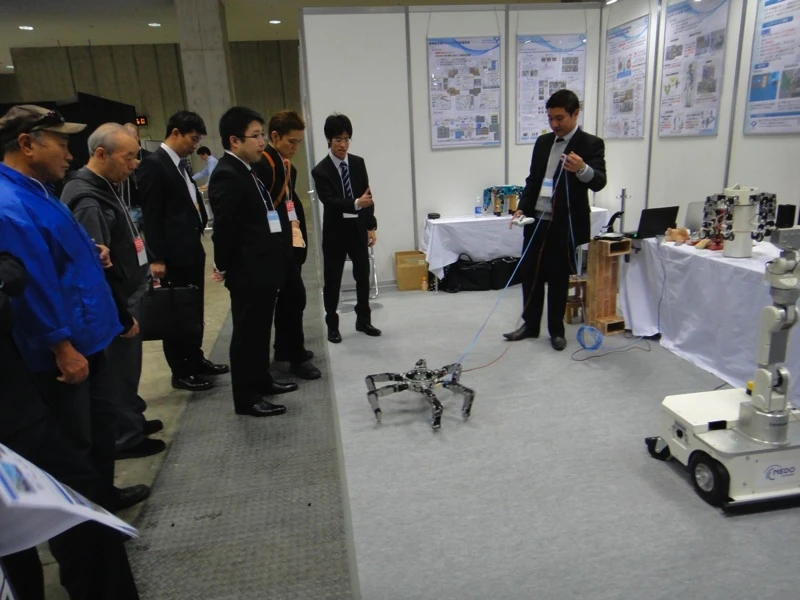

Asterisk wows onlookers
11/13
Asterisk wows onlookers

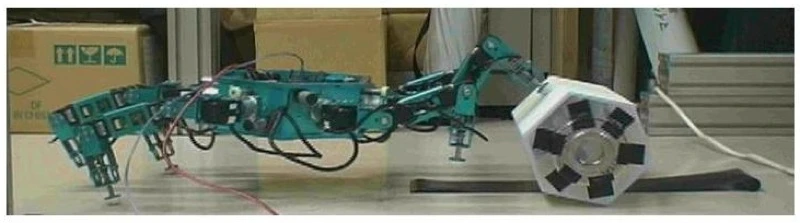

Asterisk safely pushes a polygonal prism
12/13
Asterisk safely pushes a polygonal prism

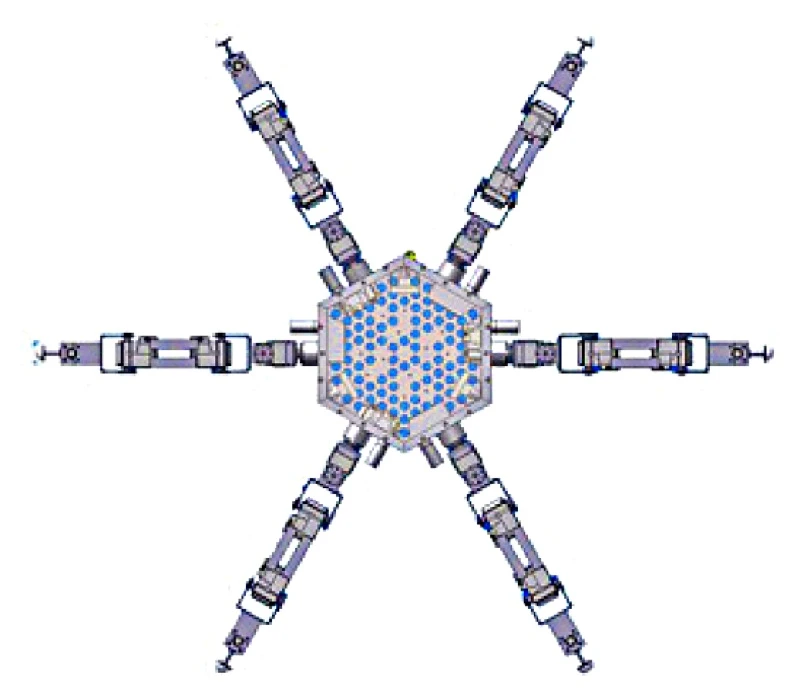

The Asterisk robot looks very much like its namesake (Image: Arai Lab)
13/13
The Asterisk robot looks very much like its namesake (Image: Arai Lab)

Fans of the sci-fi film Minority Report will no doubt recall the autonomous insect-like searcher robots deployed to find Tom Cruise's character mid-way through the flick. While not as elegant (or sinister) as its film counterparts, the Asterisk robot being developed by the Arai Robotics Lab at Osaka University in Japan does an excellent job of resembling a big, mechanical bug with some interesting skills. After over six years of development, this unusual "limb-mechanism" robot now boasts an impressive array of functions that may soon find it performing vital tasks in numerous areas of society, including search and rescue and building maintenance.

Viewed from the top down, the reason behind the name "Asterisk" becomes self-evident, although a mechanical insect also comes to mind, which is not surprising as its creators looked to the insect world for inspiration when designing the robot. The six limbs, symmetrically spaced at 60-degree intervals around its body, each have four degrees of freedom and enable the robot to move in virtually any direction. It has no designated top or bottom so If it gets flipped upside-down, the legs reorient and it goes on about its business.

The Asterisk robot looks very much like its namesake (Image: Arai Lab)
The Asterisk robot looks very much like its namesake (Image: Arai Lab)

Asterisk gets a handle on its environment through the use of several different types of feedback: the tips of all the limbs sport pressure sensors; three have infrared sensors and three have tip-mounted wireless cameras. On the body, a gyro sensor, an accelerometer and three CCD cameras round out its senses. On a single charge of its 14.4 V lithium polymer battery, the 8.8 lb (4 kg) "robo-bug" can do its thing for about 15 minutes. No doubt longer function time is in the works as R+D continues.

Currently, Asterisk can walk (up to 0.5 m/sec or 1.64 ft/s) or roll on wheel-equipped legs, recognize stairs, pick up objects ("prey") with two of its six legs, safely push a polygonal prism load, avoid obstacles, walk upside down or vertically on gridded surfaces and even do cartwheels! It can also shift into a low-profile configuration (3 in / 78 mm high) to get into tight spaces - ideal for one of its intended uses as an extra set of eyes in disaster situations. That's a lot of ability in such a small package - one which, with any luck, may be helping to save lives some day soon.

Source: Arai Lab via DigInfo

Check out the video below to see the Asterisk in action at the 2011 International Robot Exhibition:

Asterisk - Omni-directional Insect Robot Picks Up Prey #DigInfo
