Stone Spray builds architecture from the ground up ... literally

Stone Spray builds architectur...
The Stone Spray works much like a 3D printer, since it follows a 3D design from a computer and creates objects by layering material
The Stone Spray works much like a 3D printer, since it follows a 3D design from a computer and creates objects by layering material
View 9 Images

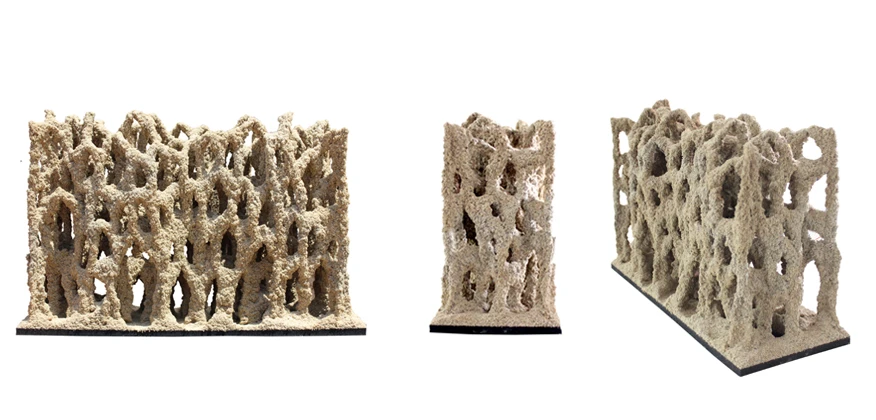

Stone Spray uses soil and sand combined with a solidifying agent to build solid, eco-friendly architecture much like a 3D printer
1/9
Stone Spray uses soil and sand combined with a solidifying agent to build solid, eco-friendly architecture much like a 3D printer

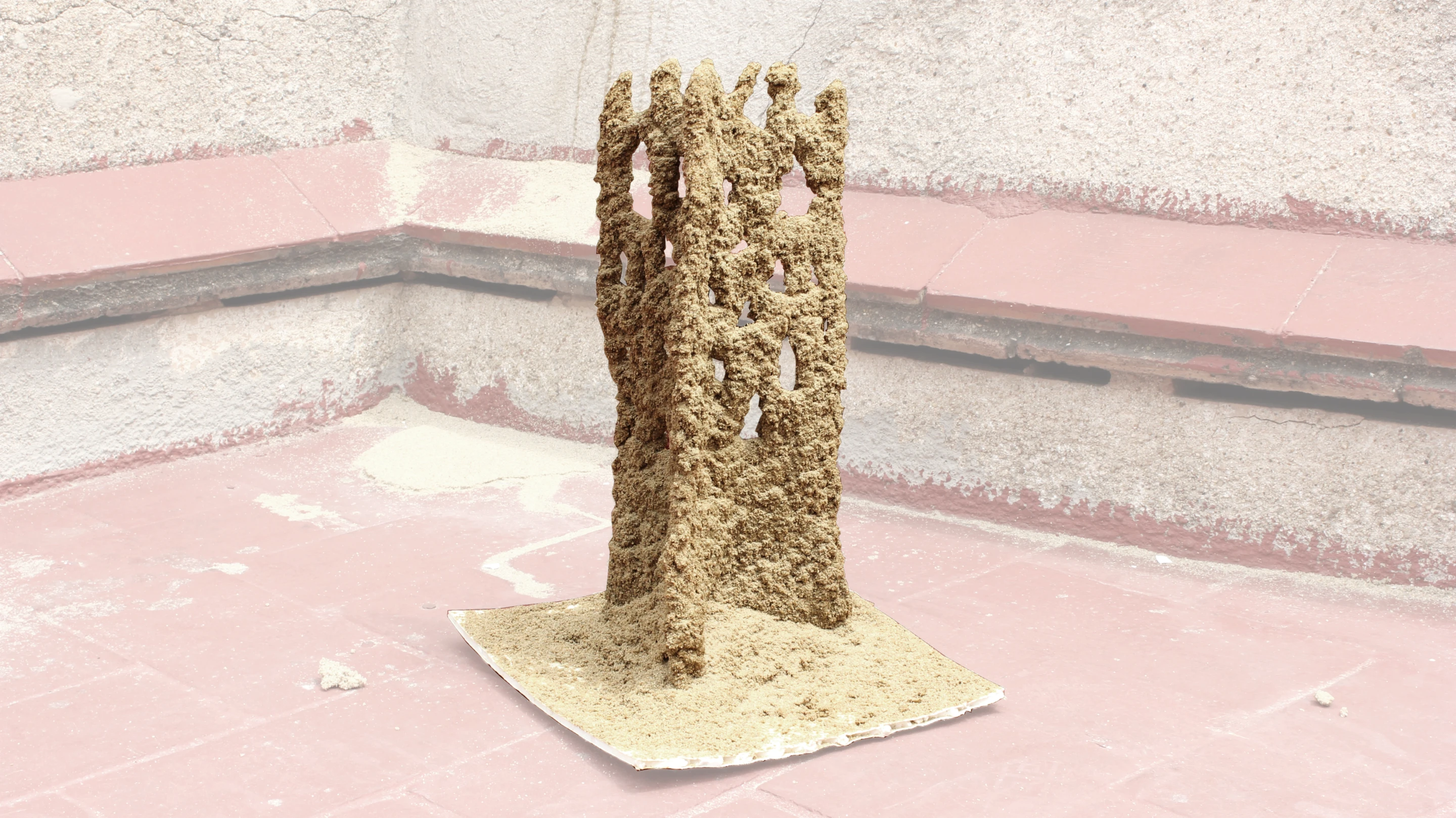

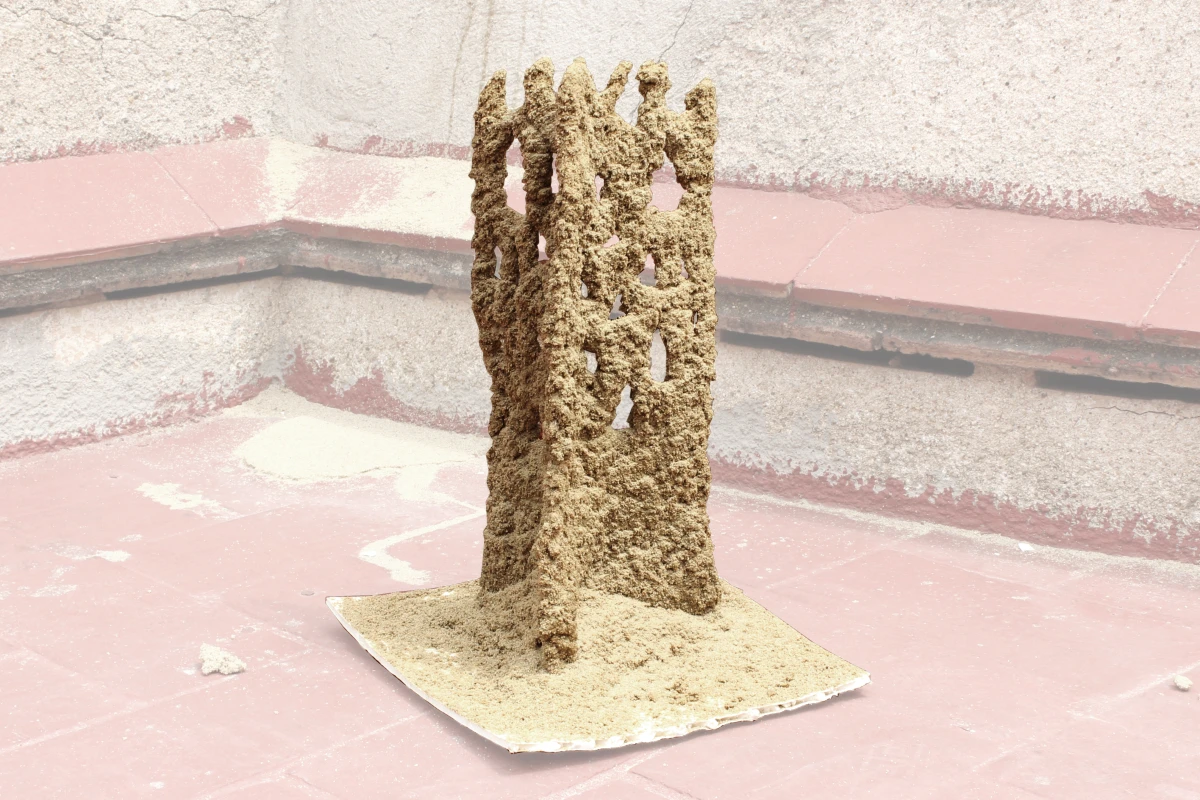

The Stone Spray works much like a 3D printer, since it follows a 3D design from a computer and creates objects by layering material
2/9
The Stone Spray works much like a 3D printer, since it follows a 3D design from a computer and creates objects by layering material

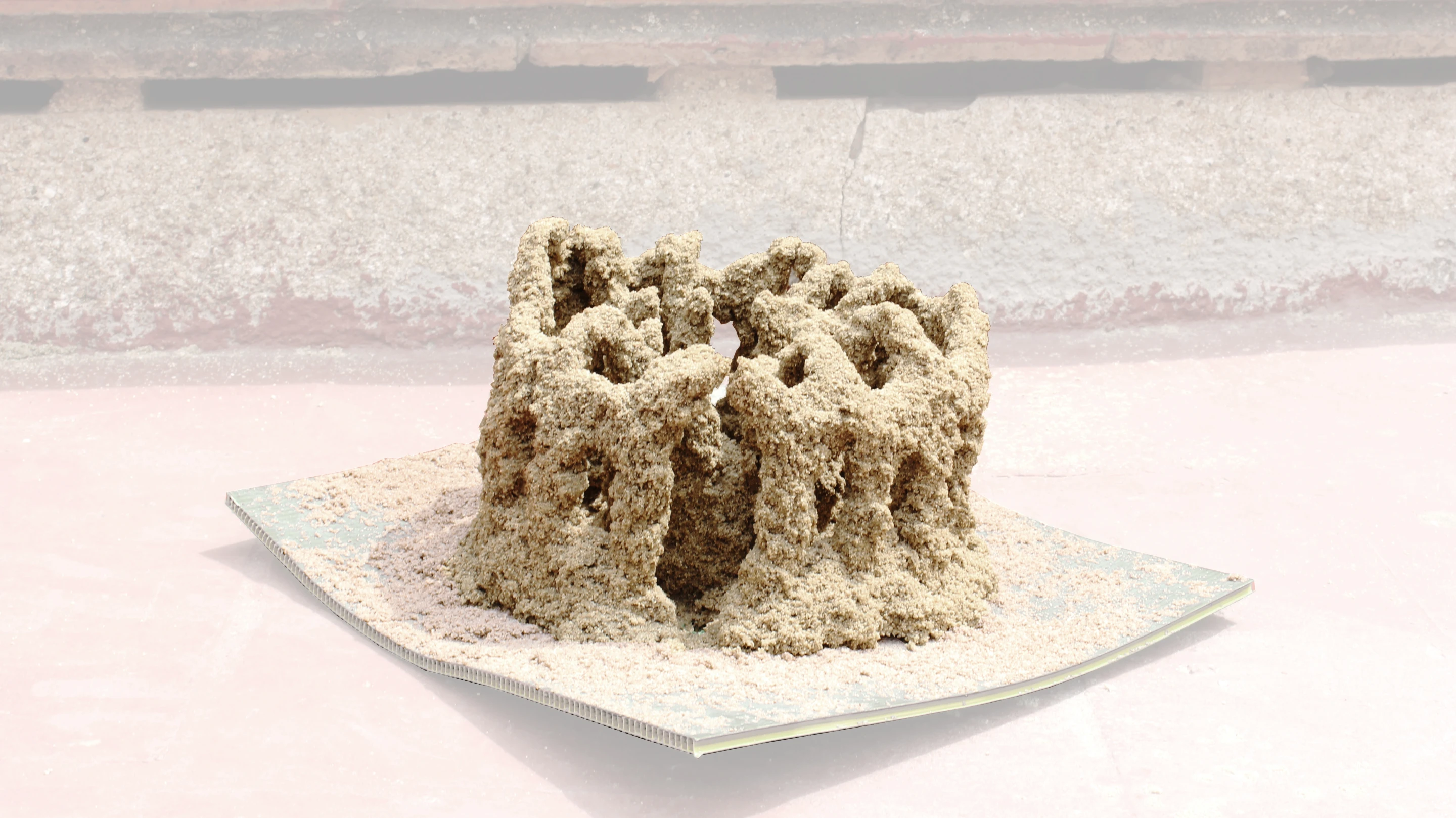

Once it's dried, the resulting creation from the Stone Spray resembles a chunk of corral but is as solid as concrete
3/9
Once it's dried, the resulting creation from the Stone Spray resembles a chunk of corral but is as solid as concrete

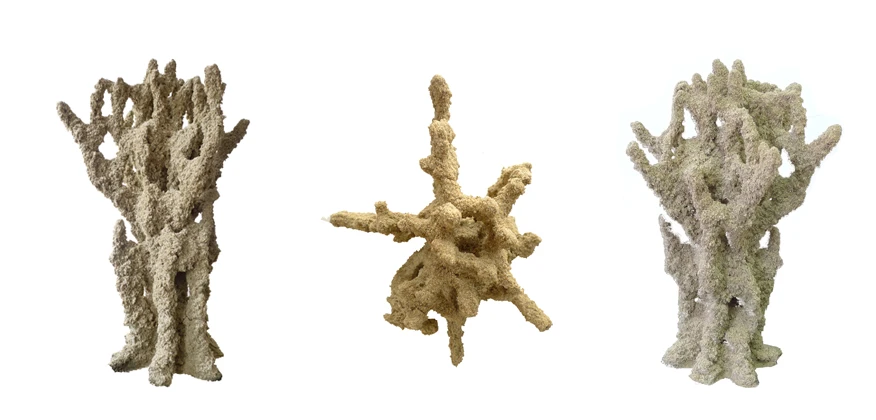

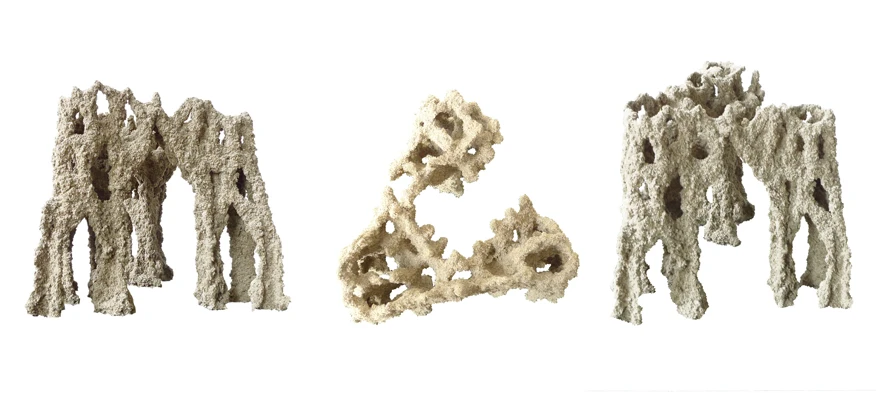

The Stone Spray on can build in almost any direction, creating multi-directional arcs and even constructing outward from a vertical surface
4/9
The Stone Spray on can build in almost any direction, creating multi-directional arcs and even constructing outward from a vertical surface
The Stone Spray on can build in almost any direction, creating multi-directional arcs and even constructing outward from a vertical surface
5/9
The Stone Spray on can build in almost any direction, creating multi-directional arcs and even constructing outward from a vertical surface

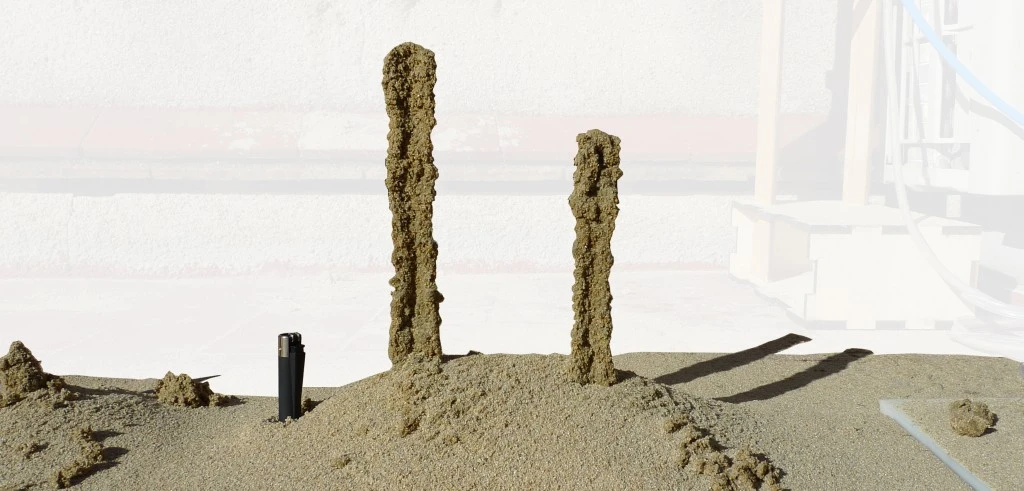

Instead of using a synthetic material like plastic, the Stone Spray uses natural soil or sand mixed with a solidifying agent
6/9
Instead of using a synthetic material like plastic, the Stone Spray uses natural soil or sand mixed with a solidifying agent

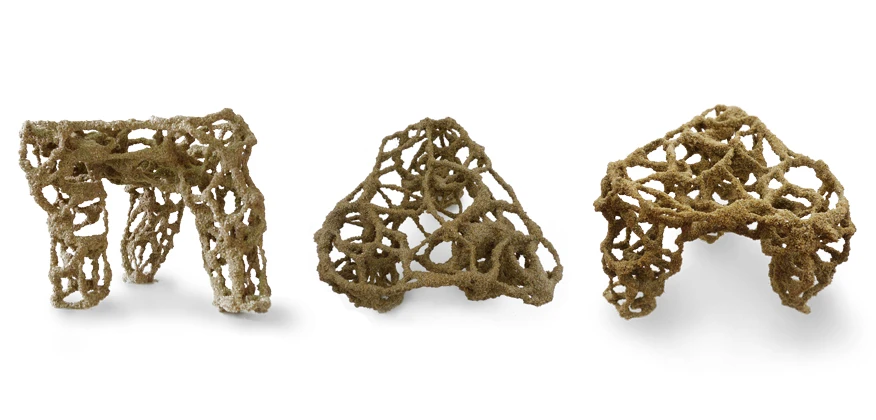

Certain designs aren't solid enough to stand on their own during production, but these can still be made around a wire framework, such as this stool
7/9
Certain designs aren't solid enough to stand on their own during production, but these can still be made around a wire framework, such as this stool
With further development, the group behind the project envisions full-sized, usable structures, including bridges, constructed from scratch with materials from the local environment
8/9
With further development, the group behind the project envisions full-sized, usable structures, including bridges, constructed from scratch with materials from the local environment
With further development, the group behind the project envisions full-sized, usable structures, including bridges, constructed from scratch with materials from the local environment
9/9
With further development, the group behind the project envisions full-sized, usable structures, including bridges, constructed from scratch with materials from the local environment
View gallery - 9 images

As useful as 3D printers are becoming in industrial design, they still aren't exactly eco-friendly and are still mostly limited to small scale objects. You couldn't really use one to print a building just yet, but a group of architects may have taken a step in the right direction with a new machine called the Stone Spray. Using natural soil and sand, the Stone Spray can construct intricate solid structures at almost any location, even on vertical surfaces.

The device was developed by architects Petr Novikov, Inder Shergill, and Anna Kulik as a research project to experiment with applying the concepts of digital manufacturing to construction work. The Stone Spray works much like a 3D printer, since it follows a 3D design from a computer and creates objects by layering material. It's main distinction though is that instead of using a synthetic material like plastic, the machine uses natural soil or sand mixed with a solidifying agent. Living up to it's name, the Stone Spray's mechanical arm literally sprays the concoction from a nozzle to slowly build scaled down towers and arches. Once it's dried, the resulting creation resembles a chunk of corral but is as solid as concrete.

Aside from the material it uses, the Stone Spray also stands out for its ability to create forms that most other 3D printers cannot. The majority of 3D printers can only build upwards, as layers of material are stacked on top of each other. The Stone Spray on the other hand can build in almost any direction, creating multi-directional arcs and even constructing outward from a vertical surface. Certain designs aren't solid enough to stand on their own during production, but these can still be made around a wire framework.

For now, the Stone Spray is limited to smaller designs, since the process for making and drying the structures can take several hours. With further development, the group behind the project envisions full-sized, usable structures (even bridges) constructed from scratch using materials from the local environment. As a bonus, the machine already requires very little energy to operate and could be run with solar power, making it even more eco-friendly. If this idea were expanded much more, constructing a building in the future could be as simple as having an architect upload a design to a machine for building.

Check out the video below to see how the Stone Spray can build a simple tower out of sand on the beach.

Source: Stone Spray

Stone Spray Project

View gallery - 9 images
