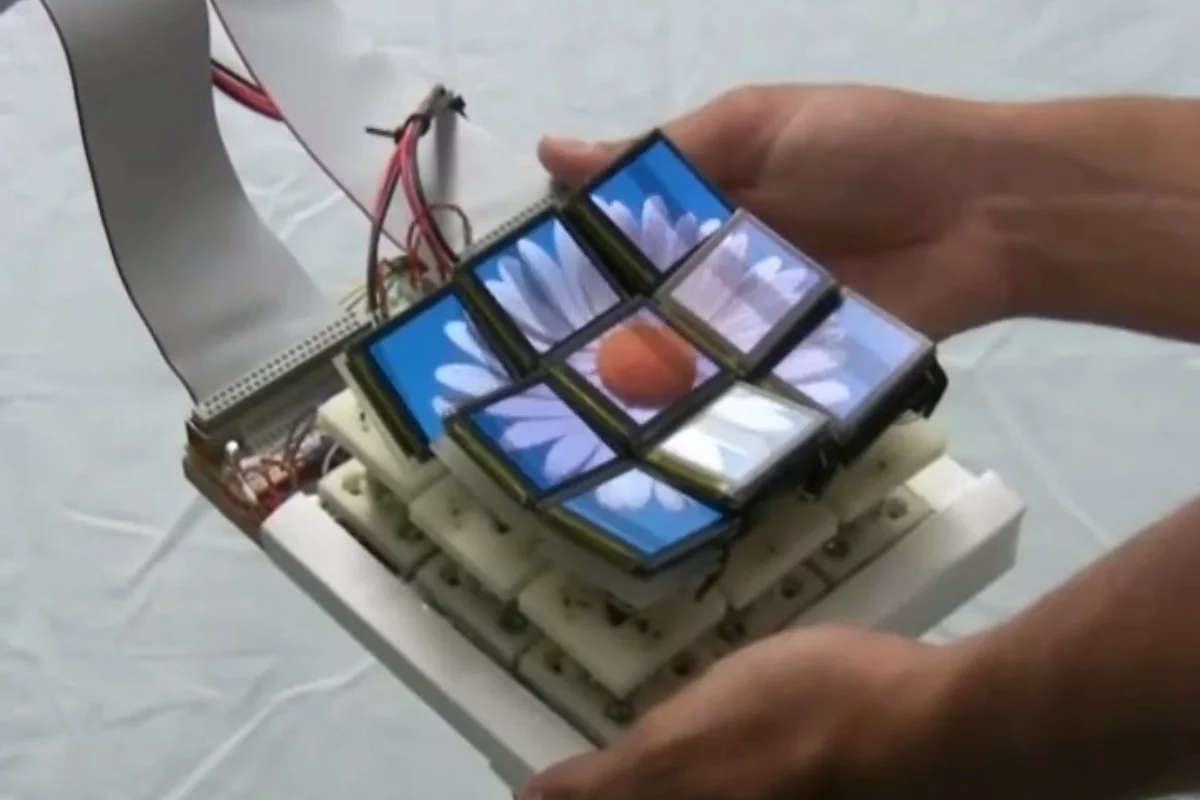

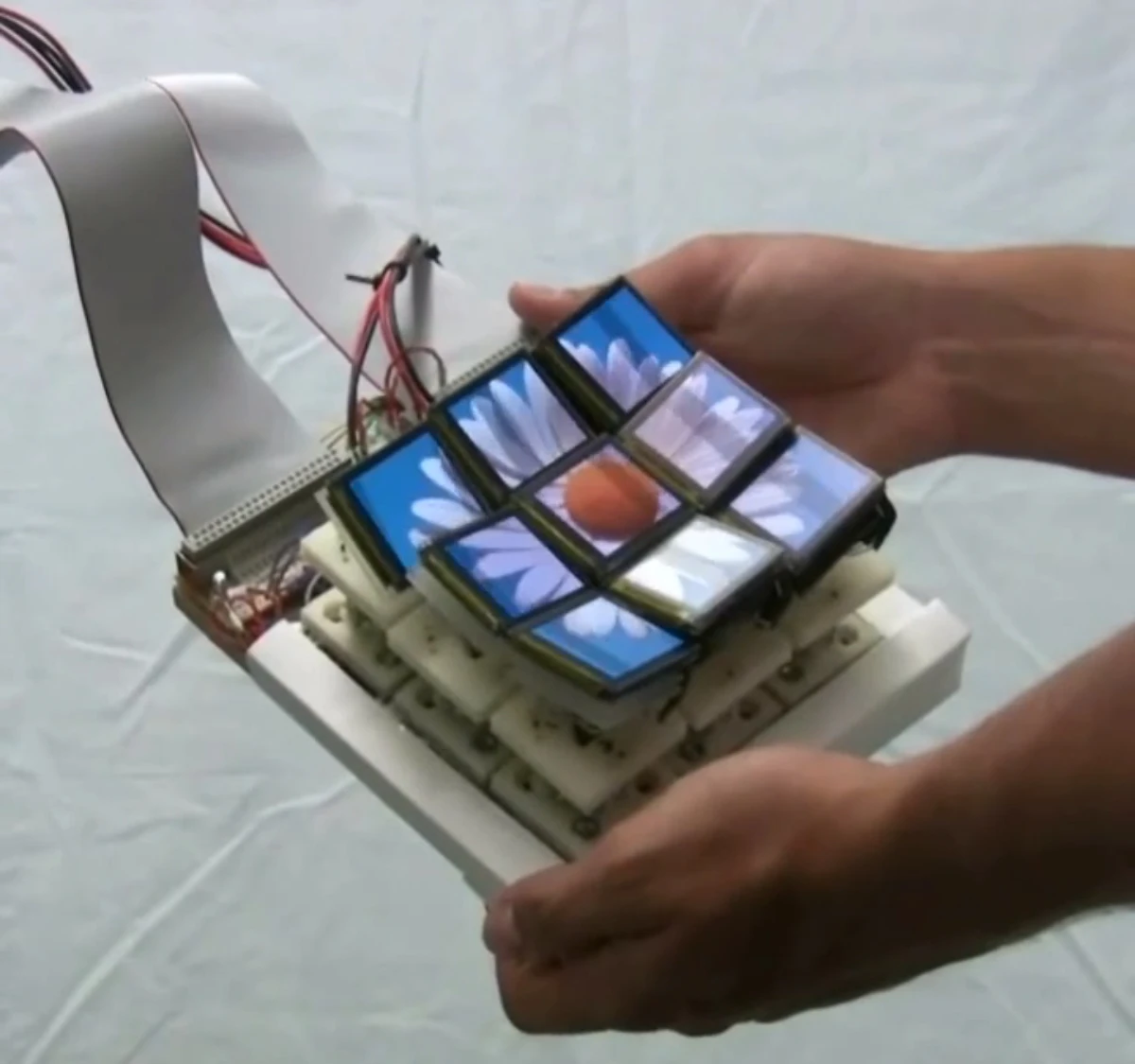

The Tilt Display prototype has nine screen components that move and tilt individually to physically represent what is on screen
The Tilt Display prototype has nine screen components that move and tilt individually to physically represent what is on screen
View 6 Images
The Tilt Display prototype has nine screen components that move and tilt individually to physically represent what is on screen
1/6
The Tilt Display prototype has nine screen components that move and tilt individually to physically represent what is on screen

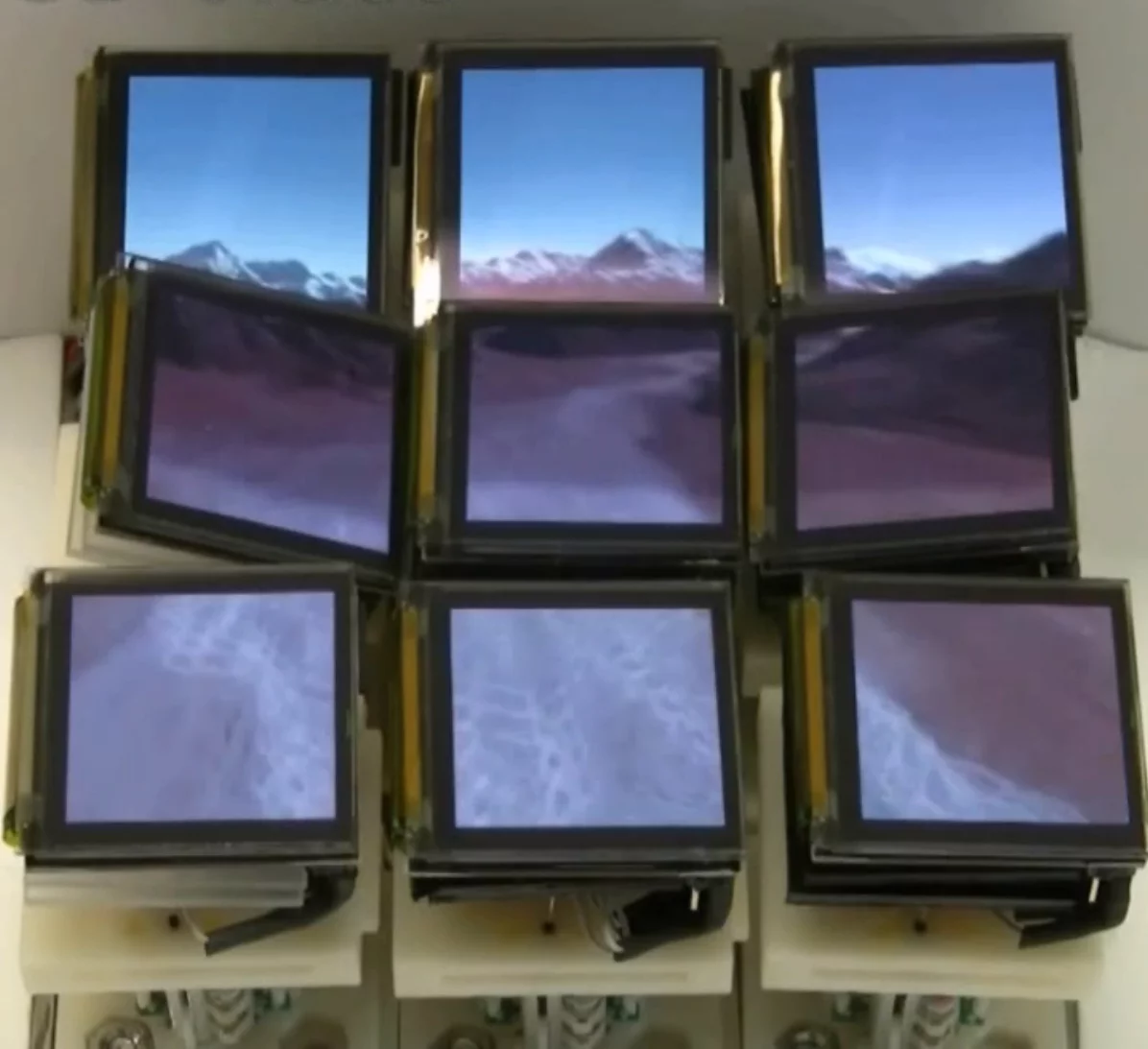

The Tilt Display's nine screen components move dynamically when displaying video
2/6
The Tilt Display's nine screen components move dynamically when displaying video

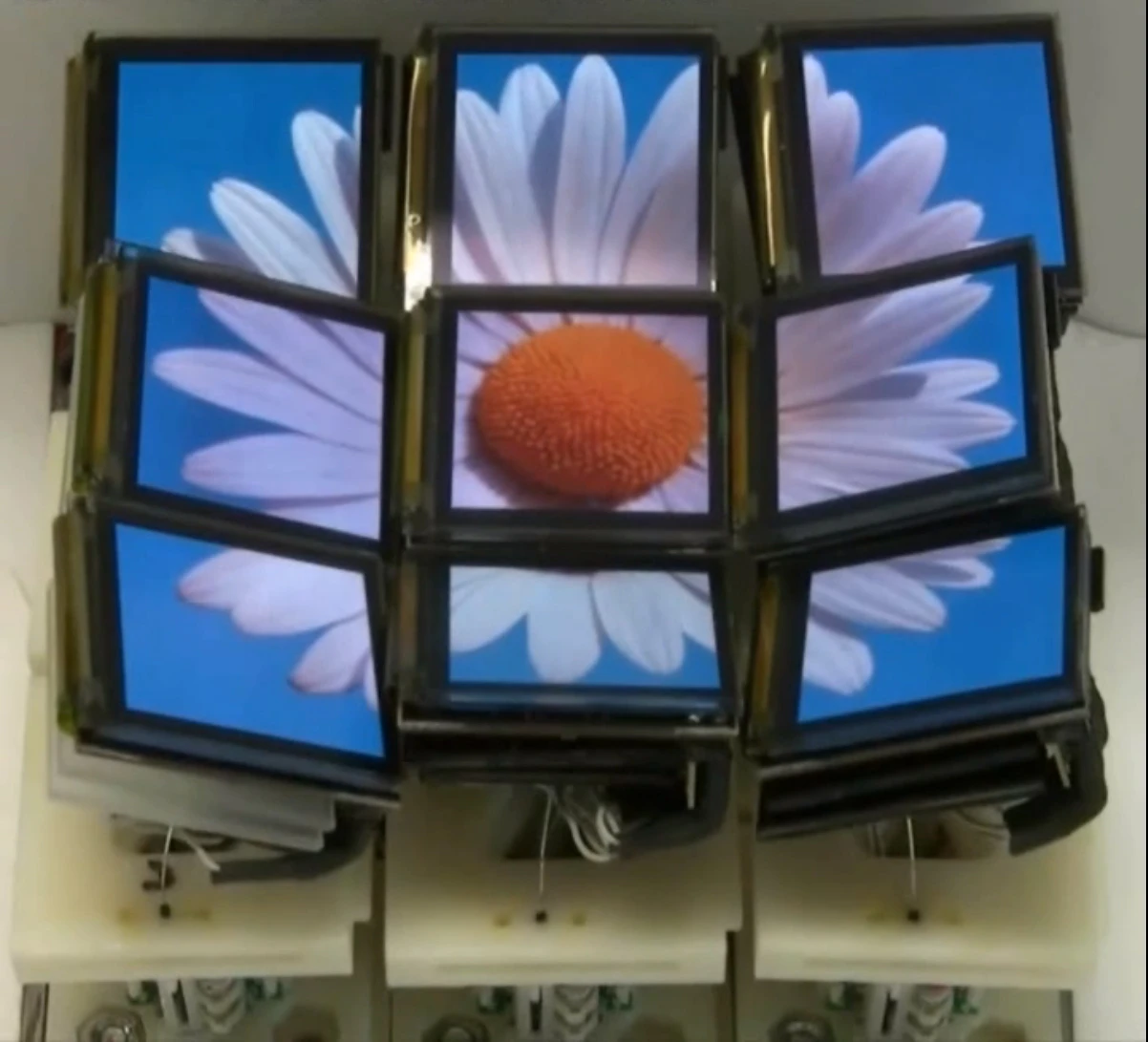

The Tilt Display showing a flower
3/6
The Tilt Display showing a flower

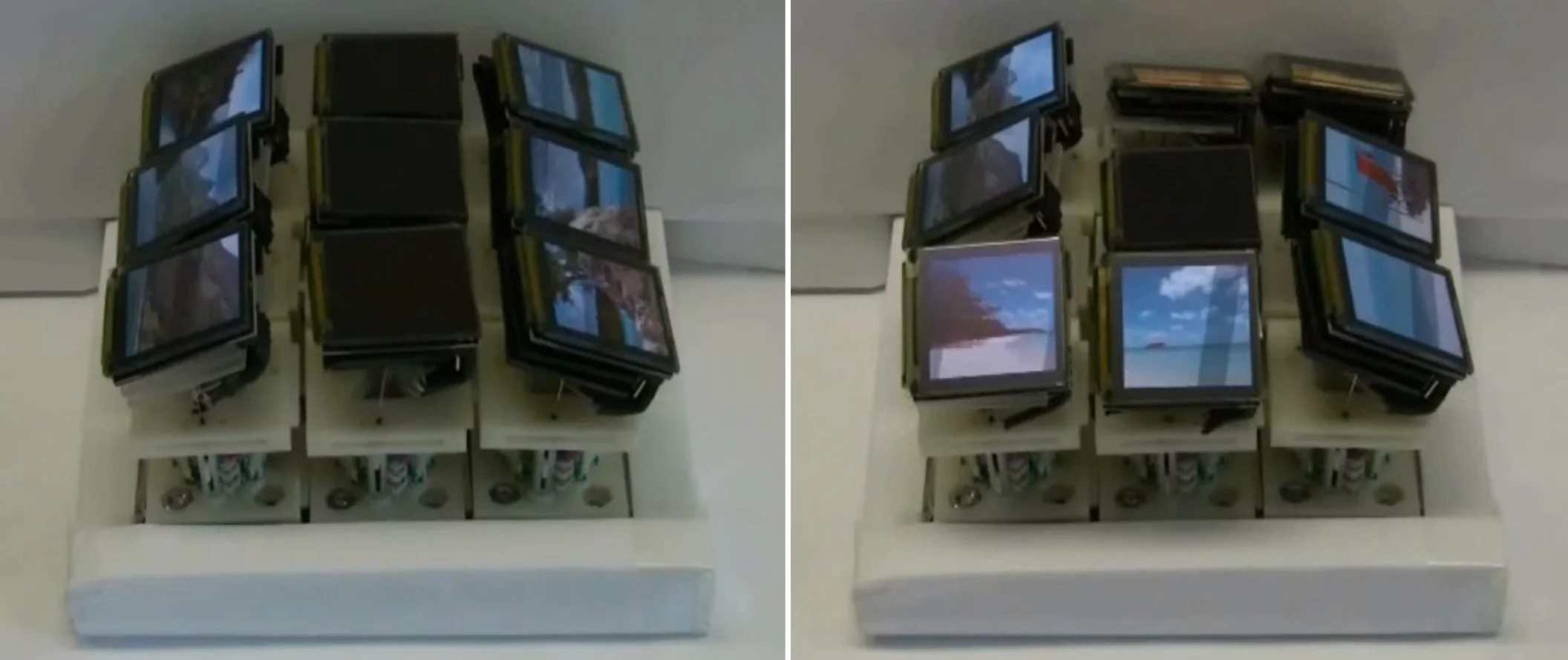

The Tilt Display in two user (left) and four user (right) configurations
4/6
The Tilt Display in two user (left) and four user (right) configurations

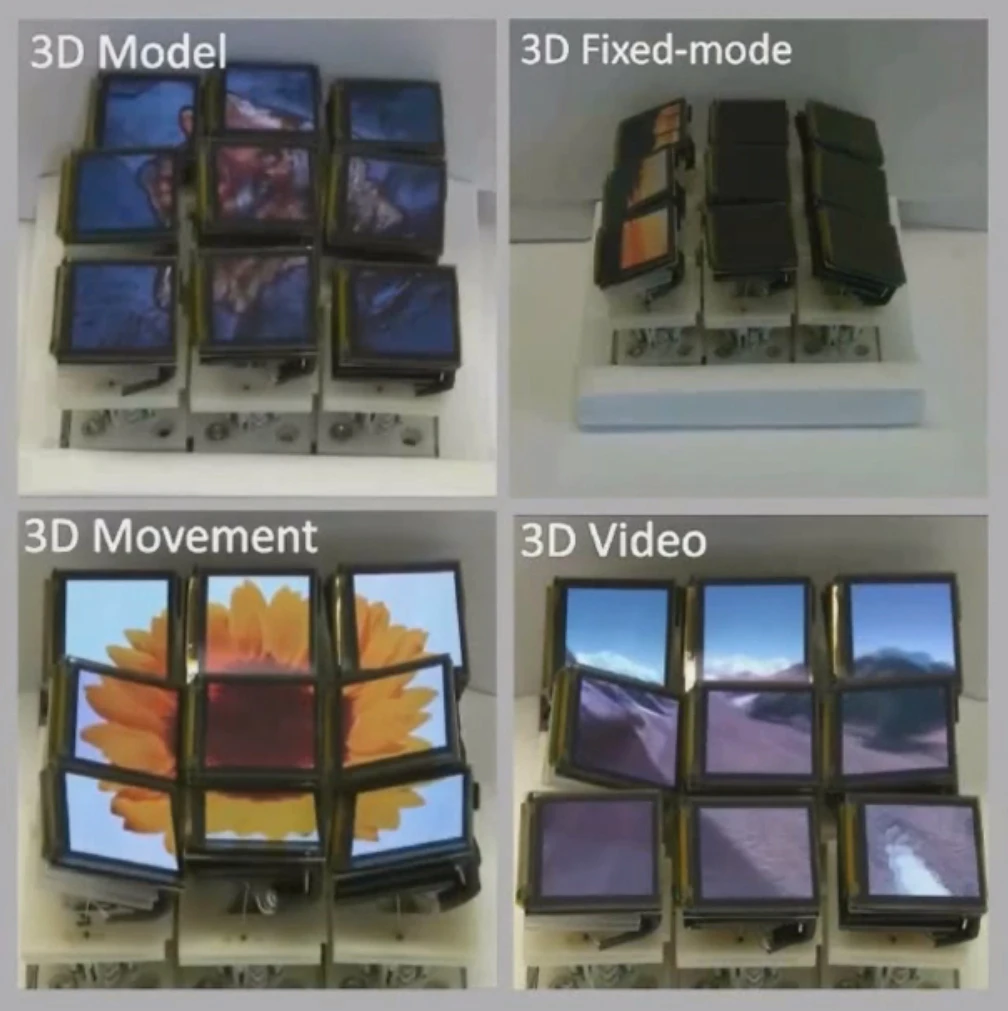

Its creators claim the Tilt Display has a number of potential applications
5/6
Its creators claim the Tilt Display has a number of potential applications

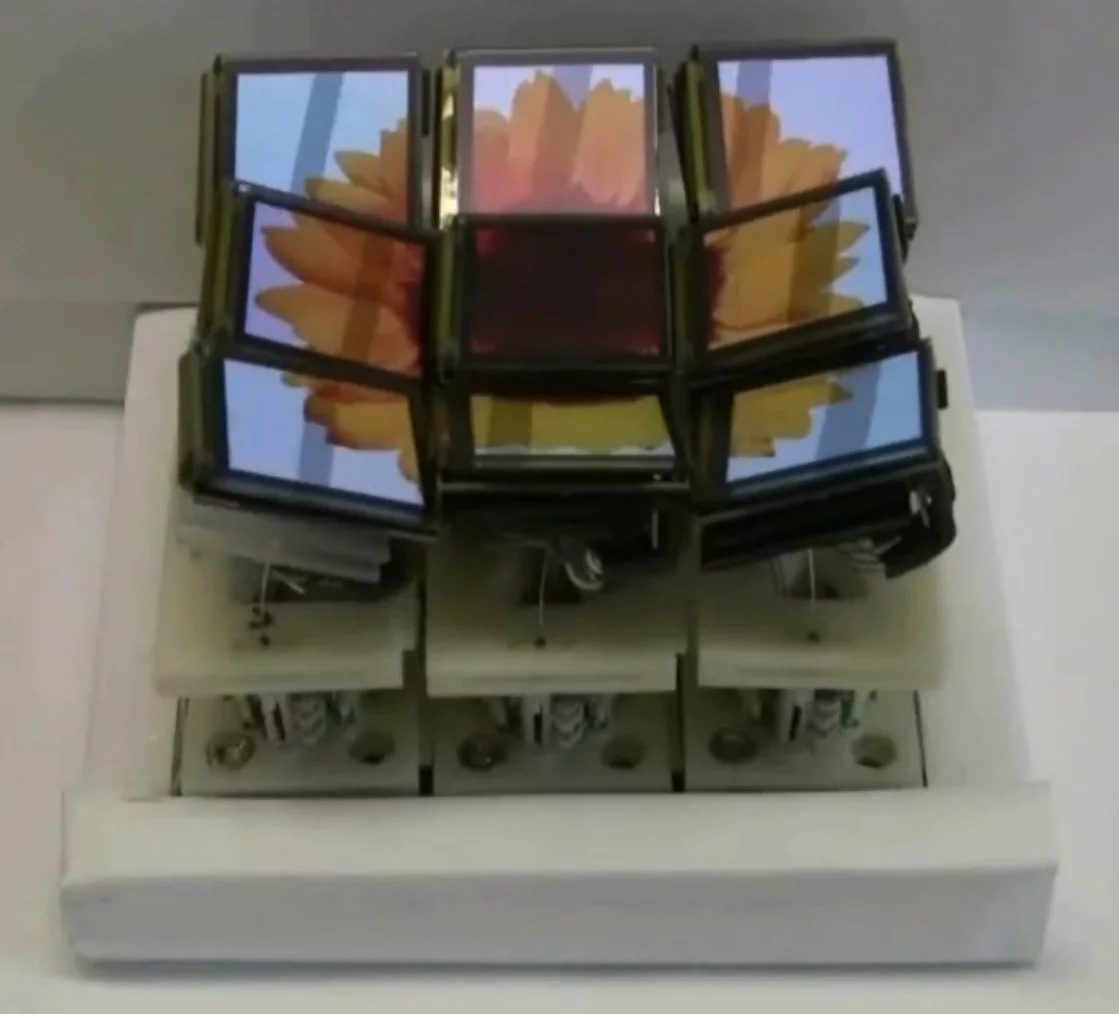

The Tilt Display is around half the size of a standard tablet
6/6
The Tilt Display is around half the size of a standard tablet
View gallery - 6 images

There are a number of different display technologies that provide the illusion of 3D images on a 2D screen. A team of researchers led by the University of Bristol has offered a new take on things by creating “Tilt Display” – a prototype screen that's split in a 3x3 configuration with the nine individual sub-screens physically moving and tilting up and down to physically represent the three dimensional content being displayed.

The Tilt Display prototype is around half the size of a standard 10-inch tablet with the nine individual display components able to move up and down vertically and tilt along one or more axes. For example, when displaying a landscape, the displays showing the sky will stay flat, while those displaying the ground will raise and tilt to reflect the relative height of the terrain. When displaying video, the screens will move dynamically to match the changing images.

The divided display can also be used to let multiple users work separately and collaboratively on the same display. When two users are sharing the device, three sub screens on either side will tilt out towards the respective users with the three in the middle remaining blank, while in for-user configuration, each user will have two sub screens at their disposal with only the central screen going unused.

The Tilt Display in two user (left) and four user (right) configurations
The Tilt Display in two user (left) and four user (right) configurations

Sriram Subramanian, Professor of Human-Computer Interaction in the University of Bristol’s Department of Computer Science’s Interaction and Graphics group says potential applications for Tilt Displays include “collaboration, terrain modeling, 3D video that is beyond auto-stereoscopic 3D and tangible gaming.”

Research into how users would adapt to the technology found that on-screen gestures were the preferred method of interaction when the various display components were flat, but that mid-air gestures were preferred when the displays were in a non-planar configuration.

University of Bristol researchers are presenting a paper on the Tilt Display at MobileHCI 2012, which is winding up today.

The video below shows the Tilt Display prototype in action.

Source: University of Bristol

Tilt Displays: Designing Display Surfaces with Multi-axis Tilting and Actuation
