Toyota Setsuna Concept: A wooden time machine on wheels

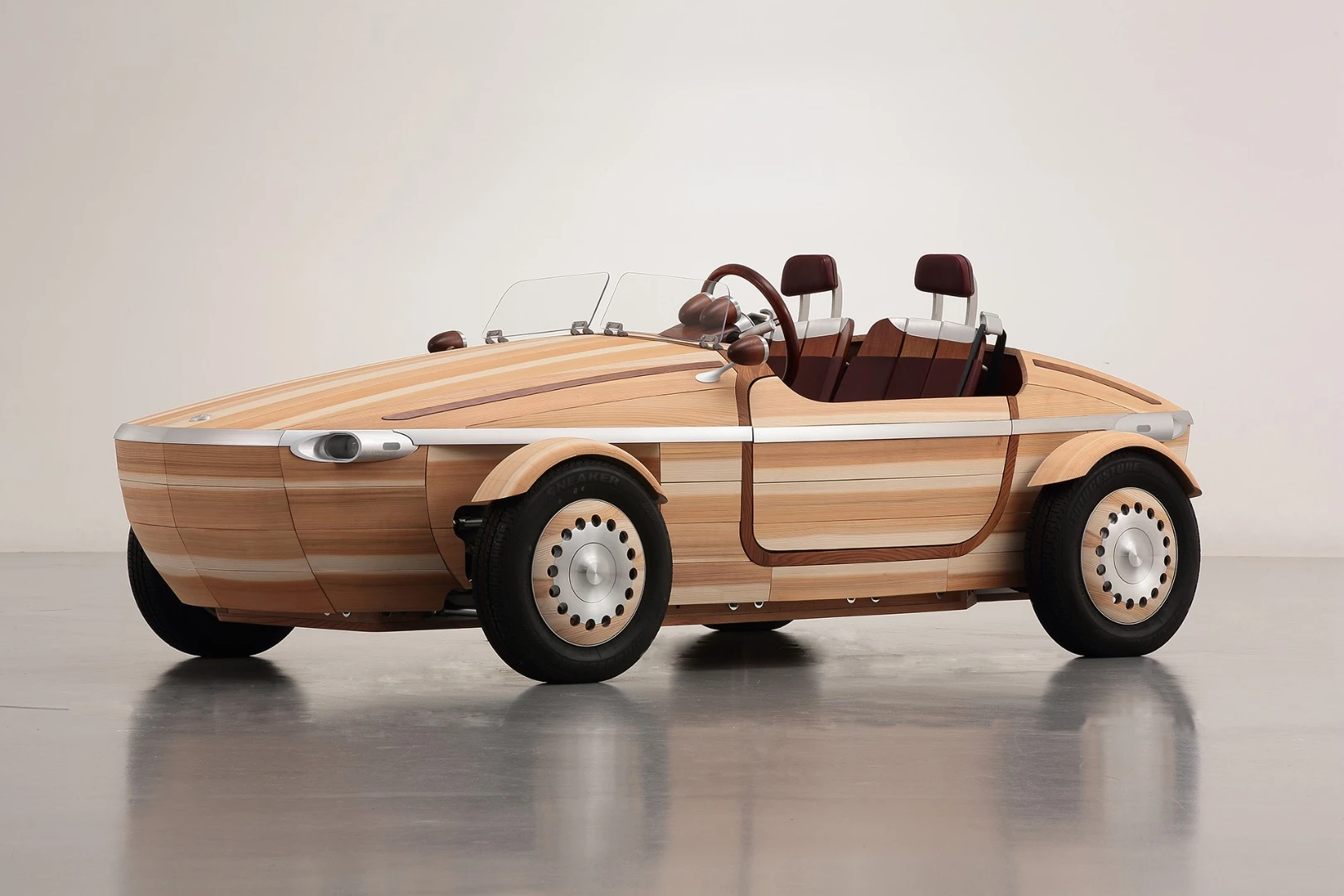

The Setsuna is a concept vehicle designed and built by Kenji Tsuji and his team of Toyota engineers
The Setsuna is a concept vehicle designed and built by Kenji Tsuji and his team of Toyota engineers
View 17 Images

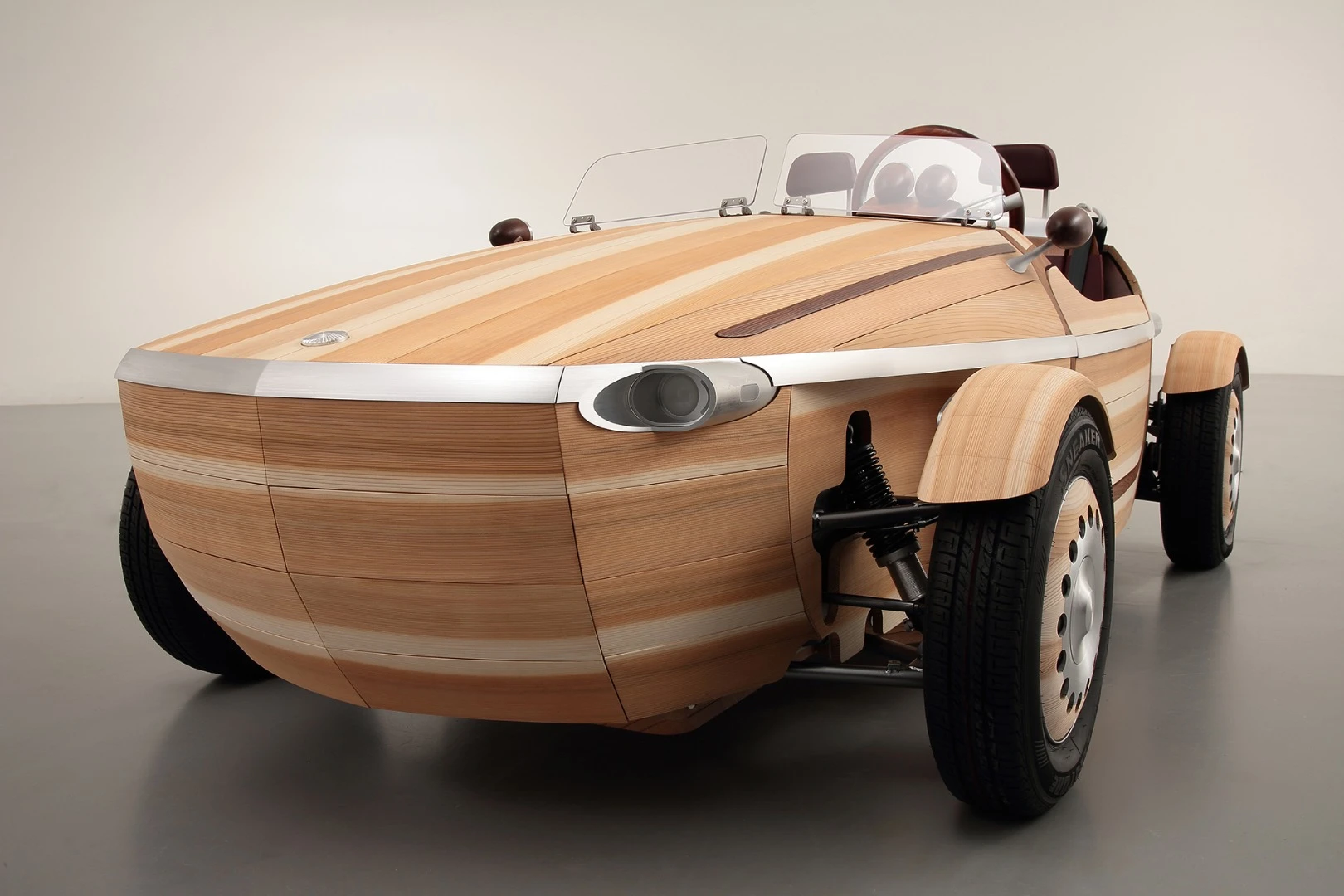

Debuting in April at Milan Design Week, the Toyota Setsuna concept is a wooden masterpiece that combines this timeless material with a 100-year chronograph
1/17
Debuting in April at Milan Design Week, the Toyota Setsuna concept is a wooden masterpiece that combines this timeless material with a 100-year chronograph

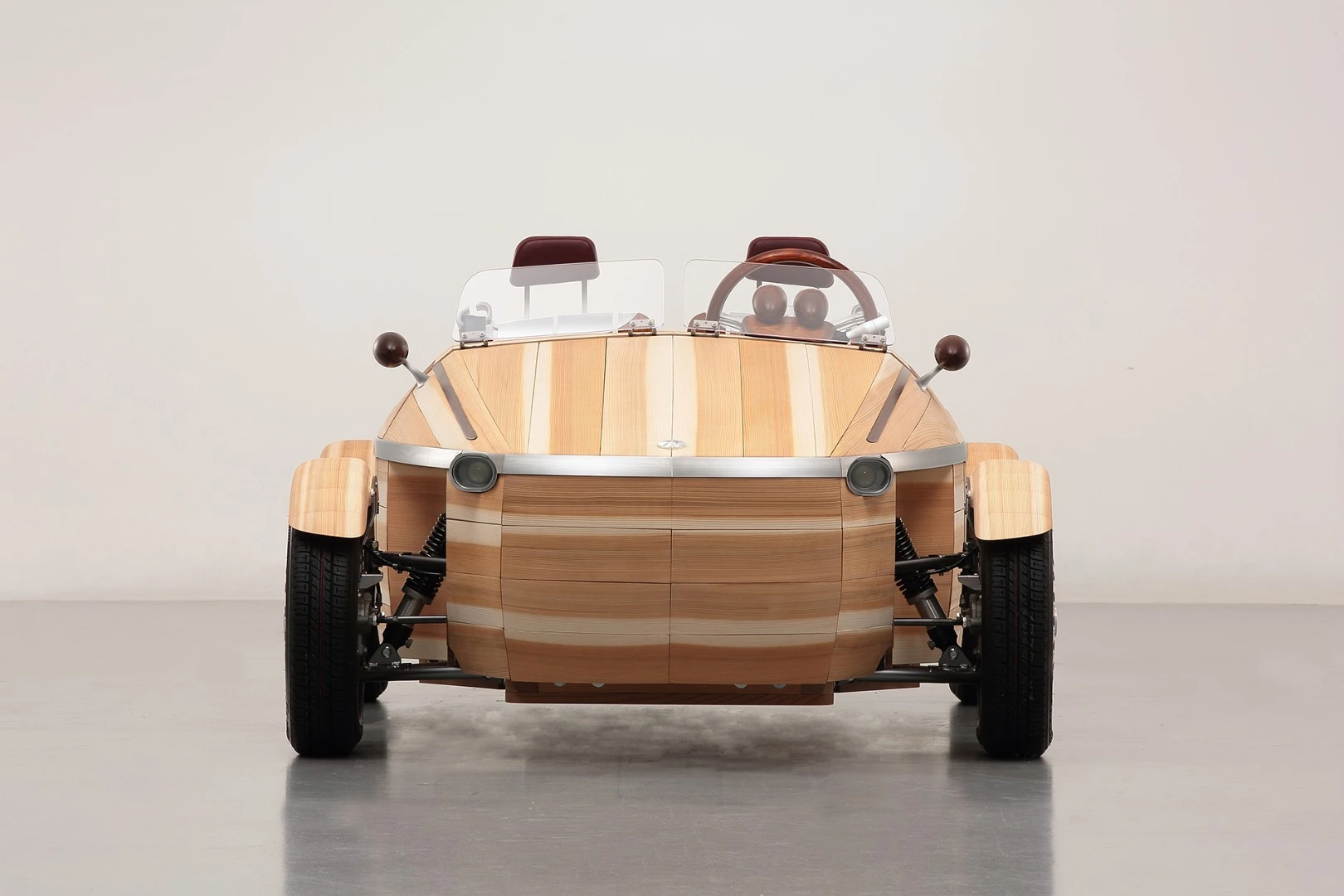

The Setsuna is meant to be passed down from generation to generation as an heirloom
2/17
The Setsuna is meant to be passed down from generation to generation as an heirloom
The Setsuna is a concept vehicle designed and built by Kenji Tsuji and his team of Toyota engineers
3/17
The Setsuna is a concept vehicle designed and built by Kenji Tsuji and his team of Toyota engineers

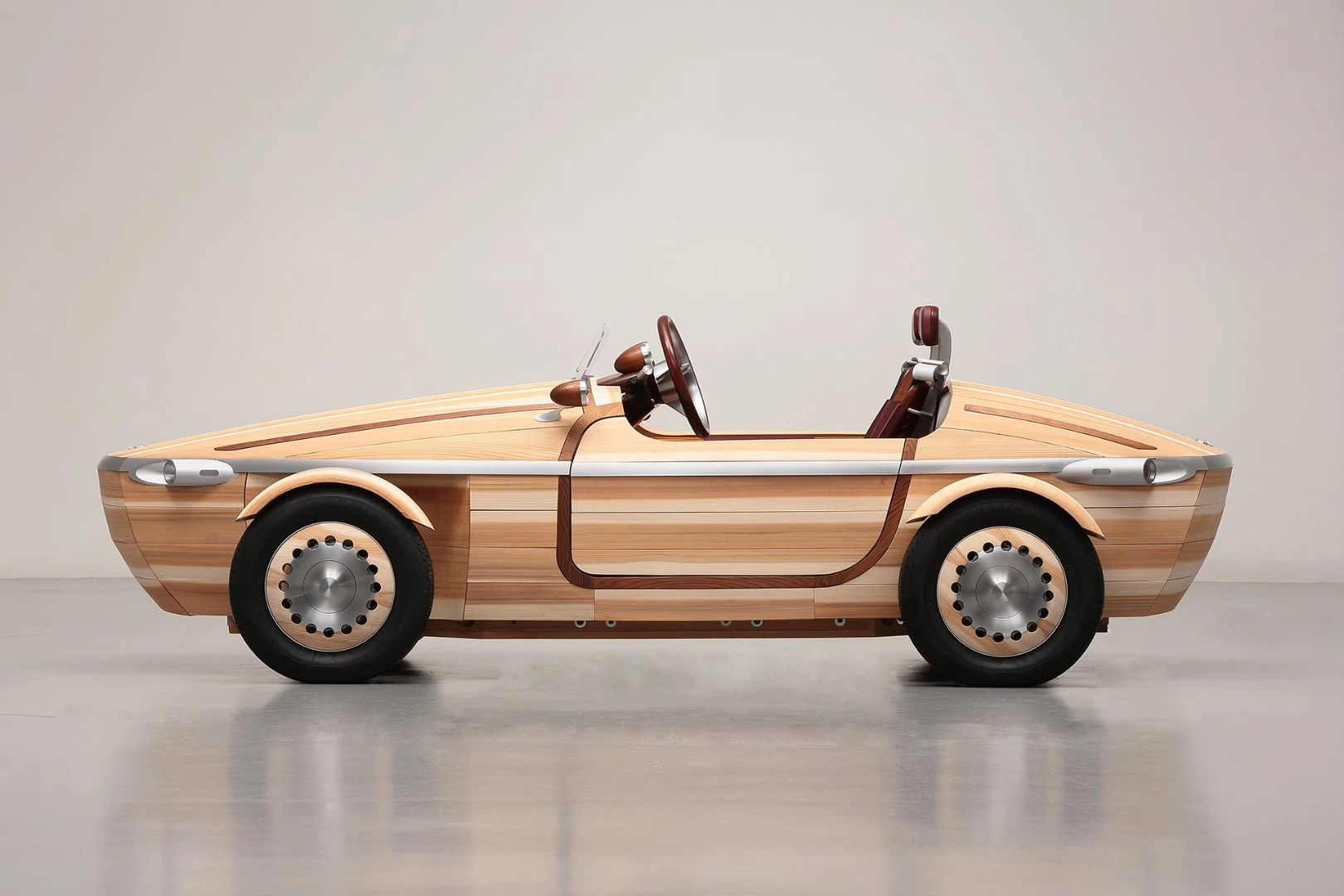

The engineers say that they chose wood as their medium for the car’s build because wood changes and gains character over time as it’s cared for
4/17
The engineers say that they chose wood as their medium for the car’s build because wood changes and gains character over time as it’s cared for

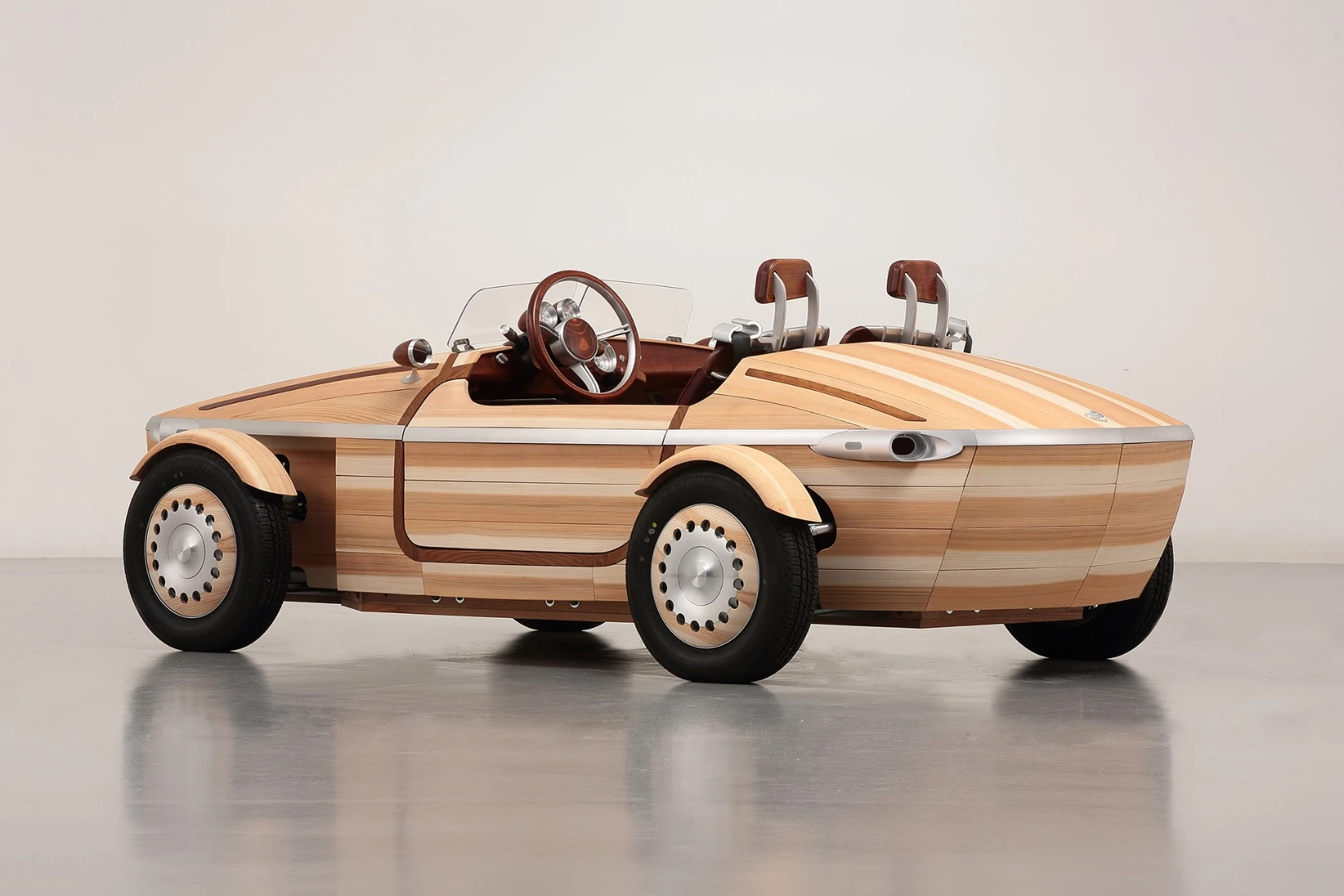

The team used specific woods for various parts of the working car, including nearly all of the structure
5/17
The team used specific woods for various parts of the working car, including nearly all of the structure

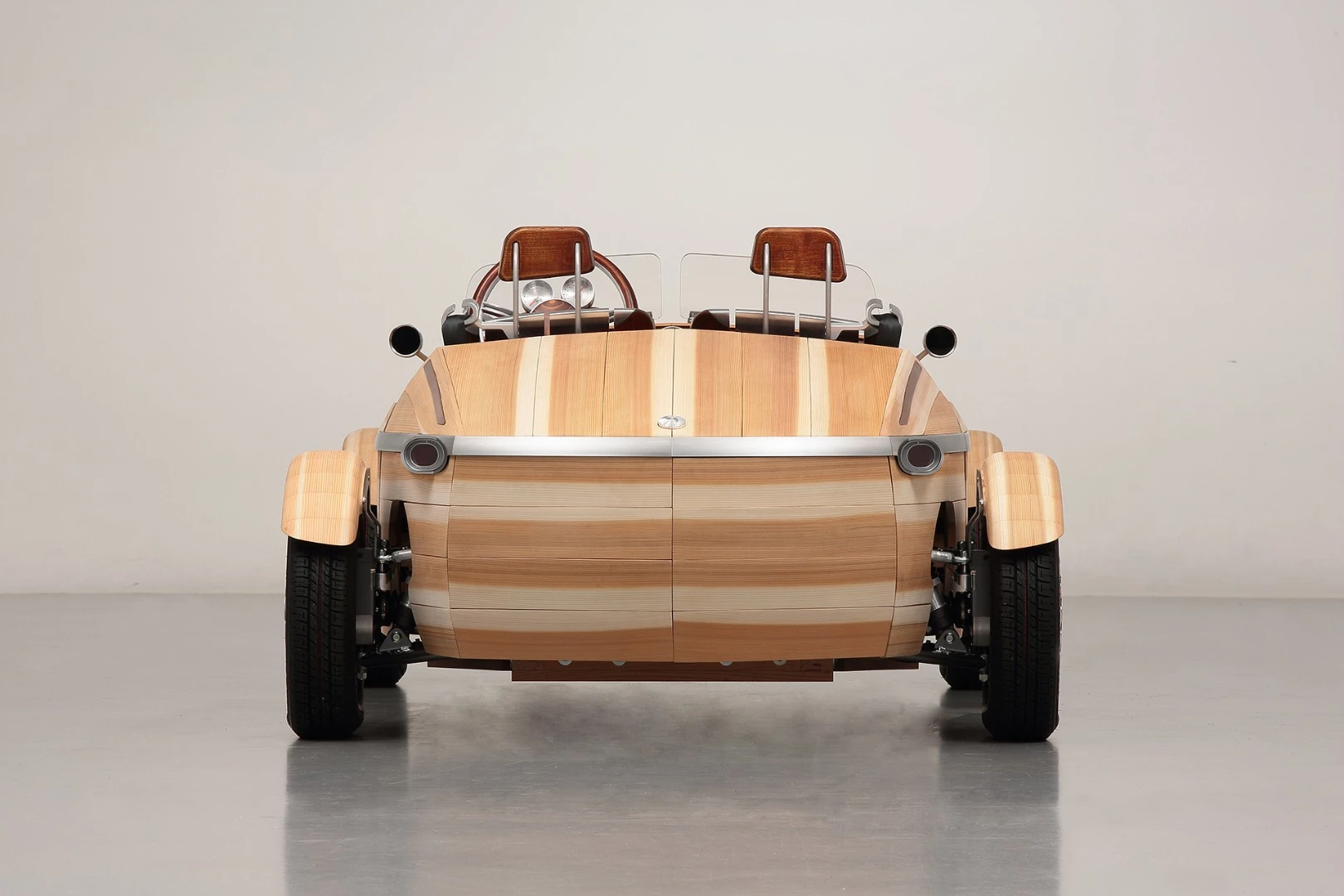

The exterior is made of Japanese cedar for long-life and its particular hue
6/17
The exterior is made of Japanese cedar for long-life and its particular hue

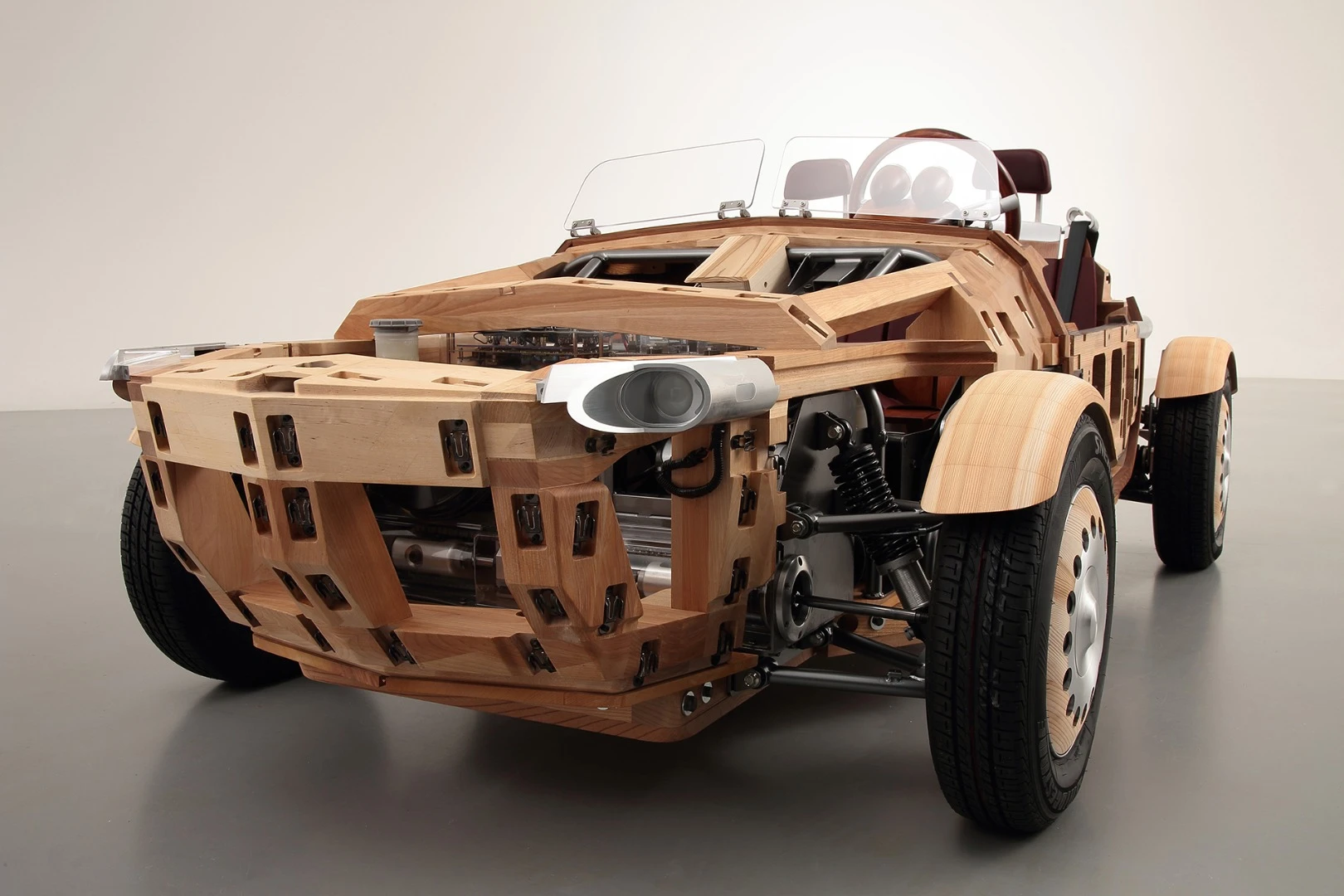

Japanese birch makes up the framing and some chassis components because of its rigid nature
7/17
Japanese birch makes up the framing and some chassis components because of its rigid nature

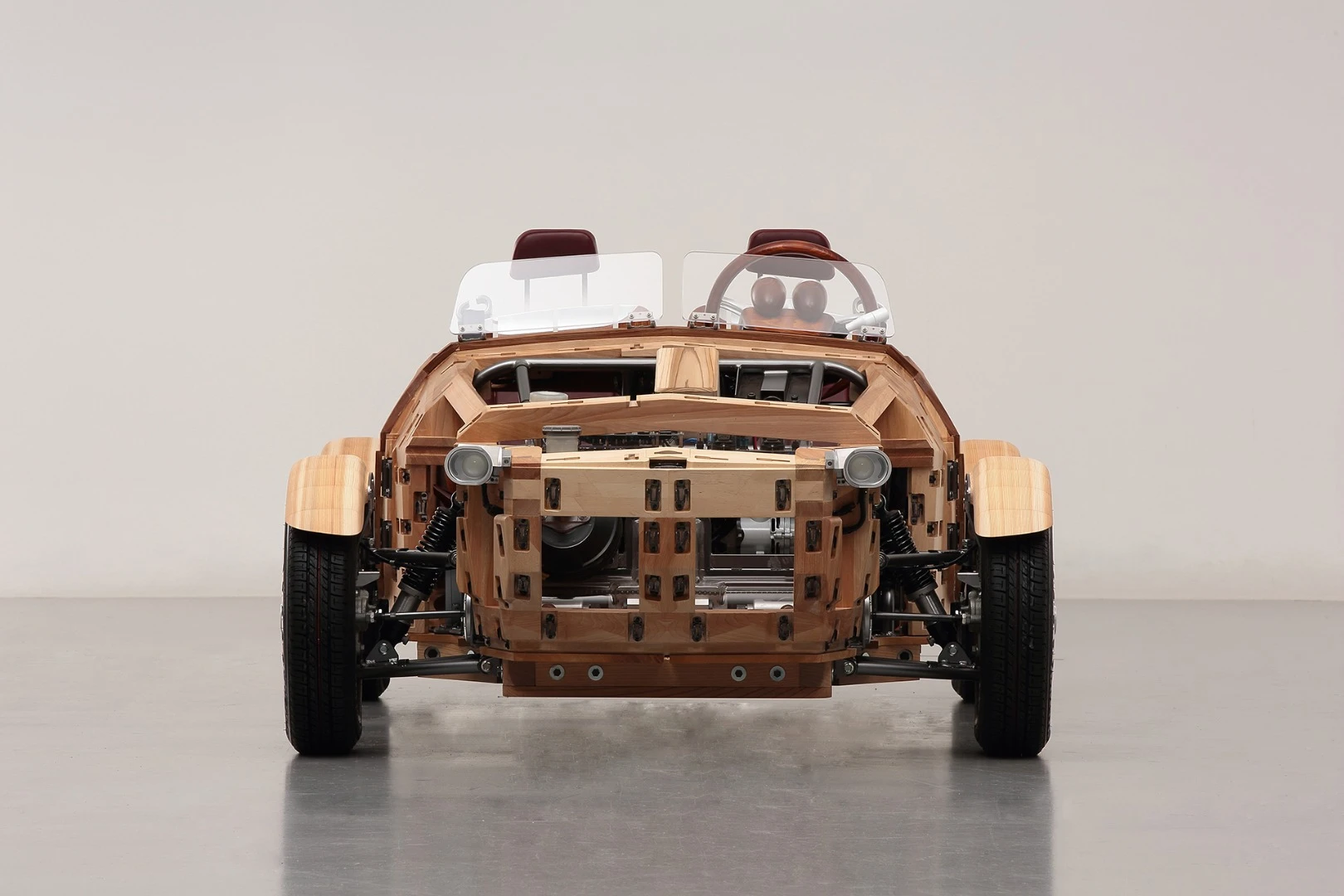

Body panels can be removed and replaced on the Setsuna
8/17
Body panels can be removed and replaced on the Setsuna

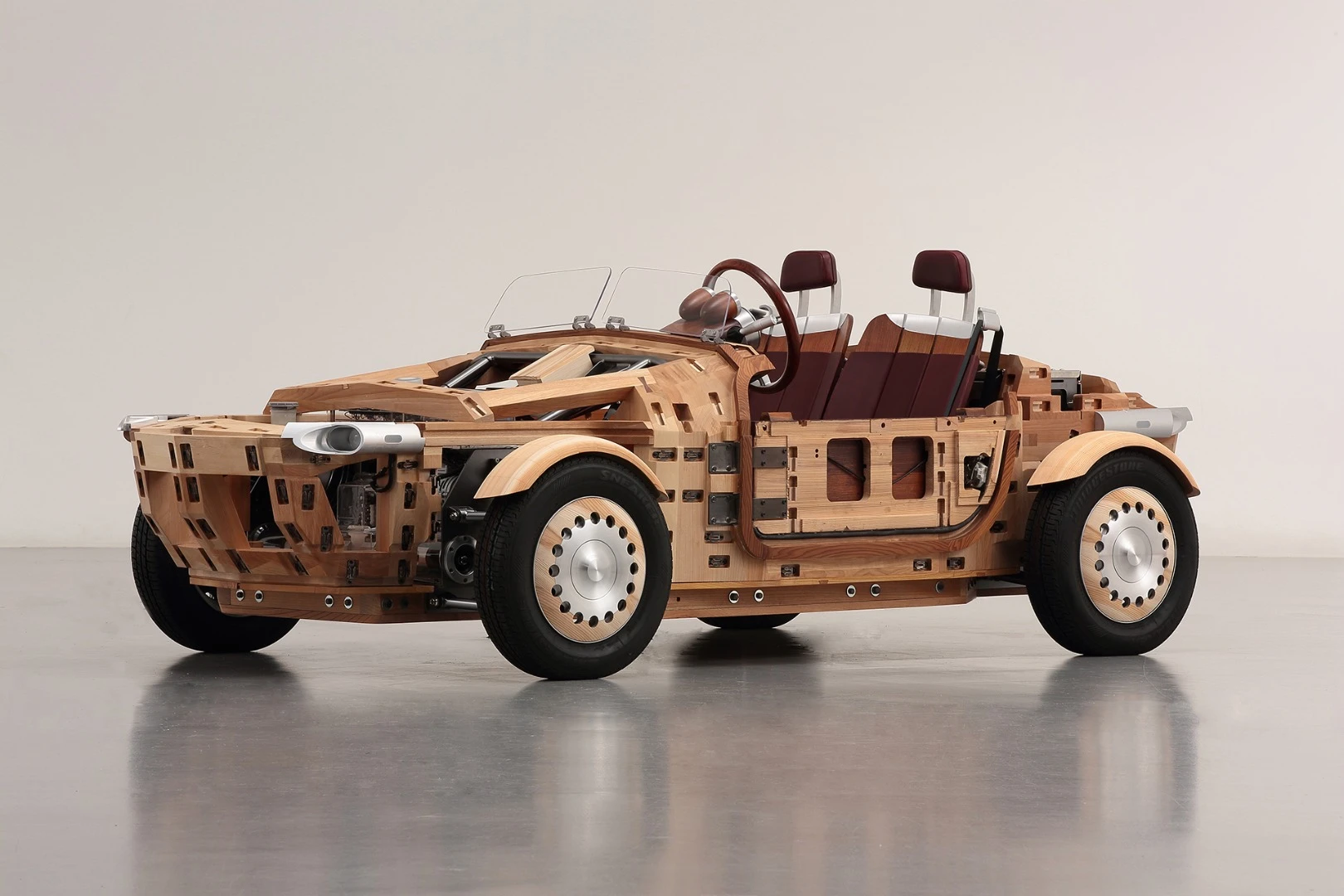

The removable body means access for repairs is made easier
9/17
The removable body means access for repairs is made easier

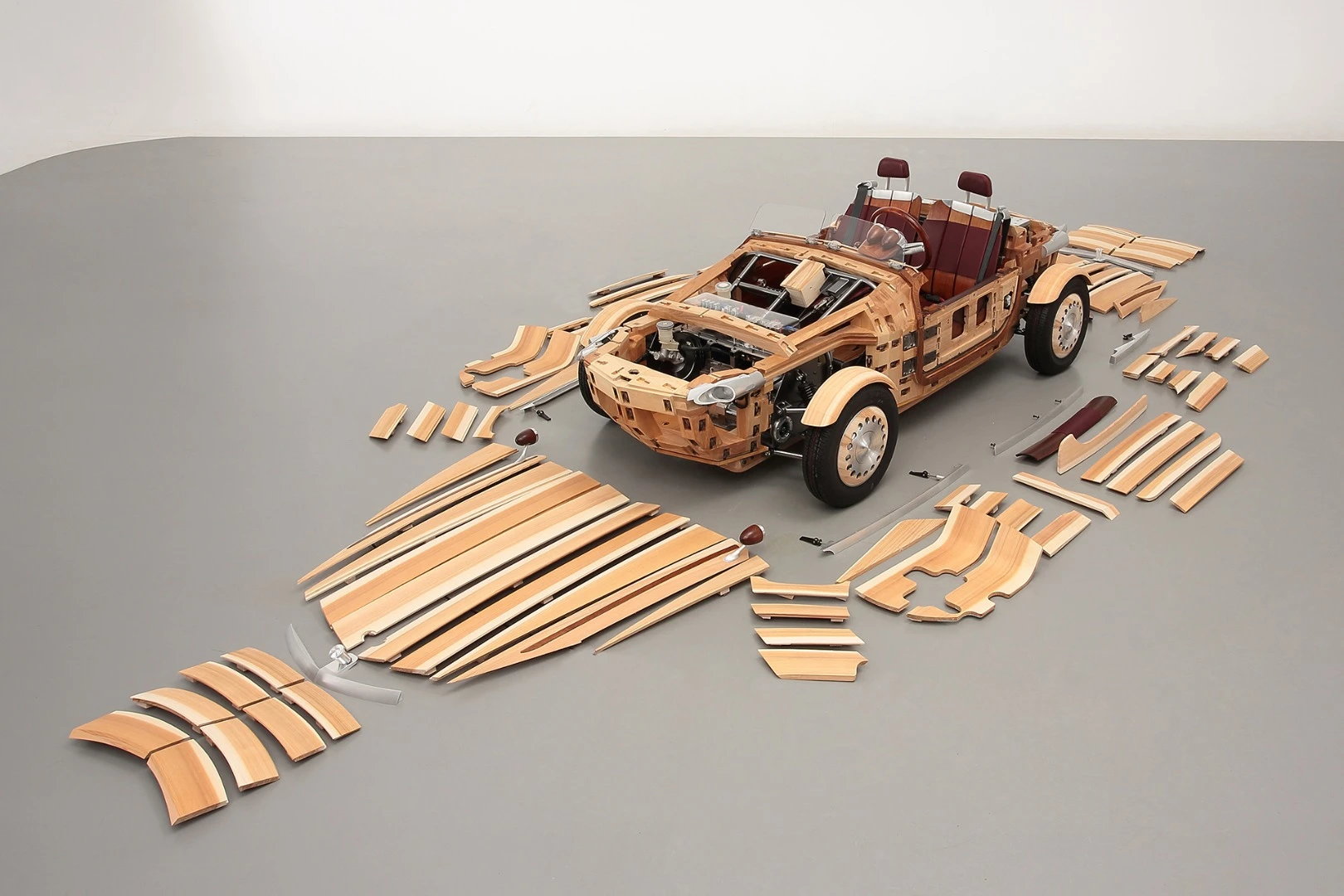

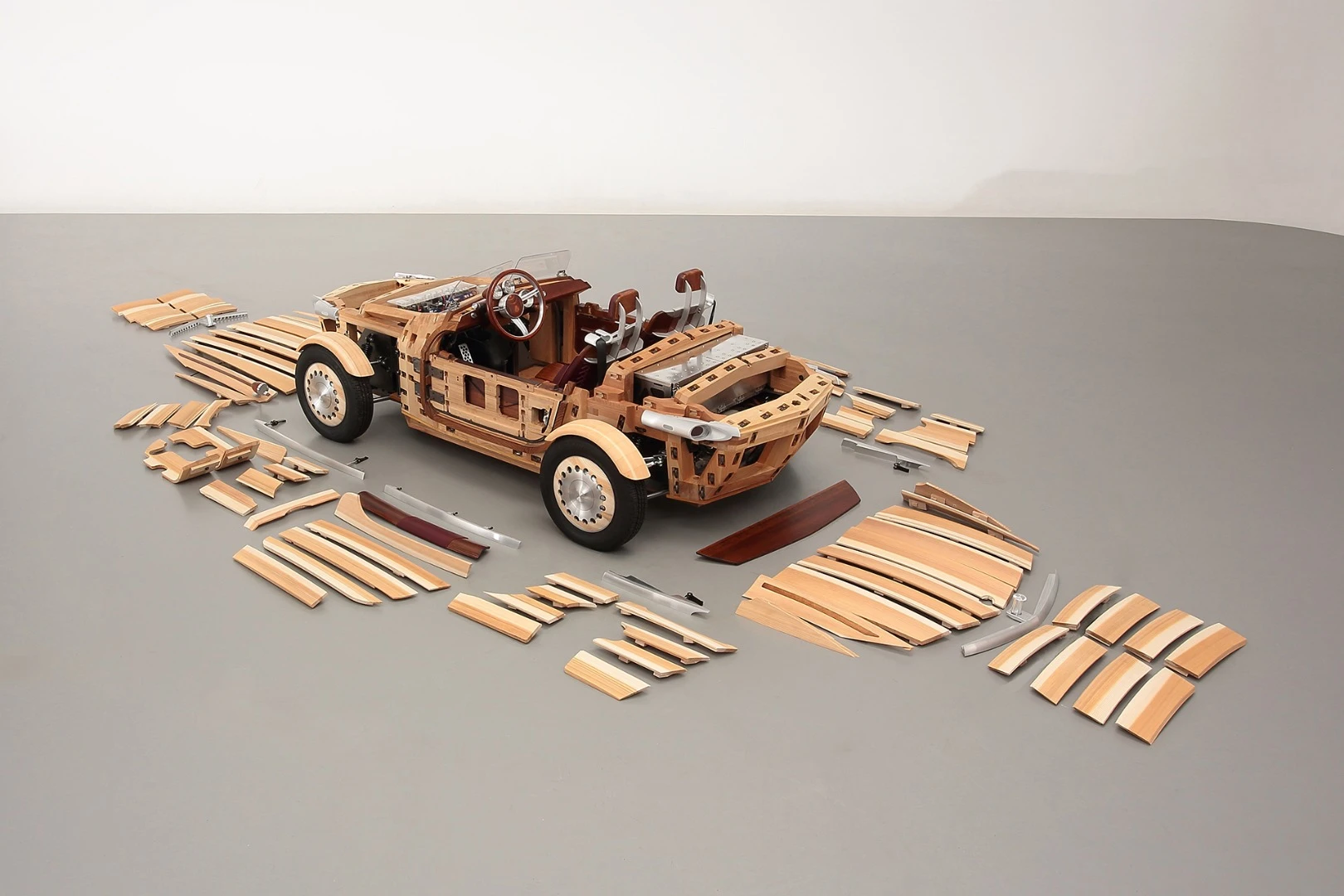

The exterior has two grain patterns that can be swapped out when desired
10/17
The exterior has two grain patterns that can be swapped out when desired
The exterior has two grain patterns that can be swapped out when desired
11/17
The exterior has two grain patterns that can be swapped out when desired

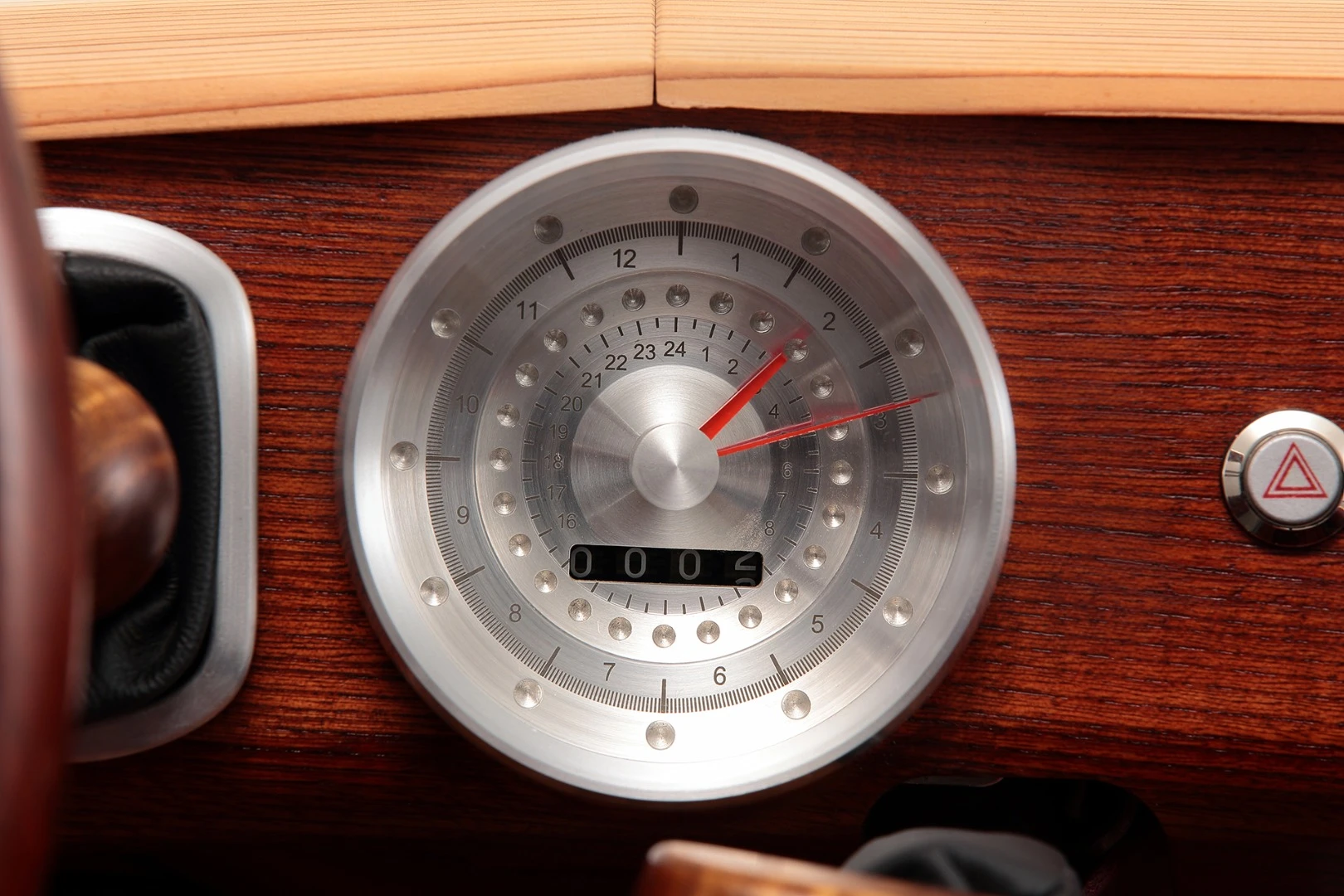

The radial clock/meter inside the car sits on the dashboard and ticks away the time over a 100 year span
12/17
The radial clock/meter inside the car sits on the dashboard and ticks away the time over a 100 year span

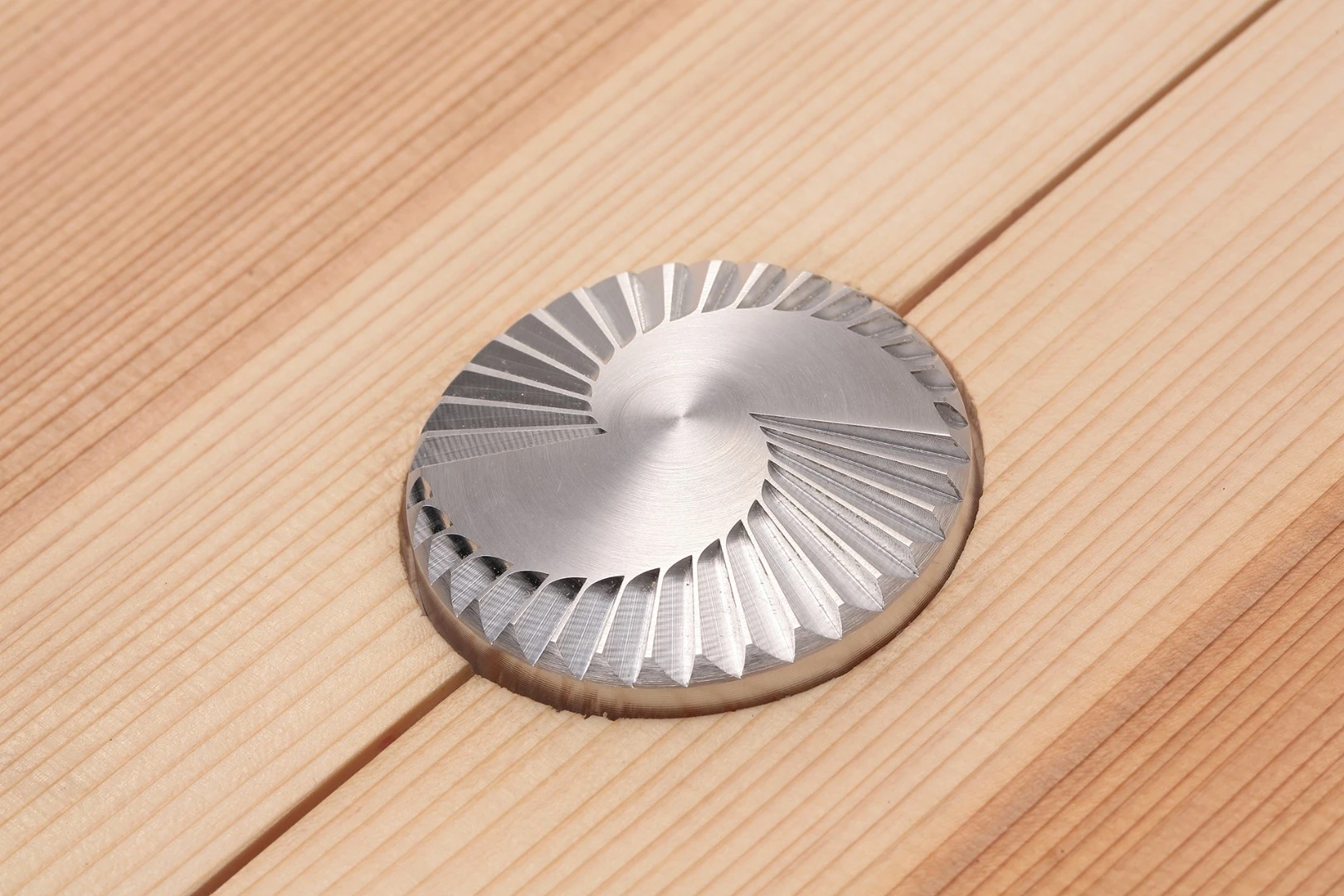

Key to the concept is the Setsuna emblem, made to symbolize the “accumulation of moments”
13/17
Key to the concept is the Setsuna emblem, made to symbolize the “accumulation of moments”

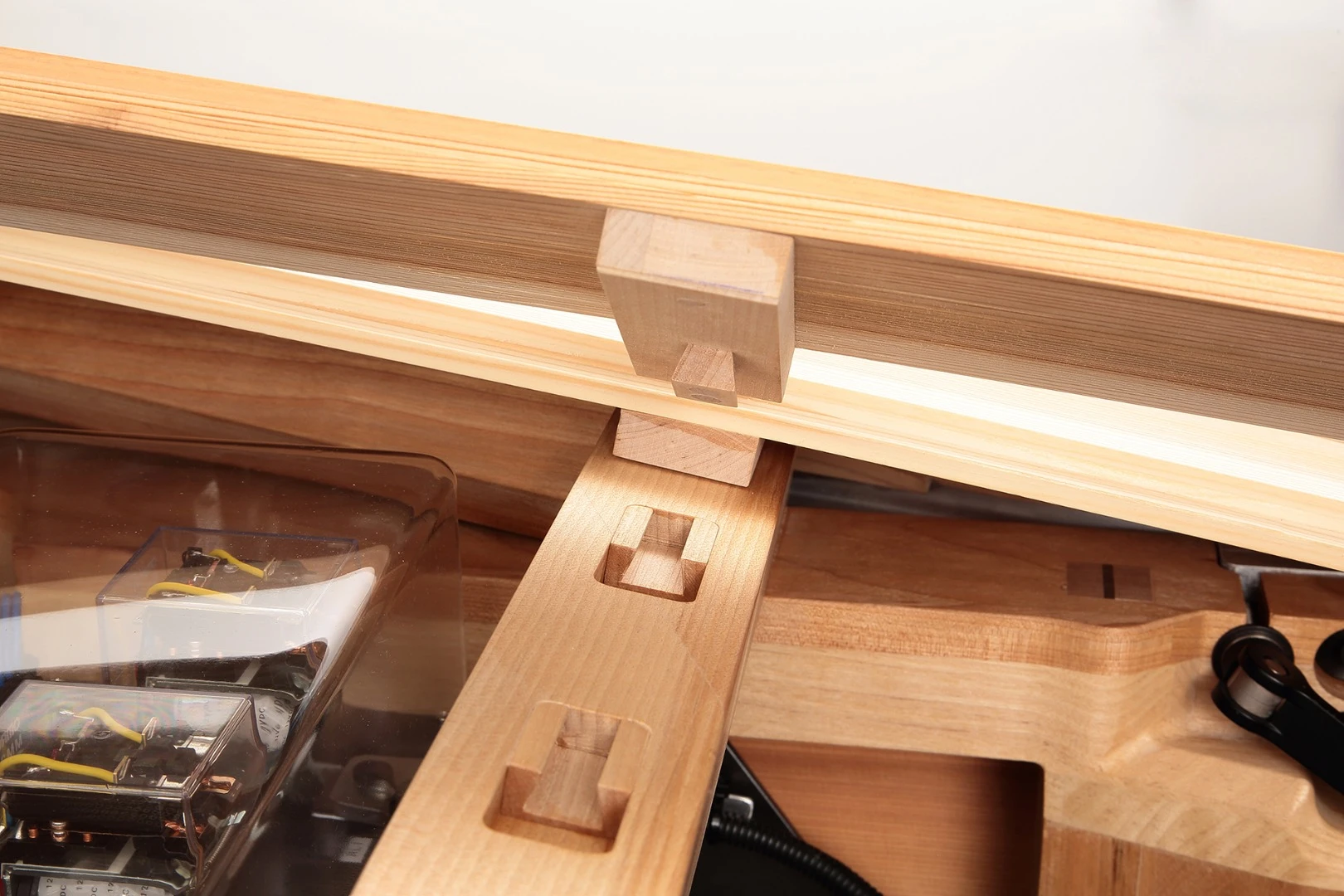

To join the woods, traditional Japanese woodworking was called upon, allowing most of the joints to be done without nails or screws
14/17
To join the woods, traditional Japanese woodworking was called upon, allowing most of the joints to be done without nails or screws

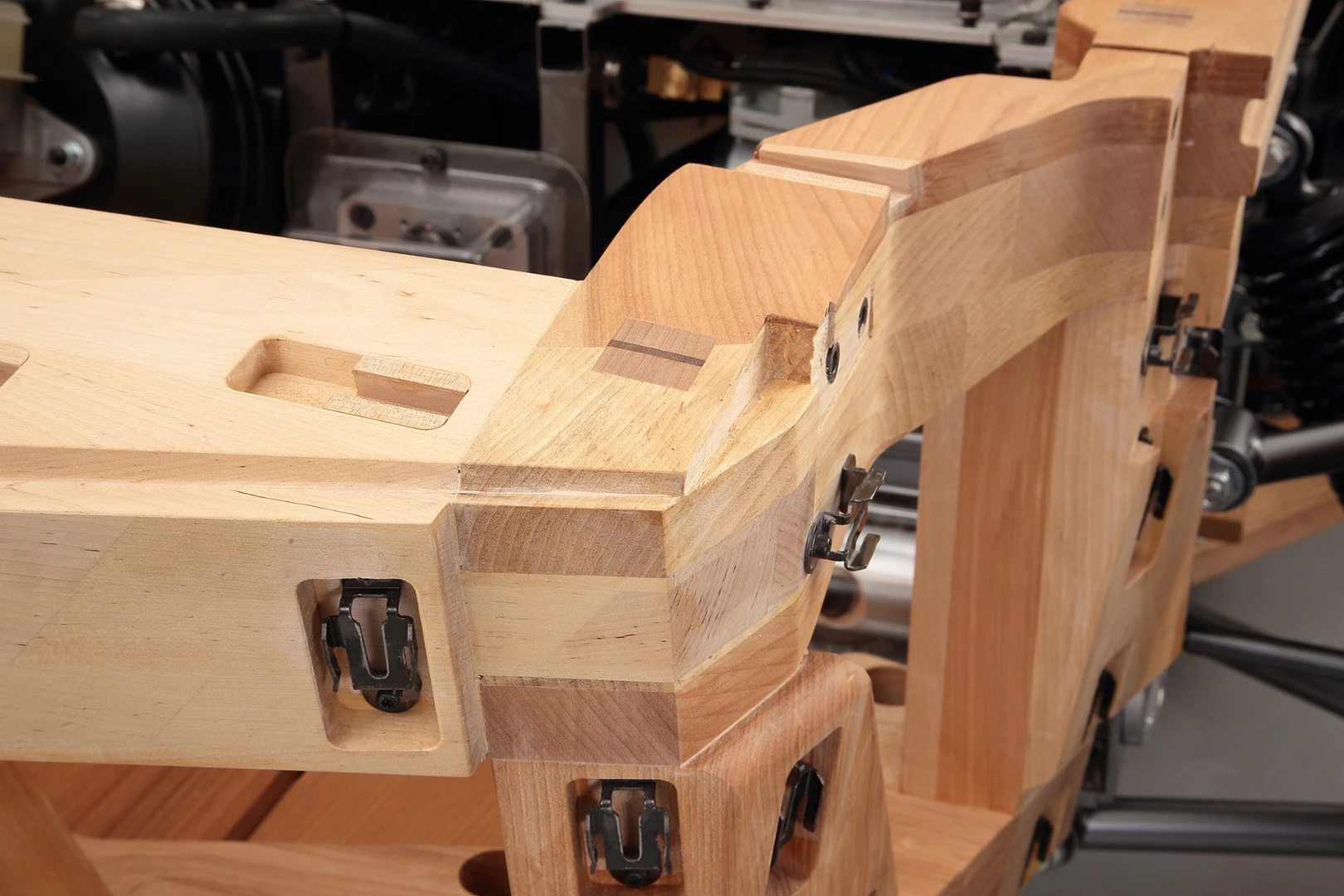

Okuriari and Kusabi techniques were used to join the woods throughout the car
15/17
Okuriari and Kusabi techniques were used to join the woods throughout the car

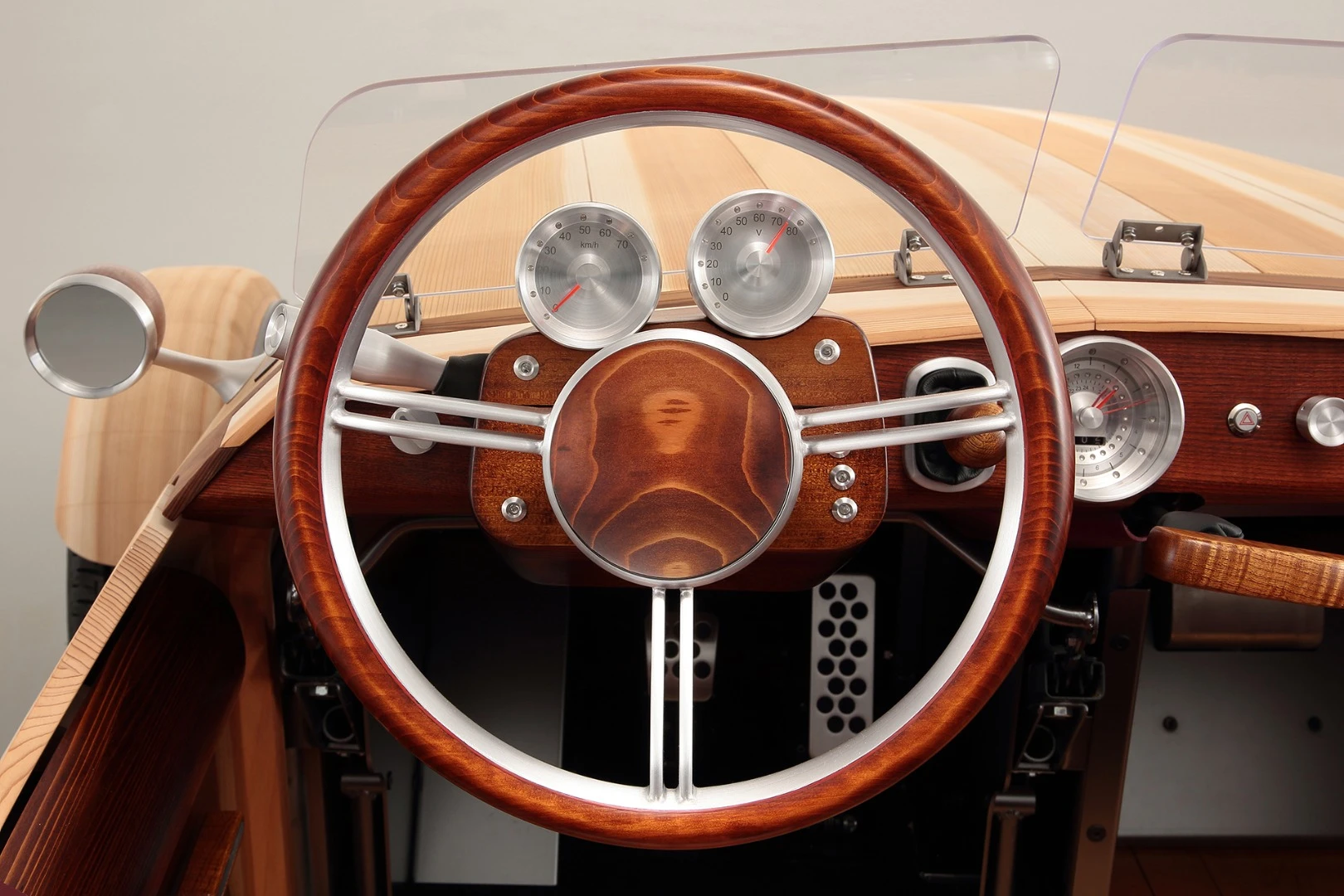

To finish the woods, a wipe-lacquering finish was applied by hand to many of the car’s parts, including mirror housings, body banding lines, and the steering wheel
16/17
To finish the woods, a wipe-lacquering finish was applied by hand to many of the car’s parts, including mirror housings, body banding lines, and the steering wheel

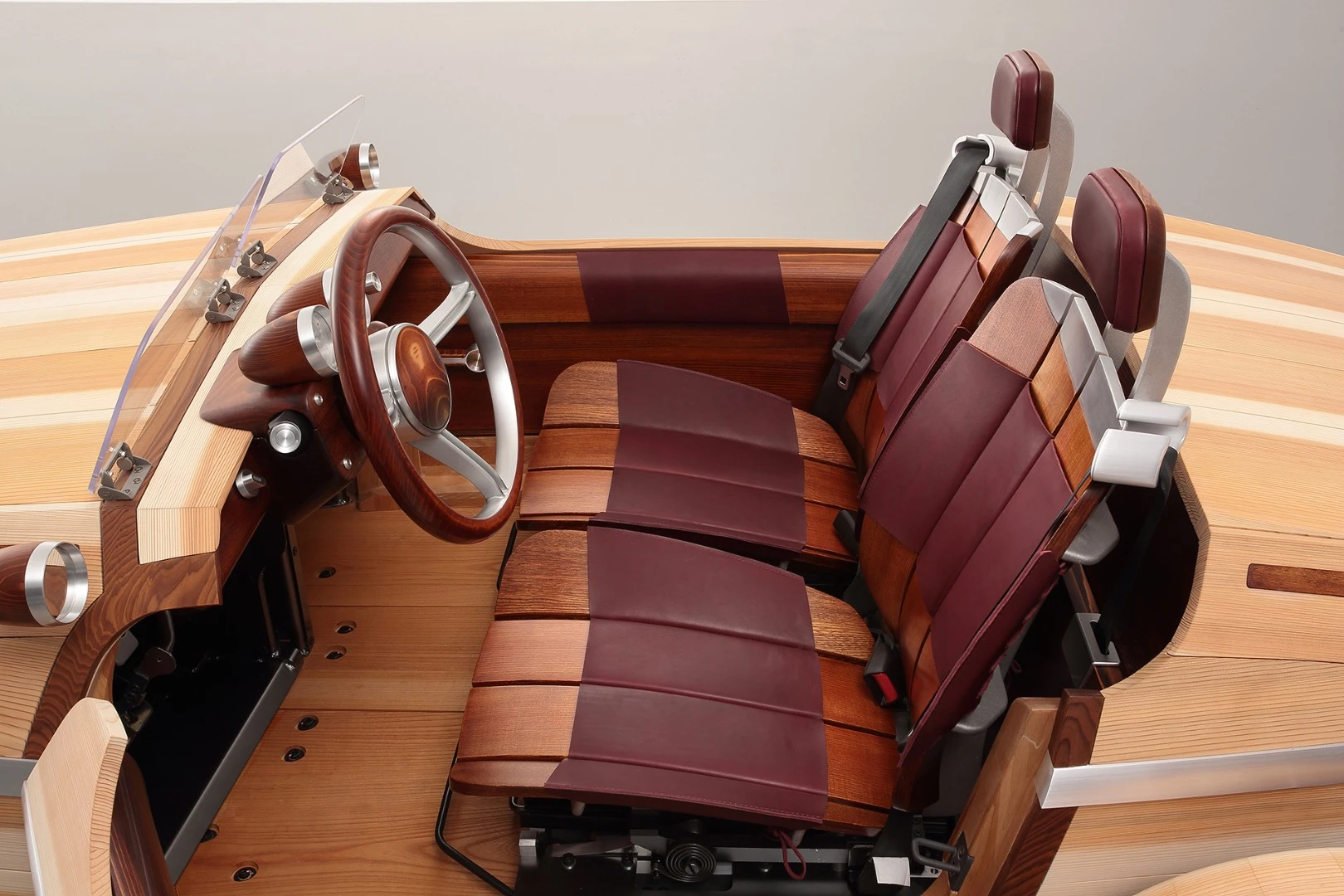

Even the seats are made of wood
17/17
Even the seats are made of wood

Debuting in April at Milan Design Week, the Toyota Setsuna concept is a wooden masterpiece that combines this timeless material with a 100-year chronograph. Made to embody the family affection that is often imbued in our cars, the Setsuna is meant to be passed along as an heirloom.

The Setsuna is a concept vehicle designed and built by Kenji Tsuji and his team of Toyota engineers. The engineers say that they chose wood as their medium for the car's build because wood changes and gains character over time as it's cared for. The idea being that the Setsuna would be passed on from generation to generation and the wood it's made from would change in hue and texture with that passing time.

The team used specific woods for various parts of the working car, including nearly all of the structure
The team used specific woods for various parts of the working car, including nearly all of the structure

The team used specific woods for various parts of the working car, including nearly all of the structure. Metal comprises only a very small part of the Setsuna's overall design. The exterior is made of Japanese cedar for long-life and its particular hue. Japanese birch makes up the framing and some chassis components because of its rigid nature. Japanese zelkova, known for its durability, was used for the flooring while castor aralia was used for the seating.

The exterior has two grain patterns that can be swapped out when desired. A straight grain gives a flowing, simple look whereas a cross grain has a more natural, characteristic appeal. To join the woods, traditional Japanese woodworking was called upon, allowing most of the joints to be secured without nails or screws. Okuriari and Kusabi techniques were used. Okuriari is a housed dovetail joint that can be easily slipped free without tools, but which holds its position when under pressure. Kusabi, a type of mortise and tenon joint, is used on framing and other structural components of the Setsuna.

The exterior has two grain patterns that can be swapped out when desired
The exterior has two grain patterns that can be swapped out when desired

To finish the woods, a wipe-lacquering finish was applied by hand to many of the car's parts, including mirror housings, body banding lines, and the steering wheel. This multi-layer lacquering technique sees its applique in stages, being wiped on, with the grain, repeatedly. A few aluminum finish pieces band the Setsuna to augment the look of the aluminum steering wheel frame and wheels.

Key to the concept are the Setsuna emblem, made to symbolize the "accumulation of moments." The radial emblem mirrors the radial clock/meter inside the car, which sits on the dashboard and ticks away the time over a 100 year span. Hands on the clock denote the minutes and hours while a rolling meter denotes years.

Source: Toyota
