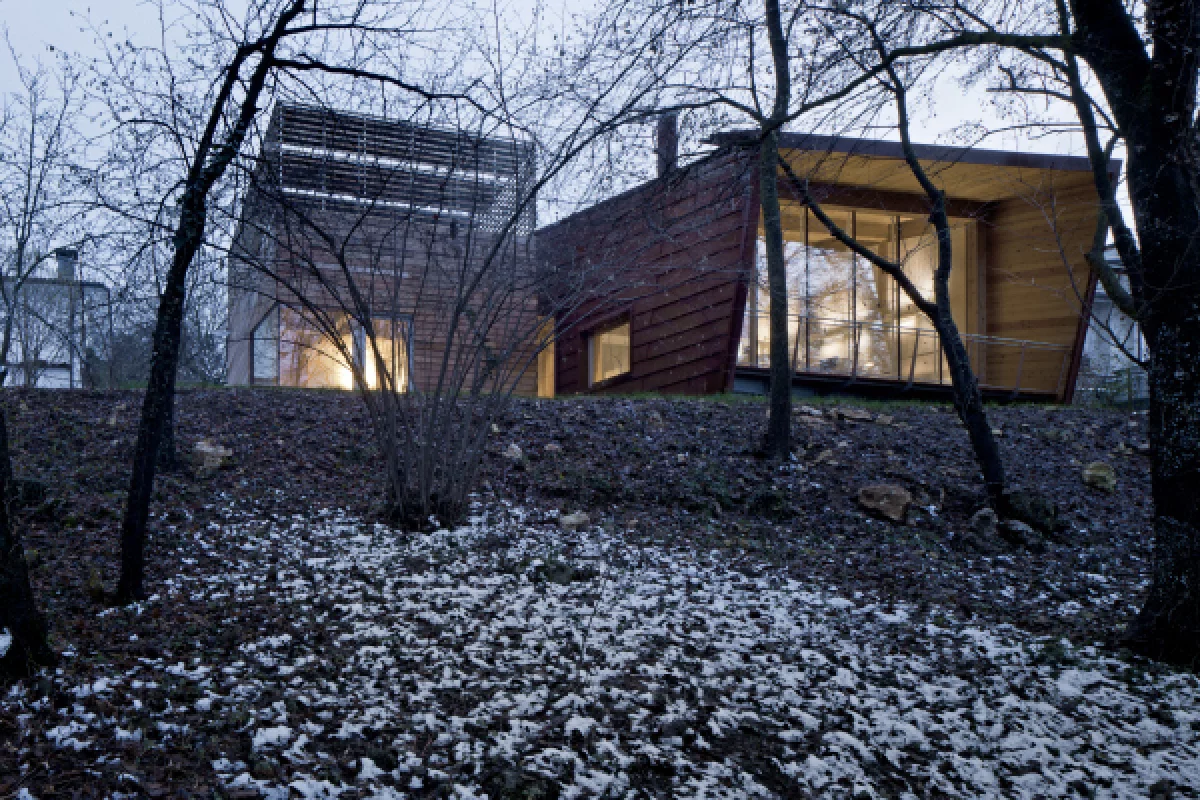

Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
View 32 Images
Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
1/32
Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
Tvzeb’s unique structural design aims to maximize the amount of natural sunlight entering the home during the winter months
2/32
Tvzeb’s unique structural design aims to maximize the amount of natural sunlight entering the home during the winter months
The Tvzeb home combines the use of recycled materials and LED lighting
3/32
The Tvzeb home combines the use of recycled materials and LED lighting
Tvzeb zero-energy home is located in the woodlands a few kilometers from the historic center of Vicenza
4/32
Tvzeb zero-energy home is located in the woodlands a few kilometers from the historic center of Vicenza
The Tvzeb home combines the use of recycled materials and wall and roof insulation which came from 40,000 recycled plastic bottles
5/32
The Tvzeb home combines the use of recycled materials and wall and roof insulation which came from 40,000 recycled plastic bottles
The home’s structure incorporates the use of CNC machined and handcrafted components
6/32
The home’s structure incorporates the use of CNC machined and handcrafted components
The home features two joining structures that are made from untreated larch wood and a Corten steel shell
7/32
The home features two joining structures that are made from untreated larch wood and a Corten steel shell
Tvzeb’s unique structural design aims to maximize the amount of natural sunlight entering the home during the winter months
8/32
Tvzeb’s unique structural design aims to maximize the amount of natural sunlight entering the home during the winter months
The Tvzeb home combines the use of recycled materials and LED lighting
9/32
The Tvzeb home combines the use of recycled materials and LED lighting

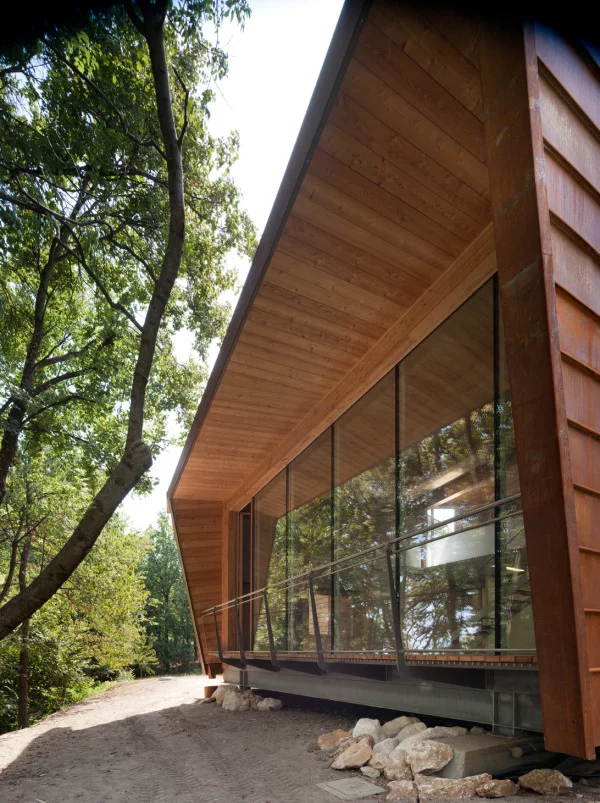

The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds
10/32
The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds

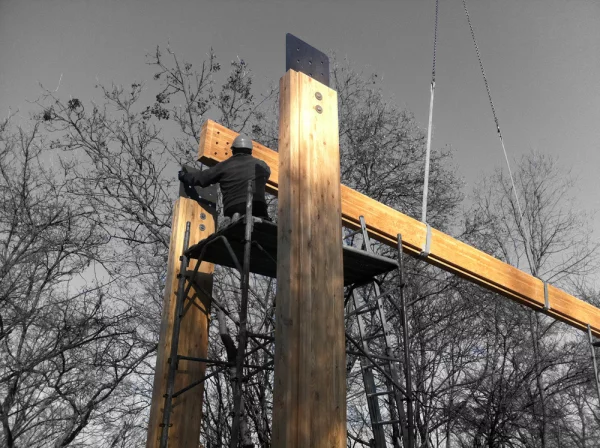

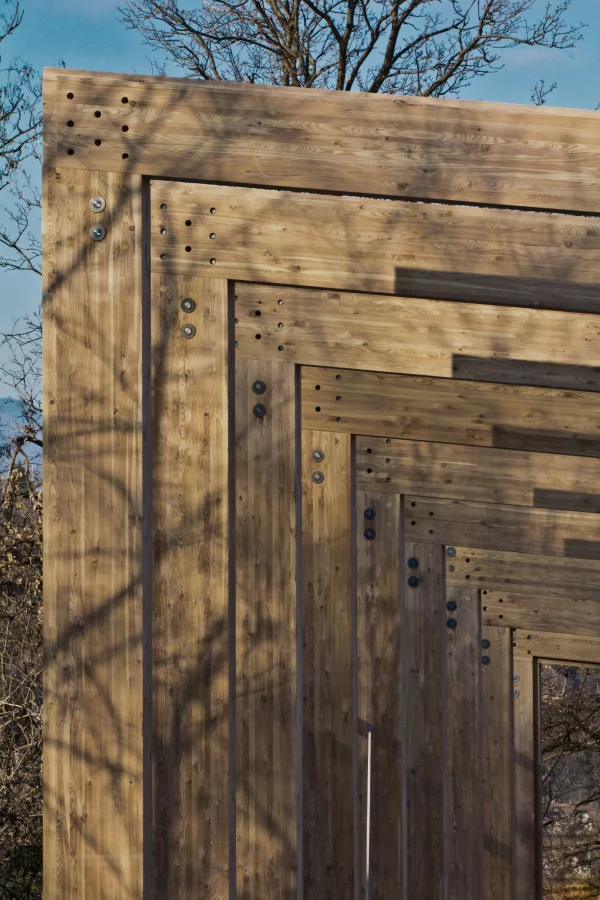

The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape
11/32
The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape
LED bars which are recessed into the floor, bounce off the aluminum panels on the interior walls
12/32
LED bars which are recessed into the floor, bounce off the aluminum panels on the interior walls

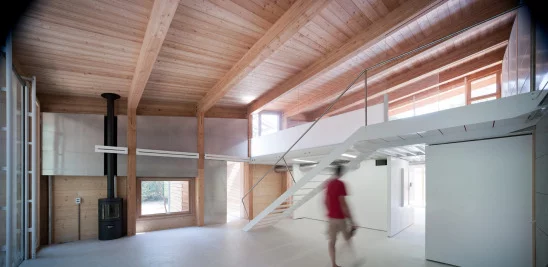

The Tvzeb home combines the use of recycled materials and geothermal and solar energy generation
13/32
The Tvzeb home combines the use of recycled materials and geothermal and solar energy generation

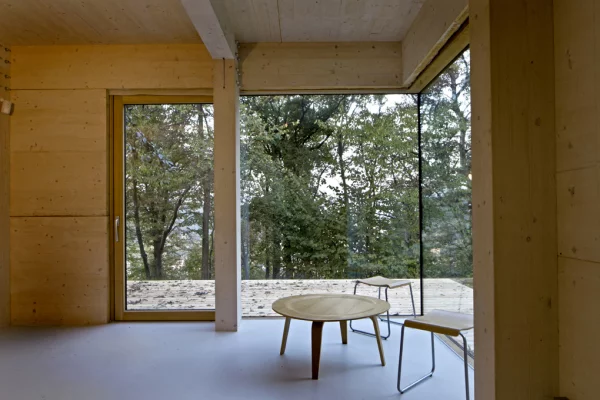

Tvzeb zero-energy home by Traverso-Vighy architects
14/32
Tvzeb zero-energy home by Traverso-Vighy architects

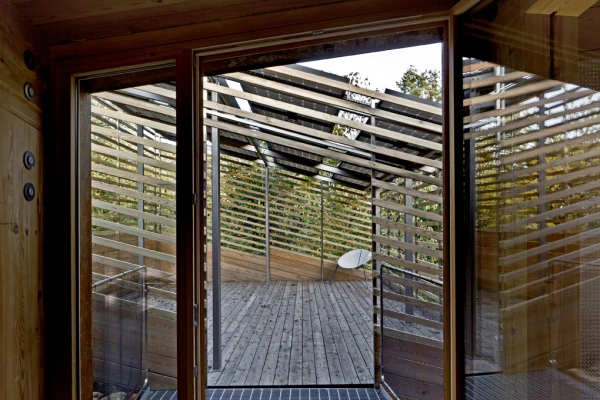

Chosen materials also blend into the surrounding landscape
15/32
Chosen materials also blend into the surrounding landscape
Tvzeb zero-energy home is located in the woodlands a few kilometers from the historic center of Vicenza
16/32
Tvzeb zero-energy home is located in the woodlands a few kilometers from the historic center of Vicenza
The frame system has been carefully designed to be completely hidden
17/32
The frame system has been carefully designed to be completely hidden
Chosen materials also blend into the surrounding landscape
18/32
Chosen materials also blend into the surrounding landscape
Tvzeb rests slightly above the ground, supported by two steel foundation beams running lengthways
19/32
Tvzeb rests slightly above the ground, supported by two steel foundation beams running lengthways

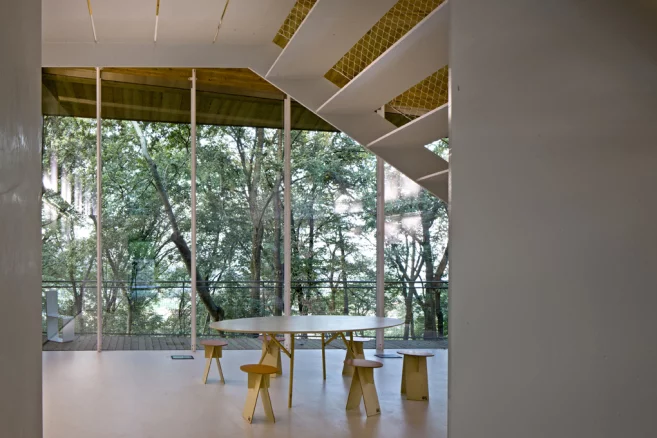

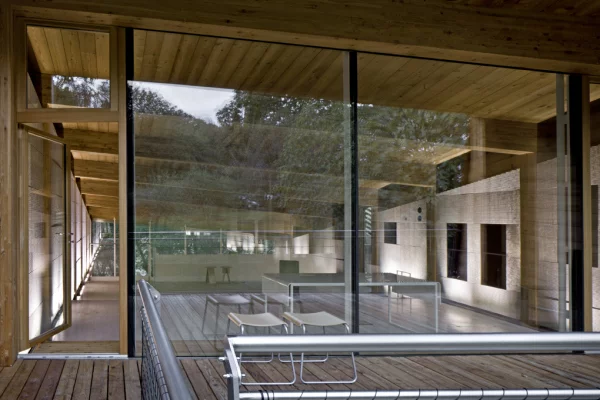

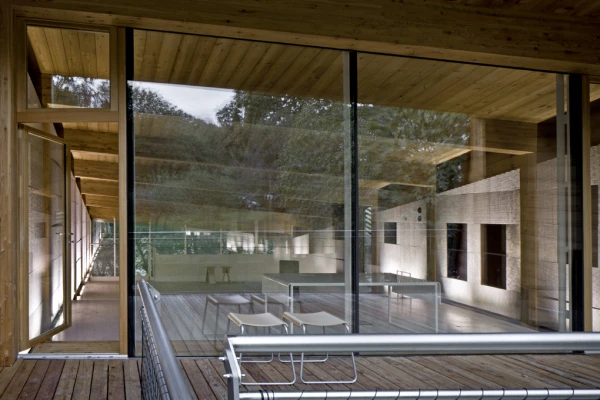

Reflective glass helps keep the heat out during the summer
20/32
Reflective glass helps keep the heat out during the summer
The building can be disassembled at the end of its life cycle and its materials can then be separated and recycled
21/32
The building can be disassembled at the end of its life cycle and its materials can then be separated and recycled
Reflective glass helps keep the heat out during the summer
22/32
Reflective glass helps keep the heat out during the summer
The home also features an integrated photovoltaic system, consisting of 16 solar panels
23/32
The home also features an integrated photovoltaic system, consisting of 16 solar panels
The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape
24/32
The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape

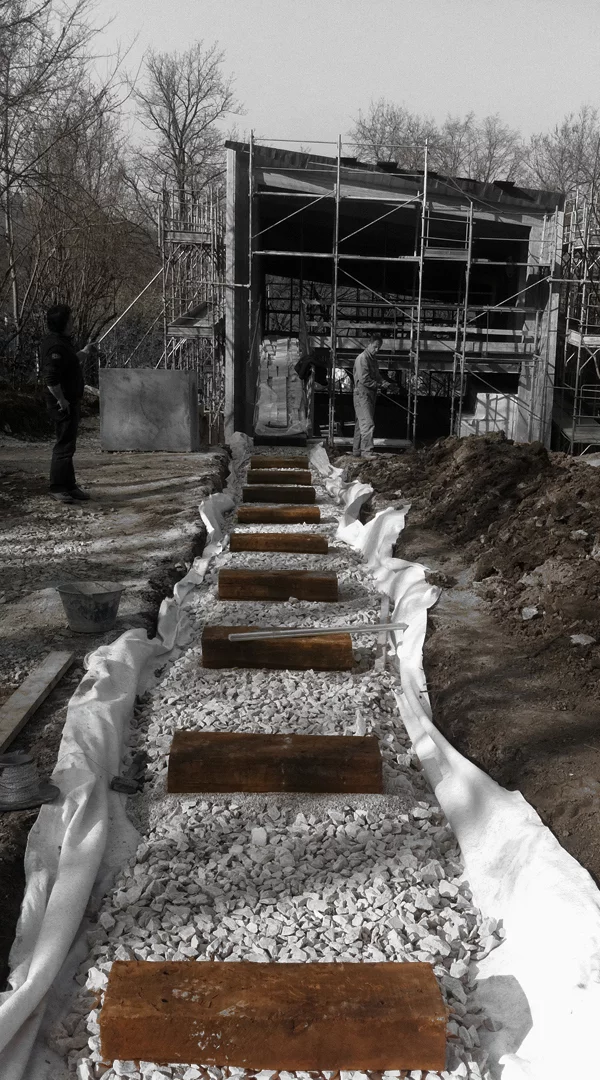

Construction of Tvzeb zero-energy home by Traverso-Vighy architects
25/32
Construction of Tvzeb zero-energy home by Traverso-Vighy architects

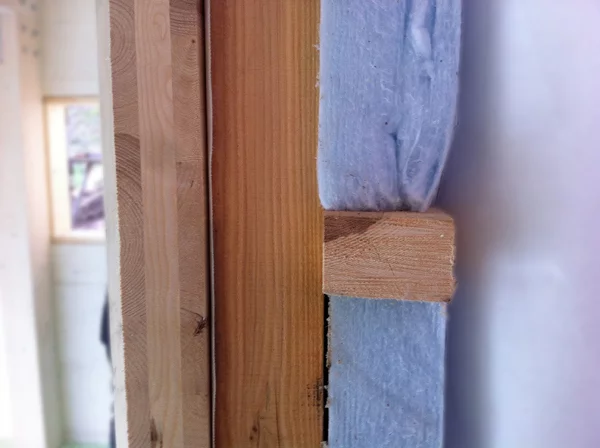

A double layer of 90mm (3.5 inches) polyester fiber wadding insulates the perimeter walls and the roofing of the home
26/32
A double layer of 90mm (3.5 inches) polyester fiber wadding insulates the perimeter walls and the roofing of the home
The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape
27/32
The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape
The home features two joining structures that are made from untreated larch wood and a Corten steel shell
28/32
The home features two joining structures that are made from untreated larch wood and a Corten steel shell
The home’s structure incorporates the use of CNC machined and handcrafted components
29/32
The home’s structure incorporates the use of CNC machined and handcrafted components
The home also features an integrated photovoltaic system, consisting of 16 solar panels
30/32
The home also features an integrated photovoltaic system, consisting of 16 solar panels
Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
31/32
Architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home
The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds
32/32
The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds
View gallery - 32 images

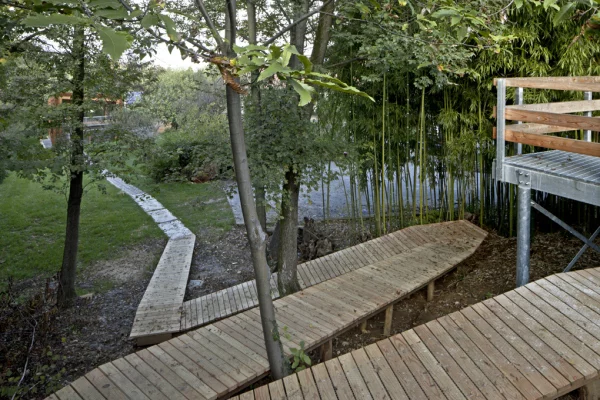

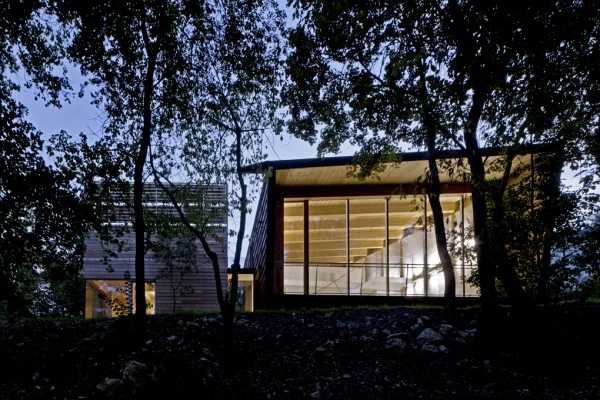

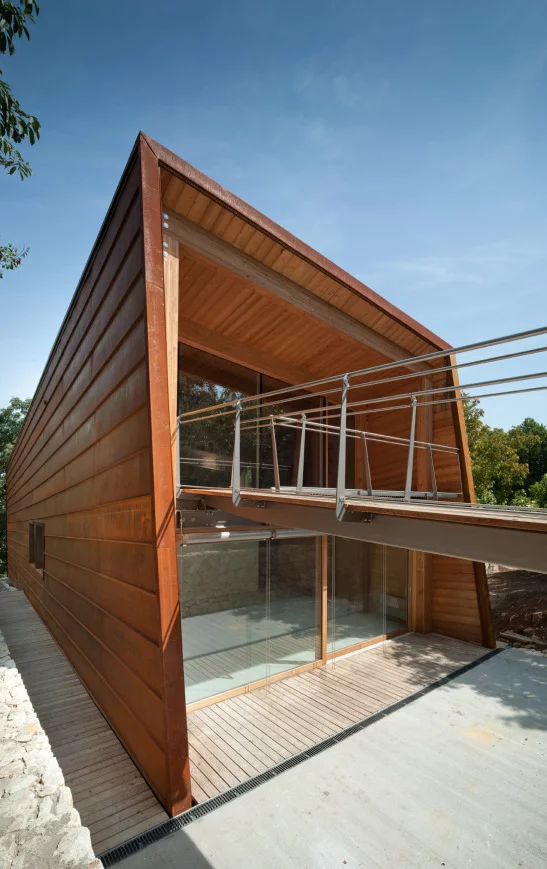

Italian architectural firm Traverso-Vighy and the Department of Physics at the University of Padua have teamed up to create an innovative zero-energy home dubbed “Tvzeb.” Located in the woodlands a few kilometers from the historic center of Vicenza, the home combines the use of recycled materials, geothermal and solar energy generation, LED lighting and wall and roof insulation made from 40,000 recycled plastic bottles.

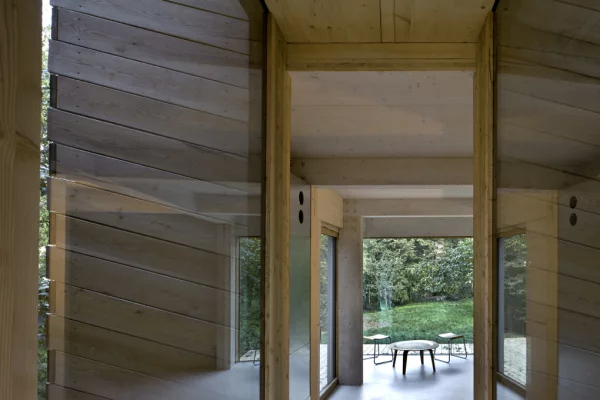

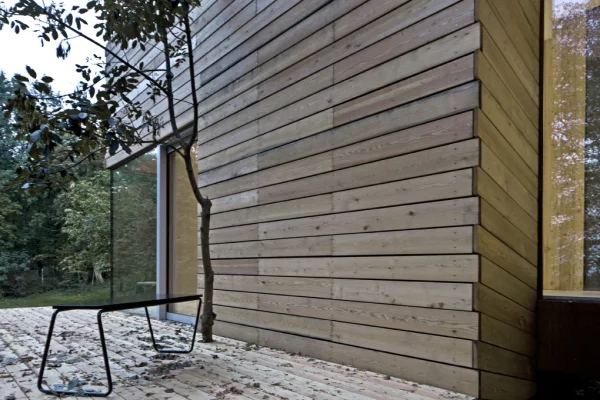

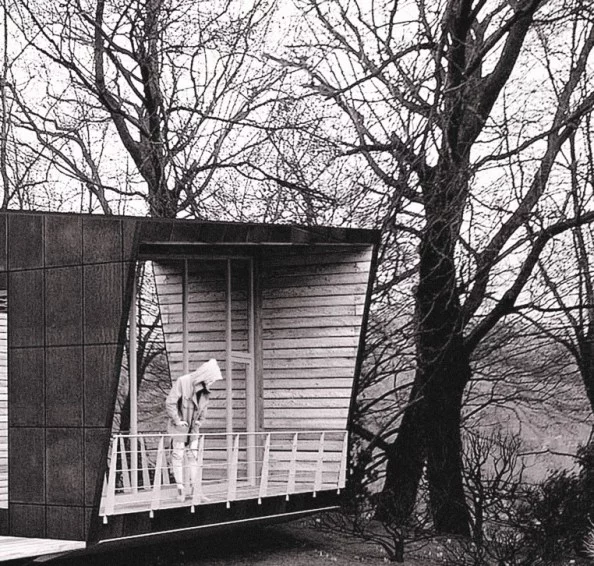

Following on from other projects developed by Traverso-Vighy, the home’s structure incorporates the use of CNC machined and handcrafted components. This allows the building to be disassembled at the end of its life cycle so its materials can be more easily separated and recycled.

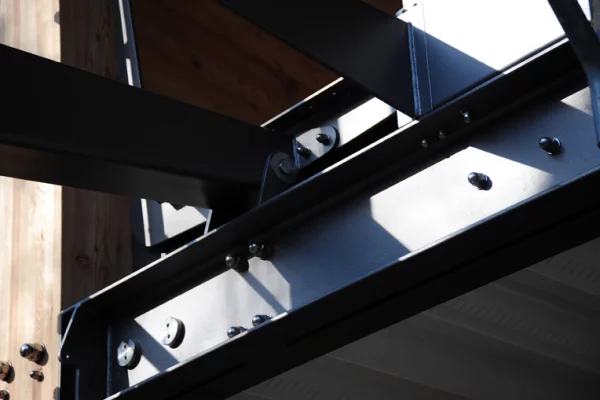

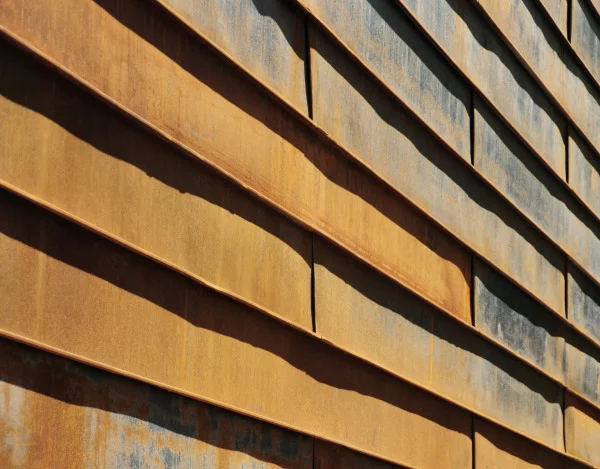

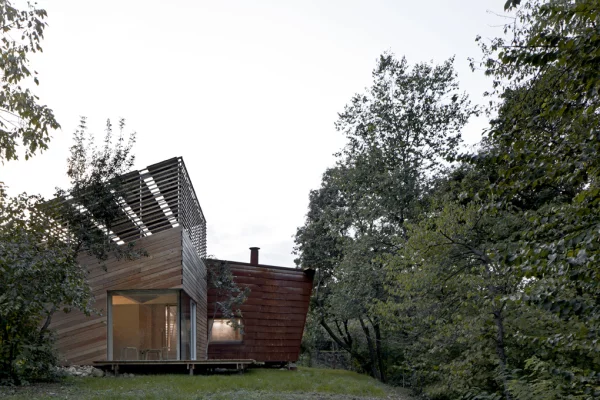

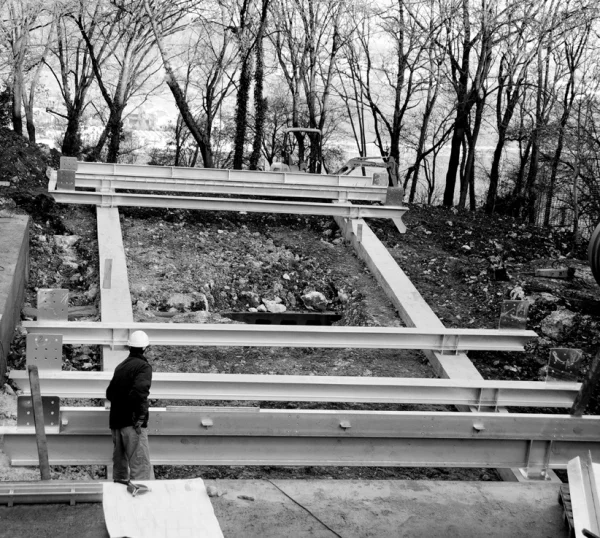

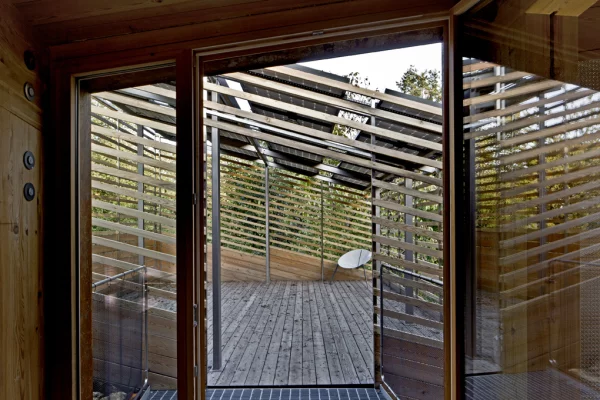

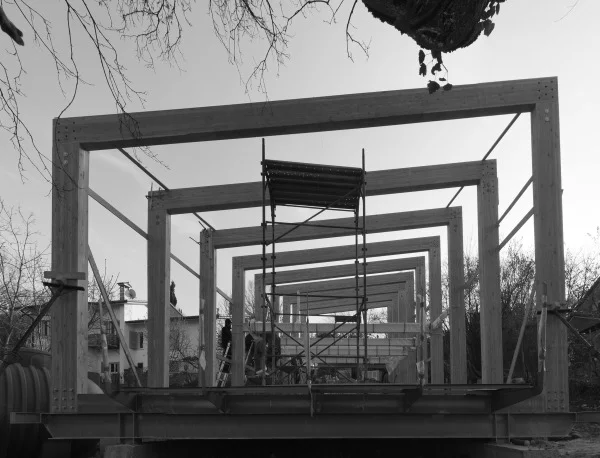

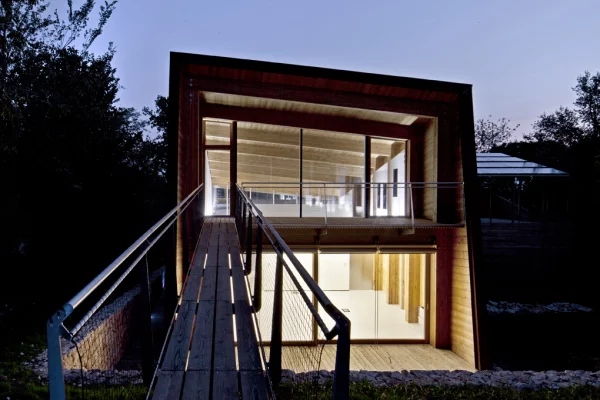

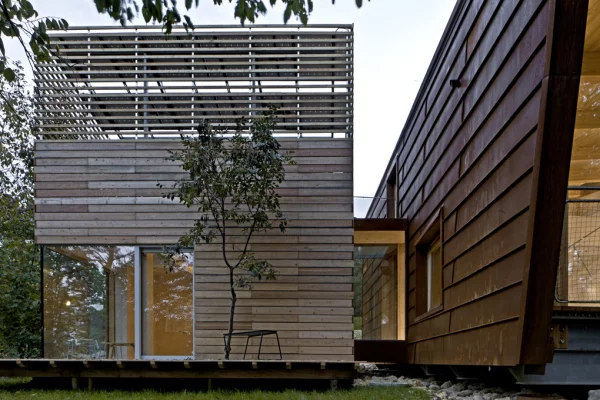

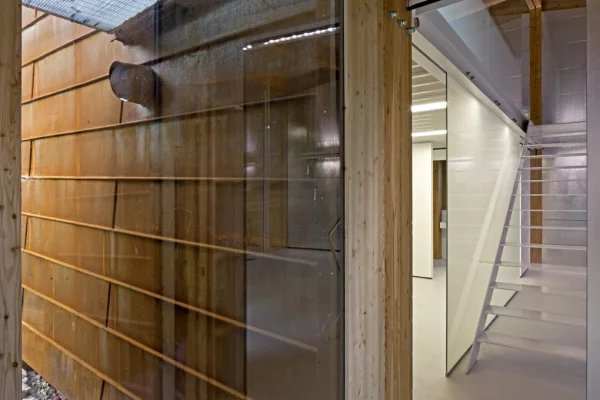

The home features two joining structures that are made from untreated larch wood and a Corten steel shell. Both rest slightly above the ground, supported by two steel foundation beams running lengthways. The frame system has been carefully designed to be completely hidden and the chosen materials also blend into the surrounding landscape.

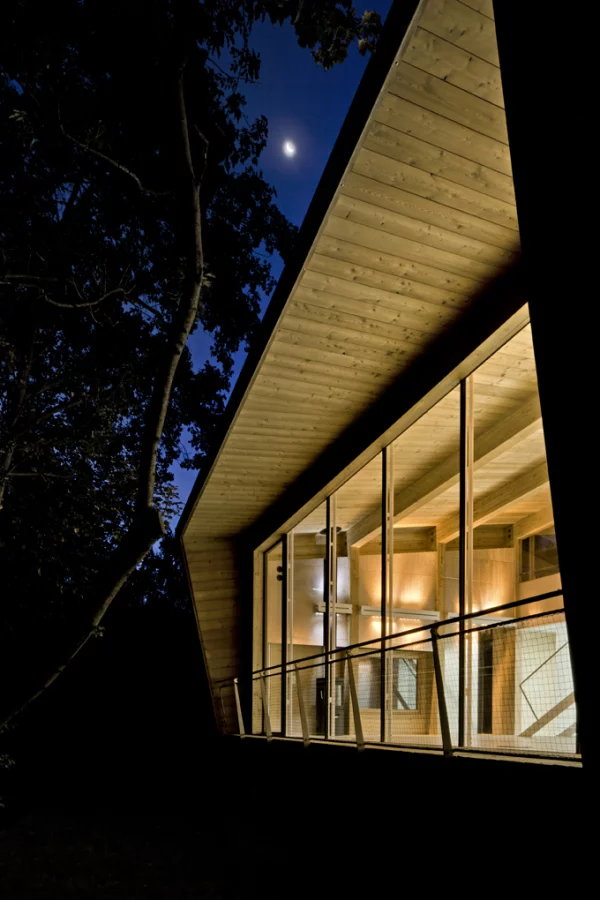

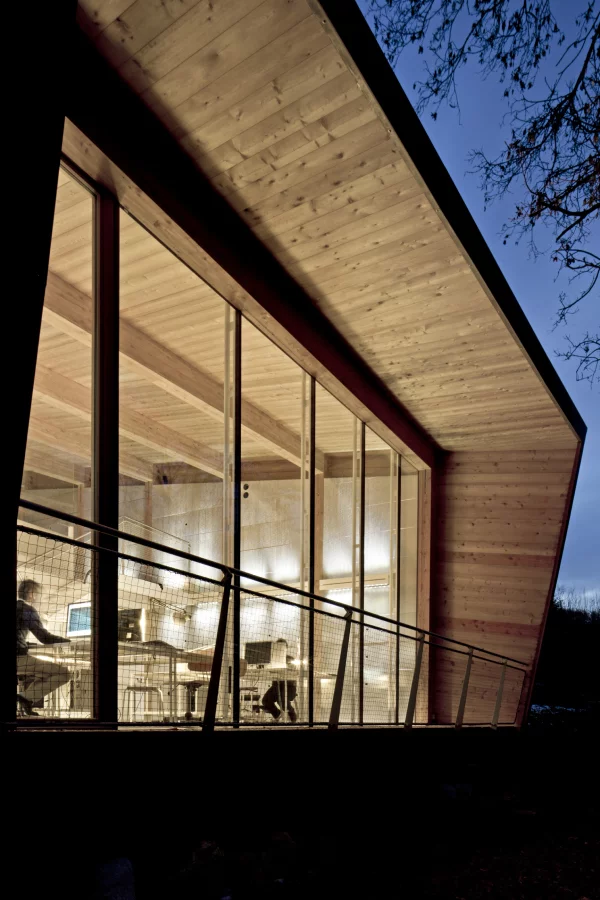

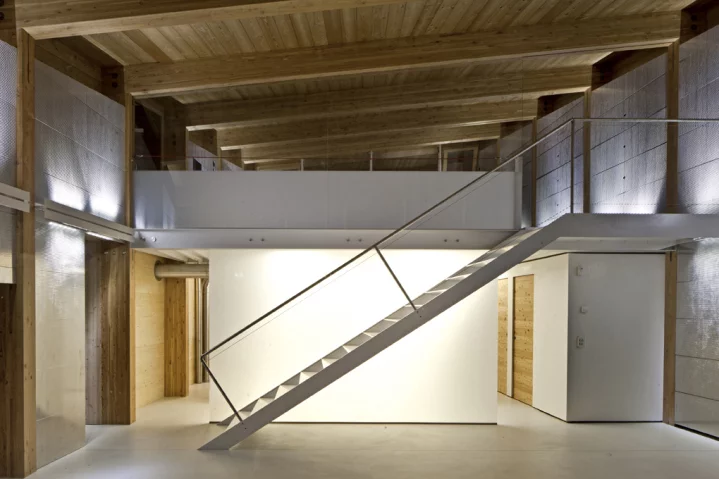

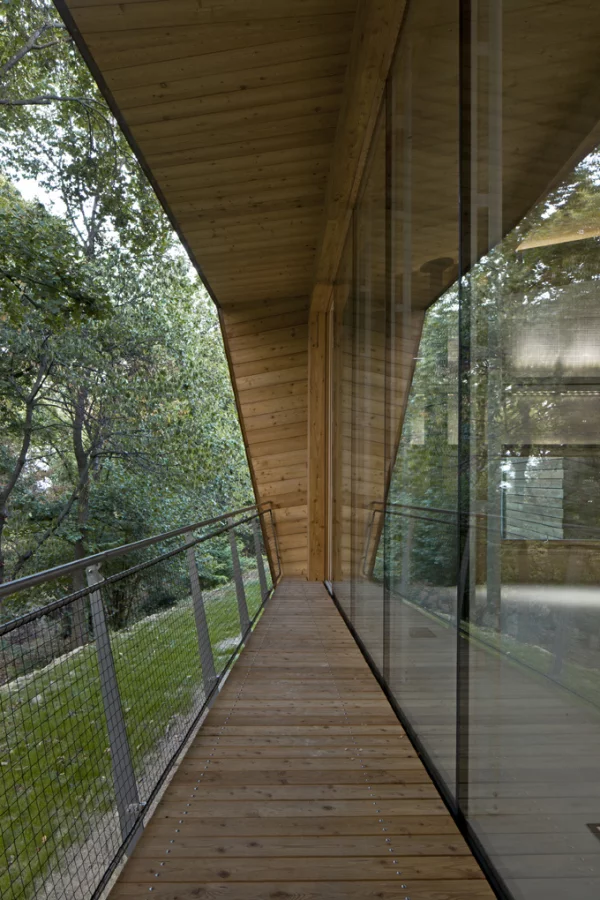

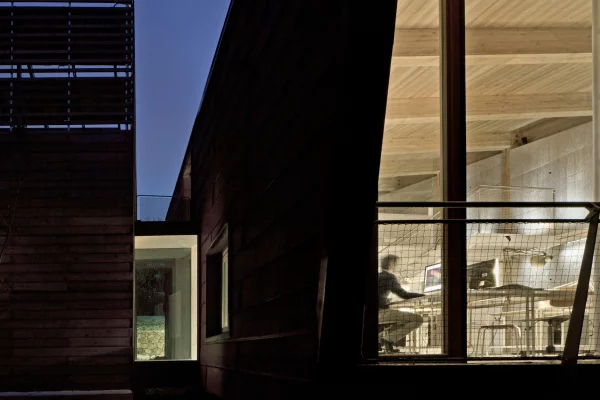

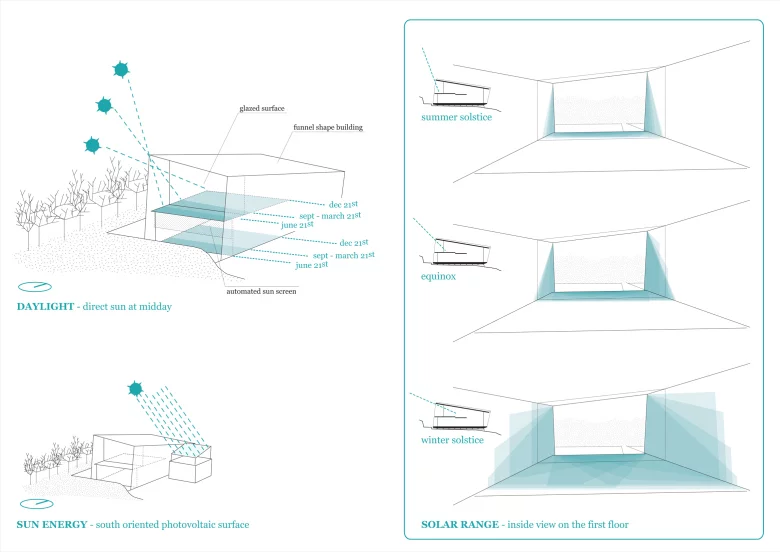

Tvzeb’s structural design aims to maximize the amount of natural sunlight entering the home during the winter months, while also shielding it from the sun during the warmer months. The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds. The interior lighting features the use of LED bars which are recessed into the floor, allowing the light to bounce off the aluminum panels on the interior walls.

The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds
The south façade is characterized by a large quadratic sun porch, coupled with interior automated blinds

The home also features an integrated photovoltaic system consisting of 16 solar panels that should produce enough energy to cover the annual electricity needs of the building. A geothermal heat pump and wood stove are utilized to heat the building during the winter, while reflective glass helps keep the heat out during the summer.

A double layer of 90 mm (3.5 inch) polyester fiber wadding insulates the perimeter walls and the roofing of the home. The polyester fiber was made from the recycling of approximately 40,000 plastic bottles and provides optimum thermal and acoustic insulation. The energy used to produce the material is also minimal when compared to mineral wool.

The research team from the University of Padua will monitor the "life" of the home, collect data on its energy efficiency and identify additional strategies to optimize its sustainability and the condition of the building.

Source: Tvzeb, Traverso-Vighy via Archilovers
