Volvo's 4-cylinder concept engine pumps out 450 hp

Volvo's 4-cylinder concept eng...

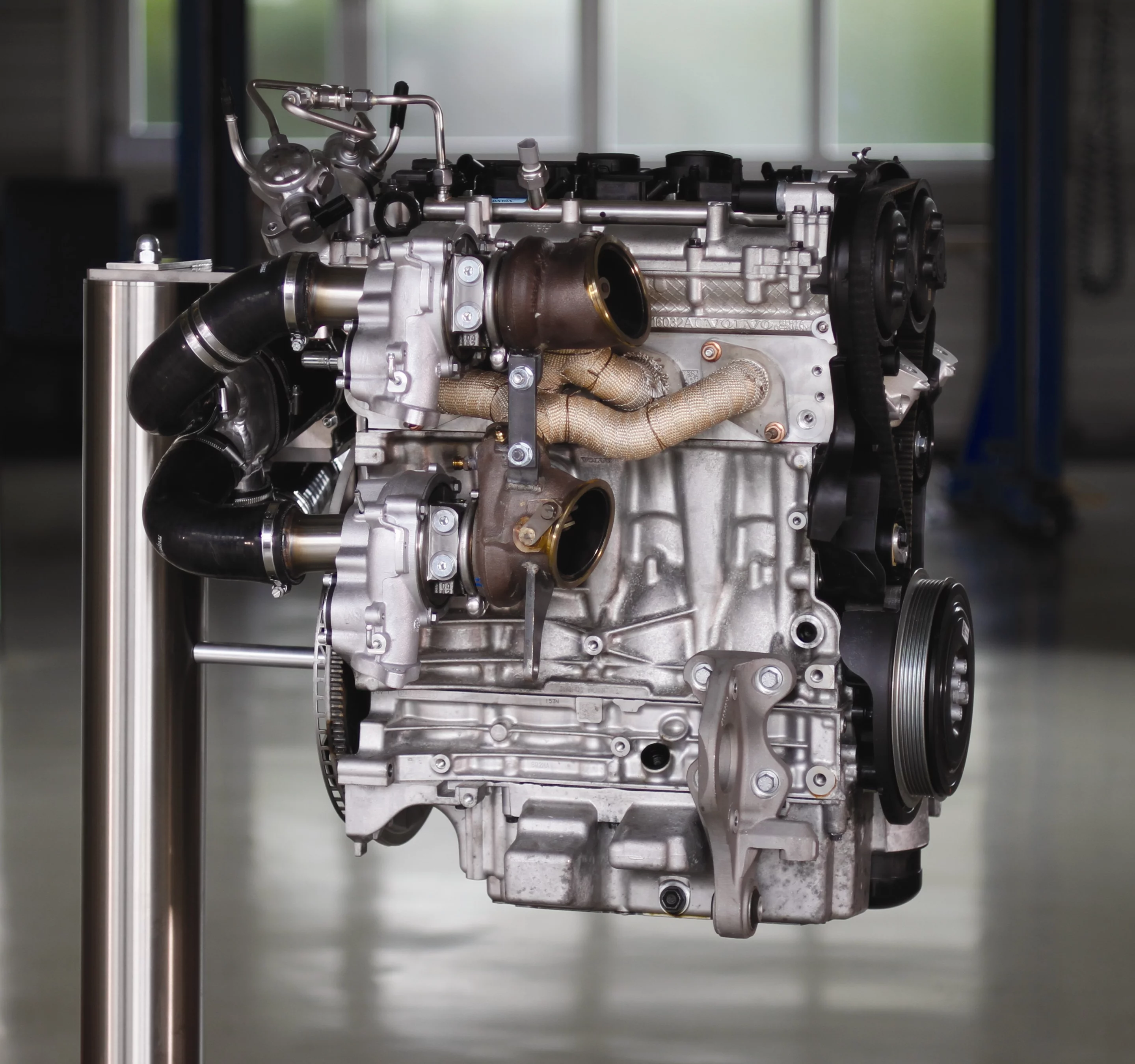

The high powered engine is also designed to improve weight distribution between the front and rear axle and lower the center of gravity, for race and street vehicles
The high powered engine is also designed to improve weight distribution between the front and rear axle and lower the center of gravity, for race and street vehicles
View 8 Images
The Swede’s new 2.0 liter petrol powered unit features triple boost technology capable of generating 450 hp
1/8
The Swede’s new 2.0 liter petrol powered unit features triple boost technology capable of generating 450 hp
The high powered engine is also designed to improve weight distribution between the front and rear axle and lower the center of gravity, for race and street vehicles
2/8
The high powered engine is also designed to improve weight distribution between the front and rear axle and lower the center of gravity, for race and street vehicles
The triple boost 2.0 liter 4-cylinder gas engine that Volvo is working on is capable of developing power outputs on par with many high output V8s and race tweaked track engines
3/8
The triple boost 2.0 liter 4-cylinder gas engine that Volvo is working on is capable of developing power outputs on par with many high output V8s and race tweaked track engines
Of course blowing extra air into the engine requires more fuel, which is why Volvo has set up a dual fuel pump system that works at 250 bar pressure
4/8
Of course blowing extra air into the engine requires more fuel, which is why Volvo has set up a dual fuel pump system that works at 250 bar pressure

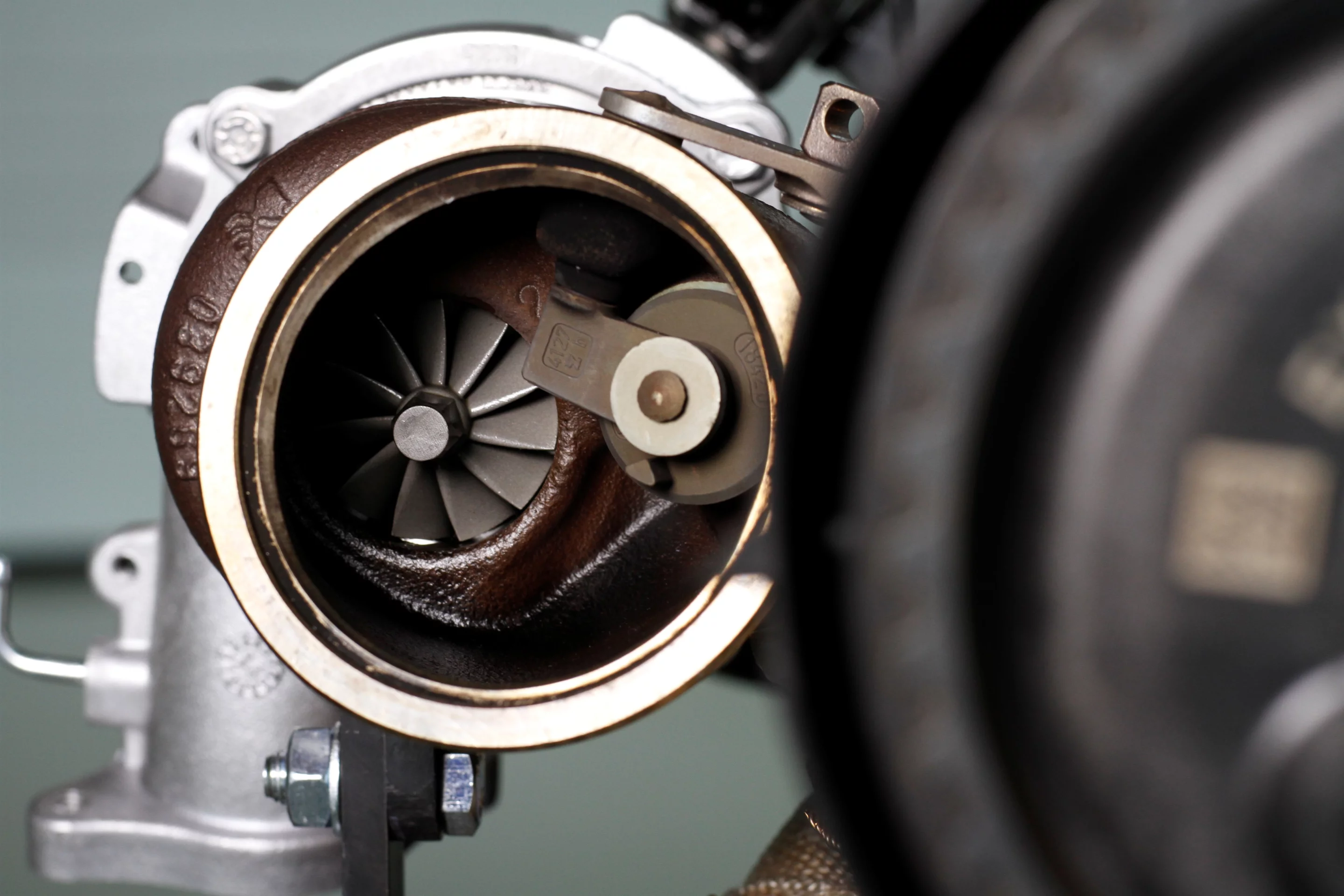

Ahead of the parallel twin turbochargers are two compressor units that "wind up" the impeller units prior to power coming online, thus eliminating turbo lag
5/8
Ahead of the parallel twin turbochargers are two compressor units that "wind up" the impeller units prior to power coming online, thus eliminating turbo lag

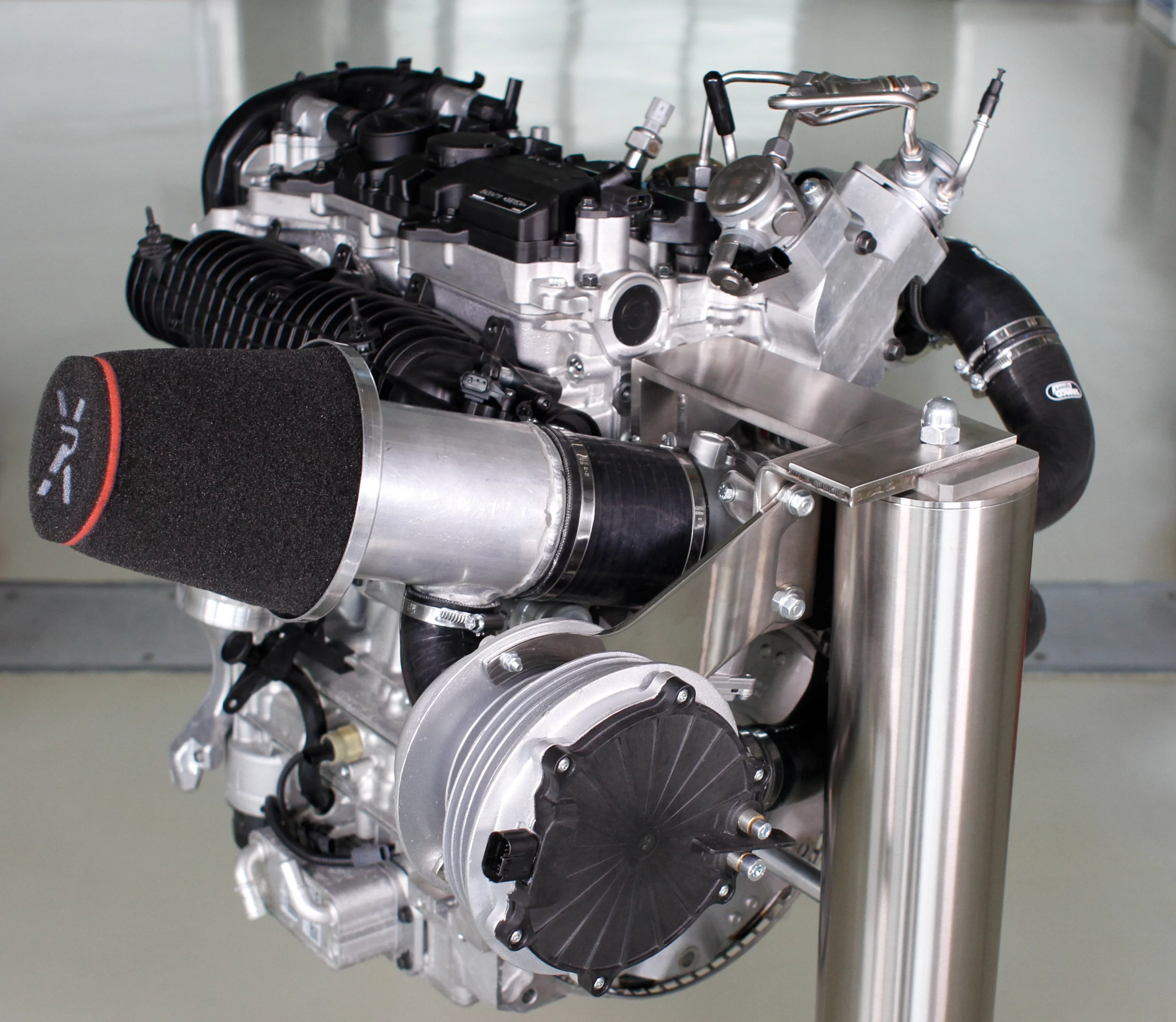

The pre-spooling compressors are designed to reduce or eliminate the dreaded turbo-lag that plagues most old-school turbo engines
6/8
The pre-spooling compressors are designed to reduce or eliminate the dreaded turbo-lag that plagues most old-school turbo engines

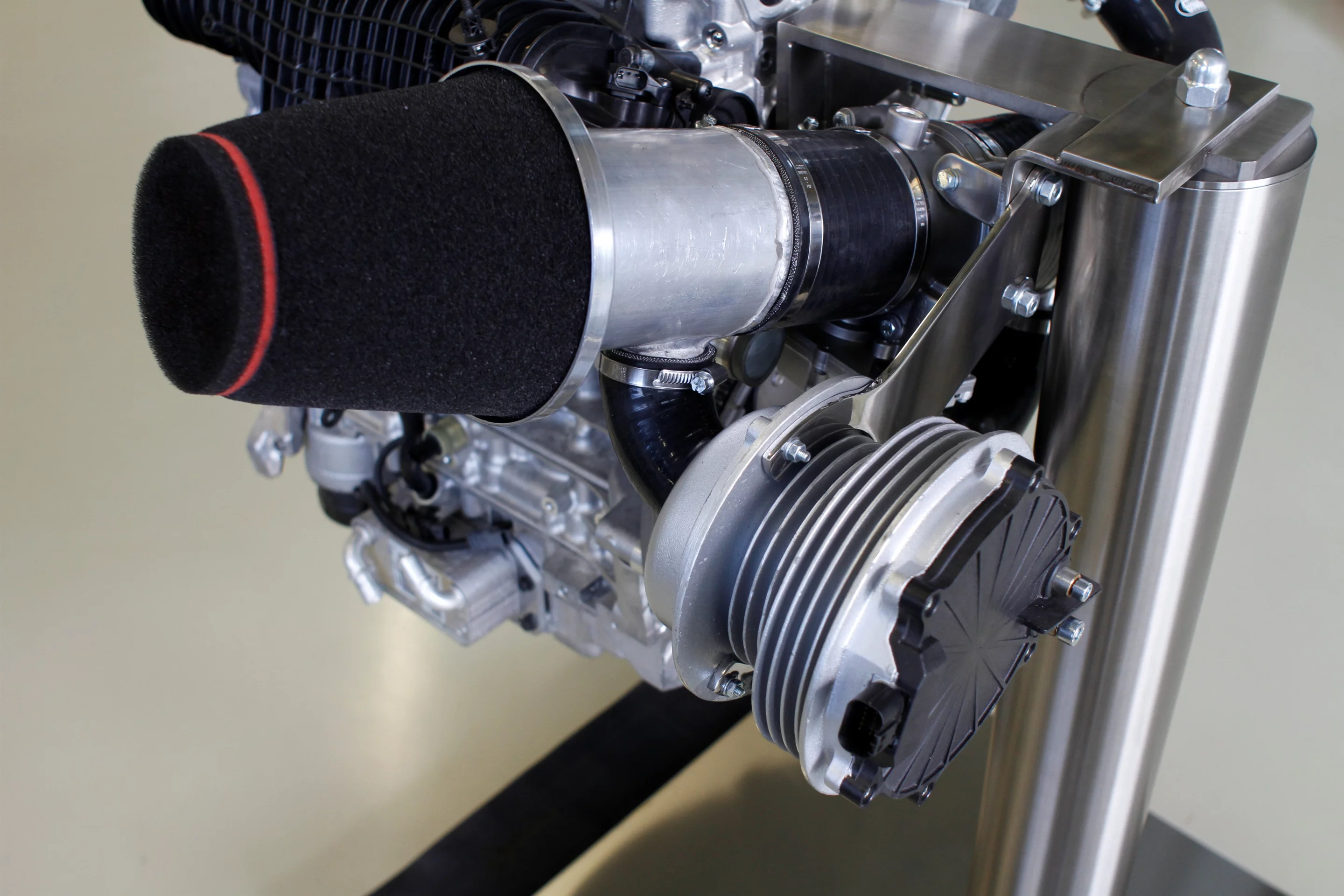

Unlike regular turbocharged engines which rely on engine exhaust to spin the turbos, Volvo has come up with a clever bit of pre-spooling engineering in the high powered 4-cylinder
7/8
Unlike regular turbocharged engines which rely on engine exhaust to spin the turbos, Volvo has come up with a clever bit of pre-spooling engineering in the high powered 4-cylinder
AVL, Denso and Volvo’s Polestar Racing team helped bring performance theories and racing application technologies into the development process
8/8
AVL, Denso and Volvo’s Polestar Racing team helped bring performance theories and racing application technologies into the development process

The unveiling of a new four-banger engine wouldn’t normally garner much attention, but Volvo's High Performance Drive-E Powertrain Concept is an exception. The 2.0 liter, gas-powered unit features "triple boost" technology capable of generating no less than 450 hp.

Unlike regular turbocharged engines which rely on engine exhaust to spin the turbos, thus forcefeeding additional air into the engine, Volvo has come up with a clever bit of pre-spooling engineering. Ahead of the parallel twin turbochargers are two compressor units that “wind up” the impeller units prior to power coming online. This pre-spooling thus reduces, or almost eliminates, the dreaded turbo-lag disease that plagues most old-school turbo engines.

The 4-cylinder gas engine concept is capable of developing power outputs on par with many high output V8s and race tweaked track engines. A direct injection system with dual fuel pumps working at 250 bar pressure helps meet added fuel requirements and also assists in developing extra power to the hungry 2.0 liter.

Ahead of the parallel twin turbochargers are two compressor units that "wind up" the impeller units prior to power coming online, thus eliminating turbo lag
Ahead of the parallel twin turbochargers are two compressor units that "wind up" the impeller units prior to power coming online, thus eliminating turbo lag

"When we launched the Drive-E powertrain family, our aim was to deliver the most advanced 4-cylinder engines in the industry based on emissions and fuel consumption relative to performance and drivability," says Dr. Peter Mertens, Senior Vice President for Research and Development at Volvo Car Group. "We knew that 320 horsepower in our petrol configuration was just a starting point. The 450 horsepower High Performance Drive-E Powertrain Concept, demonstrates this ambition and the versatility of the Drive-E Powertrains."

Although Volvo is taking much of the credit for the highpowered powerplant, it’s important to note that its suppliers such as AVL, Denso and even Volvo’s Polestar Racing team helped bring performance and racing technologies into the process.

"This was a very exciting project as we pioneered a combination of technologies in the same application, and the result is a quite unique engine with its high power yet quick response," says Mattias Evensson, Race Engine Director at Volvo Polestar Racing. "Above all, its compact size improves weight distribution between the front and rear axle and lowers the center of gravity - two factors that have a significant effect on the handling, whether it is a race car or a street car."

Unlike regular turbocharged engines which rely on engine exhaust to spin the turbos, Volvo has come up with a clever bit of pre-spooling engineering in the high powered 4-cylinder
Unlike regular turbocharged engines which rely on engine exhaust to spin the turbos, Volvo has come up with a clever bit of pre-spooling engineering in the high powered 4-cylinder

Volvo's development of the concept engine is part of an ongoing process that aims to reduce emissions without compromising performance."Down-sizing must offer customers attractive and usable power for broad scale emissions reduction to work," Dr. Mertens points out. "Compact powertrains free up space and weight in the structure of the car, which can be used for electrification and even further emissions reduction, and that is our ultimate ambition."

Source: Volvo Cars
