Japanese model enthusiast builds paper robot powered by elastic bands

Japanese model enthusiast buil...

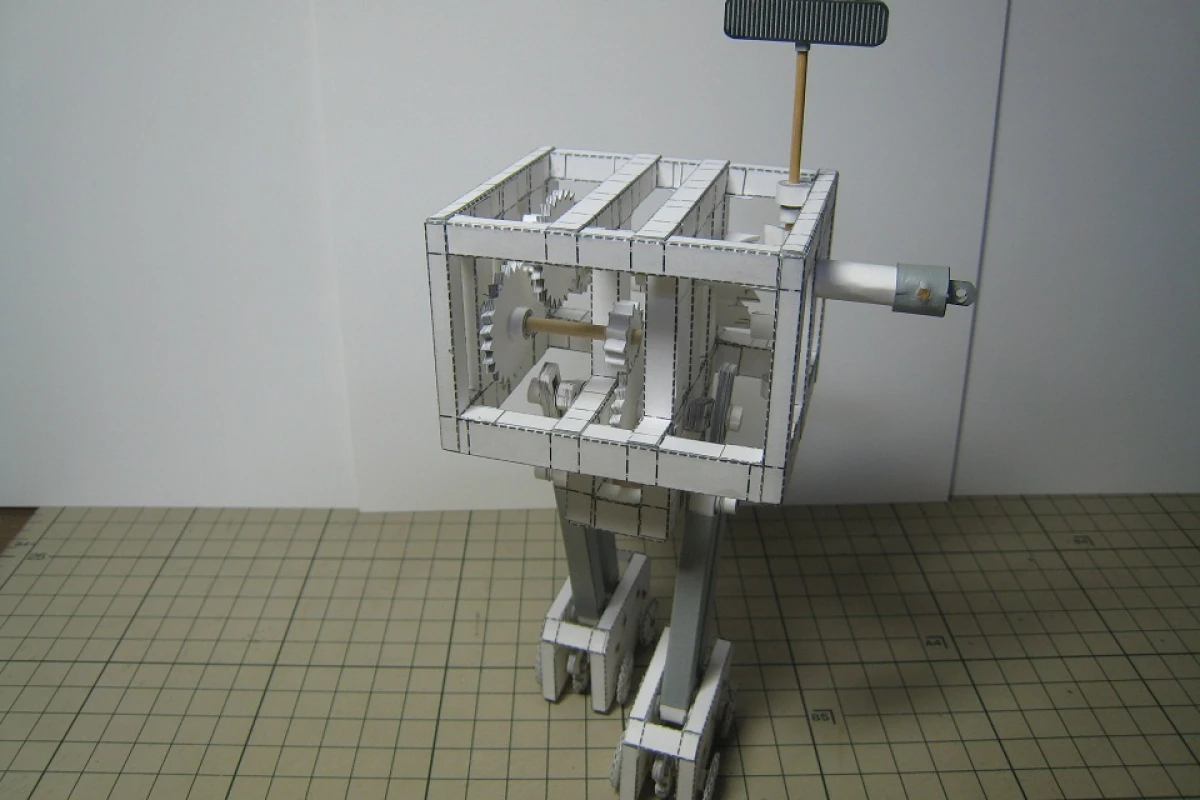

The PR-III is available in kit form
The PR-III is available in kit form
View 8 Images
The PR-III is based on a concept of a "decaying machine" and will presumably begin to deteriorate eventually
1/8
The PR-III is based on a concept of a "decaying machine" and will presumably begin to deteriorate eventually
The PR-III is available in kit form
2/8
The PR-III is available in kit form
The PR-III posed many design challenges in order to keep it upright
3/8
The PR-III posed many design challenges in order to keep it upright
The PR-III is made almost entirely of paper, with the addition of a few wooden rods and some elastic bands
4/8
The PR-III is made almost entirely of paper, with the addition of a few wooden rods and some elastic bands
The PR-III alongside a model with a more fully-formed outer shell
5/8
The PR-III alongside a model with a more fully-formed outer shell
The internal mechanism of the PR-III is a complex series of paper cogs, elastic and wooden rods
6/8
The internal mechanism of the PR-III is a complex series of paper cogs, elastic and wooden rods
The PR-III is the third iteration of "robot" created by its designer
7/8
The PR-III is the third iteration of "robot" created by its designer
The intricate design of the PR-III highlights the many hours which went into its construction
8/8
The intricate design of the PR-III highlights the many hours which went into its construction

A Japanese paper-modelling enthusiast has constructed a bipedal “robot” dubbed the “Paper Robot III” (or PR-III). Judging from the intricate nature of the design which is visible in the photos, the PR-III appears to be a labor of love, and has been painstakingly constructed almost entirely from paper, with the addition of a few wooden shafts serving to increase overall and drive the “engine” – a series of paper cogs and elastic bands which are wound up to set the PR-III walking.

Detailing the construction of the PR-III, its designer explains that it was difficult to get the balance right, though the desired poise was eventually achieved after several redesigns through trial and error. The PR-III's legs are powered forward by a crank attached to a two-stage gear which decelerates the speed of revolution that is initially gained from the wound-up elastic band mechanism to a more manageable rate.

If you'd like to build your own PR-III, it is available as a self-assembly kit for ¥3000 (roughly US$40), plus shipping. However, be aware that you'll be required to surmount the challenge of navigating a non-English website in order to arrange purchase and delivery.

The video below is an interesting look at how the PR-III was constructed.

Source: Mechanical Paper Model (Google translation), via The Verge

Walking paper
