Intelligent Rear View Mirror debuts in 2018 Nissan Armada

Intelligent Rear View Mirror d...
Nissan's intelligent mirror works by allowing the driver to switch between a standard, glass mirror and a view from the camera mounted on the back of the SUV
Nissan's intelligent mirror works by allowing the driver to switch between a standard, glass mirror and a view from the camera mounted on the back of the SUV
View 8 Images
Nissan will debut the Intelligent Rear View Mirror on the 2018 Armada, which will begin entering showrooms in the US later this year
1/8
Nissan will debut the Intelligent Rear View Mirror on the 2018 Armada, which will begin entering showrooms in the US later this year
The camera for the Intelligent Rear View Mirror is mounted on the rear of the Armada to approximate the driver's point of view
2/8
The camera for the Intelligent Rear View Mirror is mounted on the rear of the Armada to approximate the driver's point of view
The 2018 Armada will feature the I-RVM on its Platinum level trim
3/8
The 2018 Armada will feature the I-RVM on its Platinum level trim

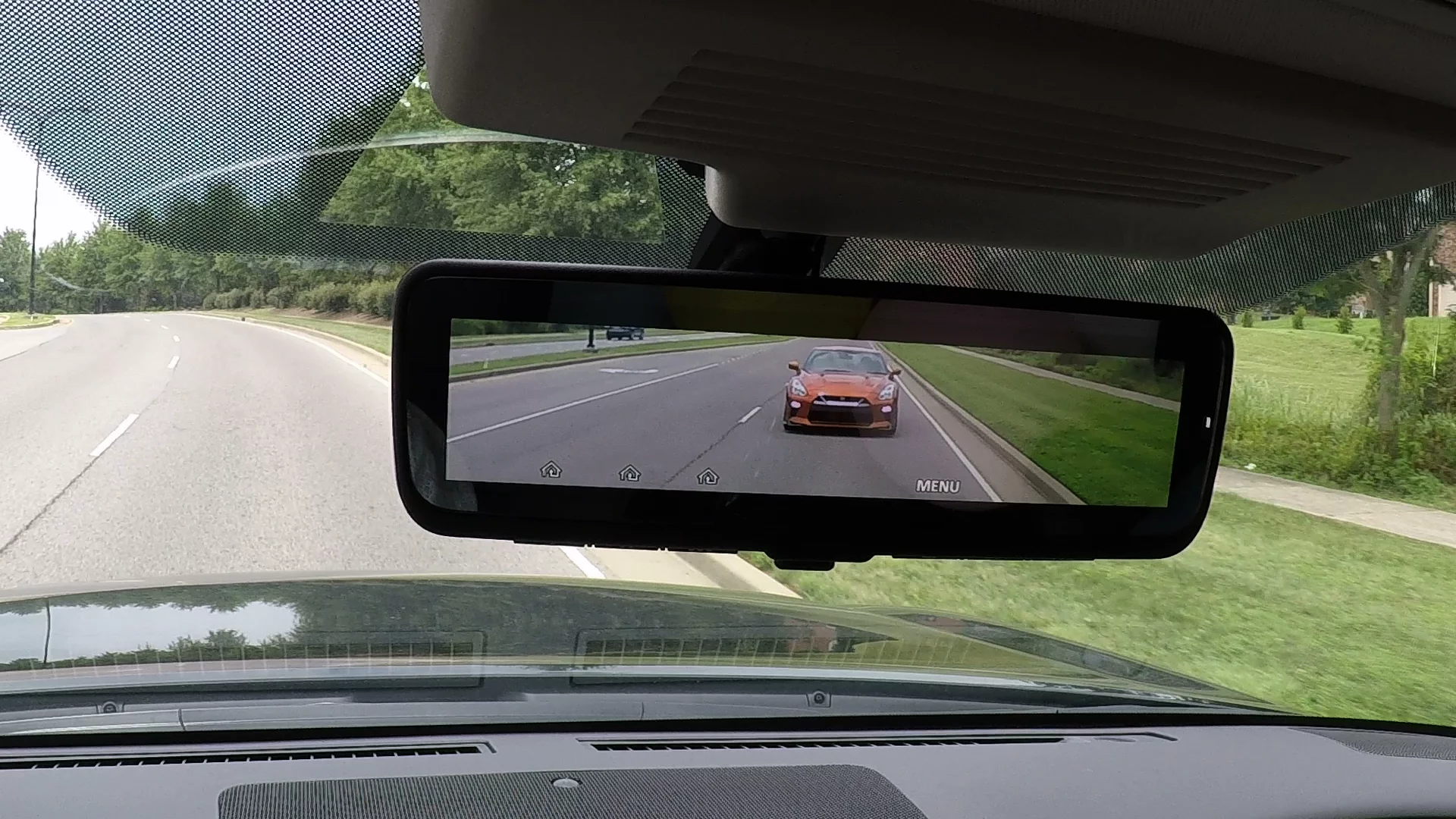

When the Intelligent Rear View Mirror is used in normal driving, it can be either a reflective mirror or an LCD display fed by the rear-mounted camera
4/8
When the Intelligent Rear View Mirror is used in normal driving, it can be either a reflective mirror or an LCD display fed by the rear-mounted camera
Nissan's intelligent mirror works by allowing the driver to switch between a standard, glass mirror and a view from the camera mounted on the back of the SUV
5/8
Nissan's intelligent mirror works by allowing the driver to switch between a standard, glass mirror and a view from the camera mounted on the back of the SUV
In non-camera mode, the view from the rear mirror might look like this
6/8
In non-camera mode, the view from the rear mirror might look like this
The I-RVM is switched from standard mirror mode to intelligent LCD mode with a switch located on the bottom of the mirror
7/8
The I-RVM is switched from standard mirror mode to intelligent LCD mode with a switch located on the bottom of the mirror
Nissan says that the mirror’s structural design was designed specifically to overcome image overlap, where the mirrored surface would reflect on top of the LCD’s output
8/8
Nissan says that the mirror’s structural design was designed specifically to overcome image overlap, where the mirrored surface would reflect on top of the LCD’s output
View gallery - 8 images

Nissan will unveil a production version of its long-awaited Intelligent Rear View Mirror in the upcoming 2018 Armada SUV. The Armada (called the Patrol outside of the US) will be the first vehicle to have the new rear view mirror that can see "through" objects obstructing the driver's view.

In Nissan's demonstration video (after the source link below), the Intelligent Rear View Mirror is used to see "through" a bunch of balloons filling the back of the big Armada. In the real world, Nissan says, the mirror can be used to see through any obstruction behind the driver, including tall passengers, bukly items in the cargo space, and so on.

The mirror works by allowing the driver to switch between a standard, glass mirror (as found in any vehicle) and a camera mounted on the back of the SUV. When switched to camera view, the mirror's surface becomes an LCD display showing the rear camera's view, thus seeing "through" objects in the Armada that would otherwise obstruct the driver's view.

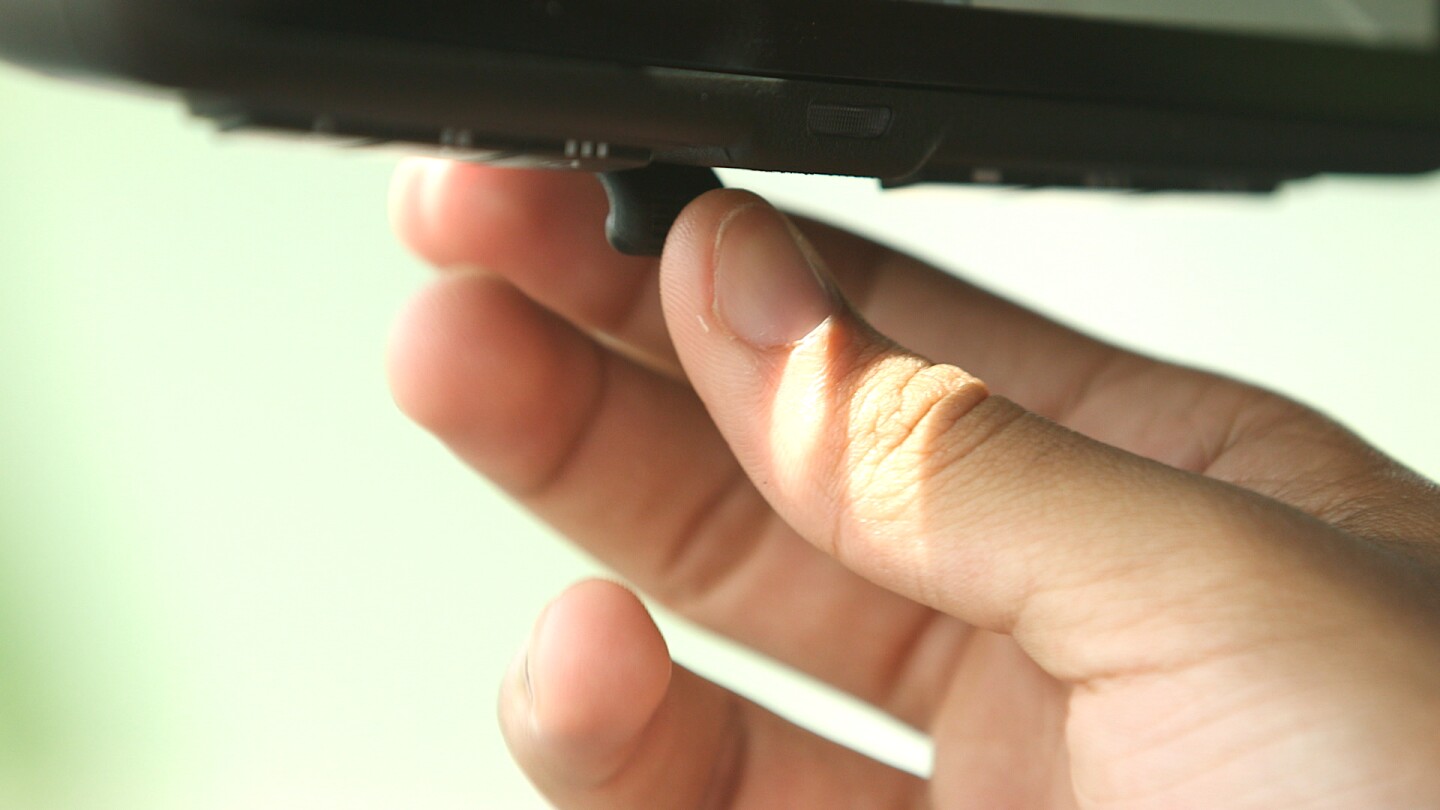

The I-RVM is switched from standard mirror mode to intelligent LCD mode with a switch located on the bottom of the mirror
The I-RVM is switched from standard mirror mode to intelligent LCD mode with a switch located on the bottom of the mirror

The Intelligent Rear View Mirror (I-RVM) was introduced by Nissan in 2014 as a concept for a traditional rear view mirror replacement. The I-RVM is switched from standard mirror mode to intelligent LCD mode with a switch located on the bottom of the mirror about where the dimmer switch would normally be on a standard in-car rear view mirror.

The I-RVM uses a high-performance, narrow-angle camera located at the rear of the 2018 Armada. The aspect ratio of the camera is matched to the mirror's approximate 4:1 ratio (versus 4:3 or 16:9 for conventional monitors). A wide-angle camera would become fuzzy and mis-aligned with the mirror's required aspect ratio. The mirror itself is sized to be within US federal guidelines for a rear view mirror to both comply with regulations and to make it comfortable to use for consumers used to standard mirrors.

Nissan says that the mirror's structural design was designed specifically to overcome image overlap, where the mirrored surface would reflect on top of the LCD's output, though hasn't revealed exactly how this is achieved.

The I-RVM will debut on the topmost trim level of the 2018 Nissan Armada, the Platinum, which starts at US$61,590 (not including destination fees). The I-RVM will be standard equipment on the Platinum package. That demo video can be seen below.

Source: Nissan

Nissan Intelligent Rear View Mirror

View gallery - 8 images
