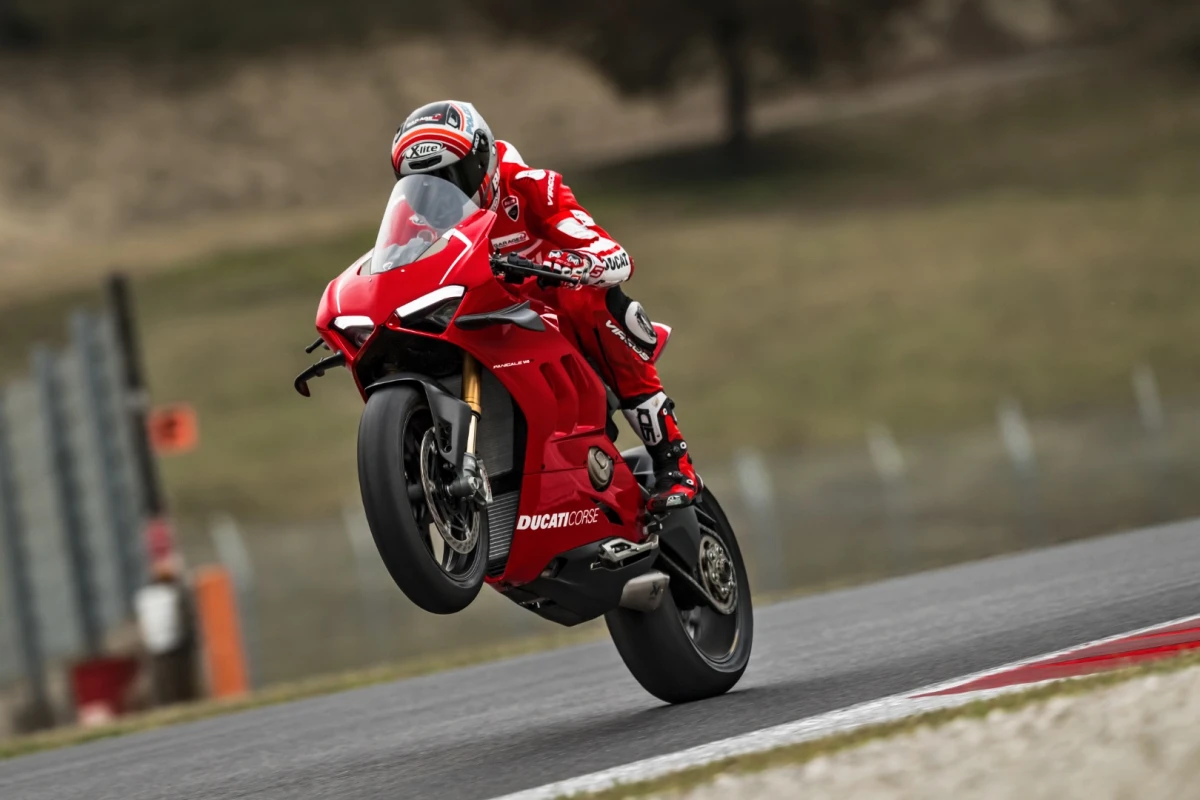

2019 Ducati Panigale V4R: runs advanced wheelie control, so this is clearly on purpose
2019 Ducati Panigale V4R: runs advanced wheelie control, so this is clearly on purpose
View 42 Images
2019 Ducati Panigale V4R: runs advanced wheelie control, so this is clearly on purpose
1/42
2019 Ducati Panigale V4R: runs advanced wheelie control, so this is clearly on purpose

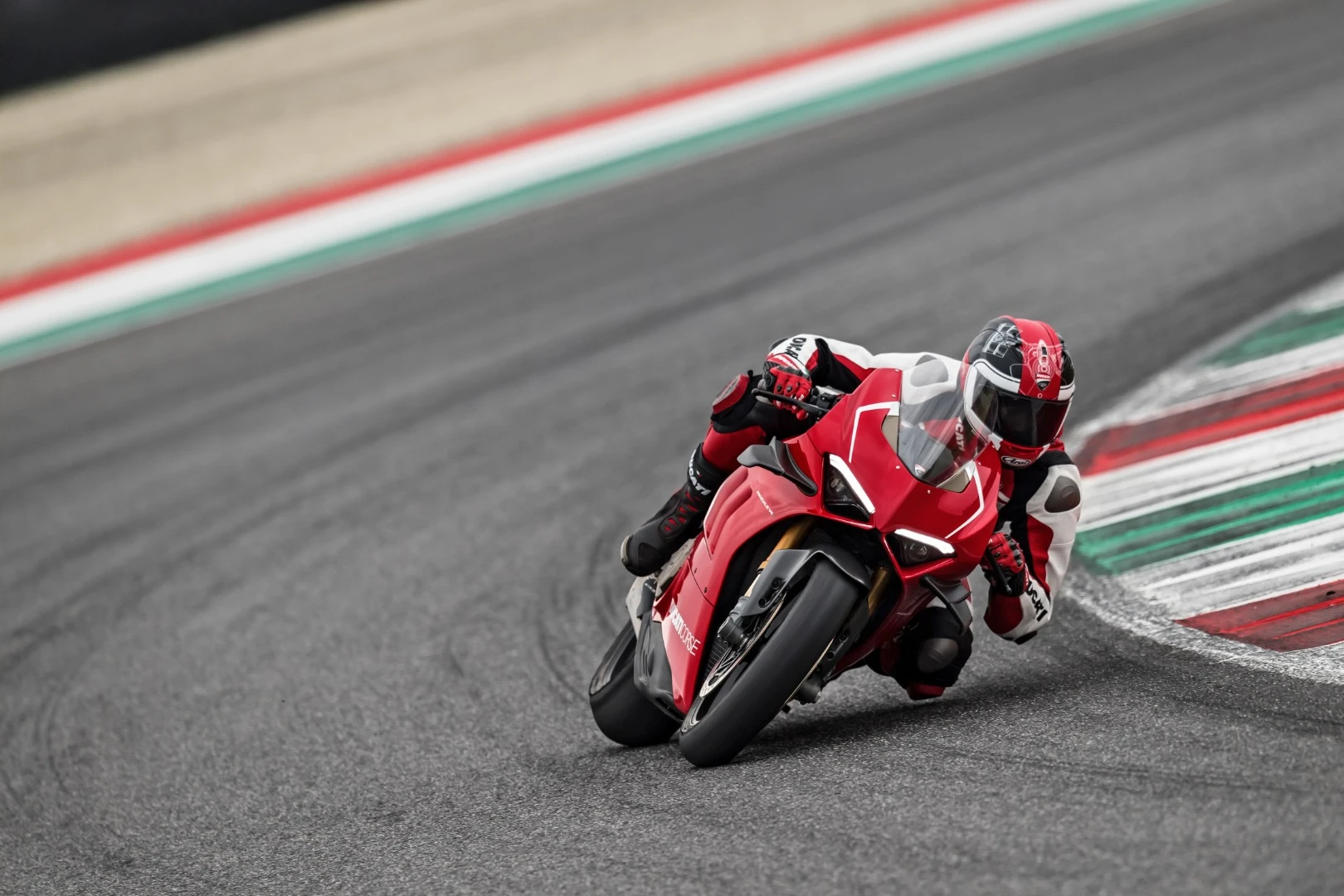

2019 Ducati Panigale V4R: all the handling prowess of the mighty V4S, but with a smaller, higher-revving engine
2/42
2019 Ducati Panigale V4R: all the handling prowess of the mighty V4S, but with a smaller, higher-revving engine

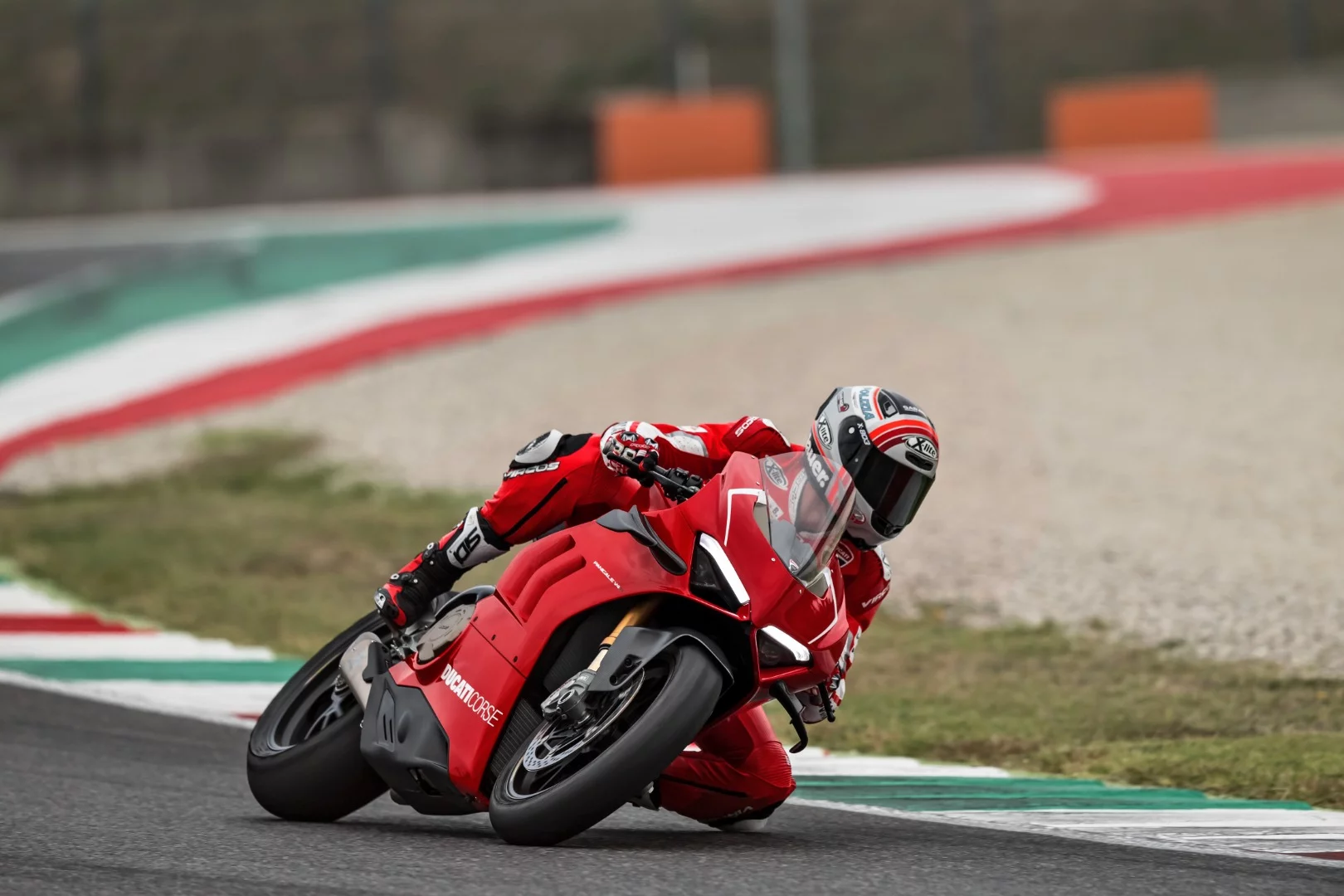

2019 Ducati Panigale V4R: non-electronic suspension is purely track focused
3/42
2019 Ducati Panigale V4R: non-electronic suspension is purely track focused
2019 Ducati Panigale V4R: will the WSBK field be seeing anything but the back end of this bike in next year's racing?
4/42
2019 Ducati Panigale V4R: will the WSBK field be seeing anything but the back end of this bike in next year's racing?

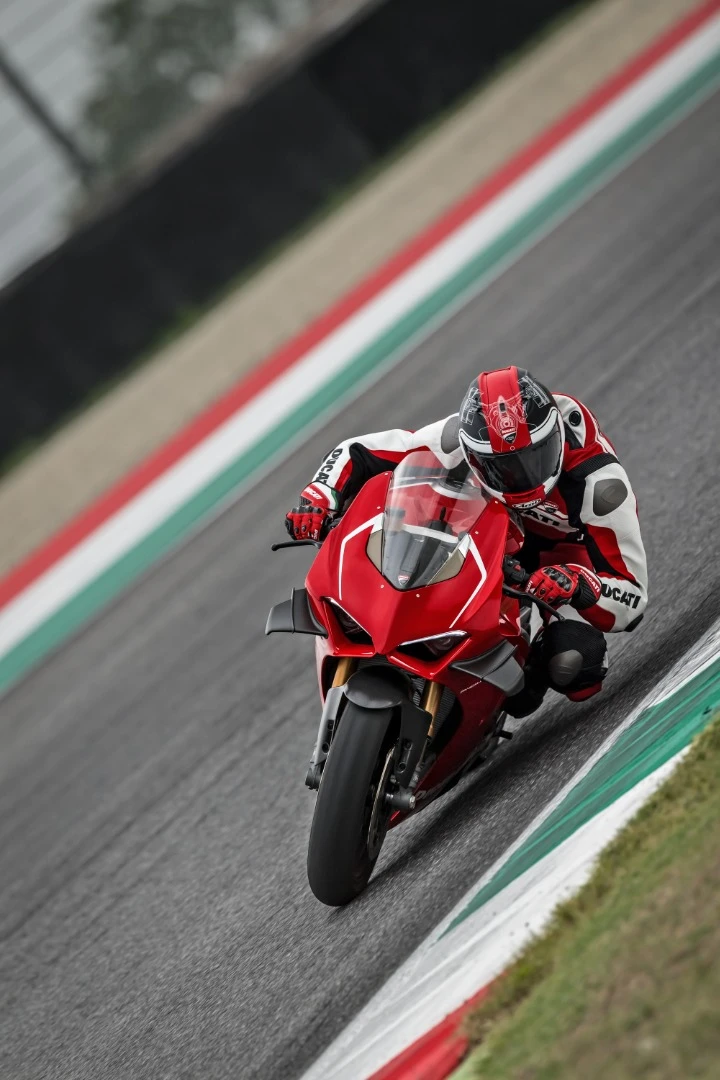

2019 Ducati Panigale V4R: WSBK-approved winglets add downforce for cornering and accelerating superiority
5/42
2019 Ducati Panigale V4R: WSBK-approved winglets add downforce for cornering and accelerating superiority

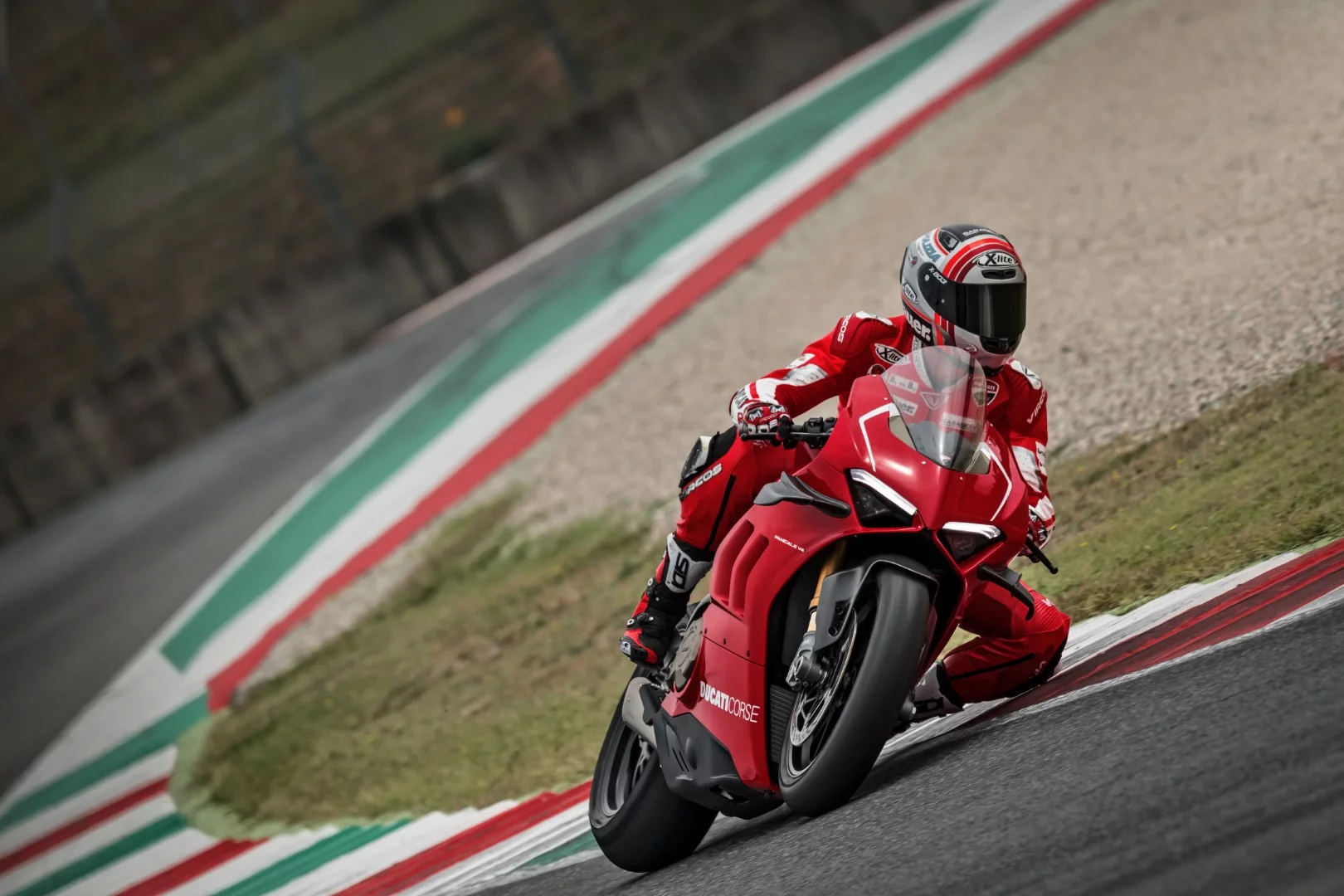

2019 Ducati Panigale V4R: large new gills on the side fairings
6/42
2019 Ducati Panigale V4R: large new gills on the side fairings
2019 Ducati Panigale V4R: you'll be lucky to see one in action, let alone two, outside a WSBK race
7/42
2019 Ducati Panigale V4R: you'll be lucky to see one in action, let alone two, outside a WSBK race

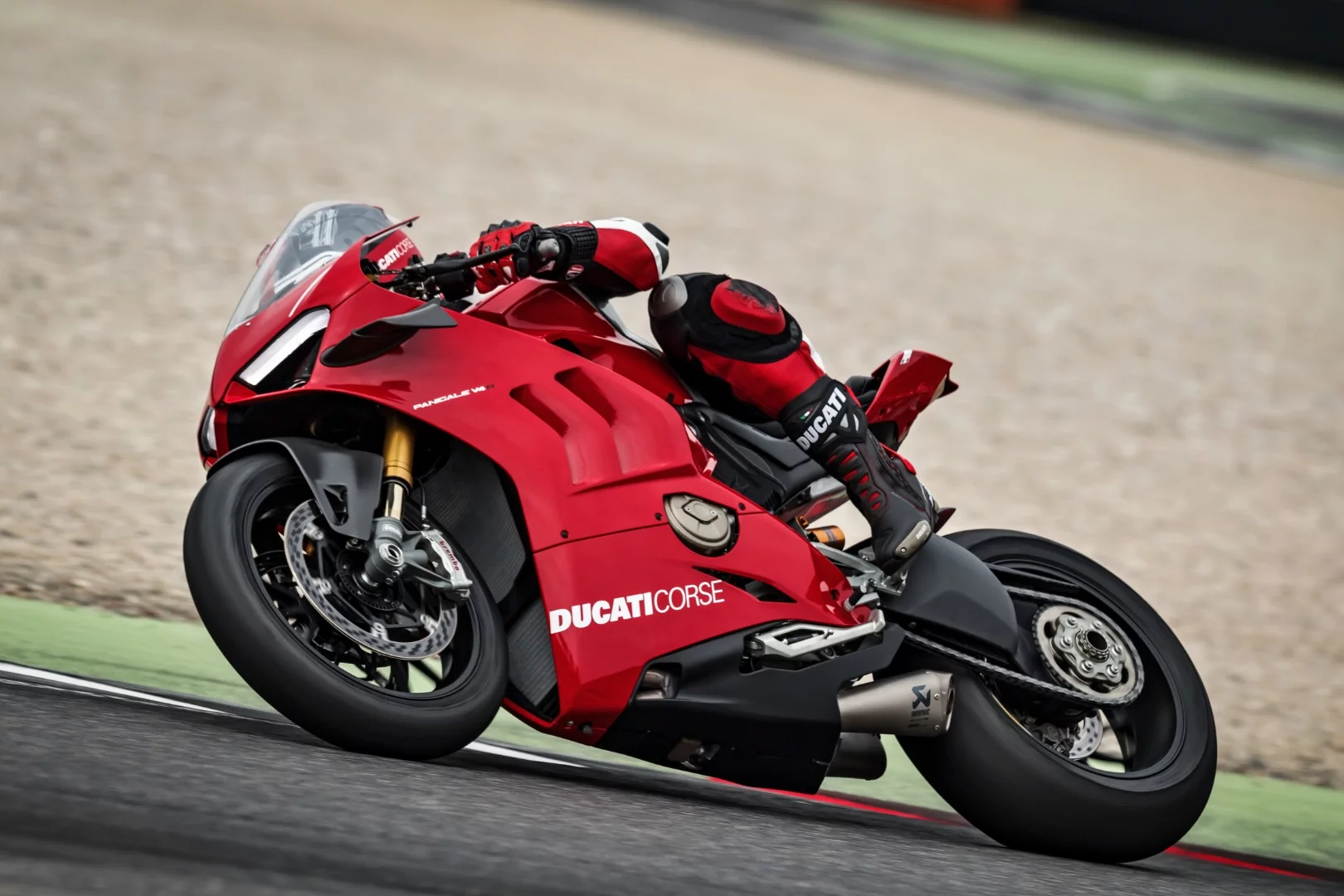

2019 Ducati Panigale V4R: side gills will be a visual signature
8/42
2019 Ducati Panigale V4R: side gills will be a visual signature
2019 Ducati Panigale V4R: as fast and powerful as superbikes get in 2019
9/42
2019 Ducati Panigale V4R: as fast and powerful as superbikes get in 2019
2019 Ducati Panigale V4R: she's a mean looker, too
10/42
2019 Ducati Panigale V4R: she's a mean looker, too
2019 Ducati Panigale V4R: absolute motorcycle porn
11/42
2019 Ducati Panigale V4R: absolute motorcycle porn

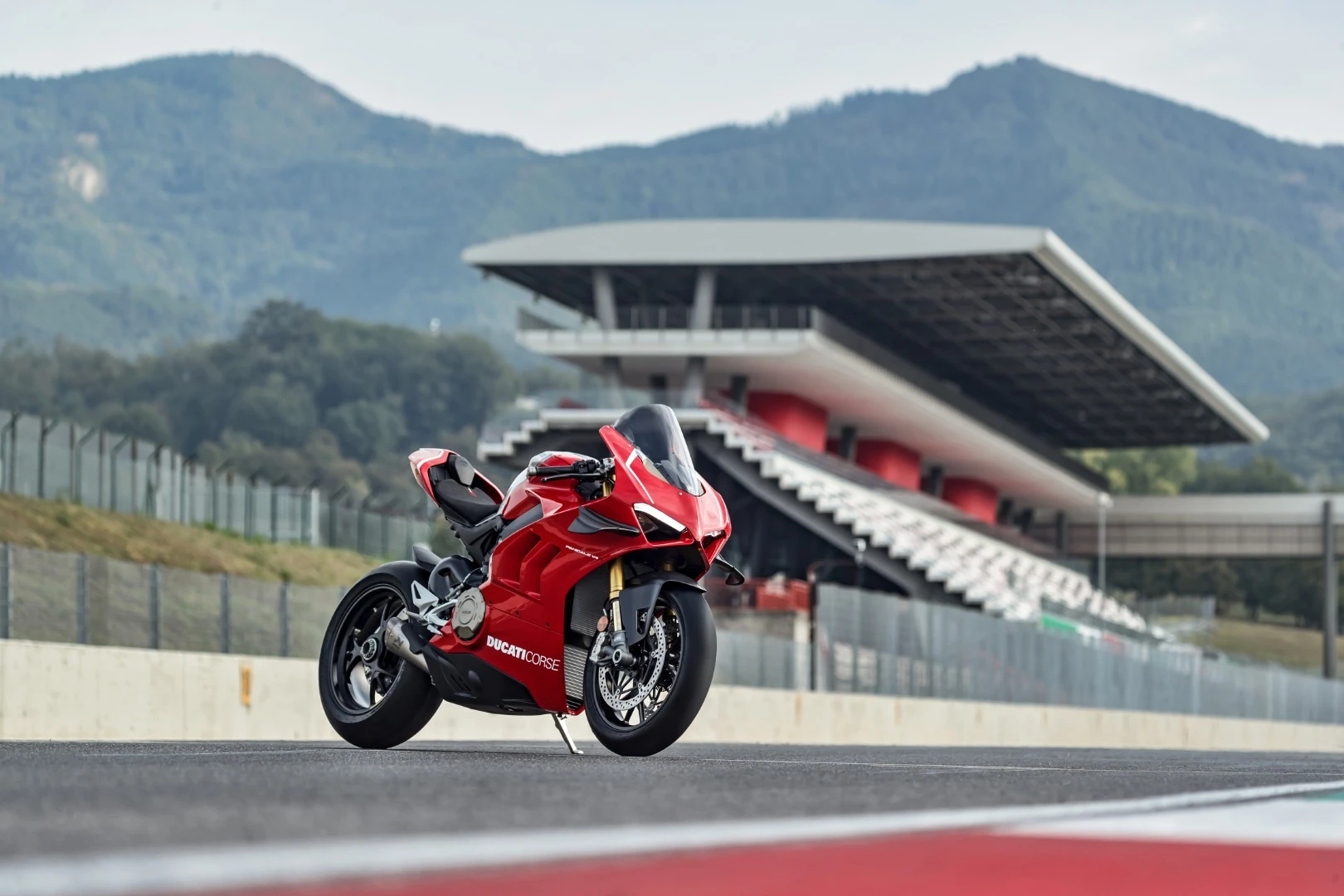

2019 Ducati Panigale V4R: adjustable swingarm pivot will be handy for race teams
12/42
2019 Ducati Panigale V4R: adjustable swingarm pivot will be handy for race teams

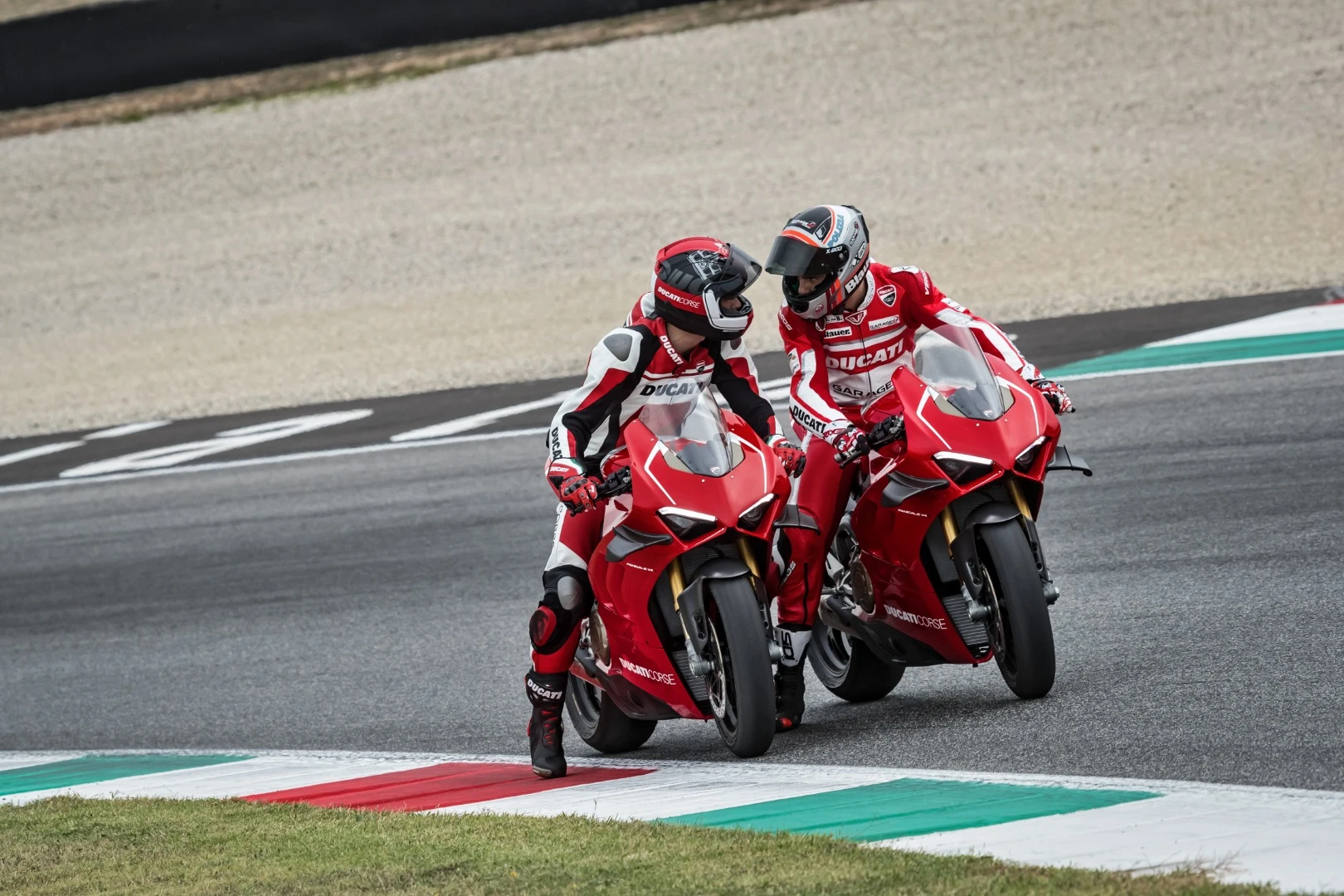

2019 Ducati Panigale V4R: suitable for romantic interludes on racetrack apexes
13/42
2019 Ducati Panigale V4R: suitable for romantic interludes on racetrack apexes

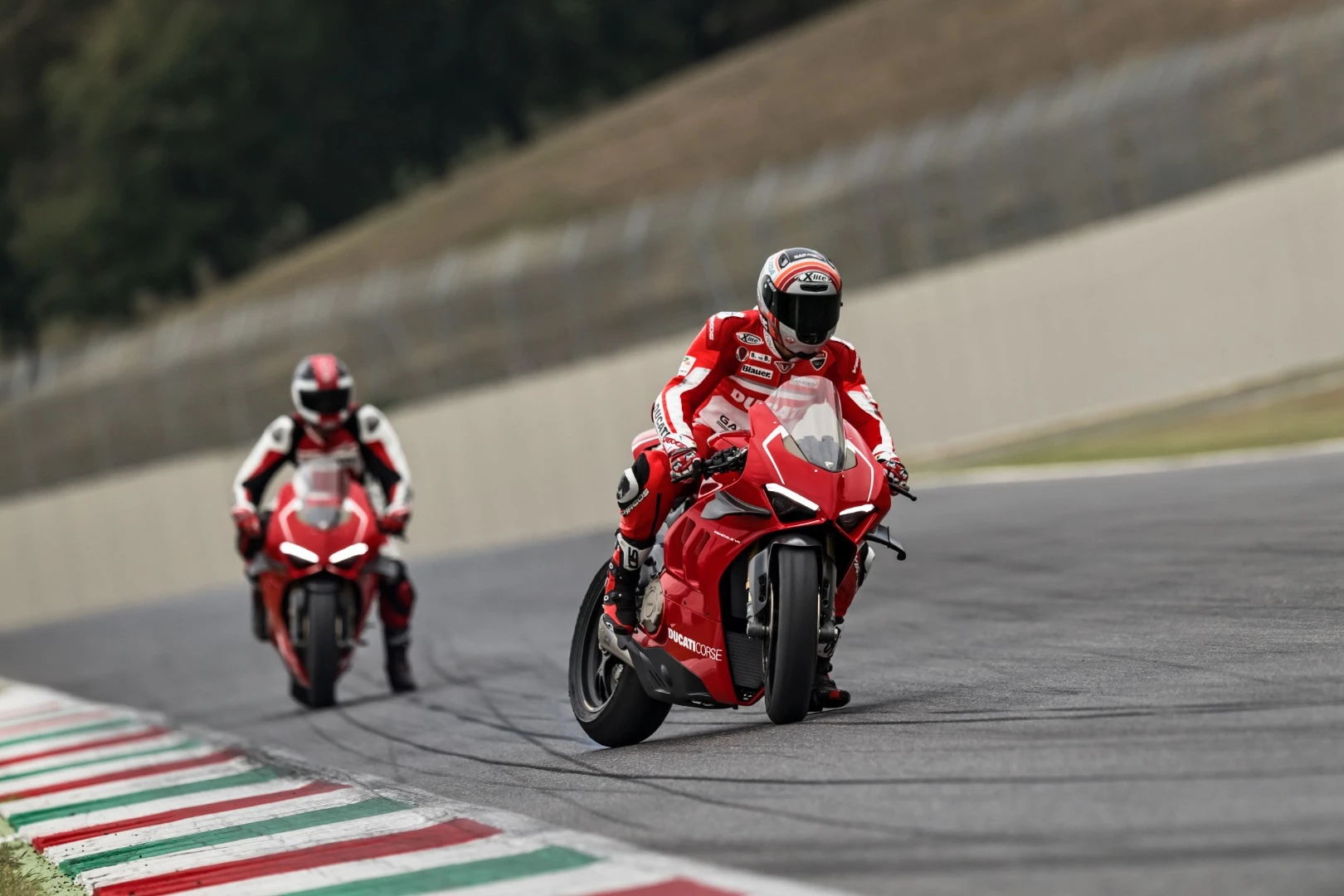

2019 Ducati Panigale V4R: Seems Bosch's excellent Cornering ABS Evo has been disabled for this shot
14/42
2019 Ducati Panigale V4R: Seems Bosch's excellent Cornering ABS Evo has been disabled for this shot
2019 Ducati Panigale V4R: headlight detail
15/42
2019 Ducati Panigale V4R: headlight detail
2019 Ducati Panigale V4R: with winglets
16/42
2019 Ducati Panigale V4R: with winglets

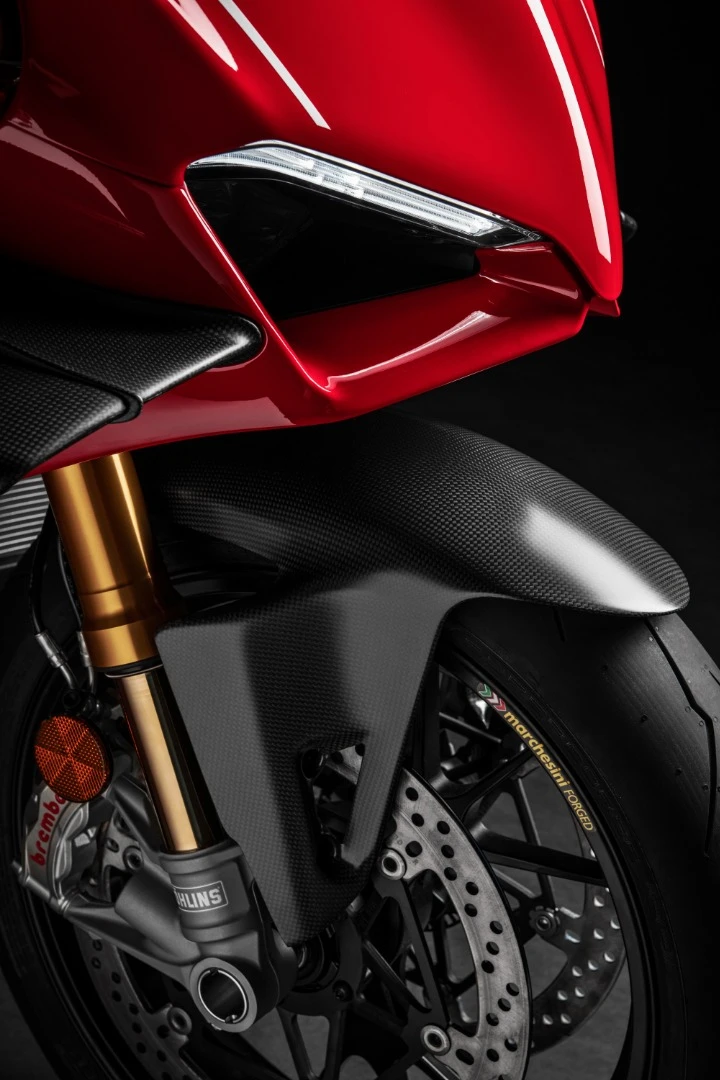

2019 Ducati Panigale V4R: electronic Ohlins suspension has been swapped for asymmetrical mechanical systems
17/42
2019 Ducati Panigale V4R: electronic Ohlins suspension has been swapped for asymmetrical mechanical systems

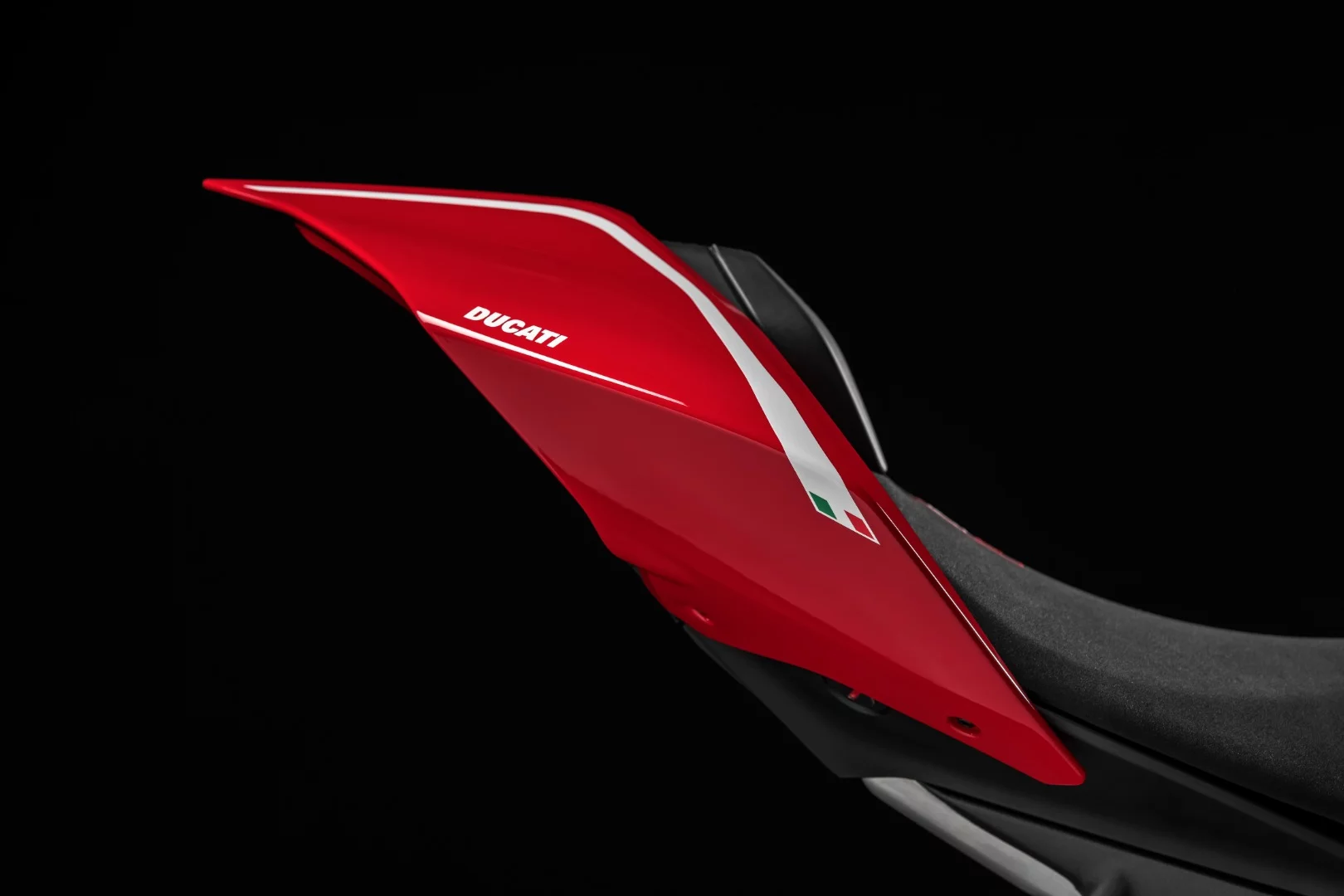

2019 Ducati Panigale V4R: barely-there tail section won't be much good for carrying tools and tire repair kits
18/42
2019 Ducati Panigale V4R: barely-there tail section won't be much good for carrying tools and tire repair kits
2019 Ducati Panigale V4R: digital dash
19/42
2019 Ducati Panigale V4R: digital dash

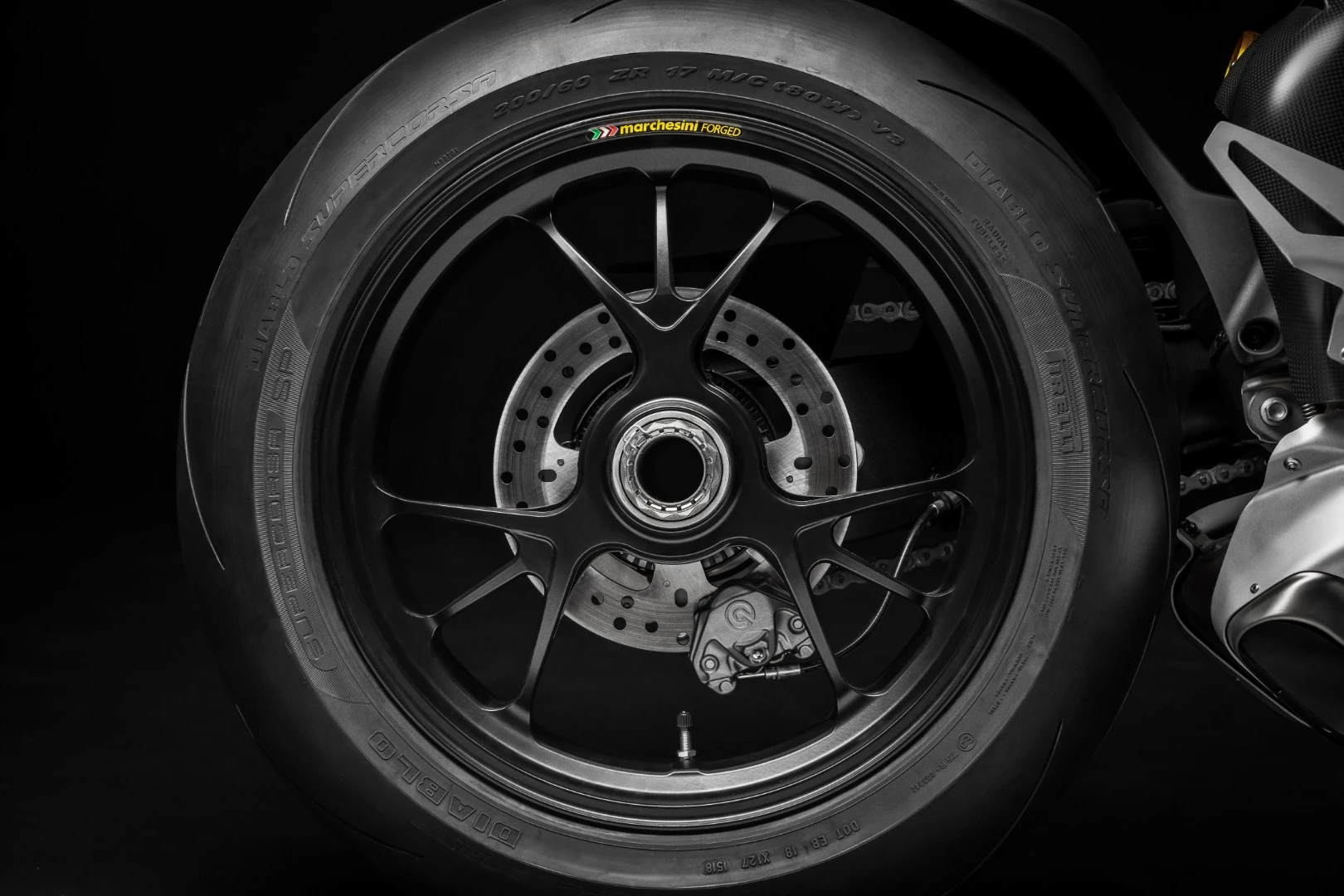

2019 Ducati Panigale V4R: forged Marsechini wheels
20/42
2019 Ducati Panigale V4R: forged Marsechini wheels
2019 Ducati Panigale V4R: carbon winglets for additional downforce
21/42
2019 Ducati Panigale V4R: carbon winglets for additional downforce

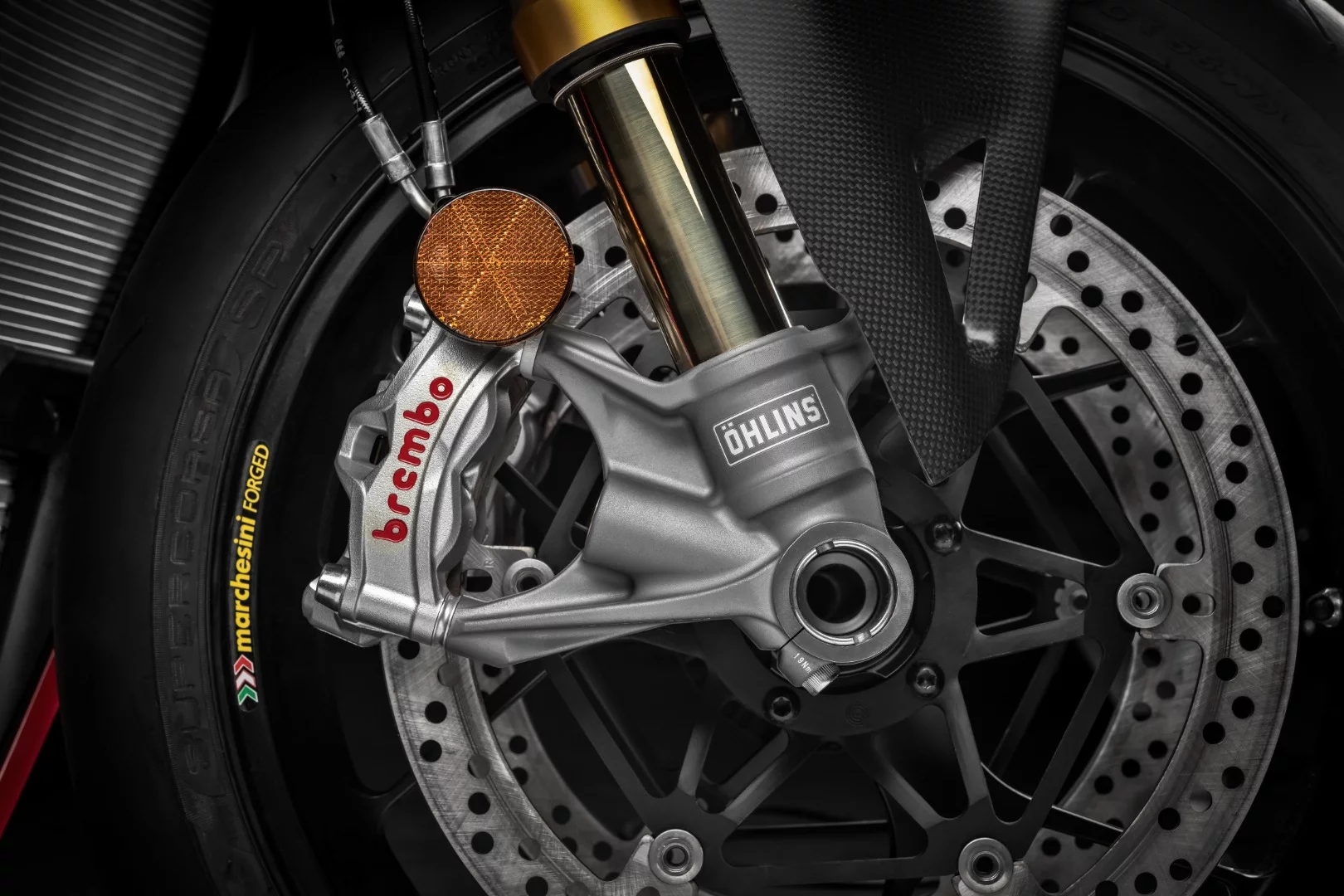

2019 Ducati Panigale V4R: Brembo Stylema brakes
22/42
2019 Ducati Panigale V4R: Brembo Stylema brakes
2019 Ducati Panigale V4R: pit lane speed limiter
23/42
2019 Ducati Panigale V4R: pit lane speed limiter

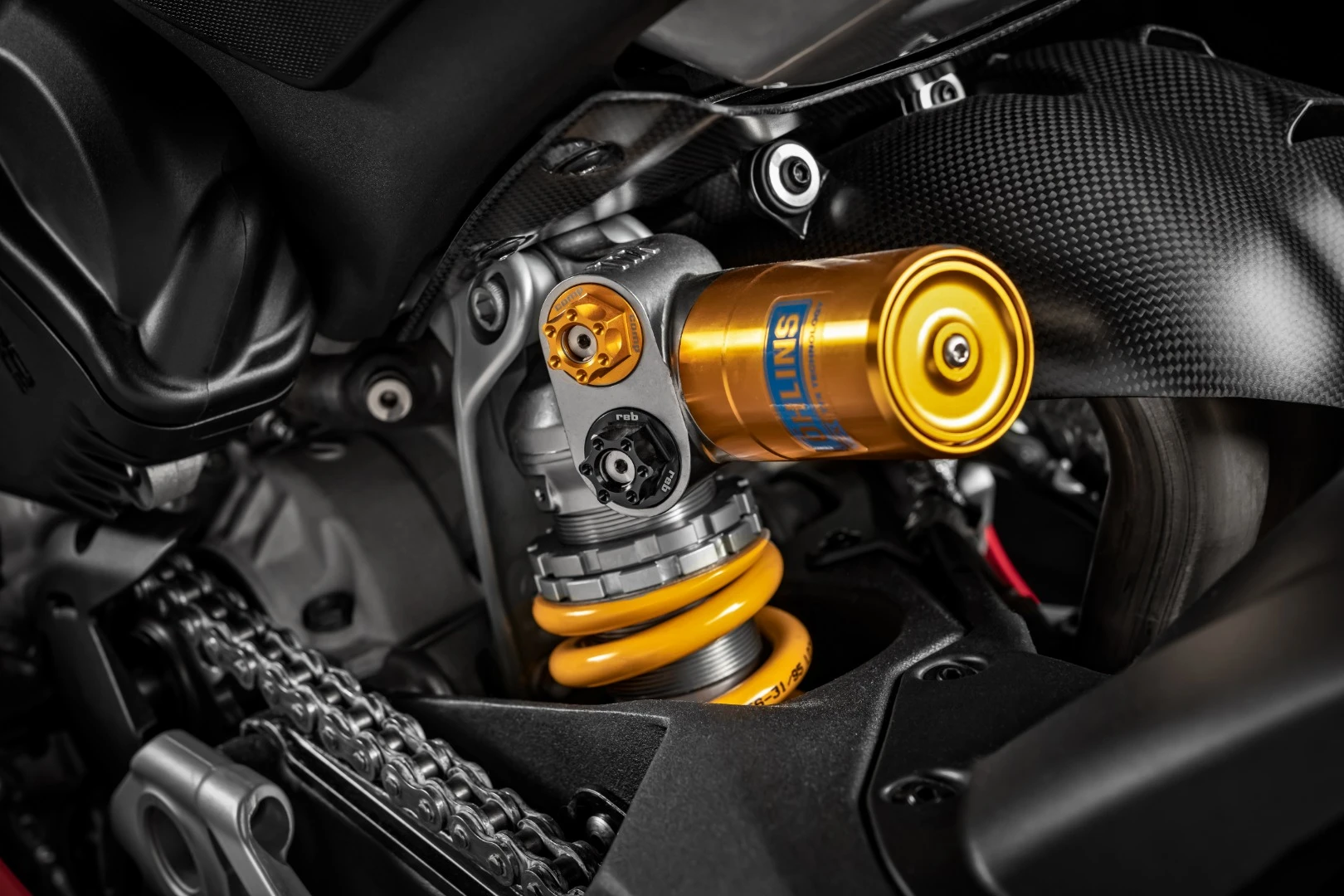

2019 Ducati Panigale V4R: Ohlins rear suspension
24/42
2019 Ducati Panigale V4R: Ohlins rear suspension

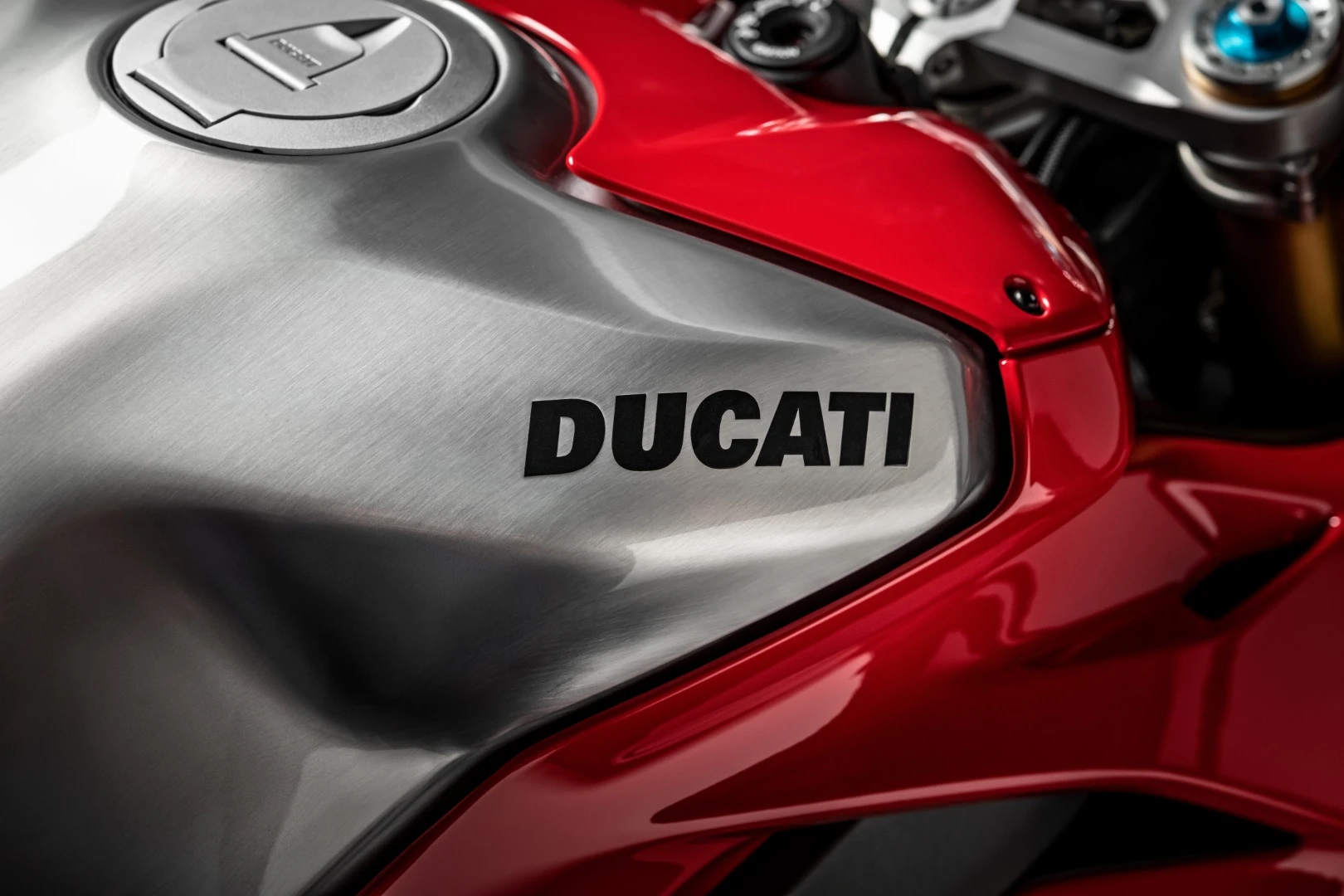

2019 Ducati Panigale V4R: two-tone tank with bare aluminum rear section
25/42
2019 Ducati Panigale V4R: two-tone tank with bare aluminum rear section

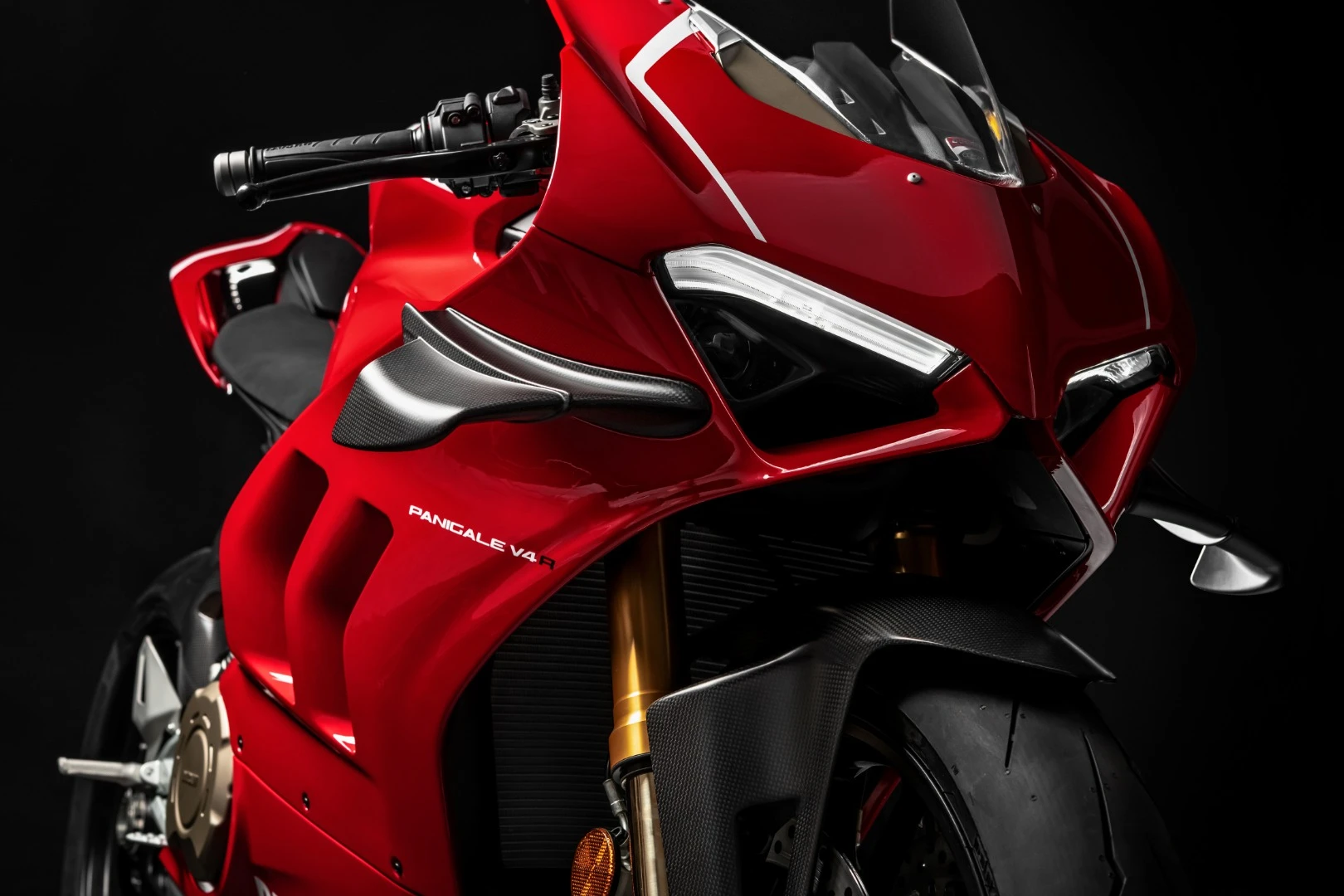

2019 Ducati Panigale V4R: the new face of two-wheeled badassery
26/42
2019 Ducati Panigale V4R: the new face of two-wheeled badassery

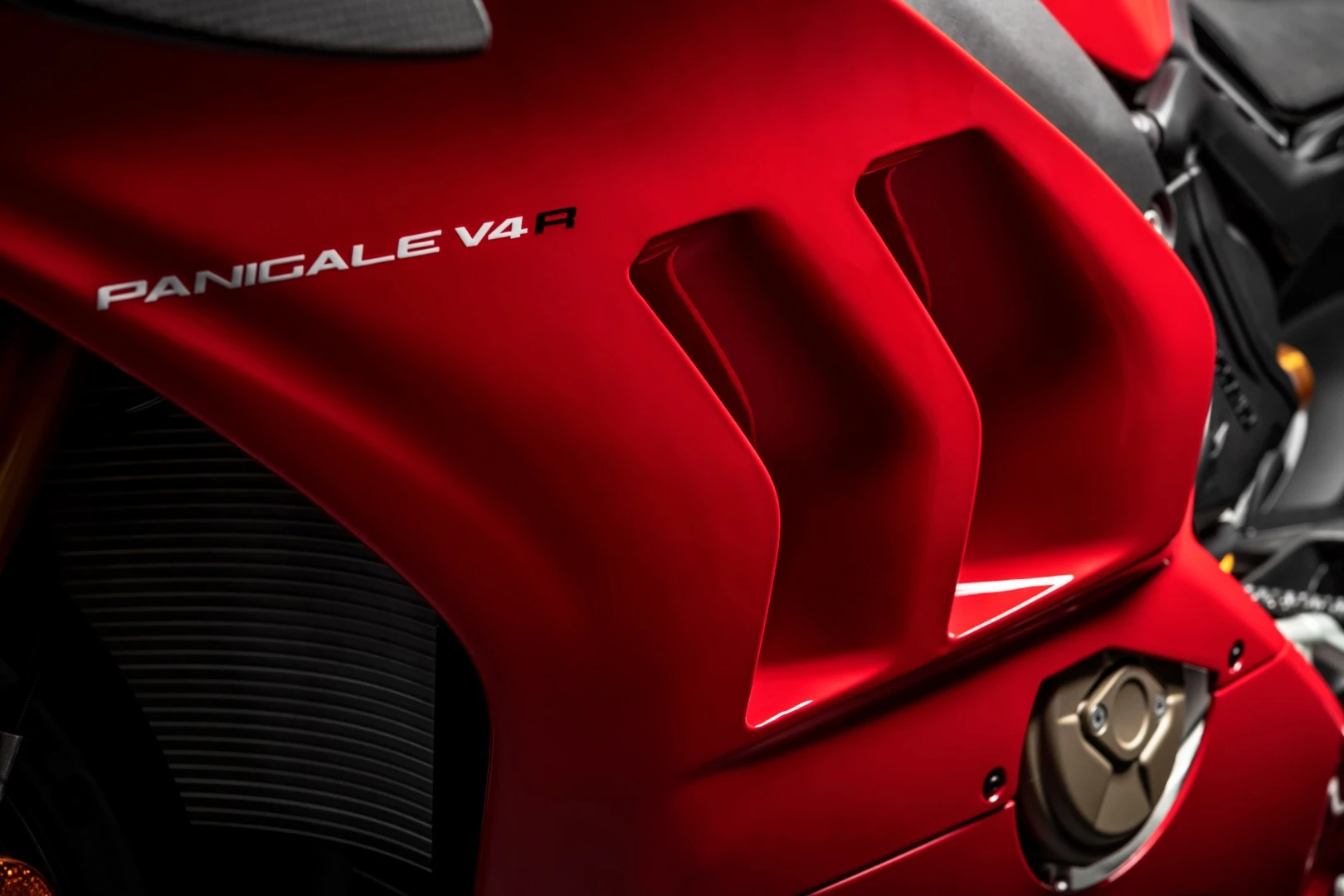

2019 Ducati Panigale V4R: it's got gills
27/42
2019 Ducati Panigale V4R: it's got gills
2019 Ducati Panigale V4R: carbon winglets
28/42
2019 Ducati Panigale V4R: carbon winglets

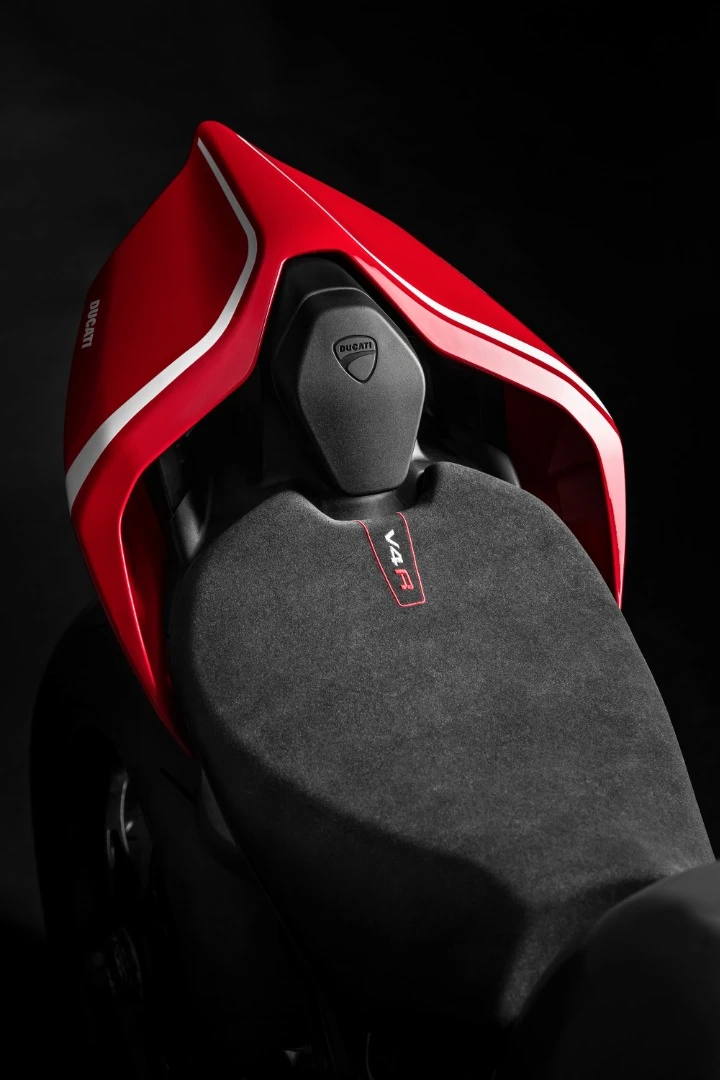

2019 Ducati Panigale V4R: seat and tail section
29/42
2019 Ducati Panigale V4R: seat and tail section

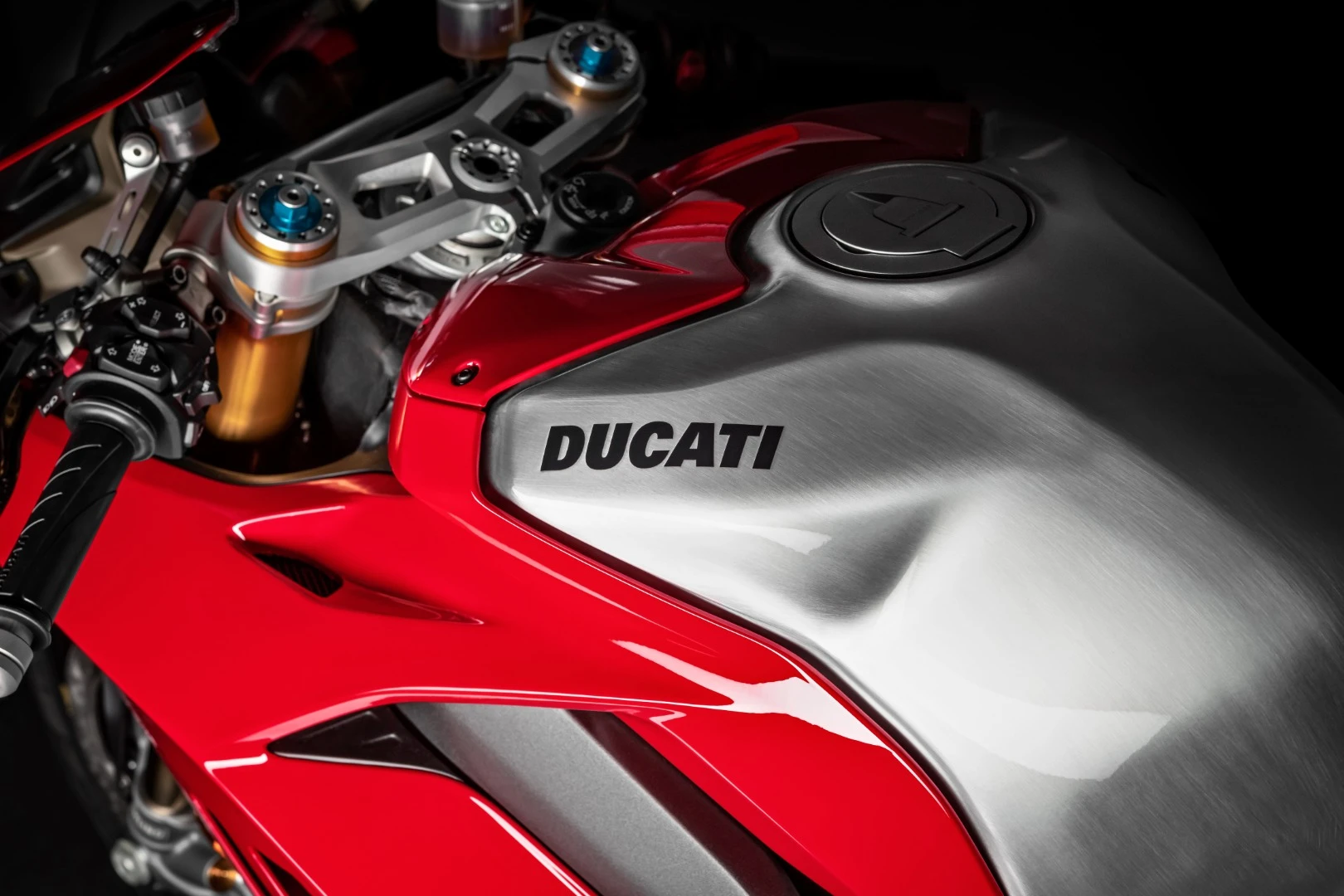

2019 Ducati Panigale V4R: only a lucky few will see this view in person
30/42
2019 Ducati Panigale V4R: only a lucky few will see this view in person

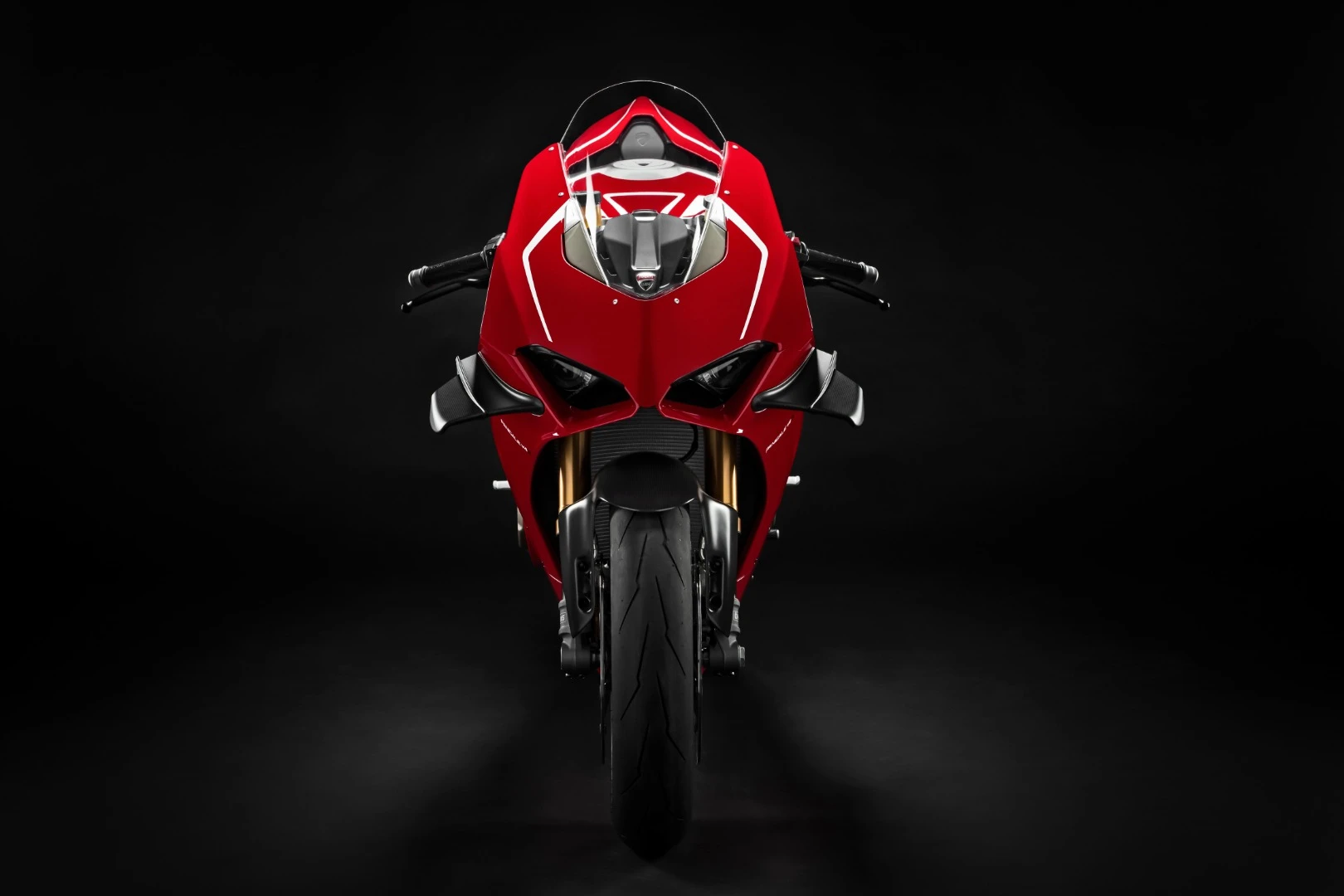

2019 Ducati Panigale V4R: head on
31/42
2019 Ducati Panigale V4R: head on
2019 Ducati Panigale V4R: top down
32/42
2019 Ducati Panigale V4R: top down
2019 Ducati Panigale V4R: a thoroughly gorgeous bike before it gets covered in logos
33/42
2019 Ducati Panigale V4R: a thoroughly gorgeous bike before it gets covered in logos

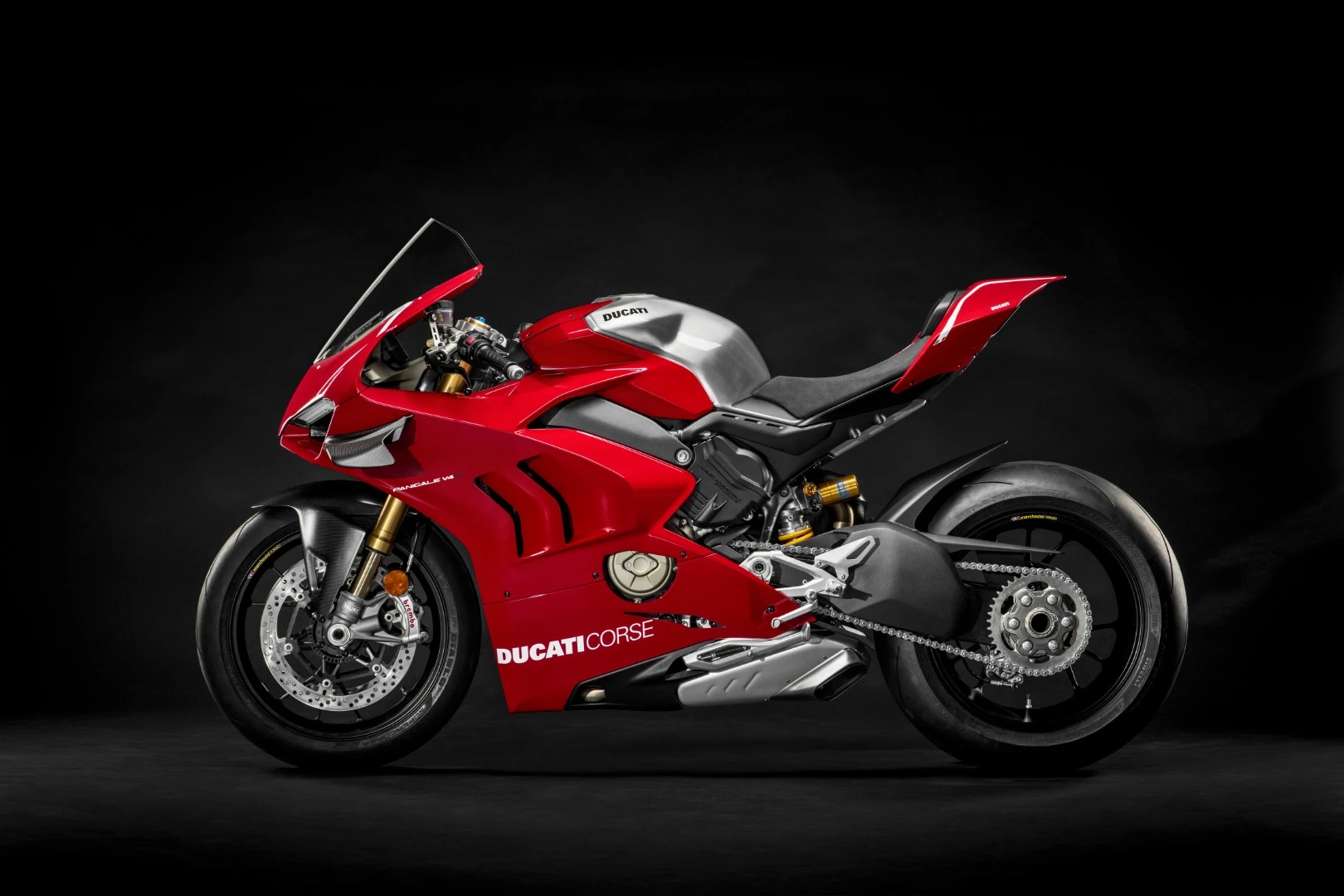

2019 Ducati Panigale V4R: left side
34/42
2019 Ducati Panigale V4R: left side
2019 Ducati Panigale V4R: right rear three quarter
35/42
2019 Ducati Panigale V4R: right rear three quarter

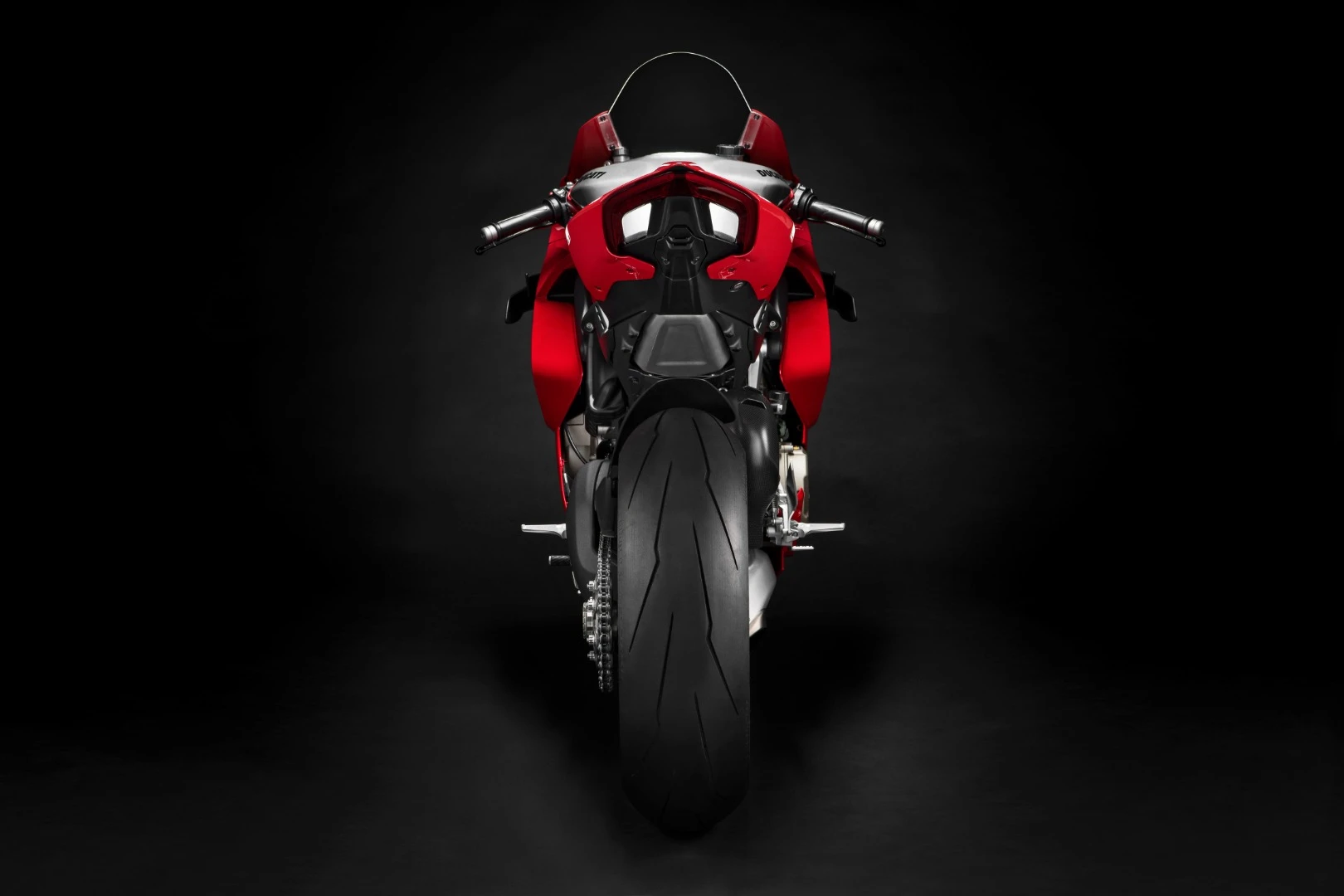

2019 Ducati Panigale V4R: rear view
36/42
2019 Ducati Panigale V4R: rear view
2019 Ducati Panigale V4R: right side
37/42
2019 Ducati Panigale V4R: right side
2019 Ducati Panigale V4R: right front three quarter
38/42
2019 Ducati Panigale V4R: right front three quarter
2019 Ducati Panigale V4R: aerodynamic winglets add downforce to keep the front wheel down under aceleration
39/42
2019 Ducati Panigale V4R: aerodynamic winglets add downforce to keep the front wheel down under aceleration
Ducati CEO Claudio Domenicali poses with the new Panigale V4 R at its EICMA launch event
40/42
Ducati CEO Claudio Domenicali poses with the new Panigale V4 R at its EICMA launch event
A sense of the scope and expense of the Ducati event at EICMA
41/42
A sense of the scope and expense of the Ducati event at EICMA
No expense spared: the Ducati presentation at EICMA
42/42
No expense spared: the Ducati presentation at EICMA

Ducati has just debuted the most extreme petrol-powered supersport bike in history on the eve of EICMA in Milan. The new king of the Panigale range is a World Superbike homologation special with a set of specifications that should strike fear into the heart of any mortal. Oh, and it's got wings, too.

The homologation special

World Superbike (WSBK) is a production-based race series, which pits hotted-up versions of the actual streetbikes you can go and buy against one another in competition – as opposed to MotoGP, which is more like Formula One, in that each race bike is essentially a prototype that was never built for road use.

In order to race a given bike in WSBK, it needs to meet an exhaustive list of homologation regulations to keep the playing field as level as possible. No titanium frames are allowed, for example, and ABS systems have to be removed from the race bikes.

But you also need to prove that the bike you're entering for racing is actually a genuine production bike that customers can buy and ride on the road. They can't cost any more than €40,000 to buy, and the manufacturer has to prove it has built at least 500 units by the end of the year following the homologation inspection date.

2019 Ducati Panigale V4R: she's a mean looker, too
2019 Ducati Panigale V4R: she's a mean looker, too

Thus, if you want to enter something really special, you need to make it available to the public as well as the race team, and this occasionally leads to some absolute lunatic-level machinery being built for the road.

The latest, and thus far, greatest example of the homologation special is next year's Ducati Panigale V4R. The current Ducati superbike is a 1198cc V-Twin, taking advantage of the rules that allow twins to run a higher engine capacity than 4-cylinder engines. But the current model Panigale V4 streetbike has an 1103cc V4 motor, which is 103cc too big to race with as a 4-cylinder.

Hence the beast we see today, just unveiled in a spectacular event at the world's biggest bike show: EICMA in Milan.

No expense spared: the Ducati presentation at EICMA
No expense spared: the Ducati presentation at EICMA

The engine: 998cc, 90-degree V4

The new Panigale V4R runs a 998cc version of the Desmosedici Stradale 90-degree V4, with the stroke shortened from 53.5 mm to 48.4 mm, and the 81 mm bore untouched, essentially taking an extremely oversquare and rev-focused motor and making it significantly more oversquare and revvy.

The engine internals have also lost a fair bit of weight: the pistons are forged, with just two piston rings (one for compression, the other an oil scraper) and the crankshaft, high-lift valves and con rods are titanium. The crank alone saves an astonishing 1.1 kg (2.42 lb) over the one in the 1103cc bikes, the con rods save 100 grams (3.5 ounces) each.

So as well as having less distance to travel with each revolution thanks to the shorter stroke, there's significantly less mass to move as well. That means Ducati can rev this thing much, much higher than the 1103cc version: the V4S revs to 13,000 rpm, and the R version keeps on pulling, up to a crazy 15,250 rpm.

So the new R bike loses torque, which drops from a peak of 124 Nm (91.5 lb-ft) in the S bike down to 114 Nm (83 lb-ft) in the R. It'll thus feel a bit gutless on the road at low revs. But, power being equal to torque multiplied by revs, it gains significant horsepower when you spin it up to the top of its new stratospheric rev range: while the S bike makes 214 horses flat out, the R boosts this to a screaming 221, and that's in fully road-legal trim.

2019 Ducati Panigale V4R: two-tone tank with bare aluminum rear section
2019 Ducati Panigale V4R: two-tone tank with bare aluminum rear section

Bin the legal cans for the Performance kit from Akrapovic (not Termignoni, interestingly enough) and that horsepower figure leaps to 234 ponies, and presumably a soundtrack capable of inspiring almost as much fear as the acceleration, if and when you're able to hang onto full throttle.

If you're new to the whole superbike thing, that's more power than we've ever seen on such a lightweight sports machine. In fact, it's now the most powerful non-electric, production road bike on the planet, since it's got three horses worth of wood on the 2019 Kawasaki H2, which needs an aggressively chirpy supercharger to get to its ludicrous 231-hp top end.

You'd have to assume it's going to send a rocket up the backsides of the entire WSBK series next year – along with national production-based race categories the world over. It certainly becomes the instant king of no-excuses track bikes. Anyone who rolls one of these out of a pit box will have the largest possible target on their backside. Their scalps will be priceless to better riders on inferior machinery, which is pretty much everything.

On the road? Well, it'll probably be clattery and cantankerous at any legal speed, but will open the gates of Hades and unleash an unprecedented degree of what the young folks are calling "yeet" if you have the insolence to rev it.

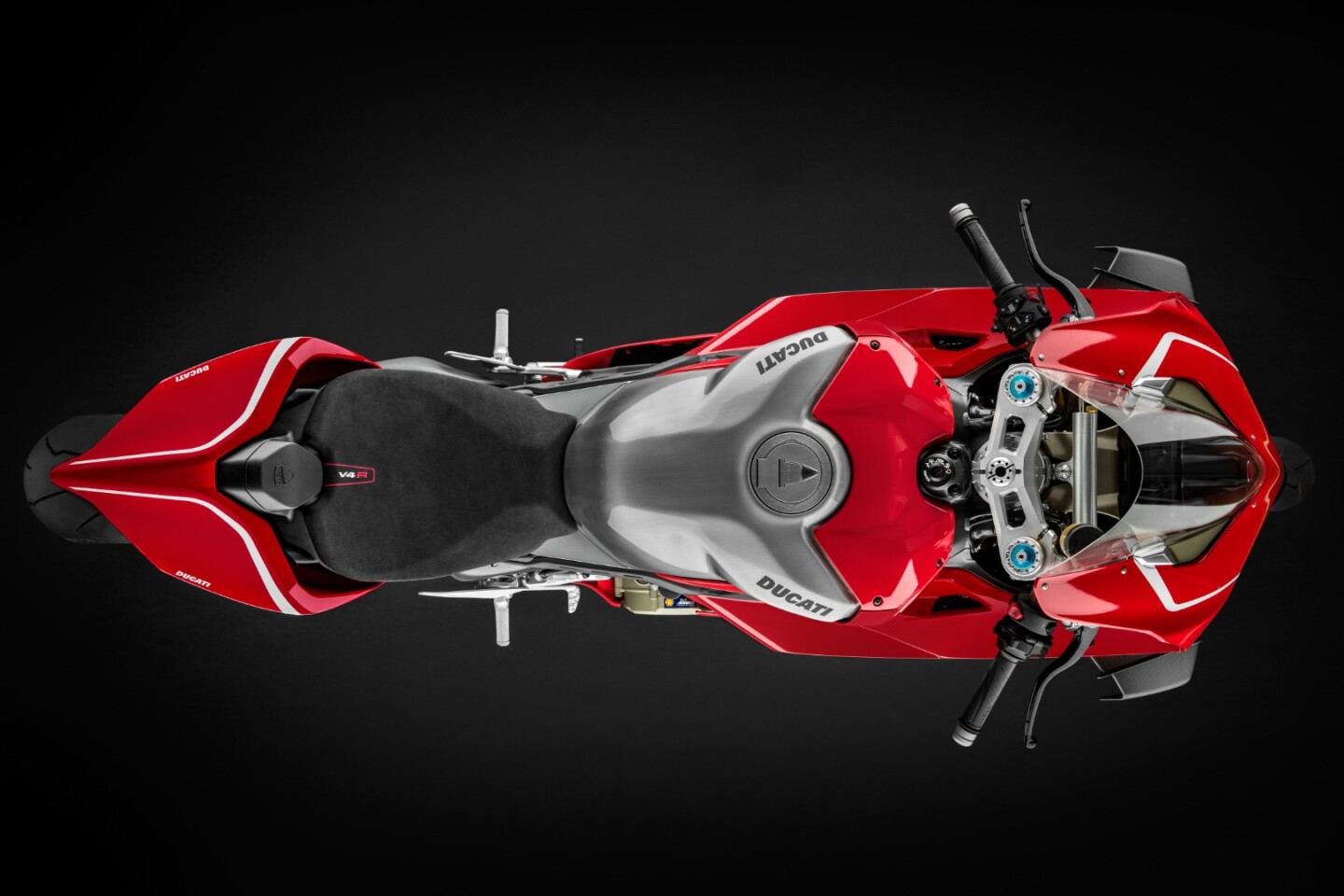

2019 Ducati Panigale V4R: top down
2019 Ducati Panigale V4R: top down

The chassis

The body of the bike hasn't changed an awful lot from the barnstorming V4S model. It's 2 kg (4.4 lbs) lighter at 172kg (379 lbs) dry, but this is mainly due to the engine's weight loss program.

The bodywork is notably different – partially for the huge gills on the side fairings, as well as the silver rear of the tank, the white highlight lines and the overall larger and higher front fairing. But mainly for the evil black carbon winglets behind the headlights.

Ducati, of course, was the first manufacturer to push winglet technology at the MotoGP level, where an increasingly complex series of front end aerodynamics packages helped keep the front wheel down under acceleration, and added some cornering downforce to boot, while slightly muddying the airflow behind a bike, potentially making it a little more difficult to pass in the slipstream.

Much to Ducati's disgust, they were banned after the 2017 season, the Grand Prix Commission citing safety concerns raised by riders. But World Superbike has explicitly allowed the technology, so it's game on for the homologation superbike.

2019 Ducati Panigale V4R: the new face of two-wheeled badassery
2019 Ducati Panigale V4R: the new face of two-wheeled badassery

Ordinarily, I'm against any technology that helps prevent unintended wheelstands, as unintended wheelstands are among my favorite parts of motorcycling. But this is unashamedly a race bike with mirrors and indicators. The focus is squarely on precision and lap times, giggle factor be damned. They make perfect sense here.

The brakes, as on the V4S, are top-shelf Brembo Stylema units. The suspension, on the other hand, takes a step down from the road-focused S model. There's little use for electronic adaptive suspension on a racetrack, so instead the R model gets some fancy new, purely mechanical suspension from Ohlins.

The 43 mm forks use a competition-inspired pressurized system with asymmetrical damping: the compression damping piston in the left fork uses a 25 mm piston and the rebound damper in the right uses a 30 mm piston. Hence the system's name: NPX 25/30.

It runs all the same electronic rider systems as the V4S, from traction, slide and wheelie control to Bosch's Cornering ABS Evo, up/down quickshifting, engine brake control and an updated three riding modes, pit lane limiter, lap timing, data analysis and multimedia Bluetooth systems.

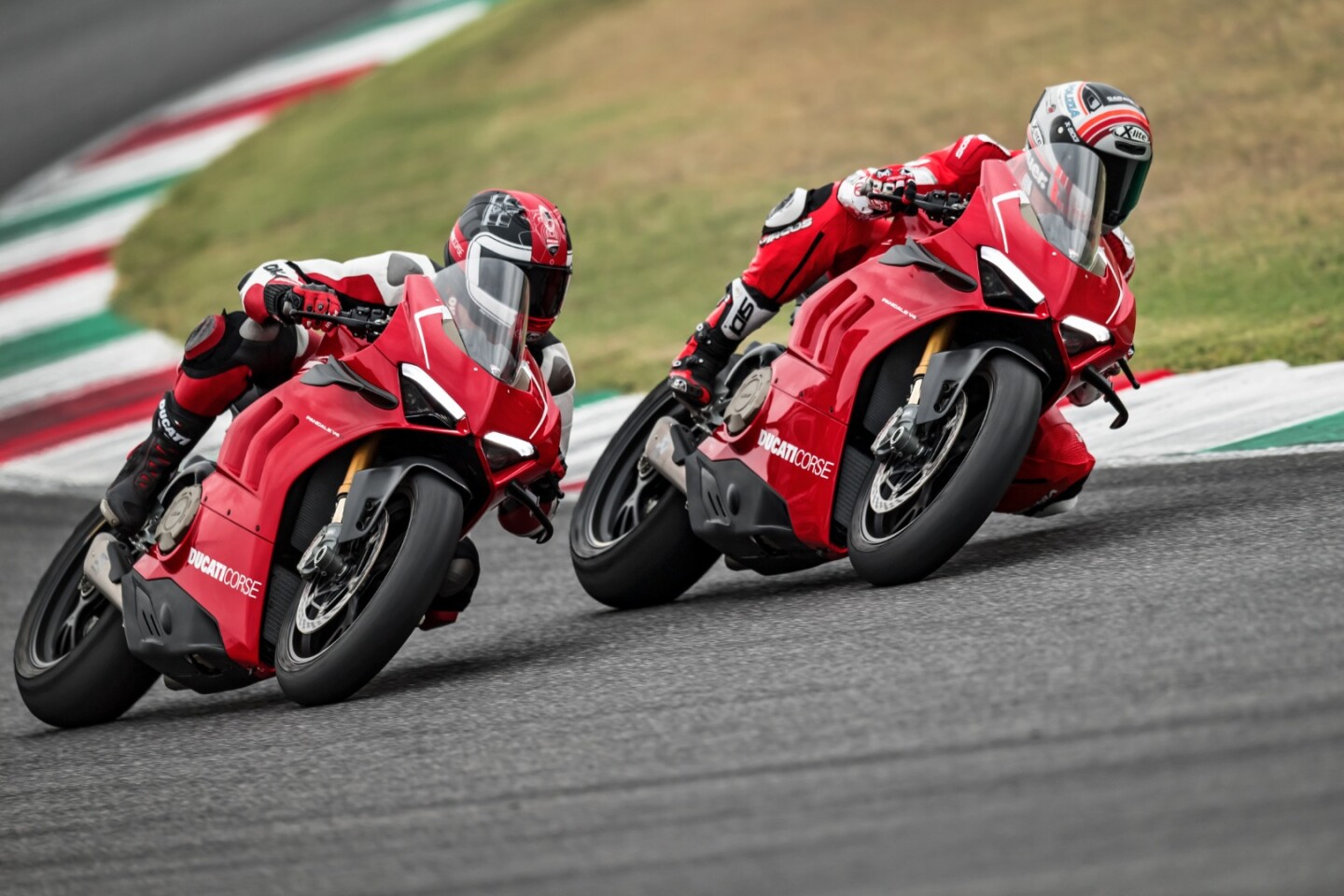

2019 Ducati Panigale V4R: you'll be lucky to see one in action, let alone two, outside a WSBK race
2019 Ducati Panigale V4R: you'll be lucky to see one in action, let alone two, outside a WSBK race

Make no mistake, this is a monumental motorcycle. As well as setting a new, ridiculously high horsepower benchmark, it represents the absolute state of the art when it comes to production track bikes. We're excited to see if its bite matches its bark in Superbike competition around the world in 2019, but when it comes to bench racing, here's your new King Dingaling of the combustion world, as evil and powerful as it gets at this very moment. Buy one if you can afford it, and keep it in a box. This will be a bike to remember.

Source: Ducati
