Ford unloads details of 2019 Ranger pickup truck

Ford unloads details of 2019 Ranger pickup truck

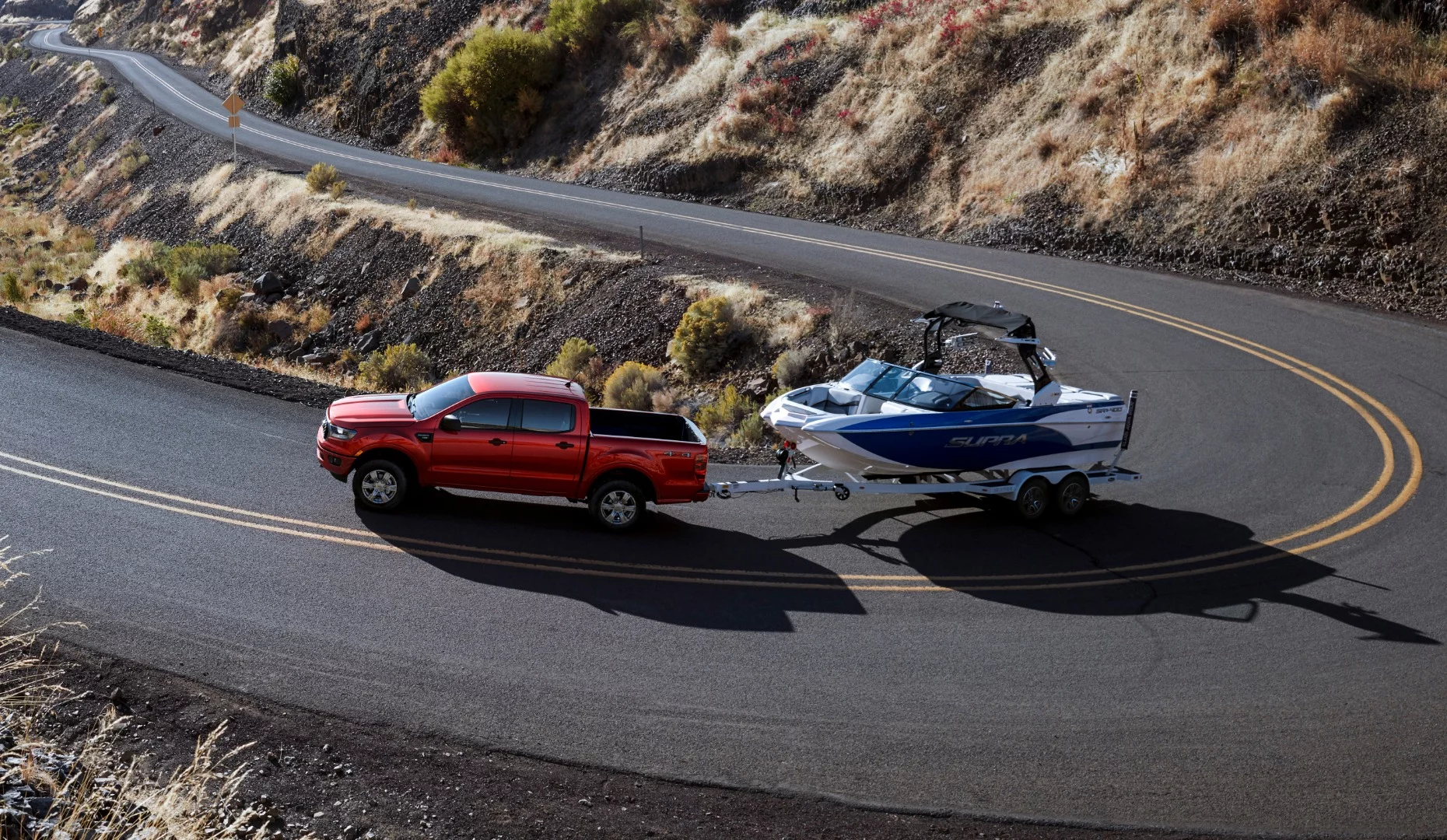

The Ranger will be powered by a small 2.3-liter turbocharged engine that Ford claims will offer best-in-class towing
The Ranger will be powered by a small 2.3-liter turbocharged engine that Ford claims will offer best-in-class towing
View 14 Images

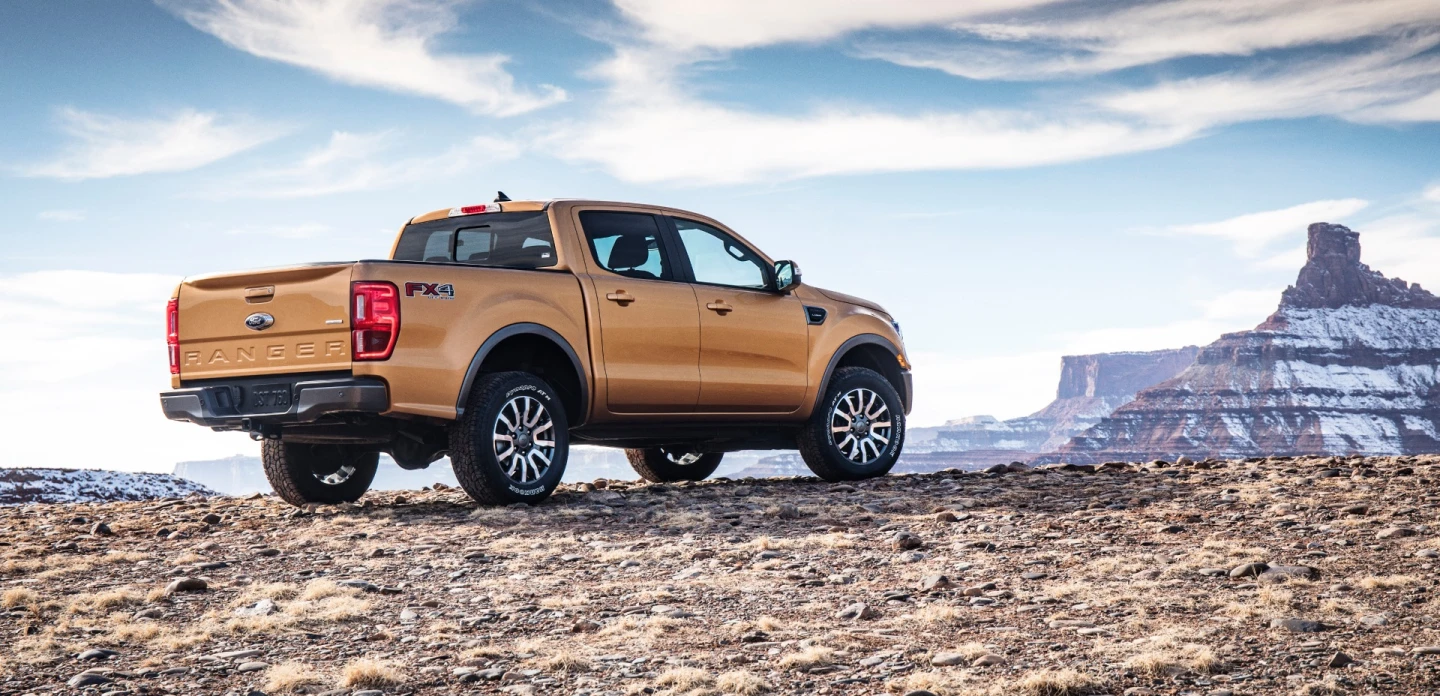

The 2019 Ford Ranger’s 2.3-liter engine is rated at 270 hp (201 kW) and 310 lb-ft (420 Nm) of torque
1/14
The 2019 Ford Ranger’s 2.3-liter engine is rated at 270 hp (201 kW) and 310 lb-ft (420 Nm) of torque

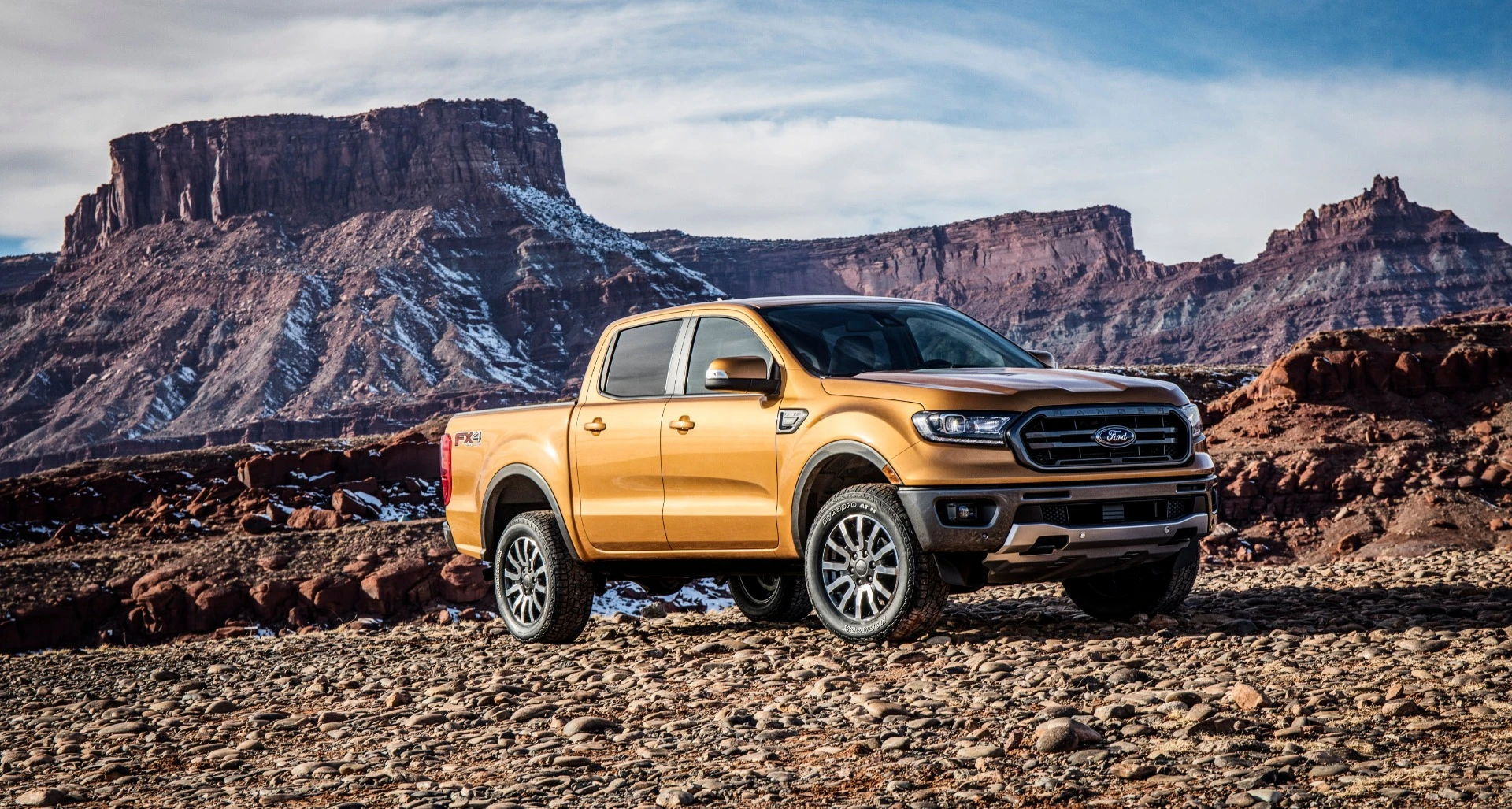

A 10-speed automatic transmission, similar to that on the Ford Raptor, will also be used on the Ranger
2/14
A 10-speed automatic transmission, similar to that on the Ford Raptor, will also be used on the Ranger

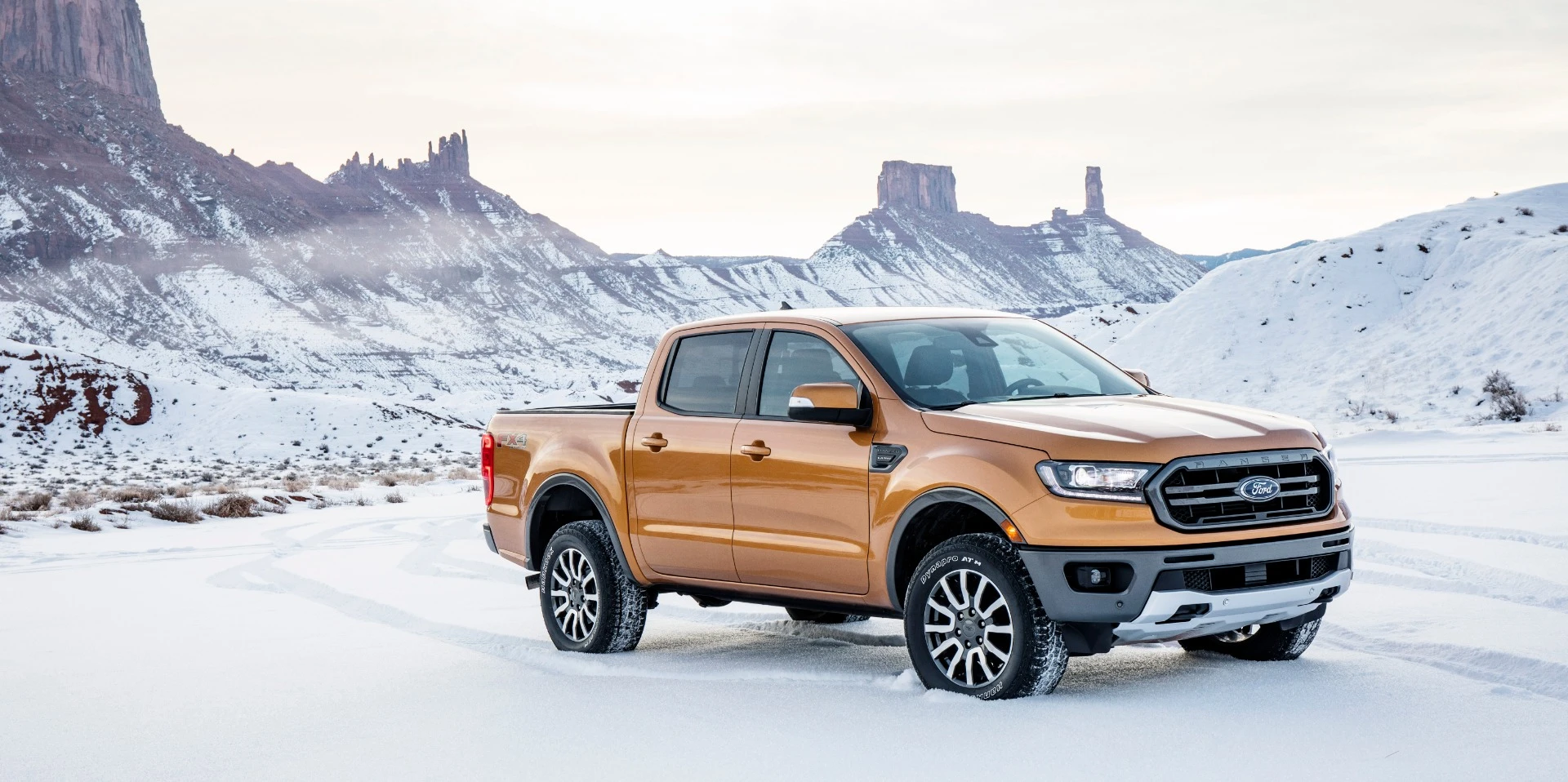

Cab sizes will be Supercrew (four-door, seats five) with a 5-ft bed and Supercab (three-door, seats four) with a 6-ft bed
3/14
Cab sizes will be Supercrew (four-door, seats five) with a 5-ft bed and Supercab (three-door, seats four) with a 6-ft bed

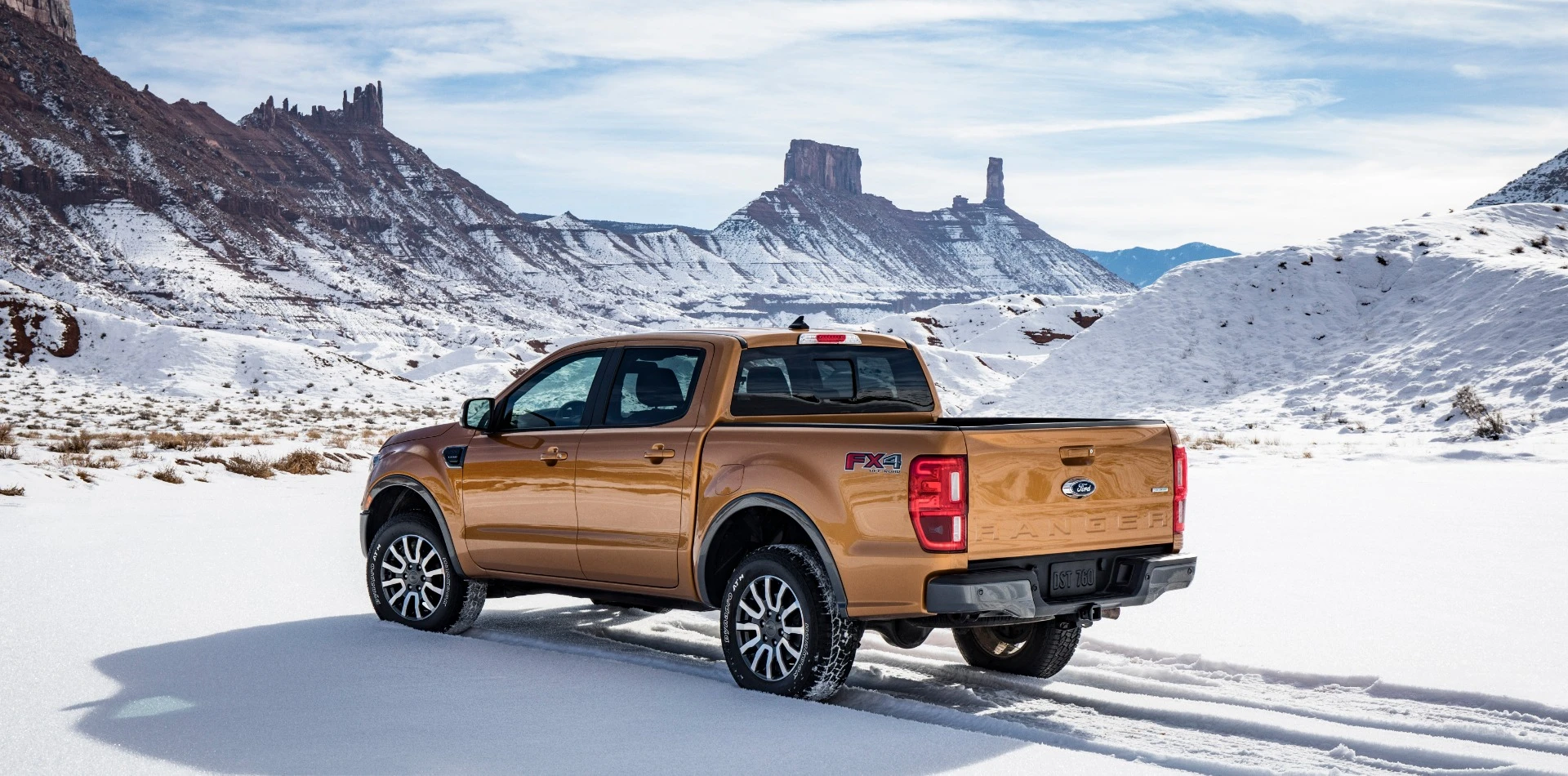

The 2019 Ranger will be offered in 10 different trims and sub-trim levels
4/14
The 2019 Ranger will be offered in 10 different trims and sub-trim levels
Most of Ford’s suite of driver assist and safety technologies will be offered as standard or available features on the Ranger
5/14
Most of Ford’s suite of driver assist and safety technologies will be offered as standard or available features on the Ranger
So far, no MPG numbers have been released for the 2019 Ford Ranger
6/14
So far, no MPG numbers have been released for the 2019 Ford Ranger

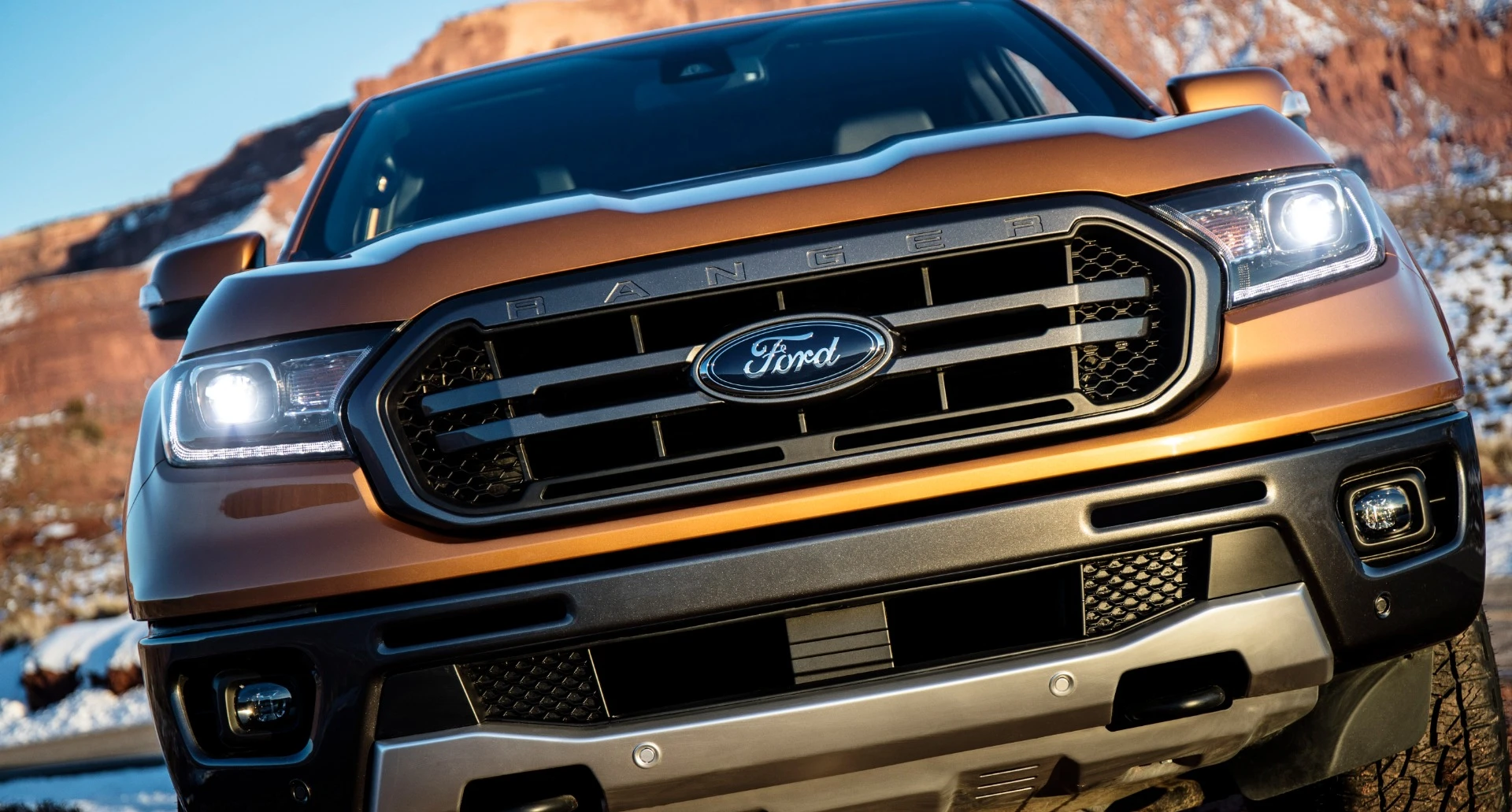

The Ranger’s turning radius is about 42 ft (12.8 m) at best, though that will change slightly with larger wheel options
7/14
The Ranger’s turning radius is about 42 ft (12.8 m) at best, though that will change slightly with larger wheel options
The FX4 sub-trim will be offered as a more off-road-oriented option for the 2019 Ford Ranger
8/14
The FX4 sub-trim will be offered as a more off-road-oriented option for the 2019 Ford Ranger

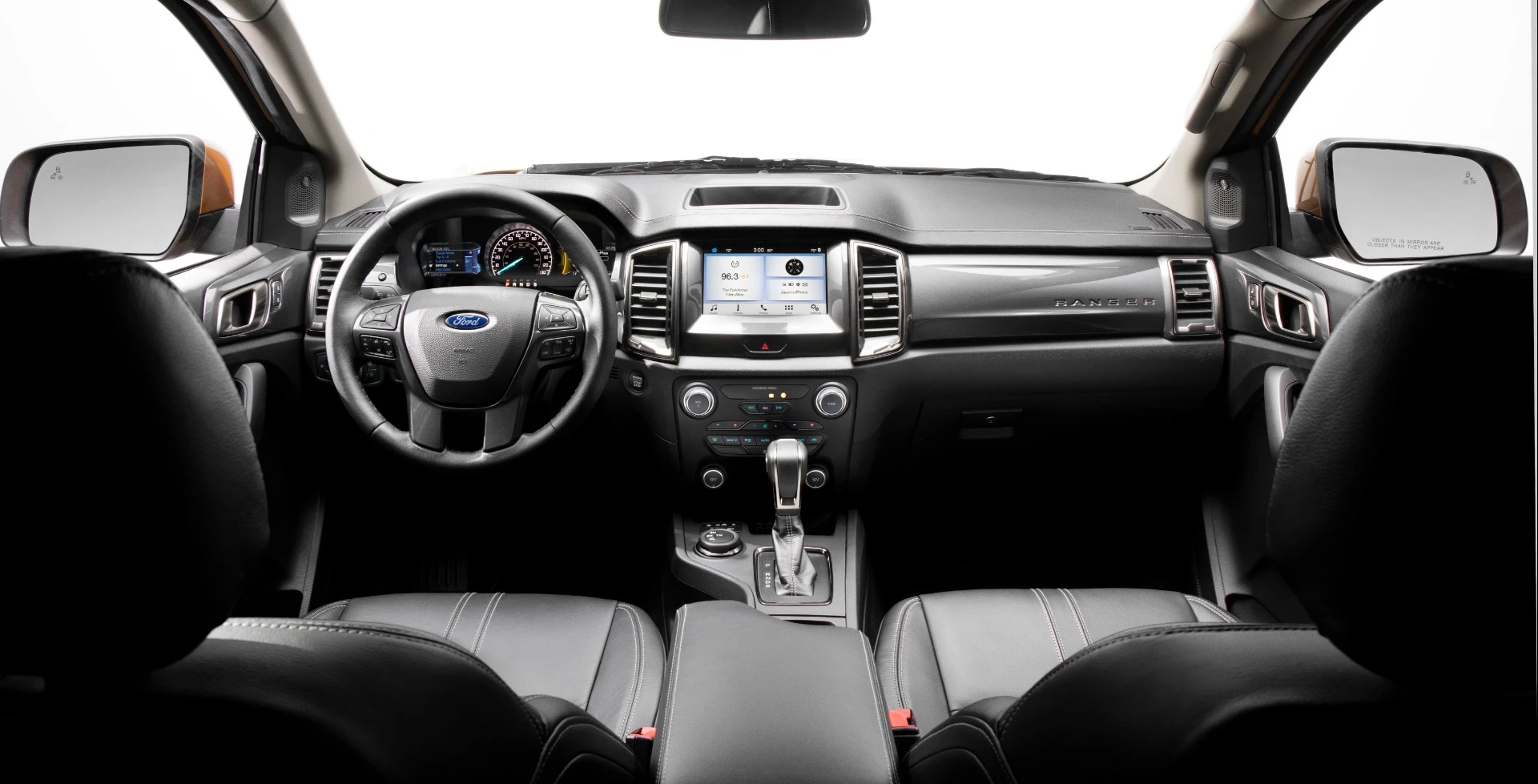

Inside, the 2019 Ranger looks much like the Ford F-150 pickup, with which it shares much switchgear
9/14
Inside, the 2019 Ranger looks much like the Ford F-150 pickup, with which it shares much switchgear

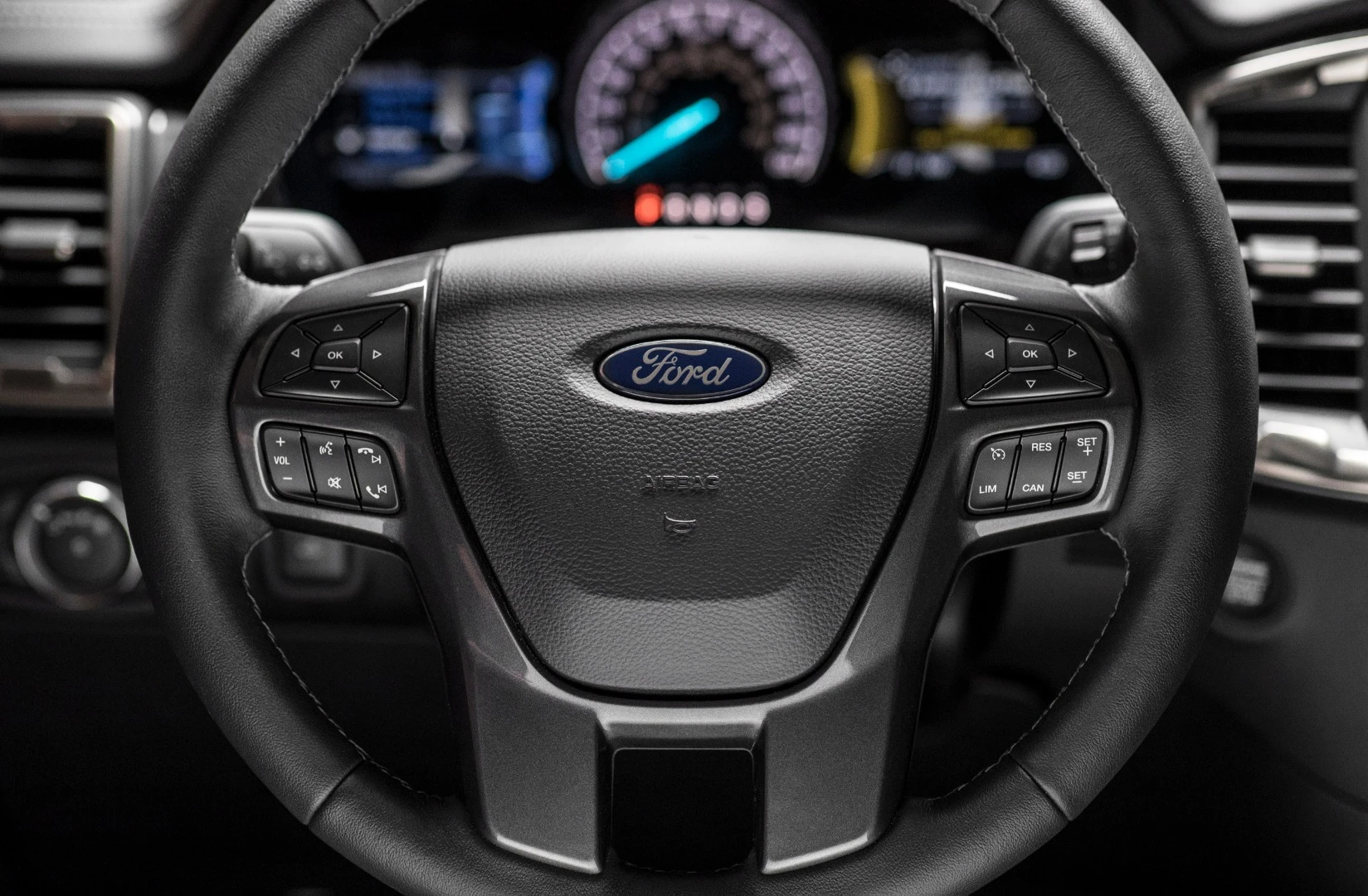

Options for the 2019 Ranger will include adaptive cruise control, advanced safety systems, and more
10/14
Options for the 2019 Ranger will include adaptive cruise control, advanced safety systems, and more

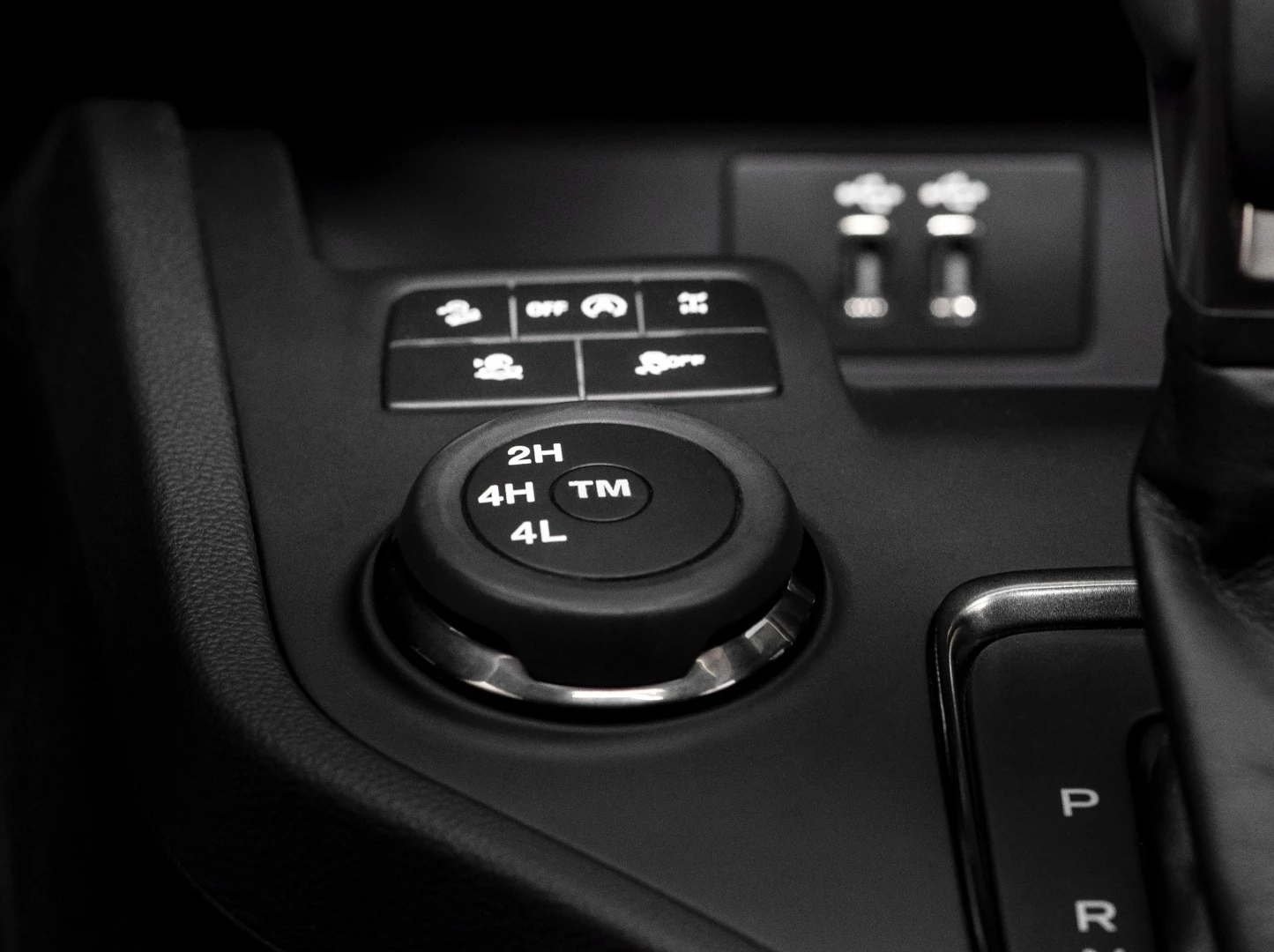

The 2019 Ford Ranger will be rear-wheel drive as standard with four-wheel drive as an option
11/14
The 2019 Ford Ranger will be rear-wheel drive as standard with four-wheel drive as an option

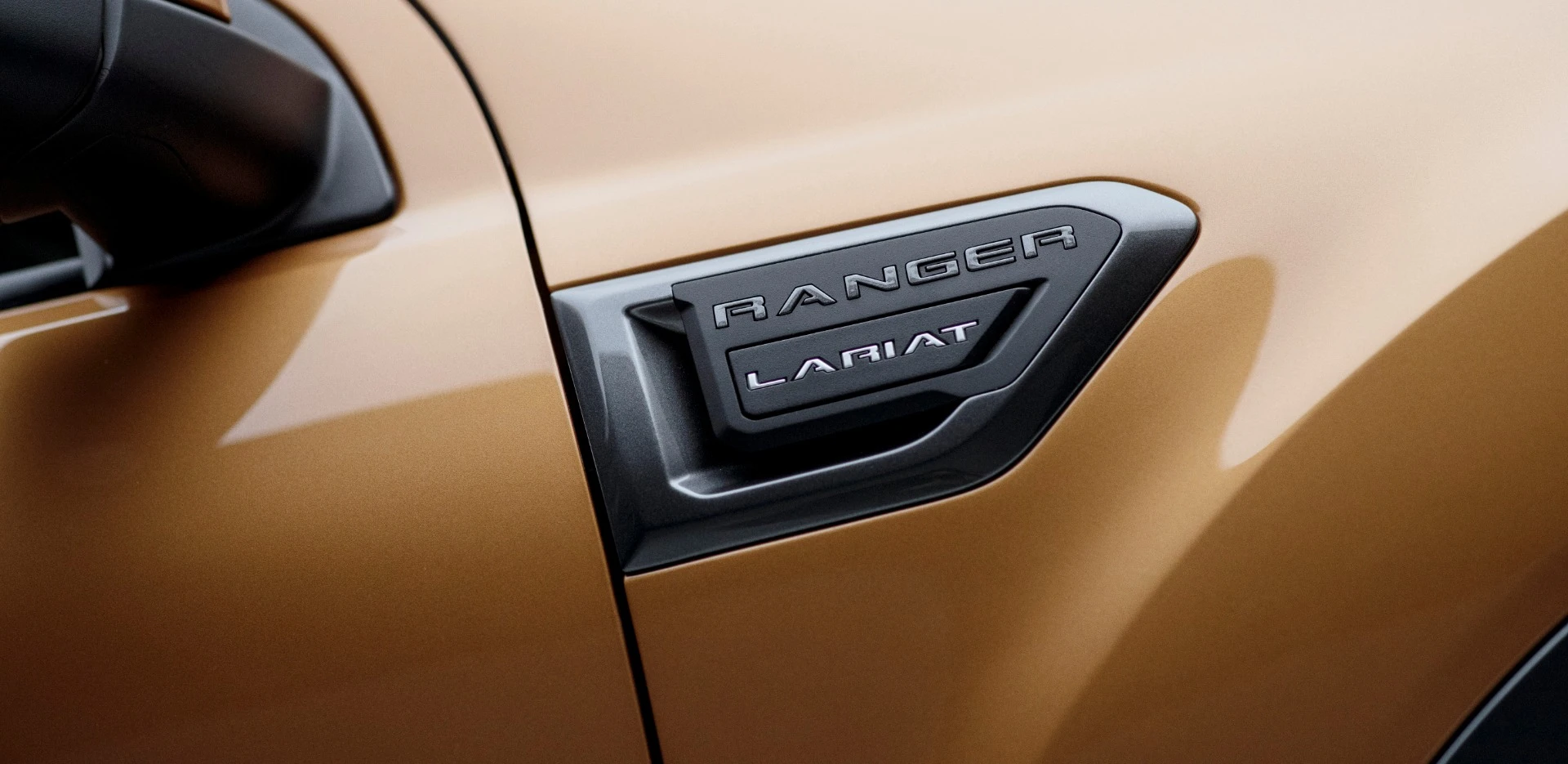

The Ford Ranger Lariat will be the highest-end option for the 2019 Ranger, with sub-trims to add onto that
12/14
The Ford Ranger Lariat will be the highest-end option for the 2019 Ranger, with sub-trims to add onto that

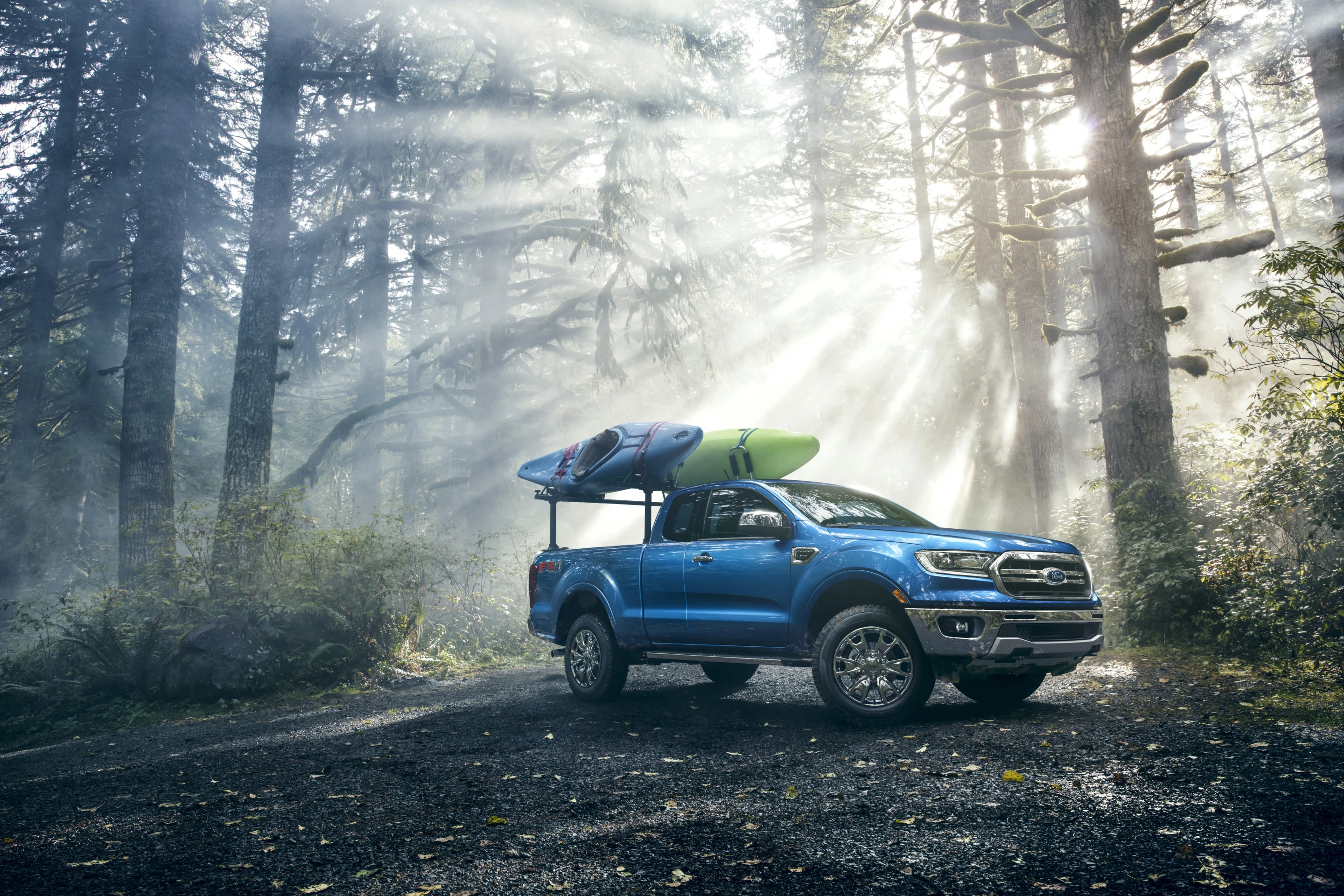

The 2019 Ranger will have a 7,500-lb (3,402 kg) maximum towing capability and 1,860 lb (844 kg) of payload capacity
13/14
The 2019 Ranger will have a 7,500-lb (3,402 kg) maximum towing capability and 1,860 lb (844 kg) of payload capacity

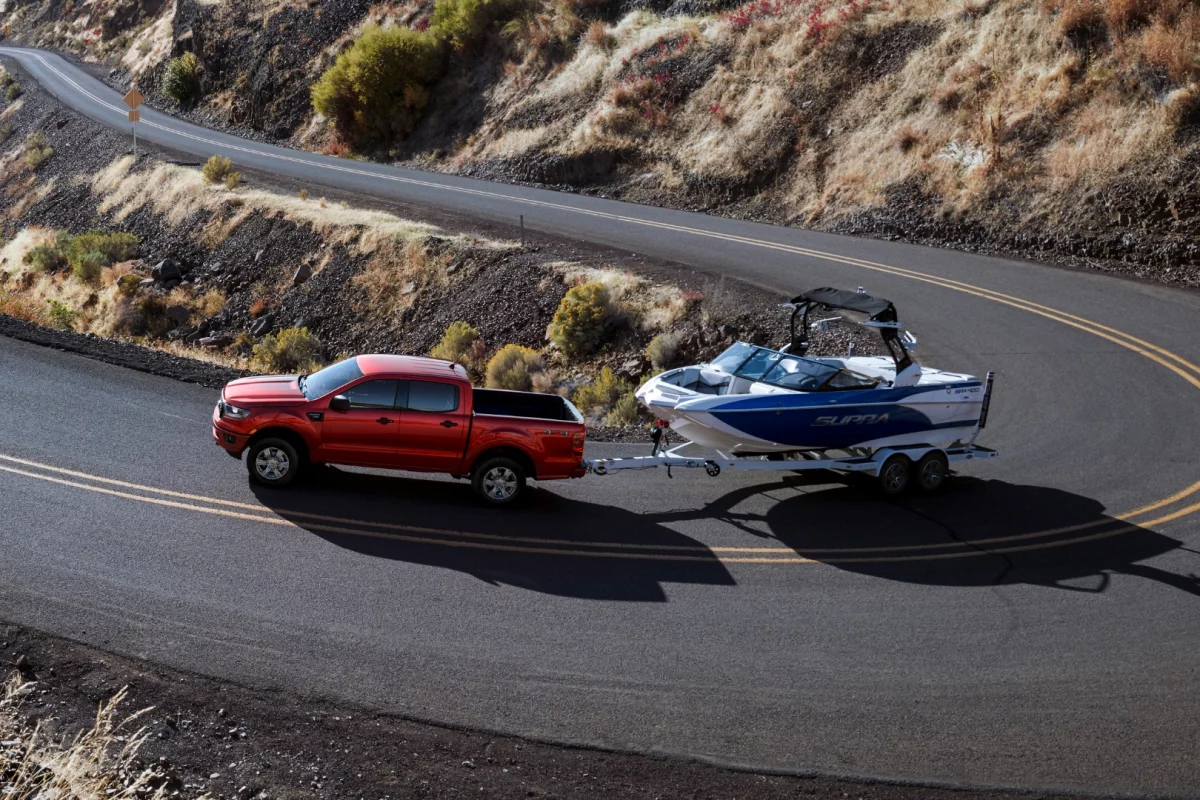

The Ranger will be powered by a small 2.3-liter turbocharged engine that Ford claims will offer best-in-class towing
14/14
The Ranger will be powered by a small 2.3-liter turbocharged engine that Ford claims will offer best-in-class towing
View gallery - 14 images

The 2019 Ford Ranger announced at NAIAS in Detroit earlier this year is set to enter production soon, with the all-new midsize pickup truck marking a return of the Ranger name to the North American market. Ford has now released specifications for the truck and they're impressive, given the truck's size and its small engine.

The Ranger will be powered by a small 2.3-liter turbocharged engine that offers power on par or better than most standard V6 powerplants, especially in torque delivery, with Ford claiming the engine will bring best-in-class towing and better-than-average fuel economy. The 2019 Ford Ranger's 2.3L engine generates 270 hp (201 kW) and 310 lb-ft (420 Nm) of torque, with power delivered via a 10-speed automatic transmission, similar to that on the Ford Raptor.

With Rick Bolt, Ford Ranger chief engineer, likening the vehicle to "the biggest and most capable backpack for your gear," the 2019 Ranger will have a 7,500-lb (3,402 kg) maximum towing capability and 1,860 lb (844 kg) of payload capacity – for reference, the current best-in-class tower, the Chevrolet Colorado with a diesel engine, has a towing capacity of 7,700 lb (3,493 kg). Ford is yet to release MPG numbers for the truck.

The 2019 Ford Ranger’s 2.3-liter engine is rated at 270 hp (201 kW) and 310 lb-ft (420 Nm) of torque
The 2019 Ford Ranger’s 2.3-liter engine is rated at 270 hp (201 kW) and 310 lb-ft (420 Nm) of torque

It will be rear-wheel drive as standard with four-wheel drive as an option, and offer a turning radius of about 42 ft (12.8 m) at best, though that will change slightly with larger wheel options. The wheelbase for all Ranger models will be 126.8 inches (3,221 mm), regardless of cab size, which will come in Supercrew (four-door, seats five) with a 5-ft (1.5-m) bed, and Supercab (three-door, seats four) with a 6-ft (1.8-m) bed.

The overall length of the Ranger will remain 210.8 in (5,354 mm) with those cabs as well. Width is 85.8 in (2,179mm), but height will vary by roughly an inch (25 mm), depending on cab, wheel, and drivetrain choice. The Ranger Supercab 4x2 measures 70.9 in (1,801 mm) high, while the Ranger Supercrew 4x4 measures 71.8 in (1,824 mm) high.

The 2019 Ranger will be offered in 10 different trims and sub-trim levels, starting with the base level XL and working through to the Lariat options and the off-road-centric FX4. Most of Ford's suite of driver assist and safety technologies will be offered as standard or available features on the Ranger, including crash mitigation, adaptive cruise control, and infotainment through Ford's SYNC system.

Pricing for the 2019 Ford Ranger begins at US$24,300.

Source: Ford
