Airbus channels H.R. Giger for world's first 3D-printed motorcycle

By Aaron Heinrich
May 20, 2016
Airbus channels H.R. Giger for world's first 3D-printed motorcycle

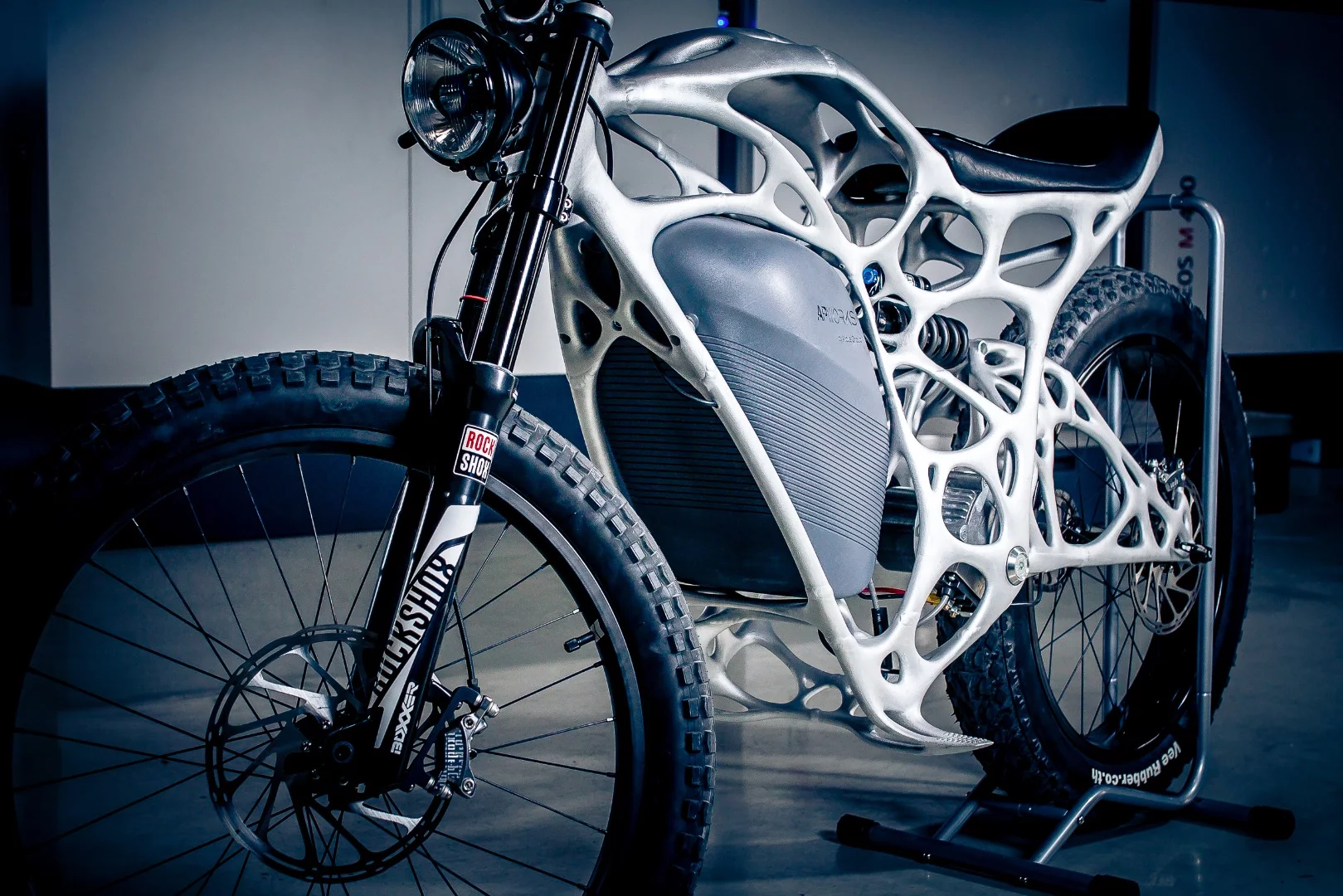

The Light Rider by Airbus subsidiary APWorks features an exoskeleton design
The Light Rider by Airbus subsidiary APWorks features an exoskeleton design
View 7 Images
The Light Rider by Airbus subsidiary APWorks features an exoskeleton design
1/7
The Light Rider by Airbus subsidiary APWorks features an exoskeleton design
The Light Rider frame is hollow creating an opportunity to hide cables and other parts
2/7
The Light Rider frame is hollow creating an opportunity to hide cables and other parts
The Light Rider is set up to use as a daily rider
3/7
The Light Rider is set up to use as a daily rider
The Light Rider is powered by a 6 kw/h electric motor
4/7
The Light Rider is powered by a 6 kw/h electric motor
Only 50 Light Riders will be made at a cost of €50,000 ($56,000)
5/7
Only 50 Light Riders will be made at a cost of €50,000 ($56,000)
The Light Rider is capable of reaching speeds of up to 80 km/h (50 mph)
6/7
The Light Rider is capable of reaching speeds of up to 80 km/h (50 mph)
7/7
View gallery - 7 images

Airbus is typically associated with making airplanes, but a subsidiary called APWorks just announced the creation of the world's first 3D-printed motorcycle that can actually be used as a daily rider. Aptly named the Light Rider, given that it weighs in at a mere 35 kg (77 lb), the electric-powered two-wheeler appears to be what would happen if H.R. Geiger designed a motorcycle.

The company said the exoskeleton-like design of the Light Rider came from the need to make the frame structurally able to withstand the loads and stresses of everyday riding. Powered by a 6-kW (8-hp) electric motor with a top speed of 80 km/h (50 mph), it may not be at home on the freeway, but can be used for daily city driving and commuting.

The Light Rider is capable of reaching speeds of up to 80 km/h (50 mph)
The Light Rider is capable of reaching speeds of up to 80 km/h (50 mph)

The frame of the Light Rider weighs all of 6 kg (13 lb) and is made of a material created and patented by APWorks called Scalmalloy. This is a second-generation aluminum-magnesium-scandium alloy (AlMgS) that the company claims is stronger than the aluminum-silicon powder material used in most production-scale 3D printing today.

The use of Scalmalloy allowed APWorks to create hollow rather than solid frame parts, which made it easier to hide most of the cables and other elements that might be more visible on a standard motorcycle. Bionic algorithms were also used to optimize the entire structure, resulting in a cleaner overall design and a finished bike that weighs 30 percent lighter than other eBikes currently in production.

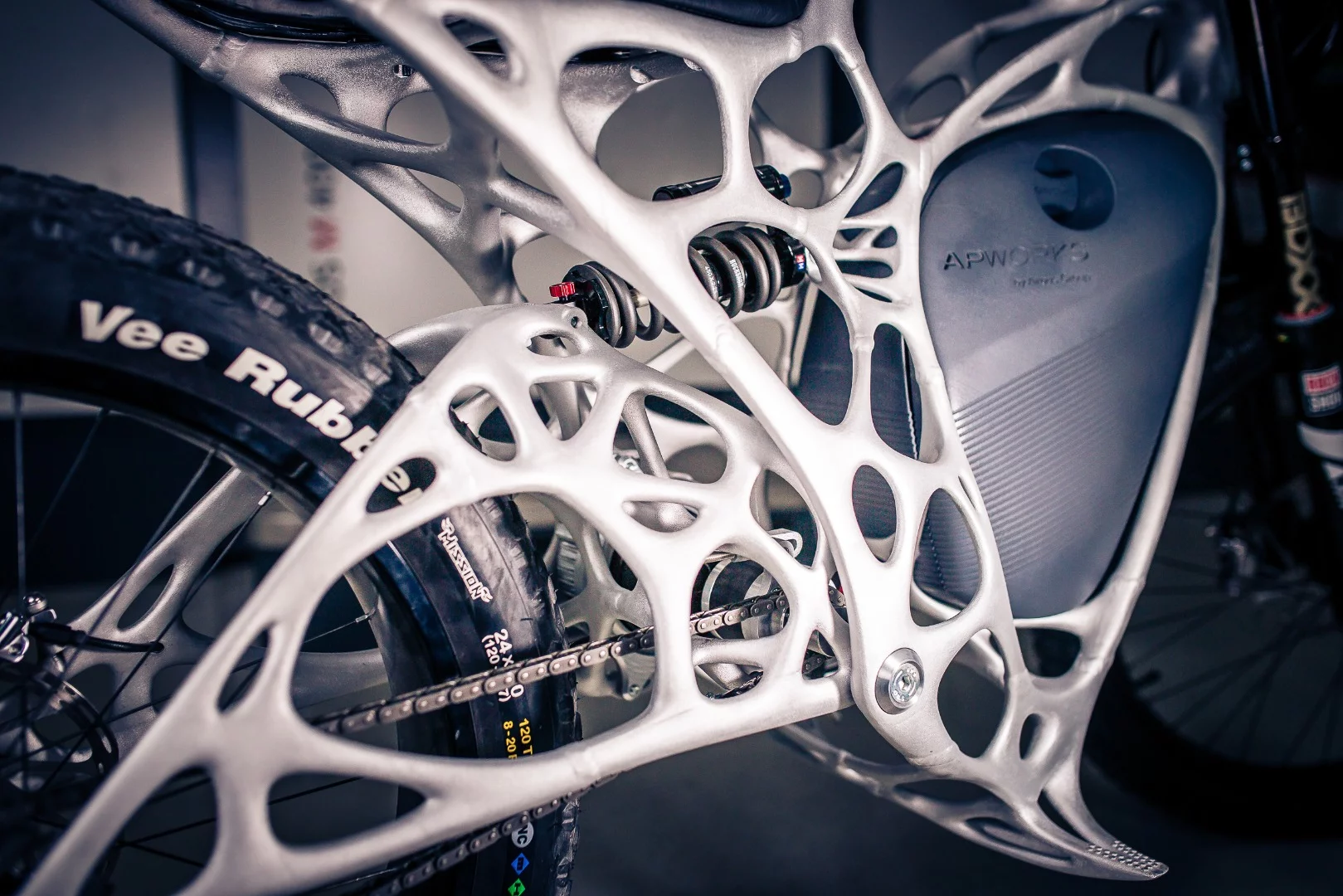

The Light Rider frame is hollow creating an opportunity to hide cables and other parts
The Light Rider frame is hollow creating an opportunity to hide cables and other parts

In 2015, TE Connectivity created what was then billed as the first 3D-printed motorcycle, but it was a prototype only, weighed in at around 200 kg (440 lb) and was powered by a 750-W (1-hp) electric motor.

While the Light Rider might be low on weight, the cost to buy one could be considered pretty heavy for the average motorcycle owner. Only 50 will be made, and APWorks is taking pre-orders for a €2,000 (US$2,450) deposit against a €50,000 (US$56,000) final cost. Delivery is expected to take about a year.

APWorks said it would consider creating different styles of motorcycles, like an enduro or motocross bike, before it would venture into mass producing the Light Rider. So anyone lucky enough to afford one of the 50 currently being constructed may be the owner of one very limited edition motorcycle.

The bike is introduced in the video below.

Source: APWorks

Light Rider - World's first 3D printed prototype for an electric motorcycle

View gallery - 7 images
