Out of this world: Ultra-hard meteorite diamond made in lab

Out of this world: Ultra-hard meteorite diamond made in lab

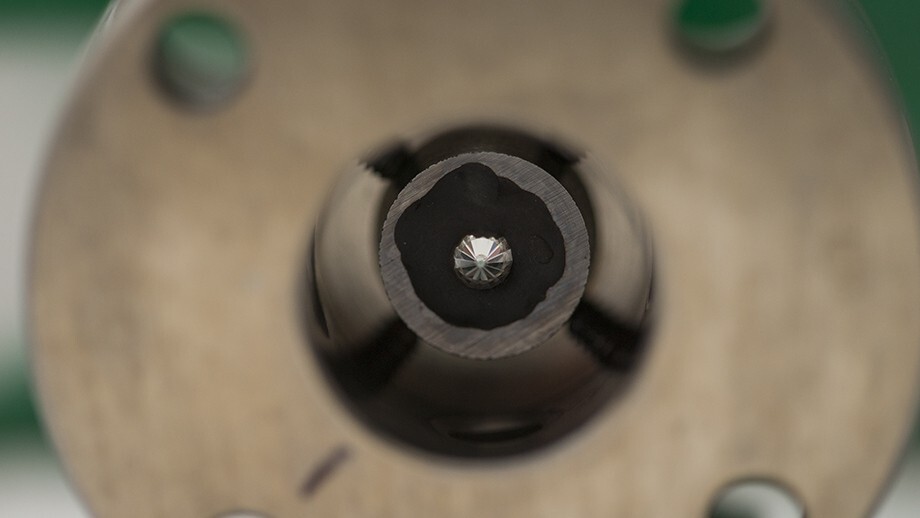

The diamond cell anvil used to create the lonsdaleite
The diamond cell anvil used to create the lonsdaleite
View 3 Images
ANU Associate Professor Jodie Bradby in the lab
1/3
ANU Associate Professor Jodie Bradby in the lab

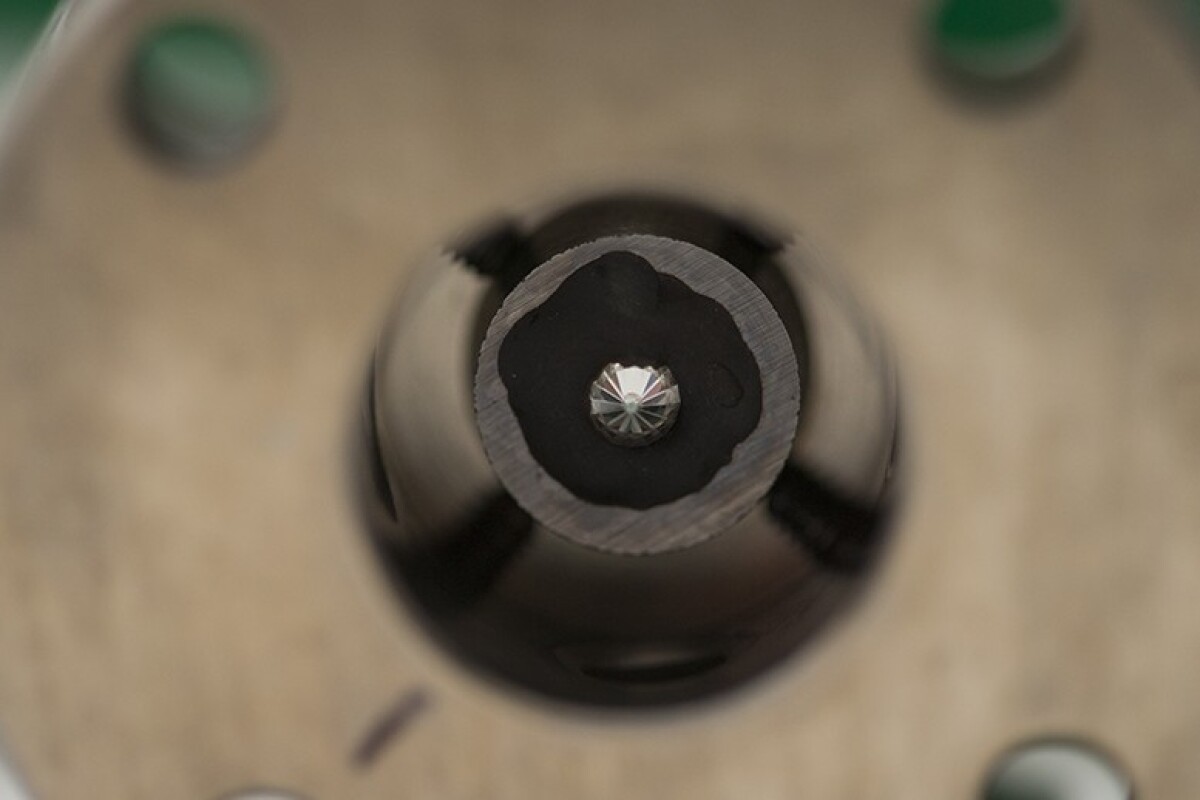

The diamond cell anvil used to create the lonsdaleite
2/3
The diamond cell anvil used to create the lonsdaleite

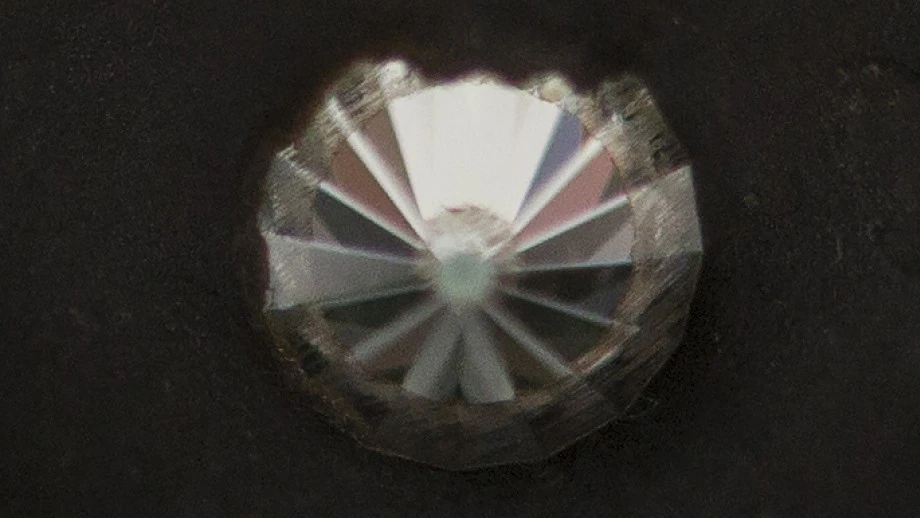

Close up of the diamond in the anvil
3/3
Close up of the diamond in the anvil
View gallery - 3 images

Ever since lonsdaleite was discovered inside fragments of the Canyon Diablo meteorite in 1967, this mysterious hexagonal diamond has divided the scientific community. Some hypothesize that it is a separate type of diamond due to its structure while others believe that it is just a deformed version of the regular variety. Despite their differences in opinion, scientists can agree on one thing: lonsdaleite is hard – 58 percent harder than cubic diamonds. This makes it ideal for industrial applications, except for one thing: it is not easy to find or produce. In nature for instance, it is formed only during a meteorite crash. But a recent breakthrough by Australian scientists suggests it might actually be possible to create pure lonsdaleite without the need for earth-shaking impacts or four-figure temperatures.

The diamond cell anvil used to create the lonsdaleite
The diamond cell anvil used to create the lonsdaleite

This new creation is part of a growing line of nanomaterials and synthetic crystals that have taken over the title of "world's hardest material" from diamonds over the years. According to lead researcher Jodie Bradby from the Australian National University (ANU), what makes this particular diamond so special is that it is the purest lonsdaleite ever found and even more remarkable is its nano-crystalline form, which could make it stronger than the ones that occur naturally.

"The hexagonal structure of this diamond's atoms makes it much harder than regular diamonds, which have a cubic structure. We've been able to make it at the nanoscale and this is exciting because often with these materials 'smaller is stronger,'" says Bradby.

To create the lonsdaleite, the researchers placed a piece of glassy carbon inside a diamond cell anvil, itself no stranger to creating ultra-hard materials. The pressure in this chamber, which consists of two flat-faced diamonds facing each other, is akin to what you'd find deep inside the Earth. Using this device, they subjected the carbon to pressures up to 112 GPa at 400 degrees Celsius – less than half of what was previously used in an unsuccessful lab experiment – for two hours.

And since the lonsdaleite was so tiny, they almost missed seeing it. David McKenzie, a physics professor at the University of Sydney who was also part of the study, describes it as a little shoulder on the side of a peak. "It didn't mean all that much until we examined it later on in Melbourne and in Canberra – and we realized that it was something very, very different."

As for the applications of this crystal, Bradby says that it is unlikely to find its way onto any engagement ring. "You'll more likely find it on a mining site," she says. "Any time you need a super-hard material to cut something, this new diamond has the potential to do it more easily and more quickly."

You can read the results of their findings in Scientific Reports.

Bradby explains the team's work in the video below.

New diamond harder than ring bling

Source: ANU

Update (Dec. 14, 2016): This article originally said that lonsdaleite was "close to 60 times harder than cubic diamonds." This should have read "close to 60 percent harder." The article has been updated to reflect this. Our apologies for the error.
