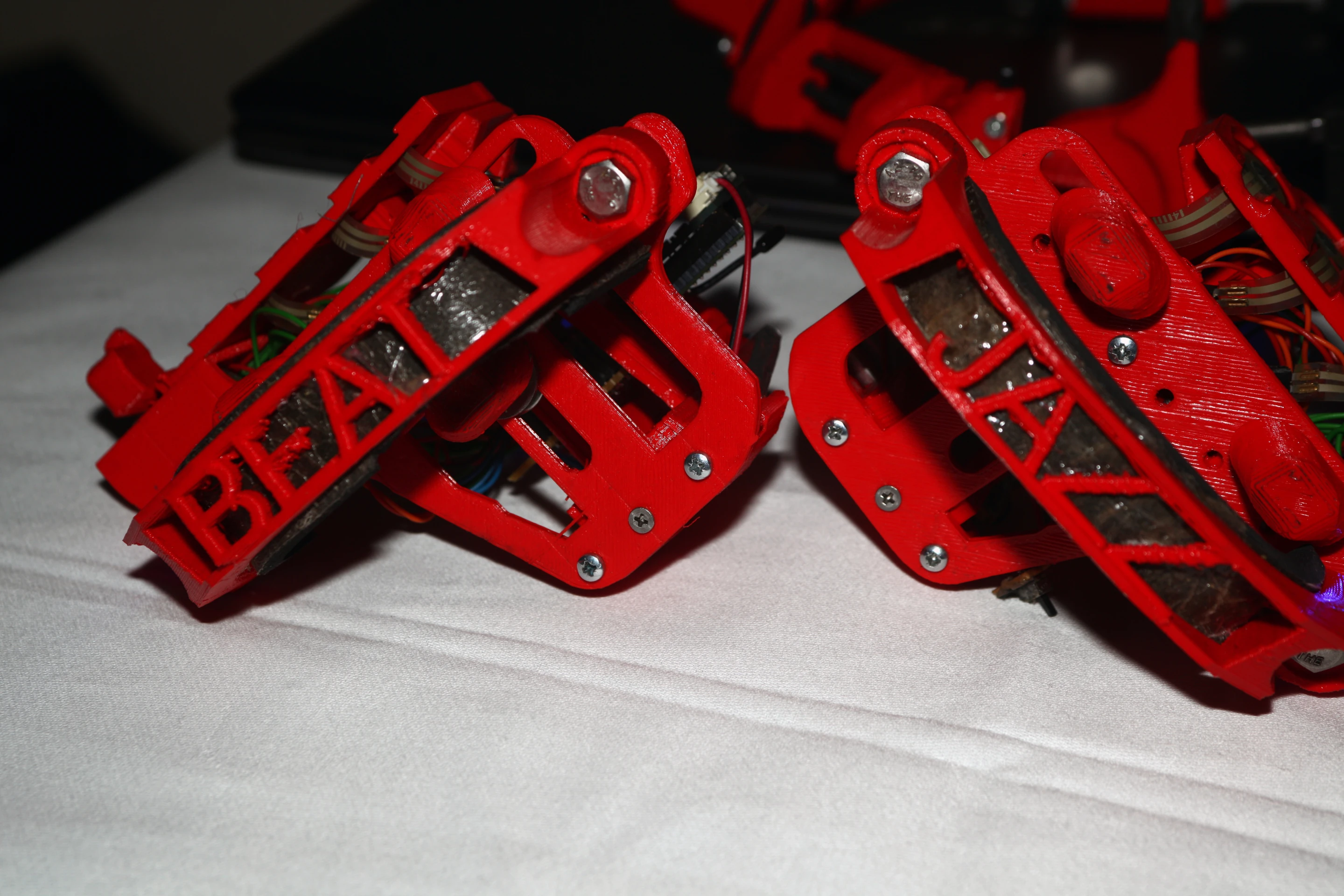

The Beatjazz system's wireless hand controllers are played using modified saxophone fingerings
1/25
The Beatjazz system's wireless hand controllers are played using modified saxophone fingerings
The complete Beatjazz system, three gestural controller interfaces and software built and designed in Pure Data
2/25
The complete Beatjazz system, three gestural controller interfaces and software built and designed in Pure Data

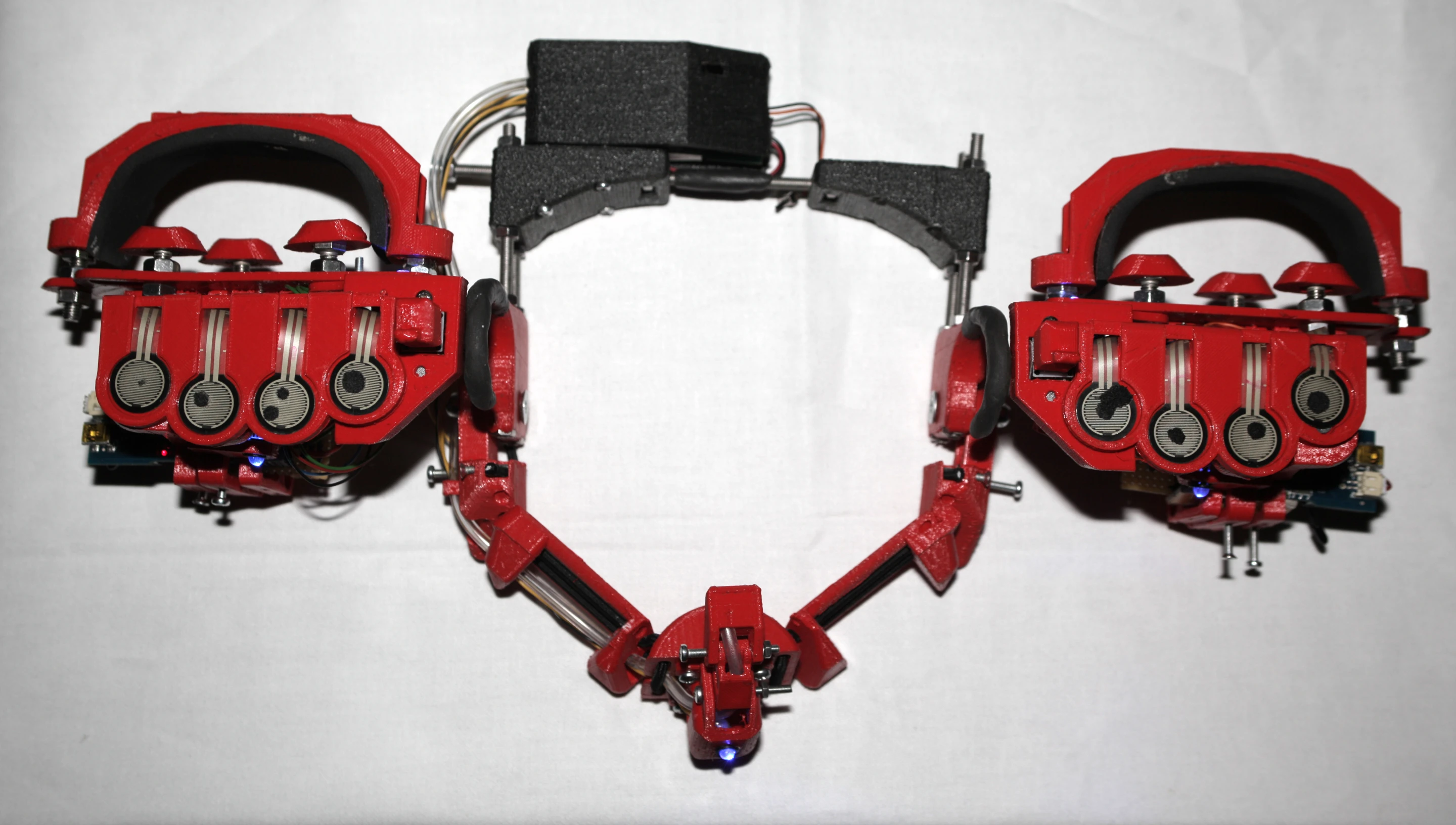

The headmounted pressure weighs about the same as a smartphone
3/25
The headmounted pressure weighs about the same as a smartphone

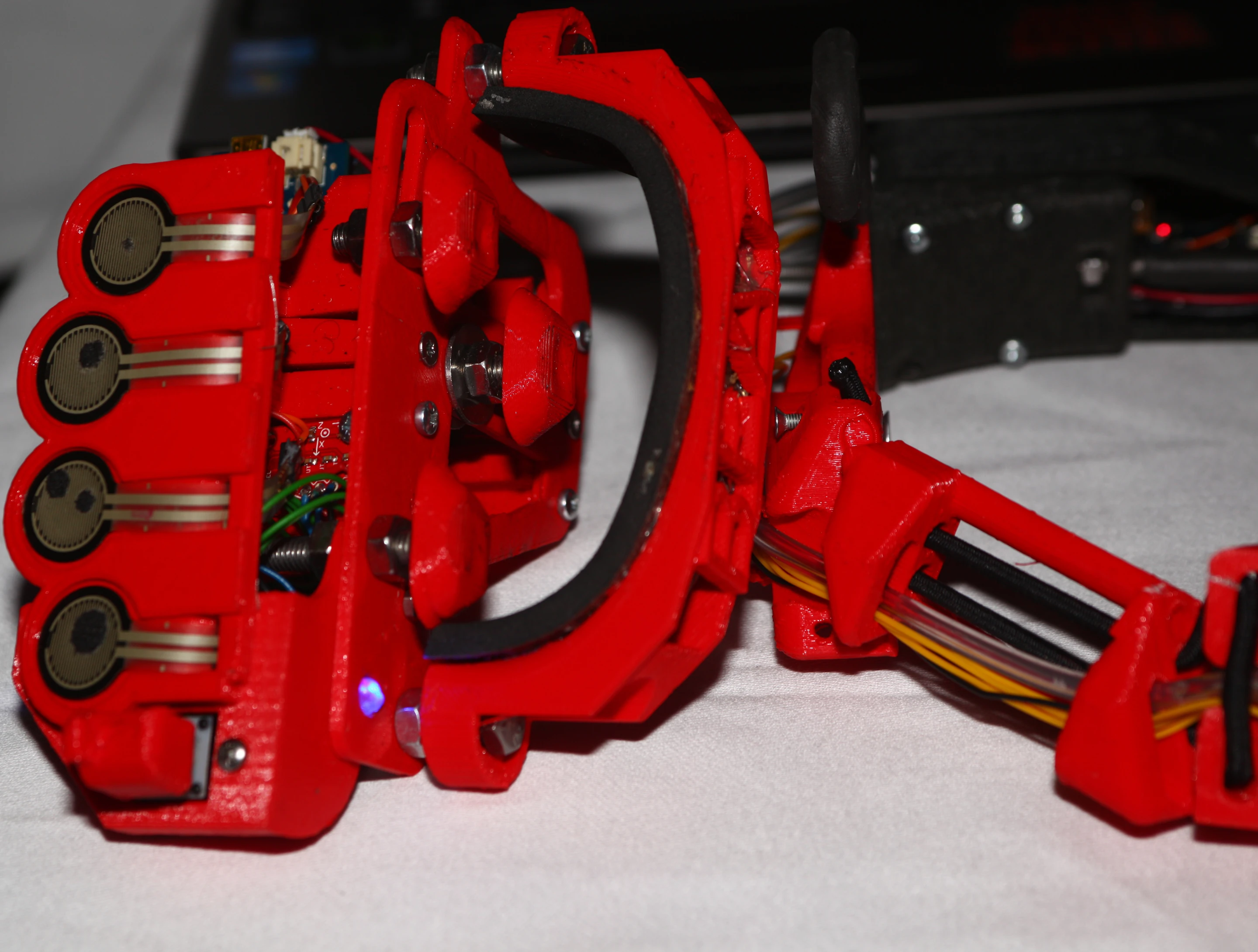

The exposed circuitry of the Emaker Huxley Reprap open-source 3D printer inspired a number of the design choices for the new Beatjazz controller
4/25
The exposed circuitry of the Emaker Huxley Reprap open-source 3D printer inspired a number of the design choices for the new Beatjazz controller

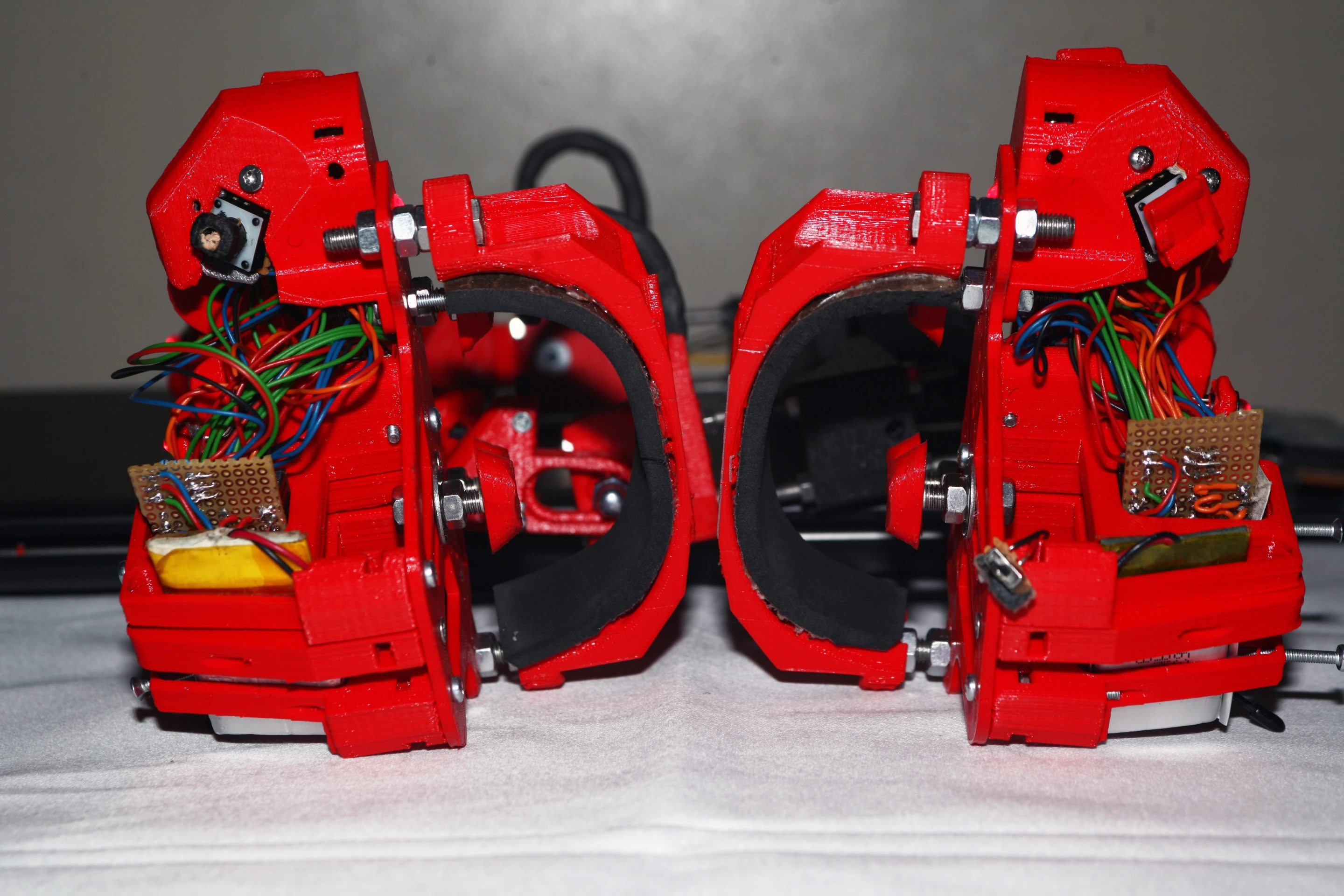

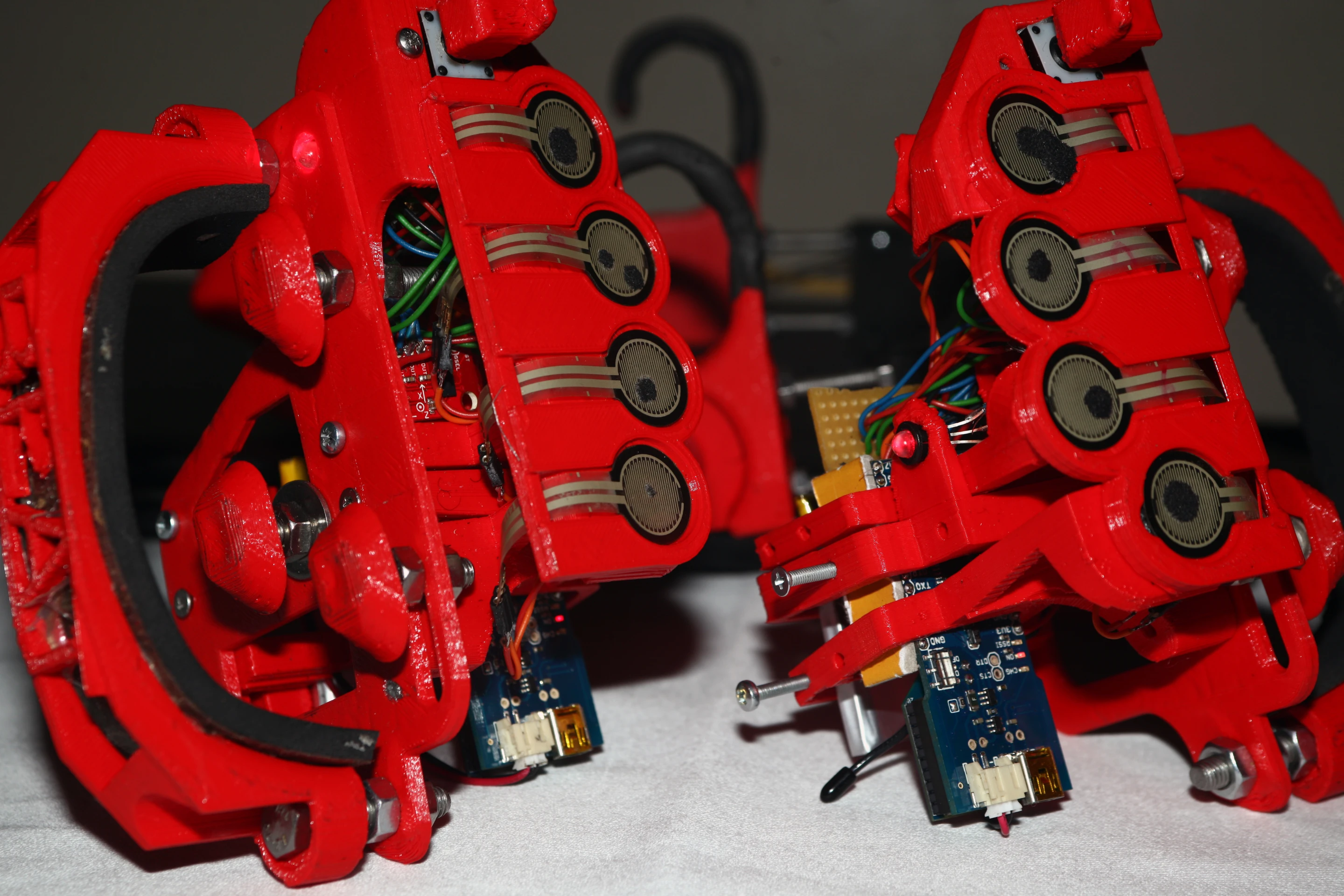

Onyx Ashanti's 3D printed Beatjazz digital music system
5/25
Onyx Ashanti's 3D printed Beatjazz digital music system

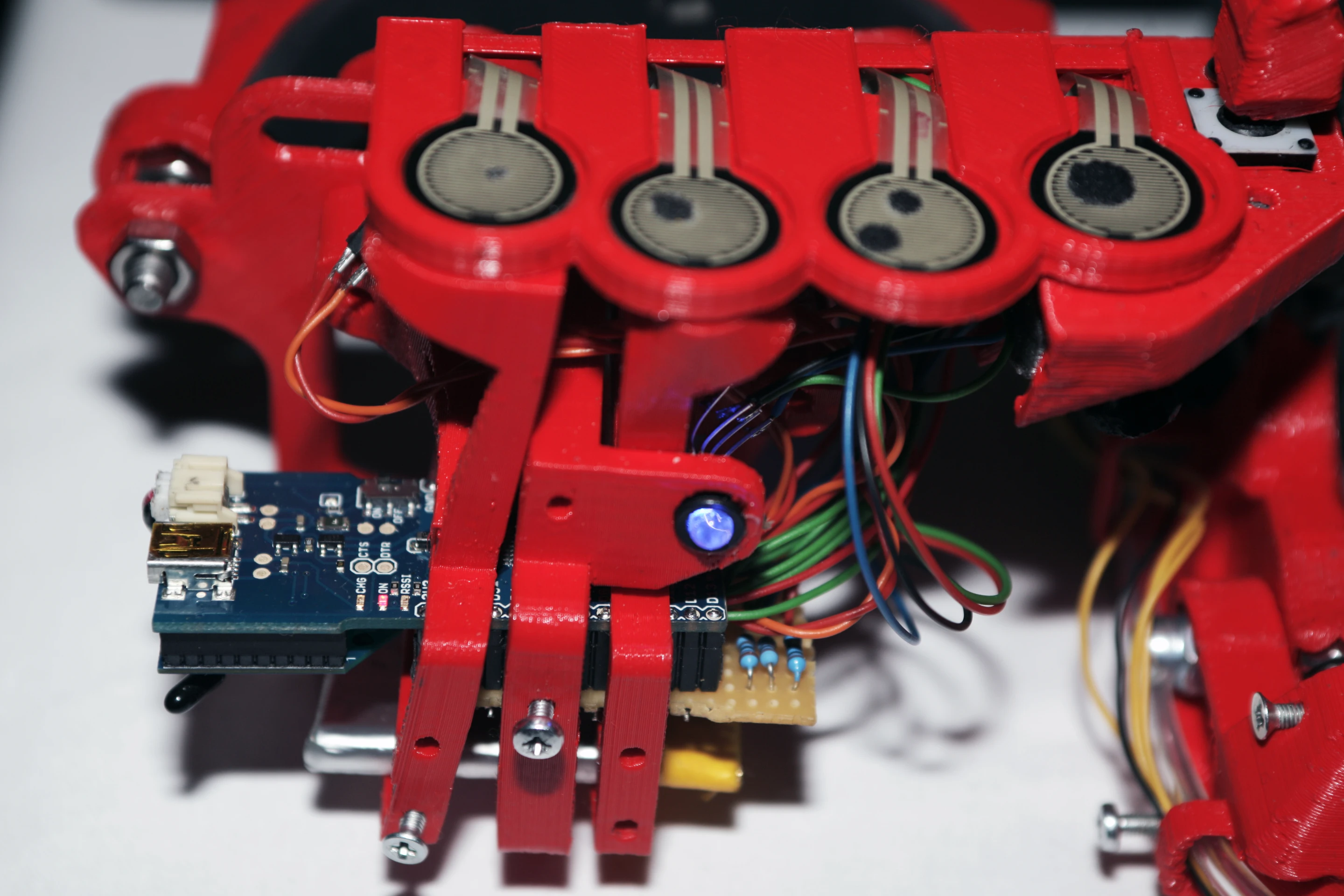

Each of the 3 units uses an Arduino Fio running Firmata to interface with the sensors, and XBee Series 1 wireless transceivers for communication
6/25
Each of the 3 units uses an Arduino Fio running Firmata to interface with the sensors, and XBee Series 1 wireless transceivers for communication
Onyx Ashanti's 3D printed Beatjazz digital music system
7/25
Onyx Ashanti's 3D printed Beatjazz digital music system

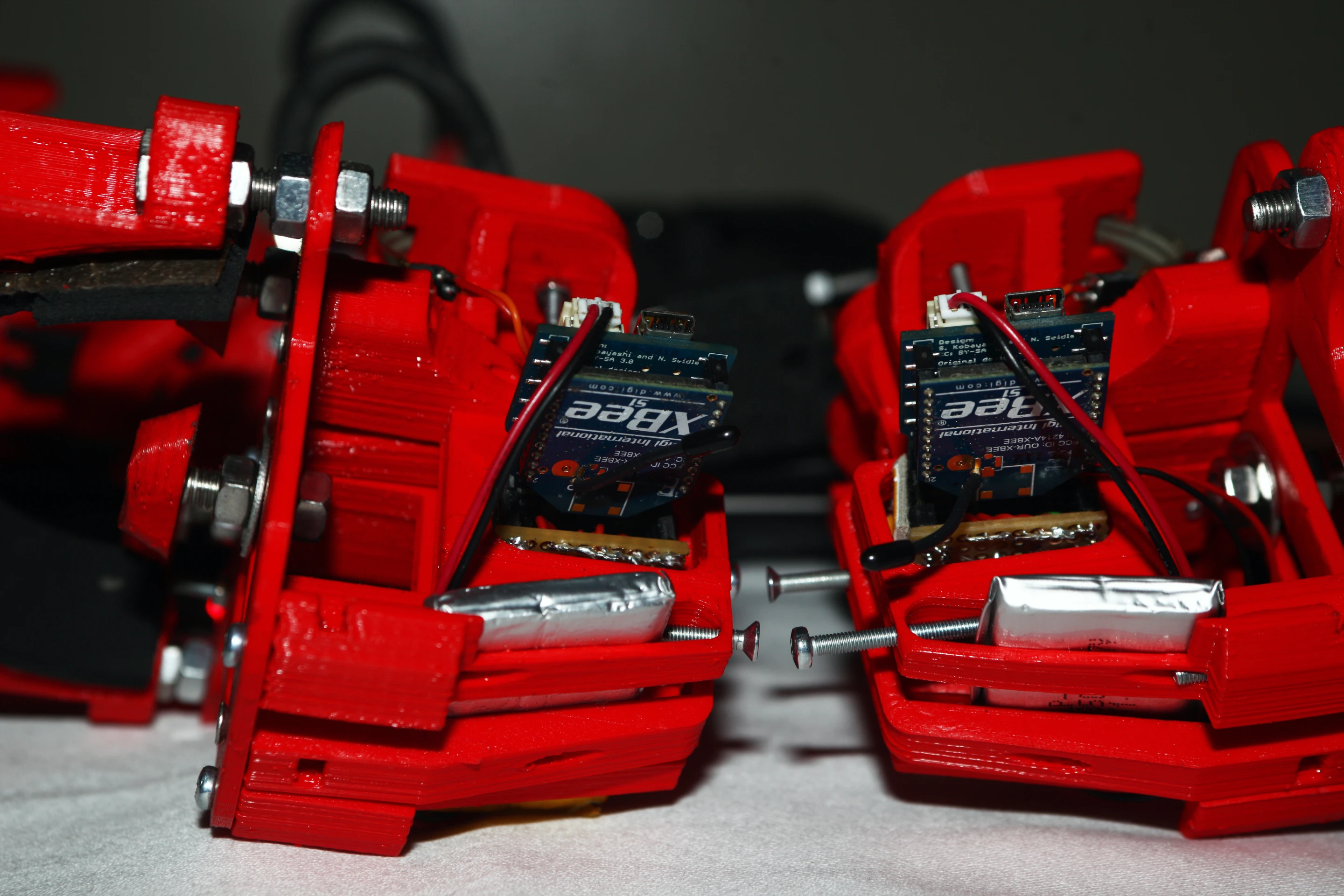

Each unit features 1mW XBee Series 1 wireless transceivers and there are 63mW Series 1 Pros on the base station nodes
8/25
Each unit features 1mW XBee Series 1 wireless transceivers and there are 63mW Series 1 Pros on the base station nodes

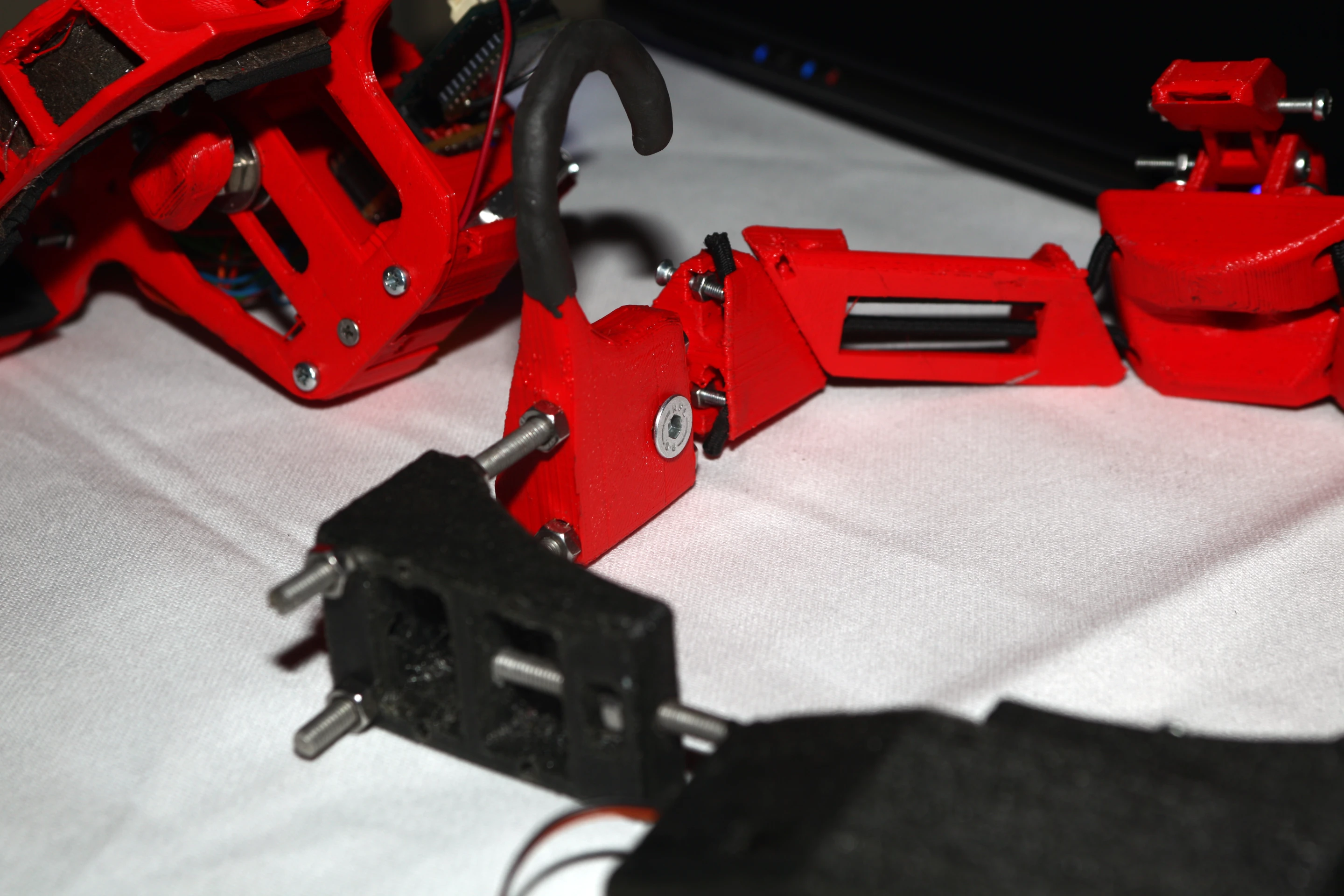

The mouthpiece is worn around the neck and hooked over the ears
9/25
The mouthpiece is worn around the neck and hooked over the ears

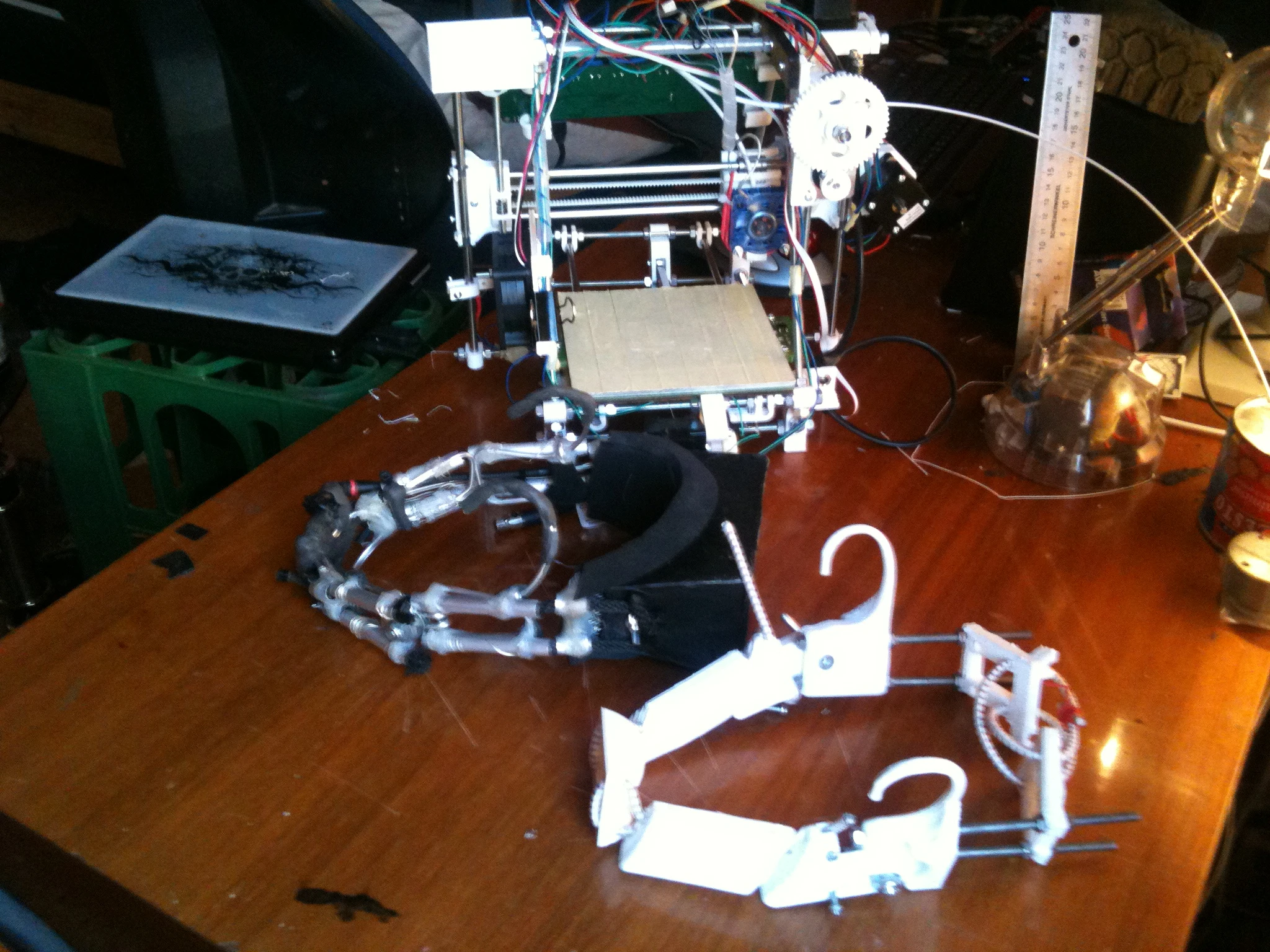

The Emaker Huxley Reprap open source 3D printer with some Beatjazz prototypes
10/25
The Emaker Huxley Reprap open source 3D printer with some Beatjazz prototypes

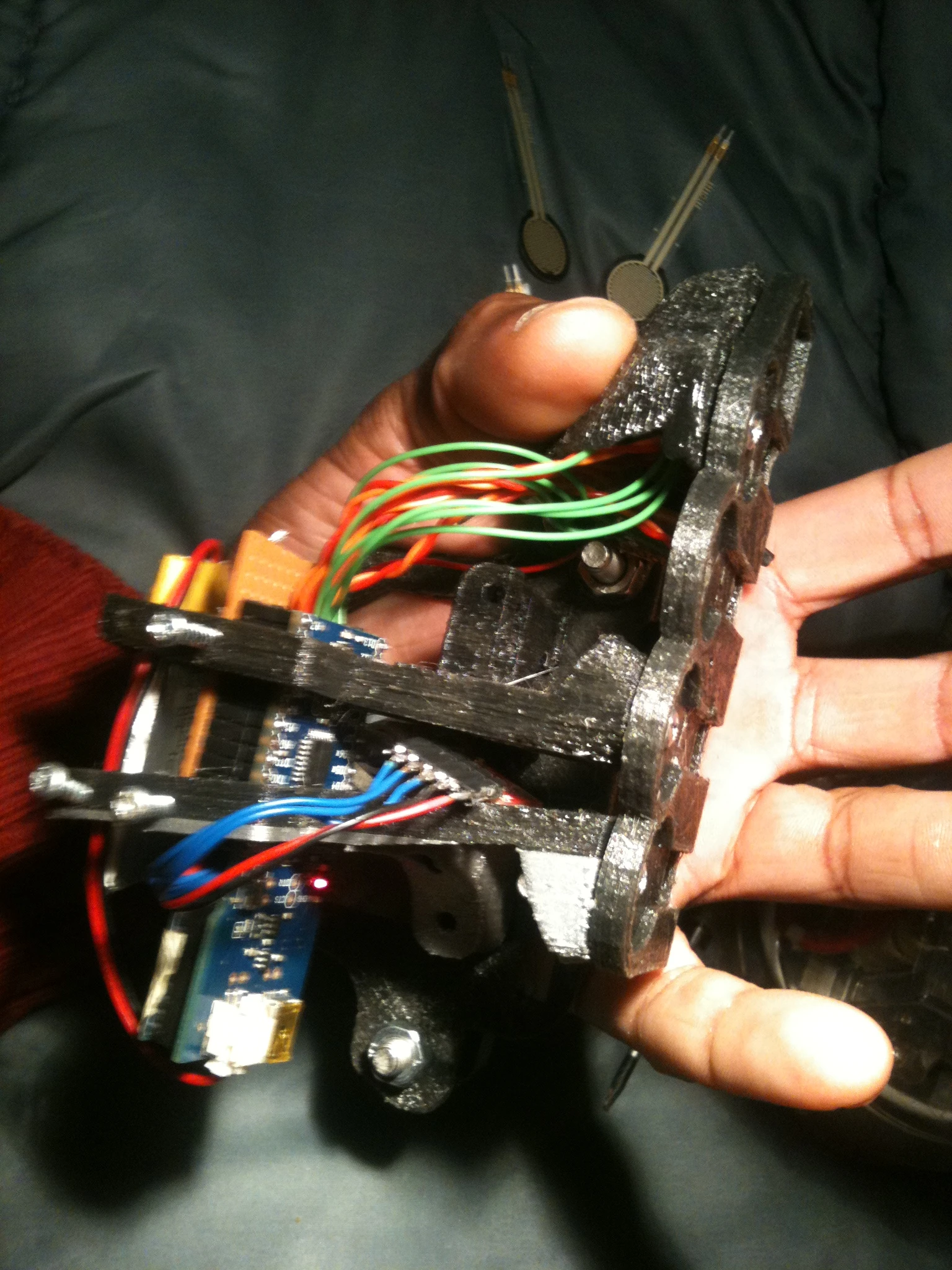

A 3D printed hand controller with beautifully exposed circuitry and wiring
11/25
A 3D printed hand controller with beautifully exposed circuitry and wiring

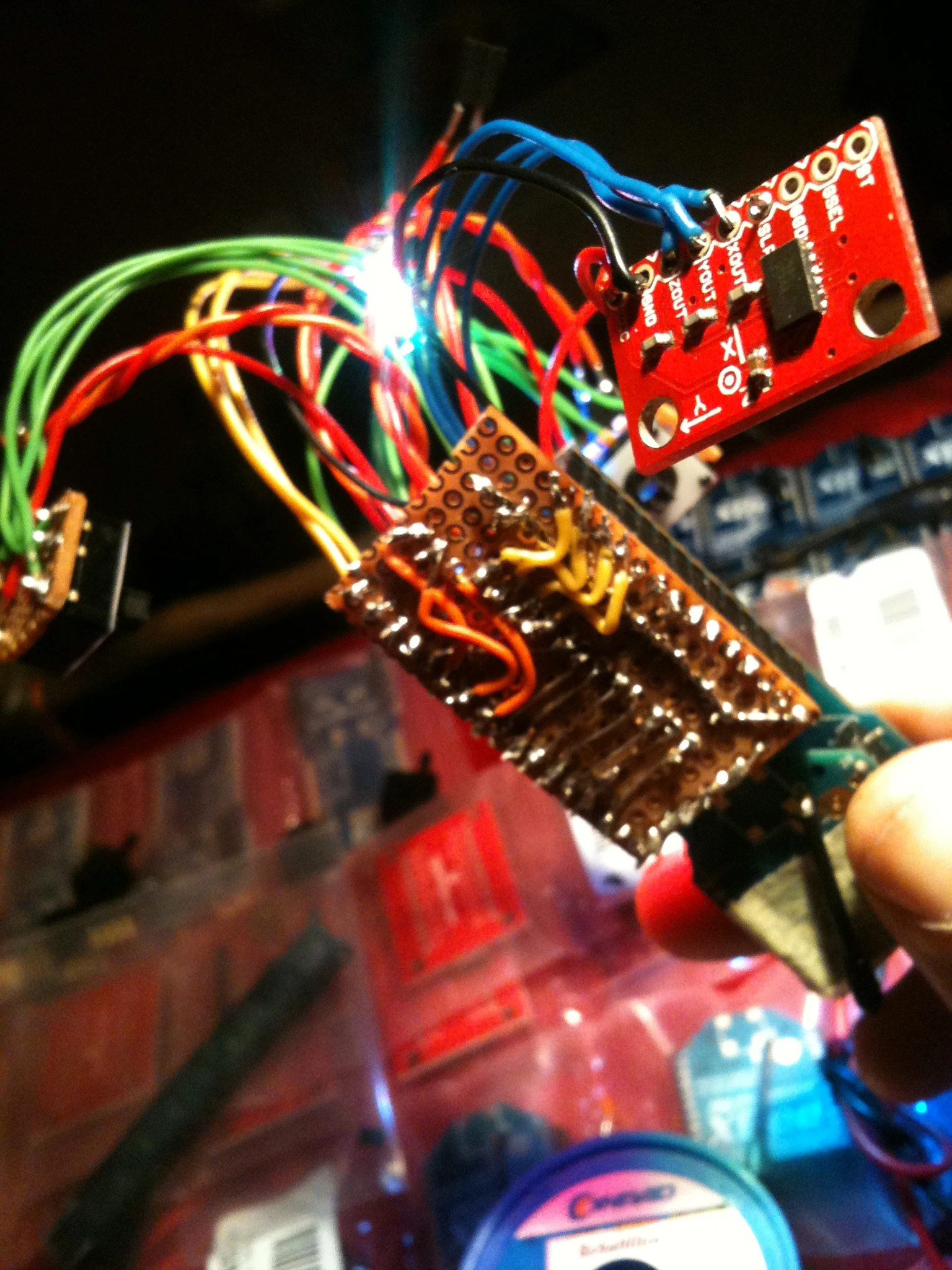

Each of the 3 units uses an Arduino Fio running Firmata to interface with the sensors
12/25
Each of the 3 units uses an Arduino Fio running Firmata to interface with the sensors

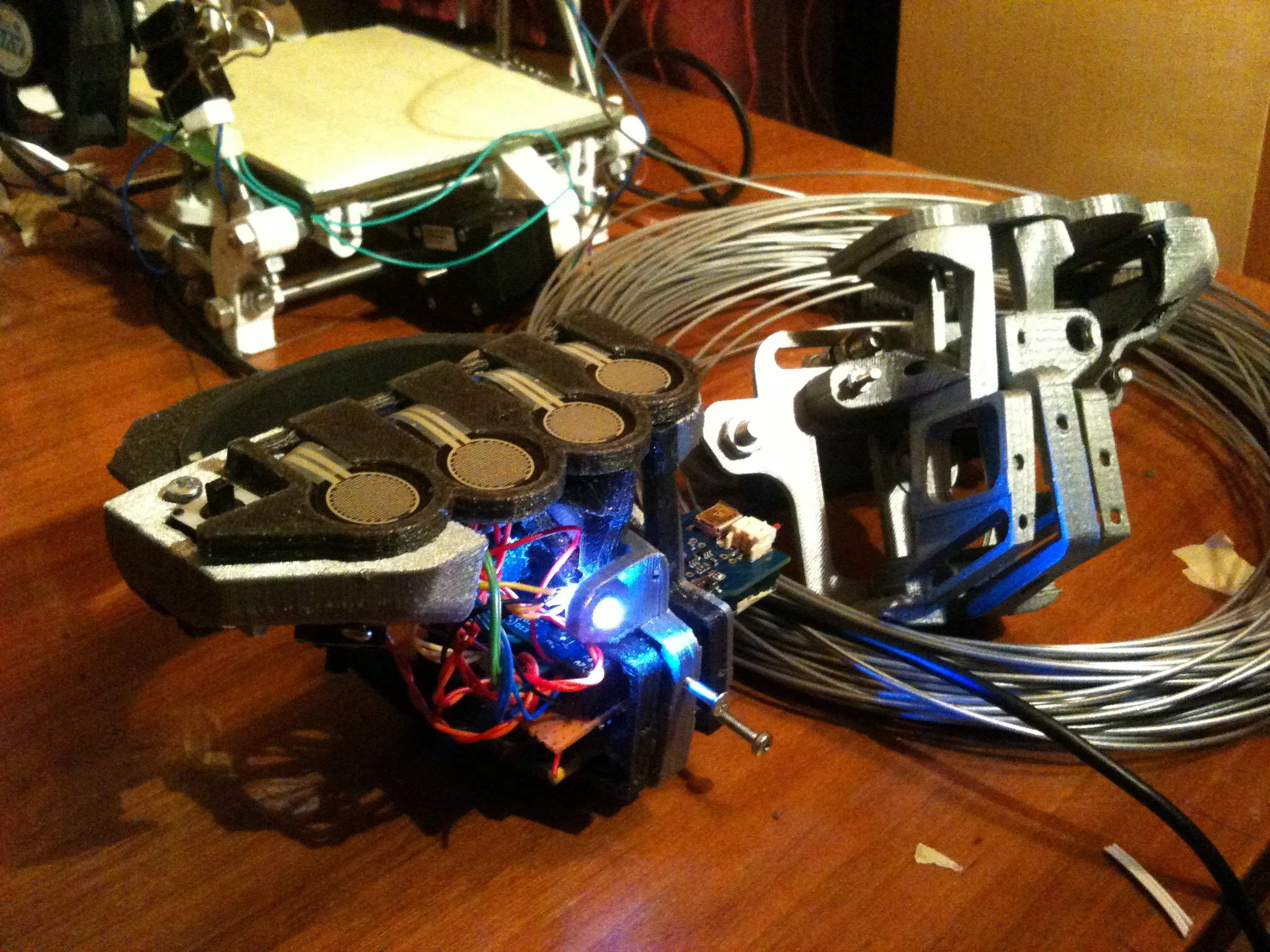

A completed Beatjazz hand controller poses in front of the 3D printer
13/25
A completed Beatjazz hand controller poses in front of the 3D printer

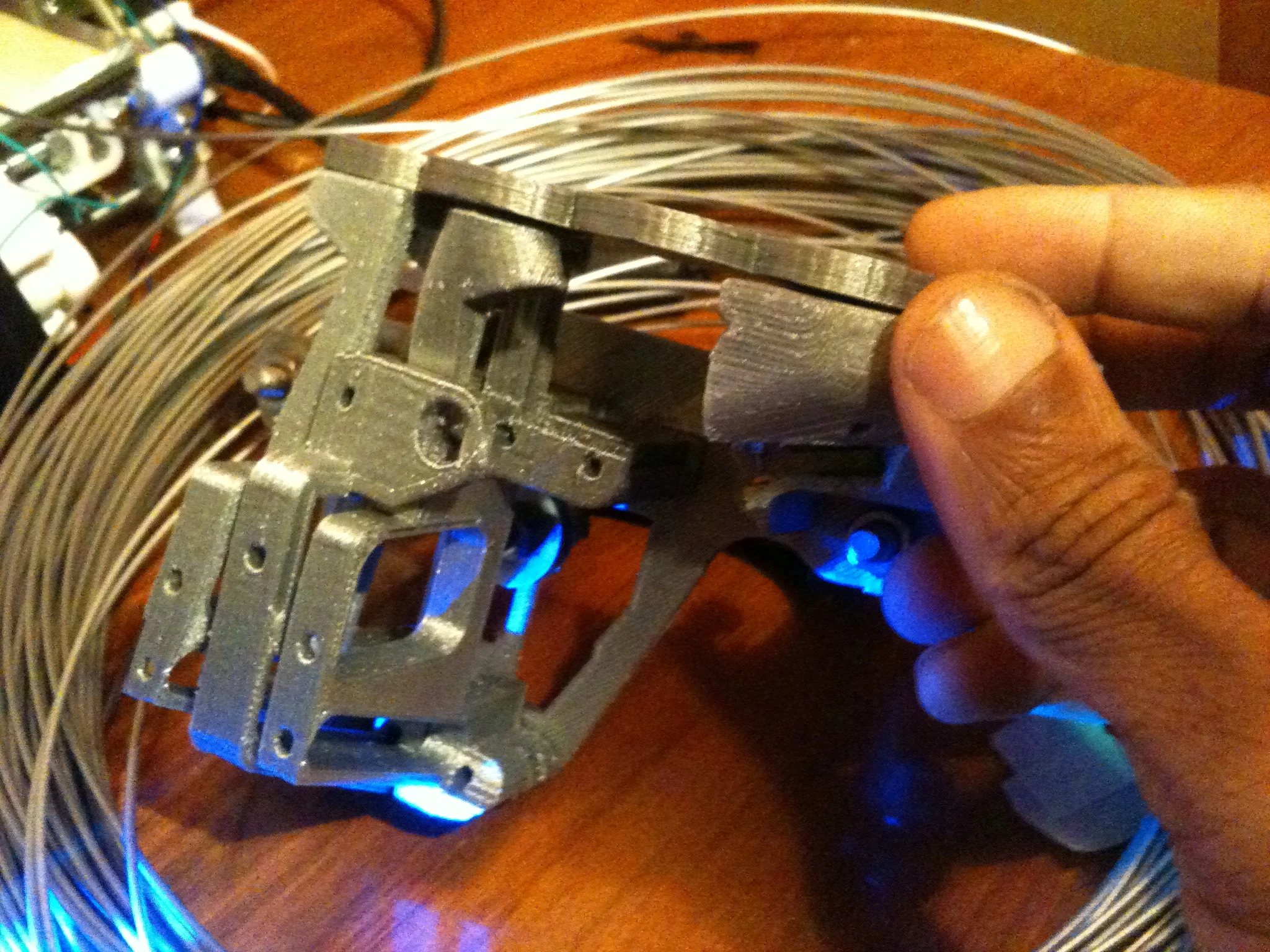

Close up of the hand controller before the circuitry is mounted
14/25
Close up of the hand controller before the circuitry is mounted

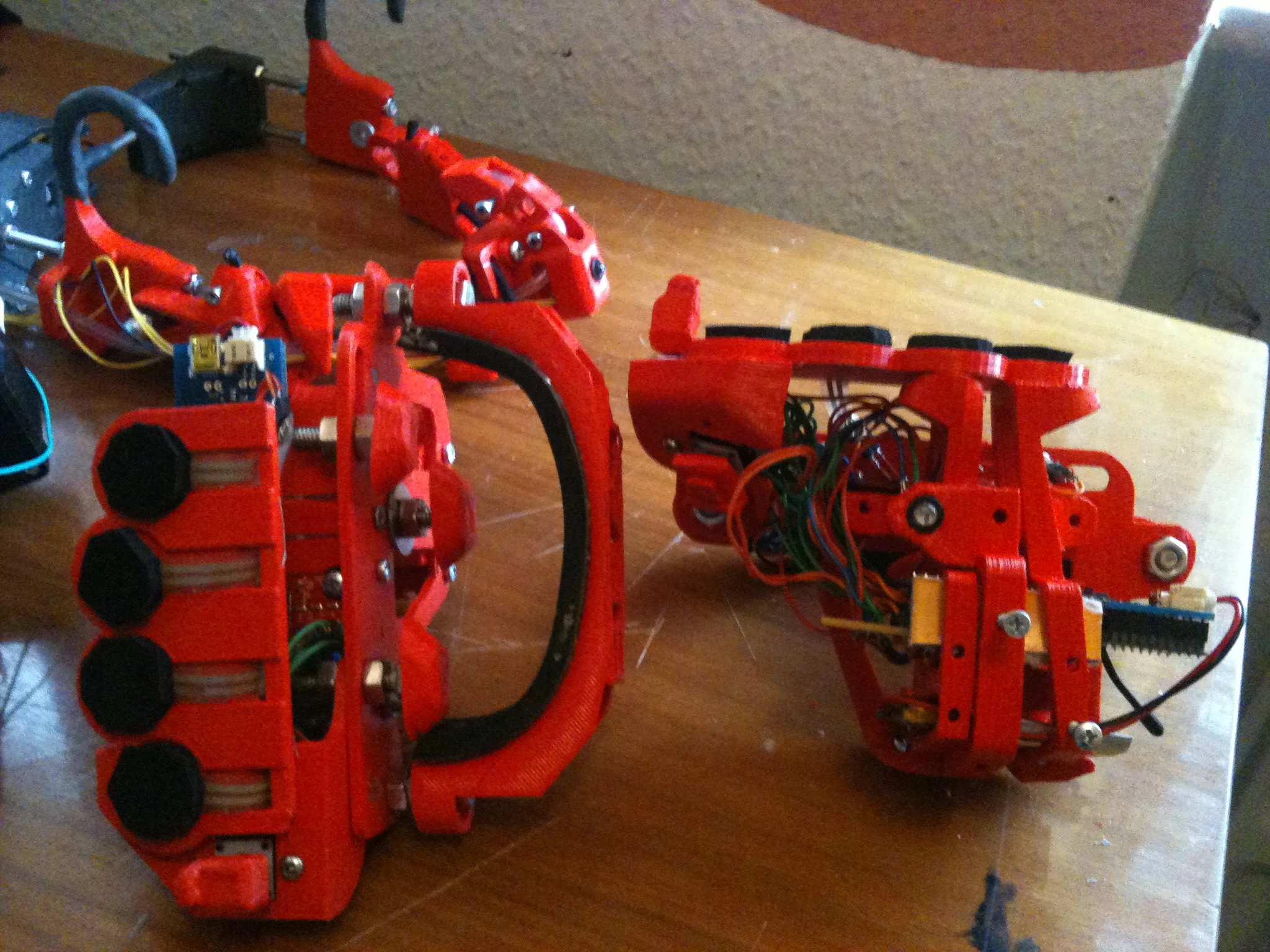

The bright red color is not paint, it is fire red PLA fed into the 3D printer
15/25
The bright red color is not paint, it is fire red PLA fed into the 3D printer
Onyx Ashanti creating some improvised digital music using the Beatjazz system
16/25
Onyx Ashanti creating some improvised digital music using the Beatjazz system
Digital music artist and inventor Onyx Ashanti has created a gestural interface controller for his Beatjazz music system, which is made from 80 percent 3D printed components
17/25
Digital music artist and inventor Onyx Ashanti has created a gestural interface controller for his Beatjazz music system, which is made from 80 percent 3D printed components
Information from sensors on each unit is sent wirelessly to a computer where the Beatjazz system translates the dance-like movements and controller commands into digital music output
18/25
Information from sensors on each unit is sent wirelessly to a computer where the Beatjazz system translates the dance-like movements and controller commands into digital music output

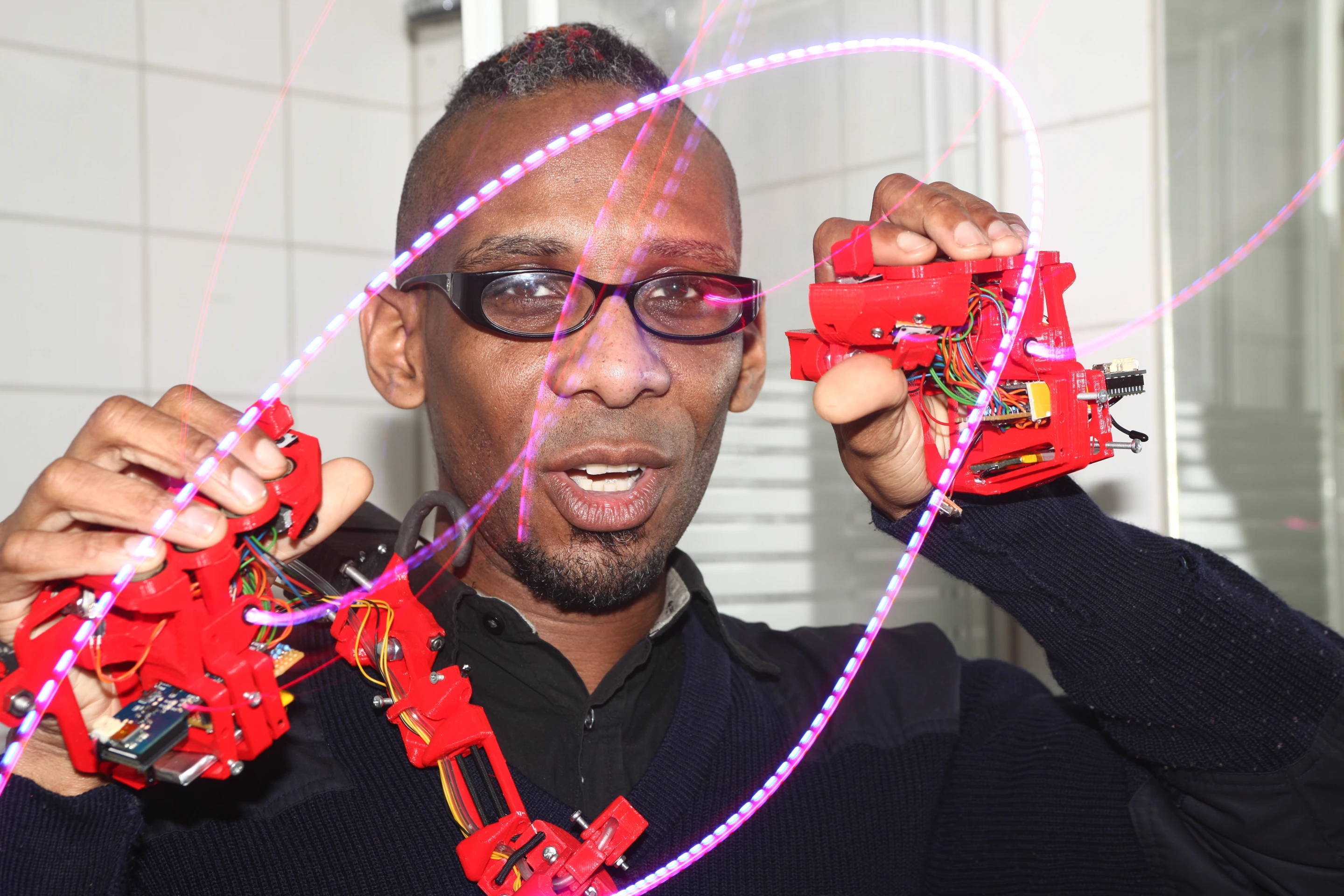

Onyx Ashanti says that around 80 percent of the new controller is 3D printed, making it both durable and lightweight
19/25
Onyx Ashanti says that around 80 percent of the new controller is 3D printed, making it both durable and lightweight

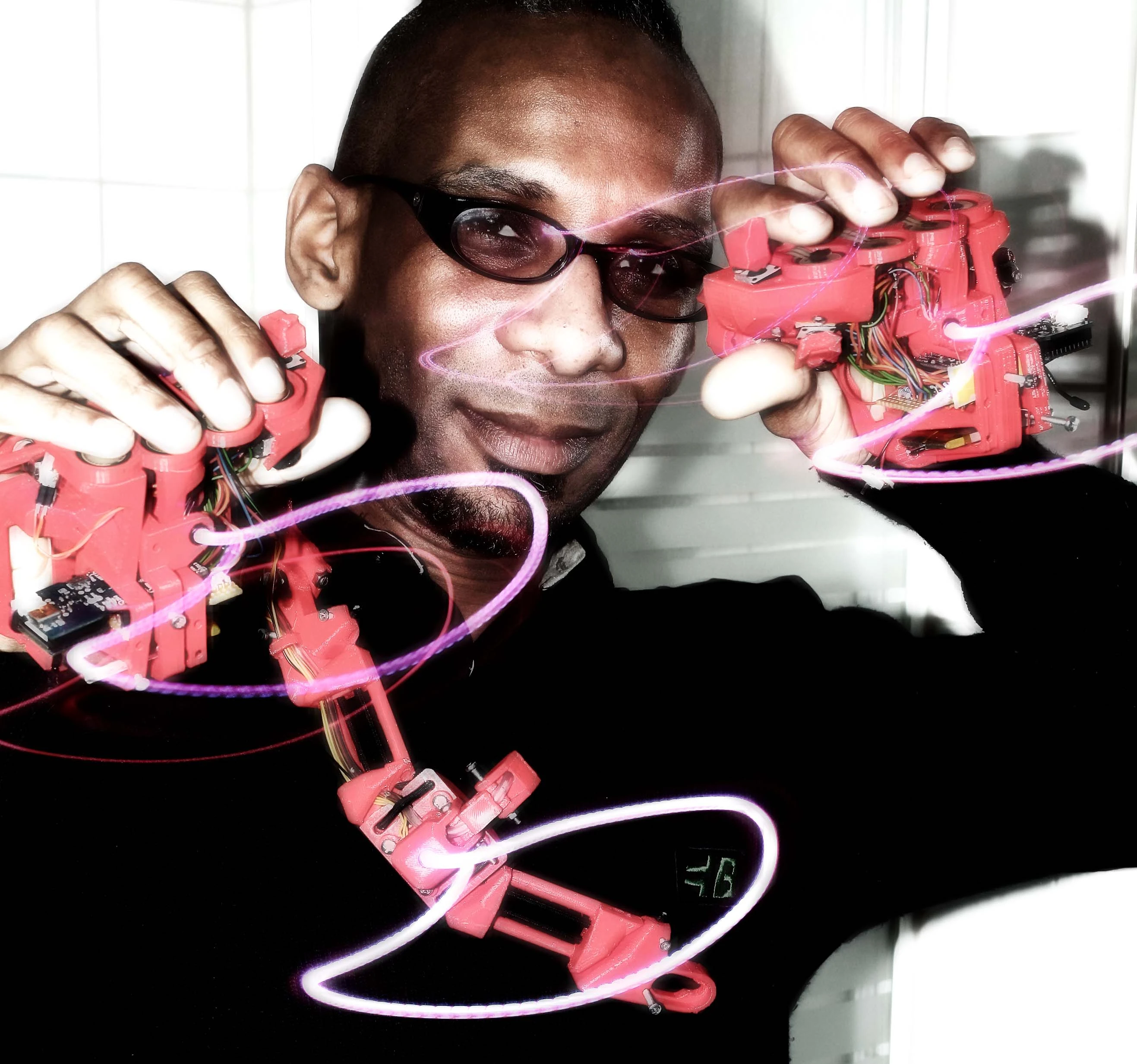

Onyx Ashanti's Beatjazz gestural music interface
20/25
Onyx Ashanti's Beatjazz gestural music interface
Onyx Ashanti creating some improvised digital music using the Beatjazz system
21/25
Onyx Ashanti creating some improvised digital music using the Beatjazz system
Yes, he does look like he's been assimilated by the Borg but that kind of fits the music, doesn't it?
22/25
Yes, he does look like he's been assimilated by the Borg but that kind of fits the music, doesn't it?
Onyx Ashanti creating some improvised digital music using the Beatjazz system
23/25
Onyx Ashanti creating some improvised digital music using the Beatjazz system

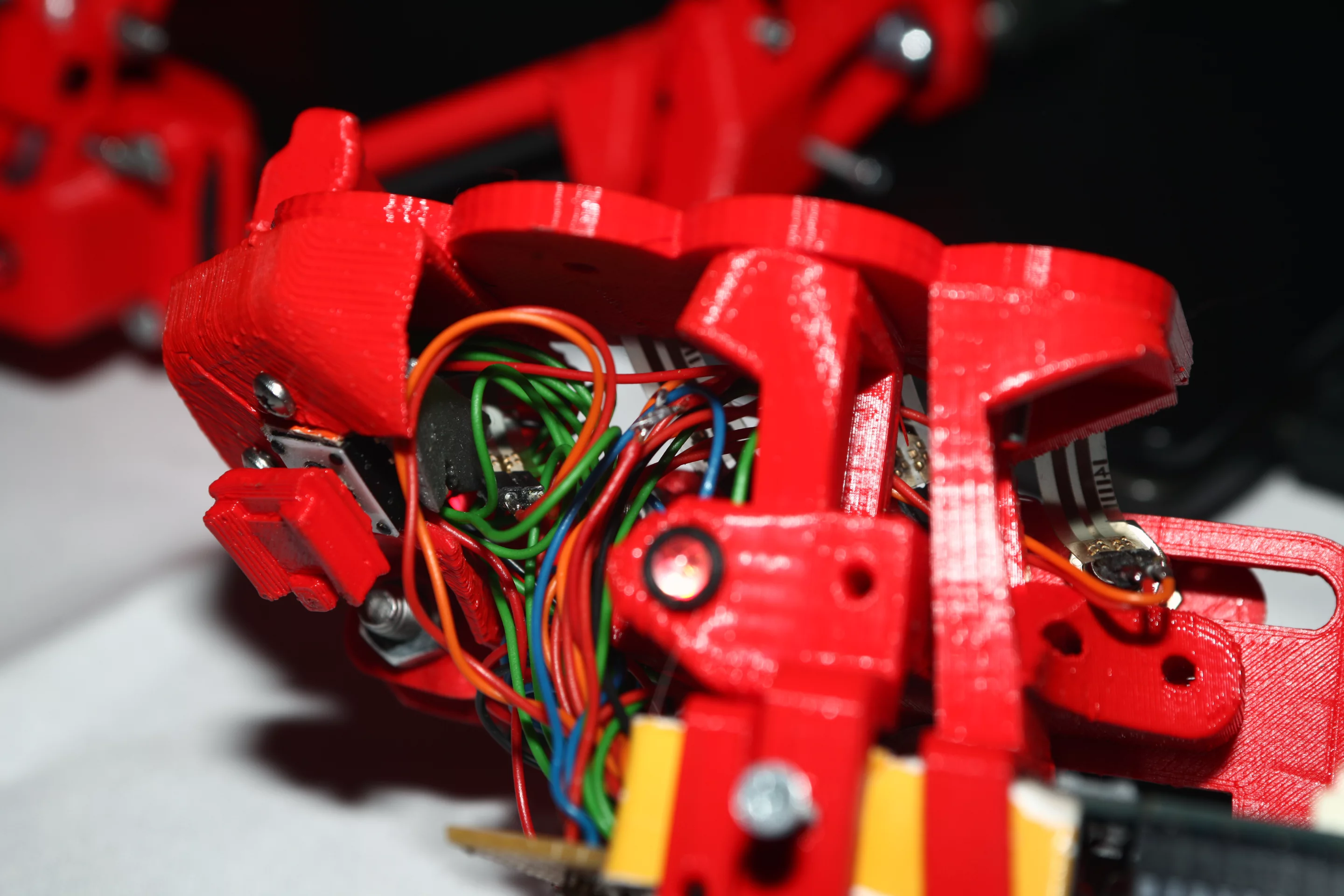

Close up of a red Beatjazz hand controller after the circuitry has been mounted
24/25
Close up of a red Beatjazz hand controller after the circuitry has been mounted

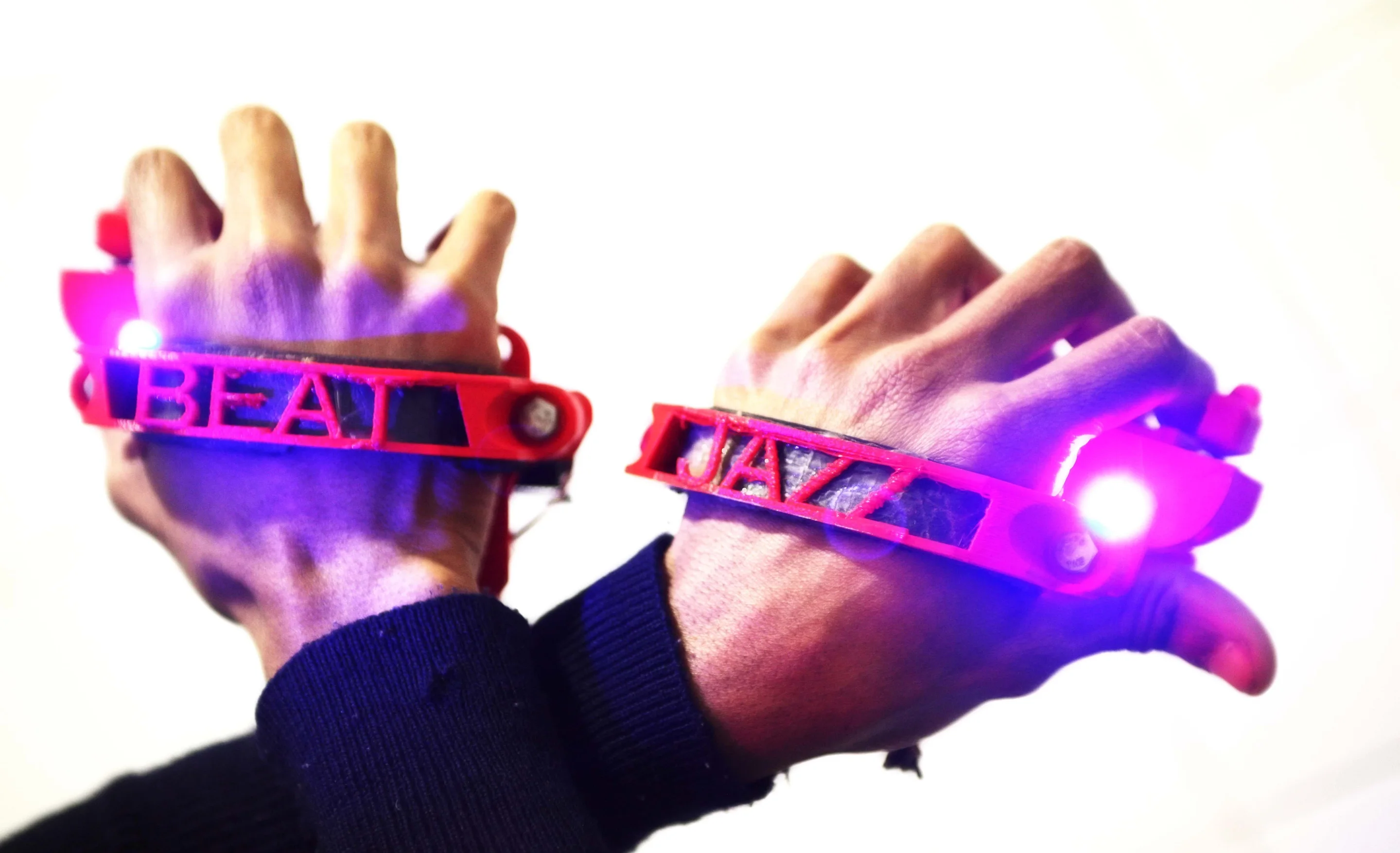

There's no mistaking the name of this system
25/25
There's no mistaking the name of this system

A few days ago, my colleague Eric Mack brought together eight of the coolest items produced by 3D printing - I'd now like to add a ninth. Digital music artist and inventor Onyx Ashanti has spent the last couple of years creating a wearable system to help him break away from the confines of the front of a computer screen and create improvised music using wireless gestural interface controllers. His original prototype Beatjazz controller was made from cardboard and featured pressure sensors, accelerometers and an iPhone. The vast majority of the latest version has been 3D printed, and it looks and sounds incredible.

Ashanti - who currently lives and works in Berlin, Germany - told us that he's been playing digital music for almost 20 years, has spent three years on tour with Soul II Soul and played on the award-winning Basement Jaxx album Kish Kash. He calls his music Beatjazz, which is inspired by the flow of music in DJ sets and described as the creation of continuous live, improvised digital music. He told us that the music results from interaction with an array of software synthesizers, each played one at a time, recorded into a buffer and then looped. The process is repeated until an on-the-fly sonic orchestra is created. The player can add effects, add or remove existing loops, or throw in some new ones when the mood dictates. Beatjazz also caters for gestural control over synths, effects and loops.

The Emaker Huxley Reprap open source 3D printer with some Beatjazz prototypes
The Emaker Huxley Reprap open source 3D printer with some Beatjazz prototypes

The software side of the system is built and designed in Pure Data, and is interfaced using a hardware controller. Ashanti says that he developed his Beatjazz control interface because he had reached the limits of what he could achieve using a midi wind controller. He also admits to being somewhat frustrated - and even a little bored - by using an interface built to resemble its real-world counterpart or always having to stay in the same spot while looking at a computer monitor to create or record music.

"I couldn't understand why I had to hold my hands and head in this configuration when a digital instrument doesn't need an acoustic tube to make its sound," he explained.

He was struck by the idea that breaking down the controller into separate mouthpiece and handheld key units would allow him more freedom of movement when controlling the Beatjazz system. The control interface developed by Ashanti is a three-way wireless network made up of a head-mounted pressure sensor and two hand units, the latter each sporting four pressure-sensitive pads, two joysticks and an accelerometer. The instrument is played using modified saxophone fingerings and exhaled breath registered on a sensor. The multi-color LED lighting is not just for effect, as each color represents a different sound being produced.

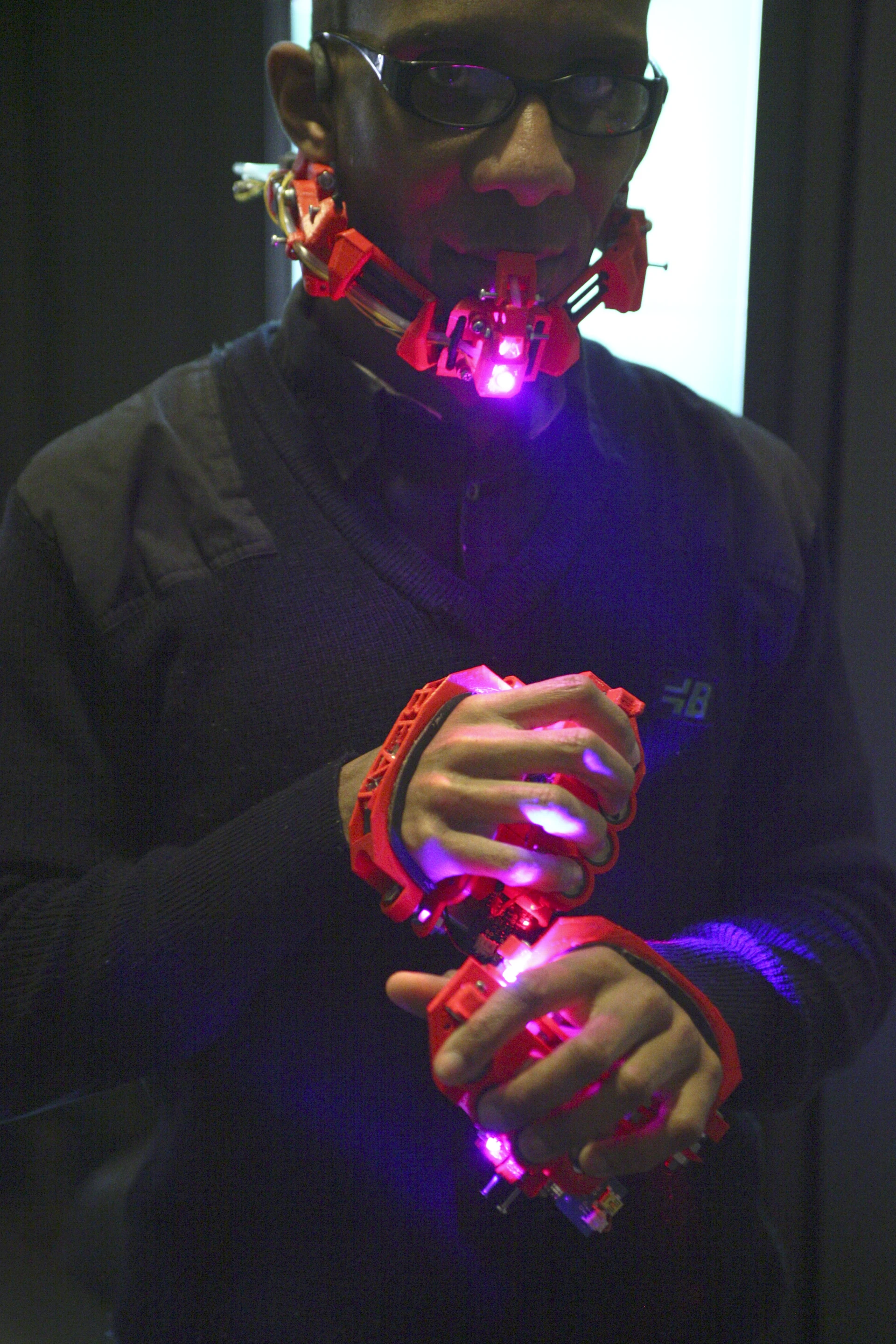

Yes, he does look like he's been assimilated by the Borg but that kind of fits the music, doesn't it?
Yes, he does look like he's been assimilated by the Borg but that kind of fits the music, doesn't it?

"Each of the three units uses an Arduino Fio running Firmata to interface with the sensors, and XBee Series 1 wireless transceivers for communication - with 1mW transceivers on the interface nodes and 63mW Series 1 Pros on the base station nodes," Ashanti told us. "This allows for strong signal on the base station side and reasonable power consumption on the interface side."

Information from sensors on each unit is sent wirelessly to a computer, where the Beatjazz system translates the dance-like movements and controller commands into digital music output.

Onyx Ashanti: This is beatjazz

Full build plans, files and schematics for the early prototype also made it into Volume 28 of MAKE magazine.

Plans to build a better prototype from carbon fiber were abruptly changed when he was introduced to 3D printing in September of last year at the Maker Faire in New York. Fashioning build components by hand can result in finished products that look hand-made, whereas professional-looking designs can be achieved using software on a computer and a 3D printer. Another crowdfunding appeal provided Ashanti with the funds to buy an Emaker Huxley Reprap open-source 3D printer that was also being crowdfunded at the time. The unit's exposed circuitry inspired a number of the design choices for the new Beatjazz controller.

The remainder of 2011 was spent teaching himself to use CAD software ahead of designing and refining the files to be sent to the printer. Ashanti says that around 80 percent of the new controller is 3D printed, making it both durable and lightweight - the headset is said to weigh about the same as an iPhone.

"The freedom of 3D printing is that when I want to evolve some aspect of the interface, I have only to redesign the part and print it," he said. "The ability to create something at home that is cooler than what you get from a big company is going to change the world. On top of that, I use a plastic called PLA (Polylactic Acid), which is plant-derived and bio-degradable, so it's non-toxic (which is great since the printer is right next to my computer)."

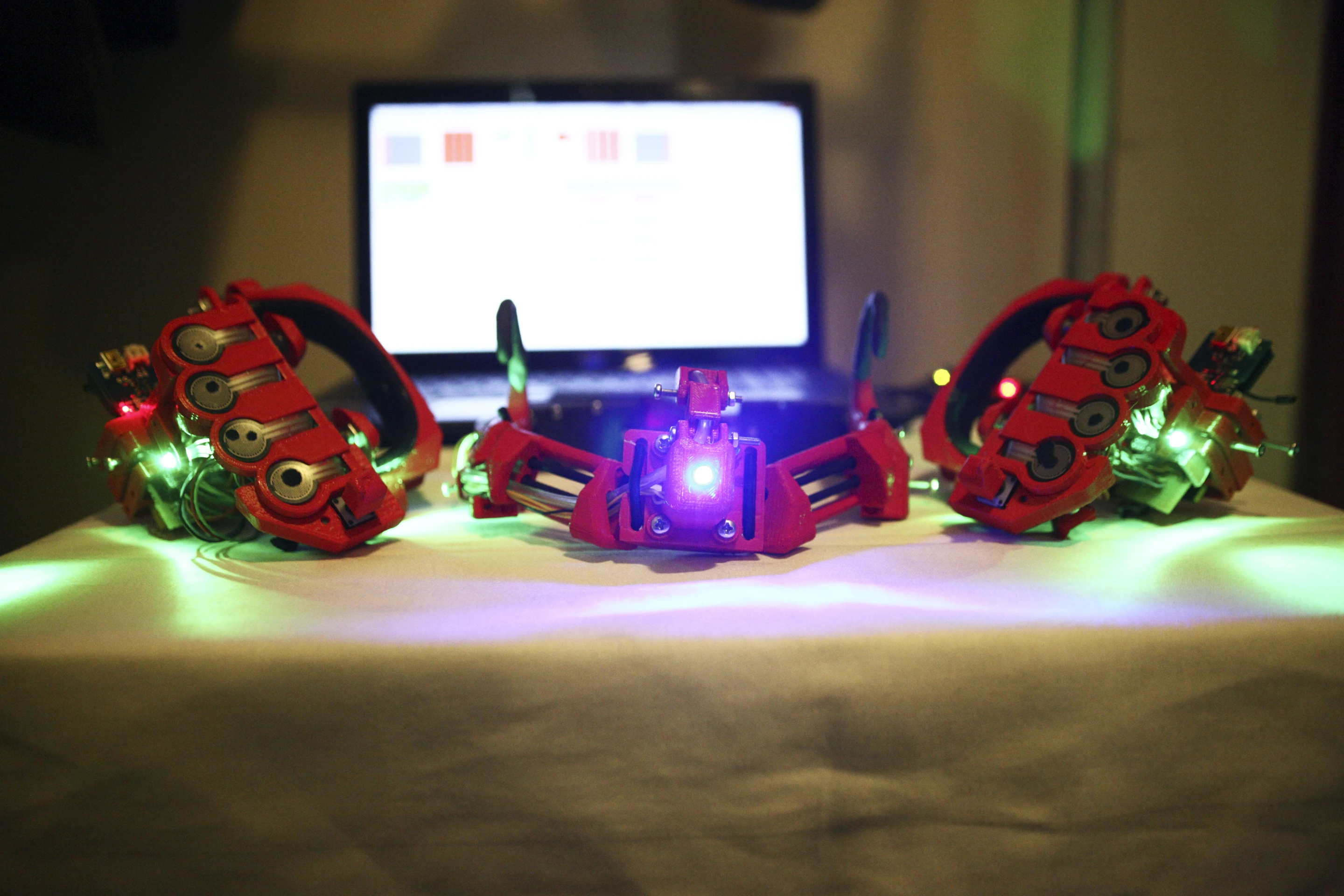

The complete Beatjazz system, three gestural controller interfaces and software built and designed in Pure Data
The complete Beatjazz system, three gestural controller interfaces and software built and designed in Pure Data

"My primary goal is to be able to express myself as fully as possible," he continued. "I want to play the music I hear in my head how and when I hear it. My secondary goal is to share it as an open source project. Once I finish developing the gestural system software, I want to make the whole system downloadable."

"The first iterations will be strictly geek-only but considering that I taught myself most of what I needed to create this system in the last year, it's not unreasonable for anyone with determination to build one. The main things to know would be the software environment, built in Pure Data, a bit of basic electronics, and flute or saxophone fingering. I plan to produce a complete tutorial system so that anyone can go from building it to playing it."

The Beatjazz system is very much a constantly evolving work, and experimentation with the main controller interface will continue. He hopes that the open-source nature of the project will serve to encourage others to take up Beatjazz themselves. Ashanti also shared some other project goals with Gizmag, including a desire to enable physically-challenged musicians to create sophisticated live music using sensors as interface points.

Ashanti has produced the following video of the new 3D printed Beatjazz system in action. Yes, he does look like he's been assimilated by the Borg but that kind of fits the music, doesn't it?

3d printed beatjazz controller debut @ LIVE LYRICS AND BEATJAZZ(berlin 2.2012)

All photos courtesy of Onyx Ashanti and Darren Holliday

Sources: Onyx Ashanti, MAKE Volume 28, and TED
