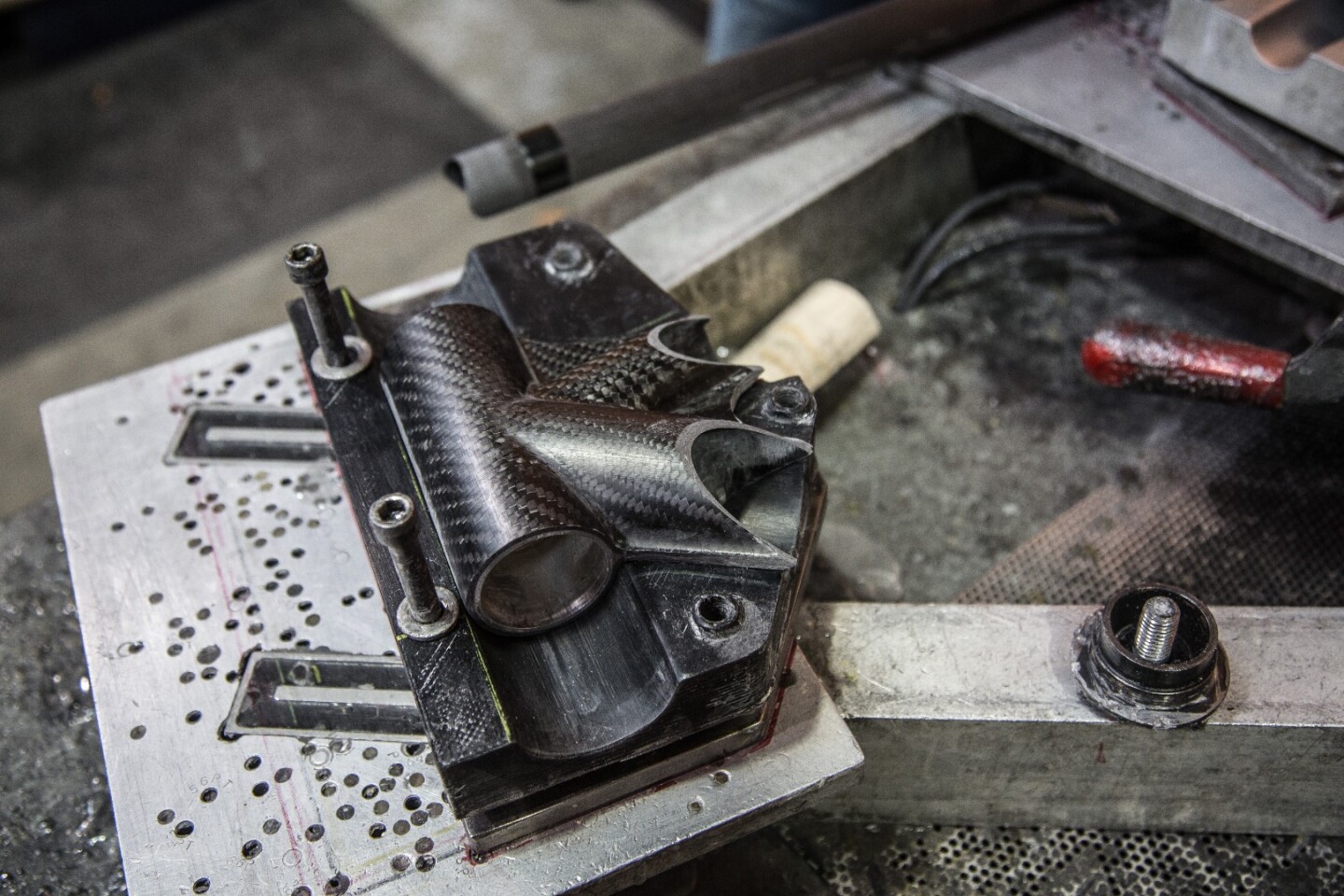

Craig Calfee shows Gizmag the jigs he uses to shape his complex carbon fiber frame lugs
3/27
Craig Calfee shows Gizmag the jigs he uses to shape his complex carbon fiber frame lugs
Calfee has now made so many custom cycle frames that he's got pre-built jigs for just about any geometry. Where he doesn't have one already, he's able to rapidly build new ones on a 3D printer
4/27
Calfee has now made so many custom cycle frames that he's got pre-built jigs for just about any geometry. Where he doesn't have one already, he's able to rapidly build new ones on a 3D printer
The Calfee Design workshop on the Santa Cruz coastline is a wonderland of extraordinary cycles, futuristic thinking and carbon fiber wizardry
5/27
The Calfee Design workshop on the Santa Cruz coastline is a wonderland of extraordinary cycles, futuristic thinking and carbon fiber wizardry
Craig Calfee with a do-it-yourself frame made by a young associate using Calfee materials and instructions
6/27
Craig Calfee with a do-it-yourself frame made by a young associate using Calfee materials and instructions
Craig Calfee with a do-it-yourself frame made by a young associate using Calfee materials and instructions
7/27
Craig Calfee with a do-it-yourself frame made by a young associate using Calfee materials and instructions
The urethane-based wrap material in Calfee's DIY kits hardens in some 10 minutes to provide extremely strong lug joints
8/27
The urethane-based wrap material in Calfee's DIY kits hardens in some 10 minutes to provide extremely strong lug joints
Pre-cut bamboo tubes ship with the Calfee DIY kits
9/27
Pre-cut bamboo tubes ship with the Calfee DIY kits
This is an integrated front rack, which is carbon fiber and laminated to the fork
10/27
This is an integrated front rack, which is carbon fiber and laminated to the fork
"This is probably the newest thing you’ll see in the bike world for a while. This is a special technique we recently developed [to make any shape in carbon]. We pull wet carbon fiber through a vinyl tube with a needle, then you can shape it as you like. We can do carbon bottle cages, too."
11/27
"This is probably the newest thing you’ll see in the bike world for a while. This is a special technique we recently developed [to make any shape in carbon]. We pull wet carbon fiber through a vinyl tube with a needle, then you can shape it as you like. We can do carbon bottle cages, too."
Calfee's tandem bikes are known as being some of the world's best
12/27
Calfee's tandem bikes are known as being some of the world's best
Tiny rear suspension unit on the Adventure version of the Clafee Manta
13/27
Tiny rear suspension unit on the Adventure version of the Clafee Manta
Calfee cycle with a single-sided front fork and a Douglas Fir frame
14/27
Calfee cycle with a single-sided front fork and a Douglas Fir frame
The Adventure version of the Calfee Manta
15/27
The Adventure version of the Calfee Manta
Inventor and flying car proponent Dezso Molnar, with EV wizard and lithium battery specialist Luke Workman and Craig Calfee at the Calfee Design workshop in Santa Cruz
16/27
Inventor and flying car proponent Dezso Molnar, with EV wizard and lithium battery specialist Luke Workman and Craig Calfee at the Calfee Design workshop in Santa Cruz
Just 12 mm of suspension travel is all that Calfee believes is necessary for a smoother, faster and more controlled racebike
17/27
Just 12 mm of suspension travel is all that Calfee believes is necessary for a smoother, faster and more controlled racebike
The Pro road version of the Calfee Manta bike, complete with rear susension
18/27
The Pro road version of the Calfee Manta bike, complete with rear susension
The entire frame of the Manta Pro weighs just 2.5 lb (1.1 kg)
19/27
The entire frame of the Manta Pro weighs just 2.5 lb (1.1 kg)
Calfee Manta: tiny suspension unit can make a huge difference over the course of a long day.
20/27
Calfee Manta: tiny suspension unit can make a huge difference over the course of a long day.
Craig Calfee with the Manta Pro road bike
21/27
Craig Calfee with the Manta Pro road bike
Dezso Molnar with one of Calfee's famous tandem bikes
22/27
Dezso Molnar with one of Calfee's famous tandem bikes
Craig Calfee and Luke Workman with a Calfee tandem bike
23/27
Craig Calfee and Luke Workman with a Calfee tandem bike
Birds of a feather: out-there innovators Dezso Molnar, Craig Calfee and Luke Workman enjoy the huge crashing surf just 100 metres from the door of the Calfee workshop in Santa Cruz
24/27
Birds of a feather: out-there innovators Dezso Molnar, Craig Calfee and Luke Workman enjoy the huge crashing surf just 100 metres from the door of the Calfee workshop in Santa Cruz
Calfee Manta: putting suspension back on the menu for road racers
25/27
Calfee Manta: putting suspension back on the menu for road racers
Calfee Manta: handmade carbon excellence
26/27
Calfee Manta: handmade carbon excellence
Calfee Manta: no swingarm is required to allow the 12mm maximum suspension deflection
27/27
Calfee Manta: no swingarm is required to allow the 12mm maximum suspension deflection

Suspension has long been a dirty word among road-racing cyclists, but if carbon fiber wizard and cycling visionary Craig Calfee nails his latest prediction as cleanly as his previous ones, it won't be long before every rider in the Tour de France is enjoying the comfort, performance and traction benefits of a suspended rear end. Calfee's top-of-the-line Manta bikes now feature an incredibly simple, lightweight rear suspension spring with a tiny 12 mm of travel that he believes will revolutionize the sport. Gizmag visited the Calfee workshop in Santa Cruz to find out more.

Craig Calfee has built a successful business on his ability to see ahead of the game. He's one of the original carbon fiber wizards of the bicycle world and he started Calfee Design in the late 1980s specifically to explore how this exotic new material could work in the cycling world. Notably, the bike he built for Greg LeMond in 1991 was the first all-carbon frame to race the Tour de France.

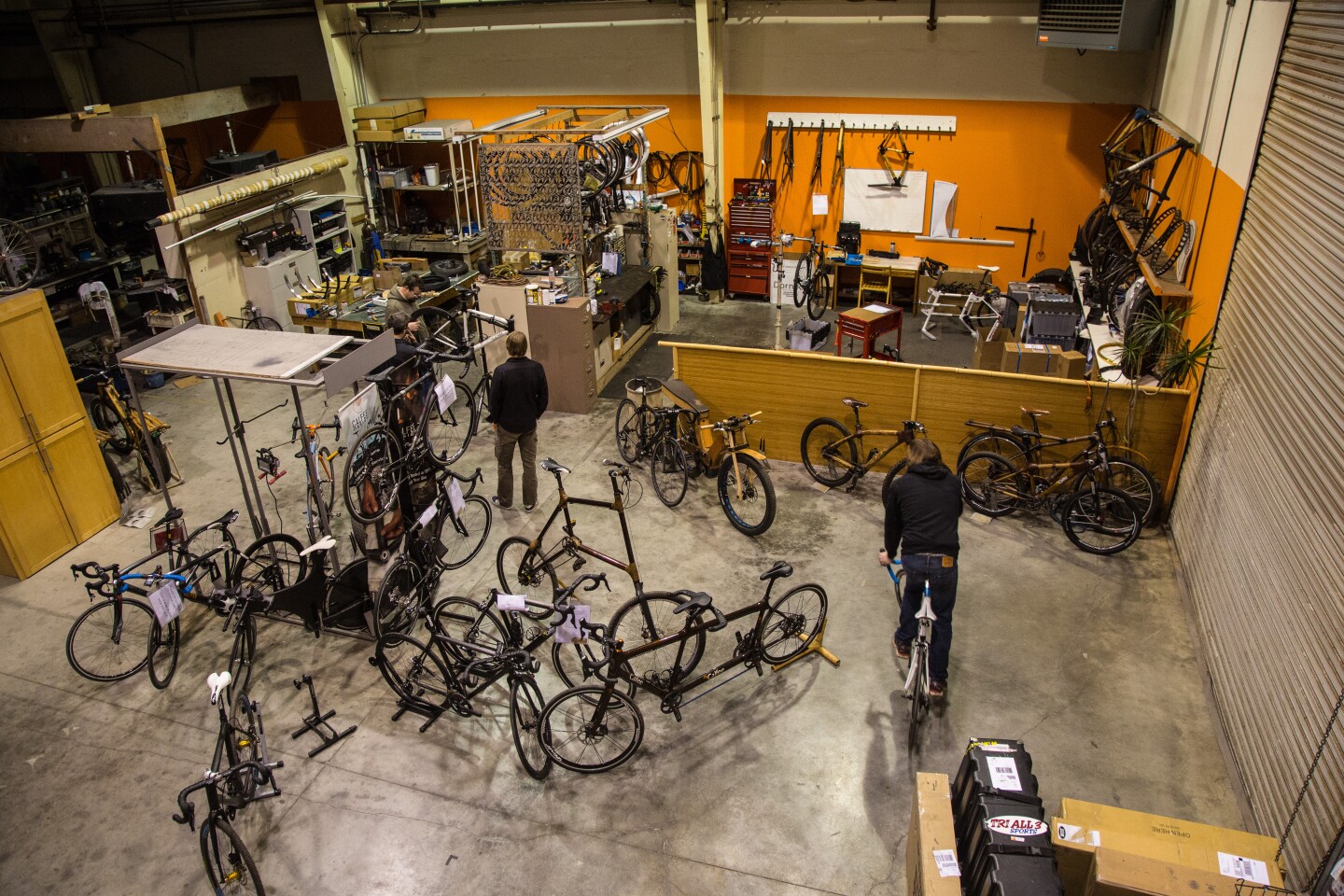

The Calfee Design workshop on the Santa Cruz coastline is a wonderland of extraordinary cycles, futuristic thinking and carbon fiber wizardry
The Calfee Design workshop on the Santa Cruz coastline is a wonderland of extraordinary cycles, futuristic thinking and carbon fiber wizardry

At the time, Calfee predicted it wouldn't be long before carbon dominated the racing world, and within 10 years, that was borne out.

"The best material always wins," Calfee tells us at his Santa Cruz workshop, "and now I'm saying the same thing about suspension. The faster bikes will win, and all the faster bikes will have suspension. It's coming."

Road bikes have typically been bone-jarring torture racks for racing cyclists, who have been happy to give up comfort and tire adherence in favor of weight savings and a super-stiff feel. Suspension has been all but a dirty word, but if Calfee's latest prediction is correct, suspended rear ends, such as that on his Manta bike, will soon be the norm.

"It not only gives you a more comfortable ride, and better traction coming down the mountain, it actually gives you more traction and better efficiency when you're climbing," says Calfee, adding that it doesn't rob power from the rider, either. "It's such a small amount of travel, and there's no damping. So when it comes back it gives you all of the energy back. You couldn't get away with this with more than about 2 cm (0.8 in) of travel – this is just 1 cm."

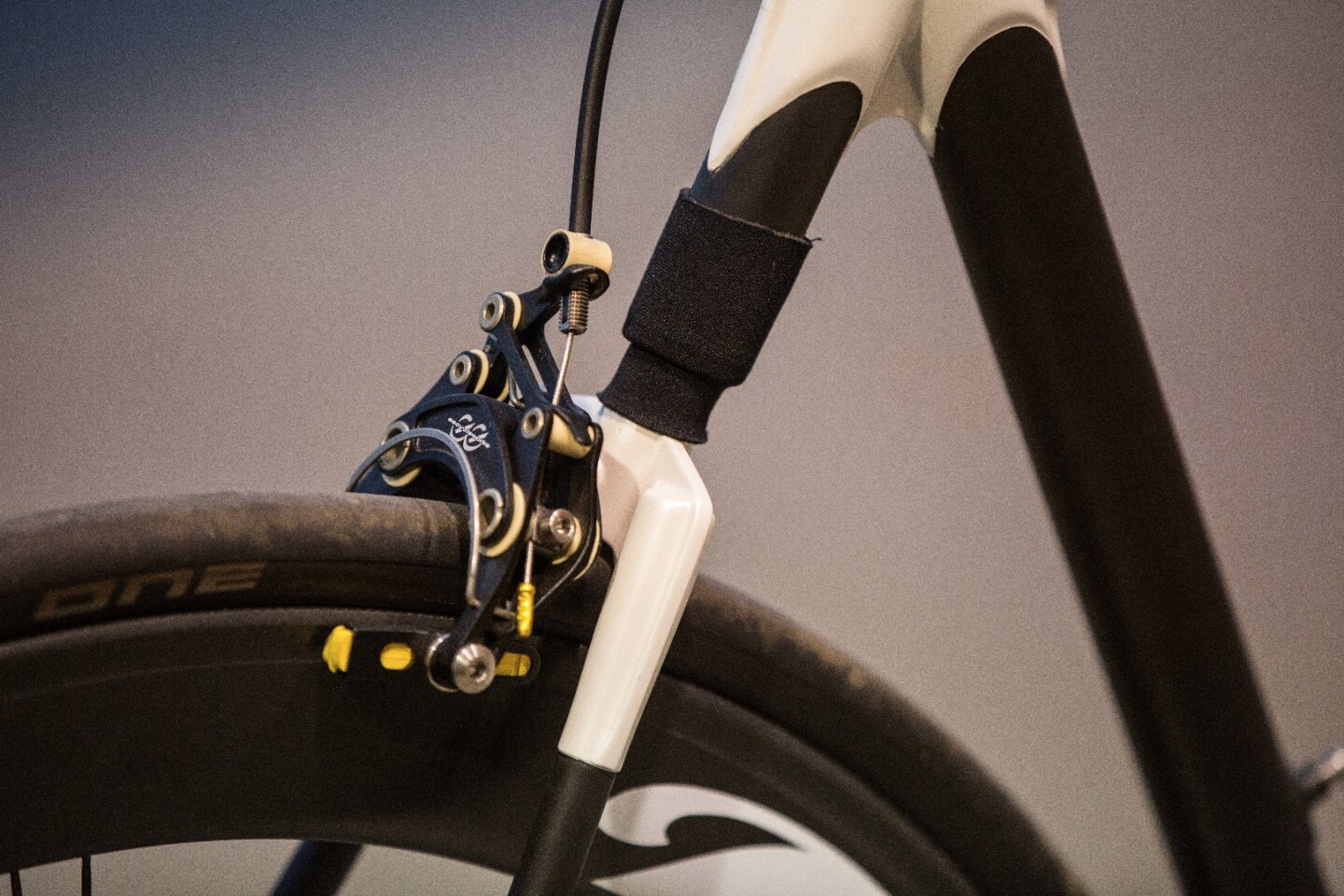

Just 12 mm of suspension travel is all that Calfee believes is necessary for a smoother, faster and more controlled racebike
Just 12 mm of suspension travel is all that Calfee believes is necessary for a smoother, faster and more controlled racebike

The tiny suspension unit, which consists just of a swappable steel spring, adds negligible weight to the frame. Since it bottoms out at just 12 mm of travel, no swingarm is needed, and the rear carbon triangle struts are designed to flex slightly as the suspension acts.

"We're one of the first to do road bike suspension in the rear end," Calfee tells us. "Pinarello is also a major sponsor of pro teams, and they've finally got one, and Trek has been doing it for about a year now. It's a trend that's just coming up and being recognized by pros."

As for when he expects suspended bikes to rise to dominance in road racing, Calfee smiles. "With the Internet, things are moving faster. I was predicting five years about two years ago, and it's already in the tour now. Not everyone, but between Pinarello and Trek, those are two major sponsors. And the riders are the ones that are driving it."

Calfee has now made so many custom cycle frames that he's got pre-built jigs for just about any geometry. Where he doesn't have one already, he's able to rapidly build new ones on a 3D printer
Calfee has now made so many custom cycle frames that he's got pre-built jigs for just about any geometry. Where he doesn't have one already, he's able to rapidly build new ones on a 3D printer

It'd be easy to miss the suspension unit on the back of the Manta, simply because of the other details. The entire 56-cm (22-in) frame with suspension weighs in at just 2.5 lbs (1.1 kg). The brake cabling is internally routed, as is the wiring and battery for the electronic gearshift system. And the complex shapes of the carbon frame lugs are both beautiful and mind-bending, particularly given that the geometry can be custom-designed for each rider.

The Calfee Manta frame retails for US$4,800, or $6,000 with a Chris King Inset 7, Enve/Easton fork, Look ZED2 crankset and Praxis Works chainrings. Each bike is handmade in Santa Cruz.

Jump into the gallery to see some of the other bits and pieces Calfee has been working on lately.
