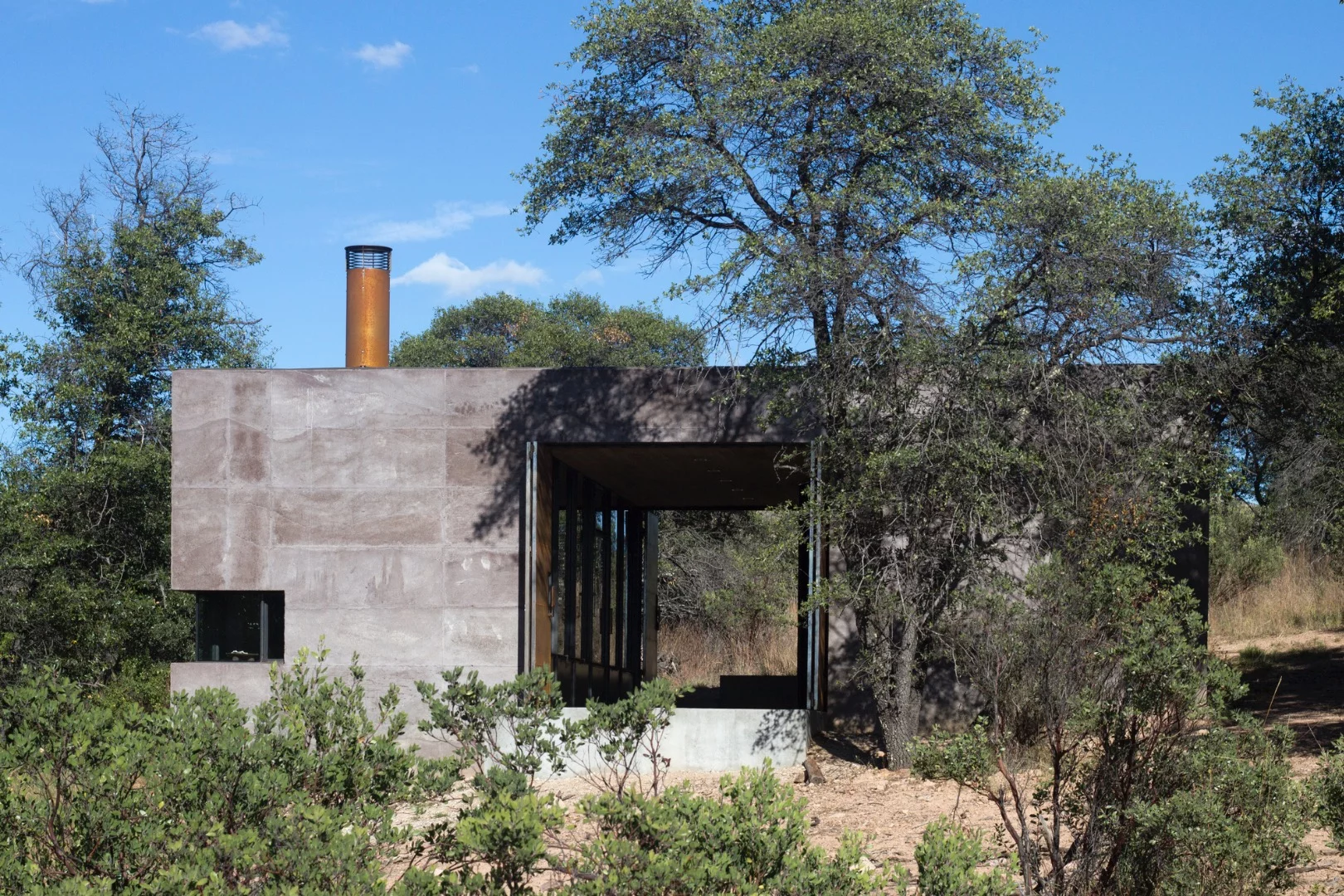

Casa Caldera is passively cooled and operates totally off-the-grid
2/25
Casa Caldera is passively cooled and operates totally off-the-grid

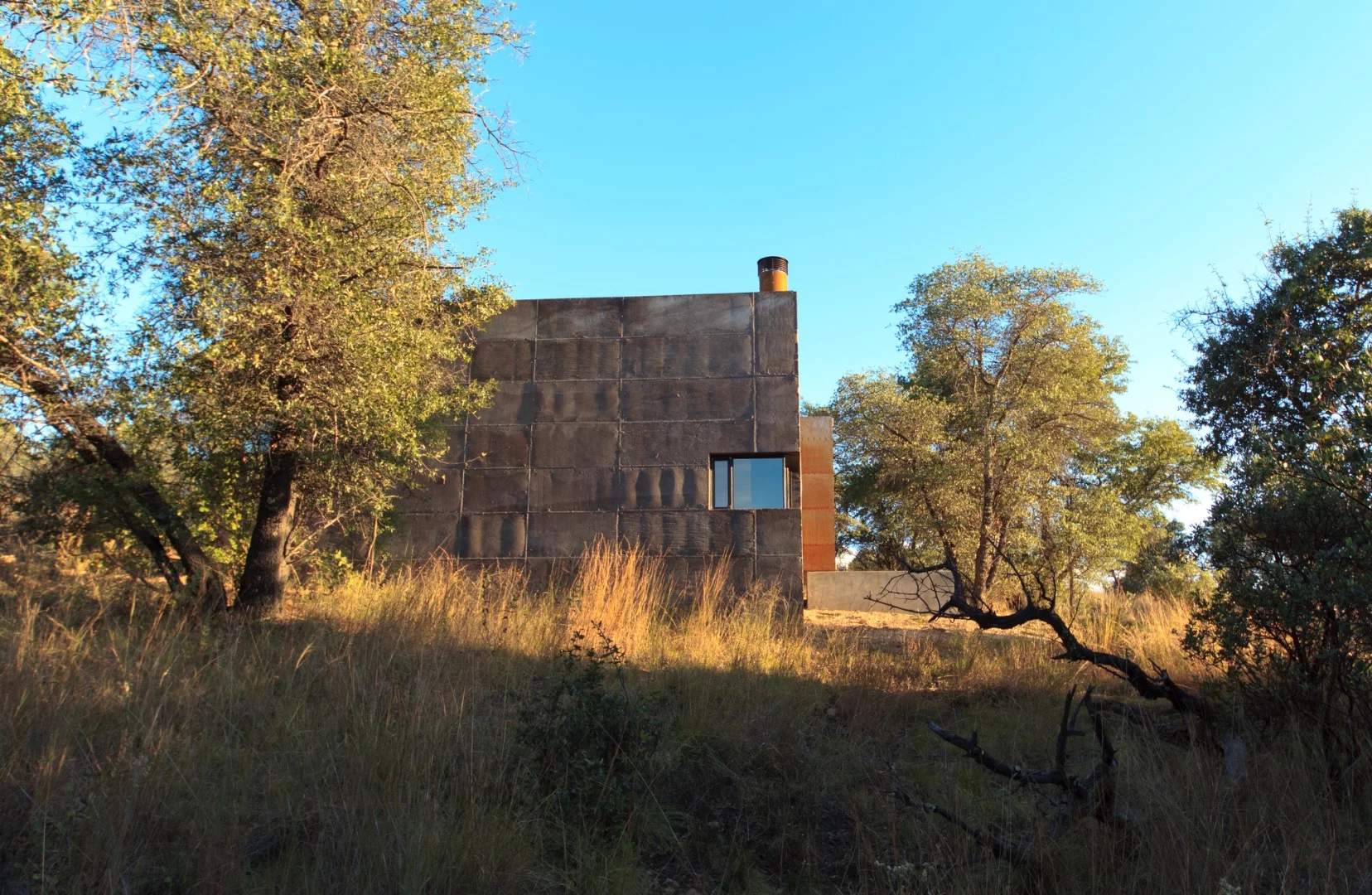

Located just 15 miles (24 km) north of the US-Mexico border, the rural vacation home is empty for six months a year
3/25
Located just 15 miles (24 km) north of the US-Mexico border, the rural vacation home is empty for six months a year

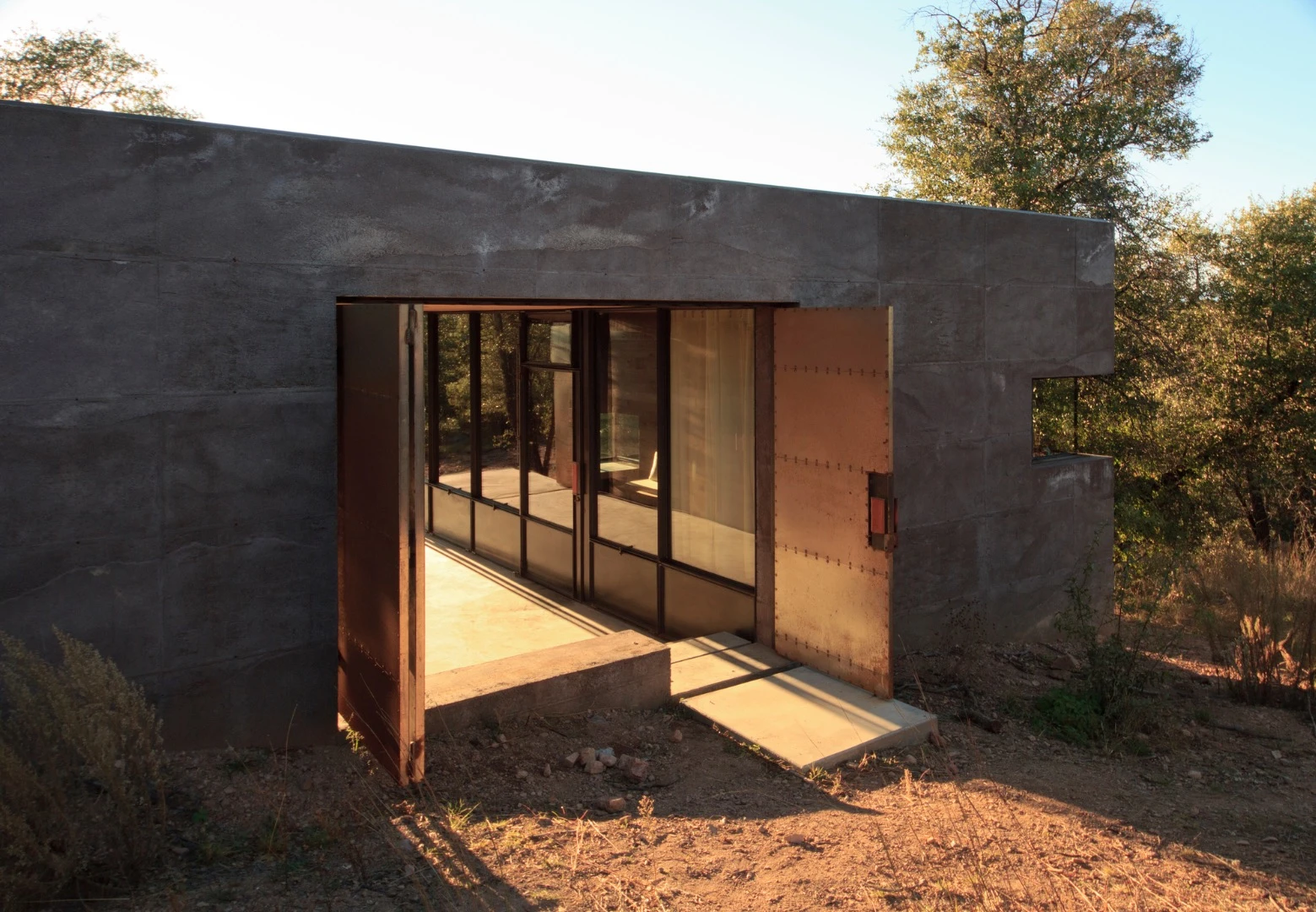

Dust spent significant time at the site, ensuring that the prevailing breeze would permeate within
4/25
Dust spent significant time at the site, ensuring that the prevailing breeze would permeate within

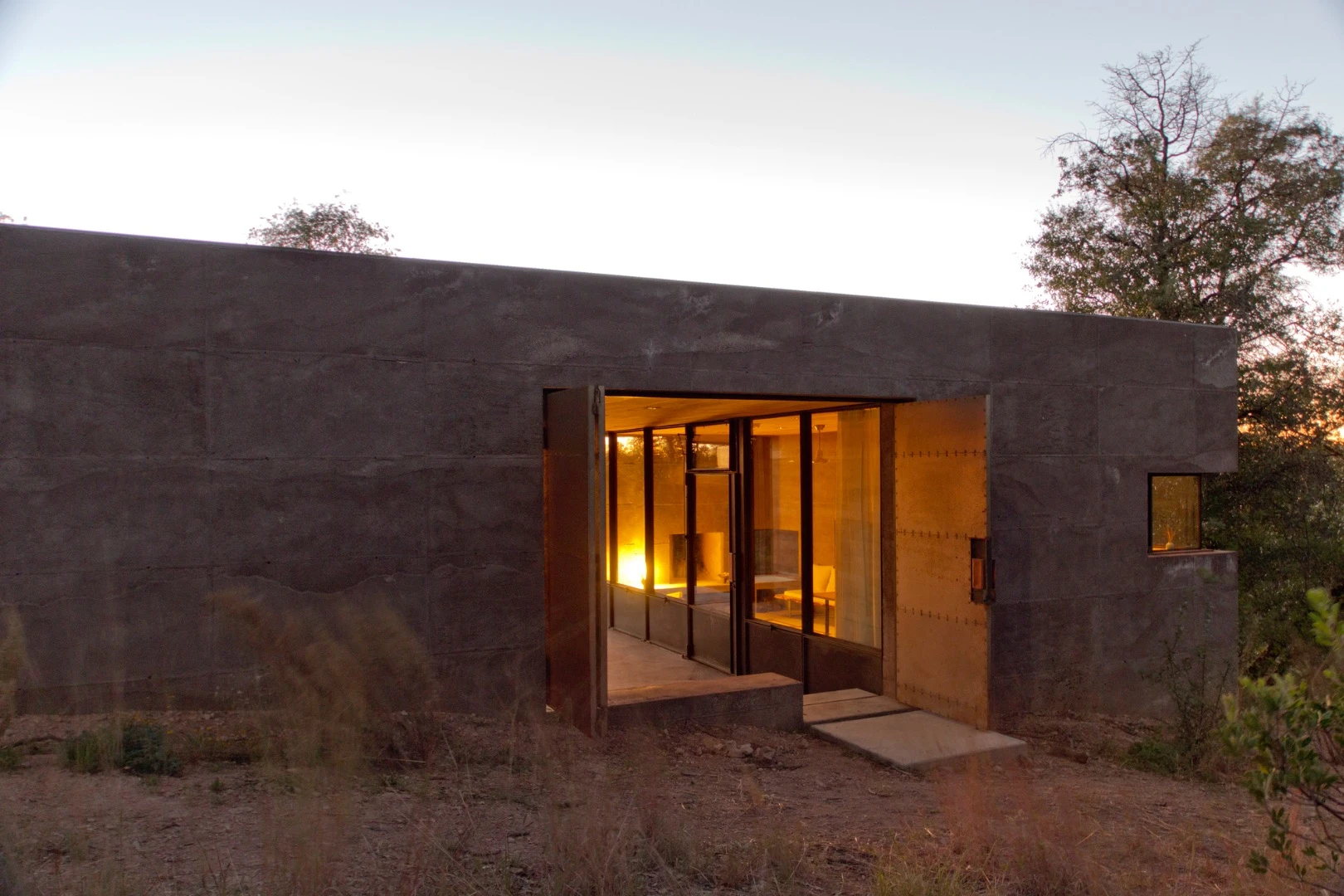

According to Dust, the balance of the home's air pressure also ensures that air is pulled through to cool the interior naturally
5/25
According to Dust, the balance of the home's air pressure also ensures that air is pulled through to cool the interior naturally

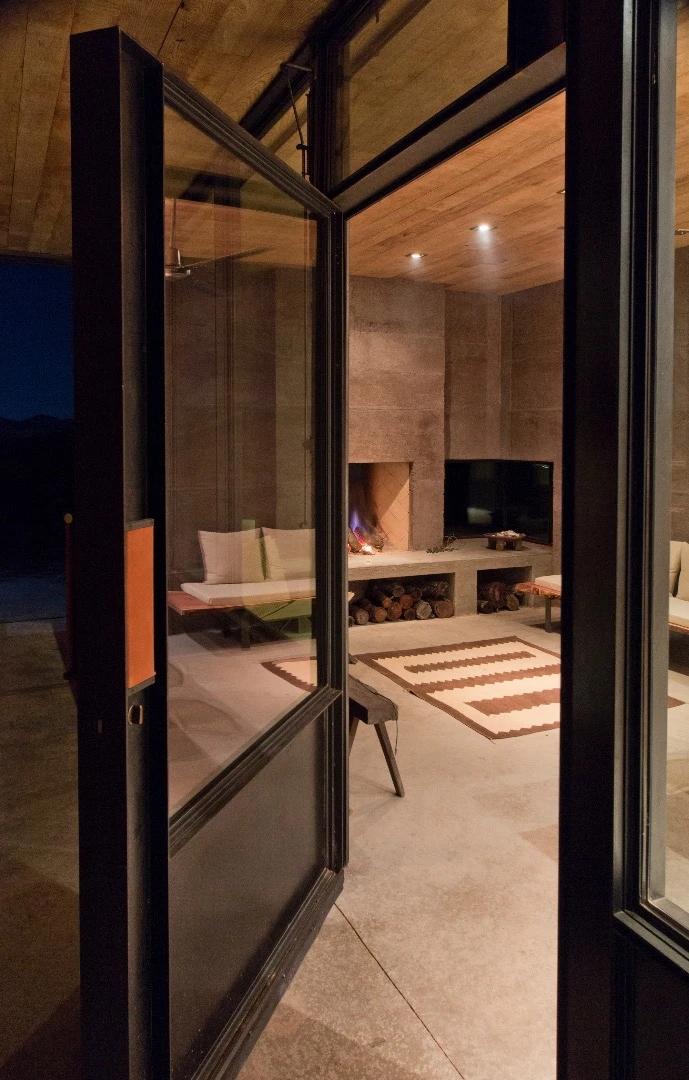

The lounge area
6/25
The lounge area

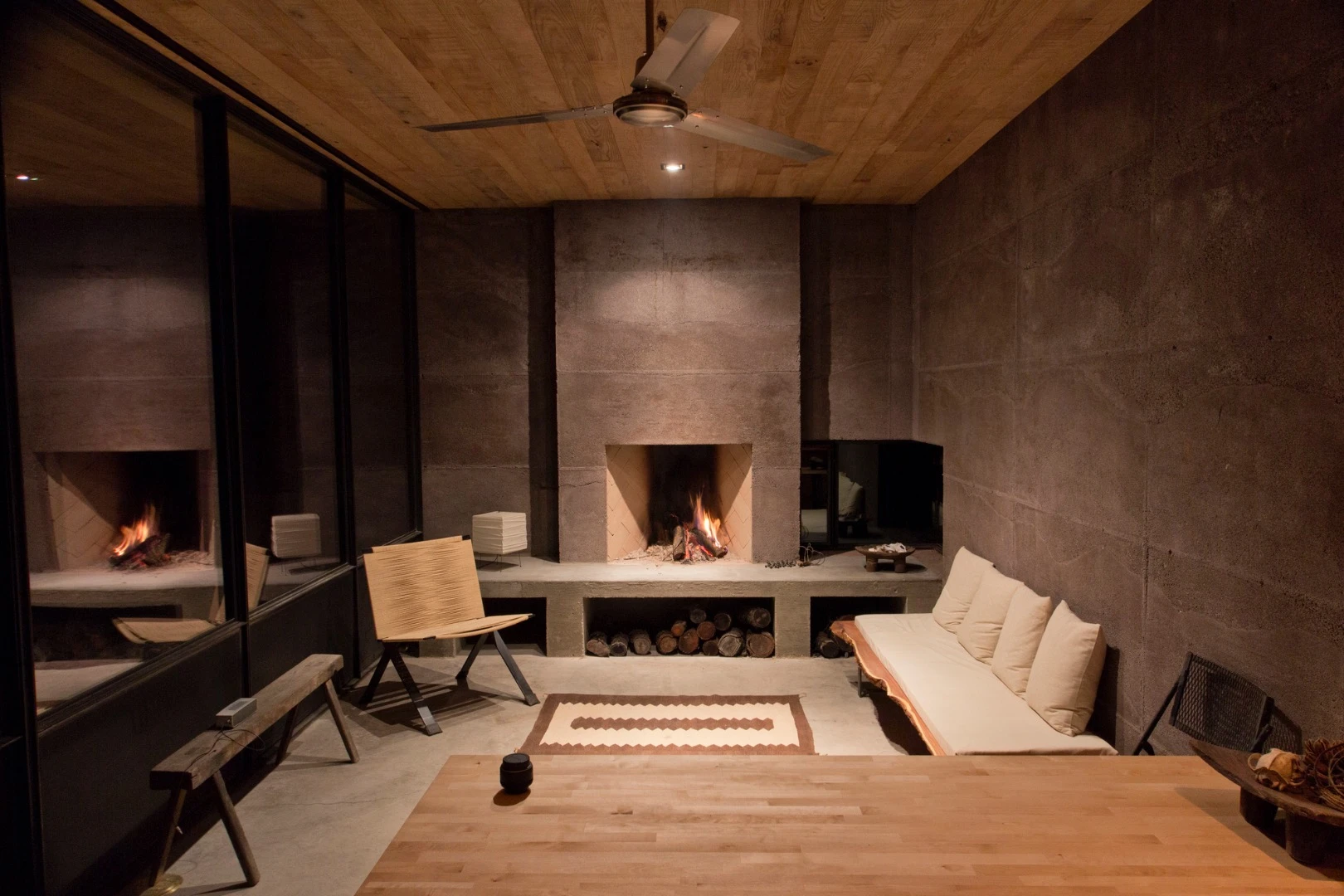

While the exterior is unashamedly brutal, the interior is warmer than you might expect
7/25
While the exterior is unashamedly brutal, the interior is warmer than you might expect

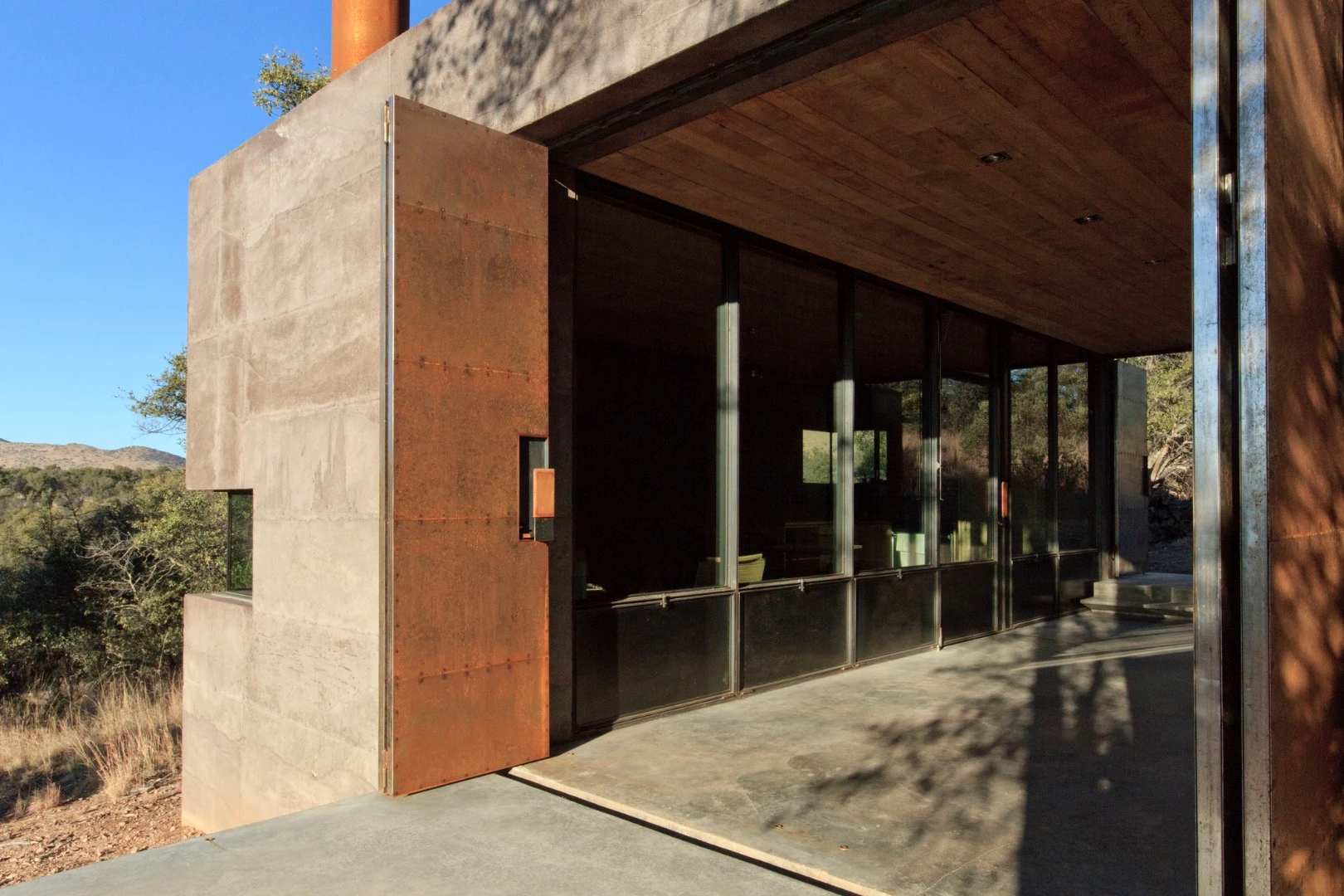

The wood that is used on the ceiling and Zaguan walls is reclaimed sassafrass
8/25
The wood that is used on the ceiling and Zaguan walls is reclaimed sassafrass

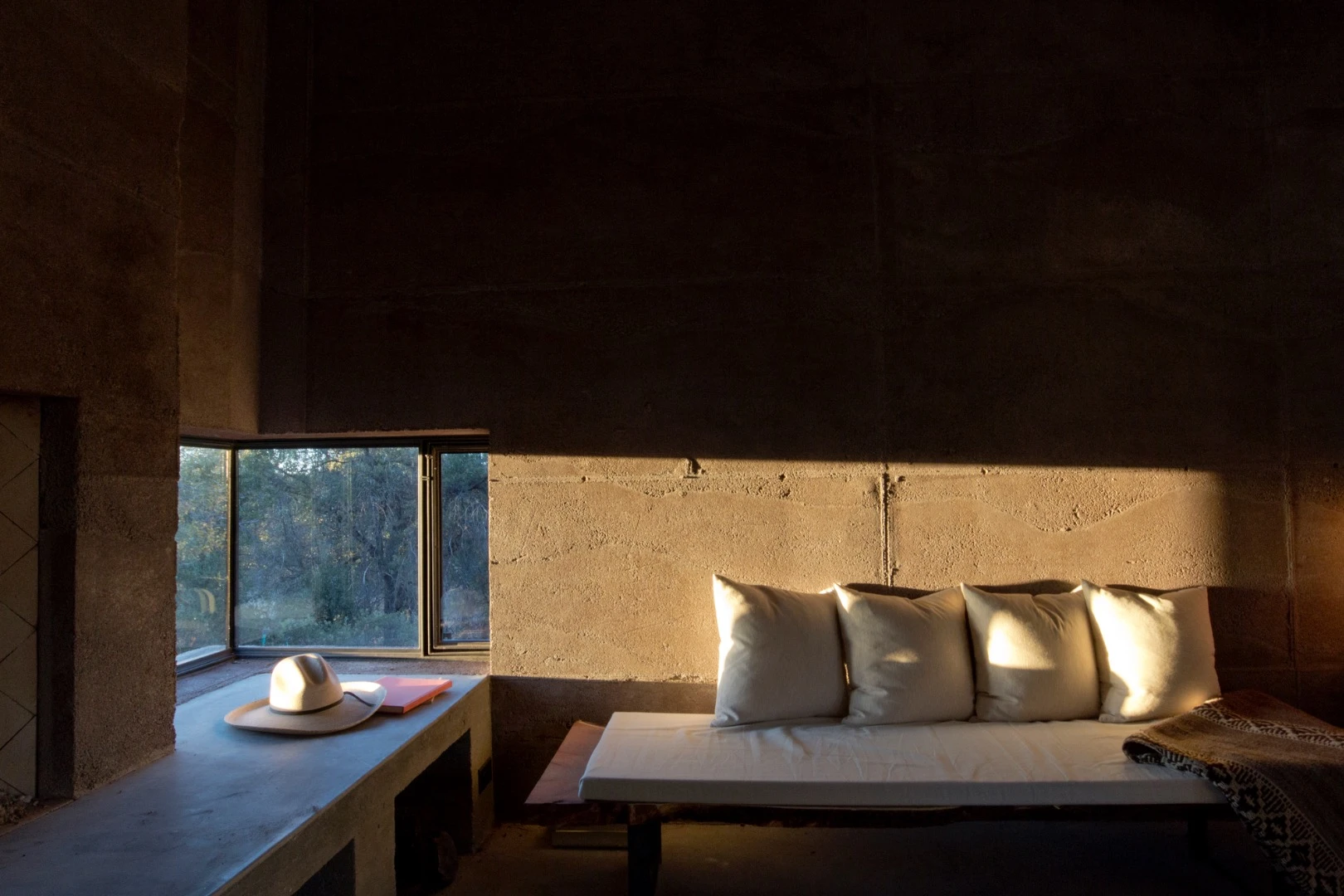

All windows are operable and the minimal lighting used is efficient LED
9/25
All windows are operable and the minimal lighting used is efficient LED

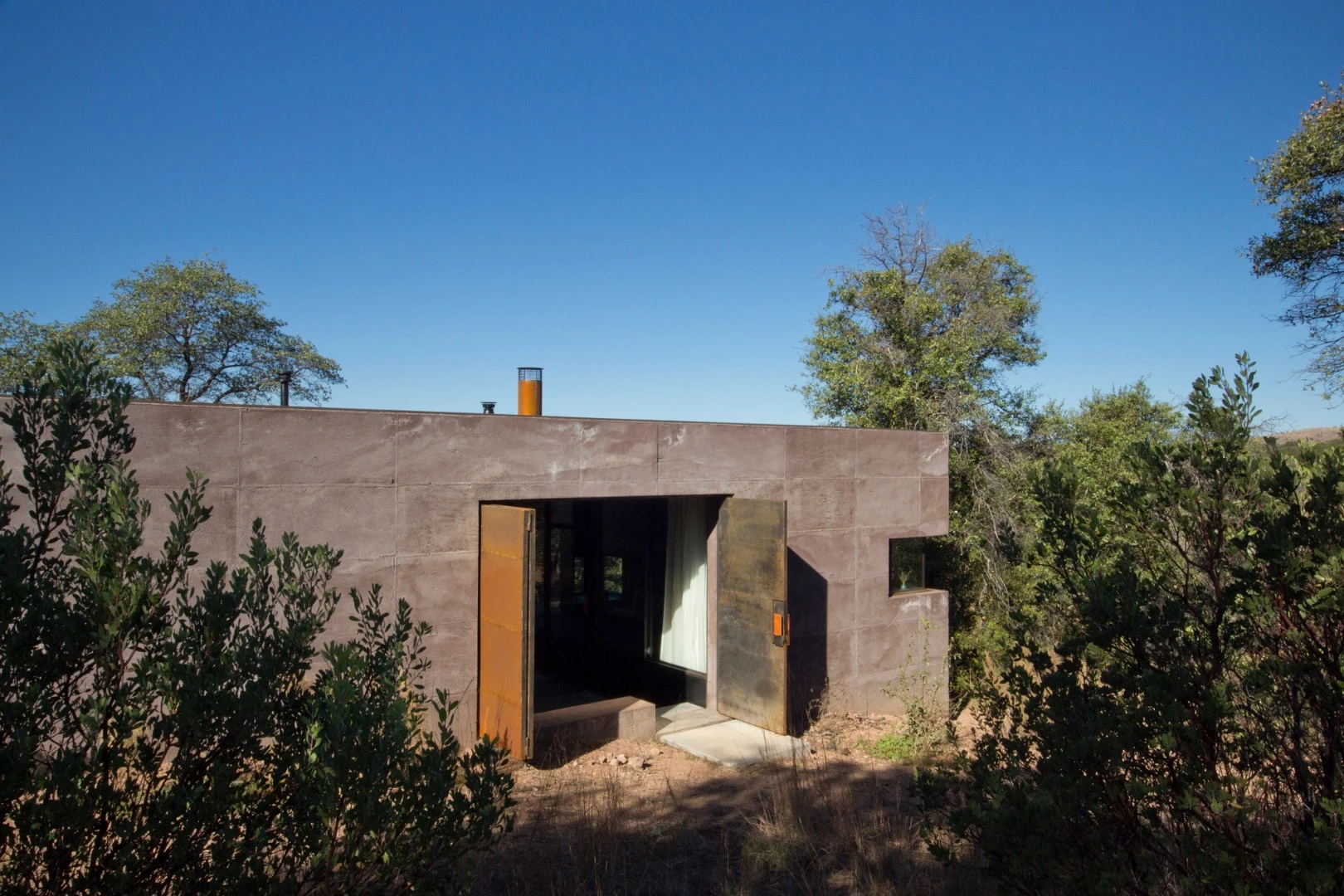

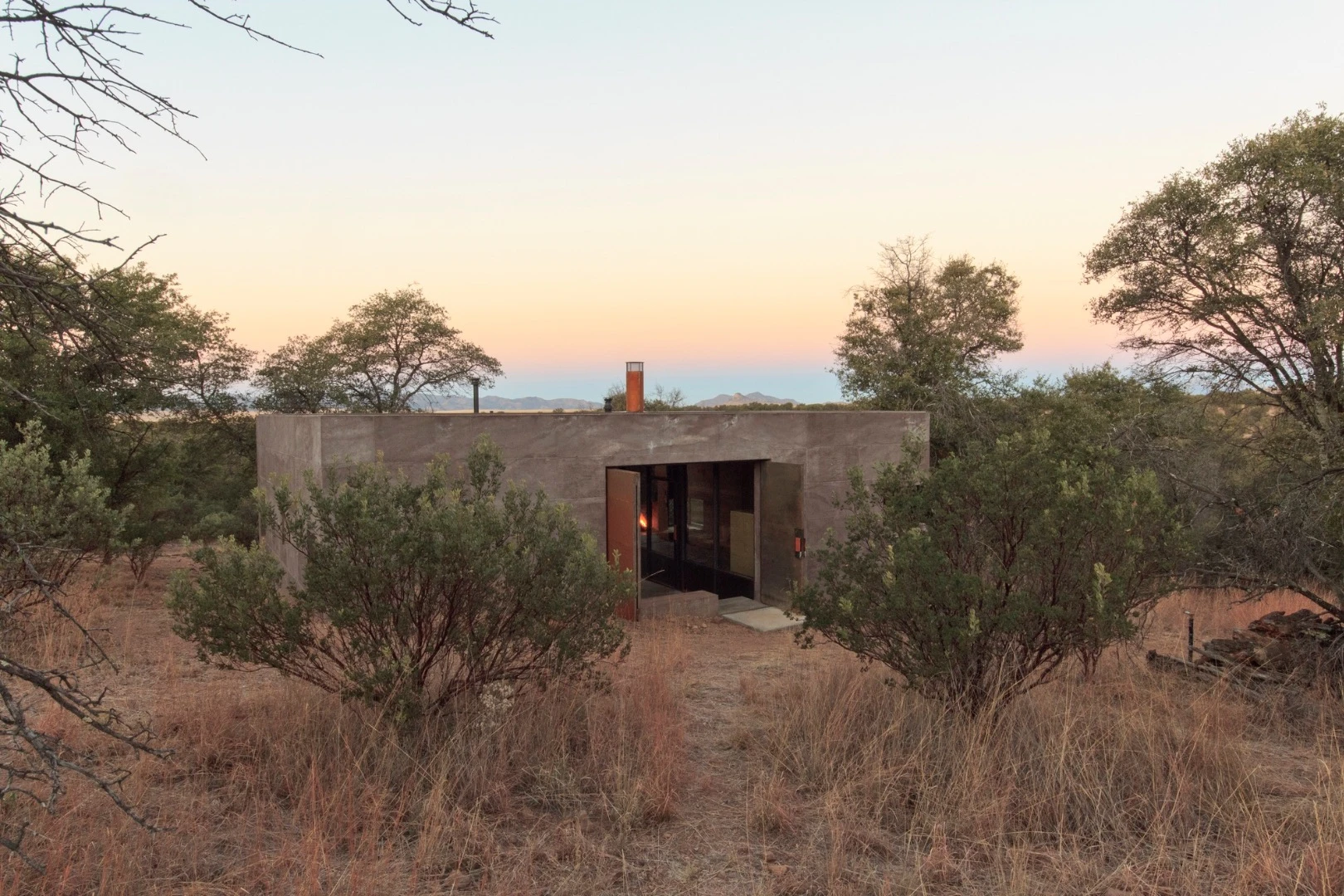

Only one truck full of waste resulted form the home's construction
10/25
Only one truck full of waste resulted form the home's construction

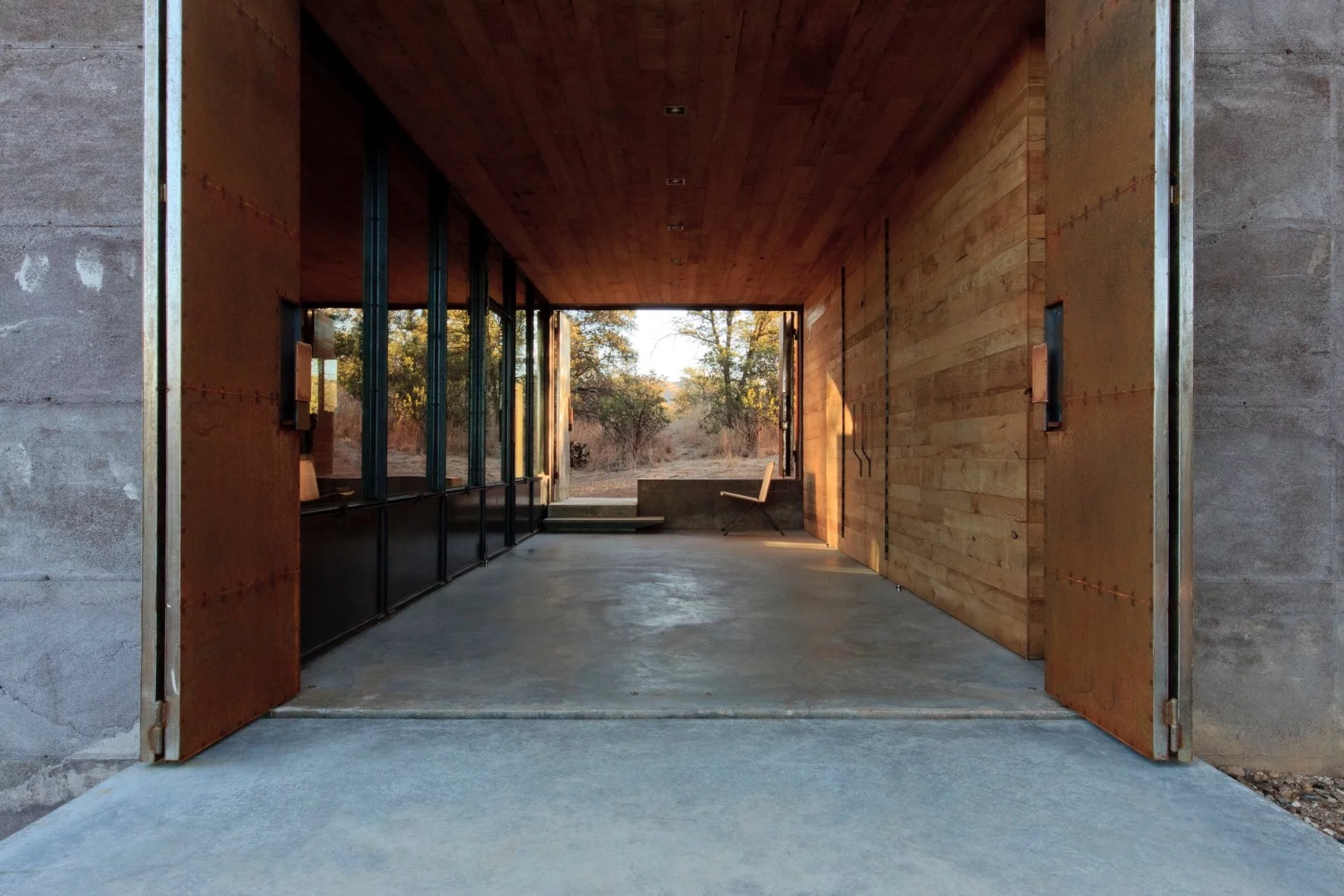

The recently-completed home is definitely a case of function over form and looks like a bunker of some kind at first glance
11/25
The recently-completed home is definitely a case of function over form and looks like a bunker of some kind at first glance

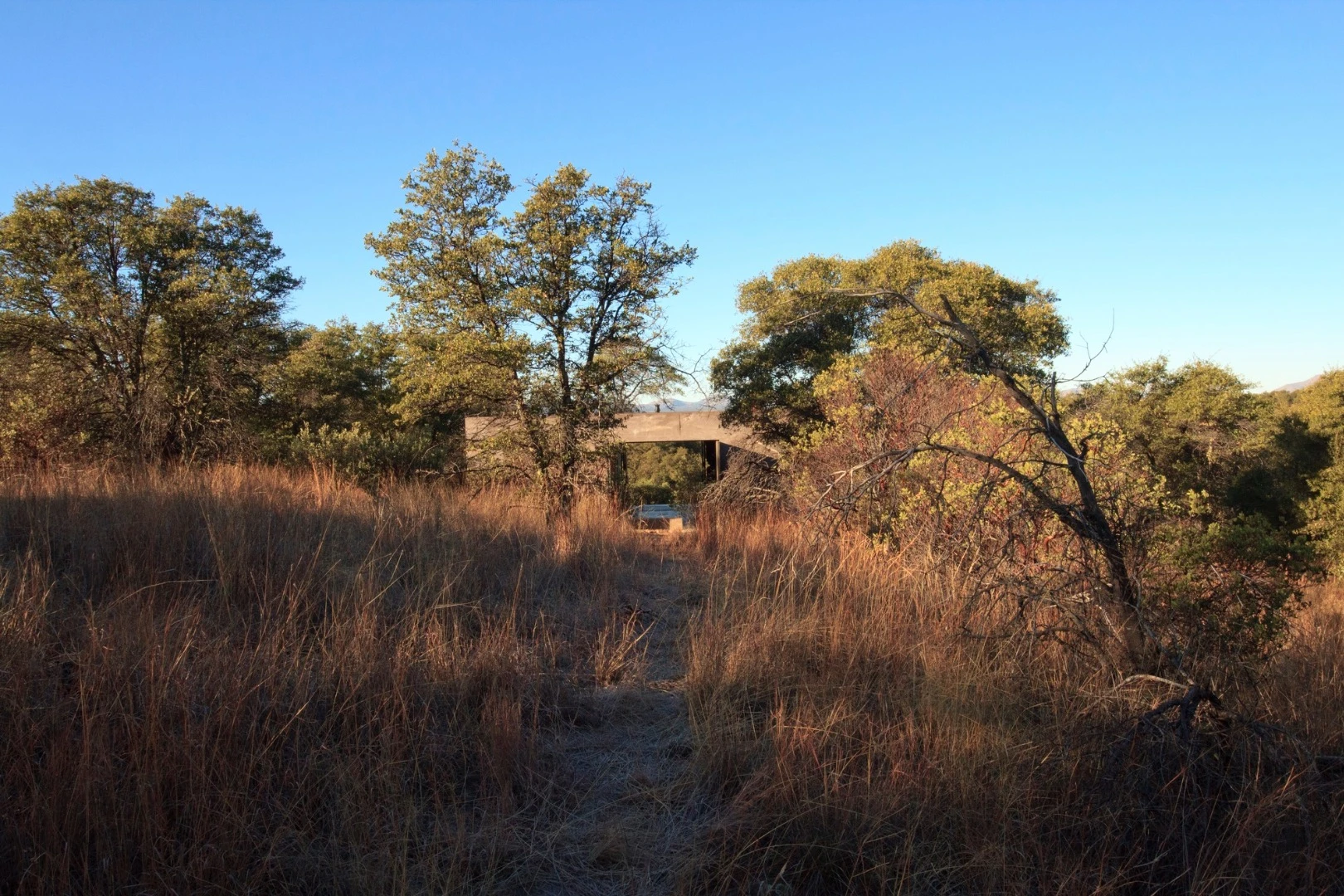

Unwelcome interest from passing migrants and narco-traffickers was a big concern
12/25
Unwelcome interest from passing migrants and narco-traffickers was a big concern

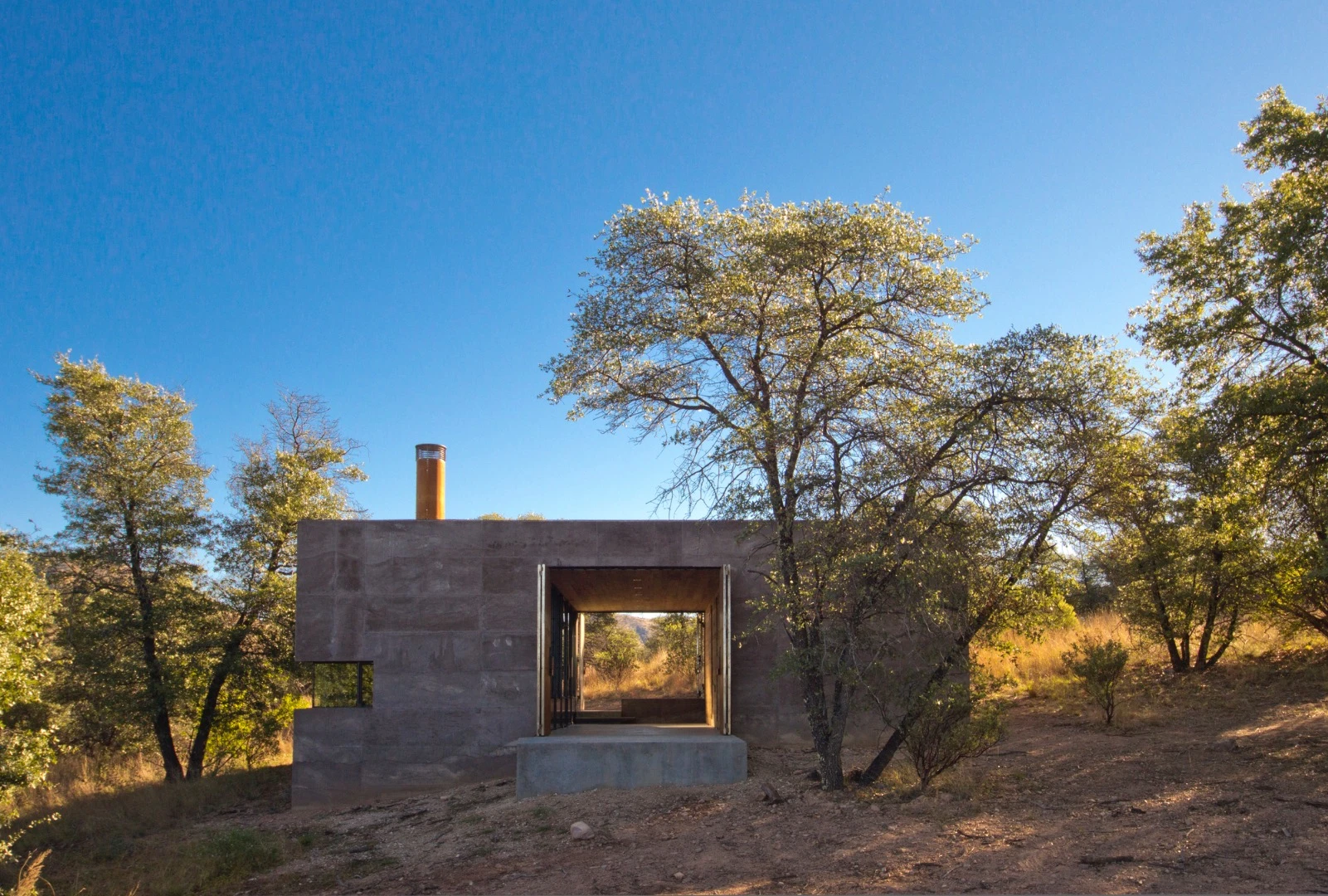

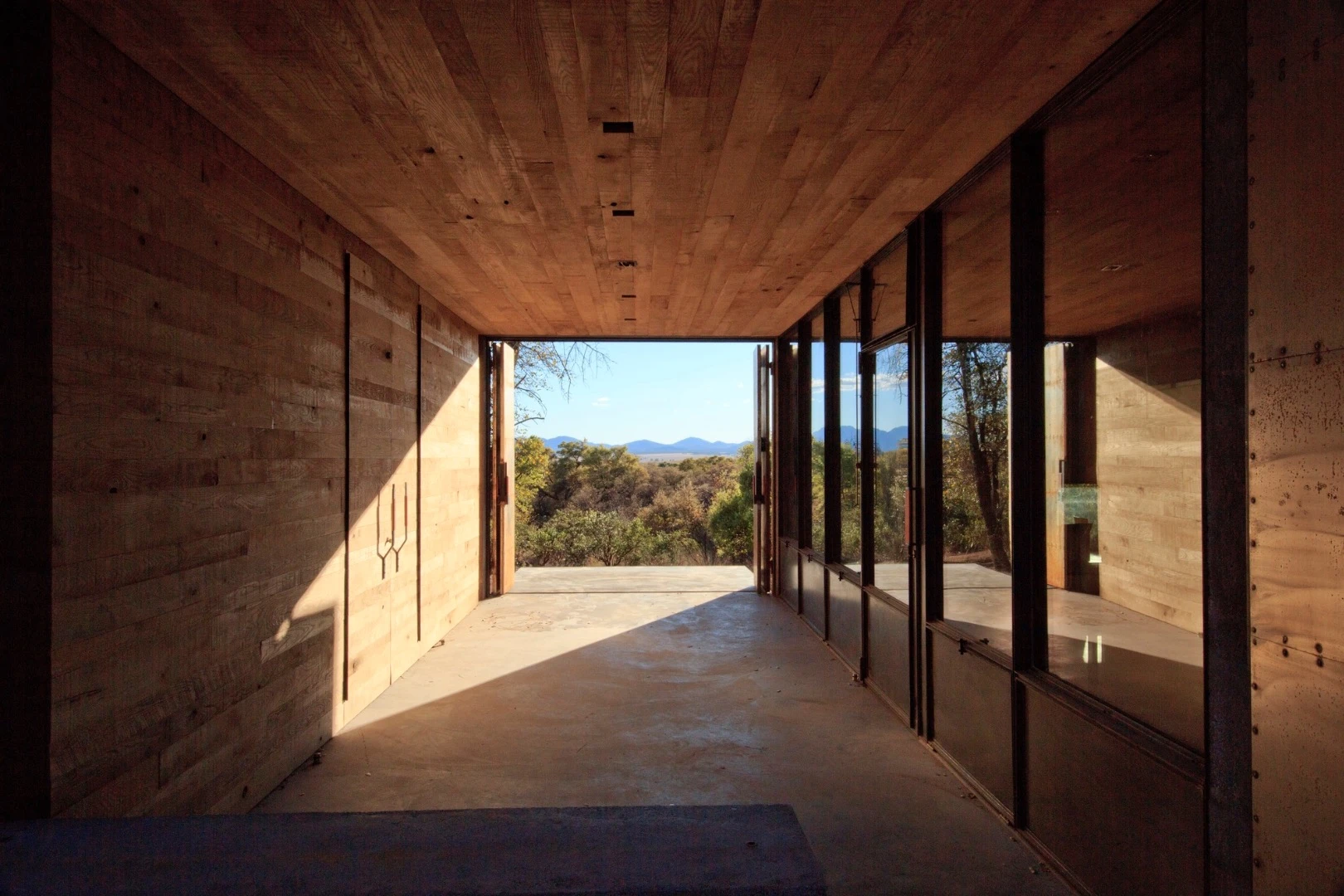

The home is built around a zaguan – essentially a large corridor/living area
13/25
The home is built around a zaguan – essentially a large corridor/living area

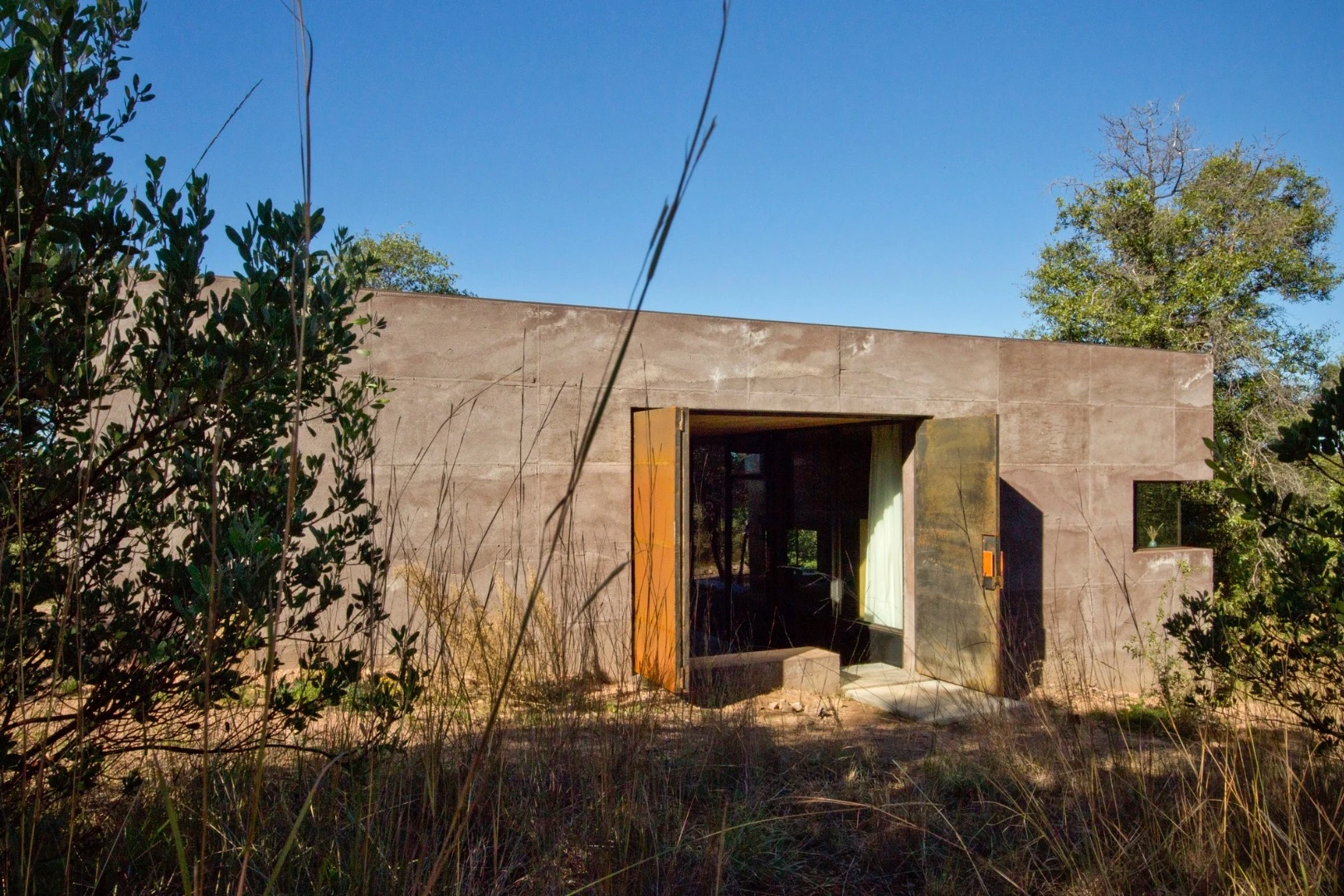

Access to the home comes via large bi-folding metal doors at each end of the zaguán, and these can also be positioned at multiple angles to effectively channel the prevailing breeze inside
14/25
Access to the home comes via large bi-folding metal doors at each end of the zaguán, and these can also be positioned at multiple angles to effectively channel the prevailing breeze inside

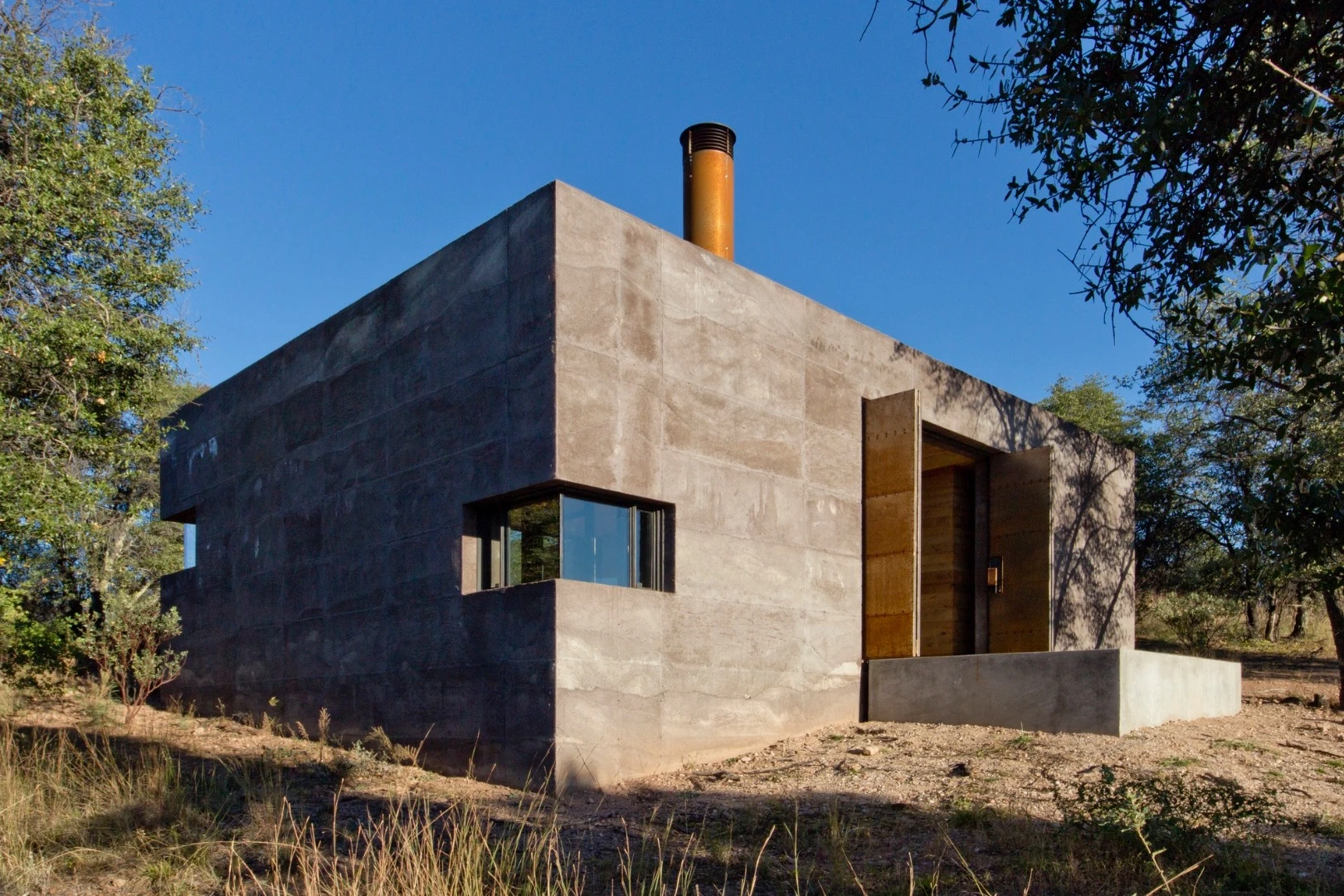

All windows are operable and the large doors ensure the prevailing breeze can permeate within
15/25
All windows are operable and the large doors ensure the prevailing breeze can permeate within
Only one truck full of waste resulted form the home's construction
16/25
Only one truck full of waste resulted form the home's construction
The home is built around a zaguan – essentially a large corridor/living area
17/25
The home is built around a zaguan – essentially a large corridor/living area

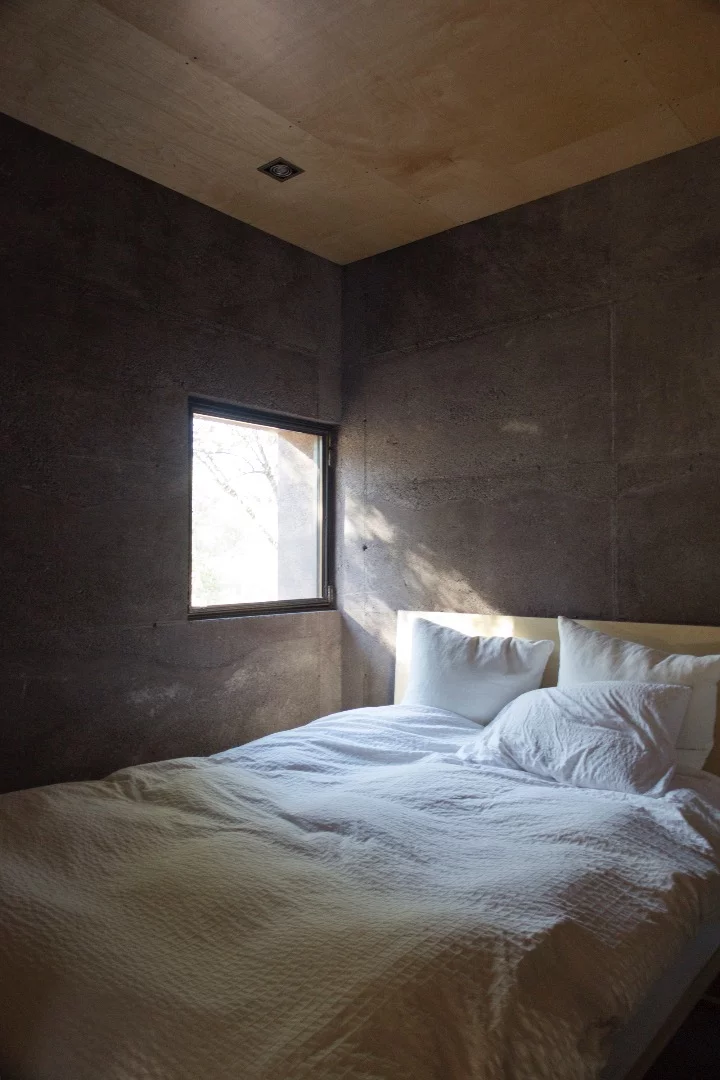

One of the small bedrooms
18/25
One of the small bedrooms

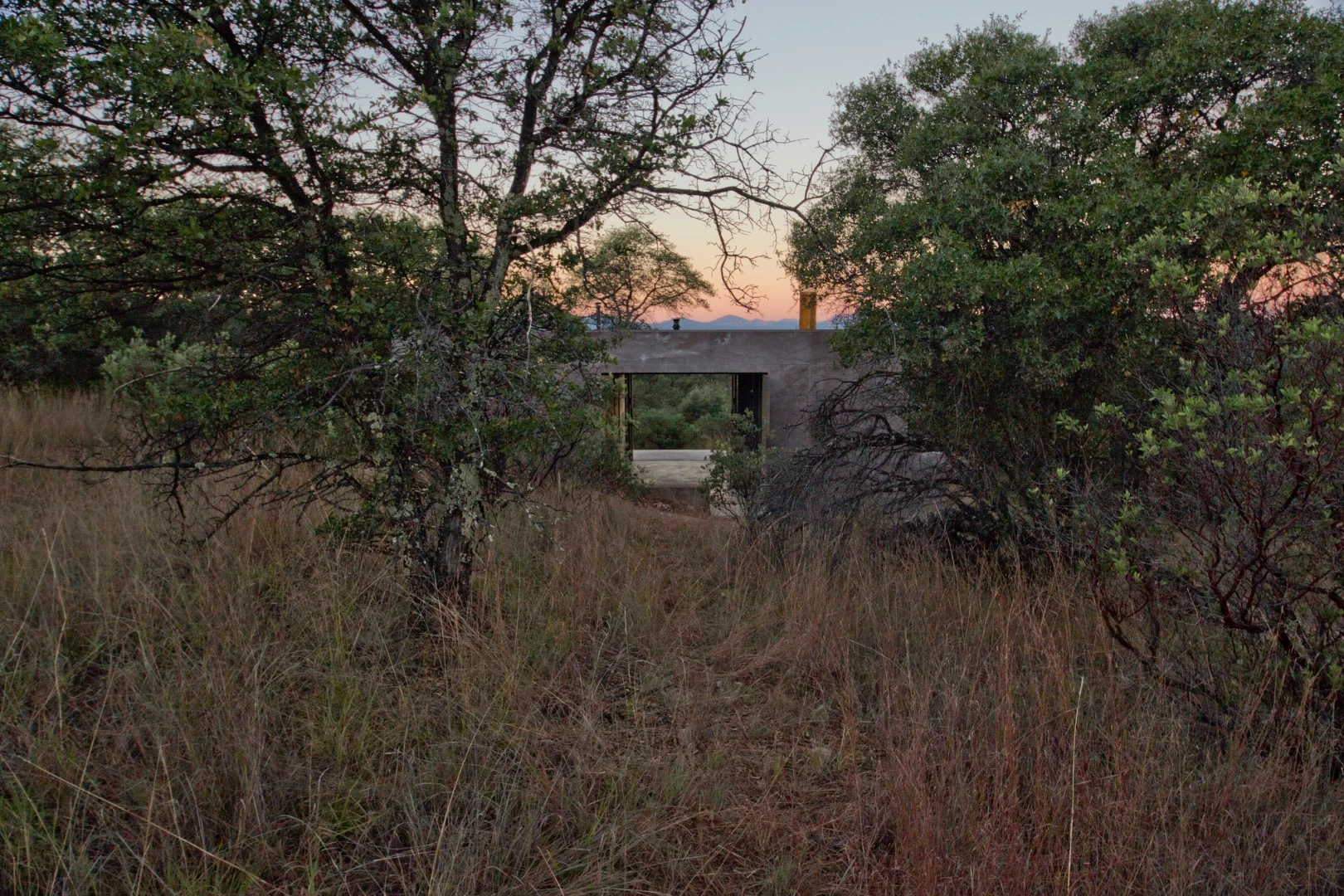

The home takes its place very well
19/25
The home takes its place very well

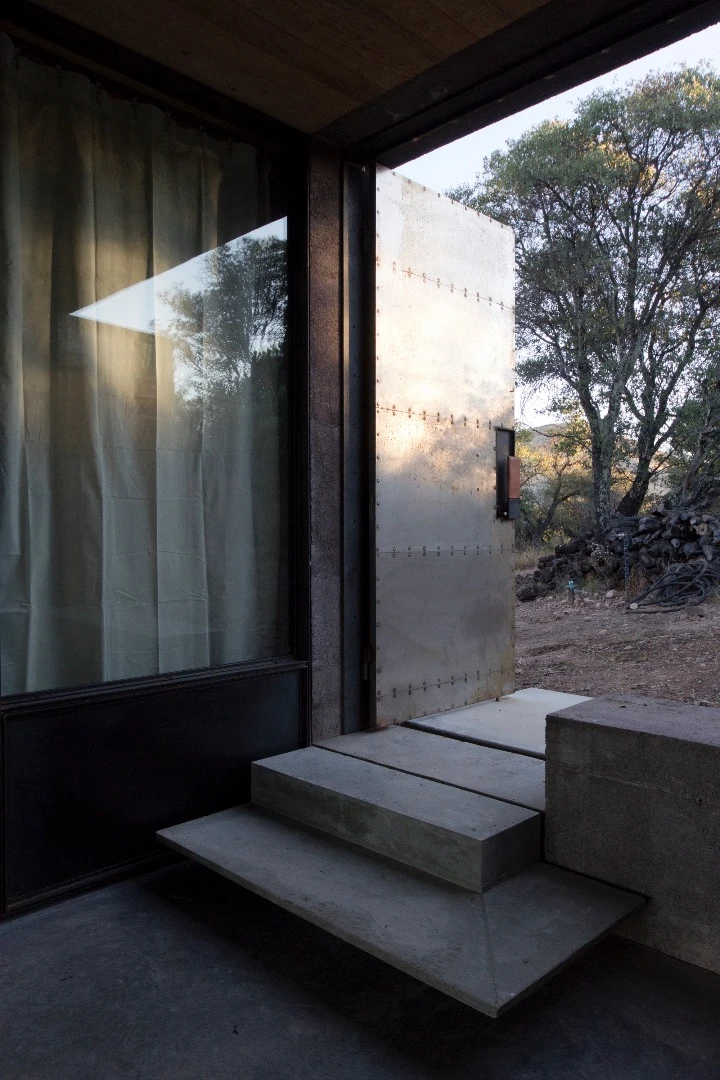

Entrance to the home
20/25
Entrance to the home

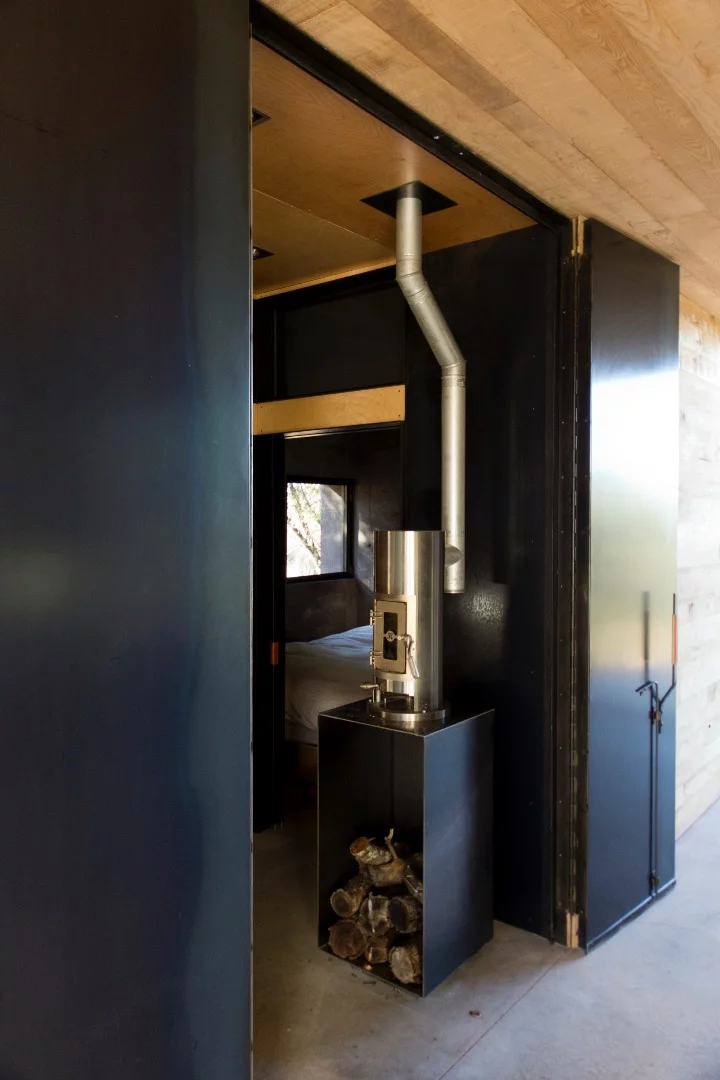

A small wood--burning stove
21/25
A small wood--burning stove

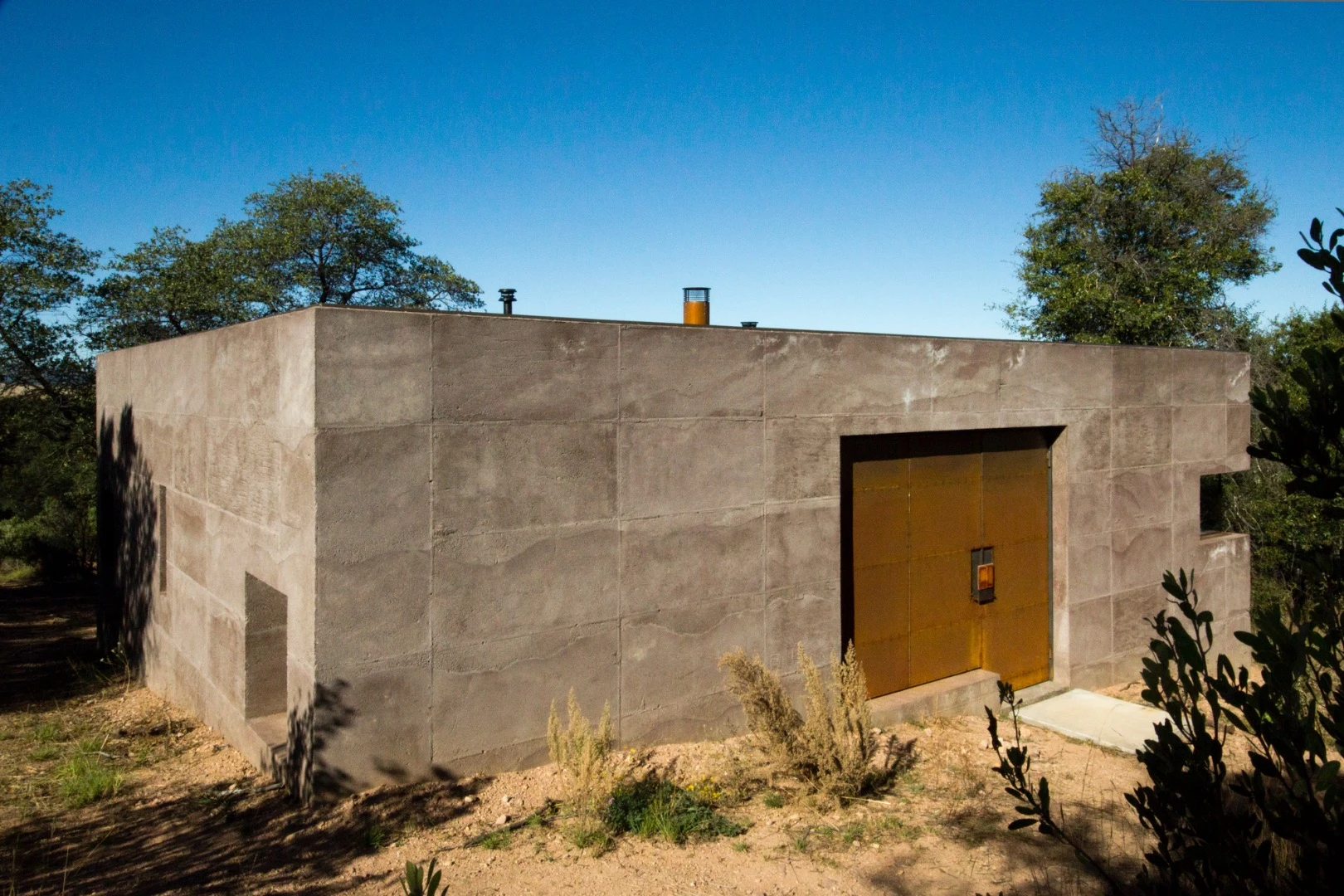

This off-grid desert bolthole is a lot more sophisticated than appears at first glance
22/25
This off-grid desert bolthole is a lot more sophisticated than appears at first glance

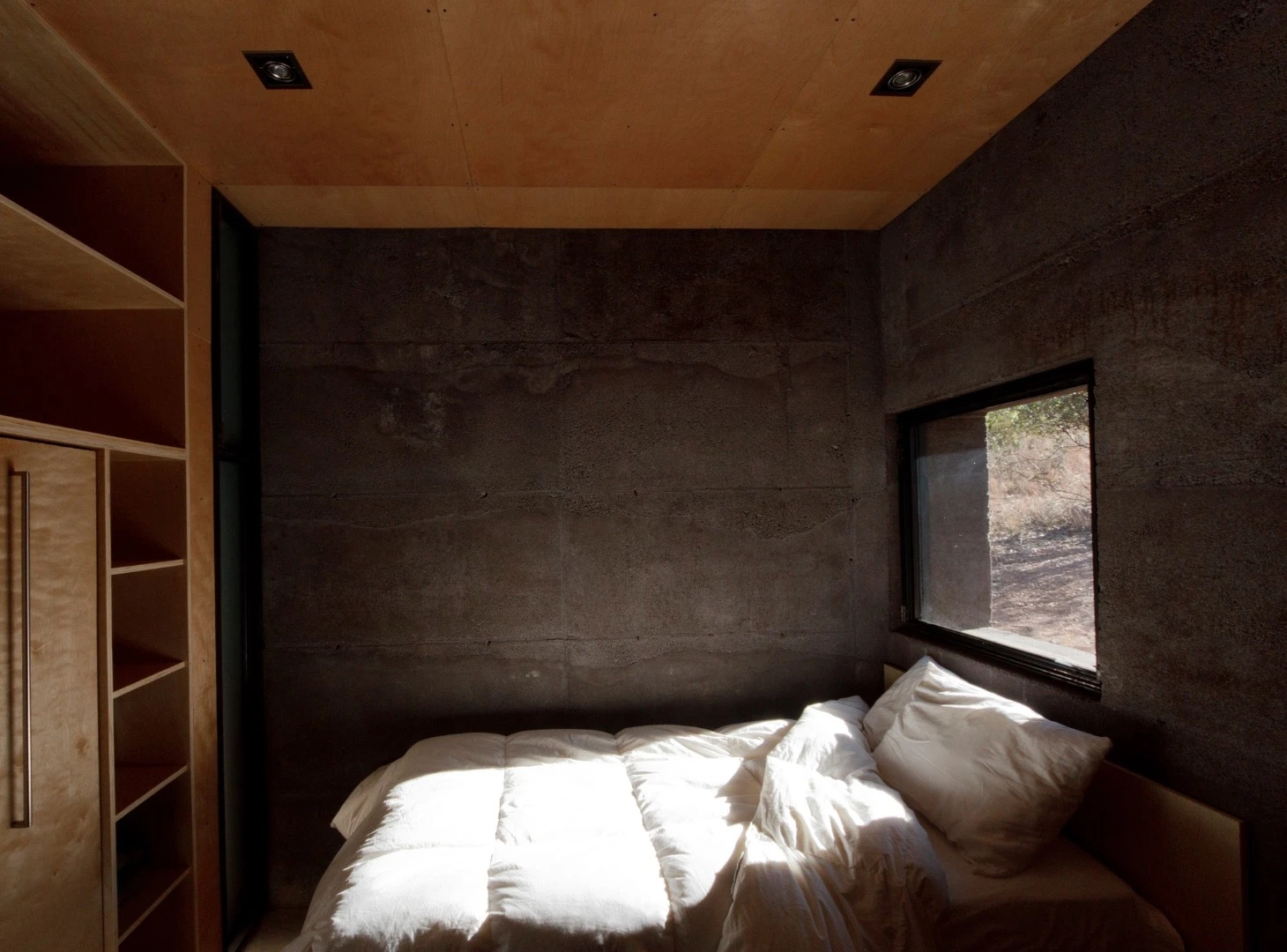

One of the bedrooms
23/25
One of the bedrooms

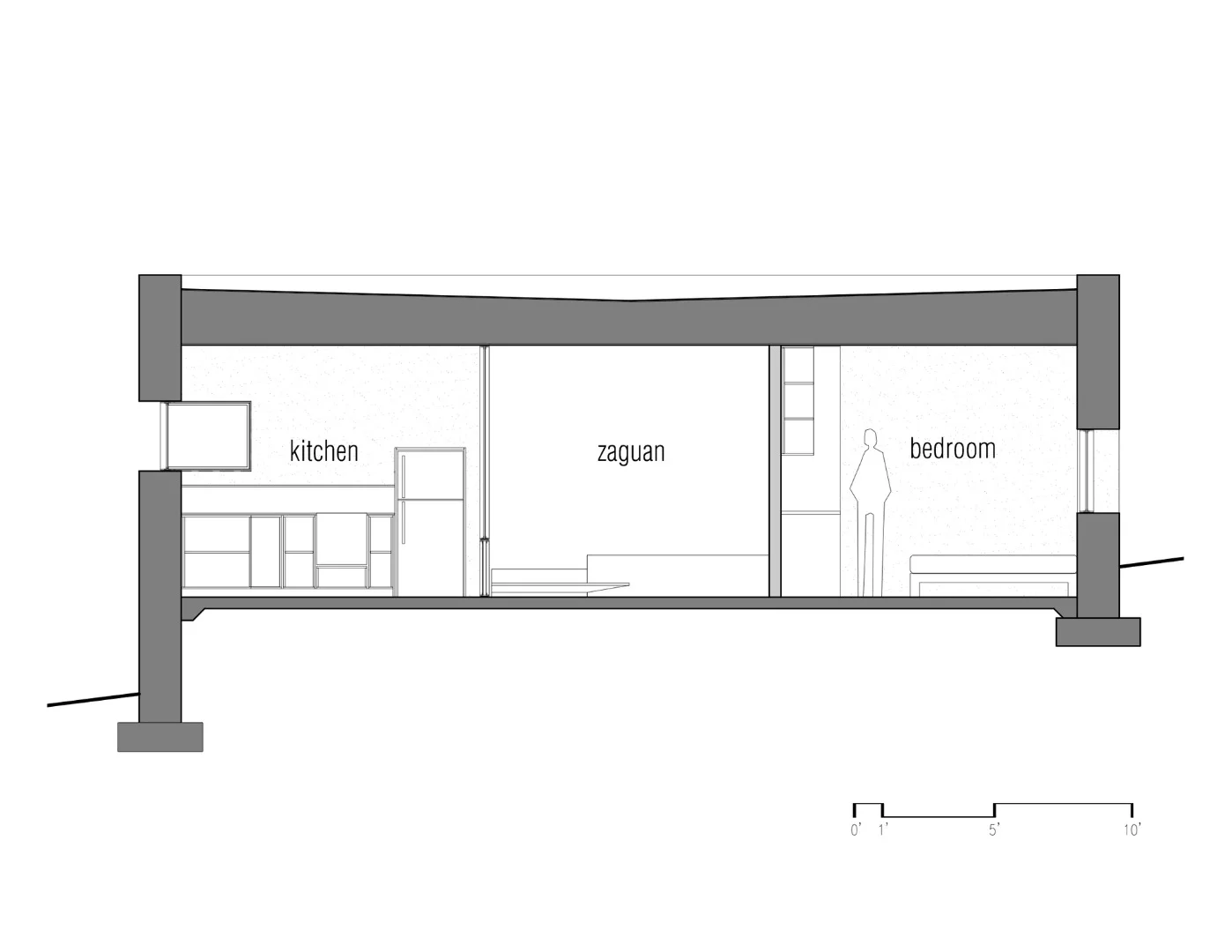

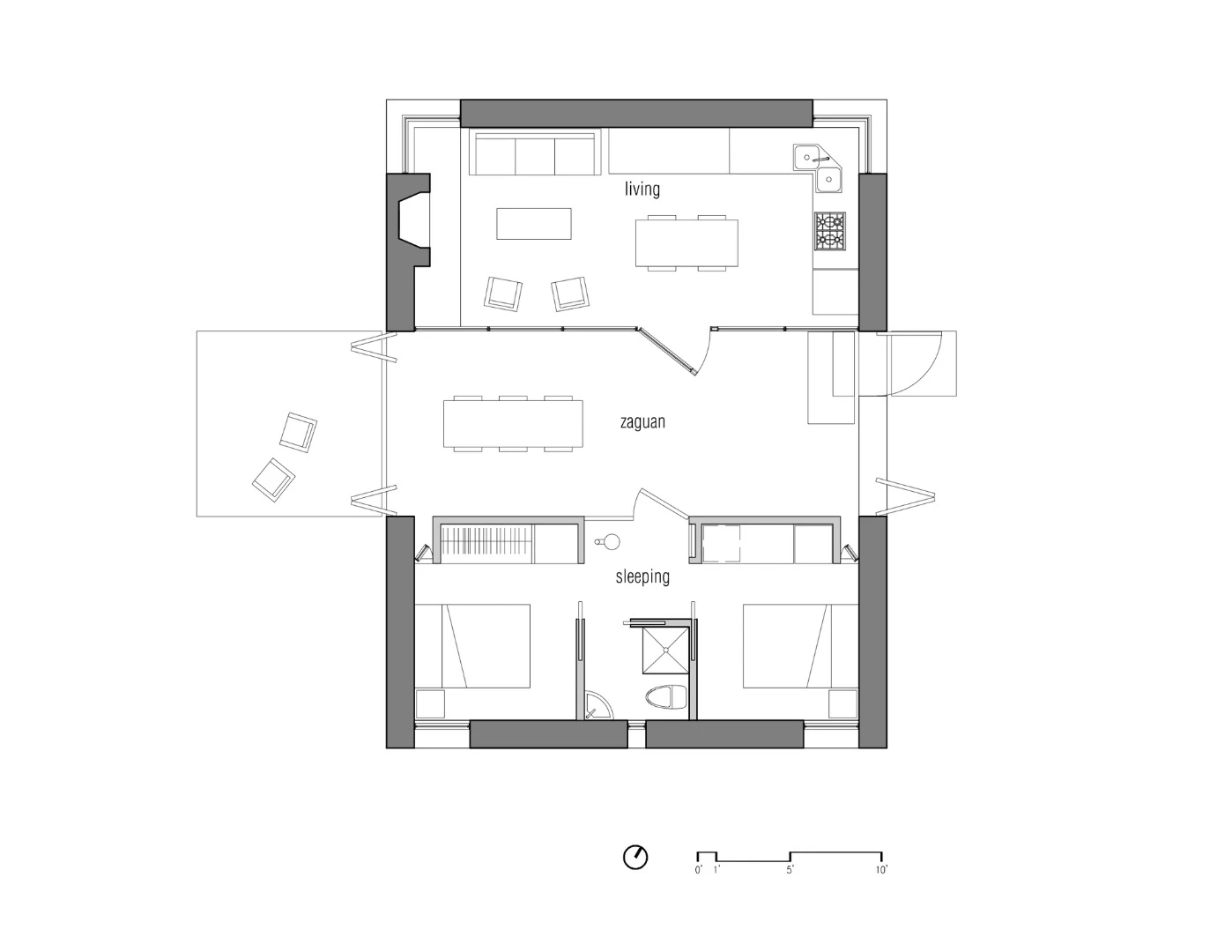

Architectural drawing of Casa Caldera
24/25
Architectural drawing of Casa Caldera

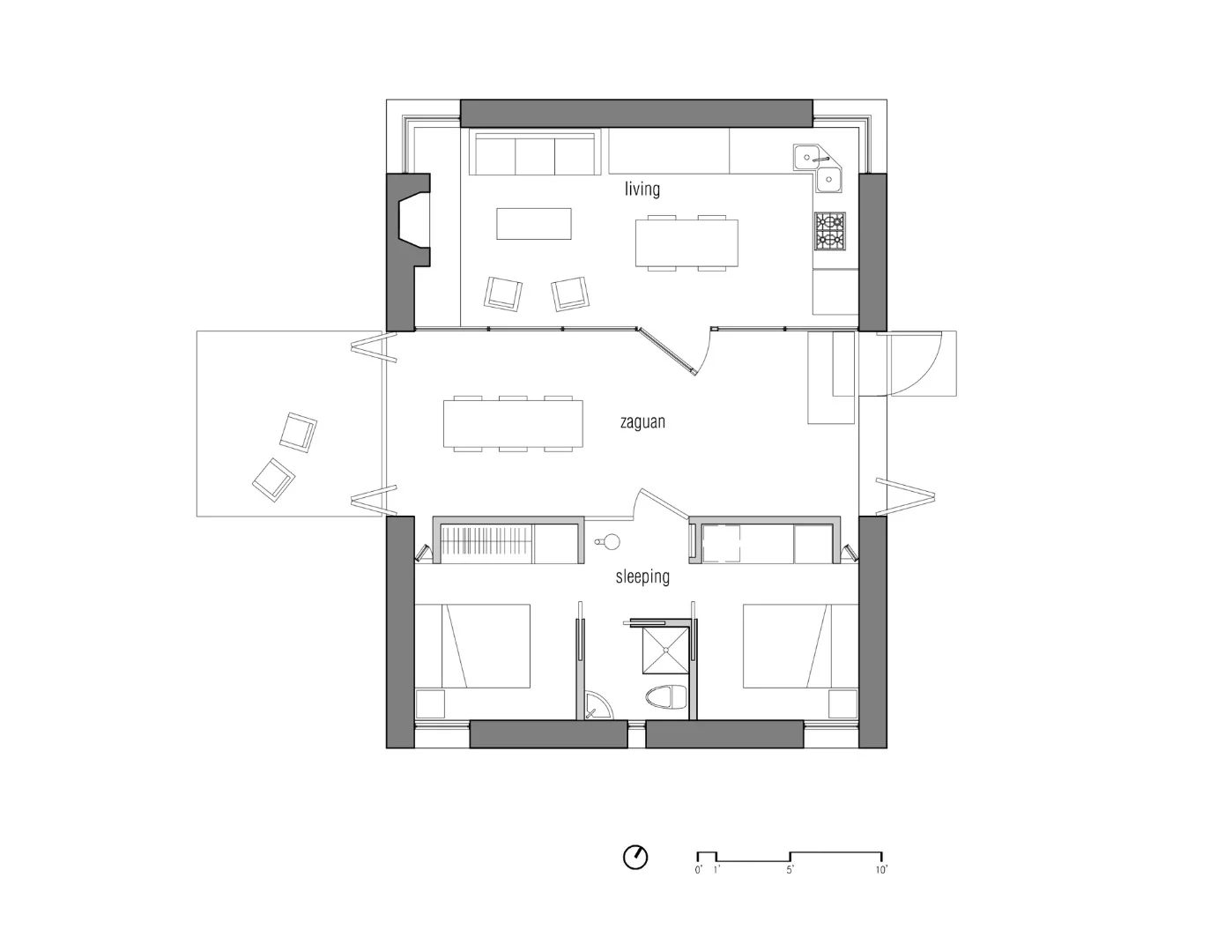

Architectural drawing of Casa Caldera
25/25
Architectural drawing of Casa Caldera
View gallery - 25 images

Located just 15 miles (24 km) north of the US-Mexico border, Casa Caldera is a vacation home that's often left empty for long stretches of time, so unwelcome attention from potential migrant and narco-traffickers was deemed a concern. In response, Tucson, Arizona-based firm Dust designed a discreet, secure, and surprisingly sustainable desert bolthole.

The recently-completed dwelling offers an example of function over form and looks more like a WWII-era bunker than your typical vacation pad. Constructed from "LavaCrete," a mixture of red scoria, lava rock, cement and water, the home is barely visible among the surrounding wild grass and trees, and passersby could easily walk right past the place without noticing it – which is the point, of course.

The interior of the home is arranged around a zaguán, a large ventilating corridor that runs through the center of the house and offers a flexible additional area used for sleeping and dining. The lounge and kitchenette are located behind large glass doors to one side of the zaguán, while two bedrooms and single bathroom are situated on the other side, behind wooden doors.

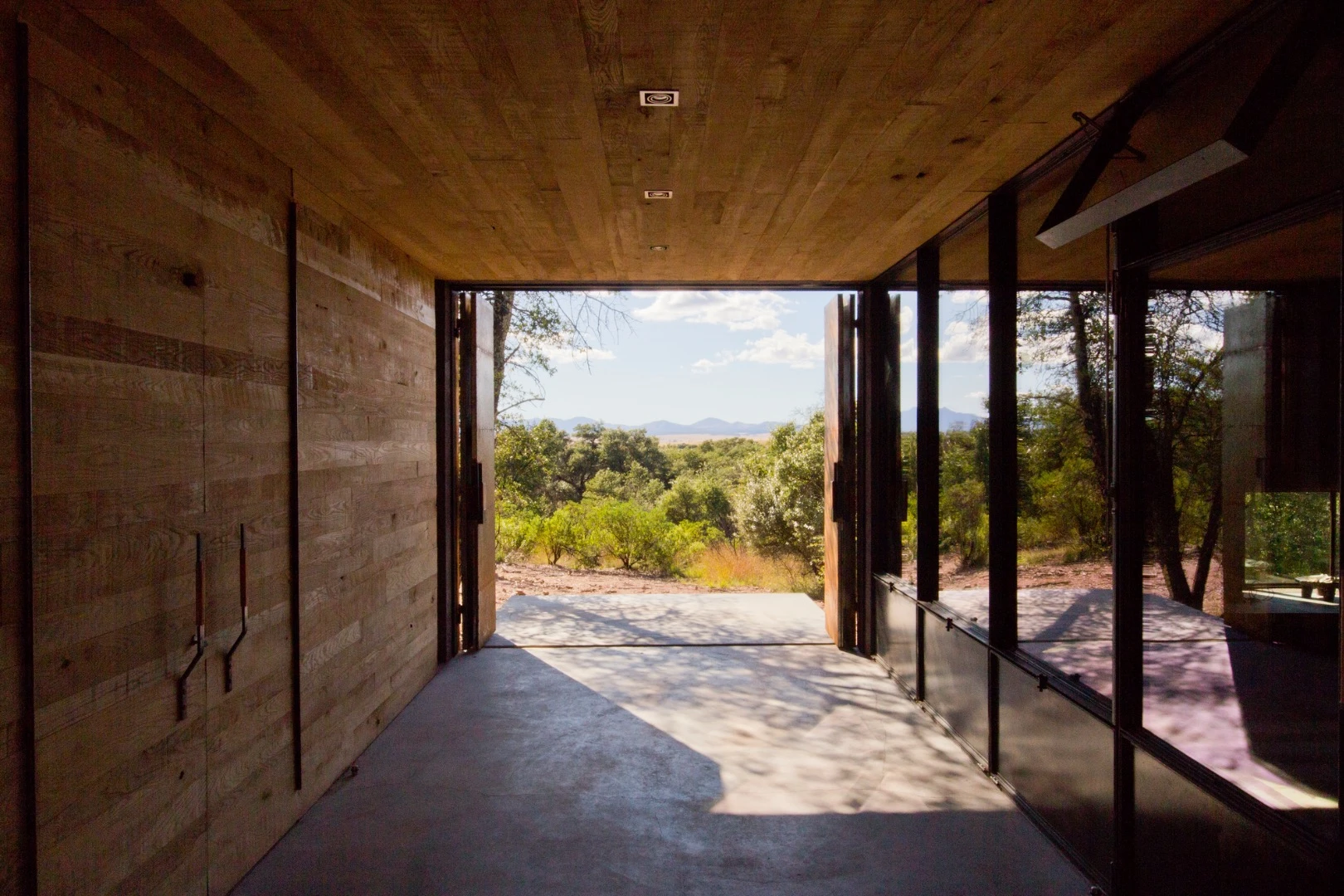

The center of the home is built around a zaguan – essentially a large corridor/living area
The center of the home is built around a zaguan – essentially a large corridor/living area

Access is gained via large bi-folding metal doors placed at each end of the zaguán and these can be positioned at multiple angles to channel the prevailing breeze inside. The few small windows (with thick steel window frames) are all operable too. According to Dust, the balance of the home's air pressure also naturally pulls air through to cool the interior.

These measures, along with Casa Caldera's 18 in (45 cm)-thick walls, must be effective at keeping the home cool, as it requires no air-conditioning even in summer, which is no mean feat in that part of the world. If the temperature drops too low, meanwhile, a fireplace and small wood-burning stove are available.

A single truck full of waste resulted from the home's construction and it operates totally off-the-grid. The minimal lighting consists of energy-efficient LEDs, while a small solar power system provides electricity. A well provides water, and the oven, water heating, and refrigerator are all powered by propane gas bottles.

Source: Dust via Arch Daily
