Flexible material puts full-color e-paper on display

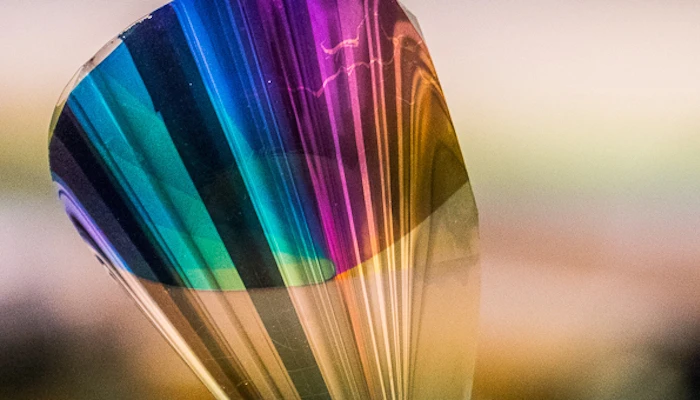

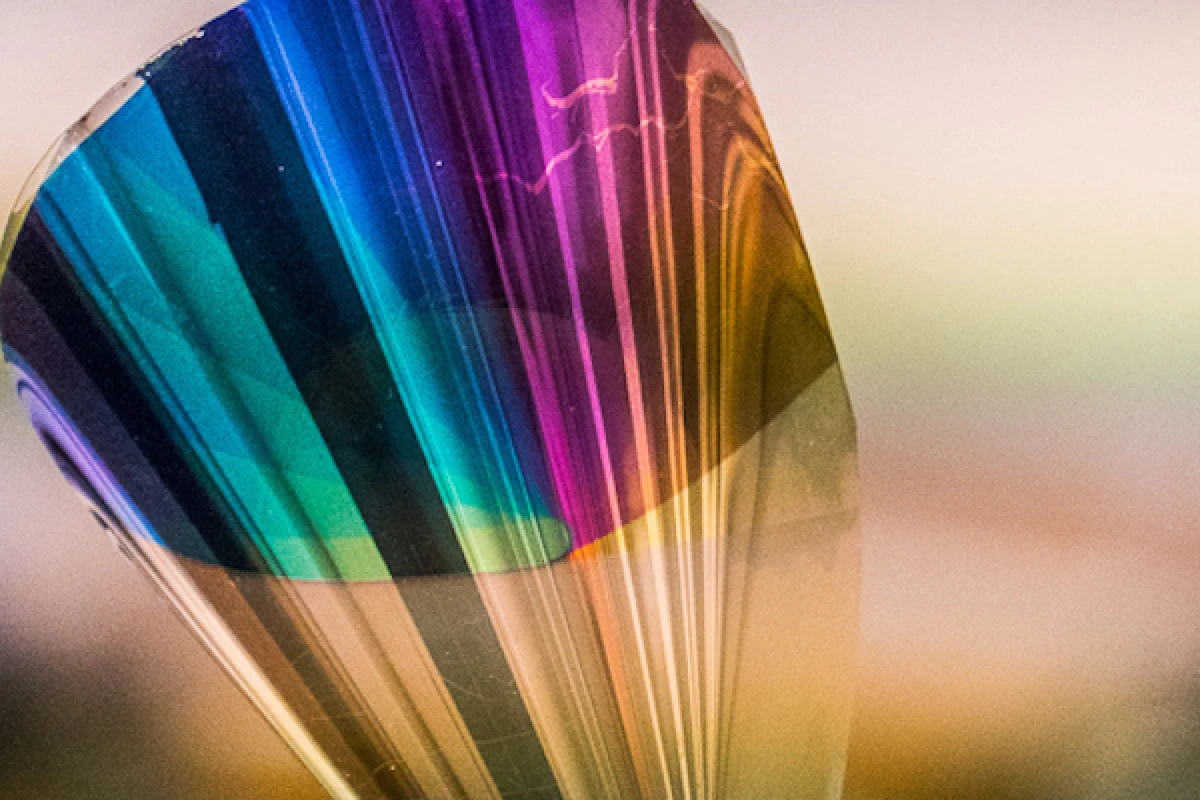

A new type of e-paper could be on the books, thanks to a flexible, ultrathin and low-power material that can produce the full color range of an LED-backlit LCD
A new type of e-paper could be on the books, thanks to a flexible, ultrathin and low-power material that can produce the full color range of an LED-backlit LCD
View 4 Images
A sample of the material, showing how the RGB pixels can reproduce a wide variety of colors
1/4
A sample of the material, showing how the RGB pixels can reproduce a wide variety of colors
A new type of e-paper could be on the books, thanks to a flexible, ultrathin and low-power material that can produce the full color range of an LED-backlit LCD
2/4
A new type of e-paper could be on the books, thanks to a flexible, ultrathin and low-power material that can produce the full color range of an LED-backlit LCD

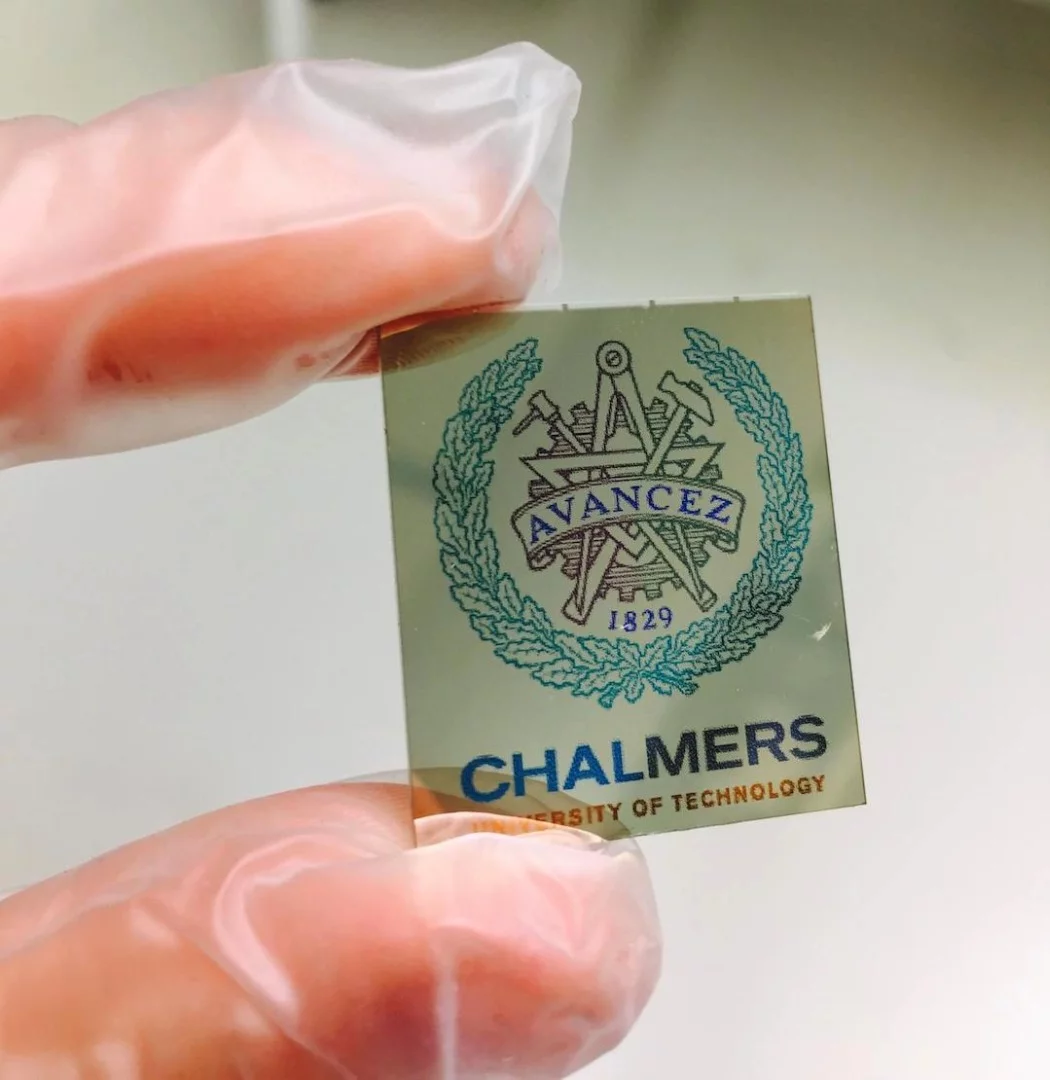

As a reflective display, the researchers believe the material will work best for outdoor signage, posters and information screens
3/4
As a reflective display, the researchers believe the material will work best for outdoor signage, posters and information screens
Two of the Chalmers University of Technology researchers who developed the material, Kunli Xiong, left, and Andreas Dahlin
4/4
Two of the Chalmers University of Technology researchers who developed the material, Kunli Xiong, left, and Andreas Dahlin

E-ink displays may be easier on the eyes and less power-hungry than backlit LCDs used in most tablets and phones, but in the color department they're still playing catch-up. However, this could change thanks to a new type of material developed at Chalmers University of Technology that is flexible, ultrathin and can produce the full color range of an LED-backlit LCD, but requires ten times less energy than a Kindle's e-ink display.

Like a conventional e-reader screen, the material functions as a reflective display, so instead of being backlit like an LCD, the surface reflects the external light that hits it. Electrically conductive polymers covering the surface change how that light is absorbed and reflected, which allows it to recreate high resolution images and text. The end result is a material that's less than one micron thick, flexible and extremely energy efficient.

"The 'paper' is similar to the Kindle tablet," says Andreas Dahlin, lead author of the study. "It isn't lit up like a standard display, but rather reflects the external light which illuminates it. Therefore it works very well where there is bright light, such as out in the sun, in contrast to standard LED displays that work best in darkness. At the same time it needs only a tenth of the energy that a Kindle tablet uses, which itself uses much less energy than a tablet LED display."

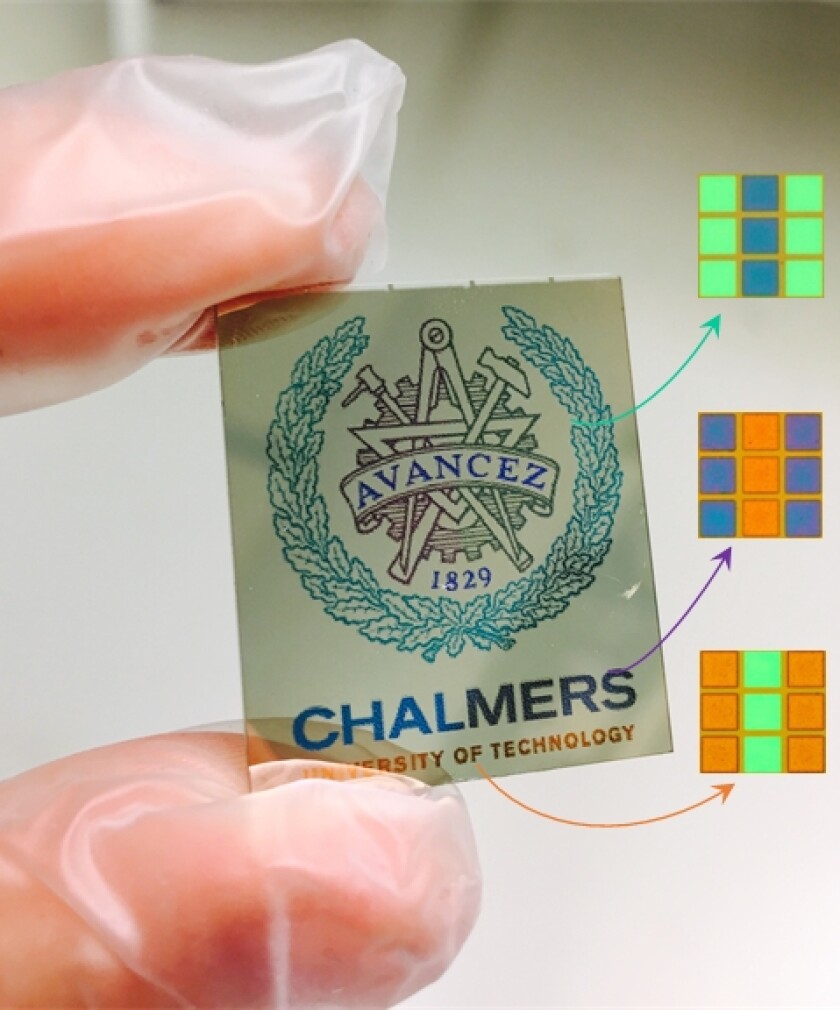

A sample of the material, showing how the RGB pixels can reproduce a wide variety of colors
A sample of the material, showing how the RGB pixels can reproduce a wide variety of colors

The team has only built and tested a few pixels that use the familiar red, green and blue combination to create different colors, but they are confident the material can be scaled up for commercial applications. However, there are some hurdles to overcome first, including the added cost due to the display's use of gold and silver.

"The gold surface is 20 nm thick so there is not that much gold in it," says Dahlin. "But at present there is a lot of gold wasted in manufacturing it. Either we reduce the waste or we find another way to reduce the production cost."

If the material does make it to commercial production, the team believes it would be best suited to posters and outdoor signage in places that are well-lit.

The research was published in the journal Advanced Materials.

Source: Chalmers University of Technology
