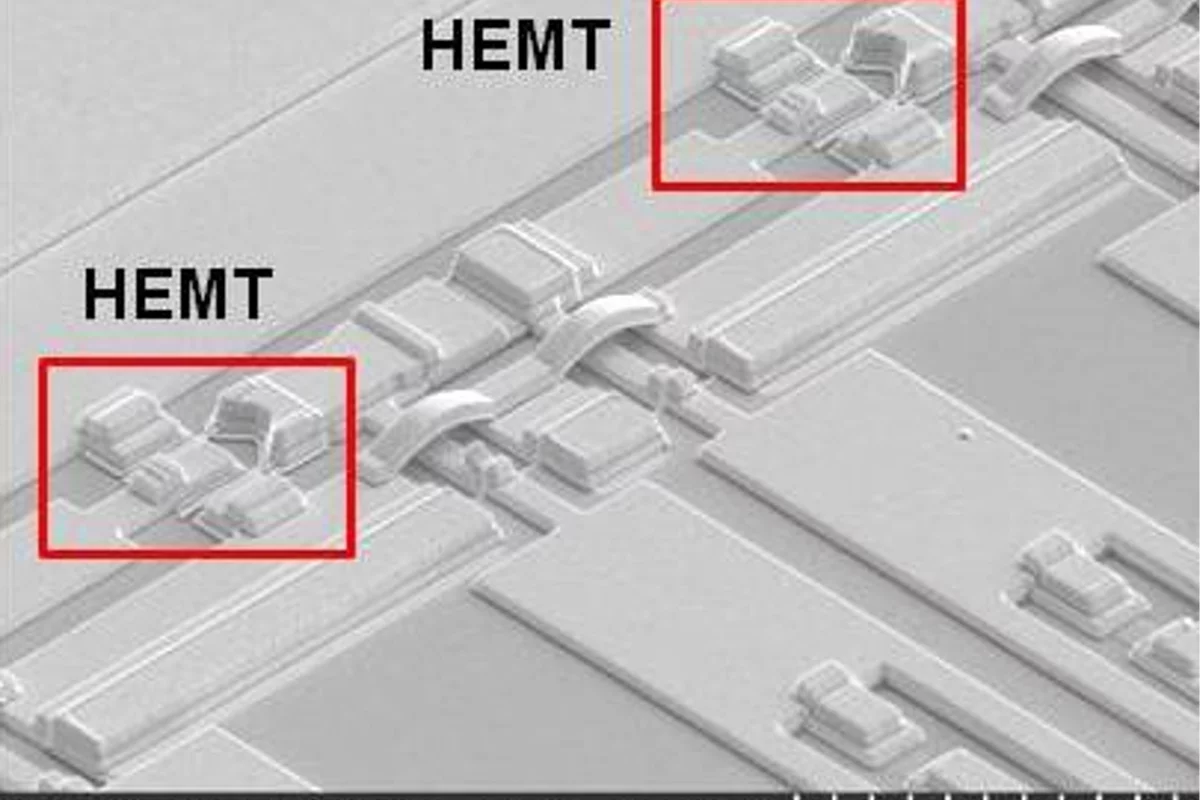

Electron microscope scan of a THz circuit detailing its high-electron-mobility transistors
Electron microscope scan of a THz circuit detailing its high-electron-mobility transistors
View 3 Images

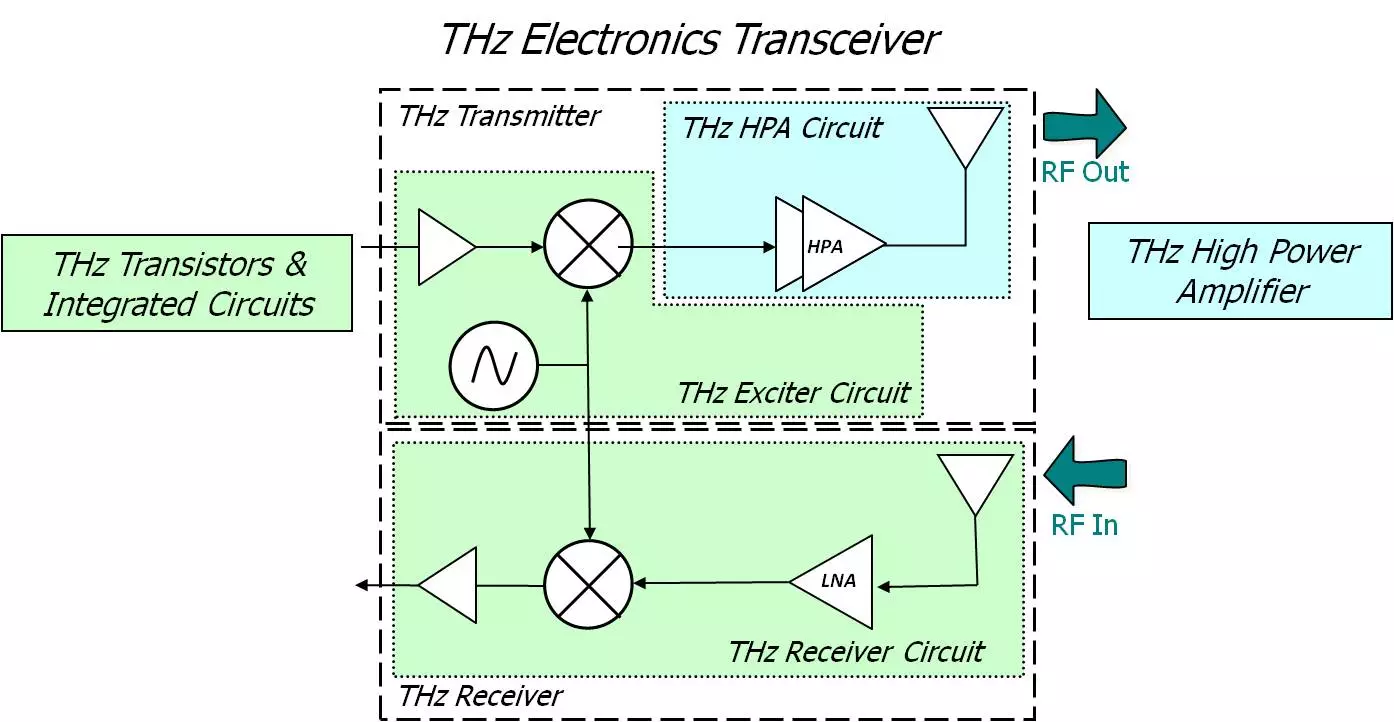

Architecture of a THz tranceiver
1/3
Architecture of a THz tranceiver

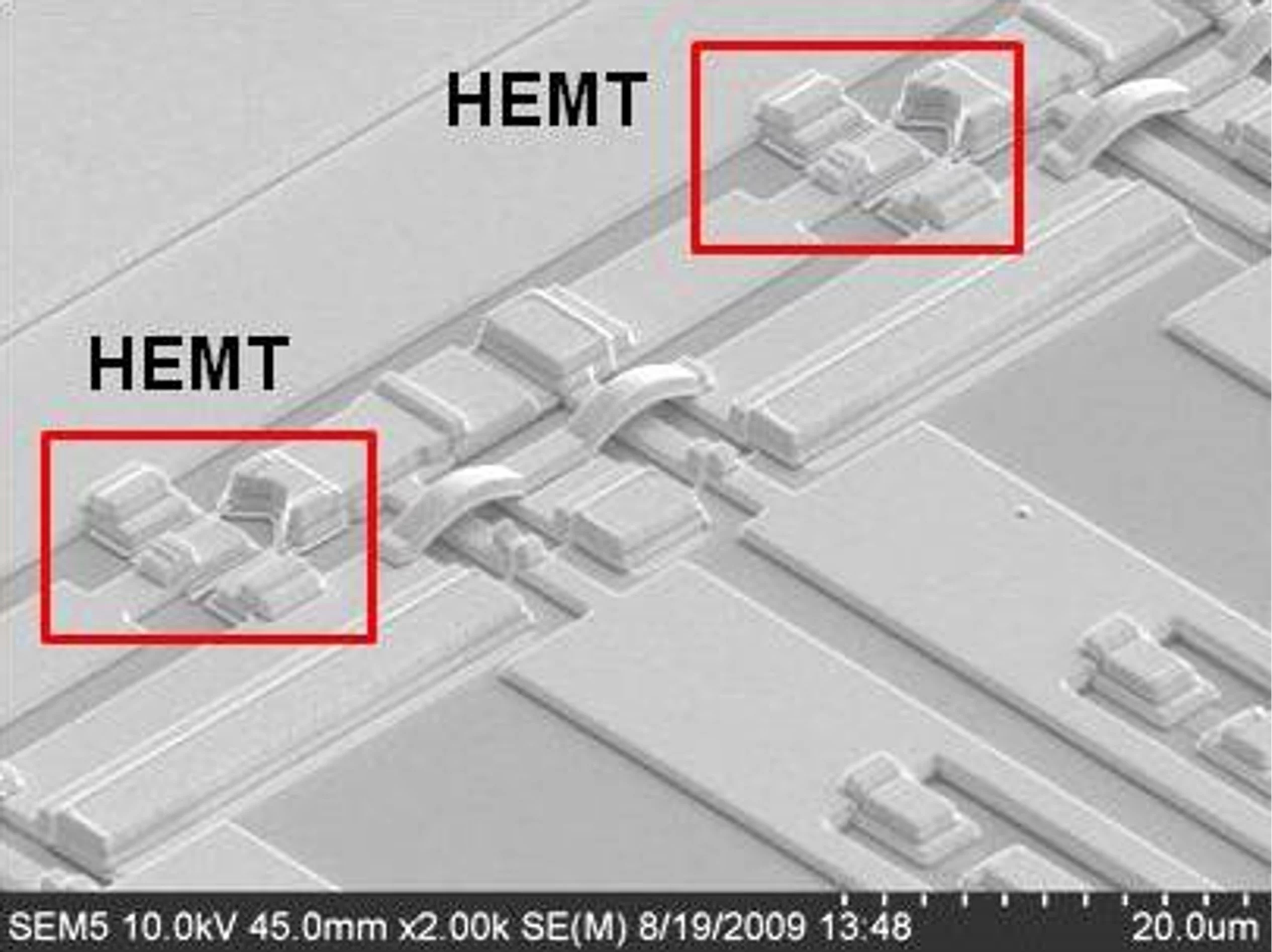

Electron microscope scan of a THz circuit detailing its high-electron-mobility transistors
2/3
Electron microscope scan of a THz circuit detailing its high-electron-mobility transistors
DARPA’s Terahertz Monolithic Integrated Circuit (TMIC) is the first solid-state amplifier demonstrating gain above 1 THz (1012 Hz)
3/3
DARPA’s Terahertz Monolithic Integrated Circuit (TMIC) is the first solid-state amplifier demonstrating gain above 1 THz (1012 Hz)
View gallery - 3 images

Getting into the Guinness Book of World Records isn't just about who can eat the most hotdogs or fly a paper airplane the highest. Sometimes it involves technological breakthroughs with huge potential. Guinness has handed DARPA’s Terahertz Electronics program the award for the fastest solid-state amplifier integrated circuit. Developed by Northrop Grumman, the Terahertz Monolithic Integrated Circuit (TMIC) is a ten-stage common-source amplifier that cranks speeds of one terahertz (1012 Hz), or one trillion cycles per second.

DARPA argues that the current state of electronics must move beyond speeds of 300 gigahertz and wavelengths of less than a millimeter if it is to meet the needs of the next generation of imaging, radar, spectroscopy, and communications technology.

It’s all a matter of gain – a measurement of the ability of an electrical circuit to increase the power of a signal between the input and the output, measured in logarithmic decibel (dB) units. The TMIC is based on work done by DARPA's HiFIVE, SWIFT and TFAST programs and is capable of speeds 150 billion cycles faster than the previous record set in 2012 of 850 gigahertz. It has power gains that are several orders of magnitude greater than previous circuits with a gain of nine decibels at 1.0 terahertz (THz) and 10 decibels at 1.03 THz. In comparison, a smartphone can only manage 2 GHz.

DARPA’s Terahertz Monolithic Integrated Circuit (TMIC) is the first solid-state amplifier demonstrating gain above 1 THz (1012 Hz)
DARPA’s Terahertz Monolithic Integrated Circuit (TMIC) is the first solid-state amplifier demonstrating gain above 1 THz (1012 Hz)

"Gains of six decibels or more start to move this research from the laboratory bench to practical applications — nine decibels of gain is unheard of at terahertz frequencies" says Dev Palmer, DARPA program manager. "This opens up new possibilities for building terahertz radio circuits."

DARPA isn't revealing much about how the TMIC works, but it seems to be a departure from the conventional approach, which involves converting an alternating current from one frequency to another. According to DARPA, this approach has been less than successful because it restricts power output, has signal-to-noise issues, and introduces size, weight, and power requirement problems.

"Terahertz circuits promise to open up new areas of research and unforeseen applications in the submillimeter-wave spectrum, in addition to bringing unprecedented performance to circuits operating at more conventional frequencies," says Palmer. "This breakthrough could lead to revolutionary technologies such as high-resolution security imaging systems, improved collision-avoidance radar, communications networks with many times the capacity of current systems and spectrometers that could detect potentially dangerous chemicals and explosives with much greater sensitivity."

Source: DARPA
