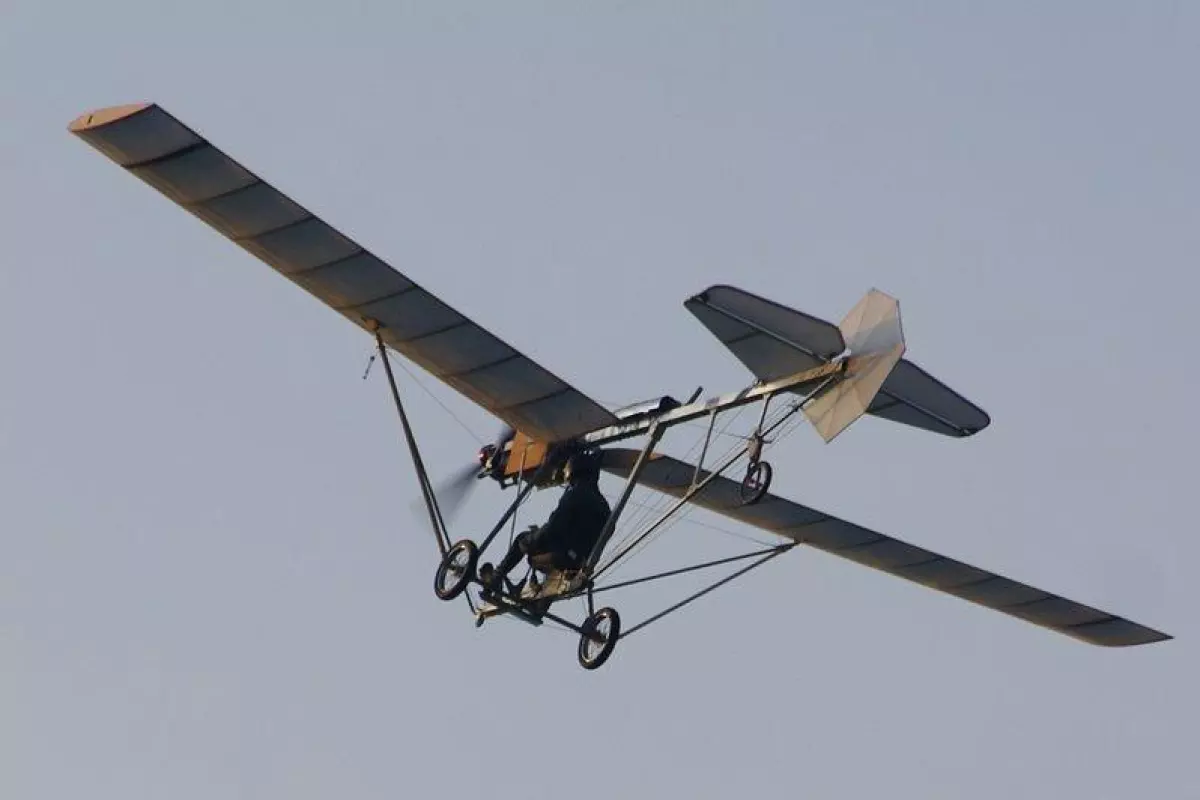

The Magnificent APEV electric Demoichelle
The Magnificent APEV electric Demoichelle
View 13 Images

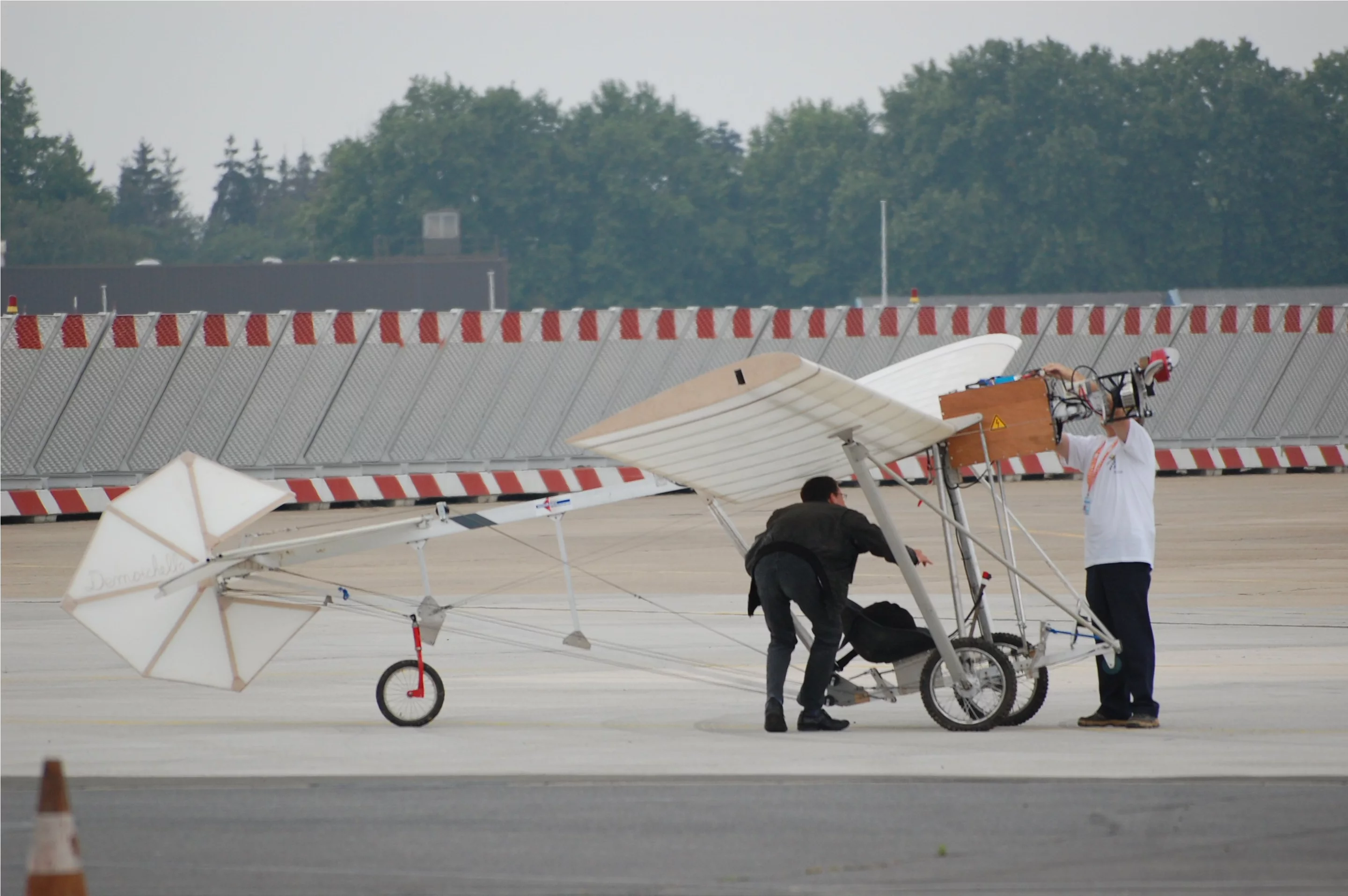

Minor tweaking and testing ahead of some time in the air
1/13
Minor tweaking and testing ahead of some time in the air

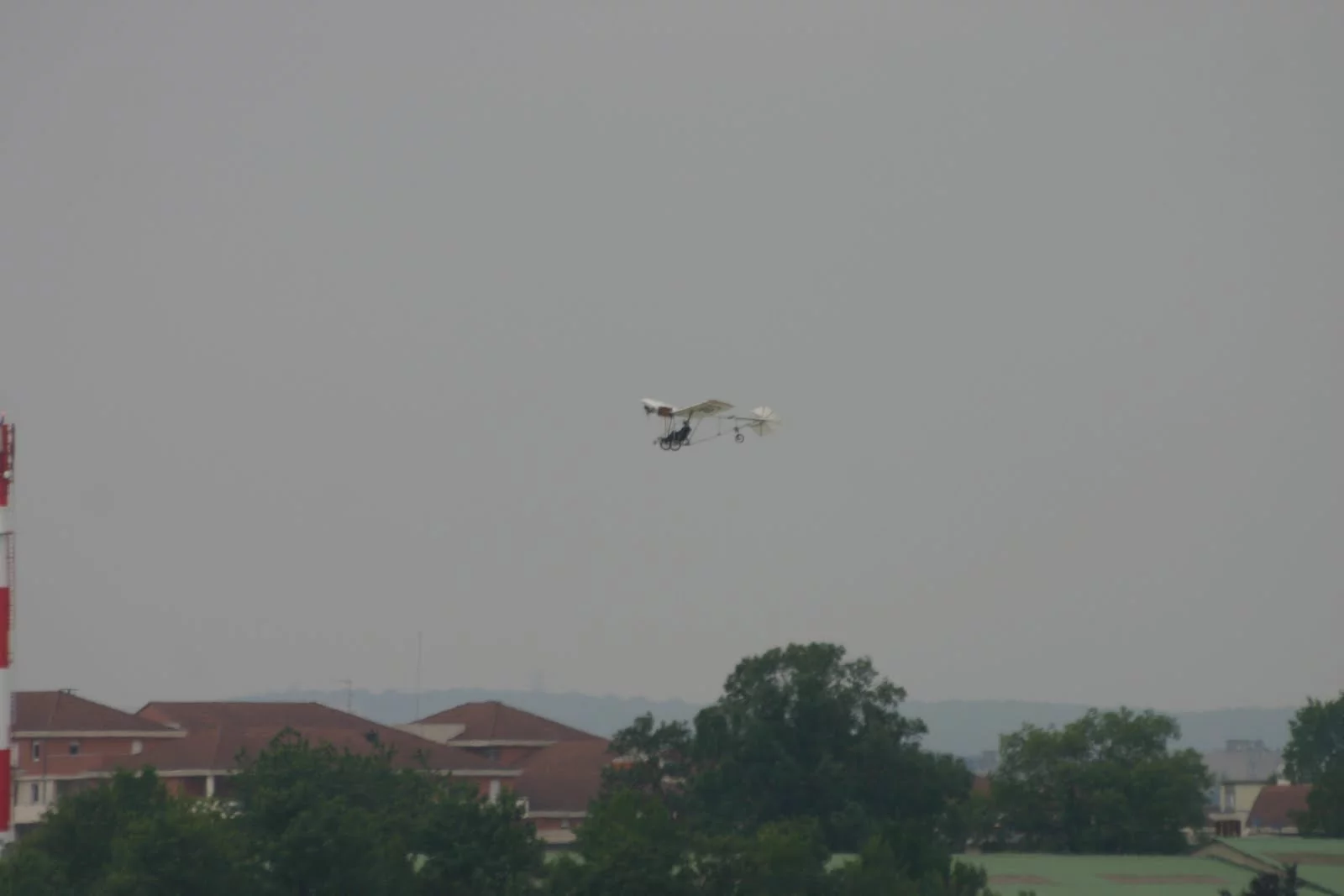

Flying over Le Bourget airfield as part of the zero emission air show
2/13
Flying over Le Bourget airfield as part of the zero emission air show

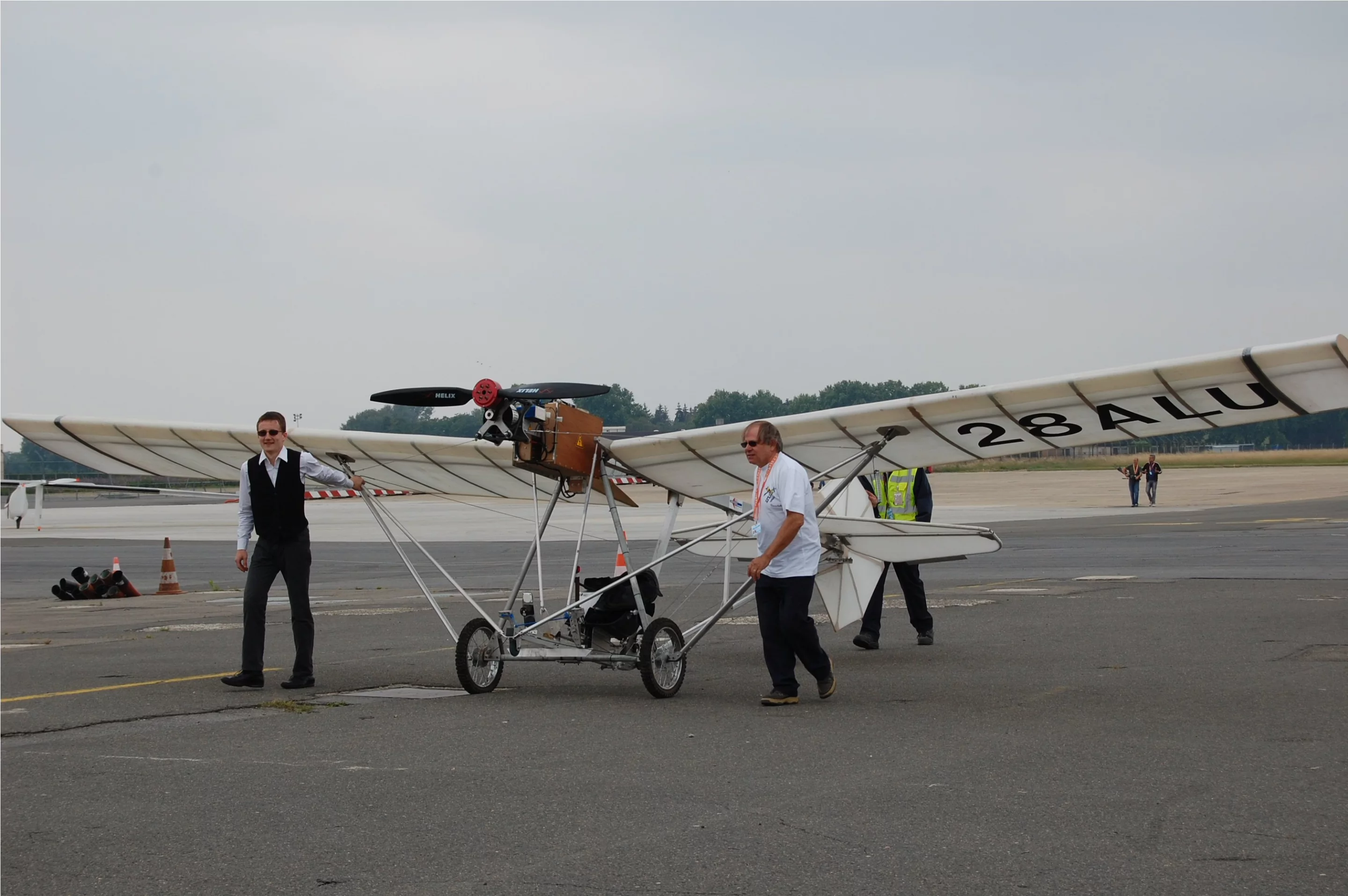

Showing off to the cameras after a brief circuit of the airfield
3/13
Showing off to the cameras after a brief circuit of the airfield

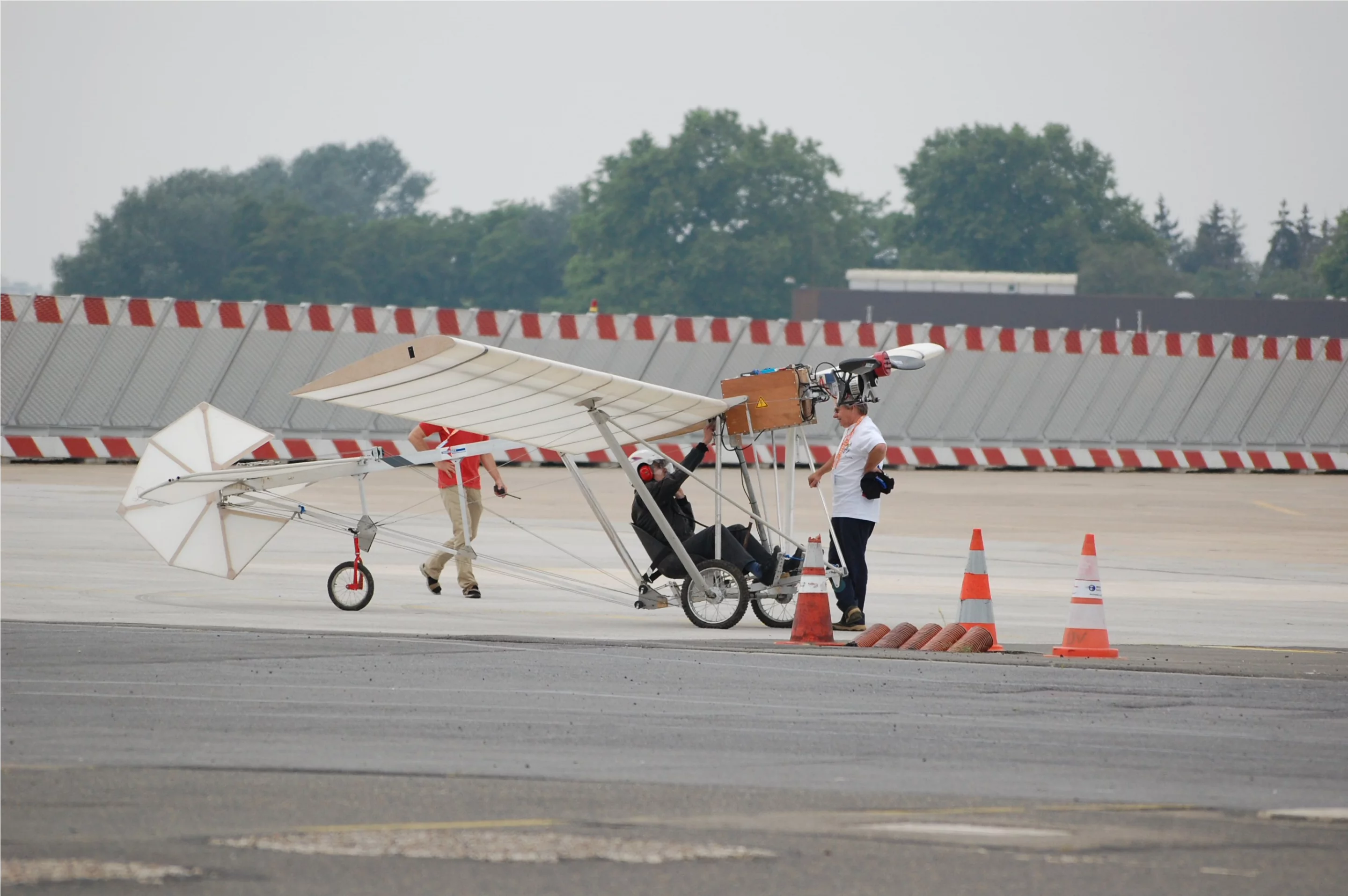

Almost ready to go
4/13
Almost ready to go

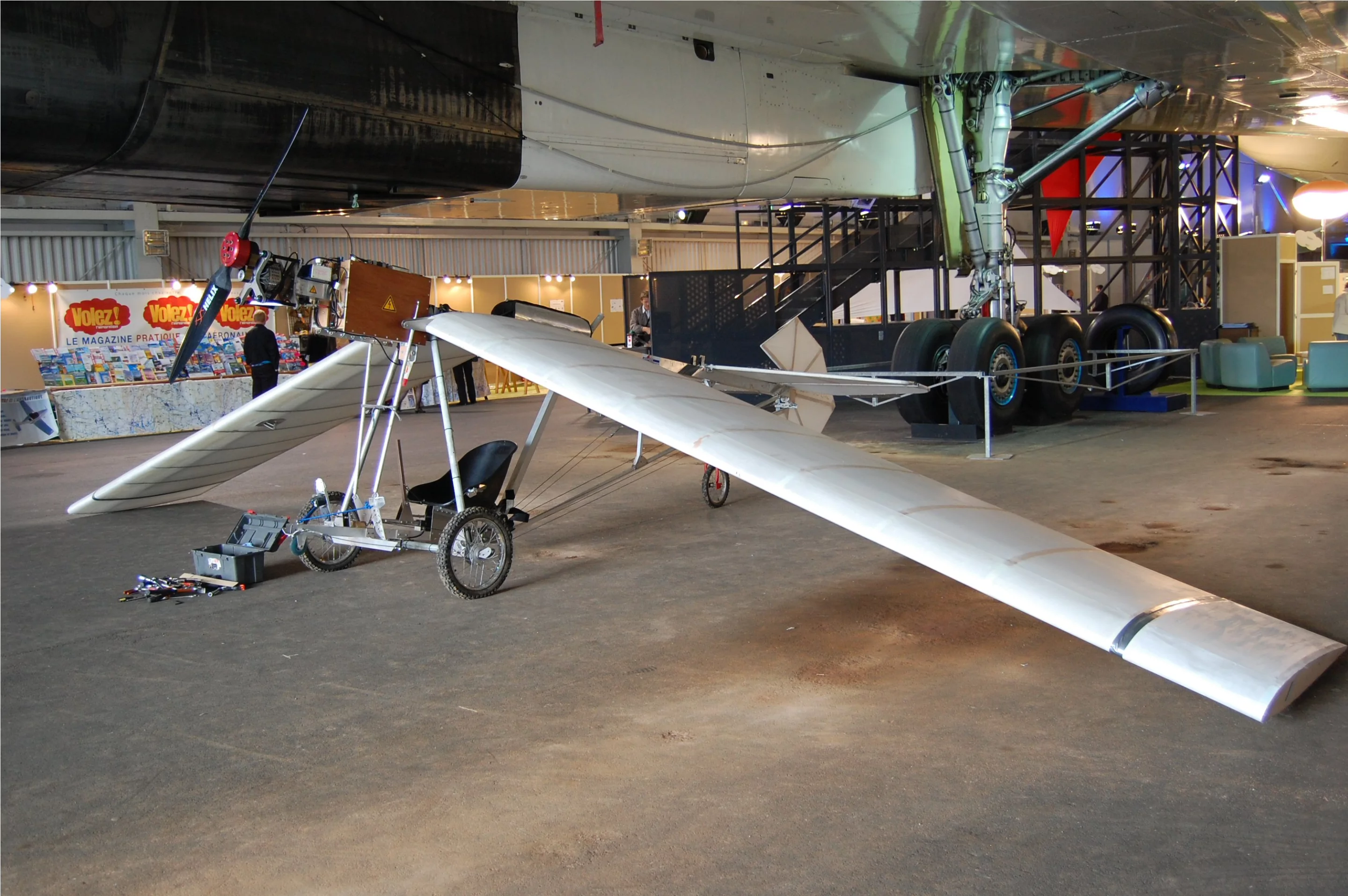

Under construction: the electric Demoichelle monoplane sitting underneath Concorde at the Green Air Show in Paris
5/13
Under construction: the electric Demoichelle monoplane sitting underneath Concorde at the Green Air Show in Paris
Coming in for the final approach
6/13
Coming in for the final approach

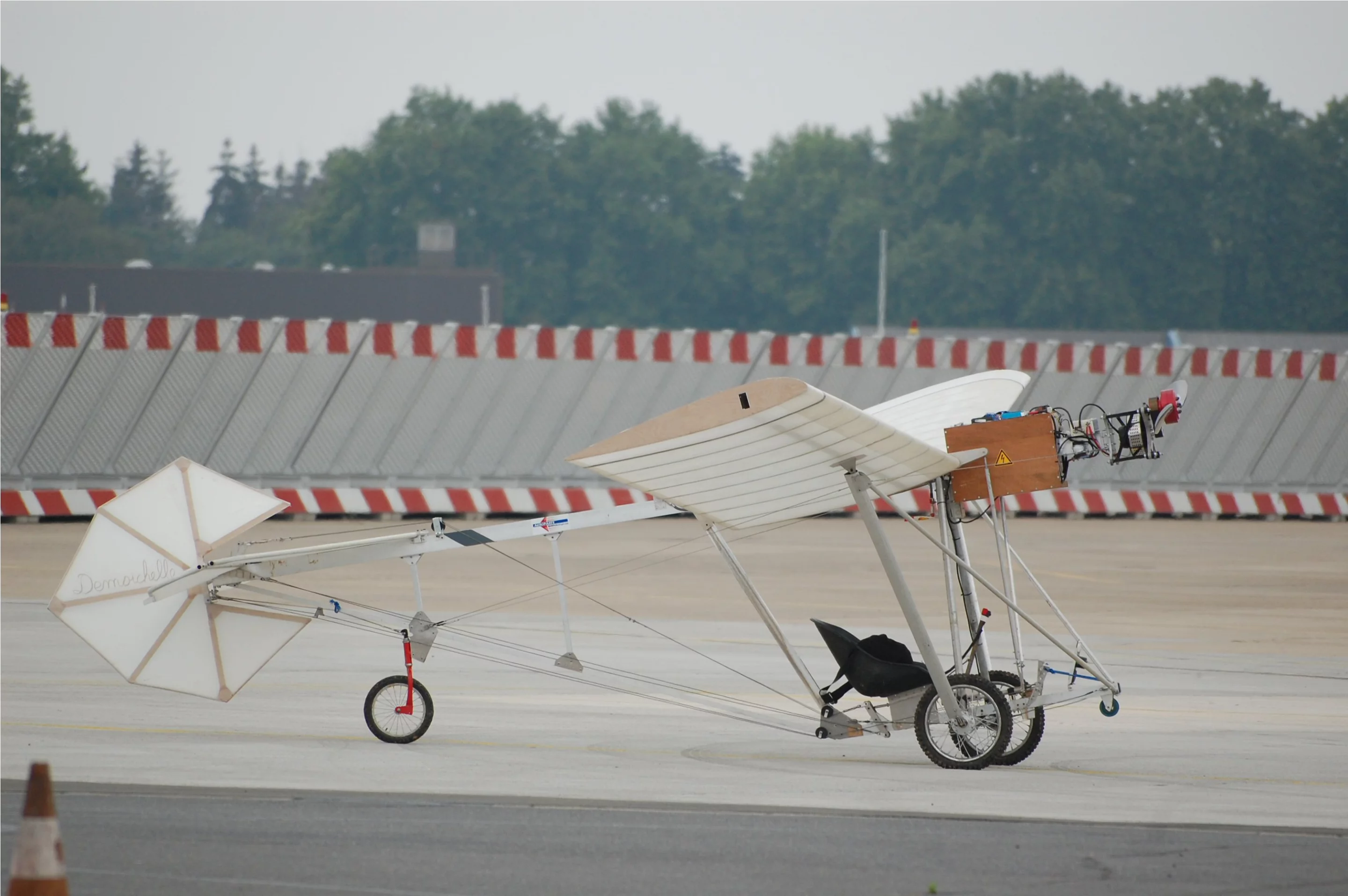

Waiting for a pilot, the electric Demoichelle at Le Bourget airfield
7/13
Waiting for a pilot, the electric Demoichelle at Le Bourget airfield

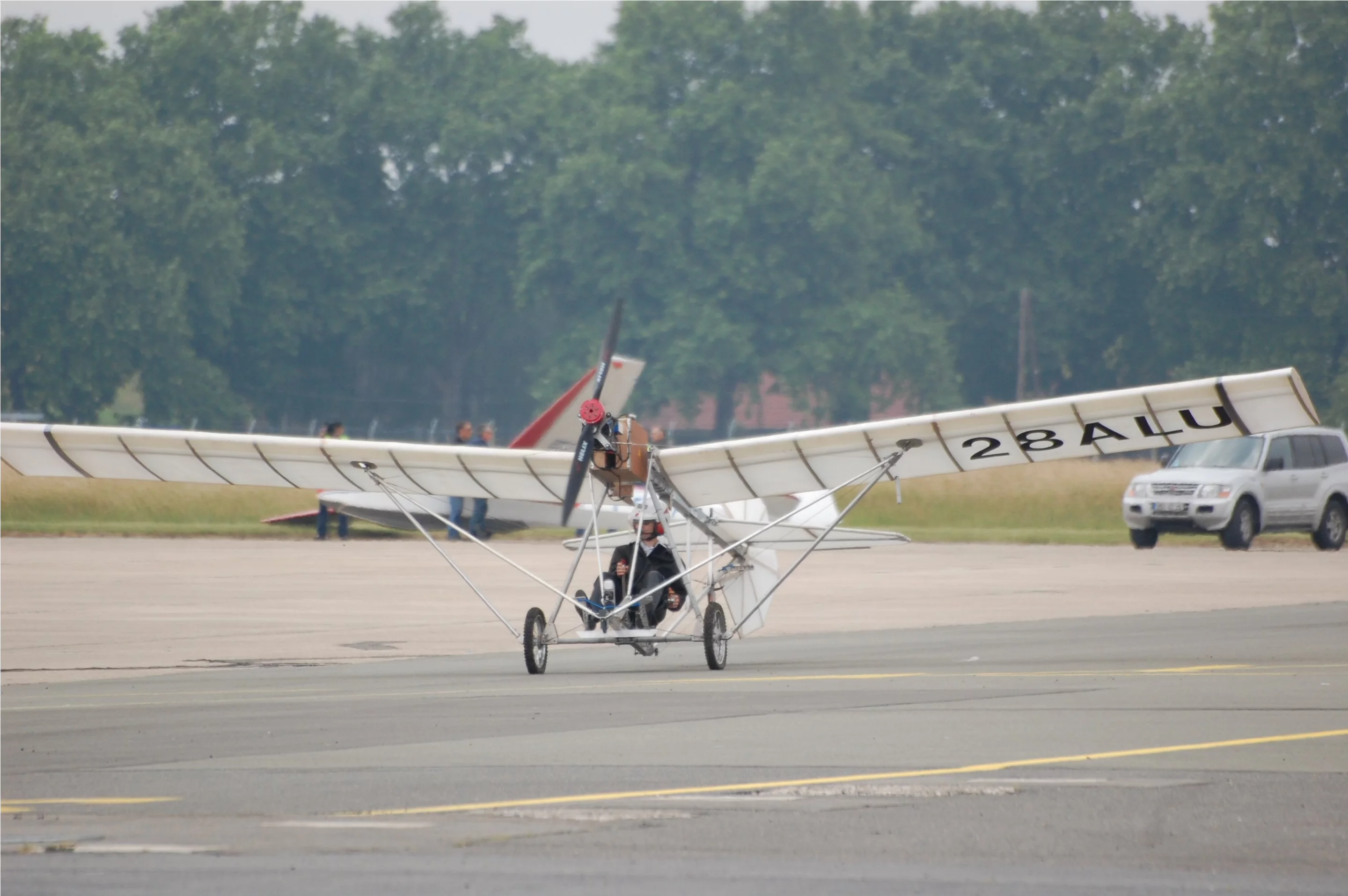

Safe landing, the electric Demoichelle at Le Bourget airfield
8/13
Safe landing, the electric Demoichelle at Le Bourget airfield

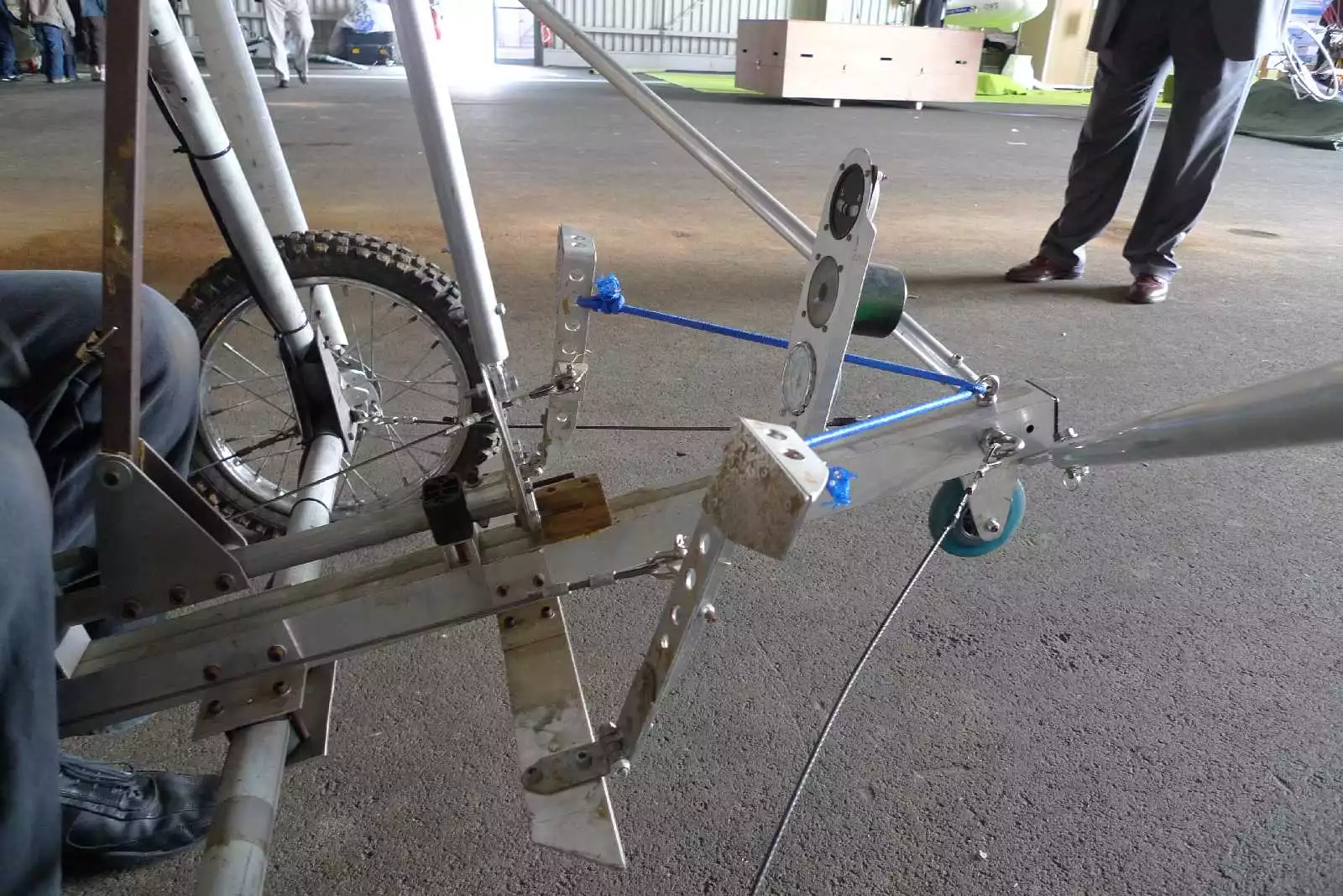

Controls to the front of the electric Demoichelle
9/13
Controls to the front of the electric Demoichelle
The Magnificent APEV electric Demoichelle
10/13
The Magnificent APEV electric Demoichelle

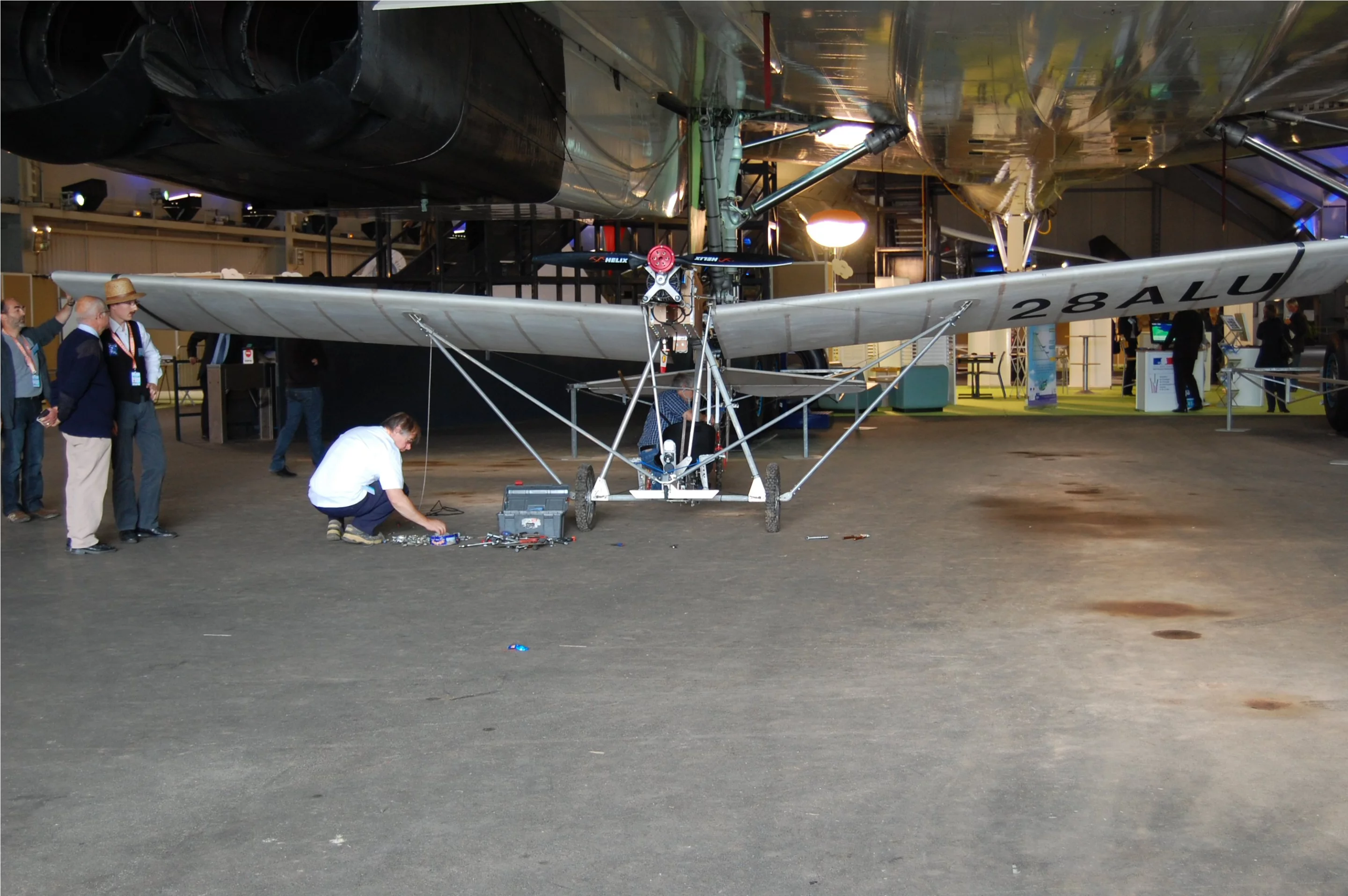

Some final adjustements before taking to the air at Le Bourget airfield in Paris during the Green Air Show
11/13
Some final adjustements before taking to the air at Le Bourget airfield in Paris during the Green Air Show

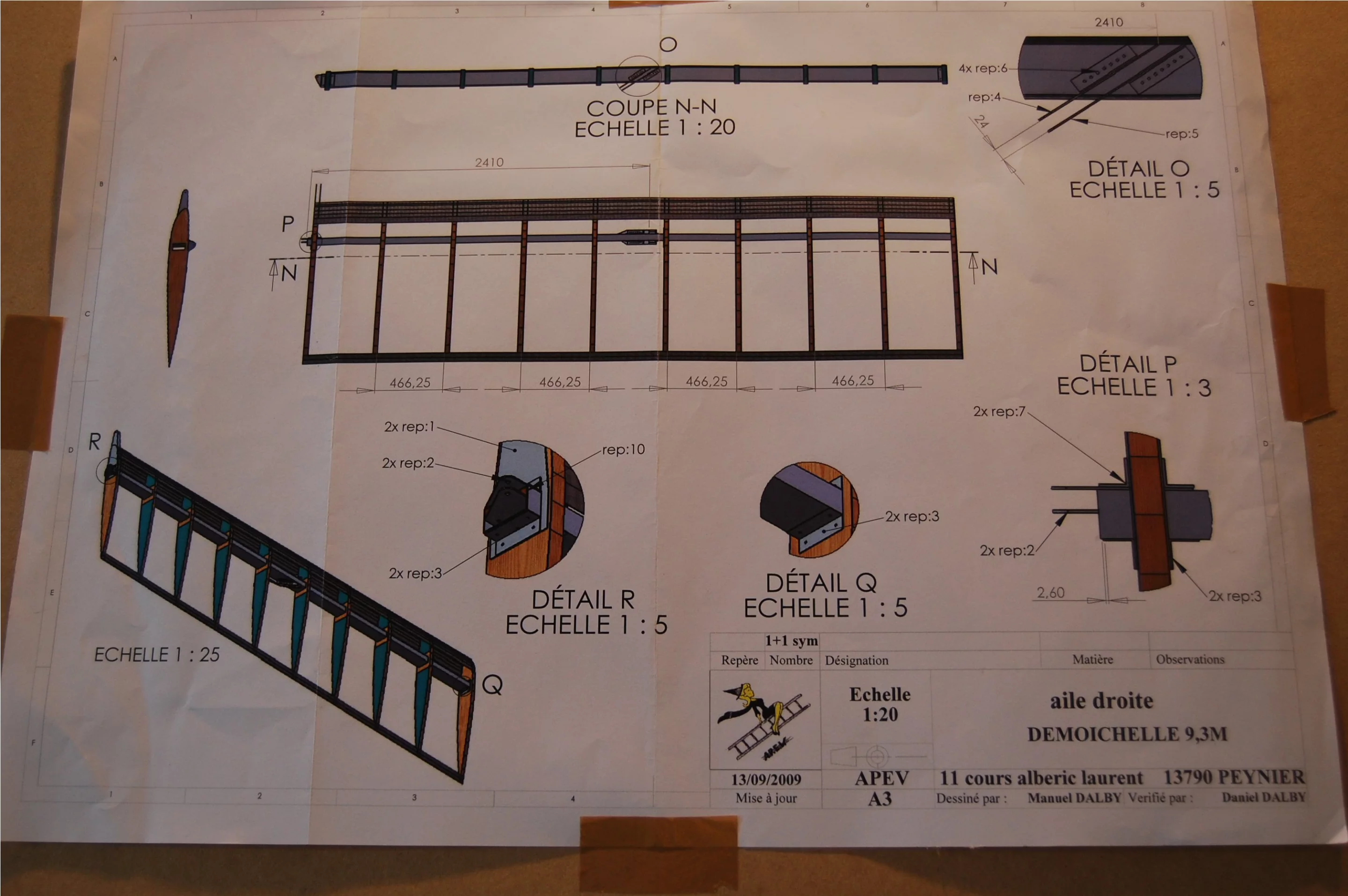

Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris
12/13
Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris

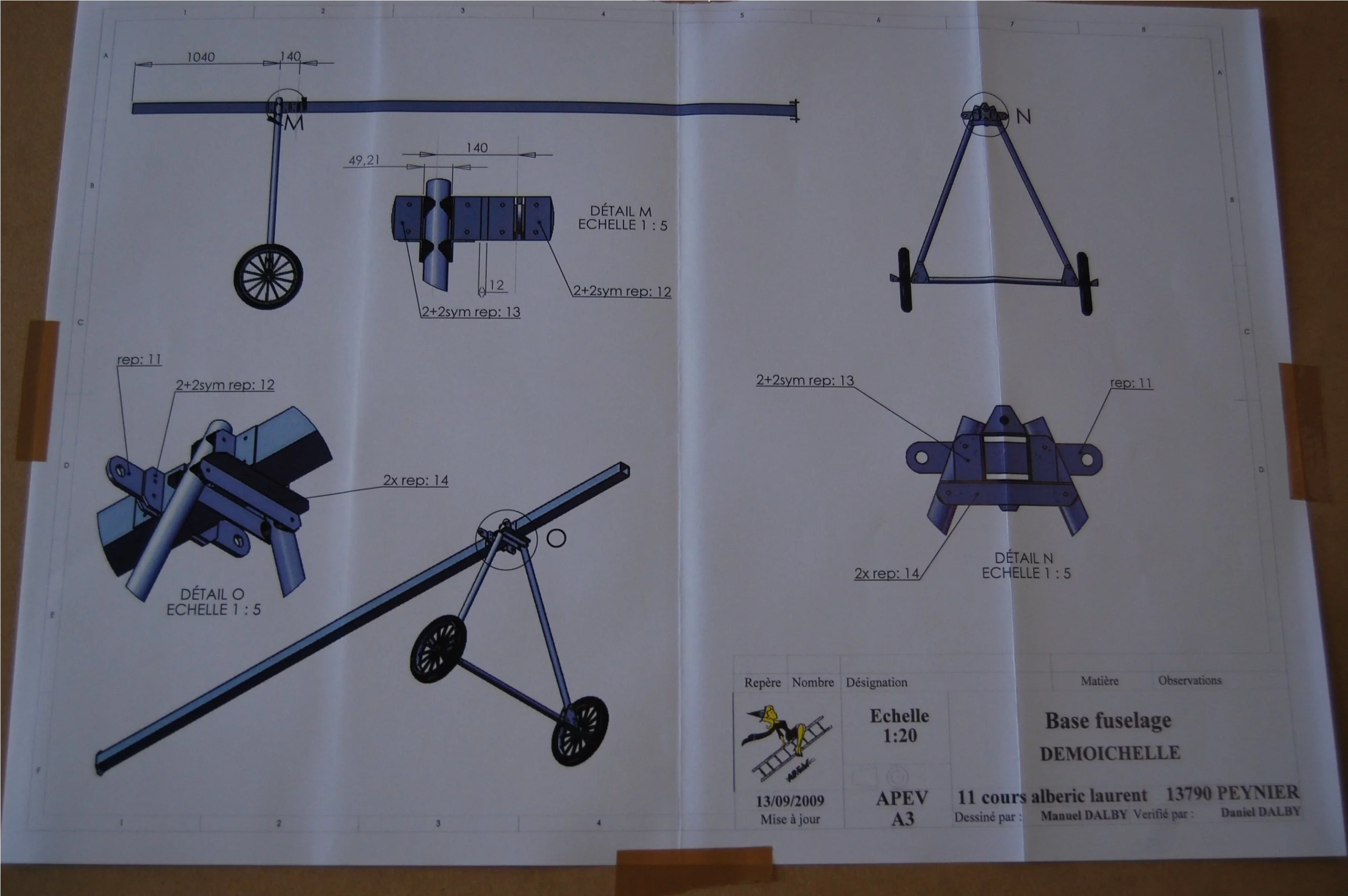

Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris
13/13
Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris
View gallery - 13 images

Despite the 10-15 knot winds cutting across the airfield at Le Bourget in Paris for the Green Air Show, visitors were treated to the wonderful sight of the electric Demoichelle in the air. The treasured creation of the Association for Promotion of Flying Ladders (APEV) the electric monoplane looks as though it was designed by the ghost of Alberto Santos-Dumont himself.

APEV's Charles Donnefort told Gizmag that the electric aircraft on display underneath Concorde (when it wasn't on the airfield) at the Le Salon de l'Aviation Verte in Paris is in fact the same prototype used for the test flights of the group's original combustion-powered Demoichelle in 2009, with a few modifications. The ROTAX engine has been swapped for a reinforced AGNI 112 R electric motor and some Lithium Polymer KOKAM 74V batteries, plus there's a minor size alteration too.

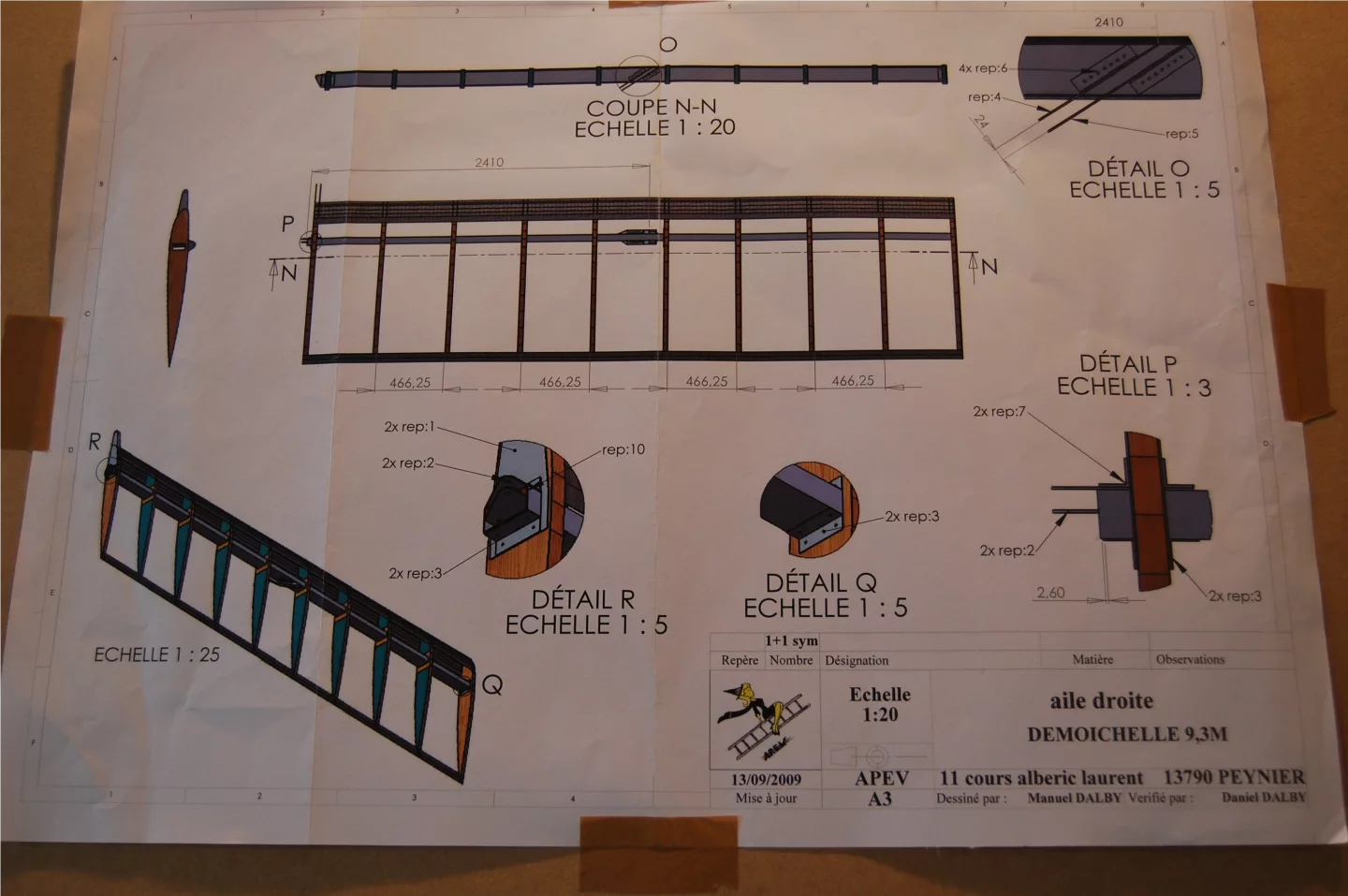

Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris
Construction plans for the Demoichelle monoplane on display at the Green Air Show in Paris

The single spar, 50x100mm aluminum extrusion, wooden reinforced Styrodur rib, composite leading and trailing edge, and DIATEX 1000 covering which makes up the wings has received an extra half a meter on each side to give a little more wing surface, taking the wingspan to over 9 meters (29.5 feet). The actual weight of the e-Demoichelle is almost exactly the same as the thermal version, with the electric motor and the batteries making up for the heavy ROTAX engine.

In common with its predecessor, it stands around 2 meters (6.8 feet) tall and is just over 5 meters (17.3 feet) in length with the pilot sitting below the wing. The stall speed is marginally different, the electric version now between 35 and 40 kph (21.7/24.8 mph) but the maximum speed is still 120 km/h (74.5 mph) although the pilot usually takes things a little easier, with an average cruising speed of around 70kph (43.3 mph).

Showing off to the cameras after a brief circuit of the airfield
Showing off to the cameras after a brief circuit of the airfield

In the coming months APEV will be busying themselves creating a two-seater biplane (the Hydrochel) and a modern replica of the Piper Cub (the Cubchel). The electric Demoichelle's next public appearance will be in September at the Salon ULM Blois.
