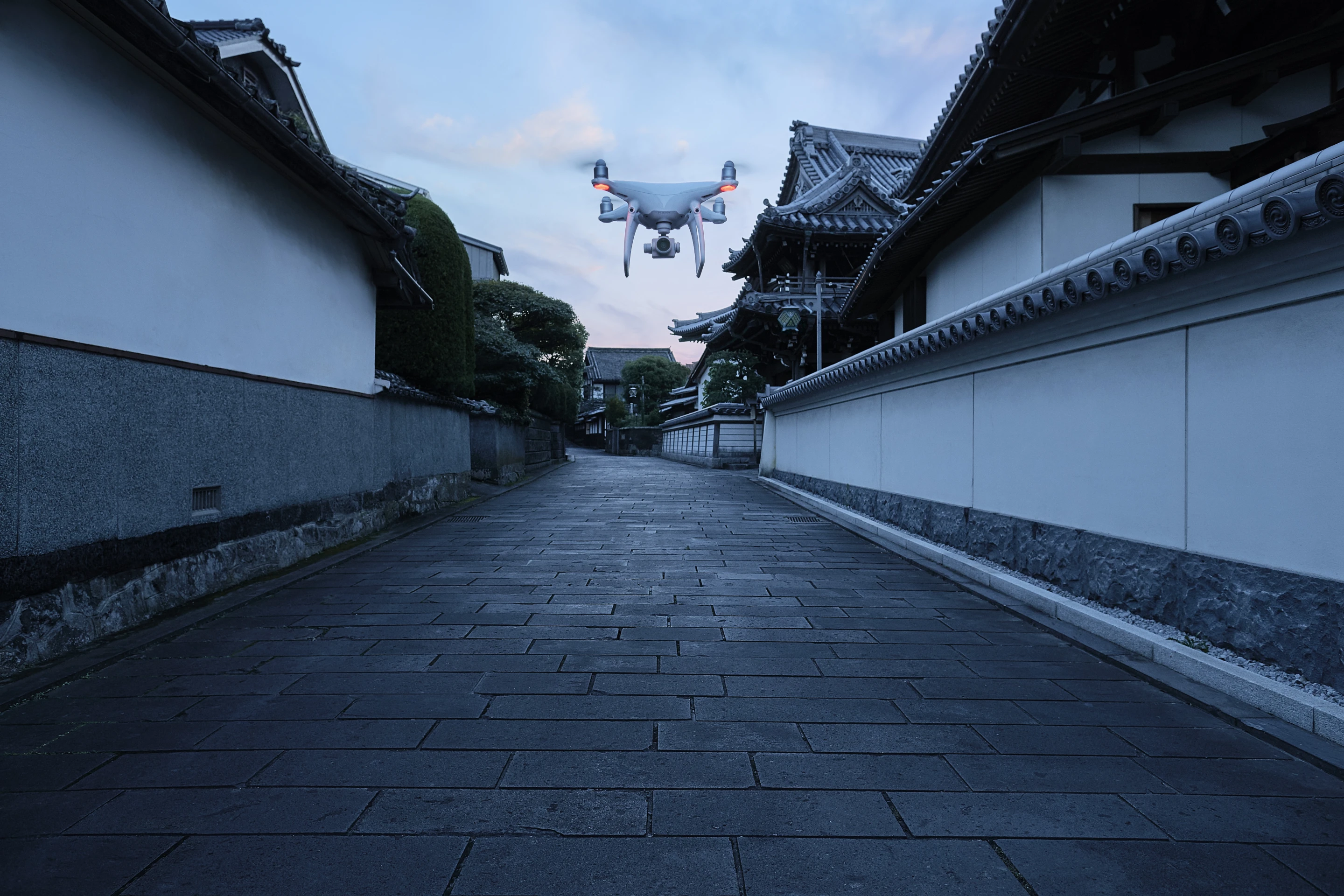

DJI Phantom 4 Pro: new return to home mode can retrace its steps to get back to the takeoff point in a complex environment
3/31
DJI Phantom 4 Pro: new return to home mode can retrace its steps to get back to the takeoff point in a complex environment

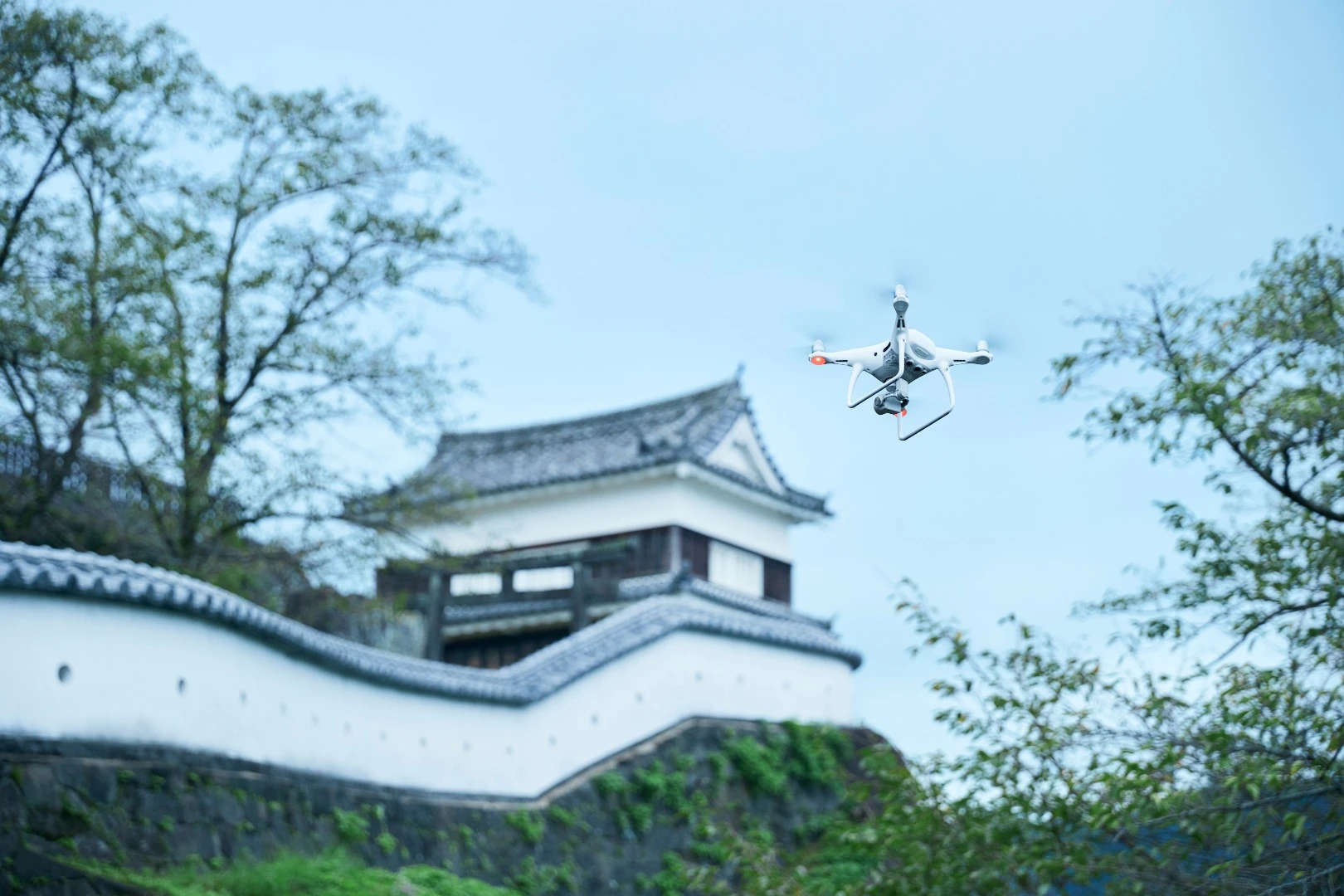

DJI Phantom 4 Pro: upgraded camera should give higher quality vision than ever, with reduced distortion when following moving subjects
4/31
DJI Phantom 4 Pro: upgraded camera should give higher quality vision than ever, with reduced distortion when following moving subjects

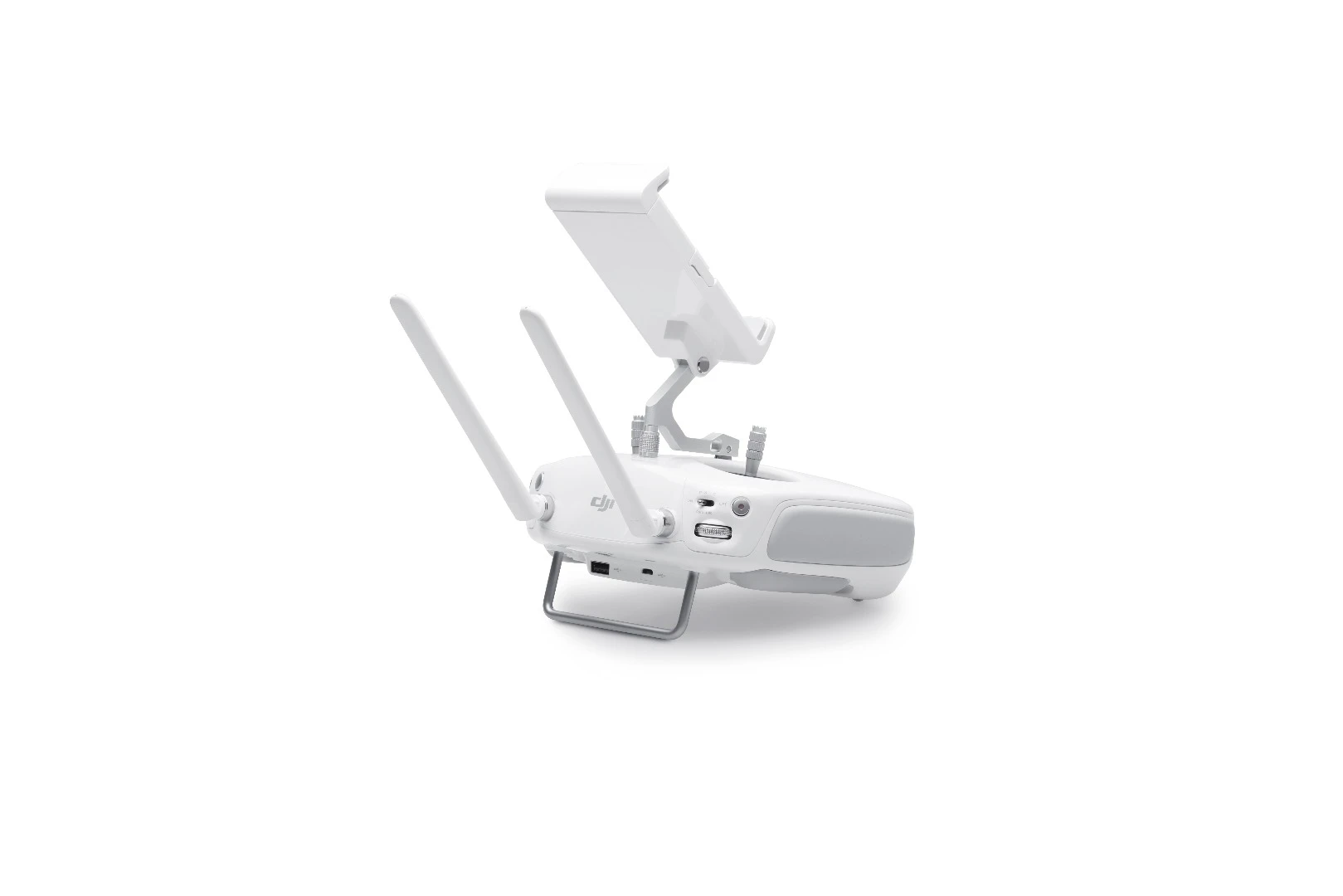

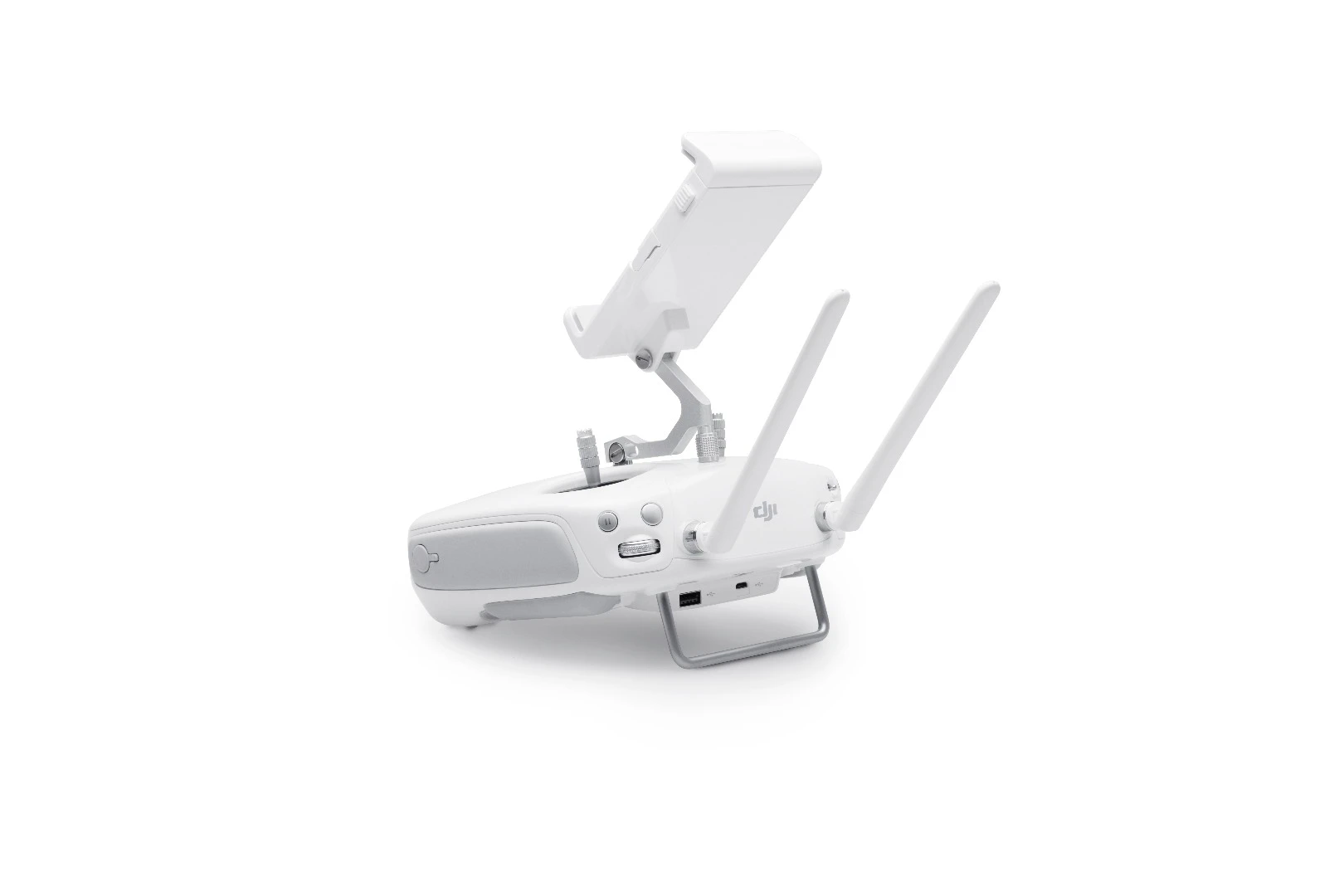

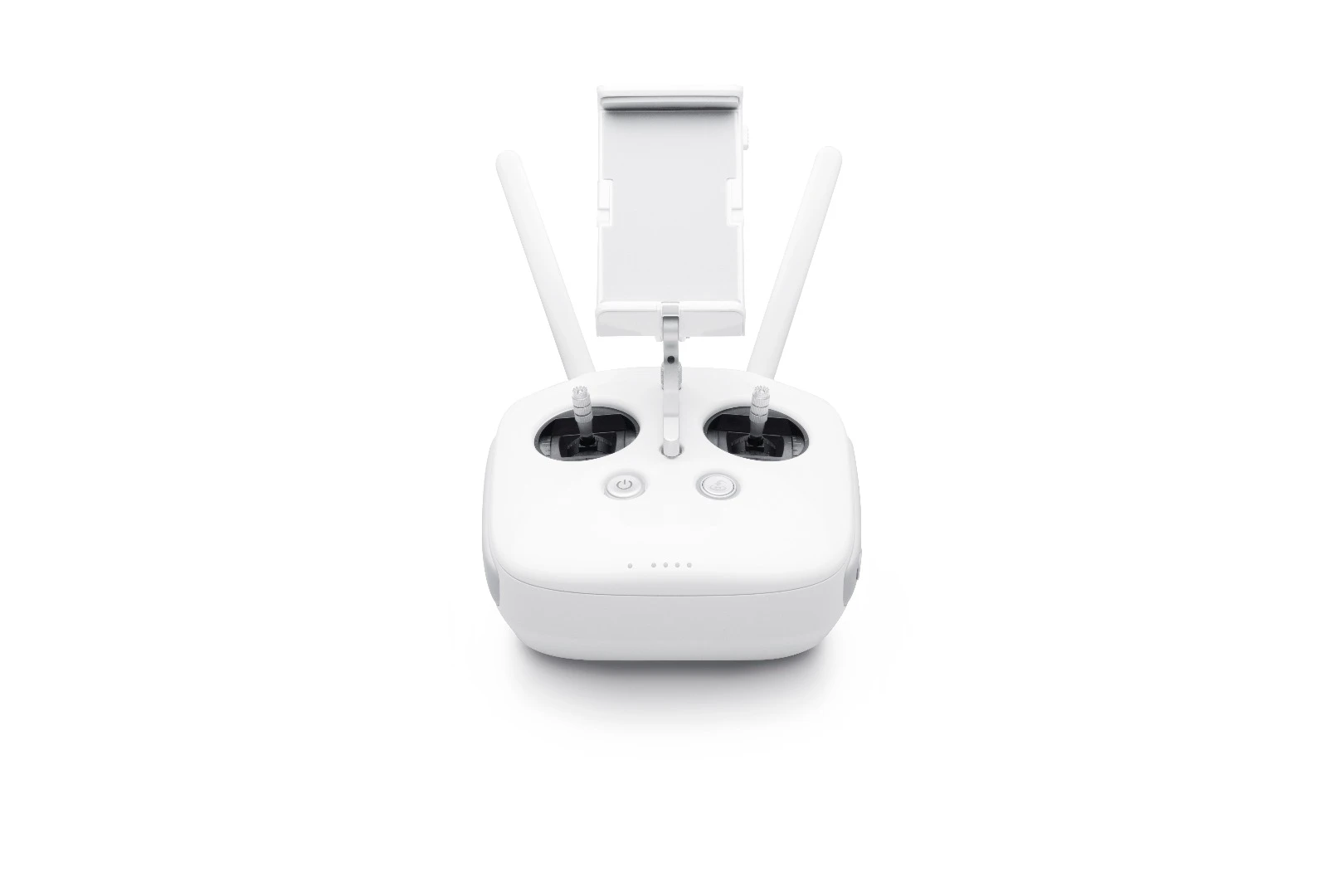

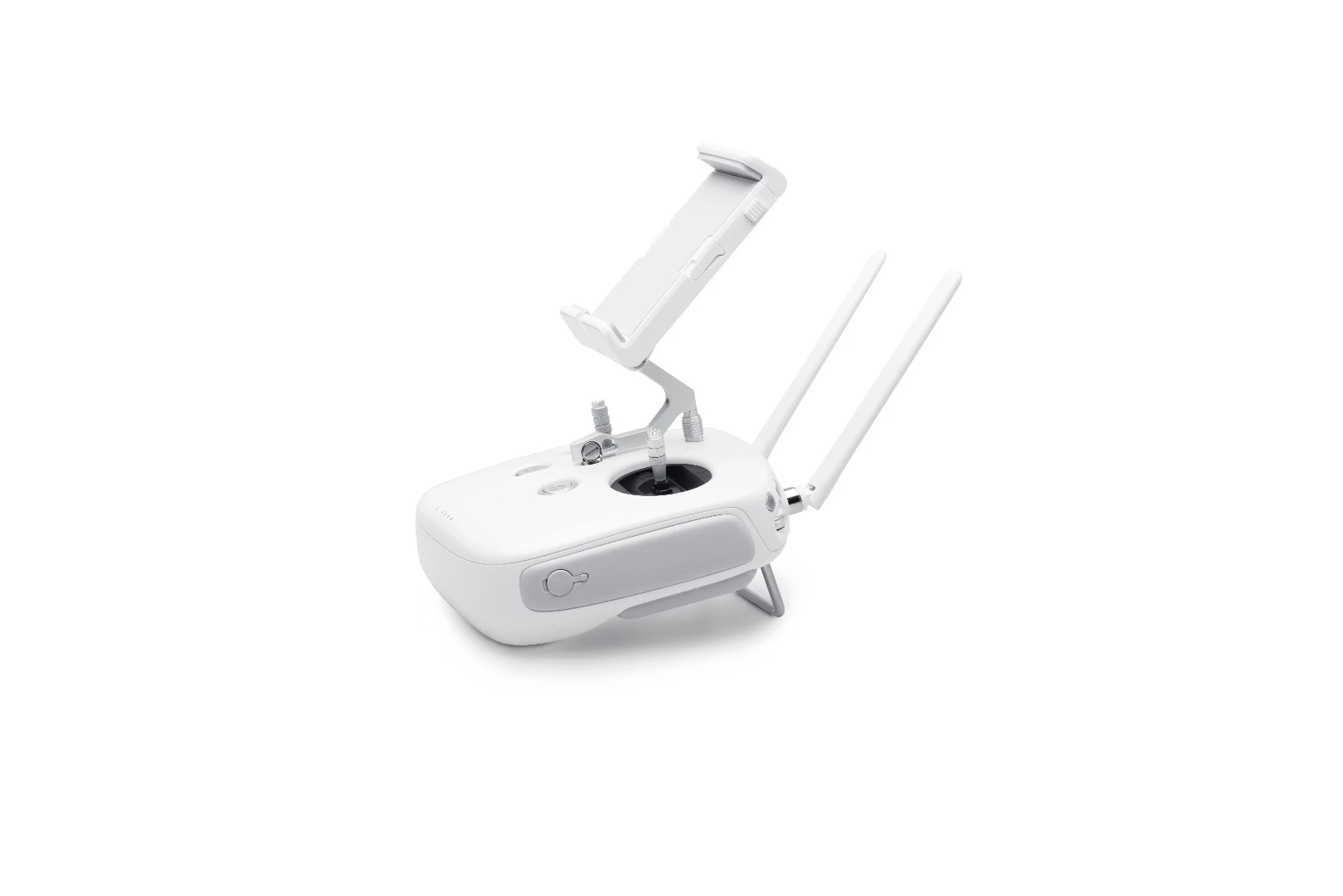

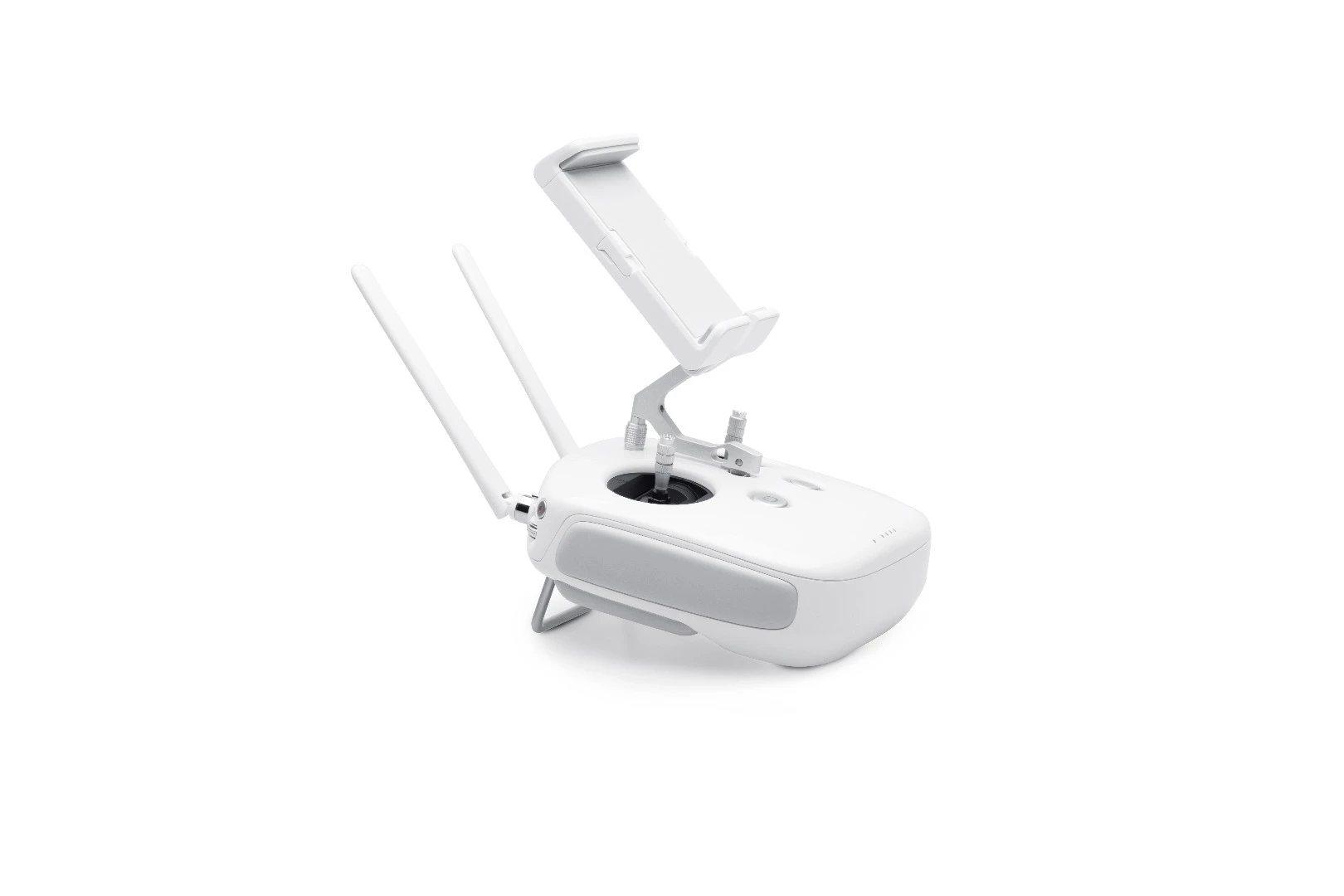

DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
5/31
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
6/31
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
7/31
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
8/31
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet
9/31
DJI Phantom 4 Pro: controller without touchscreen option allows you to use your own phone or tablet

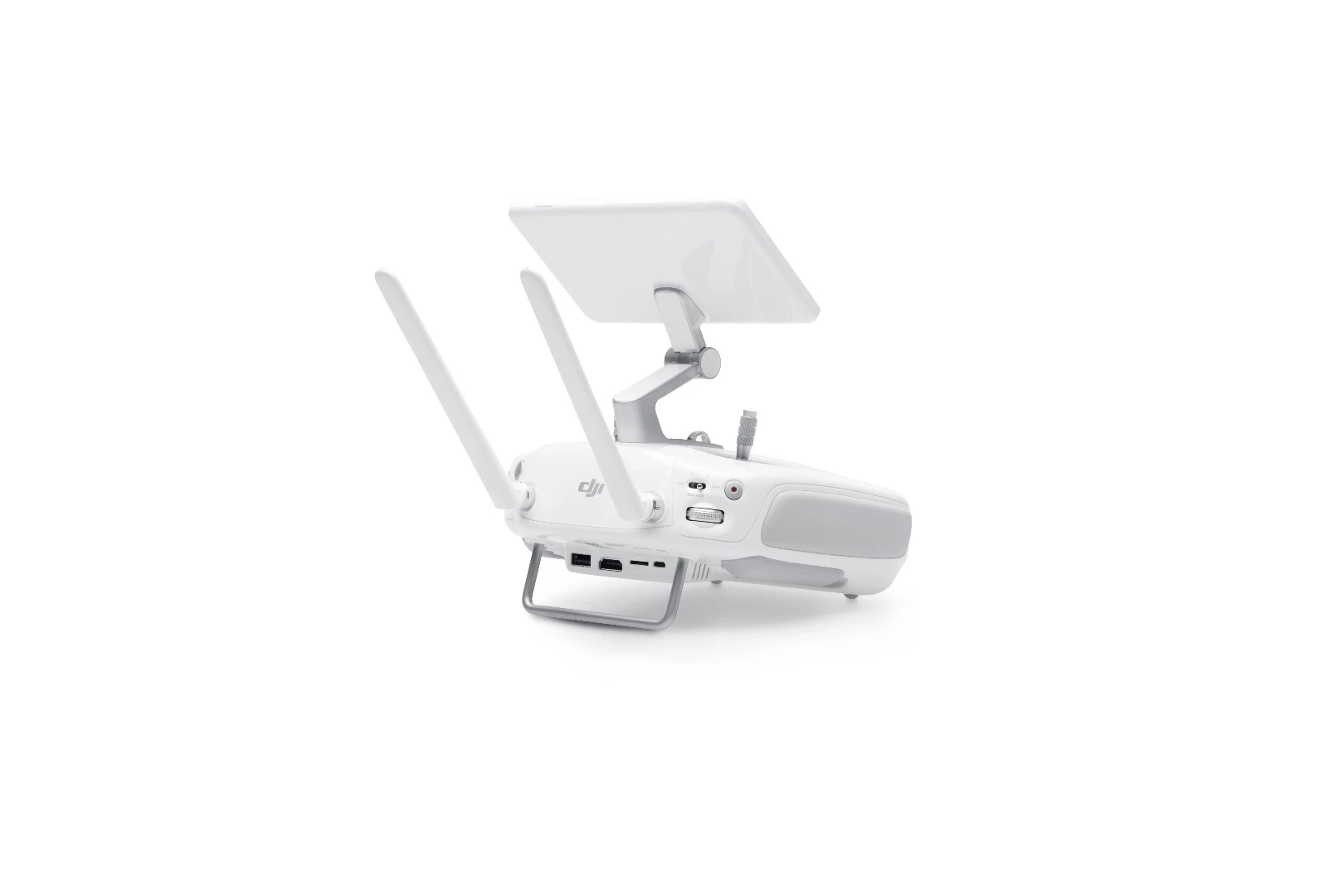

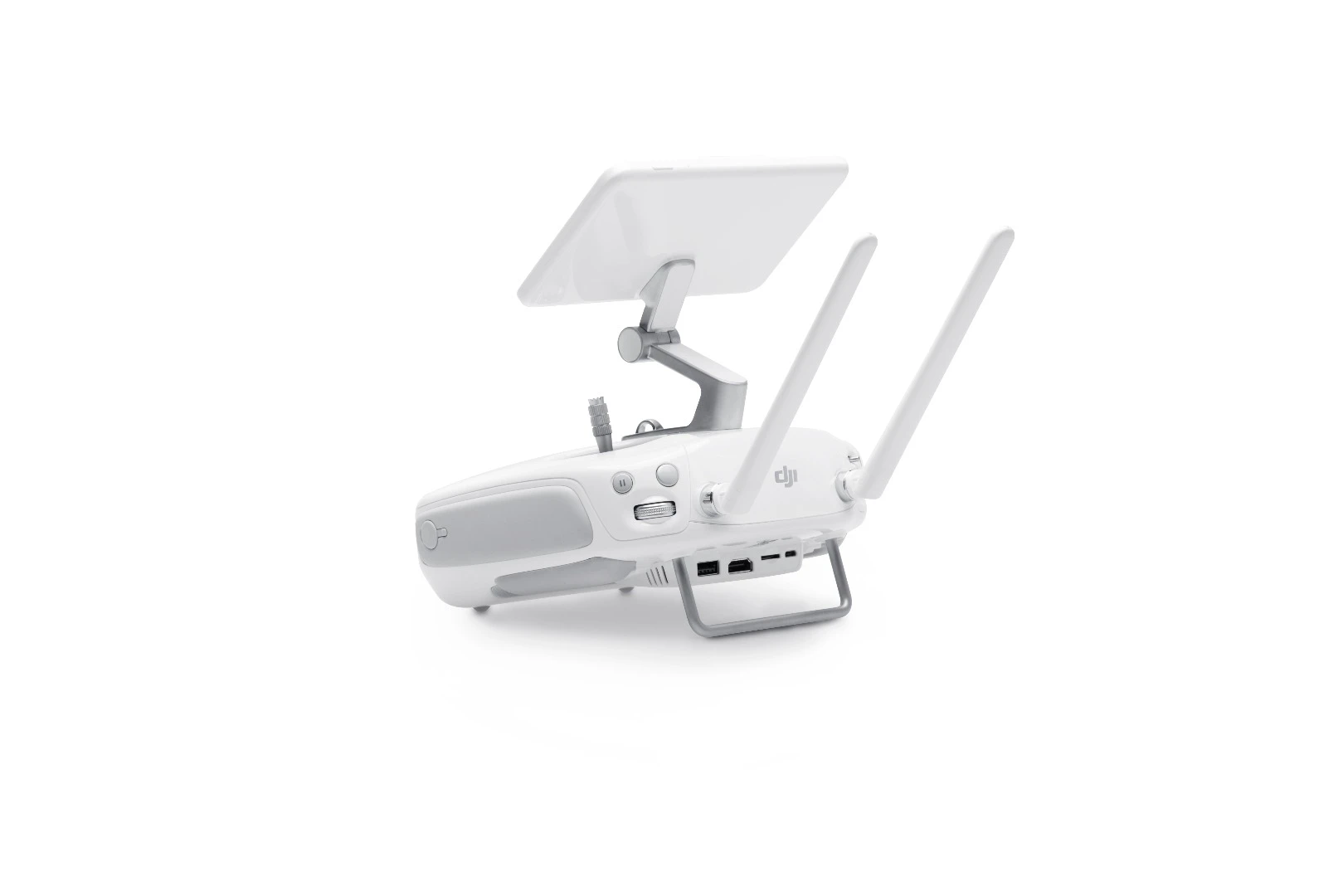

DJI Phantom 4 Pro: controller with built in touch screen
10/31
DJI Phantom 4 Pro: controller with built in touch screen
DJI Phantom 4 Pro: controller with built in touch screen
11/31
DJI Phantom 4 Pro: controller with built in touch screen

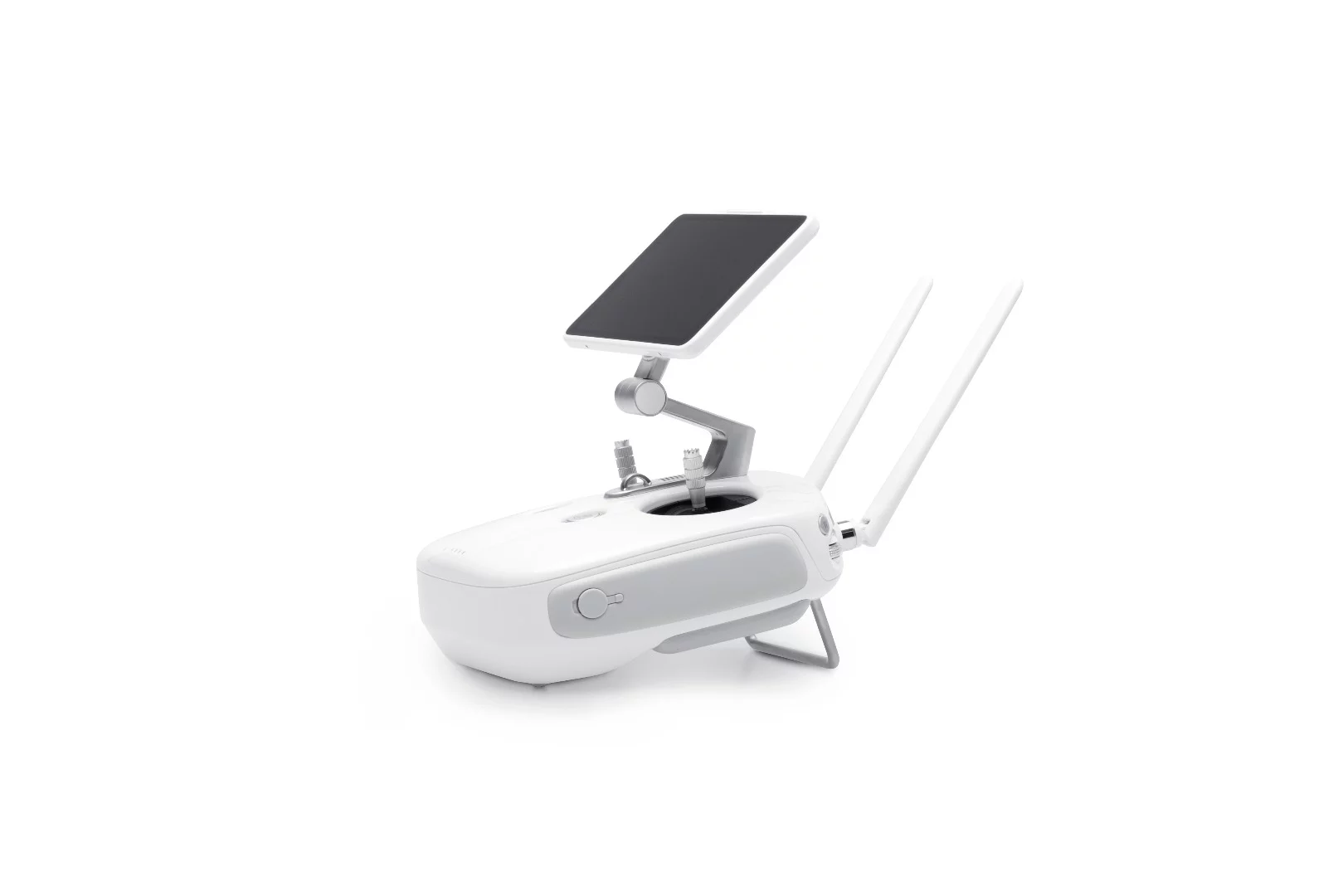

DJI Phantom 4 Pro: built in touch screen is twice the brightness of a mobile phone or tablet, making it ideal for outdoor use where phones and tablets struggle
12/31
DJI Phantom 4 Pro: built in touch screen is twice the brightness of a mobile phone or tablet, making it ideal for outdoor use where phones and tablets struggle

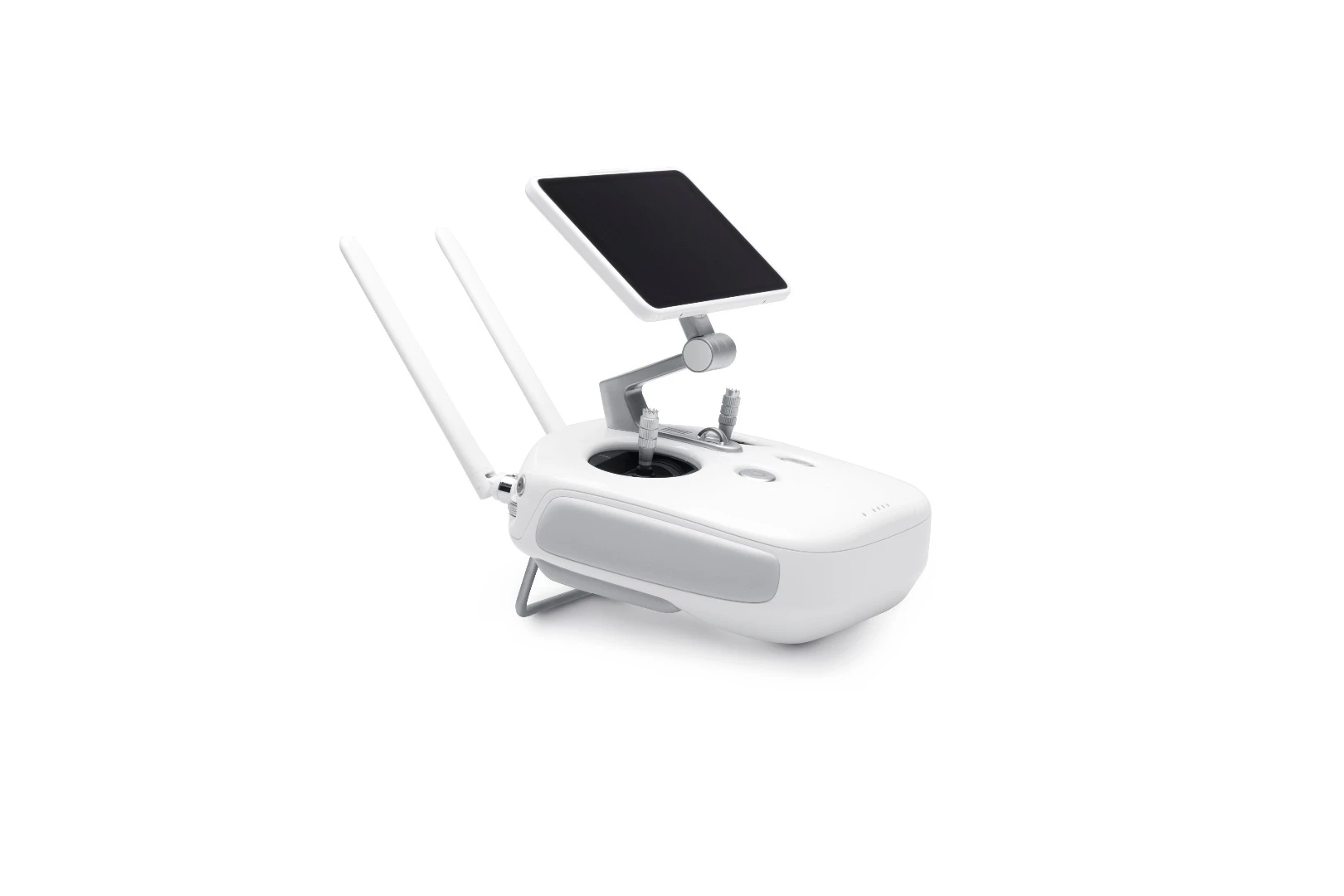

DJI Phantom 4 Pro: controller battery life is 5.5 hours with the screen going
13/31
DJI Phantom 4 Pro: controller battery life is 5.5 hours with the screen going
DJI Phantom 4 Pro: touch screen unit has MicroSD card and HDMI out to encourage instant editing and sharing of content
14/31
DJI Phantom 4 Pro: touch screen unit has MicroSD card and HDMI out to encourage instant editing and sharing of content

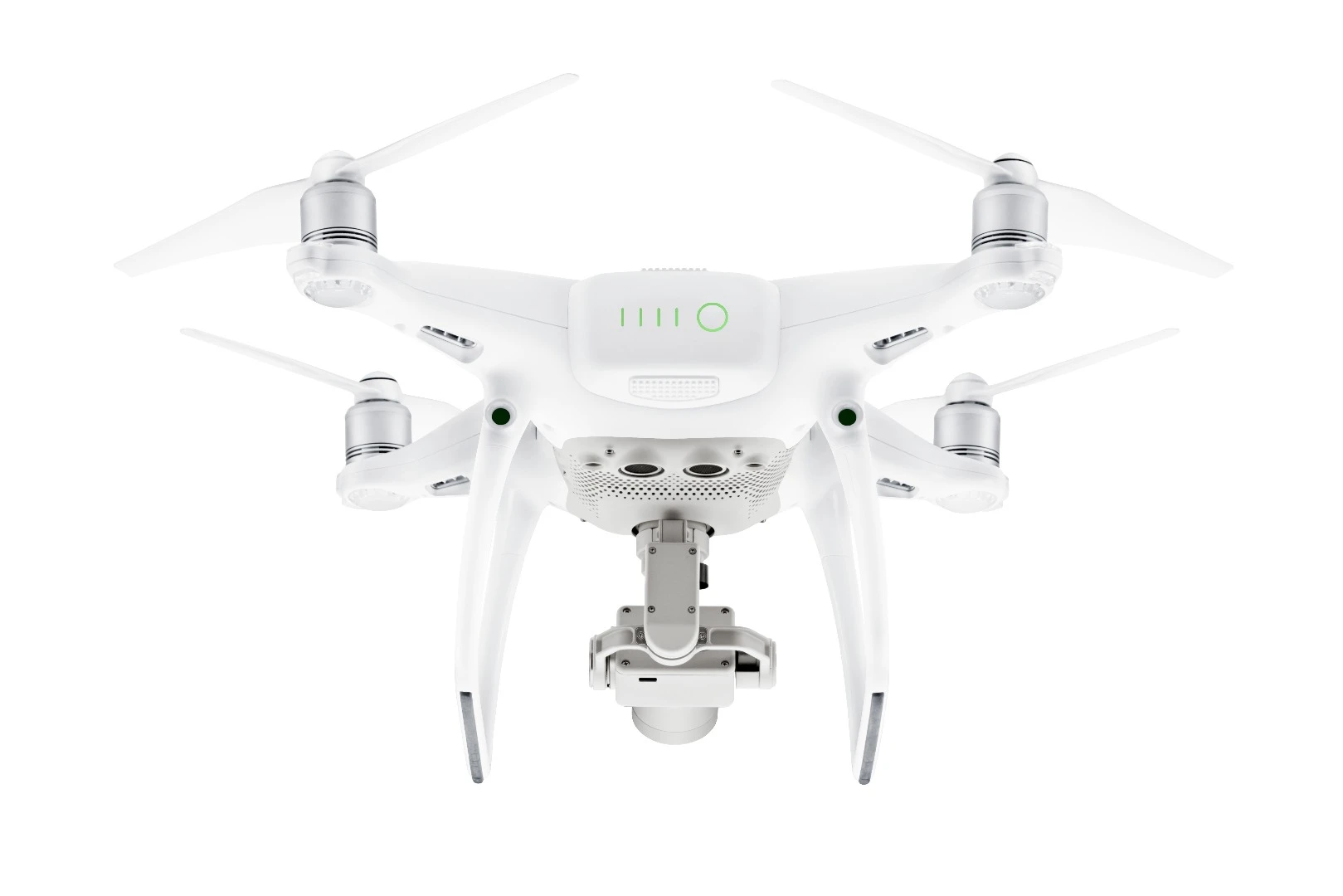

DJI Phantom 4 Pro: upgraded Lightbridge transmitter now gives multiple frequency choices to get a cleaner signal than ever
15/31
DJI Phantom 4 Pro: upgraded Lightbridge transmitter now gives multiple frequency choices to get a cleaner signal than ever

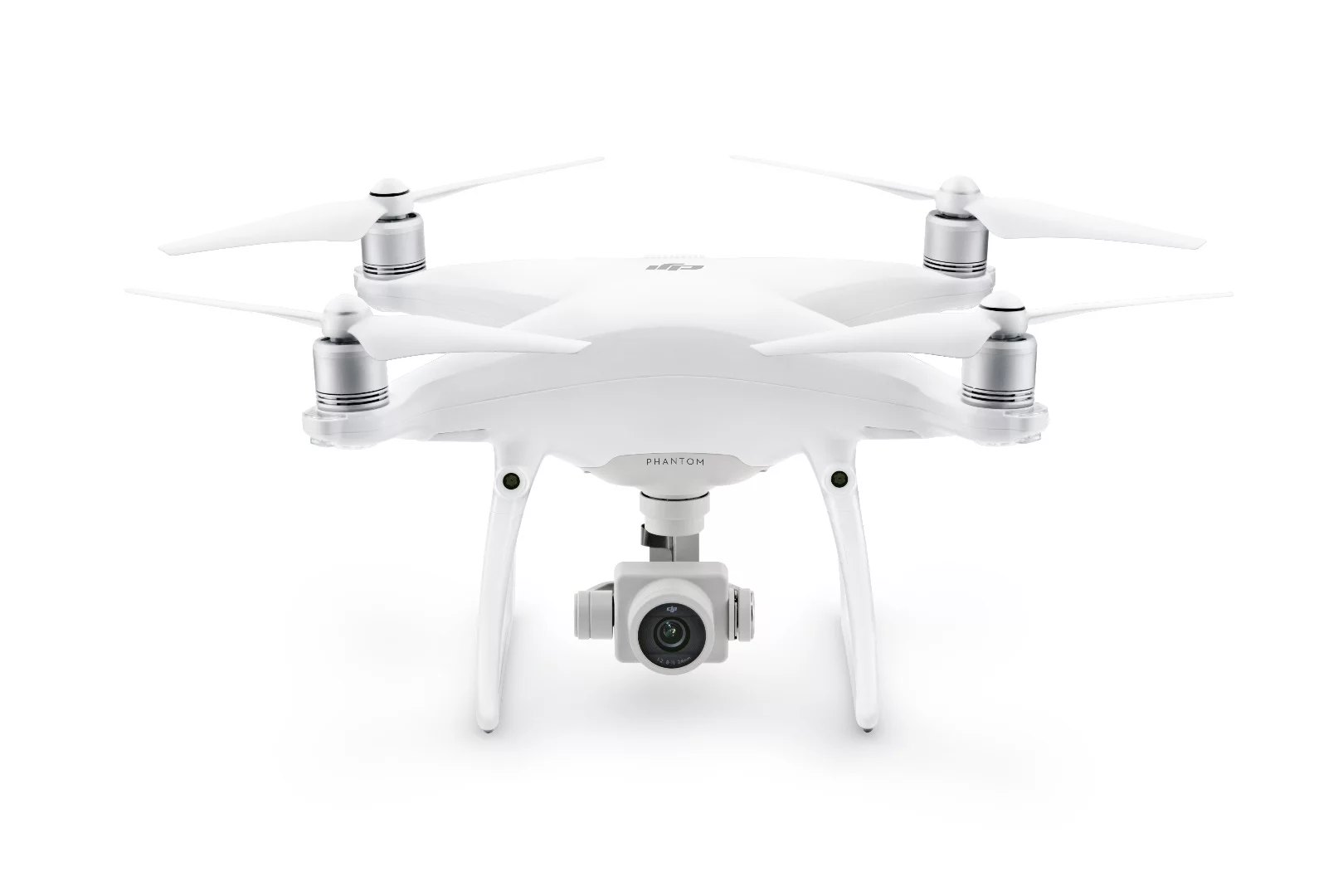

DJI Phantom 4 Pro: upgraded Lightbridge transmitter raises the range up to 7km in open terrain
16/31
DJI Phantom 4 Pro: upgraded Lightbridge transmitter raises the range up to 7km in open terrain

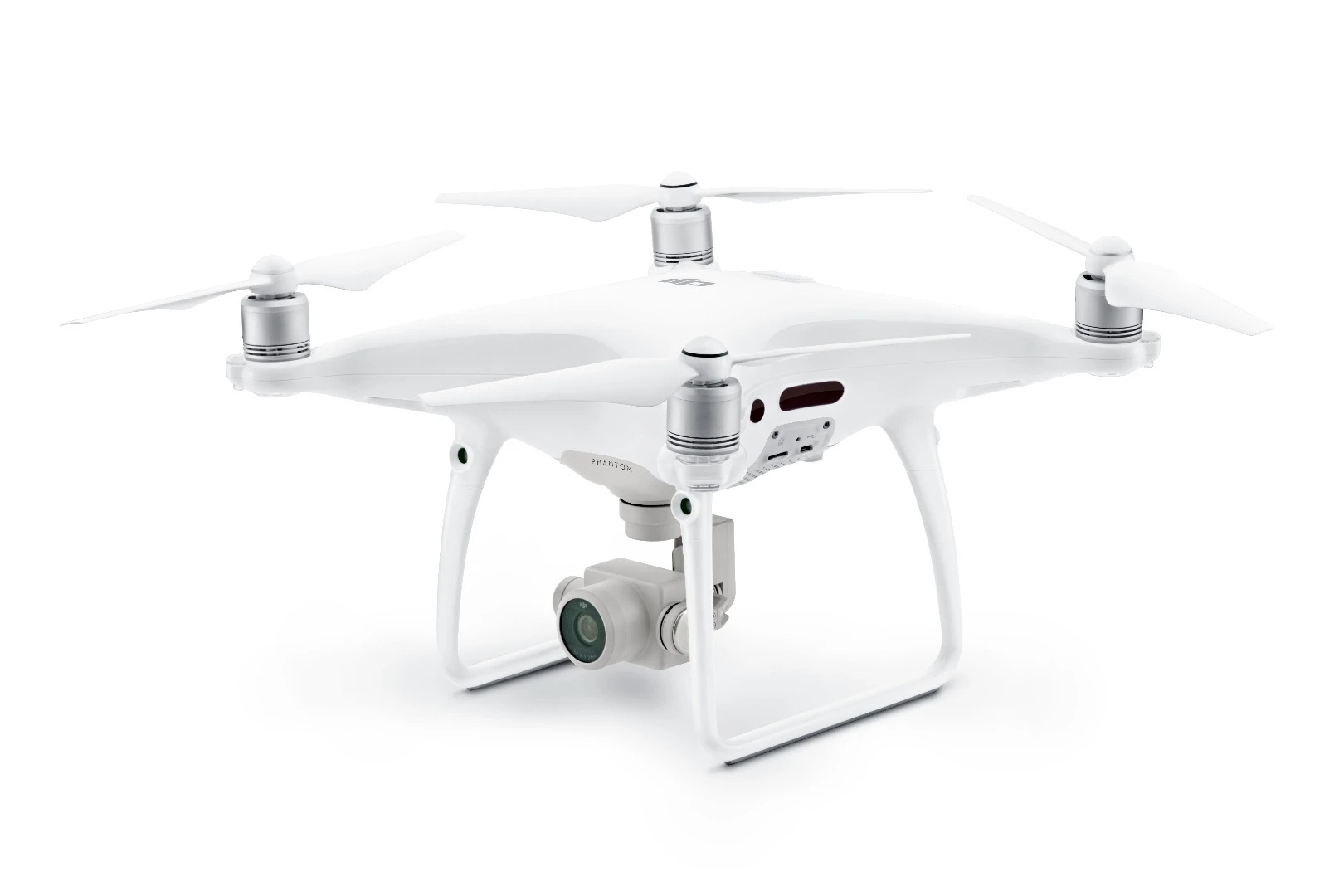

DJI Phantom 4 Pro: titanium/magnesium airframe increases rigidity while helping to keep the weight low
17/31
DJI Phantom 4 Pro: titanium/magnesium airframe increases rigidity while helping to keep the weight low

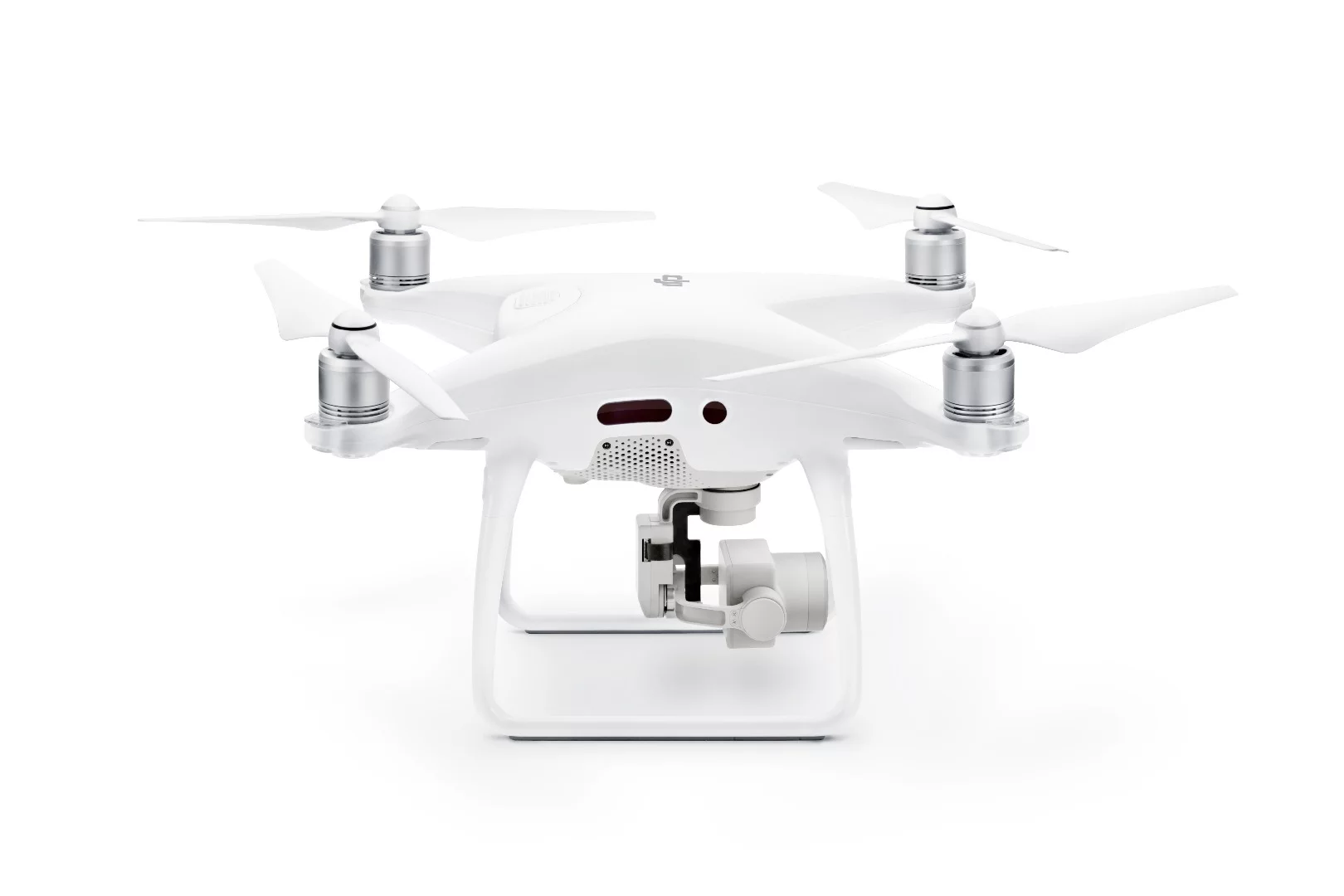

DJI Phantom 4 Pro: infra-red sensors on the left and right sides add sideways obstacle avoidance abilities
18/31
DJI Phantom 4 Pro: infra-red sensors on the left and right sides add sideways obstacle avoidance abilities

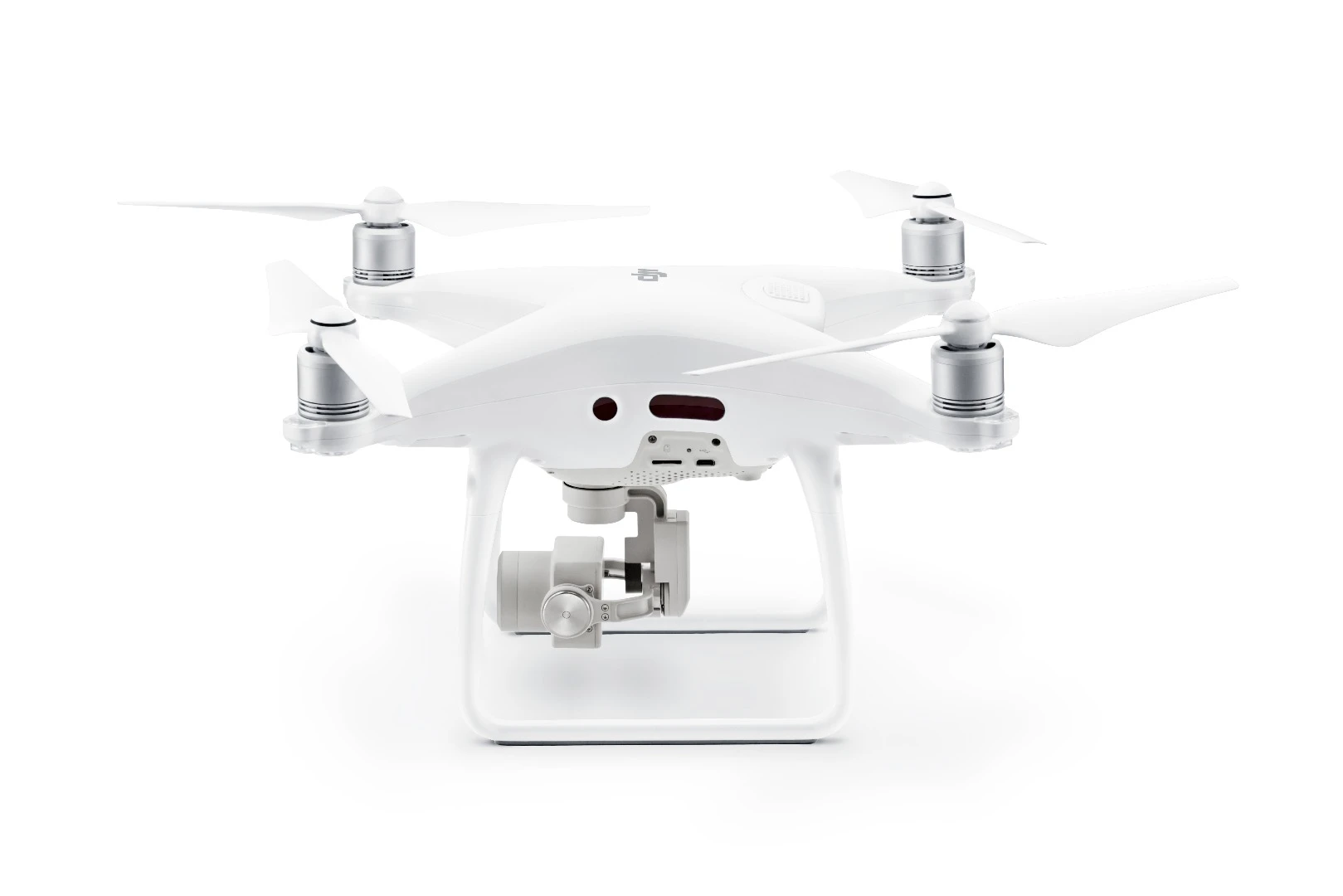

DJI Phantom 4 Pro: snap-on props make for quick and easy setup
19/31
DJI Phantom 4 Pro: snap-on props make for quick and easy setup

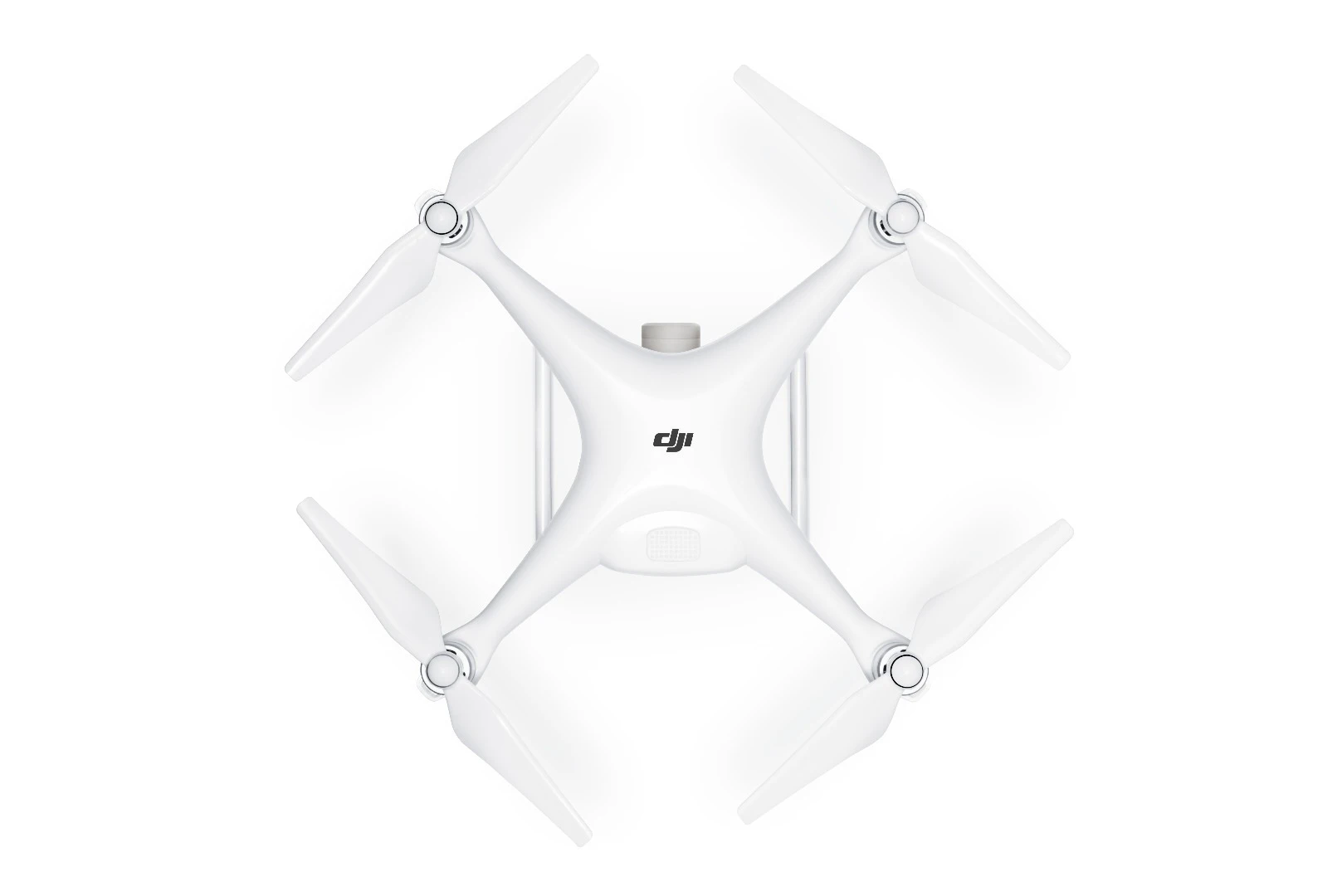

DJI Phantom 4 Pro: a new benchmark in its class
20/31
DJI Phantom 4 Pro: a new benchmark in its class
DJI Phantom 4 Pro: upgraded camera offers 4K/60fps capability
21/31
DJI Phantom 4 Pro: upgraded camera offers 4K/60fps capability

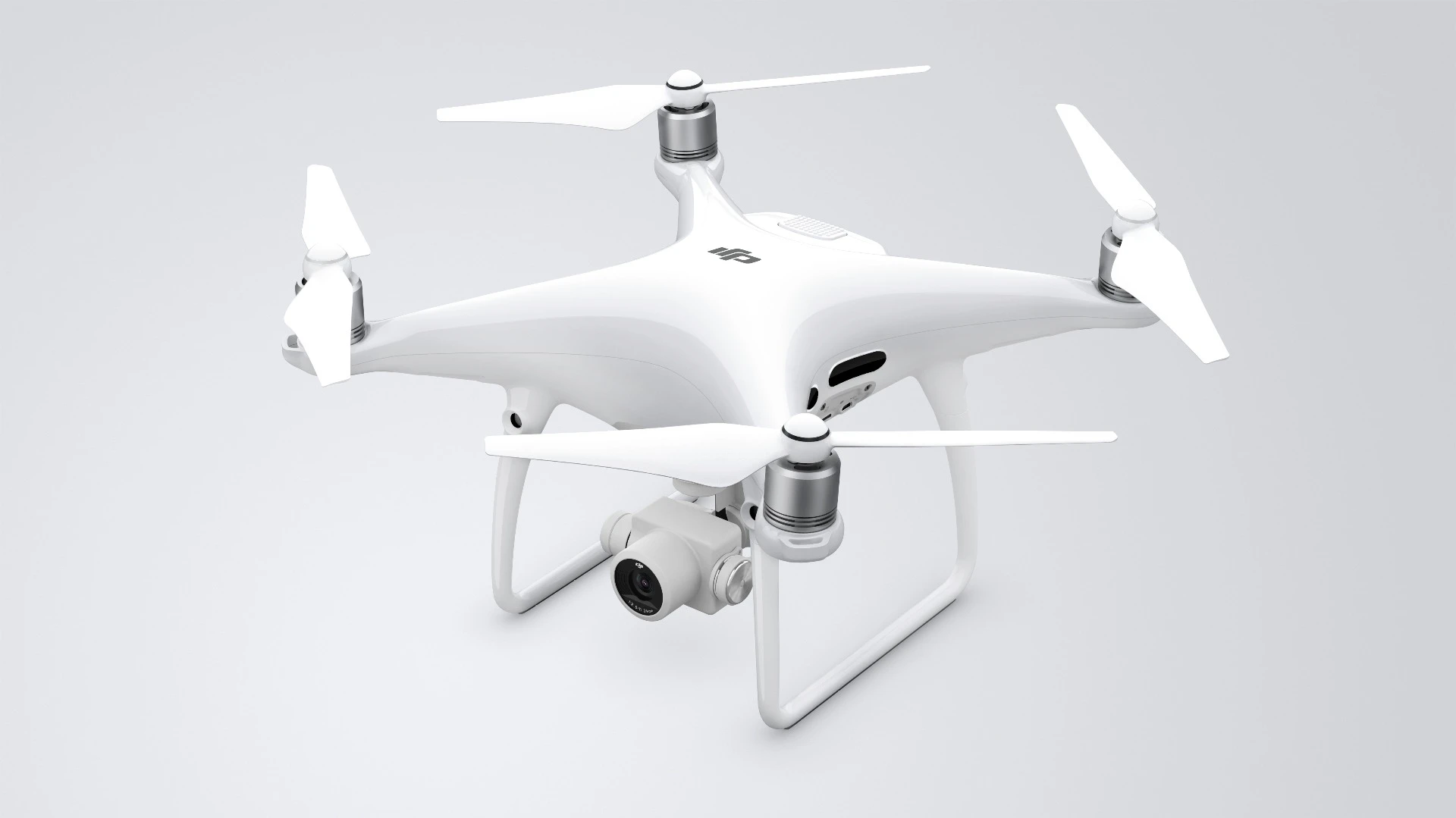

DJI Phantom 4 Pro: new camera has mechanical aperture and focus systems as well as a new lens design to improve image quality
22/31
DJI Phantom 4 Pro: new camera has mechanical aperture and focus systems as well as a new lens design to improve image quality

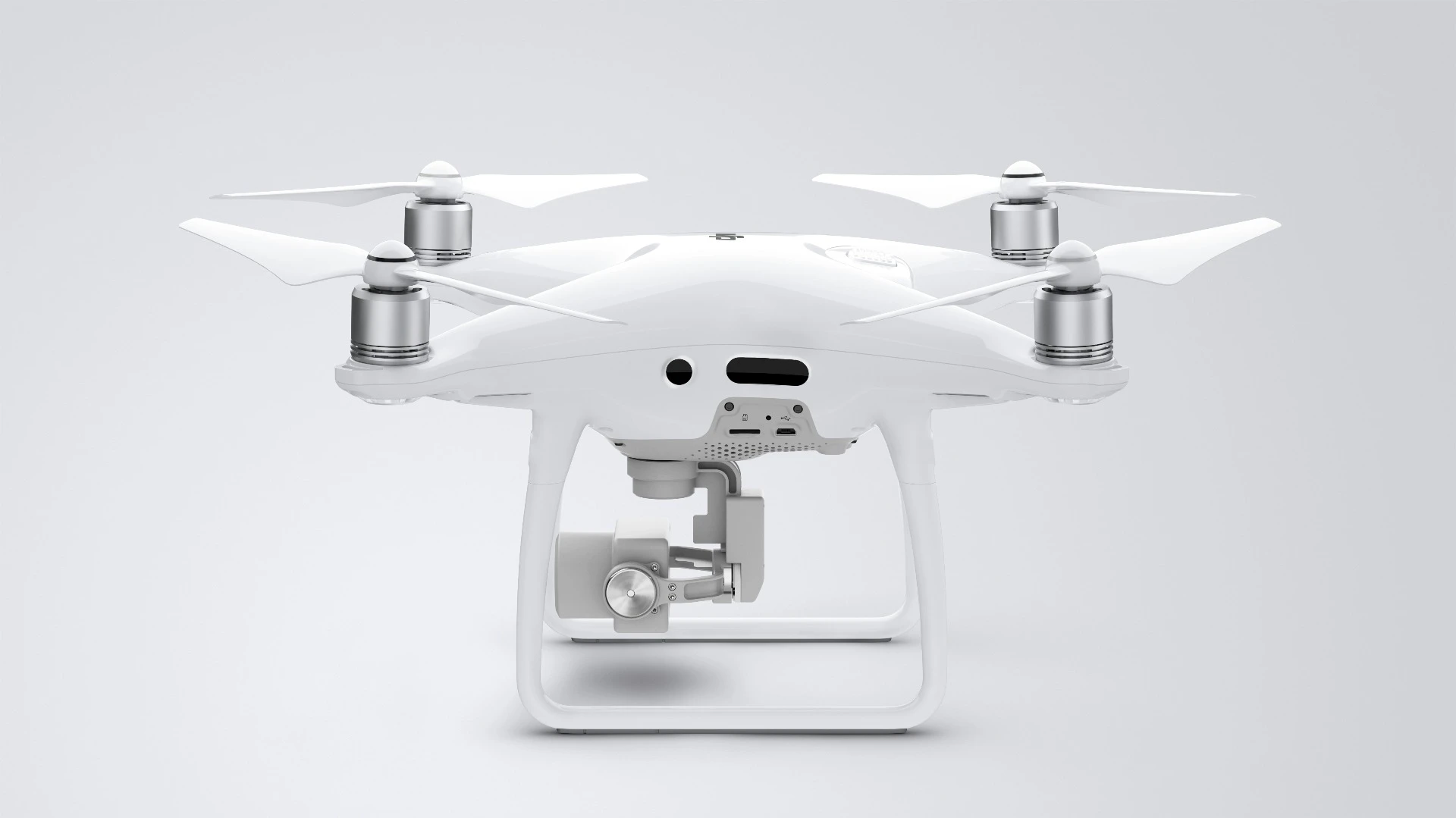

DJI Phantom 4 Pro: the most advanced drone in its class by a country mile
23/31
DJI Phantom 4 Pro: the most advanced drone in its class by a country mile
DJI Phantom 4 Pro: infra-red sensors on either side as well as stereo cameras front and back give the Phantom 4 Pro 360-degree obstacle detection and avoidance capability
24/31
DJI Phantom 4 Pro: infra-red sensors on either side as well as stereo cameras front and back give the Phantom 4 Pro 360-degree obstacle detection and avoidance capability

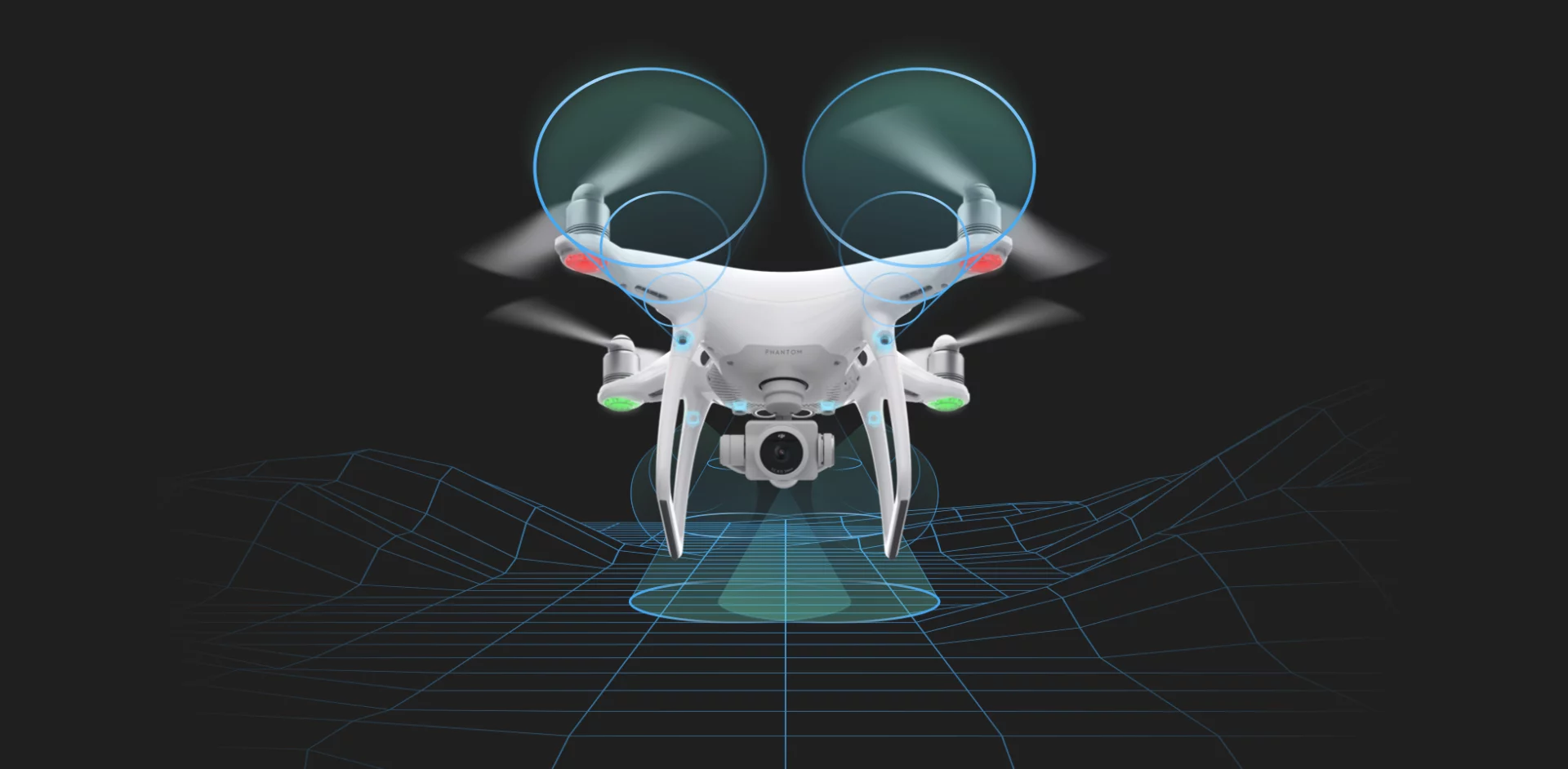

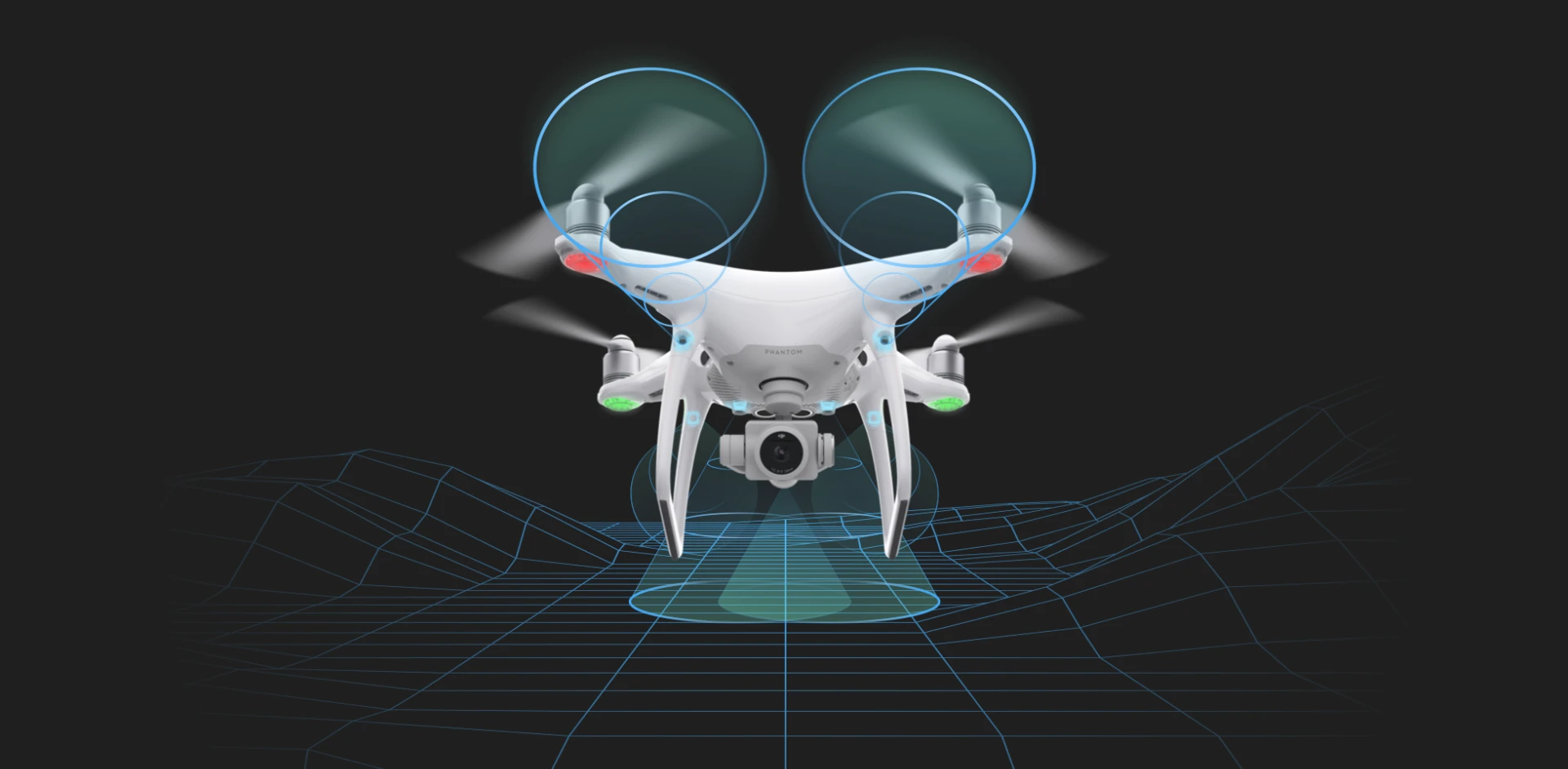

DJI Phantom 4 Pro: constantly scans its environment in 360 degrees plus downward to map out obstacles it might have to avoid on its homeward flight
25/31
DJI Phantom 4 Pro: constantly scans its environment in 360 degrees plus downward to map out obstacles it might have to avoid on its homeward flight

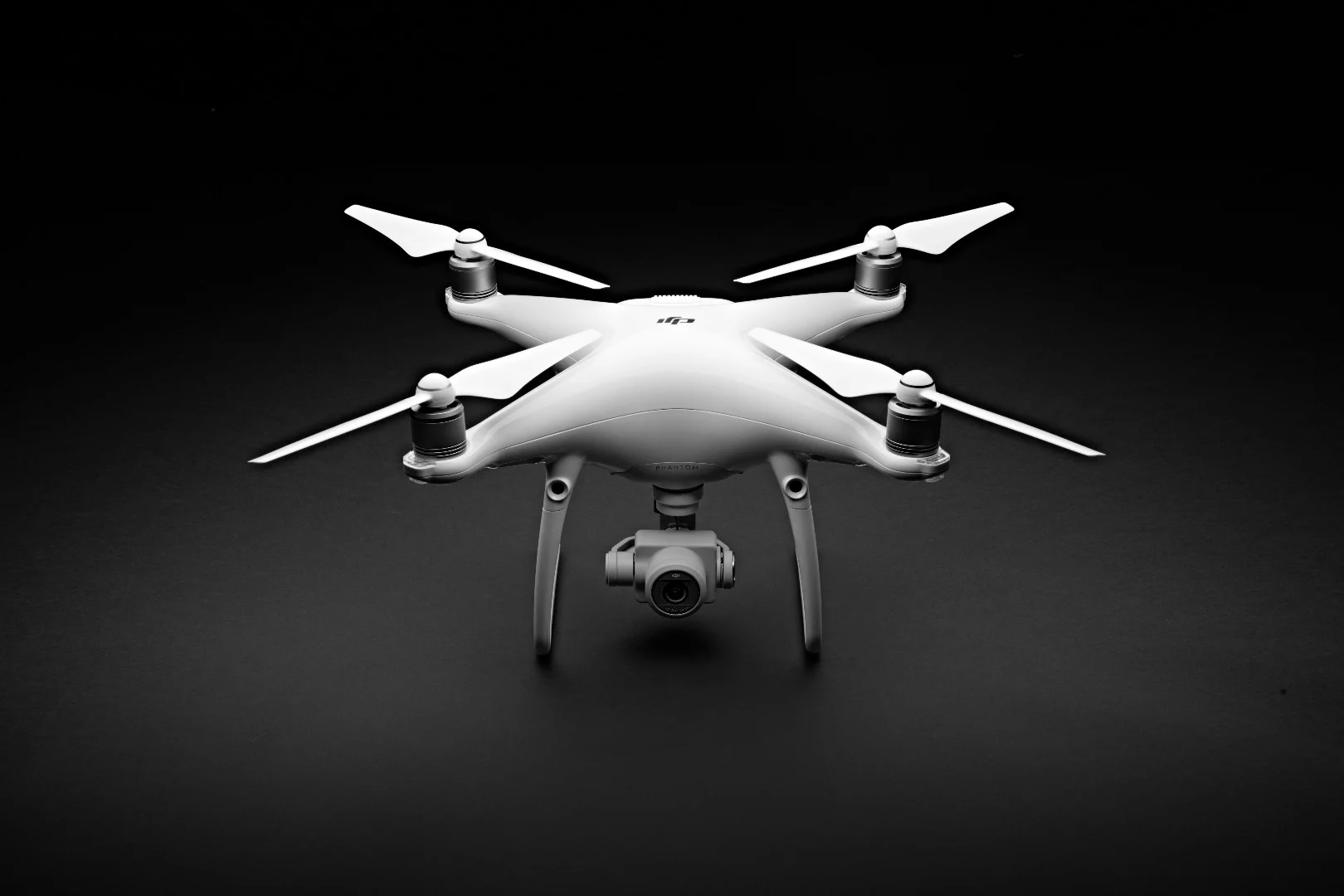

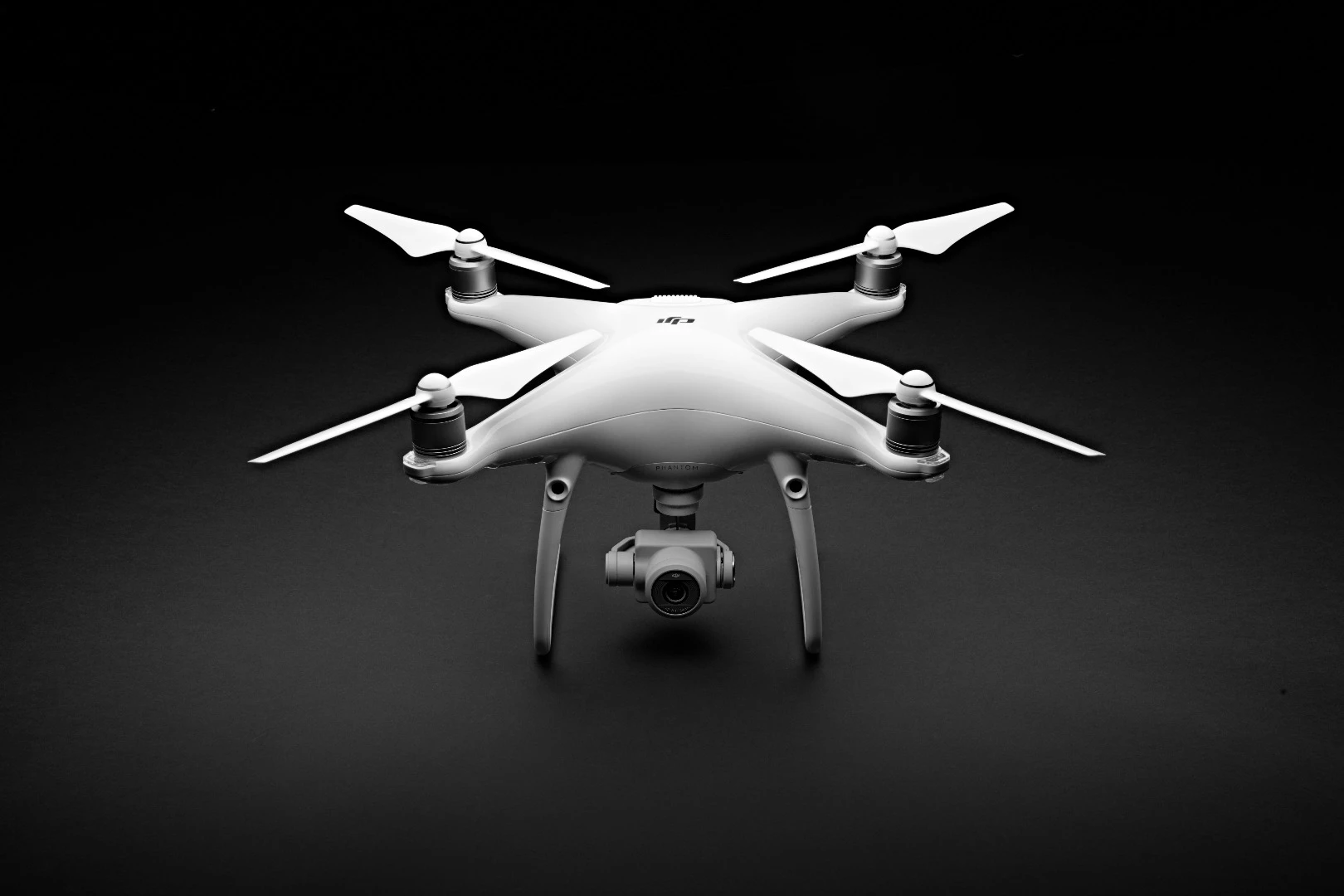

DJI Phantom 4 Pro: The new big daddy of the Phantom range
26/31
DJI Phantom 4 Pro: The new big daddy of the Phantom range

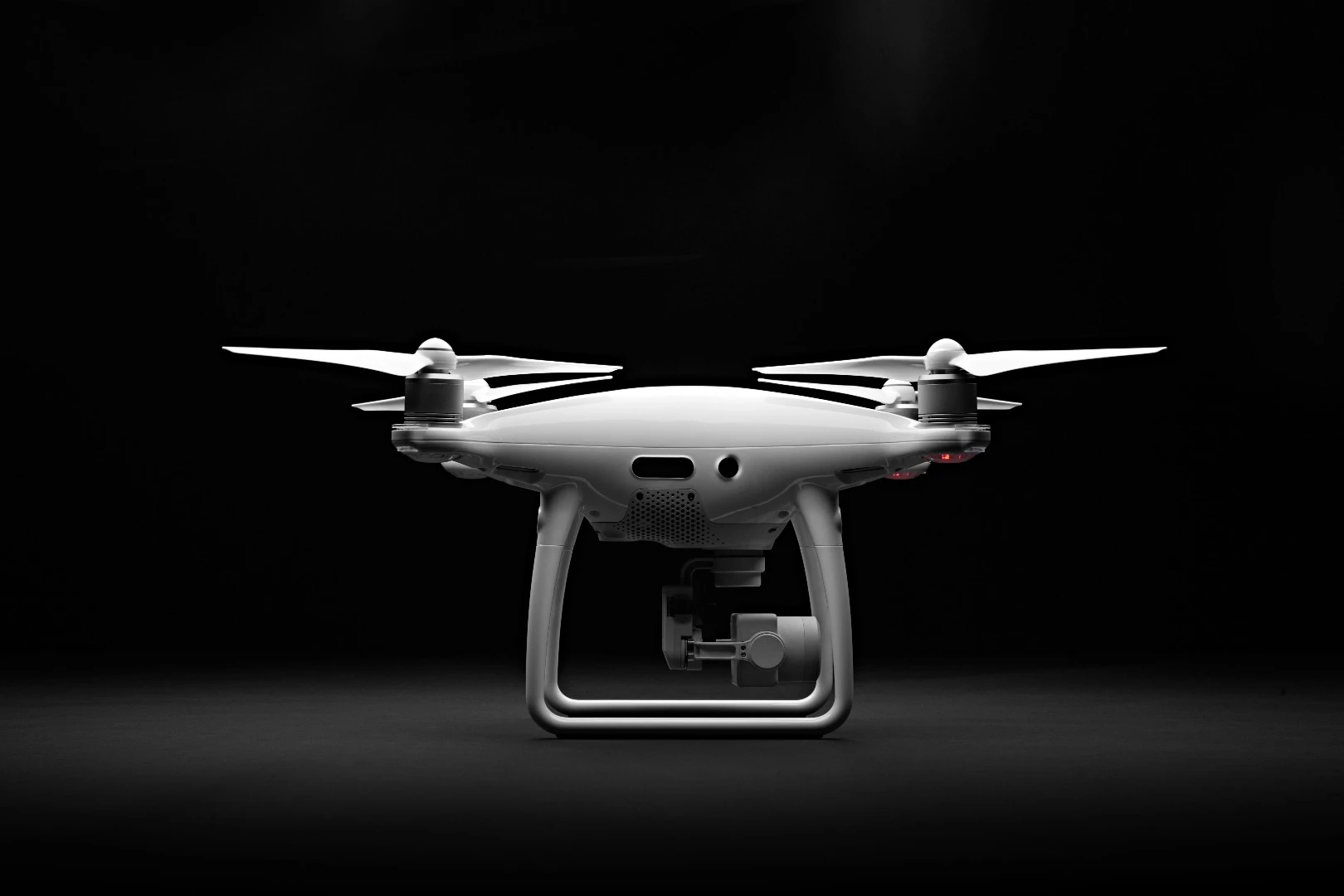

DJI Phantom 4 Pro: flight time is increased to 30 minutes per battery
27/31
DJI Phantom 4 Pro: flight time is increased to 30 minutes per battery

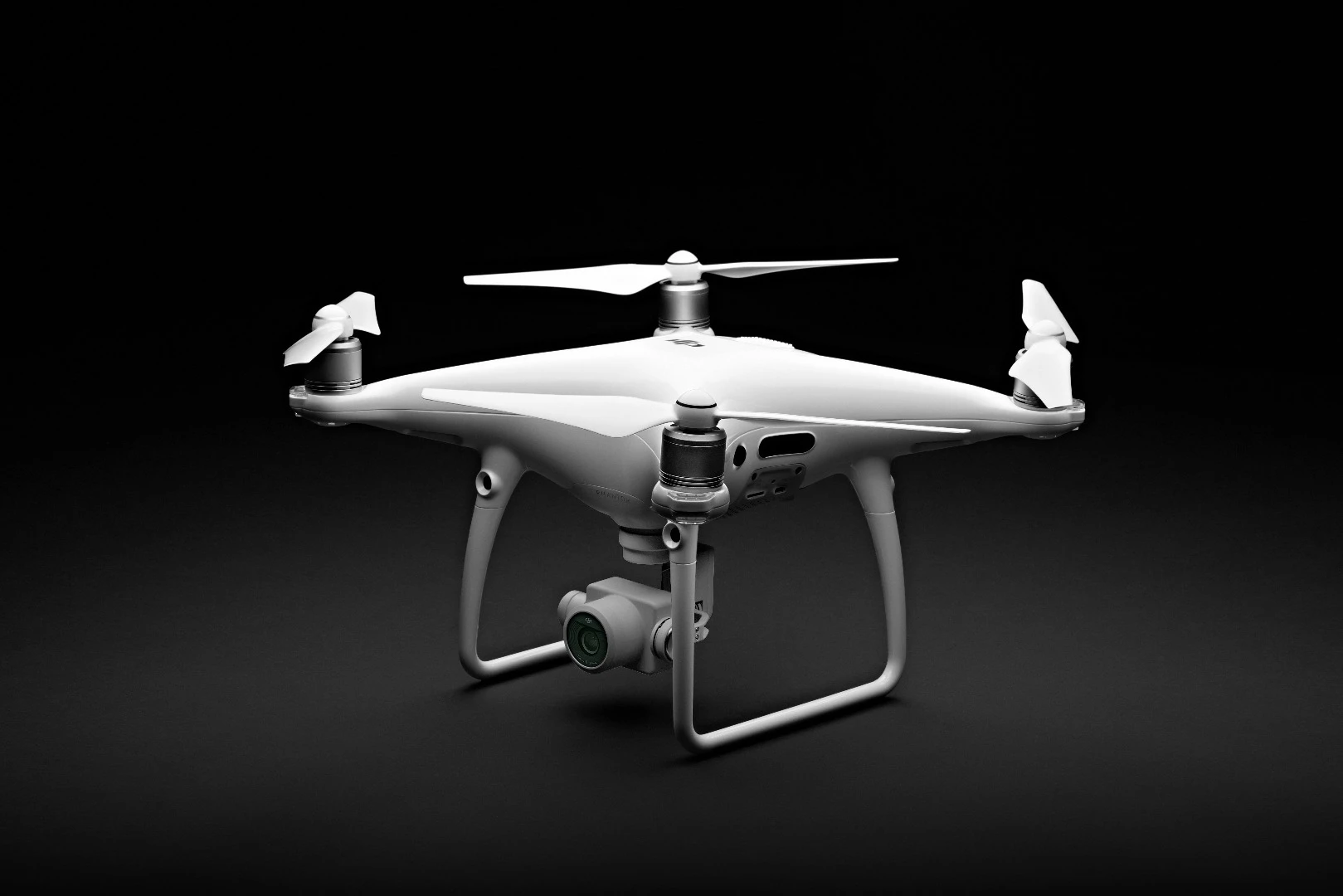

DJI Phantom 4 Pro: quicker to set up, safer to fly and more capable of delivering superior vision than ever before
28/31
DJI Phantom 4 Pro: quicker to set up, safer to fly and more capable of delivering superior vision than ever before
29/31
DJI Phantom 4 Pro: safer than ever to fly in complex environments thanks to multidrectional obstacle avoidance technology
30/31
DJI Phantom 4 Pro: safer than ever to fly in complex environments thanks to multidrectional obstacle avoidance technology
DJI Phantom 4 Pro: can retrace its steps to fly home safely if it loses connection to the controller in a complex environment
31/31
DJI Phantom 4 Pro: can retrace its steps to fly home safely if it loses connection to the controller in a complex environment
View gallery - 31 images

DJI has just announced its new Phantom 4 Pro, a new top of the line prosumer camera drone that now includes multi-directional obstacle avoidance, a totally revamped 4K/60fps camera, and a built-in touchscreen that's twice as bright as your mobile phone for outdoor use.

They say competition breeds innovation, but it's hard to say that axiom holds up in the prosumer drone market. Because nobody has been able to touch DJI since the first Phantoms launched, and yet this company seems to push ahead with an incredibly rapid upgrade cycle that consistently keeps them two or three steps ahead of the field.

Today, we get our first look at the Phantom 4 Pro, which expands impressively on the capabilities of the excellent Phantom 4 and makes it an even stronger tool for the aerial filmmaker who needs a portable (but not ultra portable) drone that fits in a backpack.

Here are the key upgrades:

Upgraded 4K/60fps camera

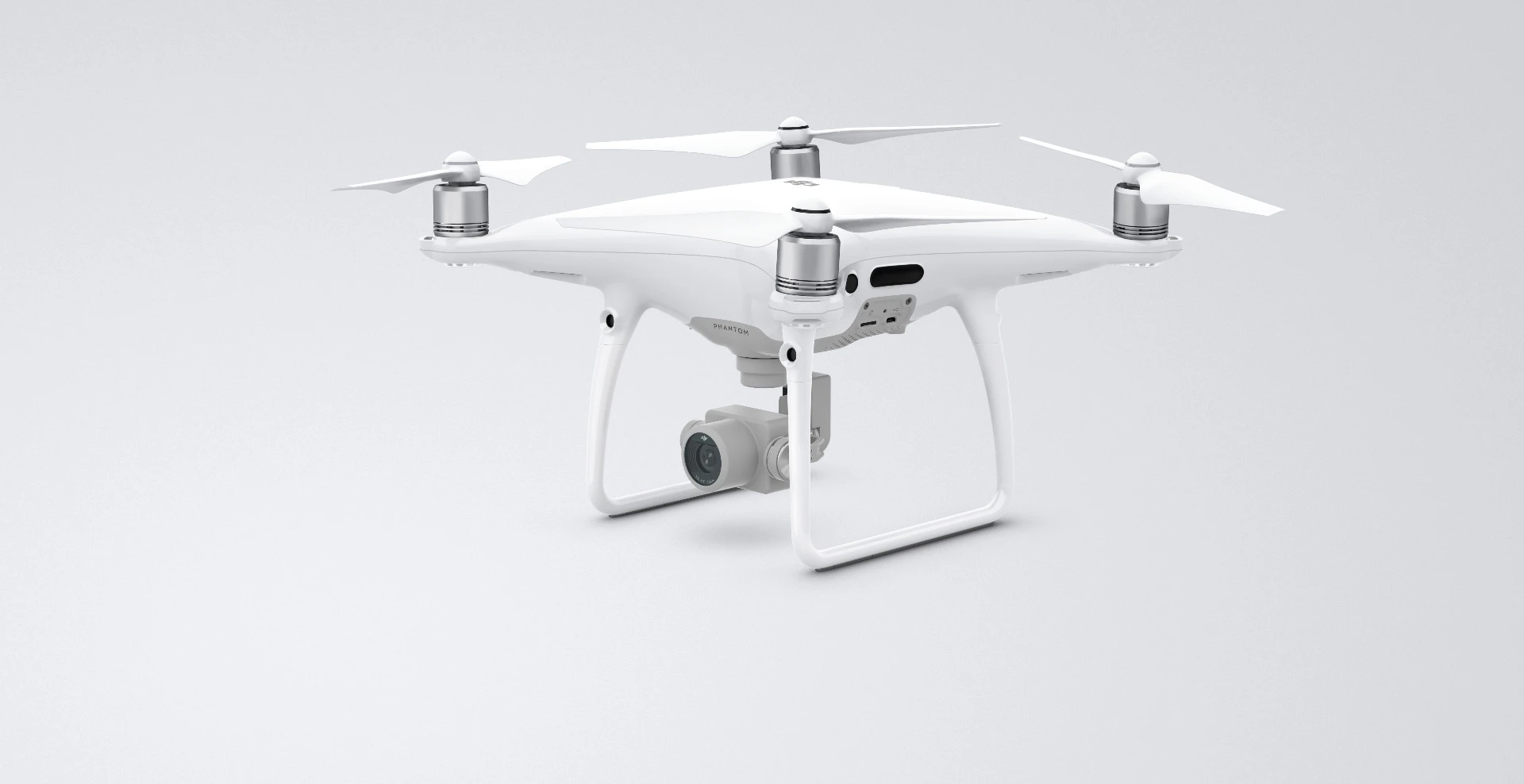

DJI Phantom 4 Pro: upgraded camera offers 4K/60fps capability
DJI Phantom 4 Pro: upgraded camera offers 4K/60fps capability

The sensor, the lens, the camera mechanism and the image processing engine have all been upgraded for the new Phantom. The big ticket spec sheet item is probably the more powerful video processor, which is now capable of recording 60 frames per second at 4K UHD resolution.

But the physical camera upgrades might actually make a bigger difference to the overall video quality; a mechanical aperture and focus appear for the first time, with the goal of eliminating rolling shutter jelly distortion and giving a better image at high speeds. Here's some sample vision from the new camera (full screen it for best results):

Obstacle detection and avoidance now operates in five directions

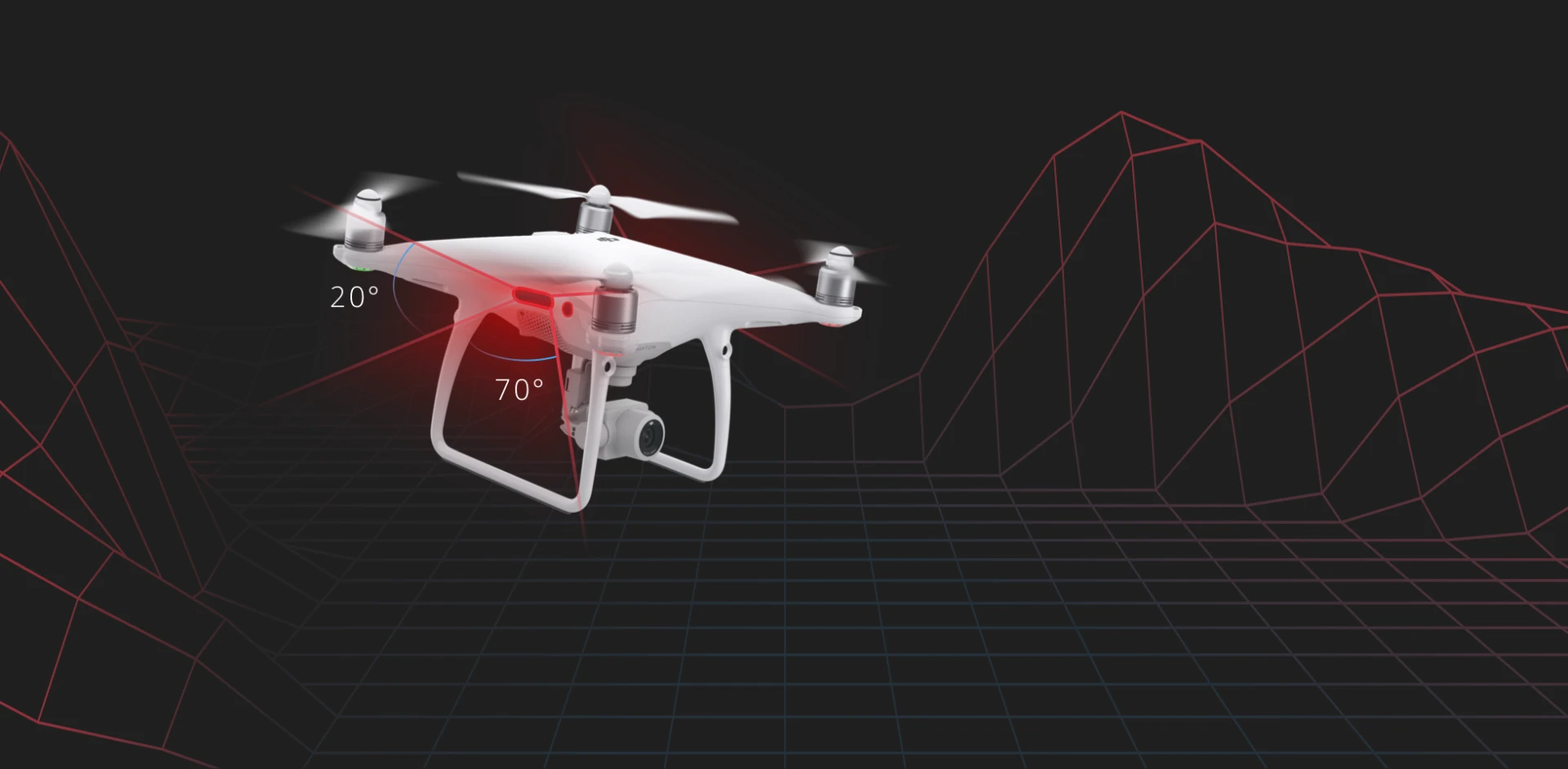

DJI Phantom 4 Pro: infra-red sensors on either side as well as stereo cameras front and back give the Phantom 4 Pro 360-degree obstacle detection and avoidance capability
DJI Phantom 4 Pro: infra-red sensors on either side as well as stereo cameras front and back give the Phantom 4 Pro 360-degree obstacle detection and avoidance capability

This was an obvious one. The Phantom 4 was the first consumer drone to bring in obstacle avoidance capabilities, but they only worked in the forward direction, which to me was always the direction I needed the least help in.

The Phantom 4 Pro has the same pair of forward facing stereo cameras the old model uses, plus another pair that point backwards. On the sides, they've used infra-red sensors similar to the ones on the bottom of the aircraft.

So there's now obstacle avoidance on all four sides, as well as technically the ability to sense, if not avoid, obstacles below the drone. This'll hopefully save a lot of Phantoms from ending up tangled in trees, and give aerial filmmakers more confidence to fly the things sideways and backwards, which is where a lot of the most compelling shots come from.

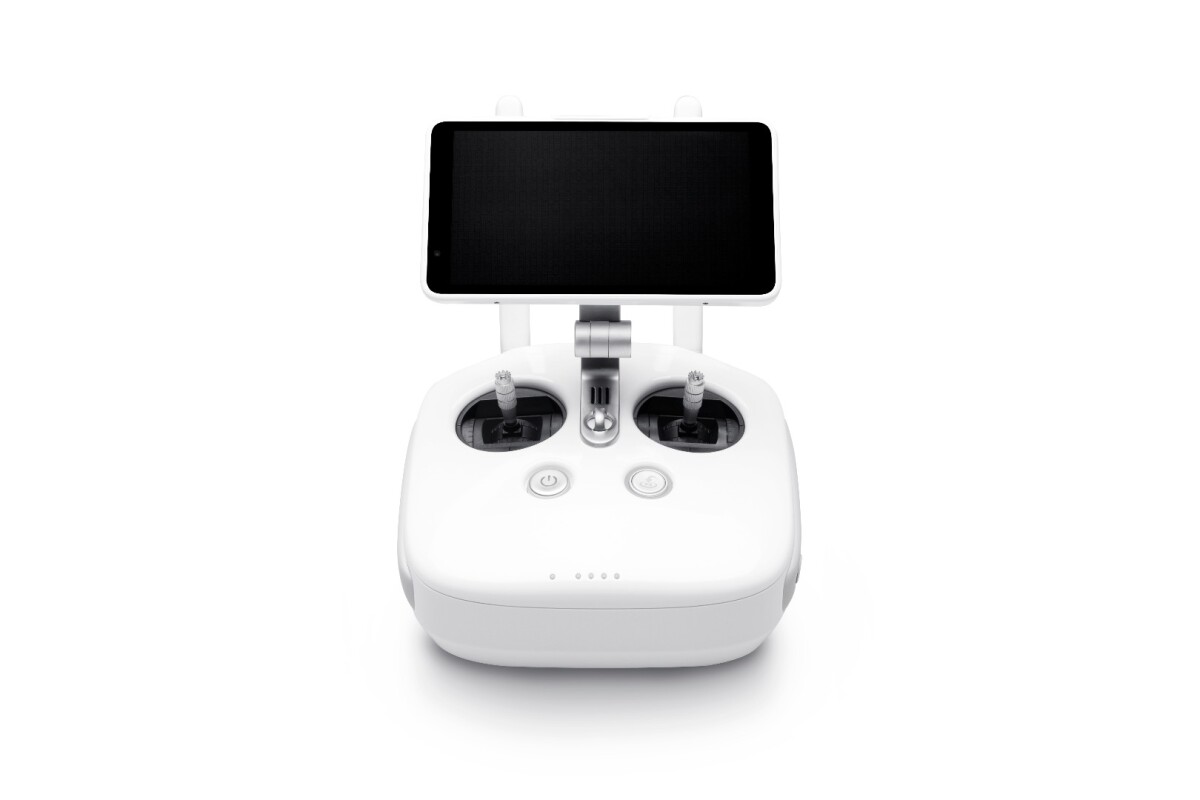

New remote with built-in, super bright touch screen

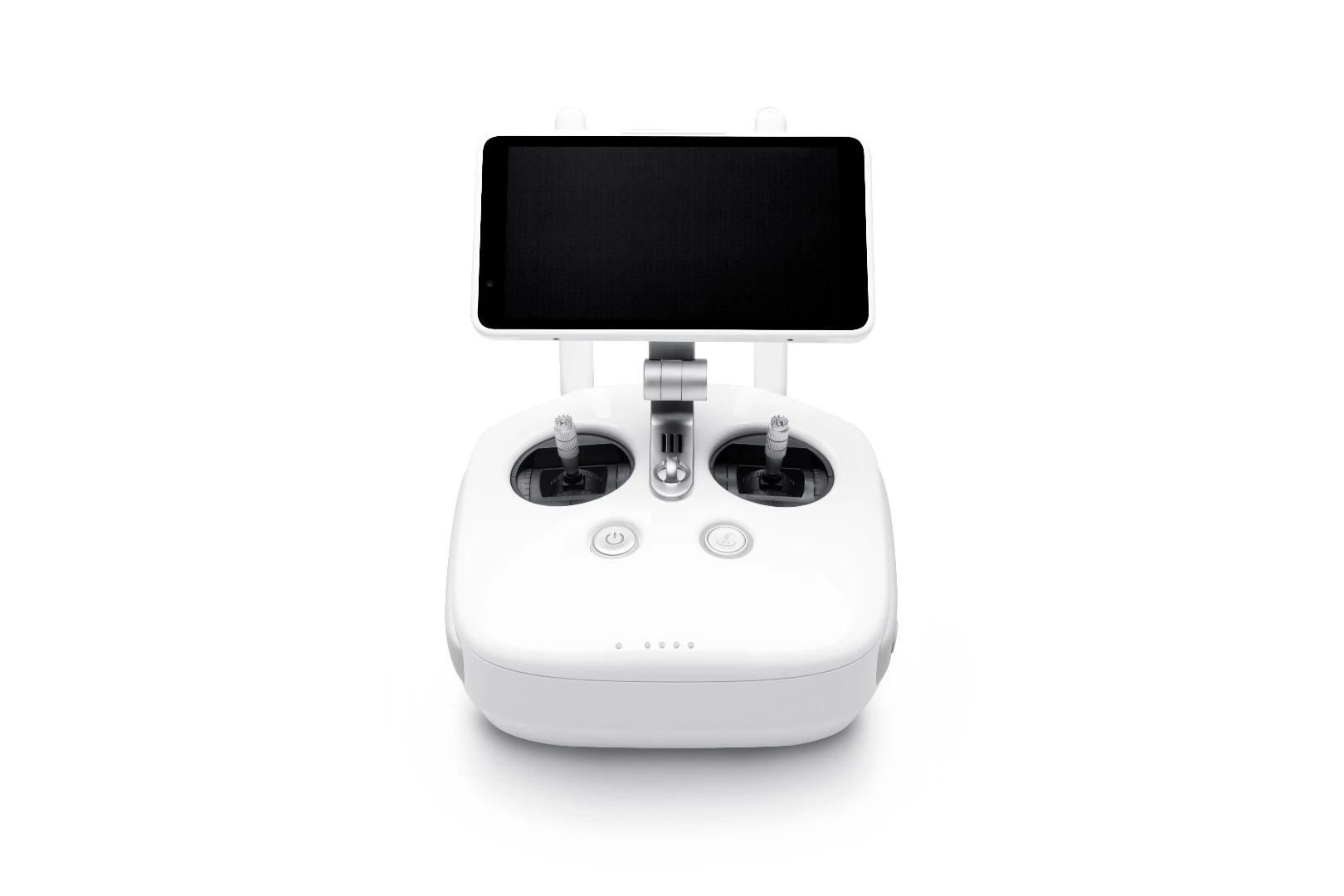

DJI Phantom 4 Pro: touch screen unit has MicroSD card and HDMI out to encourage instant editing and sharing of content
DJI Phantom 4 Pro: touch screen unit has MicroSD card and HDMI out to encourage instant editing and sharing of content

Finally, you'll be able to use your Phantom without burning your mobile phone or tablet battery or squinting at a screen that's not bright enough to compete with sunlight.

The Phantom 4 controller can be optioned up to have its own screen built-in – a 1080p, 5.5-inch touch screen about the same size as an iPhone 7 or Galaxy Note 5, but twice as bright. That means one less fiddly step in setup, as well as an optimized environment for the DJI Go software and a generally tighter user experience. Hopefully with the ultra-bright screen there won't be any need for screen shades.

The screen has a built-in HDMI port and MicroSD card slot, plus a microphone, speaker and Wi-Fi connection; DJI is positioning it for quick on-the-go editing and almost instant sharing of footage. The battery life for the controller and screen is now an impressive 5 hours, more than enough for a day's shoot and edit, and you'd need a ton of batteries for the airframe to outlast the controller.

Whether or not you go for the touchscreen option, an improved Lightbridge video and control transmission link gives the Phantom 4 Pro an astounding 7 km (4.3 mi) range, up from 5 km. Personally I've flown one about 4 km away in the open plains of Western Mongolia, and I found that quite terrifying enough.

The drone is out of visual range well before it's a kilometer away, and in most jurisdictions aviation law requires you keep it within visual distance anyway. So perhaps the final range isn't the big story here, more likely the link is more stable and interference-free than previous versions, with the addition of a new ability to switch between 2.4 and 5.8 Ghz transmission to find the cleanest signal in a given environment.

Upgraded flight and camera modes

DJI Phantom 4 Pro: safer than ever to fly in complex environments thanks to multidrectional obstacle avoidance technology
DJI Phantom 4 Pro: safer than ever to fly in complex environments thanks to multidrectional obstacle avoidance technology

The Phantom 4 Pro packs a bunch of new and improved flight modes, some of which look quite useful.

ActiveTrack, DJI's visual tracking system, is upgraded with the ability to recognize and track more subjects, including vehicles and animals as well as people. When it recognizes what kind of subject it's tracking, it adjusts its flight dynamics to suit.

There's also multiple ways the aircraft can fly while ActiveTrack is activated. Trace mode follows behind or in front of the subject while avoiding obstacles. Profile mode flies alongside for a side-on profile shot, and Spotlight mode lets you fly the drone wherever you want while keeping the subject in view.

TapFly was an interesting inclusion on the Phantom 4, and the new upgrades might make it very useful for filming. You can now tap on your screen to fly forward or backward, but the more interesting option is TapFly Free, which sets the Phantom flying steadily in a certain direction, but lets you rotate the camera freely. So it's kind of like a nice steady dolly where you get to operate the camera.

Draw mode is new; it lets you draw a path on the screen for the drone to follow. You can then either leave the camera pointing forward, or set it free so you can manage the camera as it flies.

Gesture mode is also new, it lets you wave your arms to initiate a three-second selfie countdown.

The Phantom 4 Pro has an upgraded Return to Home mode that's designed to do a much better job of flying back to the start point through complex environments. Effectively, the drone's obstacle avoidance systems let it build up a picture of its environment as it flies, and if it decides the path home is not a clear one, it'll retrace its steps to fly back safely. It also records vision of its takeoff point with its downward facing cameras, so it can hit its mark more precisely when it lands as well as being able to detect whether you're trying to land it in a puddle so it can warn you.

Battery and flight time improvements

The Phantom 4 Pro gets about two minutes more flight time than the Phantom 4, thanks to a 5,870 mAh pack that gives it just under 10 percent more battery capacity. Total flight time is now 30 minutes, which is pretty amazing – to get there, DJI has used a titanium/magnesium airframe to keep the weight of the drone low while packing in a bunch of extra sensor gear. That should also improve the rigidity and strength of the shell, so hopefully it'll be slightly more crash resistant as a result.

All in all, this is a solid and impressive update for the new top of the line Phantom prosumer drone. Multidirectional obstacle avoidance is a great idea, the new flight modes look useful and we greatly anticipate seeing how the vision looks out of the new camera setup. With a retail price of US$1,499, it's still an affordable tool for most filmmakers, and particularly with the new built-in touchscreen (an extra option for US$300 more) we feel it pushes the game another two big steps forward. Without doubt, if you're in the market and you've got the cash, this is the state of the art.

Check out the demo video below.
