Avidrone takes a double-headed approach to cargo delivery

Avidrone takes a double-headed...

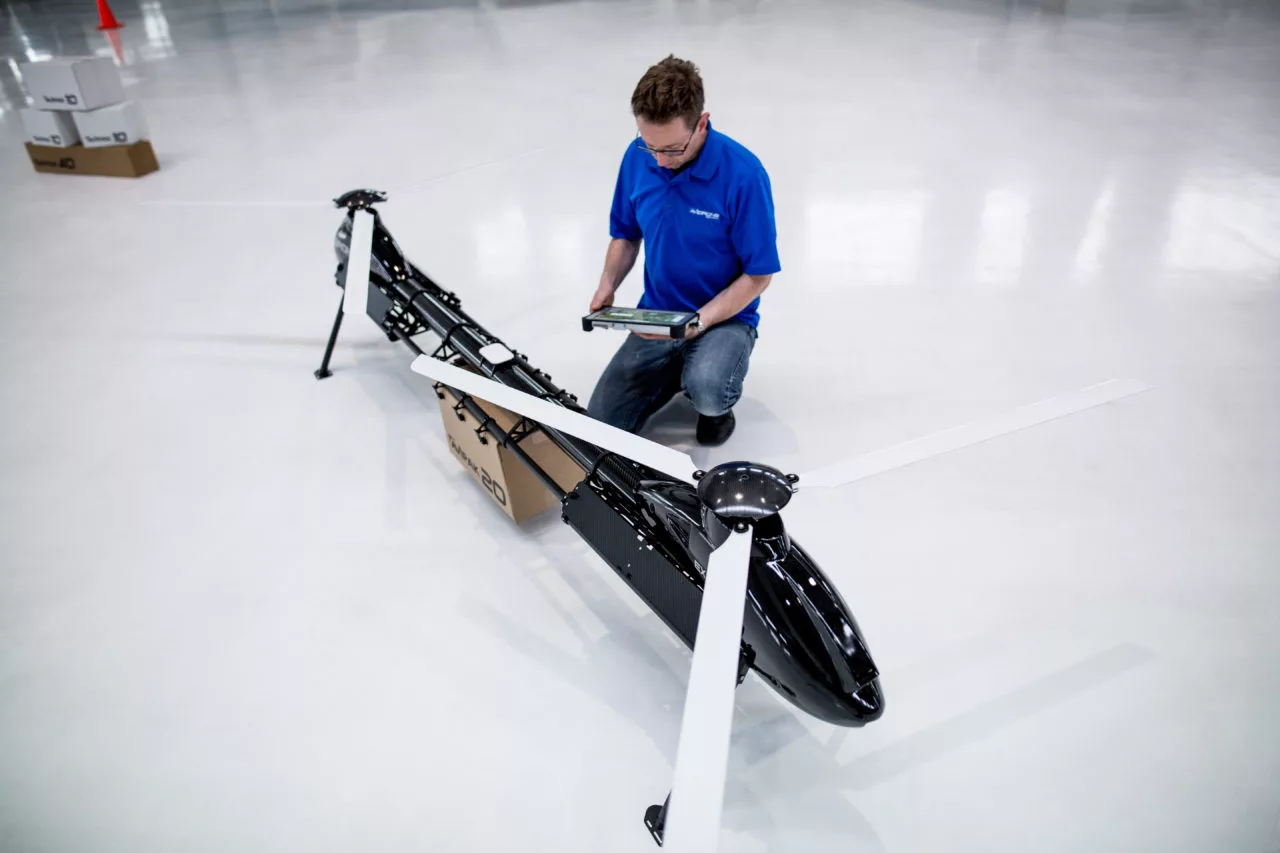

The Avidrone 210TL has a unique tandem rotor design, which is reportedly more efficient than a multicopter setup
The Avidrone 210TL has a unique tandem rotor design, which is reportedly more efficient than a multicopter setup
View 3 Images
The 210TL's flightpath is programmed into the G4 autopilot
1/3
The 210TL's flightpath is programmed into the G4 autopilot
The 210TL can carry up to 25 kg (55 lb) and has a top speed of 100 km/h (62 mph)
2/3
The 210TL can carry up to 25 kg (55 lb) and has a top speed of 100 km/h (62 mph)
The Avidrone 210TL has a unique tandem rotor design, which is reportedly more efficient than a multicopter setup
3/3
The Avidrone 210TL has a unique tandem rotor design, which is reportedly more efficient than a multicopter setup
View gallery - 3 images

There are now a number of heavy-lift cargo drones on the market, and they pretty much all incorporate six to eight horizontal propellers. The Avidrone 210TL is different, though, in that it goes with two sets of full rotor blades.

Manufactured by Canadian startup Avidrone Aerospace, the 210TL essentially takes the form of two miniature unmanned helicopters that are joined together at the tail by a horizontal boom. It's sort of like a drone version of Boeing's Chinook heavy-lift helicopter.

The user starts by hooking their cargo onto the boom's rails – clients can opt for a custom attachment system that's configured to the unique size and shape of their cargo, or they can go with a standard system that incorporates pre-supplied cargo boxes of different sizes.

Next, utilizing a tablet or laptop that's running Avidrone's house-brand G4 autopilot system, they program in a flightpath for the drone to follow. From there, it's pretty much just a matter of launching the aircraft. It will proceed to autonomously fly to and land at its destination, release the cargo by raising its boom rail hooks, then fly back to its point of take-off (or wherever it's been instructed to go next).

The 210TL's flightpath is programmed into the G4 autopilot
The 210TL's flightpath is programmed into the G4 autopilot

According to the company, one 1.3-hour charge of the 210TL's lithium battery pack should be good for a range of 120 km (75 mi). The drone can carry up to 25 kg (55 lb) and has a top speed of 100 km/h (62 mph). But why go with the tandem rotor blade setup?

CEO Scott Gray tells us that while the more commonly seen multicopter drones are simpler to design, they're not nearly as powerful or energy-efficient as the 210TL. For a given amount of battery power, it can reportedly travel up to 10 times farther than a multicopter, or lift cargo that's five times heavier.

The Avidrone 210TL is already being manufactured, and has been commercially available for about a year and a half. It can be seen in action, in the video below.

Source: Avidrone Aerospace

AVIDRONE Aerospace 210TL Cargo Drone

View gallery - 3 images
4 comments
Nobody
I've been waiting for this type of design to come along. The larger rotors are much more efficient. I was actually expecting a conventional helicopter design to eventually win out with even larger rotors. The larger rotors will present a bigger hazard to anyone nearby an automated delivery.
Peter S
I'm doubtful that they're making an apples to apples comparison with multirotors here, hover efficiency is mostly about disk loading and isn't directly affected by the number of rotors you have. I can see it being efficient in forward flight though since the fuselage has a very small frontal area compared to a multirotor aircraft.

For even greater cruise efficiency you'd of course want to use a dedicated wing, but that's hard to combine with a low disk loading due to the problem of what to do with the large rotor/rotors when in forward flight. So this design is probably a good choice if you prioritize great hover efficiency but also want relatively efficient forward flight.
vince
Good idea in crowded city and can avoid decapitating someone or some group?
windykites
Is there a possibility of using the auto-gyro system? Do multi rotors give better control (for photographic stability? Not so necessary for a delivery craft.)
