Dwell's zero energy Emerald Star home uses almost entirely reclaimed wood

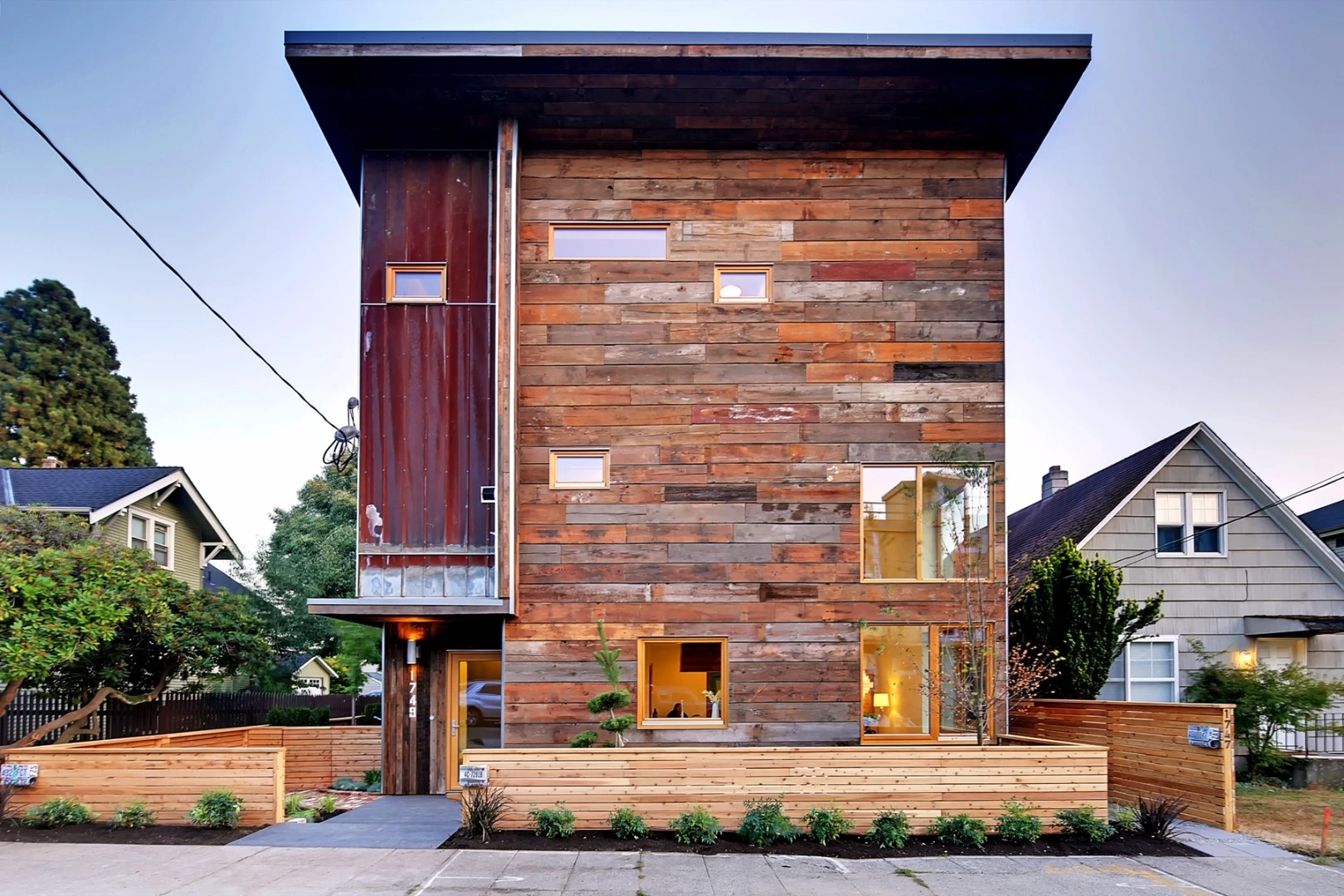

The Emerald Star house project will be Dwell Development's 100th certified home
The Emerald Star house project will be Dwell Development's 100th certified home
View 27 Images
The Emerald Star house project will be Dwell Development's 100th certified home
1/27
The Emerald Star house project will be Dwell Development's 100th certified home

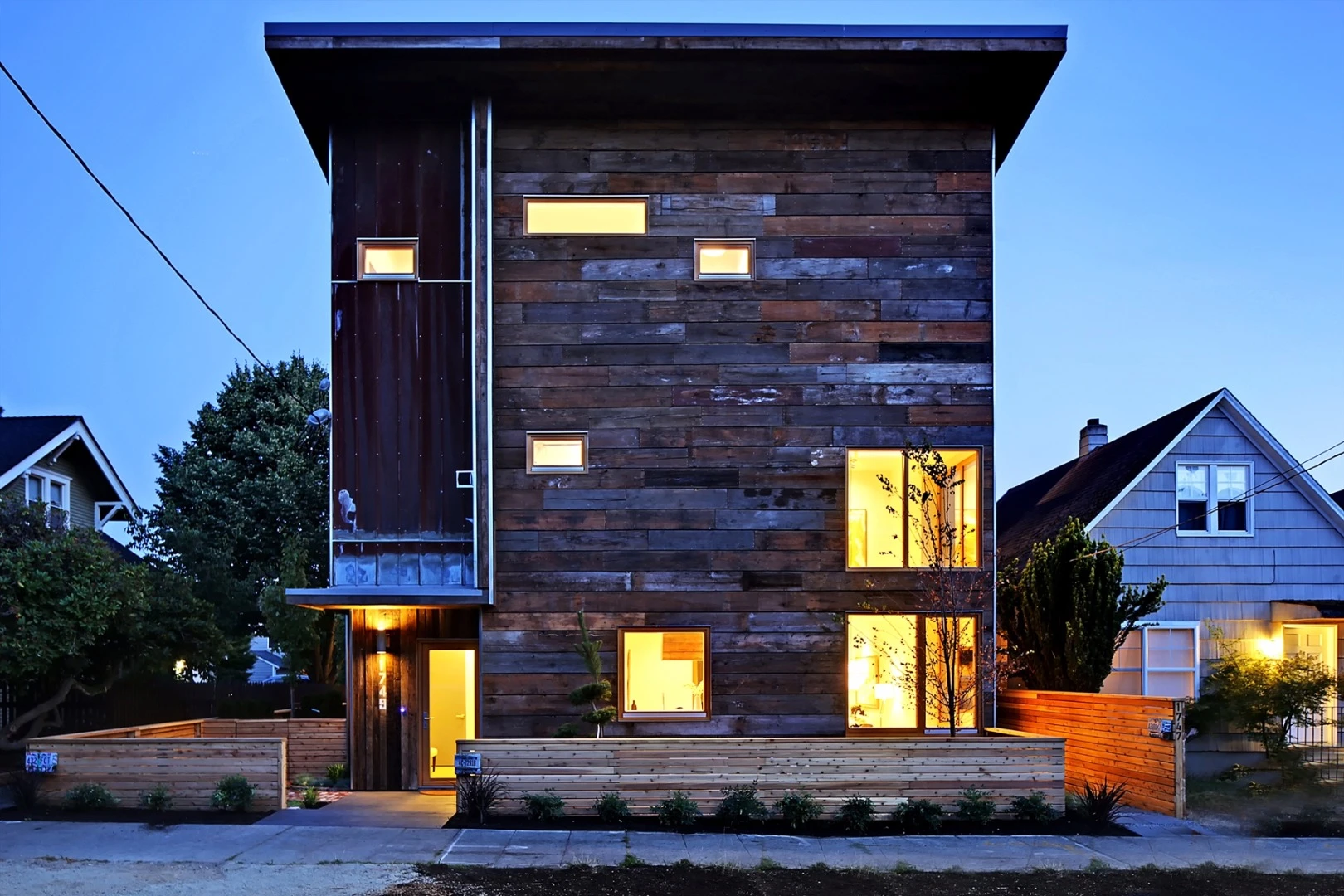

The house is designed to be Built Green Emerald Star certified
2/27
The house is designed to be Built Green Emerald Star certified

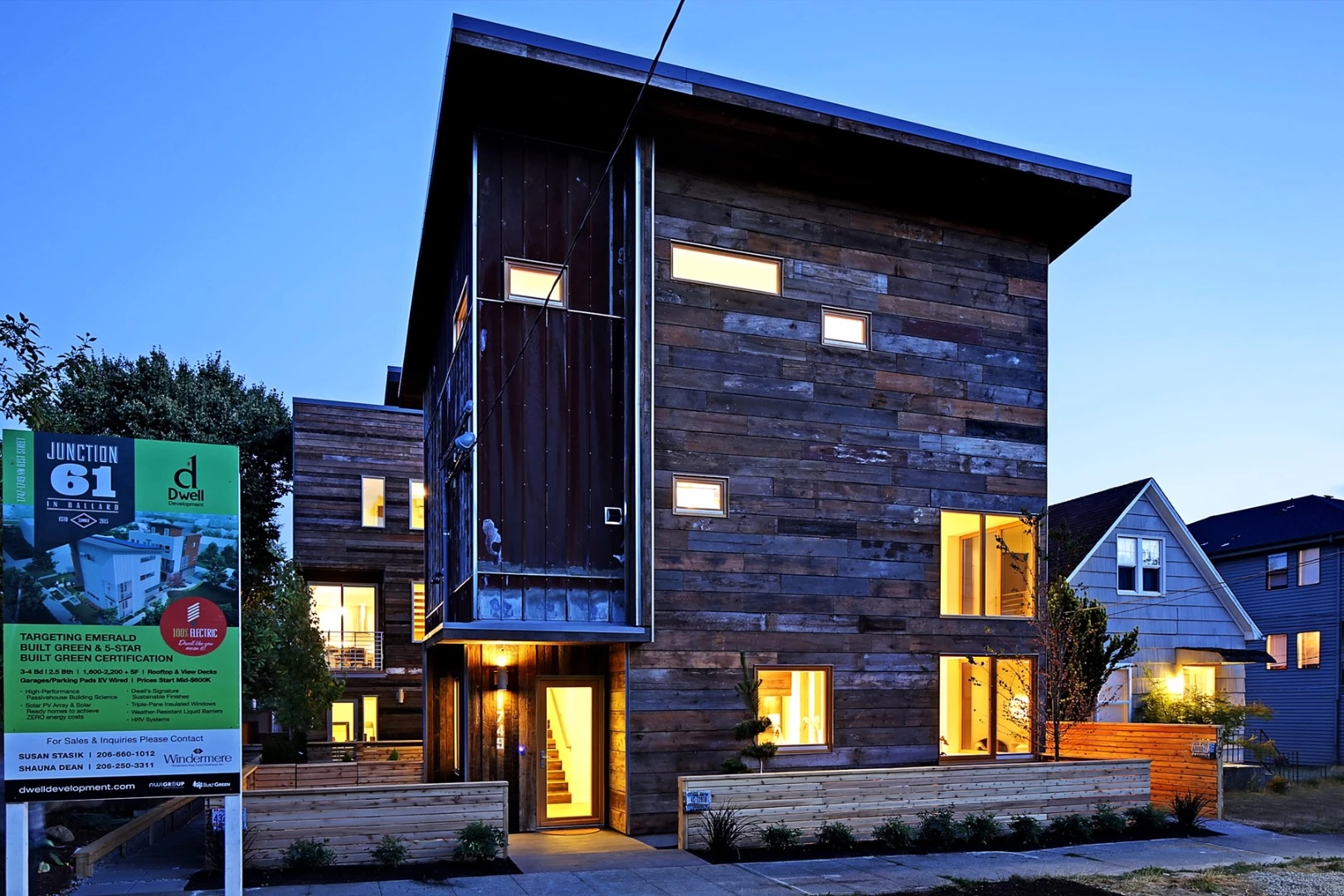

If Emerald Star certification is awarded, it will be the first house of its kind in Seattle
3/27
If Emerald Star certification is awarded, it will be the first house of its kind in Seattle

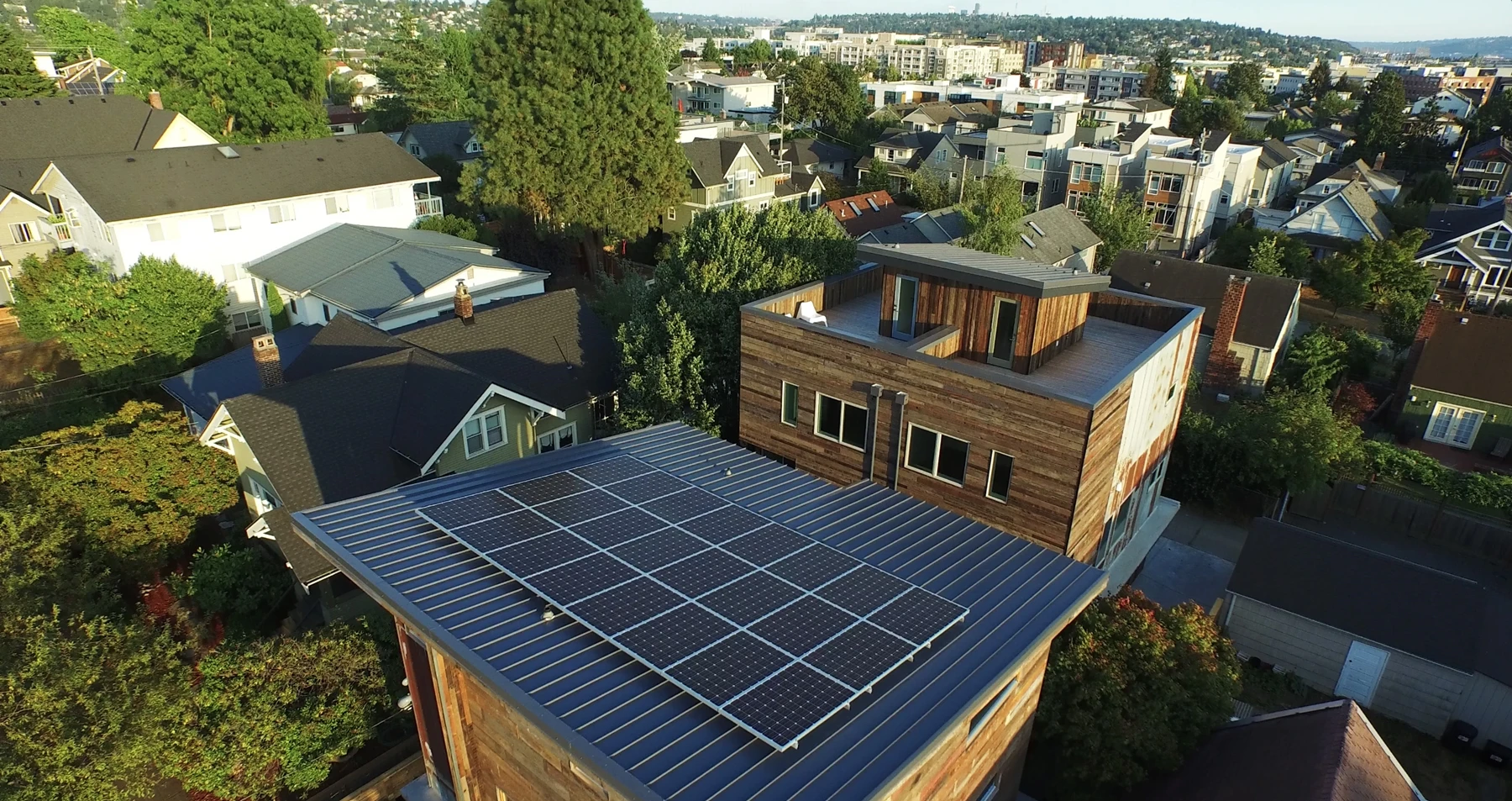

The house has a 6.6 kW photovoltaic array on its roof
4/27
The house has a 6.6 kW photovoltaic array on its roof

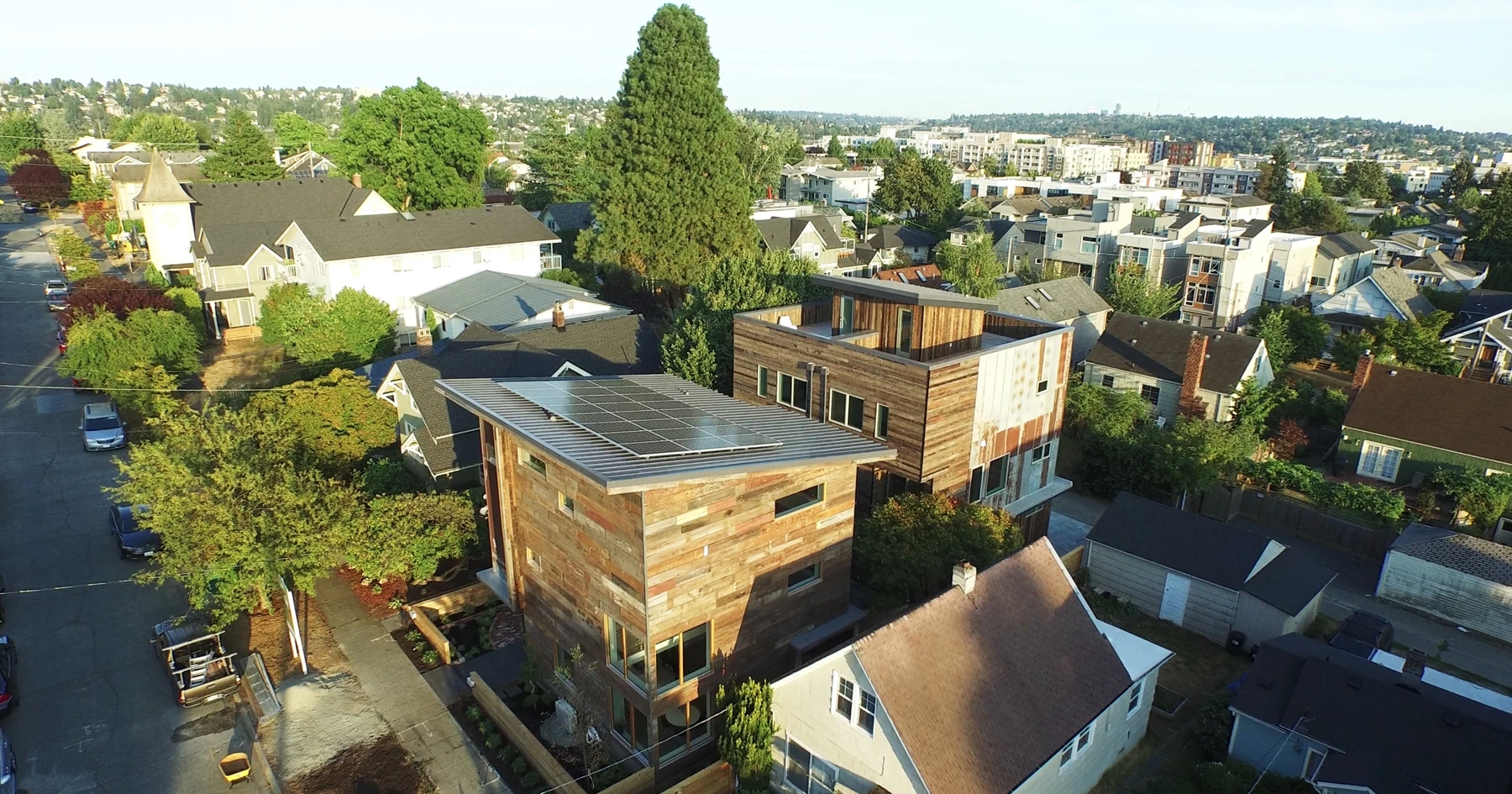

The roof and window placement of the house is configured to maximize solar gain without sacrificing looks
5/27
The roof and window placement of the house is configured to maximize solar gain without sacrificing looks

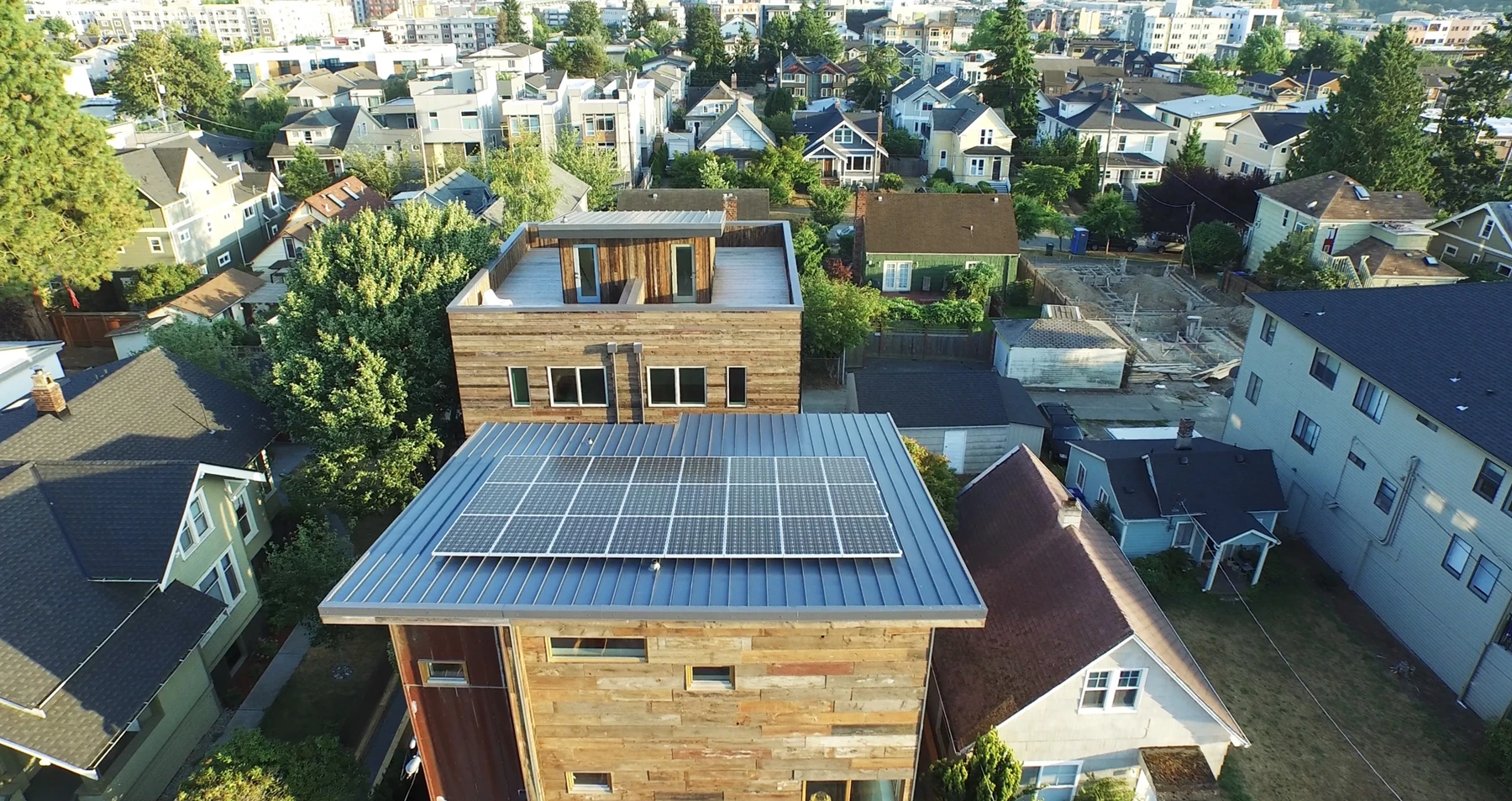

The photovoltaic array is required to ensure the house can achieve zero energy status
6/27
The photovoltaic array is required to ensure the house can achieve zero energy status

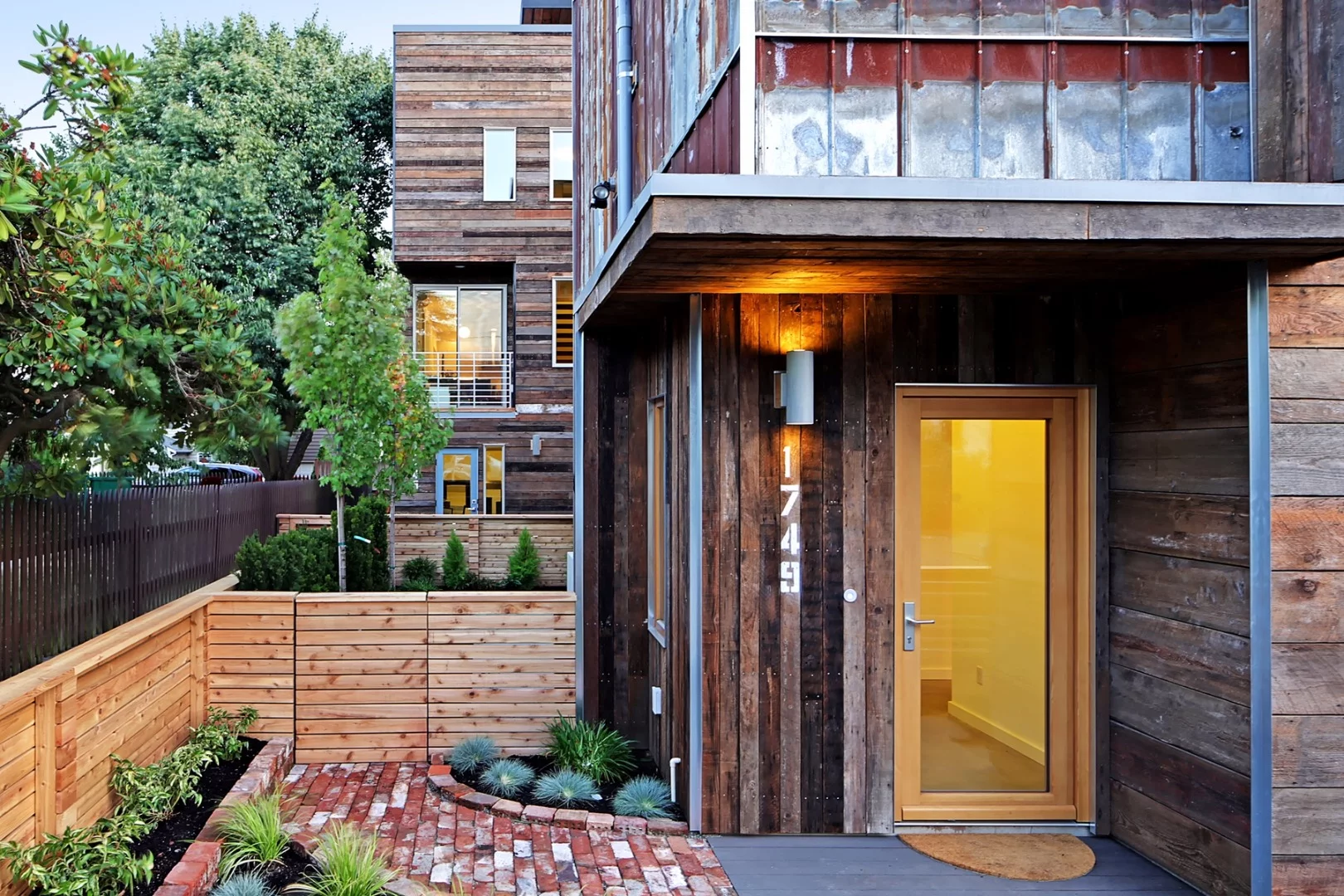

Over 90 percent of the building's wood had to be reclaimed or FSC-certified for it to achieve Emerald Star status
7/27
Over 90 percent of the building's wood had to be reclaimed or FSC-certified for it to achieve Emerald Star status
The building's exterior paneling is reclaimed Douglas Fir
8/27
The building's exterior paneling is reclaimed Douglas Fir

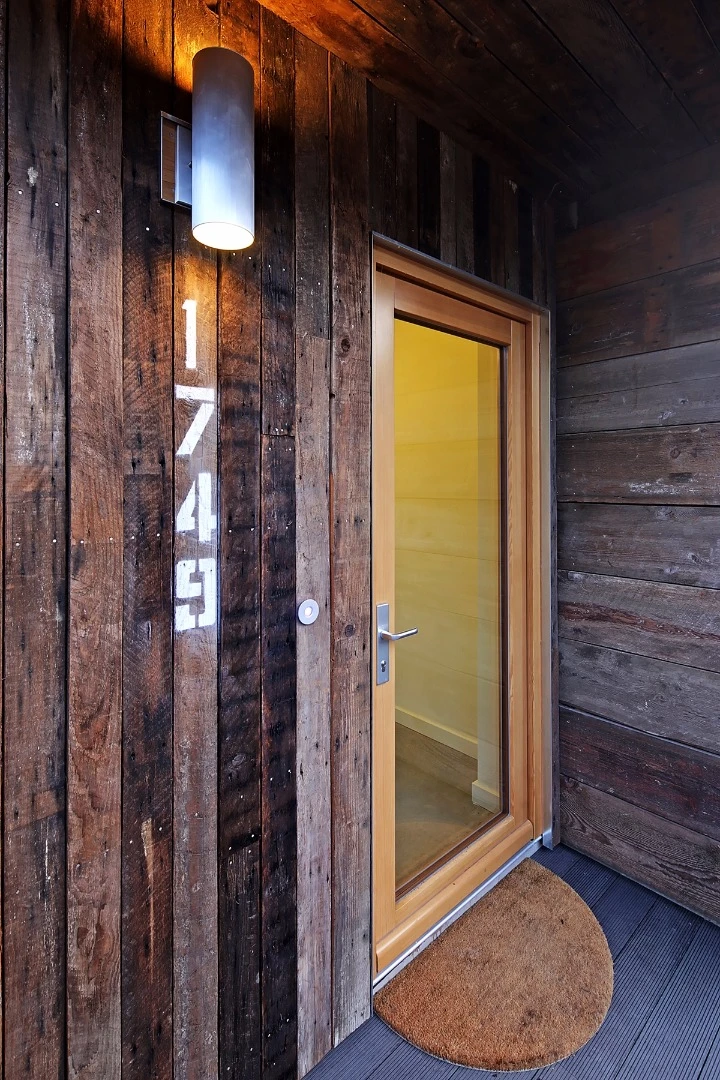

The building's insulation and its wood-framed windows and doors are designed to create an airtight seal to minimize thermal and sound leaks
9/27
The building's insulation and its wood-framed windows and doors are designed to create an airtight seal to minimize thermal and sound leaks

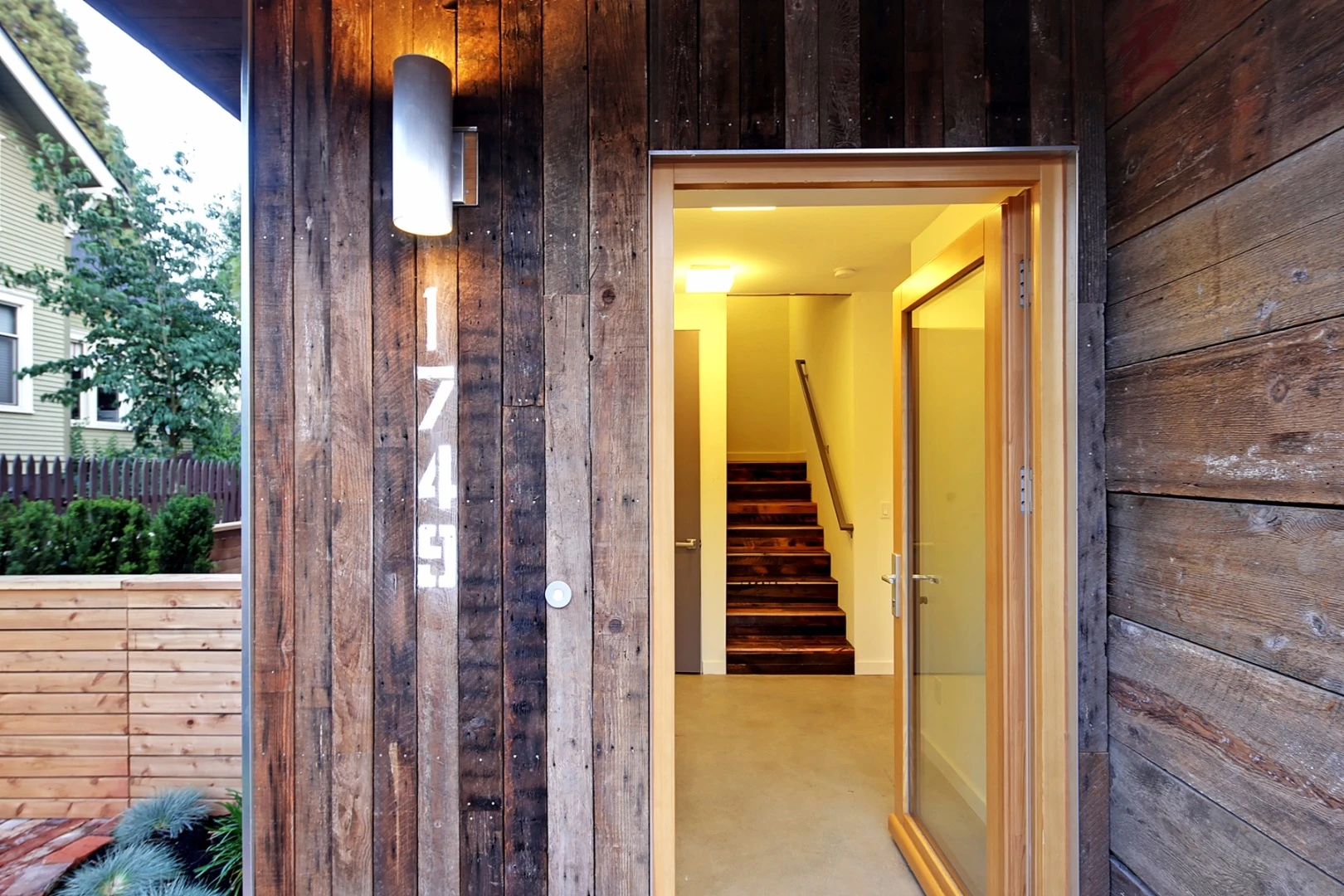

The timber used for the building's framing package is FSC-certified
10/27
The timber used for the building's framing package is FSC-certified
The building scored a blower doors test result of 1.17 ACH 50, well within the 2.4 ACH 50 score required for Emerald Star certification
11/27
The building scored a blower doors test result of 1.17 ACH 50, well within the 2.4 ACH 50 score required for Emerald Star certification
The house has a pending HERS Score of 0 or lower
12/27
The house has a pending HERS Score of 0 or lower
A heat recovery ventilation system is employed to expel stale air from the house and to draw fresh, clean air in
13/27
A heat recovery ventilation system is employed to expel stale air from the house and to draw fresh, clean air in
The heat recovery system helps to maintain a comfortable temperature inside the building
14/27
The heat recovery system helps to maintain a comfortable temperature inside the building

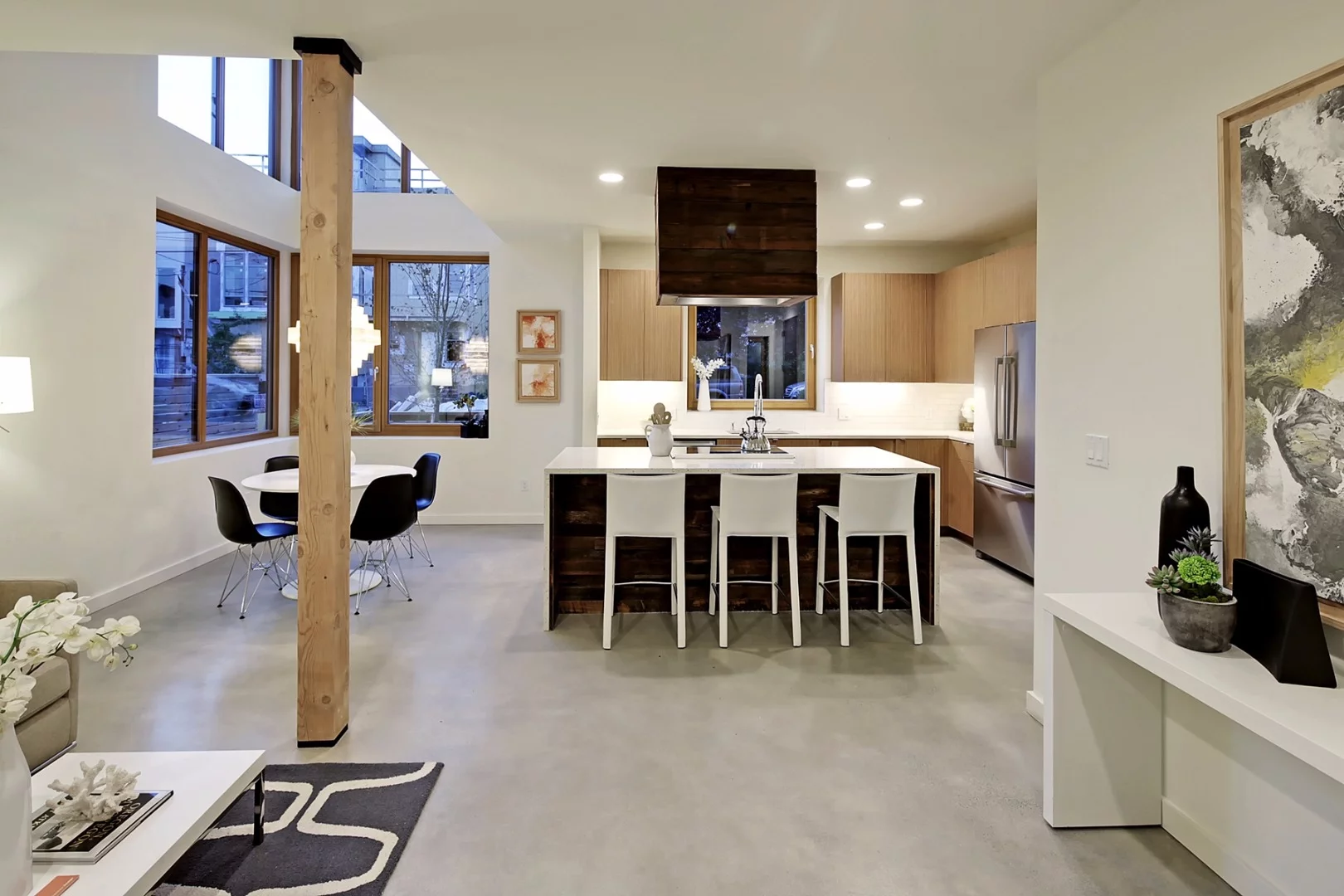

The building has an open-plan downstairs layout
15/27
The building has an open-plan downstairs layout
There is a joint kitchen and living space area
16/27
There is a joint kitchen and living space area
The water heat pump system is said to use 78 percent less energy usage compared to traditional hot water systems
17/27
The water heat pump system is said to use 78 percent less energy usage compared to traditional hot water systems
The hot water heat pump uses 1 kW of energy to generate 4.5 kW of heat
18/27
The hot water heat pump uses 1 kW of energy to generate 4.5 kW of heat
Countertops, cabinets and tile, meanwhile, are made locally from recycled materials
19/27
Countertops, cabinets and tile, meanwhile, are made locally from recycled materials
The bedrooms in the house are spacious
20/27
The bedrooms in the house are spacious

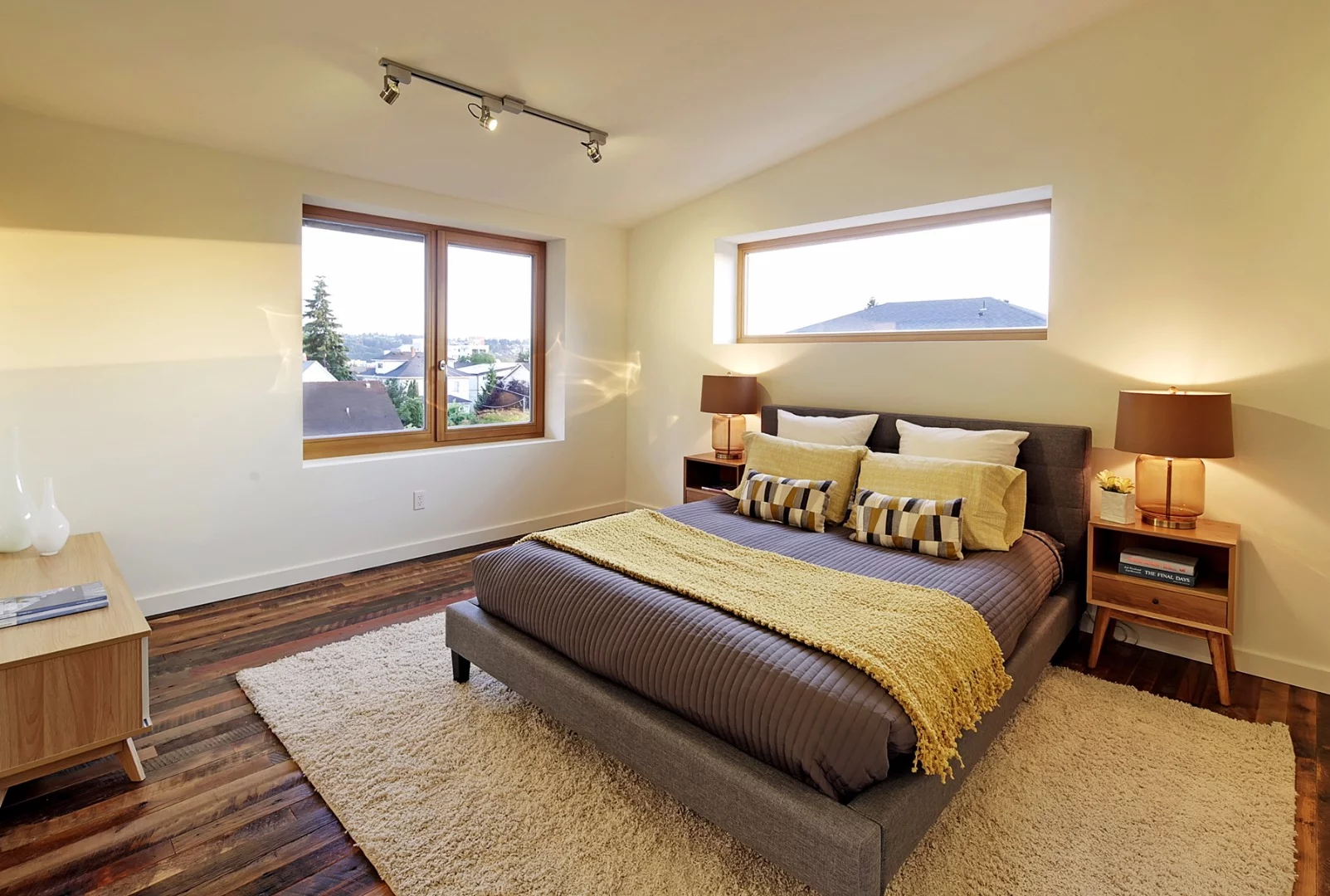

There are views of the surrounding area from the house
21/27
There are views of the surrounding area from the house

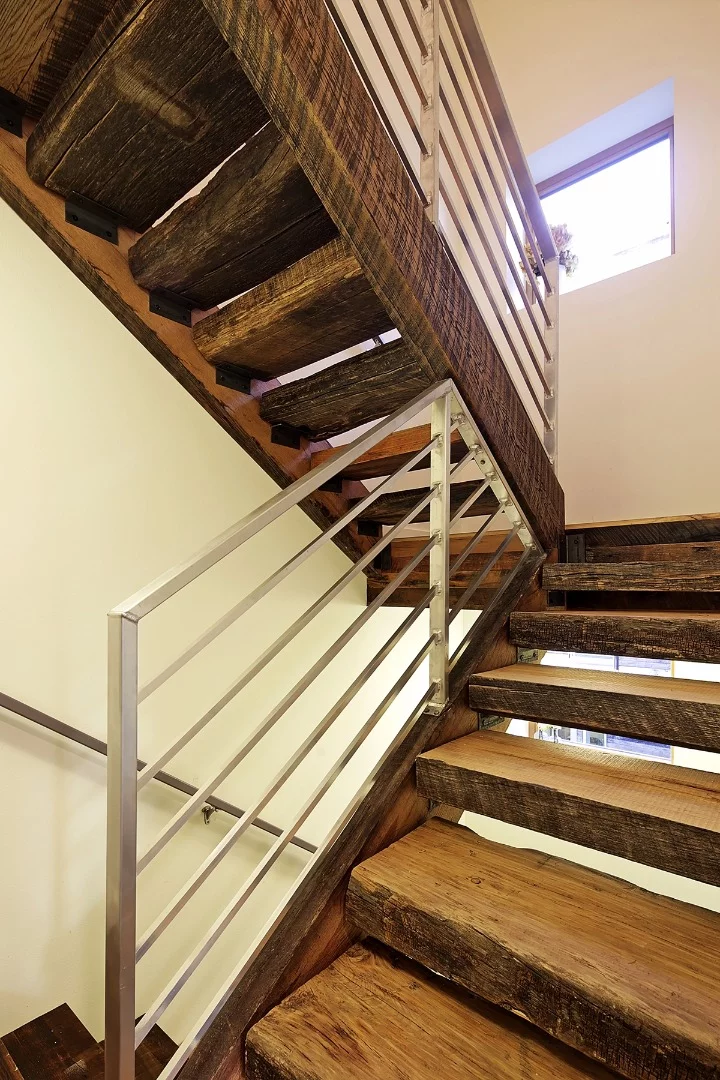

Floors, stairs, and treads were built out of 100-year-old hand-sewn mixed hardwoods
22/27
Floors, stairs, and treads were built out of 100-year-old hand-sewn mixed hardwoods
The house has a modern style, despite the use of reclaimed materials
23/27
The house has a modern style, despite the use of reclaimed materials
The house covers 2,218 sq ft (206 sq m)
24/27
The house covers 2,218 sq ft (206 sq m)
The house has a mezzanine space
25/27
The house has a mezzanine space
Large windows allow plenty of natural light into the house
26/27
Large windows allow plenty of natural light into the house

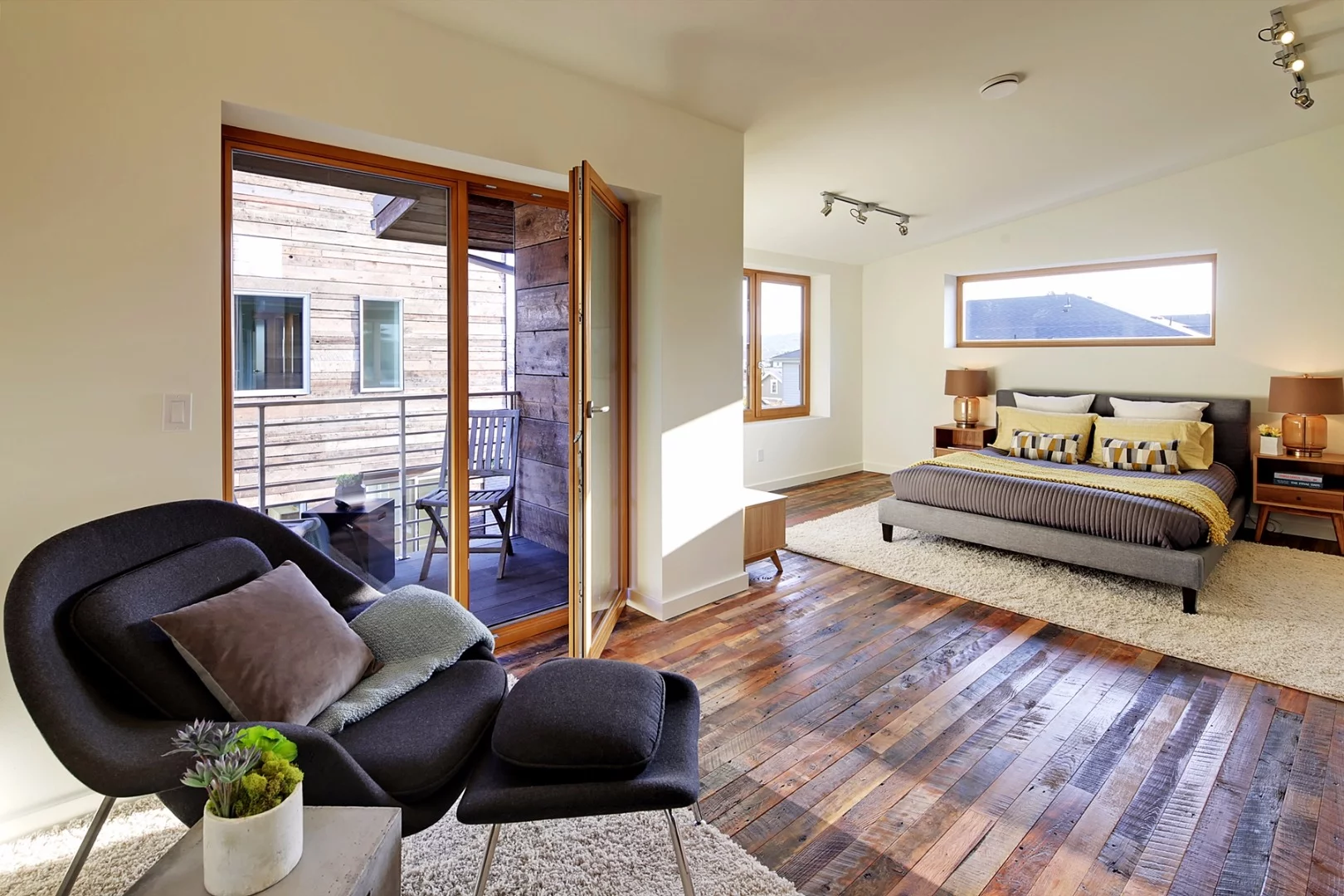

Wooden flooring is used in some parts of the house
27/27
Wooden flooring is used in some parts of the house

A new home in Seattle is described as having a cutting-edge combination of green technology, renewables and reclaimed materials. It is designed by Dwell Development to be Built Green Emerald Star certified. If the certification is awarded, it will be be the first home of its kind in the city.

The Built Green residential building program was developed with a view to providing environmental standards for use of materials, energy efficiency, water use and indoor air quality. Built Green ratings range from 3-Star through 4-Star and 5-Star up to Emerald Star.

Emerald Star certified homes must achieve net zero energy usage by way of generating electricity from a renewable source such as solar or wind, use 70 percent less water than a conventional home and ensure that 90 percent of wood used is reclaimed or FSC-certified. They must also demonstrate impeccable air quality.

The certification for Dwell's 2,218-sq ft (206-sq m) home is still pending, but the firm, which previously designed the Reclaimed Modern home in Columbia City, says it expects it to receive the highest rating. The firm says it is the only residential developer in Washington that exclusively builds 5-star or above Built Green homes and that the Emerald Star project will be its 100th certified home.

The roof and window placement of the house is configured to maximize solar gain without sacrificing looks
The roof and window placement of the house is configured to maximize solar gain without sacrificing looks

To begin, the roof and window placement of the house is configured to maximize solar gain without sacrificing looks. Electricity is generated by a 6.6 kW photovoltaic array on the roof, and the building's pending HERS Score of 0 or lower will confirm its zero energy status if awarded.

Inside, a heat recovery ventilation system is employed to expel stale air from the house and to draw fresh, clean air in. The system also helps to maintain a comfortable temperature inside the building. An efficient hot water heat pump, meanwhile, uses 1 kW of energy to generate 4.5 kW of heat, which Dwell says is 78 percent less energy usage compared to traditional hot water systems.

The building's insulation and its wood-framed windows and doors are designed to create an airtight seal to minimize thermal and sound leaks. Indeed, it scored a blower doors test result of 1.17 ACH 50, well within the 2.4 ACH 50 score required for Emerald Star certification.

The building's exterior paneling is reclaimed Douglas Fir
The building's exterior paneling is reclaimed Douglas Fir

The timber used for the building's framing package is FSC-certified and its exterior paneling is reclaimed Douglas Fir. Naturally-weathered steel from a cannery in Oregon’s Willamette Valley is used for the building's roof panelling and acts as a rainscreen. Countertops, cabinets and tile, meanwhile, are made locally from recycled materials.

Dwell's Emerald Star home project was completed only recently. The video below provides a tour of the house.

Source: Dwell Development
